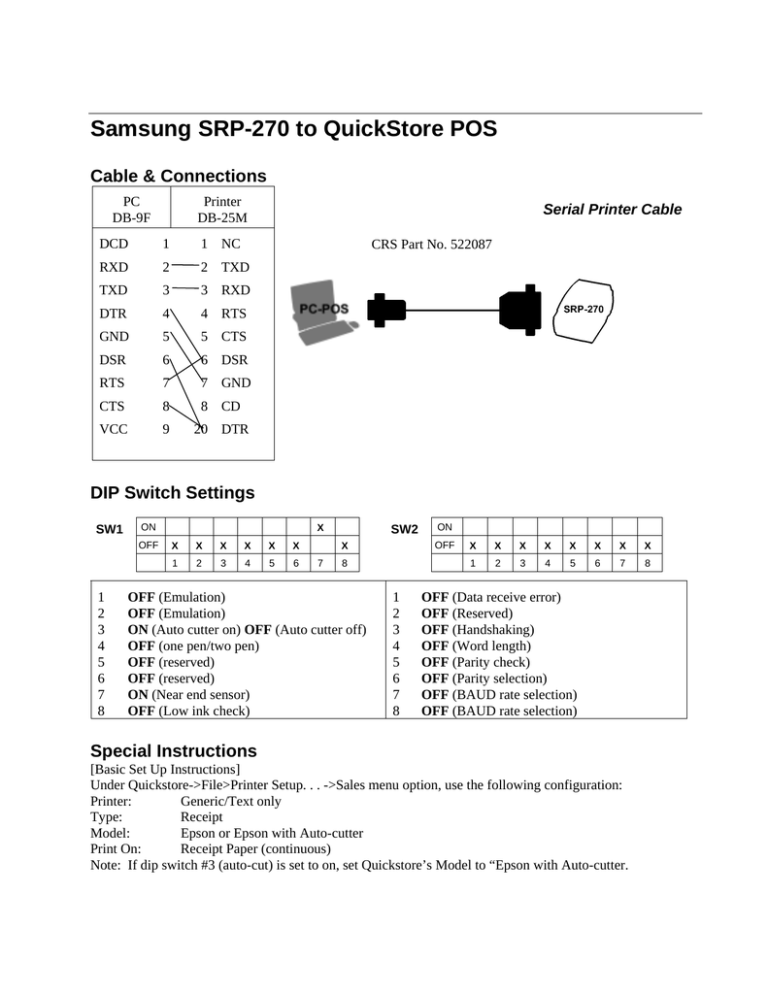

Samsung SRP-270 to QuickStore POS
Cable & Connections
PC
DB-9F
Printer
DB-25M
DCD
1
1 NC
RXD
2
2 TXD
TXD
3
3 RXD
DTR
4
4 RTS
GND
5
5 CTS
DSR
6
6 DSR
RTS
7
7 GND
CTS
8
8 CD
VCC
9
20 DTR
Serial Printer Cable
CRS Part No. 522087
DIP Switch Settings
SW1
ON
OFF
1
2
3
4
5
6
7
8
X
X
X
X
X
X
X
1
2
3
4
5
6
SW2
OFF
X
7
8
OFF (Emulation)
OFF (Emulation)
ON (Auto cutter on) OFF (Auto cutter off)
OFF (one pen/two pen)
OFF (reserved)
OFF (reserved)
ON (Near end sensor)
OFF (Low ink check)
ON
1
2
3
4
5
6
7
8
X
X
X
X
X
X
X
X
1
2
3
4
5
6
7
8
OFF (Data receive error)
OFF (Reserved)
OFF (Handshaking)
OFF (Word length)
OFF (Parity check)
OFF (Parity selection)
OFF (BAUD rate selection)
OFF (BAUD rate selection)
Special Instructions
[Basic Set Up Instructions]
Under Quickstore->File>Printer Setup. . . ->Sales menu option, use the following configuration:
Printer:
Generic/Text only
Type:
Receipt
Model:
Epson or Epson with Auto-cutter
Print On:
Receipt Paper (continuous)
Note: If dip switch #3 (auto-cut) is set to on, set Quickstore’s Model to “Epson with Auto-cutter.
