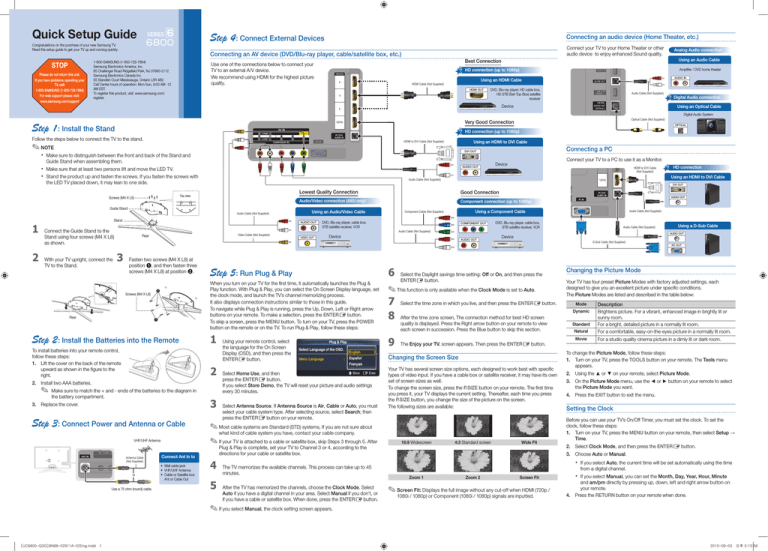

Quick Setup Guide
Step 4: Connect External Devices
Congratulations on the purchase of your new Samsung TV.
Read this setup guide to get your TV up and running quickly.
Please do not return this unit.
If you have problems operating your
TV, call:
1-800-SAMSUNG (1-800-726-7864)
For web support please visit:
www.samsung.com/support
Connect your TV to your Home Theater or other
audio device to enjoy enhanced Sound quality.
Connecting an AV device (DVD/Blu-ray player, cable/satellite box, etc.)
1-800-SAMSUNG (1-800-726-7864)
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park, NJ 07660-2112
Samsung Electronics Canada Inc.
55 Standish Court Mississauga, Ontario L5R 4B2
Call Center hours of operation: Mon-Sun, 9:00 AM -12
AM EST.
To register this product, visit: www.samsung.com/
register.
STOP
Connecting an audio device (Home Theater, etc.)
Using an Audio Cable
Best Connection
Use one of the connections below to connect your
TV to an external A/V device.
We recommend using HDMI for the highest picture
quality.
HD connection (up to 1080p)
Amplifier / DVD home theater
AUDIO IN
Using an HDMI Cable
HDMI Cable (Not Supplied)
HDMI OUT
Analog Audio connection
DVD, Blu-ray player, HD cable box,
HD STB (Set-Top-Box) satellite
receiver
Audio Cable (Not Supplied)
Device
Digital Audio connection
Using an Optical Cable
Digital Audio System
Step 1: Install the Stand
OPTICAL
HD connection (up to 1080p)
Follow the steps below to connect the TV to the stand.
Using an HDMI to DVI Cable
HDMI to DVI Cable (Not Supplied)
✎✎NOTE
Guide Stand when assembling them.
xx Make sure that at least two persons lift and move the LED TV.
AUDIO OUT
xx Stand the product up and fasten the screws. If you fasten the screws with
the LED TV placed down, it may lean to one side.
s
Guide Stand
HDMI to DVI Cable
(Not Supplied)
HD connection
Using an HDMI to DVI Cable
DVI OUT
Lowest Quality Connection
Good Connection
Audio/Video connection (480i only)
Component connection (up to 1080p)
AUDIO OUT
s
s
s
s
Audio Cable (Not Supplied)
Stand
Using an Audio/Video Cable
AUDIO OUT
Video Cable (Not Supplied)
Rear
Stand using four screws (M4 X L8)
as shown.
Connect your TV to a PC to use it as a Monitor.
Device
Audio Cable (Not Supplied)
Top view
Screws (M4 X L8)
Connecting a PC
DVI OUT
xx Make sure to distinguish between the front and back of the Stand and
1 Connect the Guide Stand to the
Optical Cable (Not Supplied)
Very Good Connection
Using a Component Cable
Component Cable (Not Supplied)
DVD, Blu-ray player, cable box,
STB satellite receiver, VCR
COMPONENT OUT
Audio Cable (Not Supplied)
DVD, Blu-ray player, cable box,
STB satellite receiver, VCR
Audio Cable (Not Supplied)
Audio Cable (Not Supplied)
VIDEO OUT
Device
AUDIO OUT
Using a D-Sub Cable
AUDIO OUT
Device
D-Sub Cable (Not Supplied)
PC OUT
2 With your TV upright, connect the 3 Fasten two screws (M4 X L8) at
TV to the Stand.
position 1, and then fasten three
screws (M4 X L8) at position 2.
Screws (M4 X L8)
2
s
s
s
s
s
s
s
s
s
s
s
Rear
1
Step 2: Install the Batteries into the Remote
To install batteries into your remote control,
follow these steps:
1. Lift the cover on the back of the remote
upward as shown in the figure to the
right.
Step 5: Run Plug & Play
When you turn on your TV for the first time, it automatically launches the Plug &
Play function. With Plug & Play, you can select the On Screen Display language, set
the clock mode, and launch the TV’s channel memorizing process.
It also displays connection instructions similar to those in this guide.
To navigate while Plug & Play is running, press the Up, Down, Left or Right arrow
buttons on your remote. To make a selection, press the ENTERE button.
To skip a screen, press the MENU button. To turn on your TV, press the POWER
button on the remote or on the TV. To run Plug & Play, follow these steps:
1 Using your remote control, select
the language for the On Screen
Display (OSD), and then press the
ENTERE button.
Menu Language
2 Select Home Use, and then
2. Install two AAA batteries.
✎✎ Make sure to match the + and - ends of the batteries to the diagram in
the battery compartment.
English
:
Español
Français
U Move E Enter
press the ENTERE button.
If you select Store Demo, the TV will reset your picture and audio settings
every 30 minutes.
3 Select Antenna Source. If Antenna Source is Air, Cable or Auto, you must
3. Replace the cover.
Step 3: Connect Power and Antenna or Cable
Changing the Picture Mode
✎✎This function is only available when the Clock Mode is set to Auto.
Your TV has four preset Picture Modes with factory adjusted settings, each
designed to give you an excellent picture under specific conditions.
The Picture Modes are listed and described in the table below:
ENTERE button.
7 Select the time zone in which you live, and then press the ENTERE button.
8 After the time zone screen, The connection method for best HD screen
quality is displayed. Press the Right arrow button on your remote to view
each screen in succession. Press the Blue button to skip this section.
9 The Enjoy your TV. screen appears. Then press the ENTERE button.
Plug & Play
Select Language of the OSD.
6 Select the Daylight savings time setting: Off or On, and then press the
select your cable system type. After selecting source, select Search; then
press the ENTERE button on your remote.
Changing the Screen Size
Your TV has several screen size options, each designed to work best with specific
types of video input. If you have a cable box or satellite receiver, it may have its own
set of screen sizes as well.
To change the screen size, press the P.SIZE button on your remote. The first time
you press it, your TV displays the current setting. Thereafter, each time you press
the P.SIZE button, you change the size of the picture on the screen.
The following sizes are available:
✎✎Most cable systems are Standard (STD) systems, If you are not sure about
what kind of cable system you have, contact your cable company.
✎✎If your TV is attached to a cable or satellite box, skip Steps 3 through 5. After
VHF/UHF Antenna
Antenna Cable
(Not Supplied)
or
Use a 75 ohm (round) cable.
Connect Ant In to
• Wall cable jack
• VHF/UHF Antenna
• Cable or Satellite box
Ant or Cable Out
Plug & Play is complete, set your TV to Channel 3 or 4, according to the
directions for your cable or satellite box.
16:9 Widescreen
4:3 Standard screen
Wide Fit
5 After the TV has memorized the channels, choose the Clock Mode. Select
Auto if you have a digital channel in your area. Select Manual if you don’t, or
if you have a cable or satellite box. When done, press the ENTERE button.
Movie
For a studio quality cinema picture in a dimly lit or dark room.
Standard
To change the Picture Mode, follow these steps:
1. Turn on your TV, press the TOOLS button on your remote. The Tools menu
appears.
2. Using the ▲ or ▼ on your remote, select Picture Mode.
3. On the Picture Mode menu, use the ◄ or ► button on your remote to select
the Picture Mode you want.
4. Press the EXIT button to exit the menu.
Setting the Clock
Before you can use your TV’s On/Off Timer, you must set the clock. To set the
clock, follow these steps:
1. Turn on your TV, press the MENU button on your remote, then select Setup →
Time.
2. Select Clock Mode, and then press the ENTERE button.
3. Choose Auto or Manual.
4 The TV memorizes the available channels. This process can take up to 45
minutes.
Natural
Description
Brightens picture. For a vibrant, enhanced image in brightly lit or
sunny room.
For a bright, detailed picture in a normally lit room.
For a comfortable, easy-on-the-eyes picture in a normally lit room.
Mode
Dynamic
xx If you select Auto, the current time will be set automatically using the time
from a digital channel.
Zoom 1
Zoom 2
Screen Fit
✎✎Screen Fit: Displays the full image without any cut-off when HDMI (720p /
1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
xx If you select Manual, you can set the Month, Day, Year, Hour, Minute
and am/pm directly by pressing up, down, left and right arrow button on
your remote.
4. Press the RETURN button on your remote when done.
✎✎If you select Manual, the clock setting screen appears.
[UC6800-QSG]BN68-02911A-02Eng.indd 1
2010-09-03 오후 5:13:56
Step 6: Remote Control
Remote Control Buttons and Functions
✎✎This is a special remote control for the visually impaired persons and has Braille points on the Power, Volume and Channel buttons.
POWER
Turns the TV on and off.
ON/OFF
Turns the remote control light on or off. When on, the
buttons become illuminated for a moment when pressed.
(Using the remote control with this button set to ON will
reduce the battery usage time.)
SOURCE
Displays and selects the available video sources.
Press to directly access channels.
Network Connection - Wireless
Your TV’s [email protected] (IPTV) feature lets you connect to an ever-expanding portal
of your favorite on-line digital content. Customizable widgets give you access to
Blockbuster, Facebook, YouTube, Flickr, Netflix* and more - all on your HDTV. The Media
Play feature lets you connect to your PC through your home network and stream PC
audio and video files to your HDTV using your remote. To use IPTV or Samsung PC
Share Manager, you must connect your TV to your network. You can attach the TV to
your network in two ways, by cable, using CAT 5 cable, or wirelessly, using a Samsung
Wireless LAN Adapter. Instructions for both connection methods are below.
You can connect your TV to your LAN through a standard wireless router or
modem. To connect wirelessly, you must first attach a “Samsung Wireless LAN
Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN - sold separately) to either the
USB 1 (HDD) or USB 2 port on the back of your TV. See the illustration below.
MUTE
There are two main ways to connect your TV to your network using cable,
depending on your network setup. They are illustrated below:
LAN Cable (Not Supplied)
TV Rear Panel
External Modem
(ADSL / VDSL / Cable TV)
Adjusts the volume.
Modem Cable (Not Supplied)
Cuts off the sound temporarily.
Changes channels.
CH LIST
Brings up the OSD.
@TV
MENU
Displays the Content View, which includes
Channel List, [email protected], Media Play, and AllShare.
CONTENT
INTERNET
TOOLS
INFO
Quickly select frequently used functions.
Samsung’s Wireless LAN adapter is sold separately and is offered by select
retailers, Ecommerce sites and Samsungparts.com. Samsung’s Wireless LAN
adapter supports the IEEE 802.11A/B/G and N communication protocols.
Samsung recommends using IEEE 802.11N. When you play the video over a IEEE
802.11B/G connection, the video may not play smoothly.
Most wireless network systems incorporate a security system that requires devices
that access the network through an access point or AP (typically a wireless IP
Sharer) to transmit an encrypted security code called an access key.
If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption
type is set to WEP, TKIP or TKIPAES (WPS2Mixed) for your AP, Samsung TVs will
not support a connection in compliance with new Wi-Fi certification specifications.
RETURN
Returns to the previous menu.
These buttons are for the Channel List, [email protected],
Media Play menu, etc.
A
EXIT
B
C
YAHOO!
MTS
FAV.CH
P.SIZE
CC
POWER
ON/OFF
SOURCE
TV Rear Panel
Displays the channel list on the screen.
Link to various internet services.
LAN Cable (Not Supplied)
Displays information on the TV screen.
D
MEDIA.P
LAN Cable (Not Supplied)
The LAN Port on the Wall
Selects the on-screen menu items and changes the values
seen on the menu.
Exits the menu.
MEDIA.P: Displays Media Play.
YAHOO!: Runs the Yahoo widget.
MTS: Press to choose stereo, mono or Separate Audio
Program (SAP broadcast).
FAV.CH: Displays Favorite Channel Lists on the screen.
P.SIZE: Selects the picture size.
CC: Controls the caption decoder.
Configuring the Network Connection - Wireless
Configuring the Network Connection - Wired
Most home networks use the Dynamic Host Configuration Protocol (DHCP) to
configure network connections. Home networks that support DHCP automatically
provide the IP address, subnet mask, gateway, and DNS values your TV needs to
access the Internet so you don’t have to enter them manually.
To configure your network connection for a network that uses DHCP, follow these
steps:
1. Connect your TV to your network as shown in one of the illustrations above.
2. Turn on your TV, press the MENU button on your remote, and then select
Setup → Network.
ON/OFF
SOURCE
Changing Channels and Adjusting the Volume
PRE-CH
MUTE
Adjust the volume by pressing the Volume button
on the remote.
Change the channels by pressing the Channel button on the remote.
✎✎If your TV is attached to a cable or satellite box, change the channel using
CH LIST
@TV
MENU
the box’s remote.
✎✎You can also change the channels by pressing the z button on the front panel of your TV and adjust the volume by pressing the y button.
CONTENT
INTERNET
TOOLS
INFO
Selecting a Source
Viewing the On Screen Menus
RETURN
To watch a movie on your Blu-ray player or watch
EXIT
POWER
ON/OFF
your favorite TV show, you must select the correct
A
B
C
D
source. A source is a device, such as a Blu-ray/DVD
SOURCE
player, a cable/satellite box, antenna or a cable TV
MEDIA.P
MTS
input. Sources can be connected to your TV through
FAV.CH
P.SIZE
the HDMI, DVI, Component, Composite, or D-sub
CC
connections, or through the Antenna or Cable In connections.
To view the signal from a source connected to the HDMI, DVI, Component,
Composite, or D-sub jack, press the SOURCE button on your remote. Each time
you press the SOURCE button, you change to a different source.
To view the On Screen Menus, follow these steps:
1. With the power on, press the MENU button on
your remote. The main menu appears.
The menu’s left side has the following menu
options: Picture, Sound, Channel, Setup,
Input, Application and Support.
PRE-CH
MUTE
CH LIST
@TV
MENU
CONTENT
INTERNET
TOOLS
INFO
PRE-CH
MUTE
6. Select Network Test to check
Internet connectivity.
✎✎Some networks are Static IP
Network Setup
Internet Protocol Setup
: Auto
IP Address
:
Subnet Mask
:
Gateway
:
DNS
: Auto
DNS Server
:
r
MENU
@TV
INTERNET
TOOLS
INFO
networks. If your network is
U Move E Enter R Return
a Static IP network, you can
not use DHCP to configure the
network connection. Instead, you must enter the IP Address, Subnet Mask,
Gateway, and DNS Server manually. For instructions explaining how to
configure a Static IP network, see your user’s manual.
2. Press the ▲ or ▼ button on your remote to select a menu
option, and then
RETURN
EXIT
press the ENTERE button.
3. When done using the menu, press the EXIT button on your
toC exit.D
A remote
B
MEDIA.P
FAV.CH
MTS
P.SIZE
CC
Network Setup
Select a network
: Not Selected r
Internet Protocol Setup
IP Address
: Auto
:
Subnet Mask
:
Gateway
:
DNS
: Auto
DNS Server
:
✎✎ If your network uses WEP
PBC(WPS) U Move E Enter R Return
security encryption, 0~9 and
A~F will be available on the Security Key screen. Use the Direction
button on your remote to move to the characters and the enter key to
select them.
7. On the Network Setup menu, set Internet Protocol Setup and DNS to Auto.
Auto acquires and enters the necessary internet values automatically.
8. Select Network Test to check internet connectivity.
Starting [email protected]
To view the On Screen
Menus, follow these steps:
1. Turn on your TV, press
the MENU button
on your remote, then
select Application →
Content View.
5. On the Network Setup menu,
select an AP (Access Point) or ad
hoc network. If you have selected
a network with a security key, the
Security Key screen appears.
6. Enter the security key using the
numbers on the remote, and then
press the Blue button on your
remote.
CH LIST
CONTENT
2. Turn on your TV, press the MENU button on your remote, and the select Setup
→ Network.
4. Select Network Setup. The Network Setup screen appears.
3. Set the Network Type to Wired if it is not already set to Wired.
5. On the Network Setup menu,
set Internet Protocol Setup and
DNS to Auto. Auto acquires and
enters the necessary internet values
automatically.
The instructions below are for networks that use the Dynamic Host Configuration
Protocol (DHCP) to configure network connections automatically. If your have a
Static IP network, see your user’s manual for configuration instructions.
To configure your network connection for a network that uses DHCP, follow these
steps:
1. Connect your TV to your network as shown in the illustrations above.
3. Set the Network Type to Wireless if it is not already set to Wireless.
4. Select Network Setup. The Network Setup screen appears.
POWER
The LAN Port on the Wall
or
Returns to the previous channel.
PRE-CH
Samsung Wireless
LAN Adapter
TV Rear Panel
Wireless IP sharer
(AP having DHCP Server)
Network Connection - Wired
The Modem Port on the Wall
Press to select additional channels (digital) being
broadcasted by the same station. For example, to select
channel “54-3”, press “54”, then press “–” and “3”.
Use these buttons in Media Play and
Anynet+ (HDMI-CEC) modes. (�: Controls recording
for Samsung recorders that have the Anynet+ feature)
Step 7: The [email protected] and Media Play Features
✎✎For more information, see your user’s manual.
Recommended
Connecting a USB Device for Media Play
My Applications
by Date 1/1
2. Press the ◄ or ►
button to select
Samsung Apps
Settings
[email protected], then
Login
Mark as Favorite
Sort by R Return
press the ENTERE
button. The USER TERMS and PRIVACY POLICY windows appears, then
select Yes.
3. Follow the directions on your screen to set up [email protected] For detailed
instructions, see your Owner’s Manual.
You can enjoy photo, music,
and movie files stored on a
USB device by connecting
it to the TV and using
the Media Play feature.
For Media Play operating
instructions, please see your
Owner’s Manual.
MediaPlay
Videos
SUM
Change Device
View Devices E Enter R Return
✎✎For best [email protected] results, your broadband company should provide
RETURN
EXIT
sustained download speeds of 3.5 mb/sec or more.
BN68-02911A-02
A
B
C
MEDIA.P
FAV.CH
[UC6800-QSG]BN68-02911A-02Eng.indd 2
D
MTS
P.SIZE
CC
2010-09-03 오후 5:13:59
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
