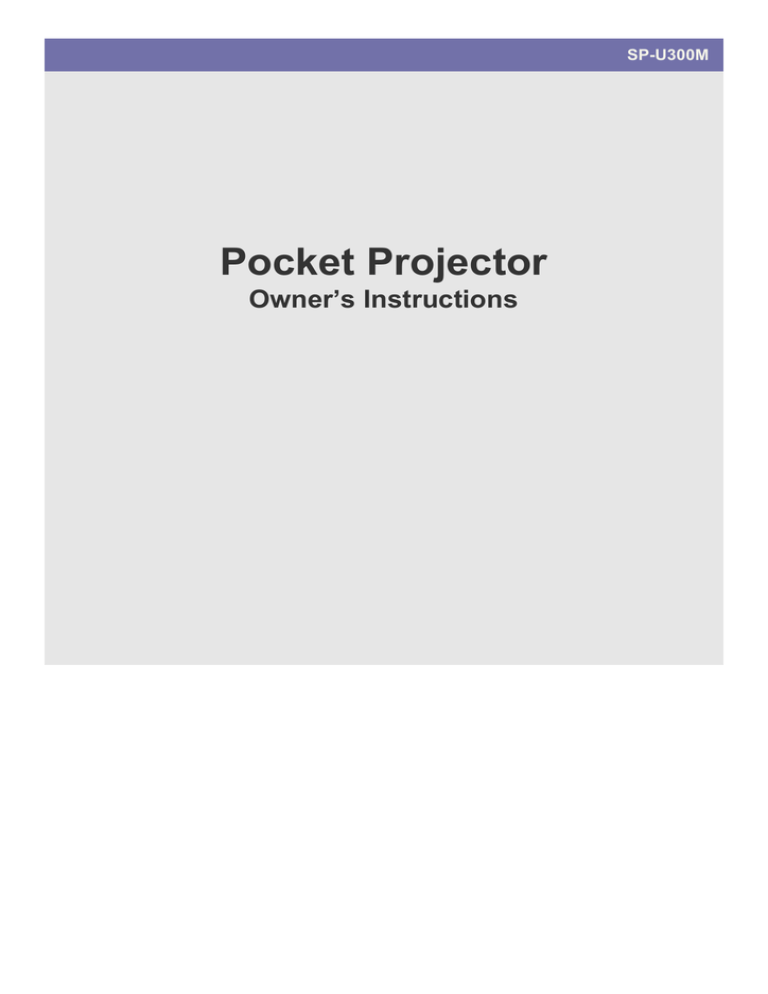

SP-U300M
Pocket Projector
Owner’s Instructions
Table Of Contents
MAJOR SAFETY PRECAUTIONS
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
INSTALLATION AND CONNECTION
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-1
Leveling with Adjustable Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-2
Zoom and Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-3
Screen Size and Projection Distance
. . . . . . . . . . . . . . . . . . . . . . . 2-2-4
Connecting with a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1
Setting up the PC Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-2
Supported Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-3
Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Connecting an A/V device with an audio/video cable . . . . . . . . . . . . 2-5
Connecting an A/V device with a Component/D-Sub Cable . . . . . . . 2-6
Connecting a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Connecting Headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
USING
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Front, Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the Screen Adjustment Menu (OSD: On Screen Display) . . . . 3-5
MEDIA PLAY FUNCTION
Precautions on using a USB storage device
. . . . . . . . . . . . . . . . . . . 4-1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Music
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Supported Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
WMA Usage Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
TROUBLESHOOTING
Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
MORE INFORMATION
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Contact SAMSUNG WORLDWIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Correct Disposal - Europe only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
1
Major Safety Precautions
1-1
Before You Start
Icons used in this manual
Icon
NAME
Caution
Note
MEANING
Indicates cases where the function may not work or the setting may be canceled.
Indicates a hint or tip to operate a function.
Using this Manual
•
Make yourself fully aware of the safety precautions before using this product.
•
If a problem occurs, refer to the 'Troubleshooting' section.
Copyright Notice
The contents of this manual are subject to change without prior notice for performance improvement.
Copyright © 2009 Samsung Electronics Co., Ltd. All rights reserved.
The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written
permission of Samsung Electronics, Co., Ltd.
1-2
Care and Maintenance
Cleaning the Surface and the Lens
Major Safety Precautions
1-1
Clean the projector using a soft dry cloth.
•
Avoid cleaning the product with an inflammable substance such
as benzene or thinner or with a wet cloth. This may result in a
problem with the product.
•
Avoid scratching the screen with your fingernails or a sharp
object.
This may result in scratches or damage to the product.
•
Avoid cleaning the product directly by spraying water onto the
product.
If water enters the product, it may result in fire, electric shock or a
problem with the product.
•
A white stain may be generated on the surface of the projector if
water gets on it.
The appearance and the color may differ depending on
models.
Cleaning Inside the Projector
For cleaning the interior of the projector, contact a Service Center.
•
1-3
Contact a Service Center if dust or other substances are inside
the projector.
Safety Precautions
Icons used for safety precautions
Icon
NAME
MEANING
Warning
Failing to follow the precautions marked with this sign, may result in a serious injury or even a
fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or property
damage.
Meaning of Signs
1-3
Do not perform.
Must be followed.
Do not disassemble.
The power plug must be unplugged from the
wall outlet.
Major Safety Precautions
Do not touch.
Must be grounded to prevent electric shock.
Power Related
The following images are for your reference and may differ depending on models and countries.
Warning
Plug the power plug in firmly.
•
Otherwise, it may result in fire.
Avoid connecting multiple electric appliances to a single wall outlet.
•
Avoid using a damaged power cord or plug
or a loose power outlet.
•
Otherwise, it may result in electric
shock or fire.
Avoid plugging in or unplugging the power
supply with wet hands.
•
Otherwise, it may result in electric
shock.
Otherwise, it may result in fire due to
overheating of the wall outlet.
Avoid bending or twisting the power cord
excessively and avoid placing heavy
objects on the cord.
•
Otherwise, it may result in electric
shock or fire due to a damaged power
cord.
To move the product, turn the power off
and unplug the power cord and any other
wires connected to the product.
•
Otherwise, it may result in electric
shock or fire due to the damaged
power cord.
Make sure to connect the power cord to a
grounded wall outlet (for insulation class 1
equipment only).
•
Otherwise, it may result in electric
shock or injury.
Caution
When unplugging the power plug from the
wall outlet, make sure to hold the power
plug by the plug and not by the cord.
•
Failing to do so may result in electric
shock or fire.
Unplug the power plug before cleaning the
product.
•
Do not turn the product on or off by plugging or unplugging the power plug. (Do not
use the power plug as a power switch.)
Keep the power cord away from sources of
heat.
There is a danger of electric shock or
fire.
Connect the power plug to a wall outlet
that can be easily reached.
•
When a problem occurs with the
product, you must unplug the power
plug to cut the power off completely.
You cannot cut the power off
completely using only the power button
on the product.
Major Safety Precautions
1-3
Installation Related
Warning
Avoid installing the product in a location
exposed to direct sunlight and installing
the product near a heat source such as a
fire or heater.
•
Avoid installing the product in a badly-ventilated location such as inside a bookshelf
or closet.
•
This may shorten the product life cycle
or cause fire.
Otherwise, it may result in fire due to
internal overheating.
When installing the product in a cabinet or
shelf, take care so that the front end of the
product is completely supported by the
cabinet or shelf.
When installing the product on a console
or shelf, make sure that the front of the
product does not protrude out of the console or shelf.
•
Failing to do so may result in the
product falling and resulting in damage
to the product or injury.
•
•
Make sure to use a cabinet or shelf
suitable to the size of the product.
Otherwise, this may cause the product
to fall off and result in a malfunction or
injury.
Keep the power cord away from heaters.
When thunder or lighting occurs, unplug
•
the power cord.
The coating of the power cord may
melt and cause electric shock or fire.
Do not install the product in a location
exposed to dust, moisture (sauna), oil,
•
Failing to do so may result in electric
shock or fire.
Do not install the product in areas with
heavy dust.
smoke or water (rain drops) and do not
install it in a vehicle.
•
This may result in electric shock or fire.
Caution
Take care not to block the vent with a table
cloth or curtain.
•
1-3
Do not let the product drop while moving it.
•
Otherwise, it may result in fire due to
internal overheating.
This may result in a problem with the
product or injury.
When putting the product down, place it
gently.
Do not install the product at a height where
children may reach it.
•
•
Failing to do so may result in a problem
with the product or injury.
If a child touches the product, the
product may fall and this may result in
injury.
Major Safety Precautions
Usage Related
Avoid inserting metal objects such as a
chopsticks, coins or hairpins, or inflammable objects into the product (the vents,
ports, etc).
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Do not disassemble, or attempt to fix or
modify the product.
•
When the product requires repairs,
contact a Service Center.
Avoid using or placing inflammable spray
or objects near the product.
•
This may result in an explosion or fire.
Do not let children place objects such as
toys or cookies on the product.
•
If a child tries to reach for any of these
objects, the product may fall and cause
harm.
Do not look directly at the light of the lamp
nor project the picture into someone's
eyes.
•
This is dangerous, especially for
children.
When you remove batteries from the
remote, be careful that they are not swallowed by children. Keep batteries out of
the reach of children.
•
If swallowed, see a doctor immediately.
Avoid placing a liquid container such as a
vase, flowerpot, beverage, cosmetics or
drugs, or a metal object over the product.
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Caution
If the product generates a strange noise, a
burning smell, or smoke, unplug the power
plug immediately and contact a service
center.
•
If water or a foreign substance enters the
product, turn the product off, unplug the
power cord from a wall outlet, and contact
a Service Center.
Failing to do so may result in electric
shock or fire.
If the power plug pin or jack is exposed to
dust, water or alien substances, clean it
thoroughly.
Do not use the product while it indicates a
malfunction, such as no sound or no picture.
•
•
There is a danger of electric shock or
fire.
Major Safety Precautions
Turn the product off immediately,
unplug the power cord from a wall
outlet, and contact a Service Center.
1-3
When cleaning the product, disconnect the
power cord and clean the product with a
soft dry cloth.
When a gas leak occurs, do not touch the
product or the power plug and ventilate
immediately.
•
Avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or
cleansing agent when cleaning the
product.
This may result in the exterior being
deformed or the print being removed.
•
A spark may result in an explosion or
fire.
•
During a thunder or lighting storm, do
not touch the power cord or antenna
cable
When not using the product for a long
time, such as leaving your home, unplug
the power cord from the wall outlet.
Do not touch the lens on the product.
•
Ask a Service Center to clean the interior of
the projector at least once per year.
If you step on the remote control, you
may fall and hurt yourself or the
product may be damaged.
To avoid burning yourself, do not touch the
vents or lamp cover while operating or
right after turning off the product.
Do not clean the product using water spray
or a wet cloth. Avoid using any chemicals
such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such
as projector case, since this may cause
damage.
Do not open any cover on the product.
Do not use any undesignated battery.
•
This would prove hazardous because
of high-voltage current inside the
product.
Be careful not to touch the ventilation hole
while the projector is on as hot air comes
out.
1-3
To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.
Failing to do so may result in fire or
electric shock.
Make sure to place your remote control on
a table or desk.
•
Do not touch any outer part of the product
with tools such as a knife or a hammer.
Places exposed to microscopic dust,
chemicals, too high or low temperature,
high humidity, such as airports or
stations where the product is
continuously used for a long time etc..
If you drop the product or the case is damaged, turn the power off and unplug the
power cord. Contact a service center.
•
This may cause damage to the lens.
Otherwise, it may cause dust
accumulation and result in fire caused
by overheating or a short circuit or
result in an electric shock.
If the product is installed in a location
where the operating conditions vary considerably, a serious quality problem may
occur due to the surrounding environment.
In this case, install the product only after
consulting our Call Center.
•
•
The ventilation hole is hot for some time
though the projector is turned off. Keep
you hands or body off the ventilation hole.
Major Safety Precautions
Do not place objects vulnerable to heat
near the projector.
Be careful to keep your body away from
the projector lamp. The lamp is hot.
(Children and those who have sensitive
skin should be more careful.)
Major Safety Precautions
1-3
2
Installation and Connection
2-1
Package Contents
•Unpack the product and check if all of the following contents have been included.
• Store the packaging box in case you need to move the product at a later stage.
Projector
CONTENTS
Quick Guide
Product Warranty
User Manual
Power Cord
Remote Control / 1 Battery
(CR 2025, Not available in
Cleaning Cloth
Adapter
D-Sub Cable
all locations)
Lens cover *
*
2-1
Installation and Connection
2-2-1 Installing the Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
•Place the projector so that the lens is at the center of the screen. If the screen is not vertically installed, the picture on the
screen may not be a rectangle.
•Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be displayed
clearly.
•When installing the screen in bright surroundings, use curtains.
•You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling.(To view the
installation position settings)
To view the picture when installing the projector behind the screen
Install a semi-transparent screen.
1. Select Menu > Setup > Install > Rear-Floor
2. Select Menu > Setup > Install > Rear-Ceiling
To view the picture when installing the projector in the front of the screen
Install the projector at the side where you are watching the
screen.
1. Select Menu > Setup > Install > Front-Floor
2. Select Menu > Setup > Install > Front-Ceiling
2-2-2 Leveling with Adjustable Feet
For level placement of the projector, adjust the Adjustable Feet of
the projector.
You may adjust the level of the projector up to 3 degrees.
Depending on the position of the projector, Keystone distortion of the image may appear.
Installation and Connection
2-2-1
2-2-3 Zoom and Focus Adjustment
Focus the picture on the screen using the Focus Ring.
Focus Ring
If your product is installed at a location out of the specified projection distance (refer to Screen Size and Projection
Distance), the focus cannot be adjusted correctly.
2-2-4 Screen Size and Projection Distance
Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality.
If images are not clear, adjust them using the Focus Ring, or move the projector forward and backward.
Screen /
Projection Lens /
Projection Optical axis
A. Screen width / B. Screen height / C. Screen Diagonal length / D. Projection range
1. The screen height and diagonal length according to the projection distance
SCREEN SIZE
2-2-3
Projection
Range(D)
Screen width(A)
SCREEN
HEIGHT(B)
SCREEN
DIAGONAL
LENGTH(C)
20”
834mm /
32.8inches
406mm / 16.0
inches
305mm / 12.0
inches
508mm / 20.0
inches
30”
1257mm / 49.5
inches
610mm / 24.0
inches
457mm / 18.0
inches
762mm /30.0
inches
40”
1680mm / 66.1
inches
813mm / 32.0
inches
610mm / 24.0
inches
1016mm / 40.0
inches
50”
2107mm / 83.0
inches
1016mm / 40.0
inches
762mm / 30.0
inches
1016mm / 40.0
inches
60”
2533mm / 99.7
inches
1219mm / 48.0
inches
914mm / 36.0
inches
1524mm / 60.0
inches
Installation and Connection
SCREEN SIZE
Projection
Range(D)
SCREEN
HEIGHT(B)
Screen width(A)
SCREEN
DIAGONAL
LENGTH(C)
70”
2959mm / 116.5
inches
1422mm / 56.0
inches
1067mm / 42.0
inches
1778mm / 70.0
inches
80”
3386mm / 133.3
inches
1626mm / 64.0
inches
1219mm / 48.0
inches
2032mm / 80.0
inches
90”
3812mm / 150.0
inches
1829mm / 72.0
inches
1372mm / 54.0
inches
2286mm / 90.0
inches
100”
4238mm / 166.9
inches
2032mm / 80.0
inches
1524mm / 60.0
inches
2540mm / 100.0
inches
The projection distance is the horizontal distance between the projector and the screen.
2. When your U300 projector is installed in a location where the projection distance matches the screen diagonal length, you will
enjoy a clear screen with no distortions (keystone).
2-3-1 Connecting with a PC
1. Connect [PC IN] port on the rear side of the projector to the monitor output port of the PC using a PC video cable.
2. When connections are all completed, connect both power cords of the projector and the PC.
3. Connect the [VIDEO/PC AUDIO IN] input port of the projector to the speaker output ports of the PC using an audio cable.
This product supports plug and play and therefore, if you use Windows XP, you do not need to setup the driver on your PC.
Using the Projector
1. Turn on the projector and press the [SOURCE] button to select <PC>.
If the <PC> Mode is not available, make sure the PC video cable is properly connected.
2. Turn on the PC and set the PC Environment when necessary.
3. Adjust the screen.(Auto Adjustment)
2-3-2 Setting up the PC Environment
Check the following items before connecting your PC to your projector.
Installation and Connection
2-3-1
1. Click the right mouse button on the Windows desktop and click on [Properties].
<Display Properties> tab will appear.
2. Click on [Settings] tab and set the <Screen resolution> by referring to <Resolution> described in the display mode table
supported by this projector.
You do not have to change the <Color quality> setup.
3. Press the [Advanced] button. Another property window will appear.
4. Click on [Monitor] tab and set the <Screen refresh rate> by referring to <Vertical Frequency> described in the Supported
Resolution/Size Modes table.
This will set both the vertical and horizontal frequencies.
5. Click the [OK] button to close the window, and click the [OK] button of the <Display Properties> window to close the window.
The computer may restart automatically.
6. Shut down the PC and connect to the projector.
•Process might vary depending on your type of computer or Windows version.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
2-3-2
Installation and Connection
•This appliance supports up to 32 bits per pixel in Color quality when it is used as a PC monitor.
•Projected images may differ from the monitor depending on the monitor manufacturer or Windows versions.
•When connecting the projector to a PC, check that the PC setup complies to display settings supported by this projector. If
not, there may be signal problems.
Installation and Connection
2-3-2
2-3-3 Supported Display Modes
RESOLUTION
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
CLOCK
FREQUENCY(MH
Z)
POLARITY
IBM, 640 x 480
31.469
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 640 x 480
43.269
85.008
36.000
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 800 x 600
53.674
85.061
56.250
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1024 x 768
68.677
84.997
94.500
+/+
The optimum resolution is 800 x 600, which is the panel resolution. (If inputted signals are different from the optimal
resolution, the images may appear distorted.)
2-4
Connecting the Power
Rear of Projector
1. Connect the adapter to the power port.
2. Connect the power cord to the adapter and connect it to a wall outlet.
3. When the power is connected, the screen turns on automatically. Do not look at the lens while connecting the power.
Use only an Samsung authorized adapter.
2-3-3
Installation and Connection
2-5
Connecting an A/V device with an audio/video cable
1. Connect [VIDEO IN(yellow)] input port of the projector to the VIDEO (yellow) OUT port of the video equipment using a video
cable.
Connect the [L-AUDIO-R] input port of the projector to the Audio (L), Audio (R) output ports of the external device, such as a
DVD, VCR or camcorder using an audio cable.
2. When the connections are all completed, connect both power cords of the projector and the DVD, VCR, or camcorder.
Using the Projector
1. Turn on the projector, press the [SOURCE] button to select the external device (DVD, VCR or camcorder) that is connected.
2. If the corresponding mode is not selected, check whether the video cable is connected correctly.
2-6
•
Check that the projector and the video equipment are turned off before connecting cables.
•
The <Video> mode brightness is lower than <PC> and <MEDIA PLAY> mode.
Connecting an A/V device with a Component/D-Sub Cable
1. Connect [PC IN] input port on the rear of the projector to the COMPONENT port of AV equipment using a D-Sub/Component
cable(Not supplied).
2. Connect audio cable(Not supplied) to the audio input port on the rear of the projector.
Installation and Connection
2-5
2-7
Connecting a USB Device
Connect your USB device to the USB port at the back of the projector to play videos, photos, and music.
Available file system: FAT, FAT32(NTFS is not supported.)
Multi Partition is not supported.
Multi Reader device is not supported.
2-8
Connecting Headphones
Connect the jack of the headphones to the input terminal [
2-9
] on the back of the projector.
Kensington Lock
Kensington Lock
A Kensington Lock (not supplied) is an anti-theft device that enables users to lock the product so that they can safely use it
in public locations. Since the shape and usage of the locking device may differ depending on the model and the
manufacturer, for more information, refer to the User Manual supplied with the locking device.
Locking the product
1. Insert the locking part of the locking device into the hole of the Kensington lock of the product and turn it in the locking
direction.
2. Connect the Kensington Lock cable.
3. Tie the Kensington lock cable to a desk or heavy object.
You can purchase the locking device from an electronics store or an online shop.
2-7
Installation and Connection
3
Using
3-1
Product Features
•
High Mobility Design
•Small Size.
•Lightweight.
•Play videos, photos, music using a USB device.
3-2
Front, Upper
NAME
DESCRIPTION
1.Indicators
- STAND BY (Blue LED)
- LAMP (Blue LED)
- TEMP (Red LED)
Refer to the LED Indications.
2. Move
Volume
/ Select
button
/
/
: Use this button to move to or select an item within a menu.
: Use this button to adjust the volume.
3. MENU Button
Used to display the Menu Screen.
4. SOURCE Button
Use this button to select the external device signal.
5.
Using
Button
Used to turn the projector on or off.
3-1
NAME
DESCRIPTION
6. Focus Ring
Used for Focus Adjustment.
7. Lens
-
8-1. Adjustable Feet
You can adjust the screen position by moving the adjustable feet up and down.
8-2. Tripod holes
-
•When using a tripod, make sure to use one with a screw length of 5.5 mm or less.
If the screw length is longer than 5.5 mm, you will not be able to fix the projector to the tripod firmly, which may result in
damage to the projector or tripod.
•If you use screws to hold the tripod, be sure to use Machine screws M1/4 inch or smaller.
3-2
Using
3-3
Remote Control
1. POWER Button ( )
Use this button for turning the product on and off.
2. SOURCE Button
Used to check or select the connection status of external devices.
3. MENU Button (
)
Used to display the Menu Screen.
4. Move (
)/ ( ) Button
Used to move to or select each menu item.
5. V. KEYSTONE Button (
)
Use this when the screen is displayed in a trapezoid shape.
6. REWIND button ( )
Rewind the movie in the MEDIA.P mode.
7. PAGE DN button ( )
Use to select the previous file.
8. ZOOM Button
Enlarges picture.
9. STILL Button (
)
Used to see still images.
10. MUTE Button ( )
Press to mute the sound temporarily.
Press the MUTE button again or the VOL button
(
) when the sound is muted to hear sound again.
11. RETURN Button ( )
Returns to the previous menu.
12. MEDIA.P Button
Used as a shortcut button to MEDIA.P.
13. VOL Button (
)
Used to control the volume.
14. FAST FORWARD button ( )
Fast forward the movie in the MEDIA.P mode.
15. PAGE UP Button ( )
Use to select the next file.
16. SUBTITLE Button
Sets subtitles.
17. STOP Button ( )
Stops video or music in the MEDIA.P mode.
Make sure to place your remote control on a table or desk.
If you step on the remote control, you may fall and hurt
yourself or the product may be damaged.
You can use the remote control up to a distance of about 23
feet(7 m) from the product.
Using
3-3
3-4
LED Indications
LED Indications
:Light is On
STAND BY
:Light is Blinking
LAMP
:Light is Off
TEMP
INFORMATION
If you press the POWER button on the remote control or projector, the screen
appears within 30 seconds.
The projector is in normal operating condition.
This state appears when the projector is preparing an operation after the
POWER button on the projector or the remote control has been pressed.
The POWER button is pressed to turn off the projector, and the cooling system
is in operation to cool off the inside of the projector. (Lasts for about 1 minute
and 30 seconds)
Refer to Action 1 below if the cooling fan inside the projector is not in normal
operation condition.
Refer to Action 2 below if the lamp cover protecting the lamp unit is not closed
properly.
Power is turned off automatically when temperature inside of the projector goes
beyond the control limit. Refer to Action 3.
A problem has occurred when operating the DDP IC in the product. Refer to
Action 4.
A problem has occurred with the operation of the lamp. Refer to Action 5.
The lifetime of the lamp has expired. Refer to Action 6.
The memory in the product is not operating normally. Contact a service center.
The power for the product is not operating normally. Contact a service center.
A problem has occurred when operating the color wheel in the product. Refer to
Action 4.
Clearing Indicator Problems
3-4
Using
CLASSIFICA
TION
STATE
MEASURES
Action 1
When the cooling fan system is
not in normal operating condition.
If the symptom remains even after disconnecting and then reconnecting
the power cord and turning the projector on again, contact a Samsung service center.
Action 2
When the lamp cover protecting
the lamp unit is not properly
closed or the sensor system is
not in normal operating condition.
Check whether the screws at the bottom side of the projector are fastened
correctly. If they are abnormally fastened, contact a Samsung service center.
Action 3
When temperature inside of the
projector becomes too high.
Adjust the installation state of your projector by referring to the Installation
Precautions section listed above. Cool down your projector sufficiently and
then operate it again. If the same problem occurs continually, contact a
Samsung service center.
Action 4
When the color wheel fails to
operate.
Disconnect and reconnect the power cord and start the projector again. If
the same symptom still occurs, contact a Samsung service center.
Action 5
The lamp malfunctions after
power turns off abnormally or
after powering on right after
Turn the power off, wait for a sufficient amount of cooling time and then
turn the power on to operate. If the same problem occurs continually, contact a Samsung service center.
turning off the projector.
Action 6
When the screen becomes
darker
Check the lamp usage time on the Information Display screen. If you need
to replace the lamp, contact a Samsung service center.
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may cause noise,
which does not affect the product performance and is part of normal operation.
3-5
Using the Screen Adjustment Menu (OSD: On Screen Display)
The Screen Adjustment Menu (OSD: On Screen Display) Structure
MENU
SUB-MENU
Input
Source List
Edit Name
Mode
Size
Position
Film Mode
PC
Zoom
Install
V-Keystone
Menu Option
Setup
Digital NR
Black Level
Background
Test Pattern
Factory Default
Sleep Timer
Information
Video Type
Option
Using
Language
3-5
3-5-1. Input
MENU
Source List
DESCRIPTION
You can select a device connected to the projector to display.
•
Edit Name
<Video>- <PC>-<MEDIA PLAY>
You can edit the names of devices connected to the projector.
•
<VCR>- <DVD>- <Cable STB>- <HD STB>- <Satellite STB>- <AV Receiver>- <DVD Receiver><Game>- <Camcorder>- <DVD Combo>- <PC>
3-5-2. Picture
MENU
Mode
DESCRIPTION
Select a screen state which is customized to your projector or change the screen mode as required.
•
<Mode>
•<Dynamic > : Select this mode for a brighter and sharper picture than Standard Mode.
•<Standard> : This is the picture mode optimized to the standard broadcast signal.
•<Movie> : Optimize the picture for watching movies.
•<Monitor1> : This is the picture mode where the brightness is optimized for text display.
You can only set in <PC> and <MEDIA PLAY> mode.
•<Monitor2> : This is the brightest picture mode appropriate for a presentation.
You can only set in <PC> and <MEDIA PLAY> mode.
•<Sports> : Optimize the picture for watching sports.
•<User> : Select when you adjust the picture to suit your preference.
3-5
Using
MENU
Mode
DESCRIPTION
•
<Contrast > : Used to adjust the contrast between the object and the background.
•
<Brightness > : Used to adjust brightness of the entire picture.
•
<Sharpness > : Used to adjust the sharpness of the picture.
•
<Color > : Used to adjust color lighter or darker.
You can only set the <Color> in <Video> mode.
•
<Tint> : Used to obtain more natural color of objects using Green or Red enhancement.
When the input signal is <PC> or PAL and SECAM of the <AV> mode, the <Tint> can't be
adjusted.
•
<Color Temperature> : You can change tint of the entire screen to suit your needs.
You can not set in <PC> mode.
•<Cool2 > : Suitable to use when the surroundings are very bright.
•<Cool1 > : Suitable to use when the surroundings are somewhat bright.
•<Normal > : Used when watching most scenes. This presents colors most accurately.
•<Warm > : Select this when watching a black and white movie for optimal quality.
•
<Gamma > : An image compensation function that controls the settings according to the video
properties.
•<Film >: The best setting for watching a film.
•<Video > : The best setting for watching a TV program.
•<Graphic >: The best setting when you have a PC connected.
•<Vivid > : The gamma mode suitable for watching a movie.
Size
•
<Save > : Used to save custom picture settings.
•
<Reset > : Restores the mode settings to the factory defaults.
You can select a screen size according to the type of scene.
•
<Normal>-<Zoom 1 >-<Zoom 2 >-<16 : 9>
Available picture size in the <PC> and <MEDIA PLAY> mode is <normal>, <16:9>.
Position
Adjust the screen position if it is not aligned.
You can only set a position in <PC> mode.
Digital NR
When a dotted line is displayed or the screen shakes, you can view the picture with better visual quality by enabling Noise Reduction.
Black Level
If the picture seems too dark, you can set a brighter black level.
Black level is automatically set in the <Video> input mode.
You can make the manual settings shown below only when a component signal is supplied.
Film Mode
•
<0 IRE> : Default black level.
•
<7.5 IRE> : Set the black level so it is darker.
Using this function, you can set the display mode optimized for playing movies.
<Film Mode> provides optimal display settings for movies.
You can only set <Film Mode> in <Video> mode.
•
Using
<Off >-<On>
3-5
MENU
PC
DESCRIPTION
Eliminates or reduces noise that causes unstable screen quality, such as screen shaking. If the noise
is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine
Adjustment again.
Only activated in the PC environment. (component signals are not supported)
Zoom
•
<Auto Adjustment > : Used to adjust frequency and phase of PC screen automatically.
•
<Coarse > : Used to adjust frequency when vertical lines appear on PC screen.
•
<Fine> : Used to fine tune the PC screen.
•
<Reset > : Using this function, you can reset the PC menu settings to the factory default settings.
Used to zoom in on the PC display screen.
Only activated in the PC environment.
3-5-3. Setup
MENU
Install
V-Keystone
DESCRIPTION
To tailor the picture to the installation location, you can invert the projected images vertically/horizontally.
•
<Front-Floor >: Normal Image
•
<Front-Ceiling >: Horizontal/Vertical Reversed Image
•
<Rear-Floor>: Horizontally Reversed Image
•
<Rear-Ceiling > : Vertically Reversed Image
If video scenes are distorted or tilted, you can compensate for this using the vertical Keystone function.
As the Vertical Keystone function compensates for screen distortions via software, we recommend
installing the projector so that no screen distortions occur in the horizontal and vertical directions,
rather than using the vertical keystone function.
Background
You can set the Background that is displayed when there is no signal from the external device connected to the projector.If a signal is received, the Background you set disappears and a normal
screen is displayed.
•
3-5
<Blue > -<Black >
Using
MENU
Test Pattern
DESCRIPTION
Generated by the projector itself. Utilized as standard to optimize the installation of the projector.
•
<Crosshatch > - You can check whether the picture is distorted or not.
•
<Screen Size > - You can refer to picture format sizes such as 1.33 : 1 or 1.78 : 1.
•
<Red> - Red Screen, only for color adjustment.
•
<Green > - Green Screen, only for color adjustment.
•
<Blue > - Blue Screen, only for color adjustment.
•
<White > - White Screen, only for color adjustment.
•
<6500K_White > - White Screen, brings out the white tones for a more real white.
The Red/Green/Blue colors of the test patterns are only for the color adjustment procedures, and may
not comply with the actual colors displayed during video playback.
Factory Default
Using this function, you can reset various settings to the factory default.
Video Type
In PC mode, if the projector does not recognize the type of input signal automatically and the screen
quality is abnormal, you can select the type of input signal manually.
•
<Auto > : The type of input signal is recognized automatically.
•
<RGB> : Select this when a PC providing RGB output is connected to the D-sub terminal.
•
<YCbCr>: Select this when an AV device (STB, DVD, etc.) providing YPbPr output is connected to the Dsub terminal.
3-5-4. Option
MENU
Language
DESCRIPTION
You can select the language used for the menu screen.
The selected language is applied to both main OSD and MEDIA PLAY menus.
Menu Option
•
<Position> : You can move Menu Position up/down/left/right.
•
<Transparency > : You can set the translucency of menu.
•< High>-<Medium >-<Low>-<Opaque>
•
<Display Time > : You can set the display time of the menu.
•<5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>-<Stay On >
Sleep Timer
If there is no input signal for the specified time, the projector is turned off automatically.
(There must be no button input from the remote control or on the top of the projector for the specified
time)
•
<Off> - <10 min> - <20 min> - <30 min>
This function does not work in <MEDIA PLAY> mode.
Information
Using
You can check external source signals, picture setup, PC picture adjustment.
3-5
4
Media Play Function
4-1
Precautions on using a USB storage device
•This product does not support multi-card readers.
•This product does not work if the USB storage device is connected by USB HUB.
•Some products which do not comply with standard USB specifications might not operate normally.
•A USB storage device with automatic recognition application or its own driver might not operate normally.
•A USB storage device that uses only a designated driver might not be recognized.
•Recognition speed for USB storage device may vary by device.
•Do not turn off the product or pull a connected USB storage device out while a USB storage device is in use. Doing so may
result in damage to the USB storage device or stored file.
•Use a USB storage device which contains normal files. If not, it can be cause a malfunction or the files may not play.
•USB storage devices must be formatted with FAT or FAT32(recommended) file system supported by Windows. It may not
work normally if USB storage device is formatted with another program.
•If USB storage device uses external power, please connect USB storage device to external power and use.
•Use the USB cable provided with the USB device when connecting to the projector. (For more information on purchasing
cable and external devices, contact the respective manufacturer.)
•We do not guarantee service if a malfunction occurs with any external device caused by using a cable that does not comply
the designated standards.
•As the data in USB storage device can be damaged, please back up important data to avoid loss.
•When using USB storage device with the projector, subfolders with a maximum depth of 4 from the top folder are
supported. Also, if the number of files(including folder) in the same folder is more than 2,900, it is not recognized. It may
also take long time to display according to the number of files.
•Multi Partition is not supported.
•If an external memory device does not operate after connecting to the product, try to connect it to a PC. If it still does not
operate normally, contact the memory device's manufacturer service center or related customer center.
•USB storage device is not writable.
4-1
Media Play Function
4-2
When selecting thumbnails,
You can view image files stored in a USB device.
* Press the MEDIA.P button to display the menu for the selected item.
MENU
DESCRIPTION
Play Photo
Start Slideshow.
Play Mode
•
<All photos > : Plays all available image files.
•
<Photo in Folder > : Plays all image files in a selected folder.
•
<Shuffle all photos > : Randomly plays all available image files in a USB storage device.
•
<Shuffle photo in Folder > : Randomly plays all image files in a selected folder.
•
<Repeat one photo > : Displays an image file repeatedly.
Delete
Deletes a selected image.
Delete All Files
Deletes all image files in a USB storage device.
To use this function in your presentation, convert general word processor files to image files before saving them to a USB storage
device.
e.g.) .ppt(Microsoft Powerpoint) → .jpg /.bmp /.gif
.pdf(Adobe Acrobat) → .jpg
Caution: Make sure to save image files to your USB storage device in the order of presentation.
Media Play Function
4-2
Slideshow
You can set several options while playing images.
* Press the MEDIA.P button to display the menu for the selected item.
MENU
Slideshow Setting
DESCRIPTION
You can set several options while playing images.
•
Transition
<Manual> - <Auto>
Sets a pattern for a slide show.
•
<No Effect> - <Fade> - <Blind> - <Coloration> - <Motion> - <Random>
•If the picture size is 32x32 or less, <Motion> effect is disabled.
•If you set <Motion>, you cannot adjust <Aspect Ratio>.
•If you set <Random>, <Motion> effect is not supported.
Speed
Play Mode
Rotate
Sets a playback speed for a slide show.
•
<Fast> - <Normal> - <Slow >
•
<All photos > : Plays all available image files.
•
<Photo in Folder > : Plays all image files in a selected folder.
•
<Shuffle all photos > : Randomly plays all available image files in a USB storage device.
•
<Shuffle photo in Folder > : Randomly plays all image files in a selected folder.
•
<Repeat one photo > : Displays an image file repeatedly.
Rotates an image using [
•
Aspect Ratio
Background Music
4-2
] button on the remote control.
<90°> - <180°> - <270°> - <Original>
Rotates an image using direction keys on the remote control.
•
<Original Fit > : Displays an image with its original size.
•
<Auto Fit > : Displays an image with its optimal aspect ratio.
•
<Fit to Width > : Displays an image to fit the vertical length of a screen.
•
<Fit to Screen > : Displays an image as a full screen.
•
<On > : Plays all music files in a USB device consecutively.
•
<Off > : Stops background music.
•
<Music Setting> : Opens the Music folder and selects background music.
Media Play Function
4-3
Music
Menu displayed when selecting a music list.
You can listen to music files stored in a USB device.
* Press the MEDIA.P button to display the menu for the selected item.
MENU
DESCRIPTION
Play Music
Plays music files.
Play Mode
•
<All musics > : Plays all available music files.
•
<Music in Folder > : Plays all music files in a selected folder.
•
<Shuffle all musics > : Randomly plays all available music files.
•
<Shuffle music in Folder > : Randomly plays all music files in a selected folder.
•
<Repeat one music > : Plays a selected music file repeatedly.
Delete
Deletes a selected music file.
Delete All Files
Deletes all music files in a USB storage device.
Menu displayed when playing music.
You can set several options for playing music with Mediaplay.
* Press the MEDIA.P button to display the menu for the selected item.
Depending on the Menu language you selected, your music file information [
] may not be properly displayed. If this
occurs, press the MENU button and select <Language> in the <Option> menu, to change the language so it matches the
music file's language.
Media Play Function
4-3
MENU
Play Mode
Repeat(A-B)
DESCRIPTION
•
<All musics > : Plays all available music files.
•
<Music in Folder > : Plays all music files in a selected folder.
•
<Shuffle all musics > : Randomly plays all available music files.
•
<Shuffle music in Folder > : Randomly plays all music files in a selected folder.
•
<Repeat one music > : Plays a selected music file repeatedly.
Plays a selected section repeatedly.
Press the [ZOOM] button to set a starting point and finishing point
4-4
Movie
Menu displayed when selecting a movie list.
You can view video files stored in a USB device.
* Press the MEDIA.P button to display the menu for the selected item.
MENU
DESCRIPTION
Play Movie
Plays video files.
Play Mode
•
<All Movies > : Plays all available video files.
•
<Movie in Folder > : Plays all video files in a selected folder.
•
<Shuffle all movies > : Randomly plays all available video files.
•
<Shuffle movie in Folder> : Randomly plays all video files in a selected folder.
•
<Repeat one movie > : Plays a selected video file repeatedly.
Delete
Deletes a selected file.
Delete All Files
Deletes all video files in a USB storage device.
4-4
Media Play Function
Menu displayed when playing a movie
You can set several options for playing video with Mediaplay.
* Press the MEDIA.P button to display the menu for the selected item.
MENU
Play Mode
Aspect Ratio
Caption
DESCRIPTION
•
<All Movies > : Plays all available video files.
•
<Movie in Folder > : Plays all video files in a selected folder.
•
<Shuffle all movies > : Randomly plays all available video files.
•
<Shuffle movie in Folder > : Randomly plays all video files in a selected folder.
•
<Repeat one movie > : Plays a selected video file repeatedly.
•
<Fit to Width > : Plays video to fit the vertical length of a screen.
•
<Fit to Screen > : Plays video as full screen.
•
<On/Off> : Shows / hides subtitles.
• If the subtitles are not displayed, make sure to set the Caption (subtitle) language so that it
matches the subtitle language you want to display on the AVI file.
• Only avi files are supported with the external Caption feature.
•
<Language > : Selects the language you want the subtitles to display in.
•
<Position > : Sets a position of subtitles using direction keys. ( <Top>, <Middle>, <Bottom>)
• The video must have external subtitles in order to view them with the Caption feature turned
on.
• See the table for supported subtitle file types. Refer to the 4-6 Supported files.
• Subtitle files must be in same directory as the avi video file.
•
<Sync > : - 0.5s / Reset / +0.5s
You can adjust the sync of the subtitles so they more closely match the person talking onscreen.
Zoom
Enlarges or shrinks a screen size.
•
Media Play Function
<Zoom x2> - <Zoom x4 > - <Normal>
4-4
4-5
Settings
Configuring settings
You can configure settings for Media Play.
MENU
Auto Play
Update/Reset
DESCRIPTION
Automatically plays when you enter the menu.
•
<Photo > - <Music > - <Movie>
•
<Firmware Update > : Starts SW Update.
•
<Reset Settings > : Resets settings.
•
<Product Information> : Views model and SW information.
USB
Displays total capacity and remaining capacity.
Remove Safety
You can remove the device from the product.
If you see "USB can be removed safely", you can remove the USB device from the product.
4-5
Media Play Function
4-6
Supported Files
FORMAT
MEDIA
File Extension
CATEGORY
REMARKS
(MAXIMUM RESOLUTION/BIT
RATE ETC.)
VIDEO
AUDIO
.mpg / .dat
MPEG-1/2
MPEG Layer 1 / 2 / 3
.vob
MPEG-1/2
N/A
.avi
XviD / 3ivX
MPEG layer 1/2/3
4CC:XVID / 3IVX/ DivX
MS ISO
MPEG4
ADPCM(MS/Intel DVI / uLaw /
aLaw)
4CC:M4S2/MP4S
Motion JPEG
.mov / .mp4 / .3gp /
.3g2
PCM / WMA
4CC:MJPG
MPEG-4
MPEG Layer 1 / 2 / 3
4CC : MP4V
Motion JPEG
ADPCM(MS/Intel DVI / uLaw /
aLaw)
4CC:MJPG/ jpeg
PCM(8-bit / 16-bit) / AMR NB
.wav
N/A
MPEG Layer 1 / 2 / 3
PCM
Video
MPEG-1
MPEG-1
NTSC: max. [email protected]
PAL: max. [email protected]
MPEG-2
MPEG-2
NTSC: max. [email protected]
PAL: max. [email protected]
MPEG-4
XviD/ 3ivX
NTSC: max. [email protected]
PAL: max. [email protected]
Motion JPEG
Media Play Function
MS ISO MPEG-4
PAL: max. [email protected]
Baseline JPEG
[email protected]
4-6
FORMAT
MEDIA
Audio
CATEGORY
VIDEO
PCM
REMARKS
AUDIO
(MAXIMUM RESOLUTION/BIT
RATE ETC.)
Mono / Stereo,
Sample Rate: 8K~48KHz
MPEG 1/2 Layer 1/2
Mono / Stereo, Sample Rate : 32
/ 44.1 / 48KHz,
Bit Rate:32K~448Kbps
MPEG 1/2 Layer 3 (MP3)
Sample Rate : 8K~48KHz,
Bit Rate:8K~320Kbps
WMA
Mono / Stereo, Sample Rate :
8K~48KHz,
*At 16M DRAM solution, WMA
has limited support. See table
below.
Sampling Rate: 22.05K~48KHz
Bit Rate:32K~192kbps
aLaw / uLaw
Mono / Stereo, Sample Rate :
8K~48KHz, 8-bit per sample,
Bit Rate:64K~768 kbps
ADPCM (MS/ Intel DVI)
Mono / Stereo, Sample Rate :
8K~48KHz, 4-bit per sample,
Bit Rate:32K~384 kbps
AMR NB
Mono, Sample Rate :8K~48KHz,
Bit Rate:32K~320Kbps
JPEG
Baseline JPEG
WxH=14592x12288, Up to 179
Mga-pixel
Supported format:444/ 440/ 422/
420/ Grayscale max.file
size=40MB
Progressive JPEB
Up to 4 Mega-pixel
Supported format:444/ 440/ 422/
420/ Grayscale max.file
size=40MB
BMP
Up to 20 Mega-pixel
Supported format:444/ 440/ 422/
420/ Grayscale max.file
size=40MB
GIF
WxH=14592x12288,
Up to 179 Mga-pixel
Supported format: version 87a /
version 89a (except animation &
interlace)
max.file size=40MB
4-6
Media Play Function
FORMAT
MEDIA
Subtitle
CATEGORY
VIDEO
REMARKS
AUDIO
(MAXIMUM RESOLUTION/BIT
RATE ETC.)
SMI
SRT
SUB
Text File Format
ASS
SSA
PSB
Media Play Function
4-6
4-7
WMA Usage Specifications
BIT RATE (KBPS)
SAMPLE RATE
CHANNELS
320
44.1K
2
256
44.1K
2
192
48K
2
44.1K
2
48K
2
44.1K
2
48K
2
44.1K
2
44.1K
1
48K
2
44.1K
2
80
44.1K
2
64
44.1K
2
44.1K
1
32K
2
48**
32K
2
32
22.05K
2
160
128
96
** : This bit rate is not supported
4-7
Media Play Function
5
Troubleshooting
5-1
Before Requesting Service
Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest
Samsung Electronics Service Center.
Symptoms
Installation
and Connection
Menu and
Remote
Control
Troubleshooting
No Power.
Check the power cable connections.
I want to install my projector on the ceiling.
The ceiling installation support is sold separately. Contact your
local product distributor.
External Source can not be selected.
Be sure that the connection cable(s) (video) is properly connected to the proper port. If the device is not connected properly, it can not be selected.
Remote control does not work.
Be sure that the proper external source is selected.
Check the remote control battery. If there is something wrong
with it, replace it with a new battery of the recommended size.
Be sure to aim the remote at sensor on the back of the unit and
at a distance of no more than approximately 23 feet(7 m).
Remove any obstacles between your remote control and the
product.
Direct light from 3-way light bulbs or other lighting devices on
the remote sensor of the projector may affect the sensitivity
and cause the remote control to malfunction.
Check if the remote control battery compartment is empty.
Check whether the LED indicator on the top of the projector is
turned on.
I cannot select a menu.
Troubleshooting
Check if the menu is displayed in gray. A gray-colored menu is
unavailable.
5-1
Symptoms
Screen and
External
Source
Cannot see picture images.
Troubleshooting
Be sure that the power cord of the projector is connected.
Be sure that the proper input source is selected.
Check that the connectors are properly connected to the ports
at the back of the projector.
Check the Remote Control batteries.
Be sure that the <Color>, <Brightness> settings are not at their
lower limit.
Poor color.
Adjust the <Tint> and <Contrast>.
Images are not clear.
Adjust the focus.
Check that the projection distance is either too far or too near
to the screen.
Strange noise.
If a strange sound continues, contact our service center.
The operating LED is lit up.
Refer to Corrective Actions According to LED Indications.
Lines appear on screen.
Because noise may occur when using your PC, adjust the frequency of the screen.
No external device screen is displayed.
Check the operating status for the external device and check
whether the adjustment items, such as the <Brightness> and
the <Contrast> have been changed correctly in the <Mode>
command screen of the Projector menu.
Only blue screen appears.
Be sure to properly connect the external devices. Check the
connection cables again.
Screen appears in black and white or odd
color./ screen is too dark or bright.
As mentioned above, check the adjustment items such as the
<Brightness>, <Contrast> and <Color> in the menu.
If you want to restore various settings to their factory defaults,
run <Factory Default>from the menu.
Multimedia
Function
I hear no sound when playing a video file from
my USB storage device.
Check the audio format of the concerned video file.
The sound effects are not available for non-supported formats
such as AC3, etc.
Convert the audio format into a supported format using a video
converter.
5-1
Troubleshooting
6
More Information
6-1
Specifications
MODEL
Panel
Size
0.55 inches
Resolution
800 x 600 (SVGA)
Light Source
Power
SP-U300M
LAMP
Power Consumption
80 W
Voltage
DC 19 V 4.7 A
Dimension
54 x 178.5 x 130.5 mm / 2.1 x 7.0 x 5.1 inches
Weight
850 g / 1.9 lbs
Key Features
Input signal
Brightness
300 ANSI
Contrast
1100:1
Screen Size (Diagonal)
Diagonal 20 inches ~ 100 inches
Projection Range
830 mm ~ 4240 mm / 32.7 inches ~ 166.9 inches
Keystone
Vertical
PC
1) Connector Type : 15Pin D-Sub
2) Frequency (Refer to the Supported Display Modes.)
VIDEO
Supported Broadcast Signals : NTSC, PAL, SECAM (PAL-N signals
are not supported.)
COMPONENT
Connect to D-Sub connector([PC IN] port) with gender.
USB
Movie, Picture, Music
Voice output
User Environment
1W + 1W
Temperature and Humidity
Operating: Temperature 32 °F ~ 104 °F (0 °C ~ 40 °C),
Humidity (10 % ~ 80 %)
Storage : Temperature -4 °F ~ 113 °F (-20 °C ~ 45 °C) ,
Humidity (5 % ~ 95 %)
Noise
33 dB
This Class B equipment is designed for home and office use. The equipment has been registered regarding EMI for
residential use. It may be used in all areas. Class A is for office use. Class A is for business while class B emits less
electromagnetic waves than class A.
The DMD Panel used in DLP Projectors consists of several hundred thousand micro mirrors. As with other visual display
elements, the DMD Panel may include a few bad pixels. Samsung and the DMD Panel manufacturer have a rigid, bad pixel
identification and limitation procedure in place and products will not exceed the maximum number of bad pixels set by our
standards. Rarely, non-displayable pixels may exist, however it does not affect the picture quality nor the lifespan of the
product.
More Information
6-1
6-2
Contact SAMSUNG WORLDWIDE
•If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
center.
NORTH AMERICA
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com/us
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG(726-7864)
http://www.samsung.com/mx
LATIN AMERICA
ARGENTINA
0800-333-3733
http://www.samsung.com/ar
BRAZIL
0800-124-421
http://www.samsung.com/br
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com/co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
HONDURAS
800-7919267
http://www.samsung.com/latin
JAMAICA
1-800-234-7267
http://www.samsung.com/latin
NICARAGUA
00-1800-5077267
http://www.samsung.com/latin
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
TRINIDAD & TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com/latin
VENEZUELA
0-800-100-5303
http://www.samsung.com/latin
EUROPE
AUSTRIA
0810 - SAMSUNG(7267864,€ 0.07/min)
http://www.samsung.com/at
BELGIUM
02 201 2418
http://www.samsung.com/be (Dutch)
http://www.samsung.com/be_fr
(French)
CZECH REPUBLIC
800 - SAMSUNG (800-726786)
http://www.samsung.com/cz
DENMARK
8 - SAMSUNG (7267864)
http://www.samsung.com/dk
EIRE
0818 717 100
http://www.samsung.com/ie
FINLAND
30 - 6227 515
http://www.samsung.com/fi
FRANCE
01 4863 0000
http://www.samsung.com/fr
6-2
More Information
EUROPE
GERMANY
01805 - SAMSUNG (7267864,€ 0.14/
Min)
http://www.samsung.de
HUNGARY
06-80-SAMSUNG(726-7864)
http://www.samsung.com/hu
ITALIA
800-SAMSUNG(726-7864)
http://www.samsung.com/it
LUXEMBURG
02 261 03 710
http://www.samsung.com/lu
NETHERLANDS
0900 - SAMSUNG (0900-7267864) (€
0,10/Min)
http://www.samsung.com/nl
NORWAY
3 - SAMSUNG (7267864)
http://www.samsung.com/no
POLAND
0 801 1SAMSUNG (172678)
http://www.samsung.com/pl
022 - 607 - 93 - 33
PORTUGAL
808 20 - SAMSUNG (7267864)
http://www.samsung.com/pt
SLOVAKIA
0800-SAMSUNG(726-7864)
http://www.samsung.com/sk
SPAIN
902 - 1 - SAMSUNG (902 172 678)
http://www.samsung.com/es
SWEDEN
0771 726 7864 (SAMSUNG)
http://www.samsung.com/se
SWITZERLAND
0848-SAMSUNG(7267864, CHF 0.08/
min)
http://www.samsung.com/ch
U.K
0845 SAMSUNG (7267864)
http://www.samsung.com/uk
CIS
BELARUS
810-800-500-55-500
ESTONIA
800-7267
http://www.samsung.com/ee
LATVIA
8000-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.com/lt
MOLDOVA
00-800-500-55-500
KAZAKHSTAN
8-10-800-500-55-500
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
TADJIKISTAN
8-10-800-500-55-500
UKRAINE
8-800-502-0000
http://www.samsung.com/kz_ru
http://www.samsung.ru
http://www.samsung.com/ua
http://www.samsung.com/ua_ru
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.com/kz_ru
ASIA PACIFIC
AUSTRALIA
1300 362 603
http://www.samsung.com/au
CHINA
400-810-5858
http://www.samsung.com/cn
010-6475 1880
HONG KONG
3698 - 4698
http://www.samsung.com/hk
http://www.samsung.com/hk_en/
INDIA
3030 8282
http://www.samsung.com/in
1-800-3000-8282
1800 110011
More Information
6-2
ASIA PACIFIC
INDONESIA
0800-112-8888
http://www.samsung.com/id
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
http://www.samsung.com/nz
PHILIPPINES
1-800-10-SAMSUNG(726-7864)
http://www.samsung.com/ph
1-800-3-SAMSUNG(726-7864)
1-800-8-SAMSUNG(726-7864)
02-5805777
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com/sg
THAILAND
1800-29-3232, 02-689-3232
http://www.samsung.com/th
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com/vn
MIDDLE EAST & AFRICA
SOUTH AFRICA
0860-SAMSUNG(726-7864)
http://www.samsung.com/za
TURKEY
444 77 11
http://www.samsung.com/tr
U.A.E
800-SAMSUNG(726-7864)
http://www.samsung.com/ae
8000-4726
6-3
Correct Disposal - Europe only
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
6-3
More Information
Correct disposal of batteries in this product - Europe only
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg,
Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
More Information
6-3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
