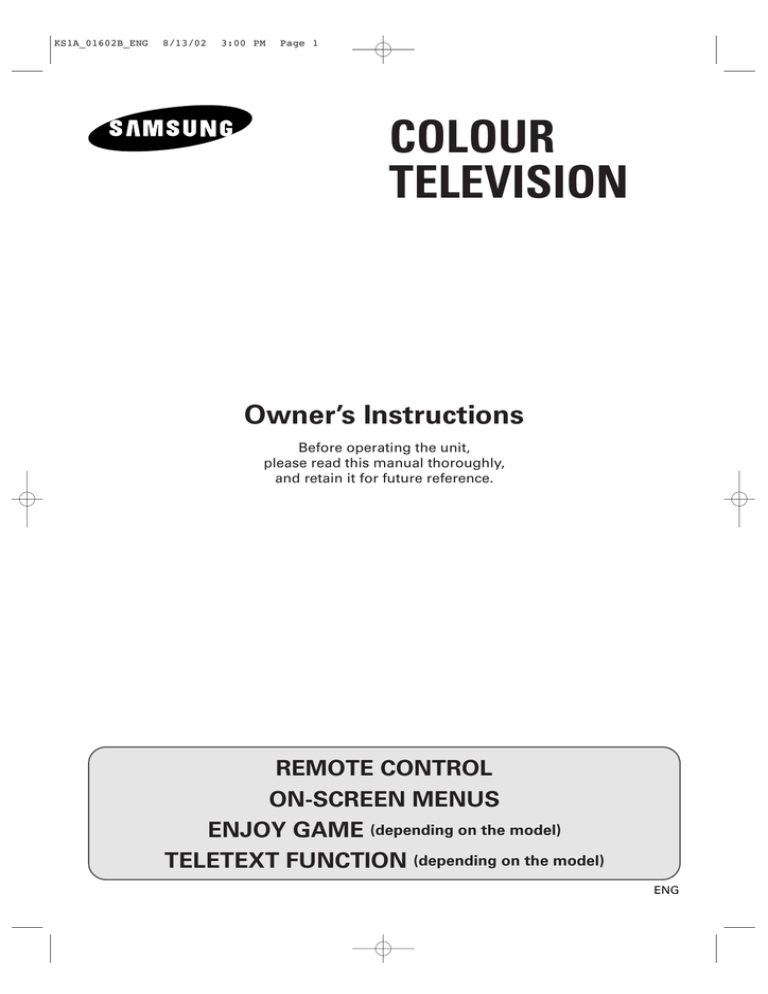

Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
REMOTE CONTROL
ON-SCREEN MENUS
ENJOY GAME (depending on the model)
TELETEXT FUNCTION (depending on the model)
ENG
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 2
Safety Instructions
ENG
The following illustrations represent the precautions to be taken when using and moving your television.
10%
75%
35°
H
H
5°
Do NOT expose the television to
extreme temperature conditions
(below 5°C and above 35°C) or to
extreme humidity conditions (less
than 10% and more than 75%).
Do NOT expose the television to
direct sunlight.
Do NOT expose the television to
any liquids.
If the television is broken, do not
try to repair it yourself. Contact
qualified service personnel.
During a storm conditions
(especially when there is lightning)
unplug the television from the
mains socket and aerial.
If the remote control is not used for
a long period of time, remove the
batteries and store it in a cool, dry
place.
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL ENVIRONMENTS
➢
Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.
Caution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
CAUTION: TO PREVENT ELECTRICAL SHOCK, DO
NOT REMOVE REAR COVER, NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING:
TO PREVENT DAMAGE WHICH MAY
RESULT IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
☛
The main voltage is indicated on the rear of
the TV set and the frequency is 50 or 60Hz.
2
The lightning flash and arrow head
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
Mode
!
System
CS
PAL-B/G, D/K, I, SECAM-B/G,D/K, I,
NTSC4.43 (NTSC3.58; option)
CB
PAL-B/G
CD
PAL-D/K
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 3
ENG
Contents
◆ PREPARING YOUR TELEVISION
■
Safety Instructions .........................................................................................
■
Caution ..........................................................................................................
■
Front Panel Controls......................................................................................
■
Using the Buttons on the Front Panel............................................................
■
Connection Panels ........................................................................................
■
Infrared Remote Control (All Functions Except Teletext) ..............................
■
Infrared Remote Control (Teletext Functions) ...............................................
■
Inserting the Batteries in the Remote Control................................................
■
Connecting the Aerial (or Cable Television Network)....................................
■
Switching Your Television On and Off...........................................................
■
Placing Your Television in Standby mode .....................................................
■
Plug & Play Feature.......................................................................................
■
Choosing Your Language..............................................................................
2
2
4
4
5
6
7
8
8
9
9
10
11
◆ SETTING UP THE CHANNELS
■
Storing the Channels Automatically...............................................................
■
Selecting a Channel Numbered Ten or Over ................................................
■
Storing the Channels Manually......................................................................
■
Skipping Unwanted Channels .......................................................................
■
Fine tuning Channel Reception .....................................................................
■
Sorting the Stored Channels .........................................................................
12
12
13
14
15
16
◆ USING THE TELEVISION
■
Changing the Picture Standard .....................................................................
■
Selecting the Picture Format .........................................................................
■
Adjusting the Picture Settings .......................................................................
■
Changing the Sound Standard ......................................................................
■
Adjusting the Sound Settings ........................................................................
■
Adjusting the Volume.....................................................................................
■
Extra Sound Settings
(Auto Volume/Melody/Pseudo Stereo/Turbo Sound) ....................................
■
Selecting the Sound Mode ............................................................................
■
Switching the Sound Off Temporarily ............................................................
■
Setting the Sleep Timer .................................................................................
■
Setting and Displaying the Current Time.......................................................
■
Switching the Television On and Off Automatically .......................................
■
Activating the Child Lock ...............................................................................
■
Extra Function Settings (Blue Screen/Low Noise AMP)................................
■
Enjoying Games (depending on the model) ..................................................
17
17
18
19
20
20
21
22
22
23
23
24
25
26
27
◆ USING THE TELETEXT FUNCTION (depending on the model)
■
Teletext Decoder ...........................................................................................
■
Displaying Teletext Information .....................................................................
■
Selecting a Specific Teletext Page ................................................................
■
Using FLOF to Select a Teletext Page ..........................................................
■
Storing Teletext Pages ..................................................................................
28
28
29
30
30
◆ INFORMATION ON CONNECTIONS AND RECOMMENDATIONS FOR USE
■
Viewing Picture From External Sources ........................................................
■
Connecting to the Audio/Video Input/Outputs ...............................................
■
Automatic Degaussing to Remove Color Patches.........................................
■
Troubleshooting: Before Contacting Service Personnel................................
31
32
33
33
Symbols
Press
☛
➢
Important
Note
3
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 4
Front Panel Controls (depending on the model)
➣
ENG
Buttons and markings are subject to change.
STAND-BY INDICATOR
MENU DISPLAY
VOLUME ADJUSTMENT
CHANNEL SELECTION
REMOTE CONTROL SENSOR
STAND-BY
INDICATOR
VOLUME ADJUSTMENT
MENU DISPLAY
POWER
CHANNEL SELECTION
REMOTE CONTROL SENSOR
Using the Buttons on the Front Panel
If your remote control no longer works or you have lost it, you can
use the controls on the front panel of the television to:
◆ Switch on the television when it is in Standby mode and
select channels ( ▼ CH ▲ )
◆ Access the main menu ( MENU )
◆ Adjust the volume ( - VOL + )
Buttons on the front panel have the same function as corresponding
buttons on the remote control.
4
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 5
Connection Panels
➢
The actual configuration on your TV may be different, depending on
your model.
ENG
Front (or Side) of TV
RCA AUDIO/VIDEO INPUT
CONNECTORS
➢
Connecting earphones (
) /headphones (
)
◆ You can connect a set of earphones/headphones to your television if you wish to watch a
television programme without disturbing the other people in the room.
◆ Prolonged use of earphones/headphones at a high volume may damage your hearing.
Rear of TV
VIDEO
OUTPUT
AUDIO
VIDEO
INPUT
INPUT
A
OUTPUT
AUDIO
B
C
B
C
B
B
C
C
B
(MONO)
VIDEO AUDIO
VIDEO L-AUDIO-R
MONITOR
-OUT
MONITOR
-OUT
INPUT
INPUT
A) SCART AUDIO/VIDEO INPUT/OUTPUT CONNECTOR
B) 75Ω COAXIAL CONNECTOR FOR AERIAL/CABLE NETWORK
C) RCA AUDIO/VIDEO INPUT/OUTPUT CONNECTORS
5
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 6
Infrared Remote Control (All Functions Except Teletext)
➣
ENG
POWER
Buttons and markings are subject to change.
GAME DISPLAY
(OPTION)
TUNER/CABLE NETWORK
SELECTION
EXTERNAL INPUT SELECTION
DIRECT CHANNEL SELECTION
ON-SCREEN DISPLAY
ONE/TWO-DIGIT CHANNEL
SELECTION
SOUND MODE SELECTION
(OPTION)
AUTOMATIC SWITCH-OFF
SOUND MENU DISPLAY
(OPTION)
TURBO SOUND ON/OFF
(OPTION)
TEMPORARY SOUND SWITCHOFF
VOLUME DECREASE
PREVIOUS CHANNEL
➣
SOUND STANDARD (OPTION)
PICTURE STANDARD (OPTION)
PICTURE SIZE
NEXT CHANNEL
VOLUME INCREASE
MENU DISPLAY
Operation of remote control may be affected by bright artificial light near to the TV set.
6
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 7
Infrared Remote Control (Teletext Functions)
➣
Buttons and markings are subject to change.
ENG
TELETEXT DISPLAY/MIX
LIST/FLOF MODE SELECTION
?
TELETEXT HOLD
TELETEXT REVEAL
TELETEXT STORE
TELETEXT SUB-PAGE
FASTEXT TOPIC SELECTION
PICTURE SIZE
TELETEXT NEXT PAGE
1
1
TELETEXT PREVIOUS PAGE
PROGRAMME SELECTION
BY NAME
7
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 8
Inserting the Batteries in the Remote Control
ENG
You must insert or replace the batteries in the remote control when
you :
◆ Purchase the television.
S
ES
PR
◆ Find that the remote control is no longer operating
correctly.
1
Remove the cover of the remote control by pressing the symbol
( PRESS ) and pulling the cover in the direction of the arrow.
2
Insert batteries, taking care to respect the polarities:
◆
◆
3
+ on the battery with + on the remote control
- on the battery with - on the remote control
Replace the cover by pushing it in the direction of the arrow.
S
ES
PR
Connecting the Aerial (or Cable Television Network)
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆ An outdoor aerial
◆ A cable television network
Plug the aerial or cable network input cable to the 75Ω coaxial socket
on the rear of the television.
75Ω
Cable
Television
Network
Rear of TV
8
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 9
Switching Your Television On and Off
ENG
The mains lead is attached to the rear of the television.
1
2
Plug the mains lead into an appropriate socket.
➢
The main voltage is indicated on the rear of the TV set and
the frequency is 50 or 60Hz.
Press the “
Result:
3
Press the POWER
television on.
Result:
4
” (ON/OFF) button on the front of the television.
The Standby indicator lights up on the front panel.
button on the remote control to switch the
The programme that you were watching last is reselected automatically.
To switch your television off, press the “
again on the front of the television.
” (ON/OFF) button
Placing Your Television in Standby mode
Your television can be placed in Standby mode, in order to reduce:
◆ Power consumption
◆ Wear of the cathode ray tube
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
The television is placed automatically in Standby mode when you
turn it on.
1
Press the POWER
Result:
2
➣
button on the remote control.
The screen is turned off and the Standby indicator on
the front of the television lights up.
To switch the screen back on, simply press the POWER
again on the remote control.
button
Do not leave your television in standby mode for long
periods of time (when you are away on holiday, for example).
In this case, you should switch it off completely.
9
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 10
Plug & Play Feature
ENG
When the television is initially powered ON, three basic customer
settings proceed automatically and subsequently: setting the
language, channel and clock.
1
If the television is in Standby mode, press the POWER
on the remote control.
Result:
2
Plug & Play
3
Auto Store
Exit
If any language is not selected on the “Language” menu, the
“Language” menu will be displayed about 30 seconds later.
Make sure that the antenna is connected to the TV. And then press
the + or – button to store the channels (refer to “Storing the
Channels Automatically” on page 12).
Result:
P 1
471 MHz
48 %
The message “Plug & Play” is displayed. It flickers for a
little while and then the “Language” menu is automatically
displayed.
Press the ▲ or ▼ button to select required language. Press the
MENU button to enter the language, and then the message “Ant.
Input Check” is displayed.
➣
Ant. Input Check
button
The horizontal bar is displayed, and then channels are
stored in an order which reflects their positions in the
frequency range.
4
When searching and storing is complete, the “Time” menu is
displayed.
5
Press the + or – button to move to the hour or minute. Set the hour
or minute by pressing the ▲ or ▼ button (refer to “Setting and
Displaying the Current Time” on page 23).
6
When you have finished, press the MENU button.
Exit
Time
Time
Clock
Clock
11:: -35- -
AM
Result:
Move
Exit
7
The message “ENJOY YOUR WATCHING” is displayed,
and then the channel which has been stored will be
activated.
If you want to reset this feature...
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Function”, and then
press the + or – button.
3
Select the “Plug & Play” by pressing the ▲ or ▼ button, and
then press the + or – button.
ENJOYYour
YOURWatching...
WATCHING
Enjoy
Function
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
Select
Enter
10
Exit
Result:
The message “Plug & Play” is displayed.
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 11
Choosing Your Language
ENG
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Function”.
3
Press the + or – button to select the “Language”.
4
Select a particular language by pressing the ▲ or ▼ button
repeatedly.
Mode
Adjust
Size
Select
5
Custom
: Normal
Enter
Exit
Function
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
When you have finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
Select
Enter
Exit
Function
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
Select
Adjust
11
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 12
Storing the Channels Automatically
ENG
Mode
Adjust
Size
Select
Custom
: Normal
Enter
You can scan the frequency ranges available on your television and
in your country and store all the channels found automatically.
The channels are stored in the order in which they appear in the
frequency bands. It is possible that the automatically allocated
numbers may not correspond to those by which you wish to
identify the channels. If this is the case, refer to “Sorting the Stored
Channels” on page 16.
Exit
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Channel”.
3
Press the + or – button to select the “Auto Store”.
4
Press the + or – button again.
Channel
Auto Store
Manual Store
Add/Erase
Fine Tune
Sort
Select
Enter
Exit
P 1
471 MHz
48 %
Result: The horizontal bar is displayed, and then channels are
stored in an order which reflects their positions in the
frequency range. Finally, the search will end automatically.
5
Exit
Channel
When searching and storing is complete, the “Sort” menu is
displayed.
To...
Then...
Sort the stored channels
into the desired numerical order
Go to Step 4 of the “Sorting
the Stored Channels”
procedure on page 16.
Exit the channel store function
without sorting the channels
Press the MENU button
repeatedly until the menus
disappear.
Sort
From
To
Store
Select
: P 1
: P-: ?
Adjust
Exit
➣
If sound does not work regularly after storing channels, select
the sound system which best corresponds in “Manual Store”
menu (refer to the opposite page).
Selecting a Channel Numbered Ten or Over
When using the numeric buttons to select a channel stored at
programme position ten or higher, follow the instructions below.
1
Press the -/-- button.
Result:
2
The “--” symbol is displayed.
Enter the two-digit channel number.
Example: To select channel 42, press 4, followed by 2.
12
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 13
Storing the Channels Manually
ENG
When storing channels manually, you can choose:
◆ Whether or not to store each of the channels found.
Channel
Auto Store
Manual Store
Add/Erase
Fine Tune
Sort
◆ The number by which you wish to identify each stored
channel.
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Channel” and press the + or
– button.
3
Press the ▲ or ▼ button to select the “Manual Store” and press the
+ or – button.
4
Result:
The “Manual Store” menu is displayed with the “Color
System” selected.
Press the
quality.
+
Result:
The “Color System” is changed (depending on the
model).
or
–
Select
Channel
Color System
:: AUTO
Color
System
AUTO
Sound System
:: B/G
Sound
System
B/G
Search
:
-/+
Search
: -/+
Prog.No.
: 18
Prog.No.
: 18
Store
: :? ?
Store
button repeatedly until the color is of the best
➞
➞
Result:
Color System
:: AUTO
Color
System
AUTO
Sound System
:: B/G
Sound
System
B/G
Search
:
-/+
Search
: -/+
Prog.No.
: 18
Prog.No.
: 18
Store
: :? ?
Store
Select
The “Sound System” is changed (depending on the
model).
To start the search, select the “Search” and then press the
button.
Result:
7
8
Color System
:: AUTO
Color
System
AUTO
Sound System
:: B/G
Sound
System
B/G
Search
: -/+
Search
: -/+
Prog.No.
: 18
Prog.No.
: 18
Store
: :? ?
Store
Select
Adjust
Exit
+ or –
Channel
Manual Store
The tuner scans the frequency range until the first
channel or the channel that you selected is received on
your screen.
To assign a programme number to the channel, select the
“Prog.No.”. Press the + or – button until you find the correct
number.
Color System
:: AUTO
Color
System
AUTO
Sound System
:: B/G
Sound
System
B/G
Search
: -/+
Search
: -/+
Prog.No.
:
18
Prog.No.
: 18
Store
: :? ?
Store
Select
Adjust
To store the channel and associated programme number, select
the “Store” and press the + or – button.
Result:
Exit
Channel
➞
➞
6
If sound does not work regularly after storing
channels, select the sound system which best
corresponds.
Adjust
Manual Store
B/G ↔ D/K ↔ I ↔ M
➣
Exit
Manual Store
NTSC4.43 is a “trick” playback mode used
by special VCR’s to play PAL-recorded
videos in NTSC mode.
Press the ▲ or ▼ button to select the “Sound System” and press
the + or – button repeatedly until the sound is of the best quality.
Adjust
Channel
AUTO ↔ PAL ↔ SECAM ↔ NTSC4.43 ↔ NTSC3.58
5
Exit
Manual Store
Select
➣
Enter
Channel
Manual Store
“OK” is displayed.
9
Repeat Steps 6 to 8 for each channel to be stored.
10
When you have finished manual storage, press the TV
button
or, press the MENU button repeatedly to return to normal viewing
Exit
Color System
:: AUTO
Color
System
AUTO
Sound System
:: B/G
Sound
System
B/G
Search
: -/+
Search
: -/+
Prog.No.
:
18
Prog.No.
: 18
Store
: OK
Store
: OK
Select
Adjust
13
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 14
Skipping Unwanted Channels
ENG
Channel
Auto Store
Manual Store
Add/Erase
Fine Tune
Sort
Select
Enter
You can exclude the channels of your choice from the channel scan
operation. When you scan through the stored channels, those you
have chosen to skip are not displayed.
All channels that you do not specifically choose to skip are
displayed during scanning.
Exit
Channel
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Channel” and press the + or
– button.
3
Press the ▲ or ▼ button to select the “Add/Erase” and press the
or – button.
Add/Erase
P
P
P
P
0
1
2
3
:
:
:
:
Added
Added
Added
Added
Result:
Select
Adjust
+
The “Add/Erase” menu is displayed.
Exit
Channel
4
Press the ▲ or ▼ button to select the required channel.
5
To add or erase the desired channel by pressing the + or – button.
6
When you have finished adding and erasing channels, press the
TV
button or, press the MENU button repeatedly to return to
normal viewing
Add/Erase
P
P
P
P
Select
0
1
2
3
:
:
:
:
Erased
Added
Added
Added
Adjust
14
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 15
Fine tuning Channel Reception
ENG
If the reception is clear, you do not have to fine-tune the channel,
as this is done automatically during the search and store operation.
If however the signal is weak or distorted, you may have to finetune the channel manually.
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Channel” and press the + or
– button.
3
Press the ▲ or ▼ button to select the “Fine Tune” and press the
or – button.
Result:
4
Select
To...
Press the...
obtain a sharp and
clear picture and
good sound quality
◆
memorise adjusted
picture or sound
◆ ▲ or ▼ button to select the “Store”.
◆ + or – button.
Result: “OK” is displayed.
Enter
Exit
Channel
+
Fine Tune
Tune
Store
Erase
The “Fine Tune” menu is displayed with the “Tune”
selected.
erase adjusted
picture or sound
5
Channel
Auto Store
Manual Store
Add/Erase
Fine Tune
Sort
Select
:
:
:
Adjust
-/+
?
?
Exit
+ or – button.
Result:
The horizontal bar’s
cursor moves to the left
or right.
Fine Tune
Channel
Fine Tune
◆ ▲ or ▼ button to select the “Erase”.
◆ + or – button.
Result: “OK” is displayed.
When you have finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
+1
Tune
Store
Erase
Select
:
:
:
Adjust
-/+
OK
?
Exit
Channel
Fine Tune
Tune
Store
Erase
Select
:
:
:
Adjust
15
-/+
?
OK
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 16
Sorting the Stored Channels
ENG
You can exchange the numbers of two channels, in order to:
◆ Modify the numeric order in which the channels have
been automatically stored.
Channel
Auto Store
Manual Store
Add/Erase
Fine Tune
Sort
Select
◆ Give easily remembered numbers to the channels that
you watch most often.
Enter
Exit
Channel
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Channel” and press the + or
– button.
3
Press the ▲ or ▼ button to select the “Sort” and press the
button.
Sort
From
To
Store
Select
: P 1
: P-: ?
Adjust
Result:
Exit
4
Channel
Sort
Select
: P 1
: P 3
: ?
Adjust
The “Sort” menu is displayed with the “From” selected.
Press the + or – button until the channel number that you wish to
change is displayed.
Result:
From
To
Store
+ or –
The selected channel’s picture is displayed.
5
Press the ▲ or ▼ button to select the “To”.
6
Press the + or – button until the new number by which you wish to
identify the channel is displayed.
Exit
Result:
Channel
The selected channel is exchanged with the one
previously stored to the chosen number.
Sort
From
To
Store
Example: If you select “ P 1” for the “From” and “P 3” for the “To”:
◆ Channel 1 becomes channel 3.
◆ Channel 3 becomes channel 1.
: P 3
: P 1
: OK
7
Select
Adjust
To...
Press the...
Confirm the exchange
of channel numbers
◆ ▲ or ▼ button to select the “Store”.
◆ + or – button.
Result: “OK” is displayed.
Exit
➣ You can exchange other
channel numbers by selecting
“From” and returning to step 4.
8
16
When you have finished sorting channels, press the TV
button
or, press the MENU button repeatedly to return to normal viewing
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 17
Changing the Picture Standard
ENG
You can select the type of picture which best corresponds to your
viewing requirements. The following picture effects are available in
the order given:
Mode
Adjust
Size
◆ Custom, Standard, Sports, Natural, Mild.
1
The “Picture” menu is displayed.
Select
Adjust
Exit
Press the + or – button.
Result:
The “Mode” menu is selected.
3
Select to satisfy your preference by pressing the + or – button.
4
When you have been finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
➣
: Normal
Press the MENU button.
Result:
2
Custom
You can select the required picture effect by simply
pressing the “P.STD” (Picture standard) button on the
remote control.
Selecting the Picture Format (depending on the model)
You can select the picture format which best corresponds to your
viewing requirements. The following picture formats are available
in the order given:
Mode
Adjust
Size
◆ Normal
Custom
: Normal
◆ Zoom
◆ 16:9 (option)
Select
1
Result:
The “Picture” menu is displayed.
2
Press the + or – button.
3
Press the ▲ or ▼ button to select the “Size”.
4
Select to satisfy your preference by pressing the + or – button.
5
When you have been finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
➣
Adjust
Press the MENU button.
You can select the required picture format by simply
pressing the “P.SIZE
” (Picture size) button on the
remote control.
17
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 18
Adjusting the Picture Settings
ENG
Mode
Adjust
Size
Your television has several settings which allow you to control picture
quality:
Custom
◆ Color Tone, Contrast, Brightness, Sharpness, Color,
Tint (NTSC only)
: Normal
1
Select
Enter
Press the MENU button.
Result:
Exit
The “Picture” menu is displayed.
2
Press the + or – button.
3
Press the ▲ or ▼ button to select the “Adjust”, and then press the
or – button.
Adjust
Color
Tone :: Normal
Color Tone
Normal
Contrast
90
Contrast
100
Brightness
50
Brightness
50
Sharpness
50
Sharpness
50
Color
50
Color
50
Result:
4
Select
Adjust
When select the “Mode” to “Custom”, the “Adjust” menu is
displayed.
To adjust the...
Press the...
◆ Color Tone
◆
+ or – button.
Result: You select the required option
(Normal, Warm1, Warm2,
Cool1, Cool2).
◆
◆
◆
◆
◆
◆
+ or – button.
Result: The horizontal bar is displayed.
Exit
Adjust
Color
Tone :: Normal
Color Tone
Normal
Contrast
90
Contrast
100
Brightness
50
Brightness
50
Sharpness
50
Sharpness
50
Color
50
Color
50
Select
Adjust
Exit
5
Contrast
Contrast
Contrast
Brightness
Sharpness
Color
Tint (NTSC only)
When you are satisfied with the settings, press the TV
button or,
press the MENU button repeatedly to return to normal viewing.
100
91
➣
➣
18
+
The television has an “automatic degaussing” system that is
activated if magnetic interference is present. To degauss the
television screen, switch power off by pressing the “ ”
(ON/OFF) button on the front panel (refer to “Automatic
Degaussing to Remove Color Patches” on page 31).
If you make any changes to the “Adjust” settings, the picture
standard is automatically switched to “Custom”.
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 19
Changing the Sound Standard (depending on the model)
ENG
You can select the type of special sound effect to be used when
watching a given broadcast. The following sound effects are
available in the order given:
Sound
Mode
Custom
Adjust
Auto Volume
: Off
Melody
: Off
Pseudo Stereo : Off
Turbo Sound
: Off
◆ Custom, Standard, Music, Movie, Speech.
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Sound” and press the + or –
button.
Result:
Adjust
The “Mode” menu is selected.
3
Select to satisfy your preference by pressing the + or – button.
4
When you have been finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
➣
Select
You can select the required sound effect by simply pressing
the “S.STD” (Sound standard) button on the remote
control.
19
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 20
Adjusting the Sound Settings (depending on the model)
ENG
The sound settings can be adjusted to suit your personal preferences.
Sound
Mode
Custom
Adjust
Auto Volume
: Off
Melody
: Off
Pseudo Stereo : Off
Turbo Sound
: Off
Select
Enter
Exit
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Sound” and press the + or –
button.
3
Press the ▲ or ▼ button to select the “Adjust” and press the + or –
button.
Result:
Sound
Adjust
Bass
Treble
Balance
Select
50
50
L 50
Adjust
4
Select the required option by pressing the ▲ or ▼ button and
adjust to satisfy your preference by pressing the + or – button.
5
Press the + or – button.
R 50
Exit
Result:
6
Balance
L 49
When select the “Mode” to “Custom”, the “Adjust” menu
is displayed.
The horizontal bar is displayed.
When you are satisfied with the settings, press the TV
button or,
press the MENU button repeatedly to return to normal viewing.
R 51
➢
You can display the sound adjust menu directly by pressing
the “S.MENU” (Sound menu) button on the remote control.
Adjusting the Volume
You can adjust the volume by pressing the + or - button on the
remote control.
◆ Press the + button to increase the volume (cursor moves to the right)
◆ Press the - button to decrease the volume (cursor moves to the left)
➣
The volume setting is retained:
◆ When you switch the television to standby mode
◆ When you switch the television off using the “
(ON/OFF) button on the front panel
◆ If there is a power failure.
20
”
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 21
Extra Sound Settings (depending on the model)
ENG
The following sound settings can be adjusted to suit your personal
preferences.
Sound
Mode
Custom
Adjust
Auto Volume
: Off
Melody
: Off
Pseudo Stereo : Off
Turbo Sound
: Off
◆ Auto Volume
Each broadcasting station has its own signal conditions,
and so it is not easy for you to adjust the volume every
time the channel is changed. “Auto Volume” lets you
automatically adjust the volume of the desired channel by
lowering the sound output when the modulation signal is
high or by raising the sound output when the modulation
signal is low.
Select
Exit
Sound
Mode
Custom
Adjust
Auto Volume
: On
Melody
: Off
Pseudo Stereo : Off
Turbo Sound
: Off
◆ Melody
You can hear clear melody sound when the TV is
powered ON or OFF.
◆ Pseudo Stereo
Enter
Select
“Pseudo Stereo” converts a monaural sound signal into
two identical left and right channels.
Once the “Pseudo Stereo” is set to “On” or “Off”, the
setting applies to the sound effects such as Standard,
Music, Movie and Speech.
Adjust
Exit
Sound
Mode
Custom
Adjust
Auto Volume
: Off
Melody
: On
Pseudo Stereo : Off
Turbo Sound
: Off
◆ Turbo Sound
You can enjoy more magnificent and dynamic sound
when watching music, movie or other channel. “Turbo
Sound” suitably emphasizes both higher and lower bands
of sound (and includes other effects).
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Sound” and press the + or –
button.
4
➢
To...
Adjust
Exit
Sound
Mode
Custom
Adjust
Auto Volume
: Off
Melody
: Off
Pseudo Stereo : On
Turbo Sound
: Off
1
3
Select
Select
Adjust
Press the...
Change an option
▲ or ▼ button.
Select the required option (On/Off)
+ or – button.
When you are satisfied with the settings, press the TV
button
or, press the MENU button repeatedly to return to normal viewing.
Exit
Sound
Mode
Custom
Adjust
Auto Volume
: Off
Melody
: Off
Pseudo Stereo : Off
Turbo Sound
: On
Select
Adjust
You can select the turbo sound by simply pressing the
“TURBO” button on the remote control.
21
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 22
Selecting the Sound Mode (depending on the model)
ENG
The “S.MODE I-II” button displays/controls the processing and
output of the audio signal. When power is switched ON, the mode
is automatically preset to either “Dual-I” or “STEREO”, depending
on the current transmission.
On-screen indication
Regular broadcast
(Standard audio)
MONO (Normal use)
Regular +
NICAM Mono
MONO
NICAM
NICAM Stereo
STEREO
NICAM
↔
Regular broadcast
(Standard audio)
A2
Stereo
Bilingual or Dual-I/II
Stereo
➣
MONO
(Normal)
MONO
(Normal)
Dual-I → Dual-II → MONO
NICAM NICAM (Normal)
→
NICAM Dual-I/II
↔
→
NICAM
Stereo
Type of broadcast
MONO (Normal use)
Dual-I
STEREO
↔
Dual-II
↔
MONO
(Forced Mono)
◆ If the receiving conditions deteriorate, listening will be
easier if the mode is set to the “MONO” position using
the S.MODE I-II button.
◆ If the stereo signal is weak (or if intermittent Stereo-Mono)
and automatic switching occurs, then switch to the
“MONO” mode.
◆ When receiving mono sound in the AV mode, connect to
the “L” input jack on the panels. If the mono sound
comes out only from the left speaker, then press the
S.MODE I-II button.
Switching the Sound Off Temporarily
You can switch the sound off temporarily, for example you may
wish to answer the telephone.
1
Press the MUTE
Result:
2
22
button.
The sound is switched off and “
” is displayed.
When you wish to turn the sound back on at the same volume as
before, press the MUTE
button again (or either of the volume
buttons).
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 23
Setting the Sleep Timer
ENG
You can select a time period of between 30 and 180 minutes after
which the television automatically switches to Standby mode by
pressing the "SLEEP " button.
1
Press the SLEEP
button on the remote control.
Result:
2
If the sleep timer is...
The screen displays...
Already set
Time remaining before the television
will be placed in standby mode.
Not yet set
Word “Off”.
Press the SLEEP
button repeatedly and cycle through the
preset time intervals (30, 60, 90, 120, 150, 180).
Result:
3
The television automatically switches to standby mode
when the timer reaches 0.
To cancel the sleep timer function, press the SLEEP
repeatedly and select “Off”.
button
Setting and Displaying the Current Time (depending on the model)
You can set the television’s clock so that the current time is displayed
when you press the “DISPLAY
” button.
Function
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
You must also set the time if you wish to use the automatic On/Off
timers.
➣
The clock setting will be re-activated when pressing the
“ ” (ON/OFF) button on the front panel.
Select
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Function” and press the - or
+ button.
3
Press the ▲ or ▼ button to select the “Time”, and press the
button.
Result:
4
Exit
Function
Time
Clock
Clock
Timer
Timer
- or +
11 : 35
11
00
Off
Off
AM
The “Time” menu is displayed with the “Clock” selected.
To...
Press the...
Move to the hour or minute
- or + button.
Set the hour or minute
▲ or ▼ button.
Select
Adjust
5
When you have finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
6
To display the...
Press the DISPLAY
Channel information
Once.
Current time
Twice.
7
Enter
To remove the display, press the DISPLAY
Adjust
Move
button...
button again.
23
Exit
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 24
Switching the Television On and Off Automatically (depending on the model)
ENG
You can set the On/Off timers so that the television will:
◆ Switch on automatically and tune to the channel of your
choice at the time you select
Function
Time
Clock
Clock
Timer
Timer
11 :: 35
35
Off
Off
AM
◆ Switch off automatically at the time you select
➣
Select
Adjust
Exit
The first step is to set the television’s clock (refer to
“Setting and Displaying the Current Time” on the
previous page). If you have not yet set the clock, the
message “Set the clock first” is displayed.
Function
Time
Clock
Clock
Timer
Timer
On
On Time
Time
Off
Off Time
Time
Select
Adjust
11 :: 35
35
On
On
-:
--- : --- :
-: ---
AM
1
Press the MENU button.
AM
AM
2
Press the ▲ or ▼ button to select the “Function” and press the - or
+ button.
3
Press the ▲ or ▼ button to select the “Time”, and press the
button.
Exit
Function
Result:
- or +
The “Time” menu is displayed.
Time
Clock
Clock
Timer
Timer
On
On Time
Time
Off
Off Time
Time
Select
Adjust
11 :: 35
35
On
On
07
:
00
07 : 00
-- :: ----
AM
AM
AM
4
Press the ▲ or ▼ button to select the “Timer”.
5
Press the - or + button to set the mode to “On”.
Result:
Exit
The “On Time” and “Off Time” options are displayed.
6
Press the ▲ or ▼ button to select the “On Time”.
7
Set the time at which you wish the television to be switched On.
Function
Time
Clock
Clock
Timer
Timer
On
On Time
Time
Off
Off Time
Time
Select
Adjust
11 :: 35
35
On
On
07 :: 00
00
23 :
11
: 00
00
AM
AM
PM
Exit
To...
Press the...
Move to the hour or minute
- or + button.
Adjust the hour or minute
▲ or ▼ button.
8
In the same way, set the time at which you wish the television to be
switched Off.
9
When you have finished setting the On/Off time, press the TV
button or, press the MENU button repeatedly to return to normal
viewing.
➣
Fuzzy Power Off
If no function buttons (including remote control buttons
or front panel buttons) are operated for three hours after
the TV is turned on by “On time”, the TV will be
automatically turned off.
24
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 25
Activating the Child Lock (depending on the model)
ENG
You can restrict viewing by locking the channels of your choice.
Example: You can prevent your children from watching
unsuitable programmes.
Function
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Function” and press the - or
+ button.
3
Press the ▲ or ▼ button to select the “Child Lock” and press the
or + button.
Result:
4
Select
Enter
-
Exit
Function
Child Lock
The “Child Lock” menu is displayed.
Child Lock
: Off
Set to “On” by pressing the - or + button.
➣
If you want to unlock a channel, set to “Off”.
Select
5
Press the ▲ or ▼ button to select the “Prog.No.”. Select the
number of the channel to be locked by pressing the - or + button.
6
Press the ▲ or ▼ button to select the “Lock” and press the
button.
Adjust
Exit
Function
Result:
7
- or +
Child Lock
Prog.No.
Lock
“Locked” is displayed.
When you have finished, press the TV
button or, press the
MENU button repeatedly to return to normal viewing.
➣
Child Lock
Select
: On
: 1
: ?
Adjust
Exit
Function
If any channel is locked, you cannot enter the “Channel”
menu (the message “Not available” is displayed).
Child Lock
Child Lock
Prog.No.
Lock
Select
: On
: 1
: Locked
Adjust
P 1
Child Lock
: Locked
25
Exit
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 26
Extra Function Settings (depending on the model)
ENG
Function
The following settings can be adjusted to suit your personal
preferences.
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
Select
Enter
◆ Blue Screen
If no signal is being received or the signal is very weak,
a blue screen automatically replaces the noisy picture
background. If you wish to continue viewing the poor
picture, you must set the “Blue Screen” mode to “Off”.
Exit
◆ Low Noise AMP
Function
This function is very useful in the situation that the TV is
used in weak signal. LNA amplifies the TV signal in the
weak signal area, but not noise. This feature is working
only weak signal condition, and that is memorized on
current channel, additional.
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: Off
Select
Adjust
Exit
1
Press the MENU button.
2
Press the ▲ or ▼ button to select the “Function” and press the + or
– button.
3
To...
Press the...
Change an option
▲ or ▼ button.
Select the required option (On/Off)
+ or – button.
Function
Language : English
Time
Plug & Play
Blue Screen
: Off
Child Lock
Low Noise AMP
: On
Select
Adjust
Exit
4
26
When you are satisfied with the settings, press the TV
button
or, press the MENU button repeatedly to return to normal viewing.
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 27
Enjoying Games (depending on the model)
ENG
You can enjoy the game (Chicken Farm), programmed in this TV.
1
Press the GAME button to enter the Game mode.
Result:
The READY window will be displayed.
2
Press the - or + button to run the game.
3
Move the farmer to catch eggs by using the - or + button. Every
time the scores go up, the speed of game becomes faster bit by bit.
4
Every time you catch fifty eggs (i.e., 50, 100, 150 ...), if any broken
egg exists, one egg can be restored. When five eggs are lost, the
game will be over and simultaneously the final score window will be
displayed.
5
If you want to stop during the game, press the MENU button. Then,
the final score window will be displayed.
6
If you want to re-start the game, press the MENU, - or + button.
Then, the final score window will be switched to the READY
window.
7
To exit the Game mode, press the GAME button.
READY
SCORE 0
SCORE 16
27
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 28
Teletext Decoder (depending on the model)
ENG
Most television channels carry “teletext,” pages of written
information that provide information such as:
◆ Television programme times
◆ News bulletins
◆ Weather forecasts
◆ Sports results
◆ Subtitles for the hard of hearing
The teletext pages are organized according to six categories:
Part
Contents
A
Selected page number.
B
Broadcasting station identity.
C
Current page number or search status
D
Date and time.
E
Text.
F
Status information.
Displaying Teletext Information
You can display teletext information at any time, but signal
reception must be good. Otherwise:
◆ Information may be missing
◆ Some pages may not be displayed
To activate the teletext mode and display the contents page:
1
Using the ▲ ( 1 ) or ▼ (
the teletext service.
2
Press the TTX/MIX (
Result:
1
) button, select the channel providing
) button to activate the teletext mode.
The contents page (page 100) is displayed. It can be
redisplayed at any time by pressing the INDEX (
)
button.
3
To display the actual broadcast simultaneously with the teletext
page, press the TTX/MIX ( ) button.
4
To return to normal viewing press the TV
1
28
1
button.
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 29
Selecting a Specific Teletext Page
ENG
Press the number buttons on the remote control to enter the page
number directly:
1
Enter the three-digit page number listed in the contents by pressing
the corresponding numeric buttons.
Result:
2
3
The current page counter is incremented and the page is
then displayed.
If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the display
on a given page, press the HOLD ( ). Press the HOLD again to
resume.
?
Using the various display options:
To display...
Press the...
◆ Both teletext information and
the normal broadcast
TTX/MIX (
◆ Hidden text
(answers to quiz games, for example)
REVEAL (
?
)
◆ The normal screen
REVEAL (
?
) again
◆ A secondary page,
by entering its 4-digit number
SUB-PAGE (
◆ The next page
PAGE UP (
◆ The previous page
PAGE DOWN (
◆ Double-size letters in the:
• Upper half of the screen
• Lower half of the screen
SIZE (
)
◆ Once
◆ Twice
◆ Normal screen
◆ Three times
)
1
1
)
1
)
1
)
29
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 30
Using FLOF to Select a Teletext Page
ENG
The various topics included in the teletext pages are color-coded,
and can be selected by pressing the colored buttons on the remote
control.
1
Display the teletext contents page by pressing the TTX/MIX (
button.
2
Press the colored button corresponding to the topic that you wish
to select (The available topics are listed on the status information
line).
Result:
)
The page is displayed with additional color-coded
information that can be selected in the same way.
?
3
4
1
To display the:
Press the:
Previous page
Red button.
Next page
Green button.
When you have finished, press the TV
normal broadcast.
button to return to the
Storing Teletext Pages
Up to four teletext pages can be stored.
1
Select the LIST mode.
Result:
Four 3-digit numbers are displayed in different colors at
the bottom of the screen.
?
2
Press the colored button corresponding to the page that will be
replaced.
3
Enter the new page number using the numeric buttons.
4
Repeat steps 2 and 3 for each page to be stored, using a different
colored button each time.
5
Press the STORE (
displayed in white.
?
➣
1
30
) button until the corresponding blocks are
The LIST (
) button is used to switch between:
◆ LIST mode
◆ FLOF mode
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 31
Viewing Pictures From External Sources
ENG
Once you have connected up your various audio and video systems,
you can view the different sources by selecting the appropriate input.
1
Check that all the necessary connections have been made.
2
Switch the television on and if necessary, press the VIDEO
button one or more times until the required input is displayed.
➢
➢
Depending on the source selected, the pictures may appear
automatically.
To watch television programmes again, press the TV
button and select the number of the channel required.
31
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 32
Connecting to the Audio/Video Input/Outputs
➢
ENG
The actual configuration on your TV may be different, depending on
your model.
Rear of TV
AV cable
(depending on the model)
(depending on the model)
VCR
VIDEO
OUTPUT
AUDIO
INPUT
Decoder/
Video game device
Video disc player
VIDEO AUDIO
MONITOR
-OUT
Camcorder
INPUT
Satellite receiver
(MONO)
VIDEO L-AUDIO-R
MONITOR
-OUT
INPUT
➢
The Audio/Video connector on the rear of the television is
used for equipment with an RGB output.
Front (or Side) of TV
AV cable
(depending on the model)
(depending on the model)
Camcorder
Video disc player
Decoder/
Video game device
➢
◆ The Audio/Video connector on the front (or side) of the television is
used for equipment, such as camcorders, video disc players and
certain video games.
◆ When both the front (or side) and rear connectors are connected to external equipment,
the front (or side) AV has the priority.
32
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 33
Automatic Degaussing to Remove Color Patches
ENG
A degaussing coil is mounted around the picture tube, so you do not normally need to degauss the
television manually.
If you move the television to a different position and color patches appear on the screen, you must:
◆ Switch the television off by pressing the “
” (ON/OFF) button on the front panel
◆ Unplug the television from the wall socket
◆ Leave the television power-off (stand-by) for about 30 minutes so that the automatic degauss
function can be activated, and then press the POWER
button on the remote control.
☛
If your television will be left unattended, press the “
television off.
” (ON/OFF) button to turn your
Troubleshooting: Before Contacting Service Personnel
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
◆
◆
◆
◆
Normal picture but no sound
◆ Check the volume.
◆ Check whether the MUTE
remote control.
Check that the mains lead has been connected to a wall socket.
Check that you have pressed the “ ” (ON/OFF) button.
Check the picture contrast and brightness settings.
Check the volume.
button has been pressed on the
No picture or black and white picture
◆ Adjust the colour settings.
◆ Check that the broadcast system selected is correct.
Sound and picture interference
◆ Try to identify the electrical appliance that is affecting the television
and move it further away.
◆ Plug your television into a different mains socket.
Blurred or snowy picture,
distorted sound
◆ Check the direction, location and connections of your aerial.
This interference is often due to the use of an indoor aerial.
Remote control malfunctions
◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control (transmission window).
◆ Check the battery terminals.
33
KS1A_01602B_ENG
8/13/02
3:00 PM
Memo
ENG
34
Page 34
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 35
Memo
ENG
35
KS1A_01602B_ENG
8/13/02
3:00 PM
Page 36
- AFTER SALES SERVICE
- Do not hesitate to contact your retailer or service
agent if a change in the performance of your product
indicates that a faulty condition may be present.
ELECTRONICS
AA68-01602B (ENG)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
