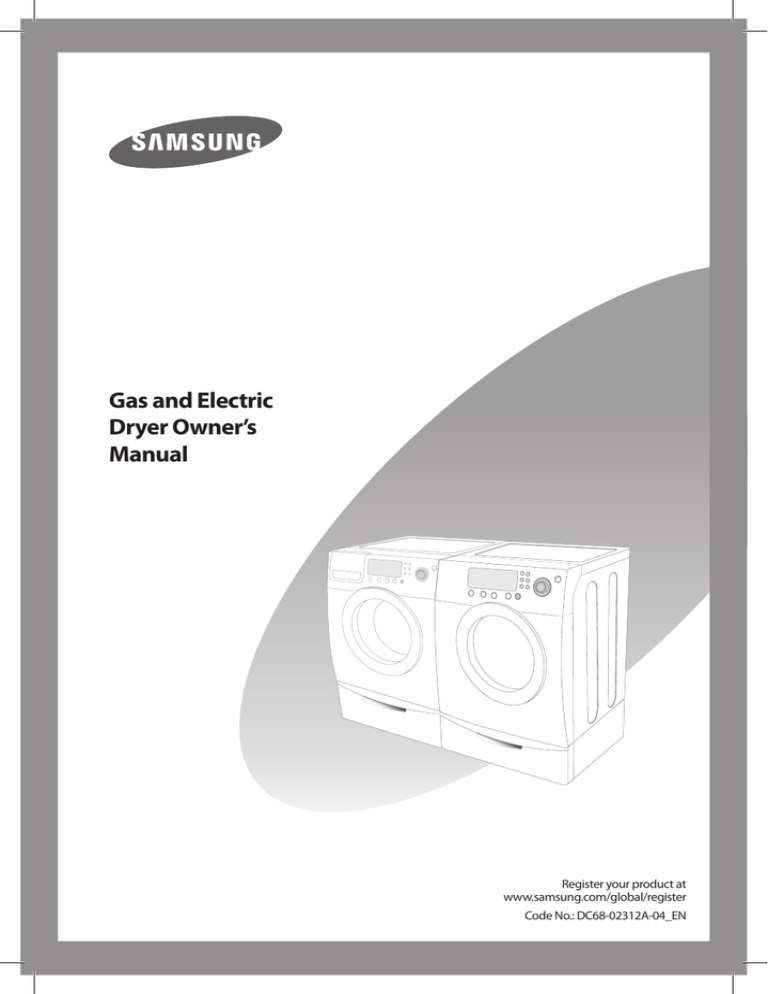

Gas and Electric
Dryer Owner’s
Manual
Register your product at
www.samsung.com/global/register
Code No.: DC68-02312A-04_EN
Features
Extra Large Capacity
Ultra washing and drying are at your fingertips! Now you can do extra-large loads in both the washer
and dryer. Plus our ultra-large 7.3 cu.ft. capacity dryer circulates more air through your clothes getting
them dry faster, for a wrinkle-free result.
Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 11 automatic drying cycles, including normal, heavy duty
and towels. Or let Fuzzy Logic Control measure the degree of dampness and automatically set the
drying time. Precision drying never got easier than with Samsung.
Freshen Up Cycle
Want to freshen up a garment that doesn’t need washing, but could deserve a little help after last night’s
party. Our Freshen Up Cycle removes odors, adding that extra freshness to give more mileage to your
clothes.
Time Saving
Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in less time...
just 44 minutes! Giving you time for more important things in life.
Energy Saving
Samsung dryers are super energy efficient, using only 3.01 kWh per pound of laundry. And both the
large capacity and Fuzzy Logic Control save energy by automatically drying your clothes the most
efficient way.
Easy Reversible Door
Our dryers will fit just about anywhere and without a door conflict. The direction of our easy reversible
door can be changed with just four screws.
Slanted Control Panel
You can see what your laundry is doing from any direction you’d like with our easy-to-read slanted
control panel.
Stacking
Washer and Dryer can be stacked to maximize usable space.
Notice : Dryer legs need to be removed to stack Washer and Dryer.
Safety Precautions
Congratulations on your new Samsung Dryer. This manual contains valuable information on the
installation, use, and care of your appliance. Please take the time to read this manual to take full
advantage of your dryer’s many benefits and features.
What you need to know about Safety Instructions
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when
installing, maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
RECOGNIZE SAFETY SYMBOLS, WORDS, LABELS
WARNING – Hazards or unsafe practices that COULD result in severe personal injury or
death.
CAUTION –
Hazards or unsafe practices that COULD result in minor personal injury or
property damage.
WARNING – Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
SAVE THESE INSTRUCTIONS
Safety Precautions
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING – To reduce the risk of fire, explosion, electric shock, or personal injury when
using your dryer, follow the basic safety precautions below:
1. Read all instructions before using your appliance.
2. To avoid the possibility of fire or explosion:
a. Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline,
dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could
ignite or explode. Any material that has been in contact with a cleaning solvent or flammable
liquids or solids should not be placed in the dryer until all traces of these flammable liquids or
solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured alcohol,
gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes,
and wax removers.
b. Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like
materials must not be dried on a heat setting. Heated foam rubber materials can, under certain
circumstances, produce fire by spontaneous combustion.
3. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is
necessary when the appliance is used near children and pets.
4. Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
5. Do not reach into the appliance when the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions and you understand and have the skills to carry those
out.
9. Do not use fabric softeners or products to eliminate static unless recommended for dryer use by
the manufacturer of the fabric softener or product.
10. Clean the lint screen before or after each load.
THESE INSTRUCTIONS
4SAVE
SAMSUNG
Dryer Owner’s Instructions
Safety Precautions
11. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
12. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
13. This appliance must be properly grounded. Never plug the power cord into a receptacle that is not
grounded adequately and in accordance with local and national codes. See installation instructions
for grounding this appliance.
14. Do not sit on top of the dryer.
NOTE: Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For complete details, see the Installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
15. Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie. coins,
knives, pins, etc. These objects could damage your dryer.
16. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.
WARNING – Gas leaks may occur in your system, resulting in a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas
detector.
Install and use in accordance with the manufacturer’s instructions.
WARNING – Do not place items in your dryer that have been spotted or soaked with
vegetable oil or cooking oil. Even after being washed, these items may contain
significant amounts of these oils.
The residual oil can ignite spontaneously. The potential for spontaneous combustion increases when
the items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer
can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this
heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these
kinds of items may prevent heat from escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing
these items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use
the Cool Down cycle for these items to reduce their temperature. Never remove these items from the
dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never
pile or stack these items when they are hot.
SAMSUNG Dryer
SAVEOwner’s
THESE INSTRUCTIONS
Instructions 1
Table of Contents
Installation Instructions . . . . . . . . . . . . . . . .
Tools needed for installation . . . . . . . . . . . .
See Exhaust Requirements. . . . . . . . . . . . . .
DUCTING REQUIREMENTS . . . . . . . . . . . . . .
IMPORTANT TO INSTALLER. . . . . . . . . . . . . .
LOCATION CONSIDERATIONS . . . . . . . . . . . .
ALCOVE OR CLOSET INSTALLATION. . . . . . . .
MOBILE HOME INSTALLATION . . . . . . . . . . .
EXHAUSTING . . . . . . . . . . . . . . . . . . . . . . .
GAS REQUIREMENTS. . . . . . . . . . . . . . . . . .
ELECTRICAL REQUIREMENTS . . . . . . . . . . . .
GROUNDING . . . . . . . . . . . . . . . . . . . . . . .
ELECTRICAL CONNE CTIONS . . . . . . . . . . . .
REPLACEMENT PARTS AND ACCESSORIES . . .
INSTALLATION . . . . . . . . . . . . . . . . . . . . . .
FINAL INSTALLATION CHECKLIST . . . . . . . . .
Dryer Exhaust Tips . . . . . . . . . . . . . . . . . . .
Door Reversal. . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.................
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. . . . . . . . . . . . A-1
. . . . . . . . . . . . . A-1
. . . . . . . . . . . . . A-1
. . . . . . . . . . . . . A-2
. . . . . . . . . . . . . A-3
. . . . . . . . . . . . . A-3
. . . . . . . . . . . . . A-3
. . . . . . . . . . . . . A-4
. . . . . . . . . . . . . A-4
. . . . . . . . . . . . . A-5
. . . . . . . . . . . . . A-6
. . . . . . . . . . . . . A-6
. . . . . . . . . . . . . A-7
. . . . . . . . . . . . . A-7
. . . . . . . . . . . . . A-8
. . . . . . . . . . . . . A-9
. . . . . . . . . . . . .A-10
. . . . . . . . . . . . .A-11
Operating Instructions, Tips . . . . . . . . . . . . .
OVERVIEW OF THE CONTROL PANEL . . . . . . .
CHILD LOCK. . . . . . . . . . . . . . . . . . . . . . . .
MY CYCLE . . . . . . . . . . . . . . . . . . . . . . . . .
Rack Dry (select models) . . . . . . . . . . . . . . .
CLEAN THE LINT FILTER . . . . . . . . . . . . . . . .
LOAD THE DRYER PROPERLY . . . . . . . . . . . .
GETTING STARTED . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
................
.................
.................
.................
.................
.................
.................
.................
.
.
.
.
.
.
.
.
. . . . . . . . . . . . .B-1
. . . . . . . . . . . . . .B-1
. . . . . . . . . . . . . .B-4
. . . . . . . . . . . . . .B-4
. . . . . . . . . . . . . .B-5
. . . . . . . . . . . . . .B-6
. . . . . . . . . . . . . .B-6
. . . . . . . . . . . . . .B-6
Care and Cleaning . . . . . . . . . . . . . . . . . . . .
Control Panel . . . . . . . . . . . . . . . . . . . . . . .
Tumbler . . . . . . . . . . . . . . . . . . . . . . . . . .
Stainless Steel Tumbler (select models) . . . . .
Dryer Exterior. . . . . . . . . . . . . . . . . . . . . . .
Dryer Exhaust System . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
................
.................
.................
.................
.................
.................
.
.
.
.
.
.
. . . . . . . . . . . . .C-1
. . . . . . . . . . . . . .C-1
. . . . . . . . . . . . . .C-1
. . . . . . . . . . . . . .C-1
. . . . . . . . . . . . . .C-1
. . . . . . . . . . . . . .C-1
Special Laundry Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
THINGS TO AVOID : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-1
CHECK THESE POINTS IF YOUR DRYER... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-1
INFORMATION CODES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .F-1
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . .
FABRIC CARE CHART . . . . . . . . . . . . . . . . . .
PROTECTING THE ENVIRONMENT . . . . . . . . .
DECLARATION OF CONFORMITY . . . . . . . . .
SPECIFICATION. . . . . . . . . . . . . . . . . . . . . .
CYCLE CHART . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
................
.................
.................
.................
.................
.................
.
.
.
.
.
.
. . . . . . . . . . . . .F-2
. . . . . . . . . . . . . .F-2
. . . . . . . . . . . . . .F-3
. . . . . . . . . . . . . .F-3
. . . . . . . . . . . . . .F-3
. . . . . . . . . . . . . .F-4
36
Installation Instructions
Tools needed for installation
Proper installation is the owner’s responsibility.
HOWEVER, SERVICE CALLS PERFORMED AS A RESULT OF POOR SET-UP, ADJUSTMENT, AND
CONNECTION ARE THE RESPONSIBILITY OF THE INSTALLER.
Make sure you have everything necessary for proper installation.
1. GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.
2. POWER CORD for electric dryers (except Canada).
3. GAS LINES (if a gas dryer) must meet national and local codes.
4. EXHAUST SYSTEM – must be rigid metal or flexible stiff-walled metal exhaust ducting.
See Exhaust Requirements.
Control panel
Door
Adjustable leg
Pliers
Level
Cutting knife
Pipe wrench (gas only)
Screwdriver (standard)
Duct tape
Nut drivers
Crescent spanner
SAMSUNG Dryer Owner’s Instructions
A-1
Installation Instructions
DUCTING REQUIREMENTS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible
duct with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
Keep exhaust duct as straight and short as possible.
Secure joints with duct tape. Do not use screws.
DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF A
BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect
dryer operation.
Exhaust systems longer than recommended can extend drying times, affect machine operation,
and may collect lint.
The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back
drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper.
The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood
and the ground or other obstruction. The hood opening should point down.
Never install a screen over the exhaust outlet.
To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a
house or porch.
If exhaust ductwork must run through an unheated area, the duct should be insulated and slope
slightly down towards the exhaust hood to reduce condensation and lint buildup.
Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord
before cleaning.
Check frequently to be sure the exhaust hood damper opens and closes freely.
Check once per month, and clean at least one time per year. Note: If clothes are not getting dry,
then check ducting for obstructions.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended
Use only for short-run installation
4” (10 .16 cm)
No. of 90°
elbows
0
1
2
3
2.5” (6.35 cm)
Rigid
Metallic Flexible*
Rigid
Metallic Flexible*
24.4 m (80 ft.)
20.7 m (68 ft.)
17.4 m (57 ft.)
14.3m (47 ft.)
12.4 m (41 ft.)
11.2 m (37 ft.)
10.1 m (33 ft.)
9.0 m (29 ft.)
22.6 m (74 ft.)
18.9 m(62 ft.)
15.5 m(51 ft.)
12.5 m(41 ft.)
10.1 m (33 ft.)
8.8 m (29 ft.)
7.6 m (25 ft.)
6.5 m (21 ft.)
* Do not use non-metallic flexible duct.
A-2 SAMSUNG Dryer Owner’s Instructions
Installation Instructions
If new dryer is installed into an existing exhaust system you must make sure:
• The exhaust system meets all local, state, and national codes.
• That flexible plastic duct is not used.
• Inspect and clean all lint buildup from inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be less than 0.
This can be measured with the dryer running with a manometer at the point where the exhaust duct
connects to the dryer. A no-heat setting should be used. The dryer tumbler should be empty and the lint
filter clean.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be
kept for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A
CHILD SUFFOCATING.
LOCATION CONSIDERATIONS
The dryer should be located where there is enough space in front for loading the dryer, and enough
space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the
bottom or the left, use the accessory exhaust kit. Instructions are included with the kit. It’s important
to make sure the room has enough fresh air. The dryer must be located where there is no air-flow
obstruction.
On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate
air for combustion and proper dryer operation.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE IT WILL BE EXPOSED TO WATER
AND/OR WEATHER. THE DRYER AREA IS TO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS, GASOLINE,
AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE LINT. THE AREA
AROUND THE DRYER SHOULD BE KEPT LINT-FREE.
ALCOVE OR CLOSET INSTALLATION
WARNING – The dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
•
•
•
•
No other fuel-burning appliance should be installed in the same closet as the dryer.
WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED TO THE OUTDOORS.
See EXHAUST INFORMATION section.
Minimum clearances between the dryer and adjacent walls or other surfaces are:
2” in front, 17” on top, 1” on either side, and 2.375” in the back.
Closet front must have two unobstructed air openings for a combined minimum total area of
72 in² with 3” minimum clearance on the top and bottom. A louvered door with equivalent space
clearance is acceptable.
SAMSUNG Dryer Owner’s Instructions A-3
Installation Instructions
MOBILE HOME INSTALLATION
The installation of the dryer in mobile homes must conform to the Manufactured Home Construction
and Safety Standard Title 24 CFR, Part 32-80 {formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for
Canada).
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
Locate in an area that has adequate fresh air.
A minimum of 72 in² (183 cm² ) of unobstructed space is required.
Call 1-800-SAMSUNG for information on purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination
securely fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown
into the room.
In the United States:
• All dryers must be exhausted to the outside.
• Only rigid or flexible metal duct should be used for exhausting.
In Canada:
• All dryers must be exhausted to the outside.
Outside the U.S. and Canada:
• Refer to local codes.
WARNING – The dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
NEVER USE PLASTIC OR NON-METAL FLEXIBLE DUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with
metal.
Use only metal exhaust duct that is non-flammable to ensure containment of
exhaust air, heat, and lint.
A-4 SAMSUNG Dryer Owner’s Instructions
Installation Instructions
GAS REQUIREMENTS
Use only natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES,
WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED STATES),
OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with
LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service
technician.
A 1/2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8” (1 cm) gas
line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off
valve be installed within 6’ of your dryer.
Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.
Additionally, a 1/8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge
connection, must be installed immediately upstream of your dryer’s gas supply connection.
Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the
system.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American
Gas Association (CGA in Canada).
NOTE :
• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION – Your dryer uses an automatic ignition system to ignite the burner.
There is no constant burning pilot.
COMMONWEALTH OF MASSACHUSETTS INSTALLATION INSTRUCTIONS
Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be
installed in the gas supply line to your dryer. If a flexible gas connector is used to install your dryer, the
connector must have a maximum length of 3’ (36”).
WARNING – Gas leaks may occur in your system, creating a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with manufacturer’s instructions.
SAMSUNG Dryer Owner’s Instructions A-5
Installation Instructions
ELECTRICAL REQUIREMENTS
NOTE: Wiring diagram is located on plate below the control panel.
WARNING –
• Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet,
have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code
CSA C22.1 – Latest Revisions and local codes and ordinances. It is your responsibility to provide
adequate electrical services for your dryer.
• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 – Latest
Revision (for the U.S.) or CAN/CGA – B149 Installation Codes – Latest Revision (for Canada) and local
codes and ordinances.
GROUNDING
This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk
of electrical shock by providing a path of least resistance for electrical current.
GAS MODELS
Your dryer has a cord with an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT WATER PIPES.
ELECTRIC MODELS
Your dryer has a cord with an equipment-grounding conductor and a grounding plug, sold
separately.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be
connected to a permanent grounded metal wiring system, or an equipment grounding conductor
must be run with the circuit conductors and connected to the equipment grounding terminal.
A-6 SAMSUNG Dryer Owner’s Instructions
Installation Instructions
ELECTRICAL CONNE CTIONS
Before operating or testing, follow all grounding instructions in the Grounding section.
An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN
EXTENSION CORD.
GAS MODELS – U.S. and Canada
A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is
required.
ELECTRIC MODELS – U.S. Only
Most U.S. dryers require a 120/240 volt, 60 Hz AC approved electrical service. Some require 120/208
volt, 60 Hz approved electrical service. The electric service requirements can be found on the
data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is
required.
• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOT provided with U.S. electric model dryers.
IMPORTANT:
When local codes allow, the dryer electrical supply may be connected by means of a new
power supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum
of120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed
loop terminals, open-end spade lugs with turned up ends, or with tinned leads.
1. size of the conductors and the type of cord.
2. 3/4” (1.9 cm) UL-listed strain relief
• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring
must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding
through the neutral conductor. (Use 4-prong plug for 4 wire receptacle, NEMA type 14-30R.)
ELECTRIC MODELS – Canada Only
•
•
A 120/240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or circuit
breaker on both sides of the line is required.
All Canadian models are shipped with the power cord attached. The power cord should be
plugged into a 30-ampere receptacle.
NOTE: It is not permissible to convert a dryer in Canada to 208 volts.
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased
your dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).
SAMSUNG Dryer Owner’s Instructions A-7
Installation Instructions
INSTALLATION
Parts and literature are packaged inside your dryer drum. To install:
1. Move your dryer to an appropriate location for installation. Consider installing the dryer and
washer side-by-side, to allow access to gas, electrical, and exhaust connections.
Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both
cushion-tops.
2. Set your dryer back in an upright position.
3. Review the Exhausting section before installing the exhaust system. Install the ductwork from your
dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer.
DO NOT use sheet metal screws when assembling ducting. These joints should be taped.
Never use plastic flexible exhaust material.
Tip for tight installations: install a section of exhaust system to your dryer before putting it in place.
Use duct tape to secure this section to your dryer, but do not cover louvers in dryer cabinet.
4. Review Electrical Requirements section.
BEFORE OPERATING OR TESTING, follow the grounding instructions in the Grounding section.
U.S. MODELS:
IMPORTANT – All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION.
The dryer frame is grounded to the neutral conductor at the terminal block.
A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes,
or if local codes do not permit grounding through neutral. If the 4-wire system is used, the dryer
frame cannot be grounded to the neutral conductor at the terminal block. Refer to the following
instructions for 3- and 4-WIRE SYSTEM CONNECTIONS.
Remove the terminal block cover plate.
Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near
the terminal block.
NOTE: A strain relief must be used.
Do not loosen the nuts already installed on the terminal block. Be sure they are tight.
Use a 3/8” (1cm) deep well socket.
5. Review Gas Requirements section.
Remove the pipe thread protective cap.
Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.
NOTE: Pipe joint compound must be resistant to the action of any liquefied petroleum gas.
Connect the gas supply to your dryer.
An additional fitting is required to connect the 3/4” (1.9 cm) female thread end of a flexible
connector to the 3/8” (1 cm) male threaded end on the dryer.
Securely tighten the gas line fitting over threads.
Turn on the gas supply. Check all gas connections for leaks using a soap solution.
If bubbles appear, tighten the connections and recheck.
DO NOT use an open flame to check for gas leaks.
A-8 SAMSUNG Dryer Owner’s Instructions
Installation Instructions
3-WIRE SYSTEM CONNECTIONS
1. Loosen or remove center terminal block screw.
2. Connect neutral wire (white or center wire) of the power cord to the center, silver-colored
terminal screw of the terminal block. Tighten screw.
3. Connect the other wires to outer terminal block screws. Tighten screws.
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into your dryer’s rear panel slot.
Secure cover with hold-down screw.
1. External ground connector
2. Neutral grounding wire (green/yellow)
3. Center silver-colored terminal block screw
4. Neutral wire (white or center wire)
5. 3/4” (1.9 cm) UL-listed strain relief
WARNING: If converting from a 4-wire electrical system to a 3-wire, the ground strap must be reconnected
to the terminal block support to ground the dryer frame to the neutral conductor.
4-WIRE SYSTEM CONNECTIONS
1. Remove center terminal block screw.
2. Connect ground wire (green or unwrapped) of power cord to external ground conductor screw.
3. Connect neutral wire (white or center wire) of power cord and appliance ground wire (green
with yellow stripes) under central screw of the terminal block.
4. Connect the other wires to outer terminal block screws. Tighten screws.
5. Tighten strain relief screws.
6. Insert tab of terminal block cover into your dryer’s rear panel slot.
Secure cover with hold-down screw.
1. External ground connector
2. Green or bare copper wire of power cord
3. 3/4 in. (1.9 cm) UL-listed strain relief
4. Center silver-colored terminal block screw
5. Grounding wire (green/yellow)
6. Neutral wire (white or center wire)
6. With a level, check your dryer and make necessary adjustments to the leveling legs.
7. At this time, make sure all gas connections (on gas models), exhaust and electrical connections are
complete. Plug in your dryer, and check operation by using the checklist below.
8. (GAS MODELS ONLY)
The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting
will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure
the gas supply to your dryer has been turned on. In order to confirm gas ignition, check the exhaust for heat.
FINAL INSTALLATION CHECKLIST
□
□
□
□
□
□
□
Dryer is plugged into electrical outlet and properly grounded.
Exhaust ductwork is hooked up and joints taped.
Plastic flexible duct is NOT used.
Use rigid or stiff-walled flexible metal vent material.
Dryer is level with all legs firmly on the floor.
Gas models – gas is turned on with no gas leaks.
Start your dryer to confirm that it runs, heats, and shuts off.
SAMSUNG Dryer Owner’s Instructions A-9
Installation Instructions
Dryer Exhaust Tips
WARNING:
1
Plastic or non-metal flexible duct presents a potential fire hazard.
2
3
4
1. Let your dryer exhaust the air easily.
2. Use 4” diameter rigid metal duct.Tape all joints, including at the dryer.
Never use lint-trapping screws.
3. Keep ducts as straight as possible.
4. Clean all old ducts before installing your new dryer.
Be sure vent flap opens and closes freely.
Inspect and clean the exhaust system annually.
Don’t let a poor exhaust system slow drying by:
1
1.
2.
3.
4.
2
3
Restricting your dryer with a poor exhaust system.
Using a plastic, thin foil, or non-metal flexible duct.
Using unnecessarily long duct runs with many elbows.
Allowing crushed or clogged ducts and vent.
A-10 SAMSUNG Dryer Owner’s Instructions
4
Installation Instructions
Door Reversal
1. Unplug power cord.
2. Remove two door hinge screws.
3. Lift the door and remove from
dryer.
6. Place the door on the other side
and reattach it to dryer.
4. Remove two screws on the
opposite side of door hinge.
7. Reassemble holder lever.
5. Remove two screws on holder
lever.
8. Reassemble the screws in the
remaining holes.
SAMSUNG Dryer Owner’s Instructions A-11
Operating Instructions, Tips
 Control Features vary by model.
OVERVIEW OF THE CONTROL PANEL
B-1 SAMSUNG Dryer Owner’s Instructions
Operating Instructions, Tips
1.
Digital Graphic Display
The display window shows the estimated time remaining in the cycle after the Cycle Selector dial is
pressed. The estimated time remaining may fluctuate as the cycle progresses.
The Drying light will illuminate and remain lit until the cycle is complete.
When your dryer is in the cool-down phase, the Cooling light will illuminate.
When your dryer is in the wrinkle prevent phase, the Wrinkle Prevent light will illuminate.
When the cycle is complete, “END” will appear in the display panel until the dryer door is opened or
Power key is pushed.
If your dryer is paused during a cycle, the indicator lights will blink until the Cycle Selector dial is
pressed.
2.
Dry Level Selection Button
To select the dry level in the Normal, Heavy Duty, or other Sensor Dry cycles, press the Dry Level
button. An indicator light will illuminate next to the desired dryness level.
Press the button repeatedly to scroll through the settings. Larger or bulkier loads may require the
Very Dry (select models) or More Dry setting for complete dryness.
The Less Dry setting is best suited for lightweight fabrics or for leaving some moisture in the
clothing at the end of the cycle. Damp Dry (select models) is designed to partially dry items.
Use for items that lay flat or hang to dry.
3.
Temp Selection Button
To select the correct temperature for the load, press the Temp button. An indicator light will
illuminate next to the desired temperature. Press the button repeatedly to scroll through the
settings.
High – For sturdy cottons or those labeled Tumble Dry.
Medium – For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry
Medium.
Medium Low – For lower heat than Medium to dry synthetic or washable knit fabrics.
Low – For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.
Extra Low – Provides the lowest heated dry temperature possible.
4.
Time Selection Button
When using Manual Dry cycles, time can be adjusted by pressing time selection button.
During the Sensory Dry cycle, the time light indicator is off because exact drying times are
determined by fluctuating humidity levels.
5.
Signal Selection Button
When the cycle is complete, a chime will sound.
When the Wrinkle Prevent option is selected, the chime will sound intermittently.
Adjust the volume of the chime or turn it off by pressing the Signal button.
Press the button repeatedly to scroll through the choices.
6.
Wrinkle Prevent Selection Button
Wrinkle Prevent provides approximately 90 minutes of intermittent tumbling in unheated air at the
end of the cycle to reduce wrinkling. Press the Wrinkle Prevent button to activate this feature.
The indicator light above the pad will illuminate when Wrinkle Prevent is selected.
Chasing lights appear in the display when the Wrinkle Prevent option is selected. The load is dry,
and can be removed at any time during the Wrinkle Prevent cycle.
SAMSUNG Dryer Owner’s Instructions B-2
Operating Instructions, Tips
7.
Select Cycle Option
Adjust Time – Time can be added or subtracted from the automatically set times in the Manual
Dry cycles (Time Dry, Freshen Up, Delicates, Wrinkle Release, or Air Fluff cycles).
To add or subtract time from the cycle, press the Adjust Time arrow pad up or down until the
desired time is displayed.
My Cycle – Choose your favorite cycle including cycle, temp, dry level option, etc. (See page B4 for
detail.)
Rack Dry – Rack Dry is available at Time Dry cycle. Temperature will be set only to Extra Low. (See
page B5 for detail.)
8.
Cycle Selector
To select a cycle, rotate the Cycle Selector dial to the desired cycle.
The indicator light by the cycle name will illuminate. The Normal, Heavy Duty, Towels, Perm Press
and Delicates cycles are Sensor Dry cycles.
Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the selected
dryness level (very dry to damp dry) is reached.
Normal – Dry loads such as cotton, underwear, and linens use this cycle to get various levels of
heat for drying.
Heavy Duty – Use this cycle to get high heat for heavy fabrics such as jeans, corduroys, or work
clothes.
Towels – Dry loads such as bath towels.
Perm Press – Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics
automatically. The cycle minimizes wrinkling by providing a longer unheated cool-down period at
the end of the cycle.
Delicates – The Delicates cycle is designed to dry heat-sensitive items at a low drying temperature.
Freshen Up – This cycle removes odors and freshens garments.
Time Dry – Time Dry allows you to select the desired cycle time in minutes.
Turn the Cycle Selector dial to Time Dry, then press the Adjust Time up arrow to set the drying time.
Press the arrow repeatedly to scroll through the time settings.
Wrinkle Release – The Wrinkle Release cycle will release wrinkles from items that are clean, dry,
and only slightly wrinkled, such as clothes from a crowded closet, suitcase or items that have been
in the dryer too long after the cycle has ended. Wrinkle Release can be used with any temperature
selection.
Air Fluff – The Air Fluff cycle tumbles the load in room temperature air.
9.
Start/Pause Selection Button
Press to pause and restart programs.
10. Power Button
Press once to turn your dryer on, press again to turn it off. If your dryer is left on for more than 10
minutes without any buttons being touched, the power automatically turns off.
B-3 SAMSUNG Dryer Owner’s Instructions
Operating Instructions, Tips
CHILD LOCK
A function to prevent children from playing with your dryer.
SETTING/RELEASING
If you want to set or release Child Lock, press both the Time and Signal buttons at the same time
for 3 seconds.
How to Set:
1. It can be set while your dryer is running.
2. Once you set the Child Lock function, no button, except for the Power button, can be
controlled until you release the Child Lock function.
3. The Child Lock indicator will be lit.
Notice:
1. If the power is on again, the Child Lock function remains unchanged.
2. To release that function, follow the instructions above.
Notice:
When other buttons, except for the Power button, do not respond, check the Child Lock
indicator.
MY CYCLE
Lets you activate your customized cycle that includes Dry Level, Temp, Time option, etc.
By pushing the My Cycle button, you activate the settings used during the previous My Cycle mode.
(Default : Normal Cycle)
If My Cycle mode is activated, My Cycle lamp will be lit.
You can select all options in My Cycle mode as follows.
1. Select cycle using Cycle Selector dial.
2. After cycle selection, set each option.
Note: At this time, the option will follow as per each cycle’s default option selection.
3. Then, you can start My Cycle by pushing the Start/Pause button in My Cycle mode. The cycle
and options you select will be displayed next time you choose My Cycle.
Note : You can change My Cycle setting by repeating same process above.
The last used setting will be displayed at next time you choose My Cycle.
SAMSUNG Dryer Owner’s Instructions B-4
Operating Instructions, Tips
Rack Dry (select models)
INSTALLING THE DRYING RACK
1. Open dryer door.
2. Position drying rack in tumbler, placing the rear legs in the two recessed areas of the dryer’s back
wall.
3. Place the front lip of the drying rack on top of the lint filter.
4. Place items to be dried on the rack, leaving space between them so air can reach all surfaces.
5. Close dryer door.
6. Use the Time Dry cycle. Select time according to moisture and weight of the items. Start dryer.
It may be necessary to reset the timer if a longer drying time is needed.
SUGGESTED ITEMS
SUGGESTED TEMP. SETTINGS
Washable sweaters
(block to shape and lay flat on rack)
Heat (Low/Extra Low)
Stuffed toys
(cotton or polyester fiberfilled)
Heat (Low/Extra Low)
Stuffed toys
(foam or rubber-filled)
Air Fluff
Foam rubber pillows
Air Fluff
Sneakers
Fluff or Heat
WARNING – Drying foam rubber, plastic, or rubber on a heat setting may cause damage to the item
and lead to a fire hazard.
B-5 SAMSUNG Dryer Owner’s Instructions
Operating Instructions, Tips
CLEAN THE LINT FILTER
•
•
•
After each load.
To shorten drying time.
To operate more energy efficiently.
NOTE: Do not operate your dryer without the lint filter in place.
LOAD THE DRYER PROPERLY
•
•
•
•
Place only one washload in your dryer at a time.
Mixed loads of heavy and lightweight fabrics will dry differently, which may result in lightweight
fabrics being dry while heavy fabrics remaining damp at the end of a drying cycle.
Add one or more similar items to your dryer when only one or two articles need drying.
This improves the tumbling action and drying efficiency.
Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of
some fabrics.
GETTING STARTED
1.
2.
3.
4.
5.
6.
Load your dryer loosely – DO NOT overload.
Close the door.
Select the appropriate cycle and options for the load (see pages B-2, B-3).
Press the Cycle Selector dial.
The dryer indicator light will illuminate.
The estimated cycle time will appear in the display.
The time may fluctuate to better indicate drying time remaining in the cycle.
NOTES:
• When the cycle is complete, the Door Lock light will go out and “End” will appear in the display.
• Pressing Power cancels the cycle and stops your dryer.
• The Drying, Cooling, and Wrinkle Prevent indicator lights will illuminate during those portions
of the cycle.
SAMSUNG Dryer Owner’s Instructions B-6
Care and Cleaning
Control Panel
Clean with a soft, damp cloth. Do not use abrasive substances.
Do not spray cleaners directly on the panel.
The control panel finish could be damaged by some laundry pre-treatment soil and stain remover
products.
Apply such products away from your dryer and wipe up any spills or overspray immediately.
Tumbler
Remove any stains such as crayon, ink, or fabric dye (from new items such as towels or jeans) with an
all-purpose cleaner.
Then tumble old towels or rags to remove any excess stain or cleaning substance.
Once these steps are done, stains may still be visible, but should not transfer to subsequent loads.
Stainless Steel Tumbler (select models)
To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for
stainless steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
Dryer Exterior
Clean with a soft, damp cloth. Do not use abrasive substances.
Protect the surface from sharp objects.
Dryer Exhaust System
Should be inspected and cleaned yearly to maintain optimum performance.
The outside exhaust hood should be cleaned more frequently to ensure proper operation.
C-1 SAMSUNG Dryer Owner’s Instructions
Special Laundry Tips
Please follow the care label or manufacturer’s instructions for drying special items. If care label
instructions are not available, use the following information as a guide.
Bedspreads & Comforters
•
•
•
Blankets
•
Curtains & Draperies
•
•
•
Follow the care label instructions or dry on the Normal cycle and
High temperature.
Make sure the item is thoroughly dry before using or storing.
May require repositioning to ensure even drying.
Use Normal and dry only one blanket at a time for best tumbling
action.
Make sure the item is thoroughly dry before using or storing.
Use the Perm Press cycle and Low or Extra Low temperature to
help minimize wrinkling.
Dry these in small loads for best results and remove as soon as
possible.
Cloth Diapers
•
Use the Normal cycle and the High temperature setting for soft,
fluffy diapers.
Down–filled Items
(jackets, sleeping bags,
comforters, etc.)
•
Use the Normal cycle and the Low or Extra Low temperature
setting.
Place a clean pair of sneakers in your dryer with the item to fluff
the down comforters, etc. Adding a couple of dry towels shortens
drying time and absorbs moisture.
Foam Rubber
(rug backs, stuffed toys,
shoulder pads, etc.)
•
•
DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).
WARNING – Drying a rubber item with heat may damage it or be
a fire hazard.
Pillows
•
•
Use the Normal cycle.
Add a couple of dry towels and a pair of clean sneakers to help
the tumbling action and to fluff the item.
DO NOT dry kapok or foam pillows in dryer.
•
•
Plastics
(shower curtains, outdoor
furniture covers, etc.)
•
Use the Air Fluff cycle or the Time Dry cycle and the Low or
Extra Low temperature setting depending on the care label
instructions.
THINGS TO AVOID :
•
•
•
Fiberglass items (curtains, draperies, etc.).
Woolens, unless recommended on the label.
Vegetable or cooking oil-soaked items.
SAMSUNG Dryer Owner’s Instructions D-1
Troubleshooting
CHECK THESE POINTS IF YOUR DRYER...
doesn’t run.
doesn’t heat.
doesn’t dry.
•
•
•
•
Be sure the door is latched shut.
Be sure the power cord is plugged into a live electrical outlet.
Check the home’s circuit breaker and fuses.
Press the Cycle Selector dial again if the door is opened during the cycle.
•
•
•
•
•
Check the home’s circuit breaker and fuses.
Select a heat setting other than Air Fluff.
On a gas dryer, check that the gas supply is on.
Clean the lint filter and exhaust duct.
Dryer may have moved into the cool-down phase of the cycle.
•
•
•
Check all of the above, plus...
Be sure the exhaust hood outside the home can open and close freely.
Check exhaust system for lint buildup. Ducting should be inspected and
cleaned annually.
Use 4” rigid metal exhaust duct.
Do not overload. 1 wash load = 1 dryer load.
Sort heavy items from lightweight items.
Large, bulky items like blankets or comforters may require repositioning to
ensure even drying.
Check that the washer is draining properly to extract adequate water from
the load.
Load may be too small to tumble properly. Add a few towels.
•
•
•
•
•
•
is noisy.
•
•
•
•
Check the load for objects such as coins, loose buttons, nails, etc. Remove
promptly.
It is normal to hear the dryer gas valve or heating element cycle on and off
during the drying cycle.
Be sure the dryer is leveled properly as outlined in the installation
instruction.
It is normal for the dryer to hum from the high velocity of air moving
through the dryer drum and exhaust system.
E-1 SAMSUNG Dryer Owner’s Instructions
Troubleshooting
dries unevenly.
•
•
has an odor.
•
•
shuts off before
load is dry
•
•
Seams, pockets, and other similarly heavy areas may not be completely
dry when the rest of the load has reached the selected dryness level. This is
normal. Select the Very Dry setting if desired.
If one heavy item is dried with a lightweight load, such as one towel with
sheets, it is possible that the heavy item will not be completely dry when
the rest of the load has reached the selected dryness level. Sort heavy
items from lightweight items for best drying results.
Household odors from painting, varnishing, strong cleaners, etc. may enter the
dryer with the surrounding room air. This is normal as the dryer draws the air
from the room, heats it, pulls it through the tumbler, and exhausts it outside.
When these odors linger in the air, ventilate the room completely before
using the dryer.
Dryer load is too small. Add more items or a few towels and restart the cycle.
Dryer load is too large. Remove some items and restart the dryer.
SAMSUNG Dryer Owner’s Instructions E-2
Troubleshooting
INFORMATION CODES
Information codes may be displayed to help you better understand what is occurring with the dryer.
Code
Symbol
Meaning
Solution
Heater temperature control
problem.
Call for service. See below.
Door open sensing problem.
Call for service. See below.
Door open error
When the door is open, the dryer
will not operate.
Be sure the door is latched shut. If problem
continues, call for service. See below.
For any codes not listed above, call 1-800-726-7864 (1-800-SAMSUNG).
F-1 SAMSUNG Dryer Owner’s Instructions
Appendix
FABRIC CARE CHART
The following symbols provide garment care directions without words. The care label will include, in
order, four symbols: washing, bleaching, drying, and ironing (or dry cleaning when necessary). The use
of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow
care label directions to maximize garment life and reduce laundering problems.
Wash Cycle
Special Instructions
Warning Symbols for Laundering
Normal
Line Dry/ Hang
to Dry
Do Not Wash
Permanent Press/ Wrinkle
Resistant/ Wrinkle Control
Drip Dry
Do Not Wring
Gentle/Delicates
Dry Flat
Do Not Bleach
Hand Wash
Water Temperature**
Heat Setting
Do Not Tumble Dry
High
No Steam (added to iron)
Hot
Medium
Do Not Iron
Warm
Low
Cold
Any Heat
Bleach
No Heat/Air
Any Bleach (when needed)
Iron-Dry or Steam Temperatures
Line Dry/ Hang to Dry
Only Non-Chlorine
(color-safe)
Bleach (when needed)
High
Drip Dry
Tumble Dry Cycle
Medium
Dry Flat
Normal
Low
Permanent Press/ Wrinkle
Resistant/ Wrinkle Control
Gentle/ Delicates
Dryclean
Dry Clean
Do Not Dry Clean
** The dot symbols represent appropriate wash water temperatures for various items. The
temperature range for Hot is 105° –125° F/ 41° – 52° C, for Warm 85° – 105° F/29° – 41° C and for
Cold 60° – 85° F/16° – 29° C. (Wash water temperature must be a minimum of 60° F/16° C for
detergent activation and effective cleaning.)
SAMSUNG Dryer Owner’s Instructions F-2
Appendix
PROTECTING THE ENVIRONMENT
This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance,
please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
DECLARATION OF CONFORMITY
This appliance complies with UL2158.
SPECIFICATION
TYPE
DIMENSION
FRONT LOADING DRYER
Div
Inches (cm)
Div
Inches (cm)
A. Height
38” (96.5)
C. Depth with
door open 90°
49” (124.5)
B. Width
27” (68.6)
D. Depth
30.25” (77.0)
WEIGHT
56.8 kg
HEATER RATING
POWER
CONSUMPTION
5300 W
NO HEAT
268 W
HEATING
5445 W
F-3 SAMSUNG Dryer Owner’s Instructions
Appendix
CYCLE CHART
Default
Cycle
Sensor
Dry
Manual
Dry
Drying
Cooling
Wrinkle
prevent
Temp control
Sensor dry
level
Time
Time
Time
Time
High (Medium)
Normal dry
44 min
39 min
5 min
90 min
Heavy Duty High (No
change)
Normal dry
60 min
55 min
5 min
90 min
Towels
High (Medium)
Normal dry
52 min
47 min
5 min
90 min
Perm Press
Medium Low
(No change)
Normal dry
34 min
24 min
10 min
90 min
Delicates
Low (No change)
Normal dry
29 min
24 min
5 min
90 min
Extra
Delicates
Extra Low
(No change)
Normal dry
29 min
24 min
5 min
90 min
Freshen Up High (No
change)
-
30 min
25 min
5 min
-
Time Dry
High
-
40 min
35 min
5 min
-
Wrinkle
Release
Medium
-
25 min
20 min
5 min
-
Air Fluff
- (No change)
-
20 min
Quick Dry
High
-
30 min
Normal
20 min
25 min
5 min
-
SAMSUNG Dryer Owner’s Instructions F-4
Appendix
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted
by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty
period of:
One (1) Year All Parts and Labor, Two (2) Years Control Board Parts
This limited warranty begins on the original date of purchase, and is valid only on products purchased
and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and
service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or
SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability
within the contiguous United States.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to and from an
authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein,
with new or reconditioned parts or products if found to be defective during the limited warranty period
specified above.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever
is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product and shall not apply to the following: damage that occurs
in shipment; delivery and installation; applications and uses for which this product was not intended;
altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire,
water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services,
parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical
line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
maintenance and environmental instructions that are covered and prescribed in the instruction book;
product removal and reinstallation; problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current, voltage or
supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation
errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
F-5 SAMSUNG Dryer Owner’s Instructions
Appendix
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR
IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO
THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR
OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE
USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE
CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS,
DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR
PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply
to you. This warranty gives you specific rights, and you may also have other rights, which vary from state
to state.
To obtain warranty service, please contact SAMSUNG at:
SAMSUNG ELECTRONICS AMERICA, INC. – CONSUMER ELECTRONICS CUSTOMER SERVICE
400 Valley Road, Suite 201, Mt. Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsung.com
SAMSUNG Dryer Owner’s Instructions F-6
Memo
F-7 SAMSUNG Dryer Owner’s Instructions
Memo
SAMSUNG Dryer Owner’s Instructions F-8
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care center.
Samsung Electronics America, Inc.
1-800-SAMSUNG (726-7864)
www.samsung.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
