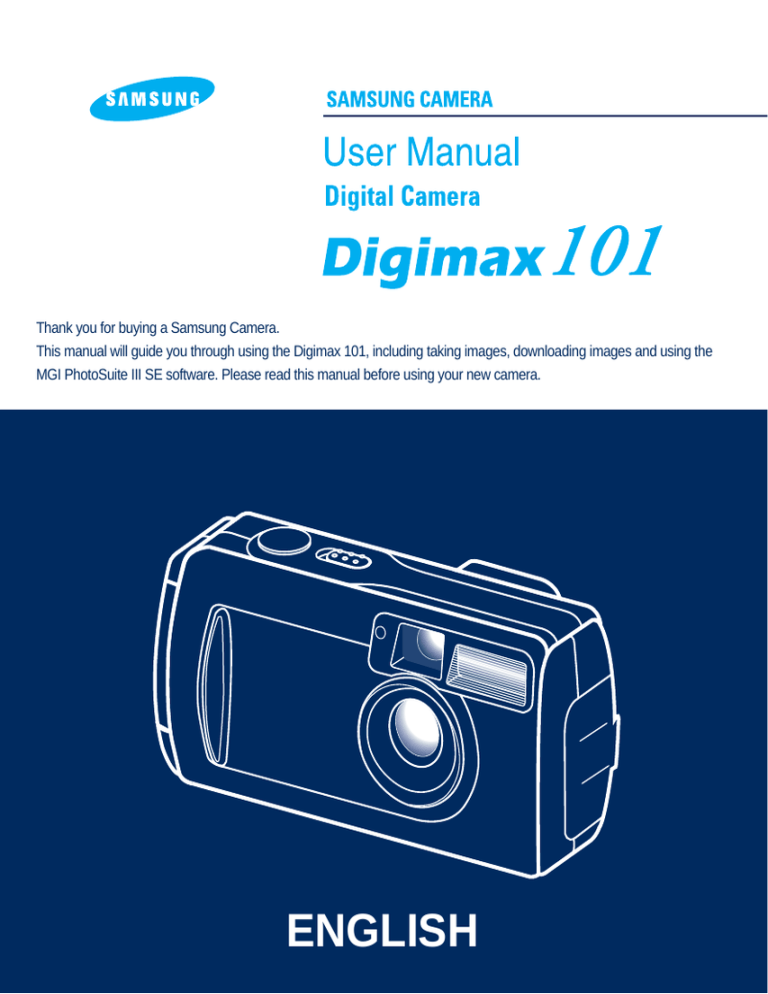

Samsung Digimax 101 User's manual

Samsung Digimax 101 User's manual
Thank you for buying a Samsung Camera.
This manual will guide you through using the Digimax 101, including taking images, downloading images and using the
MGI PhotoSuite III SE software. Please read this manual before using your new camera.
ENGLISH
INSTRUCTIONS
Use this camera in the following order.
If your video output signal is PAL type, you have to select [PAL/50Hz]
in [VIDEO OUT] menu before taking a picture.(p.77)
Set up
the camera driver
Take a picture
Insert USB cable
2
Before connecting the USB cable to the PC and this
camera, you have to set up the camera driver.
Install the camera driver that is contained in the
Application S/W CD-ROM. (p.91)
Take a picture
(p.33 ~ 49)
Insert supplied USB cable into PC USB port and the
camera USB connection terminal.
(p.79)
Check the camera
power
Check the camera power. If the power is turned off, slide
the camera switch to power it on.
(p.35)
Check
[Removable Disk]
Open Window’s EXPLORER and search [Removable
Disk].
(p.97)
SPECIAL FEATURES
READY
This digital camera has the following features.
A fine resolution of 1.3 mega pixels
2 X digital zoom lens
Movie clip recording function
Date imprinting on a still image
Multiple language support
An FCC warning
This device has been tested in accordance with the limits of a class B digital device under item 15
of the FCC rules. These limits are designed to provide protection against harmful interference in
commercial installation. This equipment generates, absorbs and can emit radio frequency energy.
If it is not installed and used in accordance with the instructions, it may cause harmful interference
to radio communication. There is however, no guarantee that interference will not occur in a some
situations. Should any interference occur when this device is in operation, please try one or more of
the following measures.
Change the location and direction of any aerial.
Increase distance between camera and affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.
3
CONTENTS
Ready
Getting to know your camera
6
Safety note
7
This digital camera can be used for
10
Manufacturer s contents
12
Identification of features
13
Product Exterior(Front / Top / Side)
13
Product Exterior (Back/bottom)
14
Viewfinder/Camera status LED
15
LCD monitor indicator
16
Camera mode definition
18
STILL IMAGE mode
18
MOVIE CLIP mode
18
PLAY mode
18
PC mode
18
SETUP mode
18
Selecting camera mode and menu
19
LCD monitor menu indicator
20
Preparation
26
Connecting to Power
26
Using the batteries
26
Battery condition indicator
26
Using the AC power adapter
28
Attaching the strap
28
Inserting the SD memory card
29
Removing the SD memory card
30
Instructions on how to use the SD memory
card
31
4
Advanced
Recording mode
Starting Recording Mode
Recording a still image
Recording a Movie clip
Using the camera button to adjust the
camera
POWER switch
SHUTTER button
LCD button
MODE button
MENU button
5-function button
OK button
UP button
DOWN button
FLASH / LEFT button
SELF-TIMER / RIGHT button
Using the LCD monitor to adjust the
camera
IMAGE SIZE
IMAGE QUALITY
EV COMPENSATION
WHITE BALANCE
QUICK VIEW
LCD BRIGHTNESS
Play mode
Starting the Play Mode
Playing back a still image
Playing back a movie clip
Setting up the play back function by using
the camera button
Power switch
Shutter button
LCD button
33
33
33
33
35
35
35
35
36
37
37
38
39
39
39
41
42
43
44
45
47
48
49
50
50
50
51
53
53
53
53
CONTENTS
MODE button
54
MENU button
54
5-function button
55
OK button
56
UP button
57
DOWN button
58
LEFT button
59
RIGHT button
59
Setting up the play back function using the
LCD monitor
60
SLIDE SHOW
60
PROTECT
61
DELETE ALL
62
COPY TO CARD
63
DPOF
65
LCD BRIGHTNESS
67
Setting up the camera system
68
Starting SETUP mode
68
BEEP
69
FORMAT
70
POWER OFF
71
RESET
72
DATE SETUP
73
DATE IMPRINT
74
DATE TYPE
75
LANGUAGE
76
VIDEO OUT
77
PC mode
79
Starting PC mode
79
Important notes
81
Caution!
81
Warning indicator
83
Before contacting a service center
84
Specifications
87
Software
Software manual
Software Notes
About software
Setting up the USB driver for
Windows 98SE
Setting up DirectX 8.1
Removing the USB Driver for Windows
Removable Disk
Removing the removable disk
Windows 98SE
Windows 2000/ME/XP
Setting up the USB Driver for MAC
Using the USB Driver for MAC
Setting up Digimax Viewer
Digimax Viewer
Setting up MGI PhotoSuite lll SE
MGI PhotoSuite III SE
GET
PREPARE
COMPOSE
ORGANIZE
SHARE
PRINT
FAQ
89
89
89
91
92
95
97
98
98
98
100
101
102
104
105
108
111
115
116
117
121
122
123
5
READY
Advanced
GETTING TO KNOW YOUR CAMERA
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual thoroughly.
Keep the manual in a safe place.
About the symbols
This manual contains instructions on using this camera that will help you to use this camera safely and
correctly.
This will help prevent danger and injury to others.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in a
minor or moderate injury.
NOTICE
NOTICE indicates a factor, which, if not avoided, may result in camera malfunction or poor
image quality.
INFORMATION
INFORMATION indicates a factor, which should assist further in the operation of the
camera.
6
SAFETY NOTE
READY
DANGER
Do not attempt to modify this camera in any
way. This may result in fire, injury, electric
shock or severe damage to you or your
camera. Internal inspection, maintenance and
repairs should be carried out by your dealer or
Samsung Camera Service Center.
Please do not use this product in close
proximity to flammable or explosive gases, as
this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the camera,
and then disconnect the power source (batteries or AC Power Adapter). You must contact your
dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a
fire or electric shock.
Do not insert or drop metallic or inflammable
foreign objects into the camera through access
points e.g. CARD slot and battery chamber.
This may cause a fire or electric shock.
Do not operate this camera with wet hands.
This could pose a risk of electric shock.
7
SAFETY NOTE
WARNING
Do not use the flash in close proximity to
people or animals.
Positioning the flash too close to your subject s
eyes, may cause eyesight damage.
When taking photographs, never point the lens
of the camera directly into very strong light.
This may result in permanent damage to the
camera or your eyesight.
For safety reasons keep this product and accessories out of reach of children or animals to prevent
accidents e.g.:
Swallowing batteries or small camera accessories. In case of accidents, please consult a doctor
immediately.
There is a risk of permanent eye damage if the flash is operated at a distance of less than one
meter from a person’s eyes.
There is a possibility of injury from the camera’s moving parts.
Do not leave this camera in places subject to
extremely high temperatures, such as a
sealed vehicle, direct sunlight or other places
of extreme variances in temperature.
Exposure to extreme temperatures may
adversely affect the camera’s internal
components and could cause a fire.
8
When in use, do not cover the camera or AC
Power Adapter. This may cause heat to build
up and distort the camera body or cause a fire.
Always use the camera and its accessories in
a well-ventilated area.
SAFETY NOTE
READY
CAUTION
Leaking, overheating, or burst batteries could result in fire or injury.
Use batteries with the correct specification for the camera.
Do not short circuit, heat or dispose of batteries in fire.
Do not use old batteries with new ones, or mix brands of batteries.
Ensure the batteries are positioned correctly with regard to polarity (+ / -).
When the camera is not in use for long periods, always unplug the camera from its power source.
Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after using it
continuously . It may cause burns.
Do not move the camera while it is switched on, if you
are using the AC Power Adapter. After use, always
switch off the camera before unplugging the adapter
from the AC Power wall socket. Then make sure that
any connector cords or cables to other devices are
disconnected before moving the camera. Failure to do
so may damage the cords or cables and cause a fire or
electric shock.
9
THIS DIGITAL CAMERA CAN BE USED FOR
Viewing images on TV
(refer to page 77)
Printing images using a dedicated
printer, DPOF-compatible printer
or DPOF-equipped photo lab.
(refer to page 65)
Taking a picture.
(refer to page 33 ~ 49)
Down loading image files
from camera to computer.
(refer to page 79 ~ 80)
Editing images on a PC
(refer to page 108)
10
THIS DIGITAL CAMERA CAN BE USED FOR
READY
Creation of a
digital photo
album
Inserting images
directly into any
electronic document
Taking a self-portrait
and using the image to
personalize name
cards
You can even create your
own unique gift-wrap paper
by using your digital images
11
MANUFACTURER S CONTENTS
Manufacturer's contents
Please check that you have the correct contents before using this product.
Digital camera
2 AA Alkaline
Batteries
Pouch
Video cable
USB cable
Camera strap
Applications S/WDriver CD-ROM
User manual
Product warranty
Accessories (optional)
AC Adapter
12
SD memory CARD
IDENTIFICATION OF FEATURES
READY
Product Exterior(Front / Top / Side)
Power switch
Shutter button
Self-timer lamp
Viewfinder
Flash(p. 39)
DC input connection
point
Video connection
terminal
USB connection
terminal
Lens
Card slot
Battery chamber /
Card cover
Battery chamber
Strap eyelet
13
IDENTIFICATION OF FEATURES
Product Exterior (Back/bottom)
Viewfinder
LCD button
(p.35 / 53)
Camera
status LED
(p.15)
MODE button
(p.36 / 54)
MENU button
(p.37 / 54)
LCD monitor
5-function
button
(p.37 / 55)
Tripod socket
THUMBNAIL / UP( ) button (p.39 / 57)
FLASH/ LEFT( ) button
(p.39 / 59)
SELF-TIMER/ RIGHT( ) button
(p.41 / 59)
OK button (p.38 / 56)
DELETE / DOWN( ) button (p.39 / 58)
5-function button
14
IDENTIFICATION OF FEATURES
READY
Viewfinder/Camera status LED
Camera status LED
Picture area frame
Optimum picture area over 1.5m
Camera status LED
Color
Status
On
Camera status
Image processing(compression/decompression)
USB busy(PC mode)
Red
Flash charge processing
Blinking
On & blinking
Green
USB busy
Power on processing
On
Idle power mode (after 60sec. without camera operation)
Off
System ready
15
IDENTIFICATION OF FEATURES
LCD monitor indicator
The LCD monitor displays information about the shooting conditions.
Recording mode
Image & Full Status
No.
16
Description
Icons
Page
1
Battery
p.26
2
Camera shake warning
p.34
3
Flash
4
Self-timer
5
White balance
6
Exposure compensation
7
Date
2002/09/01
8
Time
03:15
9
Card indicator
p.39~40
p.41
p.47
+0.5 EV (Exposure Value)
p.45
p.29
IDENTIFICATION OF FEATURES
Description
Icons
Page
10
Quality
p.44
11
Image size
p.43
Number of available shots remaining(still image)
0015
Recording time(while recording a movie clip)
00:50
READY
No.
12
13
Message for canceling a movie clip recording
14
Digital zoom
15
Recording mode
p.38
Play mode
Image & Basic Status
No.
Description
1
Battery
2
Recording date
3
Card indicator
4
Number of stored images
Icons
Page
p.26
2002/09/01
p.29
100-0003
p.64
17
IDENTIFICATION OF FEATURES
Camera mode definition
You can select the desired working mode by using the mode button located on the back of the camera.
This digital camera has 5 working modes. These are listed below
STILL IMAGE mode (
) (p.33)
This mode is used for still image shots between 1m ~ infinity.
MOVIE CLIP mode (
) (p.33)
A movie clip can be recorded as long as the available recording time allows.
PLAY mode (p.50)
In this mode, the stored images on the memory can be viewed on the LCD monitor on the back of
the camera or on an external monitor using a video output terminal.
PC mode (p.79)
Your computer will recognize the camera as a Removable Disk when connected by the USB cable.
You can transfer images between the computer and the camera.
If you are using Windows 98/98SE, you have to install the camera driver before connecting the USB
cable. The camera working mode will be changed to PC mode by connecting the USB cable.
SETUP mode (p.68)
You can select this mode on the STILL IMAGE/MOVIE CLIP/PLAY mode menu. In this mode, you
can set up basic settings such as BEEP, FORMAT, POWER OFF, RESET, DATE/TIME, VIDEO
OUT, LANGUAGE.
18
IDENTIFICATION OF FEATURES
READY
Selecting camera mode and menu
You can select a camera mode or a camera mode menu by pressing the MODE button or MENU
button as below.
STILL IMAGE
mode
(
)
Power on
Pressing MENU button
Pressing
MODE button
Pressing
MODE button
MOVIE CLIP
mode
(
)
Pressing MENU button
Pressing
MODE button
Pressing
MODE button
STILL IMAGE
mode menu
MOVIE CLIP
mode menu
Pressing
MODE button
PLAY
mode
Pressing MENU button
PLAY
mode menu
Pressing MODE button
Connecting USB
cable
PC
mode
19
IDENTIFICATION OF FEATURES
LCD monitor menu indicator
Each mode has a menu as shown below. * marked sub menu is the default setting.
Camera mode
Main menu
STILL IMAGE 1/2 (
Sub menu
)
SETUP
IMAGE SIZE
(p.68)
1280X1024*
(p.43)
640X512
QUALITY
SUPER FINE
(p.44)
FINE*
NORMAL
EXPOSURE
20
-2.0 ~ 0.0* ~ +2.0EV (0.5EV steps)
(p.45)
IDENTIFICATION OF FEATURES
Main menu
STILL IMAGE 2/2 (
READY
Camera mode
Sub menu
)
WHITE BALANCE
AUTO*
(p.47)
DAYLIGHT
CLOUDY
SUNSET
TUNGSTEN
FLUORESCENT
QUICK VIEW
ON*
(p.48)
OFF
LCD BRIGHTNESS
-5~0*~+5
(p.49)
21
IDENTIFICATION OF FEATURES
Camera mode
MOVIE CLIP (
Main menu
Sub menu
)
SETUP
(p.68)
EXPOSURE
-2.0 ~ 0.0* ~ +2.0EV (0.5EV steps)
WHITE BALANCE
AUTO*
(p.47)
DAYLIGHT
CLOUDY
SUNSET
TUNGSTEN
FLUORESCENT
LCD BRIGHTNESS
22
-5~0*~+5
(p.49)
(p.45)
IDENTIFICATION OF FEATURES
PLAY 1/2 (
Main menu
READY
Camera mode
Sub menu
)
SETUP
(p.68)
SLIDE SHOW
1, 3*, 5, 7, 9sec
PROTECT
ONE IMAGE*
(p.60)
LOCK
(p.61)
UNLOCK*
ALL IMAGE
LOCK
UNLOCK*
DELETE ALL
YES
(p.62)
NO
PLAY 2/2 (
)
COPY TO CARD
YES
(p.63)
NO
DPOF
# OF PRINTS
LCD BRIGHTNESS
-5~0*~+5
(p.65)
(p.67)
23
IDENTIFICATION OF FEATURES
Camera mode
SETUP 1/3
Main menu
BEEP
Sub menu
ON*
(p.69)
OFF
FORMAT
YES
(p.70)
NO
POWER OFF
3min*/5min/10min/30min/CANCEL
RESET
YES
(p.72)
NO
SETUP 2/3
DATE SETUP
2002/01/01 ~ 2099/12/31
DATE IMPRINT
YES*
(p.74)
NO
DATE TYPE
YYYY/MM/DD*
DD/MM/YYYY
MM/DD/YYYY
24
(p.75)
(p.73)
(p.71)
IDENTIFICATION OF FEATURES
SETUP 2/3
Main menu
LANGUAGE
READY
Camera mode
Sub menu
ENGLISH
(p.76)
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
?
???
@[email protected]?
@[email protected]?
[email protected]?
[email protected]?
[email protected]@@@@@@@@e?
[email protected]@@@?f?
[email protected]@[email protected]@@Lf?
[email protected]@@V1f?
[email protected][email protected][email protected]@?3L?e?
[email protected]@?V/Xe?
[email protected][email protected]/X??
[email protected][email protected]@@@?V/??
[email protected]@g?
[email protected][email protected]?
[email protected][email protected]?
?
SETUP 3/3
VIDEO OUT
NTSC/60Hz
(p.77)
PAL/50Hz
INFORMATION
There is no associated menu in PC mode and the LCD monitor is always turned off in PC
mode
25
PREPARATION
Connecting to Power
There are two ways in which to provide the camera with power. You can use batteries(AA Alkaline, NiMH, CR-V3), or alternatively, you can use an AC Adapter (DC 3.3V 2.0A).
Using the batteries
1. Open the battery chamber cover by pushing in the direction of the
arrow.
2. Insert the batteries taking note of the polarity (+ / -).
3. To close the battery chamber cover, push it until it clicks.
Battery condition indicator
There are 3 indicators for battery condition that are displayed on the LCD monitor.
: The batteries are fully charged
: Prepare new batteries
: There is no battery capacity. Replace with new batteries
26
PREPARATION
READY
INFORMATION
This camera will automatically switch off when not in use for a period of time.
Refer to [POWER OFF] function(p.71).
NOTICE
Important information about battery usage
Please remove the batteries if the camera will not be used for long periods. Batteries
can lose power over time and are prone to leaking if kept inside the camera.
We recommend high capacity ALKALINE batteries as manganese batteries cannot
deliver sufficient power.
Low temperatures (below O ) can affect the performance of the batteries and you
may experience reduced battery life.
Batteries will normally recover at normal temperatures.
Do not use old and new batteries at the same time.
During extended use of the camera, the camera body may become warm. This is
perfectly normal. If you are planning to use this camera for long periods of time, it is
advisable to use an AC adapter.
27
PREPARATION
Using the AC power adapter
If you have access to a mains supply, using an AC Adapter allows the
camera to be used for long periods of time. If you connect the camera
to a computer, it is advisable to use an AC adapter, as this will enable
extended use.
Plug the adapter into the connection point (DC IN 3.3V) on the
camera.
DANGER/ NOTICE
Always turn off the power before taking the AC adapter out of the mains supply.
As with all mains powered devices, safety is important. Ensure that neither the camera nor
adapter comes into contact with water or metallic materials.
Please ensure that you use an AC adapter with the correct specification for the camera
(3.3v 2.0A). Failure to do so may affect your warranty.
Attaching the strap
To prevent accidental damage to the camera, always use the strap.
Refer to the illustrations below
1
28
2
PREPARATION
READY
Inserting the SD memory CARD
The camera comes with 8MB of internal flash memory, allowing you to store images and movie clips in the
camera. However, you can expand the memory capacity by using an optional SD memory card([CARD]
stands for the SD memory card) so that you can store more images and movie clips.
1. Turn off the camera power and pull the card cover in the
direction of the arrow to open.
2. Insert the card all the way into the card slot. The Label stuck
to the card and the front side of the camera should face in the
same direction. The card pins and the LCD monitor should
face in the same direction. The card will then be fitted.
3. To close, push the card cover against the arrow until you
hear a click.
Once the CARD is inserted, the card indicator will appear
on the LCD monitor(
).
If the CARD does not fit, check that it is inserted correctly.
Do not force the card.
NOTICE
Insert the Multi Media Card(MMC) in the same way as the SD memory card is inserted.
Should you insert the Multi Media Card in the opposite direction, it may still slide in, but part
of it will project from the slot and it will not fit correctly.
Do not force the card and don't close the battery chamber cover. Check the directions and
re-insert the card correctly.
29
PREPARATION
The CARD has a write protect switch that prevents image files from being deleted or formatted. By
sliding the switch to the bottom of the card, the data will be protected.
By sliding the switch to the top of the card, the data protection will be canceled. Check the switch
position before taking an image.
Card
pins
Write protect
switch
Label
SD(Secure Digital) memory card
Removing the SD memory card
1. Turn the power off using the power switch ( ).
2. Open the card cover and press the CARD as shown in the
image and release.
3. Remove the CARD and close the card cover.
NOTICE
Don t remove the CARD when the camera status LED(red) is blinking as this may cause
damaged data in the CARD.
30
PREPARATION
READY
Instructions on how to use the SD memory card
Using a new CARD for the first time
Before using the CARD, it must be initialized.
When you format the card in your PC, you have to select FAT file system.(p.66)
[FORMAT] prepares the memory for recording data.
Refer to page 70 for information on [FORMAT].
Memory capacity
When using the internal memory, the specified shooting capacity will be as follows.
(These figures are intended as an indication of expected performance)
Number of shots
Recorded image size
Recorded image quality
Internal Memory
8MB
1280X1024
(Large)
640X512
(Small)
Normal
15
Fine
22
Normal
44
Super Fine
30
Fine
60
Normal
121
These figures are approximate as image capacities can be affected by variables such as memory
performance and subject matter.
Maintenance of the SD memory card
Turn off the camera power whenever the CARD is being inserted or removed.
Repeated use of the CARD will eventually reduce the card performance. Should this be the case,
you will need to purchase a new CARD. Wear and tear on the CARD is not covered by the
Samsung warranty.
The CARD is an electronic precision device. Do not bend, drop or subject the card to any heavy impact.
31
PREPARATION
Do not store the CARD in an environment with strong electronic or magnetic fields, e.g. near loud
speakers or TV receivers.
Please do not use or store in an environment where there are extremes in temperature.
Do not allow the CARD to become dirty or to come into contact with any liquid. Should this
happen, clean the card with a soft cloth.
Please keep the CARD in its case when not in use.
During and after periods of extended use, you may notice that the CARD is warm. This is perfectly
normal.
Preserving the SD memory card data
If the card is subjected to any of the following, the recorded data may become corrupted
- When the CARD is used incorrectly.
- If the power is switched off or the CARD is removed while recording, deleting(formatting) or
reading.
Samsung cannot be held responsible for lost data.
It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard disks,
CD etc.
INFORMATION
If there is no card, the card indicator(
) will not be displayed in the LCD monitor.
If there is insufficient memory available:
- If you press the shutter button for the shot, the following
message is displayed and the camera will not operate.
To optimize the amount of memory in the camera, replace
the CARD or delete unnecessary images stored on the
memory.
32
MEMORY FULL!
RECORDING MODE
Starting Recording Mode
If the CARD is inserted in the camera, all the camera functions are applied only to the CARD.
If the CARD is not inserted in the camera, all the camera functions are applied only to the internal memory.
If your video output signal is PAL type, you have to select [PAL/50Hz] in [VIDEO OUT] menu before
taking a picture.(p.77)
Recording a still image
ADVANCED
1. Insert the batteries (p.26).
Insert the batteries taking note of the polarity (+ / -).
2. Insert the CARD (p.29). As this camera has an 8MB internal memory, you do not need to insert the
SD memory card. If the CARD is not inserted, an image will be stored in the internal memory. To
expand memory capacity, insert the CARD.
If the CARD is inserted, an image will be stored on the CARD.
3. Close the card cover.
4. Slide the power switch to turn on the camera.
5. Point the camera towards the subject and compose the image by
using either the viewfinder or LCD monitor.
6. Press the shutter button to capture an image.
Viewfinder
Recording a Movie clip
Steps from 1-4 are the same as those for recording a still image.
5. Press the MODE button until the MOVIE CLIP mode is selected.
6. Point the camera towards the subject and compose the image by
using the viewfinder or LCD monitor.
7. Press the shutter button to take a movie clip.
Press the shutter button once and movie clips are recorded for as
long as the available recording time allows.
Movie clips will still be recorded if the shutter button is released.
If you wish to stop recording, press the shutter button again.
The self-timer indicator will blink during recording.
Image size and type are listed below.
- Image size : QVGA ( 320 240 )
- File type : *.AVI
MOVIE CLIP mode indicator
33
RECORDING MODE
NOTICE
Camera shake warning.
When the Flash Off mode is selected, the camera shake warning indicator (
) may
appear on the LCD monitor. In this case, use a tripod, support the camera on a solid
surface or change the flash mode to flash shot mode.
Backlight compensated shot
When taking an outdoor shot, avoid facing the sun, as the image may be dark because of
the strong backlight. In backlight conditions, please use exposure compensation (refer to
page 45).
Avoid obstructing the lens or the flash when you take an image.
As there can be some differences between what is seen through the Viewfinder and the
resulting image when taken at a range closer than 1.5m, it is recommended that you use
the LCD monitor to compose the shot.
Using the LCD monitor extensively will drain the batteries.
We recommend turning off the LCD monitor and using the optical viewfinder as often as
possible in order to extend battery life.
To avoid images being unclear, keep within the focus range.
- The focus range is 1.0m ~ infinity.
34
RECORDING MODE
Using the camera button to adjust the camera
The STILL IMAGE/MOVIE CLIP mode function can be set up by using the camera button.
POWER switch
ADVANCED
Used for turning the camera power on / off.
If this camera doesn t be operated during the specified time(about
60 SEC.), the camera power will be idle(LCD monitor off, Camera
status LED : Green) automatically(p.71). To use the camera
again, press the camera buttons except the power switch.
The camera power will be turned off automatically during
periods of inactivity. This is done to reduce battery drain. The
camera can be reactivated by sliding the power switch again.
SHUTTER button
Used for taking images for RECORDING mode (Still image,
Movie clip).
LCD button
Pressing the LCD button in the RECORDING(STILL IMAGE,
MOVIE CLIP) mode will change the display as shown below.
35
RECORDING MODE
Pressing the
LCD button
image & full information
Pressing the
LCD button
image & basic information
Pressing the
LCD button
LCD off
MODE button
Pressing the MODE button in the RECORDING(STILL IMAGE,
MOVIE CLIP) mode will change the display as shown below.
Pressing the
MODE button
STILL IMAGE mode
36
Pressing the
MODE button
MOVIE CLIP mode
Pressing the
MODE button
PLAY mode
RECORDING MODE
MENU button
When you press the MENU button, a menu related to each camera
mode will be displayed on the LCD monitor. Pressing it again will
return the LCD to the initial display.
STILL IMAGE 1/2
SETUP
Pressing the
MENU button
IMAGE SIZE
QUALITY
EXPOSURE
1280X1024
menu off
5-function button
Explanation of the 5-function button
BUTTON MENU DISPLAY
STILL IMAGE mode
MOVIE CLIP mode
UP( )
ON
Makes the menu cursor move up
Makes the menu cursor move up
button
OFF
No function
No function
DOWN( )
ON
Makes the menu cursor move down
Makes the menu cursor move down
button
OFF
No function
No function
LEFT( )
ON
changes the sub menu data
changes the sub menu data
button
OFF
Selecting the flash mode
No function
RIGHT( )
ON
changes the sub menu data
changes the sub menu data
button
OFF
Selecting the self-timer mode
Selecting the self-timer mode
OK
ON
Pressing the OK button confirms the selection
Pressing the OK button confirms the selection.
button
OFF
Pressing the OK button activates digital zooming in(2X)
No function
NOTICE
p.39
p.39
p.39
p.41
p.38
37
ADVANCED
menu on
A menu option can be displayed when the followings are selected : STILL IMAGE mode, MOVIE
CLIP mode, PLAY mode and SETUP mode. There is no menu available when PC mode is selected.
Refer to page 20 for information on selecting the camera mode menu.
RECORDING MODE
OK button
When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is
changed by using ( / / / ) buttons.
When the menu is not displayed on the LCD monitor, pressing the OK button activates digital
zooming in(2X).
The maximum zoom magnification is 2X for recording and viewing images.
Digital zoom
To use the digital zoom the LCD monitor has to be turned on.
1. Turn the camera power on.
2. Press the OK button and a twice magnified image will be displayed on the LCD monitor.
3. Press the OK button again and the digital zoom function is cancelled
Pressing
OK button
Normal image
Digital zoomed image
INFORMATION
Images taken using the digital zoom may take a little longer for the camera to process.
Allow time for this to take place.The camera status LED(red) will illuminate until the
operation is complete.
The digital zoom cannot be used in MOVIE CLIP mode.
You may notice a decrease in image quality when using digital zoom.
38
RECORDING MODE
UP(
) button
When the menu is displayed on the LCD monitor, pressing the
UP button ( ) makes the menu cursor move up.
DOWN( ) button
When the menu is displayed on the LCD monitor, pressing the
DOWN( ) button makes the menu cursor move down.
ADVANCED
FLASH(
)/ LEFT( ) button
When the menu is displayed on the LCD monitor, the LEFT ( ) button makes the sub menu data change.
When the menu is not displayed on the LCD monitor, the LEFT ( ) button operates as the FLASH
button ( ).
Selecting the flash mode
The flash activates only in STILL IMAGE mode.
1. Do not turn the LCD monitor off.
2. Press the FLASH button( ) until the desired FLASH mode
indicator displays on the LCD monitor. Use the correct flash
to suit the environment.
The default of each mode is listed below.
- STILL IMAGE mode
- MOVIE CLIP mode
selecting Auto flash
: Auto flash
: Flash off(fixed)
39
RECORDING MODE
Flash mode indicator
FLASH MODE
Auto flash
Indicator
Definition
If the subject or background is dark, the camera flash will
operate automatically.
If a subject or background is dark, the camera flash will work
automatically and will reduce the red-eye effect by using the redeye reduction function.
Auto & Red eye
reduction
Flash off
The flash does not fire. Select this mode when capturing images
at a place where flash photography is prohibited.
INFORMATION
Using the flash frequently will reduce the life of the batteries. Under normal operating
conditions the charging time for the flash is normally within 10 seconds.
If the batteries are weak, the charging time will be longer.
Take photographs within the flash range.
The flash range (ISO AUTO) : 1.0m ~ 3m
The image quality is not guaranteed if the subject is too close or highly reflective.
40
RECORDING MODE
SELF-TIMER(
) / RIGHT( ) button
When the menu is displayed on the LCD monitor, the RIGHT
( ) button makes the sub menu data change.
When the menu is not displayed on the LCD monitor, the LEFT
( ) button operates as the SELF-TIMER button ( ).
This function is used when the photographer would also like to
be in the image.
ADVANCED
Selecting the self-timer
The self-timer activates only in RECORDING (STILL IMAGE/
MOVIE CLIP) mode.
Use a tripod or place the camera on a stable surface.
1. Do not turn the LCD monitor off.
2. If the self-timer indicator is displayed on the LCD monitor by
pressing the SELF-TIMER button( ), the setting is
completed.
Selecting the self-timer
3. Pressing the shutter button will allow an interval of ten
seconds before the image is taken. After that, the self-timer
is cancelled. In the movie clip mode, the movie clip recording is started after 10 sec. To stop the
movie clip recording, press the shutter button(S1 : STOP)
INFORMATION
The default is OFF.
The self-timer LED lamp(red) will blink for 10 seconds after the SELF-TIMER button has
been pressed.
- For the first seven seconds, the LED blinks at one second intervals.
- For the final three seconds, the LED blinks quickly at 0.5-second intervals.
If you want to cancel the self-timer operation, press the self-timer button again.
41
RECORDING MODE
Using the LCD monitor to adjust the camera
Recording functions can be changed by using the LCD monitor.
In the RECORDING(STILL IMAGE/MOVIE CLIP) mode, pressing the MENU button displays the
menu on the LCD monitor.
The following functions are available, depending on the mode you have selected (STILL IMAGE,
MOVIE CLIP ).
STILL IMAGE mode
MOVIE CLIP mode
PAGE
IMAGE SIZE
O
X
p.43
IMAGE QUALITY
O
X
p.44
EV COMPENSATION
O
O
p.45
WHITE BALANCE
O
O
p.47
QUICK VIEW
O
X
p.48
LCD BRIGHTNESS
O
O
p.49
INFORMATION
The menu will not be displayed on the LCD monitor in the following circumstances:
- When another button is being operated.
- While image data is being processed.( when the red LED next to the viewfinder illuminates)
- When there is no battery capacity.
When the menu is showing on the LCD monitor, it is not possible to operate the shutter
button i.e. take an image. To take an image, simply cancel the menu display by pressing
the MENU button. The menu will no longer show and the camera is ready to take an
image.
42
RECORDING MODE
IMAGE SIZE
In STILL IMAGE mode, you can select the image size you require.
A large image uses more memory, so increasing the image size will reduce the total number of shots
you can store in the memory.
The image sizes are listed below.
ADVANCED
Selecting the image size
1. Turn the camera power on.
2. Press the MENU button to display the STILL IMAGE mode
menu on the LCD monitor.
3. Press the UP( )/ DOWN( ) button and select [IMAGE
SIZE].
4. Select [1280X1024] or [640X512] by pressing the
LEFT( )/ RIGHT( ) button.
5. Press the Ok button to confirm the setting.
The default is [1280x1024].
STILL IMAGE 1/2
SETUP
IMAGE SIZE
QUALITY
EXPOSURE
1280X1024
43
RECORDING MODE
IMAGE QUALITY
In STILL IMAGE mode, you can select the image quality(Data compression rate).
The higher the QUALITY setting, the better the final image will be. However, the high quality setting
will require more memory and therefore reduce the number of images you can store on the memory.
SUPER FINE is the highest quality and NORMAL is the lowest setting. Choose the setting
appropriate for your needs.
The image sizes are listed below.
SUPER FINE
FINE
Selecting the image quality
1. Turn the camera power on.
2. Press the MENU button to display the STILL IMAGE mode
menu on the LCD monitor.
3. Press the UP( )/ DOWN( ) button and select
[QUALITY].
4. Select [SUPERFINE], [FINE] or [NORMAL] by pressing the
LEFT( )/ RIGHT( ) button.
5. Press the Ok button to confirm the setting.
The default is [FINE].
NORMAL
STILL IMAGE 1/2
SETUP
IMAGE SIZE
QUALITY
EXPOSURE
FINE
JPEG
JPEG [Joint Photographic Experts Group] : The name of the committee that designed the standard
image compression algorithm. The JPG file format is designed for compressing digital images
without harmful influence to the original image. It is the most common type of compressed image file
format used in the world wide web.
44
RECORDING MODE
EV COMPENSATION
In STILL IMAGE/MOVIE CLIP mode, you can select the exposure value.
This camera automatically adjusts the exposure according to the ambient lighting conditions.
However, you can select the exposure value by using the [EXPOSURE] sub menu.
Exposure compensation setting range : -2.0 ~ +2.0 EV (0.5 EV steps)
If you increase the exposure value, the image will be brighter.
If you decrease the exposure value, the image will be darker.
1. Turn the camera power on.
2. Select STILL IMAGE or MOVIE CLIP mode by pressing
the MODE button.
3. Press the MENU button to display the STILL
IMAGE/MOVIE CLIP mode menu on the LCD monitor.
4. Press the UP( )/ DOWN( ) button and select
[EXPOSURE].
5. Select the desired EV compensation by pressing the
LEFT( )/ RIGHT( ) button.
6. Press the Ok button to confirm the setting.
The default is 0.0EV.
If you change the exposure compensation value in the STILL
IMAGE mode, the changed value is also applied to the
MOVIE CLIP mode.
ADVANCED
Selecting the exposure value
STILL IMAGE 1/2
SETUP
IMAGE SIZE
QUALITY
EXPOSURE
0.0 EV
STILL IMAGE mode
MOVIE CLIP
SETUP
EXPOSURE
WHITE BALANCE
LCD BRIGHTNESS
0.0 EV
MOVIE CLIP mode
45
RECORDING MODE
INFORMATION
This change to the exposure will remain until the camera is switched off.
When the camera is turned on again, the exposure compensation setting returns to 0.0EV
(discarding the exposure compensation).
When you have selected a change in exposure value, the value is displayed on the LCD.
Decreasing or increasing the exposure value may lead to images being under or over
exposed (too dark or too bright). Review your images using the LCD monitor to check that
they have been successful.
46
RECORDING MODE
WHITE BALANCE
In STILL IMAGE/MOVIE CLIP mode, you can select the white balance menu.
Different lighting conditions may cause a color cast on your images.
The white balance control allows you to adjust the colors to appear more natural looking.
There are 6 white balance menus : AUTO/ DAYLIGHT/ CLOUDY/ SUNSET/ TUNGSTEN/
FLUORESCENT
Selecting the white balance
STILL IMAGE 2/2
ADVANCED
1. Turn the camera power on.
2. Select STILL IMAGE or MOVIE CLIP mode by pressing
the MODE button.
3. Press the MENU button to display the STILL
IMAGE/MOVIE CLIP mode menu on the LCD monitor.
4. To shift the menu cursor to [STILL IMAGE 2/2], press the
DOWN( ) button at the [EXPOSURE] menu that is in
[STILL IMAGE 1/2].
5. Press the UP( )/ DOWN( ) button and select [WHITE
BALANCE].
6. Select the desired white balance sub menu by pressing the
LEFT( )/ RIGHT( ) button.
7. Press the Ok button to confirm the setting.
WHITE BALANCE
QUICK VIEW
LCD BRIGHTNESS
AUTO
STILL IMAGE mode
MOVIE CLIP
SETUP
EXPOSURE
WHITE BALANCE
If you change the white balance value in the STILL IMAGE
mode, the changed value is also applied to the MOVIE CLIP
mode.
LCD BRIGHTNESS
AUTO
MOVIE CLIP mode
47
RECORDING MODE
INFORMATION
AUTO : The camera automatically selects the appropriate white balance settings,
depending on the prevailing lighting conditions.
DAYLIGHT : For taking images outside on a bright day
CLOUDY : For taking images under a cloudy and overcast sky.
SUNSET : For taking images at sunset
FLUORESCENT : For taking images under fluorescent lighting
TUNGSTEN : For taking images under tungsten (standard light bulb) lighting.
QUICK VIEW
In STILL IMAGE mode, you can select the quick view menu.
You can briefly review the last image captured.
Selecting the quick view function
1. Turn the camera power on.
2. Press the MENU button to display the STILL IMAGE mode
menu on the LCD monitor.
3. To shift the menu cursor to [STILL IMAGE 2/2], press the
DOWN( ) button at the [EXPOSURE] menu that is in
[STILL IMAGE 1/2].
4. Press the UP( )/ DOWN( ) button and select [QUICK
VIEW].
5. Select [ON] or [OFF] by pressing the LEFT( )/ RIGHT( )
button. The default is [ON].
6. Press the Ok button to confirm the setting.
48
STILL IMAGE 2/2
STILL IMAGE 2/2
QUICK VIEW
LCD BRIGHTNESS
ON
OFF
STILL IMAGE mode
RECORDING MODE
LCD BRIGHTNESS
In STILL IMAGE/MOVIE CLIP mode, you can select the LCD brightness menu.
You may adjust the LCD brightness. Brightness range : -5 ~ 0 ~ +5
Selecting the LCD brightness
STILL IMAGE 2/2
WHITE BALANCE
ADVANCED
1. Turn the camera power on.
2. Select STILL IMAGE or MOVIE CLIP mode by pressing
the MODE button.
3. Press the MENU button to display the STILL
IMAGE/MOVIE CLIP mode menu on the LCD monitor.
4. To shift the menu cursor to [STILL IMAGE 2/2], press the
DOWN( ) button at the [EXPOSURE] menu that is in
[STILL IMAGE 1/2].
5. Press the UP( )/ DOWN( ) button and select [LCD
BRIGHTNESS].
6. Select the desired LCD brightness by pressing the
LEFT( )/ RIGHT( ) button. The default is [0].
7. Press the Ok button to confirm the setting.
QUICK VIEW
LCD BRIGHTNESS
0
STILL IMAGE mode
MOVIE CLIP
SETUP
EXPOSURE
WHITE BALANCE
LCD BRIGHTNESS
0
MOVIE CLIP mode
49
PLAY MODE
Starting Play Mode
Turn the camera on and select the PLAY mode by pressing the MODE button. The camera can now
play back the images stored on a memory.
You can set up the PLAY mode function by using the camera buttons and LCD monitor.
Playing back a still image
1. Slide the power switch to turn on the camera.
2. Select the PLAY mode by pressing the MODE button.
3. The last image stored on the memory is displayed on the
LCD monitor.
4. Select an image that you want to play back by pressing
LEFT( ) / RIGHT( ) button.
50
PLAY MODE
Playing back a movie clip
Steps from 1-3 are the same as those to play back a still image.
4. Select the movie clip that you want to play back by using the
LEFT( )/RIGHT( ) button. If you select a movie clip file, the
movie clip indicator(
) will be displayed on the LCD monitor.
5. Press the OK button to play back a movie clip
- To pause playing back a movie clip, press the OK button again.
- Press the OK button and the movie clip will restart.
ADVANCED
- To stop play back, pause the playing back a movie clip by pressing the OK button and press
LEFT( )/RIGHT( ) button, MODE button or MENU button.
PLAY mode functions are listed below
Thumbnail (p.57),
Camera button
Movie clip play/pause/stop (p.56),
Enlarging an image (p.56)
LCD monitor
Play back
Slide Show (p.60), Protect (p.61), Delete All (p.62)
LCD brightness (p.67), Copy to card (p.63)
Print setting
Quantity (p.65)
51
PLAY MODE
NOTICE
If there are no images stored on the internal memory or SD memory card, a [NO IMAGE]
message will be displayed on the LCD monitor.
INFORMATION
If the CARD is inserted in the camera, all the camera functions are applied only to the
CARD.
If the CARD is not inserted in the camera, all the camera functions are applied only to the
internal memory.
The last image stored on the internal memory will be displayed on the LCD monitor.
If the SD memory card is inserted, the last image stored on the SD card will be displayed.
The LCD monitor will remain in operation until the camera is switched off in PLAY mode.
The menu will not display on the LCD monitor under the following circumstances:
- When another button is being pressed.
- While image data is being processed.(while the red LED next to the viewfinder is
illuminating)
- When there is no battery capacity.
52
PLAY MODE
Setting up the play back function by using the camera button
You can set up the PLAY mode function by using the camera buttons.
Power switch
Used for turning the camera power on / off.
If this camera doesn't be operated during the specified time(about 60 SEC.), the camera power will
be idle(LCD monitor off, Camera status LED : Green) automatically(p.71). To use the camera again,
The camera power will be turned off automatically during periods of inactivity. This is done to reduce
battery drain. The camera can be reactivated by sliding the power switch again.
Shutter button
Pressing the shutter button in normal play back mode applies the DPOF(number of print : 1) function
to a still image that is stored only in the CARD.
DPOF icon(
) will be displayed on the LCD monitor.
LCD button
Pressing the LCD button in the PLAY mode will change the display as shown below.
Pressing the
LCD button
Pressing the
LCD button
TV : Shutter speed
AV : Aperture value
image & basic information
image & full information
53
ADVANCED
press the camera buttons except the power switch.
PLAY MODE
MODE button
Pressing the MODE button in PLAY mode will change the display as shown below.
Pressing the
MODE button
PLAY mode
Pressing the
MODE button
STILL IMAGE mode
Pressing the
MODE button
MOVIE CLIP mode
MENU button
When you press the MENU button, a menu related to each camera mode will be displayed on the
LCD monitor. Pressing it again will return the LCD to the initial display.
A menu option can be displayed when the followings are selected : STILL IMAGE mode, MOVIE
CLIP mode, PLAY mode and SETUP mode.
There is no menu available when PC mode is selected.
Refer to page 20 for information on selecting the camera mode menu.
Pressing the
MENU button
menu on
54
menu off
PLAY MODE
5-function button
Explanation of the 5-function button
BUTTON
MENU DISPLAY
ON
NOTICE
Starts the thumbnail display mode
OFF
Selects a up image(Thumbnail display)
ON
Makes the menu cursor move down
Page 57
ADVANCED
UP( )
button
PLAY mode
Makes the menu cursor move up
Moves to the upper part of the image(Digital zoom)
Deletes a displayed image
DOWN( )
button
Selects a down image(Thumbnail display)
Page 58
Moves to the lower part of the image(Digital zoom)
ON
LEFT( )
button
Changes the sub menu data
Selects a previous image(Normal or thumbnail display)
Page 59
Moves to the left part of the image(Digital zoom)
ON
RIGHT( )
button
Changes the sub menu data
Selects the next image(Normal or thumbnail display)
Moves to the right part of the image(Digital zoom)
ON
Selects or confirms a menu
Normal display
OK
button
Page 59
2X digital zoom display
Stops the thumbnail display
Page 56
Starts or Pauses a movie clip playing back
Starts or Pauses a thumbnail playing back
55
PLAY MODE
OK button
When the menu is displayed on the LCD monitor, the OK button is used for confirming data that is
changed by using the
/ / /
buttons.
When the menu is not displayed on the LCD monitor, pressing the OK button activates the following.
- Normal display
: Whenever you press the OK button, a still image will be enlarged to a 2X scale
of enlargement.
- Thumbnail display : The thumbnail display is changed to Normal display by pressing the OK
button.
- When A movie clip is selected : A movie clip is played back or paused by pressing the OK button.
- When the slide show is selected : the slide show is started or paused by pressing the OK button.
image enlargement
1. Select PLAY mode by pressing the MODE button.
2. A 2X enlarged image is displayed by pressing the OK button.
3. Different parts of the image can be viewed by pressing the
/ / /
buttons.
4. Pressing the OK button will zoom back to the original full sized image.
Pressing the
OK button
Normal display
56
2X scale of enlargement
PLAY MODE
UP(
) button
When the menu is displayed on the LCD monitor, pressing the UP button ( ) makes the menu
cursor move up.
When the menu is not displayed on the LCD monitor, pressing the UP( ) button activates the
following.
- Normal display
: Starts / stops the thumbnail display
- Thumbnail display : Selects a up image
- Digital zoom
: Moves to the upper part of the image
ADVANCED
Thumbnail display
1. Press the UP( ) button in the PLAY mode.
2. 9-images will be displayed at the same time on the LCD monitor. The thumbnail display will
highlight the image that had been showing at the time the thumbnail mode was selected.
3. Press the UP( )/DOWN( )/LEFT( )/ RIGHT( ) button to move to the desired image. The
selected image is highlighted.
Icons are displayed to indicate the type of file selected.
(
) : Movie clip file
(
) : DPOF indicator
(
) : Protect indicator
4. When viewing a thumbnail image, press the OK button and the selected shot will show in single
display mode.
Pressing the OK button
Highlighted image
(selected image)
Thumbnail display mode
Normal display mode
57
PLAY MODE
DOWN( ) button
When the menu is displayed on the LCD monitor, pressing the DOWN button ( ) makes the menu
cursor move down.
When the menu is not displayed on the LCD monitor, pressing the DOWN( ) button activates the
following.
- Normal display
: Deletes a displayed image
- Thumbnail display : Selects a down image
- Digital zoom
: Moves to the lower part of the image
Deleting an image
A protected image can t be deleted.
1. Select an image that you want to delete by pressing the
LEFT( )/ RIGHT( ) button.
2. Press the DOWN( ) button and a message will display as
DELETE IMAGE?
shown alongside on the LCD.
NO
YES
3. Select [NO] or [YES] by pressing the LEFT( ) / RIGHT( )
button.
4. Press the OK button.
[Selecting NO]
: The image will be displayed on the LCD
monitor.
[ Selecting YES] : Once an image has been deleted, the next image in the sequence will appear
on the LCD display.
If the last stored image is deleted, the previous image will appear.
NOTICE
Before deleting an image from the camera, you should download(p.80) the image to your
computer or protect(p.61) the image, if you want to keep it.
58
PLAY MODE
LEFT( ) button
When the menu is displayed on the LCD monitor, the LEFT ( ) button makes the sub menu data change.
When the menu is not displayed on the LCD monitor, pressing the LEFT( ) button activates the
following.
- Normal / Thumbnail display : Moves to previous image
- Digital zoom : Moves to the left part of the image
) button
When the menu is displayed on the LCD monitor, the RIGHT ( ) button makes the sub menu data change.
When the menu is not displayed on the LCD monitor, pressing the RIGHT( ) button activates the
following.
- Normal / Thumbnail display : Moves to next image
- Digital zoom : Moves to the right part of the image
59
ADVANCED
RIGHT(
PLAY MODE
Setting up the play back function using the LCD monitor
PLAY mode functions can be changed by using the LCD monitor.
In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor.
SLIDE SHOW
Images can be displayed continuously at pre-set intervals.
This is useful and convenient for checking recorded images and for presentations.
You can select the slide show play back time(1sec/ 3sec/ 5sec/ 7sec/ 9sec)
Starting the slide show
PLAY 1/2
1. Turn the camera power on.
SETUP
2. Press the MODE button to select the PLAY mode
SLIDE SHOW
3. Press the MENU button to display the PLAY mode menu
on the LCD monitor.
PROTECT
4. Press UP( ) /DOWN( ) and select the [SLIDE SHOW].
DELETE ALL
5. Select the desired slide show running time by pressing the
LEFT( )/ RIGHT( ) button. The default is [3 sec].
3 SEC
6. Press the Ok button to confirm the setting.
7. The slide show will start at a defined interval.
- To pause or restart the slide show, press the OK button.
- To stop the slide show, pause the slide show by pressing the OK button and press
LEFT( )/RIGHT( ) button.
8. If the slide show is finished, PLAY mode is activated.
INFORMATION
To save battery power, it is recommended that you use an AC adaptor(Optional) when
the slide show is playing for a long time.
The [POWER OFF] does not function during the slide show.
60
PLAY MODE
PROTECT
This is used to protect specific shots from accidental erasing (LOCK).
It also releases images that have been previously protected (UNLOCK).
Protecting images
PLAY 1/2
If you protect an image, the protect icon(
SETUP
SLIDE SHOW
ADVANCED
1. Turn the camera power on.
2. Press the MODE button to select the PLAY mode
3. Select an image that you want to protect by pressing the
LEFT( )/ RIGHT( ) button.
4. Press the MENU button to display the PLAY mode menu
on the LCD monitor.
5. Select [PROTECT] by pressing the UP( ) /DOWN( )
button and press the OK button.
6. Press the UP( ) /DOWN( ) button and select [ONE
IMAGE] or [ALL IMAGE].
- ONE IMAGE : This protects a single image.
- ALL IMAGES : This protects all the images in the
memory.
7. Press the LEFT( )/ RIGHT( ) button and select [LOCK]
or [UNLOCK].
8. Press the Ok button to confirm the setting.
- LOCK
: Sets up the PROTECT function.
- UNLOCK : Discards the protect function.
PROTECT
DELETE ALL
PLAY 1/2
ONE IMAGE
ALL IMAGE
LOCK
UNLOCK
) will be displayed on the LCD monitor.
NOTICE
An image in LOCK mode will be protected from [DELETE] or [DELETE ALL] functions,
but will NOT be protected from the [FORMAT] function.
61
PLAY MODE
DELETE ALL
This enables you to clear all unprotected images from the memory.
To delete the images or movie clips stored in the internal memory, remember not to insert the SD
memory card in the camera. Otherwise, you will delete the image or movie clip stored in the SD
memory card.
Deleting all images
PLAY 1/2
Remove the SD memory card to delete images that are in
SETUP
the internal memory.
SLIDE SHOW
Insert the SD memory card to delete images that are in
PROTECT
the SD memory card.
1. Turn the camera power on.
DELETE ALL
2. Press the MODE button to select the PLAY mode
3. Press the MENU button to display the PLAY mode menu
on the LCD monitor.
4. Press UP( ) /DOWN( ) button and select [DELETE ALL].
5. Press the OK button.
6. Select [YES] or [NO] by pressing the LEFT( )/
DELETE IMAGE?
RIGHT( ) button.
7. Press the Ok button to confirm the setting.
NO
YES
[Selecting NO] : The display is returned to the initial
menu.
[Selecting YES] : [PLEASE WAIT!] message will display
and all the unprotected images are deleted. If there aren t a protected
image, all the images are deleted and [NO IMAGE!] message will display.
NOTICE
Remember that this will permanently delete unprotected images. Important shots should
be stored on a computer before deletion takes place.
62
PLAY MODE
COPY TO CARD
This enables you to copy image files to the CARD.
Copying image files to the CARD
PLAY 2/2
1. Insert a card.
COPY TO CARD
2. Turn the camera power on.
3. Press the MODE button to select the PLAY mode.
If you insert a card that hasn t an image, [NO IMAGE!]
DPOF
LCD BRIGHTNESS
on the LCD monitor.
YES
ADVANCED
message will display. But it isn t camera malfunction.
4. Press the MENU button to display the PLAY mode menu
NO
5. To shift menu cursor to [PLAY 2/2], press the DOWN( )
button at the [DELETE ALL] menu that is in [PLAY 1/2].
6. Press the UP( )/ DOWN( ) button and select [COPY TO CARD].
7. Select [YES] or [NO] by pressing the LEFT( )/ RIGHT( ) button.
8. Press the Ok button to confirm the setting.
[Selecting NO]
: The display is returned to the initial menu.
[Selecting YES] : [PLEASE WAIT!] message will display. After copying the images to the card,
the last stored image of the last copied folder will be displayed on the LCD monitor
INFORMATION
If you select this menu and press the OK button without inserting the card, a [NO CARD!]
message will display.
If the card memory capacity is smaller than the internal memory, a [MEMORY FULL!]
message will be displayed by doing [COPY TO CARD].
Before doing [COPY TO CARD], delete unnecessary files.
63
PLAY MODE
The number of the stored image in the PLAY mode
- The number of the stored image in the PLAY mode will be displayed as shown below.
100 - 0003
100
0003
: the SSCAM folder number
: the stored image number
The image is stored on the 100SSCAM sub folder that is created under the DCIM folder in the internal
or memory card(SD memory card / Multi Media Card).
When you move the images that are stored in the internal memory by doing [COPY TO CARD] to the
card, 101SSCAM folder will be created in the card to avoid duplication of sub folder name. Whenever
you do the [COPY TO CARD], the number of SSCAM folder increases.
(Ex : 100SSCAM, 101SSCAM, 102SSCAM, 103SSCAM,
.)
After doing [COPY TO CARD], the last stored image of the last copied folder is displayed on the LCD
monitor. When you take an image, the image is stored in the last copied folder.
64
PLAY MODE
DPOF
DPOF(Digital Print Order Format) allows you to embed printing information on your memory card.
Select the pictures to be printed and how many prints to make.
Images can then be printed on DPOF printers, or at an increasing number of photo laboratories.
This function is not available for Movie clips.
The DPOF file is only stored on the card.
To make a DPOF file for the images that are stored on the internal memory, apply the [COPY TO
CARD](p.63) function first.
ADVANCED
Setting up DPOF
1. Insert a card that has image files.
2. Turn the camera power on.
3. Press the MODE button to select the PLAY mode.
4. Select an image file that you want to make a DPOF file by
pressing the LEFT( )/ RIGHT( ) button.
5. Press the MENU button to display the PLAY mode menu
on the LCD monitor.
6. To shift menu cursor to [PLAY 2/2], press the DOWN( )
button at the [DELETE ALL] menu that is in [PLAY 1/2].
7. Select [DPOF] by press UP( ) /DOWN( ) and press the
OK button.
PLAY 2/2
COPY TO CARD
DPOF
LCD BRIGHTNESS
65
PLAY MODE
DPOF
# OF PRINTS
8. Select the desired number of prints by pressing the
LEFT( )/RIGHT( ) button.
9. Press the Ok button to confirm the setting.
1
NOTICE
When you format the card in your PC that runs on Windows 2000 or XP, please select
FAT file system. If you select FAT 32, the image file may not be recognized on DPOF
printer.
Formatting on a PC
1. Select [Removable Disk]
in the [Windows Explorer]
66
2. Press the right mouse
button and select [Format].
3. Select [FAT] file format
type and click the [Start]
button.
PLAY MODE
INFORMATION
The DPOF indicator(
) will display on the LCD monitor when an image that has DPOF
information plays back.
LCD BRIGHTNESS
You may adjust the LCD brightness.
1. Turn the camera power on.
2. Press the MODE button to select the PLAY mode.
3. Press the MENU button to display the PLAY mode menu
on the LCD monitor.
4. To shift menu cursor to [PLAY 2/2], press the DOWN( )
button at the [DELETE ALL] menu that is in [PLAY 1/2].
5. Press UP( ) /DOWN( ) and select [LCD
BRIGHTNESS].
6. Select the desired LCD brightness by pressing the
LEFT( )/ RIGHT( ) button. The default is [0].
7. Press the Ok button to confirm the setting.
ADVANCED
Selecting the LCD brightness
PLAY 2/2
COPY TO CARD
DPOF
LCD BRIGHTNESS
0
67
SETTING UP THE CAMERA SYSTEM
Starting SETUP mode
You can select the SETUP mode in the STILL IMAGE/ MOVIE CLIP/ PLAY mode menu.
STILL IMAGE 1/2
MOVIE CLIP
PLAY 1/2
SETUP
SETUP
SETUP
IMAGE SIZE
EXPOSURE
SLIDE SHOW
QUALITY
WHITE BALANCE
PROTECT
EXPOSURE
LCD BRIGHTNESS
DELETE ALL
STILL IMAGE mode
MOVIE CLIP mode
Selecting the SETUP mode
1. Turn the camera power on.
2. Press the MODE button to select the STILL IMAGE/
MOVIE CLIP/ PLAY mode.
3. Press the MENU button.
4. Select [SETUP]by pressing the UP( ) /DOWN( ) button
and press the OK button.
PLAY mode
SETUP 1/3
BEEP
FORMAT
POWER OFF
RESET
ON
OFF
5. [SETUP 1/3] menu will be displayed.
In this mode, you can set up basic settings such as the beep sound, formatting the memory, auto
power off, resetting the camera system, changing date/time, selecting OSD(On Screen Display)
language.
68
SETTING UP THE CAMERA SYSTEM
BEEP
A beep will sound when you press the camera button and an error takes place. You can check the
camera condition by this function.
Selecting the beep sound
SETUP 1/3
BEEP
FORMAT
POWER OFF
ADVANCED
Steps 1 to 5 are the same as those for selecting the SETUP
mode.(p.68)
6. Press UP( ) /DOWN( ) and select [BEEP].
7. Select [ON] or [OFF] by pressing the LEFT( )/ RIGHT( )
button. The default is [ON].
8. Press the Ok button to confirm the setting.
RESET
ON
OFF
Beep sound
Beep
Camera condition
System ready
1 time
Starting the self-timer function
When a button is pressed
When an error message display on the LCD monitor
3 times
When a system error takes place
69
SETTING UP THE CAMERA SYSTEM
FORMAT
This is used for formatting the internal memory / SD memory card.
Formatting the memory
Remove the SD memory card to format the internal
memory.
Insert the SD memory card to format the SD memory card.
Steps 1 to 5 are the same as those for selecting the SETUP
mode(p.68).
6. Press the UP( ) /DOWN( ) button and select
[FORMAT].
7. Select [YES] or [NO] by pressing the LEFT( )/ RIGHT( )
button and press the OK button.
[Selecting YES] : the [FORMAT] message will be
displayed on the LCD monitor. If you
select [YES] and press the OK button,
the memory will be formatted. If you
select [NO] and press the OK button,
the SETUP menu will be displayed
without formatting the memory.
[Selecting NO] : SETUP menu will be displayed.
The default is [NO].
SETUP 1/3
BEEP
FORMAT
POWER OFF
RESET
FORMAT
NO
YES
NOTICE
All the files in the memory are deleted by [FORMAT] function.
Before formatting the memory, it is advisable to copy important data onto other media as
back-up e.g. floppy disks, hard disks, CD etc.
70
SETTING UP THE CAMERA SYSTEM
POWER OFF
This function switches the camera off after a set amount of time in order to prevent unnecessary
battery drainage.
You can set the power to switch off at any specified time( 3, 5, 10, 30MIN) from the last operation.
If you select [CANCEL], the power off function will not operate.
Note that the automatic power off does not operate if the camera is in slide show or PC mode.
Steps 1 to 5 are the same as those for selecting the SETUP
mode(p.68).
6. Press the UP( ) /DOWN( ) button and select [POWER
ADVANCED
Selecting the power off function
SETUP 1/3
BEEP
FORMAT
POWER OFF
OFF].
7. Select the desired auto power off time by pressing the
RESET
LEFT( )/ RIGHT( ) button. The default is [3 MIN].
3 MIN
8. Press the Ok button to confirm the setting.
Time for the power off
Power status
Period of time ( Battery )
Period of time ( AC adapter )
Idle mode(LCD off)
60 sec
60 sec
Power off
[User setting]
[User setting]
71
SETTING UP THE CAMERA SYSTEM
RESET
This menu allows you to reset all the camera settings to the default.
DATE/TIME, LANGAGE, VIDEO OUT settings will not be changed by doing the [RESET] menu.
After resetting the camera system, check the video output signal of the camera is same as that of the
country where you are.
Refer to following for information on the default.
Selecting the default camera setting
SETUP 1/3
Steps 1 to 5 are the same as those for selecting the SETUP
mode(p.68).
6. Press the UP( ) /DOWN( ) button and select [RESET].
7. Select [YES] or [NO] by pressing the LEFT( )/ RIGHT( )
button and press the OK button.
[Selecting YES] : All the camera setting is changed to the
camera default setting.
[Selecting NO] : SETUP menu will display without the
resetting the camera system.
BEEP
FORMAT
POWER OFF
RESET
YES
NO
The default camera setting
72
Camera setting
Default
Camera setting
Default
Image size
1280x1024
Slide show play back time
3 sec
Quality
Fine
Power off
3 min
Flash
Auto flash
Beep
ON
LCD brightness
0
White balance
Auto
EV compensation
0.0EV
Quick View
ON
SETTING UP THE CAMERA SYSTEM
DATE SETUP
Changing the date/time
year/month/day, hour/minute
by pressing these button.
LEFT( ) button : decreases the number of items
RIGHT( ) button : increases the number of items
9. Press the Ok button to confirm the setting.
SETUP 2/3
DATE SETUP
DATE IMPRINT
DATE TYPE
LANGUAGE
ADVANCED
Steps 1 to 5 are the same as those for selecting the SETUP
mode(p.68).
6. To shift the menu cursor to [SETUP 2/3], press the DOWN( )
button at the [RESET] menu that is in [SETUP 1/3].
7. Select [DATE SETUP] by pressing the UP( )/ DOWN( )
button and press the OK button.
8. You can change the date/time on the LCD monitor display
by pressing the UP( )/ DOWN( )/ LEFT( )/ RIGHT( )
button.
UP( )/ DOWN( ) button : you can select
DATE/TIME
YEAR 2002
MONTY 09
DAY 01
TIME 00:00
INFORMATION
The selection range for date/time setup covers from 2002~2099.
(It is automatically programmed to allow for a leap year/ month)
If you want to modify the minute after modifying the time, press the DOWN( ) button.
NOTICE
Even if the batteries or AC adapter are removed, it is necessary to check the date/time.
If the date/time is incorrect, reset the date/time.
73
SETTING UP THE CAMERA SYSTEM
DATE IMPRINT
There is an option to include DATE/TIME on still images.
Selecting the date imprint function
SETUP 2/3
Steps 1 to 5 are the same as those for selecting the SETUP
DATE SETUP
mode(p.68).
DATE IMPRINT
6. To shift the menu cursor to [SETUP 2/3], press the
DATE TYPE
DOWN( ) button at the [RESET] menu that is in [SETUP
1/3].
LANGUAGE
7. Press the UP( ) /DOWN( ) button and select [DATE
YES
NO
IMPRINT].
8. Select [YES] or [NO] by pressing the LEFT( )/ RIGHT( )
button and press the OK button.
[Selecting YES] : DATE/TIME is stamped on a stored image.
[Selecting NO] : SETUP menu will display without setting up this function.
INFORMATION
This function is not available in movie clip mode.
74
SETTING UP THE CAMERA SYSTEM
DATE TYPE
You can select date type that is imprinted on the image.
Selecting the date type
SETUP 2/3
DATE SETUP
DATE IMPRINT
DATE TYPE
ADVANCED
Steps 1 to 5 are the same as those for selecting the SETUP
mode(p.68).
6. To shift the menu cursor to [SETUP 2/3], press the
DOWN( ) button at the [RESET] menu that is in [SETUP
1/3].
7. Press the UP( ) /DOWN( ) button and select [DATE
TYPE].
8. Select the desired DATE TYPE by pressing the LEFT( )/
RIGHT( ) button. The default is [YYYY/MM/DD].
9. Press the OK button to confirm the setting.
LANGUAGE
YYYY/MM/DD
75
SETTING UP THE CAMERA SYSTEM
LANGUAGE
There is a choice of languages that can be displayed on the LCD monitor.
You can select English/ Korean/ German/ French/ Spanish/ Italian/ Taiwanese/ Chinese.
Selecting a language
SETUP 2/3
Steps 1 to 5 are the same as those for selecting the SETUP
mode(p.68).
6. To shift the menu cursor to [SETUP 2/3], press the
DOWN( ) button at the [RESET] menu that is in [SETUP
1/3].
7. Press the UP( ) /DOWN( ) button and select
[LANGUAGE].
8. Select the desired language by pressing the LEFT( )/
RIGHT( ) button.
9. Press the OK button to confirm the setting.
LANGUAGE 1/2
DATE SETUP
DATE IMPRINT
DATE TYPE
LANGUAGE
LANGUAGE 2/2
ENGLISH
ESPAÑOL
DATE SETUP
ITALIANO
FRANÇAIS
˚
DEUTSCH
INFORMATION
The language setting will be saved even if the camera is turned off.
76
SETTING UP THE CAMERA SYSTEM
VIDEO OUT
The alternating current frequency influences the image quality. In a country that takes NTSC video
output type(A.C frequency : 60Hz), select [NTSC/60Hz] sub menu. In a country takes video output
type(A.C frequency : 50Hz), select [PAL/50Hz] sub menu. Otherwise, there will be white lines on a
stored image.
The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be
governed by the type of machine (monitor or TV, etc.) to which the camera is connected.
Select the correct movie standard for the outer monitor. PAL mode can support only BDGHI.
ADVANCED
Selecting the video out type
SETUP 3/3
Steps 1 to 5 are the same as those for selecting the SETUP
VIDEO OUT
mode(p.68).
6. To shift the menu cursor to [SETUP 2/3], press the
DOWN( ) button at the [RESET] menu that is in [SETUP
1/3].
7. To shift the menu cursor to [SETUP 3/3], press the
NTSC
PAL
DOWN( ) button at the [LANGUAGE] menu that is in
[SETUP 2/3].
8. Select [[NTSC/60Hz]] or [PAL/50Hz] by pressing the LEFT( )/ RIGHT( ) button.
9. Press the OK button to confirm the setting.
INFORMATION
NTSC
: U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.
PAL
: Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K., Holland,
Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden,
Switzerland, Thailand, Norway.
77
SETTING UP THE CAMERA SYSTEM
Connecting to an external monitor
In STILL IMAGE/ MOVIE CLIP/ PLAY mode, you can view the stored still images or movie clips by
connecting the camera to an external monitor via the video cable. When the camera is connected to
an external monitor, the LCD monitor will be turned off automatically.
When the camera is connected to an external monitor, the menu will be visible on the external
monitor and the menu functions are the same as those indicated on the LCD monitor.
INFORMATION
When using a TV as an external monitor, you will need to select the external or AV
channel of the TV.
There will be a digital noise on the external monitor, but it is not a malfunction.
If the image is not in the centre of the screen, use the TV controls to centre it.
78
PC MODE
Starting PC mode
If you insert the USB cable to USB connection terminal, the camera working mode will change to the
PC mode automatically.
In this mode, you can download stored images to your PC through the USB cable.
There is no associated menu in PC mode and the LCD monitor is always turned off in PC mode.
The camera status LED(red) lamp blinks when the files are transferring via the USB connection.
Connecting the camera to PC
ADVANCED
1. Turn the camera power on.
2. Turn the PC power on.
3. Connect the PC and the camera by the USB cable.
- Insert the small plug of the USB cable to the camera
USB connection terminal.
- Insert the large plug of the USB cable to the USB port
of PC
- The plugs must be firmly inserted.
Disconnecting the camera and PC
Refer to the following page
- WIN 98SE
: p.98
- WIN 2000/ME/XP : p.98
79
PC MODE
INFORMATION
The camera driver must be installed before using PC mode in Windows 98/98SE. Refer
to page 91 regarding installation.
To save battery power, it is recommended that you use an AC adaptor(Optional) when
connecting the camera to a PC.
Downloading stored images
Once you have downloaded images to your PC, they can be edited and printed.
1. Connect the camera to your PC with the USB cable.
2. On your computer s desktop display, select [My computer] and double click [Removable Disk
Dcim
100sscam]. The image files will then be displayed.
- If the card is inserted, images that are stored on the card will be displayed.
- If the card is not inserted, images that are stored on the internal memory will be displayed.
- Use the COPY or MOVE function to download the image files to your PC.
- By using [Digimax Viewer], you can see the stored images in the memory directly on the PC
monitor and you can copy or move the image files.
Refer to the software manual part regarding [Digimax viewer] software installation(p.102) and
usage(p.104).
- If you wish to edit downloaded images, you can use [MGI PhotoSuite III SE].
Refer to the software manual part regarding [MGI PhotoSuite SE] software installation(p.105)
and usage(p.108).
80
IMPORTANT NOTES
Caution!
Your new Samsung camera is a precision instrument. Whilst it is designed to withstand general wear
and tear, there are some important points that will help you get maximum service and reliability from
your camera.
The following should be avoided :
Severe changes in temperature and humidity.
Dust and dirt.
ADVANCED
Direct sunlight or the inside of a vehicle in hot weather.
Environments where there is high magnetism or excessive vibration.
Areas with high explosives or which are highly flammable materials.
Pesticides, etc.
Sand can be particularly troublesome to cameras.
Sand or other small particulates can cause severe malfunctions.
Ensure that there is no contact with sand or similar particles.
Extremes in temperature may cause problems.
If the camera is transferred from a cold to a warm and humid environment, condensation can form
on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at least 1 hour
until all moisture is dispersed. Moisture build up can also occur in the CARD. If this happens, turn
off the camera and remove the CARD. Wait until the moisture has dispersed.
81
IMPORTANT NOTES
If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to
remove the batteries and the CARD, the camera is not used for some time.
If the camera is exposed to electronic interference, it will turn itself off to protect the CARD.
Maintenance
Use a soft brush (available from photo stores) to GENTLY clean the lens and LCD assemblies.
If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera to come into contact with
solvent materials such as benzol, insecticide, thinners etc.
This may damage the body shell of the camera and also affect its performance.
Rough handling can damage the LCD monitor. Take care to avoid damage and keep the camera
in its protective carry case at all times when not in use.
DO NOT attempt to disassemble or modify the camera. It contains delicate parts and there are high
voltage circuits that can cause electric shocks.
Under certain conditions, static electricity can cause the flash unit to fire.
This is not harmful to the camera and is not a malfunction.
When images are uploaded or downloaded, the data transfer may be affected by static electricity. In
this case, disconnect and re-connect the USB cable before trying the transfer again.
82
IMPORTANT NOTES
Warning indicator
There are several warnings that may appear in the LCD display
Warning indicator
Causes
Turn off the camera power and turn
it on again
Format the memory
Card error
Turn off the camera power and turn
it on again.
Remove the card and insert it again
Insert the card and format the card
There is insufficient memory
capacity to take an image.
Insert a new CARD
Delete unnecessary image files to
free up some memory.
There are no images stored on the
internal memory or the CARD.
Take images.
Insert a CARD that is holding some
images.
A card is not inserted.
Insert a card and do [COPY TO
CARD]
The card capacity is not enough
Insert a new card
Delete unnecessary image files to
free up some memory.
CARD ERROR
NO IMAGE
NO CARD!
CARD FULL!
83
ADVANCED
Memory error
MEMORY ERROR
MEMORY FULL
Remedy
BEFORE CONTACTING A SERVICE CENTER
Symptom
The camera
doesn t switch on
The camera
power is down
whilst in use
Causes
Remedy
There is low battery capacity
An AC Power Adapter is not
connected
Insert fresh batteries.
Connect an AC Power Adapter
The batteries are exhausted
The Camera is turned off automatically
due to the Auto power off function
The Adapter plug is not connected securely
Insert fresh batteries
Slide the power switch to reactivate
camera
Remove and re-insert the plug
The Camera is being used in low
Keep the camera in warm
temperatures
conditions (i.e. inside a coat or
Batteries drain
jacket) and only remove it in order
quickly
to take images.
Mixing old and new batteries or
Insert fresh batteries (all of which
battery types
should be of the same type)
The memory is full
After turning the camera off, insert a
new card or delete a stored image.
Camera does not
take images when
pressing the
Shutter button
84
The CARD has not been formatted.
Format the memory
The memory is exhausted
Insert a new card
The camera power is off
Turn the camera power on
The batteries are exhausted
Insert fresh batteries
The camera working mode is
Change the camera working mode
positioned incorrectly
to the RECORDING mode.
BEFORE CONTACTING A SERVICE CENTER
Symptom
The camera
buttons do not
Causes
Camera malfunction
Incorrect card format
Re-format the card (p.70)
The card is formatted as FAT 32
Format the card as FAT file
file system
system(p.66)
[VIDEO OUT] type is incorrect
Check your video out signal type and
stored image.
Color of image different
to original scene
Images are
select correct video out type(p.77)
WHITE BALANCE setting is
Select appropriate WHITE
incorrect
BALANCE. (p.47)
Exposure is excessive
Reset exposure
too bright
The play back display
is not very clear
The images
are unclear
The flash
does not fire
compensation(p.45)
The lens or LCD monitor is
Clean the lens or LCD
smudged or dirty
The focus range was closer than 1m.
Keep the focus range : 1m ~ infinity
FLASH OFF mode has been
Disengage FLASH OFF mode
selected
85
ADVANCED
White lines appear on a
Remove /re-insert batteries and
switch camera on
operate
The card error
Remedy
BEFORE CONTACTING A SERVICE CENTER
Symptom
Incorrect date and
time is displayed
Date is not displayed
on the LCD monitor
Causes
The date and time have been set
Reset the date and time correctly.
incorrectly.
(p.73)
Date imprint function is set to OFF
Switch the Date imprint function
ON. (p.74)
in the PLAY mode
The external monitor has not been
No image on the
connected properly with the
external monitor
camera.
When using the
PC explorer,
Removable Disk
does not show
Remedy
Check the connection cables
There are incorrect files in the card
Insert the card that has correct files
Cable connection is incorrect
Check the connection
The camera is off
Turn the camera on
There are no batteries, the batteries
Insert new batteries or check the
are exhausted or the AC adapter is
adapter connection
not connected
The operating system is not
Install Windows 98, 98SE, 2000,
Windows 98, 98SE, 2000, ME, XP/
ME, XP/ Mac OS 9.0~10.2 to PC
Mac OS 9.0~10.2. Alternatively the
that supports USB
PC does not support USB
USB driver is not installed. (WIN
98,98SE only)
86
Install "USB Storage Driver"
SPECIFICATIONS
Image Sensor
Type
1/2 CMOS
Effective Pixels
Approx. 1.3 Mega pixels
Total Pixels
Approx. 1.4 Mega pixels
Focal Length
Lens
F No.
Digital Zoom
Focusing
Shutter
Exposure
Flash
F 3.0
Still Image mode : 2X
Play mode : 2X
Optical Viewfinder
Optical Viewfinder
LCD Monitor
1.6" color TFT LCD
Type
Fixed focus
Range
1.0m ~ infinity
Type
Electronic shutter
Speed
1/15 ~ 1/2,000 sec..
Control
Program AE
Compensation
2EV (0.5EV steps)
ISO
Auto
Modes
Auto/ Auto & Red – eye reduction / Flash off
Range
1.0 ~ 3.0 m
Recharging Time
Approx. 10 sec.
White Balance
ADVANCED
Viewfinder
Samsung lens f=9.0mm
(35mm film equivalent : 46mm)
Auto / Daylight / Cloudy / Sunset / Tungsten / Fluorescent
Size : 320x240 pixels
Movie Clip
Recording time : Memory capacity dependent
Self-timer
10 sec.
Media
Storage
Internal memory : 8MB flash memory
External memory (Optional) : SD / MMC card (Up to 256MB guaranteed )
Still Image : JPEG (DCF) / DPOF
File Format
Movie Clip : AVI(MJPEG)
87
SPECIFICATIONS
Image Size
Large : 1280x1024 pixels, Small : 640x 512 pixels
Capacity
Large : Super fine 15, Fine 22, Normal 44
(8MB)
Small : Super fine 30, Fine 60, Normal 121
These figures are measured by internal memory based.
These figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
Image Play
Single image / Thumbnails / Slide show / Movie Clip
Interface
Digital output connector : USB
Video output : NTSC / PAL (User selectable)
DC power input connector : 3.3V
Power Source
2 x AA alkaline / 2 x Ni-MH / CR-V3 batteries
AC adapter (Optional)
Dimensions (WxHxD)
108x56x37mm / 4.3x2.2x1.5in
Weight
Software
Approx. 125g / 4.4oz (without batteries and card)
Camera Driver
Storage Driver
(Windows98/98SE/2000/ME/XP, Mac OS 8.6 ~ 10.2)
Application
System Requirements
For Windows
For Macintosh
MGI PhotoSuite, Digimax Viewer
Digimax 101
PC with processor better than MMX Pentium 266MHz (XP : Pentium II 300MHz)
Windows 98/98SE/2000/ME/XP
Minimum 32MB RAM (XP : 128MB)
110MB of available hard-disk space
USB port
CD-ROM drive
800 X 600 pixels, 16-bit color display compatible monitor
(24-bit color display recommended)
Power Mac G3 or later
Mac OS 8.6 ~ 10.2
Minimum 32MB RAM
110MB of available hard-disk space
USB port
CD-ROM drive
QuickTime 4.0 or later for Movie Clip
Specifications are subject to change without prior notice.
88
SOFTWARE MANUAL
Software Notes
Please ensure that you read the instruction manual carefully before use.
The attached software is a camera driver and image editing software tool for Windows.
Under no circumstances should all or part of either the software or the user manual be reproduced.
Copyright for both software is licensed only for use with a camera.
In the unlikely event of a manufacturing fault, we will repair or exchange your camera. We cannot,
however, be held responsible in any way for damage caused by inappropriate use.
Using a Hand-made PC or a PC that has not been guaranteed by the manufacturer is not covered by
the Samsung warranty.
Before reading this manual, you should have a basic knowledge of computers and O/S (Operating
Systems).
Windows is a registered trademark of Microsoft.
Macintosh, Mac is the registered trademark of Apple computer, USA.
About software
After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following window is
automatically run.
Before connecting the camera to the PC, you should first install the camera driver.
It is not necessary to install the camera driver if your computer runs on Windows 2000/ ME/ XP.
Access to the Samsung camera
web-site.
Closing the auto run frame
89
SOFTWARE
Setting up the camera driver (p.91)
Setting up the image viewer (p.102)
Setting up the image editing program (p.105)
SOFTWARE MANUAL
Driver Storage Driver : This enables images to transfer between the camera and PC.
This camera uses the USB Storage Driver as the camera driver.
You can use the camera as a USB card reader. After installing the driver and
connecting this camera to the PC, you can find [Removeable Disk] in
[Windows Explorer] or [My computer].
Setting up the camera driver for WINDOWS (p.91)
Setting up the camera driver for MAC (p.100)
Image Viewer Digimax Viewer 1.0 : Program for viewing a stored image
You can see the stored images in the memory directly on the PC
monitor. And you can copy, move, delete the images and scale
up /downscale the image sizes with Digimax Viewer.
For windows only.
Setting up Digimax Viewer (p.102)
Using Digimax Viewer (p.104)
Application MGI PhotoSuite III SE : Image editing program for downloaded images.
For Windows only.
Setting up MGI PhotoSuite III SE (p.105)
Using MGI PhotoSuite III SE (p.108)
Internet link : You can visit the Samsung web-site through the internet.
http://www.samsungcamera.com : English
http://www.samsungcamera.co.kr : Korean
INFORMATION
Check the system requirements ( p.88 ) before setting up the driver.
You should allow 5~10 seconds for running the automatic setup program according to the
capability of the computer. If the frame does not show, run the [Windows Explorer] and
select [Samsung.exe] in the CD-ROM Drive root directory.
90
SOFTWARE MANUAL
Setting up the USB driver for Windows 98SE
To use this camera with a PC, install the Camera Driver first. After this has been done, the stored
images in the camera can be moved to the PC and can be edited by an image editing program.
Before connecting the camera to the PC, you should first install the camera driver.
It is not necessary to install the camera driver if your computer runs on Windows 2000/ ME/ XP.
[Click!]
1. Click [ Storage Driver] menu
[Click!]
2. A [Welcome] window will open.
on the Autorun frame.(p.89)
Click the [Next>] button.
3. A [start Installation] window will open.
Click the [Next>] button.
4. Installation is complete. Click the [Finish] button
and the [Microsoft DirectX8.1 Setup] window
will open to install DirectX8.1
91
SOFTWARE
[Click!]
[Click!]
SOFTWARE MANUAL
Setting up DirectX 8.1
DirectX is a windows technology that enables higher performance in graphics and sound when you’re
playing games or watching video on your PC.
1. After driver installation, [Microsoft DirectX 8.1 Setup] window
will open automatically. Click [Yes].
[Click!]
2. The software license agreement window will open.
If you agree to it, click [Yes]. This will take you to the next step.
If you disagree, click [No] and the installation program will be
canceled.
3. Installation is complete.
Click the [OK] button and the PC will restart.
4. After restarting the computer, connect the PC to the camera with the USB cable.
92
SOFTWARE MANUAL
5. Turn the camera power on. [Found New Hardware Wizard] will
open and the computer will recognize the camera.
* If you have ever installed an image viewer program, the program
will open. If the image viewer program opens, the camera driver
was setup successfully.
6. If you can see [Removable Disk] under [My computer], the
camera driver installation is successful. Now you can transfer
image files from the camera to PC via the USB cable.
INFORMATION
If you have installed the camera driver, [Found New
Hardware Wizard] may not open.
SOFTWARE
After the [Found New Hardware Wizard] window
opens, a window may open to select the camera
driver file location.
In this case, select [C:\WINDOWS\INF\OTHER]
folder. If you can’t find [INF\OTHER] folder, check
[Show all files] button in [Window's Explorer
Folder option
View
View].
It is recommended that you use an AC adaptor(Optional) when connecting the camera to
a computer.
93
SOFTWARE MANUAL
INFORMATION
Before connecting the camera to the PC, You should first install the camera driver first.
After installing the camera driver, you have to restart your PC.
If you connect the camera to the PC before installing the camera driver, the [Found New
Hardware Wizard] will open. In this case, cancel the [Found New Hardware Wizard] and
disconnect the connection. Install the camera driver and connect the camera and PC again.
Should the computer not find the camera driver after installation, please try one or more
of the following measures.
1. Delete the camera driver (p.95), and re-install the driver.
2. Refer to FAQ (p.123) to check for a possible solution to the problem.
3. If your PC’s central processing unit is VIA chip(This is shown in the USB Host
Controller), download the patch file from the Samsung Camera web page.
(http://www.samsungcamera.com)
To view an image that is stored in the camera, install Digimax Viewer (p.102).
To edit an image that is downloaded to PC, install PhotoSuite III SE (p.105).
94
SOFTWARE MANUAL
Removing the USB Driver for Windows
1. Trace [Start
Settings] and click [Control Panel]
2. Double-click [Add/Remove programs].
SOFTWARE
95
SOFTWARE MANUAL
3. The [Add/Remove Programs Properties] window will
open. Click [Digimax 101 Mass Storage Driver] and click
[Add/Remove] button.
[Click!]
4. A [Select Uninstall Method] window will open.
Click the [Next>] button.
5. Uninstall is complete.
Click the [Finish] button and the window will disappear.
96
SOFTWARE MANUAL
Removable Disk
To use this camera as a Removable Disk, install(p.91) the USB Driver.
1. Before turning the camera power on, connect the camera to the PC with the USB cable.
2. Click [ Removable Disk ] under [My computer] or [ Windows Explorer].
3. Image files stored in the Removable Disk(Dcim
100sscam) can be transferred to the PC.
NOTICE
[Red lamp]
97
SOFTWARE
Important information whilst using the Removable Disk
The [Removable Disk] indicator will not show when the camera power is off.
We recommend that you should copy the images to the PC to view them. Opening
images directly from the removable disk may be subject to unexpected disconnection.
When uploading images from the PC to the camera, ensure that the uploaded file names
are not the same as those already stored on the memory.
When you upload a file that is not taken by this camera to Removable Disk, the [FILE
ERROR!] message will be displayed on the LCD monitor in the PLAY mode, and nothing
is displayed in THUMBNAIL mode.
The red lamp next to the viewfinder will blink, when a
file is transferred (copy or deletion) between the PC and
the camera. Do not remove the USB cable until the
lamp stops blinking. To remove the USB cable in
Windows 2000/ME/XP, use the [Unplug or Eject
Hardware] icon on the task bar.
SOFTWARE MANUAL
Removing the removable disk
Windows 98SE
1. Check whether the camera and PC are transferring a file. If the red camera status LED (next to
viewfinder) blinks, you have to wait until the LED illuminates.
2. Unplug the USB cable.
Windows 2000/ME/XP
1. Check whether the camera and PC are transferring a file.If the red camera status LED (next to
viewfinder) blinks, you have to wait until the LED
illuminates.
2. Double-click the [Unplug or Eject Hardware] icon on
the task bar.
[Double-click]
3. The [Unplug or Eject Hardware] window will open.
Select the [Samsung USB Mass Storage Device] and
click the [Stop] button.
[Click!]
98
SOFTWARE MANUAL
4. The [Stop a Hardware device] window will open. Select
the [USB Mass Storage Device] and click the [OK] button.
[Click!]
5. A [Safe to Remove Hardware] window will open.
Click the [OK] button.
[Click!]
6. A [Unplug or Eject Hardware] window will open. Click the
[Close] button and the removable disk will be removed
safely.
SOFTWARE
7. Unplug the USB cable.
[Click!]
99
SOFTWARE MANUAL
Setting up the USB Driver for MAC
Check the MAC OS. You can check the MAC OS version during MAC OS start-up.
This camera is compatible with MAC OS 8.6 ~ 10.2.
1. Insert the Application CD-ROM
2. [Digimax 101] icon will display on the desktop.
Double-click the [Digimax 101] icon.
3. Double-click the [Digital Camera Driver Installer] icon in
the [Digimax 101] folder.
4. A [Digital Camera Driver Installer] window will open.
Click the [Install] button.
100
SOFTWARE MANUAL
5. A information window will open.
Click the [Continue] button.
6. Installation is complete.
Click the [Restart] button and your PC will restart.
7. Connect the camera to the Macintosh and turn the camera power on.
8. A new icon (Untitled) will be displayed on the desktop after connecting the camera to the MAC.
Using the USB Driver for MAC
1. Double click a new icon (Untitled) on the desktop and the folder in the memory will be displayed.
2. Select an image file and copy or move it to MAC.
SOFTWARE
NOTICE
If you use Mac OS 10.0 or later, you may experience happening an error when you
transfer files from the PC to the camera.
101
SOFTWARE MANUAL
Setting up Digimax Viewer
This software is only compatible with Windows.
1. Click [Digimax Viewer 1.0] on the Autorun frame.
[Click!]
2. An installation window will be displayed as shown
alongside.Click [Next].
[Click!]
3. The Software License Agreement window will display.
If you agree to it, click [Yes]. This will take you to the next
step. If you disagree, click [No] and the installation
program will be canceled.
102
SOFTWARE MANUAL
4. Select a destination folder and click [Next].
5. Select the Program folder and click [Next].
[Selecting a destination folder]
[Click!]
[Click!]
6. Installation is completed. If you wish to open this program
automatically whenever the camera is connected to the
PC, click the [I would like to launch Digimax Viewer]
Checkbox. And click [Finish].
[Check]
[Click]
SOFTWARE
7. Digimax Viewer will start. Click the Exit button to finish the
program.
[Exit button]
To edit a downloaded image, set up MGI PhotoSuite III SE
(p.105)
103
SOFTWARE MANUAL
Digimax Viewer
This software is only compatible with Windows.
To open Digimax Viewer, click the [ Start Programs
Viewer 1.0 ] and Digimax Viewer 1.0 will then open.
Samsung Digimax Viewer 1.0
Digimax
Select an image and press the right mouse
button. A pop-up menu will open.
Open : allows you to view a selected
sequence of images, one at a time.
Copy : copies files. After copying a file, select
a folder where you want to paste the
copied file. Click the right mouse
button and a pop-up menu will open.
Select [Paste] and the copied file is
pasted.
Paste : pastes a copied file
Cut
: cuts a selected file.
Delete : deletes a selected file
If the Auto Launch option is selected, this program will be executed automatically with recognizing the
camera.
Refer to the [Help] menu in Digimax viewer about further information.
104
SOFTWARE MANUAL
Setting up MGI PhotoSuite lll SE
This software is only compatible with Windows.
1. Click the MGI PhotoSuite lll SE menu on the autorun
frame.
[Click!]
2. The [Choose Setup Language] window will open.
Select language.
[Click!]
SOFTWARE
3. A [Welcome] window will be displayed.
Click [Next>] to move to the next step.
[Click!]
105
SOFTWARE MANUAL
4. The Software License Agreement window will be
displayed. If you agree to this, click [Yes], the window will
then move to the next step. If you disagree, click [ No ]
and the install program will be canceled.
5. A [Setup Type] window will open. Select setup type and
click [Next >] button.
Full
: the program will be installed with all the
options.
Custom : you can choose what you would like to
install.
[Click!]
6. If installation is completed correctly, Autoplay is registered
automatically into the start menu program as shown
alongside. Click [Next>] button.
[Click!]
106
SOFTWARE MANUAL
7. The MGI Registration window will be displayed. Click the
[Continue] button.
[Click!]
8. The [Online Registration Utility] window will be displayed.
Fill in the blanks and click the [Register] button.
9. Installation is complete. Click the [Finish] button.
SOFTWARE
A [Read me] file will open.
Click [Close button] to close the file.
[Click!]
107
SOFTWARE MANUAL
MGI PhotoSuite III SE
This software is only compatible with Windows.
To open MGI PhotoSuite lll SE, click the [Start Programs
PhotoSuite lll SE] and MGI PhotoSuite lll SE will then open.
108
MGI PhotoSuite lll SE
MGI
SOFTWARE MANUAL
An introduction to the Welcome screen
Get
Get images.
Prepare
A number of photo editing activities can be performed within this module.
Compose
Use your photos in a variety of fun, creative and interesting ways.
Organize
Organize your photos and other media files into albums.
SOFTWARE
Share
Save your results to show to others.
Print
Print hard copies of photos and projects.
109
109
SOFTWARE MANUAL
Introduction to navigation bar
Back
Return to the previous step.
Home
Return to Welcome screen.
Help
Display help window.
Get
Get images.
Prepare
A number of photo editing activities can be performed within this module.
Compose
Use your photos in a variety of fun and interesting ways.
Organize
Organize your photos and other media files into albums.
Share
Save your results to show to others.
Print
Print hard copies of photos and projects.
Browse
Browse the web site.
110
SOFTWARE MANUAL
GET
To obtain images from the computer
1. To acquire images, Click the large [Get] button on the
Welcome screen, or the [Get] button on the Navigation
bar. Click [Computer] from the list of options displayed on
the activity panel.
2. The Open file selector is displayed. Now select the image
file and click [open].
SOFTWARE
3. The Welcome screen will change to the next work step,
with the selected image displayed.
111
SOFTWARE MANUAL
When you obtain images from the digital camera.
Before transferring an image file, check the USB connection.
1. To acquire images, click the large [Get] button on the
Welcome screen, or the [Get] button on the Navigation
bar. Click [Computer] from the list of options displayed on
the activity panel.
2. The Open file selector is displayed. Click [Look in :] to
choose [Removable Disk( :)] and click [open] for the open
file window to be displayed.
3. Select the [ Dcim 100sscam ] folder. Then select an
image and click [ Open ].
112
SOFTWARE MANUAL
4. The Welcome screen will change to the next work step, with the selected image displayed.
Note
When you use the Digimax camera, only [Computer] and
[Album] from the list of options displayed are available.
[Computer and Album Only]
113
SOFTWARE
You will be able to obtain images from the digital camera.
SOFTWARE MANUAL
Acquiring images from an Album.
1. To acquire images, click the large [Get] button on the
Welcome screen, or the [Get] button on the Navigation
bar. Click [Album] from the list of options displayed on the
activity panel.
2. After selecting Album on the [ Choose a photo album],
click an image in the album and click [Open].
3. The Welcome screen will change to the next work step,
with the selected image displayed.
Refer to page 118 for more information about creating an Album.
114
SOFTWARE MANUAL
PREPARE
When the image is loaded, the step changes to Prepare automatically.
Menu of [PREPARE] steps
Rotate & Crop
You can rotate, flip or crop images along with a host of others.
Touchup
Remove Red eye, Remove Scratches etc.. are available in this menu.
SOFTWARE
Special Effects
A number of special effects can be applied.
Stitching
Join a series of photos together to create a sweeping panoramic effect.
115
SOFTWARE MANUAL
COMPOSE
Add text, Compound Images etc. are available in this step.
Menu of [COMPOSE] steps
Collages
: A collage consists of several photos
or sections of photos arranged
together on a common background.
Photo Layouts
: The Photo Layouts activity includes
many collage and layout options.
Cards & tags
: Use your photos to create items such
as Gift Tags, Greeting Cards,
Invitations, Postcards, and Sports
Cards.
Calendars
: Use your photos to create a variety of
calendars (monthly, quarterly,
seasonal, yearly).
Collections
: Photos can also be used to create a
variety of items for business
purposes.
Fun stuff
: You can make magazine covers,
Backgrounds, etc. in this menu.
Business
: You can make business items such
as business cards, certificates, signs,
labels, promotions, name tags,
stationary
Frames & Edges : Add frames and edge effects to your
photos according to predefined
templates.
116
SOFTWARE MANUAL
ORGANIZE
Organize your photos and other media files into albums.
Menu of [ORGANIZE] steps
[
[
[
SOFTWARE
Choose a photo album to view or edit]
Select Album : To create an Album, click [Organize] in
the welcome screen or navigation bar.
Album.. : Open Master Album.
Select a photo, and choose an action below.]
- Open : Open selected image.
- Delete : Delete selected image.
- Properties... : view image information.
Choose an action to manage your album.]
- Add : click [Add] to add an image to an Album.
- Sort : click [Sort] to Sort saved images.
- Search : click [Search] to Search saved images.
- Reset : click [Reset] to reset the setting.
- Update : click [Update] to update images.
- Create Slide Show : click [Create Slide Show] to create
a Slide Show.
Always start on this page : If you select this option, the
program will start in [Organize].
117
SOFTWARE MANUAL
Creating an Album
1. To create an Album, click the large Organize button on
the Welcome screen, or the Organize button on the
Navigation bar.
2. Click [Album..] in [ Choose a photo album to view or
edit.]
3. The Master Album window will be displayed, then click
[New..].
4. Put a new Album name in the New Album window and
click [OK]. A new album will now be created.
5. [Master Album] window will open. Click [OK] button.
118
SOFTWARE MANUAL
Add images to the album
1. Select [ Choose an action to manage your album.
Add..] to add images to the album.
[Click!]
2. Click [Computer] in Add Photos menu.
[Click!]
SOFTWARE
NOTICE
[Digital Camera(Direct)], [Scanner(TWAIN)], [Digital Camera(TWAIN)] sources can't be
used.
119
SOFTWARE MANUAL
3. [Add photo to Album] window will open. Select images
that you want to add. Click [Add] button.
[Click!]
4. Adding images is complete.
120
SOFTWARE MANUAL
SHARE
Saving or sharing images.
Menu of [SHARE] step
Save
To save the active file according to its current name and
path.
Save As
To assign a new name or path to the file.
Send E-mail
e-mailing images.
Slide Show
Viewing images as a slide show.
SOFTWARE
121
SOFTWARE MANUAL
PRINT
You can print images.
Menu for the [PRINT] step
Print
Printing images.
Print Multiples
Print multiple copies of a photo or project, or one copy of
each of the photos included in an album, according to a
predefined template.
Choose a printer, an orientation, the print size, and the
number of copies. You can then print the images.
Reference
For more information, please refer to the Help file in [Help MGI PhotoSuite lll help].
122
FAQ
About USB
Please check the following if the USB connection malfunctions.
[Case 1]
The camera power is off.
Turn the camera power on. We recommend using an AC power adapter in PC mode.
If you use batteries, check the battery condition.
[Case 2]
USB Driver is not installed correctly.
Install the USB Driver correctly. Refer to page 91.
[Case 3]
The USB cable is not connected or you are using a cable with an incorrect specification.
Use a USB cable with the correct specification.
[Case 4]
Occasionally the computer recognizes the USB as another device.
Install the camera driver correctly. Turn the camera power off and remove the USB
cable.
Connect the USB cable again and turn the camera power on. The computer should now
recognize the camera.
[Case 5]
There is an unexpected error during file transfer.
Turn the camera power off and on again. Transfer the file again.
SOFTWARE
123
FAQ
About USB
[Case 6]
How do I know my computer supports a USB Interface?
Check the USB port in your computer or keyboard.
Check OS version. USB Interface is available in Windows 98, 98SE, 2000, ME .XP.
Check [Universal serial bus controller] in Device Manager. Do the following to check
[Universal serial bus controller].
Win 98/ME : Trace [Start Setting Controller System Device Manager
Universal serial bus controller]
Win 2K : Trace [Start Setting Controller System Hardware Device Manager
Universal serial bus controller].
Win XP : Trace [Start Control Panel Performance and Maintenance System
Hardware Device Manager Universal Serial Bus controller].
There must be USB Host Controller and USB root hub under [Universal serial bus
controller].
When all the conditions mentioned above are met, the computer can support the USB
interface.
[Case 7]
When using USB hub.
There may be a problem in connecting the camera to the PC through the USB hub if the
PC and the hub are not compatible. Wherever possible, connect the camera to the PC
directly.
[Case 8]
Are other USB cables connected to the PC?
The camera may malfunction when it is connected to the PC at the same time as another
USB cable. In this case, disconnect the other USB cable, and connect only one USB
cable to the camera.
124
MEMO
SOFTWARE
125
MEMO
126
MEMO
SOFTWARE
127
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWONGU,SUNGNAM-CITY, KYUNGKI-DO, KOREA 462-121
TEL : (82) 31-740-8086,8088, 8090, 8092, 8099
FAX : (82) 31-740-8398, 8111
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : (1) 201-902-0347
FAX : (1) 201-902-9342
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : (1) 310-537-7000
FAX : (1) 310-537-1566
SAMSUNG OPTO-ELECTRONICS UK LTD.
SAMSUNG HOUSE, 3 RIVERBANK WAY,
GREAT WEST ROAD, BRENTFORD,
MIDDLESEX,TW8 9RE, U.K.
TEL : (44) 20-8232-3280
FAX : (44) 20-8569-8385
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : (49) 6196 66 53 03
FAX : (49) 6196 66 53 66
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE : (33) 1-44757389
TEL : (33) 1-4279-2282/5
FAX : (33) 1-4320-4510
SAMSUNG TECHWIN MOSCOW OFFICE
KORP. 14 37-A LENNINGRADSKY PRO-KT
MOSCOW, 125167, RUSSIA
TEL : (7) 095-258-9296, 9298, 9299
FAX : (7) 095-258-9297
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : (86) 22-2761-8867
FAX : (86) 22-2761-8864
Internet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
6806-1369
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
