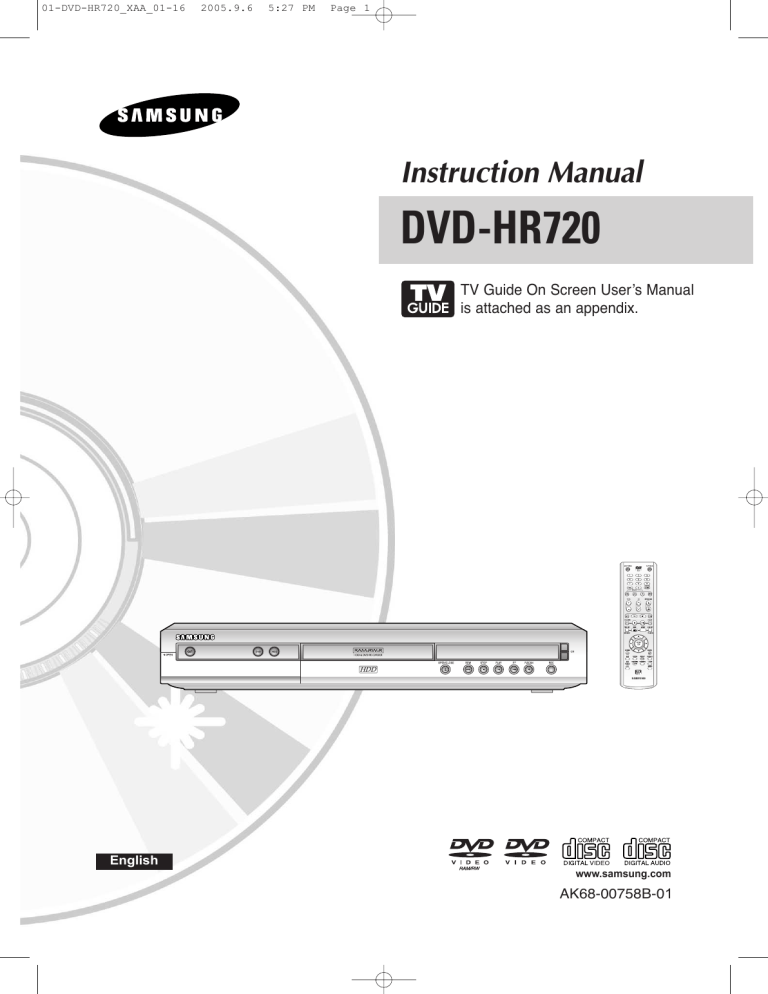

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 1

Instruction Manual

DVD-HR720

TV Guide On Screen User’s Manual is attached as an appendix.

English

www.samsung.com

AK68-00758B-0 1

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 2

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING

: To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION : HDD & DVD RECORDERS USE AN INVISIBLE

LASER BEAM WHICH CAN CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE HDD & DVD RECORDER

CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

CAUTIONS

Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

2 -

English

FCC NOTE (for U.S.A ):

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTE

This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

This HDD & DVD recorder is designed and manufactured to respond to the

Region Management Information. If the

Region number of a DVD disc does not correspond to the Region number of this

HDD & DVD recorder, the HDD & DVD recorder cannot play the disc.

This device is protected by U.S. Patent

Nos.4,631,603;4,577,216;4,819,098;4,90

7,093; and 6,516,132.This product incorporates copyright protection technology that is protected by U.S.

patents and other intellectual property rights.Use of this copyright protection technology must be authorized by

Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by

Macrovision.Reverse engineering or disassembly is prohibited.

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 3

Precaution

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.

Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Handling Cautions

• Before connecting other components to this HDD &

DVD RECORDER, be sure to turn them all off.

• Do not move the HDD & DVD RECORDER while a disc is being played, or the disc may be scratched or broken, the HDD & DVD RECORDER’s internal parts may be damaged.

• Do not put a flower vase filled with water or any small metal objects on the HDD & DVD

RECORDER.

• Be careful not to put your hand into the disc tray.

• Do not place anything other than the disc in the disc tray.

• Exterior interference such as lightning and static electricity can affect normal operation of this HDD

& DVD RECORDER. If this occurs, turn the HDD &

DVD RECORDER off and on again with the

DVD

POWER

button, or disconnect and then reconnect the AC power cord to the AC power outlet. The

HDD & DVD RECORDER will operate normally.

• Be sure to remove the disc and turn off the HDD &

DVD RECORDER after use.

• Disconnect the AC power cord from the AC outlet when you don’t intend to use the HDD & DVD

RECORDER for long periods of time.

• Clean the disc by wiping in a straight line from the inside to the outside of the disc.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.

• Wipe the cabinet with a soft cloth.

HDD (Hard Disc Drive)

The hard disk has a high storage density, which enables long recording durations and quick access to written data. However, it can easily be damaged by shock, vibration or dust and should be kept away from magnets. To avioid losing important data, observe the following precautions.

• Do not use the HDD & DVD RECORDER in a place subject to extreame changes in temperature.

• Do not apply a strong shock to the HDD & DVD

RECORDER.

• Do not place the HDD & DVD RECORDER in a location subject to mechanical vibrations or in an unstable location.

English

- 3

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 4

• Do not place the HDD & DVD RECORDER on top of a heat source.

• Do not disconnect the AC power cord while the power is on.

• Do not attempt to change the hard disk. This may result in a malfunction.

Should the hard disk be damaged, you cannot recover lost data. The hard disk is only a temporary storage space.

Disc Handling

• Use discs with regular shapes. If an irregular disc

(a disc with a special shape) is used, this HDD & DVD

RECORDER may be damaged.

• Do not use discs printed with label printers available on the market.

• Do not load warped or cracked discs.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.

• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

Did you move your HDD & DVD RECORDER suddenly from a cold place to a warm place?

In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to playback again. It will work properly when condensation has evaporated.

• Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

Holding discs

• Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD-RW and DVD-R

• Clean with an optional DVD-RAM/PD disc cleaner.

• Do not use cleaners or cloths for CDs to clean DVD-RAM/

-RW/-R discs.

DVD-Video, Audio-CD

• Wipe off dirt or contamination on the disc with a soft cloth.

Disc Specifications

DVD-Video

• A digital versatile disc (DVD) can contain up to

135-minutes of images, 8-language audio and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surrounding, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home.

• When switching from the first layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.

• Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video.

Cautions on handling discs

• Do not write on the printed side with a ball-point pen or pencil.

• Do not use record cleaning sprays or antistatic.

Also, do not use volatile chemicals, such as benzene or thinner.

• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)

• Do not use scratch-proof protectors or covers.

4 -

English

Audio CD

• An audio disc on which 44.1kHz PCM Audio is recorded.

• Plays CD-DA format audio CD-R and CD-RW discs.

The unit may not be able to play some CD-R or CD-

RW discs due to the condition of the recording.

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 5

CD-RW/-R

MP3 CD-RW/-R

• Only CD-R discs with MP3 files recorded with

ISO9660 or JOLIET format can be played back

• Only MP3 files with the ".mp3", ".MP3" extension can be used.

• For MP3 files recorded with a VBR(Variable Bit

Rates), from 32 Kbps to 320 Kbps, the sound may cut in out.

• Playable bitrate range is from 56Kbps to 320Kbps.

• The unit can handle a maximum of 1000 files and folders.

JPEG CD-RW/-R

• Only JPEG files with the ".jpg", ".JPG" extension can be used.

• The unit can handle a maximum of 1000 files and folders.

• Maximum size of progressive JPEG is 3M pixels.

• MOTION JPEG is not supported.

Using CD-RW/-R

• Use a 700MB(80 minutes) CD-RW/-R disc.

If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.

• If the CD-RW/-R disc was not recorded as a closed session, you may experience a delay in the early playback time, and all recorded files may not play.

• Some CD-RW/-R discs may not be playable with this unit, depending on the device which was used to burn them.

For contents recorded on CD-RW/-R media from CDs for your personal use, playability may vary depending on contents and discs.

DVD-R Disc Playback and Recording

• Once a DVD-R recorded in Video Mode is finalized, it becomes a DVD-Video disc.

• You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programs and erasing programs before finalizing.

• When programming is erased from a DVD-R, that space does not become available. Once an area on a

DVD-R is recorded on, that area is no longer available for recording, whether the recording is erased or not.

• It takes about 30 seconds for the unit to complete recording management information after recording finishes.

• This product optimizes the DVD-R for each recording.

Optimizing is carried out when you start recording after inserting the disc or turning on the unit.

Recording onto the disc may become impossible if optimizing is carried out too many times.

• Playback may be impossible in some cases due to the condition of recording.

• This unit can play back DVD-R discs recorded and finalized with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback and Recording

• Recording and playback can be performed on DVD-

RW discs in both the Video and VR Modes.

• Once a DVD-RW recorded in VR Mode or Video mode is finalized, you cannot perform addtional recording.

• Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video.

• In both modes, playback can be performed before and after finalization, but additional recording, deleting and editing can not be performed after finalization.

• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute Format.

Be careful when executing Format because all the recorded data may be lost.

• A DVD-RW blank disc is initialized to VR Mode when first initialized.

• DVD-RW (VR mode)

- This is a format that is used for recording data on a

DVD-RAM or DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc.

- A disc that is recorded in this mode may not be played by an existing DVD player.

• DVD-RW (Video mode)

- This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by an existing DVD player once it has been finalized.

- If a disc that has been recorded in Video

Mode by a different maker’s recorder but has not been finalized, it cannot be played or additionally be recorded by this HDD & DVD

RECORDER.

English

- 5

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 6

DVD-RAM Disc Playback and Recording

• DVD-RAM discs come with or without a cartridge. For this product, we recommend DVD-RAM discs that come without cartridges.

• Ensure that the recording mode is set to VR mode.

Otherwise, this product will not be able to play the recording.

• You cannot play a DVD-RAM in most DVD players due to compatibility issues.

• Only DVD-RAM standard Version 2.0. discs can be played in this unit.

• DVD-RAM recorded on this unit may not work with other DVD players. To determine compatibility with these DVD-RAM discs, refer to the user’s manual for the player.

• For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.

Disc Copy

Contents Copy Specifications

Contents

Recorded Video Title

Copy Protected Title Not supported Not supported

Move

Copy Once Title

HDD

DVD

Supported

DVD

HDD

Supported

(Deletes the Title in the Not supported

HDD after copying)

MP3

JPEG(photo)

Not supported

Not supported supported supported

Once “Copy Once program” has been recorded on the

DVD disc, this title cannot be copied to HDD anymore.

But “Copy Once program” has been recorded on the

HDD, this title can be copied to DVD-RW(VR mode) or

DVD-RAM.

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your HDD & DVD RECORDER directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected

DVD discs.

• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by

Macrovision Corporation, is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

6 -

English

Protection

This HDD & DVD RECORDER can allow you to protect the contents of your discs, as described below.

• Program-protected: See page 89 “Locking a Title”

• Disc-protected: See page 114 “Disc Protection”

DVD-RAM/-RW/-R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.

For more information on DVD recording compatibility, consult your DVD-RAM/-RW/-R manufacturer.

Use of poor quality DVD-RAM/-RW/-R discs may cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the HDD & DVD

RECORDER.

Do not use the following discs!

• LD, CD-G, CD-I, CD-ROM, DVD-ROM, DVD+R and

DVD+RW discs should not be used in this product.

[Note]

Disc types that can be played : CD/CD-R/CD-

RW/MP3/JPEG/DVD-Video/DVD-RAM/-RW/-R.

For a DVD-RW/-R disc, which has been recorded in

Video Mode on another component, it can play only when finalized.

• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No disc.” or “Please check the regional code.” will be displayed.

• If your DVD-RW disc is an illegal copy or is not in

DVD video format, it may also not be playable.

Disc compatibility

• High Speed Recording discs can be used in this unit.

• Not all brands of discs will be compatible with this unit.

• The latest firmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com)

• If disc compatibility problems continue, or there is an issue upgrading your HDD & DVD RECORDER, contact the Call Center at 1-800-SAMSUNG.

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 7

Contents

Step 4 : Connecting External devices . . . . . . . . . .26

Connecting an external device to the AV 1 IN or

AV 2 IN jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Connecting a Camcorder to the DV IN jack . . . . . . . .27

Connecting a Cable box to the G-Link jack . . . . . . . .28

Step 5 : Connecting the Power Cord . . . . . . . . . .29

Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . .3

Handling Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Maintenance of Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . .3

HDD (Hard Disk Drive) . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Disc Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Disc Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Disc Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Disc Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

General Features . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Before Reading the User’s Manual . . . . . . . . . . . . .10

How to use the HDD & DVD RECORDER . . . . . . .10

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Tour of the Remote Control . . . . . . . . . . . . . . . . . . . . . .16

On-Screen Menu Navigation.....................................30

OSD Language Setup ...............................................31

Auto Clock Set ...........................................................31

Manual Clock Set.......................................................33

Auto Channel Memory...............................................34

Manual Channel Set ..................................................35

Auto Power Off Setting ..............................................36

CM Skip Time Setting................................................37

EP Mode Time Setting...............................................38

Setting up the Front Display Options........................39

Automatic Chapter Creator........................................40

Setting up the Language Options .............................41

Setting up the Audio Options.....................................42

Setting up the Video display Options........................44

Setting up the Progressive scan ...............................45

Canceling the Progressive scan ...............................46

Setting up the Parental Control.................................47

If you forgot your password ............................................47

Setting the Rating Level..................................................48

Changing the Password .................................................48

Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Step 1: Connecting the Antenna Cable . . . . . . . . .18

Antenna + HDD & DVD RECORDER + TV :

No Cable box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Antenna + Cable box + HDD & DVD RECORDER +

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Step 2 : Connecting the Video cable . . . . . . . . . . .20

Connecting to a Video input jack . . . . . . . . . . . . . . . .20

Connecting to an S-Video input jack . . . . . . . . . . . . .21

Connecting to Component video input jacks(Y ,P

B

, P

R

) . .22

Step 3 : Connecting the Audio cable . . . . . . . . . . .23

Connecting to your TV . . . . . . . . . . . . . . . . . . . . . . . .23

Connecting to a stereo amplifier with analog input jacks . . . . . . . . . . . . . . . . . . . . . . .24

Connecting to an AV amplifier with a digital input jack . . . . . . . . . . . . . . . . . . . . . . .25

Before Playing............................................................49

Playing a Disc.............................................................50

Using the Disc Menu & Title Menu ...........................51

Using the Search & Skip Functions..........................51

Slow Motion Play/Step Motion Play..........................52

About ANYKEY ..........................................................53

Playing the Title List ...................................................55

Navigation Menu ........................................................56

Using Markers ............................................................59

Using the Bookmarks ................................................61

Selecting the Subtitle Language ...............................63

Selecting the Soundtracks & Audio Channels .........64

Changing the Camera Angle.....................................65

English

- 7

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 8

Repeat Play................................................................65

Zooming-In .................................................................67

Select Media...............................................................68

Playing an Audio CD/MP3.........................................68

Viewing a Picture .......................................................75

Copying from DVD to HDD.....................................110

Copying MP3 or JPEG Files from a Disc to HDD..................................................111

File Copy ........................................................................111

Folder Copy ...................................................................112

Disc Manager...........................................................113

Editing the Disc Name ..................................................113

Disc Protection...............................................................114

Formatting a Disc ..........................................................115

Delete All Title Lists/Music Lists/Photo Lists ................116

Delete All Title Lists ......................................................117

Finalizing a Disc ........................................................... 118

Unfinalizing a Disc (V/VR mode) .................................119

Before Recording .......................................................78

Recording the current TV program you are watching.........................................80

Recording from external equipment you are watching........................................................82

Copying from a Camcorder.......................................83

Making a One Touch Recording (OTR)....................84

Chasing Play ..............................................................85

Simultaneous Recording and Playback ...................86

Troubleshooting .......................................................120

Problems and Solutions...........................................124

Specifications ...........................................................126

Basic Editing (Title List) .............................................88

Renaming(Labeling) a Title.............................................88

Locking (Protecting) a Title ............................................89

Deleting a Title.................................................................90

Splitting a Section of a Title (Split) .................................91

Deleting a Section of a Title (Partial Delete) .................93

Advanced Editing (Playlist) .......................................95

Creating a Playlist ..........................................................95

Playing Entries in the Playlist ........................................96

Renaming a Playlist Entry...............................................97

Editing a Scene for the Playlist.......................................98

Deleting a Playlist Entry from the Playlist ....................102

Copying from HDD to DVD.....................................103

About the Copy Screen ................................................103

Changing the Record Mode .........................................106

Copying Multiple Titles at One Time ......................106

Deleting an Undesired Title from the Copy List.........................................................108

Previewing a Selected Title from the Copy List.........................................................108

Selecting Record Mode of Each Title from the Copy List........................................................109

Changing Record Mode of All Titles from the Copy List........................................................109

8 -

English

Notice ......................................................................128

TV Guide On Screen Overview .............................128

Listing . ......................................................................129

Search ......................................................................130

Recordings................................................................133

Schedule . .................................................................135

Setup ......................................................................137

Record ......................................................................143

Remind .....................................................................147

Guide Navigation ....................................................152

Remote Control . ......................................................152

Screen Components . ..............................................153

Panel Menu .............................................................156

Guide Setup for a DVD Recorder . .........................157

Frequently Asked Questions(FAQs) ......................162

Troubleshooting .......................................................163

TV Guide On Screen Glossary ..............................164

Warranty ...................................................................167

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 9

General Features

The HDD (Hard Disk Drive) & DVD RECORDER allows you to record and play high quality digital video on DVD-

RAM/-RW/-R discs or on the HDD. You can also edit digital images on DVD-RAM/-RW/-R discs or HDD.

HDD Recording

You can record up to 208 hours of video (in Extend EP mode) on the internal 120GB (gigabyte) hard disk (HDD).

With both recordable DVD and a high-capacity HDD in the same recorder, you have the flexibility to keep recordings on the HDD for quick access anytime, or record to DVD for archiving or playing on other DVD players.

Copy between HDD and DVD

You can copy recordings from the HDD to recordable

DVD, or from DVD to the HDD. Usually you can use the high speed copy feature.

You can also choose to copy material at a different recording quality from the original. For example, you might want to copy at XP mode (highest quality) recording on the HDD to SP (standard play) quality on a DVD so that you can fit other recordings on the same disc.

Simultaneous Recording and Playback

Playback and recording for both the DVD and the built-in hard disk drive (HDD) are completely independent. For example you can record a broadcast program to either a recordable DVD or the HDD, while watching another recording you already made on the same DVD or on the

HDD.

High quality digital audio and video recording and playback

Record up to 16-hours of video with a double sided 9.4

GB DVD-RAM disc, up to 8-hours of video with a 4.7 GB

DVD-RAM/-RW/-R disc, up to 208 hours of video with the

HDD, depending on the recording mode.

Selectable Recording Mode

You can set your HDD & DVD RECORDER to one of four different recording speeds, each varying in recording quality and length. EP (6Hr or 8Hr) mode yields the most recording time, LP & SP modes provide less recording time with higher quality recording, XP mode gives you the highest quality recording.

Creating a DVD video title using DVD-RW/-R disc

With the HDD & DVD RECORDER, you can create your own DVD Video titles on 4.7 GB DVD-RW/-R discs.

Copying data from a digital camcorder using a DV input jack

Record DV Device video onto HDD, DVD-RAM, DVD-RW or DVD-R discs using the DV input jack (IEEE 1394-

4pin/4pin). (See page 83)

High quality progressive scan

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C

Separating Circuitry provides the highest image playback and recording quality. (See pages 44~46)

A variety of functions with an easy-to-use user interface

The integrated menu system allows you to perform desired operations both easily and conveniently. With a

HDD, DVD-RAM or DVD-RW disc, you can edit recorded video, create a playlist, edit video in a specific sequence according to your requirements.

English

- 9

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 10

Before Reading the

User’s Manual

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term

HDD

Definition

This involves a function available on the HDD.

DVD

RAM

RW

This involves a function available on DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.

This involves a function available on DVD-RAM.

This involves a function available on DVD-RW.

R

CD

This involves a function available on DVD-R.

This involves a function available on a data CD (CD-R or CD-RW).

JPEG

This involves a function available on CD-R/-RW.

MP3

This involves a function available on CD-R/-RW.

This involves a case where a

Caution function does not operate or settings may be cancelled.

NOTE

This involves tips or instructions on the page that help each function operate.

One-Touch A function that can be operated button by using only one button.

ANYKEY A function that can be operated button by using

ANYKEY

button.

About the use of this user’s manual

1) Be sure to be familiar with Safety Instructions before using this product. (See pages 2~6)

2) If a problem occurs, check the Troubleshooting.

(See pages 120~123)

Copyright

©2005 Samsung Electronics Co.

All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

How to use the

HDD & DVD RECORDER

Step 1

Select the disc type or HDD

This unit can record on the following types of discs.

If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD-RW or DVD-RAM type disc. If you want to save a recording without any changes, choose a non-rewritable DVD-R. You can record files directly to the built-in HDD or edit a recorded file.

Step 2

Format the disc to start recording

Unlike a VCR, the HDD & DVD RECORDER automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

Using the HDD

Formatting unneccessory.

Using a DVD-RAM

This type of disc can be formatted in DVD-Video

Recording format (VR mode). You can edit recorded video and create a playlist and edit video in a specific sequence according to your requirements.

Using a DVD-RW

This type of disc can be formatted in either

DVD-Video format (V mode) or DVD-Video

Recording format (VR mode). For an unused disc, a message that asks whether to format in VR Mode or not is displayed. You can play a Video mode disc on various DVD components. A VR mode disc allows more varied editing.

Using a DVD-R

This type of disc can be formatted in DVD Video format. After formatting is complete, you can record on the disc. You can play these type of discs on various DVD components only when they have been finalized.

10 -

English

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 11

NOTE

You can only use either the VR or Video mode on a DVD-RW, but not both at the same time.

You can change the DVD-RW to another format by reinitializing. It should be noted that the disc's data will be lost when changing formats.

Step 3

Recording

There are two different recording methods, Direct

Recording and Timer Recording. Timer recording is classified as Follows:

Recording mode : XP (high quality mode), SP

(standard quality mode), LP (long recording mode), and EP (extended mode)

Step 5

Editing a recorded disc

Editing on discs is easier than conventional video tapes. The HDD & DVD RECORDER supports many different edit functions, possible only with DVDs and

HDD.

With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

Creating a playlist (DVD-RAM/-RW in VR mode,

HDD)

With this HDD & DVD RECORDER, you can create a new playlist on a disc and edit it without the original, pre-existing recording.

Step 4

Playing

You can select the title you want to play in a displayed menu and then immediately start playback.

A DVD consists of sections, called titles, and sub- sections, called chapters.

During recording, a title is created between two points where you start and stop recording.

Chapters will be created automatically when you finalize recording on DVD-RW/-R discs in Video mode.

The chapter’s length (interval between chapters) varies according to the recording mode.

Step 6

Finalizing & Playing on other DVD components

To play your DVD on other DVD components, finalizing may be necessary. First, finish all editing and recording operations, then finalize the disc.

When using a DVD-RW disc in VR Mode

DVD discs recorded in VR mode can only be played back in DVD recorders, not players.

When using a DVD-RW disc in Video Mode

The disc should be finalized first to enable playback on anything other than this HDD & DVD RECORDER.

No more editing or recording can be made on the disc once it has been finalized.

To enable recording on the disc again, the disc must be unfinalized.

When using a DVD-R disc

You should finalize the disc to play it on a component other than this HDD & DVD RECORDER. You cannot edit or record on the disc once it has been finalized.

English

- 11

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 12

Unpacking

Accessories

Check for the supplied accessories below.

Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

Video/Audio Cable

AC39-00073A

RF Cable for TV

AC39-42001J

IR Blaster cable

AK39-00055A

Remote Control

AK59-00023L

Batteries for Remote

Control (AAA Size)

AC43-12002H

Quick Guide

AK68-00827B

Instruction Manual

AK68-00758B

TV Guide Setup

Quick Guide

AK68-00827D

Preparing the Remote Control

Install Batteries in the Remote Control

• Open the battery cover on the back of the remote control.

• Insert two AAA batteries. Make sure that the polarities

(+ and -) are aligned correctly.

• Replace the battery cover.

If the remote does not operate properly:

• Check the polarity + - of the batteries (Dry-Cell)

• Check if the batteries are drained.

• Check if remote sensor is blocked by obstacles.

• Check if there is any fluorescent lighting nearby.

Setting the Remote Control

You can control certain functions of another manufacturer’s TV with this remote control.

Control function buttons involve:

TV POWER

,

CH

,

TV VOL + -

,

number buttons,

TV MUTE,

INPUT

button.

12 -

English

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 13

Controlling TVs with the Remote Control

1. Press and hold the

TV POWER

button.

2. Enter a 2-digit code by using the numerical buttons on the remote control.

See “Controllable TV Codes”

If the code works, your TV set will be turned on or off.

If it does not respond, try other codes.

Controllable TV Codes.

NOKIA

NORDMENDE

PANASONIC

PHILIPS

PHONOLA

PIONEER

RADIOLA

RADIOMARELLI

RCA

REX

SABA

SALORA

SAMSUNG

SANYO

SCHNEIDER

BRAND

AIWA

ANAM

BANG & OLUFSEN

BLAUPUNKT

BRANDT

BRIONVEGA

CGE

BUTTON

82

10, 11, 12, 13, 14, 15, 16, 17, 18

57

71

73

57

52

CONTINENTAL EDISON 75

DAEWOO 19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31,

EMERSON

FERGUSON

FINLUX

FORMENTI

FUJITSU

GRADIENTE

GRUNDIG

HITACHI

IMPERIAL

JVC

LG

LOEWE

LOEWE OPTA

MAGNAVOX

METZ

MITSUBISHI

MIVAR

NEC

NEWSAN

NOBLEX

32, 33, 34

64

73

06, 49, 57

57

84

70

49, 52, 71

60, 72, 73, 75

52

61, 79

06, 19, 20, 21, 22, 78

06, 69

06, 57

40

57

06, 48, 62, 65

52, 77

83

68

66

74

72, 73, 75

53, 54, 74, 75

06, 55, 56, 57

06, 56, 57

58, 59, 73, 74

06, 56

57

45, 46

74

57, 72, 73, 74, 75

74

01,02,03,04,05,06,07,08,09

41, 42, 43, 44, 48

06

BRAND

SELECO

SHARP

SIEMENS

SINGER

SINUDYNE

SONY

TELEAVA

TELEFUNKEN

THOMSON

THOMSON ASIA

TOSHIBA

WEGA

YOKO

ZENITH

BUTTON

74

36, 37, 38, 39, 48

71

57

57

35, 48

73

57

06

63

67, 73, 75, 76

72, 73, 75

80, 81

47, 48, 49, 50, 51, 52

NOTE

If several codes are indicated for your television brand, try each one in turn until you find one that works.

If you replace the remote control's batteries, you must set the brand code again.

Then you can control the television using the following buttons after pressing the TV button.

Button

TV POWER

INPUT

TV VOL (+ -)

CH (

TV MUTE

)

0~9

Function

Used to switch the television on and off.

Used to select an external source.

Used to adjust the volume of the television.

Used to select the desired channel.

Used to toggle the sound on and off.

Used to input number directly.

NOTE

The functions listed above will not necessarily work on all televisions. If you encounter problems, operate the television directly.

English

- 13

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 14

Description

Front Panel

1 2 3

4

5

6

7

8

9 10

1. POWER BUTTON

Turns the HDD & DVD RECORDER on and off.

2. DVD BUTTON

Select DVD mode.

3. HDD BUTTON

Select HDD mode.

4. DISC TRAY

Opens to accept a disc.

5. DISPLAY

Displays the playing status, time, etc.

6. STOP BUTTON

Stops disc playback.

7. SEARCH/SKIP BUTTONS

Goes to the next title/chapter/track or goes back to the previous title/chapter/track.

11

12 13 14

8. CH BUTTONS

Select TV preset Channels. Same as

CH

button on the remote control.

9. AV 2 INPUT

Connect external equipment.

10. DV-INPUT

Connect external digital equipment with a DV jack. (such as a camcorder)

11. OPEN/CLOSE BUTTON

Opens and closes the disc tray.

12. PLAY/PAUSE BUTTON

Plays a disc or pauses playback or recording.

13. P.SCAN BUTTON

Selects the progressive scan mode.

14. REC BUTTON

Starts recording.

Front Panel Display

1. Lights when a disc is loaded.

2. Lights in the record mode.

3. Lights when a -R/RW/RAM disc is loaded.

14 -

English

4. Playing time/clock/current status indicator.

5. Lights in the progressive scan mode.

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 15

Rear Panel

Fan

Ensure a minimum of 4” clear space on all sides of the fan when installing the product.

1. DIGITAL AUDIO OUT(OPTICAL)

Connects to an amplifier having a digital optical audio input jack.

2. DIGITAL AUDIO OUT(COAXIAL)

Connects to an amplifier having a digital coaxial audio input jack.

3. AV AUDIO OUT

Connects to the audio input of external equipment using audio cables.

4. AV VIDEO OUT(good video quality)

Connects the input of external equipment using a

Video cable.

5. AV S-VIDEO OUT(better video quality)

Connects the input of external equipment using an S-Video cable.

6. COMPONENT VIDEO OUT(best video quality)

Connects to equipment having Component video input jacks.

7. AV 1 AUDIO IN

Connects the output of external equipment using audio cables.

8. AV 1 VIDEO IN

Connects the output of external equipment using a video cable.

9. AV 1 S- VIDEO IN

Connects the output of external equipment using an S-Video cable.

10. ANT IN/ANT OUT (TO TV)

Connects antenna cables.

11. G-LINK

Connection of the IR Blaster for a cable box.

NOTE

The Antenna connection does not pass the output signal of the DVD. To watch

DVD/HDD playback your TV, you must connect audio/video cables.

English

- 15

01-DVD-HR720_XAA_01-16 2005.9.6 5:27 PM Page 16

1

Tour of the Remote Control

20

12

13

7

8

9

10

11

14

15

16

17

18

19

2

3

4

5

6

21

22

23

24

25

26

7

9

27

28

29

30

31

32

33

34

35

1.

DVD POWER Button

2.

NUMBER Buttons

3.

100+ Button

Press this to select channel 100 or higher.

4.

DVD Button

Press this to operate DVD.

5.

HDD Button

Press this to operate HDD.

6.

TV VOL Button

TV volume adjustment

7. REVERSE/FORWARD SKIP Buttons

Press to skip backwards or forwards.

PAGE UP/DOWN Buttons When in the guide, moves, when applicable, from one set of screen information to the next

8. REVERSE/FORWARD STEP Buttons

Each press will play one-frame forward or reverse.

9. REVERSE/FORWARD SEARCH Buttons

Press to search a disc backwards or forwards.

10. STOP Button

Press to stop a disc.

11. TITLE LIST/DISC MENU Button

Use this to enter the View Recording list/disc menu.

16 -

English

12. MENU Button

Brings up the HDD & DVD RECORDER’s setup menu.

13. ENTER/DIRECTION Buttons

(

…†œ √

Buttons)

14. RETURN Button

15. INFO Button

This will display current setting or disc status.

16. REC Button

Use to make a recording on HDD/DVD-RAM/-RW/-R discs.

17. COPY Button

Press this when you copy DVD to HDD or vice-versa.

To start copying, press the

COPY

button on the title list screen or press the

COPY

button during the playback.

18. REPEAT Button

Allows you to repeat a title, chapter, track or disc.

19. REC PAUSE Button

Use this to pause during recording.

20. TV POWER Button

21. AUDIO/TV MUTE Button

Use this to access various audio functions on a disc

(DVD mode). In TV mode, this operates as sound mute.

22. INPUT Button

Select line input signal in external input mode.

(Tuner, AV1, AV2 or DV Input)

23. TV Button

Press this to operate TV.

24. OPEN/CLOSE Button

To open and close the disc tray.

25. CM SKIP Button

When a program recorded on DVD disc or HDD is played, the unit can be set to automatically skip a portion of the program.

26. CH Button

Use this to select a TV channel.

27. PLAY/PAUSE Button

Press to play/pause a disc.

28. PLAY LIST/TITLE MENU Button

Use this to return to the Title menu, or to view the recorded files list.

29. ANYKEY Button

Allows access to common functions of the recorder.

30. CANCEL Button

31. SUBTITLE Button

Press this to switch the DVD’s subtitle language.

32. TV GUIDE

When watching TV, enters the Guide and highlights a show listing.

When in the Guide, returns to display the current broadcast.

33. MARKER Button

Use this to bookmark a position while playing a disc.

34. REPEAT A-B Button

Allows you to repeat a title, chapter, track or disc.

35. REC MODE Button

Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP)

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 17

Quick Overview

C

onnecting &

S

etting up

This section involves various methods of connecting the HDD & DVD RECORDER to other external components and required initial setting modes.

AQuick Overview presented in this guide will give you enough information to start using the HDD &

DVD RECORDER.

Step 1 : Connecting the Antenna cable

Step 2 : Connecting the Video cable

Step 3 : Connecting the Audio cable

Step 4 : Connecting External devices

Step 5 : Connecting the Power cord

Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Step 1: Connecting the Antenna Cable . . . . . . . . .18

Step 2 : Connecting the Video cable . . . . . . . . . . .20

Step 3 : Connecting the Audio cable . . . . . . . . . . .23

Step 4 : Connecting External devices . . . . . . . . . .26

Step 5 : Connecting the Power Cord . . . . . . . . . . .29

Note to CATV system installer:

This reminder is provided to call CATV system installer’s attention to

Article 820-40 of the National Electrical Code

(Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

English

- 17

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 18

Step 1: Connecting the Antenna Cable

There are several ways to connect your HDD & DVD RECORDER. Select one of the following antenna connections that best suits you below.

Antenna + HDD & DVD RECORDER + TV : No Cable box

You can record non-scrambled channels by selecting the channel on the HDD & DVD RECORDER. Also use this Method if you watch channels without cable box.

RF Cable

TO ANT IN

TO ANT OUT

Wall

TO ANT INPUT

NOTE

The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output

Audio/ video signals. You must connect audio/video cables to view Video from the unit. (i.e. DVD playback)

18 -

English

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 19

Antenna + Cable box + HDD & DVD RECORDER + TV

You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

Wall

TO ANT IN

TO ANT OUT

TO ANT INPUT

NOTE

The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output

Audio/ video signals. You must connect audio/video cables to view Video from the unit. (i.e. DVD playback)

English

- 19

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 20

Step 2 : Connecting the Video cable

There are several ways to connect your HDD & DVD RECORDER. Select one of the video connections on the following pages. The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output audio/video signals. You must use one of the following audio/video connections on this unit.

Connecting to a Video input jack

Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on the HDD & DVD RECORDER and

VIDEO(yellow) IN jack on the TV (or AV amplifier).

R

LINE IN

AUDIO

L

VIDEO

Yellow Red

White

Audio/Video

Cable

• You will enjoy regular quality images.

• Connect audio cables(white and red) between the

AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on your TV(or AV amplifier).

(See pages 23 ~ 25)

20 -

English

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 21

Connecting to an S-Video input jack

Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on the HDD & DVD RECORDER and S-VIDEO IN jack on your TV (or AV amplifier).

LINE IN

S-VIDEO

S-Video

Cable

• You will enjoy high quality images. S-Video separates the picture element into black and white (Y) and color

(C) signals to present clearer images than regular video input mode.

• Connect audio cables(white and red) between the

AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on your TV(or AV amplifier).

(See pages 23 ~ 25)

NOTE

S-Video and Component video outputs are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check the TV connections and the TV input selection settings.

English

- 21

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 22

Connecting to Component video input jacks(Y,P

B

,P

R

)

P

R

LINE IN

P

B

Y

Component

Cable

1. Connect Component video cables(not supplied) between the COMPONENT OUT(Y,P

B

,P

R

) jacks on the HDD & DVD RECORDER and COMPONENT

IN(Y,P

B

,P

R

) jacks on your TV (or AV amplifier).

2. If the TV connected supports Progressive Scan, press the P.SCAN button on the front of the HDD

& DVD RECORDER to enjoy higher quality video.

3. The message “Press [Yes] to confirm Progressive scan mode. Otherwise press [No]” will appear.

Press the

œ √ buttons to select Yes, and then press the ENTER button.

4. The message “Please set your TV to Progressive input, To deactivate, press [STOP] key.” will appear.

Press the ENTER button.

5. The message “Video Output Mode Progressive

Scan” will appear.

• You will enjoy high quality accurate color reproduction images. Component video separates the picture element into black and White(Y), blue(P

B

), red(P

R

) signals to present clear and clean images.

22 -

English

• Connect audio cables(white and red) between the

AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on your TV(or AV amplifier).

(See pages 23 ~ 25)

NOTE

Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a more stable, flicker-free, and clear image than interlaced video. The progressive scan video output jack is used in progressive output mode. This is only available with TVs that support progressive scan.

Progressive Scan Output (480p) “Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. If you experience 480p progressive scan picture problems, it is recommended that you switch the connection to the ‘standard definition’ output. If there are questions regarding TV set compatibility with this model, please contact our customer service center at

1-800-SAMSUNG.

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 23

Step 3 : Connecting the Audio cable

There are several ways to connect your HDD & DVD RECORDER. Select the audio connection that best suits you below.

Connecting to your TV

This connection will use your TV’s speakers.

Audio

Cable

Red

White

Yellow

R L

AUDIO

LINE IN

VIDEO

English

- 23

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 24

Connecting to a stereo amplifier with analog input jacks

If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.

Audio

Cable

Red White

Front(L)speaker Front(R)speaker

R L

ANALOG AUDIO

LINE IN

24 -

English

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 25

Connecting to an AV amplifier with a digital input jack

If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy

Dolby Digital or DTS sound, you will need to set up the audio settings. (See pages 42~43)

AV amplifier

Optical Cable

(not supplied) or

Coaxial Cable

(not supplied)

Digital Audio

LINE IN

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of

Digital Theater Systems, Inc.

English

- 25

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 26

Step 4 : Connecting External devices

This allows you to connect your HDD & DVD RECORDER to other external devices and view or record their outputs.

Connecting an external device to the AV 1 IN or AV 2 IN jacks

Connect a external device to AUDIO/VIDEO AV 1 IN jacks or AV 2 IN jacks of the HDD & DVD RECORDER.

You can record from connected equipment (VCR, STB, DVD, Cable Box or Camcorder).

Audio/Video

Cable or

S-Video Cable

(not supplied)

Camcorder

R

AUDIO

L

VIDEO

LINE OUT

S-VIDEO

CABLE BOX

NOTE

Copy protected content cannot be recorded.

26 -

English

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 27

Connecting a Camcorder to the DV IN jack

If your camcorder has a DV output jack, connect it to the DV input jack of your HDD & DVD RECORDER.

NOTE

If the input is not selected automatically, press the INPUT button on the remote to select proper input.

English

- 27

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.9 3:34 PM Page 28

Connecting a Cable box to the G-Link jack

Your cable box (not supplied) receives Guide show listings from TV Guide On Screen System on the HDD &

DVD RECORDER through the IR Blaster cable. Connect your cable box to the G-Link jack on the rear panel of the HDD & DVD RECORDER using the IR Blaster cable as shown. This connection enables you to control the cable box's power and channels.

IR Blaster cable

M

M

1 inch

G-Link wand

Getting Connected

1. Find and Connect the included G-Link cable into the G-LINK jack of the HDD & DVD Recorder.

2. Find the Cable Box IR Sensor

To control cable box recording, find the IR sensor.

A. Turn the cable box Off.

B. Hold the cable box’s remote so that it touches the front of the device (see Figure 1).

C. Move the remote across the front while pressing the power button On and Off (Figure 2). (Press and release the power button each time you move the remote; holding down the button will not work.)

D. When the cable box powers On, you have found the sensor.

E. Remember the location of the sensor.

Figure 1

Front Panel of CABLE BOX

Figure 2

3. Place the G-Link Wand

Place the G-LINK wand underneath the cable box approximately 1 inch in front of the sensor you found in 2 .

Use the double-sided tape to secure the G-LINK wand.

NOTE

You must select a cable box brand from the list in Screen 8 on page 159. If you do not know the brand name, please contact your cable provider. For more information, please refer to pages 158~160.

After connecting cable box to the HDD & DVD

RECORDER through the IR Blaster cable, you must follow the instructions in screen 4 on page 158.

Correct

28 -

English

Incorrect

02-DVD-HR720_XAA_17-29_CONNECT 2005.9.7 7:47 PM Page 29

Step 5 : Connecting the Power Cord

“Auto” appears in the panel display. This means that the current time is being set automatically (Auto

Program) through the antenna under connection and also the channel is being set.

The setup may take a few minutes.

When the HDD & DVD RECORDER operates normally, the current time is automatically set and displayed in the front panel display.

NOTE

After the current time is set automatically,

HDD & DVD RECORDER will perform

Auto Channel Memory for about 3 minutes. If power is turned on while Auto

Channel Memory is in process, Auto

Channel Memory will stop. In this case, do Auto Channel Memory from MENU

(See page 34).

English

- 29

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 30

S

ystem Setup

On-Screen Menu

Navigation

The on-screen menus allow you to enable or disable various functions on your HDD & DVD RECORDER.

Use the following buttons to open and navigate through the on-screen menus.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

On-Screen Menu Navigation . . . . . . . . . . . . . . . . . . .30

OSD Language Setup . . . . . . . . . . . . . . . . . . . . . . . .31

Auto Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Manual Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Auto Channel Memory . . . . . . . . . . . . . . . . . . . . . . .34

Manual Channel Set . . . . . . . . . . . . . . . . . . . . . . . . .35

Auto Power Off Setting . . . . . . . . . . . . . . . . . . . . . . .36

CM Skip Time Setting . . . . . . . . . . . . . . . . . . . . . . . .37

EP Mode Time Setting . . . . . . . . . . . . . . . . . . . . . . .38

Setting up the Front Display Options . . . . . . . . . . . .39

Automatic Chapter Creator . . . . . . . . . . . . . . . . . . . .40

Setting up the Language Options . . . . . . . . . . . . . . .41

Setting up the Audio Options . . . . . . . . . . . . . . . . . . .42

Setting up the Video display Options . . . . . . . . . . . .44

Setting up the Progressive scan . . . . . . . . . . . . . . . .45

Canceling the Progressive scan . . . . . . . . . . . . . . . .46

Setting up the Parental Control . . . . . . . . . . . . . . . . .47

30 -

English

1

MENU Button

Press this button on the remote control to open the on-screen menu.

Press again to exit the on-screen menu.

2

…†

,

œ √

Buttons

Press these buttons on remote control to move the selection bar

…†

,

œ √ to cycle through the menu options.

3

ENTER Button

Press this button on the remote control to confirm any new settings.

4

RETURN Button

Press this button on the remote control to return to the Previous menu screen displayed or to exit the on-screen menu.

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 31

OSD Language Setup Auto Clock Set

After plugging in the HDD & DVD RECORDER, the first time you press the POWER button, this screen comes up.

(This screen will only appear when you plug in the HDD

& DVD RECORDER for the first time.)

1

Press the

HDD & DVD RECORDER POWER

button.

2

Press a number button to select the desired language.

This menu is used to set the current time.

You need to set the time to use timer recording.

1

With the unit in Stop mode, press the

MENU

button.

Title

HDD

Title

Music


Timer Record

Setup

MOVE

Press ENTER or Right button for Title List.

SELECT RETURN EXIT

Press 1 for English

Touche 2 pour Français

Pulse 3 para Español

NOTE

If the language for the startup screen is not set, the settings may change whenever you turn the power on or off.

Therefore, make sure that you select the language you want to use.

The TV Guide Setting menu (see page 136) appears after language setup is done. If you don't want to perform the TV Guide Setup now, press the TV GUIDE button on the remote control, and the Guide screen will disappear.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

• System menu will be displayed.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN

System

EXIT

English

- 31

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 32

4

Press the

…† buttons to select

Clock Set

, then press the

ENTER

or

√ button.

Clock Set

HDD

Title

Music


Timer Record

Setup

MOVE

Auto Clock Set

Manual Clock Set

SELECT RETURN EXIT

5

Press the

…† buttons to select

Auto Clock Set

, then press the

ENTER

or

√ button.

6

Press the

…† buttons to select

Auto Clock Set

, then press the

ENTER

or

√ button.

7

Press the

…† buttons to select

On

, then press the

ENTER

or

√ button.

Auto Clock Set

HDD

Title

Music


Timer Record

Setup

MOVE

Auto Clock Set

Clock Data CH

Time Zone

Daylight Saving

SELECT

: Automatic

: Automatic

RETURN

EXIT

NOTE

If your clock is set to the wrong time zone or daylight saving, you can adjust these settings without turning off the Auto Clock

Set function.

8

Select the sub menu(

Clock Data CH

,

Time Zone

or

Daylight Saving

) using the

…† buttons, then press the

ENTER

or

√ button.

Auto Clock Set

HDD

Title

Music


Timer Record

Setup

MOVE

Auto Clock Set

Clock Data CH

Time Zone

Daylight Saving

SELECT

: On

: Automatic

: Automatic

: Automatic

RETURN EXIT

Clock Data CH

Select a channel that carries a time signal using the

…† buttons, then press the

ENTER

button.

• Select

Auto

to set the clock data channel automatically.

Clock Data CH

HDD

Title

Music


Timer Record

Setup

MOVE

Select channel : Auto

SELECT RETURN EXIT

Time Zone

Select the time zone of your area using the

…† buttons, then press the

ENTER

or

√ button.

• Select

Automatic

to set the time zone automatically.

Auto Clock Set

HDD

Title

Music


Timer Record

Setup

MOVE

Auto Clock Set

Clock Data CH

Time Zone

Daylight Saving

SELECT

: Automatic

Mountain

Pacific

Alaska

Hawaii

RETURN EXIT

Daylight Saving

Select

Automatic

,

No

or

Yes

using the

…† buttons, then press the

ENTER

or

√ button.

• Select

Automatic

to set the daylight saving automatically.

Auto Clock Set

HDD

Title

Music


Timer Record

Setup

MOVE

Auto Clock Set

Clock Data CH

Time Zone

Daylight Saving

SELECT

: On

: Automatic

: Automatic

No

Yes

RETURN EXIT

32 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 33

Manual Clock Set

If your clock cannot be set automatically, set the clock manually.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

…† buttons to select

Manual Clock

Set

, then press the

ENTER

or

√ button.

Manual Clock Set

HDD

Title

Music


Timer Record

Setup

0~9 NUMBER

Date Time

JAN / 01 / 2005 SAT 12 : 00 AM

SELECT RETURN EXIT

6

Use the

…†œ √ buttons to select the Current

Date and Current Time, and then press the

ENTER

button.

When the current time is stored in memory and then the set is powered off, the current time will appear in the front panel display.

…†

: Sets the value

You can set the value using the number buttons.

œ √

: Moves to items

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

• System menu will be displayed.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN

System

EXIT

4

Press the

…† buttons to select

Clock Set

, then press the

ENTER

or

√ button.

Clock Set

HDD

Title

Music


Timer Record

Setup

MOVE

Auto Clock Set

Manual Clock Set

SELECT RETURN EXIT

English

- 33

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 34

You can set the Antenna/Cable TV channel settings automatically.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

3

Auto Channel Memory

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

• System menu will be displayed.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN

System

EXIT

4

Press the

…† buttons to select

Channel Set

, then press the

ENTER

or

√ button.

Channel Set

HDD

Title

Music


Timer Record

Setup

MOVE

Antenna/Cable TV : Cable TV

Auto Channel Memory

Channel Add/Delete

SELECT RETURN EXIT

5

Press the

…† buttons to select

Antenna/Cable

TV

, then press the

ENTER

or

√ button.

Channel Set

HDD

Title

Music


Timer Record

Setup

MOVE

Antenna/Cable TV : Cable TV

Auto Channel Memory

Cable TV

Channel Add/Delete

SELECT RETURN EXIT

Select the item that matches the antenna connection you selected on pages 18~19.

6

Select

Antenna

or

Cable TV

(depending on the hookup you chose) using the

…† buttons, then press the

ENTER

or

√ button.

7

Select

Auto Channel Memory

using the

…† buttons, then press the

ENTER

or

√ button.

Auto Channel Memory will be performed.

Auto Channel Memory

HDD

Title

Music


Timer Record

Setup

Total channel numbers: 15/125

Saved channel :

11%

Scanning...

Stop

SELECT RETURN EXIT

NOTE

Press the

RETURN

or

ENTER

button to stop Auto Channel Memory.

34 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 35

Manual Channel Set can be used after you have first performed Auto Channel Memory. Use the Manual

Channel Setting to delete unnecessary channels after using the Auto Channel Memory.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

3

Manual Channel Set

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

• System menu will be displayed.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN

System

EXIT

5

Press the

…† buttons to select

Channel

Add/Delete

, then press the

ENTER

or

√ button.

Channel Add/Delete

HDD

Title

Music


Timer Record

Setup

MOVE

Select channel :

Add

SELECT

01

Delete

RETURN EXIT

6

Press the

…† or number buttons to select the channels you want to add or delete on the

Select channel

screen. Then, press the

ENTER

button.

Channel Add/Delete

HDD

Title

Music


Timer Record

Setup

MOVE

Select channel : 02

Channel is added.

Add

SELECT

Delete

RETURN EXIT

• Using

…† buttons for channel selection allows the user to add/delete one channel at a time.

• Using

CH ( )

buttons for channel selection jumps to the next channel memorized in Auto

Channel Memory.

7

Press the

œ √ buttons to select

Add

or

Delete

, then press the

ENTER

button.

• The message “Channel is added.” or “Channel is deleted.” will be displayed in the center of the screen.

• Continue to add or delete as many channels as you want to memorize or delete. This can be used to add channels not stored automatically due to weak signal strength.

• Press the

RETURN

button to return to the previous menu. Press the

MENU

button to exit the menu.

4

Press the

…† buttons to select

Channel Set

, then press the

ENTER

or

√ button.

Channel Set

HDD

Title

Music


Timer Record

Setup

MOVE

Antenna/Cable TV : Cable TV

Auto Channel Memory

Channel Add/Delete

SELECT RETURN EXIT

English

- 35

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 36

Auto Power Off Setting

This feature automatically turns off your HDD & DVD

RECORDER if you do not press any button for 2 or 6 hours.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

…† buttons to select the desired item, then press the

ENTER

or

√ button.

• Off

: Auto power off is disabled.

• 2 Hour

: HDD & DVD RECORDER will automatically turn off for 2 hours after the last button is pressed.

• 6 Hour

: HDD & DVD RECORDER will automatically turn off for 6 hours after the last button is pressed.

If the turn off time set with the Auto Power off function is reached during playback or recording, the device will operate until the playback or recording is finished.

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

System menu will be displayed.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN

System

EXIT

4

Press the

…† buttons to select

Auto Power Off

, then press the

ENTER

or

√ button.

System

HDD

Title

Music

Clock Set

Channel Set


Timer Record

Setup

MOVE

CM Skip Time

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN EXIT

36 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 37

CM Skip Time Setting

When a program recorded on a HDD, a DVD-RAM, a

DVD-RW, or a DVD-R is played, the unit can be set to automatically skip a portion of the program corresponding to a CM(commercial) skip time set by the user.

4

Press the

…† buttons to select

CM Skip Time

, then press the

ENTER

or

√ button.

System

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time

EP Mode Time : 6 Hour

Front Display

Chapter Creator : Off

SELECT RETURN EXIT

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

…† buttons to select the desired time interval, then press the

ENTER

or

√ button.

6

If you press the

CM SKIP

button during playback, the section corresponding to the set time is skipped, and then the next section is played.

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

System menu will be displayed.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN

System

EXIT

NOTE

CM Skip can be performed only during normal playback.

When the time set is more than a remaining time of a current title: The next title is played from the beginning.

When the time set is more than a remaining time of a play list, the next scene is played.

CM Skip does not work in still picture mode.

When a set time is greater than the remaining time of a scene, last title, or last track that is currently displayed, a prohibition mark appears.

CM Skip releases Repeat (including

Repeat A-B, Chapter, and Title).

CM Skip may not operate with some

DVD-Video discs.

English

- 37

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 38

EP Mode Time Setting

You can select one of four recording modes by pressing the

REC MODE

button repeatedly.

EP mode is one of four REC modes (XP, SP, LP, EP).

In EP(Extended Play) mode, you can set recording time to 6 or 8 hours with this setting.

4

Press the

…† buttons to select

EP Mode Time

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display

Chapter Creator : Off

SELECT RETURN

System

EXIT

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

…† buttons to select the desired time, then press the

ENTER

or

√ button.

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

System menu will be displayed.

System

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN EXIT

38 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 39

Setting up the Front

Display Options

You can adjust the brightness of the unit’s front panel display.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

4

Press the

…† buttons to select

Front Display

, then press the

ENTER

or

√ button.

System

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display

SELECT

Auto Dim

RETURN EXIT

5

Press the

…† buttons to select the desired item, then press the

ENTER

or

√ button.

Bright

: Makes the Front Panel Display bright.

Dim

: Makes the Front Panel Display dim.

Auto Dim

: Makes the Front Panel Display dim automatically when the set is powered off.

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

System menu will be displayed.

System

HDD

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN EXIT

English

- 39

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 40

Automatic Chapter

Creator

The Automatic Chapter Creator function doesn't operate when you record the current TV program on the TV

GUIDE screen.

4

Press the

…† buttons to select

Chapter Creator

, then press the

ENTER

or

√ button.

DVD-RW(V)

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display

SELECT RETURN

System

EXIT

(V mode)

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

DVD-RW(V)

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

…† buttons to select

On

or

Off

, then press the

ENTER

or

√ button.

6

Off:

Select if you do not want use Automatic

Chapter Creator.

On:

Select this option to use the Automatic

Chapter Creator feature.

Press the

MENU

button to exit the menu.

Press the

REC

button to start recording. (See page 79 about how to set recording speed) The message “Do you want to create the chapter menu after this recording?” is displayed.

3

Press the

…† buttons to select

System

, then press the

ENTER

or

√ button.

System menu will be displayed.

System

DVD-RW(V)

Title

Music


Timer Record

Setup

MOVE

Clock Set

Channel Set

Auto Power Off : Off

CM Skip Time : 15 Sec

EP Mode Time : 6 Hour

Front Display : Auto Dim

Chapter Creator : Off

SELECT RETURN EXIT

7

Do you want to create the chapter menu after this recording?

Yes No

Press the

œ √ buttons to select

Yes

and press the

ENTER

button.

• A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.

40 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 41

8

Press the

STOP

button to stop recording.

9

To display the created titles, finalize the disc

(See page 118) and then press the

TITLE MENU

button. Title menu will be displayed.

Setting up the Language

Options

If you set the On-Screen menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.

If the selected language is not recorded on the disc, the original pre-recorded language is selected.

10

Previous Top Next

To display the created chapters, select the desired Title and then press the

DISC MENU

button. The chapter menu for the selected Title will be displayed.

CHAPTER

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

Previous Top Next

Caution

The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off.

3

Press the

…† buttons to select

Language

, then press the

ENTER

or

√ button.

Language setup menu will be displayed.

Language

HDD

Title

Music


Timer Record

Setup

MOVE

Audio

Subtitle

Disc Menu

On-Screen menu

: Original

: Automatic

: English

: English

SELECT RETURN EXIT

English

- 41

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 42

4

Press the

…† buttons to select the desired language option, then press

ENTER

or

√ button.

Language

HDD

Title

Music


Timer Record

Setup

MOVE

Audio

Subtitle

Disc Menu

On-Screen menu

SELECT

Español

Italiano

Nederlands

Korean

RETURN EXIT

Setting up the Audio

Options

You can connect the HDD & DVD RECORDER to an external amp or Home theater.

Allows you to setup the Audio device and sound status depending on the audio system in use.

• Audio

: For the disc audio language.

• Subtitle

: For the disc subtitles.

• Disc Menu

: For the disc menu contained on the disc

• On-Screen Menu

: For the on-screen menu of your

HDD & DVD RECORDER.

5

Press the

…† buttons to select the desired language, then press the

ENTER

or

√ button.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

Install

SELECT RETURN

Setup

EXIT

NOTE

Press the

RETURN

or

œ button to return to the previous menu. Press the

MENU

button to exit the menu.

The selected language will only appear if it is supported on the disc.

3

Press the

…† buttons to select

Audio

, then press the

ENTER

or

√ button.

Audio setup menu will be displayed.

Audio

HDD

Title

Music


Timer Record

Setup

MOVE

Digital Output

DTS

: PCM

: Off

Dynamic Compression : On

SELECT RETURN EXIT

4

Press the

…† buttons to select the desired audio option, then press the

ENTER

or

√ button.

5

Press the

…† buttons to select the desired item, then press the

ENTER

or

√ button.

NOTE

Press the

RETURN

or

œ button to return to the previous menu.

Press the

MENU

button to exit the menu.

42 -

English

03-DVD-HR720_XAA_30~48 2005.9.8 3:26 PM Page 43

Digital Output

1. PCM : Select this when your equipment is not

Dolby Digital compatible.

2. Bitstream : Outputs Dolby Digital (or MPEG-2) audio as bitstream. Select this when your AV receiver or AV amplifier has a Dolby Digital (or

MPEG-2) Decoder.

Dynamic Compression

This is only active when a Dolby Digital signal is detected.

1. Off : You can enjoy the movie with the standard Dynamic Range.

2. On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.

NOTE

Be sure to select the correct Digital

Output or you will hear no sound or a loud noise.

DTS

1. Off : Doesn’t output DTS signal. Select this when your AV receiver or AV amplifier does not have DTS decoder.

2. On : Outputs DTS Bitstream via digital output when you play DTS track. Select this only when your AV receiver (or AV amplifier) have DTS decoder.

NOTE

When DTS soundtrack is played, sound does not output from AV Audio Output.

English

- 43

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 44

Setting up the Video display Options

This function allows you to setup the TV screen settings. This function depends on disc type. It may not work for some disc types.

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

…† buttons to select the desired item, then press the

ENTER

or

√ button.

NOTE

Press the

RETURN

or

œ button to return to the previous menu.

Press the

MENU

button to exit the menu.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting.

(aspect ratio)

1. 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

2. 4:3 Pan/Scan : Select this for conventional size

TVwhen you want to see the central portion of the

16:9 screen. (Extreme left and right side of movie picture will be cut off.)

3. 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.

3

Press the

…† buttons to select

Video

, then press the

ENTER

or

√ button.

Video setup menu will be displayed.

Video

HDD

Title

Music


Timer Record

Setup

MOVE

TV Aspect

Input Level

: 16:9 Wide

: Lighter

Black Level : 0 IRE

3D Noise Reduction : Off

SELECT RETURN EXIT

4

Press the

…† buttons to select the desired video option, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

TV Aspect

Input Level

Black Level

3D Noise Reduction : Off

SELECT RETURN

Video

EXIT

Input Level

Adjusts the level of the input signal.

1. Darker : If you feel the screen is too light and you want to make the sceen darker.

2. Lighter : If you feel the screen is too dark and you want to make the sceen lighter.

Black Level

Adjusts the black level of the screen.

1. 0 IRE : This is the standard NTSC reference black level for consistent brightness/ contrast across all sources.

Select this when you want a darker screen.

2. 7.5 IRE : This will enhance the black level for increased brightness/contrast when viewing DVDs. Select this when you want a lighter screen.

3D Noise Reduction (motion adaptive noise reduction)

1. Off : Normal

2. On : Provides a clear picture through noise reduction (for recording).

44 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 45

Setting up the

Progressive scan

If your TV supports Progressive Scan, press the

P.SCAN

button on the front of the HDD & DVD

RECORDER. To view ‘Progressive scan mode’, first connect the component cable.

(See page 22)

Be sure the Component cables are connected properly.

1

With the unit in Stop mode, press the

P.SCAN

button on the front of the HDD & DVD RECORDER.

The message “Press [Yes] to confirm Progressive scan mode. Otherwise, press [No].” will appear.

Press the

œ √ buttons to select

Yes

, and then press the

ENTER

button.

3

The message “Video Output Mode Progressive

Scan” will appear. The video will now be

Progressive Scan.

Video Output Mode

Progressive Scan

Press [Yes] to confirm Progressive scan mode.

Otherwise, press [No].

Yes No

NOTE

If the

P.SCAN

button on the HDD & DVD

RECORDER’s front panel is pressed during playback, the message “This function is possible only on stop mode” appears on the screen.

Progressive setting is only available when the HDD & DVD RECORDER is in stop mode.

2

The message “Please, set your TV to Progressive input. To deactivate, press [STOP] key.” will appear. Press the

ENTER

button.

Please, set your TV to Progressive input,

To deactivate, press [STOP] key.

OK

English

- 45

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 46

Canceling the

Progressive scan

1

With the unit in Stop mode, press the

P.SCAN

button on the front of the HDD & DVD RECORDER.

The message “Press [Yes] to confirm Interlace scan mode. Otherwise, press [No].” will appear.

Press the

œ √ buttons to select

Yes

, and then press the

ENTER

button.

NOTE

Do not press the

P.SCAN

button if you are using a TV that does not support

Progressive mode as nothing will be displayed on the screen.

If you press the

P.SCAN

button by mistake when your TV does not support

Progressive mode, the mode will then need to be released. To release the

Progressive mode, press the

P.SCAN

button on the front panel 3 times. The screen will recover after the PS indicator on the front panel display turns off.

Press [Yes] to confirm Interlace scan mode.

Otherwise, press [No].

Yes No

2

The message “Please, set your TV to Interlace input. To deactivate, press [STOP] key.” will appear. Press the

ENTER

button.

Please, set your TV to Interlace input,

To deactivate, press [STOP] key.

OK

3

The message “Video Output Mode Interlace Scan” will appear.

Video Output Mode

Interlace Scan

46 -

English

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 47

Setting up the Parental

Control

The Parental Control function works in conjunction with

DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches.

There are up to 8 rating levels on a disc.

4

Enter the 4-digit password using the number buttons on the remote control.

The “Confirm the password” message will be displayed. Enter your password again.

Parental Control

HDD

Title

Music


Timer Record

Setup

0~9 NUMBER

Confirm the password

SELECT RETURN EXIT

1

With the unit in Stop mode, press the

MENU

button.

2

Press the

…† buttons to select

Setup

, then press the

ENTER

or

√ button.

HDD

Title

Music


Timer Record

Setup

MOVE

System

Language

Audio

Video

Parental Control

SELECT RETURN

Setup

EXIT

5

Press the

ENTER

or

√ button to select Password.

HDD

Title

Music


Timer Record

Setup

MOVE

Password

SELECT

Parental Control

On

RETURN EXIT

6

Press the

…† buttons to select

On

or

Off

, then press the

ENTER

or

√ button.

3

Press the

…† buttons to select

Parental Control

, then press the

ENTER

or

√ button.

The “Create the password” message will be displayed

Parental Control

HDD

Title

Music


Timer Record

Setup

0~9 NUMBER

Create the password

SELECT RETURN EXIT

NOTE

Press the

RETURN

or

œ button to return to the previous menu.

Press the

MENU

button to exit the menu.

If you forgot your password

1

Remove the disc.

2

Press and hold the

PLAY ( )

and

STOP ( )

buttons simultaneously on the front panel for 5 seconds or more.

English

- 47

03-DVD-HR720_XAA_30~48 2005.9.6 5:30 PM Page 48

Setting the Rating Level

1

Press the

…† buttons to select

Rating Level

, then press the

ENTER

or

√ button.

Parental Control

HDD

Title

Music


Timer Record

Setup

MOVE

Password

Rating Level

Change Password

: On

: Level 1-Kids

SELECT RETURN EXIT

Parental Control

HDD

Title

Music


Timer Record

Setup

MOVE

Password

Rating Level

Change Password

: Level 8 (Adults)

Level 6

Level 5

Level 4

Level 3

Level 2

Level 1-Kids

SELECT RETURN EXIT

Changing the Password

1

Press the

…† buttons to select

Change Password

, then press the

ENTER

or

√ button.

Parental Control

HDD

Title

Music


Timer Record

Setup

MOVE

Password

Rating Level

Change Password

: On

: Level 1-Kids

SELECT RETURN EXIT

Change Password

HDD

Title

Music


Timer Record

Setup

0~9 NUMBER

Enter the password

SELECT RETURN EXIT

2

Press the

…† buttons to select the rating level you want, then press the

ENTER

or

√ button.

3

When you operate your HDD & DVD RECORDER for the first time, the “Create the Password” message will be displayed.

For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only.

2

Enter the 4-digit password using the number buttons on the remote control.

The “Confirm the password” message will be displayed.

Change Password

HDD

Title

Music


Timer Record

Setup

0~9 NUMBER

Confirm the password

SELECT RETURN EXIT

3

Enter your password again using the number buttons on the remote control.

NOTE

See page 47 if you forgot your password.

48 -

English

04-DVD-HR720_XAA_49~63 2005.9.6 5:31 PM Page 49

Before Playing

P

layback

This section introduces basic functions of playback and playback by disc type.

Dolby Digital

Stereo

DTS

NTSC broadcast system in U.S.A,

Canada, Korea,

Japan,etc.

Digital Audio

MP3

Before Playing .....................................................................49

Playing a Disc......................................................................50

Using the Disc Menu & Title Menu ....................................51

Using the Search & Skip Functions ...................................51

Slow Motion Play/Step Motion Play...................................52

About ANYKEY ...................................................................53

Playing the Title List ............................................................55

Navigation Menu .................................................................56

Using the Markers...............................................................59

Using the Bookmarks..........................................................61

Selecting the Subtitle Language ........................................63

Selecting the Soundtracks & Audio Channels ..................64

Changing the Camera Angle..............................................65

Repeat Play .........................................................................65

Zooming-In...........................................................................67

Select Media........................................................................68

Playing an Audio CD/MP3..................................................68

Playing a Picture .................................................................75

Read the following information before playing a disc.

Region code (DVD-Video only)

Disc types that can be played

Disc Types Disc Logo Recorded content Disc Shape Max. Playing Time

Single sided(5”) 240

Double sided(5”) 480

DVD-VIDEO AUDIO + VIDEO

Single sided(3.5”)

Double sided(3.5”)

80

160

AUDIO-CD AUDIO

Single sided(5”)

Single sided(3.5”)

74

20

1 (XP: Excellent Quality)

DVD-RAM

DVD-RW

DVD-R

AUDIO + VIDEO

Single-sided 2 (SP: Standard Quality)

5” (4.7GB) 4 (LP: Long Playback)

6 or 8 (EP:Extended)

2 (XP: Excellent Quality)

Double-sided 4 (SP: Standard Quality)

AUDIO + VIDEO

5” (9.4GB) 8 (LP: Long Playback)

12 or 16 (EP:Extended)

5” (4.7GB)

1 (XP: Excellent Quality)

2 (SP: Standard Quality)

4 (LP: Long Playback)

AUDIO + VIDEO 5” (4.7GB)

6 or 8 (EP:Extended)

1 (XP: Excellent Quality)

2 (SP: Standard Quality)

4 (LP: Long Playback)

6 or 8 (EP:Extended)

CD-RW/-R

HDD

Both the HDD & DVD RECORDER and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this HDD & DVD RECORDER is described on the rear panel of the HDD & DVD RECORDER.

JPEG

MP3

AUDIO + VIDEO

-

Approx. 29 (XP: Excellent Quality)

Approx. 55 (SP: Standard Quality)

Approx. 106 (LP: Long Playback)

Approx.157 or Approx. 208

(EP:Extended)

Discs that cannot be played

• DVD-Video with a region number other than “1” or “ALL”

• 12cm 2.6 GB and 5.2 GB DVD-RAM

• 3.9 GB DVD-R Disc for Authoring.

• DVD-RAM/-RW(VR mode) not recorded following the Video Recording Standard

• Unfinalized DVD-R,unfinalized DVD-RW(V mode) recorded on other equipment.

• PAL Disc

• DVD-ROM/DVD+RW/PD/MV-Disc/DiVX Video Disc, etc.

• CVD/SVCD/CD-ROM/CDV/CD-G/CD-I/VCD

English

- 49

04-DVD-HR720_XAA_49~63 2005.9.6 5:31 PM Page 50

NOTE

This HDD & DVD RECORDER can only operate with discs that are compatible with

DVD-RAM Standard Version 2.0.

Playback and/or recording may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.

Do not allow the disc to become dirty or scratched, finger prints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.

DVD-RAM/-RW/-R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.

Discs with PAL programs recorded on them cannot be recorded using this product.

Playing a Disc

1

Press the

OPEN/CLOSE

button.

2

Place a disc gently into the tray with the disc’s label facing up.

3

Press the

OPEN/CLOSE

button to close the disc tray.

• Your HDD & DVD RECORDER closes the disc tray and plays the disc automatically.

The HDD & DVD RECORDER does not play discs automatically after the initial power on.

• When the HDD & DVD RECORDER is powered on and a disc is in the tray, the unit will be activated and wait in stop status.

Press the

PLAY( )

button to start playback.

If you insert an MP3 Disc, your HDD & DVD

RECORDER will display the file list on the

• screen and start playing.

If you insert a JPEG Disc, folders and files are displayed in the thumbnail picture.

If you want the unit to play automatically when it is powered on with a disc in the unit, power on with the

PLAY( )

button.

4

Press the

STOP( )

button to stop playback.

NOTE

When you stop playing back a disc, the HDD & DVD

RECORDER remembers where you stopped, so when you press

PLAY( )

button again, it will pick up where you left off. (Unless the disc is removed or the HDD & DVD RECORDER is unplugged, or if you press the

STOP( )

button twice.).

Caution

Do not move your HDD & DVD RECORDER while playing, as this may cause damage to the disc.

Make sure to press the

OPEN/CLOSE

button to open or close the disc tray.

Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction.

Do not place foreign materials on or in the disc tray.

Some functions may perform differently or be disabled depending on the disc type.

If this occurs, refer to the instructions written on the disc case.

Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes.

You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the HDD & DVD RECORDER.

50 -

English

04-DVD-HR720_XAA_49~63 2005.9.8 3:35 PM Page 51

Using the Disc Menu &

Title Menu

Using the Search & Skip

Functions

Searching through a Chapter or

Track

Some type of discs contain a dedicated menu system that allows you to select special functions for title, chapter, audio track, subtitle, film preview, information on characters, etc.

For DVD-VIDEO discs

1

Press the

DISC MENU

button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation.

• You can select audio language and subtitle etc.

provided by the disc.

2

Press the

TITLE MENU

button to move to the disc's title menu of the disc.

• Press this button if the disc contains more than one title. Some discs may not support the title menu functionality.

For HDD/DVD-RAM/-RW/-R Disc

)

buttons on

1

During play, press the

SEARCH (

the remote control.

HDD/

DVD-VIDEO/

DVD-RAM/-RW/-R

Fast X 2

Fast X 8

Fast X 32

Fast X 4

Fast X 16

Fast X 128

X 2

X 4

X 8

AUDIO CD

(CD-DA)

• You can scan the program in reverse.

To return to normal speed playback, press the

PLAY ( )

button.

• When you press and hold the

SEARCH ( )

buttons, playback is done at the default speed of

X4. If you release the

SEARCH ( )

buttons, playback is performed at a normal speed.

• The speed marked in this function may be different from the actual playback speed.

1

Press the

TITLE LIST

button to display title list.

NOTE

Title List : Title List is a list of previously recorded programs. If a title is deleted, that title cannot be played again.

Play List : This refers to a list of userselected titles. When one playlist is played,only the scene selected by the user will play and then stop.

Even if the playlist is deleted, the original recording will remain. (VR mode only)

NOTE

No sound is heard during Scan(Search) mode, except with CDs (CD-DA).

English

- 51

04-DVD-HR720_XAA_49~63 2005.9.6 5:31 PM Page 52

Skipping Chapters, Tracks or

Markers

During play, you can search quickly through a chapter or track.

Slow Motion Play/

Step Motion Play

Slow Motion Play

)

buttons on the

1

During play, press the

SKIP (

remote control.

If you press the SKIP ( ) button,

it moves to the beginning of the chapter or track or marker(HDD/DVD-RAM/-RW(VR mode)).

Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track or marker(HDD/DVD-RAM/-RW(VR mode)).

If you press the SKIP ( ) button,

it moves to the next chapter, track or marker

(HDD/DVD-RAM/-RW(VR mode)).

In pause or step mode, press the

SEARCH (

the remote control.

)

buttons on

If you press the SEARCH ( )button,

Slow 1/8

Slow 1/4

Slow 1/2

If you press the SEARCH ( ) button,

Slow 1/8

Slow 1/4

Slow 1/2

To return to normal speed playback, press the

PLAY ( ) button.

Press and hold the

SEARCH ( )

buttons during pause, the disc will play slowly at 1/4 speed. If the button is released, the pause operation will resume.

NOTE

The speed marked in this function may be different from the actual playback speed.

52 -

English

04-DVD-HR720_XAA_49~63 2005.9.6 5:31 PM Page 53

Step Motion Play

About ANYKEY

Press the

STEP(

in the pause mode.

) buttons on the remote control

• Each time the button is pressed, a new frame will appear.

When the

STEP( )

button is pressed, the previous frame will be activated.

When the

STEP( )

button is pressed, the next frame will be activated.

• To return to normal speed playback, press the

PLAY

( )

button.

The ANYKEY function allows you to easily search for a desired scene by accessing title, chapter, track, time. You can also change the subtitle and audio settings and set some features including Marker,

Angle, Zoom, Repeat, Select Media, Disc Manager.

Moving to a scene directly using the

ANYKEY

• If you want to move to a title, a chapter or a track to find a desired scene.

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

2

Press the

… † buttons to select

Search

, then press the

ENTER

or

√ button.

HDD

Title 1/10

Time

00:01:45

MOVE CHANGE

DVD-Video

Title

Chapter

1/10

1/40

Time 00:01:45

MOVE CHANGE

English

- 53

04-DVD-HR720_XAA_49~63 2005.9.6 5:31 PM Page 54

3

Press the

…† buttons to select

Title

,

Chapter

or

Track

.

4

Press the

œ √ buttons or number buttons to select the desired scene, then press the

ENTER

button.

• If you want to move to a desired time the following instructions will help you find a scene.

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

NOTE

This may not work for some discs. When an audio CD(CD-DA) or an MP3 disc is inserted, depending on the disc type, the information display may not appear.

The Time Search function does not operate in some discs.

To make the screen disappear, press the

ANYKEY

button again

2

Press the

… † buttons to select

Search

, then press the

ENTER

or

√ button.

HDD

Title 1/10

Time

00:01:45

MOVE CHANGE

DVD-Video

Title 1/10

Chapter 1/40

Time 00:01:45

MOVE CHANGE

3

Press the

… † buttons to select

Time.

4

Enter the time in the sequence of hours, minutes, and seconds using the number buttons, then press the

ENTER

button.

54 -

English

04-DVD-HR720_XAA_49~63 2005.9.8 8:8 PM Page 55

Playing the Title List

Follow these instructions to play back a scene from the

Title List.

Using the TITLE LIST button

2

Press the

… † buttons to select an entry you want to play from Title List, then press the

ENTER

or

PLAY ( )

button.

The selected entry (title) will be played back.

- About INFO button -

During playback, if you press the

INFO

button once during playback, the system information screen appears.: Displays Active Status, Background Status, and Main Screen information.

HDD

Active status Play

Background Status – –

Screen Playback

JAN/01/2005 (SAT)

System Info

AM 12:00

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Title

HDD

Title

Music


Timer Record

Setup

MOVE

Press ENTER or Right button for Title List.

SELECT RETURN EXIT

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button

.

Pressing the

INFO

button twice, Disc information screen appears.: Displays Total numbers of Titles and Playlists,

Recordable Time(Title), Available Space(Music/Photo).

HDD

Total Title

Total Playlist

15

2

Recordable Time:Title 31:46 SP

Available Space:Music/Photo 10033 MB

Disc Info

JAN/01/2005 (SAT) AM 12:00

Pressing the

INFO

button three times, Current playback information screen appears.: Displays information of

Playback Name, Title, Created Time, Length, Playing

Time, Audio, and if the disc protection is activated.

HDD

Name

Title

Created Time

Length

Playing Time

Audio

Title Protection

JAN/01/2005 (SAT)

Playing Info

JAN/01/2005 12:39 AM

CH 9

1/15

JAN/01/2005 12:39 AM

00:01:43 SP

00:13:27

Dolby Digital 1/1 L+R

Not Protected

AM 12:00

3

To stop title play, press the

STOP( )

button.

To return the title list screen, press the

TITLE

LIST

button.

English

- 55

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 56

Navigation Menu

2

Press the

… † buttons to select an entry you want to play from Title List, then press the

ANYKEY

button.

Scene Navigation

If there is a title composed of markers (see page 59), you can search the desired scene using the Scene

Navigation.

1

Using the TITLE LIST button

(VR mode)

3

Press the

… † buttons to select

Navigation

, then press the

ENTER

or

√ button.

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 page

RETURN EXIT

4

Protection

Copy

Delete

Edit

MOVE

No.

SELECT

Title

JAN/18/2005 12:15 AM CH11

Scene Navigation

SP

Select Media

Disc Manager

Time Navigation

1/1 page

Title List

RETURN

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

EXIT

Press the

… † buttons to select

Scene

Navigation

, then press the

ENTER

or

√ button.

Scene Navigation

Title List No. 1

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

HDD

01 00:00:16 01 00:05:16

MOVE

1/1 Page

SELECT RETURN EXIT

Title

HDD

Title

Music


Timer Record

Setup

MOVE

Press ENTER or Right button for Title List.

SELECT RETURN EXIT

5

Press the

… œ √ buttons to select desired scene, then press the

ENTER

or

PLAY ( )

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button .

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

SP

Select Media

Disc Manager

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

1/1 page

MOVE SELECT RETURN EXIT

56 -

English

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 57

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Time Navigation

(VR mode)

Using this function, you can search scene minute-byminute from the recorded title list.

Using the TITLE LIST button

2

Press the

… † buttons to select

Navigation

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Scene Navigation

Time Navigation

3

Press the

… † buttons to select

Scene

Navigation

, then press the

ENTER

or

√ button.

Scene Navigation

Title List No. 1 HDD

01 00:00:16 01 00:05:16

MOVE

1/1 Page

SELECT RETURN EXIT

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Title

HDD

Title

Music


Timer Record

Setup

MOVE

Press ENTER or Right button for Title List.

SELECT RETURN EXIT

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button .

4

Press the

… œ √ buttons to select desired scene, then press the

ENTER

or

PLAY ( )

button.

NOTE

Scene Navigation will not operate if a selected title does not have Markers.

English

- 57

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 58

2

Press the

… † buttons to select an entry you want to play from Title List, then press the

ANYKEY

button.

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

Navigation

JAN/18/2005 12:15 AM

Select Media

SP

Disc Manager

MOVE

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 page

RETURN EXIT

3

Press the

… † buttons to select

Navigation

, then press the

ENTER

or

√ button.

Protection

Copy

Delete

Edit

No.

Title

Title List

JAN/18/2005 12:15 AM CH11

SP

Select Media

Disc Manager

Scene Navigation

Time Navigation

1/1 page

MOVE SELECT RETURN

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

EXIT

2

Press the

… † buttons to select

Navigation

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Scene Navigation

Time Navigation

4

Press the

… † buttons to select

Time

Navigation

, then press the

ENTER

or

√ button.

Time Navigation

HDD

3

Press the

… † buttons to select

Time

Navigation

, then press the

ENTER

or

√ button.

Time Navigation

HDD

12:15 AM

CHANGE

12:15 AM

SELECT

12:25 AM

RETURN EXIT

12:15 AM

CHANGE

12:15 AM

SELECT

12:25 AM

RETURN EXIT

4

Press the

œ √ buttons to skip one minute at a time and search the desired scene, then press the

ENTER

or

PLAY ( )

button.

5

Press the

œ √ buttons to skip one minute at a time and search the desired scene, then press the

ENTER

or

PLAY ( )

button.

NOTE

Cursor does not move if the selected recorded title is shorter than 1 minute.

The Navigation function may not work on a disc that has not been recorded by this device.

An edited title may not display the exact search time.

58 -

English

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 59

Using Markers

2

Press the

ENTER

button when the desired scene appears.

• The number

01

is displayed and the scene is memorized.

Marker 01 -- -- -- -- -- -- -- -- -N:1

(VR mode)

Using the MARKER button

1

Press the

MARKER

button during playback.

Marker --- -- -- -- -- -- -- -- -N:0

SELECT RETURN

Using the ANYKEY button.

• Press the

ANYKEY

button during playback.

MOVE PLAY CANCEL RETURN

3

Press the

œ √ buttons to move to the next position.

4

Press the

ENTER

button again when the desired scene appears.

• The number

02

is displayed and the scene is memorized.

Marker 01 02 -- -- -- -- -- -- -- -N:2

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

• Press the

…† buttons to select

Marker

, then press the

ENTER

or

√ button.

MOVE PLAY CANCEL RETURN

• HDD, DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function.

The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protection, Markers cannot be set or deleted, only playback is available.

English

- 59

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 60

Playing back a marker

Using the MARKER button

1

Press the

MARKER

button during playback.

Marker

01 02 -- -- -- -- -- -- -- -N:2

Clearing a marker

Using the MARKER button

1

Press the

MARKER

button during playback.

Marker 01 02 03 04 05 06 07 08 09 10

N:10

MOVE

PLAY CANCEL RETURN

Using the ANYKEY button.

• Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

MOVE

PLAY CANCEL RETURN

Using the ANYKEY button.

• Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

• Press the

…† buttons to select

Marker

, then press the

ENTER

or

√ button.

2

Press the

œ √ buttons to select a marked scene.

Marker

01 02 -- -- -- -- -- -- -- -N:2

• Press the

…† buttons to select

Marker

, then press the

ENTER

or

√ button.

2

Press the

œ √ buttons to select a marked scene.

Press the

CANCEL

button to delete the selected mark.

Marker 01 02 03 04 05 06 07 08 09 10

N:10

MOVE PLAY CANCEL RETURN

3

Press the

ENTER

or

PLAY ( )

button to start playing from the selected scene.

• If you press the

SKIP ( )

button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.

• If you press the

SKIP ( )

button, it moves to the next marker.

60 -

English

MOVE PLAY CANCEL RETURN

Marker

01 02 03 04 05 06 07 08 09 -N:9

MOVE

PLAY CANCEL RETURN

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 61

When a marker is cleared while HDD/DVD-

RAM/-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

2

Press the

ENTER

button when the desired scene appears.

• The number 1 is displayed and the scene is memorized.

Bookmark

1 - - - - - - - - --

Using the Bookmarks

MOVE PLAY CANCEL RETURN

Using the MARKER button

(V-mode)

1

Press the

MARKER

button during playback.

Bookmark

- - - - - - - - --

3

Press the

œ √ buttons to move to the next position.

4

Press the

ENTER

button again when the desired scene appears.

The number 2 is displayed and the scene is memorized.

Bookmark

1 2 - - - - - - - --

MOVE

PLAY CANCEL RETURN

• Repeat above to bookmark other positions.

• You can bookmark up to 10 scenes.

MOVE SELECT RETURN

Using the ANYKEY button.

• Press the

ANYKEY

button during playback.

Search

Bookmark

Audio

Subtitle

Angle

Repeat

Zoom

Select Media

NOTE

When the disc tray is opened and then closed, bookmarks will disappear.

• Press the

…† buttons to select

Bookmark

, then press the

ENTER

or

√ button.

English

- 61

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 62

Playing back a bookmark

Using the MARKER button

1

Press the

MARKER

button during playback.

Bookmark

1 2 - - - - - - - --

Clearing a bookmark

Using the MARKER button

1

Press the

MARKER

button during playback.

Bookmark

1 2 - - - - - - - --

MOVE

PLAY CANCEL RETURN

Using the ANYKEY button.

• Press the

ANYKEY

button during playback.

Search

Bookmark

Audio

Subtitle

Angle

Repeat

Zoom

Select Media

MOVE

PLAY CANCEL RETURN

Using the ANYKEY button.

• Press the

ANYKEY

button during playback.

Search

Bookmark

Audio

Subtitle

Angle

Repeat

Zoom

Select Media

• Press the

…† buttons to select

Bookmark

, then press the

ENTER

or

√ button.

2

Press the

œ √ buttons to select a bookmarked scene.

3

Press the

ENTER

or

PLAY( )

button to start playing from the selected scene.

• Press the

…† buttons to select

Bookmark

, then press the

ENTER

or

√ button.

2

Press the

œ √ buttons to select a bookmarked scene.

Bookmark 1 2 - - - - - - - --

MOVE PLAY CANCEL RETURN

3

Press the

CANCEL

button to delete the selected bookmark.

62 -

English

04-DVD-HR720_XAA_49~63 2005.9.6 5:32 PM Page 63

Selecting the Subtitle

Language

Selects one of the subtitle languages recorded on the disc.

(VR mode)

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Using the SUBTITLE button

1

Press the

SUBTITLE

button during playback.

Subtitle Off

2

Press the

… † buttons to select

Subtitle

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Off

KOR

CHI

ENG

3

Press the

… † buttons to select the desired subtitle language, then press the

ENTER

or

√ button.

2

Press the

… † buttons to select the desired subtitle language. Also, press the

SUBTITLE

button repeatedly to select the desired subtitle language.

• To make the screen disappear, press the

CANCEL

or

RETURN

button.

NOTE

The subtitle display may be different depending on the disc type.

Some discs allow you to select the language for the disc menu only.

If the subtitles overlap, disable the caption function on your TV.

English

- 63

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 64

Selecting the Soundtracks

& Audio Channels

Selecting the Audio

Selects one of the soundtracks recorded on the disc. Also selects the audio channels from recorded TV programs.

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

(VR mode)

Using the AUDIO button

1

Press the

AUDIO

button during playback.

HDD/DVD-RAM/-RW

Audio Dolby Digital 2/0 L + R

2

Press the

… † buttons to select

Audio

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Dolby Digital 2/0 L + R

Dolby Digital 2/0 L

Dolby Digital 2/0 R

DVD-VIDEO

Audio ENG Dolby Digital 5.1CH

3

Press the

… † buttons to select the desired soundtracks or audio channel, then press the

ENTER

or

√ button.

NOTE

Soundtracks or Audio channel may be different because they are disc-specific.

Some discs allow you to select the audio language for the disc menu only.

2

Press the

… † buttons to select the desired soundtracks or audio channel. Also, press the

AUDIO

button repeatedly to select the desired soundtracks or audio channel.

• To make the screen disappear, then press the

CANCEL

or

RETURN

button.

64 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 65

Changing the Camera

Angle

When a DVD-VIDEO contains multiple angles of a particular scene, you can select the Angle function.

Repeat Play

Playing Repeatedly(Repeat Playback)

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Bookmark

Audio

Subtitle

Angle

Repeat

Zoom

Select Media

Using the REPEAT button

1

Press the

REPEAT

button during playback.

Repeat Off

2

Press the

… † buttons to select

Angle

, then press the

ENTER

or

√ button.

Search

Bookmark

Audio

Subtitle

Angle

Repeat

Zoom

Select Media

Angle 1

Angle 2

Angle 3

Angle 4

Angle 5

Angle 6

2

Press the

…† buttons to select the

Off

,

Title

or

Chapter

you want to play repeatedly, then press the

ENTER

button.

Repeat Title

3

Press the

… † buttons to select the desired angle, then press the

ENTER

or

√ button.

NOTE

This function is disc-dependent, and may not work on all DVDs.

This function does not work when a DVD has not been recorded with a multicamera angle system.

English

- 65

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 66

Repeat A-B

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Using the REPEAT A-B button

1

Press the

REPEAT A-B

button during playback.

Repeat A-B

Off

2

Press the

…† buttons to select the

Repeat

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Repeat Off

Repeat A - B

Repeat Title

2

Press the

ENTER

button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B).

Repeat playback of the A-B section starts.

Repeat A-B A-B

3

Press the

… † buttons to select

Repeat Off

,

Repeat A-B

,

Repeat Title

,

Repeat Track

or

Repeat Chapter

you want to play repeatedly, then press the

ENTER

or

√ button.

NOTE

HDD/DVD-RAM/-RW(VR mode), unfinalized

DVD-R and unfinalized DVD-RW (V mode) discs will not repeat a chapter.

66 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 67

Zooming-In

Using the ANYKEY button

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

2

Press the

… † buttons to select

Repeat

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

Repeat Off

Repeat A - B

Repeat Title

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

2

Press the

…† buttons to select

Zoom

, then press the

ENTER

or

√ button. ( ) will be displayed.

3

Press the

… † buttons to select

Repeat A-B

, then press the

ENTER

or

√ button.

4

Press the

ENTER

button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B).Repeat playback of the A-B section starts.

- To return to normal playback -

5

Press the

CANCEL

button to return to normal playback.

3

Press

…† œ √ buttons to move to the area you want to enlarge.

4

Press the

ENTER

button.

The screen will be enlarged to twice the normal size. The screen size will be enlarged to four times the normal size.

HDD/DVD-VIDEO/ normal size ➔

X

2 ➔

X

4 ➔

X

2

DVD-RAM/-RW/-R

➔ normal size

NOTE

If you set point (B) before five seconds of playback has lapsed, the prohibition mark

( ) will appear.

You can also activate Normal Playback by pressing the

CANCEL

button.

Audio CDs(CD-DA) and MP3 discs do not support the Repeat A-B function.

NOTE

When recording is done in the EP mode, the

Zoom function will not be supported except when the recording has been done in V mode.

English

- 67

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 68

Select Media

1

Press the

ANYKEY

button during playback.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

2

Press the

…† buttons to select

Select Media

, then press the

ENTER

or

√ button.

Search

Navigation

Marker

Subtitle

Audio

Repeat

Zoom

Select Media

Disc Manager

HDD

DVD

3

Press the

…† buttons to select

HDD

or

DVD

, then press the

ENTER

or

√ button.

Playing an Audio

CD/MP3

Playing an Audio CD(CD-DA)

1

Insert an audio CD (CD-DA) into the disc tray.

• The audio CD menu appears and the tracks

(songs) are played automatically.

CD

CD-DA

01/15

04:57

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

2

Press the

… † buttons to select the track (song) you want to hear, and then press the

ENTER

button.

Audio CD(CD-DA) Screen Elements

@

#

!

CD

CD-DA

01/15

04:57

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

$

%

1.

Current track (song)

: Displays the number of the track currently being played.

2. Displays the current play index, total track number.

3. Display available buttons.

4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.

5. Displays the track list (song list).

68 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 69 a

Buttons on the Remote Control used for Audio CD(CD-DA) playback

Playing an MP3 Disc

1

Insert an MP3 disc into the disc tray.

• The MP3 menu is displayed and the tracks

(songs) are played automatically.

CD

MP3

01/15

4.0 MB

MOVE

Flower.mp3

..

MP3

MP3

MP3

MP3

MP3

Music List

02 : 10

Flower.mp3

Love.mp3

Straight from the heart.mp3

Run to you.mp3

Heaven.mp3

This Love.mp3

SELECT

1/3 Page

RETURN EXIT

2

Press the

… buttons to select the track you want to hear, and then press the

ENTER

button.

1.

… †

:

Selects a track (song).

2.

œ √

:

Moves the page up/down.

3.

ENTER button:

Plays the selected track (song).

4.

SKIP ( ) button:

Plays the next track.

5.

SKIP ( ) button:

Returns to the beginning of the current track when pressed during playback.

If pressed again, your HDD & DVD RECORDER moves to and plays the previous track.

If you press the this button within three seconds after playback starts, the previous track will be played.

If you press the this button after three seconds, the current track will be replayed from the beginning.

6.

Press the SEARCH (

Fast Play (X2, X4, X8)

) buttons:

7.

STOP ( ) button:

Stops a track(song).

8.

PLAY ( ) button:

Plays a track(song) or pauses playback.

9.

ANYKEY button

: The ANYKEY menu is displayed.

(

Play Mode

,

Go To Playlist

or

New Playlist

).

MP3 Screen Elements

@

#

!

CD

MP3

01/15

4.0 MB

MOVE

Flower.mp3

..

MP3

MP3

MP3

MP3

MP3

Music List

02 : 10

Flower.mp3

Love.mp3

Straight from the heart.mp3

Run to you.mp3

Heaven.mp3

This Love.mp3

1/3 Page

SELECT RETURN EXIT

$

%

1.

Current track (song):

Displays the name of the track being played.

2. Displays the current folder, play index and current track size.

3. Displays available buttons.

4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.

5. Displays the information for the folder and its tracks.

NOTE

If a disc contains only MP3 files or only

JPEG files, the MP3 or JPEG screen appears after the disc is loaded.

If a disc contains a mix of MP3 and JPEG files, you need to select Music for MP3 files or Photo for JPEG files.

English

- 69

05-DVD-HR720_XAA_64~77 2005.9.6 5:33 PM Page 70

Buttons on the Remote Control used for MP3 playback

Repeat CD (CD-DA) & MP3

Using the REPEAT button.

1

Press the

REPEAT

button during playback.

CD

CD-DA

01/15

04:57

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

2

Press the

REPEAT

button repeatedly to select the repeat mode you want.

CD

CD-DA

01/15

04:57

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

1.

… †

:

Selects a track (song).

2.

œ √

:

Moves the page up/down.

3.

ENTER button:

Plays the selected track (song).

4.

SKIP ( ) button:

Plays the next track.

5.

SKIP ( ) button:

Returns to the beginning of the current track when pressed during playback.

If pressed again, your HDD & DVD RECORDER moves to and plays the previous track.

If you press the this button within three seconds after playback starts, the previous track will be played.

If you press the this button after three seconds, the current track will be replayed from the beginning.

6.

STOP ( ) button:

Stops a track(song).

7.

PLAY ( ) button:

Plays a track(song) or pauses playback.

8.

ANYKEY button

: The ANYKEY menu is displayed.

(

Copy

,

Play Mode

,

Go To Playlist

,

New Playlist

or

Select Media

).

Repeat Track (CD (CD-DA)/MP3)

Repeat Folder (MP3)

Repeat All (CD (CD-DA)/MP3)

Random (CD (CD-DA)/MP3):

The random option plays a disc’s track in random order.

Normal (CD (CD-DA)/MP3):

Track on a disc are played in the order in which they were recorded on the disc.

- To return to normal playback -

3

Press the

REPEAT

or

CANCEL

button repeatedly to return to normal playback.

70 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:34 PM Page 71

Using the ANYKEY button

1

Press the

ANYKEY

button during the Music List playback.

CD

CD-DA

01/15

New Playlist

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

New Playlist

You can register a maximum 28 tracks in the playlist.

1

Press the

ANYKEY

button during the Music List playback.

CD

CD-DA

01/15

New Playlist

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

2

Press the

… † buttons to select

Play Mode

, then press the

ENTER

or

√ button.

CD

CD-DA

01/15

New Playlist

MOVE

TRACK 1

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

CDDA

CDDA

CDDA

Random

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

2

Press the

… † buttons to select

New Playlist

, then press the

ENTER

or

√ button.

Make Playlist

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

CD

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

MOVE

1/3 Page

Add RETURN EXIT

3

Press the

… † buttons to select desired play mode, then press the

ENTER

or

√ button.

Normal (CD (CD-DA)/MP3):

Tracks on a disc are played in the order in which they were recorded on the disc.

Repeat Track (CD (CD-DA)/MP3)

Repeat Folder (MP3)

Repeat All (CD (CD-DA)/MP3)

Random (CD (CD-DA)/MP3):

The random option plays a disc’s tracks in random order.

3

Press the

… † buttons to select tracks in the order in which you want them to play, then press the

ENTER

button.

Make Playlist

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

CD

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

MOVE Add

01.

02.

03.

04.

TRACK 1

TRACK 3

TRACK 7

TRACK 4

1/1 Page

RETURN EXIT

English

- 71

05-DVD-HR720_XAA_64~77 2005.9.6 5:34 PM Page 72

Go To Playlist

4

If you playlisted a wrong track, press the

√… † buttons to select the wrong track, then press the

ENTER

or

CANCEL

button. The wrong track will be removed.

Make Playlist

CD

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

MOVE Delete

01.

02.

03.

TRACK 1

TRACK 3

TRACK 7

1/1 Page

EXIT

1

Press the

ANYKEY

button during the Music List playback.

CD

CD-DA

New Playlist

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

5

To store the playlist, press the

ANYKEY

button.

CD

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

CDDA

01.

02.

03.

Make Playlist

TRACK 1

TRACK 3

TRACK 7

MOVE SELECT

1/1 Page

RETURN EXIT

2

Press the

… † buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

CD

Playlist

00 : 00

PLAYLIST

Playlist 1

Playlist 2

PLAYLIST

- -

00 : 00

MOVE SELECT

1/1 Page

RETURN EXIT

6

. Press the

… † buttons to select the

Go To

Playlist

, then press the

ENTER

button.

A new Playlist will be created.

3

Press the

… † buttons to select the desired playlist folder, then press the

ENTER

button.

The selected tracks are played automatically.

72 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:34 PM Page 73

1

Delete the Playlist

Press the

ANYKEY

button during the Music List playback.

CD

CD-DA

01/15

New Playlist

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

Go To Edit Playlist

1

Press the

ANYKEY

button during the Music List playback.

CD

CD-DA

01/15

New Playlist

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

2

Press the

… † buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

Playlist

00 : 00 CD

PLAYLIST

Playlist 1

Playlist 2

PLAYLIST

- -

00 : 00

SELECT

1/1 Page

RETURN MOVE EXIT

3

Press the

… † buttons to select the Playlist you want to delete, then press the

ANYKEY

button.

Playlist

00 : 00 CD

PLAYLIST

Playlist 1

Playlist 2

Delete Playlist

PLAYLIST

New Playlist

MOVE SELECT

1/1 Page

RETURN EXIT

4

Press the

… † buttons to select the

Delete

Playlist

, then press the

ENTER

or

√ button.

Playlist

00 : 00 CD

PLAYLIST

Playlist 1

MOVE

Yes

Playlist 1

No

SELECT

1/1 Page

RETURN EXIT

2

Press the

… † buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

CD

Playlist

00 : 00

PLAYLIST

Playlist 1

Playlist 2

PLAYLIST

- -

00 : 00

MOVE SELECT

1/1 Page

RETURN EXIT

3

Press the

… † buttons to select the

Playlist

you want to edit, then press the

ANYKEY

button.

CD

Playlist

00 : 00

PLAYLIST

Playlist 1

Playlist 2

PLAYLIST

01/02

New Playlist

MOVE SELECT

1/1 Page

RETURN EXIT

5

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button. The selected Playlist is deleted.

English

- 73

05-DVD-HR720_XAA_64~77 2005.9.8 3:27 PM Page 74

Go To Music List

4

Press the

… † buttons to select the

Go To Edit

Playlist

, then press the

ENTER

or

√ button.

Edit Playlist

CD

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

MOVE Add

01.

02.

03.

04.

TRACK 1

TRACK 3

TRACK 7

TRACK 4

1/1 Page

RETURN EXIT

1

Press the

ANYKEY

button during the Playlist playback.

CD

PLAYLIST

01/04

04 : 30

New Playlist

MOVE

TRACK 1

Playlist 1

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

Playlist

»

02 : 10

SELECT

1/1 Page

RETURN EXIT

5

Press the

… † buttons to select tracks in the order in which you want them to play, then press the

ENTER

button.

6

If you playlisted a wrong track, press the

√ buttons to select the wrong track, then press the

ENTER

or

CANCEL

button to remove the track.

7

To store the playlist, press the

ANYKEY

button.

CD

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

Edit Playlist

01.

02.

03.

04.

TRACK 1

TRACK 3

TRACK 7

TRACK 4

1/1 Page

RETURN EXIT MOVE Add

2

Press the

… † buttons to select

Go To Music List

, then press the

ENTER

or

√ button.

CD

CD-DA

01/15

04:57

MOVE

TRACK 1

CDDA

CDDA

CDDA

CDDA

CDDA

CDDA

TRACK 1

TRACK 2

TRACK 3

TRACK 4

TRACK 5

TRACK 6

TRACK 7

1/3 Page

Music List

02 : 10

SELECT RETURN EXIT

8

Press the

… † buttons to select the

Go To

Playlist

, then press the

ENTER

button.

Playlist will be edited.

74 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:34 PM Page 75

Select Media (MP3)

Viewing a Picture

1

Press the

ANYKEY

button.

CD

Copy

Select Media

MOVE flower .mp3

Music List

02 : 10

..

MP3

MP3

MP3

MP3

MP3 flower.mp3

Love.mp3

Straight from the heart.mp3

Run to you.mp3

Heaven.mp3

This Love.mp3

1/3 Page

SELECT RETURN EXIT

2

Press the

… † buttons to select

Select Media

, then press the

ENTER

or

√ button.

CD

Copy

Select Media

MOVE flower .mp3

Music List

02 : 10

..

MP3

MP3 flower.mp3

Love.mp3

Straight from the heart.mp3

MP3

MP3

Run to you.mp3

Heaven.mp3

HDD

This Love.mp3

DVD

1/3 Page

SELECT RETURN EXIT

1

Insert a JPEG disc or Mixed disc (JPEG + MP3) into the disc tray.

Title

CD

Title

Music


Timer Record

Setup

MOVE

Press ENTER or Right button for Title List.

SELECT RETURN EXIT

2

Press the

…† buttons to select


, then press the

ENTER

or

√ button.

CD DSC01194

Photo List

Index: 1/10

..

DSC01189 DSC01190 DSC01191

DSC01192 DSC01193 DSC01194

1/2 Page

MOVE SELECT

DSC01199

RETURN EXIT

3

Press the

… † buttons to select

HDD

or

DVD

, then press the

ENTER

or

√ button.

If there are no mp3 files on the selected media, it notifies you that there are no mp3 files and the media will not be switched.

3

Press the

…† œ √ buttons to select a picture.

• To see the next 8 pictures, press the

SKIP( )

button.

• To see the previous 8 pictures, press the

SKIP( )

button.

NOTE

If a disc contains only MP3 files or only

JPEG files, the MP3 or JPEG screen appears after the disc is loaded.

If a disc contains a mix of MP3 and JPEG files, you need to select Music for MP3 files or Photo for JPEG files.

English

- 75

05-DVD-HR720_XAA_64~77 2005.9.6 5:34 PM Page 76

Slide Show

To set up, follow steps 1~3 on page 75.

4

Press the

ANYKEY

button.

CD DSC01194

Photo List

Index: 1/10

..

DSC01189 DSC01190 DSC01191

Copy

Select Media

DSC01193

DSC01194

1/2 Page

MOVE SELECT

DSC01199

RETURN EXIT

Rotate

To set up, follow steps 1~3 on page 75.

4

Press the

ENTER

button to select the picture you want to see, then press the

ANYKEY

button.

Slideshow

Rotate

Zoom

Go To Photo List

5

Press the

… † buttons to select

Slide Show

, then press the

ENTER

or

√ button.

Photo List

Index: 1/10 CD DSC01194

..

DSC01189 DSC01190 DSC01191

Copy Slow

Slide Show

DSC01192

Select Media

DSC01193

Normal

DSC01194 DSC01199

MOVE SELECT RETURN EXIT

6

Press the

… † buttons to select the slide show speed, then press the

ENTER

or

√ button.

The slide show starts.

- To stop the Slide Show -

1

Press the

ANYKEY

button.

5

Press the

… † buttons to select

Rotate

, then press the

ENTER

or

√ button.

Slideshow

Rotate

Zoom

Go To Photo List

Rotate 90

Rotate 180

Rotate 270

6

Press the

… † buttons to select the rotate angle, then press the

ENTER

or

√ button.

- To stop the Rotate -

1

Press the

ANYKEY

button.

Slideshow

Slideshow Off

Go To Photo List

Rotate

Rotate Off

Go To Photo List

2

Press the

… † buttons to select

Rotate Off

, then press the

ENTER

or

√ button.

2

Press the

… † buttons to select

Slideshow Off

, then press the

ENTER

or

√ button.

76 -

English

05-DVD-HR720_XAA_64~77 2005.9.6 5:34 PM Page 77

Zoom

To set up, follow steps 1~3 on page 75.

Go To Photo List

To set up, follow steps 1~3 on page 75.

4

Press the

ENTER

button to select the picture you want to see, then press the

ANYKEY

button.

4

Press the

ENTER

button to select the picture you want to see, then press the

ANYKEY

button.

Slideshow

Rotate

Zoom

Go To Photo List

5

Press the

… † buttons to select

Zoom

, then press the

ENTER

or

√ button.

Slideshow

Rotate

Zoom

Go To Photolist

5

Press the

… † buttons to select

Go To Photo

List

, then press the

ENTER

or

√ button.

CD DSC01194

Photo List

Index: 1/10

..

DSC01189 DSC01190 DSC01191

DSC01192 DSC01193 DSC01194

1/2 Page

MOVE SELECT

DSC01199

RETURN EXIT

6

Each time the

ENTER

button is pressed, the picture is enlarged up to x4(four times the normal size).

X2

X4

X2

Normal

- To stop the Zoom -

1

Press the

ANYKEY

button.

Zoom Off

Go To Photo List

2

Press the

… † buttons to select

Zoom Off

, then press the

ENTER

or

√ button.

English

- 77

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 78

R

ecording

This section shows various HDD & DVD

Recording methods.

Before Recording

This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable Discs

This HDD & DVD RECORDER can record on the following discs.

HDD DVD-RAM DVD-RW DVD-R

Before Recording . . . . . . . . . . . . . . . . . . . . . . . . .78

Recording the current TV program you are watching . . . . . . . . . . . . . . . . . . .80

Recording from external equipment you are watching . . . . . . . . . . . . . . . . . . . . . . . . . .82

Copying from a Camcorder . . . . . . . . . . . . . . . . . .83

Making an One Touch Recording (OTR) . . . . . . . .84

Chasing Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Simultaneous Recording and Playback . . . . . . . . .86

78 -

English

•DVD-RWs and DVD-RAMs are rewritable.

•DVD-Rs are non-rewritable

Compatibility between Samsung and Other Companies'

Recorders

Disc Types Recording Recording Device Finalizing Additional Recording format in Samsung Recorder

DVD-RAM

DVD-RW

DVD-R

VR Mode

VR Mode

V Mode

V Mode

Samsung

Other Company

Samsung

Other Company

Samsung

Other Company

Samsung

Other Company

X

X finalized not finalized finalized not finalized finalized not finalized finalized not finalized finalized not finalized finalized not finalized

Recordable

Recordable

Not recordable

Recordable

Not recordable

Recordable

Not recordable

Recordable

Not recordable

Not recordable

Not recordable

Recordable

Not recordable

Not recordable

NOTE

Finalize

- This closes the DVD-RW/-R so no additional recording can be done.

Unfinalize

- This allows additional recording on a

DVD-RW disc originally recorded on the

HDD & DVD RECORDER.

- A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalized.

- A DVD-RW disc that has been recorded in Video Mode of a different maker’s recorder cannot be unfinalized.

- A DVD-R disc cannot be unfinalized.

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 79

Recording Formats

When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fits your preferences.

DVD-RAM: Use after formatting the disc.

Unformatted Disc

Do you want to format this disc?

Yes No

DVD-RW: When an unused DVD-RW disc is first inserted, the message “Uninitialized Disc Do you want to initialize this disc?” will be displayed. If you select

Yes

, the disc will be formatted in VR mode.

If you want to change the mode, refer to

Formatting a Disc on page 115.

Recording Mode

Select one of four recording modes by pressing the

REC MODE

button repeatedly while the unit is in Stop mode for the desired recording time and picture quality.

In general, picture quality improves as the recording time decreases.

Recording Mode

XP

(high quality mode)

SP

(standard quality mode)

LP

(long recording mode)

EP

(extended mode)

Recording Times

HDD (120GB)

Approx. 29 hours

Approx. 55 hours

DVD-RAM/-RW/-R

Approx. 1 hour about 8.5 Mbps

Approx. 2 hours about 4.5 Mbps

Approx. 106 hours

Approx. 157 hours

Approx. 208 hours

Approx. 4 hours about 2 Mbps

Approx. 6 hours/ about 1.6 Mbps

Approx. 8 hours/ about 1.2 Mbps

NOTE

Recording time may vary according to specific conditions.

Uninitialized Disc

Do you want to initialize this disc?

Yes No

Unrecordable video

Video with copy protection cannot be recorded on this

HDD & DVD RECORDER.

When the HDD & DVD RECORDER receives a copyguard signal while recording, recording stops and the following message appears on the screen.

DVD-R: Formatting DVD is unnecessary and only Video

Mode Recording is supported.

DVD-RW(V mode)/-R

• Chapters will be created automatically when you finalize recording on DVD-RW/-R discs in Video mode.

The chapter’s length (interval between chapters) varies according to the recording mode.

• Simple editing (erasing titles/changing title name)

DVD-RAM/-RW(VR mode)

• This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.)

• Various editing options using a created Playlist.

You cannot record copy protected movie.

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-

Once and Copy-Never. If you want to record a copy-once type program, use DVD-RW with CPRM in VR Mode and

DVD-RAM.

English

- 79

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 80

Signal type

Media

DVD-RW(Ver.1.1)

DVD-RW(Ver.1.1) with CPRM

VR mode

V mode

DVD-R

DVD-RAM(Ver.2.0)

Copy-Free Copy-Once Copy-Never

O - -

O

O

O

O

O*

O*

-

-

-

-

This * marked parts are compatible with CPRM.

Once “Copy Once” has been recorded, recording cannot be done anymore.

- Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some HDD & DVD

RECORDERs, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the

BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID.

During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Recording the current TV program you are watching

Check that the disc has enough available space for the recording. Adjust the recording mode.

1

Press the

HDD

or

DVD

button.

If you select DVD, Press the

OPEN/CLOSE

button and place a recordable disc on the disc tray.

Press the

OPEN/CLOSE

button to close the disc tray.

Wait until

LOAD

disappears from the front panel display.

If an unused DVD-RAM disc is used, you will be prompted to format first. Make your selection using the

œ √ buttons, then press

ENTER

button. (See page 79)

Unformatted Disc

Do you want to format this disc?

Yes No

If an unused DVD-RW disc is used, whether to initialize or not will be asked first. Make your selection, then press the

ENTER

button.(See page 79)

Uninitialized Disc

Do you want to initialize this disc?

Yes No

2

Press the

CH ( )

or number buttons to select the current program you want to record.

80 -

English

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 81

3

Press the

REC MODE

button repeatedly, (or press the

REC MODE

button and then press the

… † buttons) to select the recording speed (quality).

SP

LP

EP

XP

Record Mode SP 031:39

4

Press the

REC

button.

Information concerning the channel is displayed on the screen, then recording begins.

Icon( ) is displayed on the front panel.

NOTE

You cannot change the recording mode and the channel while recording.

Recording will stop automatically if there is no free space left for recording.

Up to 99 titles can be recorded onto a disc.(DVD-RAM/-RW/-R)

Up to 999 titles can be registered on the

HDD.

HDD recording is available for up to 24 hours, and when recording for 24 hours, 4 titles will be recorded with each being 6 hours in length.

Recording will stop automatically if a copy protected image is selected.

DVD-RAM/-RW discs must be formatted before starting to record. Most new discs are sold unformatted.

Do not use DVD-R authoring discs with this unit.

Recording : CH 11 [SAP]

- To pause recording -

• Press the

REC PAUSE

button to pause a recording in progress.

• Press the

REC PAUSE

button again during pause to resume recording.

• You can switch channels by pressing the

CH ( )

buttons while recording pauses.

- To stop recording -

Press the

STOP ( )

button to stop or finish a recording in progress.

• When using DVD-RAM/-RW/-R discs, the message

“Updating the information of disc. Please wait for a moment” is displayed.

English

- 81

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 82

Recording from external equipment you are watching

4

Press the

REC

button.

Information concerning the external input mode is displayed on the screen, then recording begins.

Icon( ) is displayed on the front panel.

Before you start

Check that the disc has enough available space for the recording. Adjust the recording mode.

- To pause recording -

• Press the

REC PAUSE

button to pause a recording in progress.

• Press the

REC PAUSE

button again during pause to resume recording.

• You can switch channels by pressing the

CH ( )

buttons while recording pauses.

1

Press the

HDD

or

DVD

button.

If you select DVD, press the

OPEN/CLOSE

button and place a recordable disc on the disc tray. Press the

OPEN/CLOSE

button to close the disc tray.

Wait until

LOAD

disappears from the front panel display.

If an unused DVD-RAM disc is used, whether to format or not will be asked first. (See page 79)

If an unused DVD-RW disc is used, whether to initialize or not will be asked first. (See page 79)

2

Press the

INPUT

button to select the input source according to the connection you made.

The front panel display changes in the following sequence:

CH Number

AV 1

AV 2

DV

If you connect a digital camcorder, press the

INPUT

button to select

DV

. (See page 83)

3

Press the

REC MODE

button repeatedly, (or press the

REC MODE

button, then press the

…† buttons) to select the recording speed (quality).

SP

LP

EP

XP

- To stop recording -

Press the

STOP ( )

button to stop or finish a recording in progress.

• When using DVD-RAM/-RW/-R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.

Record Mode SP 031:39

82 -

English

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 83

Copying from a Camcorder

4

Press the

INPUT

button to select

DV

.

If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

DV

The DV device is connected.

You may control the Camcorder using the IEEE1394 (DV) interface.

1

Connect the DV output jack of your camcorder to the

DV input jack on the front of your HDD & DVD

RECORDER using a DV cable.

2

Press the

HDD

or

DVD

button.

If you select DVD, press the

OPEN/CLOSE

button and place a recordable disc on the disc tray. Press the

OPEN/CLOSE

button to close the disc tray. Wait until

LOAD

disappears from the front panel display.

3

Press the

REC MODE

button repeatedly to select the recording speed(quality).

SP

LP

EP

XP

Record Mode SP 031:39

MOVE SELECT RETURN

5

Select the Play (

) icon on the upper part of the screen to playback the camcorder and find the starting position to copy.

You can press the

PLAY ( )

button of the remote control to play the camcorder.

6

To start recording, use the

œ √ buttons to select

Record (

) icon in the top side of the screen, then press the

ENTER

button.

You can press the

REC

button of the remote control to start recording. To display playback related icons on the screen, press any direction button on the remote control.

- To stop recording -

Press the

STOP ( )

button to stop or finish a recording in progress.

• When using DVD-RAM/-RW/-R discs, the message “Updating the information of disc.

Please wait for a moment” is displayed

English

- 83

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 84

Making a One Touch

Recording (OTR)

You can set the HDD & DVD RECORDER to record in

30-minute increments up to 8 hours by pressing the

REC

button.

This function does not operate when making a Timer

Record in TV Guide mode.

NOTE

The timer counter decreases by the minute from 8:00 to 0:00, then the HDD &

DVD RECORDER stops recording.

- To stop recording -

Press the

STOP ( )

button. The message “Do you want to stop recording?” is displayed.

• Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

• Or press the

STOP ( )

button again.

1

Press the

HDD

or

DVD

button.

If you select DVD, press the

OPEN/CLOSE

button and place a recordable disc on the disc tray. Press the

OPEN/CLOSE

button to close the disc tray. Wait until

LOAD

disappears from the front panel display.

2

If you want to record a TV channel, press the

CH ( )

buttons or number buttons to select a desired channel. If you want to record through a connected external component, press the

INPUT

button to select an appropriate external input (AV 1,

AV 2, DV or CH 01).

3

Press the

REC

button to start recording.

Recording : CH 11 [SAP]

About INFO button

During recording, press the

INFO

button once, the system information screen appears.: Displays Active Status,

Background Status, and Main Screen information.

HDD

Active status Record XP

Background Status – –

Screen

System Info

Recording:CH11 [SAP]

JAN/01/2005 (SAT) AM 12:00

Pressing the

INFO

button twice, Disc information screen appears.: Displays Total numbers of Titles and Playlists,

Recordable Time(Title), Available Space(Music/Photo).

HDD

Total Title 15

Total Playlist 2

Recordable Time : Title 17:12 XP

Available Space:Music/Photo 10033 MB

Disc Info

JAN/01/2005 (SAT) AM 12:00

4

Press the

REC

button repeatedly to adjust the desired recording time.

0:30

1:00

... 8:00

Off

OTR Mode 0:30

Pressing the

INFO

button three times: Current recording information screen appears.: Displays information of recording

Name, Title, Created Time and Recording Time.

HDD

Name

Recording Title

Created Time

Recording Time

JAN/01/2005 (SAT)

Recording Info

JAN/01/2005 12:00 AM

CH 11

4

JAN/01/2005 12:00 AM

00:13:27

AM 12:00

84 -

English

06-DVD-HR720_XAA_78~86 2005.9.8 3:28 PM Page 85

Chasing Play

2

Press the

ENTER

or

PLAY ( )

button.

It plays back the title that you are currently recording from the beginning.

Play

You can play back from the beginning of the program you are currently recording.

While Recording

1

Press the

PLAY ( )

button.

It plays back the title that you are currently recording from the beginning.

Playback is not available for 10 seconds from the start of recording.

You can use the

SKIP ( )

and other playback-related buttons to view the previous recorded list.

Play

- Stopping Playback / Recording -

1

Press the

STOP ( )

button. Playback screen disappears and the recording in progress screen appears.

2

Pressing the

STOP ( )

button once more will stop the recording.

NOTE

No sound is heard during search mode.

DVD disc playback is available during HDD recording. However, JPEG and MP3 files in the disc cannot be played back.

HDD playback is available during DVD recording. However, JPEG and MP3 files in the HDD cannot be played back.

Using the TITLE LIST button

1

With the unit in recording mode, press the

TITLE LIST

button.

The Title List screen is displayed.

Press the

… †

/

SKIP ( )

buttons to select the recording title list.

HDD

RECORDING...

JAN/19/2005 12:15 AM

SP V-Mode Compatibility

MOVE

No.

Title

Title List

Length

008 JAN/18/2005 02:15A 00:10:21

009 JAN/19/2005 14:15A 00:40:03

010 JAN/20/2005 16:05A 00:40:15

011 JAN/25/2005 17:00A 00:30:16

012 RECORDING...

00:00:00

SELECT

2/2Page

RETURN EXIT

NOTE

■ This feature is only available in HDD mode.

English

- 85

06-DVD-HR720_XAA_78~86 2005.9.6 6:17 PM Page 86

Simultaneous

Recording and Playback

You can watching the previous title list while recording a program.

- Stopping Playback / Recording -

1

Press the

STOP ( )

button. Playback screen disappears and the recording in progress screen appears.

2

Pressing the

STOP ( )

button once more will stop the recording.

NOTE

No sound is heard during search mode.

This function is not available while timer recording is active.

Using the TITLE LIST button

1

With the unit in recording mode, press the

TITLE

LIST

button.

The Title List screen is displayed.

SP

HDD

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

No.

Title

Title List

Length

008 JAN/18/2005 02:15A 00:10:21

009 JAN/19/2005 14:15A 00:40:03

010 JAN/20/2005 16:05A 00:40:15

011 JAN/25/2005 17:00A 00:30:16

012 RECORDING...

00:00:00

2/2Page

MOVE SELECT RETURN EXIT

2

Press the

… †

/

SKIP ( )

buttons to select the title you want to play,

ENTER

or

PLAY ( )

button.

Selected title list will be played back.

Play

86 -

English

07-DVD-HR720_XAA_87~94 2005.9.8 3:29 PM Page 87

E

diting

This section introduces basic editing functions on a Disc/HDD.

Basic Editing (Title List) . . . . . . . . . . . . . . . . . . . . .88

Advanced Editing (Playlist) . . . . . . . . . . . . . . . . . .95

Copying from HDD to DVD . . . . . . . . . . . . . . . . . .103

Copying Multiple Titles at One Time . . . . . . . . . . .106

Copying from DVD to HDD . . . . . . . . . . . . . . . . . .110

Copying MP3 or JPEG Files from a Disc to HDD . .111

Disc Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Title List

Title List is a list of previously recorded programs. If a title is deleted, that title cannot be played again.

Play List

This refers to a list of user-selected titles. When one playlist is played,only the scene selected by the user will play and then stop.

Even if the playlist is deleted, the original recording will remain. (VR mode only)

Recording or editing might not be completed if an error, such as a sudden power failure occurs.

Please be aware that a material that has been damaged is unable to be retrieved to its original content.

English

- 87

07-DVD-HR720_XAA_87~94 2005.9.6 6:18 PM Page 88

Basic Editing (Title List)

3

Press the

…† buttons to select

Rename

, then press the

ENTER

or

√ button.

The Rename screen is displayed.

HDD

JAN / 1 8 / 2005 12:15 AM CH 11

Rename

Renaming(Labeling) a Title

Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded program.

Back Space

MOVE

Space Delete

SELECT

Clear Save

RETURN EXIT

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

2

Using the TITLE LIST button

Press the

…† buttons to select an entry you want to rename from the Title List, then press the

ANYKEY

button.

Protection

Copy

Delete

Edit

Navigation

JAN/18/2005 12:15 AM

Select Media

SP

Disc Manager

MOVE

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 Page

RETURN EXIT

4

Select the desired characters using the

…† œ √ buttons, press the

ENTER

button.

Rename

HDD

Sports(A1)

Back Space

MOVE

Space Delete

SELECT

Clear Save

RETURN EXIT

Back Space:

Deletes and moves the cursor backwards by one position. (Equivalent to the

CANCEL

button)

Space:

Enters a blank and moves the cursor one forward (to the right).

Delete:

Deletes the character at the cursor position.

Clear:

Deletes all the character inputs.

Save:

Registers the character inputs.

5

Press the

…† œ √ buttons to select

Save

, and then press the

ENTER

button.

The changed title name is displayed on the title item of the selected entry.

HDD No.

Title

Title List

Length

001 Sports(A1) 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

Sports(A1)

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

88 -

English

07-DVD-HR720_XAA_87~94 2005.9.6 6:18 PM Page 89

Locking (Protecting) a Title

Follow these instructions to lock a title to protect it from accidental deletion.

Using the TITLE LIST button

3

Press the

…† buttons to select

Protection

, then press the

ENTER

or

√ button.

Title List

HDD

Title Protection:

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE

On

SELECT

Off

RETURN EXIT

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button .

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

4

Press the

œ √ buttons to select

On

, then press the

ENTER

button. The key icon on the information window for the selected entry changes to the locked status. (

)

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select an entry you want to protect from the Title List, then press the

ANYKEY

button.

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

SP

Select Media

Disc Manager

MOVE

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 Page

RETURN EXIT

English

- 89

07-DVD-HR720_XAA_87~94 2005.9.8 3:29 PM Page 90

Deleting a Title

Follow these instructions to delete an entry from the

Title List.

Using the TITLE LIST button

3

Press the

…† buttons to select

Delete

, then press the

ENTER

or

√ button.

Title List

HDD

Do you want to delete?

(Related playlists may be deleted.)

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE

Yes

SELECT

No

RETURN EXIT

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

• The message may be different depending on the type of disc. You will be prompted with the confirmation message. HDD, DVD-RAM(VR mode), DVD-

RW(VR mode): If a Playlist is present, the message “Do you want to delete? (Related playlists may be deleted.)” is displayed.

DVD-RW(Video mode)/-R: If a playlist is not present, the message “Do you want to delete?” is displayed.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select an entry you want to delete in the Title List, then press the

ANYKEY

button.

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

SP

Select Media

Disc Manager

MOVE

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 Page

RETURN EXIT

4

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

Title List

HDD

Deleting...

(Please wait)

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

HDD No.

Title

Title List

Length

001 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/19/2005 12:15 AM CH11

JAN/19/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

9 0 -

English

07-DVD-HR720_XAA_87~94 2005.9.6 6:18 PM Page 91

NOTE

You cannot delete a protected entry. If you want to delete a protected entry, select

“Off” in the Title Protection menu. (See page 89)

When the Disc Protection has been set to

Protected, you cannot delete titles. (See page 114)

Once an entry is deleted from the Title List it cannot be recovered.

Once DVD-RW/-R is finalized, it cannot be deleted.

Splitting a Section of a Title (Split)

Follow these instructions to split a section of a Title

List entry into two titles.

Using the TITLE LIST button

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select an entry you want to

Split from the Title List, then press the

ANYKEY

button.

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

SP

Select Media

Disc Manager

MOVE

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 Page

RETURN EXIT

English

- 91

07-DVD-HR720_XAA_87~94 2005.9.6 6:18 PM Page 92

3

Press the

…† buttons to select

Edit

, then press the

ENTER

or

√ button.

Protection

Copy

Delete

Edit

Navigation

JAN/18/2005 12:15 AM

Select Media

SP

Disc Manager

MOVE

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

Partial Delete

SELECT

1/1 Page

RETURN EXIT

6

Press the

ENTER

button to select

Split

.

The message “This title cannot be recovered after splitting. Do you want to split?” is displayed.

Select

HDD

Split

JAN/18/2005 12:15 AM CH11

Title List No. 05

Split 1 Split 2

This title cannot be recovered after spliting

Do you want to split?

Split

MOVE

Yes

00:00:00

No

SELECT

00:05:21

00:05:21

Return

RETURN EXIT

4

Press the

…† buttons to select

Split

, then press the

ENTER

or

√ button.

HDD

Split

JAN/18/2005 12:15 AM CH11

Title List No. 001

Split 1 Split 2

Select Split

MOVE

00:00:00

SELECT

00:00:00

00:00:00

Return

RETURN EXIT

5

Using the playback-related buttons (

PLAY()

,

SEARCH ( )

), move to a point for splitting and press the

ENTER

button.

If it is not the point where you want to split, press the

RETURN

button to cancel the selection. Using the playback-related buttons, move to a point to split and press the

ENTER

button.

HDD

Split

JAN/18/2005 12:15 AM CH11

Title List No. 001

Split 1 Split 2

Select Split

MOVE

00:00:00

SELECT

00:05:21

00:05:21

Return

RETURN EXIT

First split interval

Current playtime

Start time of the second split and its screen

7

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

The split title is divided into two, and the following titles will be shifted down by one.

SP

HDD

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:05:21

001 JAN/18/2005 12:15A 00:05:00

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

1/1 Page

MOVE SELECT RETURN EXIT

92 -

English

07-DVD-HR720_XAA_87~94 2005.9.6 6:18 PM Page 93

Deleting a Section of a Title (Partial

Delete)

Follow these instructions to delete a section of a

Title List entry.

(VR mode)

3

Press the

…† buttons to select

Edit

, then press the

ENTER

or

√ button.

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

Navigation

JAN/18/2005 12:15 AM

Select Media

SP

Disc Manager

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

Partial Delete

1/1 Page

MOVE SELECT RETURN EXIT

Using the TITLE LIST button

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

4

Press the

…† buttons to select

Partial Delete

, then press the

ENTER

or

√ button.

HDD

Partial Delete

JAN/18/2005 12:15 AM CH11

Start

Title List No. 001

End

Start End

MOVE

Delete

00:00:00

SELECT

00:00:00

00:01:00

Return

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select an entry you want to edit from the Title List, then press the

ANYKEY

button.

No.

Title

Title List

Length

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

Navigation

JAN/18/2005 12:15 AM

Select Media

SP

Disc Manager

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

1/1 Page

MOVE SELECT RETURN EXIT

5

Press the

ENTER

button at the starting point.

The image and starting point time are displayed in the section deletion starting point window.

HDD

Partial Delete

JAN/18/2005 12:15 AM CH11

Start

Title List No. 001

End

Start End

MOVE

Delete

00:01:00

SELECT

00:00:00

00:01:00

Return

RETURN EXIT

• When using a DVD-RAM/-RW(VR) disc, you can select Partial Delete directly by pressing the

ANYKEY button.

(Then go to step 5)

English

- 93

07-DVD-HR720_XAA_87~94 2005.9.6 6:18 PM Page 94

Edit Title List Screen Elements

HDD

Partial Delete

JAN/18/2005 12:15 AM CH11

Title List No. 001

Start End

Start End

MOVE

Delete

00:01:00

SELECT

00:00:00

00:06:35

Return

RETURN EXIT

Playback bar

Playtime

Section deletion starting point window and time

Section deletion end point window and time

• Select the start and end points of the section you want to delete using the playback related buttons.

• Playback related buttons :

(

PLAY()

,

SEARCH ( )

)

6

Press the

ENTER

button at the end point.

The image and end point time are displayed in the

Section deletion ending point window.

HDD

Partial Delete

JAN/18/2005 12:15 AM CH11

Title List No. 001

Start End

Start End

MOVE

Delete

00:01:00

SELECT

00:06:35

00:06:35

Return

RETURN EXIT

7

Press the œ √ buttons to select

Delete

, then press the

ENTER

button.

HDD

Partial Delete

JAN/18/2005 12:15 AM CH11

Title List No. 001

Start End

Start End

MOVE

Delete

00:01:00

SELECT

00:06:35

00:06:35

Return

RETURN EXIT

Start

HDD

Partial Delete

JAN/18/2005 12:15 AM CH11

Title List No. 001

Start

Do you want to delete?

(Deleted part will not be restored.)

End

End

Yes

Delete

00:01:00

No

00:02:00

00:06:35

Return

MOVE SELECT RETURN EXIT

8

Press the œ √ buttons to select

Yes

, then press the

ENTER

button. The selected section has been deleted.

9

Press the œ √ buttons to select

Return

, then press the

ENTER

button to finish the operation.

NOTE

■ The length of the section to be deleted must be at least 5 seconds long.

■ If the length of the section to be deleted is less than 5 seconds, you will be prompted with the message “The range is too short.”.

■ If the end time precedes the starting time, you will be prompted with the message

“End point cannot be marked earlier than start point”.

The section cannot be deleted when it includes a still picture.

Press the

MENU

button after the operation has finished.

The Title List screen will disappear.

94 -

English

08-DVD-HR720_XAA_95~105 2005.9.6 6:19 PM Page 95

Advanced Editing

(Playlist)

Creating a Playlist

Follow these instructions to create a new playlist entry from a recorded title.

3

Press the

… † buttons to select

New Playlist

, then press the

ENTER

or

√ button.

The Make Playlist screen is displayed.

HDD New Playlist

Make Playlist

Start

Scene No. 001

End

Title List 1/9

Start End

MOVE

Make

00:00:00

SELECT

00:00:00

00:00:10

Return

RETURN EXIT

(VR mode)

Using the TITLE LIST button

1

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

4

Press the

ENTER

button at the start point.

HDD New Playlist

Make Playlist

Start

Scene No. 001

End

Title List 1/9

Start End

MOVE

Make

00:00:10

SELECT

00:00:00

00:00:10

Return

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

2

Press the

ANYKEY

button.

Press the

… † buttons to select

Playlist

, then press the

ENTER

or

√ button.

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

Navigation

JAN/18/2005 12:15 AM

SP

Select Media

Disc Manager

No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

New Playlist

Go To Playlist

1/1 Page

MOVE SELECT RETURN EXIT

• The image and time at the start point are displayed on the Start window.

• The yellow-colored selection bar moves to the End item.

• Select the starting point of the section from which you want to create a new scene using the playback related buttons (

PLAY( )

,

SEARCH (

)

).

5

Press the

ENTER

button at the end point.

HDD

Start

Make Playlist

New Playlist

Scene No. 001

End

Title List 1/9

Start End

MOVE

Make

00:00:10

SELECT

00:10:10

00:10:10

Return

RETURN EXIT

• The image and end point time are displayed in the

End window.

• The yellow-colored selection bar moves to the

Make item.

English

- 95

08-DVD-HR720_XAA_95~105 2005.9.6 6:19 PM Page 96

6

Press the

œ √ buttons to select

Make

, then press the

ENTER

button.

• To make a scene the playlist.

A new Make scene screen is displayed.

Repeat steps 3~6 to make a new scene for the playlist.

A new scene will be added to the current playlist.

You can check and see all the scenes on the Edit playlist screen. (See page 98)

• To make a new playlist.

Repeat steps 1~6 if you want to make a new playlist.

Playing Entries in the Playlist

Follow these instructions to play the playlist entries.

Using the PLAY LIST button

(VR mode)

1

With the unit in Stop mode/Playback mode, press the

PLAY LIST

button.

The Playlist screen is displayed.

7

Press the

œ √ button to select

Return

, then press the

ENTER

button to finish the operation.

NOTE

You can create up to 99 playlist entries.

Depending on the kind of disc, the displayed screen may have a slight difference.

Pressing the

SKIP

button will skip to the next title.

HDD No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

JAN/16/2005 12:15 AM CH11

JAN/16/2005 12:15 AM

7 Scenes

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

• Press the

ANYKEY

button.

• Press the

…† buttons to select

Playlist

, then press the

ENTER

or

√ button.

• Press the

…† buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select the playlist you want to play, then press the

ENTER

or

PLAY ( )

button.

3

Press the

STOP ( )

button to stop playing.

The screen returns to the Playlist screen.

96 -

English

08-DVD-HR720_XAA_95~105 2005.9.6 6:20 PM Page 97

Renaming a Playlist Entry

Follow these instructions to rename a playlist entry, i.e.

to edit the title of a playlist entry.

(VR mode)

3

Press the

…† buttons to select

Rename

, then press the

ENTER

or

√ button.

The Rename screen is displayed.

Rename

HDD

1 8 / JAN / 2005 12:15 AM

Using the PLAY LIST button

Back Space

MOVE

Space Delete

SELECT

Clear Save

RETURN EXIT

1

With the unit in Stop mode/Playback mode, press the

PLAY LIST

button.

The Edit Playlist screen is displayed.

HDD No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

JAN/16/2005 12:15 AM CH11

JAN/16/2005 12:15 AM

7 Scenes

MOVE SELECT

1/1 Page

RETURN EXIT

4

Select the desired characters using the

…† œ √ buttons, then press the

ENTER

button.

HDD

Dolphin

Rename

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

• Press the

ANYKEY

button.

• Press the

…† buttons to select

Playlist

, then press the

ENTER

or

√ button.

• Press the

…† buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select the title you want to

Rename from the Playlist, then press the

ANYKEY

button.

ANYKEY menu is displayed :

Rename

,

Copy

,

Delete

,

Edit Playlist

,

Go To Titlelist

,

Disc Manager

HDD

Rename

Copy

JAN/16/2005 12:15 AM CH11

Edit Playlist

JAN/16/2005 12:15 AM

Go To Titlelist

Disc Manager

MOVE

No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 Page

RETURN EXIT

Back Space

MOVE

Space Delete

SELECT

Clear Save

RETURN EXIT

• This function is the same as the Rename function in

Renaming the Title. (See page 88)

• The maximum number of characters that can be entered is 31. All 31 characters can be displayed by pressing the

INFO

button.

5

Press the

…† œ √ buttons to select

Save

, then press the

ENTER

button.

The changed title is displayed in the title field of the selected playlist entry.

HDD No.

Title

Playlist

Length

001 Dolphin 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

Dolphin

16/JAN/2005 12:15

7 Scenes

MOVE SELECT

1/1 Page

RETURN EXIT

English

- 97

08-DVD-HR720_XAA_95~105 2005.9.6 6:20 PM Page 98

Editing a Scene for the Playlist

Follow these instructions to edit scenes for a playlist.

Using the PLAY LIST button

(VR mode)

3

Press the

…† buttons to select

Edit Playlist

, then press the

ENTER

or

√ button.

The Edit Playlist Scene screen is displayed.

HDD

Edit Playlist

Playlist No. 1

01 00:00:26 020:00:07 03 00:06:04 04 0:00:03

05 0:00:26 06

MOVE

00:01:07

1/1 Page

SELECT RETURN

Return

EXIT

1

With the unit in Stop mode/Playback mode, press the

PLAY LIST

button.

The Edit Playlist screen is displayed.

HDD No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

JAN/16/2005 12:15 AM CH11

JAN/16/2005 12:15 AM

7 Scenes

MOVE SELECT

1/1 Page

RETURN EXIT

Playing a Selected Scene

4

Press the

…†œ √ buttons to select the scene you want to play, then press the

ANYKEY

button.

The playlist entry to be played is selected.

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

• Press the

ANYKEY

button.

• Press the

…† buttons to select

Playlist

, then press the

ENTER

or

√ button.

• Press the

…† buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

HDD

Edit Playlist

Playlist No. 1

01 0:00:26

Play

Modify

Move

020:00:07

05

Add

0:00:26 06

Delete

00:01:07

03

1/1 Page

00:06:04 04

MOVE SELECT

0:00:03

RETURN

Return

EXIT

2

Press the

…† buttons to select the title you want to edit from the Playlist, then press the

ANYKEY

button.

The Edit Playlist menu is displayed:

Rename

,

Copy

,

Delete

,

Edit Playlist

,

Go To Titlelist

,

Disc Manager

.

HDD

Rename

Copy

JAN/16/2005 12:15 AM CH11

Edit Playlist

JAN/16/2005 12:15 AM

Go To Titlelist

Disc Manager

MOVE

No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SELECT

1/1 Page

RETURN EXIT

5

Press the

…† buttons to select

Play

, then press the

ENTER

or

√ button.

The selected scene is played.

PLAY

• To stop scene play, press the

STOP ( )

button.

98 -

English

08-DVD-HR720_XAA_95~105 2005.9.6 6:20 PM Page 99

Modifying a Scene (Replacing a Scene)

To setup, follow steps 1 to 3 on page 98.

4

Press the

…† œ √ buttons to select the scene you want to modify, then press the

ANYKEY

button.

HDD

Edit Playlist

Playlist No. 1

01 0:00:26

Play

Modify

Move

020:00:07

05

Add

06

Delete

00:01:07

03

1/1 Page

00:06:04 04

MOVE SELECT

0:00:03

RETURN

Return

EXIT

7

Press the

ENTER

button at the end point of the scene.

HDD

Start

Modify Scene

New Playlist

Scene No. 001

End

Title List : 1/7

Start End Change

MOVE

00:00:20

SELECT

00:00:30

00:00:30

Cancel

RETURN EXIT

5

Press the

…† buttons to select

Modify

, then press the

ENTER

or

√ button.

The Modify Scene screen is displayed.

HDD

Start

Modify Scene

New Playlist

Scene No. 001

End

Title List : 1/7

Start

00:00:00

End Change

MOVE SELECT

00:00:00

00:00:20

Cancel

RETURN EXIT

• The image and ending point time are displayed in the

End window.

8

Press the

œ √ buttons to select

Change

, then press the

ENTER

button.

Edit Playlist

Playlist No. 1 HDD

01 0:00:26 020:00:07 03 00:00:04 04 0:00:03

05 0:00:26 06

MOVE

00:01:07

1/1 Page

SELECT RETURN

Return

EXIT

• The scene you want to modify is changed with the selected section.

• The yellow-colored selection bar moves to the

Change item.

6

Press the

ENTER

button at the start point of the scene.

HDD

Start

Modify Scene

New Playlist

Scene No. 001

End

Title List : 1/7

Start End Change

MOVE

00:00:20

SELECT

00:00:00

00:00:20

Cancel

RETURN EXIT

• The image and starting point time are displayed on the Start window.

• Select the starting or ending point of the section you want to modify using the playback related buttons (

PLAY( )

,

SEARCH ( )

) .

English

- 99

08-DVD-HR720_XAA_95~105 2005.9.9 3:33 PM Page 100

Moving a Scene (Changing the Position of a Scene)

To setup, follow steps 1 to 3 on page 98.

4

Press the

…† œ √ buttons to select the scene you want to move (change the position), then press the

ANYKEY

button.

HDD

Edit Playlist

Playlist No. 1

01 0:00:26

Play

Modify

Move

02

05

Add

0:00:26 06

Delete

0:00:07 03

MOVE

00:01:07

1/1 Page

SELECT

00:06:04 04

RETURN

0:00:03

Return

EXIT

6

Press the

…† œ √ buttons to select the position to which you want to move the selected scene, then select the

ENTER

button.

HDD

Edit Playlist

Playlist No. 1

01 00:00:26 02 00:00:07 03 00:00:04 04 00:00:03

01 00:00:26 02

MOVE

00:00:07

1/1 Page

SELECT RETURN

Cancel

EXIT

5

Press the

…† buttons to select

Move

, then press the

ENTER

or

√ button.

HDD

Edit Playlist

Playlist No. 1

01 00:00:26 02 00:00:07 03 00:00:04 04 00:00:03

05 00:00:26 06

MOVE

00:01:07

1/1 Page

SELECT RETURN

Cancel

EXIT

• A yellow selection window is displayed on the scene to be moved.

• The selected scene is moved to the selected position.

HDD

Edit Playlist

Playlist No. 1

01 00:01:07 02 00:00:07 03 00:00:04 04 00:00:03

05 00:00:26 06

MOVE

00:00:26

1/1 Page

SELECT RETURN

Return

EXIT

NOTE

Depending on the disc type, the displayed screen may appear slightly different.

100 -

English

08-DVD-HR720_XAA_95~105 2005.9.6 6:20 PM Page 101

Adding a Scene

To setup, follow steps 1 to 3 on page 98.

4

Press the

…† œ √ buttons to select the scene that will have a new scene inserted before it, then press the

ANYKEY

button.

HDD

Edit Playlist

Playlist No. 1

01 020:00:07 03

Modify

Move

01

Add

0200:00:07

Delete

1/1 Page

00:00:04 04

MOVE SELECT

0:00:03

RETURN

Return

EXIT

5

Press the

…† buttons to select

Add

, then press the

ENTER

or

√ button.

The Add Scene screen is displayed.

HDD

Add Scene

JAN/16/2005 12:15AM

Start

Scene No. 001

End

Title List : 1/7

Start

00:00:00

End

MOVE

Add

SELECT

00:00:00

00:00:00

Cancel

RETURN EXIT

7

Press the

ENTER

button at the end point of the scene.

HDD

Add Scene

JAN/16/2005 12:15AM

Scene No. 001

Start End

Title List : 1/7

Start

00:00:15

End

MOVE

Add

SELECT

00:00:35

00:00:35

Cancel

RETURN EXIT

• The image and end point time are displayed in the End window.

• To cancel, press the

œ √ buttons to select

Cancel

, then press the

ENTER

button.

8

Press the

œ √ buttons to select

Add

, then press the

ENTER

button.

HDD

Edit Playlist

Playlist No. 1

01 00:00:26 0200:00:07 03 00:00:04 04 00:00:03

01 00:00:26 0200:00:07

1/1 Page

MOVE SELECT RETURN

Return

EXIT

• The section you want to add is inserted prior to the scene selected in step 4.

6

Press the

ENTER

button at the starting point of the scene.

HDD

Add Scene

JAN/16/2005 12:15AM

Scene No. 001

Start End

Title List : 1/7

Start

00:00:15

End

MOVE

Add

SELECT

00:00:00

00:00:15

Cancel

RETURN EXIT

• The image and starting point time are displayed on the Start window.

• Select the starting or ending point of the section you want to modify using the playback related buttons (

PLAY( )

,

SKIP ( )

) .

English

- 101

08-DVD-HR720_XAA_95~105 2005.9.6 6:20 PM Page 102

Deleting a Scene

To setup, follow steps 1 to 3 on page 98.

4

Press the

…† œ √ buttons to select the scene you want to delete, then press the

ANYKEY

button.

HDD

Edit Playlist

Playlist No. 1

01 0:00:26

Play

Modify

Move

020:00:07

05

Add

0:00:26 06

Delete

00:01:07

03

1/1 Page

00:06:04 04

MOVE SELECT

0:00:03

RETURN

Return

EXIT

5

Press the

…† buttons to select

Delete

, then press the

ENTER

or

√ button.

Edit Playlist

Playlist No. 1 HDD

01 0:00:26

Do you want to delete the scene ?

0:00:03

05 0:00:26 06

MOVE

Yes

00:01:07

1/1 Page

SELECT

No

RETURN

Return

EXIT

• The message “Do you want to delete the scene ?” is displayed.

6

Press the

œ √ buttons to select

Yes

, then press the

ENTER

to delete the selected scene.

Deleting a Playlist Entry from the

Playlist

Using the PLAY LIST button

1

With the unit in Stop mode/Playback mode, press the

PLAY LIST

button.

The Edit Playlist screen is displayed.

HDD No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

JAN/16/2005 12:15 AM CH11

JAN/16/2005 12:15 AM

7 Scenes

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

• Press the

ANYKEY

button.

• Press the

…† buttons to select

Playlist

, then press the

ENTER

or

√ button.

• Press the

…† buttons to select

Go To Playlist

, then press the

ENTER

or

√ button.

2

Press the

…† buttons to select the title you want to edit from the Playlist, then press the

ANYKEY

button.

The Edit Playlist menu is displayed:

Rename

,

Copy

,

Delete

,

Edit Playlist

,

Go To Titlelist

,

Disc Manager

.

HDD

Rename

Copy

Delete

JAN/16/2005 12:15 AM CH11

Edit Playlist

Go to Titlelist

No.

Title

Playlist

Length

001 JAN/16/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/22/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

1/1 Page

MOVE SELECT RETURN EXIT

102-

English

08-DVD-HR720_XAA_95~105 2005.9.9 7:13 PM Page 103

3

Press the

…† buttons to select

Delete

, then press the

ENTER

or

√ button.

• You will be prompted with the delete confirmation message “Do you want to delete?”.

Playlist

HDD

Do you want to delete?

JAN/16/2005 12:15 AM CH11

JAN/16/2005 12:15 AM

7 Scenes

MOVE SELECT

Yes No

RETURN EXIT

4

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

You will be automatically returned to the Playlist screen after the delete operation has finished.

Playlist

HDD

Deleting...

(Please wait)

JAN/16/2005 12:15 AM CH11

JAN/16/2005 12:15 AM

7 Scenes

HDD No.

Title

Playlist

Length

001 JAN/19/2005 12:15A 00:40:03

002 JAN/22/2005 12:15A 00:20:15

003 JAN/25/2005 12:15A 00:50:16

JAN/19/2005 12:15 AM CH11

JAN/19/2005 12:15 AM

7 Scenes

MOVE SELECT

1/1 Page

RETURN EXIT

Copying from HDD to

DVD

About the Copy Screen

!

@

#

$

HDD

Copy

Copy To : HDD

DVD

No.

1

Title

JAN/01/2005 20:25A

Rec.Mode

Length

SP

HS 00:01:40

Add to list

Start

Rec. Mode

[DVD] Available

SP 02:00:32

4.48 GB

Total

00:01:40

0.05 GB

MOVE SELECT RETURN EXIT

%

^

&

*

!

Title to be copied

@

Add titles to be copied (up to 7 titles can be copied at one time)

#

Recording mode for copying

- HS(high speed): you can copy more quickly than normal playback speed.

For example, a one hour recording will be dubbed from the HDD to a DVD-RAM at the following times:

Rec. Speed Time

XP

HS About 32 min.

SP

HS About 18 min.

LP

HS

EP

HS

About 10 min.

About 8 min.

Note : The dubbing times are approximate and depend on the disc and data conditions.

XP/SP/LP/EP

- You can select the recording quality you want to dub to.

You cannot dub a lower quality mode (i.e. EP) to a higher quality mode(i.e. XP)

$

Record time of title to be copied

%

Copy start button

^

Record mode setup button

&

Remaining time and space on the current disc in

DVD Record mode

*

Total record time and space of selected titles for copying

Contents Copy Specifications

Contents

Recorded Video Title

Copy Protected Title

Copy Once Title

HDD

DVD

Supported

Not supported

Move

(Deletes the Title in the HDD after copying)

Once a “Copy Once program” has been recorded on a DVD disc, the disc cannot be copied to the HDD again.

However, if “Copy Once program” has been recorded on the HDD the title can be copied to DVD-RW(VR mode) or DVD-RAM.

NOTE

■ Please be aware that Copy Protection may affect the number of times you can make a copy.

English

- 103

08-DVD-HR720_XAA_95~105 2005.9.9 7:7 PM Page 104

Using the TITLE LIST button

1

Press the

OPEN/CLOSE

button and place a recordable disc on the disc tray.

2

Press the

OPEN/CLOSE

button to close the disc tray. Wait until

LOAD

disappears from the front panel display. Check that the disc has enough available space for the recording.

3

Select the HDD by pressing the

HDD

button on the front panel of the HDD & DVD RECORDER or on the remote control.

4

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

5

Press the

…† buttons to select the title you want to copy.

)

To move to other pages, press the

SKIP(

buttons.

SKIP( )

: previous page of title list

SKIP( )

: next page of title list

6

Press the

ANYKEY

button.

No.

Title

Title List

Length

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

Navigation

JAN/18/2005 12:15 AM

SP

Select Media

Disc Manager

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

1/1 Page

MOVE SELECT RETURN EXIT

7

Press the

…† buttons to select

Copy

, then press the

ENTER

or

√ button.

The Copy screen is displayed.

HDD

Copy

Copy To : HDD

DVD

No.

1

Title

JAN/18/2005 12:15A

Rec.Mode

LP

HS

Add to list

Length

00:10:21

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

Total

4.48 GB

00:10:21

0.25 GB

RETURN EXIT

• If you want to change the record mode (select a different recording quality from the original) when copying, see page 106.

8

Press the

ENTER

or

√ button to select

Start

, then press the

ENTER

button.

HDD

Copy

Copy To : HDD

DVD

No.

Title Rec.Mode

1 JAN/18/2005 12:15A LP

HS

Add to list

Length

00:10:21

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

Total

4.48 GB

00:10:21

0.25 GB

RETURN EXIT

- About Using COPY button -

Press the

…† buttons to select title you want to copy from the title list and then press the

COPY

button on the remote control. You can go to the copy screen.

• During Playback, you can also copy the title by pressing the

COPY

button.

104 -

English

08-DVD-HR720_XAA_95~105 2005.9.9 7:7 PM Page 105

-

Copying a Title that has been edited once before -

9

The “Do you want to view screen of copying title?” message is displayed.

No.

1

HDD

Title

JAN/18/2005 12:15A

Copy

Copy To : HDD

DVD

Rec.Mode

Length

LP

HS 00:10:21 Start

Rec. Mode

MOVE

Yes

SELECT

No

[DVD] Available

LP

04: 08:47

Total

04: 08:47

RETURN EXIT

10

To copy a title while viewing the title on the copy screen, press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

NOTE

High speed copy : This means that you can transfer without having to worry about the quality getting worse with each copy

‘generation’. It also means that copying can be carried out at the maximum speed possible.

10 -1

To begin high speed copy, press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

High speed copy begins. The title to be copied is not played back, while the currently broadcasting program is displayed on the screen.

HDD 1%

If you want to stop copy, press CANCEL key.

DVD

HDD 1%

If you want to stop copy, press CANCEL key.

DVD

• If

No

is selected, the title to be copied is not displayed on the screen, and copying begins while the currently broadcasting program is displayed on the screen.

• To cancel the copying in progress, press the

CANCEL

button.

-

Copying an Unedited title

-

9

-1

The “Do you want to use high speed copy mode?” message is displayed.

No.

1

HDD

Title

JAN/18/2005 12:15A

Copy

Copy To : HDD

DVD

Rec.Mode

Length

LP

HS 00:10:21 Start

Rec. Mode

MOVE

Yes

SELECT

No

[DVD] Available

LP

04: 08:47

Total

04: 08:47

RETURN EXIT

• If

No

is selected, the title to be copied is displayed at its playback speed while copying.

• To cancel the copying in progress, press the

CANCEL

button.

11 -1

After a successful copy, “The title is successfully copied” message is displayed.

The title is successfully copied.

English

- 105

09-DVD-HR720_XAA_106~119 2005.9.9 7:6 PM Page 106

Changing the Record Mode

To setup, follow steps 1 to 7 on page 104.

Copying Multiple Titles at One Time

8

Press the

√ and

† buttons to select

Rec. Mode

, then press the

ENTER

button.

9

HDD

Copy

Copy To : HDD

DVD

No.

1

Title

JAN/18/2005 12:15A

Rec.Mode

Length

LP

HS 00:10:21

Add to list

Start

Rec. Mode

[DVD] Available

LP

LP

04: 08:47

EP

Total

MOVE SELECT RETURN EXIT

Press the

…† buttons to select record mode you want to record, then press the

ENTER

button.

• HS(High Speed) : Copies in the same record mode as

HDD.

• XP/SP/LP/EP : You cannot copy at a higher quality mode than original. If the same record mode is selected, the title is copied at high speed.

NOTE

Using the same method, you can copy a

Playlist.

High speed copying is not available for a title list that has been partially deleted.

During copying, timer recording is not available.

High speed copying is not available when:

- Copying a title that can only be copied once

- Copying a playlist

- Copying a partially-deleted title

Regarding title lists that can be copied only once:

- Only available for DVD discs that support

CPRM.

- If a playlist contains a scene that can only be copied once, it cannot be copied.

You cannot dub a lower quality mode (i.e.

EP) to a higher quality mode(i.e. XP).

Using the TITLE LIST button

1

Press the

OPEN/CLOSE

button and place a recordable disc on the disc tray.

2

Press the

OPEN/CLOSE

button to close the disc tray. Wait until

LOAD

disappears from the front panel display. Check that the disc has enough available space for the recording.

3

Select the HDD by pressing the

HDD

button on the front panel of the HDD & DVD RECORDER or on the remote control.

4

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

HDD No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

5

Press the

…† buttons to select one of the titles you want to copy.

To move to other pages, press the

SKIP (

buttons.

SKIP( )

: previous page of title list

SKIP( )

: next page of title list

)

106 -

English

09-DVD-HR720_XAA_106~119 2005.9.9 7:6 PM Page 107

6

7

Press the

…† buttons to select

Copy

, then press the

ENTER

or

√ button.

The Copy screen is displayed.

HDD

Copy

Copy To : HDD

DVD

No.

1

Title

JAN/18/2005 12:15A

Rec.Mode

Length

LP

HS 00:10:21

Add to list

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

4.48 GB

Total

00:10:21

0.25 GB

RETURN EXIT

8

Press the

ANYKEY

button.

Protection

Copy

Delete

Edit

No.

JAN/18/2005 12:15 AM CH11

SP

Select Media

Disc Manager

MOVE SELECT

Title

1/1 Page

Title List

RETURN

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

EXIT

Press the

ANYKEY

button.

HDD

Copy

Copy To : HDD

DVD

No.

Title

1 JAN/18/2005 12:15A

Add to list

Rec.Mode

Length

LP

HS 00:10:21

Add

Delete

Preview

Rec. Mode

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

Total

4.48 GB

00:10:21

0.25 GB

RETURN EXIT

9

Press the

…† buttons to select

Add

, then press the

ENTER

button.

The Add Copy List screen is displayed.

Press the

…† buttons to select the title you want to copy, then press the

ENTER

button.

Other method: Press the

…† buttons to select

Add a list

, then press the

ENTER

button.

Press the

…† buttons to select a title you want to copy, then press the

ENTER

button.

HDD No.

Title

Add Copy List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

10

Repeat steps 8~9 to select an additional title you want to copy.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

3

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

JAN/20/2005 15:15A

Rec.Mode

Length

LP

HS 00:10:21

LP

HS 00:15:21

LP

HS 00:30:21

Add to list

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

Total

4.48 GB

00:56:03

1.88 GB

RETURN EXIT

11

Press the

ENTER

or

√ buttons to select

Start

, then press the

ENTER

button.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

3 JAN/20/2005 15:15A

Add to list

Rec.Mode

Length

LP

HS 00:10:21

LP

HS 00:15:21

LP

HS 00:30:21

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP

04:00:16

Total

4.48 GB

00:56:03

1.88 GB

RETURN EXIT

The added title lists are copied into the copy list.

To cancel the copying in progress, press the

CANCEL

button.

NOTE

If copy list contains at least one title that cannot be copied at high speed, it performs step 9 described on page105.

Otherwise, it performs the step 9 -1 on page 105.

described

English

- 107

09-DVD-HR720_XAA_106~119 2005.9.9 7:6 PM Page 108

Deleting an Undesired Title from the

Copy List

To setup, follow steps 1 to 7 on pages 105~106.

Previewing a Selected Title from the

Copy List

To setup, follow steps 1 to 7 on pages 105~106.

8

Press the

…† buttons to select a title you want to delete from the copy screen.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

3 JAN/20/2005 15:15A

Add to list

Rec.Mode

Length

LP

HS 00:10:21

LP

HS 00:15:21

LP

HS 00:30:21

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP

04:00:16

Total

4.48 GB

00:56:03

1.88 GB

RETURN EXIT

8

Press the

…† buttons to select a title you want to preview in the copy screen.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

3

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

JAN/20/2005 15:15A

Rec.Mode

Length

LP

HS 00:10:21

SP

LS 00:15:21

SP

HS 00:30:21

Add to list

Start

Rec. Mode

[DVD] Available

LP 04:00:16

4.48 GB

Total

00:56:03

1.88 GB

MOVE SELECT RETURN EXIT

9

Press the

ANYKEY

button. Press the

…† buttons to select

Delete

, then press the

ENTER

or

√ button.

The message “Do you want to delete?” is displayed.

HDD

Copy

Copy To : HDD

DVD

No.

Title Rec.Mode

Length

1

3

JAN/18/2005 12:15A

JAN/20/2005 15:15A

LP

HS 00:10:21

2 JAN/19/2005 13:15A LP

HS 00:15:21

LP

HS 00:30:21

Add a list

Yes No

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

4.48 GB

Total

01:06:03

1.88 GB

RETURN EXIT

9

Press the

ANYKEY

button. Press the

…† buttons to select

Preview

, then press the

ENTER

or

√ button.

You can preview the selected title through the display window located at the center of the screen.

HDD

Copy

Copy To : HDD

DVD

No.

Title Rec.Mode

Length

1

2

3

JAN/18/2005 12:15A

JAN/19/2005 13:15A

JAN/20/2005 15:15A

Add a list

LP

HS 00:10:21

SP

LS 00:15:21

SP

HS 00:30:21

SELECT

Start

Rec. Mode

[DVD] Available

LP

04:00:16

Total

4.48 GB

00:56:03

1.88 GB

RETURN EXIT

10

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

The selected title is deleted.

HDD

Copy

Copy To : HDD

DVD

No.

1

3

Title

JAN/19/2005 13:15A

JAN/20/2005 15:15A

Rec.Mode

Length

LP

HS 00:15:21

LP

HS 00:30:21

Add to list

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP

04:00:16

Total

4.48 GB

00:45:42

1.30 GB

RETURN EXIT

10

Press the

RETURN

button to exit the Preview mode.

108 -

English

09-DVD-HR720_XAA_106~119 2005.9.9 7:6 PM Page 109

Selecting Record Mode of Each

Title from the Copy List

You can copy multiple titles while setting different record modes for each title.

To setup, follow steps 1 to 7 on pages 106~107.

8

Press the

…† buttons to select a title to change its record mode in the copy screen.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

3 JAN/20/2005 15:15A

Add to list

Rec.Mode

Length

LP

HS 00:10:21

SP

LS 00:15:21

SP

HS 00:30:21

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP

04:00:16

Total

4.48 GB

00:56:03

1.88 GB

RETURN EXIT

Changing Record Mode of All Titles from the Copy List

You can copy multiple titles while setting the same record mode for all titles.

To setup, follow steps 1 to 7 on pages 106~107.

8

Select the

Rec. Mode

on the right-hand side on the screen using the

…†œ √ buttons, then press the

ENTER

button.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

3 JAN/20/2005 15:15A

Add to list

Rec.Mode

Length

LP

SP

HS 00:10:21

LS 00:15:21

SP

HS 00:30:21

MOVE SELECT

Start

Rec. Mode

04:00:16

LP

EP

4.48 GB

01:06:03

High Speed

RETURN EXIT

9

Press the

ANYKEY

button. Press the

…† buttons to select

Rec. Mode

, then press the

ENTER

or

√ button.

HDD

Copy

Copy To : HDD

DVD

No.

Title Rec.Mode

Length

1

2

JAN/18/2005 12:15A

JAN/19/2005 13:15A

LP

HS 00:10:21

SP

LS 00:15:21

3 JAN/20/2005 15:15A

Add

Add a list

SP

HS 00:30:21

XP

Delete SP

Preview

Rec. Mode

LP

EP

MOVE SELECT

Start

Rec. Mode

[DVD] Available

LP 04:00:16

Total

4.48 GB

00:56:03

1.88 GB

RETURN EXIT

9

Press the

…† buttons to select the record mode you want, then press the

ENTER

button.

Rest of the copying process can be performed as described in pages 104 to 105.

HDD

Copy

Copy To : HDD

DVD

No.

1

2

3

Title

JAN/18/2005 12:15A

JAN/19/2005 13:15A

JAN/20/2005 15:15A

Rec.Mode

Length

LP

HS 00:10:21

SP

HS 00:15:21

SP

HS 00:30:21

Add to list

Start

Rec. Mode

[DVD] Available

LP 04:00:16

Total

4.48 GB

00:56:03

1.88 GB

MOVE SELECT RETURN EXIT

10

Press the

…† buttons to select the record mode you want, then press the

ENTER

or

√ button.

11

Repeat steps 9~11 to select a title to change it’s record mode.

Rest of the copying process can be performed as described in pages 104 to 105.

English

- 109

09-DVD-HR720_XAA_106~119 2005.9.9 7:6 PM Page 110

Copying from DVD to

HDD

5

Press the

ANYKEY

button.

No.

Title

Title List

Length

Protection

Copy

Delete

Edit

JAN/18/2005 12:15 AM CH11

Navigation

JAN/18/2005 12:15 AM

SP

Select Media

Disc Manager

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

1/1 Page

MOVE SELECT RETURN EXIT

Using the TITLE LIST button

1

Press the

OPEN/CLOSE

button and place a recordable disc on the disc tray.

2

Press the

OPEN/CLOSE

button to close the disc tray.

3

With the unit in Stop mode/Playback mode, press the

TITLE LIST

button.

The Title List screen is displayed.

DVD-RAM(VR) No.

Title

Title List

Length

001 JAN/18/2005 12:15A 00:10:21

002 JAN/19/2005 12:15A 00:40:03

003 JAN/20/2005 12:15A 00:20:15

004 JAN/25/2005 12:15A 00:50:16

SP

JAN/18/2005 12:15 AM CH11

JAN/18/2005 12:15 AM

MOVE SELECT

1/1 Page

RETURN EXIT

Using the MENU button.

• With the unit in Stop mode/Playback mode, press the

MENU

button.

• Press the

…† buttons to select

Title

, then press the

ENTER

or

√ button.

The Title List screen is displayed.

6

Press the

…† buttons to select

Copy

, then press the

ENTER

or

√ button.

The Copy screen is displayed.

DVD-RAM(VR)

Copy

Copy To : DVD

HDD

No.

Title Rec.Mode

1 JAN/18/2005 12:15A LP

HS

Add to list

Length

00:10:21

MOVE SELECT

Start

[HDD] Available

LP

40:16:56

52.99 GB

Total

00:10:21

0.25 GB

RETURN EXIT

- About Using COPY button -

Press the

…† buttons to select the title you want to copy from the title list and then press the

COPY

button on the remote control. The Copy screen will appear with the selected title added.

• During Playback, you can also copy the title by pressing the

COPY

button.

7

Press the

ENTER

or

√ buttons to select

Start

, then press the

ENTER

button.

4

Press the

…† buttons to select the title you want to copy.

To move to other pages, press the

SKIP (

buttons.

SKIP( )

: previous page of title list

SKIP( )

: next page of title list

)

DVD 1%

If you want to stop copy, press CANCEL key.

HDD

110 -

English

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 111

8

After a successful copy, “The title is successfully copied.” message is displayed.

Copying MP3 or JPEG

Files from a Disc to HDD

File Copy

The title is successfully copied.

Copying Multiple Titles at One Time – Same as an

HDD operation(See page 106)

Deleting an Undesired Title from the Copy List –

Same as an HDD operation(See page 108)

Previewing a Selected Title from the Copy List –

Same as an HDD operation(See page 108)

1

Insert a JPEG disc or MP3 disc into the disc tray.

2

Press the

OPEN/CLOSE

button to close the disc tray.

Wait until

LOAD

disappears from the front panel display.

Check that the disc has enough available space for the recording.

3

Press the

…† buttons to select

Music

or


, then press the

ENTER

or

√ button.

The MP3 or JPEG file list is displayed.

NOTE

You cannot copy anything else on finalized

DVD-R and DVD-RW(V mode) mode.

You cannot copy a DVD-VIDEO to HDD.

High speed copying from a DVD-RAM or

DVD-RW (VR mode) is available.

When you copy from DVD-RW(V mode)/-R disc to HDD, high speed copy is not available.

Record mode cannot be changed when you copy a title from DVD to HDD.

CD

MP3

01/15

4.0 MB

MOVE

Music List flower .mp3

..

MP3

MP3

MP3

MP3

MP3

02 : 10 flower .mp3

love. mp3

Straight from the heart.mp3

Run to you.mp3

Heaven.mp3

This Love.mp3

1/3 Page

SELECT RETURN EXIT

Contents Copy Specifications

Contents

Recorded Video Title

Copy Protected Title

Copy Once Title

DVD

HDD

Supported

Not supported

Not supported

English

- 111

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 112

4

Press the

…† buttons to select the MP3 or JPEG files you want to copy, then press the

ANYKEY

button.

CD

Copy

Select Media

MOVE flower .mp3

Music List

02 : 10

..

MP3

MP3

MP3

MP3

MP3 flower

.mp3

love. mp3

Straight from the heart.mp3

Run to you.mp3

Heaven.mp3

This Love.mp3

1/3 Page

SELECT RETURN EXIT

5

Press the

…† buttons to select

Copy

, then press the

ENTER

or

√ button.

File copy begins.

When copying a file from a disc to HDD, it is copied to the HDD’s Music or Photo folder.

Folder Copy

1

Insert a Disc (JPEG or MP3) in to the tray.

2

Press the

…† buttons to select

Music

or


, then press the

ENTER

or

√ button.

The MP3 or JPEG folder is displayed.

CD

ROOT

01/15

_ _

MOVE

Music List

00 : 00

..

Song1

Song2

Song3

Song4

Song5

SELECT

1/1 Page

RETURN EXIT

CD

Copying...

Disc Type : HDD free space : 2939 MB

Bryan Adams.mp3

Music List

02 : 10

MUSIC

MP3

Bryan Adams.mp3

Bryan Adams_2.mp3

HDD

MP3

MP3

Straight from the heart.mp3

Run to you.mp3

MP3

1/3 Page

CANCEL

3

Press the

…† buttons to select the MP3 or JPEG folder you want to copy, then press the

ANYKEY

button.

CD

Copy

ROOT

Go To Playlist

01/15

Select Media

MOVE

Music List

00 : 00

..

Song1

Song2

Song3

Song4

Song5

SELECT

1/1 Page

RETURN EXIT

4

Press the

…† buttons to select

Copy

, then press the

ENTER

or

√ button.

Folder copy begins.

Subfolders and files in the selected folder are copied.

Music List

CD

Copying...

Disc Type : HDD free space : 2939 MB

Bryan Adams.mp3

MUSIC

MP3

Bryan Adams.mp3

Bryan Adams_2.mp3

HDD

MP3

MP3

Straight from the heart.mp3

Run to you.mp3

MP3

1/3 Page

CANCEL

112 -

English

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 113

NOTE

Pressing the

CANCEL

button during folder copying will cancel the folder copying after the current file is copied.

Up to 1,500 files and 1,000 subfolders can be copied into one folder for MP3 files.

Up to 4,500 files and 1,000 subfolders can be copied into one folder for JPEG files.

Files having an existing name of

***.mp3/***.jpg, is automatically renamed to ***01.mp3/***01.jpg and copied.

It allows up to 999 copies to have the same name.

You cannot copy an Audio CD.

MP3 or JPEG files can be copied only from a disc to the HDD.

File size on a disc and the copied file in the HDD may be slightly different due to the file system.

Contents Copy Specifications

Contents

MP3

JPEG(photo)

HDD

DVD

Not supported

Not supported

DVD

HDD supported supported

Disc Manager

Editing the Disc Name

Follow these instructions to give a name to a disc.

1

With the unit in Stop mode, press the

ANYKEY

button.

Search

Scene Navigation

Time Navigation

Marker

Rec. Mode

Select Madia

Disc Manager

2

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

DVD-RAM(VR)

Disc Name

Used Space

Available Space

00 : 04 : 30

02 : 08 SP

Disc Protection Info Not Protected

Disc Manager

Rename Protection

MOVE

Delete All

SELECT RETURN

Format

EXIT

English

- 113

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 114

3

Press the

œ √ buttons to select

Rename

, then press the

ENTER

button.

The Rename screen is displayed.

Rename

DVD-RAM(VR)

Disc Protection

Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations.

1

With the unit in Stop mode, press the

ANYKEY

button.

Back Space

MOVE

Space Delete

SELECT

Clear Save

RETURN EXIT

4

Select the desired characters using the

…† œ √ buttons, then press the

ENTER

button.

Rename

DVD-RAM(VR)

Disc

Search

Scene Navigation

Time Navigation

Marker

Rec. Mode

Select Madia

Disc Manager

Back Space

MOVE

Space Delete

SELECT

Clear Save

RETURN EXIT

5

Press the

…† œ √ buttons to select

Save

, then press the

ENTER

button.

A disc name is given to the disc.

DVD-RAM(VR)

Disc Name

Used Space

Available Space

Disc

00 : 04 : 30

02 : 08 SP

Disc Protection Info Not Protected

Disc Manager

Rename Protection

MOVE

Delete All

SELECT RETURN

Format

EXIT

2

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

DVD-RAM(VR)

Disc Name

Used Space

Available Space

00 : 04 : 30

02 : 03 SP

Disc Protection Info Not Protected

Disc Manager

Rename Protection

MOVE

Delete All

SELECT RETURN

Format

EXIT

3

Press the

œ √ buttons to select

Protection

, then press the

ENTER

button.

DVD-RAM(VR)

Disc Name

Used Space

Available Space

00 : 11 : 56

Disc Manager

Rename Protection

MOVE

Delete All

SELECT RETURN

Format

EXIT

NOTE

You may need to clear disc protect before beginning editing.

Depending on the kind of disc, the displayed screen may be different.

4

Press the

œ √ buttons to select

On

, then press the

ENTER

button.

114 -

English

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 115

Formatting a Disc

Use these instructions to format a disc.

The disc protect should also be cleared.

NOTE

Shortly after HDD disc format, the space equivalent to several 10 seconds or several minutes will be displayed as used. This is because a certain HDD space is always reserved for data recording for the purpose of EPG service even though there is no data to be recorded after such a format process.

1

Press the HDD or DVD button on the unit or remote to select which disc (DVD/HDD) you want to format.

2

With the unit in Stop mode, press the

ANYKEY

button.

Search

Scene Navigation

Time Navigation

Marker

Rec. Mode

Select Madia

Disc Manager

DVD-RW

• You will be prompted with the confirmation message “Choose the recording format for

DVD- RW.”

Disc Manager

DVD-RW(VR)

Disc Name

Used Space 00 : 10 : 32

Available Space

01 : 29 SP

Choose the recording format for DVD-RW.

Disc Protection Info Not Protected

Current Rec. Mode DVD-V

Rename

Protection Delete All Finalize

MOVE SELECT RETURN

Format

EXIT

3

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

Disc Manager

HDD

[Title Partition]

Used Space

Available Space

00 : 10 : 32

054 : 20 SP

[Music/Photo Partition]

Used Space

0006MB

Available Space

10034MB

MOVE

Delete All

SELECT RETURN

Format

EXIT

4

Press the

œ √ buttons to select

Format

, then press the

ENTER

button.

Disc Manager

HDD

[Title Partition]

Used Space 00 : 10 : 32

Available Space 054 : 20 SP

Do you want to format this disc?

[Music/Photo Partition]

Used Space

Available Space

10034MB

No

MOVE

Delete All

SELECT RETURN

Format

EXIT

HDD

/

DVD-RAM

• You will be prompted with the confirmation message “Do you want to format this disc?”.

• If you select

Yes

, you will be prompted with the confirmation message “All data will be deleted.

Do you want to continue?”.

5

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button. The disc is formatted.

DVD-VR and DVD-V are defined according to their recording format.

DISC

DVD-VR

DVD-RAM

DVD-RW

DVD-V

DVD-RW

DVD-R

NOTE

Discs created in DVD-V mode can only be played in DVD recorders. Discs created in

DVD-VR mode can be played on all standard DVD players.

English

- 115

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 116

1

Delete All Title Lists/Music

Lists/Photo Lists

With the unit in Stop mode, press the

ANYKEY

button.

Search

Scene Navigation

Time Navigation

Marker

Rec. Mode

Select Madia

Disc Manager

4

Press the

œ √ buttons to select the

Title

,

Music

or


, then press the

ENTER

button.

Title

HDD

[Title Partition]

Used Space 00 : 10 : 32

Available Space 054 : 20 SP

All title will be deleted.

Disc Manager

Used Space

Available Space

10034MB

No

MOVE

Delete All

SELECT RETURN

Format

EXIT

Music

Disc Manager

HDD

[Title Partition]

Used Space 00 : 10 : 32

Available Space 054 : 20 SP

All music will be deleted.

Used Space

Available Space

10034MB

No

MOVE

Delete All

SELECT RETURN

Format

EXIT

2

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

Disc Manager

HDD

[Title Partition]

Used Space

Available Space

00 : 10 : 32

054 : 20 SP

[Music/Photo Partition]

Used Space

0006MB

Available Space

10034MB

MOVE

Delete All

SELECT RETURN

Format

EXIT


Disc Manager

HDD

[Title Partition]

Used Space 00 : 10 : 32

Available Space 054 : 20 SP

All photo will be deleted.

Used Space

Available Space

10034MB

No

MOVE

Delete All

SELECT RETURN

Format

EXIT

3

Press the

œ √ buttons to select

Delete All

, then press the

ENTER

button.

Disc Manager

HDD

[Title Partition]

Used Space

Available Space

00 : 10 : 32

054 : 20 SP

Select contents to delete all

[Music/Photo Partition]

Used Space

Title

0006MB

10034MB

Music Photo

MOVE

Delete All

SELECT RETURN

Format

EXIT

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item.

5

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

All title lists, music list or photo lists are deleted.

116 -

English

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 117

Delete All Title Lists

1

With the unit in Stop mode, press the

ANYKEY

button.

• When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate.

If you want to delete a protected entry, disable Protect for it on the Lock item.

• When protected a DVD-RAM is used, data cannot be deleted from a disc.

4

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

All title lists are deleted.

Search

Scene Navigation

Time Navigation

Marker

Rec. Mode

Select Madia

Disc Manager

2

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

DVD-RAM(VR)

Disc Name

Used Space

Available Space

00 : 11 : 56

01 : 06 SP

Disc Protection Info Not Protected

Disc Manager

Rename Protection

MOVE

Delete All

SELECT RETURN

Format

EXIT

3

Press the

œ √ buttons to select

Delete All

, then press the

ENTER

button.

• You will be prompted with the confirmation message

“Do you want to delete all title lists?”.

DVD-RAM(VR)

Disc Name

Used Space

00 : 11 : 56

00 : 11 : 56 SP

Disc Manager

Rename Protection

MOVE

Delete All

SELECT RETURN

Format

EXIT

English

- 117

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 118

Finalizing a Disc

After you record titles onto a DVD-RW/DVD-R disc with your HDD & DVD RECORDER, it needs to be finalized before it can be played back on external devices.

1

With the unit in Stop mode, press the

ANYKEY

button.

Search

Scene Navigation

Time Navigation

Marker

Rec. Mode

Select Madia

Disc Manager

If you select

Yes

, you will be prompted again with the message “Disc will be finalized. Do you want to continue?”.

Disc Manager

DVD-RW(VR)

Disc Name

Used Space 00 : 10 : 32

Available Space

01 : 29 SP

Disc will be finalized.

Do you want to continue?

Disc Protection Info Not Protected

Current Rec. Mode No

Rename

Protection Delete All Finalize Format

MOVE SELECT RETURN EXIT

4

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

The disc is finalized.

2

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

Disc Manager

DVD-RW(VR)

Disc Name

Used Space

Available Space

00 : 10 : 32

Disc Protection Info Not Protected

Current Rec. Mode

VR-Mode

Rename

Protection Delete All

MOVE

Finalize

SELECT RETURN

Format

EXIT

3

Press the

…† buttons to select

Finalize

, then press the

ENTER

button.

You will be prompted with the message “Do you want to finalize disc?”.

Disc Manager

DVD-RW(VR)

Disc Name

Used Space

00 : 10 : 32

Available Space 01 : 06 SP

Do you want to finalize disc?

Disc Protection Info Not Protected

Current Rec. Mode

Rename

Protection Delete All

No

Finalize

MOVE SELECT RETURN

Format

EXIT

NOTE

Once a disc is finalized, you cannot delete entries from the record list.

After being finalized, the DVD-R/DVD-

RW(video mode) operates in the same manner as a DVD-Video.

Depending on the disc type, the displayed screen may be different.

Finalizing time may be different depending on the amount of data recorded on the disc.

Data on the disc will be damaged if the

HDD & DVD RECORDER is powered off during finalization process.

When the disc contains a music or JPEG files, it cannot be finalized.

118 -

English

09-DVD-HR720_XAA_106~119 2005.9.6 6:22 PM Page 119

Unfinalizing a Disc (V/VR mode)

To add additional titles to a finalized disc,you must first unfinalize it.

1

With the unit in Stop mode, press the

ANYKEY

button.

Search

Scene Navigation

Time Navigation

Marker

Select Madia

Disc Manager

2

Press the

…† buttons to select

Disc Manager

, then press the

ENTER

or

√ button.

Disc Manager

DVD-RW(VR:F)

Disc Name

Used Space

Available Space

00 : 00 : 00

00 : 00 SP

Current Rec. Mode DVD-VR

MOVE unfinalize

SELECT RETURN

Format

EXIT

4

Press the

œ √ buttons to select

Yes

, then press the

ENTER

button.

The disc is unfinalized .

NOTE

A DVD-RW can be finalized or unfinalized in Video mode.

Mark

Finalize

DVD-Video(RW)

Operation Same as DVD-Video

Unfinalize

DVD-RW(V)

Additional recording, protection and deletion are possible.

A DVD-RW can be finalized or unfinalized in VR mode.

Finalize

DVD-RW(VR:F)

Unfinalize

DVD-RW(VR) Mark

Additional recording,

Operation deletion, editing, and

Additional recording, deletion, editing, and protection are impossible.

protection are possible.

3

Press the

œ √ buttons to select

Unfinalize

, then press the

ENTER

button.

You will be prompted with the message “Do you want to unfinalize disc?”.

Disc Manager

DVD-RW(VR:F)

Disc Name

Used Space

00 : 00 : 00

Available Space 00 : 00 SP

Do you want to unfinalize disc?

Current Rec. Mode DVD-V

Yes No

MOVE unfinalize

SELECT RETURN

Format

EXIT

If you select

Yes

, you will be prompted again with the message “Disc will be unfinalized. Do you want to continue?”.

Disc Manager

DVD-RW(VR:F)

Disc Name

Used Space

00 : 00 : 00

Available Space 00 : 00 SP

Disc will be unfinalized.

Do you want to continue?

Current Rec. Mode DVD-V

Yes No

MOVE unfinalize

SELECT RETURN

Format

EXIT

English

- 119

10-DVD-HR720_XAA_120~126 2005.9.6 6:24 PM Page 120

Troubleshooting

I

A

dditional nformation

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .120

Problems and Solutions . . . . . . . . . . . . . . . . . . . .124

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

120 -

English

If your product malfunctions, go through the checkpoints below before contacting a Samsung authorized service center.

Power

The input is displayed for a while when the power is turned on.

Checkpoint 1

The HDD & DVD RECORDER requires some time to initialize and the input will be displayed for approx. 10 seconds after it is turned on.

Recording

Cannot record TV programs.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Check whether the power cord is securely plugged into the power outlet.

Did you set the HDD & DVD

RECORDER channel settings correctly?

Check the free space on your

HDD/DVD-RAM/-RW/-R discs.

I pressed the

REC

button but there is no response.

Checkpoint 1

Recording is possible for HDD/DVD-

RAM/DVD-RW/-R discs only.

If a program is copy protected, it cannot be recorded.

10-DVD-HR720_XAA_120~126 2005.9.6 6:24 PM Page 121

Playback

Cannot play the disc.

The angle operation does not work while playing a

DVD disc.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Check whether the disc is inserted correctly with the label facing up.

Check the regional code of the DVD disc.

This HDD & DVD RECORDER cannot play some types of discs.

(See pages 6, 49)

Checkpoint 1

The angle operation is available only when the disc contains images captured from different angles. icon appears on the screen.

The selected audio and/or subtitle language is not played.

Checkpoint 1

You cannot use this operation or function due to one of the following reasons:

(1) Your DVD disc restricts it.

(2) Your DVD disc does not support this feature (for example: angles)

(3) The feature is not available at the moment.

(4) You've requested a title, chapter, or scan time that is out of range.

Checkpoint 1

Audio and subtitle languages are disc-specific. Only the sound and subtitle languages contained on the

DVD disc are available and displayed in the disc menu.

Cannot copy title or file to the other mode.

Play mode settings are different from the settings configured in the Settings menu.

Checkpoint 1

DVD discs encoded with copy protection can not be copied to HDD.

Checkpoint 1

The disc does not support all selected functions. In this case, some settings configured in the settings menu may not work properly.

Checkpoint 2

Refer to “Contents Copy Specifications” on page 6 to check if copying is supported.

Cannot change the aspect ratio.

Checkpoint 1

The aspect ratio is fixed for DVD discs. (See page 44)

English

- 121

10-DVD-HR720_XAA_120~126 2005.9.8 3:33 PM Page 122

Video

The disc revolves, but no image or bad quality images are displayed.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Checkpoint 4

Be sure that the Video Setting is properly set. (See pages 44~46)

Check whether there is damage to or any foreign material on your disc.

Some low quality discs may not play properly.

If scenes change from dark to bright suddenly, the screen may shake vertically temporarily, but this is not a fault.

Sound

No sound.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Checkpoint 4

Are you watching a program in slow or skip mode?

If you are playing a program at a speed other than normal speed, sound will not be heard.

Check the connections and settings.

(See pages 23~25, 42~43)

Check whether the disc is damaged.

Clean the disc, if necessary.

Check whether the disc is inserted correctly with the label facing up.

No audio output.

Checkpoint 1

Check whether you have selected the correct digital output options in the Audio Output Options menu.

(See page 42)

Remote Control Unit

The remote control doesn't work.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Checkpoint 4

Point the remote control at the remote control sensor on your HDD & DVD

RECORDER. Allow for proper distance. Remove obstacles between your HDD & DVD RECORDER and the remote control.

Check whether the batteries are drained.

Check the TV/DVD selection button setting.

Check whether TV control button is selected or not.

122 -

English

10-DVD-HR720_XAA_120~126 2005.9.6 6:24 PM Page 123

Other

I forgot my password for parental supervision.

Other problems.

Checkpoint 1

Press and hold the

PLAY ( )

and

STOP ( )

button on the front panel of the HDD & DVD RECORDER for more than 5 seconds with no disc in the unit.

All settings including the password will revert to the factory settings. Do not use this unless absolutely necessary. (Note that this function is possible only when no disc is inserted.)

Is it possible to change a subtitle and an audio signal on a recorded disc?

Checkpoint 1

Checkpoint 2

Checkpoint 3

Read the table of contents and then find and read the section describing your problem, follow the instructions given.

Plug your HDD &DVD RECORDER off and on.

If the problem still persists, contact a nearby Samsung service center. To locate a center near you, call 1-800

SAMSUNG.

Checkpoint 1

A recorded disc is played with only the subtitle and the audio signal which were selected during recording.

English

- 123

10-DVD-HR720_XAA_120~126 2005.9.6 6:24 PM Page 124

Problems and Solutions

(Display error Message)

Before contacting a Samsung authorized service center, perform the following simple checks.

Problem

You cannot record a copy protected movie.

You cannot record. This disc is protected.

This disc cannot be formatted (the disc is protected).

This disc cannot be renamed

(the disc is protected).

The disc cannot be finalized (the disc is protected).

This [Menu] is not available (the disc is protected).

The disc cannot be played,

Please check the regional code of the disc.

This disc cannot be formatted.

Please check the disc.

You cannot format the disc because of error detection.

You cannot finalize the disc because of error detection.

You cannot unfinalize the disc because of error detection.

The disc cannot be played,

Please check the TV system.

Explanation / Solution

• You can’t record the video since it is protected by copyright.

• Disc you are using is protected. To record on this disc or use this function, cancel the disc protection function. Refer to page 114.

• The disc does not match the regional code for your area and cannot be played on this device.

• Make sure there are no scratches or dirt on the disc.

• The disc is PAL format and cannot be played on this unit.

The disc can be neither played nor recorded.

The disc cannot be played, Please check the disc.

• Make sure there are no scratches or dirt on the disc.

If the disc has invalid information, no more titles can be recorded.

Please format the disc beforehand.

• You can’t use the disc because it contains errors from previous recordings.

Use the disc after formatting.

124 -

English

10-DVD-HR720_XAA_120~126 2005.9.6 6:24 PM Page 125

Problems and Solutions

(Display error Message)

Problem

Error is detected on the disc.

Explanation / Solution

• You can’t use the disc because it contains errors from previous recordings.

Use the disc after formatting.

System error is found.

Please try it again after turning off the power.

• When operating, errors happen. Turn off the device.

(To turn off, press and hold the power button on the front of the device for 10 seconds.)

After turning off, press the Open button and remove the disc from the device.

The DV device is not connected.

• Make sure the DV device is connected properly to the DV connection Jack.

If it is connected properly, turn it off and on once again.

If you are unable to solve the problem after reading the above instructions, note:

• The model and serial number on the rear of your HDD & DVD RECORDER

• The warranty information

• A clear description of the problem

Then contact your nearest SAMSUNG authorized service center. Call 1-800-SAMSUNG for a center near you.

English

- 125

10-DVD-HR720_XAA_120~126 2005.9.6 6:24 PM Page 126

Specifications

General

Input

Output

Recording

Power requirements

Power consumption

Weight

Dimensions

Operating temp.

Other conditions

Video (1,2)

Audio(1,2)

DV Input

120V AC, 60Hz

44 Watts

9.27 lb (4.20 kg)

17in (43 cm) (W) x 10in (25.5 cm) (D) x 3.1in (7.9 cm) (H)

+41°F to +95°F

Keep level when operating. Less than 75% operating humidity

1.0 V p-p at 75Ω load, sync negative

S-Video input (Y: 1.0Vp-p, C: 0.286Vp-p at 75Ω load)

Max.Audio Input Level : 2Vrms

IEEE 1394(4p) compatible jack

Regular TV broadcasting: VHF (2~13), UHF (14~69)

Receivable Channels

Audio

Cable TV broadcasting: 1~125

Analog output jacks 1, 2

Optical/Coaxial digital audio output

Full scale Analog output level : 2Vrms

Video

Video output jack 1

S-Video output 1 (Y:1.0Vp-p, C:0.286Vp-p at 75Ω load)

Component output 1 (Y: 1.0Vp-p, Pb: 0.70Vp-p, Pr: 0.70Vp-p at 75Ω load)

Picture Compression format MPEG-II

Audio Compression format Dolby Digital 2ch/256Kbps

XP (about 8.5 Mbps), SP (about 4.5 Mbps), LP (about 2 Mbps),

Recording Quality

Audio Frequency Response

EP (about 1.6 Mbps or about 1.2 Mbps),

20 Hz ~ 20 kHz

Audio Output

For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz.

Disc Type

Analog Audio Output

Digital Audio Output

DVD

48 / 96kHz

48kHz

AUDIO CD(CD-DA)

44.1kHz

44.1kHz

126 -

English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 127

TV Guide On Screen

®

User Manual

For use in USA

Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

TV Guide On Screen Overview . . . . . . . . . . . . . . .128

Guide Setup for a DVD Recorder . . . . . . . . . . . . .129

Screen Component . . . . . . . . . . . . . . . . . . . . . . .134

Panel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Guide Navigation . . . . . . . . . . . . . . . . . . . . . . . . . .138

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . .138

Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

Remind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Frequently Asked Questions(FAQs) . . . . . . . . . . .162

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .163

TV Guide On Screen Glossary . . . . . . . . . . . . . . .164

TV Guide On Screen Overview

Guide Setup for a DVD Recorder

Screen Components

Guide Navigation

Main Services

-

Listing, Search, Schedule, Recordings,

Setup, Record and Remind

Frequently Asked Questions(FAQs)

Troubleshooting

TV Guide On Screen Glossary

English - 127

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 128

Notice TV Guide on Screen

Overview

Trademark Notice

In the United States, TV GUIDE and other related marks are registered marks of Gemstar-TV Guide

International, Inc. and/or one of its affiliates.

License Notice

The TV Guide On Screen system is manufactured under license from Gemstar-TV Guide

International, Inc. and/or one of its affiliates.

Patent Notice

The TV Guide On Screen system is protected by one or more of the following issued United States patents 6,498,895, 6,418,556, 6,331,877;

6,239,794; 6,154,203; 5,940,073; 4,908,713;

4,751,578; 4,706,121.

Disclaimer Notice

Gemstar-TV Guide International Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV Guide

International, Inc. and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system

Congratulations, your new TV contains the TV Guide

On Screen Interactive Program Guide! This Guide has features and services that help you get the most out of your viewing experience.

Your Guide has the following features:

Three 30-minute time periods program listings in a 16x9 aspect ratio

Eight days of show listings (today plus seven days)

Icons that indicate show rating, stereo, HDTV, new episode, etc.

Intuitive up/down/left/right navigation using your remote control

Set shows to Record

Schedule show Reminders

Search shows by category (e.g., Movies, Sports,

Children, HDTV, etc.)

Search for shows based on keywords or alphabetically by title

Recordings for DVD recordable and DVR shows

Direct tuning to a channel

Shows information while watching TV

Streamlined System Setup and default setting options

Channel lineup customization

Help screens while in the Guide

NOTE

The TV Guide On Screen system works with cable-ready, cable box, and digital cable services, as well as over-the-air broadcast; it does not provide listings for satellite services.

128 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 129

Guide Setup for a DVD Recorder

Welcome Screen

Initial DVD Recorder set up leads you to the

Welcome screen.

Or press the GUIDE button to begin setup.

The Welcome Screen lists features in the Guide.

Press ENTER to display Screen Reminder

Screen.

Welcome Screen

Reminder Screen

If you previously skipped Guide setup, you see the

Reminder Screen when you power On your DVD

Recorder.

To make a selection, use the up or down arrow buttons to highlight an option, and press ENTER.

Or press the Guide button to begin setup.

The Welcome Screen lists features in the Guide.

Press ENTER to display Screen 1.

NOTE

If you decide not to setup the Guide now, this reminder screen will appear each time you power On the DVD Recorder (except if you selected “Don't remind me again”).

Reminder Screen

Screen 1

Screen 1: Country

This screen asks you the location of your DVD

Recorder.

Use the up or down arrow button to highlight a country.

Press ENTER to display Screen 2.

English - 129

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 130

Screen 2: Enter ZIP or Postal Code

If you selected USA in Screen 1, you see the ZIP

Code screen.

You input numbers by either

- pressing the number buttons on the remote or

- using the up or down arrow button to display a number, and then the left or right arrow button to

● move to another field.

Press ENTER to display Screen 3.

If you selected Canada in Screen 1, you see the

Postal Code screen.

You input characters by using the up or down arrow button, and then the left or right arrow button to move to another field.

Press ENTER to display Screen 3.

Screen 2

Screen 2-1

Screen 3: Do you have Cable?

If you select Yes, you will see Screen 4.

If you select No, you will see Screen 12.

Screen 3

Screen 4: Do you have a Cable Box?

If you select Yes, you will see Screen 5.

If you select No, you will see Screen 13.

Screen 4

130 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 131

Screen 5 : Which TV Guide input is the cable box plugged into?

If you select RF TUNER, you will see screen 6.

If you make any other choice, you will see screen 7.

Screen 5

Screen 6 : Cable Box Tuning Channel

Select the channel used for the cable box.

Press ENTER to display Screen 7.

Screen 6

Ch 2

Ch 3

Ch 4

Screen 7 : Cable Box Configuration Diagram

The diagram shows the correct way to install the

G-LINK cable from the back of the DVD Recorder to the cable box. Make sure the G-LINK cable is

properly installed.

Press ENTER to display Screen 8.

Screen 7

Screen 8 : Cable Box Brand Name

Use the up and down arrows to select a cable box brand.

Press ENTER to display Screen 9.

Screen 8

English - 131

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 132

Screen 9 : Cable Box Preparation

Follow the on-screen instructions, and press

ENTER to display Screen 10.

Screen 9

Screen 10: Cable Box Code Testing

When testing is done, Screen 11 displays automatically.

Screen 10

Screen 11: Cable Box Tuned to Channel 9?

If you select Yes, you will see Screen 12.

If you select No, a different code is tested in Screen 10.

NOTE

Many Cable Boxes require testing more than one code.

If you select Test this code again, the same code is tested again in Screen 10.

Screen 11

132 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 133

Screen 12:Do you have an antenna connected?

If you select Yes, you will see Screen 13.

Screen 12

NOTE

If you selected No in Screen 3 then you must select Yes in this screen to receive a channel lineup and listings.

If you select No, you will see Screen 13.

If you select YES, some devices may display an additional screen. After that screen, you will see Screen 13.

Screen 13:Are the settings correct?

If you select Yes, end setup, you see Screen 14.

If you select No, repeat setup process, you will see

Screen 1.

Screen 13

Screen 14:Congratulations

You have successfully completed Setup!

Press ENTER and you will see Screen 15.

Screen 14

Screen 15:Helpful Information

This screen tells you valuable information on using your Guide.

Press Enter to watch TV.

Screen 15

English - 133

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 134

Screen Components

Guide screens have all or many of the features and controls in common, as shown in the following figure:

Video Window - displays TV video while the Guide is displayed

Tile - displays show title

Highlight - indicates an active tile

Info Box - provides information for a highlighted item

Info Button - cycles through the various Info Box sizes

Channel Logo - identifies network

Record/Remind Icons - indicates a show is set to Record or set as a Reminder

Panel Ad - location where show- or product-specific information appears (and also where Panel Menu appears)

Channel Ad - location where show-specific information appears

Service Bar - provides access to the main Guide Services

Current Service Label - indented to indicate current Service displayed

TV GUIDE

LOGO

Video

Window

Clock

Time

Slot Time Tab

Current Service

Label

Tile Highlight

Navigation

Bar

Tile

HD Icon

Panel Ad

Channel Logo Info.box

Channel Ad

Record &

Remind Icons

134 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 135

Video Window

The Video Window is located in the upper-left corner of the Guide. When you enter the Guide, the TV video for the current show appears in the Video Window. The

Video Window also includes a clock display and a lock/unlock icon to indicate the status of the Video

Window.

You can set the Video Window to remain on a single channel (lock) or change channels (unlock) as you navigate through LISTINGS. With a channel logo or the

LISTINGS Service Label highlighted, press the Menu button to display the option to Lock/Unlock the Video

Window.

Info Box

An Info Box contains information about a show, service, ad, or provides general help. A Show Listing

Info Box can have up to three sizes: Small, Large, and

“No”. The default size of the Info Box is Last Used.

Press the Info Button to cycle among the sizes. The user may change the default size in the Setup Service.

Info Button

The Info button appears on the button bar, if the Info box size can change and/or if there are additional Info screens.

Pressing the INFO button on the remote cycles between Info box sizes, as available.

In some instances, the INFO button is used to page forward, if there are additional pages of information, such as a Panel Ad, Channel Ad, or help text.

Icons

Icons are visual representations in TV Guide On Screen of

Current information

Current and future actions

● Current and future status

TV Guide

Logo

Clock

Lock/Unlock

Icon

Video

Window

English - 135

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 136

Name

Info Button

Progress Bar

HDTV

New

Stereo

CC

TV Rating

Record Once

Record Daily

Record Off

Record Suspended

Remind Once

Remind Daily

Remind Off

Remind Suspended

Recording Media HDD

Recording Media DVD

Delete Recording

“I delete”

Lock/Unlock

Icon Description

Indicates additional Info box information is available or that the Info box has additional sizes.

Indicates additional Info box information is available. Icon only appears for

Panel Menus.

Indicates how much time has elapsed in current program.

Show is presented in High-Definition TV, if available

Show is new (not a re-run)

Show is available in Stereo

Closed Captioning is available for the show

For example,

TV rating for the show

Show is set to Record Once

Other frequencies are Daily, Regularly, and Weekly

Indicates the program is set to record Daily (manual record setting only).

Show is set to Record but is currently Off (show remains in Schedule)

Show is Suspended due to a schedule conflict (show remains in Schedule)

Recording resumes when the conflict no longer exists

Show is set to Remind Once

Other frequencies are Daily, Regularly, and Weekly

Indicates the program is set to Remind Daily (manual record setting only).

Show is set to Remind but is currently Off (show remains in Schedule).

Show is Suspended due to a schedule conflict (show remains in Schedule).

Remind resumes when the conflict no longer exists.

Displays to indicate HDD storage

Displays to indicate DVD storage

Indicates recording will not be deleted until done so by user

Indicates status of the Video Window

136 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 137

Panel Menu

Panel Menu Highlight Parked Highlight

Odometer Number Entry Box

A Panel Menu appears when the MENU or ENTER (context dependent) button is pressed on a highlighted tile and additional options are available.

When a Panel Menu appears, the highlighted tile is parked (changes color).

The Panel Menu displays over the Panel Ad and below the Video Window.

Panel Menu options within a Service are described in each respective Service section.

The up and down arrow moves between the options within the Panel Menu.

The left and right arrows move to adjacent options unless highlight is on an odometer, where left/right arrows change the odometer choice.

Screen

If a Panel Menu contains more menu options than can be displayed on a single screen, a more

▼ icon appears at the bottom of a menu.

Pressing ENTER from an odometer or number entry box moves the highlight to the default command button of that Panel Menu (for example, Schedule

Reminder).

Pressing ENTER from a highlighted command button executes the action and closes the Panel

Menu.

Select Cancel and press ENTER to close this menu, revert to previous settings, and return to the parked tile.

Pressing the MENU button at any location in the menu cancels any option changes made during this session, reverts to previous settings and returns the highlight to the parked tile.

English - 137

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 138

Guide Navigation Remote Control

When you enter the Guide while watching TV, the highlight appears on the currently watched show in Listings.

Use the arrow buttons on the remote control to highlight any show and then ENTER to tune to that show. You can scroll left or right to view additional days to a maximum of seven.

For setting recordings, reminders, and additional options, press the MENU button to display a

Panel MENU with options for the currently highlighted program.

To access another Guide Service, use the up arrow to highlight the LISTINGS Service Label.

Use the left or right arrow to highlight a different

Service and then the down arrow to use that

Service. Helpful information about each Service appears in the Info Box.

NOTE

When in the Guide, pressing the TV

GUIDE button on the remote control will always tune to the TV show displayed in the Video Window.

The following table describes remote control actions related to the Guide.

Button

TV Guide

,

,

œ

,

ENTER

MENU

INFO

REC

PAGE UP/DOWN

/

NUMBERS

Description

When watching TV, enters the

Guide and highlights a show

● listing

When in the Guide, returns to watching TV and displays the show in the video window

Provides directional control

Makes a selection or executes

● an action

With a currently airing show listing highlighted, returns to watching TV and tunes to the show channel

With a future airing show listing highlighted, displays a Panel

Menu with viewing options

Displays the Panel Menu from which you can choose options

(e.g., record, remind, keyword, etc.)

Cycles between levels of information, as available, in a

Service or other type of screen

When in the Guide or watching

TV, initiates the recording process

When in the Guide, moves, when applicable, from one set of screen information to the next

Provides numeric entries for direct tuning, priority ordering, and channel editing

138 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 139

Listings

Access Listings by pressing the TV GUIDE button on your remote. Listings is always the first Service displayed in the Guide.

With Listings highlighted, press the INFO button to display a Help screen. Press the INFO button again to close the screen.

Use the up/down/left/right arrow buttons to move the highlight within LISTINGS to

View show listings for today plus 7 days (8 days total)

Read show descriptions

Tune directly to a show currently airing

Set a show to Remind

Set a show to Record

Lock and unlock the Video Window

Access Panel and Channel Ads

Screen 1

English - 139

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 140

Search

Search lets you find shows by category (HDTV, Movies, Sports, Children, Educational, News, Variety, Series),

Keyword, or Alphabetical.

Category Search Example: Movies

1

With Search highlighted, press the INFO button to display a Help screen.

Screen 1

2

Press the INFO button again to close the screen.

Screen 2

3

From Search, use the down arrow to highlight

Movies.

Screen 3

140 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 141

NOTE

Panel Menu Navigation

Press the Info button to display a Help screen. Press the Info button again to close the screen.

The up and down arrows move the highlight among the options within a Panel Menu. The number buttons on the remote are used to input information.

An odometer option has arrows on both sides. Use the left and right arrows to cycle through the different options.

■ Press ENTER from an option to highlight the default command button (e.g., Done). Press ENTER again to execute the action and close the panel menu.

■ Select CANCEL, and press ENTER to close the menu and return to the previous screen, or press

MENU on the remote to cancel any changes and close the menu.

Screen 4 4

Use the down arrow to highlight a subcategory

(for example, All).

Press ENTER to display a list of all Movies, organized by date and time.

5

Highlight a show and press ENTER to watch

(if On now) or the MENU button to display the

Episode Options menu.

Screen 5

6

In the Episode Options menu, you can choose to set a recording, a reminder, or tune to the channel.

Go to Service Bar - closes the menu, changes no information, and returns to the Search

Service Bar.

Tune to Channel - exits the Guide and tunes to the channel of the highlighted show (show airs in the future).

Set Recording - displays the Record Options menu, from which you can set frequency, start and end time, etc

Set Reminder - displays the Remind Options menu, from which you can set frequency (once, regularly, weekly), start time, automatically power

On, and auto-tune the TV.

• automatically power On, and auto-tune the TV.

Cancel - closes the menu, changes no information, and returns to the highlighted show.

Screen 6

NOTE

This option displays Watch Now if the show is currently airing.

English - 141

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 142

Keyword Search Example

Keyword search lets you enter a word(s) for a particular show title found in the Listings and Recordings

Services.

1

Highlight the KEYWORD Section Bar, and press

ENTER to display the Keyword Search menu.

Highlight New Search, and press ENTER.

Screen 1

2

The Search Options menu is displayed.

Highlight Category, and use the left/right arrows to select a category to search (e.g., All, HDTV,

Children, Sports, etc.).

When finished, use the down arrow to highlight

Enter Keyword.

Screen 2

3

The keyboard is displayed.

Use the arrow buttons to highlight a character, and press ENTER to display it. When complete, highlight Done and press ENTER.

Screen 3

4

A list of all matching shows for that keyword is displayed.

Like the Category Search Example, you can highlight a show, and press ENTER to display all airings.

You can then highlight a specific show listing and press ENTER to watch (if On now), or the MENU button to display the Episode Options menu.

From the Episode Options menu, choose Set

Recording, Set Reminder, or Tune to Channel, as previously described.

142 - English

Screen 4

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 143

Screen 5

5

The Guide stores all the keywords you create. To edit or delete a keyword, highlight the keyword, and press the MENU button. A Search Options

menu is displayed.

Go to Service Bar - closes the menu, changes no information, and returns to the Search

Service Bar.

Edit Search - displays the keyboard, where you can change the keyword.

Delete Search - A Confirm menu is displayed.

-Yes : deletes the Search

- No : closes the panel menu

Cancel - closes the menu, changes no information, and returns to the highlighted show.

Screen 5-1

NOTE

The Guide can store a maximum of 250 keyword entries.

Recordings

Recordings displays list of previously recorded or currently recording shows.

1

With Recordings highlighted, press the INFO button to display a Help screen. Press the INFO button again to close the screen.

Screen 1

2

Press the

…† buttons to highlight the show and then pressing the MENU button to display the

Recordings Options menu. Use the up and down arrows to choose between the following :

• View As, use the left and right arrows to choose between

- Group : Recorded shows are listed without listing every recorded episode (see example in

Screen 2)

Screen 2

English - 143

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 144

- List : Displays a complete list of every recorded episode for a show(see example in Screen 2-1)

• Sort By, use the left and right arrows to choose between

- Title : shows are displayed in alphabetical order

(see example in Screen 2)

- Date : Shows are displayed by date and time, with most recent date and time first (see example in Screen 2-1)

When finished, press ENTER to highlight Done,

Press ENTER again to close the menu and display the Recordings with the selected options.

• Cancel - Closes the menu, changes no information, and returns to the highlighted

Service bar.

Screen 2-1

Screen 3

3

In List View, highlight an episode. An Info box provides show information. Press the Menu button to display the Episode Options menu.

4

In Group View, highlight a show and press ENTER to view a summary for all the recorded shows along with the episode list(Press ENTER again to close the episode list).

5

Highlight a specific episode and press the Menu button to display the Episode Options menu.

To view an episode, you can do one of the following :

highlight an episode, and press ENTER to view it now. The episode either starts from where it was last stopped (if viewed previously) or from the beginning.

Highlight an episode and press the MENU button to display the Episode Options menu.

- Go to Service Bar : closes the menu, changes no information, and returns to the

Schedule Service Bar.

- Resume : starts from where it was last stopped (if viewed previously) or from the beginning.

- Play from Beginning : starts from the beginning, even if stopped previously.

- Delete Episode : deletes the episode from the

Recordings. A Confirm menu is displayed.

Yes : deletes the episode.

No : closes the panel menu.

- Cancel : closes the menu, changes no information, and returns to the highlighted show.

144 - English

Screen 5

Screen 5-1

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 145

NOTE

Panel Menu Navigation

■ The up and down arrows move the highlight among the options within a

Panel Menu. The number buttons on the remote are used to input information.

■ An odometer option has arrows on both sides. Use the left and right arrows to cycle through the different options.

Press ENTER from an option to highlight the default command button (e.g., Done,

Resume). Press the ENTER again to execute the action and close the Panel

Menu.

Select CANCEL and press ENTER to close the menu and return to the previous screen, or press MENU on the remote to cancel any changes and close the menu.

Schedule

Screen 1

Schedule lets you review, edit, or delete Record and

Remind events that you set previously.

1

With SCHEDULE highlighted, press the INFO button to display a Help screen. Press the INFO button again to close the screen.

An icon identifies the event type:

Record

Once : records the show one time

Regularly : the show title appears on any day of the week, on the same channel and is at the midway point of the originally scheduled show (e.g., 8:15 for an 8:00–8:30 program,

9:30 for a 9:00–10:00 program)

Weekly : the show title appears on a specific day of the week and is at the midway point of the originally scheduled show (e.g.,

8:15 for an 8:00–8:30 program, 9:30 for a

9:00–10:00 program)

Off : keeps the show in the list but will not record this show until the frequency is changed

Screen 1-1

English - 145

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 146

Remind

Once : sets a show reminder one time

Regularly : the show title appears on any day of the week, on the same channel and is at the midway point of the originally scheduled show

(e.g., 8:15 for an 8:00–8:30 program, 9:30 for a

9:00–10:00 program)

Weekly : the show title appears on a specific day of the week and is at the midway point of the originally scheduled show (e.g., 8:15 for an

8:00–8:30 program, 9:30 for a 9:00–10:00 program)

Off : keeps the show in the list but will not remind until the frequency is changed

2

Highlight an event, and press the MENU button for

Schedule Options.

• Go to Service Bar - closes the menu, changes no information, and returns to the Schedule Service

Bar.

• Tune to Channel - exits the Guide and tunes to the channel of the highlighted show (show airs in the future).

NOTE

■ This option reads Watch Now if the show is currently airing.

■ Recording and Reminder options vary depending on whether the highlighted program is for a recording or reminder event.

Screen 2

• Set Recording - opens a menu from which you can set a recording for the show (Reminder is not cancelled).

• Delete Reminder - removes the Reminder from the

Schedule, after a Confirm screen.

• Edit Reminder - opens a menu from which you can change existing reminder information.

• Cancel - closes the menu, changes no information, and returns to the highlighted show.

146 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 147

NOTE

Panel Menu Navigation

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

■ The up and down arrows move the highlight among the options within a

Panel Menu. The number buttons on the remote are used to input information.

■ An odometer option has arrows on both sides. Use the left and right arrows to cycle through the different options.

■ Press ENTER from an option to highlight the default command button (e.g., Done).

Press ENTER again to execute the action and close the Panel Menu.

Select Cancel and press ENTER to close the menu and return to the previous screen, or press Menu on the remote to cancel any changes and close the menu.

Setup

Screen 1

After you initially complete Guide Setup, you can make changes to existing Guide settings in the following areas:

Change System Settings

Change Channel Display

Change Default Options

1

With SETUP highlighted, press the INFO button to display a Help screen. Press the INFO button again to close the screen.

Screen 2

2

Highlight a choice, press ENTER, and follow the on-screen instructions.

English - 147

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 148

Change System Settings

Change System Settings lets you change your channel lineup as well as any updates to the information you entered during initial Guide setup

(e.g., ZIP code, cable, antenna, recorder, etc.).

1

Press ENTER to display the Confirming Your

Settings screen. You see your current settings.

Screen 1

2

Choose one of the options, press ENTER, and follow the on-screen instructions.

(Refer to page 157 about Guide Setup.)

Screen 2

Change Channel Display

1

Change Channel Display lets you edit channel information that appears in Listings. With Change

Channel Display you can

Switch a channel

- On : the channel is always displayed in

Listings

- Off : the channel is never displayed in Listings

- Auto-Hide : the channel is only displayed when program information is available

NOTE

The default setting for each channel is set by the transmitted data.

148 - English

Screen 1

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 149

Change the service type if you are able to switch the source of the channel (e.g., cable, cable box, over-the-air, antenna, etc.)

Change the tune channel number using your remote control.

Enter a position number in the number entry box

- The position number determines where in

Listings the channel displays

- That number can range from 1 (top position) to the total number of channels in Listings

2

Press ENTER to display the CHANNEL EDITOR screen.

Screen 2

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

3

When finished, press ENTER to highlight Done.

Press ENTER again to close the menu and accept the changes.

NOTE

If you do not wish to save the changes:

Highlight Go Back to Setup and press ENTER to close the menu, change no information, and return to the Setup Service Bar.

or

Highlight Cancel and press ENTER to close the menu, change no information, and return to the highlighted channel.

English - 149

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 150

Change Default Options

Change Default Options lets you change default settings in the following categories:

General Defaults

Record Defaults

Remind Defaults

1

Highlight Change Default Options, and press

ENTER.

Screen 1

General Default Options

1

-1

General Default Options lets you set defaults for the following:

The initial Info Box size when the Guide is entered. Choices are No, Small, Large, and

Last Used (default)

The Info Box cycles when the INFO button is pressed while in the Guide.Choices are No only,

Small only, Large only, No & Small, No &

Large,Small & Large, All (default)

- No only : No Info Box

- Small only : Small Info Box

- Large only : Large Info Box

- No & Small : You can toggle between No or a Small Info Box

- No & Large : You can toggle between No or a Large Info Box

- Small & Large : You can toggle between a Small or Large Info Box

- All(default) : You can toggle between No, or a Small or Large Info Box

Automatic entry into the Guide (Auto-Guide) when the TV is powered On.

Choices are On (default) and Off

2

Highlight General Defaults, and press the MENU button to display the General Defaults menu.

Screen 1-1

Screen 2

150 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 151

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

3

When finished, press ENTER to highlight Done.

Press ENTER again to close the menu and accept the changes.

NOTE

If you do not wish to save the changes:

Highlight Go to Service Bar and press ENTER to close the menu, change no information, and return to the Setup Service Bar.

or

Highlight Cancel and press ENTER to close the menu, change no information, and return to the highlighted channel.

Record Defaults

1

-1

Record Defaults lets you set defaults for the following:

When to start the record event. Choices are

120 minutes early to 120 minutes late, to On time

(default)

When to end the record event. Choices are 120 minutes early to 120 minutes late, to On time

(default)

• Recorder choice

• Keep Until to keep a record event (if applicable)

The Quality of the recording (if applicable)

2

Highlight Record Defaults, and press the MENU button to display the Record Defaults menu.

Screen 1-1

Screen 2

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

English - 151

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 152

3

When finished, press ENTER to highlight Done.

Press ENTER again to close the menu and accept the changes.

NOTE

If you do not wish to save the changes:

Highlight Go to Service Bar and press ENTER to close the menu, change no information, and return to the Setup Service Bar.

or

Highlight Cancel and press ENTER to close the menu, change no information, and return to the highlighted option.

Screen 1

Remind Defaults

1

Remind Defaults lets you set defaults for the following:

• Auto Tune DVD RECORDER to the channel, when a Reminder is scheduled. Choices are Yes and No

(default).

• When to display the reminder screen. Choices are

30 seconds to 15 minutes early, to 30 seconds to

15 minutes late, to On time.

Default = 1 min early.

2

Highlight Remind Defaults, and press the MENU button to display the Remind Defaults menu.

Screen 2

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

3

When finished, press ENTER to highlight Done.

Press ENTER again to close the menu and accept the changes.

152 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 153

NOTE

If you do not wish to save the changes:

Highlight Go to Service Bar and press ENTER to close the menu, change no information, and return to the Setup Service Bar. or

Highlight Cancel and press ENTER to close the menu, change no information, and return to the highlighted channel.

Record

You can set a show to Record in LISTINGS, SEARCH, and SCHEDULE or change Record settings for a show in SCHEDULE.

There are 3 ways to set a show to Record:

Using the Record Button on the Remote

1

Press the REC button on the remote to record the show Once with current default settings (Start and

End recording On Time). Each time you press the

REC button, you change the record frequency (but not the default settings) among

Once (default), Regularly, Weekly, and then

Cancel.

NOTE

The applicable Record icon( ) appears on the show title, as the REC button is pressed.

Using a Panel Menu

1

Highlight a show, and press the MENU button to display the Episode Options menu.

Screen 1

English - 153

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 154

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

Highlight Set Recording, and press ENTER to display the Record Options menu.

Highlight the Frequency option, and use the left and right arrows to choose between Once,

Regularly, Weekly, and Off, as previously described.

Highlight the Start or End option, and use the left and right arrows to choose between options that range between 120 minutes early to 120 minutes late, to On time (default).

• Recorder choice (DVD or HDD)

• How long to keep a record event (if applicable).

• Keep Until for a record event (if applicable).

The Quality (SP, LP, EP, XP) of the recording

(if applicable).

2

When finished, press ENTER to highlight Schedule

Recording. Press ENTER again to close the menu.

You see a Record icon for the selected frequency next to the show title.

Highlight Cancel to close the menu, change no information, and return to the highlighted show.

Once : records the show one time

Regularly : the show title appears on each day the program is broadcast, on the same channel.

Weekly : the show title appears on a specific day of the week.

Off (not cancel) : keeps the show in the list but will not record this show until the frequency is changed

Cancel (no icon displayed) : does not record

Screen 1-1

Screen 2

Using Manual Recording

1

Highlight Schedule, and press the MENU button to display the Schedule Options menu.

Screen 1

154 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 155

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

2

Use the arrow buttons to move through the options. Use the number or arrow keys to change the information, as necessary.

3

Highlight New Manual Recording and press

ENTER to display the Record Options menu.

Current information (i.e., date, start and end times, channel, input) is displayed. Use the arrow buttons to change the information.

• Recorder choice

• Keep Until for a record event (if applicable).

The Quality of the recording (if applicable).

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

Use the left and right arrows to choose

Frequency between Once, Daily, Weekly, and

Off, as follows.

- Once : records the time, channel, input, recorder combination one time

- Daily : records the time, channel, input, recorder combination Monday through Friday

- Weekly : records for the channel/time combination on a specific day of the week

- Off (not cancel) : keeps the time, channel, input, recorder combination in the list without recording until the frequency is changed

Screen 3

Screen 3-1

English - 155

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 156

Screen 4

4

When finished, press ENTER to highlight

Schedule Recording. Press ENTER again to close the menu.

You will see a Record icon for the selected frequency next to the show title.

NOTE

Manual recording is listed by channel number.

If you do not wish to save the changes:

Highlight Cancel and press ENTER to close the menu, change no information, and return to the highlighted show.

Before recording begins and if your TV is On, a notification screen appears. At that time, you can choose to start or cancel recording. If the TV is not On, the recording occurs as scheduled. If there is no activity for 3 minutes, the notification screen automatically closes and completes the highlighted item.

Screen 4-1

Screen 1

Record Conflict

A conflict message appears for the following reasons:

a show set to Record overlaps with any part of another show previously set to Record

a show set to Record overlaps with a show previously set to auto-tune

Select one of these options:

record anyway - this show will override an existing show set to Record or auto-tune

Screen 1-1

don’t record this show - cancels the Recording

156 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 157

NOTE

Panel Menu Navigation

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

■ The up and down arrows move the highlight among the options within a

Panel Menu. The number buttons on the remote are used to input information.

■ An odometer option has arrows on both sides. Use the left and right arrows to cycle through the different options.

■ Press ENTER from an option to highlight the default command button (e.g., Set

Recording, Set Reminder, Schedule

Recording, Done). Press ENTER again to execute the action and close the Panel

Menu.

■ Select Cancel and press ENTER to close the menu and return to the previous screen, or press Menu on the remote to cancel any changes and close the menu.

Remind

You can change Reminder settings for a show in the

Schedule.

There are 2 ways to set a show Reminder:

Using a Panel Menu

1

Highlight a show, and press the MENU button to display the Episode Options menu.

Screen 1

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

English - 157

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 158

2

Highlight Set Reminder, and press ENTER to display the Remind Options menu.

Highlight the Frequency option, and use the left and right arrows to choose among

- Once : sets a show reminder one time

- Regularly : the show title appears on any day of the week, on the same channel and is at the midway point of the originally scheduled show (e.g., 8:15 for an 8:00–8:30 program,

9:30 for a 9:00–10:00 program)

- Weekly : the show title appears on a specific day of the week and is at the midway point of the originally scheduled show (e.g.,

8:15 for an 8:00–8:30 program, 9:30 for a

9:00–10:00 program)

- Off : keeps the show in the list but will not remind until the frequency is changed

• Auto Tune

- Automatically tune TVto the channel, when a

Reminder is scheduled. Choices are Yes and

No (default).

• When to display the reminder screen. Choices are 30 seconds to 15 minutes early, to 30 seconds to 15 minutes late, to On time Default =

1 min early

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

Screen 2

Screen 3

3

When finished, press ENTER to highlight

Schedule Reminder. Press ENTER again to close the menu.

You see a Remind icon for the selected frequency next to the show title.

If you do not wish to save the changes:

Highlight Cancel and press ENTER to close the menu, change no information, and return to the highlighted show.

158 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 159

Using Manual Reminder

1

Highlight the Schedule Service label, and press the MENU button to display the Schedule

Options menu.

Screen 1

NOTE

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

2

Use the arrow buttons to move through the options. Use the number or arrow buttons to change the information, as necessary.

Highlight New Manual Reminder and press the

ENTER buttons to display the Remind Options menu.

Current information (i.e., date, start and end times, channel, input, frequency) is displayed.

Highlight the Frequency option, and use the left and right arrows to choose between Once, Daily,

Weekly, and Off, as follows.

- Once : sets a show reminder for the time, channel, input, reminder combination one time

- Daily : reminds for the time, channel, input, reminder combination Monday through Friday

- Weekly : reminds for the channel/time combination on a specific day of the week

- Off (not cancel) : keeps the time, channel, input, reminder combination in the list without reminding until the frequency is changed

• Auto tune - Automatically tune to the channel when a Reminder is scheduled. Choices are Yes and No (default).

3

When finished, press ENTER to highlight Schedule

Reminder. Press ENTER again to close the menu.

You see a Remind icon ( ) for the selected frequency next to the show title.

NOTE

Manual reminder is listed by channel number.

If you do not wish to save the changes:

Highlight Cancel to close the menu, change no information, and return to the highlighted show.

Screen 2

Screen 3

English - 159

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 160

Based on your option settings and if the TV is On at the reminder time, a notification screen will appear. You can then choose to hide the reminder, or highlight the show, and press ENTER to tune to the show. If there is no activity for 3 minutes, the notification screen automatically closes and completes the highlighted item (hide reminders).

If you choose Hide Reminders, the window closes for the show or shows, but does not affect other

Reminders you set.

Screen 3-1

Screen 3-2

NOTE

If more than 2 reminders are set for the same time, arrows appear on the Reminder screen. Use the up and down arrows to view the shows.

Remind Conflict

1

A conflict message appears for the following reasons:

a show set with an Auto-Tune Reminder has the same start time as an existing Auto-Tune

Reminder.

a show set with an Auto-Tune Reminder overlaps with a Recording already scheduled.

2

Select one of these options:

• auto-tune anyway - this show will override an existing show set to auto-tune

Screen 2

160 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 161

• proceed, no auto-tune - set the show as a

Reminder but do not auto-tune

Screen 2-1

• don’t set this reminder - cancel the Reminder

Screen 2-2

NOTE

Panel Menu Navigation

Press the INFO button to display a Help screen. Press the INFO button again to close the screen.

The up and down arrows move the highlight among the options within a

Panel Menu. The number buttons on the remote are used to input information.

■ An odometer option has arrows on both sides. Use the left and right arrows to cycle through the different options.

■ Press ENTER from an option to highlight the default command button (e.g., Watch

Now, Set Reminder, Schedule Reminder).

Press ENTER again to execute the action and close the Panel Menu.

Select Cancel and press ENTER to close the menu and return to the previous screen, or press Menu on the remote to cancel any changes, and close the menu.

English - 161

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 162

Frequently Asked

Questions(FAQs)

If I have a power outage, do I need to complete

Setup again?

Checkpoint 1

No, Setup information is stored in TV

Guide On Screen.

If I add a recorder or change my cable service, how do I change my Setup information?

Is Help available in the Guide? If so, how do I find it?

Answer 1

1) Highlight the Setup Service in the

Guide.

2) Use the down arrow to select

Change System Settings.

3) Follow the on-screen instructions.

A show entry in the Guide reads “No Listing.”

What does that mean?

Checkpoint 1

Show information for that entry was not available during the last Guide information update (download).

Show information is updated on a daily basis.

Checkpoint 1

Yes. Highlight any of the 5 main

Services (i.e., Listings, Schedule,

Recordings, Setup, Search) and press the Info button. An Expanded Info Box displays additional help information; press Info again to close the box.

Help is also available in a Panel Menu.

Press the Info button to display an

Expanded Info Box; press Info again to close the box.

After some show titles, I have noticed from 1 to 4 stars (****). What does that mean?

When I entered the Guide, I was asked to choose from more than one channel lineup. What should I do?

Checkpoint 1

These stars are a broadcast-industry rating system used to inform you of a show’s quality. The more stars, the better the rating.

I have seen the word “download” in reference to the Guide. What does that mean?

Checkpoint 1

Select the lineup that most closely matches the one for your area. If after you choose the lineup, you want to make changes

1) Highlight the Setup Service in the

Guide.

2) Use the down arrow to select

Change Channel Display.

3) Follow the on-screen instructions.

Checkpoint 1

A download sends channel and show information to a TV Guide On Screen device. A download happens about once a day.

162 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 163

º

Can I set a Record or Remind event without highlighting a show title in the Guide?

Troubleshooting

Checkpoint 1

Yes. TV Guide On Screen has a

Manual Record and Remind feature.

Highlight Schedule and press menu.

Choose the event type, press ENTER and then enter date, start and stop time, channel number, etc.

What do the frequencies for Record and Remind mean?

I got listings after my initial Setup; however, some days read “No Listings.”

Checkpoint 1

• Once—records/reminds the show one time

• Daily (manual only)—records the time, channel, input, recorder combination Monday through Friday

• Regularly— records/reminds for the channel/time combination on any day of the week, on the same channel

• Weekly— records/reminds for the channel/time combination on a specific day of the week

• Off (not cancel)—keeps the show in the list but will not record/remind the show until the frequency is changed

Checkpoint 1

After initial Setup, it can take up to a week to populate the full 8 days of listings. Once populated, 8 days of information should always be available.

My Guide listings disappeared after a power failure.

Checkpoint 1

You should begin to receive listings again within 24 hours.

Some channel numbers in the Guide are incorrect.

How can I look for a specific show in the Guide?

Checkpoint 1

Search lets you find shows by category (HDTV, Movies, Sports,

Children, Educational, News, Variety,

Series), Keyword, or Alphabetical.

Checkpoint 1

You can correct them using Change

Channel Display under Setup.

I have not received any Guide show listings.

Checkpoint 1

Listings begin to appear within 24 hours after a successful Setup.

• Check the connections between the

TV, cable, antenna, and the IR cable if using a cable box.

• Verify Setup information under

Change System Settings.

• Make sure the cable box is On, if applicable.

• Review Screen 4 and Screen 5 in the

Initial Guide Setup section.

English - 163

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 164

A show I set to Record did not occur.

I set a show with the Power On TV option and it did not.

Checkpoint 1

Checkpoint 2

Checkpoint 3

Checkpoint 4

• Make sure your recorder is turned

Off before the recording begins.

• Make sure there is a tape or DVD in the Recorder.

• Check the Schedule menu and verify that the show is listed before recording begins.

• Check the placement of the IR cable in front of your recorder.

The TV did not tune to a show I scheduled with the Reminder feature.

Checkpoint 1

Checkpoint 2

Checkpoint 3

• Check the Schedule menu and verify that the show is listed as a

Reminder.

• Highlight the show under Listings and do the following:

- Press the Menu button on the remote.

- Use the down arrow to highlight

Edit Reminder, and press ENTER.

- Verify the Power On TV option reads Yes.

• The DVD RECORDER must be Off at the scheduled time for Power On

TV.

Checkpoint 1

Checkpoint 2

•Check the Schedule menu and verify that the show is listed.

•If you have a cable box, check the IR cable.

I set a show to Auto-Tune and it did not.

TV Guide on Screen

Glossary

Checkpoint 1

Checkpoint 2

Checkpoint 3

• Check the Schedule menu and verify that the show is listed as a

Reminder.

• Highlight the show under Listings and do the following:

- Press the Menu button on the remote.

- Use the down arrow to highlight

Edit Reminder, and press ENTER.

- Verify the Auto-Tune option reads

Yes.

• The TV must be On at the scheduled time for Auto-Tune.

1394 - High-speed port that is used to transfer certain types of data in real-time, such as video

Antenna - Receives over-the-air (OTA) broadcast signals for channels which may appear in Listings

Arrow buttons - Up/down and left/right buttons on the remote are used to move around in the Guide or perform Guide-related activities while watching TV

(e.g., set a Reminder notification)

Auto-Tune - Reminder Panel Menu option that lets you choose to have the DVD RECORDER automatically tune to the channel—if you are watching it at the time

Cable Ready - A device that does not require a cable box to receive cable programming

Channel Ad - A promotion that appears within a

Listings section

Channel Editor - A feature accessed through Listings or Setup that allows you to re-order, change the channel number, or switch a channel On or Off in

Listings

Channel Logo - An icon that identifies the network

Direct Dialing - Access to any channel within Listings by entering a channel number on the remote

164 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 165

Direct Tune - When a show currently airing is highlighted in the Guide, pressing the ENTER button on the remote closes the Guide and tunes to the show

Digital Video Disc (DVD) Recorder - A recorder that stores show data on a recordable DVD for later viewing on a DVD player

Expanded Info Box - A window that covers the right side of the Guide and provides additional information about a topic. This window appears for a highlighted

Panel Ad or Channel Ad, or when the Info button is pressed in a Panel Menu when highlighting one of the main Services

Frequently Asked Questions (FAQs) - questions and answers for users, based on their past product experience

Guide - TV Guide On Screen Interactive Program

Guide that provides show listings, search, schedule, recordings, and setup capabilities

Highlight - A visual cue indicating the current area of focus

Icons – Symbols representing features or services.

For example,

= stereo; = closed caption; = record;

=remind; = information available

Info Box - Contains text describing the currently highlighted area in the Guide that may be in the form of help text or information about the highlighted area

(e.g., show description)

Info Button - A remote control button that is used to cycle between Info box sizes, as available; page forward, if there are more pages of information (e.g.,

Panel Ad); or access Help text, as available

Initial Setup - After your device is connected, setup your Guide so you can receive program listings and use Guide recording capabilities; if Setup in not completed initially, the Setup Reminder Screen appears next time

Interactive Program Guide (IPG) - a design from TV

Guide On Screen that provides channel lineup and

8 days of show listings from which you can Sort by category or keyword, and set shows to Record or

Remind

IR Cable - A connection or device that sends remote commands to a separate cable box

Keyword Search – The ability to enter a word to search for a particular show

Lineup - Channel and show information in a broadcast or cable system area based on information you provided during Setup

Listings Service - The first point of entry in the Guide where you can view up to 8 days of listings and show descriptions, tune to a show, set a show to record or remind, etc.

Lock/Unlock - When locked , the Video Window does not change as you move through Listings; when unlocked , the Video Window does change

Menu Button - A remote control button that is used to display a Panel Menu

Number Entry Box – A Panel Menu option in which you use your remote to enter numbers

Odometer - A Panel Menu option that lets you make a selection using left and right arrow buttons

On Screen Display (OSD) - A graphical display that overlays a portion of the TV video (e.g., Reminder notification)

One-Touch Recording – An action which allows you to set a show to record by highlighting it in the Guide and pressing Record on the remote

Over the Air (OTA) - A device that receives broadcast signals by antenna, as opposed to cable

Panel Ad - A promotional area that appears below the

Video Window

Panel Menu - A selection of options which appears in the Panel Ad area and contains a list of all options that apply to the Parked Highlight

Screen

English - 165

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 166

Panel Menu Option - Any option displayed in a Panel

Menu (e.g., Done, Start, Auto-Tune, Channel, Cancel, etc.)

Parked Highlight - When a Panel Menu is displayed, indicates the object to which the Panel Menu applies

Playback bar – An OSD that is overlaid on top of the

TV Video that provides progress bar and status information for the playback of a recording.

Program Info Bar - An OSD that provides a quick way to identify current channel and show information

Progress Bar - A function in the show-related Info box, the Playback bar and the Program Info Bar displays how much of the show has already elapsed and the start and finish times

Record – A setting to create a Record event for a show, or Channel Ad or Panel Ad linked to a show and also customize the record options (start time, frequency, etc.)

Record Conflict - A message that appears for the following reasons:

- a show set to Record overlaps with any part of another show previously set to Record

- a show set to Record overlaps with a show previously set to Auto-Tune

Record Notification Screen - A message that appears when a scheduled show is about to record

Reminder Notification Screen - A message that appears when a scheduled show is about to begin

Search Service - A feature that lets you find shows by category (HDTV, Movies, Sports, Children, Educational,

News, Variety, Series), Keyword, or Alphabetical. Once a show is found, you can watch it (if airing currently), or set a Record or Remind event

Service Bar - The access point to Guide features:

Listings, Search, Schedule, Recordings, Setup

Setup Reminder Screen - If you do not Setup the

Guide during Initial Setup, this screen lets you choose to Setup now, later, or do not remind again

Setup Service - A feature that lets you modify existing

Guide settings, modify option settings (e.g., Record defaults), or change channel display settings

Schedule Service - A feature that lets you review, edit, or delete Record and Remind events you previously set

Video Window - The video area that appears in the top left corner in the Guide

Recordings Service – A feature which displays previously recorded or currently recording shows on a

DVR or the currently inserted DVD in a DVD Recorder

Remind - You can set a Remind event for a show, or

Channel Ad or Panel Ad linked to a show and also customize the remind options (start time, frequency, auto-tune, etc.)

Reminder Conflict - A message that appears for the following reasons:

- a show set with a Reminder has the same start time as an existing Reminder

- a show set with a Reminder overlaps with a show previously scheduled to Record

166 - English

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 167

Warranty

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by

SAMSUNG against manufacturing defects in materials and workmanship for the following limited warranty period:

One (1) Year Parts / Ninety Days (90) Labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by SAMSUNG’s authorized service center. To receive warranty service, the original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be defective during the limited warranty period specified above. The product must be returned during the warranty period with transportation charges prepaid to SAMSUNG’s designated service center. Prior to returning any product for warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.

Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following, including, but not limited to: damage which occurs in shipment; applications and uses for which this product was not intended; failures or problems which are caused by products or equipment not supplied by SAMSUNG; accidents, misuse, abuse, neglect, misapplication, fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations or surges; damage caused by improper or faulty installation; improper connection with any peripheral; product alteration or modification; improper or unauthorized repair; cosmetic damage or exterior finish; product with altered serial numbers; failure to follow operating instructions, customer adjustments, maintenance and environmental instructions that are covered and prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment which damage this product or result in service problems; failures or problems due to incompatibility with other equipment.

English - 167

DVD-HR720_XAA_TV GUIDE127~167 2005.9.28 11:50 AM Page 168

English

ELECTRONICS

Samsung Electronics America, lnc.

105 Challenger Road

Ridgefield Park, NJ 07660-0511

TEL: 1-800-SAMSUNG (7267864) www.samsung.com

AK68-00758B-01

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
