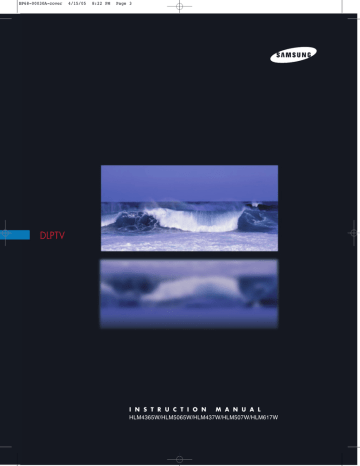

BP68-00030A-cover
4/15/05
8:22 PM
Page 3
DLPTV
I N S T R U C T I O N
M A N U A L
HLM4365W/HLM5065W/HLM437W/HLM507W/HLM617W
BP68-00030A-1
4/15/05
8:26 PM
Page 2
Safety Instructions
Warning! Important
Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates high voltage is present. It is dangerous to make any kind of contact
with any part inside this product.
This symbol alerts you that important literature concerning operation and maintenance has
been included with this product.
CAUTION: FCC/CSA regulations state that any unauthorized changes or modifications
to this equipment may void the user’s authority to operate it.
CAUTION: To prevent electric shock, match the wide blade of plug to the wide slot, and
fully insert the plug.
ATTENTION: Pour eviter les chocs electriques, introduire la lame le plus large de la
fiche dans la borne correspondante de la prise et pousser jusqu’au fond.
Note to CATV system installer: This reminder is provided to call CATV system installer’s
attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian
Electrical Code, Part I), that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible.
Important: One Federal Court has held that unauthorized recording of copyrighted TV
programs is an infringement of U.S. copyright laws. Certain Canadian programs may
also be copyrighted and any unauthorized recording in whole or in part may be in
violation of these laws.
To prevent damage which may result in fire or electric shock,
do not expose this appliance to rain or moisture.
2
BP68-00030A-1
4/15/05
8:26 PM
Page 3
Thank You for Choosing Samsung
Thank you for choosing Samsung! Your new Samsung projection TV represents the latest in television technology. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making it
one of the best products in its class. We are proud to offer you a product that will provide convenient,
dependable service and enjoyment for years to come.
Important Safety Information
Always be careful when using your TV. To reduce the risk of fire, electrical shock, and other injuries,
keep these safety precautions in mind when installing, using, and maintaining your unit.
• Read all safety and operating instructions before operating your TV.
• Keep the safety and operating instructions for future reference.
• Heed all warnings on the TV and in the operating instructions.
• Unplug the TV from the wall outlet before cleaning. Use a damp cloth; do not use liquid or
aerosol cleaners.
• Never add any attachments and/or equipment without approval of the manufacturer. Such
additions can increase the risk of fire, electric shock, or other personal injury.
• Do not use the TV where contact with water is possible, such as near bath tubs, sinks, washing
machines, swimming pools, etc.
• Do not place the TV on an unstable cart, stand, tripod, bracket, or table where
it can fall. A falling TV can cause serious injury to a child or adult, and serious
damage to the appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the TV. Follow the
manufacturer’s instructions when mounting the unit, and use a mounting
accessory recommended by the manufacturer. Move the TV and cart with care.
Quick stops, excessive force, and uneven surfaces can make the unit and cart
unsteady and more likely to overturn.
• The TV is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block
these openings with any object, and do not put the TV on a bed, sofa, rug, or other similar surface. Do
not put the TV near a radiator or heat register. If you do put the TV on a rack or
bookcase, make sure that there is adequate ventilation and that you’ve followed the manufacturer’s
instructions for mounting.
• Operate your TV only from the type of power source indicated on the marking label. If you are not sure
of the type of power supplied to your home, consult your appliance dealer or local power company.
• Use only a grounded or polarized outlet. For your safety, this TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only
one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still
does not fit, contact an electrician to replace your outlet.
3
BP68-00030A-1
4/15/05
8:26 PM
Page 4
Safety Instructions
• Protect the power cord. Power supply cords should be routed so that they won’t be walked on or
pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the unit.
• Unplug the TV from the wall outlet and disconnect the antenna or cable system during a lightning storm
or when left unattended and unused for long periods of time. This will prevent damage to the unit from
lightning and power-line surges.
• Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, be extremely careful to keep from touching the
power lines or circuits. Contact with such lines can be fatal.
• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.
• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points
or damage parts. Never spill liquid of any kind on the TV.
• Ground outdoor antennas. If an outside antenna or cable
system is connected to the TV, be sure the antenna or cable
system is grounded so as to provide some protection against
voltage surges and built-up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA No.70-1984, provides information about proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
EXAMPLE OF
ANTENNA GROUNDING
ANTENNA
LEAD IN WIRE
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC — NATIONAL ELECTRICAL CODE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
• Do not attempt to service the TV yourself. Refer all servicing to qualified service personnel. Unplug the
unit from the wall outlet and refer servicing to qualified service personnel when:
- The power-supply cord or plug is damaged
- Liquid has been spilled on the unit or if objects have fallen into the unit
- The TV has been exposed to rain or water
- The TV does not operate normally by following the operating instructions
- The TV has been dropped or the cabinet has been damaged
- The TV exhibits a distinct degradation in performance
- When the LAMP(BULB ONLY) replacement is needed
• If you make adjustments yourself, adjust only those controls that are covered by the operating instructions. Adjusting other controls may result in damage and will often require extensive work by a qualified
technician to restore the TV to normal.
• When replacement parts are required, be sure the service technician uses replacement parts specified
by the manufacturer or those that have the same characteristics as the original part. Unauthorized
substitutions may result in additional damage to the unit.
SAMS
• Upon completion of any service or repairs to this TV, ask the service technician to
perform safety checks to determine that the TV is in a safe operating condition.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference that may cause undesired operation.
This television receiver provides display of television closed captioning in accordance with §15.119 of
the FCC rules.
4
BP68-00030A-1
4/15/05
8:26 PM
Page 5
FCC Information
User Instructions
The Federal Communications Commission Radio
Frequency Interference Statement includes the following warning:
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television receptions, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
User Information
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equipment.
If necessary, consult your dealer or an experienced
radio/television technician for additional suggestions. You may find the booklet called How to
Identify and Resolve Radio/TV Interference
Problems helpful. This booklet was prepared by
the Federal Communications Commission. It is
available from the U.S. Government Printing
Office, Washington, DC 20402, Stock Number
004-000-00345-4.
SUNG
Warning
User must use shielded signal interface cables to
maintain FCC compliance for the product.
Declaration of conformity for products marked
with FCC Logo. This device complies with Part 15
of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
85 West Tasman Drive
San Jose, CA 95134 USA
Tel) 408-544-5124
Fax) 408-544-5191
Provided with this monitor is a detachable power
supply cord with IEC320 style terminations. It may
be suitable for connection to any UL Listed personal computer with similar configuration. Before
making the connection, make sure the voltage rating of the computer convenience outlet is the same
as the monitor and that the ampere rating of the
computer convenience outlet is equal to or
exceeds the monitor voltage rating.
For 120 Volt applications, use only UL Listed
detachable power cord with NEMA configuration
5-15P type (parallel blades) plug cap. For 240
Volt applications use only UL Listed Detachable
power supply cord with NEMA configuration
6015P type (tandem blades) plug cap.
IC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations of ICES-003.
Notice de Conformité IC
Cet appareil numérique de classe B respecte
toutes les exigences du Règlement ICES-003 sur
les équipements produisant des interférences au
Canada.
5
BP68-00030A-1
4/15/05
8:26 PM
Page 6
Table of Contents
Your New Wide TV ..........................................................................................10
List of Features .....................................................................................................10
Checking Parts.....................................................................................................10
Side Panel Buttons : HLM437W/HLM507W/HLM617W.........................................11
Side Panel Jacks : HLM437W/HLM507W/HLM617W ...........................................11
Side Panel Buttons : HLM4365W/HLM5065W.......................................................12
Side Panel Jacks HLM4365W/HLM5065W ...........................................................12
Front Panel LED Indicators : HLM437W/HLM507W/HLM617W ..............................13
Front Panel LED Indicators : HLM4365W/HLM5065W ............................................14
Rear Panel Jacks ..................................................................................................15
Remote Control ....................................................................................................16
Installing Batteries in the Remote Control.....................................................17
Connections .....................................................................................................20
Connecting VHF and UHF Antennas.......................................................................20
Antennas with 300-ohm Flat Twin Leads .....................................................20
Antennas with 75-ohm Round Leads ...........................................................20
Separate VHF and UHF Antennas ..............................................................21
Connecting Cable TV and VCR..............................................................................22
Cable without a Cable Box .......................................................................22
Cable with a Cable Box that Descrambles All Channels ...............................22
Connecting a Cable Converter Box............................................................23
Connecting a Cable Converter Box and a VCR ...........................................23
Connecting a Camcorder......................................................................................24
Connecting a DVD Player .....................................................................................25
Connecting a DTV Set Top Box ..............................................................................26
Operation........................................................................................................30
Turning the TV On and Off....................................................................................30
Viewing the Menus and Displays ...........................................................................30
Selecting the Menu Language................................................................................31
Selecting the Antenna Input ...................................................................................31
Channel Memory .................................................................................................33
Changing Channels..............................................................................................34
Selecting Your Favorite Channels ...........................................................................35
Labeling the Channels ..........................................................................................36
Setting The On/Off Melody ..................................................................................37
Picture Control .....................................................................................................38
Sound Control .....................................................................................................40
Setting the Clock..................................................................................................42
Setting the Timers .................................................................................................43
Viewing an External Signal Source ........................................................................45
6
BP68-00030A-1
4/15/05
8:26 PM
Page 7
Special Features ...............................................................................................48
Setting Up Your Remote Control .............................................................................48
Remote Control Codes ..........................................................................................51
Fine Tuning Channels ...........................................................................................52
Selecting the Color Tone .......................................................................................53
Setting the Film Mode...........................................................................................53
Setting the Blue Screen Mode................................................................................54
Changing the Screen Size.....................................................................................55
Special Audio Options .........................................................................................57
MTS Settings: Choosing a Soundtrack ........................................................57
Dolby Virtual ...........................................................................................58
BBE ........................................................................................................59
Auto Volume ............................................................................................60
Viewing Closed Caption Information ......................................................................61
Viewing Picture-in-Picture.......................................................................................62
Selecting a Screen ...................................................................................62
Selecting an External Signal ......................................................................63
Selecting a Signal Source (Antenna or Cable) for PIP ...................................64
Swapping the Contents of the PIP and Main image......................................65
Changing the Size of the PIP image ...........................................................66
Changing the Picture-in-Picture Channel ......................................................67
Selecting the Sound Source .......................................................................68
Changing the Location of the PIP image......................................................68
Using the V-Chip ..................................................................................................69
PC Display.......................................................................................................76
Using Your TV as a Computer (PC) Display .............................................................76
How to connect Your PC to the TV .............................................................76
How to Set up Your PC Software (Windows only) ........................................77
Display Modes.........................................................................................78
How to Set up Your TV as a PC display ..................................................................79
Picture Quality Adjustment ....................................................................................80
Changing the Position of the Image (Moving left, right, up and down) .......................81
Changing the Screen Size (PC mode).....................................................................82
Appendix.........................................................................................................86
Troubleshooting ...................................................................................................86
Care and Maintenance.........................................................................................87
Using Your TV in Another Country..........................................................................87
Specifications ......................................................................................................87
7
BP68-00030A-1
4/15/05
8:26 PM
Page 8
SAMSUNG
BP68-00030A-1
4/15/05
8:26 PM
Page 9
Your New Wide TV
BP68-00030A-1
4/15/05
8:26 PM
Page 10
Your New Wide TV
List of Features
Your TV was designed and engineered using the latest technology. It is a full-featured,
high-performance unit that exceeds industry standards. In addition, it has these special features:
•
•
•
•
•
•
•
•
•
•
•
•
Easy-to-operate remote control
Easy-to-use on-screen menu system you can access from the side panel or remote control
Automatic timer to turn the TV on and off at any time you choose
Adjustable picture and sound settings and the ability to memorize your favorite settings
Automatic channel tuning for up to 181 channels
A special filter to reduce or eliminate reception problems
Fine tuning control for the sharpest picture possible
A built-in multi-channel sound decoder for stereo and bilingual listening
Built-in, dual channel speakers
A special sleep timer
Picture-in-Picture capability that lets you watch two channels at once
Widescreen TV with adjustable image size
Checking Parts
Once you have unpacked your TV, check to make sure that you have all the parts shown here.
If any piece is missing or broken, call your dealer.
This
Manual
HLM437W
HLM507W
HLM617W
Television
10
HLM4365W
HLM5065W
Remote Control
(BP59-00007A)/
AAA Batteries
(4301-000121)
Warranty
Card
A/V Cable
(AA39-40001B)
BP68-00030A-1
4/15/05
8:26 PM
Page 11
Side Panel Buttons : HLM437W/HLM507W/HLM617W
The buttons on the side panel control your TV’s basic features, including the on-screen menu system.
To use the more advanced features, you must use the remote control.
ΠTV/VIDEO
Press to switch between viewing TV programs and signals from connected components.
´ MENU
Press to see the on-screen menu.
ˇ ▼ CHANNEL ▲
Press to change channels and move between items on the on-screen
menu.
¨ VOLUME +, –
Press to lower or raise the volume and to select items when using
the on-screen menu.
ˆ POWER
Press to turn the TV on and off.
Side Panel Jacks : HLM437W/HLM507W/HLM617W
Use the side panel jacks to connect a component that is used only occasionally (a camcorder or video
game, for example).
ΠVIDEO Input jack
Connect the video signal from a camcorder or video game.
´ AUDIO Input jacks
Connect the audio signal from a camcorder or video game.
ˇ S-VIDEO Input jack
Connect an S-video signal from a camcorder or video game.
(S-Video 3 jack and Audio L/R input 3 are used in conjunction.)
▲ HLM437W
œ HLM507W
œ HLM617W
11
BP68-00030A-1
4/15/05
8:26 PM
Page 12
Your New Wide TV
Side Panel Buttons : HLM4365W/HLM5065W
The buttons on the side panel control your TV’s basic features, including the on-screen menu system.
To use the more advanced features, you must use the remote control.
ΠTV/VIDEO
Press to switch between viewing TV programs and signals from connected components.
´ MENU
Press to see the on-screen menu.
ˇ ▼ CHANNEL ▲
Press to change channels and move between items on the on-screen
menu.
¨ VOLUME +, –
Press to lower or raise the volume and to select items when using
the on-screen menu.
ˆ POWER
Press to turn the TV on and off.
Side Panel Jacks HLM4365W/HLM5065W
Use the side panel jacks to connect a component that is used only occasionally (a camcorder,
video game or PC, for example).
ΠVIDEO Input jack
Connect the video signal from a camcorder or video game.
´ AUDIO Input jacks
Connect the audio signal from a camcorder or video game.
ˇ S-VIDEO Input jack
Connect an S-video signal from a camcorder or video game.
(S-Video 3 jack and Audio L/R input 3 are used in conjunction.)
12
BP68-00030A-1
4/15/05
8:26 PM
Page 13
Front Panel LED Indicators : HLM437W/HLM507W/HLM617W
The three lights on the front panel indicate the status of your TV.
Indicator Light Key
: Light is On
: Light is Blinking
: Light is Off
Timer
Lamp
Temp
Indication
Auto Timer ON/OFF has been set
The set is operating normally .
Standby state.
The picture will automatically appear in about 25 seconds.
Auto Timer ON/OFF has been set and the set is normally operating.
Auto Timer ON/OFF has been set and the set will automatically be turned on in
about 25 seconds.
A cooling fan inside the set is not operating normally.
Lamp cover on rear of the set is not properly shut.
Check if the ventilation hole on the rear of the set is blocked, because if the
inner temperature is too high, the power will shut off.
Lamp doesn't light. It may have a fault or has burned out.
Replace with a new lamp.
• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.
• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.
13
BP68-00030A-1
4/15/05
8:26 PM
Page 14
Your New Wide TV
Front Panel LED Indicators : HLM4365W/HLM5065W
The three lights on the front panel indicate the status of your TV.
Indicator Light Key
: Light is On
: Light is Blinking
: Light is Off
Timer
Lamp
Temp
Indication
Auto Timer ON/OFF has been set
The set is operating normally .
Standby state.
The picture will automatically appear in about 25 seconds.
Auto Timer ON/OFF has been set and the set is normally operating.
Auto Timer ON/OFF has been set and the set will automatically be turned on in
about 25 seconds.
A cooling fan inside the set is not operating normally.
Lamp cover on rear of the set is not properly shut.
Check if the ventilation hole on the rear of the set is blocked, because if the
inner temperature is too high, the power will shut off.
Lamp doesn't light. It may have a fault or has burned out.
Replace with a new lamp.
• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.
• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.
14
BP68-00030A-1
4/15/05
8:26 PM
Page 15
Rear Panel Jacks
Use the rear panel jacks to connect components such as a VCR.
You can connect two different components such as two VCRs, Set-Top Box and a DVD player etc.,
because there are two sets of video input jacks and one set of component video input jacks on the rear
panel of your TV. For more information, please see “Connections”.
ΠANTENNA terminals
Two independent cables or antennas can be connected to these terminals. Use ANT-A and ANT-B terminals to receive a signal from
VHF/UHF antennas or your cable system. Use the ANT A-OUT terminal to send the signal being received by the ANT-A terminal out to
another component (such as a Cable Set Top Box).
The PIP channel can be received only when a signal source is
connected to ANT-A.
´ S-VIDEO INPUT jacks
Connects an S-Video signal from an S-VHS VCR or DVD player.
ˇ VIDEO/AUDIO INPUT jacks(VCR1, VCR2)
Connect video/audio signals from external sources, such as a VCR or
DVD players.
¨ VIDEO/AUDIO MONITOR OUTPUT jacks
Sends a video signal from the TV to an external source, such as a
VCR.
Note: Monitor Out is available only in RF, Video and S-Video modes.
ˆ Component1 jacks (Y, Pb, Pr, L, R)
Use these jacks to connect the component video/audio signals from a
DVD player when using the component video input jacks.
Note: Only 480i and 408p formats are supported.
Ø Component 2, 3 jacks (Y, Pb, Pr, L, R)
Receives the DTV video/audio signals from a set top box.
Note: Only 480p, 720p and 1080i formats are supported.
∏ PC AUDIO INPUT jacks
Connect these to the audio-output jacks on your PC.
” DVI (Digital Video Interface) jack
Receives the digital signals from a set top box or PC etc.
’ RS-232C jack
˝ PC VIDEO INPUT jack
Connect to the video output port on your PC.
15
BP68-00030A-1
4/15/05
8:26 PM
Page 16
Your New Wide TV
Remote Control
You can use the remote control up to a distance of about 23 feet from the TV. When using the remote,
always point it directly at the TV. The remote control can also operate your VCR, cable box, and DVD
player.
1.
POWER
Turns the TV on and off.
2.
+100
Press to select cable channels over 100 on
TV.
3.
Menu
Displays the main on-screen menu.
4.
CH(Channel) and
VOL(Volume)
Controls volume, channel selection.
5.
Mute
Press to mute the TV sound.
6.
Display
Press to display information on the TV
screen.
7.
Aspect
Press to change the screen size.
8.
9.
Surround
Press to stop the action during a particular
scene. Press again to resume normal video.
17. Fav.CH (Favorite
Channel)
Press to switch between your favorite channels.
18. S.Mode
Adjust the TV sound by selecting one of the
preset factory settings (or select your personal, customized sound settings.)
19. P.Mode
Adjust the TV picture by selecting one of the
preset factory settings (or select your personal, customized picture settings.)
20. VCR controls
Controls VCR tape functions: Rewind, Play,
Fast Forward, Stop, Pause.
21. PIP controls
Source ; Press to select one of the available
signal sources for the PIP window.
Press to hear the Dolby surround effect.
Scan; Press to scan the memorized
channels.
MTS(Multichannel
Television Stereo)
Locate; Press to move the PIP window to
any of the four corners of the TV screen.
Press to choose stereo, mono or Separate
Audio Program (SAP broadcast).
Swap; Exchanges the video signal that is
currently displayed on the main screen with
the signal in the PIP window.
10. Mode
Selects a target device to be controlled by
the Samsung remote control (i.e., TV, VCR,
Cable, or DVD).
11. Pre-ch
Tunes to the previous channel.
12. TV/Video
Press to display all of the available video
sources (i.e., TV, VCR, DVD, DTV, PC).
13. Joystick
Use to highlight on-screen menu items and
change menu values.
14. Caption
Controls the caption decoder.
15. PIP
Activates picture in picture.
16
16. Still
Size; Press to make the PIP window larger
or smaller.
CH(PIP); Displays the available channels in
sequence. (These buttons change channels
in the PIP window only.)
22. V.chip
Press to set up and activate the parental
locks.
23. Set
Used during set up of this remote control,
so that it will work compatibly with other
devices (VCR, cable box, DVD, etc.)
24. Sleep
Press to select a preset time interval for
automatic shutoff.
25. Add/Erase
Press to add or erase channels in the TV’s
memory.
Use the Add/Erase button to
memorize/erase the fine tuning after fine
tuning channels.
BP68-00030A-1
4/15/05
8:26 PM
Page 17
Installing Batteries in the Remote Control
With normal use, the batteries in the remote control should last about a year. If you notice a performance
degradation while using the remote, the batteries may need to be replaced. Make sure you replace both
batteries and do not mix old and new batteries in the remote control. If you won’t be using the remote
control for a long time, remove the batteries and store them in a cool dry place.
1
Slide the back cover all the way out
to open the battery compartment of
the remote control.
2
Install two AAA size batteries.
Make sure to match the “+” and
“–” ends of the batteries with the
diagram inside the compartment.
3
Slide the cover back into place.
17
BP68-00030A-2
4/15/05
8:28 PM
Page 18
SAMSUNG
BP68-00030A-2
4/15/05
8:28 PM
Page 19
Connections
BP68-00030A-2
4/15/05
8:29 PM
Page 20
Connections
Connecting VHF and UHF Antennas
If you do not have a cable system, you will need to connect an antenna to your TV.
Antennas with 300-ohm Flat Twin Leads
If your antenna looks like this:
1
Place the wires from the twin
leads under the screws on the
300-75 ohm adapter. Use a
screwdriver to tighten the
screws.
2
Plug the adapter into the
ANT-A terminal on the back
panel of the TV.
it has 300-ohm flat twin leads.
Antennas with 75-ohm Round Leads
If your antenna looks like this:
1
20
Plug the antenna lead into the
ANT-A terminal on the back
panel of the TV.
it is an antenna with 75-ohm round leads.
BP68-00030A-2
4/15/05
8:29 PM
Page 21
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine the
two antenna signals before connecting them to the TV. This requires a combiner attachment, which
you can buy at an electronics store.
1
Connect both antenna
leads to the combiner.
2
Plug the combiner into the
ANT-A terminal on the
back panel of the TV.
21
BP68-00030A-2
4/15/05
8:29 PM
Page 22
Connections
Connecting Cable TV and VCR
You can connect different cable systems to your TV, including cable without a cable box, and
cable with a cable box that descrambles some or all channels.
Cable without a Cable Box
If you want to connect cable, and you do not need to use a cable box:
1
Plug the incoming cable
into the ANT-A antenna terminal on the back of the
TV.
Cable with a Cable Box that Descrambles All Channels
22
1
Find the cable that is connected to the ANTENNA
OUT terminal on your
cable box. This terminal
might be labeled “ANT
OUT,” “VHF OUT,” or simply, “OUT.”
2
Connect the other end of
this cable to the ANT A
antenna terminal on the
back of the TV.
BP68-00030A-2
4/15/05
8:29 PM
Page 23
Connecting a Cable Converter Box
This connection allows you to watch cable and premium channels. You should keep your TV
selected to ANT-A so that you can use the TV features. When viewing premium channels, select
ANT-B and tune the TV to channel 3 or 4 (whichever channel is vacant in your area), then use the
converter box to change channels. You will need two coaxial cables.
Note: When you use a converter box with
your TV, there may be features that you can
not program using the remote control, such
as programming your favorite channels and
blocking channels.
Connecting a Cable Converter Box and a VCR
This connection allows you to watch and record basic and premium cable channels, as well as
watch videotapes. You should keep your TV selected to ANT-A so that you can use the TV’s features. When viewing premium channels or recording with the VCR, select ANT-B (whichever channel is vacant in your area), then use the converter box to change channels.
Caution: If you want to record one channel
while watching another channel, a splitter
(not included) must be added between the
cable and ANT-A. One output of the splitter
goes to ANT-A and the second output is
connected to IN on the cable converter
box.
If you have a mono VCR, connect L/Mono
to VCR Audio OUT using only one audio
cable.
If you have a S-VHS VCR, use the S-video
connections and remove the video cable.
Do not connect the video cable and the
S-video cable to video1 simultaneously.
When you use a converter box with your
TV there may be features that you can not
program using the remote control, such as
programming your favorite channels and
blocking channels.
23
BP68-00030A-2
4/15/05
8:29 PM
Page 24
Connections
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV.
You can use your camcorder to view tapes without using a VCR.
24
1
Locate the A/V output jacks
on the camcorder. They are
usually found on the side or
back of the camcorder.
2
Connect an audio cable
between the AUDIO OUTPUT jack on the camcorder
and the AUDIO terminals
on the side of the TV.
If your camcorder is stereo,
you must connect two separate cables.
(The audio cables are usually included with the camcorder.)
3
Connect a video cable
between the VIDEO OUTPUT jack on the camcorder
and the VIDEO terminal on
the side of the TV. (A video
cable is usually included
with the camcorder.) To
watch a tape, follow your
camera’s instructions and
the section on “Viewing an
External Signal Source” in
this manual.
BP68-00030A-2
4/15/05
8:29 PM
Page 25
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
Connecting to Y,Pb,Pr
1
Connect a set of audio
cables between the
Component1AUDIO IN
jacks on the TV and the
AUDIO OUT jacks on the
DVD player.
2
To enable Component video
viewing, connect video
cables between the
Component1 (Y, Pb and Pr)
jacks on the TV and Y, Pb
and Pr (or Y, Cb, Cr) output
jacks on the DVD player.
Note: For an explanation of
Component video, see your
DVD player's owner's manual.
Connecting to audio and video jacks
1
Connect a set of audio
cables between the AUDIO
IN jacks on the TV and the
AUDIO OUT jacks on the
DVD player.
2
Connect video cables
between the VIDEO OUT
jack on the DVD player and
the VIDEO IN jack on the
TV.
25
BP68-00030A-2
4/15/05
8:29 PM
Page 26
Connections
Connecting a DTV Set Top Box
Connecting to Y,Pb,Pr
1
2
Connect a set of audio
cables between the
Component2 or
Component3 AUDIO IN
jacks on the TV and the
AUDIO OUT jacks on the
Set Top Box.
2
Component1
(480i/480p)
Connect a set of audio
cables between the PC
AUDIO IN jacks on the TV
and the AUDIO OUT jacks
on the Set Top Box.
Component1/2
(480p/720p/10801i)
DVI
PC
ANT-A
Pb
MONITOR
OUT
ANT A-OUT
ANT-B
S-VIDEO 1
S-VIDEO 2
V
L
RS-232C
Pr
VIDEO
2
L
L
VIDEO
1
R
R
R
DTV Set Top Box
TV Rear Panel
Component1
(480i/480p)
Component1/2
(480p/720p/10801i)
PC AUDIO
DVI
Y
PC
ANT-A
Pb
MONITOR
OUT
ANT A-OUT
ANT-B
S-VIDEO 1
S-VIDEO 2
V
L
RS-232C
Pr
VIDEO
2
L
L
VIDEO
1
R
R
R
Connect video cables
between the DVI IN jack on
the TV and the DVI OUT
jack on the Set Top Box.
DVI
DTV Set Top Box
26
PC AUDIO
Y
Connect video cables
between the Component2
or Component3 Y, Pb and Pr
inputs on the TV and Y, Pb
and Pr (or Y, Cb, Cr) outputs
on the Set Top Box.
Note: For an explanation of
Component video, see your
Set Top Box owner's manual.
Connecting to DVI (Digital Visual
Interface)
1
TV Rear Panel
BP68-00030A-2
4/15/05
8:29 PM
Page 27
Connecting to R,G,B
1
Connect a set of audio
cables between the PC
AUDIO IN jacks on the TV
and the AUDIO OUT jacks
on the Set Top Box.
TV Rear Panel
Component1
(480i/480p)
PC AUDIO
DVI
PC
ANT-A
Pb
MONITOR
OUT
ANT A-OUT
ANT-B
S-VIDEO 1
S-VIDEO 2
V
2
Component1/2
(480p/720p/10801i)
Y
L
RS-232C
Pr
VIDEO
2
L
L
VIDEO
1
R
R
R
Connect video cables
between the PC IN jack on
the TV and the R.G.B OUT
jack on the Set Top Box.
DVI
DTV Set Top Box
27
BP68-00030A-3
4/15/05
8:31 PM
Page 28
SAMSUNG
BP68-00030A-3
4/15/05
8:31 PM
Page 29
Operation
BP68-00030A-3
4/15/05
8:31 PM
Page 30
Operation
Turning the TV On and Off
Press the Power button on the remote control or on the side panel to turn your TV on and off.
Viewing the Menus and Displays
The on-screen menu system allows you to control the settings of your TV. Access the on-screen menu
system by pressing the Menu button on the remote control. Once the on-screen menu appears, use
the joystick button on your remote control to move between menu items, select menu items, and
make adjustments. You can also view the on-screen menu system and make some adjustments using
the TV’s side panel buttons.
Displaying the Menus
1
With the power on, press the
Menu button on the remote control. The main menu appears on
the screen.
The Video menu is selected.
2
Use the joystick (up, down) or
CH( , )buttons to move to
items in the menu. Use the joystick (right) or VOL(+) buttons
to display, change, or use the
selected items. Use the joystick
( or √) button to enter items
in the menu.
On-screen menus disappear from
the screen automatically after about
thirty seconds, or you can press the
Menu button on your remote control
to exit the menu.
Displaying Status Information
1
30
Press the Display button on the
remote control. The TV will display the channel, current time,
and the audio signal you are
listening to.
BP68-00030A-3
4/15/05
8:31 PM
Page 31
Selecting the Menu Language
Choose a language for the on-screen menus: English, Spanish or French.
1
Press the Menu button.
Move the joystick down to
select SETUP, then press the
joystick to enter.
2
Move the joystick down to
select ”Language.”
3
Move the joystick right or left
to select the language.
Press the Menu button on the
remote control to exit the
menu.
Selecting the Antenna Input
You can connect to two different signal sources by choosing the antenna input(ANT A or ANT B).
1
Press the Menu button.
Move the joystick down to select
SETUP, then press the joystick to
enter.
2
Press the joystick to enter. The channel setup menu will appear. The first
line of the menu is selected.
3
Move the joystick right or left to
select “A” or “B”.
Press the Menu button on the
remote control to exit the menu.
Move
Select
Menu
31
BP68-00030A-3
4/15/05
8:31 PM
Page 32
Operation
Channel Memory
Your TV can memorize and store all of the channels available. Once the channels are memorized,
you can use the CH
and CH buttons to scan through the available channels.
Selecting the Broadcast Source
Before memorizing available channels, you must select what broadcast source your TV is connected to, either an antenna or a cable system.
1
Press the Menu button.
Move the joystick down to
select SETUP, then press the
joystick to enter.
2
Press the joystick to enter. The
channel setup menu will
appear. Move the joystick
down to select “Air or CATV”.
3
32
If you are connected to an
antenna, leave “AIR” displayed. If you connected
cable, press the joystick to the
right to display the type of
cable system: “STD,” “HRC,”
or “IRC.”
(If you are not sure which type
of cable system you have,
contact your cable company.)
Move
Select
Menu
Move
Select
Menu
BP68-00030A-3
4/15/05
8:31 PM
Page 33
Storing Channels in Memory Automatically
1
First, select the broadcast source as
described on the previous page. With
the Channel Setup menu on screen,
move the joystick down to select “Auto
Channel Memory.”
Move
2
Select
Menu
Press the joystick to enter. The TV will
begin memorizing all of the available
stations. Press the VOL+ button at any
time to interrupt the memorization
process.
NOTE
• When the ANT B mode is selected, the auto programming runs on the main screen.
Adding and Erasing Channels
1
Use the number buttons to select the
channel you want to add or erase.
2
To add a channel, select it and press the
Add/Erase button on the remote control.
The channel will be added to the TV’s
memory and the word “Channel added”
will appear in the corner of the screen.
3
To erase a channel, select it and then
press the Add/Erase button on the
remote control. The word “Channel
erased” will appear in the corner of the
screen. You can still view a channel that
has been erased from memory by using
the number buttons on the remote control
to select the channel directly.
33
BP68-00030A-3
4/15/05
8:31 PM
Page 34
Operation
Changing Channels
You can change channels on your TV by using the CH
and CH
buttons, or by direct selection using the number buttons. You can use the number buttons to tune to any channel (even one
that has been erased or has not been memorized).
Using the Channel Buttons
Press the CH or CH
buttons to change channels.
The TV changes each channel in order, up or down,
depending on which button you press. You will see all
the channels that the TV has memorized. (The TV must
have memorized at least three channels.) You will not
see channels that were not memorized or have been
erased.
Using the Number Buttons
To change to single-digit channels (0–9) faster, press
“0” before the single digit.
Example: For channel 4, press “0,” then “4.”
To select a channel over 100, press the +100 button
first.
Example: For channel 122, press “+100,” then “2,” then “2.”
Using the Previous Channel
Press the Pre-ch button on the remote control. The TV
changes to the last channel you were watching.
Scanning channels
You can automatically scan all of the channels in memory at the touch of just one button. Press the Scan button
on the remote control. The TV will change the channels
automatically, one by one. Scanning channels will be
displayed in the PIP window. To stop channel scan,
press the Scan button again.
NOTE
• When the ANT B mode is selected, the channel scan function
doesn’t work.
34
BP68-00030A-3
4/15/05
8:31 PM
Page 35
Selecting Your Favorite Channels
You can store up to ten of your favorite channels for each available input source (such as TV and
CATV). Then, when you press the Fav.CH button on the remote control, the TV displays only the
favorite channels you previously stored, allowing you to quickly and easily find frequently
watched channels.
To Store Your Favorite Channels:
1
Press the Menu button. Move
the joystick down to select
SETUP, then press the joystick
to enter.
2
Press the joystick to enter.
The channel setup menu will
appear. Move the joystick
down to select Air or CATV,
then move the joystick to
the right to display the type of
cable system or Air.
3
Move the joystick down to
select “Favorite Channel”,
then press the joystick to
enter.
Move
4
Menu
SETUP
Antenna
A
Air or CATV
AIR
Favorite Channel
Auto Channel Memory
Fine Tune
0
Add/Erase
Labeling
---Move
Move the joystick to the left
or right to select channel.
Note: Only memorized channels can be set as Favorite
channels.
Select
Select
Menu
FAVORITE CHANNEL
Source
♡ 111
♡ 112
♡--♡--♡--Move
AIR
♡--♡--♡--♡--♡--Select
Menu
To View Your Favorite Channels:
Press the Fav.CH button repeatedly to
jump from one favorite channel
to another.
The favorite channels are selected in
ascending sequence.
35
BP68-00030A-3
4/15/05
8:31 PM
Page 36
Operation
Labeling the Channels
Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”,
“PBS2”, CNN1”, etc.) A label consists of four fields, where each field is a letter, a number, or a
blank. When the DISPLAY button is pressed, the channel label will appear next to the channel
number.
1
Press the CH or CH
button to tune to the channel that
will be labeled.
2
Press the Menu button. Move
the joystick down to select
SETUP, then press the joystick
to enter.
3
Press the joystick to enter.
Move the joystick down to
select Labeling.
Move
36
4
Move the joystick to the right
to begin labeling. (Each label
has four fields. See top paragraph.)
Move the joystick up or down
to select a letter, a number, or
a blank. (Pressing the CH button results in this sequence:
A,B,...Z, blank,0,1,...9).
5
Move the joystick to the right
to switch to the next field,
which will be selected. Select
a second letter or digit using
joystick(up or down), as
above. Repeat the process to
select the last two digits.
Press the Menu button to exit.
Select
Menu
BP68-00030A-3
4/15/05
8:32 PM
Page 37
Setting The On/Off Melody
You can hear clear melody sound when the TV is powered On or Off.
1
Press the Menu button. Move
the joystick down to select
SETUP, then press the joystick
to enter.
2
Move the joystick down to
select Melody.
3
Move the joystick to the right
or left to select “On”.
4
Press the Menu button to exit.
37
BP68-00030A-3
4/15/05
8:32 PM
Page 38
Operation
Picture Control
Using the remote, you can change the contrast, brightness, tint, color, and sharpness settings of
the TV.
Customizing the Picture
1
Press the Menu button.
Press the joystick to enter.
2
Move the joystick down to
select Adjust, then press the
joystick to enter. You will see
the items “Contrast”,
“Brightness”, “Sharpness”,
“Color” and “Tint”.
3
Move the joystick up or down
to select the item you want to
change.
4
Move the joystick right or left
to raise or lower the value of
the item, using the on-screen
gauge as your guide.
When you are finished adjusting an item, wait a moment. The
level indicator will disappear and the Video menu will return.
You can continue to make adjustments, or press the Menu button to
exit.
38
BP68-00030A-3
4/15/05
8:32 PM
Page 39
Using Automatic (“Standard”) Picture Settings
1
Press the P.Mode button on the remote
control to change the picture settings.
2
Press P.Mode repeatedly to select the
“Dynamic”, “Standard”, “Movie” or
“Custom” picture setting.
Guide to Automatic Picture Settings
• Choose Standard to set the TV to operate at top performance according to your TV’s
specifications.
• Choose Dynamic for viewing the TV during the day or when there is bright light in the room.
• Choose Movie when viewing the movie.
• Choose Custom if you want to adjust the settings yourself.
39
BP68-00030A-3
4/15/05
8:32 PM
Page 40
Operation
Sound Control
You can control and customize the sound levels and settings of the TV with the remote control.
Using the on-screen menus, you can change the TV’s bass, treble, and balance settings.
Adjusting the Volume
Press VOL + to raise the volume or
VOL – to lower the volume.
Using the Mute Button
Press the Mute button on the remote
control to silence the volume. The word
“Mute” will appear in the lower left corner of the screen.
To turn mute off, press the Mute button
again, or raise or lower the volume
with the VOL – and VOL + buttons.
Customizing the Sound
1
Press the Menu button.
Move the joystick down to
select SOUND, then press the
joystick to enter.
2
Move the joystick down to
select Adjust, then press the
joystick to enter. You will see
the items “Bass”, “Treble” or
“Balance”.
Continued...
40
BP68-00030A-3
4/15/05
8:32 PM
Page 41
3
Move the joystick up or down to select
the item you want to change.
4
Move the joystick right or left to raise or
lower the value of the item, using the onscreen gauge as your guide.
You can continue to make adjustments, or press the Menu button to exit.
Using Automatic(Standard) Sound Settings
1
Press the S.Mode button on the remote
control to change the automatic sound
setting.
2
Press the S.Mode button again to select
the “Standard”, “Music”, “Movie”,
“Speech” or “Custom” sound setting.
Guide to Automatic Sound Settings
•
•
•
•
•
Choose
Choose
Choose
Choose
Choose
Standard for the “factory” settings (the best choice for most people).
Music when watching music videos or concerts.
Movie when watching a movie.
Speech when watching a show that is mostly dialogue, like a news show.
Custom if you want to adjust the settings yourself.
41
BP68-00030A-3
4/15/05
8:32 PM
Page 42
Operation
Setting the Clock
This TV has a built-in clock that will appear on screen when you press the Display button on the
remote control. Setting this clock also allows you to use it to automatically turn the TV on or off.
42
1
Press the Menu button.
Move the joystick down to
select SETUP, then press the
joystick to enter.
2
Move the joystick down to
select Time, then press the
joystick to enter.
3
Move the joystick right to
select the hour. Move the joystick up or down to select the
correct hour.
4
Move the joystick right to
select the minute. Move the
joystick up or down to select
the correct minute.
When selecting the hours, be
sure to select the proper time
of day (am or pm).
5
Press Menu to exit the menus.
BP68-00030A-3
4/15/05
8:32 PM
Page 43
Setting the Timers
This TV can be set to turn on or off automatically at specific times that you choose. Before using
the timers, you must set the TV’s clock, as described previously.
Setting the On/Off Timer
1
Press the Menu button. Move the joystick
down to select SETUP, then press the
joystick to enter.
2
Move the joystick down to select Time,
then press the joystick to enter.
3
Move the joystick down to select the
“On Time”. Move the joystick right to
select the hour, then Move the joystick
up or down to adjust the hour for the TV
to turn on. When selecting the hours, be
sure to select the proper time of day (am
or pm).
4
Move the joystick right to select the
minute. Move the joystick up or down to
adjust the minute.
Continued...
43
BP68-00030A-3
4/15/05
8:32 PM
Page 44
Operation
5
Move the joystick right to select off, then
move the joystick up or down to select
“on”.
When any of the timers are set, the
“Timer” LED will illuminate (front or side
panel of TV.).
6
When you are finished, move the joystick right.
7
If you want to set the Off time, move the
joystick down to select the “Off Time”.
Set the “Off Time” just as you set the
“On Time”.
8
If you want to set the volume level or
channel when the TV turns on, move the
joystick down to select “On Timer Vol.”
or “On Timer CH”. Move the joystick
right to set the volume level or to select
the channel you want when the TV turns
on. Press the Menu button to return to
normal viewing.
Setting the Sleep Timer
You can set your TV to automatically turn off after a preset interval.
44
1
Press the Sleep button on the remote control.
2
You’ll see “Off” at the bottom of the
screen. Press the Sleep button to select
the time interval for the TV to stay on.
The interval ranges from 10 to 360 minutes.
BP68-00030A-3
4/15/05
8:32 PM
Page 45
Viewing an External Signal Source
Selecting the Signal Source
Use the remote control to switch between viewing signals from connected equipment, such as
VCRs, DVD, Set-Top box and the TV source (broadcast or cable).
1
Make sure that the remote
control is controlling the TV
set. Press the MODE button
and make sure that the “TV”
LED is illuminated.
2
Press TV/VIDEO on the
remote control, and the following on-screen menu will
appear.
3
Move the joystick up or down
to select a particular signal
source, and then press the
joystick to activate it.
When you connect equipment to the TV, you can choose
between the following sets of jacks: Video 1, Video 2, S-video 1,
S-video 2, Component 1, Component 2, Component 3, DVI or
PC on the TV’s rear panel, and Video 3 or S-Video 3 on the TV’s
side panel.
Remote Control VCR/DVD Buttons
Flip the cover of the remote control up to access buttons that can
control the tape functions of a connected VCR or DVD, including
Rewind, Play, Fast Forward, Stop and Pause.
1
Flip the cover of your remote control unit for access to the tape function controls. Press the appropriate
buttons to control your VCR or
DVD.
45
BP68-00030A-4
4/15/05
8:34 PM
Page 46
SAMSUNG
BP68-00030A-4
4/15/05
8:34 PM
Page 47
Special Features
BP68-00030A-4
4/15/05
8:34 PM
Page 48
Special Features
Setting Up Your Remote Control
This TV’s remote control can operate almost any VCR, cable box, or DVD. After it has been set up
properly, your remote control can operate in four different modes: TV, VCR, Cable, or DVD.
Pressing the corresponding button on the remote control allows you to switch between these modes,
and control whichever piece of equipment you choose.
Note
The remote control might not be compatible with all DVD Players, VCRs and Cable boxes.
Setting Up the Remote to Operate Your VCR
1
2
3
4
Turn off your VCR.
5
Press the Power button on the remote
control. Your VCR should turn on if your
remote is set up correctly.
Press the MODE button and make sure
that the VCR LED is illuminated.
Press the Set button on your TV’s remote
control.
Using the number buttons on your remote
control, enter three digits of the VCR
code listed on page 47 of this manual
for your brand of VCR. Make sure you
enter three digits of the code, even if the
first digit is a “0”. (If more than one code
is listed, try the first one.)
If your VCR does not turn on after set up,
repeat steps 2, 3, and 4, but try one of
the other codes listed for your brand of
VCR. If no other codes are listed, try
each VCR code, 000 through 089.
Note on Using Remote Control Modes: VCR
• When your remote control is in “VCR” mode, the volume buttons still control your TV’s volume.
48
BP68-00030A-4
4/15/05
8:34 PM
Page 49
Setting Up the Remote to Operate Your Cable Box
1
Turn off your cable box.
2
Press the MODE button and make sure
that the Cable LED is illuminated.
3
Press the SET button on your TV’s remote
control.
4
Using the number buttons on your remote
control, enter three digits of the cable
box code listed on page 47 of this manual for your brand of cable box. Make
sure you enter three digits of the code,
even if the first digit is a “0.” If there is
more than one code listed, try the first
one.
5
Press the Power button on the remote
control. Your cable box should turn on if
your remote is set up correctly.
If your cable box does not turn on after
set up, repeat steps 2, 3, and 4, but try
one of the other codes listed for your
brand of cable box. If no other codes
are listed, try each code, 000 through
077.
Note on Using Remote Control Modes: Cable Box
• When your remote control is in “Cable Box” mode, the volume buttons still control your TV’s volume.
49
BP68-00030A-4
4/15/05
8:34 PM
Page 50
Special Features
Setting Up the Remote to Operate Your DVD
1
Turn off your DVD.
2
Press the MODE button and make sure
that the DVD LED is illuminated.
3
Press the SET button on your TV’s remote
control.
4
Using the number buttons on your
remote control, enter three digits of the
DVD code listed on page 47 of this
manual for your brand of DVD. Make
sure you enter three digits of the code,
even if the first digit is a “0.” If there is
more than one code listed, try the first
one.
5
Press the Power button on the remote
control. Your DVD should turn on if your
remote is set up correctly.
If your DVD does not turn on after set
up, repeat steps 2, 3, and 4, but try
one of the other codes listed for your
brand of DVD. If no other codes are listed, try each code, 000 through 008.
Note on Using Remote Control Modes: DVD
• When your remote control is in “DVD” mode, the volume buttons still control your TV’s volume.
50
BP68-00030A-4
4/15/05
8:34 PM
Page 51
Remote Control Codes
VCR Codes
Cable Box Codes
DVD Codes
51
BP68-00030A-4
4/15/05
8:34 PM
Page 52
Special Features
Fine Tuning Channels
Fine tuning lets you manually adjust the TV’s tuner if you have difficulty tuning in a channel.
1
Using the number buttons on
the remote control, select the
channel you want to fine tune.
2
Press the Menu button on the
remote control. Move the joystick down to select SETUP,
then press the joystick to
enter.
3
Press the joystick to enter in
the Channel setup menu.
Move
4
Move the joystick down to
select the Fine tune, then
move the joystick right or left
to adjust the fine tuning.
To store the fine tuning setting
in the TV’s memory, move the
joystick up. (A heart icon will
appear.)
To reset the fine tuning to “0,”
move the joystick down .
5
52
Press the Menu button to exit.
Select
Menu
BP68-00030A-4
4/15/05
8:34 PM
Page 53
Selecting the Color Tone
1
Press the Menu button.
Press the joystick to enter.
2
Move the joystick down to
select Color Tone, then
move the joystick right
repeatedly to select
“Normal”, “Warm1”,
“Warm2”, “Cool2” or
“Cool1”.
3
Press the Menu button to exit.
Setting the Film Mode
On: Automatically senses and processes film signals from all
sources and adjusts the picture for optimum quality.
Off: Switches off the Film mode.
1
Press the Menu button.
Press the joystick to enter.
2
Move the joystick down to
select Film Mode, then
move the joystick to the right
or left to select “On” or
“Off”.
3
Press the Menu button to exit.
Note: Film mode is supported in
480i only.
53
BP68-00030A-4
4/15/05
8:34 PM
Page 54
Special Features
Setting the Blue Screen Mode
If no signal is being received or the signal is very weak, a blue screen automatically
replaces the noisy picture background. If you wish to continue viewing the poor picture,
you must set the “Blue screen” mode to “Off”.
54
1
Press the Menu button on the
remote control. Move the joystick down to select SETUP,
then press the joystick to
enter.
2
Move the joystick down to
select Blue Screen.
3
Move the joystick to the right
or left to select “On” or “Off”.
4
Press the Menu button to exit.
BP68-00030A-4
4/15/05
8:34 PM
Page 55
Changing the Screen Size
When you press the ASPECT button on the remote control, the TV’s screen mode choices appear
in sequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Normal.
The name of the screen mode will be displayed at the bottom of the TV screen.
Wide
Sets the picture to 16:9 wide mode.
Wide
Panorama
Use this mode for the wide aspect ratio of
a panoramic picture.
Panorma
Zoom1
Magnifies the size of the picture on
screen.
You can also move the picture on screen
using the “Scroll” function. Press the CH
( , ) buttons to scroll the picture.
Zoom1
Zoom2
Magnifies the size of the picture more
than Zoom1.
You can also move the picture on screen
using the “Scroll” function. Press the CH
( , ) buttons to scroll the picture.
Zoom2
Normal
Sets the picture to 4:3 normal mode.
This is a standard TV screen size.
Note:If you watch the screen in the 4:3
aspect ratio format for a long time,
images may be burned on to the screen.
Normal
continued...
55
BP68-00030A-4
4/15/05
8:34 PM
Page 56
Special Features
NOTES
•
•
•
•
•
56
You can select only Wide, Normal(4:3) screen size in the Component Mode.
Screen size can’t be changed in the DVI and PC (1080i) mode.
You can select Wide(TV), Wide(PC) screen size in the DVI and PC (720p) Mode.
You can select Wide(TV), Wide(PC), Normal(4:3) screen size in the DVI and PC (480p) Mode.
If you set PIP ON in any mode (Normal, Panorama, Zoom1, Zoom2) except Wide, the mode
will automatically change to Wide.
BP68-00030A-4
4/15/05
8:34 PM
Page 57
Special Audio Options
MTS Settings: Choosing a Soundtrack
Depending on the particular program being broadcast, you can listen to stereo, mono, or a
Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP
has unrelated information like news or weather.)
1
Press the Menu button. Move
the joystick down to select
SOUND, then press the
joystick to enter.
2
Move the joystick down to
select MTS.
3
Move the joystick to the right
repeatedly to select “Mono”,
“SAP” or“Stereo”.
4
Press the Menu button to exit.
Guide to MTS Settings
• Choose Stereo for channels that are broadcasting in stereo.
• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.
• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-language translation.
57
BP68-00030A-4
4/15/05
8:34 PM
Page 58
Special Features
Dolby Virtual
This feature allows the TV’s L/R speakers to provide a home Theater-like Dolby effect.
The center and surround sounds are mixed into the L/R speakers.
1
Press the Menu button. Move
the joystick down to select
SOUND, then press the
joystick to enter.
2
Move the joystick down to
select Dolby Virtual.
3
Move the joystick to the right
or left to select “Virtual”or
“Off”.
4
Press the Menu button to exit.
NOTE
• Dolby Virtual and BBE can't be set ON at the same time.
58
BP68-00030A-4
4/15/05
8:34 PM
Page 59
BBE
BBE is a built-in effect that adds clarity, punch and dynamics to the sound.
1
Press the Menu button. Move
the joystick down to select
SOUND, then press the
joystick to enter.
2
Move the joystick down to
select BBE.
3
Move the joystick to the right
or left to select “On”or “Off”.
4
Press the Menu button to exit.
NOTE
• Dolby Virtual and BBE can't be set ON at the same time.
59
BP68-00030A-4
4/15/05
8:34 PM
Page 60
Special Features
Auto Volume
Each broadcasting station has its own signal conditions, and it is inconvenient to adjust
the volume every time the channel is changed. “Auto volume” automatically adjusts the
volume of the desired channel by lowering the sound output when the modulation signal
is high or by raising the sound output when the modulation signal is low.
60
1
Press the Menu button. Move
the joystick down to select
SOUND, then press the
joystick to enter.
2
Move the joystick down to
select Auto Volume.
3
Move the joystick to the right
or left to select “On”or “Off”.
4
Press the Menu button to exit.
BP68-00030A-4
4/15/05
8:34 PM
Page 61
Viewing Closed Caption Information
Your TV decodes and displays the closed captions information that is broadcast along with some
television shows. These captions are usually subtitles for the hearing impaired or translations into
other languages. All VCRs record the closed caption signal from television programs, so prerecorded video tapes can also deliver closed-caption information. Check for the closed caption
symbol (
) on the tape’s package or your TV program-schedule.
Closed Captions
1
Press the Menu button. Move
the joystick down to select
SETUP, then press the joystick
to enter.
Quick way to access
Captions: Just press “Caption”
on the remote control.
2
Move the joystick down to
select Closed Caption, then
press the joystick to enter.
3
Move the joystick right or left
to turn closed captioning
on/off. Misspelling and unusual characters sometimes occur
in closed caption transmissions, especially those of live
events. There may be a small
delay before captions appear
when you change channels. (These do not indicate the
TV is malfunctioning.) Move the joystick down to
select the “Mode”. Move the joystick right or left to
choose “Caption” or “Text.” ln caption mode, captions appear at the bottom of the screen, and they
usually cover only a small portion of the picture. In
text mode, information unrelated to the program, such
as news or weather, is displayed. Text often covers a
large portion of the screen.
4
If you wish, use the joystick button to change the
captioning channel or field. Then, press Menu to
return to normal viewing. Different channels and fields
display different information. For example, Channel 1
may have subtitles in English, while Channel 2 has
subtitles in Spanish.
NOTE
• The Caption function doesn’t operate in Zoom1, Zoom2.
61
BP68-00030A-4
4/15/05
8:34 PM
Page 62
Special Features
Viewing Picture-in-Picture
One of the most best features of your TV is the Picture-in-Picture (PIP) feature. The advanced PIP
system allows you to watch two different pictures at once, even if you don’t have a VCR connected to your TV.
Selecting a PIP Screen
1
Press the Menu button. Move
the joystick down to select PIP,
then press the joystick to
enter.
Quick way to access PIP:
Just press “PIP” on the remote
control.
2
Move the joystick right to
select PIP “On”. The PIP
image will appear in the
corner of the screen.
3
Press Menu to exit.
NOTES
• Picture-in-Picture doesn’t function when the V-chip is active.
• If you turn the TV off while watching and turn it on again, then the mode will return to normal
video.
• Screen size can’t be changed in the PIP mode.
62
BP68-00030A-4
4/15/05
8:34 PM
Page 63
Selecting an External Signal
You can use PIP to view a signal from an external source, such as a VCR.
1
Press the Menu button. Move
the joystick down to select
PIP, then press the joystick to
enter. Quick way to access PIP
source: Just press “Source” on
the remote control.
2
Move the joystick down to
select “Source”.
3
Move the joystick right or left
to select an external signal.
You can choose between
“TV”, “Video 1~3”, or
“S-Video 1~3”.
The signal from these inputs will not appear if you have
not connected any equipment to the TV’s input jacks.
For more information about external signals, see
“Viewing an External Signal Source” (See page 41).
If you select “TV.” the PIP image is the same as the
main image.
4
Press Menu to exit.
NOTE
• The PIP subscreen doesn’t support ANT-B, Component1, Component2, Component3, PC, and
DVI.
63
BP68-00030A-4
4/15/05
8:34 PM
Page 64
Special Features
Selecting a Signal Source (Antenna or Cable) for PIP
If the PIP source is TV during PIP ON, you can select the broadcasting source of PIP picture separately from the main picture. (If the main picture is ANT-B and the broadcasting sources are different, making adjustments is necessary.)
64
1
Press the Menu button. Move
the joystick down to select
PIP, then press the joystick to
enter.
2
Move the joystick down to
select “Air or CATV”.
3
If an antenna is connected,
the setting is “AIR.” If a Cable
TV system is providing the signal, move the joystick to the
left or right until the appropriate type of cable system is
displayed (“STD,” “HRC,” or
“IRC”).
4
Press Menu to exit.
BP68-00030A-4
4/15/05
8:34 PM
Page 65
Swapping the Contents of the PIP and Main image
1
Press the Menu button. Move
the joystick down to select
PIP, then press the joystick to
enter. Quick way to access PIP
Swap: Just press “Swap” on
the remote control.
2
Move the joystick down to
select “Swap”.
3
Move the joystick to the right or
left.
The channel in the PIP image will
appear in the main image, and
vice versa.
4
Press Menu to exit.
NOTE
• When ANT-B, Component mode, PC, or DVI is selected, the PIP Swap function doesn’t work.
65
BP68-00030A-4
4/15/05
8:34 PM
Page 66
Special Features
Changing the Size of the PIP image
66
1
Press the Menu button. Move
the joystick down to select
PIP, then press the joystick to
enter. Quick way to access PIP
Size: Just press “Size” on the
remote control.
2
Move the joystick down to
select “Size”.
3
Move the joystick to the right
or left to select “Large”,
“Double1”, “Double2” or
“Small”.
Note: Double function doesn’t
operate In the Component,
PC, DVI mode.
4
Press Menu to exit.
BP68-00030A-4
4/15/05
8:34 PM
Page 67
Changing the Picture-in-Picture Channel
After you set the PIP signal source (antenna or cable), it is easy to change channels.
1
Press the Menu button. Move
the joystick down to select
PIP, then press the joystick to
enter. Quick way to access PIP
channel: Just press “PIP CH
(▲,▼)” on the remote control.
2
Move the joystick down to
select “Channel”.
3
Move the joystick to the right
or left to change the channel
of the PIP image.
4
Press Menu to exit.
NOTE
• The PIP channels are not available when RF is set to ANT-B.
(The PIP channels link to ANT-A).
67
BP68-00030A-4
4/15/05
8:35 PM
Page 68
Special Features
Selecting the Sound Source
You can use this feature to hear sound from the Main or PIP screen.
1
Press the Menu button. Move
the joystick down to select
PIP, then press the joystick to
enter.
2
Move the joystick down to
select “Sound Select”.
3
Move the joystick to the right or
left to switch Main or Sub audio
source. Main is for the main TV
picture audio, and Sub is for the
PIP picture audio.
4
Press Menu to exit.
Changing the Location of the PIP image
Press the Locate button repeatedly to move the PIP image from
corner to corner on the screen.
68
BP68-00030A-4
4/15/05
8:35 PM
Page 69
Using the V-Chip
The V-Chip feature automatically locks out programming that is deemed inappropriate for children.
The user must first enter a PIN (personal ID number) before any of the V-Chip restrictions can be
set up or changed.
Note: The V-chip doesn’t function when the Picture-in-Picture is active.
Setting Up Your Personal ID Number (PIN)
1
Press the Menu button. Move
the joystick down to select
SETUP, then press the joystick
to enter.
Quick way to access the
V-chip: Just press “V-chip” on
the remote control.
2
Move the joystick down to
select V-chip, then press the
joystick to enter.
The “Enter PIN” screen will
appear. Enter your 4-digit PIN
number.
Note: The default PIN number
for a new TV set is “0-0-0-0.”
3
After entering a valid PIN
number, the “V-chip” screen
will appear.
Move the joystick down to
select “Change PIN”, then
press the joystick to enter. The
Change pin screen will
appear. Choose any 4-digits
for your PIN and enter them.
As soon as the 4 digits are
entered, the “Confirm new
PIN” screen appears.
Press MENU to exit.
NOTE
• If you forget the PIN, press the remote-control keys in the following sequence, which resets the
pin to 0-0-0-0: POWER OFF → Mute → 8 → 2 → 4 → POWER ON.
69
BP68-00030A-4
4/15/05
8:35 PM
Page 70
Special Features
How to Enable/Disable the V-Chip
1
Press the Menu button. Move
the joystick down to select
SETUP, then press the
joystick to enter.
Move the joystick down to
select V-chip, then press the
joystick to enter. The “Enter
PIN” screen will appear. Enter
your 4-digit PIN number.
2
The “V-Chip” screen will
appear, and “V-Chip Lock”
will be selected.
To enable the V-Chip feature,
move the joystick right so that
the “V-Chip Lock” field is On.
(Moving the joystick to the
right or left will alternate between
On and Off.)
How to Set up Restrictions Using the “TV guidelines”
First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.)
Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.
1
Press the Menu button. Move the joystick down to select SETUP, then press
the joystick to enter.
Move the joystick down to select V-chip,
then press the joystick to enter.
The “Enter PIN” screen will appear.
Enter your 4-digit PIN number.
2
70
The “V-Chip mode” screen will appear.
Move the joystick down to select “TV
guidelines”, then press the joystick to
enter.
BP68-00030A-4
4/15/05
3
8:35 PM
Page 71
The “TV guidelines” screen will appear.
Move the joystick up or down to highlight
one of the six age-based categories:
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Young children
Children 7 and over
General audience
Parental guidance
Viewers 14 and over
Mature audience
Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young children
through age 7), and TV-G through TV-MA (everybody else). The restrictions for these two
groups work independently: If a household includes very young children as well as young
adults, the TV guidelines must be set up separately for each age group. (See next step.)
4
At this point, one of the TV-Ratings is selected.
Move the joystick right: Depending on your
existing setup, a letter “U” or “B” will be selected. (U: Unblocked, B: Blocked).
Move the joystick down or up to block or
unblock the category. Move the joystick to the
right. To select a different TV-Rating, move the
joystick down or up and then repeat the process.
Note 1: TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to
change any of the following sub-ratings:
FV:Fantasy violence, D:Dialog, L:Language, S:Sexual situation, V:Violence .
Note 2: The V-Chip will automatically block certain categories that are “more restrictive.”
For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked.
Similarly, if you block the TV-G category, then all the categories in the “young adult” group
will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together
similarly. (See next section.)
Continued...
71
BP68-00030A-4
4/15/05
8:35 PM
Page 72
Special Features
:
5
How to set the FV, D, L, S and V sub-ratings: First, select one of these TV-Ratings: TV-Y7,
TV-PG, TV-14 or TV-MA (See Step 4, on previous page.)
Next, while the TV-Rating is selected, repeatedly move the joystick right.
This will cycle through the available sub-ratings (FV, L, S, D or V). A letter (“U” or “B”) will
be displayed for each sub-rating. While the “U” or “B” is selected, move the joystick down
or up to change the sub-rating.
Note: The V-chip will automatically block certain categories that are “More restrictive”.
For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and
TV-MA will automatically be blocked.
6
Press the Menu button to clear all the screens. (Or proceed to the next section, and set up
additional restrictions based on the MPAA codes).
How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X
The MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its
main application is for movies. (Eventually, movie videocassettes will be encoded with MPAA ratings.) When the V-Chip lock is on, the TV will automatically block any programs that are coded
with objectionable ratings (either MPAA or TV-Ratings).
1
Press the Menu button. Move
the joystick down to select
SETUP, then press the
joystick to enter.
Move the joystick down to
select the V-chip, then press
the joystick to enter.
The “Enter PIN” screen will appear.
Enter your 4-digit PIN number.
2
72
The “V-Chip” screen will
appear. Move the joystick
down to select “MPAA rating”, then press the joystick to
enter.
BP68-00030A-4
4/15/05
8:35 PM
Page 73
3
The “MPAA Ratings” screen will appear.
4
Repeatedly move the joystick
down to highlight a particular MPAA
category.
The MPAA categories are as follows.
G
PG
General audience (no restrictions).
Parental guidance suggested.
PG-13
R
PG-13 (Parents strongly cautioned).
R (Restricted. Children under 17 should be
accompanied by an adult).
No children under age 17.
X (Adults only).
Not rated.
NC-17
X
NR
While a particular category is highlighted, move the joystick to the right to activate it.
A letter (“U” or “B”) will be displayed. Move the joystick down or up to select “U” or “B”.
Press Menu button to save the settings and to clear all screens.
Note: The V-Chip will automatically block any category that is “more restrictive.”
For example, if you block the “PG-13” category, then “R”, “NC-17”, and “X” will automatically be blocked also.
How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)
If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the
following message will appear: “Excessive rating.”
To resume normal viewing, tune to a different channel using the number buttons. Under certain
conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the
channels. In this case, use the V-Chip button for an “emergency escape”:
Press the Menu button. Move the joystick down to select “SETUP”, then press the joystick to enter.
Move the joystick down to select “V-chip”, then press the joystick to enter. Enter your PIN number,
and move the joystick right to temporarily disable the V-Chip Lock.
73
BP68-00030A-5
4/15/05
8:36 PM
Page 74
SAMSUNG
BP68-00030A-5
4/15/05
8:36 PM
Page 75
PC Display
BP68-00030A-5
4/15/05
8:36 PM
Page 76
PC Display
Using Your TV as a Computer (PC) Display
How to connect Your PC to the TV
Note: This figure shows the Standard Connector-jack panel. The actual configuration on your TV
may be different, depending on the model.
15Pin(D-Sub)
Cable
Audio Cable
76
BP68-00030A-5
4/15/05
8:36 PM
Page 77
How to Set up Your PC Software (Windows only)
The Windows display-settings for a typical computer are shown below. The actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic setup information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung
Dealer.)
First, click on “Settings” on the Windows
start menu.
While “Settings” is highlighted, move the
cursor so that “control panel” is highlighted.
When the control panel screen appears,
click on “Display” and a display dialogbox will appear.
Navigate to the “Settings” tab on the display dialog-box.
The two key variables that apply to the
TV-PC interface are “resolution” and “colors.” The correct settings for these two variables are:
* Screen area (sometimes called “resolution”): 1024 x 768 pixels
* Color: “24-bit” color (might also be
expressed as “16 million colors”). Shown
at left is a typical screen for “Display” dialog box.
If a vertical-frequency option exists on your
display settings dialog box, the correct
value is “60” or “60 Hz.” Otherwise, just
click “OK” and exit the dialog box.
continued...
77
BP68-00030A-5
4/15/05
8:36 PM
Page 78
PC Display
Display Modes
Mode
VGA
Resolution
640x350
720x400
720x400
640x480
640x480
640x480
640x480
640x480
SVGA 800x600
800x600
800x600
800x600
800x600
832x624
1024x768
XGA
1024x768
1024x768
DTV 1920x1080i
1280x720p
720x483p
Total
800x449
900x449
936x446
800x525
864x525
832x520
840x500
832x509
1024x625
1056x628
1040x666
1056x625
1048x6321
1152x667
1344x806
1328x806
1312x800
2200x1125
1650x750
858x525
Hor. Freq Polarity Ver. Freq Polarity Pixel Clock Sep
31.47 kHz
P
70.00 Hz
25.175 MHz 0
N
31.47 kHz
N
70.00 Hz
28.322 MHz 0
37.93 kHz
N
85.00 Hz
35.5 MHz
0
P
31.47 kHz
N
60.00 Hz
25.175 MHz 0
P
35.00 kHz
N
66.70 Hz
30.24 MHz
0
N
37.86 kHz
N
72.80 Hz
31.5 MHz
0
N
37.50 kHz
N
75.00 Hz
31.5 MHz
N
0
43.27 kHz
N
85.00 Hz
36 MHz
0
N
35.16 kHz
N/P 56.30 Hz
36 MHz
0
N
37.88 kHz
P
60.30 Hz N/P
40 MHz
0
48.08 kHz
P
72.20 Hz
50 MHz
0
P
46.87 kHz
P
75.00 Hz
49.5 MHz
0
P
53.67 kHz
P
85.10 Hz
56.25 MHz
0
P
49.73 kHz
N
74.60 Hz
57.284 MHz 0
P
48.36 kHz
N
60.00 Hz
65 MHz
0
N
56.40 kHz
N
70.10 Hz
75 MHz
0
N
60.02 kHz
P
75.00 Hz
78.75 MHz
0
N
33.75 kHz
X
60.00 Hz
74.25 MHz
0
P
45.00 kHz
X
60.00 Hz
74.25 MHz
0
X
31.47 kHz
X
60.00 Hz
27 MHz
0
X
Com
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
x
x
x
SOG
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
NOTE
Both screen position and size will vary, depending on the type of PC monitor and its resolution.
The table above shows all of the display modes that are supported:
* The interlace mode is not supported.
* The TV will operate abnormally if a non-standard video format is selected.
NOTES
• When this TV is used as a PC display, 32-bit color is supported (over 16 million colors).
• Your PC display screen might appear different, depending on the manufacturer (and depending
on your particular version of Windows). Check your PC instruction book for information about
connecting your PC to a TV display-monitor.
• Same modes as PC are supported for the signal input to the DVI jack. Only a separate sync
signal is supported.
78
BP68-00030A-5
4/15/05
8:36 PM
Page 79
How to Set up Your TV as a PC display
“Auto Adjust” allows the TV to self-adjust to the incoming video signal. The values of fine,
coarse and position are adjusted automatically.
1
Press TV/VIDEO on the remote control.
Move the joystick up or down to
select PC, then press the joystick to
enter.
2
Press the Menu button.
Move the joystick down to
select “PC”, then press the
joystick to enter.
2
Move the joystick down to
select “Auto Adjust”.
3
Press the joystick to enter.
79
BP68-00030A-5
4/15/05
8:36 PM
Page 80
PC Display
Picture Quality Adjustment
The purpose of picture quality adjustment is to remove or reduce picture noise.
If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmost
and fine tune again. After the noise has been reduced, re-adjust the picture so that it is aligned
on the center of screen.
Frequency Adjustment
1
Press TV/VIDEO on the remote
control.
Move the joystick up or down to
select PC, then press the joystick to
enter.
2
Press the Menu button.
Move the joystick down to
select “PC”, then press the
joystick to enter.
3
Move the joystick down to
select “Coarse”.
Remove picture noise (vertical
stripes) on the screen by moving the joystick right or left.
(If frequency is not set properly, then vertical stripes will
appear on the screen).
Fine tuning
4
Move the joystick down to
select “Fine”.
Remove picture noise (vertical
stripes) on the screen by moving the joystick right or left.
(If phase is not set properly,
the picture may be blurry.)
Press the Menu to exit.
80
BP68-00030A-5
4/15/05
8:36 PM
Page 81
Changing the Position of the Image (Moving left, right, up and down)
After connecting the TV to your PC, adjust the position of screen if it is not well-aligned.
1
Press TV/VIDEO on the remote control.
Move the joystick up or down to
select PC, then press the joystick to
enter.
2
Press the Menu button.
Move the joystick down to
select “PC”, then press the
joystick to enter.
3
Move the joystick down to
select “Position”, then press
the joystick to enter.
Adjust the position of screen
by using the joystick button.
Press the Menu to exit.
NOTE
• If a PC signal is input to DVI, you can’t adjust the quality and
position of picture.
To Initialize the Screen Position and Picture Quality Adjustment
After steps 1~2 above are completed, move the joystick down to
select Recall. Press the joystick to initialize the screen position and
picture quality.
NOTE
• When ‘Recall’ is active, the TV screen will become black and return to
the original view about five seconds later. (This is a normal operation.)
81
BP68-00030A-5
4/15/05
8:37 PM
Page 82
PC Display
Changing the Screen Size (PC mode)
When you press the ASPECT button on the remote control, the TV’s screen mode choices appear
in sequence. The screen displays in this order: Wide(TV), Wide(PC),Expand, Normal.
The name of the screen mode will be displayed at the bottom of the TV screen.
Wide (TV)
Scales the picture to the size of the TV
screen regardless of the aspect ratio of the
input source.
Wide (PC)
Scales the picture to 92% of the screen
regardless of the aspect ratio of the input
source.
Expand
Scales the picture to the aspect ratio
of the input source.
Normal
Displays the picture as it is without changing the aspect ratio of input source.
82
BP68-00030A-5
4/15/05
8:37 PM
Page 83
Aspect Supported settings
Source (PC/DVI)
1920 x 1080i
Aspect
Wide(TV)
1280 x 720
Wide(TV) ➝ Wide(PC)
1024 x 768
Wide(TV) ➝ Wide(PC) ➝ Expand
720 x 483 (480p)
Wide(TV) ➝ Wide(PC) ➝ Normal
Others
Wide(TV) ➝ Wide(PC) ➝ Expand ➝ Normal
NOTES
• In VGA (640x480) and SVGA (800x600) modes, the Wide(TV), Wide (PC), Expand and
Normal screen modes are available.
• In XGA (1024x768) mode, the Wide (TV), Wide (PC) and Expand screen modes are available.
83
BP68-00030A-6
4/15/05
8:37 PM
Page 84
SAMSUNG
BP68-00030A-6
4/15/05
8:37 PM
Page 85
Appendix
BP68-00030A-6
4/15/05
8:37 PM
Page 86
Appendix
Troubleshooting
Before you call a service technician, please scan this list of problems and possible solutions.
It may save you time and money.
Problem
Possible Solution
Poor picture quality.
Try another channel.
Adjust the antenna.
Check all wire connections.
Poor sound quality or no sound.
Try another channel.
Adjust the antenna.
Make sure the “Mute” button is off.
No picture or sound.
Try another channel.
Press the TV/Video button.
Make sure the TV is plugged in.
Check the antenna connections.
No color or wrong colors.
Make sure the program is broadcasted in color.
Adjust the picture settings.
Picture rolls vertically.
Adjust the antenna.
Check all wire connections.
If you are using a VCR, check the tracking.
Erratic operation, or
intermittent failure.
Unplug the TV for 30 seconds, then try again.
Remote control failure.
Press the “Mode” button to put your remote control
into “TV” mode.
Make sure the remote has batteries.
TV won’t switch on.
Make sure the wall outlet is working.
Make sure the remote has batteries.
• The display panel used for the DLP Projection TV is composed of many tiny pixels. These, pixels
may occasionally appear on the screen.
86
BP68-00030A-6
4/15/05
8:37 PM
Page 87
Care and Maintenance
With proper care, your TV will give you many years of service. Please follow these guidelines to
get the maximum performance from your TV.
Placement
•
•
•
•
Do not put the TV near extremely hot, cold, humid or dusty places.
Do not put the TV near appliances that create magnetic fields.
Keep the ventilation openings clear.
Do not place the TV on a rough and slanted surface, such as cloth or paper.
(The screen top might be cut off or the screen center might be tilted.)
Liquids
• Do not handle liquids near or on the TV.
Cabinet
•
•
•
•
Never open the cabinet or touch the parts inside.
Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.
Do not put heavy objects on top of the cabinet.
This DLP Projection TV projects the image onto a large screen by applying an optical
system. If you place the TV set face down, it might cause a problem because dirt,
or some other contaminant may become attached to the inside of the TV set.
Temperature
• If your TV is suddenly moved from a cold to a warm place, unplug the power cord for at least
two hours so that moisture that may have formed inside the unit can dry completely.
Using the TV in Another Country
If you plan to take your TV to a foreign country, please be aware of the different television systems
that are in use around the world. A TV designed for one system may not work properly with another system due to differences in the TV channel frequencies.
Specifications
Model
HLM4365W
HLM5065W
HLM437W
HLM507W
HLM617W
Voltage
AC 120V
AC 120V
AC 120V
AC 120V
AC 120V
60Hz
60Hz
60Hz
60Hz
60Hz
200 watts
200 watts
200 watts
200 watts
200 watts
1075 x 399 x 755 mm
1230 x 444 x 859 mm
1029 x 400 x 755 mm
1184 x 447 x 859 mm
1436 x 1021 x 489 mm
Frequency of Operation
Power Consumption
Dimension
(W x D x H)
Weight
42.3 x 15.7 x 29.7 inches 48.4 x 17.5 x 33.8 inches 40.5 x 15.7 x 29.7 inches 46.6 x 17.6 x 33.8 inches 56.5 x 40.2 x 19.3 inches
31.5 Kg / 69.4 lbs
37 Kg / 81.6 lbs
30 Kg / 66.1 lbs
35.2 Kg / 77.6 lbs
49 Kg / 108.0 lbs
87
BP68-00030A-cover
4/15/05
8:22 PM
Page 2
DLPTV
Samsung Electronics of America, Inc.
Service Division
400 Valley Road, Suite 201
Mt. Arlington, N.J. 07660
TEL: 1-800-SAMSUNG (1-800-726-7864)
www.samsungusa.com
BP68-00030A-00(ENG)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
