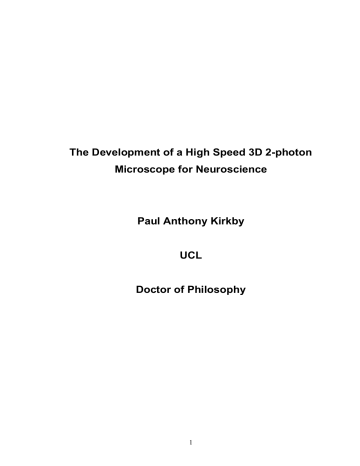

The Development of a High Speed 3D 2-photon
Microscope for Neuroscience
Paul Anthony Kirkby
UCL
Doctor of Philosophy
1
Declaration
I, Paul Anthony Kirkby, confirm that the work presented in this thesis is my own.
Where information has been derived from other sources, I confirm that this has been
indicated in the thesis.
Abstract
The progress of neuroscience is limited by the instrumentation available to it for
studying the brain. At present, there is a serious instrumentation gap between
functional Magnetic Resonance Imaging (fMRI) of whole brains and the microscopic
scale functional imaging possible with today’s optical microscopes and
electrophysiology techniques, such as patch clamping of individual neurons. This
thesis describes the development of a new extension to optical microscopy that
enables refocusing within 25 microseconds rather than the large fraction of a second
possible by moving the sample or objective. The system is capable of refocusing a
laser beam that is monitoring activity in 3D samples of live brain tissue 300 times
faster than previously possible. This will make practical a new type of optical
functional imaging for studying small sub-networks of neurons containing up to about
30,000 neurons at up to 30,000 sub micrometre sized monitored points of interest per
second. The thesis describes the development of a detailed design for a new type of
3D scanner that uses Acousto-Optic Deflectors (AODs) to diffractively deflect and
focus an intense laser beam beneath a conventional microscope objective. The
fluorescence of calcium sensitive dyes in live neurons is used to monitor action
potentials conveying signals between neurons. The optical and systems engineering
problems and design trade-offs involved are discussed in detail. The results of
extensive computer modelling are described and innovative solutions to several key
optical physics based engineering problems are explained. The practical problems
found in building a prototype machine incorporating these innovations are described
and the encouraging first operational results from the machine reported.
2
Acknowledgements
I am very grateful for the opportunity that this PhD and preceeding MRes has given
me to retrain from optoelectonics research engineering into neuroscience
instrumentation. I am indebted to the EPSRC/BBSRC funded UCL Centre for
Mathematics Physics Life Sciences and Experimental biology (CoMPLEX,
http://www.ucl.ac.uk/complex/ ) and in particular to Andrew Pomianowski, Guy
Moss and Alan Johnstone three of its directors for agreeing to take a chance on such a
‘mature’ student at the beginning and for supporting and encouraging me throughout.
This project was conceived by Angus Silver in 2004 and a pilot project was funded by
EPSRC starting in 2005 (Silver 2004). It has been a great pleasure to be part of the
Silver Lab that Angus leads so effectively. This project has been carried out
predominantly by K M N Srinivas Nadella, a Research Fellow and myself, with very
regular discussion and leadership from Angus. During the 4 years of the thesis I have
also had funding support from The Worshipful Company of Scientific Instrument
Makers since I won their ‘Beloe Fellowship’ in 2008. Angus Silver has also used part
of his Welcome Trust, Medical Research Council Fellowships to support the overall
project and extend my student grant.
There are many different skills and attributes required to progress the development of
such a complex instrument as described in this Thesis. At each stage, I have done the
initial conceptual work and Matlab modeling for all the aspects of the work described
in the thesis (except the temporal compensator). I have developed the concepts and
implemented all the Matlab code described here for controlling the AOL laser spot
position vs. time. Srinivas has done the majority of the experimental implementation,
such as optical train assembly and alignment and the development and
implementation of all the LabView code that provides the user interface.
The results presented in Chapter 5 include our first demonstrations of the feasibility
of the microscope for 3D biological functional imaging at kHz rates. This work was
carried out by Tomas Fernandez-Alfonso and Srinivas. Srinivas also designed and
carried out the experimental measurements of temporal dispersion compensation. All
the other experimental work described in this thesis was carried out jointly by myself
3
and Srinivas. We are very grateful to Alan Hogben and Duncan Farqueharson for the
high quality mechanical work that has been carried out by the UCL Biosciences
Engineering workshop and to Bruno Pichler for much help with software
development.
I would like to thank Warren Seale and Mike Draper of Gouch and Housego
(www.goochandhousego.com ) for their advice and help with AOD design and
analysis of performance and Mike Hillier of Isomet (www.isomet.com ) for his
enthusiastic development of improved versions of the iDDS for this project.
Particularly at the beginning of the project, Bill Vogt and Todd Keifer of Prairie
Technologies (www.prairie-technologies.com) were very helpful in training us in
microscope engineering and throughout the project Mike Szulczewski CEO of Prairie
has provided enthusiastic support and strategic advice in a business context. Abigail
Watts of UCL Business has been our guardian in UCL business and overseen the
project from the perspective of its commercial exploitation. Mark Roberts of JA
Kemp Patent Attourneys has been a pleasure to work with and suggested the
clarification I used on the way the ramp rate equations in chapter 3 were presented.
Finally I would like to thank John Mitchell of UCL Electrical Engineering, and my
other colleagues in the Silver Lab and the wider UCL community for many inspiring
useful and enjoyable conversations. At home I would like to thank my wife Geraldine
for her support and encouragement throughout the course of this PhD and Geraldine,
Valerie Shephard and my sister Margaret Kirkby for enthusiastic style advice and
proof reading. I take responsibility for the remaining errors.
Glossary
AFL Absolute Frequency Limit; the first miniscan drive algorithm described
graphically in Figure 2.24 for setting miniscan start and stop drive frequencies
based on predefined absolute frequency limits.
AOD acousto-optic deflector
AOL
acousto-optic lens
4
AOLM acousto-optic lens microscope
DOE
diffractive optical element
FOV
field of view
FWHM full width half maximum
neuronal processes the dendrites or axons of a neuron
HWP
half wave plate
PMT photomultiplier tube
psf
point spread function: the 3D distribution of optical energy (or 2-photon
excitation) at the focus of a lens
OFL Optimised Frequency Limit: an algorithm of optimising the pairs of drive
frequencies for the AODs on each axis to maximise efficiency and minimise
efficiency variation during a miniscan
RF
radio frequency
ROI
region of interest
telecentric relay an optical system, usually a pair of lenses that relay an input image
to an output field .It has the property of constant magnification independent of
z position.
voxel
the 3D equivalent of a 2D pixel , a ‘volume pixel’
5
Table of Contents
Declaration....................................................................................................................2
Abstract.........................................................................................................................2
Acknowledgements ......................................................................................................3
Glossary ........................................................................................................................4
Table of Contents .........................................................................................................6
Chapter 1 Introduction and background ..................................................................9
Biological objective – Understanding how the brain process information in its
neural networks........................................................................................................10
Signal Processing in the neural networks of the brain.........................................12
2-photon Microscopy – principles, and limits to speed and duty cycle...................19
Basic principles....................................................................................................19
Fluorescent dyes for functional optical imaging..................................................22
2D vs. 3D – number of addressable neurons that can be chosen for optical
functional imaging ...............................................................................................24
Options for high speed 3D focusing ....................................................................25
Introduction to AODs for scanning, pointing and focusing.....................................27
Principle of operation of AODs ...........................................................................27
Forming a spherical lens with AODs...................................................................29
Proposed overall system layout ...........................................................................35
Summary of objectives and challenges....................................................................37
Target specification..............................................................................................37
Summary of the state of the art for 3D AOD deflectors at the start of the PhD and
primary challenges ...............................................................................................37
Summary of chapter 1..............................................................................................39
Chapter 2 Initial design considerations ...................................................................40
Choice of deflection system: Scanning, pointing and the sparsity problem ............40
The problem and defining the limiting factors ....................................................40
The duty cycle of a functional optical imaging system .......................................42
Pointing Mode rather than scanning mode solves the sparsity – duty cycle
problem ................................................................................................................46
Suitability of galvanometer and AOD deflectors for pointing and scanning.......50
How scanning and pointing will be used in practice to maximise the performance
..............................................................................................................................52
Choice of Acousto Optic Lens configuration ..........................................................53
Design of the complete AOLM: the starting point ..................................................55
Derivation of field of view of microscope from AOD RF frequency limits and
AOD physical parameters ........................................................................................58
Derivation of 3D field of view of AOLM............................................................59
NA vs. field of view.............................................................................................62
Problems caused by using telecentric relays in the AOL ........................................65
Novel and practical compact configuration for the AOL ........................................67
Derivation of equations for pointing and scanning in the ‘compact configuration’
AOL .........................................................................................................................68
Deriving equations for the Pointing mode ...........................................................69
Deriving algorithms for the scanning mode.........................................................77
Summary of chapter 2..............................................................................................83
6
Chapter 3 AOD Design, aberrations and first assembly of AOL .........................84
Design of AODs.......................................................................................................84
Standard AOD design ..............................................................................................90
Acceptance angle limitations of AODs....................................................................94
Results of modeling of commercially available AODs .......................................94
Wave vector model of AOD performance ...........................................................95
The effect of high acoustic wave walk-off angle on AOD focusing aberration
(coma) ..................................................................................................................98
Design of crystals with reduced acoustic rotation to minimise acoustic walk off
angle.....................................................................................................................99
Expected performance from computer models ..................................................102
Chromatic aberration of AODs, its effect on point spread function and a novel
proposed solution ...................................................................................................104
The chromatic aberration caused by AODs and why it is a problem for 2-photon
microscopy.........................................................................................................104
Derivation of resolution of microscope in terms of the point spread function (psf) of
the focal spot across the field of view....................................................................105
Novel proposed solution using diffractive optical elements in a telecentric relay
............................................................................................................................109
Models of 3D aberration field............................................................................110
Design of a practical chromatic aberration corrector.........................................116
Temporal dispersion of AODs ...............................................................................119
Magnitude of temporal dispersion in TeO2 and why it is a severe problem for 2photon microscopes ...........................................................................................119
Compensation for temporal pulse dispersion using a prechirper.......................120
Models of overall system design and resulting Target Specification for AODs sent
to prospective manufacturers .................................................................................122
Model of overall system.....................................................................................122
Discussion: Model of design trade-offs affecting system power budget shows
achieving full target specification difficult ........................................................125
Requirement Specification for AOD X1 and AOD Y1 ....................................126
Requirement Specification for AOD X2 and AOD Y2 ....................................127
Evaluation of the AODs.........................................................................................128
Measurements of AOD crystal orientation ............................................................129
Building and aligning the compact configuration..................................................134
Summary of chapter 3............................................................................................135
Chapter 4 Drive electronics, control systems and development of new drive
algorithms .................................................................................................................137
System architecture............................................................................................137
AOD drive using intelligent Direct Digital Synthesis (iDDS) of RF waveform ...139
Algorithms for pre-computing RF drives to produce the required laser focus and
scan patterns...........................................................................................................141
Pointing mode algorithms ..................................................................................141
Algorithms for scanning ....................................................................................145
Measurements of X1 -X2 and Y1-Y2 diffraction efficiency plots ........................150
Derivation of new drive algorithms .......................................................................154
Summary of chapter 4............................................................................................155
Chapter 5 Experimental results: AOL and AOLM..............................................156
Measurement of speed of refocusing of the AOL..................................................156
Correction of temporal dispersion .........................................................................158
Early 3D Imaging results using the AOLM...........................................................160
7
Progress towards solving the patternation problem and extending the usable field of
view........................................................................................................................162
Latest Results with OFL algorithm for extending field of view............................165
Experimental results using a Fluorescent Grid ..................................................165
Comparison of measured 3D field of view (FOV) with theory .........................168
Latest results of OFL algorithm for pollen grain imaging over a large axial range
................................................................................................................................173
Measurements of point spread functions (psfs) – comparison with theory and the
development of new crystal mounts ......................................................................175
First images of neurons..........................................................................................185
First measurements of action potentials.................................................................187
Summary of chapter 5............................................................................................191
Chapter 6 Conclusions and Discussion ..................................................................192
Summary of main achievements............................................................................192
Comparison of AOLM with other recent approaches for optical functional imaging
................................................................................................................................193
AOD-based imaging approaches .......................................................................193
Other Technologies............................................................................................195
Status of results to date ......................................................................................198
Performance of the prototype AOLM....................................................................199
Further Work: improving image patternation and aberration of the psf ..........200
Prospects for meeting or exceeding target specification with the current design..204
Patents, proposed new hybrid ‘3D Saccade scanning’ microscope and prospects for
commercial exploitation.........................................................................................205
Potential for improving AOLM performance through the further development of
control electronics and algorithms .........................................................................206
References.................................................................................................................208
8
Chapter 1
Introduction and background
The slowness of mechanical refocusing of conventional optical microscopes severely
limits the speed at which they can form images of 3D objects. This thesis describes
the design, development and testing of a prototype ‘Acousto-Optic Lens Microscope’
(AOLM) aimed at overcoming some of these longstanding limitations. The
motivation for developing the AOLM system was the desire to extend the use of laser
microscopy in order to fill the ‘instrumentation gap’ in neuroscience in available
techniques for functional imaging of the brain in three dimensions at high speed.
There are approximately 1011 neurons in the brain. They communicate by sending
electrical signals known as action potentials along the complex branching axons.
These are short pulses about 1ms in duration and typically have an amplitude of up to
100mV. They occur at rates from 0-1 kHz. There is currently no instrument capable
of both imaging and identifying individual neurons from a 3 dimensional volume of
brain tissue and recording activity from many neurons in parallel at sufficiently high
speed to detect the millisecond timing of individual action potentials. Partly as a result
of this, we are far from understanding how cortical networks carry out the information
processing that presumably allows an animal to form its ongoing impression of the
outside world and pursue its goals in the environment. Such an instrument is therefore
highly desirable for neuroscience to make more progress in understanding how the
neural networks forming the brain encode and process information.
In the longer term, it is highly likely that understanding the spatio-temporal coding
and processing mechanisms of the brain will open up entirely new ways of
understanding disorders of the brain and lead to new treatment for a wide range of
mental disorders.
This chapter discusses the biological objectives for developing the AOLM , describes
the principle of operation of 2-photon microscopy, introduces acousto-optic scanning
and the concepts that allow scanning and focusing to be extended into the third
9
dimension, outlines the target specification for the AOLM and summarises the state
of the art of 3D AOD deflection systems at the start of the project.
Biological objective – Understanding how the brain process
information in its neural networks
The mammalian brain is by far the most complex information processing and decision
making system in the known universe. Neuroscience has been attempting to
understand the structure and functional mechanisms of the brain for over 100 years
(Cajal 1911). Tremendous progress has been made, first in identifying that individual
cells (neurons) are the key unit of processing, classifying the structure and form of
many different types of neurons and more recently in understanding the remarkable
biochemical complexity of even the smallest parts of individual neurons (Nicholls
2001).The direction and pace of neuroscience is, to a large extent, determined by the
instruments available for monitoring and imaging the brain at the relevant physical
scale. Many of the key improvements in understanding have been made by using
instrumentation with higher capabilities than previously available. Before discussing
improved instrumentation, consider first the instruments available today to study the
various levels of the hierarchical structure of the brain.
10
Brain
Observation of injury
induced functional
deficits, surgery,
dissection, EEG fMRI,
Network
Electrophysiology
optical imaging
Neuron
Synapse
Molecular assemblies
Genes
Molecular, genetic
electrophysiological
optical and electron
microscope imaging
methods
Figure 1.1 Summary of the hierarchical view of brain structure as it is understood today
indicating the main techniques used for their study at each level. EEG is electroencephalography,
the use of sensitive electrodes distributed across the scalp, fMRI is functional Magnetic
Resonance Imaging.
Figure 1.1 summarises the hierarchical view of brain structure as it is understood
today and indicates the main techniques used for their study. At the scale of whole
brains, studies of loss of function from brain injury or surgery and anatomical
dissection are used to determine structure and its relationship to function. The
functioning of live whole brains can be best studied today using the
electroencephalograph (EEG) and functional Magnetic Resonance Imaging (fMRI)
instruments (Jezzard 2001). Such instrumentation, using computerised tests on
humans have been invaluable for identifying (or confirming) the function of the
different regions of the brain. It has, at a very high level, even provided some
evidence as to what algorithms are being used by the brain for the decision making
process involved (Daw and Doya 2006).
11
At the ‘network of neurons’ hierarchical level, electrophysiological techniques
involving sensitive amplification of extracellular electric potentials and currents are
often used. These use fine metallic electrode tips to record signals up to a few mV at
bandwidths up to 10 kHz. Multi-electrode arrays have been inserted into the brains of
awake behaving animals and have yielded important information (Huxter, Burgess et
al. 2003). A disadvantage of such techniques is, however, that it is difficult to be sure
which neurons are generating the signals being measured and how they are
interconnected (Buzsaki 2004).
At the ‘neuron’ hierarchical level, the most precise electrophysiological technique in
widespread use today uses glass tipped pipette electrodes with tips of the order of 1
μm diameter. Using optical microscopy and precision micromanipulators, these can
be used to record electrical potentials and currents from individual neurons using a
technique known as ‘patch clamping’ (Hamill, Marty et al. 1981). These techniques
have progressed from being used on cultured neurons to in-vitro use on acute slices of
live brain tissue from animals such as mice that have been killed up to a few hours
previously (Edwards, Konnerth et al. 1989). More recently the use of patch clamping
has been extended to in-vivo use on live animals, under anaesthetic (Margrie, Brecht
et al. 2002).
Signal Processing in the neural networks of the brain
The way in which information is represented, processed and stored in the brain is very
far from being understood, however many generic details are known. For instance, the
features of sensory inputs can be encoded as distinct spatiotemporal patterns of firing
neurons in the cortex. In vivo recordings from different areas of the cortex show that
only a small fraction of the neurons in a network are active in response to a particular
sensory stimulus feature, implying that the ‘population code’ representing the
stimulus is ‘sparse’(Vinje and Gallant 2000; Margrie, Brecht et al. 2002; Brecht, Roth
et al. 2003; Olshausen and Field 2004; Kerr, de Kock et al. 2007). This temporal
sparseness is believed, in part at least, to be because sparse population codes are the
most energy efficient (Levy and Baxter 1996; Attwell and Laughlin 2001).
12
Temporal and spatial sparseness of action potentials and the regions of
interest on neurons where the signal can be monitored
From the perspective of monitoring the action potentials in the neural tissue the
temporal sparseness of action potentials is a considerable problem, with individual
neurons firing at rates from very small fractions of 1 Hz up to about 1 kHz, often in an
unpredictable and very ‘bursty’ manner. In the worst case therefore, in order to
monitor every action potential in every neuron in a volume of tissue, it is necessary
that every neuron is monitored at least every millisecond.
Naturally, as a result of the temporal sparseness, at any particular time only the order
of 1% to 10% of neurons are firing action potentials. From the perspective of
monitoring the action potentials in the brain, the parts of neurons that can be
monitored are also spatially very sparse. This is particularly true if it is desired to
monitor the action potentials at high bandwidth (>kHz sampling rates). This is
because the action potentials themselves are confined to the 10nm thick membranes of
the neuron cell walls. For electrical monitoring, part of the cell wall must be contacted
by a probe or patch clamp and the part of the cell that is in practice usually easiest to
contact is the neuron cell body. These are in the range of 5-30 μm in diameter and
usually separated by several cell diameters. The rest of the space is filled with other
types of non neuronal cells and tissue and a high density of the sub micron diameter
branching tree like ‘axons’ (output fibres from the neuron bodies) and ‘dendrites’
(input fibres to the cell bodies). Dendrites and axons form the complex networks that
link the cell bodies to each other via electrochemical ‘synapses’ between them. They
can be any length from a few μm up to many mm. Thus in general, it is necessary to
use optical microscopy with the order of 1 μm precision micromanipulators for
adjusting position of electrical monitoring probes for >1 kHz monitoring speed of
individual neurons.
If optical techniques are used for monitoring (see Chapter 2) then again, for high
speed 100 Hz -1 kHz monitoring rates, the monitoring position needs to be chosen for
each neuron with the order of 1 to 5 μm precision. For slower speeds, 10s to 100s of
13
ms, whole cell bodies can be optically monitored which may be up to 20-30 μm
across.
In conclusion, the high speed monitoring of the signals that propagate between
neurons in live brain tissue and as such represent a key aspect of how neurons process
information can only be monitored with instrumentation capable of high precision in
time and 3D space. The signals themselves are temporally very sparse (typically 1ms
long separated 1ms to 10s of seconds). The regions of interest on the neurons for
monitoring the signals at high speed are spatially very sparse, being sub micron up to
a few μm in dimension separated by up to many 10s of μm.
Functional Imaging of neurons in networks: current limitations and why this
is an important problem to solve
The main limitation of current cellular level electrophysiological instrumentation
techniques is that it is very difficult indeed to patch more than a few cells at a time in
parallel, thus it is currently very difficult to determine, in parallel, the millisecond
timing of action potentials of more than three or four identified cells of the cortex.
This is important because there is increasing evidence that in different parts of the
brain not only the rate, but also that the precise timing (Huxter, Burgess et al. 2003;
Montemurro, Rasch et al. 2008) of action potentials within bursts of action potentials
from distributed groups of neurons, convey more information than the average burst
rate. There is already widespread evidence that network oscillations at a wide variety
of frequencies play a significant role in synchronizing signalling of information from
one part of the brain to another (Buzsaki 2006 ). There are also examples where the
evidence strongly suggests that the phase of an action potential, that is its time within
the cycle of some larger scale network oscillation, carries significant information.
Perhaps the most well known example of the importance of precise timing or phase
within an oscillation carrying significant information is the evidence from electrodes
in awake behaving rats. Extra cellular electrodes placed in the hippocampus show that
certain cells, referred to as ‘place cells’, fire with a rate that reaches a maximum at
certain unique positions within a 2D environment. Other place cells have maxima
elsewhere in the environment forming a type of map. The phase of firing of these
‘place cells’ within the 10Hz theta oscillations of the hippocampus varies
14
progressively as the rat moves through the spatial position that causes the cell to fire
fastest (Huxter, Burgess et al. 2003). The theta oscillation is an oscillation of the
hippocampus network and is measured using an electro-encephalogram. They showed
that the time of firing with respect to this oscillation and the firing rate are dissociable
and can represent variables such as the animal’s location within the ‘place field’ and
its speed of movement through the field. The firing of place cells must be a necessary
part of the rat’s internal cognitive map of the outside world. Other detailed studies
(Jeffery 2007) show that the so called ‘place cells’ that the tips of the multi-electrode
array happen to be close to, not only fire as a result of place but also apparently in
response to other modalities of input and even ‘internal brain state’ so that the
evidence suggests that the brain’s representation of external reality is not coded into
the firing of individual neurons, but into spatio-temporal patterns of firing of neurons
distributed across a region of, or perhaps indeed across the whole, brain.
Some recent additional evidence from multi-electrode arrays, monitoring the precise
timing of action potentials of the detached retina of a salamander whilst controlled
sequences of images are projected onto the retina, show that the relative timing of
action potentials from nearby ganglion cells carries significantly more information
than can be carried by rate alone.(Gollisch and Meister 2008). There is also evidence
from multi-unit recording in the primary visual cortex of anaesthetised macaques, that
shows that that spike timing with respect to local field potential (LFP) conveys 50%
more information than the spikes themselves.(Montemurro, Rasch et al. 2008)
A key issue is whether there is some general principle or pattern to the ‘population
codes’ or ‘spatio-temporal patterns of action potentials’ that communicate information
from one part of the brain to another. Is there a generic code for the precise spatiotemporal patterns of action potentials propagating in bundles of axons between one
part of the brain and another? The alternative, that it is that the precise timing is
random and it is only the overall rate of action potentials that is significant, is looking
less likely as more accurate evidence is gathered from different parts of the brain.
15
Number of Neurons or ROIs
1012
1011
1010
109
108
107
106
105
104
103
102
101
100
(fMRI)
Performance range of
interest for studying
the Brain
Ins
trum
ent
atio
nG
ap
3
D
2D 2-photon
microscopy
- Number of
selectable
neurons
- Resolvable
Detection Volume
- Number of
simultaneous
regions of interest
(ROIs)
1
Electrical Patch
clamping
2
3
102
101
100 10-1 10-2 10-3
Timescale (seconds)
10-4
10-5
10-6
Figure 1.2 Schematic diagram to illustrate the regions of operation of different types of
functional imaging of the brain available or demonstrated in 2005/6. The vertical scale is the
number of selectable neurons the instrument can study (green), the number of neurons in the
finest resolution ‘voxel’ of the instrument (blue), and the number of separate regions of interest it
can monitor (red). The horizontal axis represents the fastest timescale that the instrument can
work at. The experimental performance of 3 examples of 2D optical functional imaging systems
based on 2-photon microscopy are also plotted.1)(Kerr and Denk 2008), 2) (Salome, Kremer et al.
2006),3) (Sabatini and Regehr 1996) (DiGregorio and Silver 2001)
Unfortunately, there is at present an ‘instrumentation gap’ in equipment capable of
measuring the millisecond timing precision of multiple neurons. The instrumentation
gap can perhaps be best visualised using the large range logarithmic-scale schematic
diagram illustrated in Figure 1.2. The vertical scale shows numbers representing the
important performance parameters of the instrument i.e.; the maximum total number
of neurons it can image, the number of neurons in a maximum spatial resolution
‘voxel’ and the number of separate regions of interest it can monitor in parallel in its
functional mode, a voxel is the 3D equivalent of a 2D pixel, a ‘volume pixel’. The
horizontal axis represents the maximum speed at which the functional information can
be gathered. At the network of neurons level, the ideal neuroscientists ‘cerebroscope’,
( the instrument hypothesised by philosophers and psychologists for measuring brain
state) would be able to monitor the action potentials over the whole range of scales up
to the whole human brain (1011 neurons) firing at 0 Hz to 1 kHz as indicated by the
16
pale blue shaded region of interest. Present day instruments fall many orders of
magnitude short of this goal. The fMRI machine can indeed measure whole brains,
but its finest spatial resolution of a few cubic mm corresponds to at least 106 neurons
and its fastest time resolution is a few seconds. The maximum number of separate
regions of interest it can monitor in parallel is thus at most 105. The horizontal red line
on Figure 1.2 indicates that there is no advantage in slowing the response of the fMRI
machine below a few seconds, the maximum number of regions of interest is still
limited by the spatial resolution to 105 voxels. For fast measurements, patch clamping
can monitor at up to 10 kHz (or more), but to date it has only been used to record
from single neurons in vivo.
As will be described in the next section of the introduction in more detail, the
development of 2-photon laser scanning microscopy (Denk, Strickler et al. 1990) has
partially filled this instrumentation gap by allowing imaging of calcium in neuronal
populations in vivo at sub-micrometer resolution deep within tissue (Zipfel, Williams
et al. 2003; Helmchen and Denk 2005). The rapid rise (1ms – 100ms ) and slow decay
20ms to seconds) of fluorescent dyes that monitor calcium concentration near the cell
membrane after each action potential, can be used to monitor action potential timing
in neurons with precisions ranging from ms to seconds depending on experimental
conditions.
The conventional 2-photon microscopes mostly used to date have provided high
spatial but low temporal resolution maps of cortical activity, allowing receptive fields
to be mapped with cellular resolution (Ohki, Chung et al. 2005; Kerr, de Kock et al.
2007; Sato, Gray et al. 2007). Although current methods can detect a single action
potential evoked calcium transient (Kerr, Greenberg et al. 2005; Yaksi and Friedrich
2006), and can therefore reliably identify cells that respond to a particular sensory
stimulus, they currently do not have the temporal resolution to determine how such
sensory information flows through networks or is encoded in the spike times of
neuronal assemblies. These microscopes use galvanometer mirrors for XY scanning.
The momentum and limited frequency response of the mechanical movement of the
mirrors is not well suited to collecting signals from the spatially sparse regions of
interest on particular neurons in the tissue, so there is a practical limit on the number
of neurons that can be imaged. The point by point serial nature of 2-photon imaging
17
leads to the number of neurons that can be imaged that is approximately inversely
related to the speed at which each neuron is monitored. The experimental limits in
2005/6 for such 2-photon 2D scanning 2-photon microscopes are shown by the
numbered data points on Figure 1.2. Typically galvanometer scanning microscopes
can monitor up to 30 neurons in a frame at 10Hz (Kerr and Denk 2008). The number
of neurons is primarily limited because the 2D scanning only sections a single plane
of neurons. For 300 μm square scan area, this is unlikely to contain more than 30-50
active neurons that can be monitored in the L2/3 cortex often studied (Ohki, Chung et
al. 2005). Furthermore, because of the repetitive raster scanning, and the sparsity of
the points of interest in the 2D plane, a large fraction of time is spent mapping regions
where nothing of interest is happening. The frame rate is limited to about 10Hz.
(Imaging time 100ms). Faster monitoring can obtained by reducing the scan area of a
galvanometer scanning system, until at 1kHz rates it is only possible to scan along
one line, maybe straight or a 2D Lissajous figure, typically only 1-3 neurons (Sabatini
and Regehr 1996; DiGregorio and Silver 2001).
Also indicated on the schematic diagram is a point (2) showing the approximate
performance of 2D 2-photon microscopes that use acousto-optic deflector (AOD)
based deflection systems (Iyer, Losavio et al. 2003; Iyer, Hoogland et al. 2006;
Salome, Kremer et al. 2006). As described in more detail in the next section, these
deflect the laser beam using diffraction from an acoustic travelling wave. AOD
deflectors enable the focused laser point to jump discontinuously from one region of
interest to another in a particular 2D plane and gather light from the most active parts
of particular neurons at a much higher duty cycle than is possible with the continuous
movement of the galvanometer based scanning. These experimental results were for
sampling points on one neuron with 5 regions of interest and 5 separate neurons
respectively. There are, however, considerable practical difficulties in using AODs to
their best advantage which will be discussed in more detail in chapter 3.
In summary therefore, at the start of the PhD, three properties of neural networks
posed a considerable, and unsolved, technical challenge: (1) neurons are spatially
distributed in 3D space, (2) signalling events are brief (action potentials ~ 1ms) and
flow through networks rapidly and (3) only a small fraction of neurons (typically ~1-
18
10%) are usually active at once. As indicated in Figure 1.2, in 2005 there were no
demonstrated techniques capable of imaging, identifying and monitoring the
functionality of 3D networks of neurons in the large region of spatial and temporal
resolution between fMRI and patch clamping of individual neurons. The objective of
this PhD was thus to develop an instrument with this capability.
2-photon Microscopy – principles, and limits to speed and
duty cycle.
Basic principles
Figure 1.3 illustrates the basic principle of 2-photon fluorescence microscope. (Denk,
Piston et al. 1995; Zipfel, Williams et al. 2003; Helmchen and Denk 2005). Unlike
conventional fluorescence, where the energy of the single excitatory photon must be
greater than the energy of the emission photon, two photon fluorophores can absorb 2
photons at a time of half the energy normally required in order to excite an internal
state of higher energy than the emission wavelength. The excited state then decays
both non-radiatively and radiatively, giving off a photon of fluorescence at the
fluorophore emission wavelength Figure 1.3 a). Thus the emission wavelength,
typically in the red or green depending on the type of fluorophore molecule, is shorter
wavelength than the excitation wavelength. The primary advantage of using this type
of fluorescence for microscopy of brain tissue is that this allows the excitation
wavelength to be in the near infrared, typically 700-1000nm wavelength. At these
wavelengths absorption, damage and optical scattering are many times less than if the
excitation is in the blue or ultra violet range Figure 1.3 b). This enables 2-photon
microscopy to be used for imaging up to 1mm deep in brain tissue, about an order of
magnitude greater than with blue excitation.
19
a
b
c
d
Figure 1.3 Diagrams from Zipfel (Zipfel, Williams et al. 2003) to illustrate the principles of
operation, a-c) and system layout d) of the 2-photon microscope. a) Two photon excitation of a
fluorophore occurs when the incoming long wavelength light intensity is so high that it absorbs
two photons to excite an energy level in the molecule that normally would require a single photon
of half the wavelength. The fluorescence emission is then at a shorter wavelength than the
excitation wavelength. b) The near infra red excitation laser light is focused down through the
tissue to form high intensity at the focus despite some scattering shown. c) The green emitted
fluorescence is collected and projected onto sensitive detectors by the objective (and maybe
condenser lens). d) As the focused spot is scanned in a raster pattern by the computer controlled
galvanometer mirrors, the faint detected signal is amplified by photomultiplier tubes (PMTs) and
plotted at the correct position on a computer screen to form the image.
20
Two photon excitation requires two photons to arrive at the same time at the
fluorescent molecule. This only occurs with any significant probability under
extremely intense illumination. The Titanium-Sapphire laser is the widely preferred
source for such systems. This laser can emit 1-3 W average power in the wavelength
range 700-1000 nm. By using mode locking of the laser cavity, all the output energy
is concentrated into a stream of ultra short pulses of light in the range 70-140 fs long,
at a rate of around 80 MHz (1femto-second = 10-15 s = one millionth of a
nanosecond). This time compression concentrates the light intensity by a factor of
about 105 thus increasing the probability of 2 photons arriving together at the
fluorophore by 1010. At the speed of light, these Ti-sapphire laser output pulses are
only about 30 μm (or 35 wavelengths) long. Such short pulses therefore also have a
relatively broad spectral width because of Heisenberg’s uncertainty principle. The
typical spectral width for 800 nm Gaussian laser pulses of 100 fs FWHM (full width
half maximum) is 10.6 nm. As will be discussed in chapter 3, this broad spectral
width has significant consequences for the use of diffractive optical devices such as
acousto-optic deflectors. In the 2-photon microscope, the intensity of the laser light is
further enhanced by the spatial convergence as it approaches the focus of the
objective in the specimen (Figure 1.3c). Photons can arrive at the focus at over 1024
photons/s. This is a high enough rate to elicit sufficient 2-photon fluorescence, that
sensitive photo detectors can monitor the signal and reconstruct the 3D image of
fluorophore emission (Figure 1.3 d).
A typical 2-photon microscope layout is shown in Figure 1.3d). Galvanometer mirrors
scan the beam, usually in a raster pattern. The sensitive photomultiplier tubes (PMTs)
pick up a light signal that is proportional to the photon detection rate of the
fluorescence (shown as green). A master computer that controls the drive signals to
the galvanometer mirrors, and therefore knows microsecond by microsecond where
the focal spot is focused is therefore able to reconstruct the 2D image of the object
being scanned beneath the objective. For imaging in 3D after each 2D frame in the
XY plane, either the objective or the specimen is moved along the Z axis and a new
XY plane scanned. An important aspect of 2-photon microscopy is the fact that as
emission is proportional to light intensity squared, the 2-photon emission is only
21
emitted for a very small region around the focal point in all three XYZ directions.
Because emission rate falls off as the square of intensity, very little 2-photon light is
emitted from the unwanted region of the incoming laser beam above the focus. This
‘self sectioning’ ability of 2-photon systems means that the extra complexity and light
loss of confocal light detection systems (Wilson and Carlini 1984; White, Amos et al.
1987; Wilson and Carlini 1987; Wilson 1990; Amos and White 2003) is not
necessarily needed for 2-photon system, except if the very highest spatial resolution is
a dominant requirement.
At the focus of the Ti sapphire laser beam a sub micron volume of the neural tissue is
thus excited by the intense laser light. The amount of short wavelength 2-photon
fluorescence then depends on the density of fluorescent dye molecules in this excited
volume and the 2-photon conversion efficiency of these molecules.
Fluorescent dyes for functional optical imaging
Different fluorescent dyes are used for different applications. For instance, for
showing the structure of individual neurons by infusion of dye from a patch clamp,
one of the common dyes to use is Alexa594. For functional optical imaging, there is
choice of using membrane voltage sensitive dyes and Calcium sensitive dyes. The
action potentials of neurons are usually measured by measuring the electrical potential
across the cell membrane. Voltage sensitive dyes (Antic and Zecevic 1995; Nelson
and Katz 1995; Tsutsui, Karasawa et al. 2008) are lipophylic dyes that dissolve in the
membrane of a cell and respond rapidly (less than 10 μs) to the membrane potential.
However voltage sensitive dyes in practice have a poor signal to noise ratio resulting
from the small change in fluorescence with voltage (ΔF/F< a few %). This
necessitates wide field monitoring of the signal of large numbers of neurons
(Petersen, Hahn et al. 2003; Ferezou, Bolea et al. 2006). Also, unfortunately to date
no one has succeeded in developing a satisfactory voltage sensitive dye that operates
with 2-photon excitation so that it can be used at high speed in deep tissue.
Calcium sensitive dyes (Lev-Ram, Miyakawa et al. 1992; Stosiek, Garaschuk et al.
2003) change fluorescence intensity in response to changes in calcium concentrations
inside the cells. One of the important biochemical changes that occur as part of the
22
complex sequence of events at the membrane is a sudden increase in calcium
concentration. This is a result of the influx of calcium at voltage gated calcium ion
channels (Hille 2001). Calcium, which is toxic to cells at high concentration and
hence actively pumped out of cells, is widely used at very low concentrations for
internal biochemical signalling on a wide range of timescales. Particular dyes have
been developed which monitor calcium concentration, becoming more efficient 2photon fluorophores as calcium concentration increases. By injecting or diffusing
such dyes into neurons it is possible to monitor action potentials indirectly by
monitoring the fluorescence.It has been shown (Sabatini and Regehr 1999)
(DiGregorio, Negrete et al. 2000; Higley and Sabatini 2008) that, with care to collect
fluorescent photons efficiently, and for total collection times of the order of 8-20 μs
per voxel, it is possible to obtain sufficiently high signal to noise ratio to reliably
monitor the timing of action potentials down to millisecond resolution.
To date, the calcium sensitive dyes are proving more practical for optical functional
imaging of small networks of neurons than voltage sensitive dyes. One significant
factor is that the calcium sensitive dyes invariably have a slow decay response (tens to
hundreds of ms) compared to the rise in fluorescence immediately after the action
potential (approximately 1ms with optimised dyes). This gives the calcium response
an integrating or ‘memory’ response which aids the detection of action potentials as
soon as the system sampling interval at a ROI is greater than the approximately 1 ms
time of one action potential.
The fluorescent signal increases as the square of laser intensity, so it is also necessary
to have sufficient laser power at the point of focus. Typically, at least 2.5 mW average
power would be necessary at the focus in the specimen; this corresponds to the order
of 1 MW/cm2 at the focus. These figures are important to bear in mind when
designing the overall system.
23
2D vs. 3D – number of addressable neurons that can be chosen for
optical functional imaging
Perhaps the most important limitation of nearly all conventional optical microscopes,
including laser scanning 2-photon microscopes, is that they are designed to image in a
single focal plane(X-Y).
a
b
c
d
100 μm
Figure 1.4 functional optical imaging of the brain using conventional two photon microscopy.
The images show a) a 400×400×400 μm region of the visual cortex of a rat. b) Measured calcium
sensitive fluorescence images from particular neurons showing how the calcium level over many
10s of seconds is affected by the excitation on the rats retina. In the cortex, particular neurons
are sensitive to image edges orientated in particular directions as indicated by the different
colours. c) A typical 2D section that took the order of 1 second to collect. d) Regions of interest,
particular neuron bodies sensitive to particular orientations as indicated by their colour.
Modified from (Ohki, Chung et al. 2005).
24
One of the limitations this causes are illustrated by Figure 1.4 (Ohki, Chung et al.
2005) which shows how 2-photon calcium imaging was used to analyse the structure
of the orientation sensitivity of neurons in the visual cortex of a rat in 3D. Typically,
high resolution 2D raster scanning takes at least the order of 1 second for each 2D
plane, leading to minutes of elapsed time for full 3D scans. The 3D block of rat
cortex imaged in the figure has 300 μm sides and contains the order of 1000- 3000
neurons that can be imaged. A single 2D plane on the other hand contains only 30 to
50 neurons that are bright enough (well enough aligned with the 2D plane) for
functional imaging as shown in the 2D sections. It is therefore clearly desirable that a
machine for optical functional imaging should not only be able to point in 2D, but
also in 3D. It is also extremely likely that it will be difficult, if not impossible, to
correctly interpret the nature population coding in neural tissue from purely two
dimensional data. The networks themselves are 3D and it is very likely that
population codes themselves are 3D spatial plus temporal codes.
Options for high speed 3D focusing
Several approaches have been proposed that allow rapid functional imaging in 3D and
higher speed random access point measurements. These include sinusoidal
displacement of the objective lens with a piezoelectric driver (Gobel, Kampa et al.
2007), the use of deformable mirrors (Zhu, Sun et al. 1999) and lenses (Oku,
Hashimoto et al. 2004), two conjugate objective lenses with a piston mirror
(Botcherby, Juskaitis et al. 2007), the use of many fixed optical fibres in 3D (Rózsa,
Katona et al. 2007) and AODs for focusing and scanning (Reddy and Saggau 2005;
Reddy, Kelleher et al. 2008).
25
Figure 1.5 3D 2-photon microscope using an oscillating microscope objective driven by a piezoelectric actuators to scan up to 250μm along the Z axis at up to 10Hz. (Gobel, Kampa et al. 2007).
a) conventional 2 photon microscope with b) approximately sinusoidally driven XY deflection
mirrors and a 10Hz Z oscillating objective lens. Note c) the 3D spiral path carefully computed to
pass through the maximum number of cell bodies in the minimum time and d) image of one
complete cycle of laser spot movement in a fluorescent dye solution.
One of the first to be successfully demonstrated was (Gobel, Kampa et al. 2007). In
addition to rapidly scanned XY plane galvanometer mirrors, the system uses an
oscillating microscope objective driven by a piezo-electric actuators to scan up to 250
μm along the Z axis at up to 10Hz. Illustrations from (Gobel, Kampa et al. 2007)
showing the apparatus and results are reproduced here in Figure 1.5. Note that after
initial raster scanning of the whole volume of tissue, the path of the laser spot is precalculated to cross as many of the cell bodies forming the ROIs in the tissue as
possible. The complex 3D spiral closed loop motion enabled them to monitor up to
90% of the target cells in a 250 μm cube of tissue with an overall imaging time per
3D ‘frame’of 100ms. As the neuronal bodies being studied were quite large, despite
the long path the laser spot was programmed to take through 3D space, the laser spot
was in cell bodies of interest for about 5% of the total scan time. Experimentally the
paper reports results for functional imaging of up to 500 neurons within the 250μm
26
cube of tissue at 10Hz this is about a factor of 10 higher than possible with a 2D
scanner.
An interesting recently reported system with the potential for much more rapid
refocusing in Z is the piston mirror system (Botcherby, Juskaitis et al. 2007).
Although this is still a mechanical system it has the potential for operation at speeds
up to around 1kHz cycle time as it uses a light weight piston mirror that sits in air at
the focus of an auxiliary objective. There is thus no need to move the objective. By
matching the angular convergence of the auxiliary objective so that it matches the sine
and the Hershel conditions with the main water immersion objective, a high degree of
correction of the spherical aberration that would otherwise limit the Z displacement of
a high NA remotely focused objective has been demonstrated. I include further
discussion on the prospects for such 3D scanning systems in the discussion of chapter
six.
In the final part of the introduction I introduce the basic concepts for pointing
scanning and focusing in 3D using AODs and how such a system can be optically
coupled into a microscope.
Introduction to AODs for scanning, pointing and focusing
Principle of operation of AODs
An acousto-optic deflector is a transparent crystal made of a material with a refractive
index that varies rapidly with mechanical stress such as compression or tension. If a
sound wave propagates through such a crystal, the peaks and troughs of the wave
produce a moving optical refractive index grating. A diagram of such a device is
shown in Figure 1.6. A piezo-electric transducer converts an electrical signal to a
travelling ‘curtain’ of sound waves in the crystal. The curtain propagates across the
crystal locally modulating the refractive index in a pattern that mimics the electrical
input. The modulated refractive index in turn modulates the phase of the incident laser
beam propagating approximately at right angles to the sound wave through the
crystal. This causes diffraction of the laser beam. For a simple sine wave input signal
at a frequency f ac , the total angular deflection of the beam is given by (Xu and Stroud
1992):-
27
φ=
λ0 f ac
equation 1.1
Vac
Where λo = optical wavelength in free space
Vac = acoustic velocity in the crystal
Ultrasonic transducer
fa
φ
Figure 1.6 Bragg diffraction from a travelling ultrasonic sound wave in an Acousto-Optic
Deflector (AOD). The red incoming arrows represent the laser light. The transducer on the left
converts the incoming radio frequency electrical signal into a shear mode sound wave in the
transparent tellurium dioxide (TeO2) crystal. This travels at about 600m/s across the 15mm
aperture crystal in only 25μs. The laser light is diffracted off the refractive index variations
indicated by the vertical black lines which represent regions of higher compression from the
sound wave peaks. Changing the drive frequency changes the angle of diffraction φ .
For near infrared and visible operation the crystal is often made of Tellurium Dioxide
(TeO2), an unusual anisotropic crystal with one of the highest known efficiencies for
coupling light and sound waves. The structural anisotropy of the crystal causes
unusual but useful variations in the speed of both light and sound as a function of 3D
direction of propagation in the crystal.
There are two possible modes of operation of AODs, the first, known as Raman–Nath
(Xu and Stroud 1992) has a thin curtain of sound and operates like a 2D surface relief
grating. This diffracts light into a whole series of diffraction orders (-n...-1 0 1 ...+n).
The angle of incidence of the light is not critical, but the efficiency in any particular
28
diffraction order is low because of the multiple orders of diffraction. The second
mode of diffraction is known as the Bragg mode, shown in Figure 1.6. The sound
wave has significant thickness in the direction of propagation of the light wave (the
thickness is approximately equal to the length of the acoustic transducer in this
direction and is illustrated by the vertical length of the black line sound wave peaks in
the diagram). This means that the diffraction is from a 3D stack of high or low index
sheets i.e. diffracting from a 3D structure like X rays diffracting off the planes of a
crystal. This also means that for the optimum laser input direction the diffraction is
concentrated into one particular diffractive order, usually the first (-1) order at a very
high efficiency, theoretically approaching 100% at particular acoustic drive powers.
Note that undiffracted light that propagates straight through the crystal is referred to
as zero order light and may need to be suppressed to avoid unwanted interference.
Note also from this equation that, in contrast to a galvanometer mirror used as an
angular deflector that the deflection of the laser beam is directly proportional to its
wavelength. Thus, higher wavelength components of light will be deflected by more
than lower wavelength components. This causes a serious chromatic aberration effect
to be discussed in chapter 3.
Forming a spherical lens with AODs
It is well known (Xu and Stroud 1992) that if the drive frequency of an AOD
is ramped rapidly, the delaying effect of the acoustic wave propagating across the
crystal causes divergence or convergence (‘focusing’) of the laser beam.
Assume the acoustic wave is ramped such that its frequency increases or decreases
with time linearly, by giving it the form:
f ac (t ) = f ac (0) + at
equation 1.2
Where a is the ramp rate and is measured in MHz per second.
29
Chirped u/s wave
Distance to
focal point
D
Figure 1.7 Diffraction from a chirped RF drive waveform which produces the ultrasonic (u/s)
wave propagating to the right across the crystal, note acoustic wavelength (distance between
vertical black lines) is smaller on the right of the crystal because the RF drive frequency in this
case is decreasing with time. Chirping the drive frequency at a linear chirp rate produces a
perfectly circular wavefront with a radius of curvature D. Note that in 3D, the lens formed is
cylindrical bringing light to a line focus at the focal point with line perpendicular to the page in
this diagram
Figure 1.7. shows the situation where the chirp rate a is negative. As the angle of
diffraction is proportional to the frequency of the acoustic wave, those parts of the
laser beam that are deflected by the high-frequency portion of the acoustic wave will
be deflected more than those parts which are diffracted by the low frequency portion.
It can be seen that the effect is to focus the laser beam at a position in the direction of
the dotted arrow in the figure. The distance D to the focal position in the vertical
direction is given by (Xu and Stroud 1992):
D=
Vac2
λ0 a
equation 1.3
As is also illustrated in Figure 1.7 and Figure 1.8a, the acoustic wave moves to the
right at the acoustic wave velocity Vac. The focus created by the converging laser
beam will therefore also move to the right at the acoustic velocity. Therefore single
30
AODs can be only used to focus a laser to a position that moves at the acoustic
velocity Vac and the focal distance is strictly determined by the chirp rate. For this
reason, the focusing effect of AODs was usually regarded (Xu and Stroud 1992) as an
unwanted side effect in most practical applications. The fact that the focusing only
occurs in one direction means that it introduces astigmatism into the laser beam which
then can only be optically corrected for one particular scan rate.
The range of acoustic frequencies that may usefully be propagated through the crystal
is limited because the diffraction efficiency drops rapidly outside the design range of
the AOD. Figure 1.8b shows the frequency of the acoustic wave as it varies with time
and Figure 1.8c shows the frequency of the acoustic wave as it varies with distance.
Movement of chirped
acoustic wave
b
frequency
a
time
c
Focal spot moves at same
speed as acoustic wave
frequency
distance
Figure 1.8 a) Cylindrical lens with the focal point is moving at the speed of sound to the right.
b&c) two diagrams plotting drive frequency vs. time b) against time at fixed spatial position ,
c)against space at a fixed time. Note the drive frequencies have to be kept within the high
efficiency drive bandwidth of the AOD.
As can be see from Figure 1.8b, it is necessary to keep the frequency of the acoustic
wave between the limits fmin and fmax. It is therefore not possible to indefinitely chirp
the frequency of the acoustic wave and, once the frequency reaches fmin, it is necessary
31
to reset the frequency to fmax such that the chirping can continue. This creates a “sawtooth” graph in Figure 1.8b. A similar saw-tooth pattern occurs in Figure 1.8c, but it
is reversed because the frequencies present in the acoustic wave on the right-hand side
of the crystal represent frequencies at an earlier time point than the frequencies
present in the acoustic wave at the left-hand side of the crystal. For commercial TeO2
AODs, typical values for fmin are 50-60 MHz and typical values for fmax are 90-100
MHz. These frequency limits cause the maximum continuous total scan time to be
limited to Tsmax= (fmax- fmin)/ a . Because it is necessary to wait one AOD fill time for
the reset discontinuity to propagate right across the crystal before gathering data from
the focused laser spot, there is a limited duty cycle:
MaxDutyCycle = (Ts max − AODfill ) Ts max
equation 1.4
This reduces as the absolute value of ramp rate a increases becoming zero when
Tsmax reduces to the AOD fill time. Thus there is a maximum ramp rate and resultant
shortest focal length determined by the AOD physical parameters.
AOD2
frequency
AOD1
time
frequency
distance
No movement
of focal point
Figure 1.9 Dynamic cylindrical lens with stationary focus. This is the first proposed and
demonstrated system for producing a stationary focus beneath a pair of AODs with counter
propagating sound waves (Kaplan, Friedman et al. 2001). Note that for a stationary focus the
wave front curvature induced by the two AODs must be equal so that the lensing effect is split
equally between the two AODs.
32
Kaplan (Kaplan, Friedman et al. 2001) showed for the first time how to make use of
two AODs in series to cancel out the lateral movement of the focal spot and
dynamically control the Z focus of the laser beam. The basic principle is illustrated in
Figure 1.9. In this configuration, a second AOD crystal and ultrasonic transducer is
utilised and the ultrasonic waves in the AODs propagate in opposite directions. In
Figure 1.9 the upper AOD has an ultrasonic wave propagating from the right to the
left and the lower AOD has an ultrasonic wave propagating from the left to the right.
The first AOD deflects the input laser beam to become a converging laser beam with
the (virtual) focal spot moving from the right to the left. The chirp on the second
AOD is such that it doubles the convergence of the beam and exactly compensates for
the movement of the focal point of the laser beam so that the resultant (real) focus is
stationary.
frequency
AOD2
AOD1
Varying slope of
ramps varies Z
time
frequency
Varying
separation of
ramps varies X
distance
Figure 1.10 An AOD pair acting as a cylindrical lens that can focused over an XZ field of view as
indicated by the red arrows. This is called the Inverted Bragg Configuration (IBC). It not only
produces a stationary focal spot, but also cancels out the chromatic aberration at the centre of
the field of view. This is so called because unlike in the Kaplan configuration of the previous
figure, the Bragg diffraction of the counter-propagating waves is inverted in the two AODs.
Neglecting the separation between the AODs, the distance to the stationary focus is
therefore half the distance to the focus of a single AOD and is given by:
D=
Vac2
2λ0 a
equation 1.5
33
By modulating the ramp rate a at high speed, Kaplan was able to demonstrate the
shifting of a focus along the Z axis at up to 400 kHz without any X displacement. He
pointed out that by shifting the frequency separation of the ramps as illustrated in
Figure 1.10 1 that the X position could be controlled at will. Finally, as these AODs
only focus in one 2D plane (the XZ plane) they produce a line focus perpendicular to
the plane of the page (in the Y direction). To solve this, he suggested that two more
AODs should be added, rotated 90 degrees about the Z axis, so that the input laser
beam could be focused independently in the YZ plane to a point in 3D as illustrated in
Figure 1.11. The four AODs can equally well produce diverging wavefronts.
AOD X1
AOD Y1
AOD X2
AOD Y2
Z
Z
Y
Y
X
X
Side view (rotated
Front view
90 degrees to left)
Figure 1.11 Spherical acousto-optic lens with stationary focus. It uses four AODs interleaved as
shown here to convert the two cylindrical lenses formed by the XZ and YZ pairs of AODs to
form a dynamic spherical lens that can bring light to a focus anywhere within its 3D field of view.
1
Note the slightly different configuration of AODs used by Kaplan in figure 1.9 and by us in
subsequent figures, this will be discussed in more detail in chapter 2.
34
Z
Z=0
Converging rays
focus at a positve
value of Z
Parallel rays
focus at Z = 0
Diverging
rays focus at a
negative value of Z
Figure 1.12 a subsequent lens system can be used to bring the converging or diverging light from
an Acousto Optic Lens (AOL) to a real focus either above or below the natural focus of the lens.
To use these capabilities in a real system, a subsequent lens system (Figure 1.12) is
used to bring converging, plane or diverging wavefronts to a real focus at different Z
positions. The four AODs thus form an Acousto-Optic Lens (AOL) that enables a
stationary focused point to be produced anywhere in a 3D volume of space limited by
the field of view of the system and that can jump from any position to any other
position at speeds only limited by the AOD fill time.
Proposed overall system layout
To couple the AOL into a two photon microscope, the image formed by the first lens
after the AODs is relayed using a sequence of telecentric relays that include the tube
lens and objective of the microscope as the final telecentric pair. This is illustrated in
Figure 1.13. A telecentric relay is an optical system, usually a pair of lenses that relay
an input image to an output field. It has the property of constant magnification
independent of the Z position of the object and image. I discovered this was important
in my first Matlab geometric optic models (not shown) of AODs coupled to lens
systems which showed that unless the relays were telecentric the X, Y and Z
35
magnification varied with the Z focus of the AODs. Referring to Figure 1.13, if there
was only one relay made with two lenses of focal length f1 and f2, then if the first
image is a distance f1+Z1 from lens 1, the lenses are separated by f1+f2 and the
image 2 is at a distance f2-Z2 as shown, then the demagnification in the XY plane of
the focal position within the field of view of image 1 is f1/f2 and demagnification in
the Z direction is (f1/f2)2. So, as an example, if f1/f2 = 20, the field of view of the
image 1 focus might be 5mm in X and Y and 120 mm in Z. This would be
demagnified to 250 μm in X and Y and 300 μm in Z. In a real system there are several
telecentric relays whose magnification is multiplicative.
Z
Y
Not to
scale
X
Lens L1
Image 1
Z1
f1 + Z 1
X1
f2 − Z 2
Image 2
f1 + f 2
Tube lens
X2
Microscope
Objective
Z2
Figure 1.13 Microscope relay optics. The first image after the AOL is a real focal spot focused a
distance Z1 above the natural focal plane of the tube lens by the converging action of the AOL as
illustrated. This focused spot can be anywhere in the field of view of the AOL plus its first lens.
This spot is then relayed through optics to a high numerical aperture but much demagnified field
of view beneath the objective lens. Shown here for illustration the tube lens and objective are
treated as a telecentric relay. Telecentric relays relay the field of view without Z axis changes in
magnification as explained in the text.
36
Summary of objectives and challenges
Target specification
In conclusion to this introduction, it is useful to summarise the target specification of
the system agreed at the start of the PhD after initial consideration of the neuroscientific requirements, the basic properties of AODs, and feasible system layouts:
•
Image with better than
1×1×2 μm XYZ resolution
in a 250×250×250 μm volume of tissue
corresponding to 7.8 million voxels
•
Focus laser beam to 30 different randomly chosen XYZ locations per
millisecond
•
To be able to image with sufficient signal to noise ratio for the detection of the
millisecond range timing of individual action potentials monitored by Calcium
sensitive dye.
•
Note the Ti:Sapphire typical maximum operating range is 700 to 1000 nm. It
should be possible to use the system at any chosen wavelength in order to
match particular dyes.
Summary of the state of the art for 3D AOD deflectors at the start
of the PhD and primary challenges
In 2001, (Kaplan, Friedman et al. 2001) had demonstrated that 2AODs could be used
to scan a 2D line focus in the XZ plane at up to 400 kHz and proposed that the
principle could be extended to focusing a 3D point focus anywhere in a 3D volume. In
2004 (Silver 2004) proposed combining such a scan system with a 2-photon
microscope to make a 3D optical functional imaging system as described above. In
2005 (Reddy and Saggau 2005) independently published a proposal for a similar 3D
system and demonstrated 2D AOD focusing in the XZ plane (not 3D focusing as
implied in the abstract).
37
Some of the challenges that needed to be overcome in order to use AODs as the
primary deflection system in a 2-photon microscope are discussed in (Reddy and
Saggau 2005). These, and others, are described in detail in the following chapters, in
abbreviated summary however they are:
•
AODs cause chromatic aberration because, unlike galvanometer mirrors, the
deflection angle is function of wavelength (equation 1.1). Since the ultra short
(100fs) pulses of Ti-Sapphire lasers inherently have a broad spectrum as a
result of Heisenberg’s uncertainly principle, deflected focused spots have
increasing chromatic aberration as deflection angle increases.
•
AODs also introduce a high temporal dispersion so that, unless precompensated, temporal dispersion spreads the 100fs pulses necessary for high
2-photon efficiency into pulses many times longer and greatly reduces 2photon efficiency.
•
AOD efficiency is a strong function of incident and diffracted angle and hence
modulates light efficiency as a function of scan position in the field of view. In
particular the acceptance angle of standard commercial AODs is very narrow.
This needs controlling and compensating.
•
The use of telecentric relays between AODs proposed in (Reddy and Saggau
2005) makes the AOL sub-system very spread out ( >1m optical path length )
and makes it impractical to change wavelength of the laser source easily.
•
When remotely focusing a high numerical aperture microscope objective by
adjusting the convergence or divergence of the back aperture light beam, as
proposed here using the AOL, spherical aberration is introduced that will limit
the focusing range. This effect increases rapidly at high NA.
38
Summary of chapter 1
This chapter starts by describing the ‘instrumentation gap’ in neuroscience that the
AOLM is aimed at reducing, it then describes the current state of the art of 2-photon
microscopy for biology and in particular why it is so suitable for neuroscience.
Today’s 2-photon microscopes however suffer from the same slow mechanical Z axis
refocusing problem as all previous microscopes. The chapter then describes the state
of the art of high speed acousto-optic lensing in 2005/6, introduces the layout of the
proposed high speed 3D 2-photon microscope. It concludes by outlining the target
specification for the AOLM agreed early in the PhD and outlines the primary
challenges in using acousto optic lenses in a 2-photon microscope.
39
Chapter 2
Initial design considerations
AODs are not widely used in 2-photon microscopes for good practical reasons.
Despite their high speed and high precision of deflection angle, the problems of
chromatic aberration, temporal pulse dispersion and variable diffraction efficiency, to
name but three, have discouraged their use. Throughout the period of the work this
thesis describes we have had numerous discussions on the relative merits of different
approaches. Most papers describing the various types of deflection system have a
qualitative justification of the choice of deflector /focusing technology.
Before considering the design options for an AOD based system, the first section of
this chapter is intended to semi-quantitatively analyse the differing deflection
bandwidth requirements of scanning and pointing mode systems. This makes the
benefits of the choice of a pointing mode system very clear for high resolution optical
functional imaging with small ‘sparse’ regions of interest in comparison to the total
scan dimensions. It also shows that in comparison with presently available mechanical
alternatives, AOD based deflection systems are much better suited to pointing mode
deflection applications.
The topics covered in the remainder of this chapter are the derivation of the field of
view of the microscope from the physical properties of the AOD, a description of the
problems caused by using telecentric relays between AODs and a novel solution
based on a compact configuration of AOL and the derivation of the equations for
pointing and scanning using the compact AOL configuration.
Choice of deflection system: Scanning, pointing and the
sparsity problem
The problem and defining the limiting factors
It is often difficult to compare the relative merits of different techniques for optical
functional imaging based on 2-photon microscopy. For instance, for 2D systems, how
do you compare a resonant galvanometer deflection system that might be able to scan
at 10 or even 20 kHz with an AOD deflection system with a 25 μs fill time that can
point at 30 kHz to different regions of interest? This section aims to clarify the
40
problem by defining the separate factors that limit the speed at which two photon
functional imaging can be performed and deriving the relationships between them.
These limiting factors are, the minimum data collection time per ROI (region of
interest), TROI , the bandwidth of the deflection system BD and the spatial sparsity of
the regions of interest within the scan volume SS. The following section defines these
terms in more detail and discusses the specification of different systems:Minimum data collection time per region of interest TROI. For each neuron or part
of a neuron that is being monitored it is necessary to collect a certain number of
photons in the brighter fluorescent state of fluorophores in order to obtain a high
enough signal to noise ratio to measure the timing with a specified degree of precision
(Gobel, Kampa et al. 2007). Evidence from our own experiments (unpublished) on
calcium dyes in solution and from observations of the results of many others on
different 2-photon microscope rigs suggests that the rule of thumb is that TROI needs
to be 10 to 20 μs to get adequate signal to noise ratio for single shot monitoring of
action potentials. This obviously limits the maximum number of regions of interest
that can be monitored per unit time to 1/ TROI = 50-100,000 ROIs per second = 50-100
ROIs/ms. Since 2-photon fluorescence increases as the square of illumination
intensity, you might expect that TROI could be reduced by a factor of 4 by doubling the
illumination power, however in practice there are saturation and photo-damage effects
that limit how far TROI can be reduced.
Bandwidth of the deflection system BD. If you plot the displacement in space of the
focal point of the laser microscope system vs. time you get a time series or continuous
signal that can be analysed in terms of its bandwidth. This bandwidth is the deflection
bandwidth required to make the laser spot follow that path.
Spatial sparsity of the regions of interest within the scan volume SS. This is
defined as the width of the linear scan dimension of the instrument’s scan volume WS
divided by the average width WROI of each region of interest i.e. how many average
ROIs fit across the scan frame. By definition therefore SS = WS / WROI
41
The duty cycle of a functional optical imaging system
We have classified two modes of deflection vs. time: scanning mode and pointing
mode. In the scanning mode the laser spot moves through the regions of interest at a
rate close to the average scanning speed of the spot through each scanning cycle. The
spot displacement in a particular spatial dimension vs. time can be saw tooth as in
raster scanning, or approximately sinusoidal as in spiral or Lissajous figure scanning.
In pointing mode the laser spot is caused to dwell approximately stationary in each
region of interest before transiting as rapidly as possible to the next region of interest.
The duty cycle of a functional optical imaging system is the percentage of time it
spends in regions of interest compared to the total elapsed time. This is clarified in
Figure 2.1 for the scanning mode. The displacement vs. time plotted here is roughly
sinusoidal so that the bandwidth required of the deflection system is only BD =1/ TC
where TC = cycle time.
Region of interest
Deflection
Scan Width WS
Width of region
of interest WROI
Yes
No
Time
Is the system collecting photons from a region of interest
Figure 2.1 Schematic diagram showing one cycle of a one dimensional scanning system that is
scanning a focused laser spot along a line and back again. There are five short regions of interest
along this line indicated in grey. When the laser spot is in a region of interest it is collecting
photons of interest from any luminescence there. Marked in green is whether the photons are
from a region of interest or not. The duty cycle is the percentage of ‘Yes’ time compared to total
time.
For randomly positioned regions of interest the approximate average scanning mode
duty cycle DSp = NROI / SS where NROI is the number of regions of interest ( to check
42
this equation consider if NROI = SS then the all the scan area would be full of regions
of interest and the duty cycle would be 100%). The key point to note here is that as
the sparsity increases, so the duty cycle reduces in proportion.
WROI
WS
Figure 2.2 Schematic diagram showing how in two dimensions approximately sinusoidal
displacement vs. time on each axis results in approximately elliptical paths being traced in space.
The precise dimensions of the green elliptical path were chosen to pass through the 3 target
regions of interest (ROI)s shown in red. An ellipse can be always be found to pass through any 3
randomly positioned ROIs. This is not possible for 4 or more ROIs.
It is slightly more complicated to understand the effect of sparsity on duty cycle for
approximately sinusoidal displacement in 2 or 3 dimensions. (Gobel, Kampa et al.
2007) have developed fast algorithms for computing fastest possible approximately
sinusoidal spatial paths vs. time through randomly placed ROIs in 3D space given
defined displacement bandwidths in each dimension. They point out that for randomly
positioned ROIs it is always possible to calculate the dimensions of an ellipse that
passes through each of 3 points. For more than 3 points this is not possible, although
occasionally it will happen that 4 or more do lie on the same ellipse. This is
illustrated for two dimensions in Figure 2.2. This means that algorithms for passing
through the largest possible number of randomly positioned ROIs in the minimum
time can only average slightly more than 3 ROIs per cycle where the cycle time is the
inverse of the highest frequency within the displacement bandwidth.
43
To estimate how duty cycle varies with the number of points in the target area,
consider a square of side WS containing 3 ROIs. The ROIs are on a grid of Ss × Ss.
Note that Ss= WS/WROI. The 3 ROIs are randomly positioned as illustrated in Figure
2.2 (red squares) with the approximately elliptical path going through all three ROIs.
Consider a circle of diameter 0.7 × length of the side of the square. This is
approximately the same circumference as the average path length of an ellipse
through any three randomly chosen ROIs, averaged over many ellipses. It is clear that
the size of the ROI is inversely proportional to SS. Simple geometry shows that the
duty cycle in this scanning mode DSc is given by:
DSc = 3
0.7 π S s
.
equation 2.1
If you now assume that for each region of interest you wish to collect data for the
minimum time required to obtain a good signal to noise ratio TROI then the duty cycle
has a direct effect on the imaging time it takes to collect one data point from each
region of interest and form one spatial image for one time point. The imaging time
Timg is
Timg =
N ROI TROI
DSc
= 0.73 N ROI TROI S S
equation 2.2
Where NROI is the number of regions of interest being scanned.
Similarly the sinusoidal scan frequency FS, which is approximately one third of the
average ROI sampling rate of the system RS is given by:
Fs =
Rs
3
= 1
(0.73 TROI
Ss )
equation 2.3
Since the dimensions of neuron bodies range from 5-30 μm and the dimensions of
neuronal processes range from say 0.3 to 3 μm an optical functional imaging system
with a 300 μm field of view width has a spatial sparsity ranging from 10 to 1000
44
corresponding to duty cycles from 13% down to 0.13%. and imaging times per ROI
varying from 73 μs to 7.3ms. (based on TROI = 10 μs)
Note that this derivation shows, that in the scanning mode, beyond a certain
minimum, the scanning speed of a scanning mode system is not an important
parameter. The system is not ‘scan speed’ limited, it is ‘photon collection rate’
limited. It is now the spatial sparsity that is important. Here, in this ‘photon limited’
case I have assumed that the scanning speed is reduced so that it takes TROI to pass
through each ROI so that sufficient photons are collected that the signal to noise ratio
is obtained in a single pass through all the ROIs. The system could be driven faster,
but then it would have to make multiple passes through each ROI to build up the
signal to noise ratio and the total imaging time Timg would be the same.
For high speed optical functional imaging with Calcium sensitive dyes it is important
to note that the smaller parts of the neuron show much the fastest response. This is
because as calcium diffuses away from its source (the membrane in this case) its time
response slows down as in any diffusion process. The calcium can also often cause
secondary calcium release from stores within the cell body. For the fastest response
therefore it is important for the imaging system to be able to select the smallest
possible regions of interest and therefore operate at high sparsity. This is therefore
clearly a serious problem for any scanning mode optical functional imaging system
that is aimed at imaging many neurons in millisecond imaging times.
45
Pointing Mode rather than scanning mode solves the sparsity –
duty cycle problem
Scan Width WS
Cycle time TC
Region of interest
Deflection
Dwell time TD
Transit time TTr
Yes
No
Time
Is the system collecting photons from a region of interest
Figure 2.3 Schematic diagram of a pointing mode deflection system which accurately controls
displacement vs. time to jump from one region of interest to another. The green line indicates
whether the system is collecting photons from a region of interest or not. The red dots are
inserted to illustrate the minimum set of sample points that would be necessary for defining
deflection vs. time and hence calculating the bandwidth requirement of the deflection system.
To solve the sparsity-duty cycle problem the obvious solution is to ‘stare’ (i.e. focus
the laser spot ) at a particular ROI for a time preferably greater than or equal to TROI
with a stationary spot, then jump to the next region of interest as rapidly as possible.
This however requires a much higher deflection bandwidth. This is illustrated in
Figure 2.3 which shows deflection vs. time for a pointing mode system monitoring the
same set of ROIs as Figure 2.1. The laser spot dwells in each ROI for a time TD and
then jumps in a transit time TTr = TC-TD to the next ROI.
The duty cycle in the pointing mode DPt = TD/TC = TD/(TD+TTr) and is not dependent
on sparsity. This gives the pointing mode a very large advantage over scanning mode
as sparsity increases. This is illustrated in Figure 2.4. In this case, for the pointing
mode the parameters chosen are TD = 16μs, TTr = 24 μs resulting in a 40% duty cycle
46
irrespective of sparsity. These figures are typical of those we expected to use for an
AOD in pointing mode.
Duty Cycle %
10
10
10
10
10
2
Pointing mode
(40% duty cycle)
1
13% duty cycle at
sparsity =10
Sc
a
0
nn
i ng
mo
0.13% duty cycle
at sparsity =1000
de
-1
-2
10
1
10
2
10
3
10
4
X and
Y resolution
Spatial
Sparsity
WS/WROI
Figure 2.4 A comparison of the duty cycle vs. spatial sparsity for the scanning mode (blue) and
the pointing mode (red). For the pointing mode TD = 16μs , TTr = 24 μs.
For the fastest possible sampling rate in the pointing mode, without reducing the
photon collection time below TROI, TD = TROI. Therefore The optimum sampling rate
Rs:
Rs =
DPt
TROI
= 1
(TROI
+ TTr )
equation 2.4
This sets the optimum sampling rate for a pointing system with a given transit time.
The total imaging time Timg in the pointing mode is therefore:
Timg = N ROI (TROI + TTr )
equation 2.5
47
To calculate the bandwidth requirement of the deflection trace in Figure 2.3 it is
necessary to take the Fourier Transform of the deflection vs. time curve. Nyquist’s
sampling theorem (Landau 1967) states that to sample a perfectly bandwidth limited
signal it is necessary to sample at twice the frequency of the limiting bandwidth. The
corollary to this is that the pointing mode deflection signal must have frequency
components up to half the frequency defined by the closest sampling points on either
side of the transit shown in red dots 1/(2TTr).This is easy to understand intuitively
from the figure as I have shown each pointing region linked by a half sine wave to the
next. The frequency of the full sine wave would thus be 1/(2TTr). Thus the minimum
bandwidth requirement for a deflection system operating in the pointing mode is
approximately given by:
BD = 1
equation 2.6
2TTr
Furthermore the fact that the spot must stay pointing within the ROI and not drift
implies that the frequency response of the deflection system must be flat down to low
enough frequencies that there is no sag during the duration of the spot within the ROI.
It also must not oscillate in position, this implies that the upper part of the frequency
response above BD must be well damped, i.e. decaying gently with no resonance.
48
Deflection
a)
Max sampling
rate
1/TROI
Moves down with
increasing sparsity
Sampling rate
RS = 1/(TROI+TTr)
Deflection
b)
FS=RS/3
Sampling rate
RS = DSc/TROI
BD= 1 /(2TTr)
Frequency
Figure 2.5 The required deflection frequency response for a) the scanning mode and b) the
pointing mode. In order to reproduce the required approximately sinusoidal deflection vs. time
curves in the scanning mode either the red or green frequency responses would be satisfactory.
The green curve corresponds to a resonant scanner. The pointing mode shown in b) for the same
ROI sampling rate RS requires the wide flat frequency response shown in blue
The required frequency response of scanners for the pointing mode and scanning
mode are compared in Figure 2.5. Figure 2.5a shows the required scanning mode
frequency response for the scanning mode. For TROI of 10μs, the maximum possible
sampling rate with a sparsity of 1 (corresponding to all points being of interest) is 100
kHz. The duty cycle reduces this rate to 13 to 0.13 kHz for sparsities of 10 to 1000
respectively. The required sinusoidal scanning frequency is therefore reduced to the
range between 4.3 kHz to 43 Hz. If the deflection waveform is sinusoidal, then a
resonant scanner can be used with a frequency response as indicated in green. If the
waveform is saw tooth as in raster scanning then a carefully designed control system
is needed to give the required linearity and a frequency response greater than FS with
smoothly damped higher frequencies to suppress any mechanical resonance of the
deflector (Brown 2009), as shown in the red curve.
As shown in Figure 2.5b the required frequency response for the pointing mode is
much more demanding. Taking for example a region of interest pointing time TROI of
49
10μs and a transit time between ROIs TTr of 10μs -25μs , the duty cycle is 50% to
28% and the cycle time Tc = 20μs to 35 μs. The bandwidth BD required of the
deflection system is BD =1/2 TTr which is 50 kHz to 20 kHz.
Suitability of galvanometer and AOD deflectors for pointing and
scanning
The fastest resonant galvanometer mirror scanners operate at up to 10 kHz,
(exceptionally 20 kHz) (Brown 2008) whereas the fastest well controlled
galvanometer mirrors for raster scanning have a 4 kHz mechanical resonance but are
electronically linearised and damped to have about 1 kHz damped overall frequency
response (Brown 2009) similar to the red line in Figure 2.5a).
Acousto-Optic scanners on the other hand have a typical transit time (AOD fill time)
of 4 to 25 μs (Xu and Stroud 1992) and are naturally suited to precise steady, drift
free, pointing simply by keeping the deflection frequency constant.
Given these facts and the analysis I have just derived it is clear that unless non
resonant wide bandwidth precision controlled mechanical deflectors can be developed
with bandwidths of 20 kHz or more, 20 times those available today, there is little
chance of using mechanical galvanometer based scanners for pointing mode
deflection for high speed 2-photon calcium fluorescence optical functional imaging of
multiple neurons with sparse regions of interest at kHz rates. Galvanometers are best
suited for scanning mode.
From a deflection bandwidth and stability of pointing perspective AODs, on the other
hand, are well suited to both scanning and pointing. They do however have other
drawbacks such as chromatic aberration and a lower transmission efficiency which
varies with deflection angle. These drawbacks have restricted their use to niche
applications where the characteristics of AODs are of paramount importance.
50
Number of regions of interest per imaging time
7
10
max rate
Pointing (AOD)
Scanning Ss=10
Scanning Ss=100
Scanning Ss=1000
6
10
5
10
4
10
NSN 3D
3
10
2
10
NSN 2D
1
10
2
10
1
10
0
10
-1
10
-2
10
-3
10
-4
10
-5
10
Imaging time (seconds)
Figure 2.6 Relationship between the number of regions of interest that can be monitored by an
optical functional imaging system using the pointing mode or the scanning mode and the time
taken to image all those ROIs. In all cases the total dwell time in each region of interest TROI is
8μs. Note this assumes laser power is adjusted with imaging depth to compensate for tissue
scattering loss, pointing mode transit time is 25μs. The sloping black dashed line shows the
maximum number of ROIs that could be monitored with infinite deflection bandwidth (zero
transit time between ROIs).The vertical and horizontal dashed black lines pick out particular
imaging rates for comparison. The scanning mode results are for 3 different spatial sparsities Ss.
The horizontal green arrows indicate the approximate number of neurons that are selectable
(NSN) for high speed imaging in a volume of rat cortex 250×250×250μm (3D) and 250×250μm
(2D). (Ohki, Chung et al. 2005)
The results of this section are summarised in the plot of Figure 2.6 which compares
the number of regions of interest that can be chosen for monitoring by an optical
functional imaging system in either the pointing mode or the scanning mode as a
function of the total imaging time. (i.e. the time for the laser spot to monitor all the
ROIs once and return to the first ROI). So for 1ms imaging time (vertical dashed line)
the pointing mode is able to monitor 30 ROIs, whereas the scanning mode with a
sparsity of 100 is only able to monitor 1.8 ROIs. At the 100ms imaging time (vertical
51
dashed line) these figures are 100 times greater at 3000 and 180 respectively. Thus
AOD based pointing mode systems are much better for optical functional imaging of
brain regions where the spatial sparsity of the regions of interest necessary to obtain
millisecond response times is high. Any mechanical deflection system would need 20
kHz bandwidth and a wide flat frequency response with no resonances to compete
with an AOD of 25 μs AOD fill time for the pointing mode application.
How scanning and pointing will be used in practice to maximise
the performance
Figure 2.7 Diagram to illustrate the pointing mode in 3D. On the left is a computer graphic of
neurons in 3D with bright regions to indicate the chosen regions of interest. On the right, part of
a Zemax ( http://www.zemax.com) diagram of light rays coming to different foci in 3D beneath a
microscope objective. Image of neurons with permission (Peter Clevestig)
In order to use such a 2-photon functional optical imaging machine to it maximum
advantage it is envisaged, as illustrated in Figure 2.7 that the tissue to be imaged is
first imaged slowly in 3D with a full raster scan to understand the anatomy. Regions
of interest are then selected for functional imaging with the pointing mode so that the
functional imaging can take place at the fastest possible rate for the number of ROIs
chosen. The system therefore needs a deflection and focusing system capable of both
scanning the full 3D volume of tissue in the minimum possible time and subsequently
pointing to the chosen regions of interest at high speed in 3D. Because of proposed
52
capability for a 4 AODs to point scan and deflect in 3 dimensions (Kaplan, Friedman
et al. 2001), and the requirement to monitor small regions of interest with a sparsity SS
= 250μm/1μm = 250 , AOD technology was chosen for this application.
Choice of Acousto Optic Lens configuration
b)
a)
X polarised
Y polarised
½ wave plate
X polarised
X polariser
X polarised
Y polarised
Y polariser
d
Un
d
c te
a
r
f
if
m
bea
Z
Y
X
Figure 2.8 comparison of the a) Kaplan configuration (Kaplan, Friedman et al. 2001) and b)
Inverted Bragg Configuration (IBC). Note in both cases the sound waves of each AOD pair are
propagating in opposite directions (black arrows) AODs with the light diffracting towards the
transducer (black rectangle) are in the -1 Bragg diffraction order, those diffracting away from
the transducer are in the +1order. In a) the undiffracted zero order beam is at a considerable
angle to the diffracted bem and is absorbed by baffles. In b) each AOD rotates the diffracted
plane of polarization 90 degrees. This makes it possible to remove the unwanted zero order
undiffracted light with a polarizer. The half wave plate is to ensure the polarization of the
diffracted light from the first AOD is rotated 90 degrees so that it will couple into the second
AOD. Wanted light beams are labled X or Y ‘polarised’.
In Kaplan’s published design(Kaplan, Friedman et al. 2001) (Figure 2.8a.) The upper
AOD diffracts light in the +1 diffractive order (defined as the 1st order diffracted wave
diffracted AWAY from the transducer), and the lower AOD is thus -1 diffractive
order (diffracts towards the transducer). In general because of the different diffractive
order, for high performance, a different detailed design of AOD may be necessary for
AOD2 and AOD 1.
53
An alternative configuration is shown in Figure 2.8b. We call this the Inverted Bragg
Configuration (IBC) because the Bragg gratings that form the active element of the
AODs are inverted with respect to one another, with both gratings diffracting in the -1
order. The IBC is most simply implemented with identical AODs by rotating AOD2
180 degrees about the Z axis with respect to AOD1 .The following table summarises
the relative merits of these two configurations.
•
•
Kaplan
Configuration
•
Inverted Bragg
Configuration (IBC)
Requires an extra component
•
self compensating at mid point
•
Requires AODs that rotate
(grating or prism) to compensate
for spatial chromatic dispersion at
mid point of field of view.
•
Works with any AOD
polarisation 90 degrees
•
Unwanted undiffracted (zero
•
Polarisers required to cut out
order) light must be geometrically
unwanted zero order undiffracted
arranged to hit baffles
light.
Table 2.1 Comparison of Kaplan (Kaplan, Friedman et al. 2001)and IBC configuration of AODs
As has pointed out in the literature (Reddy and Saggau 2005) (subsequent to our
independent understanding) the IBC is naturally self compensating to spatial
chromatic aberration caused by the AODs. When the drive frequencies to the two
AODs are equal and the focal spot is at the centre of its field of view both the
deflection and the chromatic aberration caused by the AOD diffraction (equation 1.1)
are naturally cancelled out to zero irrespective of the spectral width of the laser. As
will be discussed in chapter 3, the residual ‘magnification chromatic aberration’
becomes proportionately larger as net deflection of the spot from the centre of the
field of view increases. The chromatic aberration of the Kaplan configuration is
cumulative because the deflection angles add rather than subtract and hence there is
large aberration that must be pre-compensated with another prism or grating. It is
however easy to suppress the residual zero order mode light in this configuration with
a simple baffle. The IBC only works with AODs that rotate the plane of polarisation
by approximately 90 degrees so that polarising sheets can be used to absorb the
54
unwanted zero order mode light and transmit the wanted diffracted light. This is not a
problem because the highest efficiency AODs are anisotropic TeO2 devices which
rotate the diffracted plane of polarisation. For these reasons we chose to develop our
AOL based in the inverted Bragg configuration. (Note, In Figure 2.8b a ½ wave plate
is also included because, with two AODs both deflecting in the same plane as shown,
the polarisation of the diffracted wave must be returned to the input polarisation of the
next AOD. For the X1, Y1, X2, Y2 configuration we are implementing, ½ wave
plates would not be necessary if the polarisation was exactly rotated by 90 degrees by
diffraction. (See chapter 3- Design of AODs for more detail on this.)
Design of the complete AOLM: the starting point
Our starting point for the design of the overall acousto-optic lens microscope was
simply to combine 4AODs in series to form an acousto optic lens following the
principles described (Kaplan, Friedman et al. 2001) and relay the beam into a
microscope as shown in Figure 1.13 .
The first problem this poses became obvious once I tried to design the AOL using
simple geometric optics. Because of the significant thickness of the AODs it is
impossible in practice to put the diffractive gratings of the AODs sufficiently close
together along the Z axis that the equation given by (Kaplan, Friedman et al. 2001)
and reproduced in equation 1.5 results in a stationary laser spot. This is because these
equations assume zero optical distance between the AODs. An initial search for
suitable AODs revealed that all high performance AODs are several cm thick with the
curtain of sound waves bisecting the crystal at a steep angle. They are not at all like
the idealised thin devices shown in the diagrams of chapter 1. (Their detailed design is
described in Chapter 3). If spaces of several centimetres are introduced between the
AOD gratings the wavefront curvature changes between the AODs and the
cancelation of sideways movement of the focal spot would not be accurate.
Initially, to solve this problem, I designed 1:1 telecentric relays that project the image
of one AOD onto the next AOD. This means that three relays are needed between the
55
four AODs as well as subsequent relays into and through the microscope. We have
also made the decision to project the image from the AOL via the galvanometer
mirrors of the microscope in order to test whether the AOL can be an additional
feature to an otherwise standard commercial microscope. In order to achieve this it is
necessary to design optics that relays the image of the output face of the last AOD of
the AOL to form a conjugate image on the galvanometer mirrors with the correct
demagnification to just fill the galvanometer mirrors. (4:1 demagnification in our
case).
In a commercial 2-photon microscope the subsequent field lens and tube lens form a
conjugate image of the galvanometer mirrors on the back aperture of the microscope
objective. This relay is usually magnifying so that for instance the 3mm aperture of
the galvanometers is expanded up to the 8 or 9 mm back aperture entrance pupil of a
water immersion microscope objective. The complete optical train of this first design
is shown in Figure 2.9.
56
Beam expander
Pockels cell
Relay 4
galvanometer
mirror
deflectors (XY)
prechirper
Field lens
Ti-sapphire
laser
Relay 5
Tube lens
Relay
1
2
3
Dichroic mirror
PMT
Microscope
Objective
AOD X1
Y1
X2
Y2
AODs forming Acousto-Optic Lens AOL
Arbitrary pointing or scan
pattern within scan volume
Figure 2.9 Initial design for the overall optical system layout of the microscope. The additional
telecentric relays numbered 1,2,3 between the AODs forming the AOL are to ensure zero
effective optical distance between one AOD grating and the next as assumed by Kaplan in
deriving equations 1.3 to 1.5 for a stationary focal point. Relay 4 and 5 demagnify the conjugate
image of the last AOD onto the galvanometer mirrors and then magnify the image onto the back
aperture of the microscope objective lens. By varying the drive to the AOL, the focal point can be
focused or scanned through any point within the octahedral field of view.
Note that I have labelled the telecentric relays as 1-5 with a pair of lenses for each
relaying the output aperture of one element on to the input aperture of the next.
Equally well I could have labelled the pairs of lenses starting with the last lens of
relay 4 and the first of relay 5 and the last lens of relay 5 and the microscope objective
as two telecentric relays relaying the first real focused image formed by the AOL, via
a second after the microscope field lens to the final focus spot beneath the objective.
The design of the relay optics is thus a sequence of interwoven telecentric relays. The
final field of view of the microscope is shown as the octahedral shape beneath the
objective. This octahedral shaped field of view is what you expect for AODs with all
four frequency drive bandwidths equal. This is because in the natural focal plane of
the objective lens (Z2=0 in Figure 1.13) the bandwidth limits can be used entirely for
X or Y displacement. As the AOL focus increases or decreases above or below the
natural focal plane so more and more of the available bandwidth is used up by the
57
ramps applied to the AODs. When the maximum ramp rate (and Z displacement) is
reached, there is no bandwidth left for X or Y displacement.
Derivation of field of view of microscope from AOD RF
frequency limits and AOD physical parameters
Whilst designing the microscope, particularly when discussing the design with end
users, the issue often came up of what microscope objective to use with what NA and
subsequently what is the optimum relay lens magnification on to the back aperture.
These discussions can get quite confusing and there is often a tendency for the end
user to assume for instance that it is the objective magnification that determines the
field of view and that NA can be independently adjusted by adjusting relay
magnification. Of course geometric optics is not like that; you can deduce from the
optical sine theorem(Hecht 2001) that as you vary the magnification of an image the
NA is inversely related to the magnification. This applies equally to field of view,
which is the image of all the possible points the laser can be deflected to focus upon.
In view of this, I decided to derive the equations for the 3D field of view of the
AOLM purely in terms of the AOD physical characteristics (maximum scan angle and
aperture) and the effective NA the final focused point. Providing there are no
apertures limiting the NA between the last AOD and this focus then the details of all
the intervening optics are irrelevant. The design trade off between NA and field of
view is then clear and can be made independently of all the degrees of freedom for the
design of the intervening optical train.
58
W
W
a)
b)
Fapp
Fact
θ
Fact
Figure 2.10 a) Parameters relating the actual focal length of a water immersion lens Fact to
aperture width W and its numerical aperture NA=n sin θ. The refractive index of water, shown
in blue is n =1.33. b) Diagram to show how the apparent focal length which determines the lens
magnification is 1/n times the actual focal length in water. The dotted lines represent the
externally apparent path of the rays.
Derivation of 3D field of view of AOLM
Referring to Figure 2.10 a) and starting from the basic definition of numerical
aperture beneath a water immersion lens NA= n sin θ and Pythagoras’ theorem it is
straight forward to deduce that:
Fact
Wn ⎛ NA 2 ⎞
⎜1 − 2 ⎟⎟
=
2 NA ⎜⎝
n ⎠
1
2
equation 2.7
Where:
Fact = Actual focal length in water of the focusing lens
W = full width of lens aperture fill by incoming laser light from AODs
n
= refractive index of water = 1.33
NA = effective numerical aperture of final focal spot
Because of the transition from water beneath the final objective to air above, the
apparent magnification of the lens is increased by n, the refractive index of water, and
its externally apparent focal length Fapp is 1/n times Fact the actual focal length in
59
water. This is illustrated in Figure 2.10 b). It is the apparent focal length that is
calculated if the tube length of a microscope is divided by its magnification on the
barrel of the objective.
W
a)
2s
W
b)
2s
2s
2s
Fapp
v
f
Z
Y
Y
X
X
Fz
Field of View Fxy
Figure 2.11a) Diagram to illustrate how the X or Y field of view is calculated from the fact that
the maximum total angle of scan of the beam is 4s where s is the semiscan angle of the AODs.
Note that now the input beam width defines the effective NA of the lens. It does not matter if the
objective has a larger aperture with a higher NA written on the barrel. The dotted lines represent
the path of the rays with the AOL set at Z=0 and maximum deflection in X. b) Diagram to show
how the equations for the axial field of view are calculated by considering that the maximum
convergence (or divergence) between the extreme edges of the AODs is 2s+2s as shown focusing
on the upper point of the octahedral field of view. The dotted lines in this figure show the paths of
the incoming rays focusing on the very top of the octahedral scan volume.
The simplest combination of the four AODs of an AOL with such a water immersion
lens is shown in Figure 2.11. The maximum scan angle of either of the 2 pairs of
AODs in the X or Y direction is 4s where s is the maximum semiscan angle of one of
the AODs. To be clear, 2s is the angle one AOD deflects light through if its drive
frequency is changed from fmin to fmax. Inspection of the diagram Figure 2.11 b) shows
the input rays on both sides of the lens maximally deflected to the left by an angle 2s.
Combining this with equation (2.7) results in :
60
Fxy = 4sFapp
2Ws ⎛ NA 2 ⎞
⎜1 − 2 ⎟⎟
=
NA ⎜⎝
n ⎠
1
2
equation 2.8
Where Fxy = the X or Y direction field of view that the laser spot can scan over
beneath the lens in its natural focal plane.
Figure 2.11b) shows how the maximum displacement of the focal spot along the Z
axis can be deduced from the difference between the axial focal position at Z=0 for
zero chirp diffractive gratings and the axial position when the gratings are maximally
chirped, with converging deflection at the edges of the AOD aperture of 2s. The basic
paraxial equation relating object to image distance for a lens with the image in a
medium of refractive index n is(Hecht 2001):
1 n n
+ =
u v f
equation 2.9
Where u= -W/4s is the distance of the object from the lens (with the correct sign
convention), v is the distance of the image from the lens (in water) and f is focal
length of the lens (in water).
Combining this equation with equation (2.7) and rearranging gives;
Fz =
8 Fact2 s 2Wsn ⎛ NA 2 ⎞
⎜1 − 2 ⎟⎟
=
nW
NA 2 ⎜⎝
n ⎠
equation 2.10
Where Fz is the maximum distance it is possible to scan in along the Z axis.
61
s
W
w
S
Fz
Fxy
Figure 2.12 Diagram that demonstrates that the field of view is independent of the intermediate
optics because the equations are all in terms of the product Ws, the AOD aperture times the
semiscan angle. This product is constant.
The final Figure 2.12 relating to this derivation illustrates why this expression is
independent of how the light is relayed from the AODs to the final objective. It shows
an additional telecentric relay between the AOD and the objective. This is marked
with different values of W and s, w and S. However, providing there are no restricting
apertures, the optical sine theorem (Hecht 2001) determines that Ws = sW. Since the
equations (2.8) and (2.10) for the field of view only contain the product Ws it is clear
that the expressions are indeed independent of the intermediate optics.
NA vs. field of view
Equations (2.8) and (2.10) can now be used to study the design trade offs of the
system. Figure 2.13 shows how the X and Y field of view varies as a function of the
NA for s = 3, 6 and 9 mrad semiscan angles and W=15 mm AOD aperture width. This
AOD width was chosen to be as large as reasonably practical given that we did not
want it too large for commercial manufacture or for its AOD fill time is to exceed 24
μs so that it still enables data collection time TROI = 9 μs at 30 kHz sampling rate.
62
Field of View Fxy at Z=0 micrometres
600
500
400
S=
9
300
S=
6
200
100
0
0.4
S= 3
mr
ad
mra
d
mrad
20x
0.5
40x
0.6
0.7
0.8
60x
0.9
1
1.1
Effective Numerical Aperture of focussed laser beam
Figure 2.13 Theoretical plot of the field of view in the X orY plane from an AOD of width
W=15mm and semiscan angles ‘s’ as marked. Also shown on the diagram is the magnification of
an Olympus objective lens that would have that particular effective NA with the 8mm diameter
back aperture projected image of the last AOD.
Marked along the NA axis are the magnifications of three different objective lenses
that would give that NA for a projected image of the AODs on their back aperture of
8mm diameter. Note that although it is easy to get a greater than the target 250 μm
XY field of view with these scan angles this is only at low NAs(e.g. beneath a 20X
objective with 8mm back aperture fill). Since 2-photon fluorescence intensity
increases rapidly as NA increases (because of the smaller point-spread function at the
focus), the optimum overall design is likely to be at least 0.7 NA, maybe more. We
therefore need large aperture acousto-optic devices capable of giving high efficiency
over a large scan angle. To achieve 250 μm octahedral field of view (FOV) beneath a
NA = 0.8 objective (a normal NA for galvanometer based 2-photon imaging) would
require AODs that remained high efficiency over an angular range of approximately
+/-9mrad per AOD (9 mrad semi-scan angle). This is very challenging as discussed
in the next chapter.
63
Axial (Z) Field of View (micrometres)
700
600
500
400
300
200
100
0
0.4
20x
0.5
60x
40x
0.6
0.7
0.8
0.9
1
Effective Numerical Aperture of focussed laser beam
Figure 2.14 Comparison the way in which axial field of view and XY field of view vary with NA.
The black line shows the axial (Z) field of view has an approximately inverse square relationship
of axial field of view. The blue line is FXY, the XY plane field of view. W= 15mm s= 4.35mrad.
In the Z direction, the field of view is an even more dramatic function of NA as
shown in Figure 2.14 which compares the Z field of view with the XY field of view as
NA varies. In this case the semi-scan angle is fixed at s = 4.35 mrad and W = 15mm.
In this case it requires NA be reduced to about 0.7 to obtain a 250 μm FOV to the tips
of the octahedral FOV. Reducing the NA to about 0.55 doubles the FOV to 500 μm
because of the approximately inverse square law relationship. For NA= 0.8 the
octahedral Z field of view is 180 μm, therefore to achieve 250 μm the semi-scan angle
needs to be increased to at least 6 mrad. To cover a 250 μm cube, rather than
octahedron (as implied by the target specification), at NA = 0.8, would require the
maximum angular scans were increased outside this range, to about 12 mrad.
However, even if the AOL can deflect high optical power across this large Z field of
view, 2- photon performance may be limited by aberrations to the point spread
function as discussed in the following chapters. This and several other relevant other
factors all need to be understood to optimise the overall design. The conclusion of this
64
section is that for a large (15mm) aperture AOL to achieve a 250 × 250 × 250 μm
cubic FOV at NA= 0.5 requires a semi-scan angle of just less than 6 mrad, however,
the required semiscan angle is a strong function of the NA of the final beam so that
for instance to achieve this FOV at NA= 0.8 requires a semi-scan angle of more than
12 mrad.
Problems caused by using telecentric relays in the AOL
As mentioned earlier in this section, in order to produce stationary spot at a large
value of the Z axial focus using Kaplan’s equation (equation 1.5) it is necessary for
the optical separation between the gratings forming the AOL to be zero. To achieve
this, in the initially proposed system layout shown in Figure 2.9 the AODs forming
the AOL are each linked by telecentric relays.
f
2f
f
f
2f f
f
2f
f
Y
X
Z
ΔY
Side view
X
Y
Z
Top view
X1
Y1
X2
Y2
ΔX
Figure 2.15 Top and side view of the first design of AOL showing the transverse deflection of the
beam as it propagates. The drive on all four is AODs at the centre frequency. The vertical and
horizontal displacement ΔX and ΔY of the last AOD with respect to the first alters by 8mm for a
wavelength range of 700 to 900nm.
Early in the project it was realised that this arrangement of telecentric relays would
make it very difficult to change the system wavelength without several hours of
careful realignment of the optical train linking the AODs. The reason for this is
illustrated in Figure 2.15 which shows the optical train of the AOL in more detail in
both side view and plan view. Each AOD is separated by a ‘4f’ telecentric relay. The
65
total length of each relay is four times the lens focal length which for 15mm aperture
AODs would probably be chosen to be at least f = 100 mm. This is in order to keep
the lens NA sufficiently low for readily available lenses to be adequate quality for
diffraction limited imaging. The total length of the AOL is thus 1200mm. The AODs
must be aligned so that the input and output beams of each AOD are at the optimum
efficiency when the AODs are driven at their centre frequencies. The configuration is
such that when all AODs are driven at their centre frequencies the light beam is
deflected sideways and then upwards in the first two AODs. The deflection is then
cancelled out exactly in the next two AODs so that there is no net deflection and the
output beam is parallel to the input beam. This output beam is then carefully aligned
and launched into the relays leading to the microscope. The problem arises when you
wish to change the laser wavelength. It is straight forward to show by repeated use of
equation 1.1 for the deflection angle of the AOD that the total sideways or vertical
displacement of the input beam is given by:
ΔX = ΔY ≅ 8 f ×
λν ac
equation 2.11
Vac
where ν ac in this case is the acoustic drive frequency
Despite the fact that the AODs we finally chose had centre frequencies as low as ν ac =
35MHz, the wavelength dependence of equation 2.11 means that both the sideways
and vertical alignment of the output beam with respect to the input beam changes by
8mm even for a restricted range of wavelengths 700 to 900 nm. We could not see a
practical mechanical solution to this problem. On adjusting the laser wavelength, not
only would the Bragg angle of each AOD have to be fine tuned, (not too difficult to
automate), but the lateral and vertical displacement of the AODs would need to be
altered by up to 8 mm and some arrangement made to either the input or output beam
positions to accommodate the changes in displacement. This is clearly a serious
practical issue which we believed if not solved would probably cause this type of
microscope to be impractical or very expensive for commercial production.
66
f
2f
f
f
2f f
f
2f
f
700 -900 nm
realignment
= 8 mm
X
Z
Side view
X1
Y1
X2
Y2
1200 mm
700 -900 nm
realignment
= 1 mm
150 mm
Figure 2.16 Diagram to illustrate the advantage of the proposed compact configuration of AODs
reducing wavelength realignment to a much more manageable 1mm. The dashed line represents
the deflection of the central ray of the AOL at the extreme short wavelength end of the range and
the solid line the axis at the long wavelength extreme.
Novel and practical compact configuration for the AOL
In order to solve the problem of large lateral shift with wavelength, I decided to
explore the feasibility of a compact design of AOL. This simply aligns the AODs
axially with no intermediate lenses so that the overall length of the AOL is reduced to
the thickness of 4 AODs plus any air gaps, intermediate polarisers etc. The compact
configuration of AODs is compared with the original relay design in Figure 2.16. If
the total length of the AOL between the first and last AOD grating could be kept
below about 150 mm it seemed plausible that no lateral movement of the >15mm
aperture AODs would in practice be necessary to compensate the now less than 1mm
displacement of the beam axis over the wavelength operating range. Changing
wavelength would involve only very small computer controlled adjustments of AOD
Bragg angle. This mechanically simple solution of course causes complication in the
opto-electronic drive system. The equations that Kaplan derived are no longer
accurate.
67
Pockels cell
Beam
expander Relay 1
Galvanometer
mirror
deflectors (XY)
Prechirper
Field lens
Ti-sapphire
laser
Relay 2
Tube lens
PMT
Dichroic mirror
Microscope
Objective
AOD X1,Y1,X2,Y2
AODs forming Acousto-Optic Lens
Arbitrary pointing or scan
pattern within scan volume
Figure 2.17 Diagram of the complete optical layout of the system as we implemented in the first
prototype. This uses the compact configuration of Acousto-Optic Lens so there are no telecentric
relays between each AOD and the next. PMT stands for photomultiplier tube.
Figure 2.17 shows a diagram of the complete system with the telecentric relay
replaced by the AODs in the compact configuration. Apart form the greater
practicality for wavelength changing, the optical train is over a metre shorter than the
original design and uses six less lenses.
Derivation of equations for pointing and scanning in the
‘compact configuration’ AOL
To derive the correct equations for driving the compact configuration of AOL, it is
necessary to understand its properties in some detail. I used a diagrammatic geometric
optics approach as this gave me the best understanding of how the multi stage
dynamic lens system works and the resulting physical intuition to solve the problems
that arose at each stage of the design. At a later stage I have made extensive use of
Zemax (http://www.zemax.com/ ), the well known computer software for modelling
optical systems. This is better for modelling physical reality in more detail and
gaining understanding and minimising the optical aberrations in the system. In the
following sections I derive the new equations for driving the AOL, not just for
68
pointing at a particular point in 3D space (which we refer to as the pointing mode),
but also for scanning at the highest possible speed in 3D space by the 3D equivalent
of the conventional TV raster scan. This later mode of operation we refer to as the
‘miniscan mode’ for reasons that will become obvious.
a)
b)
AOD1
AOD1
AOD2
d1
X=0, Z=0
d2’
d1’
c)
AOD Drive
Frequency
Z
Δ θ1
AOD2
AOD1
d1
AOD2
time
X
Δθ 2
d1’
X deflection
AOD Drive for stationary
spot focussed at X=0
d1’-d1
Figure 2.18 Geometric arrangement of optical wavefronts and the drive parameters required for
use with the compact configuration of AOL. a) definition of distances and focal lengths of
converging waves from AODs, b) showing how as the sound wave in the top AOD progresses to
the left it causes the deflection angle at X=0 to increase. However the angle of deflection at X=0
on AOD2 is greater according to the geometrically derived equations in the text. c) shows how the
ramp rates of AOD 1 must be less than the ramp rate of AOD2 if the resulting focused spot is to
be stationary.
Deriving equations for the Pointing mode
Consider first the case of AOD1 and AOD2 as shown in Figure 2.18a). These are
being driven respectively with chirped waveforms:
f1 = f c + a1t
equation 2.12
f 2 = f c + a2 t
equation 2.13
Frequency drive f1 is causing a curvature on the wavefront because its drive is
chirped. The distance between the AODs is d 1 and the distance to the focus of the
converging wave of AOD1 is d1' . Now, referring to Figure 2.18b consider a time t = 0
when the diffracted wave from a position x = 0 on AOD1 is precisely vertical down
the Z axis, passing through position x=0 on AOD2. Now consider a time Δt later
when the frequency of the ramp is shifted by Δf1 = a1 Δt so that the angle of
diffraction changes by a fixed amount Δθ1 then the focus of the converging beam is
69
displaced in the – X direction as shown. At the fixed point X=0 on AOD2, the angle
of the ray passing through that point on its way to the focus shifts by Δθ 2 as shown. It
is clear by simple geometry that:
d1'
Δθ 2
≅
Δθ1 d1' − d1
equation 2.14
Thus if you wish to cancel the rotation of the incoming wave from AOD1 at AOD2 in
order to keep the diffracted wave from AOD pointing at the same focal position the
rate frequency shift of AOD2, a 2 needs to be greater than a1 . (For this IBC
configuration, increasing the frequency of both AODs causes cancellation not
addition of the angular deflection). The ratio of the frequency shift rates is the same as
the ratio of the angles of deflection in the diagram. Therefore:
a2
d'
≅ ' 1
a1 d1 − d1
equation 2.15
These ramp rates are illustrated in Figure 2.18c which shows frequency vs. time for
the two AODs driven to produce a stationary focal spot plotted as X deflection vs.
time underneath. In order to calculate the specific drive equations for a particular
desired focal spot distance d 2' , we use equation 1.3 defining the distance to the focus
for a given ramp rate and the fact the curvature of the wavefront entering AOD2 is
doubled by the additional curvature induced to keep the direction of focus stationary
simple rearrangement of the equations shows that:
d1' − d1
d =
2
'
2
equation 2.16
And
a2 =
a1 =
V2
2λd 2'
equation 2.17
V2
λ (2d 2' + d1 )
equation 2.18
70
a1
2d 2'
=
a2 2d 2' + d1
equation 2.19
These equations are those needed for setting up and controlling the
microscope as they give the drive parameters in terms of the distance d 2' from the
final face of the final AOD to the point of focus of the AOL. In these equations, d1 is
always a positive value. The values of d 2' , a1 and a2 are positive for converging rays
for the +1 diffraction order shown in Figure 1.12 a and negative for diverging rays as
shown in Figure 1.12 c.
It is apparent that if d1 is made to be zero then a1 equals a2. This is the
assumption used in Kaplan’s equations. Note that in the equations and analysis
above, the distances are apparent optical thicknesses. If further optical components
are interposed between the AODs, such as half wave plates and polarisers, then the
apparent optical separation needs to be calculated by taking into account the refractive
index of such additional components. Also, the refractive index of the AODs
themselves needs to be taken into account. This can be done by assuming that the
acoustic wave enters and leaves the AOD at its thickness-midpoint such that the
apparent optical distance d1 is equal to the distance in air between the AODs plus half
the thickness of AOD1 divided by its refractive index plus half the thickness of AOD2
divided by its refractive index. When the two AODs are identical, then the value d1
equals the distance in air plus the thickness of the AOD divided by its refractive
index.
71
AOD 1
X1
AOD 3
Y1
d1
AOD 2
d3
X2
AOD 4
Y2
d2’
d4’
Z
Z
Y
Y
X
X
Front view
Side view (rotated
90 degrees to left)
Figure 2.19 Sequence and orientation of four AODs forming an AOL. They are labeled, and
distances are defined for the equations of the compact configuration. Note the interleaved
numbering of AODs 1 and 2 and 3 and 4 so that it is clear from the equations that the equations
for the XZ plane and YZ plane are essentially the same.
These principles can be extended to a system which uses four AODs to focus in the
X,Y and Z dimensions. Figure 2.19a) and b) show two orthogonal views of a four
AOD system. The third and fourth AOD3 and AOD4 are interleaved with AODs 1
and 2 as shown, the distance between AOD3 and AOD4 being d3 and the distance
from AOD4 to the focal point being d 4' . The ramp rates for the third and fourth AODs
can be calculated in a similar way as for the first and second AODs. Very similar
equations apply:-
V2
a4 =
2λd 4'
a3 =
equation 2.20
V2
λ (2d 4' + d 3 )
equation 2.21
72
a3
2d 4'
=
a4 2d 4' + d 3
equation 2.22
AOD1 and AOD2 focus in the chosen X-Z plane whilst AOD3 and AOD4
focus in the Y-Z plane. The distances d 2' and d 4' are such as to ensure that the final
focus is the same in both planes. Any error will cause astigmatism. As noted earlier
the actual distances between the AODs and the optical thickness of any intervening
components, as well as the AODs themselves, needs to be taken into account when
determining d1,d2,d3, d 2' and d 4' .
Depending on the exact configuration used, further fine tuning may be applied to
achieve an exactly stationary spot. The equations above are based on the simplified
assumption of AOD crystals having surfaces that are perpendicular to the direction of
propagation of the light. It is possible to manufacture the AODs with slightly angled
faces (and there are practical reasons to do exactly this) and this can cause errors that
result in a small residual movement of the focal position. These residual movements
can be corrected by small adjustments to the ratio of ramp rates a1/a2, a2/a4. These
corrections can either be found experimentally or by building a more accurate optical
model using a commercial programme like Zemax. When such angled faces are used,
typical corrections are much less than +/-2% to the ramp rate of each AOD.
Similarly, small corrections may be applied to the ratio of the X ramp rate to the Y
ramp rate to fine tune the astigmatism of the focus. This is equivalent to adjusting the
ratio of d 2' to d 4' so that the Z value of the focal position in the X-Z and X-Y planes is
the same. These fine tuning corrections may be a function of the Z position of the
focal spot and can readily be built into the algorithms that compute the ramp rate of
the AODs before each scan.
It is clear from the derivation that in theory the compact configuration of AOL can be
used to achieve a stationary focal point at any chosen value of Z within the field of
view. The control equations need now to be extended to calculate the precise start and
stop frequencies of each frequency ramp, how to adjust these to cause particular X
and Y deflection and how to adjust the frequency ramp rates to not only point at a
particular spot but also to scan in the XY plane to build up a raster image at the fastest
possible rate. This requires precise control of X and Y plane scan rate at a fixed Z
73
plane. The fact that the AODs have a limited operating frequency range and the
frequency ramp rates for Z focusing are high, also means that it is often necessary to
reset the drive frequencies to the other side of the operating frequency range. It is
therefore necessary to understand how to offset the drive frequencies without causing
any X or Y movement of the focused spot and restart an interrupted scan.
I have found these issues quite complex during the development and have had to
correct implemented control software more than once because of my initial lack of
clarity on the issue of resetting pairs of AOD drive frequencies to maintain precise
knowledge of the pointing position vs. time of the focused laser spot. Recently I have
developed a graphical way of understanding this very multidimensional problem. This
Drive frequency fav1 to AOD 1
is illustrated in Figure 2.20.
fmax
Δf 2
Δf1
Rcomm =
Δf1
Δf 2
fc
Rdiff = − Rcomm
fmin
fc
fmin
fmax
Average drive frequency fav2 to AOD 2
Figure 2.20 A graphical way to analyse drive frequencies applied to the XZ pair of AODs. The
common mode ratio (or gradient) shown blue is the gradient in frequency space that produces no
movement of the focal spot. The orthogonal differential mode gradient (shown in red) produces
only X deflection of the spot with no common mode deflection.
For the case of XZ deflection and focusing with AOD1 and AOD2 as discussed
above, the drive frequencies fav2 and fav1 can be plotted on the X and Y axes of a
graph as illustrated. These ‘f average’ symbols represent the frequency at the centre of
the AOD at the particular time being considered. As the ramp rates a1 and a2 are
74
linear in both time and space, the frequencies at the centre are the spatial averages of
the frequencies currently in the AOD aperture and in turn determine the average
deflection angle of the AOD. Referring to Figure 2.20, any pair of average
frequencies can be represented on this plot by a point in the fav2 , fav1 plane. A
gradual or step change in the pair of drive centre frequencies can be represented by a
vector lying in the plane. Its direction determines what happens to the focal spot
position. If fav2 and fav1 are changed with a differential gradient marked as common
mode drive gradient Rcomm, there is no change in the position of the spot. Common
mode drive frequency change is defined as change where the ratio of the frequency
changes is :
Rcomm =
2d 2'
Δfav1
=
Δfav 2 2d 2' + d1
equation 2.23
Notice that this ratio of frequency change is exactly the ratio of ramp rates that gives a
stationary focal spot at a distance d 2' from the last AOD. It has a fixed value for any
particular chosen Z focal plane. For a stationary focal spot, if you plotted the two
frequencies at the centre of the two AODs as they varied with time, they would move
along a line parallel to the vector shown. It also implies that it does not matter what
pair of frequencies you start the ramp at as long as they are on this common mode
deflection line, the focal spot will always be at the same position.
The converse applies to the differential mode line on this plot defined by:
Rdiff =
Δfav1
− 2d 2'
=
Δfav 2 2d 2' + d1
equation 2.24
Changes in this direction produce changes in X position of the focal spot with no
changes in common mode frequency difference. Its gradient is by definition -1 times
the common mode gradient. Referring to Figure 2.20 and Figure 2.21 , in fav2,fav1
frequency space the vectors Rcomm = [1, Rcomm ] and Rdiff = [1, Rdiff ] (where vectors
are shown in bold and scalars in normal type face) can be used as the unit vectors of a
2D basis. Any vector in this plane can be analysed in terms of its common mode and
differential mode basis vector components.
75
Drive frequency fav1 to AOD 1
fmax
Point moving with time
along this vector
fc
B × Rdiff
P
A × Rcomm
fmin
fc
fmin
fmax
Average drive frequency fav2 to AOD 2
Figure 2.21 Showing how any pair of frequencies (P red star) or difference in pair of frequencies
vector can be analysed into common mode (blue) and differential mode components (red). Bold
text refers to a vector, normal text to a scalar. The dotted blue line represents all pairs of
frequencies between the AOD drive limit frequencies that point in the same direction as the point
P. Driving the AODs repetitively up this line and jumping back to the lower position
corresponds to the sawtooth of frequencies required to focus on a spot in the same lateral offset
(X) that static frequency pair at P would point. The rate of shift along the line determines the
focus (Z). The Green vector direction combines a large common mode with a small differential
mode and steady movement along this line produces fixed Z focusing and relatively slow X
translation of the focal point.
The red point ‘P’ represents a particular fav2, fav1 coordinate. This can equally well be
represented by the vector equation
[ fav1 ,fav2 ] = [ f c ,f c ] + A × Rcomm + B × Rdiff
equation 2.25
Where fc is the centre frequency of the AOD drive range and A and B are the scalar
multipliers for the unit vectors pointing in the Rcomm and Rdiff directions as illustrated
by the red and blue arrows on the figure. The blue dotted line through the point ‘P’
with a gradient Rcomm (scalar) is the line of all the other points that equally well would
76
point at the same position. Using this plot it is now obvious that for repeated pointing
at the same position in 3D space that point P points at, without the drive frequencies
going outside the high efficiency regions of the AODs, the ramps must repeatedly
start at the pair of frequencies defined by the lower left end of the dotted blue line and
stop at the top right end. In jumping back to the start, there is no shift in the position
the AODs are pointing at.
Figure 2.21 also shows a green line representing a time sequence of [fav2, fav1 ]
coordinates. These can also be analysed into their A × Rcomm + B × Rdiff pairs as
shown in red and blue. In this case the green line is the drive to produce a focused
beam with a small differential component that means the spot is slowly moving in the
X direction (shown in red). The common mode scan rate in time determines the Z
focal plane (and the precise direction of the Rcomm and Rdiff unit vectors on this plot.)
as shown in blue and red.
Deriving algorithms for the scanning mode
To build up a three-dimensional image of a semi transparent sample (such as
brain tissue), it is useful to be able to follow a raster scan with the focal point along a
predetermined path through the sample. The most commonly used raster scan is to
move the focal point in the X direction, keeping the Y and Z values constant, to then
increment the Y position by some small amount, to perform another scan in the X
direction and so on until a two-dimensional grid of scans is achieved. The Z direction
is then incremented and another two-dimensional grid is scanned until a three
dimensional volume has been built up. This type of raster scanning, illustrated in
Figure 2.22, is much faster than building up an image by using the pointing mode to
sequentially address every point. The pointing mode takes one AOD fill time plus one
data collection time (dwell time) to take data from each point. With 25 μs AOD fill
time and a typical 4 μs dwell time this process takes nearly 4 minutes in the pointing
mode for the 7.8 million voxels 2 that our target system is capable of resolving. With
raster scanning many data points are gathered for each AOD fill time by moving the
focused spot over sequential voxels at a rate of 1 dwell time per voxel. As the raster
scans increase in length so the total scan time reduces asymptotically towards the
Number of voxels in a 250μm cube divided by a 1×1×2 μm voxel: 250×250×250/2= 7.8125 million
voxels,
2
77
limit of one dwell time per voxel which is about 30 seconds for 4 μs dwell time
scanning the full 3D volume.
AOD X1
AOD Y1
AOD X2
AOD Y2
Raster scan
Z
Y
X
Figure 2.22 An acousto-optic lens forming a raster scan of a 2D plane. The bold converging red
lines represent the laser beam converging towards a focus. The straight dashed red lines indicate
the path traced by the focal point (red star). The curved dotted red lines show the spot scanning
with time from left to right starting with the furthest line.
78
Frequency
at centre of
AOD Maximum
AOD frequency reset time
AOD fill time/2
AOD fill time/2
Drive
Frequency
Δf1
X deflection
Minimum
Drive
Frequency
Δf 2
Frequency
limits for
data
gathering
X deflection not changed by
offsetting the drive
frequencies
time
Δf1
= Rcomm
Δf 2
Figure 2.23 Diagram to illustrate AOD X1 and AOD X2 drive frequencies vs. time for part of a
sequence of miniscans deflecting in X and focusing a focal spot at a constant Z plane across one
line of a raster at fixed Y value. The pair of green lines corresponds to a single vector in the
frequency space diagram (next figure). The red line shows that there is no X deflection in the flyback period between the end of one data gathering sequence and the beginning of the next.
Consider now the drive frequency sequence necessary to scan a focal spot
along the maximum possible distance in the X direction without exceeding the drive
frequency limits of the AODs. Figure 2.23 shows the AOD centre frequencies plotted
against time whilst scanning in the X direction. In order to produce the required
focusing in Z the ramp rates on both AODs are high. Since there is a limited
frequency range, it is not possible to do a single scan right across the maximum
possible X scan range. The scanning process therefore has to be broken up into a
sequence of ‘miniscans’. Two of these miniscan frequency traces are plotted in the
figure showing the transition between them. The maximum and minimum drive
frequencies for the AODs are defined by the limiting frequencies where the efficiency
drops below say 80% of the peak efficiency.
It takes one AOD fill time for the sound wave to fill the AOD aperture so that data
recording can begin, and the time at which a particular frequency reaches the mid
point of the AOD is half the AOD fill time after it was transmitted by the transducer.
Recording of fluorescence data from a full AOD is therefore only possible for
79
frequencies sent by the transducer more than half an AOD fill time from either the
beginning or end of the frequency ramp. This further reduces the available frequency
range as shown by the inset bold dotted lines on the figure. The total time from the
end of data gathering of one miniscan to the start of data gathering of the next is thus
the AOD fill time plus any ‘flyback’ time for electronically resetting the drive
frequencies.
The key point in developing an algorithm for calculating the precise start and stop
frequencies of each miniscan is that the position of the focal spot at the start of the
first voxel of a new miniscan must be in exactly in the same position as the it was at
the trailing edge of the last voxel of the previous miniscan. This is illustrated in the
lower part of the figure in red. The frequency offsets Δf 1 and Δf 2 must therefore be
Drive frequency fav1 to AOD 1
in the exact ratio Rcomm .
fmax
Inset data collection
frequency range
Drive
frequencies of
miniscans
fc
Common mode
Differential
mode
fmin
fmin
fc
fmax
Average drive frequency fav2 to AOD 2
Figure 2.24 Diagram illustrating the full sequence of miniscans making up one full X scan The
green arrow correspond to the green pair of drive frequencies shown vs. time on the previous
figure. As the green vector has a small differential mode component it is scanning as well as
focusing at a particular Z plane. This is shown by the red differential mode lines. The frequency
limits for data collection have to be inset with respect to the efficiency limits because data can
only be gathered from full AODs. The common mode (blue dashed) fly-back lines ensure that
when data gathering starts again in the next miniscan it does so from the same position.
Figure 2.24 illustrates in the fav2 fav1 plane how the fastest possible X scan is built up
by a sequence of miniscans. The green arrows show the path in this frequency space
80
of the two drive frequencies at the centre of the AODs. The blue common mode
dashed arrows show how the frequencies are reset from the end of one data gathering
sequence to the beginning of the next. The start and stop frequencies of the miniscans
are then defined by extending these ramps out to the drive frequency limits as shown.
Note that as in the pointing mode, the precise direction of the blue common mode unit
vector and the red differential mode unit vector are dependent on the chosen focal Z
plane according to equations 2.23 and 2.24. It is hoped that these two graphical aids
give a good understanding of how the algorithms for computing the precise miniscan
drive frequencies work.
It is now a fairly simple extension of the equations already derived to calculate the
full equations for each important parameter:
The X scan rate δθ δt is set at a rate so that it takes one dwell time to scan across one
voxel. This is done by defining the semiscan angle of the AODs ‘s’, Nvox, the
number of voxels in the scan, typically 100 to 500 and the dwell time of the focal spot
as it scans across each voxel.
δθ
2s
=
δt Nvox × DwellTime
equation 2.26
It is also assumed that the Z focal distance of the AOL, d 2' is also predetermined, so
that the common mode offset frequency ratio Rcomm is also fixed. These assumptions
give a set of simultaneous equations that can be solved to give the following equations
for the precise ramp rates (a1, a2) of AOD1 and AOD2 in the desired form:
a1 =
V ⎛ V δθ ⎞
⎜ −
⎟
λ ⎝ d 2' δt ⎠
⎛
d d δθ ⎞
⎜ 2 + 1' − 1 ⎟
d 2 V δt ⎠
⎝
equation 2.27
V2
V δθ
' +
2 λd 2 2 λ δt
equation 2.28
a2 =
These equations apply where there are two AODs for focusing in the X-Z
plane or, as shown in Figure 2.19, when there are four AODs. In this case, the
81
angular scan rate δθ/δt is that measured about the AOD2 (which is third in the
diagram!). The apparent rate as measured about the last AOD4 can be obtained by
multiplying this scan rate by d 2' d 4' .
Referring to Figure 2.19 the appropriate equations for the Y-Z plane are found
in a similar manner. Here, φ is the angle as measured from the fourth AOD4.
V ⎛⎜ V ' − δφ ⎞⎟
λ ⎝ d4
δt ⎠
a3 =
⎛
⎞
d
d δφ
⎜ 2 + 3 ' − 3 Vδt ⎟
d4
⎝
⎠
equation 2.29
V2
Vδφ
a4 =
+
'
2λd 4 2λδt
equation 2.30
This information taken together is the basis for the initial set of algorithms I
developed in Matlab to pre-compute the sequence of ramps for all four AODs to
either 3D scan or point to a sequence of points of interest chosen from within the
scanned 3D volume. We later came to refer to these algorithms as the Absolute
Frequency Limit (AFL) algorithms because they are based on the assumption that in
order to keep the AOD efficiency high, each AOD must at all times stay within the
absolute frequency limits set for the AODs. In chapter 4 we develop new algorithms
that scan a larger volume at high efficiency by optimising the frequency limits
independently for each miniscan.
Figure 2.25 shows a schematic diagram of the complete prototype with the computer
control system that drives the AODs using the Matlab code based on these equations
and the compact configuration AODs. With the exception of the prechirper, the other
components of the complete 2-photon microscope are generally similar to those of a
standard 2-photon microscope although the drive electronics for the AODs and image
reconstruction is somewhat more complex than the galvanometer equivalent. The
data acquisition from the photomultiplier tubes is precisely synchronised with the
drive to the AODs so that for each data gathering timeslot (typically 1 – 4 μs long) the
82
computer is able to insert into the computer memory the measured light intensity at
the 3D coordinates of the voxel that the AOL is pointing to during that time. The
prechirper is included to compensate for the effect of the high chromatic dispersion of
TeO2 which otherwise spreads out the Ti-Sapphire laser pulses in time and greatly
reduces 2-photon emission efficiency. (Reddy, Kelleher et al. 2008)
Beam
expander
Pockels cell
Relay 1
AOL
prechirper
Galvanometer
mirror deflectors
(XY)
Field lens
Ti-sapphire
laser
Relay 2
Tube lens
RF drive
Dichroic mirror
Data
acquisition
PMT
Microscope
Objective
Arbitrary pointing or scan
pattern within scan volume
Figure 2.25 Diagram of the complete prototype .system with the compact configuration AOL and
computer drive and acquisition electronics
Summary of chapter 2
This chapter starts by developing a clear technical argument justifying the choice of
acousto-optic deflectors for the type of high performance optical functional imaging
we wish to be able to do. The choice of acousto-optic lens configuration is then
discussed and a first design of the overall AOLM described. The equations for the
field of view of the microscope are then derived from basic geometrical optics in a
form that clarifies the relation ship between the basic AOD performance parameters
and the final system performance. The practical problems that would be caused by
changing source wavelength using the first AOLM design are then described and a
novel ‘compact configuration’ of AOL proposed. This compact configuration requires
that new basic radio frequency (RF) drive equations are derived for pointing and
scanning. These are derived in the final two sections.
83
Chapter 3
AOD Design, aberrations and first
assembly of AOL
Design of AODs
Acousto–optic device technology is complex but well documented and mature
(Goutzoulis, Pape et al. 1994);(Xu and Stroud 1992). It is used today by a relatively
small number of specialist manufacturers. At visible and near infra red wavelengths
the most widely used material for AODs is Tellurium Dioxide (TeO2 ). This is
because of its strong interaction between light and sound waves in the crystal and
good manufacturablity. The physics of optical and acoustic propagation in this crystal
is mathematically very complex because its class 442 crystal symmetry is not only
uniaxial birefringent but also optically active(Xu and Stroud 1992) p13. When the
electric field of the light wave displaces electrons in the crystal not only do they get
displaced linearly, but also they gyrate slightly inducing a magnetic field component
as well as the usual electric displacement field. This means that the solution of
Maxwells equations for light propagation in the crystal involve tensors of rank 3.
A standard uniaxial birefringent crystal (e.g.calcite) has two refractive indices,
ordinary and extraordinary. Light coupled into the crystal will in general couple into
both the ‘eigenmodes’ corresponding to these two different refractive indices and
propagate separately. ‘Eigenmodes’ or ‘normal modes’ are the natural modes of
propagation of light in the crystal. They are the only modes which propagate
unchanged: all other modes are made up of a mixture of these two eigenmodes. The
polarisation states of the two eigenmodes are orthogonal, and dependent on the
precise direction of propagation. The refractive indices are represented on a 3D
surface which represents the inverse of the phase velocity of light in the crystal as a
function of direction within the crystal Figure 3.1. Ordinary waves, or ‘o-waves’, have
the same speed in all directions and therefore the index surface is a sphere. The index
surface of the extraordinary ‘e-waves’ is ellipsoidal with the same index as the owaves only along the crystal axis. In order to explain the design of AODs with greater
clarity I have used Matlab 3D graphics to show the index and wave vector surfaces in
3D. The index data is from (Xu and Stroud 1992).
84
a
b
001
direction
Z axis
110
direction
2
1.5
1
0.5
0
-0.5
-1
-1.5
110
direction
-2
-2
-1
X axis
0
1
110
direction
2
-2
-1.5
-1
-0.5
0
0.5
1
1.5
Y axis
Figure 3.1 The 3D index surface of TeO2 at a wavelength of 0.8 μm showing refractive index as a
function of light propagation direction in 3D space based on data and equations from (Xu and
Stroud 1992). Consider a light wave with its phase velocity vector stretching from the origin
X,Y,Z =0 (intersection of three black lines) to the index surface. The XY and Z axes are the
crystallographic axes. a) View of the complete index sphere showing the optic axis in the Z <001>
direction. The pairs of blue latitude and longitude lines show in 3D where the inner ‘ordinary’
surface and the outer ‘extraordinary’ surface lie. For clarity ¾ of the inner index sphere has been
shaded gray to hide the latitude and longitude lines on the far side of the sphere. The <110>
direction is also shown as this is the direction of minimum sound wave velocity and is close to the
propagation direction of the usual acoustic wave in the crystal. b) Close up of the latitude and
longitude lines around the ‘north pole’ (optic axis) of the sphere. The upper set of latitude and
longitude lines lie in the extraordinary index sphere and the lower set in the ordinary. The inner
latitude circle corresponds to all light waves travelling at 3 degrees off the 001 optic axis. The
outer circle corresponds to 10 degrees off the optic axis. The index of both surfaces is purely a
function of this latitude angle. For clarity the difference between the ordinary and extraordinary
indices has been exaggerated at the optic axis. The maximum difference in indices occurs at the
equator for light propagating at 90 degrees to the optic axis
As shown in Figure 3.1, for TeO2 which is a positive uniaxial crystal the extraordinary
waves have higher refractive index (slower speed of light) around the equator of the
ellipsoid. The additional complication with TeO2 is that even along the optic axis the
e and o index surfaces do not touch. The o-surface is slightly depressed in the Z [001]
direction and the e-surface is slightly raised. This is because the crystal structure has a
slightly spiral structure (chirality). This causes a problem with operating AODs with
85
light propagating close to the optic axis. Within about 10 degrees of the axis there is a
transition from linear polarisation to circular polarisation on axis and at intermediate
angles the eigenmodes are elliptical. This is illustrated in Figure 3.2.
Ordinary
waves left
handed
Extraordinary
waves right
handed
Figure 3.2 Polarisation ellipsoids illustrating the state of polarisation of the two eigenmodes of
TeO2 as propagation direction varies close to the optic axis (vertical black line). The blue lines
are the same pairs of latitude and longitude lines showing the two index surfaces as in figure 3.1.
The circular blue pair of lines corresponds to the 3 degree off axis latitude line shown in figure
3.1. Ordinary eigenmodes are all left hand polarised (green) and the extraordinary (higher
index, or ‘slow’ ) waves are all right hand polarised ellipses (red). Exactly on axis the waves are
circularly polarised
The e-wave in standard left handed crystal TeO2 has a slightly higher index (slow
wave) than the o-wave. If you launch linearly polarised light along the 001 crystal
axis of TeO2 it splits into two equal intensity propagating circular waves, the right
handed e-wave and left handed o-wave (red and green circles on axis in Figure 3.2).
At the exit to the crystal these interfere to produce a linearly polarised light wave, but
its polarisation has rotated because of the difference in phase velocity of the
eigenmodes. At 800 nm this optical activity produces 48.5 degrees of rotation per mm
of crystal (Xu and Stroud 1992), p620. As the propagation angle off axis increases so
the ellipticity of the eigenmodes increases rapidly so that by 4 degrees off axis at
800nm wavelength the polarisation is nearly linear with only 15% ellipticity. Note
that the red extraordinary wave always has the long axis of its polarisation ellipse
aligned radially to the optic axis and the ordinary mode is aligned circumferentially.
86
Figure 3.3 The ellipticity varying from 1 (circular polarisation) to 0 (linear polarisation) as wave
vector angle off the optic axis θ increases. Also shown is the intensity of an eigenmode when
excited by external linear or circularly polarised light as a function of off axis angle θ . Modified
from (Yano and Watanabe 1974). The red line shows intensity of light coupled into an eigenmode
from linearly polarised incident wave with its long axis of ellipticity parallel to the incident
polarisation as a function of off optic axis angle θ.
Figure 3.3 modified from (Yano and Watanabe 1974) plots the ellipticity varying
from 1 (circular polarisation) to 0 (linear polarisation) as wave vector angle increases.
As shown in the figure, coupling efficiency into the eigenmodes from pure linear or
pure circular polarisation waves varies rapidly with ellipticity. Coupling with high
efficiency into significantly elliptical or circular polarisation from linear requires
careful use of waveplates which increase optical system cost and complexity
(Fukumoto, Kawabuchi et al. 1975). The red line shows that coupling from (and to)
linearly polarised external waves is better than 95% providing the off axis angle θ is
greater than 4 degrees and the linear polarisation is aligned to the long axis of the
ellipse. This may require no waveplates if the alignments are fortuitously correct or
one half wave plate to adjust the linear polarisation direction.
The remarkably high figure of merit for TeO2 was found by (Uchida and Ohmachi
1969). It was however (Warner, White et al. 1972) who first pointed out that unusual
index surfaces of TeO2 could be used to make a deflector with a much lower
operating power than any previous AOD. These devices operated with incident and
87
diffracted waves propagating within a few degrees of the optic axis with light close to
circular polarisation. This is illustrated in Figure 3.4. This figure is now a wave
vector diagram rather than an index surface diagram. Wave vectors diagrams are
widely used for AOD design (see Figure 3.10 for definition of wave vectors). The
laws of quantum mechanics determine that within a precise amount of uncertainty, the
momentum vector (proportional to wave vector) of the incident wave, plus the
momentum vector of the acoustic wave equals the momentum vector of the diffracted
wave. The additional constraint is that the optical wave vectors must lie on the
appropriate index surface. Since wave vector magnitude is proportional to the material
index, the index surfaces on a wave vector diagram are the same shape as on an index
surface diagram.
Figure 3.4 Wave vector diagram of an early experimental AOD similar to (Warner, White et al.
1972) showing incident and diffracted optical wave vectors (black arrows) coupled with an
acoustic wave vector (red arrow) . The axes (not shown) here represent wave number. (The
number of waves/cm in the material . This is proportional to index). The acoustic wave is
propagating very close to the <110> direction (see figure 3.1). The insert shows that the right
hand incident light wave vector is an extraordinary wave with its polarisation shown as the red
ellipse above. The output wave vector is an ordinary wave (green ellipse).
Note that this acoustic vector is closely tangential to the ordinary index wave number
surface that the diffracted output wave moves along as drive frequency is varied. This
means that even for a fixed direction input optical wave vector and fixed direction
acoustic wave, a wide range of output angles can be obtained with only a small error
between the sum of the incident and acoustic waves and the diffracted vector which
88
must be on the ordinary index wave number surface. This is the primary reason that
the device has high efficiency over a wide drive frequency range.
There are two problems with this design of AOD however. Firstly, as the acoustic
frequency is varied in order to vary the length of the red acoustic wave vector and the
direction of the diffracted optical wave vector, the output wave polarisation ellipticity
changes rapidly with output angle. Secondly, as shown in Figure 3.5 at high acoustic
drive levels there is an unwanted secondary optical coupling.
Figure 3.5 Wave vector diagram of an AOD with output wave vector on the optic axis. Insert :
At high acoustic drive power a secondary optical coupling occurs to the symmetrically placed
extraordinary index surface on the far side of the optic axis via the same acoustic wave (dashed
red vector and it produces a wasted secondary output diffracted light wave (dashed black wave
vector). This produces a sharp dip in AOD efficiency at the mid band known as the mid band
degeneracy dip.
However, the problem reported in Warner is that when the output vector is as shown
on axis there is a second order coupling possible between the acoustic wave vector
and the extraordinary index surface as shown. At high drive power this second order
coupling produces a sharp ‘mid-band degeneracy’ dip in efficiency.
89
Standard AOD design
It was (Yano, Kawabuchi et al. 1975) who first proposed the ‘acoustically rotated’
design of TeO2 deflector widely used today.
Direction of crystal rotation
Figure 3.6 Wave vector diagram of an ‘acoustically rotated’ design of AOD. (Yano, Kawabuchi et
al. 1975). It is known as acoustically rotated because, compared to earlier designs, in
manufacture, in order to polish the AOD surfaces, the crystal has been rotated in the direction
shown by the blue arrow which is in a plane including the acoustic wave vector. In this case the
incident extraordinary wave vector is more than 4 degrees off the optic axis and hence is nearly
linearly polarised (red ellipse). The output vector is even further off axis (green ellipse). The
dashed red arrow shows where secondary acoustic wave vector would couple. Because of the
acoustic rotation, this vector is far from intersecting the extraordinary index surface and hence
there is a negligible midband dip.
The wave vectors of Yano’s acoustically rotated AOD is shown in Figure 3.6.
Typically the crystal is rotated by about 5 degrees so that the incident and diffracted
polarisations both become nearly linearly polarised (and hence easy to couple to with
high efficiency) and the mid band degeneracy does not occur because, as shown by
the extended dashed red line, the extraordinary index surface is no longer in the right
position to couple to a single added wave vector. For these reasons the acoustically
rotated AOD design is the most common form of TeO2 AOD.
90
There is however a price to pay. Note in Figure 3.6 that the acoustic wave vector now
no longer lies very close to the <110> direction. It too has been rotated by about five
degrees with respect to the crystal axes. In order to understand the effect this has on
acoustic wave propagation it is necessary to understand the acoustic equivalent of the
optical index surface which is known as the acoustic slowness surface.
a
b
c
Figure 3.7 Acoustic wave propagation in TeO2., modified from ((McLoed)) illustrating the
remarkable anisotropy of acoustic wave propagation. a) The 3D acoustic wave vector surfaces
(slowness surfaces) show that in the shear mode the velocity slows to 616 m/s in the <110>
direction but speeds up rapidly for angles away from <110>. As the acoustic vector is tilted off
the 110 direction, the energy in the acoustic beam walks off at an angle about 11 times greater
than the phase velocity tilt angle. So, as shown in b) and c), a 2.6 degree phase velocity tilt angle
produces a walk off angle of 27 degrees. Diffraction is also enhanced remarkably as can be seen
by the wide diffraction edge fringes at the edges of the computed acoustic diffraction propagation
pattern in diagram c).
Figure 3.7 a) shows the acoustic slowness surfaces for TeO2. It has three possible
acoustic polarisations. The shear mode has a remarkably slow speed of propagation
91
(616m/s) along the <110> direction. This is largely responsible for the high acousto
optic figure of merit of the material. However as tilting the acoustic wave vector
causes a rapid increase in propagation speed this results in the unusual anisotropic
walk off propagation of acoustic shear waves with wave vectors near the <110>
direction b)and c). For the five degree acoustically rotated crystal the walk of angle of
the acoustic wave is 55 degrees. This results in the top view of a standard AOD
oriented for horizontal deflection as shown in Figure 3.8.
Optic Axis
<110>
Incident wave vector
Diffracted wave vector
Acoustic
phase
vector angle
5 degrees
<001>
High efficiency
scan angle
+/- 20 mrad
Acoustic Poynting
Vector 55 degees
Acoustic transducer
Figure 3.8 Top view of a standard commercial Acousto–Optic Deflector oriented for horizontal
deflection showing the typical 5 degree acoustic rotation of the polished crystal faces with respect
to the <110> and <001> crystal axes. For the acoustic wave this results in a 55 degree walk-off
angle (Poynting Vector). The acoustic wave is shown by the thin black horizontal lines
propagating in a very skew ( 55 degree off axis) direction as it leaves the acoustic transducer at
the bottom left of the figure. The thin vertical black arrow shows the direction of the normal to
the acoustic transducer ( and hence the acoustic wave fronts) and shows that the acoustic wave
vector is angled at 5 degrees to the <110> crystal direction. The thick black near horizontal
arrows show the typical input optical and diffracted optical output wave directions along with
typical output scan angle. The red arrow highlights the <001> direction of the crystal optic axis
referred to in later figures.
Figure 3.8 shows a slightly idealised view of the top view of a standard commercial
AOD oriented for horizontal deflection. The acoustic and optical wave vectors can be
compared to the 3D wave vector diagram in Figure 3.6. The only confusing point is
that the acoustic wave vector direction in Figure 3.8 is shown 180 degree rotated and
not to scale with the optical wave vectors for compactness and clarity of the figure.
92
This design of AOD is optimised for maximum high efficiency scan angle often
greater than +/- 20mrad.(1 degree = 17mrad). The high walk off angle results in the
crystal being approximately 3 times longer than the optical aperture of the crystal
(32mm long for 9mm aperture is a widely used commercial design.)
a
Optic
Axis tilted at 5
degrees
join
Sound wave
tilted at 55
degrees
b
c
Optic axis
approximately
normal to
facet
Entrance face
viewed normal to
the facet
Side view showing
transducer
Figure 3.9 3D engineering orthographic projections of a practical commercial AOD. The dashed
lines indicate where a 2D paper drawing could be folded around the 3D AOD. The AOD surfaces
are a) top surface (for a horizontal plane deflector), b) front entrance surface, c) side view
showing the transducer as a rectangle near the front entrance face. The face of the AOD
opposite the acoustic transducer is polished at an odd angle and bonded with acoustic absorbing
bond to a heat sink. The odd angle of this surface causes any unwanted reflected acoustic wave to
bounce around inside the crystal harmlessly until dissipated. The red arrow shows the three
projections of the optic axis. For this standard AOD design, viewed from the direction normal to
the facet (b), the tilt of the optic axis appears horizontal so the extraordinary incident wave is
horizontally polarised and the ordinary diffracted wave is vertically polarised.
In order to understand the input and output polarisations of an AOD, it is useful to be
able to picture the direction of the optic axis within the AOD so that polarisation can
be related to the polarisation diagram of Figure 3.2. For the standard acoustically
rotated AOD, the nearly linear polarisation horizontal polarisation of the input and
and nearly linear polarisation of the output optical waves is easy to understand from
the 3D orthographic engineering drawing view of Figure 3.9. The orthogonal linear
input and output polarisations are convenient and practical as no extra components are
needed to make an XY deflector pair. The 90 rotation of the X output polarisation is
93
ideal to feed into the 90 degree rotated Y deflection crystal. Such pairs are used for
2D scanning laser beam applications such as laser TV projectors and industrial and
military laser pointing and scanning systems.
Acceptance angle limitations of AODs
It is apparent from diagrams such Figure 1.12 that for the AOLM application the input
acceptance angle of the AOD would ideally be as large as the output scan angle so
that it was unlikely that the standard AOD design, highly optimised for a fixed input
beam would be the best solution. In my initial contact with manufacturers I found that
the details of the AOD design are, as you might expect proprietary, and that getting
access to people with sufficient design knowledge to make a custom design is
difficult. In order to be able to have knowledgeable discussions with the
manufacturers I decided to develop a computer model of the diffraction efficiency of
an AOD based on the wave vector model using the equations given in (Goutzoulis,
Pape et al. 1994).
Results of modeling of commercially available AODs
Figure 3.10 shows a detailed wave vector diagram of an AOD and the equations for
the magnitude of the wave vectors.
94
Wave vector model of AOD performance
Diffraction Vector
Acoustic Vector
2πf a Va
2πn1
2πn2
φ1
φ2
λ0
λ0
Incident
extraordinary
wave
Diffracted ordinary wave
Figure 3.10 Wave vector model of acousto-optic deflector. The black optical incident and
diffracted optical waves have indices as defined in the figure. As the acoustic drive frequency is
varied so the length of the acoustic wave vector varies (red vector). Its direction is fixed by the
angle of the acoustic transducer. The blue optical diffraction vector always meets the output
wave vector on the ordinary index surface. As the drive frequency varies so the diffracted output
wave angle
φ2
varies over the range indicated by the dotted line.
I found that by using the standard design and putting the angular acoustic beam width
as an unknown variable I could reproduce the characteristic double peaked efficiency
curve given by manufacturers.
95
Simulation of one axis of AA XY 400
1
Diffraction efficiency
0.8
0.6
0.4
0.2
0
0.13
0.125
Limiting Factor
0.12
0.115
7.5
Incident light direction (rad)
8
8.5
9
9.5
Drive Freqency (Hz)
10
11
10.5
x 10
7
Figure 3.11 Computer model of a standard commercial AOD using equations from (Goutzoulis,
Pape et al. 1994). Each different coloured line shows the coupling efficiency vs. drive frequency
for a particular angle of incidence of the input light beam. The double headed arrow labelled
limiting factor highlights the fact that the narrow range of permissible angles of incidence is a
limiting factor in AOLM system design.
This curve of efficiency vs. drive frequency is shown in the 3D plot of Figure 3.11.
The bold green curve matched the published efficiency curve of an AA
Optoelectronic SA XY400 device. As the acoustic drive frequency in Figure 3.10 is
varied the length, but not the direction, of the red acoustic vector changes. It is clear
that for the chosen acoustic vector direction there are two drive frequencies where the
acoustic vector exactly coincides with the ordinary wave vector surface and results in
maximum efficiency. In between those two frequencies the acoustic vector is not
exactly matched to the diffracted optical vector in the 001 direction. This produces a
dip in efficiency between the two peaks because the larger the mismatch the greater
the drop in efficiency. Outside the two maxima the index surface moves away rapidly
and coupling efficiency drops rapidly. The overall shape of the curve depends on
how rapidly efficiency drops with acoustic angle mismatch; that in turn depends on
the angular spectrum of the acoustic wave. That depends on the diffraction pattern of
the acoustic wave leaving the transducer. The acoustic angular spectrum is, as you
might expect from standard diffraction theory, inversely related to the length of the
transducer in the <001> direction. The correct equation allowing for the anisotropic
acoustic propagation is given in (Goutzoulis, Pape et al. 1994). When I adjusted the
96
acoustic angular width to match the efficiency curve (green plot in Figure 3.11) I
found that the input acceptance angle shown in Figure 3.12a) was only 3 mrad, much
smaller than the desired target of 6-12 mrad. I showed simply by increasing the
acoustic angular width that the acceptance angle could be increased to 10mrad as
shown in Figure 3.12 b.
10 mrad
a
b
Simulation of modified AA XY 400
Simulation of one axis of AA XY 400
1
Diffraction efficiency
0.8
0.6
1.5
3 mrad
0.4
0.2
Diffraction efficiency
1
1
0.8
0.6
0.4
0.128
0.126
0.124
8
0.2
0
6
0
0.122
0.12
Incident light direction (rad)
0.118
0.5
0.116
8
Drive Freqency
(Hz)
x 10
0.072
0.07
0.068
0.066
Incident light direction (rad)
4
0.064
0.062
0.06
2
Drive Freqency (Hz)
x 10
7
Figure 3.12 Computed efficiency plots showing a) a rotated view of the computed and fitted
efficiency plot of the standard commercial AOD from the previous figure. This shows more
clearly that the input acceptance angle is only 3 mrad and b) the effect of increasing the angular
spread of the acoustic waves in increasing the acceptance angle.
However the problem with doing this is that it would require a 3.3 fold reduction in
transducer length in the 001 direction. This would reduce the acoustic to optical
interaction length by the same proportion and require that the acoustic power be
increased by a large factor to compensate. I found in conversation with the
manufacturers that large aperture AODs were already using several Watts of acoustic
drive power and that heating and non-linear acoustic effects prevented the increase in
acoustic drive by a significant factor. At constant acoustic drive power, the equation
for efficiency vs. transducer length is given in (Goutzoulis, Pape et al. 1994). By
fitting to commercial data at one point I produced the efficiency curve vs. transducer
97
length plot of Figure 3.13.
Length of AOD transducer mm
10
4
2
1
0.4
0.2
0.1
Diffraction Efficiency
(%)
100
10
1
1
2
4
10
20
40
100
Acceptance angle of AOD (mrad)
Figure 3.13 Plot of diffraction efficiency for an AOD model with approximately 3W of drive
power showing how efficiency drops as the input acceptance angle increases. Increased
acceptance angle is achieved by decreasing the length of the acoustic transducer in the direction
of propagation of the optical beam. The decreased length reduces the length of the acoustic to
optical interaction in proportion so the coupling efficiency drops.
This figure shows that there is strong conflict between high efficiency and large input
acceptance angle and that this is one of the most important design trade-offs in the
overall system design.
The effect of high acoustic wave walk-off angle on AOD focusing
aberration (coma)
Before progressing with designing and procuring AODs I was very concerned about
another aspect of the standard AOD design, namely the large walk off angle of the
acoustic wave. For the deflection of an input beam into a parallel output beam by a
fixed or slowly scanning drive frequency it is clear that the large acoustic walk off
98
angle has no particularly adverse effect apart from increasing crystal thickness. For
the AOL application however where a chirped RF drive causes a lensing effect it is
well known that if you tilt the plane of a focusing or defocusing lens it produces the
aberration known as coma in the focal spot.
To study this effect I built a series of models using the Zemax (zemax.com) optical
design program which is well suited to this type of investigation. In preliminary
studies I found that even a 45 degree walk off angle could produce an 8 wavelength
path length difference aberration under strongly focusing conditions. Since we would
like to form a diffraction limited spot this implies that the target wavefront path length
difference across the aperture should be less than a quarter wavelength. I investigated
ways to improve the aberration by tilting the output facet of the AOD, but although
this greatly reduced the coma, it introduced severe practical difficulties such as
unwanted deflection of the beam and a new source of chromatic aberration from the
prism shaped AOD crystals. I then studied Zemax models of a 20 degree walk off
angle and found that it was a very great improvement and that for scan angles in the
range I then studied, (up to AOD semiscan angle of 3 to 5 mrad) that it was quite
possible to get diffraction limited imaging of focused spots with 90% Strehl ratio. The
Strehl ratio is the ratio of the peak intensity of a point spread function to the
maximum theoretical intensity if the optics were perfect diffraction limited optics. I
therefore focused attention on discussions with manufacturers aimed at getting an
AOD with only a 20 degree acoustic walk off angle. This would mean requiring the
acoustic rotation of the crystal to be reduced to 2 degrees.
Design of crystals with reduced acoustic rotation to minimise
acoustic walk off angle
This section describes the custom design of an AOD with a 20 degree walk-off angle.
(Young, Ho et al. 1990) describe how a low acoustic walk–off angle AOD can be
achieved whilst keeping the optical waves sufficiently off axis to have at least 80%
linearly polarized eigenmodes. It is achieved by rotating the crystal at right angles to
the ‘acoustic rotation’ direction by more than 3 degrees as shown in Figure 3.14.
99
2 degrees of
acoustic rotation
3 degrees of
optical
rotation
3 degrees of
optical rotation
<110>
direction
-2
-1
2
Figure 3.14 3D wave vector diagram for a custom AOD. The main figure is rotated about the
vertical optic axis compared to earlier figures so that it is clear that the 3 degree ‘optical rotation’
of the crystal axis with respect to the wave vectors is rotation about the horizontal <110> axis. It
is called optical rotation because, in contrast to acoustic rotation (Figure 3.6) it does not alter the
angle of the acoustic wave with respect to the <110> direction. In the inset the upper and lower
complete blue latitude circles are, (as in previous figures) in the extraordinary and ordinary wave
vector surfaces respectively and are 3 degrees and 10 degrees from the optic axis. The longitude
lines have been made semitransparent in order to highlight the new pair of blue ‘great circles’
that the input and output wave vectors touch. These are also in these wave vector surfaces and
are optically rotated 3 degrees about the 110 axis. The incident wave vector has only 2 degrees of
‘acoustic rotation’ but 3 degrees of ‘optical rotation’ so that the input and output optical wave
vectors are more than 4 degrees to the optic axis and hence predominantly linearly polarised.
The red and green ellipses indicate the approximate polarisation states of the incident and
diffracted eigenmodes.
For our custom design we chose a 3 degree ‘optical rotation’ in addition to a 2 degree
‘acoustic rotation’. The resulting AOD design is shown in Figure 3.15 and Figure 3.16
100
a
Optic axis
normal to input
and output
facets
join
Sound wave tilted
at 22 degrees
b
Transducer face
tilted at 2 degrees
c
Entrance face
viewed normal to
the facet
Side view showing
transducer
Optic axis rotated
3 degrees relative
to input and output
facets
Figure 3.15 3D engineering drawing of the custom designed crystal. The red line is the projection
of the optic axis on each view. a) top view of crystal oriented for horizontal deflection. The optic
axis is normal to the entrance face. The side face of the crystal with the transducer is polished so
that its normal is at 2 degrees to the <110> so that the acoustic wave walks off at 20 degrees as
shown b) entrance face showing that in contrast to the standard acoustically rotated crystal
(Figure 3.9) projection of the optic axis is vertical not horizontal and so that the input and output
polarisations are as shown by the red and green ellipses. c) side view showing transducer and the
3 degree optical rotation.
Figure 3.15 shows the basic optical and acoustic orientations of the crystal. The
acoustic wave walks off at 22 degrees whilst the optical rotation results in the input
extraordinary wave requiring approximately vertical polarisation as shown.
Figure 3.16.shows that we also varied the transducer length depending on whether the
crystal was to be used as the first AOD of the pair, in which case we wanted
maximum efficiency irrespective of input acceptance angle, or wider acceptance angle
at the expense some loss of efficiency (see Figure 3.13).
101
Input
acceptance
angle
+/-2.5 mrad
Input
acceptance
angle
+/-5 mrad
Medium
efficiency
scan angle
+/- 5 mrad
[001]
22 degees
2 degrees
High efficiency
scan angle
+/- 5 mrad
4mm
2mm
[110]
a)
[110]
b)
Figure 3.16 Top view of the custom designed AODs using optically rotated crystal alignment. We
chose wide (4mm) transducers for the first crystal of each XZ or YZ pair as we wished to
maximise efficiency and the input acceptance angle was not relevant. For the second transducer
of each pair we chose 1.8 and 2.4 mm transducers adjacent to one another so that we could
electrically switch between the two to experimentally determine the optimum trade off between
efficiency and acceptance angle. (2mm shown here for simplicity). The input and output
acceptance angles and scan angles we expected are shown in the diagram.
Expected performance from computer models
The normalised efficiency of the custom AODs is calculated using the equations for
the refractive indices of the ordinary and extraordinary waves as a function of
acoustic and optical rotation angle given in (Young, Ho et al. 1990), and a wave
vector mismatch model for coupling efficiency (Goutzoulis, Pape et al. 1994). The
results are plotted in Figure 3.17
102
7
Incident light direction (fdr Hz of previous AOD)
a
5
4.5
4
3.5
3
2.5
2
1.5
2
2.5
3
3.5
4
4.5
Drive Freqency (Hz)
Simulation of AOD efficiency
x 10
5
5.5
6
5.5
5
0.9
b
0.8
0.7
4.5
0.6
4
3.5
0.5
3
0.4
2.5
0.3
2
0.2
1.5
6.5
2
7
x 10
3
4
Drive Freqency (Hz)
5
Normalised efficiency
Incident light direction (fdr Hz of previous AOD)
5.5
7
Simulation of AOD efficiency
x 10
0.1
6
7
x 10
Figure 3.17 predicted efficiency of our custom designed AODs using the equations given in
(Young, Ho et al. 1990). The horizontal axis is the AOD drive frequency. The vertical axis is the
angle of the incident light. This is plotted it in terms of the drive frequency ‘fdr’ to a proceeding
AOD. The coloured contours are therefore the normalised efficiency expected from the second
AOD with the drive to the first AOD at the frequency defined on the vertical axis. a) is modelled
assuming a 3.6mm transducer length, b) a 1.8mm transducer length. In both AODs the incident
light angle was adjusted to centralise the efficiency plot with a 35MHz centre frequency. Note the
normalised efficiency is 1 at maximum irrespective of the absolute efficiency at this drive. The
plots do not therefore show the reduced absolute efficiency of the narrower transducer.
In Figure 3.17 the horizontal axis is the AOD drive frequency. These plots are
therefore the normalised efficiency expected from the second AOD with the drive to
the first AOD at the frequency defined on the vertical axis. The plot is then in the
same format as Figure 2.22 and therefore can be used for computing the best miniscan
drive parameters for focusing in a particular plane. a) is modelled assuming a 3.6mm
transducer length, b) a 1.8mm transducer length. Note that the narrower transducer
allows approximately twice the drive frequency range for the first AOD before the
efficiency drops to a particular level. This is a direct measure of the increased
acceptance angle of the narrower transducer. Design work of this type gave us
confidence that the optically rotated design could be a satisfactory basis for the
deflectors for the AOLM. It also gave us a basis for a mathematical model of the
complete system that we used for overall system design optimisation. This is
discussed at the end of this chapter after first discussing the main fundamental
limitations and aberrations of the AOD microscope which also needs to be understood
to make such a model at least approximately realistic.
103
Chromatic aberration of AODs, its effect on point spread
function and a novel proposed solution
The chromatic aberration caused by AODs and why it is a problem
for 2-photon microscopy
Figure 3.18 shows a diagram of an XZ AOD pair in the AOLM. As discussed in
Chapter 1, the spectral width of the ultra short pulses from a Ti-Sapphire laser are at
best transform limited with a typical spectral width of 10.6nm for 100fs pulse stream
at 800nm centre wavelength. The basic equation (1.1) for deflection shows the
deflection is proportional to wavelength. The AOD therefore acts as a spectrometer
as well as a deflector. Instead of focusing the light to a diffraction limited point, the
point spread function (psf) is stretched with the short wavelength components of the
light at the inner (less deflected) edge of the psf and the long wavelength components
at the outer edge. As illustrated in the figure, the chromatic aberration is a 3D effect
with the red component deflected through larger angles than blue and hence for
converging light being more strongly focused as well as simply deflected through a
larger angle off axis.
AOD2
AOD1
Figure 3.18 Diagram to illustrate the severe chromatic aberration of AOD deflectors. Since the
basic equation for the diffraction angle of an AOD is proportional to wavelength, the longer
wavelength components of the laser input beam are diffracted through larger angles.
In order to calculate the effect of these and other aberrations on the 2-photon point
spread function it is first necessary to understand how the 2-photon point-spread
function can be computed and measured.
104
Derivation of resolution of microscope in terms of the point
spread function (psf) of the focal spot across the field of view
The beam waist of the Ti-Sapphire laser light coming to a focus beneath a water
immersion objective is illustrated in Figure 3.19.
3D scanning
FWHM
Z
Fluorescent beads suspended in agar gel
FWHM X & Y
Fluorescent beads
Figure 3.19 Diagram to illustrate the laser beam focusing beneath a water immersion objective
lens, how it forms a single photon illumination beam waist (in red) and a two photon beam waist
(in green). Also shown are fluorescent beads is randomly scattered in 3D by mixing in an agar
gel. Experimental measurements of 2-photon point spread function (psf) are made by scanning
the focal spot over the beads. Since the beads are much smaller than the emission or illumination
wavelength, ( 0.2 μm cf 0.5μm or 0.8μm respectively), the experimental psf ,which is the
convolution of the real psf with the bead dimensions, is only slightly larger than the real psf.
The total fluorescence is found by integrating this fluorescence over the complete
volume near the focus. The 3D shape of the 2-photon point spread function (psf) can
be calculated and if saturation effects are ignored, the 2-photon excitation is
proportional to the square of the illumination optical intensity at each point in the
volume. As shown in green in Figure 3.19, this beam waist is therefore appreciably
smaller in dimensions than the Ti-Sapphire single photon beam waist (shown in red).
The detailed theory for such calculations is complex ((Higdon, Torok et al. 1999)),
however for the present purposes a sufficiently accurate model can be obtained by
105
using the approximations given by (Zipfel, Williams et al. 2003) who give equations
for the dimensions of Gaussian approximations to the 2-photon excitation point
spread function. These are given in terms of the Full Width Half Maximum (FWHM)
dimensions in the XY plane and parallel to the Z axis. The 3D dimensions are
inversely related to NA in a similar manner to the way 3D FOV is related to NA. At
NA= 0.8 at 800nm wavelength, the theoretical psf in the XY plane is 0.37 μm FWHM
and in the axial, Z direction the Gaussian fit to the 2 photon psf is 1.89 μm FWHM.
In order to measure the psf of a 2-photon microscope it is standard practice to use sub
wavelength fluorescent beads. As we wanted to measure this resolution not in one 2D
plane, but across the whole volume of the field of view we dissolved beads in an agar
gel as shown diagrammatically in Figure 3.19. The microscope is then driven to scan
focal spot across the beads in 3D as indicated. The collected fluorescence data is then
used to reconstruct the image which is the convolution of the actual psf with the
intensity profile of the bead concerned. In the XY plane, at Z=0, I have assumed that
the simplified equation for the radial length of the measured psf is then given by the
convolution of the Gaussian approximation to 2-photon diffraction spot intensity
distribution, the Gaussian approximation to the chromatic aberration intensity
distribution, and the Gaussian approximation to the bead dimensions.:-
⎛ 2 ⎛ rΔλ ⎞ 2
⎞
l = ⎜w + ⎜
⎟ + b2 ⎟
⎜
⎟
⎝ 2λ ⎠
⎝
⎠
equation 3.1
Where w is the FWHM of the 2-photon psf as given in (Zipfel, Williams et al.
2003), λ is the laser wavelength, Δλ is the FWHM of the spectral width of the laser, r
is the radius of the psf from the centre of the field of view and b the Gaussian
⎛ rΔλ ⎞
equivalent FWHM of the bead . The middle term in this expression ⎜
⎟ is the
⎝ 2λ ⎠
chromatic aberration component of the convolution. It is proportional to the radius of
the psf from the centre of the field of view because at the centre there is no chromatic
aberration and proportional to the FWHM of the spectral width divided by the
absolute wavelength because the AOD is acting as a spectrometer with deflection
linearly propotional to wavelength . The factor of
2 reduction in chromatic
aberration width takes into account the squaring of the Gaussian intensity distribution
by the 2-photon luminescence non-linearity. At very large chromatic aberration, so
106
that the diffraction spot width w and bead dimension b are negligible equation 3.1
⎛ rΔλ ⎞
approximates to ⎜
⎟ which is, as expected, a Gaussian with a FWHM 1
⎝ 2λ ⎠
2 times
the proportional spectral width of the laser spectrum times the radius of the psf from
the perfect compensation point . The use of convolution for adding optical
aberrations, rather than linear addition is standard optics (Salome, Kremer et al. 2006;
Otsu, Bormuth et al. 2008). The effect of this chromatic aberration in the Z=0 plane
is illustrated in Figure 3.20.
r
l
Figure 3.20 The effect of chromatic aberration on the psf across the Z= 0 (natural focal plane) of
the microscope according to equation 3.1. r is the radial distance from the centre of the field of
view and l the FWHM Gaussian fit to the long axis of the elliptical point spread function. The
long axis is always aligned radially.
In the Z axial direction a similar argument results in the equation of the effect of
chromatic aberration on the width d of the Z psf predicted by (Zipfel, Williams et al.
2003) of :2
⎛
⎞
⎛ zΔλ ⎞
dz = ⎜ d 2 + ⎜
⎟ + SA 2 + b 2 ⎟
⎜
⎟
⎝ 2λ ⎠
⎝
⎠
equation 3.2
Where z is the axial displacement of the psf from the centre of the field of view.
In this equation I have included the effect of spherical aberration SA which is
expected to dominate over chromatic aberration for large NA microscope objectives
(Keller 1995)
Note that these equations predict that both the Z and XY components of chromatic
aberration are simply proportional to the distance from the centre of the field of view
where chromatic aberration is cancelled out to zero. The chromatic aberration is
therefore radial in 3D space with the chromatic elongation a maximum along the 3D
radial direction. It is a 3D form of ‘magnification chromatic aberration’, that is to say
the aberration can be simply characterised by saying that the long wavelength image
107
is larger than the short wavelength image. This type of magnification chromatic
aberration is well known in 2D as it produces coloured fringes around high contrast
objects in cheap binoculars (Hecht 2001). It is obvious to consider if there are any
optical means to correct for this aberration. I initially considered a wide variety of
schemes based on single dispersive lenses that counteracted the chromatic aberration
of the Acousto-optic lens. I found with all these schemes however that it might be
possible to compensate the XY chromatic aberration in one particular 2D plane, but
because the additional dispersive lens itself produced a large axial chromatic
dispersion, it was impossible to compensate the field of view centred on zero axial
chromatic aberration at the natural focal plane of the objective.
108
Novel proposed solution using diffractive optical elements in a
telecentric relay
I eventually discovered a solution to the chromatic aberration problem, whilst the
solution is not perfect, it goes a long way to solve the problem.
Object
Dispersive
lens with
dF/dλ
strongly
negative
Projected
Image 1
Dispersive
lens with
dF/dλ
strongly
positive
Projected
Image 2
Figure 3.21 Concept of chromatic aberration correction in 3D using highly dispersive lenses in a
telecentric relay configuration. Consider a hemispherical object with a point object at is centre of
curvature as shown on the left. The lens projects an image of this object as shown. If the lens has
a high negative dispersion of focal length with wavelength the longer wavelength components
shown in red produces a smaller image closer to the lens than the shorter wavelength components
( i.e. the red image is less magnified and nearer than the blue). If you then place a second
dispersive lens, this time with a positive dispersion of focal length with wavelength, this magnifies
the blue image less than the red. Because of the positioning of the red and blue projected images
1, it is clear with the correct magnitude of dispersion for lens two , the red and blue hemispheres
of image 2 can become concentric again. Overall the dispersive telecentric relay formed by the
pair of lenses magnifies the longer wavelengths less than the shorter wavelengths, but produces
no linear axial chromatic dispersion at the centre of the field of view. This is the opposite of the
chromatic aberration beneath the objective of the AOLM with no compensation and therefore a
promising candidate for correcting the inherent aberration of the AOLM. Note that for clarity
this diagram does not show the extra stretching in Z that the image would experience if it were
actually magnified as shown here.
Consider Figure 3.21 . In order to compensate for the chromatic aberration produced
by the AOLM it is necessary for the compensating optics to project the aberrated field
of view with a lower 3D magnification for the long wavelength light than the short
wavelength light. In addition there must be no introduced chromatic aberration at the
centre of the field of view. The solution I came up with involves the use of two highly
dispersive lenses forming a telecentric relay. The first lens has a negative dispersion
109
of focal length vs. wavelength so that the long wavelength component of the image is
closer to the lens and less magnified than the short wavelength component. Thus
although it is starting to correct the magnification aberration, it has introduced a large
axial aberration. This is evident from considering the shape of a 3D projected image
of a hemisphere and central point in red (long wavelength) and blue (short
wavelength). The large axial displacement of both images at projected image 1 is
typical of the problem caused by single dispersive lens correction. The second
telecentric relay lens continues to magnify the longer wavelengths by less than the
short, but this is despite its positive dispersion of focal length with wavelength. This is
because the longer wavelength image 1 is further away from the second lens than the
short wavelength image. The positive dispersion is chosen to exactly compensate the
axial dispersion at the centre of the field of view so that, at all wavelengths, the centre
of the sphere is imaged onto the same point in projected image 2. The compensator
then has magnified the long wavelength component less than the short wavelength
and the magnification chromatic aberration is centred on the natural focal point
representing the centre of the field of view. To a first approximation therefore this
compensator has the opposite chromatic aberration to the AOL and can be used as a
compensator.
Models of 3D aberration field
To evaluate the performance of this new proposed method of correcting the
magnification chromatic aberration of diffractive optical elements such as the AOL, I
developed a Matlab model based on geometric optics that calculates the projected
field of view at two wavelengths representing the upper and lower wavelengths of the
FWHM Gaussian fit to the spectral width of the laser. This gave a direct measure of
the chromatic aberration in XY and Z. The model also calculates the field of view for
given fixed scan angle limits and computes the total number of resolvable voxels
(NRV) the microscope can image in 3D. This number of resolvable voxels is based on
voxels of dimensions equal to the XY and Z FWHM dimensions of the psf at that
point in 3D space calculated from equations 3.1 and 3.2. The voxels are only counted
as part of the NRV if the energy density at the voxel is above a preset 2-photon
threshold (1 MW/cm2 in these calculations). The NRV is thus a useful overall figure
of merit for such a 3D microscope. The dimensions of each resolvable volume in the
110
field of view are computed using the equations above. The model however does not
include the effect of spherical aberration which for a high NA final objective would
almost certainly mask the chromatic effects calculated here at large values of Z
(Higdon, Torok et al. 1999) . The computed number of resolvable voxels is then
plotted as a function of the strength of the chromatic aberration correction as shown in
Figure 3.22. The parameter C is a dimensionless parameter which is a common
multiplier to the dispersion of each lens as defined in the figure.
7
4.5
x 10
4
3.5
Number of
resolvable
spots in scan
volume
3
2.5
2
1.5
1
0
0.5
1
df/dλ = -CF1/4λ
1.5
2
compensation factor C
df/dλ = CF1/4λ
2.5
3
df/dλ = 0
Figure 3.22 Diagram to define and illustrate the effect that varying the compensation factor C
has on the number of resolvable voxels (NRV) it is possible to scan in 3D. The model computes
the size of the psf and the power density for certain assumed laser power and optical train losses.
It sets a threshold below which it assumed the power density is too low for two photon excitation.
As the dispersion compensation improves so the psfs get smaller over a larger scan volume and
the total number of resolvable points increases.
The results show that the best compensation factor lies between 1 and 2 and that a
four fold increase in the number of resolvable volumes is achievable. Note that this
model assumes that irrespective of the scan angle the optical power out of the
objective is constant (20mW in this case). The model does not take into account the
111
fact that large scan angles will reduce the power because wider acceptance angle
lower efficiency AODs will be required. Nevertheless, the model can be used to
understand the physics of the compensator by plotting how power density at the focal
spot, which is reduced by chromatic aberration, varies across the 3D field of view. It
is also possible to visually plot the direction in 3D space of the chromatic aberration.
The results for C varying from 0-2 are shown in the next 4 figures.
b
a
1.0 MW/cm2
1.4 MW/cm2
250μm
Figure 3.23 Calculated chromatic aberration vector field and its effect on optical energy density
for the case of no chromatic aberration compensation (C=0). The figure is a vertical cross section
through a volume of just over 250 μm cubed representing the scan volume beneath an NA =0.8
lens with 6mrad AOD semiscan angle. The dashed white line represents the sides of the cubic
scan volume. The effect on a) the power density of the point spread function assuming a fixed
total power after the objective, but power density varying because of the effect of chromatic
aberration on the psf area at the focus. Note the size of the 1MW/cm2 orange power density
contour is much smaller than the scan volume. If this is the two photon threshold the machine
will only be useable inside this contour. In b) the blue points indicate the position of the focus for
an array of scan positions at the short wavelength end of the Ti-Sapphire laser spectrum and the
red tails the relative length and direction on the XZ plane of the chromatic aberration. Note that
the chromatic aberration vector is always pointing radially away from the centre of the FOV.
The number of resolvable detection volumes (NRV) is 11 million in this case.
112
b
a
1.0 MW/cm2
1.4 MW/cm2
250μm
Figure 3.24 The same plot as the previous figure but with a compensation factor set to C=1. Note
the much shorter ‘quiver tails’ on the plot of chromatic aberration relative magnitude and
direction. Note also that for this compensation factor there is perfect compensation of the axial
(Z) chromatic aberration across the whole field of view, but the XY plane aberration is only half
compensated. This results in vertical power density contour lines in a). Note however that
1MW/cm2 contour lines include a much larger percentage of the volume and therefore the NRV
is much larger at 32.5 million.
a
1.0 MW/cm2
b
1.4 MW/cm2
250μm
113
Figure 3.25 a) contour and b) chromatic aberration quiver plot for C=1.7. Note that the quiver
plot shows slight over compensation in Z, (quiver tails pointing inward) and under compensation
in the XY plane (small quiver tails pointing out at the very edge of the FOV). This compensation
factor is however close to optimal. Note that the 1MW/cm2 contour lines are completely outside
the 250 μm cube and this results in maximising the number of resolvable voxels (NRV= 42
million) .
b
a
1.0 MW/cm2
1.4 MW/cm2
250μm
Figure 3.26 a) power density contour and b) chromatic aberration quiver plot for C=2. Note that
the quiver plot shows over compensation in Z, (quiver tails pointing inward) but perfect
compensation in the XY plane. The compensation factor is however slightly larger than optimal.
Note that the 1MW/cm2 contour lines are just on the edge of the 250 μm cube and this results in
the number of resolvable voxels (NRV= 37 million) .
To understand the effect of this chromatic aberration correction in more detail,
consider Figure 3.23 to Figure 3.26. These show vertical 2D XZ sections through the
3D field of view using the Matlab model to generate a) power density plots and b)
‘quiver diagrams’ that show the direction and relative magnitude of the chromatic
aberration for an array of points covering the whole field of view. The blue points are
the centres of the psfs at the short wavelength end of the FWHM of the laser
spectrum. The end of the red lines represent the chromatic aberration to the long
wavelength end of the spectrum. Note that the graphics exaggerate the absolute length
of the aberration for clarity; however across each figure the relative length of the
quiver vectors is accurate. Note that in Figure 3.23 which shows the case of zero
114
compensation, the aberration is, as expected, radial away from the centre of the field
of view and gets larger in proportion to the distance from the centre.
Figure 3.24 shows the same plot but the compensation factor C=1. This shows perfect
axial (Z) compensation but under compensates in the X (and Y) plane. Figure 3.25
shows the case of using a compensation factor C=1.7 to compensate the AOL induced
chromatic aberration. The quiver diagram shows that there is slight over
compensation of the chromatic aberration in Z that causes the longer wavelength (red)
quiver tails to point inwards at large absolute values of Z focus, and that in the X (and
Y) direction there is slight under compensation with the red quivers still pointing
away from the centre of the field of view at large absolute values of X. Overall
however the shorter quiver tails in the compensated case shows that there is
substantially less chromatic aberration over the whole field of view so the volume of
each psf is smaller and the power density higher. There are therefore a greater number
of resolvable points.
Figure 3.26 for C=2 shows perfect compensation in the X (and Y) planes but over
compensates in the axial direction. The conclusion from these results is therefore that
the new design of chromatic aberration compensator can increase the number of
resolvable volumes by a large factor (around four for this field of view and 2-photon
energy threshold setting). However it is not perfect, being able to produce perfect
axial correction for C=1 or perfect XY plane compensation for C=2 and with an
intermediate optimum that maximises the NRV. The reason for these results is not
difficult to understand. The corrector works by varying the magnification of the
projected image rapidly with wavelength. For any lens system the axial magnification
is the square of the linear magnification therefore the proportionate rate of change of
axial magnification with wavelength is twice the value of its proportionate rate of
change of tangential magnification. However, the aberration we are correcting from
the AOL system has equal proportionate change of magnification in all 3D radial
directions. It is tempting to deduce from this that is impossible to perfectly correct the
chromatic aberration of the AOL in all three directions. (I would like to be proved
wrong on this).
115
As it appears impossible to get perfect chromatic aberration compensation it seems
very likely that any practical compensator will need to have adjustable compensation
for instance for imaging fields of view with different shapes. Deep columnar objects
would prefer C=1 and wide shallow objects would prefer C=2, generally in between,
intermediate C would be optimum. A practical compensator must also be able to
compensate despite the laser wavelength varying over its whole operating range say
700-900 nm or 1000nm. This puts quite strong constraints on the design of practical
optics.
Design of a practical chromatic aberration corrector
This section describes how an aberration corrector based on these principles can be
designed given the constraints that it is necessary to operate over a wide wavelength
range, (at least 700-900nm) and that it is desirable to be able to adjust the
compensation factor C over the range 1-2.
Positive DOE and negative lens
combined to give ideal correction
plate with zero focussing power at
design centre wavelength say
850nm
df/dλ
negative
Negative DOE and positive lens
combined to give ideal correction
plate with zero focussing power at
design centre wavelength
df/dλ
positive
df/dλ
zero
Figure 3.27 First design of a practical compensator using diffractive optical elements (DOEs)
combined with plano-convex or concave lenses of opposite sign and strength so the correction
plate has no focusing power and can therefore be moved along the Z axis to vary the value of
compensation factor C without affecting the image relay effect of the rest of the compensator
optics. This however only works well at one wavelength
The first design I considered is shown in Figure 3.27. This splits up the function of the
telecentric relay into two non dispersive standard relay lenses and introduces the
116
compensating chromatic aberrations by the use of separate compensation plates.
These plates are designed so that at the central operating wavelength, e.g.850nm, the
diffractive optical lens element (DOE) of which it is formed is exactly compensated
by a conventional non dispersive lens so that it has no optical power. The first
compensator plate has a positive (converging) DOE and a negative (concave)
conventional lens. The second plate is the opposite way round as shown. The path of
longer and shorter wavelength components of the laser light is indicated by the red
and blue dotted lines in the figure. The higher NA and hence smaller magnification of
the longer wavelength components is apparent after the final lens.
The advantage of the compensator plates is that the compensation factor C can be
varied over a wide range simply by adjusting the separation of the compensator plates,
without needing to adjust the position of any of the other optical components. This is
fine, but what if you wish to alter the centre wavelength? If you change nothing else,
the magnification of the output beam diameter over the input beam diameter increases
rapidly with increasing wavelength (and vice versa). To compensate for this at
different centre wavelengths, it is necessary to make the outside converging
telecentric relay lenses either replaceable, with a different focal length for each
wavelength, or to use telephoto lenses with adjustable focal length as shown in
Figure 3.28.
117
At mid wavelength range, the compensator plates have zero power and
the effective focal length of zoom 1= that of zoom 2 = s3
d1
d3 (=d4)
D3
s1
s2
D4
s3
s4
s5
L=lens
D=DOE
s=separation
d= diameter
Figure 3.28 Diagram of the final design of zoom compensator which replaces each of the outside
telecentric relay lenses with a pair of weaker telephoto lenses which by adjusting their
separation and position with respect to the compensator plates can compensate for the changes
in strength of the diffractive optical elements DOEs as the centre wavelength of the laser is
adjusted over the 700-900nm range
Using straight forward equations derived from a geometric optics model of the system
it is possible to design a system that will operate over 700-900nm wavelength range
and a compensation factor range of 1-2, at constant output /input beam diameter
magnification of 1, simply by adjusting the axial separations of the lenses s1 to s5.
The detailed equations can be found in our patent ((Kirkby, Silver et al. 20.03.2008))
and are summarised by the MatLab plots of Figure 3.29.
118
0.095
0.1
FT1
FT2
sep of HOEs
0.09
0.09
Effective Focal length of
Zoom lens m
0.08
distance m
0.085
0.07
0.06
0.08
0.05
0.075
0.04
0.03
0.07
Separation m
of L2 from HOE (D3)
or L5 from HOE(D4)
0.02
0.065
0.01
0.06
7
7.5
8
8.5
wavelength m
9
9.5
0
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
-7
x 10
Separation of telephoto lenses m
Figure 3.29 Plots for calculating a) the required effective focal length of telescopic lens 1 and 2
and the required separation of the DOEs in the previous figure as a function of wavelength and
b) the focal length and distance to the first lens of a telephoto lens as a function of the separation
of the telephoto lens pair (each 125mm focal length).
These designs formed the basis of the DOEs and lenses we bought in order to test the
benefit of this kind of chromatic aberration correction. The key issue to determine
experimentally is whether the chromatic aberration correction components give
sufficient benefit to 2-photon efficiency to overcome the optical losses introduced by
the additional optical components. The diffractive optical elements (DOEs) we
purchased from Silios (silios.com) have about 80% transmission efficiency each so
there is a 36% loss from these two elements alone.
Temporal dispersion of AODs
Magnitude of temporal dispersion in TeO2 and why it is a severe
problem for 2-photon microscopes
The large thickness of AODs has been a significant disincentive for the use of AODs
in 2-photon microscopy because it causes a large chromatic dispersion effect on the
pulse width of the pulses from the Ti-Sapphire lasers. Chromatic dispersion is
measured in units of fs2/m. The effect of all the lenses in a typical 2-photon
microscope is to produce about 13,000 fs2/m dispersion which spreads the 100fs
pulses of the laser to about 300fs width. This is not too much problem as there is
119
usually plenty of laser power spare so that reduction in 2-photon fluorescence
intensity can easily be compensated by increased laser power.
Each centimetre of thickness of TeO2 produces 6300fs2/m of dispersion at 700nm
wavelength. Four conventional 9mm aperture, 30mm long AODs (Figure 3.30a)
therefore produce 76,000 fs2/m of dispersion that broadens Ti-Sapphire laser pulses
well into the picosecond pulse width range and increases the laser power required for
2-photon luminescence by a large factor (3-10 times depending on initial pulse
width). Even the thinner custom designed AODs (Figure 3.30 b) that we have chosen
for this application have 38,000 fs2/m dispersion, enough to spread the 100fs laser
pulses to 1.5 ps pulse width as shown in Figure 3.31a . As the power budget for our
3D microscope is marginal anyway, we decided that it was important to compensate
for the AOD dispersion (and if possible the remaining microscope dispersion) so that
pulse length at the specimen can be kept as short as possible and 2-photon sensitivity
maximised.
a
b
Acoustic
transducer
30mm
15mm
Figure 3.30 Comparison of thickness of a) a typical standard commercial AOD for deflection
(typically 9mm aperture) and b) the optically rotated design used here only 15mm thick for a
15mm aperture.
Compensation for temporal pulse dispersion using a prechirper
The way in which a prism based prechirper precompensates the pulse leaving the
prechirper so that after traversing the AODs the pulse is restored to close to its
original pulse length is explained in Figure 3.31b.
120
AODs
a
1.5ps
100 fs
b
1.5ps
115 fs
4
2
0
Prisms
100 fs
Figure 3.31 The effect of chromatic temporal dispersion on a 100fs pulse of light at 800nm
wavelength with and without precompensation. In a) there is no compensation for the high
dispersion caused by the total thickness of the 4 AODs (60mm in our prototype system). As the
pulse has a transform limited spectral width of 10.6nm, the different wavelengths travel at
different speeds through the highly dispersive TeO2 of the crystals. The longer wavelength
components travel faster and arrive first, spreading the overall pulse width to 1.5 ps, (fifteen
times longer). The prism based prechirper b) uses prisms made of fused quartz and polished at
the Brewster angle for minimal reflection of correctly polarised light. The prism pair has
anomalous (negative) dispersion to refract the short (blue) components of the spectrum along a
shorter optical path than the longer wavelength (red) components. Although on the diagram it
appears that the red light goes through a shorter path, this is its physical path length. The optical
path length of the red light is actually longer because it passes through a much larger length of
the high refractive index prism material. The pulse length of the pulse exiting the prechirper is
1.5ps, but it has its short wavelength (blue) components first. When this pulse traverses the four
AODs the AOD dispersion is balanced by the pre-compensation and the pulse width of the
emerging pulse is returned to a figure close to the original 100fs.
Few commercially available prechirpers exceed 15,000 fs2/m compensation. My
colleague 3negotiated with APE Berlin (http://www.ape-berlin.de/index_engl.html)
and bought a customised prism based prechirper with folded optics that is capable of
up to 56,000 fs2/m compensation, enough to pre-compensate for our four customised
AODs and the microscope optics. Today it would be impractical or at least
3
Srinivas Nadella carried out the design and choice of manufacturer for the prechirper.
121
uneconomic to obtain a pre-chirper that would precompensate for the much longer
standard AODs so that the ability to prechirp is dependent on using the custom design
AODs with a small walk off angle and much reduced thickness. Thus the practicality
of incorporating a prechirper into the AOLM is an important second benefit of the
custom AOD design.
Models of overall system design and resulting Target
Specification for AODs sent to prospective manufacturers
This section discusses how the design information given in this chapter was combined
together in a model of the overall system and used to make a choice of the key aspects
of the specifications of the AODs.
Model of overall system
Length of AOD transducer mm
Optical power at final image (mW)
10
4
2
1
0.4
1000
Optimum for 3W laser
Required power
edge
100
centre
10
1
0.1
power available at focus
1
2
4
10
Laser
power
W
6
3
1.5
0.75
20
Acceptance angle of AOD (mrad)
Figure 3.32 A nomogram aimed at enabling the optimum design of AOD transducer length to be
chosen for the second AOD in each XZ and YZ pair. This is computed by a Matlab model of the
power losses in the complete optical train. Starting with the a range of laser output powers listed
on the left and estimating the losses for each optical element, the power available at the focus can
be estimated and plotted in the solid lines. The required power can be estimated from existing
experimental data, we estimated 15mW for optical functional imaging at the centre of the FOV.
At the edges, more power will be required because of aberrations.
122
Based on the models of the AODs and expected point spread functions described
earlier in the chapter, I was able to make models of the complete system that could be
used to help with choice of the AOD design. A nomogram to help with such choice is
shown in Figure 3.32.
This plots the expected optical power at the focus of the objective as a function of the
semi-scan acceptance angle of the second AOD in each pair for a range of laser output
powers. The model works by first assuming the total losses of all the other
components in the system. This is quite problematic as there are a large number of
optical components in series and by varying the assumptions made about the losses of
each component it was possible to vary the overall transmission of the system from
less than 1% to 10%. In this figure I have assumed 3% overall transmission excluding
the loss of the 2 AODs whose efficiency alters as the acceptance angle is varied. The
dashed lines on the plot then show the required power at the focus for sufficient two
photon fluorescence for optical functional imaging. This is also quite problematic to
estimate. As there is heavy scattering in brain tissue the depth that the laser beam can
penetrate is dependent on the power available, so in that sense the more power
available the better as it will allow imaging to a greater depth. Based on the power
levels found to be required for 2D optical functional imaging (Koester, Baur et al.
1999; Hopt and Neher 2001; Oheim, Beaurepaire et al. 2001) and personal
communication with my colleagues 4 we decided that a reasonable target would be 15
mW at the centre of the field of view. This power level would have to increase at the
edge of the field of view to allow for the effect of aberrations on psf size.
This plot shows that it is reasonable to aim for an acceptance angle from the second
AOD of each pair in the range 3-5mrad. It also shows that if you increase the
acceptance angle even slightly beyond this figure the power falls off rapidly and there
is the danger that there will be too little power for 2-photon fluorescence anywhere in
the field of view. A second way of plotting the results from this model is shown in
Figure 3.33 which shows the predicted number of resolvable volumes (NRV) as a
function of the designed acceptance angle.
4
Emanuelle Chaigneau and Tomas Fernandez-Alfonso
123
8
Number of resolvable voxels (NRV)
10
0.75W
1.5W
3W
6W
12W
24W
0.75W
1.5W
3W
6W
12W
24W
7
10
6
10
5
10
4
10
3
10
-1
10
0
1
10
10
2
10
Semi-scan acceptance angle of second AOD of each pair (mrad)
Figure 3.33 Predicted performance of the complete system in terms of the total number of
resolvable voxels (NRV) as a function of the semiscan angle chosen for the second AOD of each
pair. The ‘threshold intensity’ for two photon emission is taken as 1MW/cm2. The dashed black
lines are with compensation factor C=0 and the coloured lines are with C=1.7. Each plot
represents a different optical power available from the laser. Today’s commercial lasers deliver
about 3W of power, but the level is increasing with time.
The figure plots the number of resolvable voxels for a range of laser output powers
both with and without chromatic aberration compensation. This shows very clearly
the precipitous drop in NRV if the AOD is designed with too large an acceptance
angle. This is slightly artificial as it is based on the assumption of a sharp threshold
optical intensity below which there is no 2-photon emission. A more correct model
would take into account that 2-photon efficiency is dependent on the square of optical
intensity, so what would actually happen is that the speed of gathering photons would
drop as the square of intensity, not quite such a precipitous cliff as shown.
124
Discussion: Model of design trade-offs affecting system power
budget shows achieving full target specification difficult
These results showed fairly early in the project that achieving the desired overall
performance was going to be difficult. The field of view calculations showed that with
the initial assumptions about the frequency drive limits of AODs we needed at least a
semi-scan acceptance angle of 6mrad from the second AOD of each pair in order to
achieve a 250μm cube scan volume beneath an NA=0.8 objective. The power budget
nomogram, Figure 3.32, showed that with a 3W laser and reasonable estimates of
optical system losses that it was risky to order AODs with more than 3-5 mrad
acceptance angle. On the other hand the NRV plot of Figure 3.33 shows that
providing the chromatic aberration correction is implemented it is possible to reach 6
mrad scan angles with laser powers up to 12W or alternatively by paying careful
attention to minimize the optical losses of every component in the system. (The best
commercially available lasers have 3-4 W output powers today, but these figures are
increasing slowly year by year.)
For our first AODs we decided to hedge out bets and order AODs for the second of
each pair with two different transducer widths so that we could switch electrically
between the two and choose the optimum experimentally. We prepared the
specifications as shown in Table 3.1 and Table 3.2. We were cautious on acceptance
angle and specified a minimum of 3 mrad semi-scan acceptance angle for the
narrower of the two transducers on the second AOD of each pair and 1.5 mrad for the
first transducer. The AOD s that were delivered had acoustic transducer lengths of
approximately 3.6mm on the first AOD of each pair and 2.4 and 1.8mm for the two
transducers on each of the second AODs of each pair.
125
Requirement Specification for AOD X1 and AOD Y1
Model No: 45035-15-2/3DEG-.8 See G&H quotation 7th June 2006 No 20060607/01
Device/Parameter
Acousto–optic Deflector
Configuration of use
Aperture size
Depth of AOD crystal (light path
physical length)
Centre frequency
Minimum
Two deflectors, one for
for each X & Y axis
15 × 15mm
15mm max expected
35 MHz
Deflection angle range 5
+/- 2.9 mrad
Frequency Range
35 +/- 2.11 MHz
Resolution/time-BW prod
Wavelength Range
Transmission
Incident angle range
Diffraction Efficiency 750nm 6
Diffraction efficiency 850nm
Polarisation
Material
Speed of sound determining
deflection angle at a particular
frequency
Acoustic walk off angle
Acoustic Drive power
Reliability
100
750-880nm
95%
+/- 1.5 mrad
90%
85% worst case
Lin/Parallel/perp
TeO2
619 m/s
20 degrees
3W
> 2000hrs at full power
Table 3.1 Requirement specification for the first AOD of each pair
5
6
Comment
With respect to incident beam measured in air for one AOD
Over full range on incidence and deflection angles for one AOD
126
Must be same as
AODs X2 & Y2
More preferred
but not critical
More preferred
but not critical
Not critical
Must be same as
AODs X2 & Y2
Requirement Specification for AOD X2 and AOD Y2
Model No: 45035-15-2/3DEG-.8-2TR See G&H quotation 7th June 2006 No 20060607/01
Device/Parameter
Acousto–optic Deflector with 2
transducers for selectable
acceptance angle
Configuration of use
Aperture size
Depth of AOD crystal (light path
physical length)
Centre Frequency and bandwidth
Resolution/time-BW prod
Wavelength Range
Transmission
Deflection angle range 7
Incident angle range
Diffraction Efficiency 750nm 8
Diffraction efficiency 850nm
Polarisation
Drive frequency and range
Material
Speed of sound determining
deflection angle at a particular
frequency
Acoustic walk off angle
Acoustic Drive power
Reliability
Minimum with
transducer 1 operating
Two deflectors for each
X & Y axis
15mm x 15mm
16mm max
15mm x 15mm
16 mm max
35MHz
100
750-880nm
95%
+/- 2.9 mrad minimum
+/- 2.9 mrad minimum
75% worst case
65% worst case
Lin/Parallel/perp
35 +/-2.11 MHz
TeO2
619 m/s
35MHz
50
750-880nm
95%
+/-1.5mrad
+/-1.5mrad
90%
85%
Lin/Parallel/perp
35 +/-1.05 MHz
TeO2
619 m/s
20 degrees
8W
>2000hrs at full power
20 degrees
4W?
>2000hrs at full
power
Table 3.2 Requirement Specification for the second AODs of each pair
7
8
Minimum with
transducer 2
operating
With respect to incident beam measured in air for one AOD
Over full range of incidence and deflection angles for one AOD
127
Evaluation of the AODs
This final section of the chapter describes some of the problems we experienced in
assembling the AOL and how we solved them to assemble our first working AOL.
Once we had received delivery of the four custom designed AODs we tried to
evaluate their performance compared to the specification. At this stage we had not
appreciated the fact discussed earlier in the chapter, that the input polarisation for the
extraordinary wave is approximately vertical rather than horizontal as in nearly all
standard AODs. As a result, we repeatedly kept exciting the wrong input and output
modes with unsatisfactory efficiency vs. drive frequency functions. We were
concerned that perhaps the crystals were not oriented properly in the correct 2 degrees
acoustic rotation and 3 degrees optical rotation. After helpful discussion with the
manufacturer Gouch and Housego (www.goochandhousego.com ) we made detailed
measurements of the AOD crystal orientation which confirmed that the crystals were
indeed correctly oriented and gave us a clear experimentally based understanding of
both the orientation of the long axis of the input wave polarisation ellipsoid and the
long axis of the output polarisation ellipsoid. The next section discusses these
measurements.
128
Measurements of AOD crystal orientation
Figure 3.34 to Figure 3.38 shows the main results of a set of experiments we did to
test whether the AODs were correctly oriented and to understand the optimum input
and output polarisations. To date we have not purchased quarter wave plates so our
experiments have all used linearly polarised input laser light and (Thorlabs) linear
polarisation analysers for measuring polarisation. This means that there are some
losses in coupling to the elliptically polarised eigenmodes. Since the ellipticity is
expected to be 23% for the input wave and 19% for the output wave corresponding to
approximately 88% and 94% coupling respectively to linear polarisation at centre
frequency we judged that this loss could be ignored in the early stages of
development. (Estimation based on Figure 3.3). Note therefore that the linear
polarisation directions shown in the next four figures are actually the direction of the
long axis of the polarisation ellipsoid.
a
Microscope
objective
Semi
conductor
laser (linearly
polarised)
Polarisation
analyser
Fringe
pattern
b
Crystal on
rotary stage
Figure 3.34 a) Apparatus for measuring the orientation of the optic axis in an AOD. b)
photograph of the screen showing the polarisation fringes. The white solid line cross shows the
normal to the facet whilst the dashed arrow show the expected theoretical direction of
missorientation of the optic axis with respect to that facet. The fact that the fringes are normal to
this dashed arrow confirms that the crystal axis is misoriented in the correct direction. Other
measurements (not shown) confirmed that the tilt of the optic axis within the crystal was indeed
the required 3 degrees within the measurement accuracy (0.2 degrees)
Figure 3.34 shows the apparatus we set up to measure the orientation of the crystal
axes of the AODs. A diverging linearly polarised visible light beam is made by
transmitting the collimated red light beam from a semiconductor laser pointer into a
10x microscope objective. This diverging beam was passed into the front face of the
129
AOD crystal and a polarisation analyser placed after the crystal. A pattern of fringes
was then projected onto a paper screen. We carefully marked on this screen the
position of the normal to the facets (using reflections off the facet). The diverging
beam monitors a range of propagation directions in the crystal. Within the crystal the
light is propagating in the two eigenmodes whos index difference increases with
increasing angular radius from the optic axis. The dark fringes correspond to angular
directions of equal path length difference between the two eigenmodes. These
therefore form circles around the direction of the optic axis.
Figure 3.34 to Figure 3.38 show results for AOD X1 which deflects light horizontally.
A top view of this crystal showing the computed direction of the maximum efficiency
input and output beams at 35MHz drive frequency is shown in Figure 3.35.
Top View
Calculated path of light wave at
35 MHz =centre frequency
Input angle=1.94 degrees
[001]
Output angle=4.69 degrees
Acoustic Poynting Vector 22 degees
Acoustic wave vector 2 degrees
2 degrees
= 34 mrad
[110]
Figure 3.35 Top view of the custom AOD showing the precise angles of incidence and diffraction
at its 35MHz centre frequency, (from manufacturer and confirmed by the wave vector model
illustrated in Figure 3.10)
The input beam is orientated at 1.94 degrees to the optical axis and the output beam at
4.8 degrees, the orientation within the crystal is reduced by a factor n, where n is the
refractive index. Figure 3.36 shows why the vertical misorientation of the
foreshortened view of optic axis rotates clockwise as the crystal is rotated to view
exactly along the input or output directions.
130
From the direction
normal to the facet,
the tilt of the optic
axis appears vertical
so the extraordinary*
wave is vertically
polarised
Entrance face
viewed normal to
the facet
Side view showing
transducer
Optic axis rotated
3 degrees relative
to input and output
facets
From the 1.94
degree input
direction, the
apparent tilt of the
optic axis appears to
rotate about 16
degrees in a
clockwise direction.
Crystal rotated 1.94 degrees
Figure 3.36 illustration of how the foreshortened projection of the crystal axis viewed from
normal to the entrance facet appears to rotate by 16 degrees clockwise as the viewing angle is
rotated by 1.94 degrees to align with precise direction of the maximum efficiency input beam.
Thus the extraordinary wave is polarised in this 16 degree rotated direction. This is found to be
the input linear polarisation that gives the highest efficiency from the AOD.
The equation for the angle of rotation based on small angle geometry is:-
θ = arctan(φ h nφ v ) where φ h = external horizontal misorientation and φ v is the
internal optical rotation which in this case is vertical. Using this equation we expect
16 degrees and 35 degrees respectively for the rotation of the apparent misorientation
of the crystal axis viewed along the 1.94 degree input and 4.8 degree output
directions respectively. Figure 3.37 and Figure 3.38 show how this calculation is
nicely confirmed by the observation of the fringes with the crystal rotated about the
vertical axis to correspond to the 1.94 degree input direction and 4.8 degree output
direction respectively.
131
b
a
AOD X1
Theoretical
tilt of optic
axis = 16
degrees
Figure 3.37 a) Approximate angle of input linear polarisation for maximum efficiency, b) Fringe
pattern with the viewing angle rotated horizontally 1.94 degrees, parallel to the input beam
direction for the wanted highest efficiency input mode. In theory the input polarisation is tilted
by 16 degrees clockwise (dashed white line). The fact that this line is close to normal to the fringes
shows a good match to experiment. This direction corresponds to the long axis of the elliptical
extraordinary wave eigenmode.
b
a
AOD X1
Theoretical
tilt of optic
axis = 35
degrees
Figure 3.38 a) approximate directions of the long axes of the input(solid blue) and output
(dashed blue) linear polarisations of the input and output beams for maximimum efficiency at 35
MHz drive frequency. b) polarisation fringes viewed from 4.8 degrees to the normal (parallel to
the output beam), showing that they are rotated by the theoretically expected 35 degrees.
The fact that the fringes are always at right angles to the calculated apparent external
misorientation of the axis confirms that the theory and the construction of the crystal
is correct in this respect. As we expect the input polarisation to be in the extraordinary
mode, the highest efficiency linear input polarisation is expected to be parallel to the
132
solid blue arrows shown on Figure 3.37 a) and Figure 3.38 a) and the output
polarisation in the ordinary mode parallel to the dashed blue arrows in Figure 3.38 a).
We found that understanding the optimum input and out put polarisations of the
AODs is essential in order to assemble the compact configuration of AODs with all
four AODs operating in the correct mode. After each AOD we placed a polariser
orientated as expected to maximise output from this 4.8 degree ordinary index
eigenmode. Half wave plates (Thorlabs) were placed before each AOD so that the
input polarisation can be adjusted to correspond to that required for the 1.94 degree
input extraordinary eigenmode.
133
Building and aligning the compact configuration
Photographs of the first design of the compact configuration are shown in Figure 3.39
and Figure 3.40.
Figure 3.39 Photograph of the first design of mounts for the four AODs of the compact
configuration 9. The gold metallic transducer contacts can be seen on the side and top of AODs X1
and Y1 respectively
9
Mechanics by Alan Hogben and Duncan Farqueharson of the UCL Biociences workshop.
134
Figure 3.40 Close up photograph of AOD X1 showing the transducer more clearly. In the lower
part of the picture the RF impedance matching coils can be seen.
The length of the whole AOL is appreciably less than 30cm. The figures show how it
is quite practical to place the AODs within 50 -60 mm grating to grating spacing as
required to avoid large lateral movement when changing wavelength. This is still true
in later design which include semi circular supports for a rotatable polariser and half
wave plate (HWP) after each AOD. We have found that using the correct input and
output polariser and half wave plate positions it is straight forward to align all four
AODs in a few hours work. Initially, for each AOD in turn the preceding HWP is
adjusted to give the correct input polarisation, and a polariser after the AOD set to the
correct output angle. The Bragg angle is then adjusted for maximum output power at
35 MHz drive. The input and output polarisations are then fine tuned (usually only a
few degrees) to maximise efficiency.
Summary of chapter 3
In this chapter I have explained the design principles of conventional commercially
available acousto-optic deflectors and the reasons this design is unsuitable for our
application. The design of an ‘optically rotated’ AOD is explained which enables the
135
acoustic walk off angle to be reduced from 55 to 20 degrees. Its performance is
modelled. The problems caused by the large chromatic aberration of AOD deflectors
are explained and a novel method of minimising this aberration across the 3D field of
view is proposed and its performance modelled. Models of the overall AOLM system
are used to choose the optimum design parameters for the customised AODs we
purchased. The problems we encountered in first assembling the four AODs into the
acousto optic lens are explained and experiments to confirm that the AODs crystals
are correctly aligned and polished are described.
136
Chapter 4
Drive electronics, control systems and
development of new drive algorithms
This chapter starts with a system level description of the complete AOLM and its
control system and drive electronics. The chapter then discusses the drive algorithms,
measurements of XY efficiencies of the 4 AODs and the derivation of the new
‘Optimised Frequency Limits’ (OFL) drive algorithms. These OFL algorithms reduce
the variation in diffraction efficiency with drive frequency and allow a much larger
volume to be imaged.
System architecture
As described in chapter 1, the purpose of developing the AOLM, is not just to develop
and prove the principle of operation of the microscope, but also to develop a good
user interface. The microscope can then be used by a neuroscientist who’s expertise
and first aim is studying new brain physiology, not sorting out arcane problems with
microscope control software or the user interface. This is a very challenging task.
Many person-years of effort go into developing testing and debugging the control
systems of commercial microscopes.
In order to construct a prototype AOLM we needed to define an overall control
system and choose both the software and hardware components of the system. A
simplified view of the overall system architecture is shown in Figure 4.1. This
diagram is in the usual system engineer’s format in which the architecture is broken
up into a set of functional modules. The first part of the system design is then to
define the interfaces between the modules so that each module can be developed and,
if necessary, modified internally without affecting the rest of the system. The
Integrated Microscope Control System (ICMS) is a software control system running
on a high performance PC (Dell Precision 690 www.dell.com ). The PC controls and
interfaces with a set of National Instruments (www.ni.com ) driver and data
acquisition boards (two boards NI PCI 6115 and NI PCI 6713 are sufficient for the
basic instrument). These in turn communicate with the peripherals such as the
galvanometers, the optical shutters and Pockel’s cell for laser intensity control (not
shown), the photomultiplier tube (PMT) detectors and preamplifiers. Figure 4.1 shows
137
the interfaces between each functional module labelled with the initials of the
adjoining units.
We initially tried to use Matlab (www.mathworks.com ) software to control the
system hardware, but found that the Labview (www.ni.com ) graphical language
developed by National Instruments for controlling its specialised driver and data
acquisition boards to be faster and easier. Matlab (www.mathworks.com) on the other
hand is very well suited for the development of algorithms using a C like
programming language that is particularly optimised for rapid processing of large
multi-dimensional matrices and it has an excellent graphics user interface.
Integrated
Microsope Control
System
- User Interface
- Drive record
computation
- Monitor and
control of all
peripherals
- Image
reconstruction
- Display
- Data storage
AOD Driver
System
IMCS - AODD
AOD X1
AODD AOD
AOD Y1
AOD X2
AOD Y2
Galvo Driver
System
GD - G
X Galvo
IMCS - GD
Y Galvo
PMT Control and
Data aquisition
PMTC PMT
IMCS - PMTC
PMT 1
PMT 5
Figure 4.1. The overall system configuration. The functional blocks of the system are on a white
background whilst the interfaces, labelled with the initials of the functional blocks they interface
between, are highlighted in yellow. The peripherals, the Acousto-optic deflectors (AODs), the XY
galvanometers (Galvos) and photomultiplier tubes (PMTs) on the right hand column are each
controlled via separate sub units in the middle column. The master control system is the
Integrated Microscope control System that uses a PC.
138
The heart of the system is the AOD control and driver functional units. The user
interface and computation of the necessary AOD drive records takes place in the
IMCS and interfaces to the AOD driver electronics via the IMCS-AODD interface. In
the first prototype, this was physically a set of four RS232 links that link the PC to the
AOD Driver unit. The AOD driver unit synthesises and amplifies the radio frequency
(RF) waveforms used to drive the four AODs via the AODD-AOD interface. This is
physically a set of 50 ohm RF cables with separate cables to control the RF switches
that control which of the transducers are being used on the second of each pair of
AODs. The next section describes how these subsystems work together functionally.
AOD drive using intelligent Direct Digital Synthesis (iDDS) of
RF waveform
A search for driver electronics suited to AODs led to the early choice of the Isomet
(www.isomet.com) intelligent Direct Digital Synthesiser (iDDS) for driving the
AODs with linearly ramped RF drive. We ruled out the use of analogue driver
systems because we wanted to be able to randomly jump from one ramp rate to
another in a couple of microseconds and needed very high precision of start frequency
and ramp rate so that the pointing was accurate. The analogue alternative of Voltage
Controlled Oscillators (VCOs) are difficult to specify to such high precision if the
frequency modulation waveform is wide bandwidth and not repetitive. A top level
view of how the IMCS controls the iDDS in order to drive the AODs to produce a
particular pointing or scanning sequence is shown in Figure 4.2.
139
IMCS
NI Board
Pointing control
software
Set of
Required
XYZT
coordinates
Trigger
time intervals
Start time
Ramp Rate
Start Frequency
Amplitude
Stop time
For each of four
AOD drivers
Ramp Trigger
iDDS
iDDS
4 sets
of
IDDS
records
Memory
MicroController
Digital Synthesiser
10W RF amplifier
AOD Driver System
To 4 AODs
Figure 4.2. How the ICMS controls the iDDS to deflect the laser beam in a particular pointing
mode sequence. Using the user interface software, the user specifies the pointing mode, the
pointing position sequence and duration of each dwell in the region of interest. The Matlab and
NI sofware converts this into a set of instruction records and transmits the data to the AOD
driver system. This uses an Isomet (www.isomet.com ) intelligient Digital Synthesiser (iDDS yellow background) that generates the radio frequency waves in a ramp sequence from the sets of
sequential records loaded into its memory. At the users command the ramp sequences are
triggered by a trigger sequence from the NI driver board.
It uses a direct digital synthesis (DDS) RF driver chip set (Analogue Devices Inc.
http://www.analog.com) that performs the synthesis of the RF waveforms. Originally
the Isomet iDDS system combined the DDS chip with a memory and trigger system
so that either a single frequency could be produced or an arbitrary sequence of RF
tones could be produced in rapid sequence. This could be used to generate linear
ramps if each frequency step and time interval was constant. This ‘Image’ mode was
however very memory intensive so that it was only possible to load up a few ramps
into memory before the memory was full and would require reloading. We needed a
new mode of operation that was much more efficient on memory and triggering. In
consultation with us, Isomet developed a new mode of operation that only loaded in
the start frequency, stop frequency, ramp rate and amplitude for each ramp. This
enabled just over 4,000 ramps to be stored in the initial version (20,000 in the latest
140
version). The waveform is in fact still made up of a sequence of equal small changes
in RF frequency at equal time intervals so that an approximation to a linear frequency
ramp can be obtained. Note, however, that once triggered, and in the ramp of a
particular miniscan (see Figure 2.23 for description of a miniscan), no changes to
ramp rate or drive amplitude can be made.
In the pointing mode the IMCS computes and sends a set of iDDS records from the
PC to each of the iDDS units via an RS232 link (the latest version with 20,000
records uses a higher speed USB link). Once loaded into memory, these records can
be triggered as often as is wished using the trigger sequence generated and stored at
the same time as the iDDS records. This is controlled by the Labview user interface.
Algorithms for pre-computing RF drives to produce the
required laser focus and scan patterns
In order to develop the Matlab algorithms and code for controlling the microscope I
first developed a simplified simulation of the entire system.
Pointing mode algorithms
I developed algorithms for the pointing mode based on the assumption that the drive
frequency limits to the AODs were simply the drive frequencies at the centre of the
AOD range +/- the frequency required for one semiscan angle ‘s’. Working from the
equations 2.17 to 2.30 that I had derived for the ramp rate and centre frequency of
each ramp and the specifications for the iDDS I first specified the various terms that
were needed for the computation:
Dwell voxel
Voxel number in a sequence
3D Coordinates of DV(p)
Data clock time period
Data clock number
Dwell Time
Tdc)
AOD filltime
Start frequency of Ramp for AOD X1 etc.
Ramp rate for AOD X1 etc.
DV(p) a voxel where the laser is to dwell
p (as in Dwell Voxel (p), DV(p))
X(p), Y(p), Z(p)
Tdc
n (time into ramp = n× Tdc)
Td(p) (must be an integral multiple of
Tft (integral number of data clock times)
fsx1(p), fsx2(p), fsy1(p) and fsy2(p)
ax1(p), ax2(p), ay1(p), and ay2(p)
141
Given a chosen sequence of points in 3D space as shown in Figure 4.3. the drive
frequencies vs. time of each AOD can be calculated as plotted in Figure 4.4.
142
x 10
-5
-1
-2
Z position metres
-3
-4
-5
-6
-7
-8
8
x 10
5
6
4
2
-5
0
0
-2
-5
X position metres
Y position metres
x 10
-5
Figure 4.3 chosen points in 3D space of dwell voxels DV(1:5) in a five point pointing mode cycle
(PMC). The pointing mode cycle is the sequence of regions of interest that are monitored
repetitively to build up the luminescence intensity vs. time for each point.
3.8
x 10
7
AOD drive frequency vs time X1 blue, X2 green
Frequency (Hz)
3.7
3.6
3.5
3.4
3.3
3.2
0
1
2
3
4
5
6
7
Time(seconds)
3.8
x 10
7
x 10
-5
AOD drive frequency vs time Y1 blue, Y2 green
Frequency (Hz)
3.7
3.6
3.5
3.4
3.3
3.2
DV
Trigger
0
1
2
4
5
Time(seconds)
Acceptance angle of AOD = +/- 2.9 mrad
6
7
Mag of objective
= x20
-5
Tube lens focal length
= 180 mmx 10
Wavelength
= 850 nm
Triggers for Pointing Mode Cycle and Dwell Voxel Ramps
PMC and DV triggers
4
PMC
Trigger
3
Aperture fill time
3
Dwell
time
Dwell
time
Aperture fill time
2
1
0
0
1
2
3
4
Time(seconds)
5
6
7
x 10
-5
Figure 4.4 The RF drive for the first two Dwell Voxels of a Pointing mode cycle (PMC). a) Drive
frequency vs. time for AODs X1(blue) and X2(green) showing limits to AOD drive frequency
range (red dashed lines). b) Drive frequency vs. time for AODs Y1(blue) and Y2(green) showing
limits to AOD drive frequency range (red dashed lines). c) Trigger pulses; lower trace the PMC
trigger, upper trace the Dwell Voxel ramp trigger. Note the Dwell time on a voxel can vary, in
this case programmed to increase dwell time with z depth. The first voxel has a large negative
value of the chirp rate and focuses at large negative value of Z. The separation between the X1
143
and X2 ramps and the Y1 and Y2 ramps determines the X and Y coordinates of the voxel
respectively.
The trigger voltage vs. time is also calculated in a data file prepared for each
dataclock time of the pointing mode cycle. Two cycles of a five point pointing mode
cycle are shown in Figure 4.4. A separate file is prepared that lists for each time slot n
whether the photomultiplier tube output should be stored and if yes, which voxel in
3D space the output represents. In operation this data is passed onto the Labview code
for control of time sequence reconstruction for each point that the laser addresses
during the Pointing Mode Cycle.
144
Frequency (Hz)
Frequency (Hz)
3.8
x 10
AOD drive frequency vs time X1 blue, X2 green
7
Limits of AOD
drive
frequency
3.6
3.4
3.2
3.8
0
x 10
0.5
1
1.5
2
2.5
3
AOD drive frequency vs time Y1 blue, Y2 green
7
3.5
x 10
-4
3.6
3.4
3.2
0
0.5
1
1.5
2
2.5
3
Triggers for Pointing Mode Cycle and Dwell Voxel Ramps
PMC and DV triggers
3.5
x 10
-4
4
2
0
0
0.5
1
1.5
2
Time(seconds)
2.5
3
3.5
x 10
-4
Figure 4.5 Drive frequency vs. time for two of the AODs showing the triggers for two pointing
mode cycles.
Figure 4.5 shows RF drive frequency vs. time for two pointing mode cycles over a
total time of 350 μs. In practice, for optical functional imaging over longer time
periods, the pointing mode cycle is simply repeated as many times as necessary and
the fluorescence intensity data from the dwell time of each ramp is independently
plotted against time for each of the five Dwell Voxels.
Algorithms for scanning
The first algorithm I developed for scanning is illustrated in Figure 4.6 to Figure 4.9.
First the operator chooses the Z plane to be scanned. In this case the normalised Zn =
0.3 (where Zn varies from -1 to +1 from lower to upper point of the octahedral scan
volume (See description of Figure 2.9 for explanation of octahedral field of view)) It
is possible to scan a small area of the Z plane by specifying zoom and centre of zoom
coordinates. In this case at zoom =1 the maximum area that can be scanned without
exceeding the specified drive frequency limits is first computed as indicated by the
blue octahedral limits shown in Figure 4.6.
145
100
Z (voxel number)
80
60
40
20
0
100
100
50
Y (voxel number)
50
0
0
X (voxel number)
Figure 4.6 A 3D view of the way in which the AODs scan an XY plane in this case at Z=+0.3. The
blue octahedron represents the theoretical limits of the pointing ability of the laser spot (based on
the assumption of fixed frequency limits for the AODs). Red voxels are the start of miniscan.
Blue voxels are the end. The Matlab computer program that generated this plot is based on the
equations derived in the last section of chapter 2. It calculates each miniscan so that the number
of voxels it scans in each miniscan is maximised without any of the AOD start or stop frequencies
going out of the assumed AOD high efficiency drive frequency range (The Absolute Frequency
Limit Algorithm). This is why the miniscans nearer the middle of the field of view are longer
than those at the edges and this distinctive miniscan pattern is produced.
A set of miniscans is then computed to carry out the fastest possible overall scan at
the specified dwell time per voxel, (typically 0.1 to 4 μs). The number of voxels in
each miniscan is much larger nearer the centre of the field of view than at the edges
because of the frequency limits. This leads to the distinctive miniscan pattern shown
in Figure 4.6 by the red and blue dots.
146
Minscan duration (seconds x10-5)
-5
9
chirptimecheck s
x 10
8
7
6
5
4
3
2
0
100
200
300
400
500
600
700
800
900
Miniscan sequence number
Figure 4.7 Ramp time of each of the 824 miniscans plotted against miniscan sequence number for
the same Z plane (Z voxel number 66) shown in the previous figure. The minimum ramp time is
28 μs corresponds to the AOD fill time (24 μs)plus one voxel dwell time (4μs). This minimum
ramp time only occurs for miniscans around the edges of the image, the maximum ramp time (88
μs) occurs in the middle of the image where the full AOD bandwidth can be used for ramping to
produce Z displacement rather than static separation of ramps for X or Y deflection. The
intermittent short ramps near the middle of the frame of view correspond to short miniscans at
the beginning or end of X scans.
Figure 4.7 shows how, for this Absolute Frequency Limit (AFL) scanning algorithm,
the 824 miniscans forming the overall sequence are longer in the middle of the overall
scanning time than at the edges.
147
Start and stop frequencies for AOD (Hz)
3.8
x 10
7
startcheck & stopcheck Hz
3.7
3.6
3.5
3.4
3.3
3.2
0
100
200
300
400
500
600
700
800
900
Miniscan sequence number
Figure 4.8 Start and stop frequencies of AOD X1 vs. miniscan sequence number showing in this
case that the frequencies are all within the absolute frequency limits of 32.5 to 37.5 MHz.
The start and stop frequencies for each miniscan for the drive to the X1 AOD are
shown in Figure 4.8. This diagram shows that close to the middle of the field of view
the long miniscans each use up nearly the whole bandwidth between the frequency
limits, but that near the edges the scans are much shorter because one of the other
AODs (not shown) hits its limits.
148
Figure 4.9 shows the X voxel number(red), Y voxel number (blue) and minscan number/10
(green) for each of the 824 miniscans. The X axis is the data acquisition time slot number, each
time slot is 4 microseconds. This data is used to assign the concurrently acquired light intensity
data to the appropriate X Y and Z coordinates of the Voxel.
Figure 4.9 shows the pre-computed voxel X and Y coordinates vs. data time slot
number. Without recalculating or reloading the miniscan record data, the LabView
code can use the trigger file and XY coordinate data of this figure to scan repetitively
in ‘Livescan’ mode to semi continuously image the same set of voxels and present the
image in real time on screen. The repetitions are usually averaged over multiple
frames to improve signal to noise ratio.
Once this pointing and scanning software was completed we were able to make the
initial evaluation of the microscope performance reported at the beginning of chapter
five. The algorithm just described in this section was the absolute frequency limit
(AFL) algorithm which produces an octahedral field of view and variable length
miniscans. However more recently we have developed an improved understanding of
the real limits to the drive frequencies of the AODs and developed a new algorithm,
the optimised frequency limit (OFL) algorithm, that scans a larger volume using the
149
same AODs. The experimental and conceptual basis of this is described in the next
two sections.
Measurements of X1 -X2 and Y1-Y2 diffraction efficiency plots
Whilst we were gaining understanding of the way in which the complete acoustooptic lens (AOL) system operates we made many measurements of the individual
AOD efficiency vs. drive frequency. They showed high efficiency over at least the 30
to 40MHz drive frequencies corresponding to 6.5 mrad semiscan deflection angles for
a fixed input angle. These plots are however not sufficient to model the complete
AOL performance as it is the input acceptance angle of the second AOD in each pair
that is actually the main limitation of the system. It is in practice quite difficult to
make accurate high speed measurements of the input acceptance angle of an AOD
without using another AOD in front of it to make accurate fine deflections of the input
beam. In order to solve this difficulty, we have found it most useful in practice to
measure the performance of the complete AOL and use this information to deduce the
performance of each AOD. The only difficulty with this approach is that it is
impractical to measure the optical power levels in between the AODs because there is
insufficient space to place a large area detector there. The measurement obtained of
overall AOL efficiency is the product of the efficiency of all four AODs in series.
This potentially introduces uncertainty as to the root cause of any particular
behaviour. However from a system perspective this is the performance that it is most
important to understand. The measurement we have recently found most useful is to
plot efficiency vs. X1 and X2 drive frequencies for fixed Y1 and Y2 drive frequencies
(and vice versa). We have automated the data collection procedure for this
information using LabVIEW code.
150
7
Simulation of AOD efficiency
x 10
Drive frequency X1 (Hz)
4.5
4
3.5
3
2.5
2.5
3
3.5
4
Drive Freqency X2 (Hz)
4.5
5
7
x 10
Figure 4.10 contour plot of efficiency of complete Acousto–Optic Lens (AOL) as a function of the
drive frequencies to AODs X1 and X2 whilst AODs Y1 and Y2 are driven at 35MHz fixed
frequencies. The contours are normalised 2 photon efficiency measured by scanning the focused
spot through a fluorescent plastic slide (Chroma Technology Corp http://www.chroma.com/).
The peak normalised intensity is 1 at the centre of the red contour, each contour is a step of 0.1.
Super imposed on the plot is a diagram to illustrate the computation the a new miniscan
algorithm (the Optimised Frequency Limit (OFL) Algorithm) does to maximise efficiency for
each miniscan. The blue crosses represent the pair of differential mode drive frequencies (see
Figure 2.21 for theory) required to give the required X deflection at the centre of the miniscan
(12 miniscans are computed here). The blue diagonal lines through each blue cross are the
common mode drive frequencies that give the same X deflection in the Z=0 plane. The red
crosses represent the point on each common mode line where the miniscan centre will have the
highest efficiency. This pair of drive frequencies is chosen for the centre voxel of the miniscan.
151
7
Simulation of AOD efficiency
x 10
4.5
Drive frequency Y1
4
3.5
3
2.5
2.5
3
3.5
4
Drive Freqency Y2 (Hz)
4.5
5
7
x 10
Figure 4.11 contour plot of efficiency of complete Acousto–Optic Lens (AOL) as a function of the
drive frequencies to AODs Y1 and Y2 whilst AODs X1 and X2 are driven at 35MHz fixed
frequencies. The contours are normalised 2 photon efficiency measured by scanning the focused
spot through a fluorescent plastic slide (Chroma Technology Corp http://www.chroma.com/).
The peak normalised intensity is 1 at the centre of the red contour, each contour is a step of 0.1.
Super imposed on the plot is a diagram to illustrate the computation the new (OFL) miniscan
algorithm does to maximise efficiency for each miniscan. The blue crosses represent the pair of
differential mode drive frequencies (see Figure 2.21 for theory) required to give the required Y
deflection at the centre of the miniscan (100 independent deflections are computed here, one for
each line of the vertical scanning and used repeatedly for each miniscan making up a particular
Y full scan). The blue diagonal lines through each plotted blue cross are the common mode drive
frequencies that give the same Y deflection. The red crosses represent the point on each common
mode line where the miniscan centre will have the highest efficiency. This pair of drive
frequencies is chosen for the centre voxel of that Y full scan.
The contour plots of 2-photon efficiency, measured right through the completed
microscope are shown for X1, X2 drive frequency parameters in Figure 4.10. These
are measured at high speed by scanning the X2 drive frequency over the full plotted
range, and dividing the range into 100 pixels at 4 μs/pixel and stepping X1 by one
hundredth of its full range after each line. There is a small correction on plotting the
X2 frequency against its drive frequency data point to allow for the fact that the
152
frequency at the centre of the AOD lags behind the frequency at the transducer by half
the AOD fill time times the X2 ramp rate.
Note that this contour plot shows that useful 2-photon efficiency (to the blue 0.2
normalised 2-photon efficiency contour) can be obtained for X2 drive frequencies
varying from 27 to 44 MHz corresponding to 11 mrad semiscan angle, whereas the
frequency range for AOD X1 is only 31 to 38MHz corresponding to a semiscan angle
of 4.5 mrad. Since we know that the high efficiency deflection angle of AOD X1 is
much larger than 4.5 mrad semiscan angle we can surmise (but not prove from this
plot) that the reason for the limited range of high efficiency X1 frequencies is the
limited acceptance angle of AOD X2. Figure 4.11 shows the same type of plot for the
2-photon efficiency of AODs Y1 and Y2, with X1 and X2 at fixed frequency. This
shows similar results but not such high efficiency at the lower end of the Y2
frequency range. This may be caused by non optimal Y2 alignment.
Both these plots can be compared with the theoretical plots for AOD1, and AOD2
efficiency in Figure 3.17 b. It is not surprising that the 2-photon efficiency falls off at
high and low frequencies compared to theory because 1) the theoretical model does
not include the limited bandwidth of the RF transducer and 2) chromatic aberration
causes 2-photon efficiency to fall off as the net deflection (differential drive
frequency) increases. However it is clear that the experimental results include a cyclic
component to efficiency vs. frequency plots that is not present in the theoretical
model. The expected single ridge of high efficiency is split into a series of rounded
hills separated by dips. Peaks and dips are separated by 4 MHz in X1, X2, Y1, but not
apparent in Y2. As the peaks and dips are all separated by approximately equal
frequency differences, it suggests that there is some form of cyclic interference effect
causing this. The reason for this is not yet certain. A possible explanation is that the
theoretical model used for Figure 3.17 is inadequate in ignoring the fact that the
linearly polarised light entering the AODs will excite not only the wanted
extraordinary mode (94% efficiency; see discussion concerning Figure 3.38) but also
the unwanted ordinary mode (6%). At the grating these will interfere in an optical
path length dependent manner that depends on the angle of incidence of the
propagating wave because the differential optical path length is dependent on the
refractive index difference between ordinary and extraordinary waves. This will
153
produce peaks and troughs in AOD efficiency caused by the same effects that cause
the interference effect in Figure 3.34 to Figure 3.38. This theory is consistent with the
apparent lack of any ‘cyclic interference’ on efficiency vs. AOD Y2 drive frequency
as the output from that AOD does not couple into any more AODs. More
experimental work is needed to confirm or refute this theory. However, these cyclic
interference effects are relatively small, the most significant aspect of the results is
that it points the way to scanning much larger volumes using new drive algorithms, as
explained in the next section.
Derivation of new drive algorithms
These measurements, together with the understanding of common mode and
differential mode frequency drive which we had derived in chapter 2, Figure 2.20 to
Figure 2.24 showed us how we could develop new drive algorithms. These can
overcome the limitations of the fixed drive frequency limits we based our first
pointing and scanning algorithms upon. The original algorithm we now refer to as the
Absolute Frequency Limit (AFL) algorithm as it operates by simply initially
specifying the maximum and minimum drive frequencies it is permissible to drive any
of the four AODs. The new Optimised Frequency Limit (OFL) algorithm uses the
algorithm described graphically and in the captions to Figure 4.10 and Figure 4.11 to
maximise the overall diffraction efficiency at the centre of each miniscan. This also
minimises the variation in efficiency from voxel to voxel within each miniscan. It is
clear in both these plots that it is possible to drive the second AOD of each pair over a
much wider range of frequencies than the first AOD and still find combinations of
drive frequencies that give high efficiency. As will be shown in the results of chapter
5, this enables the scan volume to change from the octahedral shape described so far
to a cuboid of more than three times the volume.
154
Summary of chapter 4
This chapter describes the drive electronics, control systems and system architecture
of our prototype system. It describes how the concepts and equations for pointing and
scanning developed in chapter 3 are converted into Matlab and labVIEW software,
and how this software is used by the overall PC based integrated microscope control
system. It then describes how intelligent digital synthesizers are used to drive the
AODs and the software and hardware necessary to control the timing of the RF drive
signals, the photomultiplier tube data collection and reconstruction of images. The
final two sections describe how high speed measurements were made of the overall
AOL diffraction efficiency vs. the X1,X2 and Y1,Y2 AOD drive frequency pairs for
XZ and YZ deflection. Based on this data, and the theory developed in chapter 2, a
new algorithm to optimize the AOD frequency limits for each miniscan is explained.
155
Chapter 5
Experimental results: AOL and AOLM
In this chapter I summarise the main experimental results we have obtained at various
key stages of the development of the complete AOLM. The results are approximately
in chronological order, except the results of point spread function measurements
which are presented after the latest field of view and imaging experiments. This is so
that the comparison of the field of view between the old AFL and the new OFL
algorithms is clearer.
Measurement of speed of refocusing of the AOL
The first measurement we made on first assembling the AOL was to measure the
speed at which the dynamic lens could focus. Figure 5.1 shows a view of the AOL
followed by a 500mm lens and a single silicon detector 3mm diameter (Thorlabs
model PDA36-EC) ,http://www.thorlabs.de/ shielded by a pinhole 30 μm in diameter.
The detector has 1- 10MHz bandwidth depending inversely on the gain of the built in
preamplifier. As there is plenty of signal we used low gain and thus had 5-10 MHz
bandwidth.
Silicon detector and pinhole
Figure 5.1 Photograph of the first assembled compact configuration of the AOL showing a silicon
detector and pinhole in the distance following a f = 500mm lens.
156
To test random access pointing of the AOL across the field of view we needed a
minimum of 3 detectors and used pellicle beam splitter to project the focused spot
onto one or other of the pinholes without the detector interfering with the light to the
other detectors. This is illustrated in Figure 5.2a. The pinholes were axially separated
by -40, 0 and 40mm from the natural focal plane of the lens and positioned arbitrarily
in the XY plane.
a
b
Light intensity
through pinhole
arbitrary units 1
0.9
f=500mm
0.8
0.7
Silicon
detectors
460mm
0.6
0.5
0.4
0.3
500mm
0.2
0.1
0
0
540mm
50
100
150
200
250
300
350
400
Time (microseconds)
Figure 5.2 a)Experimental set up and b) results from initial ‘pointing mode’ tests showing it
possible to randomly focus on any one of the three pinhole detectors and jump from pinhole to
pinhole at 30kHz. The pinhole size of 30 μm is designed to match the diffraction limited spot size
of the beam. The black dotted lines in the set up diagram represent beam splitters. The pinholes
are separated by up to 80mm axially and are positioned arbitrarily in the XY plane. All are
within the field of view of the AOL with following 500mm lens.
The correct ‘ramp’ drive frequencies for the pointing mode for each position in the
field of view were formed by using a grid pointing algorithm I had developed to point
sequentially an array of points in 3D space. The brightest pointing voxel was then
chosen for each pinhole detector for ‘random access’ pointing testing. We found that
using the grid pointing algorithm we could distinguish from the time sequences of
pointing in say a 5x5 grid of miniscans whether there was any residual unwanted
movement of the spot with time. I had incorporated parameters ‘movex’, ‘movey’ and
‘astig’ into the program which fine tuned the ratios of X1:X2 drive frequency ramp
rate, Y1:Y2 drive frequency ramp rate and mean X:Y drive frequency ramp rate
respectively. Adjusting these eliminated drift of the spot in X and Y and corrected any
157
450
astigmatism respectively. These parameters did not have to be adjusted outside the
range 0.98 to 1.02.
Figure 5.2b shows the results colour coded red, blue and green so that the detector
signal can be seen for all three detectors in parallel. The sequence of pointing mode
‘ramps’ was then programmed to cycle round the three detectors in a range of
‘random’ orders and then repeat the original miniscan to check that there were no
hysteresis or memory effect problems. The results show, that random access pointing
and focusing in 3D was possible at 30 kHz total sample rate.
Since the time for any new acoustic waveform to fill the 15 mm aperture AOD is
AODfill = 24 μs and we expected to gather data from the region of interest (ROI) for
approximately a further TROI =9 μs, we expected that in use it would be feasible to
jump from ROI to ROI at 1/33 μs= 30 kHz. Demonstrating this experimentally was an
important first feasibility demonstration.
Examination of the blue and red traces (Z= +40mm and -40mm respectively) show
that there is a sloping top to the light pulses into the detectors not apparent at Z=0
(green) trace. The apparent higher amplitude of the red and blue traces is a result of
turning up the preamplifier gain more on these traces as there was less light and only
step changes in gain were possible. Note the slope of the top of the blue and red traces
is opposite in direction. After careful checking of the responses of adjacent voxels to
check that there was no significant movement of the spot during this time, we
concluded that these slopes resulted from changes in the overall efficiency of the
AOL as the frequencies of all four AODs are scanned rapidly down in frequency
(Z=+40mm) or up in frequency(Z=-40mm). This was the first measurement of the
effect we now refer to as ‘patternation’ because it causes a patterning artefact on
images using scanning mode. This effect is discussed further in this chapter and the
next.
Correction of temporal dispersion
After confirming that the AOL was operating as expected we 10 aligned the necessary
telecentric relays and mirrors to project the image of the last AOD onto the back
10
The work in this section was carried out by K M N Srinivas Nadella.
158
aperture of the objective lens of the microscope so as to form the complete optical
path of the AOLM system as shown in Figure 2.17 . The next step was to adjust the
temporal dispersion compensation system described at the end of chapter 3 (Figure
3.31). In order to do this we used the Femtocontrol (http://www.ape-berlin.de ) and
Carpe Autocorrelator multipath unit inserted in the laser beam just after the laser itself
and an autocorrelation monitoring head after the final objective. We then adjusted the
prechirper to minimise the measured pulse length after the objective. The results are
Norm. Intensity (arb. units)
shown in Figure 5.3.
Laser
With Pre-chirper
Without Pre-chirper
1.0
115 fs
0.5
1.52 ps
100 fs
0.0
-3
-2
-1
0
1
2
3
Time (ps)
Figure 5.3 Experimental measurements of the laser pulse width at various positions through the
system. The laser itself emits a stream of 100fs pulses (red). If this is passed through the complete
system without the use of the prechirper the pulse width increases to 1.52 ps as measured beneath
the final objective lens (blue). When the prechirper is introduced it stretches the pulse first in a
negative direction so that when it subsequently propagates through the microscope it emerges
after the final objective with only 115fs pulse width (green).
The results were very satisfactory. The pulse length on leaving the laser is 100fs,
without any prechirper the large dispersion of the AODs and microscope optics
spreads the pulse with to 1.52ps. The prechirper compensates well and reduces the
pulse length back to 115fs after the objective.
159
Early 3D Imaging results using the AOLM
This section describes the main results we obtained when we first tested the complete
AOLM, the ‘pattternation’ effects of variation of AOD efficiency on the image
quality, and how we found that the field of view could be increased considerably and
patternation reduced by changing from the absolute frequency limit (AFL) algorithm
to the new optimised frequency limit (OFL) drive algorithm.
300
micro
metres
Figure 5.4 The complete field of view beneath an NA=0.47, 20X objective for the normalised Z
range from -0.8 to +0.8 in steps of 0.2 and a semiscan angle s=4.3. The image is formed by
2-photon imaging with the beam scanning across a plastic luminescent slide (Chroma
Technologies), above which has been placed a 42 μm pitch hexagonal electron microscope grid
made of copper. This forms the hexagonal shadow pattern on the luminous background and
allows the field of view to be measured accurately. The original AFL (absolute frequency limit)
scanning program was used. For each 2D image plane the stage was moved mechanically to bring
the image into focus at the Z focal plane defined by the AOD focal setting (Z axis).
One way of viewing the field of view and scan uniformity for the microscope driven
by the AFL (absolute frequency limit) algorithm is shown in Figure 5.4 which shows
the complete field of view beneath a 20X objective with an under-filled back aperture
that resulted in an effective NA of 0.47. The measurements are for the normalised Z
range from -0.8 to +0.8 in steps of 0.2. The overall pyramid shape and the large field
of view are apparent beneath this 20X objective. Note that in the non Zn = 0 scan
planes the miniscan pattern is very visible. We refer to this artefact as patternation. It
is caused by variations in the 2-photon luminescence during the individual miniscans
and is caused by changes in AOD efficiency with scan angle. It is most obvious in the
160
Zn = +0.2 plane where it can be seen in the wide miniscans near the centre of the field
of view. The fluorescence is brightest at the right hand (trailing edge) of each
miniscan. We have tried several approaches to solving the patternation problem. The
most successful without altering the drive frequency algorithms was to monitor the
light intensity variation of the particular miniscan pattern using an optical tap 11 on the
scanned laser beam and large area silicon detector, and then use this monitored signal,
suitably amplified and inverted, to modulate the Pockels cell of the microscope in
anti-phase with the intensity variations. By adjusting the details of the transfer
function of the amplifier, gain, offset, non-linearity etc, it was possible to minimise
the observed patternation when the same scan pattern was reused. This produced our
best early images of pollen grains at a variety of focal planes as shown in
Figure 5.5. This figure is arguably showing clear images of pollen grains using AOD
focusing at larger axial displacement than any others published to date. Nevertheless,
careful examination of the images away from the Z=0 plane shows that there is still
significant evidence of the miniscan pattern. It was very difficult to find one set of
modulation parameters that compensated the patternation accurately over the whole
field of view. However, before refining the techniques for compensating for
patternation we decided that it was important to implement the Optimised Frequency
Limit (OFL) algorithm so that for each miniscan we had chosen the drive frequency
combination that gave the peak AOL diffraction efficiency and that that the peak
efficiency would occur at the centre of each miniscan thus minimising the overall
change in efficiency along the length of the miniscan.
ZAOD
20X NA=0.6 ZAOD
40X NA= 0.8
215 µm
44 µm
144 µm
0 µm
0 µm
-80 µm
-173 µm
-34 µm
11
The optical tap is formed by an 8% reflection 92% transmission pellicle set with its normal at 8
degrees to the main light path
161
Figure 5.5 Images of pollen grains using Pockels Cell modulation of the laser intensity to
minimise patternation effects. The ZAOD is the measured displacement of the focal plane of the
objective by the AOL. This has been compensated by moving the equator of the pollen grain into
clear focus by adjusting the height of the objective lens. These images used the original AFL dive
algorithm and modulated Pockel’s cell patternation compensation. The change in XY plane
magnification with Z position results from imperfect adjustment of the telecentric relays
connecting the AOL to the microscope. When the relay lens spacing is not perfect the relay is not
exactly telecentric and this effect occurs.
Progress towards solving the patternation problem and
extending the usable field of view
The progress we have recently made towards solving the patternation problem and
towards significantly increasing the field of view is illustrated in Figure 5.6 and
Figure 5.7.
a
AFL Scan Algorithm
s=6 mrad zm=1
b
AFL Scan Algorithm
s=12 mrad zm=2
75 µm
Z height =
65.2874
Y distance micrometres
OFL scan
algorithm
75 µm
202.7586
65μm
101.3793
0
c
0
101.3793
X distance micrometres
202.7586
37.5 µm
37.5 µm
202.7586
Z height =
0
Y distance micrometres
0 µm
0 µm
0μm
101.3793
0
0
101.3793
X distance micrometres
202.7586
-42.5 µm
-42.5 µm
202.7586
-85 µm
Y distance micrometres
Z height =
-65.2874
-65μm
101.3793
0
0
101.3793
X distance micrometres
-85 µm
202.7586
Figure 5.6 Comparisons of field of view beneath a 40X NA=0.8 objective using a) AFL (absolute
frequency limit) scan algorithm with s= 6 mrad, b) AFL scan algorithm with s=12 mrad but
zoom=2. c) OFL (optimised frequency limit) scan algorithm described in chapter 4, with a
programmed semiscan angle of 6mrad. The field of view in each image 180μm (the electron
microscope grid is 42 μm pitch).
162
Figure 5.6a) shows what happens if the semiscan angle, s, is increased to 6 mrad in
order to increase the field of view beneath an NA=0.8, 40X objective using the old
AFL algorithm. The characteristic programmed octahedral shape can be seen with
very small scan area at large Z displacements in order to avoid the AODs going
beyond their frequency limits. Note that the patternation in this image is much more
pronounced than in Figure 5.4 because s = 6 rather than 4.3 mrad so the AODs in each
miniscan are allowed to scan a larger frequency range. At both ends of each miniscan
for Z= +37.5μm and -42.5μm the intensity of the 2-photon image drops significantly.
The image set in Figure 5.6b shows how the old AFL algorithm can be used to
overcome the field of view (FOV) limits by doubling the scan angle limits and
specifying zoom=2. This doubles the size of the octahedral FOV, but truncates the XY
dimensions to the same 180 μm. It was this measurement that first showed that us
high efficiency could be obtained over a large scan area at large axial displacements.
The patternation with these conditions is however very severe because at the
beginning and end of each miniscan the AOD frequency deviations are very large and
the AODs are in very low efficiency regions. This produces the severe patternation
shown at Zn = +/- 65 μm (There is no em grid on this set of images).
The results of the new OFL (Optimised frequency limit) algorithm set for the same
XY scan coverage are shown in c). Note that the OFL scan algorithm is showing
approximately constant scan area and clear images of the em grid over a 160μm axial
range. The fading of intensity at the edges of the field of view is presumably caused
by the severe chromatic aberration at these large XY deflections as well as reductions
in the AOL efficiency.
163
a
b
Figure 5.7 Magnified comparison of images from the previous figure, a) using the old absolute
frequency limits (AFL) algorithm and b) using the new optimised frequency limits (OFL) scan
algorithm. Both images measured at Z=-42.5 μm
A magnified view comparing images from the AFL and OFL algorithm at Z=-42.5
μm are shown in Figure 5.7. It is clear that good progress has been made in both
extending field of view and in reducing patternation. However the OFL algorithm
here is in its very first version (only just completed at the time of writing). The length
of each miniscan is the same across the whole scan area and is a preset variable.
These images have been set with individual voxels being the miniscan length which
gives the slowest but least patternated images.
The slight tartan pattern on the image is caused by the fact that we used no drive
amplitude or Pockel’s cell compensation to the change in efficiency which occurs
when the algorithm jumps from one high efficiency maximum to another as seen in
Figures 4.10 and 4.11. Similarly we have made no attempt to compensate for change
in efficiency across the field of view caused by variation in peak efficiency of each
miniscan.
The field of view for the OFL algorithm compared to the AFL algorithm, for the same
scan dimensions at Z = 0 is cuboid rather than octahedral and thus has approximately
164
3 times larger scan volume depending precisely on the limits to Z scan caused for
instance by loss of resolution. This larger cubic field of view and reduced patternation
is clearly a very useful basis for adding further improvements in the near future.
Latest Results with OFL algorithm for extending field of view
In order to test the limits of field of view and to obtain a first view of the image
quality across the whole field of view with the new OFL algorithm a series of
measurements were made on electron microscope (em) grids that had been coated
with dye by immersion and drying three times in fluoroscein solution (Abbey Color).
Fluoroscein is a fluorescent dye that works well with 2-photon excitation. The field of
view was measured beneath 20X, 40X and 60X objectives. Note that these
measurements were taken after the improvements to the precision of the AOD mounts
described in the following section on point spread function measurements.
Experimental results using a Fluorescent Grid
The next three figures, Figure 5.8 to Figure 5.10 show the results for these three
objectives with the OFL algorithm set for 3,6 and 9mrad.
560 µm
20X NA=0.5
365 µm
520 µm
370 µm
182 µm
195 µm
0 µm
0 µm
0 µm
-212 µm
-435 µm
-675 µm
s = 3 mrad
s = 6 mrad
165
s = 9 mrad
Figure 5.8 Images of a fluoroscein (AbbeyColor) coated electron microscope grid beneath a 20X
objective with a nominal effective NA of 0.5. This uses the new OFL algorithm at semiscan angles
s = 3, 6 and 9 mrad. Before taking each image, the grid is brought into focus by moving the grid
with respect to the objective and noting the axial displacement required. The full image width
and axial (Z) focal plane displacements shown are the experimental measurements for each
image. The variations in background black density in these images is a result of manual contrast
adjustments to individual images prior to combining them in this figure and has no great
technical significance.
270 µm
40X NA=0.8
178 µm
140 µm
104 µm
90 µm
46 µm
0 µm
0 µm
0 µm
-46 µm
-90 µm
-140 µm
s = 3 mrad
s = 6 mrad
s = 9 mrad
Figure 5.9 Images of a fluoroscein (AbbeyColor) coated electron microscope grid beneath a 40X
objective with a nominal effective NA of 0.8. This uses the new OFL algorithm at semiscan angles
s = 3, 6 and 9 mrad. Before taking each image, the grid is brought into focus by moving the grid
with respect to the objective and noting the axial displacement required. The full image width
and axial (Z) focal plane displacements shown are the experimental measurements for each
image. The variations in background black density in these images is a result of manual contrast
adjustments to individual images prior to combining them in this figure and has no great
technical significance except, as you might at expect at higher NA where spherical aberration
effects become more significant, the extreme displacement images are inherently lower contrast
to start with.
166
178 µm
60X NA=1.0
120 µm
67 µm
60 µm
45 µm
22 µm
0 µm
0 µm
0 µm
-22 µm
-45 µm
-67 µm
s = 3 mrad
s = 6 mrad
s = 9 mrad
Figure 5.10 Images of a fluoroscein (AbbeyColor) coated electron microscope grid beneath a 60X
objective with a nominal effective NA of 1. This uses the new OFL algorithm at semiscan angles
s = 3,6 and 9 mrad. Before taking each image, the grid is brought into focus by moving the grid
with respect to the objective and noting the axial displacement required. The full image width
and axial (Z) focal plane displacements shown are the experimental measurements for each
image. The variations in background black density in these images is a result of manual contrast
adjustments to individual images prior to combining them in this figure and has no great
technical significance except, as you might at expect at higher NA where spherical aberration
effects become more significant, the extreme displacement images are inherently lower contrast
to start with.
The results shown in Figure 5.8 to Figure 5.10 are all at a number of voxels of Nvox =
200 covering the whole field of view in each case. At this resolution it appears to the
eye that the imaging quality is not varying very significantly over the whole field of
view for all three semiscan angles s = 3, 6, 9 mrad. At s = 9 mrad, it is interesting to
note that for the 40X NA= 0.8 lens the field of view comes close to covering the
target field of view of 250×250×250μm.
167
Close examination of the figures shows additional points. In all cases the brightness of
the images fades towards the edges of the field of view particularly for s = 9mrad. The
fading is least for the 20X objective and most for the 60X objective. This is
presumably because of the effect of chromatic (and maybe other types of) aberration
increasing at the edges of the FOV in each XY plane in addition to any drop off in
AOL efficiency. It will be very interesting to repeat these measurements with the
chromatic aberration correction in place. It is noteworthy that the image quality is not
dramatically reducing at least at this voxel density (200 x 200 voxels in this image)
with the large axial range tested. It is perhaps surprising that spherical aberration has
not degraded the high axial displacement images much more significantly. More
detailed high resolution images and point spread function measurements are needed to
clarify this issue.
Another point worth noting is that there is a small increase in XY plane magnification
as the axial focus is changed from maximum negative to maximum positive. The
lateral magnification is 9% greater at normalised Z = +1 compared to Zn=0 and 9%
smaller at Zn = -1. This is a small effect compared to that visible in Figure 5.5. This
shows that there is still a lack of exact telecentricity that can be corrected by further
adjustment of the position of lenses in the telecentric relays between the AOL and the
objective. Prior to this measurement we adjusted telecentricity using the AFL
algorithm and we had insufficient FOV at large axial displacement to give sufficient
accuracy of the magnification to notice this small residual degree of lack of
telecentricity.
Comparison of measured 3D field of view (FOV) with theory
These measurements on fluorescent grids included measurements of FOV and axial
displacement for all values of normalised axial displacement Zn = -1,-0.8..., step =
+0.2, ..., 1.0 for all semiscan angles s = 3,6,9 mrad.
It is useful to compare these experimental measurements of field of view with the
theoretical derivation of Chapter 2. The theory shows that in the idealised perfectly
telecentric model the XY plane and axial ‘Z’ field of view are dependent on the AOD
width ‘W’ and semiscan angle ‘s’ and the effective NA of the AODs viewed from the
final focus. If the telecentric relays linking the AOD to the objective are not perfectly
168
adjusted then NA varies with Z focal plane and a more elaborate theoretical model is
needed to correctly fit the nonlinearity of Z displacement vs. ‘Zn’ (the normalised Z
displacement used for calculating the AOD drive parameters.)
We first measured the width of the projected image of the final AOD on the back
aperture of the objective lens. Within the accuracy of our measurement, the telecentric
relay chain magnifed the 15mm AOD aperture by 0.6 to 0.66 times giving a projected
back aperture width of 9-10mm. If the exact focal length of the water immersion
objective is known, this back aperture width can be used with the basic equation
NA=n sin(θ) to calculate the effective NA of the objective relevant for calculating
FOV.
The three water immersion objectives we used in these tests were Olympus 20X,
NA=0.95, 40X, NA=0.8, and 60X, NA= 0.9. The Olympus Website
(http://www.olympusmicro.com ) states that the focal length of the objective is their
standard microscope tube length, 180mm, divided by the objective magnification.
Using this information with the projected width of the AODs at the objective back
aperture allows the effective NA of the AOLM to be calculated for each objective.
Assuming W = 9mm, the calculated figures are 20X, NA=0.47, 40X, NA=0.80, 60X,
NA=1.0. The fact that the effective NA of the AOLM at 60X is larger than the actual
NA (1.0 cf. 0.9) simply means that the physical back aperture of the 60X objective
will cut off the outer edge of the projected AOD aperture. That is to say the objective
is slightly over filled. This was confirmed by checking the actual physical back
aperture of the lens was 7.3 mm as calculated for NA=0.9. Note that it is the effective
NA calculation that is relevant to FOV calculations as the physical aperture will not
change the angles of the incoming rays, just cut off rays at the outer edge of the cone
and thus reduce image brightness and resolution.
In Figure 5.11.The theoretical plot of XY field of view (blue lines) at semiscan angles
of 3, 6 and 9 mrad of Figure 2.13 is compared to the actual field of view
measurements at these calculated values of effective NA (red dots).
169
Field of View Fxy at Z=0 micrometres
600
500
400
S=
9
300
S=
6
200
mra
d
S= 3
mrad
100
0
0.4
mr
ad
20x
0.5
0.6
40x
0.7
0.8
60x
0.9
1
1.1
Effective Numerical Aperture of focussed laser beam
Figure 5.11 Experimental measurements of X (and Y) field of view (red dots) plotted for
comparison with the theory of equation 2.8 and Figure 2.13. (solid blue lines) the theoretical plot
shows that the FOV for a particular scan angle is inversely related to the objective NA. W=
15mm. Also shown on the diagram is the magnification of the Olympus objective lenses we
evaluated. Data points have been added at NA =0.47, NA=0.8 and NA=1.0 as these are the values
of effective NA of the AOLM that give the best fit and are also consistent with a projected width
of the AOD image on the back aperture of the objective of 9.0 mm.
It is clear from these results that assuming W = 9mm, there is very good agreement
between the theoretical and experimental XY plane field of view at Z=0 using all
three objectives at all three semiscan angles.
The results for axial displacement are plotted in Figure 5.12 and compared to the
theory from equation 2.10. In this case, using the same set of effective NA values for
plotting the comparison of theory with experiment, the fit was not so good. The fit is
much better assuming W = 9.8mm which results in NA = 0.50, 0.84 and 1.03 for the
20X, 40X and 60X objectives respectively.
170
z (micrometres)
20x
40x
60x
800
200
80
600
150
60
400
100
40
200
50
20
0
0
0
-200
-50
-20
-400
-100
-40
-600
-150
-60
-800
-1
0
1
-200
-1
0
1
-80
-1
0
1
Normalised focussing parameter Zn
Figure 5.12 Experimental measurements (red dots) of the Z axis displacement as a function of
normalised focusing parameter Zn for three final objectives. The solid black line is the
theoretical displacement calculated by equation 2.10 for the NA= 0.50, 0.84 and 1.03 for 20X, 40X
and 60X objectives respectively. These values of NA are consistent with a projected width of the
AOD image on the back aperture of the objective of 9.8mm. For each objective the displacement
is calculated and experimental results plotted for semiscan angles, 3, 6 and 9 mrad.
So the comparison between theory and experiment of Figure 5.11 and Figure 5.12
both show good fit of theory to experiment assuming that the width of the projected
image of the AOD on the back aperture lies in the range 9-10mm consistent with the
limited accuracy of our experimental measurement.
However the best fit is found assuming W= 9.0mm for the XY plane field of view and
W = 9.8mm for the axial field of view. This is a 9% discrepancy. I am confident that
this discrepancy is simply caused by the imperfect telecentricity of the relays linking
the AODs to the back aperture. The 9% increase in magnification when the
normalised Z parameter Zn is increased by 1 apparent in Figure 5.8 to Figure 5.10 is
obviously caused by a diverging field of view; the magnification of the final image
produced by the microscope reduces as the focal plane of the AOLM moves away
171
from the objective lens. This divergence will also cause the field of view at Zn = 0 to
be greater than it should be and a nonlinearity in Z displacement vs. Zn. This
divergence would certainly cause discrepancies in the best fit values of W between
XY plane and axial Z measurements using the telecentric equations that are similar to
those observed here.
It is clear that the next stage of work in this area is to repeat the experiment with more
accurate adjustment of the exact telecentricity and perhaps to derive the precise field
of view equations under conditions of non exact telecentricity and refit the data
presented here.
From the perspective of the overall project however these results nevertheless confirm
that the theory is accurate within 9%, and that the new OFL algorithm scans the beam
over a field of view that is close to the target 250×250×250 μm for semiscan angle s =
9 mrad beneath an objective with approximately 0.8 effective NA. As expected from
the chromatic aberration theory, there is significant fading of 2 photon imaging
brightness at the edges of the field of view.
172
Latest results of OFL algorithm for pollen grain imaging over
a large axial range
To get a first view of the image quality at higher zoom over the much larger axial
ranges possible with the OFL algorithm we took images of pollen grains with the
AOLM focusing covering the range of normalised Zn = -0.8, 0, 0.8. The results are
shown in Figure 5.13 and Figure 5.14 for semiscan angles of s = 6 and 9 mrad
respectively.
40X NA=0.8
60X NA=1
90 µm
38 µm
0 µm
0 µm
-110 µm
-47µm
Figure 5.13 Images of pollen grains with the new OFL algorithm for 40X and 60X lenses. Pollen
grain axial position adjusted so that an equatorial section is taken in each case. Figures
correspond to the axial displacement of the focus of the AOLM from the natural (Zn=0) plane.
Semiscan angle s = 6 mrad, Nvox = 100, No. of frames = 16, Zn = 0.8, 0, -0.8. Zoom adjusted to
give 40-45 μm square image size.
173
60X
40X
133 µm
55µm
0 µm
0 µm
-133 µm
-72 µm
Figure 5.14 Images of pollen grains with the new OFL algorithm for 40X and 60X lenses. Pollen
grain axial position adjusted so that an equatorial section is taken in each case. Figures
correspond to the axial displacement of the focus of the AOLM from the natural (Zn=0) plane.
Semiscan angle s = 9 mrad, Nvox = 100, No. of frames = 16, Zn = 0.8, 0, -0.8. Zoom adjusted to
give 40-45 μm square image size.
These results show the spines of the pollen grains moderately clearly over more than a
250 μm axial range beneath the 40X NA=0.8 lens and more than 120 μm axial range
beneath the 60X NA=1.0 lens.
This is very encouraging as it implies that the XY plane psf is probably sub micron in
dimensions over this large axial range even at NA=0.8. If confirmed by bead
measurements this is an important aspect of meeting the target specification. The
tartan patternation is again caused by jumps between high efficiency regions using the
OFL algorithm. So, although there is further work to do to minimize patternation, the
OFL algorithm with no correction or compensation appears to be successfully
optimizing the frequencies for all four AODs so the miniscan reaches maximum
brightness possible at the centre voxel of each miniscan.
174
The OFL algorithm is therefore a good basis to start controlling spot intensity to
minimize patternation. It is also clearly worth while to now carry out detailed point
spread function measurements with this arrangement. We have not been able to do
this prior to PhD thesis submission so the psf data in the next section is earlier data
using the old AFL algorithm.
Measurements of point spread functions (psfs) – comparison
with theory and the development of new crystal mounts
This section describes the experimental measurements we have made on the point
spread function of the microscope. The results of this section were obtained before we
developed the OFL algorithms and for Figure 5.15 to Figure 5.19 before we upgraded
the precision of the crystal mounts. The results in this section are considered
chronologically in order to explain how we understood the main aberrations we
observed in our first point spread function measurements. It explains why we
introduced the new crystal mounts, reports first psf measurements with the new
mounts, and finally, why these measurements showed even more strongly the
necessity of developing the OFL algorithm.
175
2
FWHM max & min =
0.51 0.49
4
6
8
10
12
14
16
0
2
4
6
8
10
12
14
16
18
Figure 5.15 An example of an experimentally measured XY plane section through the beam waist
of the 2-photon point spread function (psf) beneath a NA=0.8 40X lens. The red line is the full
width half maximum (FWHM) of an elliptical Gaussian intensity distribution that is a least
squared error fitted to the experimental distribution. This psf was measured close to the centre of
the field of view at Zn=0 using 0.2 μm fluorescent beads. The full width half maximum of the psf
is 0.49 by 0.51 μm. This compares to the theoretical value of 0.42 μm using equation 3.1 and
assuming the bead had a Gaussian profile of FWHM 0.2μm.
In order to measure the point spread function (psf) of the microscope and compare the
results with theory, we used the techniques and equations described in Chapter 3
‘Derivation of resolution of microscope...’.
Fluorescent beads were dissolved in agar so that beads could be found at sufficient
density all over the field of view. Each bead was measured by imaging at high zoom
factor over a stack of Z planes usually at least 30 Z planes deep covering about 2-3
times the depth of an individual axial point spread function. We empirically adjusted
the agar bead density so that there were between two to five beads visible in any XY
plane at sufficiently high zoom to get eight or more voxels between the FWHM points
176
of the approximately Gaussian intensity distribution. This is to get sufficiently high
number of good quality single beads to be able to unambiguously measure their psf
dimensions and to ensure that the measurements are above the Nyquist sampling limit
and not subject to sampling errors. All psf measurements to date have been done with
the old AFL algorithms.
At high zoom and strongly focusing or defocusing Z planes there are still many
miniscans in the field of view, so it is important to carefully adjust the fine tuning
parameters ‘movex’, movey’ and ‘astig’ to minimise any psf astigmatism and ensure
that the miniscans line up precisely and a good quality image of the cross section of
the experimental psf can be reconstructed.
It is also important to be able to accurately measure the dimensions of the psfs. We
started using commercially available curve fitting routines, but soon found that they
were slow and did not quite measure what we were interested in. I have therefore
developed MatLab code that measures the key parameters. I made this code
progressively more and more automated as the labour involved in analysing large
volumes of data became more and more apparent to me.
Figure 5.15 shows the experimentally measured psf of a 0.2 μm fluorescent bead
close to the centre of the field of view of a 0.8NA, 40X objective. The red line is the
full width half maximum (FWHM) of a Gaussian elliptical function least squared
fitted to the experimentally measured data. It is important to fit with an elliptical
rather than circular Gaussian function so that psfs suffering from astigmatism and
chromatic aberration can be measured. In this case the psf is very nearly circular and
close to 0.5 μm in diameter. This is slightly larger than the theoretically expected
(equation 3.1) experimental value of 0.42 μm for this NA (0.8) and bead size (0.2μm).
177
FWHM max & min =
0.63 0.62
0.94
1.1
0.64
0.49
0.71
0.48
FWHM max & min =
0.75 0.49
FWHM max & min =
0.67 0.45
FWHM max & min =
0.71 0.43
FWHM max & min =
0.67 0.54
0.64
0.58
FWHM max & min =
FWHM max & min =
0.5 0.48
0.51
0.49
0.67 0.47
0.71
0.45
FWHM max & min =
0.63 0.62
0.94
1.1
0.64
0.49
0.71
0.48
FWHM max & min =
0.67 0.49
0.71
0.63
0.79
0.45
0.47
0.51
0.48
Figure 5.16 A composite image of nine psfs distributed across the XY plane at Z=0 on a grid of
pitch 52μm centred at X = Y = 0. Note that as expected the chromatic aberration is
approximately radial and centred on X = Y = 0. The minimum psf width for these is in the range
0.43 to 0.59 micrometres, the maximum for the psfs on the X and Y axes away from X = Y = 0 is
in the range 0.58 to 0.71 μm (c.f. 0.59 μm in theory from equation 3.1) whilst the diagonal corner
psfs have maximum FWHM in the range 0.64 to 0.78 μm (c.f. 0.74 μm in theory from equation
3.1).
The next measurements we made were of the psfs in the XY plane at Z = 0. Figure
5.16 shows that the experimental results have approximately the theoretically
predicted shape and orientation of chromatic aberration induced lengthening of the
psfs as radius from the centre of the FOV is increased. These measurements were on
the standard microscope with no chromatic aberration correction. The theory used for
the comparisons described in the caption is from chapter 3, Figure 3.20, equation 3.1.
178
Figure 5.17 First experimental measurements (red dots) of the Z psf as a function of Z
displacement from the natural focal plane of the lens. The results are for a 40X lens at NA=0.8
with semiscan angle s= 4.3 mrad using the AFL algorithm for scanning. The solid blue line is the
calculated Z psf according to equation 3.2 assuming there is chromatic aberration but no
spherical aberration. The dashed blue line is the theoretical axial chromatic aberration alone
with FWHM spectral width of 10.6 nm for the laser spectrum.
The first axial (Z) direction psf measurements we made are shown in Figure 5.17.
The laser was scanned using the AFL algorithm which has an octahedral field of view
with the greatest Z depth along the X,Y= (0,0). The red dots are the experimental
results from least squares fitting to the Z profile of the average intensity across an XY
region of interest of approximately 0.7 x 0.7 μm centred on the highest intensity point
of the distribution. The Z-stack bead images were chosen visually from those
recorded as representative and artefact free.
The results show less than 4 μm Z psf over a Z depth of about 80 μm. The
comparison of the results with the theory show only one of the points, a Z= -20 μm is
on the theoretical line, with the Z psf increasing rapidly over the +/- 40 μm from the
minimum. The increasing Z psf with focusing away from the minimum, in this case,
179
cannot be explained by chromatic aberration. The theoretical Z psf depth, plotted as
the solid blue line is the convolution of the psf at the centre of the field of view with
the theoretical chromatic aberration plotted by itself as the dashed line below.
Initially we assumed the discrepancy must be the spherical aberration from the
objective. However careful examination of the Z stacks showed that the psfs in fact
had the classic symptoms of astigmatism. That is to say, as the XY plane cross section
of the focal spot is scanned through the focus, although there is a minimum circular
radius at the focus, there are axially displaced elliptical foci that have narrower short
axis radii equally spaced in Z on either side of the circular focus. The ellipses are
orthogonal to one another in the XY plane. This residual astigmatism, after
electronically correcting for any astigmatism perpendicular and parallel to the X axis
using the ‘astig’ fine tuning parameter, was at 45 degrees to the X and Y axes. The
astigmatism increased approximately linearly with distance of the AOL Z focal plane
from the natural focal plane at Z = 0, and changed sign at Z = 0.
We spent several months identifying the cause of this astigmatism and eliminating it. I
will summarise the main steps here, but not show all the details as we eventually
proved experimentally that the astigmatism could be reduced below our current
experimental measurement capability simply by much more precise orthogonal
alignment of the deflection axes of each AOD crystal.
Briefly I found by modelling the system in Zemax that I could reproduce these details
of the astigmatism by simply assuming that the crystals were axially misaligned by
spiral rotation about the Z axis of each AOD in turn by angles of up to a couple of
degrees or so. Initially I had several potential theories as to the cause of the
experimentally observed astigmatism, including potential subtle effects caused by
different optical path lengths for light taking left hand as opposed to right hand spiral
paths through the AOD crystal. (Zemax does not have the capability to model optical
activity). I ‘invented’ and tested in Zemax, a way of compensating for the varying
astigmatism with Z focus position. Using Zemax modelling I proved that a pair of
optician’s astigmatic test lenses could compensate the AOD twist induced
astigmatism for all AOL Z focal planes. I ordered suitable lenses and inserted them in
one of the existing telecentric relays and remeasured the Z psfs. After carefully
180
aligning the weak astigmatic lenses we could minimise, but not completely eliminate
the astigmatism for all Z focal planes of the AOL. The resulting psfs are shown in
Figure 5.18. They are measured both in the XY plane and along the Z axis as a
function of position along the Z axis at X,Y= (0,0).
1.5
FWHM
in XY
plane
1
0.5
0
-60
-40
-20
0
20
40
60
-60
-40
-20
0
20
40
60
5
FWHM
in Z
direction
4
3
2
1
0
Z axis microns
Figure 5.18 First automated measurement of XY and Z psf FWHM dimensions beneath a 40X
NA=0.8 lens. Units are all μm . All measurements are made close to the Z axis X,Y=(0,0). The
upper trace is long (red) and short (blue) axis of the 2-photon beam waist ellipse plotted against
the Z axis coordinate of the bead concerned. For the Z axis the red dots are Z psf FWHM
averaged over a region of interest of 10×10 pixels centred on the bead, the blue dots are averaged
over the central 2×2 pixel region. The semiscan angle is 4.3mrad using the old AFL scan
algorithm. These results show less than 0.6×0.6×3.5 μm psf over the central 100μm depth of field.
The AODs were not perfectly axially aligned and the dominant astigmatic aberration limiting Z
psf in the previous figure had been compensated to some extent by weak astigmatic correction
lenses.
These results were encouraging as they showed it was possible to get less than
0.6×0.6×3.5 μm psf resolution over 100 μm of Z depth beneath an NA=0.8 lens and
that the residual astigmatism of the AOL could be at least approximately post
compensated.
181
Figure 5.19 New mounts for the AODs with independent fine control of axial (Z axis) rotation
about the centre of the crystal using the brass lead screw visible underneath the main frame.
Rotation about the horizontal X axis uses the next half frame in whilst rotation about the Y axis
to control the Bragg angle has a course manual setting about the clamped support mount just
above the brass lead screw, and a fine lead screw control close to the crystal and not visible
here 12.
We had, however, also set in motion the alternative improvement to the AOL design
which was to introduce a fine axial angle control to each AOD. This is mechanically
quite difficult to do, because we wanted the rotation about all three axes centred on
the crystal. A photograph of the new mounts with independent lead screw controlled
axial (Z axis) rotation about the centre of the crystals is shown in Figure 5.19. Each
AOD can be rotated by up to +/- 4.5 degrees about the Z axis and clamped into the
chosen position. Fine angle adjustment about the X and Y axes is also straight
forward.
12
Mechanics by Alan Hogben and Duncan Farqueharson of the UCL Biosciences Engineering model
shop.
182
We re-assembled the compact configuration of the AOL using an additional stage
added to the protocol for aligning each AOD. After optimising the Bragg angle, a lens
is used to project the zero order (undeflected) and -1 order (wanted deflected) mode
spots onto a screen with precision radial angle alignment marks. The axial angle of
the AOD is fine tuned so that these two spots are either exactly horizontal (for X
deflectors) or vertical (for Y deflectors).
With these new mounts and this new protocol in place we find that the residual
astigmatism is below the limits we can observe or measure. No astigmatic corrector
lenses are now necessary to get non astigmatic point spread functions throughout the
field of view.
1.5
XY psf
FWHM
μm
1
0.5
0
-100
-50
0
50
100
-100
-50
0
50
100
6
Z psf
FWHM
μm
4
2
0
Z axis coordinate, μm
Figure 5.20 Automated psf measurements of the AOL with improved axial alignment of each
AOD to minimise astigmatism. All beads lie close to the Z axis X,Y=(0,0). These data were taken
with the old AFL scan algorithm at s=8.7 mrad and zoom 32. In the upper plot the red points are
the maxima of the fitted ellipses and the blue points the minima. Note that several of these points
are unrealistically narrow and have fitted to narrow patternation induced artefacts in the
images. In the lower plot, the red points are Zpsf averaged over 10×10 voxels in the XY plane and
the blue points Zpsf averaged over 2×2 voxels
183
1.5
XY psf
FWHM
μm
1
0.5
0
-100
-50
0
50
100
-100
-50
0
50
100
6
Z psf
FWHM
μm
4
2
0
Z axis coordinate, μm
Figure 5.21 Automated psf measurements of the AOL with improved axial alignment of each
AOD to minimise astigmatism. This set of data was one of four sets of data taken at the corners
of a 100 μm XY square, this one at XY coordinates (-50 μm, 50 μm). In the upper plot the red
points are the maxima of the fitted ellipses and the blue points the minima. Note that several of
these points are unrealistically narrow and have fitted to narrow patternation induced artefacts
in the images. In the lower plot, the red points are Z psf averaged over 10x10 voxels in the XY
plane and the blue points Zpsf averaged ove 2×2 voxels
Automated point spread function measurements from across a larger field of view
than previously possible were made using the new AOL with this improved precision
axial alignment of the AODs. The results are shown in Figure 5.20 and Figure 5.21.
The bead psf image results were taken with the old AFL algorithm at semiscan angle s
= 8.7 mrad and zoom 32. As in Figure 5.6b), the combination of large scan angle and
the AFL algorithm caused very strong patternation effects similar to those in Figure
5.6b). I could nevertheless use the automated psf analysis program to give an
approximate idea of the true psf dimensions, this time over a cuboid , rather than an
octahedron shaped volume of dimensions of greater than XYZ= 100×100×180μm.
The results along the Z axis close to X,Y= (0,0) are shown in Figure 5.20 and close to
the X,Y = (52 μm,52 μm) in Figure 5.21. Taken together the data suggested that the
184
psfs, which are without any chromatic aberration correction, are less than 1x1x4 μm
over a cubic region of approximately XYZ=100×100×100 μm.
There are however some caveats. The automated psf data analysis was not as reliable
as in the first set of automated measurements shown (Figure 5.18) due to difficulties
with the automatic filtering of the data at the higher zoom factors used and with the
patternation effects from the old AFL scan algorithm. This is obvious in XY plane
data on both figures which show anomalously small minimum psf widths (blue
points). These were caused by the interfering patternation rather than being of any real
physical significance. Nevertheless, the apparent shift of the minimum Z psf width at
the edge of the cube to Z = -30 to -40 μm was approximately reproduced at the other
3 corners of the XY square but not at the centre (X,Y= (0,0)) as shown in the previous
figure. This may be a real physical effect, and clearly more accurate measurements
are needed in order to understand such effects. These will be carried out shortly with
the new OFL algorithms.
Prior to carrying out further measurements on the psfs of beads, my colleagues have
carried out the biological tests of the microscope reported in the next sections. These
are aimed at determining whether the performance in real biological tissue is as
expected from the microscope design.
First images of neurons
Together with my colleagues Tomas Fernandez –Alfonso and Srinivas I have chosen
the data available that best summarises the performance of the prototype in the
application for which it is intended. The data was gathered during 2008/2009 in brief
periods between the various measurements and modifications to the microscope and
software described in the previous parts of this results Chapter. All the results in this
section are from before the introduction of the OFL algorithm.
185
115μm below slice surface
b
a
57 μm below natural focal plane
c
Dye Alexa594 , dwell time 4 μs
115μm below surface
10 μm
Figure 5.22 a) Z projection of a pyramid cell from a 3D stack of 50 images spanning 10-135 μm
deep in layer 2/3 of the cortex of a mouse. Scan parameter s=4.3mrad. The cell is patch clamped
and filled with intracellular solution that includes 200μM Alexa594 and 0.1mM EGTA. b) image
to show that the microscope has sufficient power and resolution to image individual spines on one
of the dendrites at a tissue depth of 115 μm. c) Image demonstrating it is possible to image
individual spines even with the AOL focusing set at 57 μm below the natural focal plane of the
lens.
The striking image of a patch clamped layer 2/3 pyramid cell from the cortex of a
mouse shown in Figure 5.22 was the first to prove that the microscope had sufficient
optical power transmission and resolution to image through a slice of brain tissue up
to 135 μm thick and show enough resolution, even with 57 μm of AOLM focusing to
pick out individual spines on the dendritic arbour.
186
First measurements of action potentials
a
Pia and apical dendrite are up
Single trial, 4.6KHz
Raw
d Filtered
c
0
1
2
130μm x 130μm, 0.65μm p/ vox
b
3
4
2 ΔF/F
5
0
100
200
ms
300
0
100 200
ms
300
Figure 5.23 Action potential detection from 6 positions on a layer 2/3 pyramidal neuron cell body
50μm deep in a 400 μm thick slice of brain tissue taken from the barrel cortex of a mouse. a) full
field of view of cell body with patch clamp containing 0.1μM EGTA, 200μM Fluo4, 40μM Alexa
594 in solution. b) Magnified view of cell body showing the 6 different regions of interest (ROIs)
selected for optical functional imaging. c) Electrical patch clamp measurements of action
potential train (red) and raw data from six optical functional imaging traces from the six ROIs.
Data collection time per ROI TROI= 4μs AOD cycle time TC= 36μs. Data collection rate per ROI =
4.6kHz. d) Raw data trace averaged over 6 data collection points with a sliding window.
Experimental work by (Fernandez-Alfonso) and (Srinivas)
Figure 5.23 shows one of our first tests of optical functional imaging carried out on a
layer 2/3 pyramid neuron in an acute slice from the cortex of a mouse. On this
occasion the dye that perfuses the cell from the patch clamp includes Fluo 4 which is
a calcium sensitive dye. After imaging, Figure 5.23a, the patched cell body, six
separate regions of interest (ROIs) were chosen Figure 5.23b. The cell was then
briefly electrically depolarised using the patch clamp in order to drive its membrane
above the threshold necessary for it to start generating action potentials
spontaneously. As can be seen from the red trace Figure 5.23c, a sequence of 5
electrically measured action potentials resulted, separated by 40ms from one another
(25Hz). In the cell body the action potentials allowed short bursts of opening of the
voltage gated calcium channels and the resulting rapid rise in calcium concentration
187
was picked up by the sudden step up in number of fluorescent photons collected in
each data collection time TROI= 4μs. The sampling rate at each ROI is 4.6 kHz or one
sample every 216 μs. The fluorescence plots represent relative fluorescence compared
to the background fluorescence and are plotted in terms of ΔF/F, the relative change
in fluorescence compared to the average background. The calcium ion influx is
much faster than its removal from the cytoplasm (Kerr and Denk 2008), so the
calcium concentration decays much more slowly than it rises. In fact it only decays a
few tens of percent before the next action potential arrives and boosts the calcium
concentration again. The step rises in calcium concentration are clearly visible even in
the raw data shown in grey. The detailed sawtooth waveform is much clearer Figure
5.23d when this data is averaged by a 6 data point sliding window. Note that there are
significant variations in the magnitude of the calcium response in different monitoring
positions in the cell body.
A major aim of these experiments was to determine whether it was possible to obtain
millisecond accuracy of the timing of the action potentials from the calcium
fluorescence data. Figure 5.24 shows an analysis of fluorescence data from 3 of the
ROIs on a similar experiment.
188
2
3
4
0
100
200
300
ms
126 128 130 132 134 136
ms
Position
ΔF/F
peak
RT1090% ms
ΔAP
τ1 ms
time ms
τ2 ms
2
0.82
1.59
-0.1
55
5113
3
0.72
2.03
0.33
48
766
4
0.74
1.05
-0.05
14
213
Figure 5.24 Rise times of calcium fluorescence at three different positions in a layer 2/3 cell. Rise
times estimated by curve fitting to fluorescence data from ROI 2 near apical dendrite in tapered
part of cell body about 3 μm wide, ROI 3 in dendrite 3 μm from cell body, ROI 4 in dendrite 35
μm from cell body. Experimental work and data analysis by
On this occasion the ROIs were distributed more widely, not only in the cell body, but
also along the dendrite. To most accurately deduce the start of the action potential
Tomas has found that fitting the data to a single exponential rise with double
exponential decay works well.
The data in the table show the 10-90 rise times varying in the range 1-2ms. Despite
this variation Tomas has found that the 10% rise point on average matches the
electrical transient of the action potential best. (Note the early rise of the theoretical
exponential line has a small curvature added for improved matching). The ΔAP time
is the error between the electrical and optical action potential time measured in this
way. This data and other data he collected show that sub millisecond action potential
timing can be routinely measured in this way. The experiments in Figure 5.24 were all
carried out in the natural focal plane of the lens at Zn =0.
In order to test whether the AOLM operated equally well over a range of focal
distances the experiment was repeated on a single cell measuring the electrical and
optical action potential timing in three different focal planes. This was done by
189
moving the cell axially between measurements and keeping the monitoring spot
position constant as close as practically possible`. The results are shown in Figure
5.25
AOD
focus
a)
Single trial
Avg 10 trials
Rise time fit
-40μm
τ decay 1 = 71ms;
10-90rt =
2.06ms
Peak ΔF/F = 1.32
Time at 10% rise = 0.49ms
0μm
τ decay 1 = 57ms;
10-90rt =
2.48ms
Peak ΔF/F = 1.56
Time at 10% rise = 0.39ms
b)
1 ΔF/F
60mV
c)
τ decay 1 = 66ms;
10-90rt =
3.02ms
Peak ΔF/F = 1.34
Time at 10% rise = 0.27ms
+40μm
25μm
0
500
0
ms
500
ms
-10 -5
0 5
ms
10 15
TFA, 29-6-09
Figure 5.25 Test to determine if action potentials can be monitored equally well at different AOL
axial Z focus settings. a) AOLM focused at -40μm, b) focused at the natural focal plane, c)
AOLM focused 40 μm above it s natural focal plane. In each case the cell body was moved axially
so that the same region of the soma near the apical dendrite was used for monitoring Calcium
fluorescence. The red trace is the electrical membrane potential measured with the patch clamp,
the grey data is the Calcium fluorescence data, the orange data is the same measurement with
data averaged over 10 trials, and blue fitted to an exponential rise and exponential fall equation.
The results show remarkable consistency of signal levels, signal to noise ratio and a
variation of action potential timing of less than a quarter of a millisecond over a focal
range of 80 μm (albeit for only 3 samples).
Taken together these first optical functional imaging results show that the AOLM is
capable of optically monitoring calcium levels in ROIs at close to 30kHz whilst either
random access sampling in the XY plane or changing the focus of the AOL in the
190
axial direction over an 80 μm range . It has sufficient signal to noise ratio to monitor
action potential timing from neurons with sub-millisecond precision. Note however
that since the Z focusing experiment was on the same ROI on the same neuron in
order to check consistency of signal to noise with change of focus, the depth of tissue
that the beam was focusing through was not changing with the AOL focus. The next
biological experiments (yet to be carried out) will be aimed at combining these
capabilities to determine the volume (and particularly the depth range) over which it
is possible to maintain sufficiently high signal to noise ratio whilst carrying out true
3D random access monitoring of ROIs.
Summary of chapter 5
This chapter describes the main experimental results to date of the complete AOLM.
It starts by showing that the AOL can randomly refocus in 3D at 30kHz and that the
prechirper pre-compensates for the AOL and microscope temporal dispersion
sufficiently well that the pulse width is only increased from 100fs at the laser to 115 fs
at the specimen. 3D imaging results are shown for the AOLM using the original
absolute frequency limit scan algorithm. The problem of patternation is described and
progress towards solving it with the optimized frequency limits (OFL) algorithm
reported. It is shown that the OFL enables high efficiency scanning over more than a
200 μm cube at 0.8 NA. Measurements of the microscope point spread function show
better than 1x1x4 μm resolution over a cubic region of approximately
XYZ=100×100×100 μm. These measurements are without the proposed chromatic
aberration correction. Finally we report on our first images of neurons, and functional
imaging of multiple regions of interest on individual neurons which we stimulated to
fire action potentials. The signal to noise ratio is sufficiently high to enable
millisecond time resolution of action potentials to be achieved whilst changing the
AOL focus over an 80μm range.
191
Chapter 6
Conclusions and Discussion
Summary of main achievements
This thesis outlines the theoretical and experimental work that I have carried out
during the development of a prototype high speed 3D 2-photon microscope based on
AODs. This development arose from initial proposal that 4 AODs could be used to
form a high speed dynamic lens (Kaplan, Friedman et al. 2001) and the target
specifications that my supervisor proposed for high speed 3D optical functional
imaging in neuroscience.
I have analysed deflection bandwidth requirements for the type of 3D ‘pointing mode’
system we require and the results show that AODs have a large advantage over other
existing technologies. I have studied the limitations of AODs that have largely
prevented their widespread use in 2-photon microscopy to date. I have invented
solutions to several of the key problems and proposed a detailed design for a
prototype microscope. A key design advance was to use customised AODs with a low
acoustic walk off angle. A novel compact configuration for the 4 AODs will
substantially reduce the practical difficulties of changing operating wavelength. I have
modeled the AOL design and derived the new RF drive frequency control algorithms
necessary for the compact configuration. I have proposed and analysed a novel
solution for minimizing the serious chromatic aberration inherent to the use of
diffractive devices such as AODs.
We have built a prototype machine and demonstrated many of the key aspects of the
target performance. Experimental clues from the prototype and deeper understanding
of the complex multidimensional optical physics determining the relationship between
the RF drive parameters and the overall acousto-optic lens diffraction efficiency has
led to the extension of the RF drive frequency control algorithms to give a substantial
increase the field of view and improvement of the uniformity of light transmission
during scanning. These enable the laser beam to be scanned over a volume close to
the 250μm cube of the target specification at a numerical aperture NA = 0.8. We have
demonstrated that the prototype AOLM can achieve 30 kHz random access sampling
of multiple regions of interest on neurons in live tissue. Moreover, the SNR is
192
sufficiently good to detect individual action potential-evoked calcium transients with
fluorescent dyes and to determine their timing with millisecond resolution. These
specifications and results represent a significant improvement over current
technologies for functional optical imaging.
Comparison of AOLM with other recent approaches for optical
functional imaging
There have been several interesting papers published during the development of this
AOLM. I have divided them up for discussion into those using AOD technology and
those using different technology to achieve similar aims.
AOD-based imaging approaches
The first proof-of-principle demonstration of high speed 3D 2-photon optical
functional imaging using AODs was published by Peter Saggau’s group (Reddy and
Saggau 2007; Reddy, Kelleher et al. 2008) They describe both what they call
‘structural imaging’ and ‘random access’ imaging of individual neurons over volumes
of tissue of XYZ= 200×200×25μm beneath a nominal NA=1, 60X objective. They
describe imaging pollen grains and measuring psfs over a focusing range of up to
50μm, but report substantial drop off in 2-photon power for Z displacement greater
than ±25 μm. This compares to our results of 150×150×130 μm scan volume shown
in Figure 5.10 for a very similar 13 NA=1, 60X lens and very similar back aperture fill
diameter. They attribute their limited depth of scan to the use of conventional narrow
input acceptance angle commercial AODs and advocate the use of customized wide
acceptance angle AODs in future. There are, however, other substantial differences in
the system they describe and the system we have developed. In particular their use of
commercial AODs means that the walk off angle of the AODs they were using was of
the order of 55 degrees rather than the 20 degrees of our customized design. It seems
possible that coma arising from this large walk off angle limited their ability to image
at more than ±25 μm from the natural focal plane.
13
The back aperture fill ‘W’ for the Reddy microscope is 9 mm AOD aperture ( from manufacturer)
divided by 1.2 :1 telecentric relay = 7.5mm., Our microscope has 15mm x 0.6= 9mm back aperture fill
from data in chapter 5, ‘Comparison of measured field of view with theory’ This is then apertured by
the 7.3mm physical back aperture of the 60x microscope.
193
The fact that (Reddy, Kelleher et al. 2008) could scan laterally over XY=200×200 μm
beneath a NA=1, 60X objective compared to our 130×130 μm is perhaps because they
used a narrower spectrum (Mira,HP Coherent) laser with 200fs pulse length. In
principle this should have a transform limited spectral width of 5nm spectral width,
half the spectral width of ours. In the paper they said it had ~10nm spectral width, if
so then the pulses were not transform limited. The long pulse length and possibly
narrower spectrum minimised the temporal dispersion of their system. This was
important because they decided that the large temporal dispersion of their standard
commercial AODs which were each 30mm long was so large that it was impractical
to compensate with a prechirper. As a result, their 200fs laser input pulses were
stretched to 1.8 ps length in passing through the microscope. This pushes up the
power required for 2-photon imaging substantially ( a factor of 3 in theory) and
necessitated the use of optical powers at the back aperture of the objective of 40100mW compared to about 4- 20 mW for scanned imaging in our microscope or
other conventional 2-photon microscopes with normal 200-300 fs pulse length at the
specimen.
At no point in any of their published papers do Reddy and Saggau explain their
control algorithms. It is not clear whether they have developed the miniscan concept,
indeed it might well be that doing so would be very difficult with the less precisely
controlled analogue voltage controlled oscillators they used to control drive frequency
of the AODs. It is possible therefore that their ‘structural imaging’ mode is actually
the same as the pointing mode and that they spend 14 μs of AOD fill time (for their
9mm aperture AODs) for every approximately 4 μs of data collection dwell time. If
true, this would make structural imaging with their microscope much slower than ours
in the miniscan mode. Another difference between the Reddy and Saggau system and
ours is that they do not use the compact configuration of AODs, they have not
discussed either the impracticality of changing wavelength with the long telecentric
relays they use to relay the image of one AOD to the grating of the next.
Examination of the methods section reveals that the recordings of action potential
evoked calcium transients (Reddy, Kelleher et al. 2008) were low pass filtered at
50Hz to achieve a good SNR. This is somewhat surprising as the noise in their traces
is comparable to our traces, which were only filtered at 1kHz (Figure 5.23 etc.).
194
Comparing the Reddy and Saggau results with those reported in this thesis gives us
confidence that although we did not publish first, our design is a significant advance
on their publication and much closer to a useable high speed 3D 2-photon microscope
for optical functional imaging.
During the course of the work reported in this thesis there was one other 3D 2-photon
AOD based microscope paper published (Vucinic and Sejnowski 2007) This, as
discussed in (Reddy, Kelleher et al. 2008) is a fast 3D scanning scheme using 2
AODs that only changes focus in the Z direction as a result of fast X or Y scanning. It
is not a pointing mode system and, as acknowledged by the author, suffers from poor
duty cycle at high sparsity as I described in more detail in the first section of chapter
2, ‘Choice of deflection system’. Lastly, (Kremer, Leger et al. 2008) report on a high
performance 2D AOD system for optical functional imaging. They report a large
aperture (13mmAOD) that is capable of scanning over more than 40 mrad scan angle.
This compares to the 36 mrad = 4 x 9 mrad semiscan angle for our system (Figure
5.9). They also report on the detailed space time frequency measurements of the point
spread functions of this system using a measurement system known as ‘FROG’. It
would be very interesting to carry out similar measurements on the psfs of our system
in order to understand combination of spherical and chromatic aberrations that
presumably limit the psfs of our system at large AOL Z focusing.
Other Technologies
Liquid crystal phase modulator technology has also been applied to diffractive
imaging applications. One of these technologies developed by Holoeye
(www.holoeye.com ) has been used for an interesting approach to optical functional
imaging of many neurons in parallel. At present the results reported are for two
dimensional imaging only, although programmable diffractive elements such as the
Holoeye system can focus in the third dimension as well. Nikolenko (Nikolenko,
Watson et al. 2008) reported on a 2D system that used a Holoeye SLM based phase
modulator to focus or ‘beam shape’ its total diffracted power onto the bodies of many
10s of neurons in cortical tissue in parallel. They then used a CCD camera to monitor
all the cells in parallel at 60Hz. They were able detect the changes in calcium
concentration in individual cells following individual action potentials. They do not
195
say the time precision they could achieve but it looks in the order of 100ms from the
data they present.
A separate paper (Brendon, Volodymyr et al. 2009) from the same group reports on
speeding up conventional raster scanning by using diffractive optical elements to form
an array of beamlets for 2D 2-photon imaging with a parallel array detector such as
CCD or photomultiplier tube array. As most conventional 2-photon microscopes have
plenty of laser power to spare, this is clearly a simple way of speeding up data
acquisition. This is related to the TriM Scope from LaVision Biotec which uses up to
64 2-photon laser beams to parallelise and speed up scanning, and the emitted
fluorescence is imaged onto a fast CCD camera, which can run at 100Hz. This has
been used extensively for imaging network activity in slices (Crépel, Aronov et al.
2007). As the authors acknowledge, it will not be suitable for deep tissue 3D imaging
as scattering will cause crosstalk between data acquisition channels and there is much
less power spare in deep tissue in the microscope because of laser scattering losses.
The results they report demonstrate the expected speed up in data acquisition but also
appear limited to about 100ms time resolution for action potential detection.
An interesting recently reported mechanical system with the potential for much more
rapid refocusing in Z than any previous mechanical focusing system is the piston
mirror system (Botcherby, Juskaitis et al. 2007). It has the potential for operation at
speeds up to around 1kHz cycle time as it uses a light weight piston mirror that sits in
air at the focus of an auxiliary objective. There is thus no need to move the objective.
By matching the angular convergence of the auxiliary objective so that it matches
both the sine and Hershel conditions with the main water immersion objective, a high
degree of correction of the spherical aberration that would otherwise limit the Z
displacement of a high NA remotely focused objective has been demonstrated.
Clearly this system will only operate in the scanning mode in the Z direction, its
deflection bandwidth is not high enough to be considered for the pointing mode.
However, if for instance, it was hybridised with XY deflectors operated in the
pointing mode, then providing half the ROIs in each Z plane are monitored before
moving down to the next Z plane and the other half on the cyclic return of the Z
plane in the return direction, then, assuming a fairly uniform distribution of neurons in
the Z direction, it is possible in principle to obtain a duty cycle close to that of a full
196
3D pointing mode system up to a sparsity in the Z direction SS = 1/2TROIRS. This
corresponds to a sparsity of 50 for RS=1 kHz Z scan rate and TROI = 10μs. This means
that the focal spot would on average move 5μm in the data collection time TROI if the
Z scan depth was 250μm. For 100 Hz rates the sparsity would be 500 and the laser
spot would only move 0.5 μm in TROI = 10 μs. This is probably sufficiently small not
Number of regions of interest per imaging time
to matter in comparison to a Z psf of 2 μm.
7
10
max rate
Pointing (AOD)
Scanning Ss=10
Scanning Ss=100
Scanning Ss=1000
Hybrid 2D AOD
With piston mirror
Ss=500
6
10
5
10
NSN 3D Saccade Scanning
4
10
NSN 3D
3
10
2
10
NSN 2D
1
10
2
10
1
10
0
10
-1
10
-2
10
-3
10
-4
10
-5
10
Imaging time (seconds)
Figure 6.1 The relationship between number of regions of interest and imaging time for pointing
mode and scanning mode. Black dashed line shows the expected relationship for a hybrid 2D
AOD – piston mirror system. In all cases the total dwell time in each region of interest TROI is
8μs. The pointing mode transit time is 25μs. The sloping black dashed line shows the maximum
number of ROIs that could be monitored with infinite deflection bandwidth (zero transit time
between ROIs). The vertical and horizontal black lines pick out particular imaging rates for
comparison. For the scanning mode results are for 3 different spatial sparsities Ss. The
horizontal green arrows indicate the approximate number of selectable neurons (NSN) for high
speed imaging in a volume of rat cortex 250×250×250μm (3D) and 250×250μm (2D). (Ohki,
Chung et al. 2005) and 500×500×500μm for Saccade scanning in 3D (our extrapolation).
197
Figure 6.1 shows the expected relationship between the number of regions of interest
that the Hybrid 2D AOD – piston mirror system can monitor and the imaging speed
Rs superimposed on the pointing mode scanning mode relationship plot presented
earlier in Figure 2.6. This plot shows that the combination of a pointing XY deflector
mode (e.g. 2D AOD scanner) and the piston mirror is well worth considering as a
competitor to the AOLM system described in this thesis. If, for instance, it was
possible to design such a system so that it delivered higher optical power to the back
aperture of the objective and it gave smaller axial psfs over a larger field of view and
the end user was happy to trade off faster cycle time and random access ability in Z
that the AOLM system offers, then it may be a good option. For example, if the
system is monitoring 1000 neurons or more, then for TROI =10μs, the sampling rate of
individual neurons is more than 10ms with either system. In this case, if it does not
matter what order the neurons are scanned in the Z direction, and, if the neurons are
distributed fairly uniformly in Z, then the performance of the AOLM would be similar
to a hybrid piston and 2D AOD scanner. The decision of which choice was best would
then be made in terms of comparison of Z psf dimension and field of view which may
be better for the piston mirror solution.
It is clear from this analysis however that if high sparsity is wanted at kHz sampling
rates, the region above 100Hz imaging rate where the AOLM and hybrid 2D – piston
mirror solution deviate in Figure 6.1, then, the hybrid 2D AOD- piston mirror
solution will not be able to compete with the AOLM solution.
Status of results to date
The results presented in chapter five are very much work in progress as our priorities
have been driven in various phases between improving understanding, improving
performance and obtaining preliminary results for demonstrating the progress to date.
At each stage of these development cycles, there have been dramatic improvements in
performance. We are still far from reaching the full potential of the acousto-optic lens
microscope (AOLM). In particular, it was only at the beginning of 2009 that we
realised the potential for new drive algorithms to significantly improve the size and
shape of the high efficiency field of view from octahedral to the enclosing cuboid. At
the time of writing, the new optimized frequency limits (OFL) algorithms have only
198
been working in their initial form for a few weeks and have been used to demonstrate
the improvements to field of view described in chapter 5, Figure 5.6 to Figure 5.11.
We have postponed re-measuring the point spread functions ( psfs) across the full
field of view and measuring the chromatic aberration correction whilst we completed
the biological test results reported in Chapter 5.
Performance of the prototype AOLM
In chapter 5, Figure 5.6 to Figure 5.11, I presented results showing that the prototype
AOLM is capable of scanning and pointing with sufficient power and resolution for 2photon imaging of test grids that covers approximately a 200μm cube. The field of
view matches that predicted theoretically to within 7%. There is however noticeable
fading at the edges of the field of view (Figure 5.7) which is likely to be at least in
part caused by the theoretically expected chromatic aberrations. The new OFL drive
algorithm is essential to achieving this large scan volume without the serious
patternation problems of the Absolute Frequency Limits (AFL) algorithm. The results
of point spread function (psf) measurements of beads indicate, but do not prove, that
the present microscope is capable of imaging with better than an XYZ resolution of
1×1×4 μm over a 3D cube of 100×100×100 μm. This is without chromatic aberration
correction and is therefore approximately as expected from the theory in chapter 3,
‘Derivation of resolution of microscope..’. The results also show that the AOLM is
capable of imaging the structure of neurons in live acute slices of mouse brain cortex
to a depth of over 100 μm. Moreover, spines on dendrites, which are of the order of 1
μm in size, can be resolved even with over 50 μm of AOL focusing.
Experiments using the AOLM for optical functional imaging of a single neuron at 4.6
kHz sampling rate per region of interest (ROI) and 4 μs sample collection time shows
that individual action potential-evoked calcium transients can be detected clearly with
a high signal to noise ratio (SNR). This was maintained when the AOL focus was
varied over an 80 μm range. These recordings allowed the timing of individual action
potentials to be inferred from the rising phase of the calcium transients with a
precision of approximately 1ms. These results show that the performance of the
prototype AOLM is sufficient for high spatio-temporal optical functional imaging and
this can be improved further given that the dwell time can be increased to 8 or 16 μs.
199
It should, however, be noted that despite altering the AOL focus by over 80μm, the
optical functional imaging results reported here were all carried out at about 40-50 μm
tissue depth. The signal to noise ratio will reduce exponentially with tissue depth as a
result of optical scattering. The next (yet to be carried out) optical functional imaging
experiments will be the first time we have tested true 3D random access optical
functional imaging and it will be very interesting to see how performance varies with
tissue depth.
Further Work: improving image patternation and aberration of
the psf
Throughout the project the problems caused by the variation of efficiency of AODs
with scan angle have been amongst the most difficult to understand and correct. I
have developed increasingly sophisticated MatLab models of individual AODs and
modeled what should happen when four AODs are concatenated to form the AOL.
Each AOD needs a three dimension plot to map its efficiency vs. drive frequency and
input incident angle, four dimensional if, as I have recently done, you calculate using
the large signal efficiency rather than the usual low acoustic drive model known as the
Born approximation (Xu and Stroud 1992). Calculating the overall efficiency of the
AOL thus becomes at least a 12 or 16 dimensional problem.
The variations of efficiency with drive angle cause problems by introducing unwanted
variations in 2-photon efficiency, for instance when scanning during a miniscan. This
causes patternation. In principle, this could be corrected for either by independently
controlling the incident laser power to the AOL or by post processing the image.
Since post processing the image would cause variations in noise level with position,
we prefer to find a solution to the problems of controlling the laser power so that the
spot intensity does not vary along a miniscan or between miniscans.
Comparison of Figure 3.17, the theoretical efficiency plot of an X1,X2 AOD pair over
the f1,f2 drive frequency space with the experimental plot of Figure 4.10 and Figure
4.11 shows that the experimental plots have peaks and troughs of efficiency every 4
MHz in a cyclic manner. This cyclic efficiency variation with frequency is not shown
by my model and therefore must be caused by a physical effect that I have not
included. As discussed in Chapter 4, it is plausible that this could be an effect of
200
variation of the eigenmode polarization with propagation angle in the crystal
analogous to the cyclic interference fringes we utilized to precisely measure the
crystal orientation in Figure 3.34 to Figure 3.38. If this is correct then we may be able
to minimise the effect by more accurately adjusting the state of polarization between
the crystals so that light is launched into the crystal with the optimum polarization to
couple into the correct elliptical extraordinary eigenmode. There will then be no
optical power in the orthogonal mode to cause the cyclic interference effect. Such an
optimisation would require the use of additional quarter wave plates between each
crystal.
Even with this improvement it is clear that during each miniscan there will be
significant variation of intensity of the 2-photon focused spot with time along the
scan. The new OFL algorithm has successfully enabled each miniscan to find
maximum efficiency possible for the middle voxel of each miniscan (data not shown).
I now need to develop algorithms that not only compensate for the change in
efficiency when the OFL algorithm jumps from one peak efficiency in f1,f2 frequency
space to another, but also modulates either an external Pockel’s Cell or the acoustic
drive intensity during a miniscan to give constant efficiency equal to the maximum
possible at the ends of each miniscan. Unfortunately, it is of course necessary to level
down the peaks of intensity to match the troughs, this makes it particularly important
to find ways to minimize the troughs in f1, f2 frequency space, perhaps by the use of
additional quarter wave plates.
We have experimented with three ways to implement such laser spot intensity control
in the scanning mode:
1. Scan a uniformly fluorescent sample and measure the intensity variation vs.
time during the scan, then implement a separate intensity control via a
Pockels Cell that inverts the measured intensity modulation and hence
compensates the AOD induced variation. This method was used for the pollen
grain images in Figure 5.5. This method is, however, very tedious as it
requires measurement of the 2-photon intensity in a uniform fluorescent
medium for every different scan frame you might wish to use.
201
2. Measuring the transmission efficiency, inverting the signal and using a
Pockels cell to correct for intensity variations. This was achieved by tapping
off ~8% of the diffracted light in the AOL output with a pellicle set with its
normal at 8 degrees to the beam (to avoid polarization effects) and
monitoring its intensity with a large area (3 mm diameter) high speed silicon
photo diode. This signal is then used to form a ‘single photon’ brightness
image of the particular scan frame, and by comparing the local single photon
intensity to the average intensity, a correction signal was generated for
modulating the Pockel’s Cell in antiphase with the local intensity variation.
This method worked well on occasions but it was very difficult to identify the
cause when it failed to work well.
3. Develop a mathematical model of efficiency vs. drive frequencies for the
AOL, so that the compensation drive can be computed at the same time as the
scan drive parameters are calculated. We have tried this method with the old
absolute frequency limit (AFL) algorithm, but our mathematical model of the
complete system was too inaccurate to be satisfactory.
Part of the problem was that with the old AFL drive algorithm, the variations in
intensity that the compensation mechanism was trying to correct for were too large. I
hope that the fact that the middle voxel of any miniscan is always the brightest will
make the minor parabolic correction to intensity vs. time much more tractable with
the new OFL algorithm. The fact that the algorithm has independent external control
of the length of each miniscan makes the prospects of success much higher. As stated
in the figures concerned, the images presented in this thesis using the new OFL
algorithm are all with only one voxel miniscan length to minimize patternation
effects.
The second major problem that requires further work involves optimising the point
spread function across the field of view, by minimizing chromatic and spherical
aberration. The measurements of the psf we have made show that, at least in the XY
plane at Z=0 chromatic aberration causes the psf to be lengthened in a radial direction
centred on the centre of the field of view (See Chapter 3, ‘ Derivation of resolution of
microscope’). The chromatic aberration itself increases in proportion to the spectral
width of the laser and the radial distance from the centre of the field of view. My
202
Matlab models (Figure 3.23) show that in 3D the chromatic aberration remains radial
with the aberration vector pointing out radially from the centre of a sphere. The
magnitude of the chromatic aberration is equal to the FWHM of the laser spectral
width divided by its wavelength times the radial distance to the centre of the FOV.
For our current laser (Spectra physics Mai Tai, www.newport.com ) the spectral
width is 10.6nm causing chromatic aberration of 1/80 of the deflection of the focus
from the centre of the FOV resulting 1 μm of chromatic aberration at 80 μm radius
from the centre of the field of view. Our experimental measurements at 52 μm and 75
μm radius were consistent with the expected aberration (Figure 5.21). It is not
therefore surprising that the 2-photon imaging brightness falls off rapidly towards the
edges of the 200 μm cube imaged using the fluorescent grids in Figure 5.9.
There are two potential ways to minimize chromatic aberration, reduce the spectral
width of the laser, or implement the magnification chromatic aberration compensation
described in Chapter 3 ‘Designing a practical chromatic aberration corrector’. There
are two leading brands of Ti-Sapphire laser the Spectra Physics ‘MaiTai’
(www.newport.com ) that we have used here and the Coherent ‘Chameleon’
(www.coherent.com ). The Spectra physics laser has a pulse width of 100fs and the
Coherent 140fs. The spectral widths are inversely related to the pulse length at 1013nm and 5-6nm respectively. Since 2-photon efficiency reduces with increasing
pulse length it is not obvious which laser is the better for 2-photon imaging. In view
of the strong effect of chromatic aberration limiting the FOV in the AOLM we have
developed it is obviously worth while to experiment with the narrower laser spectrum
Coherent laser and find out whether it gives the approximate doubling of the linear
dimensions of FOV in the XY plane that might be expected for the predicted
reduction in chromatic aberration.
We have purchased the lenses and diffractive optical elements (DOE)s for the
chromatic aberration compensator (DOEs from www.silios.com ) shown in Figure
3.28. We have checked that the DOEs have better than 80% transmission efficiency.
Even so, the loss of the compensator will be at least 40%. The questions we need to
determine experimentally are whether the chromatic aberration compensator works as
designed, and if so whether the benefits of improved field of view are out weighed by
203
the insertion loss of the compensator. This latter point depends on whether there is
spare laser power for the measurements that are being made.
Once the chromatic aberration is minimized with one or both of the strategies above,
the dominant form of aberration is likely to be spherical. Spherical aberration will
increase with distance from the natural focal plane and with the NA lens. For
functional imaging applications where a large axial range of focus is required, we
intend to restrict the NA of the system to 0.7-0.8. This will be achieved by under
filling high NA objectives, allowing the full NA to be used for light collection.
We have very little evidence of what the spherical aberration will be at large Z
displacements when using the new OFL algorithms. The XY plane images of pollen
grains Z displaced by +/- 133mm beneath an NA=0.8 40X lens in figure 5.14 seem
remarkably clear and crisp. It is difficult to believe that there is enormous axial
spherical aberration, but proof is required from direct psf measurements
Prospects for meeting or exceeding target specification with
the current design
Implementation of the improved patternation control, a narrow spectrum 2-photon
laser and the chromatic aberration compensator, is predicted to increase the effective
X-Y field of view to at least 200x200 μm and perhaps in excess of the target 250×250
μm whilst maintaining the lateral PSF dimension below 1μm. I am much less
confident about meeting the target of a 2 μm axial psf over a 250 μm focusing range.
It seems likely from results to date that it will only be possible to achieve a <4 μm
axial psf over this range. This is important because the functional imaging signal can
be contaminated by signals arising from surrounding extracellular tissue collectively
known as the neuropil 14, reducing the SNR (Gobel, Kampa et al. 2007). Nevertheless,
the first experimental optical functional imaging signals we have from the 80 μm Z
depth range are encouraging in this respect (Figure 5.25). These results show that
signals with the largest SNR arise from the large proximal dendrite close to the soma
14
Neuropil is made up of a high density of axons and dendrites from other neurons.
204
of pyramidal neurons in mouse cortex. This region, where the soma tapers into the
dendrite, is about 10 μm wide, large enough to completely surround even a 4 μm axial
psf. These results suggest that we can get results with the present psf without
contamination from the neuropil.
Our priorities now are to complete biological test results for publication, introduce
patternation control into the OFL algorithm, re-measure and fine tune the psf without
chromatic aberration compensation and then make first measurements of whether the
chromatic aberration compensation works as designed and improves the overall
microscope performance. Finally we will test the system, with and without chromatic
aberration control but with a narrower spectrum laser.
Patents, proposed new hybrid ‘3D Saccade scanning’
microscope and prospects for commercial exploitation
During the course of the work described in this thesis we have filed two patents
(Kirkby, Silver et al. 20.03.2008; Silver, Kirkby et al. 2009) The first, which has 60
diagrams, covers all the key ideas described in chapter 2 and 3 on the compact
configuration, AOD design and compensating for the chromatic aberration of AODs,
The second covers a concept we name as saccade scanning. It is worth outlining here
as it is aimed at combining the benefits of mechanical scanning with AOD pointing.
The idea is simply to combine a 3D AOD pointing mode system in series with
galvanometer and/or piston mirror mechanical scanning. The idea is to not just use
the AOD system to point in a steady direction but in each region of interest to control
the AOD 3D scan velocity to exactly compensate the movement of the mechanical
system for the duration of the data gathering time period TROI . Thus in each ROI the
3D AOD motion briefly cancels the 3D mechanical movement. In this way, a high
spatial sparsity SS can be achieved whilst benefitting from the larger low aberration
field of view of mechanical scan systems. We refer to such systems as saccade
scanning systems as they move from region of interest to region of interest in a series
of small jumps in a similar way to the way the eye saccade scans a scene. It is
possible that a high performance ‘Rolls Royce’ optical functional imaging system
based on the concepts of this Thesis would thus combine all the benefits of
mechanical scanning systems with those of the AOLM. In principle, assuming that
the piston mirror system could indeed be made to work with low losses and low
205
aberrations at 100Hz or higher, then such a saccade scanned system might well be
able to cover a volume of 500×500×500 μm and thus achieve high sparsity optical
functional imaging of up to 24000 neurons as indicated by the maximum number of
selectable neurons (NSN) for 3D saccade scanning on Figure 6.1. Unlike the hybrid
piston mirror 2D AOD system described in the previous section, the performance
would not drop off at high frame rate, but equal that of the AOLM up to the highest
speeds (i.e. follow the thick solid red line of Figure 6.1).
The filing of the Patents was funded by UCL business and there are plans to invite
selected commercial manufactures to demonstrate the system as soon as we are
confident that such a demonstration would properly represent the capabilities of the
technology. The technology we have developed still appears to have fundamental
advantages over all other known technologies for high speed 3D optical functional
imaging at high spatial sparsity, (see Chapter 1, ‘Temporal and spatial sparseness of
action potentials...’). If the target specification can be met, then there is every reason
to believe that there will be high demand for a 2-photon microscope with these
capabilities from the neuroscience community. We have already demonstrated many
of the key aspects of the design and the particular technologies we have chosen to
develop all seem reliable, reproducible and hence manufacturable. There are,
therefore, good prospects that the right company could make a success of developing
an optical functional imaging instrument based on this technology.
Potential for improving AOLM performance through the
further development of control electronics and algorithms
As described in chapter 4, the current prototype microscope pre-computes the
scanning and pointing mode data up to 20,000 miniscans before loading the data
records into the memory of the iDDS digital synthesiser that drives the AODs with the
correct radio frequency (RF) signals. At present these signals are limited to a
sequence of linear ramps with defined start frequency, duration and RF ramp rate.
Each AOD pair can therefore only act as a dynamic cylindrical lens. There are
several reasons why an upgrade to the control system will improve AOLM
performance. These include the following:
1. Increasing the bandwidth for uploading data between the computer and iDDS
memory will speed up use. If the computation and loading time can be made
206
shorter than an individual miniscan, then a system that adapts the scan
parameters in response to the image in real time can be made. This would
open up many new applications including automated tracking of active
neuronal signals and compensation for movement of live tissue etc. This latter
capability is likely to be very important at high spatial sparsity for in-vivo
imaging as pulsating blood vessels and breathing cause significant tissue
movement in live animals.
2. If the mathematical function describing RF frequency vs. time during a
miniscan can not only include the first order linear ramp rate term as today,
but also higher order, parabolic, cubic and sinusoidal etc. terms, then this
introduces the possibility of not only correcting lens and tissue induced
aberrations but also of making the spot scan in any direction in 3D, including
the axial direction. With linear ramps imaging in Z requires refocusing
between miniscans because the Z plane is fixed during any miniscan.
During 2008, two final year undergraduates, under the supervision of Dr John
Mitchell of UCL Electrical Engineering Department carried out a very successful
project to develop and demonstrate such a system based on Field Programmable Gate
Array (FPGA) technology. From October 2009 it is planned for a PhD project to
extend this work.
In conclusion, this thesis describes the design and development of an Acousto-Optic
Lens Microscope (AOLM) for optical functional imaging of live brain tissue from
initial conception through several stages of development. Each stage has involved
understanding key problems, inventing and implementing the solutions in a prototype
microscope, and evaluating the results. The performance of the microscope has
improved at each stage and is confidently expected to improve still further. The
results are promising, both in terms of 3D field of view, resolution of the point spread
functions across the field of view, and from the sub millisecond temporal resolution
for monitoring action potentials in our first optical functional imaging tests on mouse
cortex. Indeed, we are now not too far from our initial target performance of kHz
optical functional imaging over a 250μm cube of brain tissue and are significantly
ahead in several important respects of any published data. These results suggest that
our AOLM technology will be suitable for widespread use in the neurosciences and
that it will soon be time to seek partners for commercial exploitation.
207
References
Amos, W. B. and J. G. White (2003). "How the confocal laser scanning microscope
entered biological research." Biol Cell 95(6): 335-42.
Antic, S. and D. Zecevic (1995). " Optical signals from neurons with internally
applied voltage-sensitive dyes." Journal of Neuroscience 15: 1392–1405.
Attwell, D. and S. B. Laughlin (2001). "An energy budget for signaling in the grey
matter of the brain." J Cereb Blood Flow Metab 21(10): 1133-45.
Botcherby, E. J., R. Juskaitis, M. J. Booth and T. Wilson (2007). "Aberration-free
optical refocusing in high numerical aperture microscopy." Opt Lett 32(14):
2007-9.
Brecht, M., A. Roth and B. Sakmann (2003). "Dynamic receptive fields of
reconstructed pyramidal cells in layers 3 and 2 of rat somatosensory barrel
cortex." J Physiol 553(Pt 1): 243-65.
Brendon, O. W., N. Volodymyr and Y. Rafael (2009). "Two-photon imaging with
diffractive optical elements." Frontiers in Neural Circuits 3.
Brown, D. (2008). "Cambridge Technology Inc - Resonant scanners."
Brown, D. (2009). "OPTICS FOR SCANNING: Rapid scanning applications drive
mirror design." Laser Focus World Retrieved March, from
http://www.laserfocusworld.com/display_article/355405/12/none/none/Feat/O
PTICS-FOR-SCANNING.
Buzsaki, G. (2004). "Large-scale recording of neuronal ensembles." Nat Neurosci
7(5): 446-51.
Buzsaki, G. (2006 ). Rhythms of the Brain, Oxford University Press.
Cajal, R. (1911). Histologie du système nerveux de l'homme et des vertebrés. Paris,
Maloine.
Color, A. (2009). "Fluoroscein dyes." from
http://www.abbeycolor.com/fluorescein.php.
208
Crépel, V., D. Aronov, I. Jorquera, A. Represa, Y. Ben-Ari and R. Cossart (2007). "A
Parturition-Associated Nonsynaptic Coherent Activity Pattern in the
Developing Hippocampus." Neuron 54(1): 105-120.
Daw, N. D. and K. Doya (2006). "The computational neurobiology of learning and
reward." Curr Opin Neurobiol 16(2): 199-204.
Denk, W., D. W. Piston and W. W. Webb (1995). Two photon molecular excitation in
laser-scannning microscopy. Handbook of confocal microscopy. J. B. Pawley,
Plenum: 445-458.
Denk, W., J. H. Strickler and W. W. Webb (1990). "Two-photon laser scanning
fluorescence microscopy." Science 248(4951): 73-6.
DiGregorio, D. A., O. Negrete, A. Jeromin, H. B. Peng and J. L. Vergara (2000).
"Localization of action potentiual-induced presynaptic calcium domains to
active zones of a cultured neuromuscular junction." J Physiol (Lond) In Press.
DiGregorio, D. A. and R. A. Silver (2001). "High spatial and temporal resolution
measurements of action potential-induced presynaptic calcium transients in
central axon varicosities." IUPS Abstracts.
Edwards, F. A., A. Konnerth, B. Sakmann and T. Takahashi (1989). "A thin slice
preparation for patch clamp recordings from neurones of the mammalian
central nervous system." Pflugers Arch 414(5): 600-12.
Ferezou, I., S. Bolea and C. C. Petersen (2006). "Visualizing the cortical
representation of whisker touch: voltage-sensitive dye imaging in freely
moving mice." Neuron 50(4): 617-29.
Fukumoto, A., M. Kawabuchi and H. Hayami (1975). "Polarization Considerations in
the Operation of a Two-Dimensional TeO2 Abnormal Bragg Deflector." Appl.
Opt. 14(4): 812-813.
Gobel, W., B. M. Kampa and F. Helmchen (2007). "Imaging cellular network
dynamics in three dimensions using fast 3D laser scanning." Nat Methods
4(1): 73-9.
Gollisch, T. and M. Meister (2008). "Rapid neural coding in the retina with relative
spike latencies." Science 319(5866): 1108-11.
Goutzoulis, A. P., D. R. Pape and S. V. Kulakov (1994). Design and Fabrication of
Acousto Optic Devices, Marcel Dekker.
Hamill, O. P., A. Marty, E. Neher, B. Sakmann and F. J. Sigworth (1981). "Improved
patch-clamp techniques for high-resolution current recording from cells and
cell-free membrane patches." Pflugers Archiv. European Journal of
Physiology 391(2): 85-100.
Hecht, E. (2001). Optics, Addison-Wesley.
209
Helmchen, F. and W. Denk (2005). "Deep tissue two-photon microscopy." Nat
Methods 2(12): 932-40.
Higdon, P. D., P. Torok and T. Wilson (1999). "Imaging properties of high aperture
multiphoton fluorescence scanning optical microscopes." Journal of
Microscopy 193 Pt2: 127–141.
Higley, M. J. and B. L. Sabatini (2008). "Calcium signaling in dendrites and spines:
practical and functional considerations." Neuron 59(6): 902-13.
Hille, B. (2001). Ion channels of excitable membranes, Sinauer Associates,Inc.
Hopt, A. and E. Neher (2001). "Highly nonlinear photodamage in two-photon
fluorescence microscopy." Biophys J 80(4): 2029-36.
Huxter, J., N. Burgess and J. O'Keefe (2003). "Independent rate and temporal coding
in hippocampal pyramidal cells." Nature 425(6960): 828-32.
Iyer, V., T. M. Hoogland and P. Saggau (2006). "Fast functional imaging of single
neurons using random-access multiphoton (RAMP) microscopy." J
Neurophysiol 95(1): 535-45.
Iyer, V., B. E. Losavio and P. Saggau (2003). "Compensation of spatial and temporal
dispersion for acousto-optic multiphoton laser-scanning microscopy." J
Biomed Opt 8(3): 460-71.
Jeffery, K. J. (2007). "Integration of the sensory inputs to place cells: what, where,
why, and how?" Hippocampus 17(9): 775-85.
Jezzard, P. (2001). Functional MRI:an introduction to methods, Oxford University
Press.
Kaplan, A., N. Friedman and N. Davidson (2001). "Acousto-optic lens with very fast
focus scanning." Optics Letters 26(14): 1078-1080.
Keller, H. E. (1995). Objective lenses for confocal microscopy.
. Handbook of Biological Confocal Microscopy, Plenum Press, New York.: 111–126.
Kerr, J. N., C. P. de Kock, D. S. Greenberg, R. M. Bruno, B. Sakmann and F.
Helmchen (2007). "Spatial organization of neuronal population responses in
layer 2/3 of rat barrel cortex." J Neurosci 27(48): 13316-28.
Kerr, J. N. and W. Denk (2008). "Imaging in vivo: watching the brain in action." Nat
Rev Neurosci 9(3): 195-205.
Kerr, J. N., D. Greenberg and F. Helmchen (2005). "Imaging input and output of
neocortical networks in vivo." Proc Natl Acad Sci U S A 102(39): 14063-8.
Kirkby, P. A., R. A. Silver and K. M. N. S. Nadella. (20.03.2008). "IMAGING
APPARATUS AND METHODS." from http://www.wipo.int.
210
Koester, H. J., D. Baur, R. Uhl and S. W. Hell (1999). "Ca2+ fluorescence imaging
with pico- and femtosecond two-photon excitation: signal and photodamage."
Biophys J 77(4): 2226-36.
Kremer, Y., J. F. Leger, R. Lapole, N. Honnorat, Y. Candela, S. Dieudonne and L.
Bourdieu (2008). "A spatio-temporally compensated acousto-optic scanner for
two-photon microscopy providing large field of view." Opt Express 16(14):
10066-76.
Landau, H. J. (1967). "Sampling, data transmission, and the Nyquist rate
" Proceedings of the IEEE 55(10): 1701-1706.
Lev-Ram, V., H. Miyakawa, N. Lasser-Ross and W. N. Ross (1992). "Calcium
transients in cerebellar Purkinje neurons evoked by intracellular stimulation."
Journal of Neurophysiology 68: 1167-1177.
Levy, W. B. and R. A. Baxter (1996). "Energy efficient neural codes." Neural Comput
8(3): 531-43.
Margrie, T. W., M. Brecht and B. Sakmann (2002). "In vivo, low-resistance, wholecell recordings from neurons in the anaesthetized and awake mammalian
brain." Pflugers Arch 444(4): 491-8.
McLoed, R. "University of Colarado at Boulder." ECE5606 advanced Optics Lab
Tutorial, from
http://ecee.colorado.edu/~ecen5606/Lectures/Acoustooptics.pdf.
Montemurro, M. A., M. J. Rasch, Y. Murayama, N. K. Logothetis and S. Panzeri
(2008). "Phase-of-firing coding of natural visual stimuli in primary visual
cortex." Curr Biol 18(5): 375-80.
Nelson, D. A. and L. C. Katz (1995). "Emergence of functional circuits in ferret
visual cortex visualized by optical imaging." Neuron 15(1): 23-34.
Nicholls, J. G. (2001). From Neuron to Brain, Sinauer.
Nikolenko, V., B. O. Watson, R. Araya, A. Woodruff, D. S. Peterka and R. Yuste
(2008). "SLM microscopy: scanless two-photon imaging and photostimulation
using spatial light modulators." Frontiers in Neural Circuits 2.
Oheim, M., E. Beaurepaire, E. Chaigneau, J. Mertz and S. Charpak (2001). "Twophoton microscopy in brain tissue: parameters influencing the imaging depth."
J Neurosci Methods 111(1): 29-37.
Ohki, K., S. Chung, Y. H. Ch'ng, P. Kara and R. C. Reid (2005). "Functional imaging
with cellular resolution reveals precise micro-architecture in visual cortex."
Nature 433(7026): 597-603.
Oku, H., K. Hashimoto and M. Ishikawa (2004). "Variable-focus lens with 1-kHz
bandwidth." Optics Express 12: 2138 - 2149.
211
Olshausen, B. A. and D. J. Field (2004). "Sparse coding of sensory inputs." Curr Opin
Neurobiol 14(4): 481-7.
Otsu, Y., V. Bormuth, J. Wong, B. Mathieu, G. P. Dugue, A. Feltz and S. Dieudonne
(2008). "Optical monitoring of neuronal activity at high frame rate with a
digital random-access multiphoton (RAMP) microscope." J Neurosci Methods
173(2): 259-70.
Petersen, C. C., T. T. Hahn, M. Mehta, A. Grinvald and B. Sakmann (2003).
"Interaction of sensory responses with spontaneous depolarization in layer 2/3
barrel cortex." Proc Natl Acad Sci U S A 100(23): 13638-43.
Reddy, G., K. Kelleher, R. Fink and P. Saggau (2008). "Three-dimensional random
access multiphoton microscopy for functional imaging of neuronal activity."
Nat Neurosci 11(6): 713-720.
Reddy, G. D. and P. Saggau (2005). "Fast three-dimensional laser scanning scheme
using acousto-optic deflectors." J Biomed Opt 10(6): 064038.
Reddy, G. D. and P. Saggau (2007). "Development of a Random Access Multi-photon
Microscope for
Fast Three-Dimensional Functional Recording of Neuronal Activity." Proceedings of
SPIE 64430U-1 6443: 64430U-1 - 64430U-8
Rózsa, B., G. Katona, E. S. Vizi, Z. Várallyay, A. Sághy, L. Valenta, P. Maák, J.
Fekete, Á. Bányász and R. Szip?cs (2007). "Random access three-dimensional
two-photon microscopy." Appl. Opt. 46(10): 1860-1865.
Sabatini, B. L. and W. G. Regehr (1996). "Timing of neurotransmission at fast
synapses in the mammalian brain." Nature 384(6605): 170-2.
Sabatini, B. L. and W. G. Regehr (1999). "Timing of synaptic transmission." Annu
Rev Physiol 61: 521-42.
Salome, R., Y. Kremer, S. Dieudonne, J. F. Leger, O. Krichevsky, C. Wyart, D.
Chatenay and L. Bourdieu (2006). "Ultrafast random-access scanning in twophoton microscopy using acousto-optic deflectors." J Neurosci Methods
154(1-2): 161-74.
Sato, T. R., N. W. Gray, Z. F. Mainen and K. Svoboda (2007). "The Functional
Microarchitecture of the Mouse Barrel Cortex." PLoS Biol 5(7): e189.
Silver, R. A. (2004). Proposal to EPSRC to develop high speed 3D 2- photon
microscope. from
http://gow.epsrc.ac.uk/ViewGrant.aspx?GrantRef=EP/D501199/1
Silver, R. A., P. A. Kirkby, K. NADELLA, M., N, Srinivas and M. SZULCZEWSKI.
(2009). "Optical Beam methods and apparatus." from http://www.wipo.int.
212
Stosiek, C., O. Garaschuk, K. Holthoff and A. Konnerth (2003). "In vivo two-photon
calcium imaging of neuronal networks." Proc Natl Acad Sci U S A 100(12):
7319-24.
Tsutsui, H., S. Karasawa, Y. Okamura and A. Miyawaki (2008). " Improving
membrane voltage measurements using FRET with new fluorescent proteins."
Nature Methods 8: 683-5.
Uchida, N. and Y. Ohmachi (1969). "Elastic and Photoelastic Properties of TeO[sub
2] Single Crystal." Journal of Applied Physics 40(12): 4692-4695.
Vinje, W. E. and J. L. Gallant (2000). "Sparse coding and decorrelation in primary
visual cortex during natural vision." Science 287(5456): 1273-6.
Vucinic, D. and T. J. Sejnowski (2007). "A compact multiphoton 3D imaging system
for recording fast neuronal activity." PLoS ONE 2(1): e699.
Warner, A. W., D. L. White and W. A. Bonner (1972). "Acousto-optic light deflectors
using optical activity in paratellurite." Journal of Applied Physics 43(11):
4489-4495.
White, J. G., W. B. Amos and M. Fordham (1987). "An evaluation of confocal versus
conventional imaging of biological structures by fluorescence light
microscopy." J Cell Biol 105(1): 41-8.
Wilson, T. (1990). Confocal Microscopy, Academic Press.
Wilson, T. and A. R. Carlini (1984). "Three-dimensional imaging in confocal imaging
systems with finite sized detectors." Journal of microscopy
Wilson, T. and A. R. Carlini (1987). Optics Letters 12: 227.
Xu, J. and R. Stroud (1992). Acousto-Optic Devices, Principles, Design and
Applications, John Wiley and Sons Inc.
Yaksi, E. and R. W. Friedrich (2006). "Reconstruction of firing rate changes across
neuronal populations by temporally deconvolved Ca2+ imaging." Nat
Methods 3(5): 377-83.
Yano, T., M. Kawabuchi, A. Fukumoto and A. Watanabe (1975). "TeO[sub 2]
anisotropic Bragg light deflector without midband degeneracy." Applied
Physics Letters 26(12): 689-691.
Yano, T. and A. Watanabe (1974). "Acousto-optic figure of merit of TeO[sub 2] for
circularly polarized light." Journal of Applied Physics 45(3): 1243-1245.
Young, E. H., H. C. Ho and L. J. Harrison (1990). "Optically rotated long time
aperture TeO2 Bragg cell " SPIE Proceedings 1296(Advances in Optical
Information Processing IV ): 304-315.
213
Zhu, L., P. C. Sun and Y. Fainman (1999). "Aberration-free dynamic focusing with a
multichannel micromachined membrane deformable mirror." Appl Opt
38(25): 5350-4.
Zipfel, W. R., R. M. Williams and W. W. Webb (2003). "Nonlinear magic:
multiphoton microscopy in the biosciences." Nat Biotechnol 21(11): 1369-77.
214
