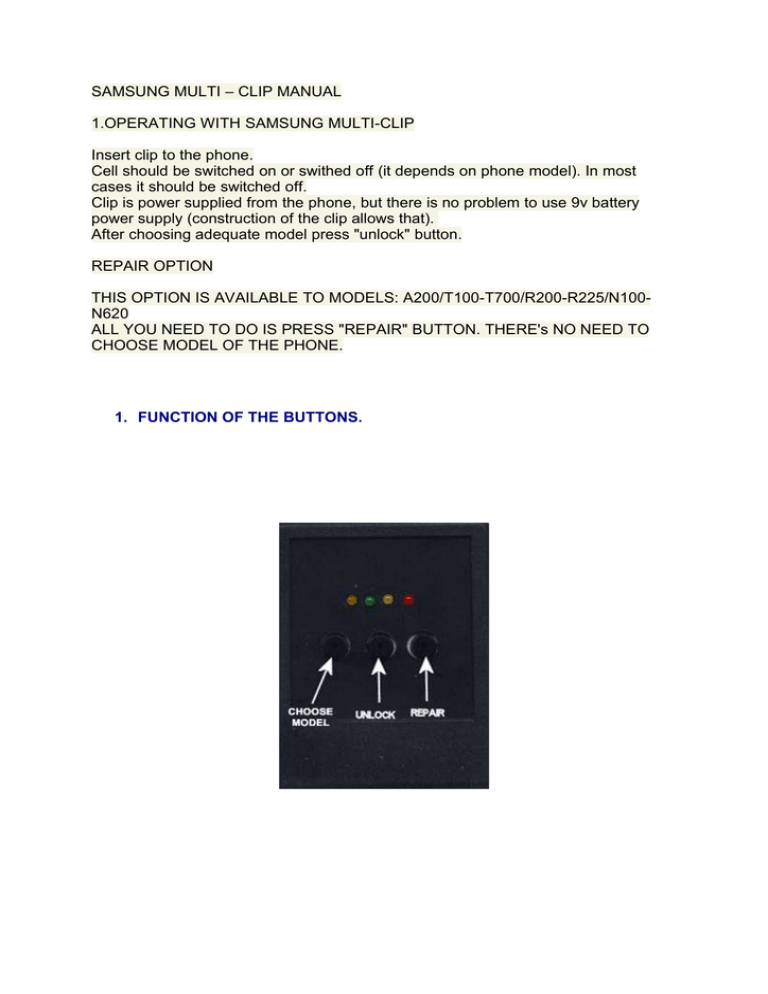

SAMSUNG MULTI – CLIP MANUAL
1.OPERATING WITH SAMSUNG MULTI-CLIP
Insert clip to the phone.
Cell should be switched on or swithed off (it depends on phone model). In most
cases it should be switched off.
Clip is power supplied from the phone, but there is no problem to use 9v battery
power supply (construction of the clip allows that).
After choosing adequate model press "unlock" button.
REPAIR OPTION
THIS OPTION IS AVAILABLE TO MODELS: A200/T100-T700/R200-R225/N100N620
ALL YOU NEED TO DO IS PRESS "REPAIR" BUTTON. THERE's NO NEED TO
CHOOSE MODEL OF THE PHONE.
1. FUNCTION OF THE BUTTONS.
2. CHOOSING MODEL
Press button “choose model” several times. Observe following situations.
If no diode is shining, You choose models :
Q100,Q105,Q108,Q200,Q205
Q208,Q300,Q305,Q308
If diode nr1 ( orange) is shining, You choose
models:
V100,V200,V205,V208
S100-S300
If diode nr2 ( green) is shining, You choose
model:
A800
If diode nr3 ( yellow) is shining, You choose
models:
A100, A300, A400, M100
If diode nr4 ( red ) is shining, You choose
models:
A200
T100-T700
R200-R225
N100-N620
If all diodes are shining, You choose model
C100
