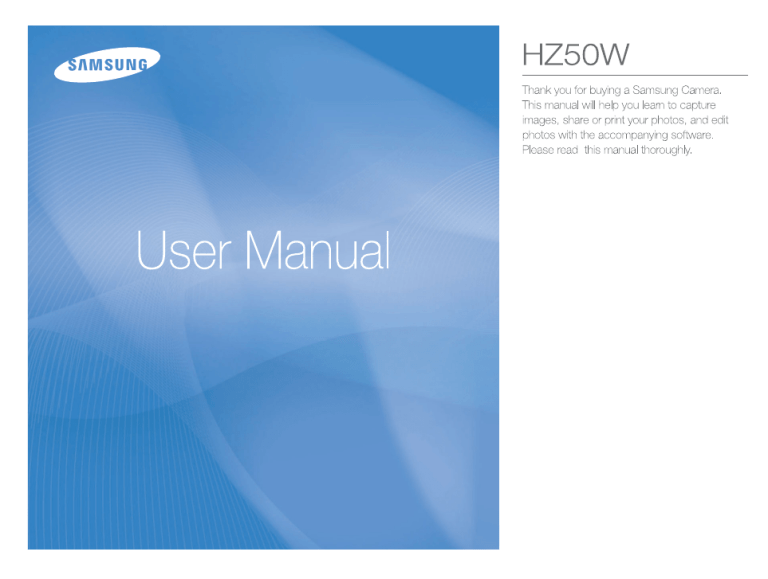

Samsung SAMSUNG HZ50W, 14MP User's manual

Samsung SAMSUNG HZ50W, 14MP User's manual
Instructions
Getting to Know your camera
Use this camera in the following order.
Thank you for buying a Samsung Digital Camera.
Setting up the application
software
Take a picture
Insert the USB cable
To use this camera with a PC, install
the application software first. After
you have done this, you can move
the stored images in the camera to
you PC and can edit them using an
image editing program.
Take a picture. (p.22)
Insert the supplied USB cable
into the PC’s USB port and the
camera’s USB connection
terminal. (p.108)
Check the camera's power
Check the camera’s power. If the
power is turned off, press the
power button to turn it on.
Check [Removable Disk]
Open Windows’s EXPLORER
and search for [Removable Disk].
(p.109)
Prior to using this camera, please read the user manual thoroughly.
If you require After Sales service, please bring the camera and the cause of
the camera malfunction (such as battery, Memory card etc.) to the A/S center.
Please check that the camera is operating properly prior to when
you intend to use it (e.g. for a trip or an important event) to avoid
disappointment. Samsung takes no responsibility for any loss or
damage that may result from camera malfunction.
Keep this manual in a safe place.
If you use a card reader to copy the images on the memory card to
your PC, the images could be damaged. When transferring the
images taken with the camera to your PC, be sure to use the
supplied USB cable to connect the camera to your PC. Please note
that the manufacturer holds no responsibility for loss or damage of
images on the memory card due to the use of a card reader.
The contents and illustrations of this manual are subject to change
without prior notice for upgrading the camera functions.
Ä Microsoft, Windows and Windows logo are registered trademarks
of Microsoft Corporation incorporated in the United States and/or
other countries.
Ä Adobe and Reader are either trademarks or registered
trademarks in the United States and/or other countries.
Ä All brand and product names appearing in this manual are
registered trademarks of their respective companies.
Ä For Open Source License information, refer to the “OpenSourceInfo.pdf”
in the provided CD-ROM.
Ä HDMI, the HDMI logo and the term
“High Definition Multimedia Interface”
are trademarks or registered trademarks
of HDMI Licencing LLC.
001
Danger
Warning
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Do not attempt to modify this camera in any way. To do so may
result in fire, injury, electric shock, or severe damage to you or your
camera. Internal inspection, maintenance, and repairs should only
be carried out by your dealer or Samsung Camera Service center.
Please do not use this product in close proximity to flammable or
explosive gases, as this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do
not use it. Switch off the camera, and then disconnect the power
source. You must contact your dealer or Samsung Camera Service
center. Do not continue to use the camera as this may cause a fire
or electric shock.
Do not insert or drop metallic or inflammable foreign objects into
the camera through access points e.g. the memory card slot and
battery chamber. This may cause a fire or electric shock.
Do not operate this camera with wet hands. This could pose a risk
of electric shock.
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may cause
eyesight damage.
For safety reasons, keep this product and its accessories out of
reach of children or animals to prevent accidents e.g.:
- Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving parts.
The battery and camera may become hot during prolonged use
and it may result in camera malfunction. If this occurs, allow the
camera to sit idle for a few minutes to allow it time to cool.
Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places
of extremes in temperature. Exposure to extreme
temperatures may adversely affect the camera’s internal
components and could cause a fire.
When in use, do not cover the camera or Charger. This may cause
heat to build up and distort the camera body or cause a fire. Always
use the camera and its accessories in a well-ventilated area.
002
Caution
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Leaking, overheating, or damaged battery could result in fire or injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera for a
long period of time. Otherwise the battery may leak corrosive
electrolyte and permanently damage the camera’s components.
Do not fire the flash while it is in contact with hands or objects. Do
not touch the flash after using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using
the AC adapter. After use, always switch off the camera before
unplugging the cable from the wall socket. Then make sure that
any connector cords or cables to other devices are disconnected
before moving the camera. Failure to do so may damage the cords
or cables and cause a fire or electric shock.
Take care not to touch the lens or lens cover to avoid taking an
unclear image and possibly causing camera malfunction.
Avoid obstructing the lens or the flash when you capture an image.
When using this camera in low temperatures, you may experience
the following. These are not camera malfunctions. The camera
usually recovers at normal temperatures.
- It takes longer to turn on the LCD screen and the color may differ
from the subject.
- After changing to a different subject or scene, there may be an
after image on the LCD screen.
Credit cards may be demagnetized if left near case. Avoid leaving
magnetic strip cards near the case.
Never connect the 20 pin connector to the USB port of a PC. This
carries a high risk of computer malfunction.
Contents
READY
007
Package Contents
Sold Separately
008
Identification of features
008
009
011
011
012
012
012
Front & Top
Back
Bottom
Smart dial
Self-timer lamp
Camera Status Lamp
Mode icon
013
016
017
RECORDING
System chart
007
007
019
020
021
Connecting to a Power Source
Inserting the memory card
Instructions on how to use the memory
card
When using the camera for the first time
LCD screen indicator
How to use the menu
022
Starting the recording mode
022
023
024
024
025
025
026
026
027
Selecting modes
How to use the Smart Auto mode
How to use the Program mode
How to use the Aperture. Shutter Priority
mode
How to use the Manual mode
How to use the User Setting shooting
mode
How to use the Nightscene modes
How to use the Beauty Shot mode
How to use the Scene modes
003
Contents
028
029
029
How to use the Movie clip mode
Recording HD (High Definition) movie clips
Recording a movie clip without sound
030
Things to Watch Out for When Taking
Pictures
Focus lock
Using the camera buttons to control the camera
POWER button
SHUTTER button
Zoom W/T Lever
Diopter adjustment lever
AEL/Image protection button
Flash pop-up button
Exposure compensation button
EVF/LCD button
MENU button
OK/AF point button
Info (DISP) / Up button
Macro / Down button
Flash / Left button
Self-timer / Right button
Shooting
031
031
031
032
032
034
034
034
035
035
036
037
037
038
041
043
044
045
046
048
048
049
004
How to Enable Functions Using the MENU
Button
White balance
Fine-tuning the white balance
ISO
Face Detection
052
053
053
053
054
054
055
055
056
056
057
057
058
059
060
061
061
062
063
063
064
064
064
SETUP
065
065
065
065
065
065
065
066
Smart FR Edit
Face Tone
Face Retouch
Photo Size / Movie Size
Quality / Frame rate
Smart Range
Metering
Drive mode
Setting AEB Exposure Ranges (AEB Area)
Auto Focus type
Flash Intensity
Photo Style Selector
Smart Filter
Image Adjust
Image Stabilization
Key mapping
Voice Memo
Voice Recording
Setting audio for movie recording
Setting user mode
Distortion compensation
Movie clip frame stabiliser
Smart Scene Detection
Sound menu
Sound
Volume
Beep Sound
Shutter sound
Start up sound
AF sound
Setup menu
Contents
066
066
066
066
067
067
067
068
068
068
068
069
069
069
070
070
071
071
072
073
073
PLAY
074
074
074
075
075
075
075
076
077
Display
Setting the Grid Line
Function Description
Start up image
Display Bright
Quick view
Display Save
Settings
Formatting memory
Initialization
Language
Setting up the Date / Time / Date type
Time Zone
File name
Imprinting the recording date
Auto power off
Auto Focus lamp
Anynet+ (HDMI-CEC)
HDMI Size
Selecting Video out type
Setting the USB
Starting play mode
Playing back a still image
Playing back a movie clip
Movie clip capture function
On camera movie trimming
Playing back a recorded voice file
Playing back a voice memo
LCD screen Indicator
Using the camera buttons to set the camera
077
077
077
080
080
081
081
082
083
084
084
085
085
086
087
089
089
089
090
090
091
091
091
091
092
093
093
Play mode button
Thumbnail / Digital Zoom Lever
Smart Album
Info (DISP) / Up button
Play & Pause / OK button
Left / Right / Down / MENU button
Delete button
Setting the play back function using the
LCD monitor
Setting the playback PictBridge functions
using the LCD screen
Edit
Resize
Rotating an image
Photo Style Selector
Smart Filter
Image Adjust
View
Starting the Multi Slide Show
Start the Multi Slide Show
Selecting Images
Setting play interval
Setting Background Music
Configure Multi Slide show effects
File Options
Deleting images
Protecting images
Face List Edit
Voice memo
005
Contents
094
096
097
098
098
099
099
101
102
104
SOFTWARE 107
107
111
111
113
114
115
115
116
006
DPOF
Copy To Card
PictBridge
PictBridge : Picture Selection
PictBridge : Print Setting
PictBridge : Reset
Important notes
Warning indicator
Before contacting a service center
Specifications
Transferring files to your Windows computer
For Windows users
Transferring files to your Mac computer
For Mac users
Using the Samsung RAW Converter
Correcting the exposure
Editing JPEG/TIFF files the same as RAW
files
Saving the RAW files into JPEG or TIFF
format
FAQ
System chart
Please make sure your package contains the contents listed below before using this product. The contents can vary depending on the sales
region. To buy the optional equipment listed under Sold Separately, contact your nearest Samsung dealer or Samsung service center. The
appearance of the parts and accessories in your package may differ from the illustrations below.
Package Contents
Camera
Rechargeable battery
4302-001226
AC adapter / USB cable
AD44-00143A / AD39-00183A
Lens cap / Lens cap strap (see p.10)
AD67-01588A / AD63-04527A
Software CD
(User manual included)
AD46-00343A
Quick Start Manual
AD68-05244A
AV cable
AD39-00146A
Battery charger
AD44-00164A
Neck strap (see p.10)
AD63-04525A
Sold Separately
SD/SDHC memory card
(see p.16)
HDMI cable
AD39-00179A
007
Identification of features
Front & Top
Zoom T Lever
(Digital zoom)
Shutter button
Zoom W Lever (Thumbnail)
Built-in flash (p.34)
AF Lamp/
Self-timer lamp
Microphone
Flash pop-up button
(p.34)
Diopter adjustment lever (p.34)
Hook for neck strap (p.10)
Speaker
HDMI port
Lens
008
USB and A/V port
Identification of features
Back
Mode Dial
POWER button
Electronic View finder (EVF)
(p.36)
LCD screen
Video shooting button
EVF/LCD button
(p.35)
MENU button
Play mode button
Smart dial (p.11)
Hook for neck strap
AE lock/image protection
button (p.34)
Exposure compensation
button (p.35)
OK/AF point button
(p.37)
Fn / Delete button
009
Identification of features
Ŷ Attaching the neck strap
Attach the neck strap as shown below.
Ŷ Attaching a lens cap to the camera
1. Insert the lens cap string into the
hole in the lens cap.
2. Attach the lens cap to the neck
strap.
Ensure that the neck strap is attached correctly or the camera may
fall.
3. Attach the lens cap as shown in
the image.
010
Identification of features
Bottom
Smart dial
Ŷ When pressing the Smart Dial
• Move UP/DOWN /LEFT/RIGHT
• Execute options in the shooting mode:
c Change the display
d Change the timer option
e Change the close-up shooting option
f Change the flash option
Battery chamber
cover lever
Tripod socket
Push the battery chamber cover lever in the direction of the arrow to
open the battery chamber cover.
Battery chamber
Memory card slot
Battery chamber cover
Ŷ When turning the Smart Dial
• Move option or menu
• Adjust the shutter speed, aperture value,
exposure value and set the automatic exposure bracketing (AEB) area in the shooting
mode.
• Search files in the playback mode.
Battery holder
011
Identification of features
Self-timer lamp
Icon
Mode icon
Status
Description
- For the first 8 seconds, the lamp blinks at 1 second
intervals.
Blinking
- For the final 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Blinking
For the 2 seconds, the lamp blinks quickly at
0.25-second intervals.
A picture will be taken after about 10 seconds and 2
Blinking
seconds later a second picture will be taken.
Status
After taking a picture
MODE
Description
The lamp turns on and off when the camera
is ready to take a picture.
The lamp blinks while saving the image data and
turns off when the camera is ready to take a picture.
MODE
The lamp lights up.
(LCD screen turns off after initializing the device.)
MODE
MODE
ICON
When the AF activates
012
The lamp turns on.
(The camera focus on the subject.)
The lamp blinks.
(The camera doesn’t focus on the subject.)
Manual
User
Night
Beauty Shot
Scene
Movie
SCENE
Frame Guide
Portrait
Children
Landscape
Close Up
Text
Sunset
Dawn
Backlight
Fireworks
Beach & Snow
ICON
Transmitting Data with a PC The lamp blinks. (LCD screen turns off.)
When the printer is printing The lamp blinks.
Aperture. Shutter
Priority
ICON
When the USB cable is
inserted into a printer
The lamp blinks.
Program
ICON
When flash battery is charging The lamp blinks.
When the USB cable is
inserted to a PC
Smart Auto
ICON
MODE
Camera Status Lamp
Power on
Refer to page 22 for more information about the camera mode setting.
MODE
ICON
Connecting to a Power Source
You should use the rechargeable battery SLB-11A supplied with the
camera. Be sure to charge the battery before using the camera.
SLB-11A rechargeable battery Specification
Model
SLB-11A
Type
Lithium lon
Capacity
1130mAh
Voltage
3.8V
Charging time
Approximately 200 Minutes
Number of images and battery life: Using the SLB-11A
Battery life /
Number of images
Conditions
Using the fully charged battery,
Default settings, Program mode,
Shot to shot interval: 30Sec.
Approx. 120 MIN / Changing the zoom position between
Still image
Approx. 240 shots the Wide and the Tele after every shot.
Using the flash on every second shot.
Using the camera for 5 minutes and
then powering it off for 1 minute.
Movie
Using the fully charged battery
Approx. 120 MIN 640x480 image size
30fps frame rate
Important information about battery usage.
When camera is not in use, turn off the power.
Please remove the battery if the camera will not be used
for long periods. Batteries can lose power over time and are
prone to leaking if kept inside the camera.
Low temperatures (below 0°C) can affect the performance of
the battery and you may experience reduced battery life.
Batteries will usually recover at normal temperatures.
During extended use of the camera, the camera body may
become warm. This is perfectly normal.
Ŷ Using the AC Adaptor and USB Cable.
- When you connect the USB cable
to the AC Adaptor, you can use the
combination to power your camera or
to charge the battery.
- When you use the USB cable without
the AC Adapter, you can attach it to
the USB port on a PC and download
stored images to the PC or use the
connection to supply power to the
camera.
Ä These gures were measured under Samsung’s standard shooting
conditions. Your results may differ.
013
Connecting to a Power Source
Important information about USB cable usage.
Use a USB cable with the correct speci cation.
Do not connect the camera to a PC through a USB hub.
Connect the camera directly to the PC.
Do not connect the camera and other devices to a PC at the
same time. Connect the camera by itself.
If your PC can not detect the camera when you use the front
side USB port, use the back side USB port of computer.
If the USB port of the PC doesn’t meet the Power output standard
(5V, 500mA), the battery may not charge.
Before inserting any cables or the AC adapter, make sure the
direction of the cable or adapter plug is correct. Do not insert
by force. It may cause breakage of cable or camera.
If the charging LED of the AC Charger does not turn on or blink
after you have inserted the rechargeable battery, please make
sure the battery is inserted correctly.
If you charge the battery with the camera power on, the battery
won’t be fully charged. Turn the camera off while charging the
battery to get a full charge.
Charging LED of the AC charger
Charging LED
How to charge the rechargeable battery
Being Charged
Red LED is on
Charging is complete
Green LED is on
Charging error
Orange LED is off or blinking
If you insert a fully discharged battery to charge it, do not turn on
the camera at the same time. The camera must not be turned on
because of the low battery capacity. Charge the battery for more
than 10 minutes before using the camera.
Do not use the flash frequently or take a movie clip with the fully
discharged battery charged only for a short time. Even if the
charger is inserted, the camera power may turn off because the
rechargeable battery has discharged again.
014
Connecting to a Power Source
When using the battery, please follow these guidelines. Failure
to do so may cause excessive heat, fire, or explosion.
Ɣ If the battery is bulging or distorted, contact a Samsung service
center. It may present a physical danger.
Ɣ Use only the recommended battery charger.
Ɣ Do not place the product close to a fire or any high temperature
source.
Ɣ Do not insert the product into the microwave oven.
Ɣ Do not leave the product inside a car during the summer.
Ɣ Do not place the product in a hot, humid environment.
Ɣ Do not place the camera on a carpet, comforter, or electronic
mattress for a long time.
Ɣ Do not leave the product turned on where there is little or no air
circulation.
Ɣ Do not let accessories like necklaces, coins, keys, watches, etc.,
come in contact with the battery chamber.
Ɣ Use Advanced Lithium Batteries with a guarantee from the
manufacturing company.
Ɣ Do not disassemble the battery or perforate the battery with a
sharp pin.
Ɣ Do not subject the battery or camera to high pressure.
Ɣ Do not drop or strike the camera or battery, or subject either to
rough handling or sudden shocks.
Ɣ Do not exposure the battery or camera to the temperatures over
60°C (140°F) degree.
Ɣ Do not exposure the camera or battery to water or high humidity.
Ɣ Do not expose the battery to sources of excessive heat such as
sunshine, fire, or the like.
Guidelines for disposal
Ɣ Do not throw away batteries that no longer charge.
Ɣ Do not dispose of a battery by throwing it in a fire.
Ɣ Dispose of the battery according to the envronmental laws of
your country, state, or area.
Guideline for recharging a battery
Ɣ Do not recharge the battery using a method that differs from the
method detailed in this users manual. Failure to follow these
instruction may cause a re or explosion.
015
Connecting to a Power Source
Inserting the memory card
Insert the battery as shown
Insert the memory card as shown.
- If the camera does not turn on after you have inserted battery,
please check whether the battery (+ / -) direction is right.
- When opening the battery chamber cover, do not force it.
You may damage it.
- Turn off the camera’s power before inserting the memory card.
- Have the front label of the memory card facing toward the front
of the camera (Lens) and the card pins toward the back of the
camera (LCD screen).
- Do not insert the memory card the wrong way round.
Doing so may damage the memory card slot.
There are 4 battery status indicators displayed on the LCD screen.
Battery
indicator
Battery
status
The battery is
fully charged
Low battery
Low battery
Battery empty.
capacity
capacity
(Recharge or
(Prepare to
(Prepare to
use spare batrecharge or use recharge or use
tery)
spare battery) spare battery)
Ä When using the camera and the battery in a place that is excessively cold or hot,
the battery status on the LCD may be different from the actual battery status.
016
Instructions on how to use the memory card
Be sure to format the memory card (see p.68) if you are using a
newly purchased memory card for the first time, if it contains data
that the camera cannot recognize, or if it contains images captured
with a different camera.
Turn off the camera power whenever the memory card is being
inserted or removed.
Repeated use of the memory card will eventually reduce the
memory card’s performance. Should this be the case, you will need
to purchase a new memory card. Wear and tear on the memory
card is not covered by the Samsung warranty.
The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to harsh impacts
Do not store the memory card in an environment with strong
electronic or magnetic fields, e.g. near loud speakers or TV receivers.
Please do not use or store in an environment where there are
extremes in temperature.
Do not allow the memory card to become dirty or to come into
contact with any liquid. Should this happen, clean the memory card
with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the
memory card is warm. This is perfectly normal.
Do not use a memory card that was used in another digital camera.
If you must use such a card, format it using this camera.
Do not use a memory card formatted by another digital camera or
memory card reader.
If the memory card is subjected to any of the following, the recorded
data may become corrupted :
- The memory card is used incorrectly.
- The power is switched off or the memory card is removed while
recording, deleting (formatting) or reading.
Samsung cannot be held responsible for lost data.
It is advisable to copy important data onto other media as back-up
e.g. hard disks, CD etc.
If there is insufficient memory available :
A [Memory Full] message will appear and the camera will not
operate. To optimize the amount of memory in the camera, replace
the memory card or delete unnecessary images stored on the
memory card.
Don't remove the memory card when the camera status lamp is
blinking as this may cause damage to data in the memory card.
017
Instructions on how to use the memory card
The camera can use SD/SDHC Memory Cards.
Card pins
The specified shooting capacities of a 16GB SD Memory Card are
listed below. These figures are approximate. Image capacities can be
affected by variables such as subject matter and memory card type.
Recorded
image size
Write protect switch
Label
Still
[SD (Secure Digital) memory card]
The SD/SDHC memory card has a write protect switch that prevents
image files from being deleted or formatted. When you slide the
switch towards the bottom of the SD/SDHC memory card, the data
is protected. When you slide the switch towards the top of the
SD/SDHC memory card, the data protection will be cancelled.
Slide the switch towards the top of the SD/SDHC memory card
before taking a picture.
29
33
116
191
285
-
-
131
215
321
-
-
154
252
375
-
-
199
324
479
-
-
311
502
733
-
-
487
779
1113
-
-
716
1113
1558
-
-
1640
2397
3116
Recorded
image size
Movie
clip
-
12'58''
25'18''
-
41'31''
01:38'30''
01:29'48''
02:38'14''
03:23'03''
Total recording time can be impacted by how often you use the
zoom. Note that the Zoom W/T lever does not function while the
camcorder is recording a video. It does function before and after.
Several videos were recorded in succession to determine the total
recording time.
018
When using the camera for the first time
Charge the rechargeable battery fully before using the camera for
the first time.
When the camera is turned on for the first time, a menu will be
displayed on the LCD screen to set date, time, time zone, and
language. This menu will not be displayed again after you set up
the date, time, time zone, and language. Set up the date, time,
time zone, and language before using this camera.
2. Select the desired sub menu by
pressing the Up/Down button, and then
press the OK button.
1. Select the [Date&Time] menu by
pressing the Up/Down button, and then
press the Right button.
2. Select the desired sub menu by
pressing the Up/Down/Left/Right
button, and then press the OK button.
Language
:English
Time Zone
:London
Date & Time
:2010/03/01
yyyy mm dd
2010/ 03 / 01
Back
13:00
Off
Set
Left/Right button : Selects world time/year/month/day/hour/
minute/date type.
Up/Down button : Changes the value of each item.
Setting up the language
1. Select the [Language] menu by
pressing the Up/Down button, and then
press Right button.
Setting up the date, time, and date type
Language
Time Zone
:English
English
:London
Date & Time
:08/12/01
Français
Deutsch
Español
Italiano
Back
Set
Setting up the Time Zone
1. Select the [Time Zone] menu by
pressing the Up/Down button, and then
press the Right button.
2. Press the Left/Right button to select the
desired mode.
Time Zone
London
[GMT +00:00]
Back
2010/03/01
01:00 PM
DST
Ä For more information about the World Time, refer to the page 69.
019
LCD screen indicator
No.
6
7
8
9
10
11
The LCD screen displays information about the shooting
functions and selections.
Description
Icons
Page
Battery
p. 16
Flash
p. 41
Self-timer
p. 43
Macro
p. 38
Smart Range
p. 54
Photo Style Selector
p. 57
12 Face Detection / Smart Filter
[Image & Full Status]
No.
Description
1
Recording mode
p. 22
2
Optical / Digital Zoom bar
/ Digital Zoom rate
p. 33
3
Voice Memo
p. 61
Number of available shots
remaining
Remaining time
Memory card icon /
5
Internal memory icon
4
020
Icons
Page
13
Camera Shake Compensation /
Without Sound
14
15
16
17
18
19
Date / Time
p. 60/63
p. 69
2010/03/01 PM 01:00
Camera Shake Warning
p. 30
Auto Focus Frame
Auto Focus type
p. 56
Drive mode
p. 55
Metering
p. 55
20
Image Quality /
Frame Rate
p. 54
21
Photo Size / Movie Size
22
p. 56
p. 53
/
ISO / Face Retouch
23 White Balance / Face Tone
p. 18
24
00:00:00
p. 18
Flash EVC
25
26 Locking the Exposure/Locking the Focus
Histogram
27
p. 48/53
p. 46/53
/
p. 24-25/
35
p. 57
Aperture Value/Shutter Speed/
Exposure compensation
00001
-
p. 49/58
/
p. 61
p. 38
How to use the menu
1. Turn on the camera, and then press the MENU button. A menu for each camera mode appears.
White Balance
Shooting
WB Fine-tuning
ISO
Sound
Display
Settings
Face Detection
Smart FR Edit
Photo Size
Quality
Exit
Change
2. Use the up or down button to navigate through the menus.
White Balance
Shooting
WB Fine-tuning
ISO
Sound
Display
Settings
Face Detection
Press the
Up or Down
button.
Volume
Shooting
Sound
Display
Smart FR Edit
Beep Sound
Shutter Sound
Start Sound
Press the
Up or Down
button.
Sound
Display
AF Sound
Settings
Settings
Photo Size
Grid Line
Shooting
Function Description
Start Image
Display Brightness
Quick View
Power Save
Voice
Quality
Exit
Exit
Change
Exit
Change
Change
3. Use the left or right button to select a sub menu.
Volume
Shooting
Sound
Display
Beep Sound
Shutter Sound
Start Sound
AF Sound
Press the
Left or Right
button.
Volume
:Medium
Beep Sound
:1
Shutter Sound
:1
Start Sound
:Off
AF Sound
:On
Press the
Left or Right
button.
Volume
Off :Medium
Beep Sound
Low:1
Shutter Sound
Medium
:1
Start Sound
High
:Off
AF Sound
:On
Settings
Exit
Change
Exit
Back
Back
Set
4. Select a submenu, and then click the OK button to save settings and return to the previous window.
021
Starting the recording mode
Selecting modes
Ŷ Shooting modes
You can select the shooting modes by using the mode dial on the upper
right side of your camera.
Smart Auto
In Smart Auto mode, the camera
automatically chooses camera settings
based on the type of scene it detects.
How to use the mode dial
Program
The camcorder sets the aperture
and shutter speed.
Aperture. Shutter
Priority
Lets you set the aperture values or
shutter speed manually.
Manual
Lets you set various shooting options,
including the shutter speed and the
aperture values, manually.
User
Lets you preset frequently used
shooting options.
Night
Sets the camcorder for recording at
night or in poor lighting conditions.
Beauty Shot
Lets you clear or retouch the facial
imperfections of a subject.
Scene
Lets you select a scene mode with
settings optimized for a given scene.
Movie
To record movies.
Select the shooting mode by turning the mode dial to the selection
point.
Manual
Aperture. Shutter Priority
User1
Program
Select point
Smart Auto
User2
Movie
Night
Beauty Shot
022
Scene
Starting the recording mode
How to use the Smart Auto mode (
)
In Smart Auto mode, the camera automatically chooses the appropriate
camera settings based on the type of scene (Night, Land-scape, etc.) it
detects. Use Smart Auto mode if you are unfamiliar with the camera’s
settings and functions. Note that you can still manually configure all
functions except the aperture value and shutter speed.
1. Select Smart Auto mode using the
Mode dial. (p.22)
2. Point the camera towards the subject
and compose the image using the LCD
screen.
3. Press the Shutter button to capture an
image.
If the camera does not recognize a proper scene mode, it uses
the default settings.
Even if it detects a face, the camera may not select a portrait
The camera recognizes scenes under the following conditions;
[Landscape]
(
) : When shooting outdoor scenes
[White]
(
) : When shooting a white background
[Nights]
(
) : When shooting nighttime scenes
[Night Portrait]
(
) : When shooting portraits or people in a
dark outdoor place
[Backlight]
(
) : When shooting backlit scenery without a
portrait
[Backlight Portrait] (
) : When shooting a backlit portrait
[Portrait]
(
) : When shooting a portrait
[Macro]
(
) : When shooting close-ups
[Macro Text]
(
) : When shooting text close up
[Tripod]
(
) : When shooting a subject that doesn’t
move when the camera is mounted on a
tripod (available only when the camera
recognizes it as nighttime)
[Action]
(
) : When shooting a subject making
frequent movements
[Sunset]
(
) : When shooting a sunset
[Blue Sky]
(
) : When shooting blue sky
mode depending on the subject’s position or lighting.
The camera may not select the correct scene depending on
shooting conditions, such as camera shake, lighting, and distance
to the subject.
The camera recognizes [Night] mode scenes only when the flash
is set to off. The camera implements [Tripod] mode after checking
the shooting conditions for a period of time.
Despite being on a tripod, the camera may not select a [Tripod]
mode depending on the subject’s movement.
023
Starting the recording mode
[Natural Green]
(
) : When shooting nature such as forest
and leaves
[Macro Color]
(
) : When shooting a close-up shot of a
subject with multiple colors
[Macro Portrait]
(
) : When shooting close-up portrait shot
How to use the Program mode (
)
In Program Mode, the camera selects the optimal shutter speed and
aperture settings. You can manually configure all other functions.
1. Select the Program mode using the
Mode dial. (p.22)
2. Press the Menu button to configure
advanced functions.
024
How to use the Aperture. Shutter Priority mode (
)
In Aperture.Shutter Priority mode, you can manually adjust the aperture
value or the shutter speed. If you manually adjust the aperture value,
the camera adjusts the shutter speed automatically. If you manually
adjust the shutter speed, the camera automatically selects an aperture
value for optimal exposure.
1. Select the Aperture. Shutter Priority
mode using the Mode dial. (p.22)
2. Select aperture value or shutter speed
by turning the Smart Dial.
An " " icon will appear on the
selected item.
3. Select the aperture value or shutter
speed by pressing the left or right
button and then adjust a desired value
by turning the Smart Dial.
- If you set the aperture value, the
camera sets the shutter speed. If you
set the shutter speed, the camera
sets the aperture value.
4. Point the camera towards the subject
and compose the image using the
LCD screen.
5. Press the Shutter button to capture an
image.
Starting the recording mode
How to use the Manual mode (
)
You can set both the aperture value and the shutter speed manually.
1. Select the Manual mode by using the
Mode dial. (p.22)
2. Select aperture value or shutter speed
by turning the Smart Dial.
An " " icon will appear on the selected item.
3. Select the aperture value or shutter
speed by pressing the left or right
button and then adjust a desired value
by turning the Smart Dial.
- You can set both the aperture value
and shutter speed manually by
repeating Steps 2 and 3 for each
function.
How to use the User Setting shooting mode (
)
You can set the camera to a shooting mode you created when you
saved shooting options you configured in the [Program], [Aperture.
Shutter Priority], or [Manual] modes using the User mode function.
See page 63 to see how to set the User mode.
1. Set a User Setting mode (User 1,
User 2) by turning the Mode Dial.
(p.22)
2. Point the camera towards the subject
and compose the image using the
LCD screen.
3. Press the Shutter button to capture
an image.
4. Point the camera towards the subject
and compose the image using the
LCD screen.
5. Press the Shutter button to capture
an image.
025
Starting the recording mode
How to use the Nightscene modes (
)
Select this mode at night or in low light conditions.
How to use the Beauty Shot mode (
1. Select the Nightscene mode using the
Mode dial. (p.22)
1. Select the Beauty Shot mode using
the Mode dial. (p.22)
2. Point the camera towards the subject
and compose the image using the
LCD screen.
2. Press the Up/Down button in the
[Shooting] menu to select [Face Tone]
or [Face Retouch].
3. Press the Shutter button to capture an
image.
3. Press the Left/Right button to select a
desired level of [Face Tone] or [Face
Retouch], and then press the OK button.
4. Press the Shutter button to capture
images.
026
)
Take portraits with settings that clear facial imperfections.
Starting the recording mode
How to use the Scene modes (
The scene modes are listed below.
)
Using Scene modes, you can easily configure the camera so that it
automatically uses the optimal settings for a given shooting situation.
1. Select the Scene mode using the
Mode dial. (p.22)
Frame Guide
2. Press the Left/Right button to select
the desired Scene (Portrait, etc.).
3. Point the camera towards the subject
and compose the image using the
LCD screen.
This mode is appropriate for taking pictures with
pre-composed scenes.
4. Press the shutter button to capture an
image.
Ä To change to another Scene, press the
MENU button, and then select a new
Scene.
Frame Guide
Scene
Children
Sound
Landscape
Display
Exit
) : Use this mode when you want someone
else to take a picture for you from the
angle you choose.
[Portrait]
(
) : To take a picture of a person.
[Children]
(
) : To take pictures of subjects that move fast
or don’t stay still, for example, children.
[Landscape]
(
) : To take pictures of distant scenery.
[Close Up]
(
) : For close-up shots of small objects such
as plants and insects.
[Text]
(
) : For shots of documents and text.
[Sunset]
(
) : For pictures of sunsets.
[Dawn]
(
) : Daybreak scenes.
[Backlight]
(
) : Portraits without shadows caused by
backlight.
[Fireworks]
(
) : Firework scenes.
Portrait
Shooting
Settings
[Frame Guide] (
Close Up
Text
Sunset
Change
[Beach & Snow] (
) : For ocean, lake, beach and snowscape
scenes.
027
Starting the recording mode
How to use the [Frame Guide] mode
How to use the Movie clip mode (
Set [Frame Guide] mode when you want someone else to take a
picture for you from the angle you choose.
You can record individual movie clips for as long as there is available capacity in the memory or 20 minutes, whichever comes first.
No individual clip can exceed 20 minutes.
1. Take a picture from the angle you
choose.
- A guide appears around the sides
of the picture.
Guide
Cancel Frame : OK
2. Then another person can take the
picture by aligning the edge of the
picture to be taken with the guide
framing the sides of the window.
Cancel Frame : OK
Cancel Frame : OK
)
1. Select the Movie clip mode by using
the Mode dial. (p.22)
2. Point the camera towards the subject
and compose the image using the
LCD screen.
3. Press the shutter button once and
the camera records a movie clip. The
camera continues to record the movie clip for up to 20 minutes,
even if you release the shutter button. To stop recording, press
the shutter button again.
Ä You can record movies in the shooting
mode and the playback mode by pressing the video shooting button once. See
the illustration to the right. When you
press the video shooting button again,
you stop recording.
Ä Movie clip size and type are listed below.
– Movie clip size: 1280X720HQ, 640x480, 320x240
(Choose1280X720HQ to record high-quality videos.)
– Movie clip file type: H.264 (MPEG4.AVC)
– Frame Rate: 60FPS, 30FPS, 15FPS
Select [Zoom Mute] from the recording menu during video recording
to prevent the camera from recording the sound of the zoom when it
operates.
028
Starting the recording mode
Recording HD (High Definition) movie clips
Recording a movie clip without sound
You can record HD (High Definition) movie clips (1280x720HQ, 30 fps)
using H.264 (MPEG4.AVC) video compression. H.264 (MPEG4.AVC)
is the standard for digital video codecs. It supports high quality video in
small size files.
You can record a movie clip without sound.
1. Select the Movie clip mode by using
the Mode dial. (p.22)
2. Press the Fn button to set the
resolution to [1280x720 HQ].
3. Press the Shutter button to record
video for the available recording time.
1280x720 HQ
Exit
Move
Steps 1 through 3 are the same as those
for MOVIE mode.
4. Press the Menu button.
5. Press the Up / Down button to select the
[Movie] menu, and then press the Right
button.
6. Select the [Voice] menu by pressing the
Up / Down button, and then press the OK button.
7. Select the [Off] menu by pressing the Left / Right button.
8. Press the OK bu tton. You can record a movie without sound.
Ä See p.63 for further details.
What is H.264(MPEG4 part10/AVC)?
With its high-compression rate and the small file size, H.264 is the
standard for digital video codecs, supporting top quality recordings
in high resolution.
029
Things to Watch Out for When Taking Pictures
Pressing the shutter button down half way.
Lightly press the shutter button to confirm focus and flash battery
charge. Press the shutter button all way down to take the picture.
[Lightly press the shutter button]
[Press the shutter button]
The available memory capacity may vary depending on shooting
conditions and camera settings.
When shooting in low light, the camera shake warning indicator
( Ã ) may appear on the LCD screen. If this occurs, use a tripod,
support the camera on a solid surface, or change to flash shot
mode.
Shooting against the light : It is best to take pictures with the sun
behind you. Taking pictures with the sun
behind the subject may make the subject
come out dark. To take a picture against
the light, please use the [Backlight] in
scene shooting mode (see page 23),
fill-in flash (see page 42), spot metering
(see page 55), exposure compensation
(see page 35) or the ACB function (see
page 87) .
030
Avoid obstructing the lens or the flash when you capture an image.
Compose the image by using the LCD screen.
Under certain conditions, the auto focus system may not perform
as expected.
- When photographing a subject that has little contrast.
- If the subject is highly reflective or shiny.
- If the subject is moving at high speed.
- When there is strong reflected light, or when the background is
very bright.
- When the subject matter has only horizontal lines or the subject
is very narrow (such as a stick or flagpole).
- When the surroundings are dark.
Focus lock
Using the camera buttons to control the camera
To focus on a subject not positioned in the center of the picture, use
the focus lock function.
You can control the camera by using the camera buttons.
Using the Focus Lock
1. Ensure the subject is in the center of the autofocus frame.
2. Press the shutter button halfway. When the green auto focus
frame lights up, it means the camera is focused on the subject.
Be careful not to press the shutter button all the way down to
avoid taking an unwanted picture.
3. With the shutter button still pressed down only halfway, move the
camera to recompose your picture as desired, and then press
the shutter button completely to take the picture. If you release
your finger from the shutter button, the focus lock function will be
cancelled.
1. The image to be
captured.
2. Press the shutter
button halfway and
focus on the subject.
POWER button
Used for turning the camera’s power
on / off. If there is no operation during
a specified time, the camera turns off
automatically to save battery life. Refer
to page 70 for more information about
the auto power off function.
3. Recompose the picture
and fully depress the
shutter button.
031
SHUTTER button
Zoom W/T Lever
Used for taking an image or recording voice in the Recording mode.
When the menu is not displayed, this
lever works as the OPTICAL ZOOM or
DIGITAL ZOOM lever.
This camera has a 26X optical zoom
and a 5X digital zoom function. Using
both provides a total zoom ratio of
130X.
In Movie clip mode
Press the shutter button down once
fully to start a movie clip recording.
Individual clips record for as long
as there is available capacity in the
memory or 20 minutes, whichever
comes first. To stop a recording
before the 20 minutes are up, press
the shutter button again.
In Still image mode
Press the shutter button down halfway to activate the autofocus
and check the condition of the flash. Press the Shutter button
down fully to take and store an image. If you’ve selected voice
memo recording, the recording starts after the camera has stored
the image data.
TELE Zoom
Optical zoom TELE : Push the Zoom W/T lever to the right to
enlarge the subject.
Digital zoom TELE : After you have reached maximum optical
zoom, push the Zoom W/T lever to the right
again to enable digital zoom (software tele).
Release the Zoom W/T lever to stop digital
zoom (tele). When digital 5x zoom reaches
its maximum magnification, it will not enlarge
the image further even if you push the Zoom
W/T lever.
[WIDE zoom]
032
[TELE zoom]
[Digital zoom 5.0X]
Zoom W/T Lever
WIDE Zoom
Optical zoom WIDE : Push the Zoom W/T lever to the left in
optical zoom mode to decrease the size of
subjects. Continue to push the Zoom W/T
lever to the left to disable optical zoom.
If you turn the Zoom W/T lever fully, the zoom adjusts quickly.
If you turn the Zoom W/T lever a little, the zoom adjusts slowly.
Images taken using the digital zoom may take a little longer for
the camera to process. Allow time for this to take place.
If you use the Zoom during video recording, the camera may
record the sound of the Zoom in operation.
Select [Zoom Mute] from the recording menu during video
recording to prevent the camera from recording the zoom sound.
You may notice a decrease in image quality when using the digital
zoom.
To view a clearer digital zoom image, press the shutter button
[TELE zoom]
Digital zoom WIDE
Optical zoom
Digital zoom
[Digital zoom 5.0X]
[Optical zoom 2X]
[WIDE zoom]
: Push the Zoom W/T lever to the left in
digital zoom mode to decrease the size of
the subjects. Release the Zoom W/T lever
to stop changing the subject’s size.
Continue to push the Zoom W/T lever to
the left when digital zoom is disabled to
disable optical zoom (optical tele). The
subjects return to their original size.
[TELE zoom]
halfway at the maximum optical zoom position, and then move
the Zoom W/T lever to the right again.
You can not activate the digital zoom in the [Face Detection],
[Beauty Shot], [Smart Auto], [Movie] and some Scene modes.
To avoid taking an unclear image and possibly causing the camera
to malfunction, do not touch the lens. If the image is dim, turn the
camera power off and on again to modify the lens position.
Do not press the lens. Pressing the lens can cause a camera
malfunction.
When the camera is turned on, do not touch the camera’s moving
lens parts. Touching these parts can cause the resulting image to
be dim and unclear.
Do not touch the lens while operating the Zoom W/T lever.
[WIDE zoom]
033
Diopter adjustment lever
Flash pop-up button
When the electronic view finder is out
of focus, you can achieve the clearest
focus by turning the diopter adjustment
lever. (p.36)
To pop up the flash, press the flash
pop-up button. Use the flash when
the background is brighter than the
subject or in poor lighting conditions.
See page 41 for instructions explaining
how to set the various flash modes.
AEL/Image protection button (
)
You can save an exposure value prior
to shooting by pressing the AEL button.
Use this button when a subject is too
small for the camera to obtain the
appropriate exposure value or to preset
the exposure for backlight shots.
You can also use the AEL button for AFL,
AEL/AFL, and AF (see page 61 for setting procedure). In the playback
mode, use this button to apply image protection ( ) (p. 92).
034
Precautions when using the built-in flash
Ɣ Do not attempt to open the built-in flash forcibly, as it may damage
the camera.
Ɣ Ensure that the flash is always closed when it is not in use. If you
push the flash backwards, you can damage it.
Exposure compensation button
EVF/LCD button
Your camera adjusts the exposure
automatically so that it is appropriate
for the shooting conditions. You can
deliberately change the exposure by
using the exposure compensation
button to shoot with excessive exposure
(bright images) or insufficient exposure
(dark images). The exposure compensation button lets you set
exposure compensation from -2 to +2 (EV), at intervals of 1/3 EV.
You can shoot with the electronic view
finder when it is difficult to see the LCD
display due to bright ambient lighting.
Switch between EVF and LCD by
pressing the EVF/LCD button.
How to set exposure compensation
1. Press the exposure compensation
button in the shooting mode.
2. Set a desired exposure compensation
value by using the LEFT/RIGHT buttons or the Smart Dial.
3. Press the OK button to save a configured value.
The exposure compensation icon ( ) appears on the LCD
screen after you set exposure compensation as long as the
exposure compensation value is not 0.0EV.
[Press the
EVF/LCD button.]
[LCD screen]
[Electronic view finder]
Ä Note that the LCD screen will look blurry or will not display
good images if you set a [+] exposure compensation. If you set
a [-] exposure compensation, the image on the LCD screen
becomes dim.
Exposure compensation setting is available in the [Program],
[Aperture. Shutter Priority] and [Movie] modes.
035
EVF/LCD button
MENU button
Using the electronic view finder (EVF)
The electronic view finder shows the same display as the LCD
screen. Use it when you have difficulty seeing the LCD screen
due to bright ambient lighting. Pressing the EVF/LCD button
switches the display between the electronic view finder and the
LCD screen. The camera retains its EVF/LCD display setting
when you turn the camera off or when you select another mode
with the Mode Dial.
- When you press the MENU button, a menu displaying each of the
camera’s primary functional areas appears on the LCD screen.
Pressing it again returns the LCD to the initial display.
- The menu screen is available in the [Smart Auto], [Program],
[Aperture. Shutter Priority], [Manual], [Night], [Beauty Shot],
[Scene] and [Movie] modes, but it is not available if you select the
voice recording function.
When the electronic view finder is out of focus, turn the diopter
adjustment lever to obtain the clearest image.
White Balance
WB Fine-tuning
Shooting
ISO
Sound
Diopter adjustment lever
Face Detection
Display
Smart FR Edit
Settings
Photo Size
[Pressing the MENU button]
Electronic view finder (EVF)
Exit
[Menu off]
EVF/LCD button
036
Quality
Change
[Menu on]
OK/AF point button (
)
Info (DISP) / Up button
When the menu is displayed on the LCD
screen, use this button to shift the cursor
to a sub-menu or to confirm data or
selections.
This button is used when moving to
or saving data changed on the menu
screen.
Press the UP/DOWN/LEFT/RIGHT buttons to shift the AF points.
White Balance
Shooting
Sound
Display
Settings
Face Detection
[Pressing the OK button]
Face Detection
Smart FR Edit
Smart FR Edit
Photo Size
Change
[Histogram/Grid Window]
WB Fine-tuning
ISO
Photo Size
Quality
Quality
Exit
[Filming screen]
White Balance
WB Fine-tuning
ISO
While the menu is showing, the Up button operates as a direction button.
In the recording modes or playback mode, press this button to display
image information.
Exit
Back
[Information screen]
In the [Face Detection] function, the Histogram is not available.
037
Info (DISP) / Up button
Histogram/Grid Window (
Macro (
)
Histogram
Pixel
The Histogram shows you the
distribution of brightness in recorded
images. If the bars in the histogram are
higher towards the right, the image may
be too bright. If the bars are higher on
the left, the image may be too dark. If
Distribution of brightness
the lighting conditions are too bright for
you to see the subject properly in the
Dark
Bright
LCD, checking the histogram will give
you more precise exposure control for the shots.
Grid
) / Down button
While the menu is showing, the DOWN button operates as a direction
button.
When the menu is not showing, you can use the Macro ( ) / Down
button to choose a macro mode for macro pictures.
Press the Macro button until the macro mode indicator you want
appears on the LCD screen.
The macro mode focus ranges are shown on the next page.
[Auto Focus]
[Macro (
)]
If you focus on the subject using a variety of horizontal or vertical
grids, you will be able to take better pictures by checking size,
horizontality, or proportions. For information on grid types and
how to set them, refer to Page 66.
[Auto Macro (
[Manual Focus(
038
)]
)]
[Super Macro (
)]
Macro (
) / Down button
How to Set Focus Manually
Types of focus modes and focus ranges
If it is difficult to get the automatic focus to work (for example in
low light), you can control the focus manually.
1. Press the Macro button to enable
manual focus.
- The control bar for manual focus
appears.
Focus
Type
2. Press the Left/Right button to control
the focus.
Control Bar for Manual
Focus
Ä Set the manual focus to expand the center of the window to
the entire window. Press the shutter button halfway down to
return to the initial state.
Note that the picture may be blurred if you do not perform manual
Program(
Mode
(Unit: cm (inches))
)/Aperture. Shutter Priority(
)
Manual(
Normal
Auto Macro
Wide
Wide
Macro
)/
Super
Macro
Manual
Focus
1 ~ 10
(xx ~ xx)
10 ~ Infinity
(xx ~ Infinity)
Wide
80 ~ Infinity 10 ~ Infinity
Focus (xx ~ Infinity) (xx ~ Infinity)
range
Tele
Tele
10 ~ 80
(xx ~ xx)
170 ~ Infinity 170 ~ Infinity
(xx ~ Infinity) (xx ~ Infinity)
80 ~ 150
(xx ~ xx)
Tele
When you select the macro mode, be particularly careful to avoid
camera shake.
When using the Super Macro function, you cannot operate the
zoom or adjust the zoom magnification rate.
The zoom is limited in Macro shooting.
focusing properly.
039
Macro (
) / Down button
Focusing methods you can select, by recording mode
( o : Selectable, : Infinity focus range)
Mode
Macro
Super
Macro
Manual
Focus
o
o
o
o
o
o
o
o
o
o
o
o
Normal
Auto Macro
SCENE
Mode
Normal
Auto Macro
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
The camera automatically selects the focus range in [Smart Auto]
mode.
o
o
’
o
040
Macro
Super
Macro
Manual
Focus
Flash (
) / Left button
When the menu is displayed on the LCD screen, pressing the Left
button shifts the cursor to the left tab.
When the menu is not displayed on the LCD screen, the flash ( )
/Left button operates as the flash ( ) button.
Selecting the flash mode
1. Press the Flash pop-up button to pop up the flash.
2. Select the desired Recording mode, You can select any mode
but the [Movie] mode. (p.22)
3. Press the Flash button until the flash mode indicator icon you
want appears on the LCD screen (Fill-in, Red-eye Reduction,
etc.).
4. A flash mode indicator appears on the LCD screen.
Use the correct flash mode to suit the environment and conditions.
Ä You can control the flash intensity in the [Shooting] menu. (p.57)
Flash range
Normal
Auto macro
Macro
Super Macro
Manual Focus
If you press the shutter button after selecting the flash, the flash
fires once to check the shooting conditions (flash range and the
power ratio of the flash). Do not move the camera until the flash
fires a second time.
Using the flash frequently will reduce the life of the battery.
Under normal operating conditions, the flash usually re-charges
within 5 seconds. If the battery is weak, the charging time will be
longer.
The camera flash does not operate in the [Movie] and some
Scene modes.
Take photographs within the flash range.
The image quality can be degraded if the subject is too close or
highly reflective.
When taking an image in poorly lit conditions with the flash, there
may be a white speck in the captured image. The speck is caused
by light from the flash reflecting off atmospheric dust.
If the flash doesn’t pop up, you can not use the flash.
(Unit: m (inches))
Shooting range
Wide
Tele
0.3 ~ 6.0
1.7 ~ 3.0
(xx ~ xx)
(xx ~ xx)
1.7 ~ 3.0
0.3 ~ 6.0
(xx ~ xx)
(xx ~ xx)
0.8 ~ 1.5
0.3 ~ 0.8
(xx ~ xx)
(xx ~ xx)
1.7 ~ 3.0
0.3 ~ 6.0
(xx ~ xx)
(xx ~ xx)
ISO
AUTO
041
Flash (
) / Left button
Flash mode indicator
Icon
Flash mode
Auto flash
Red-eye
Flash modes you can select, by recording mode
Description
If the subject or background is dark, the
camera flash operates automatically.
The flash fires regardless of the available light.
The camera controls the intensity of the flash
automatically to suit the prevailing conditions.
Slow synchro
The flash operates with a slow shutter speed
to obtain a balanced, correct exposure. In poor
lighting conditions the camera shake warning
indicator ( Ã ) appears on the LCD screen.
When the camera detects a shot with
Red-eye reduction “red eye”, this mode automatically reduces
the red-eye effect.
Flash off
042
o
o
If a subject or background is dark, the
camera flash works automatically and
reduces the red-eye effect by using the redeye reduction function.
Fill in flash
The flash does not fire.
Select this mode when capturing images in
a place or situation where flash photography
is prohibited. When you capture an image
in poorly lit conditions, the camera shake
warning indicator ( Ã ) appears on the LCD
screen.
( o : Selectable)
Mode
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
Smart Auto Flash (
) icon appears in [Smart Auto] mode.
Flash (
Self-timer (
) / Left button
SCENE
Mode
o
o
o
o
o
o
o
o
o
o
) / Right button
When the menu is displayed on the LCD screen, pressing the Right
button shifts the cursor to the right tab.
When the menu is not displayed on the LCD screen, the Right button
operates as the Self-timer ( ) button. Use the Self-timer when you
would also like to be in the picture.
If you press the Self-timer button during the self-timer
operation, the self-timer function is cancelled.
Use a tripod to prevent the camera from shaking.
In [Smart Auto], [Frame Guide], [Movie] mode, only the
10SEC self-timer works.
o
o
o
o
o
o
043
Self-timer (
) / Right button
Selecting the self-timer
1. Select a Recording mode. You can select
mode except Voice recording. (p.22)
2. Press the Self-timer / Right ( )
button until the desired mode indicator
icon appears on the LCD screen.
A 10 second, 2 second or Double Selftimer icon appears on the LCD screen.
3. When you press the shutter button,
the camera takes a picture after the
specified time has elapsed.
Shooting (
To access a functional sub-menu, use the mode menu that contains the
sub-menu, or press the FN key. A list of Shooting sub-menus is below:
Mode
Description
10SEC The camera takes a picture 10 seconds after you
self-timer press the shutter button.
2SEC The camera takes a picture 2 seconds after you
self-timer press the shutter button.
The camera takes a picture 10 seconds after you
press the shutter button and, 2 seconds later,
Double
takes a second picture When you use the flash, the
self-timer
2-second self-timer may be delayed for longer than
2 seconds depending on the flash charging time.
044
Available When Camera Set To
Page
p.46
WB Fine-tuning
p.48
ISO
p.48
Face Detection
p.49-51
Smart FR Edit
p.52
Face Retouch
Self-timer mode indicator
Mode
Sub-Menu
White Balance
Face Tone
[Selecting the 10 SEC
self-timer]
Icon
)
p.53
Photo Size / Movie Size
p.53
Quality / Frame Rate
p.54
Smart Range
p.54
Metering
p.55
Drive
p.55
AEB Area
p.56
Focus Area
p.56
(Shooting)
Flash EVC
p.57
Photo Style Selector
p.57
Smart Filter
p.58
Image Adjust
p.59
Shooting (
Mode
(Shooting)
)
Sub-Menu
Available When Camera Set To
Page
Image Stabiliser
p.60
Key mapping
p.61
Voice
p.61-63
How to Enable Functions Using the MENU Button
1. Press the MENU button in an available mode.
2. Press the Up / Down button to select the [Shooting] menu, and
then press the Right/OK button.
White Balance
Shooting
User Mode Set
p.63
Distortion Control
p.64
Stabilizer
p.64
Smart Scene Detection
p.64
Sound
Display
Settings
White Balance
WB Fine-tuning
WB Fine-tuning
ISO
ISO
Face Detection
Smart FR Edit
Photo Size
Face Detection
Right/OK
button
Smart FR Edit
Photo Size
Quality
Quality
Exit
Change
Exit
Back
3. Select a desired menu by pressing the Up / Down button, and
then press the OK button.
White Balance
White Balance
WB Fine-tuning
WB Fine-tuning
ISO
ISO
Up / Down
button
Face Detection
Smart FR Edit
Photo Size
Face Detection
Smart FR Edit
Photo Size
Quality
Exit
Quality
Back
Exit
Back
045
Shooting (
)
4. Select a desired menu by pressing the Left / Right button, and
then press the OK button.
ISO
ISO 80
Left / Right
button
Back
Move
Back
Move
Use the Fn button on the rear of the camera to bring up the menus
that contain frequently used functions faster.
White balance
Different lighting conditions can cause an
unnatural color cast in your images.
The white balance function lets you adjust
the white balance in response to the lighting
conditions and colors of a scene so that the
whites in a photograph appear white and
other colors appear natural.
Mode
Back
Move
Description
Auto WB
The camera automatically selects the
appropriate white balance settings, depending
on the prevailing lighting conditions.
Daylight
For capturing images outside.
Cloudy
For capturing images under a cloudy and
overcast sky.
Fluorescent_H
For shooting under daylight fluorescent lights
or three-way fluorescent lights.
Fluorescent_L
For shooting under white fluorescent lighting.
Tungsten
046
Icon
White Balance
For shooting under tungsten (standard light
bulb) lighting.
Custom Set
Allows the user to set the white balance
according to the shooting condition.
Color
Temperature
Allows the user to set the desired color
temperature according to the shooting conditions.
Shooting (
)
Using the Custom White Balance
What is color temperature?
White balance settings may vary slightly depending on the
shooting environment. You can select the most appropriate
white balance setting for a given shooting environment by setting
up a custom white balance.
1. Select Custom (
) in the White
Balance Menu, and then place a
sheet of white paper in front of the
camera so that the LCD screen
shows only white.
Red light
Blue light
2. OK button
White paper
Clear sky
Shade
Cool-white (Fluorescent)
Cloudy
Flash
Daylight
Neutral-white (Fluorescent)
Warm-white (Fluorescent)
Halogen
Incandescent
- The camera applies the custom white balance value, starting
with the next picture you take.
- The camera retains the user configured white balance until you
overwrite it with a new custom white balance.
Candle flame
: Selects the previous
custom white balance.
Shutter button : Saves the new custom white
balance.
The Color Temperature scale is a conventional measure of color
expressed in degrees Kelvin (K). The scale runs from reds and yellows
at the low end (below about 2700 K) to blues at the high (above about
5000 K). Every light source, for example, an incandescent bulb, radiates
light that is mainly one color (see the scale above). This one color can
distort the natural colors of a scene, giving everything in the scene a
distinctive color cast. Your camera lets you change the color temperature
setting of the white balance to adjust for the light source so that when
you take pictures, the colors in the picture look natural.
The Color Temperature scale correlates the temperature of what is called
an ideal black body radiator to the color it radiates at that temperature.
For example, a black body radiator glows red when heated to about
2000 degrees Kelvin and glows blue when heated to about 10,000
degrees Kelvin. The color of light from another source, for example, a
fluorescent light, can be correlated to the color radiated by the black
body at a certain temperature, and then expressed in degrees Kelvin.
047
Shooting (
)
Fine-tuning the white balance
ISO
Press the UP/DOWN/LEFT/RIGHT buttons
to adjust the white balance.
Seven levels (196 patterns) are available on
the G-M and B-A axis.
You can select the ISO sensitivity of
the camera. The speed or specific lightsensitivity of a camera is rated in ISO
numbers.
• G: Green
• A: Amber
• M: Magenta
• B: Blue
Back
Move
ISO
Back
Move
[Auto] : The camera changes its sensitivity automatically in response
to such variables as light intensity and subject brightness.
[ISO 80, 100, 200, 400, 800, 1600, 3200, 6400] :
Generally, with the same amount of available light, you can take pictures
at a faster shutter speed if you increase the ISO value.
However, at high ISOs, the image may be saturated in high luminance.
The higher the ISO value, the higher the camera’s sensitivity to light
and therefore the greater its capacity to take pictures in dark conditions.
However, the noise level in the image will increase as the ISO value
increases, making the image appear coarse.
Ä When [Motion Capture] is set, the camera sets ISO to Auto.
Ä ISO setting is available in the [Program], [Aperture. Shutter
Priority] and [Manual] modes.
Ä When you set the ISO speed to 6400, you can select only 3M or
lower resolution.
048
Shooting (
)
Face Detection
If you use face detection options, your
camera can detect a human face. When
focusing on a human face, the brightness
of the face is also adjusted. You can also
capture natural facial expressions by using
self portrait.
Face Detection
Back
Move
Ä Selectable modes: Program, Aperture. Shutter Priority, Manual,
Beauty Shot, Portrait, Children, Beach & Snow
Normal
This mode detects the face of the subject automatically and then
sets the focus and exposure. Select this mode for quick and easy
pictures of faces.
1. The size and position of the auto focus
frame is set around the face of the
subject automatically.
This function can detect up to 10 people.
When the camera recognizes many people at the same time,
it will focus on the nearest person.
You can not activate Digital zoom when [Face Detection] is on.
When the camera detects a target face, the white color focus
frame is displayed over the target face and the grey color
focus frame appears over the remaining faces.
Press the shutter button halfway down to focus on the face
and the white focus frame turns green.
Return to previous AF mode if face detection was failure.
Under the following conditions, this function cannot work
properly.
- When a person wears dark glasses or some part of the face
is hidden.
- When the person being taken does not look at the camera.
- If the face is too dark or too brightly lit.
- If the distance between the camera and object is too far.
The maximum available Face Detection range is 2 m or about
XX feet (Wide).
The nearer the subject, the faster the camera can recognize
the subject’s face.
In [Beauty Shot], [Portrait], and [Children] mode, the camera
sets [Face Detection] to its default value.
2. Press the shutter button halfway.
The focus frame turns to green when
the focus is activated.
3. Press the shutter button fully to take a
picture.
049
Shooting (
)
Self Portrait
Smile Shot
When taking pictures of yourself, the area of your face is automatically
detected so that you can take self pictures more easily and quickly.
1. For self-filming, set the camera lens
towards the face of the object.
It automatically detects the face of the
object, and emits a guiding sound.
See note below.
The camera automatically takes a picture
when it detects the face of the subject
without your pressing the Shutter button. If
you press the Shutter button, the picture is
taken in the normal way. When you take a
smile shot, having the subject smile or show
teeth helps the camera to detect the subject
correctly.
2. Start filming by pressing the shutter
button.
Blink Detection
When locating a face in the center of the screen, the camera
repeatedly emits a faster sound that differs from the sound that
is emitted when the face is not in the center.
If the eyes of the subject are closed when
the shutter button is pressed, the camera
takes 2 continuous shots and then the
saves the images. The camera takes only
one picture if the eyes of the subject are
open when the Shutter button is pressed.
The camera may not be able to detect a smiling face or blinking
eyes if any of the following situations occur:
- The subject is wearing sunglasses.
- The subject is not facing directly to the camera.
- The ambient light is too bright or too dark for the camera to
detect the face of the subject.
- When the camera is far the subject. (Orange colored focusing
mark)
- Reflections from the ambient light or the back light are too
bright.
050
Shooting (
)
Smart Face Recognition
The camera automatically registers
faces that you frequently photograph.
This feature automatically prioritizes the
focus on those faces and on favorite.
This feature is available only when you
use a memory card.
The camera can recognize the same person as a different person
depending on glasses, brightness, extreme change of pose, or
facial expressions.
If you register a new face when 12 faces are already registered,
the face with the lowest priority is replaced with the newly added
face.
The camera can register a maximum of 10 people in a scene.
Picture categorizing is available in the playback mode according
to the priority of faces (p. 93).
Even though the camera recognizes a face, it may not categorize
the face in Smart Album according to priority.
The nearest face appears in a white
focus frame and the rest of the faces
appear in gray focus frames.
-
: Indicate favorite faces (To register
favorite faces, see page 52).
: Indicate faces that the camera
automatically registers.
051
Shooting (
)
You can register up to 8 favorite faces.
When you use Smar ER Edit, the flash option is set to Off.
If you register the same face twice, you can delete one of the
duplicate faces in the face list.
Smart FR Edit
You can register frequently shot faces
or edit the registered face list prior to
shooting. This feature is available only
when you use a memory card.
Smart FR Edit
Face List
Back
Move
My Star
You can change the ranking of your favorite faces or delete them.
1. Press the Fn button.
Face List
You can register your favorite faces to prioritize the focus and
exposure on those faces.
1. Align your subject’s face with the
oval guideline and press [Shutter] to
register the face.
- If the subject’s face is not aligned
with the oval guideline, the white
frame will not appear.
Back
Set
- You can take photos of a subject’s
face directly from the front, to the left side, to the right side,
from above, or from below.
- Take photos of one person at a time when registering faces.
2. Press the OK button to save after taking photos of the face.
3. Press the MENU button when the registered face list appears.
- Your favorite faces are indicated with a (
) on the face list.
052
Back
2. Select a desired menu by pressing
the Up / Down button and then press
the OK button.
Edit
Face List
Edit Ranking
Delete My Star
Cancel
Back
[Edit Ranking]
Set
: Change the rankings of people registered as
My Star.
[Delete My Star] : Delete people from My Star.
Shooting (
)
Photo Size / Movie Size
Face Tone
This menu lets you control the skin tone of images shot in beauty shot
mode. The higher the level you select, the brighter the skin tone.
1. Select [Face Tone] by pressing the
Up/Down button.
2. Select a desired face tone by pressing
the Left / Right button, and then press
the OK button.
3. Press the Shutter button to capture an
image.
You can select the photo size / movie size appropriate for your application.
(Unit: pixel)
Still image mode
Face Tone
Icon
Size
Back
4288x
3216
4288x
2848
4288x
2416
Move
3264x
2448
2592x
1944
2048x
1536
1920x
1080
1024x
768
Movie clip mode
Icon
Size
Face Retouch
1280x720HQ
This menu lets you make skin appear clear and beautiful before
recording in beauty shot mode. The higher the level you select, the
more effective the control.
1. Select [Face Retouch] by pressing the
Up/Down button.
2. Select a desired face retouch level by
pressing the Left / Right button, and
then press the OK button.
3. Press the Shutter button to capture an
image.
640x480
320x240
Movie Size
Photo Size
Back
Face Retouch
Move
[ Still image mode ]
Back
Move
Back
Move
[ Movie clip mode ]
The higher the resolution, the lower the number of shots
available because high resolution images require more memory.
053
Shooting (
)
Quality / Frame rate
This file format complies with the DCF (Design rule for Camera
You can select the compression ratio appropriate for your use of the
captured images. The higher the compression ratio, the lower the
picture quality.
JPEG (Joint Photographic Experts Group) :
Mode
Still image mode
File system).
JPEG is the image compression standard developed by the Joint
Photographic Experts Group. This type of compression is most
commonly used for compressing photos and graphics because it
can compress the files efficiently.
Icon
Sub menu RAW + S.Fine RAW + Fine Super Fine
File Format DNG+JPEG DNG+JPEG
Mode
JPEG
Fine
Normal
JPEG
JPEG
Movie clip mode
Icon
Sub menu
60 FPS
30 FPS
15 FPS
File Format
H.264
H.264
H.264
Smart Range
Use the Smart Range function to get detailed
expressions of dark and bright areas. Apply
Smart Range before you shoot.
Note that the level of brightness adjustment
for [Smart Range 2] is set higher than [Smart
Range 1].
Smart Range
Back
Move
Ɣ If Smart Range is set too high, noise may appear in your pictures.
Frame Rate
Quality
Back
Move
[ Still image mode ]
054
Back
Move
[ Movie clip mode ]
Shooting (
)
Metering
Drive mode
If exposure conditions are not ideal, changing the metering method
can result in brighter pictures.
You can select continuous shot and AEB (Auto Exposure Bracketing).
[Multi] (
) : Exposure is calculated
based on an average of
Metering
the available light in the
image area. However, the
calculation will be biased
towards the center of the
Back
Move
image area. This is suitable
for general use.
[Spot] ( ) : Only the rectangular area in the center of the LCD screen
is metered for light. This is suitable when the subject in
the center is exposed correctly, regardless of the back
lighting.
[Center-weighted] ( )
: Exposure is calculated based on an average of the available light in the image area. However, the calculation is
biased towards the center of the image area. This is suitable for taking a picture of small object such as flowers or
insects.
Ä If the subject is not in the center of the focus area, do not use
spot metering as this may result in an exposure error.
Use exposure compensation instead. See page 35.
[Single] (
)
[Continuous] (
[High-speed] (
[Motion Capture] (
[AEB] (
)
: Takes one picture only.
) : Takes pictures
continuously until you
Drive
release the shutter
button.
) : Takes about 5.5 shots
Back
Move
per second when you
press and hold the shutter button. The shooting
speed may get slower depending on the shooting environment or the number of shots. (Up to
3M Size)
) : Takes 10 shots per second when you press and
hold the shutter button. After you’ve completed
continuous shooting, the camera saves the
images and plays them back on the Rear LCD.
The maximum number of shots is 30 and the
image size is fixed as 1024X768.
: Takes three consecutive photos using different
exposure values. Use this mode if it is hard to
decide what exposure to use for a shot.
055
Shooting (
)
High resolution and picture quality increases file saving time,
which increases stand-by time.
If you select the [Continuous], [High-speed], [Motion Capture], or
[AEB] sub menu, the camera turns the flash off automatically.
If the memory has space for less than 3 pictures, the AEB
shooting is not available.
It is best to use a tripod for the AEB shooting. The time the camera
takes to save each image file is longer and blurring caused by
camera shake may occur.
Setting AEB Exposure Ranges (AEB Area)
You can set exposure ranges and intervals for the three AEB mode
photos.
- Set a standard for the exposure bracket
by pressing the LEFT/RIGHT buttons.
- Set a range for the left and right exposure
bracket by using the Smart Dial.
-2
Back
056
-1
0
+1
+2
AEB Area
Move
Auto Focus type
You can select your preferred Focus Area according to the shooting
conditions.
[Center AF] (
[Multi AF] (
) : The camera focuses using
the rectangular area in the
center of the LCD screen.
) : The camera focuses by
selecting all the available AF
points from the 9 AF points.
Focus Area
Back
Move
[Selection AF] (
) : Focus on a desired position on the LCD screen.
[Tracking AF] (
) : The focus moves along with the movements of a
subject.
Ä When the camera focuses on a subject, the auto focus frame turns
green. When the camera doesn't focus on the subject, the auto
focus frame turns red.
Ŷ How to Enable Selection AF
1. After setting [Selection AF], press the OK
button. The screen for setting the location
of a focus frame will appear.
2. Press the Up/Down/Left/Right button to
move the focus mark to the desired position.
3. Press the shutter button to enable Selection
AF. Once setting is complete, the focus
mark will be fixed at the position you set.
Move
Set
Focus Mark
Shooting (
)
4. Press the OK button once again to change the location of the focus
frame and the focus frame will appear again.
Ä Even if you turn off the power and turn on it again, the camera
maintains the [Selection AF] setting.
Ä [Selection AF] is not available when you use the [Face Detection]
function.
Photo Style Selector
You can add various effects to an image
without using image editing software.
Photo Style Selector
Back
Move
1. Select the desired Photo style by pressing the Left/Right button
and press the OK button.
Flash Intensity
You can control flash intensity. (You can set flash intensity within the
range of +/- 2EV in intervals of 1EV.)
[-2], [-1], [0], [+1], [+2]
2. Press the Shutter button to take an image.
Style mode
Normal
Flash EVC
-2
Back
-1
0
+1
+2
Move
Ɣ The [Flash EVC] function is not available in the [Smart Auto],
[Beauty Shot], [Scene] and [Movie], [Night] modes.
Ɣ If the subject is too close or the ISO sensitivity is too high, changing
the value to a negative value (-) may not have any effect.
Ɣ If the flash intensity is out of the control range because the
exposure value is too high or low, the camera may not operate
properly.
Icon
Description
No style effect is applied.
Soft
Soft style is applied.
Vivid
Vivid style is applied.
Forest
Forest style is applied.
Retro
Sepia style is applied.
Cool
Cool style is applied.
Calm
Calm style is applied.
Classic
Negative
Custom RGB
Black & white effect is applied.
Negative effect is applied.
Define an RGB tone to create your own photo
style.
057
Shooting (
)
Custom color : You can change the R
(Red), G (Green) and
B (Blue) values of the
image.
Smart Filter
Apply various filter effects to your photos
to create unique images.
Back
Smart Filter
Move
- Up/Down button : Selects R, G, B
- Left/Right button : Changes the values
Back
Move
1. Select the desired Smart Filter by pressing the Left/Right button,
and then pressing the OK button.
Back
Move
When you select any Photo Style, Face Detection is not available.
When you select the Soft or Vivid Photo Style, saturation is not
available.
When you select the Negative Photo Style, contrast is not available.
2. Press the Shutter button to capture an image.
Smart Filter
Normal
Icon
Description
No effect
Vignetting
Apply retro-looking colors, high contrast, and
strong vignette effect.
Fish-eye
Distort close objects to imitate the visual effect
of a fisheye lens.
Defog
Distinct style is applied.
When you apply a Smart Filter effect while recording a video, the
video is automatically resized to (640x320) or smaller.
(Frame rate : 15 Fps)
If you use this function, the Photo Style and Image Adjustment
functions are not available.
058
Shooting (
)
Image Adjust
Sharpness
You can adjust the sharpness of the
picture you are about to take.
You cannot check the sharpness effect
on the LCD screen before you take a
picture, because this function is applied
only when the captured image is stored
in the memory.
Saturation
You can change the color saturation of the image.
Image Adjust
-2
-1
0
+1
+2
Contrast
-2
-1
0
+1
+2
Saturation
-2
-1
0
+1
+2
Sharpness
Back
Move
1. Select [Saturation] by pressing the
Up/Down button.
2. Change the saturation by pressing the
Left/Right button.
3. Press the Shutter button to capture an
image.
Image Adjust
-2
-1
0
+1
+2
Contrast
-2
-1
0
+1
+2
Saturation
-2
-1
0
+1
+2
Sharpness
Back
Move
When Image Adjust is set, Photo Style Selector function is not
1. Select [Sharpness] by pressing the Up/Down button.
2. Change the Sharpness by pressing the Left/Right button.
3. Press the Shutter button to capture an image.
available.
When Image Adjust is set, Face Detection mode is not available.
Contrast
You can change the contrast of the image.
1. Select [Contrast] by pressing the
Up/Down button.
2. Change the contrast by pressing the
Left/Right button.
3. Press the Shutter button to capture an
image.
Image Adjust
-2
-1
0
+1
+2
Contrast
-2
-1
0
+1
+2
Saturation
-2
-1
0
+1
+2
Sharpness
Back
Move
059
Shooting (
)
Image Stabilization
This feature minimizes camera shake when
you take a picture.
Image Stabiliser
Back
[OIS] (
Move
) : Performs optical image stabilization.
[DUAL IS] (
) : Performs optical image stabilization and digital image
stabilization simultaneously.
Ŷ Things to watch out for when using the DUAL IS mode
– The digital zoom will not operate in the DUAL IS mode.
– If the lighting conditions are brighter than fluorescent lighting conditions, the DUAL IS will not activate.
– If the lighting conditions are darker than fluorescent lighting conditions,
camera shake warning indicator ( ) appears. For best results only
take pictures in situations where the camera does not display the
camera shake warning indicator ( ).
– If the subject is moving, the captured image may be blurred.
– As the DUAL IS uses the camera’s digital signal processor, it may take
a little longer for the camera to process and save the images.
060
OIS function may not work sufficiently in the following cases:
- When you are taking pictures of a moving subject.
- When you are taking pictures at higher zoom magnifications.
- When camera shake is beyond the camera-shake correction
range.
- When the shutter speed is slow.
- When the battery is low.
If you operate the OIS function using a tripod, the vibration of of
OIS sensor can blur pictures. Turn off the OIS function when you
use a tripod.
If the camera is struck or dropped, the LCD screen can be affected.
To make the camera function properly again, turn it off and on.
Shooting (
)
Key mapping
Voice Memo
You can map one of four functions to the
AEL button.
You can add your voice-over to a stored
still image. (Max. 10 sec.)
[AEL]: To pre-set an exposure value before
Key mapping
shooting.
[AFL]: To preset the focus before shooting.
Back
Move
[AEL + AFL]: To pre-set both an exposure
value and the focus before shooting.
[AF-On]: To activate metering and autofocus. This is a replacement for
pressing the shutter halfway down.
Memo
Back
Move
- Select Voice Memo in the menu.
When the Voice Memo indicator is
displayed on the LCD screen, the
Voice Memo function is ready.
- Press the shutter button and take a
picture. The picture is stored on the
memory card.
- The Voice Memo function records for
ten seconds from the moment the
camera stores the picture. You can
stop the recording in the middle by
pressing the shutter button.
Stop
061
Shooting (
)
Voice Recording
Pausing while recording a voice
Using this function, you can record
your favorite voice clips into a voice
recording file without having to create
multiple voice recording files.
With Voice Recording, the camera can
record a voice for as long as the available
recording time allows (maximum 5 hours
at once).
Record
Stop
Back
1. Press the OK button to pause recording.
2. Press the OK button again to resume the recording.
3. If you want to stop recording, press the shutter button again.
Select Voice Recording in the menu.
Press the shutter button to record a voice.
- Press the shutter button once and the
camera records you voice for as long
as there is available recording time
(maximum 5 hours at once).
The recording time is displayed on the
LCD screen. The camera continues to
record audio even if you release the
shutter button.
- If you want to stop recording, press the
shutter button again.
- File type : *.wav
062
Record
[Voice recording mode]
Move
The optimal recordng distance - the distance between you and
the camera - is 15.75 inches (40cm).
Record
Exit
[Voice recording mode]
If you turn off the camera while a voice recording is paused, the
camera cancels the voice recording.
Shooting (
)
Setting audio for movie recording
Setting user mode
You can set the desired voice recording
mode in Movie mode.
You can set your own shooting mode by
saving shooting options which you set in the
[Program], [Aperture. Shutter Priority] and
[Manual] modes.
Set a desired option and save the setting
information.
Voice
Back
- [Voice] sub menus
[Off]
: Record a video without sound.
(
) icon appears on the LCD screen.
[On]
: Record a video with sound.
[Zoom Mute] : Record video without sound while zooming.
Move
User Mode Set
Back
Move
Ŷ How to set the user mode
1. Select a mode from [Program], [Aperture. Shutter Priority] or [Manual]
modes.
2. Select settings.
3. Select [User Mode Set] in the [Shooting] menu.
4. Select [User Mode 1] or [User Mode 2] by pressing the LEFT/RIGHT
buttons and press the OK button to save the setting information.
For instructions explaining how to use a User Mode, see page 25.
063
Shooting (
)
Distortion compensation
Smart Scene Detection
Distortion Compensation lets you compensate
for the distortion in the center of an image
captured using a wide-angle lens.
You can set the camera to use Smart Scene
Detection during movie recording.
If you use Distortion Compensation, the size
of the photo will be smaller than one taken
without Distortion Compensation.
Smart Scene Detection
Distortion Control
Back
Move
Back
[Off]: Distortion is not compensated for.
[Off](
) : Disable scene detection function.
[On]: Distortion is compensated for.
[On](
) : Enable scene detection function.
Select [Off] for normal movie recording.
When you set [Smart Scene Detection], you cannot set the
[Photo Style Selector] and [Smart Filter] options.
Movie clip frame stabiliser
This function helps stabilize images captured
during movie recording. You can select this
function only in the Movie clip mode.
Stabilizer
Back
Move
[Off]: Movie clip frame stabilizer function is disabled.
[On]: Minimizes camera shake during movie recording.
Ä The recording frame range becomes narrow when you select this menu.
064
Move
Sound menu
Using the Sound menu, you can set or adjust sound settings in all
camera modes except the Voice Recording mode.
The items indicated by * are default settings.
Ä Menus are subject to change without prior notice.
Shutter sound
You can select the shutter sound.
Select Off to turn the Shutter sound off.
- Shutter sound : [Off], [1]*, [2], [3]
Sound (  )
:Medium
Beep Sound
:1
Shutter Sound
Off :1
Start Sound
1
:Off
AF Sound
2
:On
3
Start up sound
Volume
You can select the volume of the start up sound, shutter sound,
beep sound, and AF sound. Select Off for no sounds.
- [Volume] sub menus : [Off], [Low],
[Medium]*, [High]
Volume
Volume
Off :Medium
Beep Sound
Low :1
Shutter Sound
Medium
:1
High
:Off
Start Sound
AF Sound
:On
Back
Set
You can select the sound the camera plays whenever you turn it
on. Select Off to turn the Start Up Sound off.
- Start up sound : [Off]*, [1], [2], [3]
- If the start up image is set to [Off], the
Start Up sound will not play, even if you
have set it to 1, 2, or 3 here.
Volume
:Medium
Beep Sound
:1
Shutter Sound
:1
Start Sound
Off :Off
AF Sound
1
:On
2
3
Back
Back
Set
Set
AF sound
Beep Sound
You can select the beep sound the camera plays when you press
the buttons. Select Off to turn the Beep Sound off.
If you set AF sound to On, the camera emits the AF sound when you
press the Shutter button down half way. Set to On if you want to be
aware of when you ‘ve pressed the Shutter button half way down.
- [Beep Sound] sub menus : [Off], [1]*, [2], [3]
- [AF sound] sub menus : [Off], [On]*
Volume
Beep Sound
Shutter Sound
:Medium
Off
1
:1
:1
Start Sound
2
:Off
AF Sound
3
:On
Volume
:Medium
Beep Sound
:1
Shutter Sound
:1
Start Sound
:Off
AF Sound
Off :On
On
Back
Set
Back
Set
065
Setup menu
Display (
In this menu, you can set up and adjust basic settings. You can use
the setup menu in all camera modes except Voice Recording mode.
The items indicated by * are default settings.
Ä Menus are subject to change without prior notice.
Function Description
Display (
You can set the type of grid displayed on
the histogram/grid window. (p.37)
– [Grid Line] sub-menus:
[+]:
Grid Line
Start Image
:2 X 2
+
:On
3X3
X :Off
Display Brightness
2 X :Auto
2
Function Description
Quick View
:0.5sec
Power Save
:Off
Back
066
You can select whether function descriptions
appear on the LCD screen in Recording
mode.
- Function Description sub-menus
[Off] : The function description
does not appear.
[On]* : The name and description of the
function appears.
)
Setting the Grid Line
[3 X 3]:
)
[X]:
[2 X 2]*:
Set
Grid Line
Function Description
Start Image
Display Brightness
:2 X 2
Off
On
:On
:Off
:Auto
Quick View
:0.5sec
Power Save
:Off
Back
Set
Start up image
You can select the image that appears on the LCD screen first
whenever the you turn on the camera.
- Sub menus : [Off]*, [Logo], [User Image]
- To use a saved image as the start-up
image, run [Start Image] in the [Resize]
menu while in Play mode. (Page 84)
- The start-up image will not be deleted by
[Delete] or [Format] functions.
- The User images will be deleted by
[Reset] function.
Grid Line
:2 X 2
Function Description
:On
:Off
Start Image
Display Brightness
Quick View
:Auto
OFF
:0.5sec
Power Save
:Off
Back
Set
Display (
)
Display Bright
Display Save
You can adjust the LCD brightness.
- Sub menus : [Auto]*, [Dark],
[Normal], [Bright]
Grid Line
:2 X 2
Function Description
:On
Start Image
:Off
Display Brightness
Auto:Auto
Quick View
Dark:0.5sec
Normal
:Off
Power Save
Bright
Back
Set
Quick view
If you set the [Power Save] to On and the camera isn't operated
during the specified time, the LCD screen will be turned off
automatically.
- Sub menus
[Off]* : The LCD screen will not be turned off.
[On] : If you don’t operate the camera
within the specified time (about
30 SEC.), the LCD screen turns
off automatically. (Camera status
lamp: Blinking)
Grid Line
:2 X 2
Function Description
:On
Start Image
:Off
Display Brightness
:Auto
Quick View
:0.5sec
Power Save
Off
:Off
On
Back
Set
Ä You can’t set the [Power Save] in Playback Mode.
If you enable Quick View before capturing an image, you can view
the image you just captured on the LCD screen for the duration set
in the [Quick View] setup. You can use Quick view only with still
images.
- Sub menus
[Off]
: The quick view function is off.
[0.5 sec]*, [1 sec], [3 sec]
: The captured image is briefly
displayed for the selected
time.
Grid Line
:2 X 2
Function Description
:On
Start Image
:Off
Display Brightness
Off :Auto
Quick View
0.5sec
:0.5sec
1sec:Off
Power Save
3sec
Back
Set
067
Settings (
)
Formatting memory
Initialization
Use to format the internal memory or a memory card. If you run
[Format] on the memory, all images, including the protected images,
are deleted. Be sure to download important images to your PC
before formatting the memory.
All camera menu and function settings are restored to their default
values. However, values for Date & Time, Language, and Video Out
are not changed.
- Sub menus
[Yes] : A window for confirming the
selection displays. Select [Yes].
A [Formatting] message appears
and the memory will be formatted.
If you run FORMAT in Play mode,
a [Format is completed] message
will appear.
[No]* : The memory is not formatted.
Format
Reset
Yes
No
Language
:English
Date & Time
:2010/03/01
Time Zone
:London
File No.
:Series
Imprint
:Off
Back
Format
Reset
Language
Yes
No
:English
Date & Time
:Off
Time Zone
:London
File No.
:Series
Imprint
Back
:Off
Set
Set
Be sure to run [Format] on the following types of memory card.
- A new memory card, or an unformatted memory card.
- A memory card that has a file this camera can't recognize or one
that has been taken from another camera.
- Always format the memory card using this camera. If you insert a
memory card that has been formatted using other cameras,
memory card readers, or PCs, you will get a [Card Error]
message.
- If you have installed a memory card, [Format] formats the card.
If you have no card installed, [Format] formats the camera’s
internal memory.
068
- Sub menus
[Yes] : A window to confirm the selection
is displayed. Select [Yes] and
all settings are restored to their
defaults.
[No]* : Settings are not restored to their
defaults.
Language
You can choose the language displayed
on the LCD screen. The language settting
is preserved even if the battery is removed
and re-inserted.
Format
Reset
English
Language
:English
Français
:Off
Deutsch
:London
Español
Date & Time
Time Zone
File No.
Imprint
Back
:Series
Italiano
:Off
Set
Settings (
)
Setting up the Date / Time / Date type
File name
You can change the date and time that the camera displays on
captured images and set up the date type. Setting [Time Zone]
enables you to display the local date and time on the LCD screen
when travelling overseas.
This function lets you select the file naming format.
- Date type : [yyyy/mm/dd], [mm/dd/yyyy],
[dd/mm/yyyy], [Off]*
Format
Reset
Language
:English
Date & Time
:2010/03/01
yyyy
dd
Timemm
Zone
2010
/ 03 / 01
File No.
:London
13:00
Off
Imprint
Back
:Series
:Off
Set
Time Zone
Available cities/Time Zones:
London, Cape Verde, Mid-Atlantic,
Time Zone
Buenos Aires, Sao Paulo, Newfoundland,
Caracas, La Paz, NewYork, Miami,
Chicago, Dallas, Denver, Phoenix, LA,
San Francisco, Alaska, Honolulu, Hawaii,
London
[GMT +00:00] 2010/03/01 01:00 PM
Samoa, Midway, Wellington, Auckland,
Back
DST
Okhotsk, Guam, Sydney, Darwin, Adelaide,
Seoul, Tokyo, Beijing, Hong Kong, Bankok, Jakarta, Yangon, Almaty,
Kathmandu, Mumbai, New Delhi, Tashkent, Kabul, Abu Dhabi,
Teheran, Moscow, Athens, Helsinki, Rome, Paris, Berlin
[Reset] : After using the reset function,
the next file name is started at
0001 even if you’ve formatted the
memory, deleted all pictures, or
inserted a new memory card.
Format
Reset
Language
Date & Time
Time Zone
File No.
Imprint
:English
:2009/01/01
:London
Reset
:Series
Series
:Off
Back
Set
[Series]* : New files are named using
numbers that follow the previous sequence, even if you’ve
installed a new memory card is used, formatted, or deleted
all pictures.
- The first stored folder name is 100PHOTO, and the first file name
is SAM_0001.
- File names are assigned sequentially from SAM_0001 SAM_0002 to SAM_9999.
- The folder number is assigned sequentially from 100 to 999 as
follows: 100PHOTO 101PHOTO ~ 999PHOTO.
- The maximum numbers of files in a folder is 9999.
- The files used with the memory card conform to the DCF (Design
rule for Camera File systems) format. If you change the image file
name, the image may not play back.
Ä DST : Daylight Saving Time
069
Settings (
)
Imprinting the recording date
Auto power off
You can include DATE / TIME on still images.
This function switches the camera off after a set amount of time to
prevent unnecessary battery drainage.
- Sub menus
[Off]*
: The Date & Time is not
imprinted on the image file.
[Date]
: Only the Date is imprinted on
the image file.
[Date & Time] : The Date & Time is imprinted
on the image file.
Format
Reset
Language
:English
Date & Time
:2009/01/01
Time Zone
File No.
Imprint
Back
Off
:London
Date
:Series
Date & Time
:Off
Set
Ä The Date & Time are imprinted at the bottom right side of the still
image.
Ä The imprint function is applied only to still images.
Ä Depending on the manufacturer and print mode, the date printed
on an image may not be printed correctly.
070
- Sub menus
[Off] : The power off function does not
operate.
[1 min], [3 min]*, [5 min], [10 min] :
The power turns off automatically if the
camera is not used for the period of time
specified.
Auto Power Off
:3 min
Off
1 min:On
Anynet+ (HDMI-CEC) 3 min:On
AF Lamp
HDMI Size
5 min:1080i
Video Out
10 min
:NTSC
USB
Back
:Auto
Set
- After replacing the battery, the power off setting will be preserved.
- Note that the automatic power off function will not operate if the
camera is running a slide show, playing back a voice recording,
playing back a movie clip, or in the PC / Printer mode.
Settings (
)
Auto Focus lamp
You can turn the Auto Focus lamp on and off.
- Sub menus
[Off] : The AF lamp does not light up in
low light conditions.
[On]* : The AF lamp lights up in low
light conditions.
Auto Power Off
AF Lamp
Anynet+ (HDMI-CEC)
:3 min
Off :On
On :On
HDMI Size
:1080i
Video Out
:NTSC
USB
Back
4. When you select the camera menu of Anynet+ using the TV remote,
a play menu screen appears on the TV.
- The Playback menu appearing on TV screen operates the same
way as the Playback menu on the camera.
:Auto
Set
Anynet+ (HDMI-CEC)
Anynet+ (HDMI-CEC) is an AV network system that lets you control
Anynet+ compatible Samsung AV devices connected to an Anynet+
Samsung compatible TV with the TV’s remote control. When your
camcorder is connected to a Samsung Anynet+ compatible HDTV,
you can operate the playback functions using the TV’s remote control.
Ŷ How to use Anynet+ (HDMI-CEC)
1. Connect your camcorder to your Samsung Anynet+ compatible
HDTV using an optional HDMI cable. (p.72)
2. TV turns on as soon as you press the power button is pressed on the
camera.
3. If there is no picture after the TV turns on, press the source button on
the TV remote control to change to the HDMI mode.
- Depending on the TV, it might not change to the HDMI mode even
though you press the source button.
5. Select the playback function you want using the remote control of the
TV.
- To select the sub menus, move to the desired playback menu and
then press the Enter button.
Ɣ Only available when using a TV that supports Anynet+ (HDMI-CEC).
(Not available when using a TV that supports only Anynet.)
Ɣ For more detailed information of the HDTV connection and
Anynet+, see the user manual of your Samsung HDTV.
071
Settings (
)
HDMI Size
When the camera is connected to an
HDTV, you can select an image size that is
compatible with the HDTV. The image sizes
available are [1080i], [720p], [576p], and
[480p]. Only when [480p] is set to [NTSC]
and [576p] is set to [PAL], those resolutions
will be displayed in the menu.
Auto Power Off
:3 min
AF Lamp
:On
Anynet+ (HDMI-CEC)
:On
HDMI Size
Video Out
USB
Back
:1080i
1080i
:NTSC
720p
480p:Auto
Set
Ŷ How to connect the camera to an HDTV
Connect your camera to your HDTV using an optional HDMI cable.
HDMI cable
072
Ɣ HDMI (High Definition Multimedia Interface) is a data transfer
protocol that transfers uncompressed recorded images through
an HDMI cable. You can see the images in a high resolution in an
HDTV.
Ɣ When Anynet+ (HDMI-CEC) is used and HDMI resolution is set
to [480p] (NTSC) or [576p] (PAL), it is only available to play back
the image, movie clip, voice.
Ɣ If your HDTV does not support the HDMI resolution you selected,
it cannot show a clear image on the screen.
Ɣ If you try to select a resolution that your HDTV does not support,
the camcorder adusts the resolution to the maximum resolution
the HDTV does support. For example, if you select “1080i” when
the HDTV only supports up to “720p”, the camcorder adjusts to
“720p.”
Ɣ You can play back the movie clip at its actual resolution as well.
Ɣ You can not use HDMI on your HDTV that does not support it.
Please check the specification of HDTV before connecting it.
Ɣ For more information about the HDTV connection, see the user
manual of your HDTV.
Settings (
)
Selecting Video out type
The Video output signal from the camera can be NTSC or PAL.
Your choice of output is governed by the type of device (monitor or
TV, etc.) to which the camera is connected. PAL mode can support
only BDGHI.
Connecting to an external screen
When you connect the camera to an external monitor, the images and menus on
the camera’s LCD screen will be visible
on the external screen.
Auto Power Off
:3 min
AF Lamp
:On
Anynet+ (HDMI-CEC)
:On
HDMI Size
:1080i
Video Out
:NTSC
NTSC
USB
PAL :Auto
Back
Set
- NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico etc. .
- PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany,
U.K., Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore,
Spain, Sweden, Switzerland, Thailand, Norway etc. .
- When using a TV as an external screen, you need to select the
external or AV channel of the TV.
- There may be digital noise on the external screen, but it is not a
malfunction.
- If the image is not in the center of the screen, use the TV controls
to center it.
- When you connect the camera to an external screen, the screen
may not display some parts of some images.
- When you connect the camera to an external screen, the camera’s
menu is displayed on the external screen. The functions displayed
on the screen are the same as those on the camera’s LCD screen.
Setting the USB
If the camera has failed to connect automatically with a PC or a printer
through a USB cable, you can manually set [Computer] or [Printer].
Yellow - Video
White - Sound
-[USB] sub menus:
[Auto]*
: Automatically enables an
Auto Power Off
:3 min
external device connected with
AF Lamp
:On
Anynet+ (HDMI-CEC)
:On
a USB cable.
HDMI Size
:1080i
Auto
[Computer] : Sets computer connection
Video Out
:NTSC
Computer
USB
:Auto
mode if the camera does not
Printer
recognize a connected
Back
Set
computer automatically.
[Printer]
: Sets the Printer connection mode if the the camera does
not recognize a connected printer automatically.
073
Starting play mode
Turn the camera on and select Play mode by pressing the play mode
button ( Î ). The camera can now play back the images stored
in the memory. If a memory card is inserted in the camera, all the
camera functions apply only to the memory card.
If a memory card is not inserted in the camera, all the camera
functions apply only to the internal memory.
Each kind of file has a distinctive OSD (On Screen Display).
For example, a movie clip displays a play bar while a voice file
displays a microphone. You can use the differences in the OSD
to identify the kind of file your are viewing.
Playing back a still image
1. Select the Play mode by pressing
the play mode button ( Î ).
2. The last image stored in the
memory is displayed on the
LCD screen.
3. Select an image that you want to
view by pressing the Left/ Right
button.
Ä Press and hold the Left or Right
button to play back the images
quickly.
074
Playing back a movie clip
1. Select the recorded movie clip that
you want to play back by using the
Left/Right button.
2. Press the OK button to play back a movie
clip file.
Play
Capture
- To pause a movie clip file while playing
it back, press the OK button again.
- Press the OK button again to restart the movie clip.
- To rewind the movie clip while it is playing, press the Left button.
To fast forward the movie clip, press the Right button.
- To stop playback of the movie clip, press the OK button, and
then press the Left or Right button.
Your camera can not play back video files (H.264 (MPEG4.AVC))
recorded with another camera.
How to Control the Volume While Playing Back Movie Clips
While the camera plays a movie clip, turn the
Zoom W/T lever to the left to decrease the
volume. Turn the Zoom W/T lever to the right to
increase volume.
Ä You can control the volume for voice memos,
movie clips, and voice recordings in the same way.
Starting play mode
Movie clip capture function
Playing back a recorded voice file
You can capture still images from a movie clip.
1. Select the recorded voice file that you
want to play back by using the Left/Right
button.
2. Press the OK button to play back the
recorded voice file.
Play
- To pause a recorded voice file while
playing it back, press the OK button again.
- To resume playback of the voice file, press the OK button.
- To rewind the voice file while it is playing, press the Left button.
To fast forward the voice file, press the Right button.
- To stop playback of the voice file, press the Down button.
Capturing a still image from a movie clip
1. Press the OK button while playing the
movie clip. Then, press the Down button.
2. A still from the movie clip is saved under
a new file name.
Ä The captured movie clip file is the
Play
Capture
same size as the original movie clip
[Paused]
(1280x720HQ, 640x480, 320x240).
Ä When you press the down button at the beginning of the movie
clip, the first frame of the movie clip is saved as a still image.
On camera movie trimming
Playing back a voice memo
You can extract desired frames of movie clip during the movie clip
play back.
1. Select a still image that has a voice
memo.
2. Press the OK button to play back the
voice memo.
- To pause the voice memo while
playing it back, press the OK button
again.
- To resume playback of the voice memo,
press the OK button.
1. Press the OK button at the point of the
movie clip that you want to start extracting,
Trimming?
and turn the lever to the right.
Yes
No
2. Press the OK button at the point of the
movie clip that you want to stop extracting,
and turn the lever to the right.
Play
Capture
3. A confirmation window will be displayed.
4. Press the Up / Down button to select a desired sub menu.
[Yes] : The extracted frames are saved as a new file name.
[No] : The movie trimming will be cancelled.
Ä If the running time is under 10 seconds, the movie clip can’t be
trimmed.
Play
Pause
075
LCD screen Indicator
The LCD screen displays shooting information about the displayed image.
076
No.
Description
Icon
1
Playback mode
p.74
2
Voice Memo
p.93
3
DPOF
p.94
4
Protect
p.92
5
Smart Face Recognition
p.51
6
Folder name & File name
7
Memory indicator
-
8
Battery
p.16
9
Histogram
p.38
100-0010
Page
p.69
10
ISO
80 ~ 6400
p.48
11
Aperture value
F2.8 ~ F8.0
-
12
Shutter speed
16 ~ 1/2,000
-
13
Flash
On/Off
p.41
14
Image size
4288x3216 ~ 320x240
p.53
15
Recording date
2010/03/01
p.69
Using the camera buttons to set the camera
Thumbnail ( º ) / Digital Zoom ( í ) Lever
In Play mode, you can use the buttons on the camera to conveniently
set up the Play mode functions.
Smart Album
Play mode button
If you have turned on the camera by
pressing the POWER button, you can
press the Play mode button once to
switch to Play mode and press it again to
switch to Recording mode.
You can turn the power on with the Play
mode button. The camera is turned on in play mode. Press the
Play mode button again to turn off the camera.
Manner mode: To select the Manner mode, press the Play mode
button for more than 3 seconds. In the Manner
mode, the camera does not generate Operating
sound, Effect sound, Start-up sound, and Shutter
sound. To cancel the Manner mode, turn on the
camera by pressing the POWER button.
You can view multiple pictures, enlarge a selected picture, or crop
and save a selected area of an image.
1. To enter Smart Album mode, push the
Thumbnail lever to the left when the camera is
displaying a single picture.
2. Press the Left/Right button to move to the
image you want.
3. To return to the normal display screen, push
the Digital Zoom lever to the right.
11
12
Filter
[Highlighted image]
1
3
5
2010/03/01
[Smart Album Window]
077
Thumbnail ( º ) / Digital Zoom ( í ) Lever
Searching for or Deleting Files
Smart Album Filter
1. Press the Thumbnail button in Smart Album.
- Each time you press the Thumbnail button,
you increase the number of thumbnails the
camera displays, from 3 to 9 to 20. Pressing
the Enlargement button decreases the number
of thumbnails the camera displays. See the illustrations below.
2. Use the Up/Down/Left/Right buttons to select an image.
1. Press the MENU button in Smart
Album mode. A list of categories
appears on the left of the screen.
2. Use the Up/Down button to move up
or down the list.
3. Press the OK button to select a category.
The camera selects the images that fit
the category, then displays them in the
Smart Album format.
To delete an image, follow these steps:
1. Follow Steps 1 and 2 above.
2. Press the Delete button. The Delete window appears.
3. Press the Up/Down button to select Yes, and then press the
OK button.
11
12
Filter
1
2010/03/01
3
5
11
12
Filter
1
3
5
2010/03/01
[9-Thumbnail Window]
11
12
Filter
1
3
Color
Week
Face
11
12
Back
1
2010/03/01
3
5
Set
Details of Each Category
Category
5
2010/03/01
[20-Thumbnail Window]
In Smart Album, it may take a few seconds for images to appear,
depending the number of images you’ve recorded. This is not a
malfunction. Please wait until the Smart Album screen appears.
078
Type
Date
Description
Type
Categorized by file type.
(e.g., picture, video, or voice)
Date
Categorized by date.
Color
Categorized by the main color in the image.
Week
Categorized by week.
Face
Categorized by faces photographed in the
Face Detection mode.
File Format
Pictures,
Videos, Voice
Ɣ The [Face] category appears only if there are faces that
were photographed in the Face Detection mode.
Thumbnail ( º ) / Digital Zoom ( í ) Lever
Image enlargement
1. Select an image you want to enlarge, and
then move the Digital Zoom lever to the
right.
2. Move the Digital Zoom lever to the right
repeatedly to make the image larger.
3. Press the Up/Down/Left/Right sides of
the 5 Function button to view different
portions of the enlarged image.
4. Press the Thumbnail button repeatedly
to decrease the size of the image.
- You can tell whether the image
displayed is an enlarged view by
Trim
checking the image enlargement indicator shown at the top left of the LCD
screen. If the image is not an enlarged view, the indicator will not
be displayed. You can also check the area of enlargement.
- You can’t enlarge Movie clips and WAV files.
- If you enlsarge an image, a loss of quality may occur.
The maximum enlargement rate in proportion to the image size
Image size
Maximum
enlargement X13.4 X11.2 X11.2 X10.2 X8.1
rate
X6.4
X5.0
X3.2
Trimming : You can extract part of the image that you want and
save it separately.
1. Select an image that you want to
enlarge, and then move the Digital
Trimming?
Zoom lever to the right. Then, press the
Yes
OK button, and the trimming message
No
appears.
2. Select a desired sub menu by pressing
Confirm
the Up / Down button, and then press
the OK button.
- [Yes] : The trimmed image is saved as a new file name, and
appear on the LCD screen.
- [No] : The trimming menu disappears.
Ä If there is not enough memory space to save the trimmed
image, the image can’t be trimmed.
079
Info (DISP) / Up button
Play & Pause / OK button
When the menu is displayed on the LCD screen, the Up (DISP) button
operates as a direction button.
When an image is displayed on the LCD screen, pressing the Up (DISP)
button repeatedly displays image information on the LCD screen.
In Play mode, the Play & Pause / OK button works as follows:
Info (DISP) button
Info (DISP) button
- When the menu is displayed on the LCD screen, you use the OK
button to confirm changes to data that you have made using the 5
function button.
- If a still image with a voice memo, a voice file, or a movie clip is
playing
·In Stop mode
: Plays a still image with a voice memo, a voice
file, or a movie clip.
·During playback : Temporarily stops playback.
·In Pause mode : Resumes playback
Info (DISP) button
Play
[ Voice recording is stopped ]
080
Pause
Stop
[ Voice recording is playing ]
Play
Stop
[ Voice recording is paused ]
Left / Right / Down / MENU button
Delete ( Õ ) button
Left / Right / Down / MENU buttons activate the following.
This deletes images stored in the memory.
- Left button
: While the menu is showing, the Left button
operates as a direction button. When the menu
is not showing, press the Left button to select the
previous image.
- Right button : While the menu is showing, the Right button
operates as a direction button. When the menu is
not showing, press the Right button to select the
next image.
- Down button : While the menu is showing, the Down button
operates as a direction button.
- MENU button : When you press the MENU button, the play mode
menu is displayed on the LCD screen. Pressing it
again will return the LCD to the initial display.
To delete a single image, follow these steps:
1. Press the Play mode button to view images.
2. Press the Left/Right button to select an image you want to delete.
3. Press the Delete button. The camera
displays the Delete File window.
Delete File?
4. Press the Up/Down button to select
Yes
No
Yes, and then press the OK button.
Multiple Delete
Ä You can also delete images in
Thumbnail mode. See page 78.
Select
[Single Image]
To delete multiple images, follow these steps:
1. Press the Play mode button to view images.
2. Press the Delete button. The camera displays the Delete File
window.
3. Use the Up/Down button to select Multiple Delete, and then
press the OK button.
4. Use the Left/Right button to move to an image you want to delete.
5. Press the OK button to mark an image
for deletion. A check appears on the
image.
6. After you’ve selected all the files you
want to delete, press the Delete button.
Prev
Next
The camera displays a message asking
Select
Delete
if you want to delete.
7. Use the Up/Down button to select Yes, and then press the OK
button.
081
Setting the playback PictBridge functions using the LCD screen
You can change Playback functions using menus displayed on the
LCD screen. To display the Playback menus while in Playback mode,
press the Menu button. To close the Playback menus, press the Play
mode button or the Shutter button.
The Playback menus are listed in the tables below.
Menu Tab
Main Menu
Resize
Rotate
Edit
)
(
Photo Style
Selector
Smart Filter
Image Adjust
View
(
082
)
Sub Menu
2592x1944
2048x1536
1024X768
2592X1728
1800X1200
2592X1456
1920X1080
Start Image
Right 90˚
Left 90˚
180˚
Horizontal
Vertical
Normal
Soft
Vivid
Forest
Retro
Cool
Calm
Classic
Negative
Custom RGB
Off
Miniature
Vignetting
Fish-eye
Sketch
Defog
Off
ACB
Red-eye Fix
Face Retouch
Brightness
Contrast
Saturation
Add Noise
Single, 9, 20
Menu Tab
Sub Menu
Start
Play / Repeat
Images
Page
p.84
Main Menu
Multi Slide
Show
)
(
Interval
Music
Effect
p.85
Delete
p.85
p.86
Protect
File
Options
(
)
Face List Edit
Voice memo
All
Date
-
Select
-
-
1, 3, 5, 10 sec
-
Off
Mist
-
Drops
Muse
-
Trip
Fall
-
Off
Calm
-
Shine
Relax
-
Lively
Sweet
-
Select
-
All
Yes / No
Select
-
All
Lock / Unlock
Edit Ranking
-
Delete My Star
-
Off
-
On
-
Standard
p.87
DPOF
Index
Size
p.89
Copy to Card
Secondary
Menu
-
Page
p.89
p.90
p.90
p.91
p.91
p.91
p.92
p.93
p.93
Select / All / Reset p.94
Yes / No
~
Select / All / Reset p.95
Yes
-
No
-
p.96
Setting up the play back function using the LCD monitor
This menu is available while the camera is connected to a PictBridge
supporting printer (direct connection to the camera, sold separately)
with a USB cable.
Menu Tab
Main Menu
Images
Paper
❹
Layout
Sub Menu
Menu Tab
Secondary Menu Page
One Photo
-
All Photos
-
Auto
-
PostCard
-
Card
-
4X6
-
L
-
2L
-
Letter
-
A4
-
A3
-
Auto
-
Full
-
1
-
2
-
4
-
8
-
9
-
16
-
Index
-
Main Menu
Type
p.98
Quality
❹
Date
File Name
p.98
Reset
Sub Menu
Secondary Menu Page
Auto
-
Plain
-
-
Fast Photo
-
Auto
-
Draft
-
Normal
-
Fine
-
Auto
-
Off
-
On
-
Auto
-
Off
-
On
-
No
-
Yes
-
p.98
p.99
Ä Menus are subject to change without prior notice.
083
Edit (
)
Resize
Change the resolution (size) of pictures taken. Select [Start image]
to save an image to be the start-up image.
o
o
1. Press the Play mode button.
Resize
2. Press the Left/Right button to select an
image.
3. Press the Menu button.
4. Press the Up/Down button (if necessary)
to select Edit, and then press the OK
Back
Move
button.
5. Press the Up/Down button (if necessary) to select Resize, and
then press the OK button.
6. Press the Left/Right button to select a size or the Start Image
icon, and then press the OK button.
o
o
Image Resize Tables
The current image sizes are on the left side of the table. The available
resize dimensions are on the top.
( o : Sizes you can Select)
o
o
o
o
o
o
o
o
o
o
o
o
o
o
084
- You can resize a large sized image to a smaller size, but not vice
versa.
- You can only resize JPEG images. Movie clip (H.264), Voice
recording (WAV) files can’t be resized.
- You can change the resolution of only those files compressed in
the JPEG 4:2:2 format.
- The resized image will have a new file name. The [Start Image]
image is not stored in the memory card but in the internal memory.
- If you save a new Start Image, the original Start Image is deleted.
- If the memory capacity is insufficient to store the resized image,
a [Memory Full] message appears on the LCD screen and the
resized image can't be stored.
Edit (
)
After using [Edit] feature, the edited image will be saved at a smaller
size than original image.
Rotating an image
You can rotate the stored images.
1. Press the Play mode button.
2. Press the Left/Right button to select an image.
Rotate
3. Press the Menu button.
4. Press the Up/Down button (if necessary) to
select Edit, and then press the OK button.
5. Press the Up/Down button to select
Back
Move
Rotate, and then press the OK button.
6. Press the Left/Right button to select how much you want the picture rotated, and
then press the OK button. The camera saves the rotated image as a new file.
Photo Style Selector
You can apply various effects to your images by using this function.
1. Press the Play mode button.
2. Press the Left/Right button to select an
image.
Photo Style Selector
3. Press the Menu button.
4. Press the Up/Down button (if necessary)
to select Edit, and then press the OK
Back
Move
button.
5. Press the Up/Down button to select Photo Style Selector, and
then press the OK button.
6. Press the Left/Right button to select a Photo Style, and then press
the OK button. The camera saves the changed image as a new file.
Style mode
Right 90˚
Left 90˚
Normal
Back
Move
Back
[ ô : Right 90˚]
: Rotate picture in a
clock-wise direction
Move
Back
Move
[ ó : Left 90˚]
[ õ : 180˚]
: Rotate picture in a
: Rotate picture 180 degrees
counter-clock-wise direction
Horizontal
Back
Vertical
Move
[
: Horizontal]
: Rotate picture horizontally
Icon
Description
180˚
Back
Move
[ ® : Vertical]
: Rotate picture vertically
If you display the rotated image on the LCD screen, empty spaces
may appear to the left and right of the image.
No style effect is applied.
Soft
Soft style is applied.
Vivid
Vivid style is applied.
Forest
Forest style is applied.
Retro
Sepia style is applied.
Cool
Cool style is applied.
Calm
Calm style is applied.
Classic
Negative
Custom RGB
Black & white effect is applied.
Negative effect is applied.
Define an RGB tone to create your own photo style.
085
Edit (
)
Custom color
Smart Filter
If you select the Custom RGB Photo
Style, you can change the Red (R),
Green (G), and Blue (B) values of an
image.
Apply various filter effects to your photos to create unique images.
Back
Move
Back
Move
- OK button : Select / setup the Custom
Color
- Up / Down button : Selects R, G, B
- Left / Right button : Change the R, G,
or B value
1. Press the Play mode button.
2. Press the Left/Right button to select an
image.
3. Press the Menu button.
Smart Filter
4. Press the Up/Down button (if necessary) to
select Edit, and then press the OK button.
Back
Move
5. Press the Up/Down button to select
Smart Filter, and then press the OK button.
6. Press the Left/Right button to select a Smart Filter function, and
then press the OK button. The camera saves the changed image
as a new file
Smart Filter
Off
086
Icon
Description
No effect
Miniature
Make a photo of a life-size location or object
look like a photo of a miniature scale model.
Blurring parts of the photo makes the scene
seem much smaller than it actually is.
Vignetting
Apply retro-looking colors, high contrast, and
strong vignette effect.
Fish-eye
Distort close objects to imitate the visual effect
of a fisheye lens.
Sketch
Make photos look like sketches.
Defog
Distinct style is applied.
Edit (
)
Image Adjust
Face Retouch
1. Press the Play mode button.
2. Press the Left/Right button to select an image.
3. Press the Menu button.
4. Press the Up/Down button (if necessary) to select Edit, and then
press the OK button.
5. Press the Up/Down button to select Image Adjust, and then press the
OK button.
ACB
You can automatically adjust the brightness of dark areas, caused
by under exposure.
1. Select ( ) by pressing the Left/Right
button, and then press the OK button.
2. The [Making New Image] message is
displayed and the camera saves image
as a new file.
1. Select (
) by pressing the Left /
Right button. The [Processing] message
appears.
Face Retouch
2. Press the OK button. The Face Retouch
bar appears.
3. Use the Left / Right button to select
Back
Move
1, 2, or 3. The [Processing] message
appears.
4. Press the OK button. The camera saves the adjusted image as
a new file.
Brightness control
ACB
You can change the brightness of the image.
Back
Move
Red eye Removal
You can remove the red eye effect from the captured image.
1. Select ( ) by pressing the Left/Right
button, and then press the OK button.
2. The [Making New Image] message is
displayed and the camera saves the
image as a new file.
You can make the skin in an image appear clear and beautiful.
Red-eye Fix
Back
1. Select (
) by pressing the Left/Right
button, and then press the OK button.
A bar for selecting the brightness
appears.
2. Change the brightness by pressing
the Left/Right button.
3. Press the OK button and the camera
saves the image as a new file.
Brightness
Back
Move
Move
087
Edit (
)
Noise effect
Contrast control
You can add noise to an image to create a more classic feel to
your photo.
You can change the contrast of the image.
1. Select ( ) by pressing the Left/Right
button, and then press the OK button. A
bar for selecting the contrast appears.
2. Change the contrast by pressing the
Left/Right button.
3. Press the OK button and the camera
saves the image as a new file.
Contrast
Back
Move
Saturation control
You can change the saturation of the image.
1. Select (
) by pressing the Left/Right
button, and then press the OK button. A
bar for selecting the saturation appears.
2. Change the saturation by pressing the
Left/Right button.
3. Press the OK button and the camera
saves the image as a new file.
088
Saturation
Back
Move
1. Select (
) by pressing the Left/
Right button, and then press the OK
button.
2. The [Making New Image] message
appears and the camera saves the
image as a new file.
Add Noise
Back
Move
View (
)
Starting the Multi Slide Show (
You can view thumbnails and easily categorize or search a large
number of pictures and videos.
1. Press the MENU button in playback
mode.
2. Press the Up/Down button to select
View, and then press the OK button.
3. Press the Up/Down button to select
Single, 9, or 20, and then press OK.
Single
Your camera can display images at pre-set intervals in a slide show. You
can view the Multi Slide Show on the camera’ LCD screen or connect
the camera to an external monitor and view it on the monitor’s screen.
1. Press the Play mode button, and then press the menu button.
2. Press the Up / Down button, select the [Multi Slide Show] menu
tab, and then press the OK button.
9
20
Exit
)
Back
Start the Multi Slide Show
The Multi Slide Show can start only in the Multi Slide Show [Start] menu.
1. Use the Up / Down button to select the [Start] menu, and then
press the Right button.
2. Select a desired sub-menu by pressing
the Up / Down button.
[Play] : The Multi Slide Show stops
after one cycle.
[Repeat] : The Slide Show repeats until
cancelled.
Start
Images
Interval
Play
Repeat:All
:1 sec
Music
:Off
Effect
:Off
Back
Set
3. Press the OK button and the slide show starts.
- To pause the slide show while playing it back, press the OK
button again.
- Pressing the OK button again will cause the Multi Slide Show
restart.
- To stop playback of the Multi Slide Show, press the OK button,
and then press the Left or Right button.
089
Starting the Multi Slide Show (
)
Selecting Images
You can select images to view in a slide show. [Select] lets collect
images into separate groups labeled [Select1], [Select2], or [Select3].
When you play a slide show, you select the group you want to play.
To collect images into a group, follow these steps:
1. In the Multi Slide Show menu, use the
Start
Up / Down button to select Images, and
Images
:All
All
Interval
:1 sec
Date
then press the OK button.
Music
:Off
Select
2. Use the Up / Down button to select
Effect
:Off
[Select], and then press the OK button.
The Select window appears.
Back
Set
3. Press the Up / Down button to select [New
Select] (if necessary), and then press the OK button. The camera
displays Processing, and then displays image thumbnails.
4. Press the Up / Down / Up / Down button to highlight an image. Press
the OK button to select the image. A check mark appears on the image.
- The images will appear in the order you select them.
5. Repeat Step 4 for each image you want to included. Press the
Fn button when done.
To play a slide show of a group of selected images, follow these steps:
1. On the Multi Slide Show menu, use the Up / Down button to select
[Images], and then press the OK button.
2. Use the Up /Down button to select [Select] (or Select 1, 2, or 3,
depending on what your camera is displaying), and then press the
OK button. The Select window appears.
3. On the Select window, use the Up / Down button to select the
group you want to play, [Select 1, 2, or 3]. The thumbnail screen
for that group appears.
4. Press the Fn button. You are returned to the Main menu.
090
5. Select [Multi Slide Show] again, and then press the OK button.
6. Select [Start], and then press the OK button.
7. Select [Play] for single cycle play or [Repeat] for continuous, repetitive
play, and then press the OK button. The slide show begins.
When you save the first group, it is saved as [Select1]. When you
save a second group, that group is saved as [Select1] and the
previous group is saved as [Select2]. When you save a third group,
that group is saved as [Select1], the previous [Select1] group is
saved as [Select2], and the previous [Select2] group is saved as
[Select3]. If you save a fourth group, the fourth group supplants
the previous [Select1], the previous [Select1] group supplants the
[Select2] group, and the [Select2] group supplants the [Select3].
Setting play interval
To set the Multi Slide Show play interval:
1. Select the [Interval] sub-menu by
pressing the Up / Down button, and
then pressing the Right button.
2. Use the Up / Down button to select
the desired interval.
3. Press the OK button to save the
configuration.
Start
Images
:All
Interval
Music
:1 sec
1 sec
3 sec:Off
Effect
5 sec:Off
10 sec
Back
Set
Image loading time depends on the image size and quality.
The camera displays only the first frame of a Movie file in a slide
show.
Voice recording files are not displayed in a slide show.
To set an interval, you must set Effect to [Off] (See page 91).
Starting the Multi Slide Show (
File Options (
)
Setting Background Music
1. Press the play mode button, and then press the menu button.
2. Press the Up / Down button, select the [File Options] menu tab,
and then press the OK button.
Set the Multi Slide Show music.
1. Select the [Music] sub menu by
pressing the Up / Down button, and
then press the Right button.
2. Use the Up / Down button to select the
desired Music.
3. Press the OK button to save the
configuration.
Start
Images
Interval
Music
Effect
Back
Off
Mist :All
:1 sec
Drops
Muse:Off
Trip :Off
Set
You can apply unique screen effects to Multi Slide Shows.
Start
Interval
Off
:All
Calm
:1 sec
Shine
Music
:Off
Relax
Effect
Lively
:Off
Sweet
Images
Back
Deleting images
Use this function to delete images stored in the memory.
Fall
Configure Multi Slide show effects
1. Select the [Effect] sub menu by
pressing the Up / Down button, and
then press the Right button.
2. Use the Up / Down button to select
the type of effect.
3. Press the OK button to confirm the
setting.
)
Set
1. Press the Up / Down button and select
the [Delete] menu tab. And then press
the Right button.
2. Press the Up/Down button to select a desired
sub-menu, and then press the OK button.
If you chose [Select], a thumbnail screen
appears.
- Use Up/Down/Left/Right to select an image.
- Press the OK button to mark an image for
deletion.
- Press the Fn button to display the Delete
Confirmation window. Select [Yes], and
then press the OK button to delete the
marked images.
If you chose [All], the Delete Confirmation
window appears. Select [Yes], and then
press the OK button to delete all unprotected images. If there are no protected
images, all images are deleted and the [No
Image File] message appears.
3. After the deletion finishes, the screen will
be changed to the Play mode screen.
Delete
Select
Protect
All
Face List Edit
Voice memo
:Off
DPOF
Copy to Card
Back
11
12
Set
1
Select
3
5
Delete
Delete
Protect
Face List Edit
Delete All File(s)?
Voice memo
Yes
DPOF
No
Copy to Card
Back
:Off
Set
091
File Options (
)
The Delete function deletes unprotected images premanently.
Before you run the Delete function, store all important shots
on a computer. The Startup image is stored in the camera’s
internal memory (i.e., not on the memory card). When you run
the Delete function, the camera will not delete it, even if you
delete all the files in the memory.
Protecting images
Use this function to protect specific shots from being accidentally
erased (Lock) and unprotect images that you have previously protected
(Unlock).
1. Press the Up / Down button and select
the [Protect] menu tab. And then press
the Right button.
2. Press the Up/Down button to select a
desired sub-menu, and then press the
OK button.
If you chose [Select], a thumbnail
screen appears.
- Use Up/Down/Left/Right to select an
image.
- Press the OK button to protect an
image or remove protection from an
image. When you protect an image, a
key appears on the image. When you
unprotect, the key is removed.
- Press the Fn button to save your
changes.
092
Delete
Protect
All
Voice memo
:Off
DPOF
Copy to Card
Back
11
12
Select
Set
1
3
5
Set
Delete
Protect
Face List Edit
Protect All?
Recycle Bin
Lock
Voice memo Unlock
DPOF
:Edit Ranking
:Off
:Off
Copy to Card
Back
Set
You can apply image protecion in playback mode by selecting an
image, and then pressing the image protection button. ( )
Select
Face List Edit
If you chose [All], the Protect All window
appears. Select [Lock] to protect all
images. Select [Unlock] to remove
protection from all images. Press OK to
complete the process.
- If you protect an image, the protect icon
is displayed on the LCD screen. (An
unprotected image has no indicator)
- Locked images are protected from the
delete function or [Delete] function, but
are NOT protected from the [Format]
function.
File Options (
)
Face List Edit
Voice memo
You can arrange or delete portrait images in Smart Album according
to their ranking. This feature is available only when you use a memory
card.
You can add your voice to a stored still image.
1. Press the Up / Down button to select
the [Face List Edit] menu, and then
press the Right/OK button.
2. Select a desired menu by pressing the
Up / Down button, and then press the
OK button.
[Edit Ranking] : You can change
the ranking of the
registered images.
[Delete My Star] : You can delete
selected images from
the list.
3. Press the MENU button to switch to the
Playback mode.
Delete
Protect
Face List Edit
Delete
Voice memo
Protect
Face List Edit
Voice memo
Edit Ranking
Delete:Off
My Star
DPOF
Back
Copy to Card
Back
Off
:Off
On
Set
[Voice memo menu]
Start
[Ready for recording]
Stop
[Voice is recording]
Set
Face List Edit
Back
DPOF
Copy to Card
Set
1. Select a picture.
2. Press the Menu button.
3. Use the Up / Down button to select File Options, and then press
the OK button.
4. Use the Up / Down button to select Voice Memo, and then press
the OK button.
5. Select On, and then press the OK button.
6. Press the Shutter button. The 10 second recording period begins
momentarily.
7. To stop recording before the 10 seconds have elapsed, press the
Shutter button again.
093
File Options (
)
DPOF
DPOF(Digital Print Order Format) allows you to embed printing
information in your memory card’s MISC folder. Select the pictures
to be printed and how many prints to make.
The DPOF indicator will displays on the LCD screen when an image
that has DPOF information plays back. Images can then be printed
on DPOF printers, or at an increasing number of photo labs.
This function is not available for Movie clips and Voice recording files.
When the wide angle image is printed as a wide angle print, 8%
of the left and right side of the image may not be printed. Check
that your printer can support the wide angle image when you
print the image. When you get the image printed at a photo lab,
request that the image be printed as a wide angle image. (Some
photo labs may not support the wide angle size print.)
Depending on the printer, the image saved in portrait orientation
may not be printed in portrait orientation.
Standard
This function allows you to embed printing quantity information in
a stored image.
1. Press the Up / Down button, select the
[DPOF] menu tab, and then press the
Right button.
Delete
Protect
Select
Face List
EditImage
Voice memo Select
All
DPOF
Reset
Copy to Card
2. Press the Right button again and the
[Standard] sub-menu appears.
Back
:Off
Set
3. Select a desired sub-menu by pressing
the Up / Down button, and then pressing
the OK button.
[Select] : The selection window appears.
You can select photos to print.
- Up / Down / Left / Right : Select an image
Quantity
Set
to print.
- Zoom W/T Lever :
Select the number of prints. The number
appears on the thumbnail. You can
0
select the number of prints for multiple
photos. Press the Fn button to confirm.
[All] : Configure number of prints for all
Quantity
Set
pictures except movie and voice
files. The number appears on the LCD screen. Use the
Up/Down button to select a number. Press the OK button
to confirm.
- Up / Down button : Select a number of prints.
[Reset] : Cancel the print setup.
11
00
00
00
02
12
1
01
3
5
4. Press the OK button to confirm the setting. If an image carries
) appears on the image.
DPOF instruction, the DPOF indicator (
094
File Options (
)
Index
Images (except for movie clips and voice files) are printed as index
type.
1. Press the Up / Down button, select the
[DPOF] menu tab, and then press the
Right button.
2. Select the [Index] menu, and then press
the Right button again. The sub-menu
appears.
Delete
Protect
Face List Edit
Setting Index?
Voice memo Yes
DPOF
:Off
No
Copy to Card
Back
Set
3. Select [Yes] or [No] by pressing the Up / Down button.
If [Yes] is selected : The image are printed in index format.
If [No] is selected : Cancel the index print setting.
4. Press the OK button to confirm the setting.
Print size
You can specify the print size when printing images stored on the
memory card. The [Size] menu is available only for DPOF 1.1
compatible printers.
1. Press the Up / Down button, select the
Delete
[DPOF] menu tab, and then press the
Protect
Select Image
Face List Edit
Right button.
Select
Voice memo
:Off
All
2. Select the [Size] menu, and then press
DPOF
Reset
Copy to Card
the Right button again. The Sub-menu
appears.
Back
Set
3. Select a desired sub-menu by pressing
the Up / Down button, and then pressing
the OK button.
[Select] : The selection window appears.
Lets you choose the print size
of images to be printed.
Size
Set
- Up / Down / Left / Right : Select an image.
- Zoom W/T Lever :
Change the print size. The size appears
on the thumbnail.
3X5
- Fn button : Press to save the sizes you
chose.The menu will disappear.
Size
Set
[All] : Change print size of all saved images.
- Up / Down button : Select a print size. The size appears on the
LCD screen.
- OK button : Press to confirm the size you chose.
[Reset] : Cancel all of the print size settings.
11
Cancel
Cancel
Cancel
Cancel
12
1
Cancel
3
5
Ä DPOF [Size] secondary menu : Cancel, 3X5, 4X6, 5X7, 8X10
Depending on the manufacturer and printer model, cancelling the
printing may take a little longer for the printer to process.
095
File Options (
)
Copy To Card
If there is not enough space available in the memory card to
This enables you to copy image files, movie clips and voice recording
files to the memory card.
1. Select the [Copy to Card] menu tab by
pressing the Up / Down button, and
then press the Right button.
2. Press the Up/ Down button to select
[Yes] or [No], and then press the OK
button.
Delete
Protect
Face List Edit
Voice memo
:Off
DPOF
Copy to Card
Yes
No
Back
Set
- [No] : Cancels "Copy to Card".
- [Yes] : Copies all images, movie clips, and voice recording files
saved in the internal memory to the memory card after
the [Copying] message is displayed. After copying is
complete, the screen returns to Playback mode.
096
copy saved images from the internal memory (About 8MB max),
the [Copy to Card] command copies only some of the images
and then displays the [Memory Full] message. Then, the camera
returns to the Playback mode. Please be sure to delete any
unnecessary files on the memory card to free space before
inserting the card into the camera.
When you move the images that are stored in the internal memory
to the card using [Copy to Card] to the card, the next number of
file names will be created on the card to avoid duplication of the
file name.
- When [File No.] in the Settings menu is set to [Reset], the
copied file names start from after the last stored file name.
- When [File No.] is set to [Series], the copied file names start from
after the last captured file name. After completing [Copy to Card],
the last stored image of the last copied folder is displayed on the
LCD screen.
PictBridge
You can use the USB cable to connect this camera to a printer that
supports PictBridge (sold separately) and print the stored images
directly. Movie clips and voice files cannot be printed.
Connecting the camera to a Pictbridge compatible printer
1. Connect the camera to the printer with USB cable.
2. Once the camera is turned on, the camera automatically
recognizes the printer and completes the connection.
Easy printing
When you connect the camera in Playback mode to a Pictbridge, you can print
a picture easily.
- Pressing the Left / Right button :
Selects the previous / next image.
- Pressing the OK button :
Prints the currently displayed image
using the printer’s default settings.
Print
Menu
Ä If automatic connection fails, set the [USB] menu to [Printer].
(p.73)
Ä For a printer that can enable a removable disk, set the [USB]
menu to [Printer].
Connecting the Camera to a Printer
097
PictBridge : Picture Selection
PictBridge : Print Setting
You can select the images you want to print.
You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File Name Print menus for printed pictures.
Setting the Number of Copies to Print
Images
:One Photo
One Photo
Paper
1. Press the Menu button and the
All:Auto
Photos
Layout
:Auto
PictBridge menu will appears.
Type
:Auto
2. Use the Up / Down button to select the
Quality
:Auto
[Images] menu, and then press the
Back
Set
Right button.
3. Use the Up / Down button to select a desired sub-menu, and
then press the OK button.
- Select [One Photo] or [All Photos]. A screen where you can
set the number of copies to print will appear as shown below.
1. Press the Menu button and the
PictBridge menu will appears.
2. Use the Up / Down button to select
the desired menu, and then press the
Right button.
3. Use the Up / Down button to select
the desired sub-menu value, and then
press the OK button.
Menu
0
Quantity
[When [One Photo] is selected]
Quantity
Card
:Auto
4x6
L :Auto
Layout
Type
2L
:Auto
Quality
Back
Set
Sub menu
Set the size of the printing
paper
Auto, PostCard, Card, 4X6, L,
2L, Letter, A4, A3
Layout
Set the number of pictures to
be printed on a sheet of paper
Auto, Full, 1, 2, 4, 8, 9, 16,
Index
Type
Set the quality of the printing
paper
Auto, Plain, Photo,
Fast Photo
Quality
Set the quality of the picture
to be printed
Auto, Draft, Normal, Fine
Date
Set whether to print the date
Auto, Off, On
File Name
Set whether to print the file name
Auto, Off, On
Set
[When [All Photos] is selected]
- Press the Up / Down button to select the number of prints.
- When [One Photo] is selected : Use the Left / Right button to
select another picture. After
selecting another picture, select
the number of prints for the
other picture.
- After setting the number of prints, press the OK button to save.
- Press the Shutter button to return to the menu without setting
the number of prints.
4. Press the play mode button ( Î ) and images are printed.
098
:One Photo
Auto
:Auto
Postcard
Paper
Paper
1
Set
Function
Images
Ä Some menu options are not supported on all printers.
If not supported, the menus are still displayed on the LCD, but are not
selectable.
PictBridge : Reset
Important notes
Resets user-changed configurations.
Be sure to observe the following precautions!
1. Use the Up / Down button to select
the [Reset] menu tab, and then press
the Right button.
2. Use the Up / Down button to select
[Yes] or [No], and then press the OK
button.
Date
:Auto
File Name
Reset
:Auto
No
No
Yes
Back
Set
If [No] is selected : Settings are not reset.
If [Yes] is selected : All print and image settings are reset.
Ä Default print settings vary depending on the printer manufacturer.
For your printer’s default settings, refer to the user’s guide that
came with your printer.
This unit contains precision electronic components. Do not
use or store this unit in the following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot
weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
Do not leave this camera in places subject to dust, chemicals
(like naphthalene and mothballs), high temperature and high
humidity. Keep this camera with silica gel in a hermetically
sealed box when not planning to use the camera for a long
period of time.
Sand can be particularly troublesome to cameras.
- Do not let sand get inside the camera when using it on beaches,
coastal dunes, or other areas where there is lots of sand.
- Doing so may result in failure or may permanently render the
camera unusable.
Handling the camera
- Never drop the camera or subject it to severe shocks or vibrations.
- Protect the large size LCD screen from an impact. When this
camera is not used, keep it in the camera case.
- Avoid obstructing the lens or the flash when you capture an image.
- This camera is not waterproof.
To avoid dangerous electrical shocks, never hold or operate the
camera with wet hands.
- If you use this camera in wet places, such as the beach or a
pool, do not let water or sand get inside the camera. Doing so
may result in failure or may permanently damage the unit.
099
Important notes
Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid
environment, condensation can form on the delicate electronic
circuitry. If this occurs, turn the camera off and wait for at least
1 hour until all moisture is dispersed. Moisture build-up can also
occur on the memory card. If this happens, turn off the
camera and remove the memory card. Wait until the moisture
has evaporated.
Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in the
discoloration and deterioration of the image sensor.
- Take care not to get fingerprints or foreign substances on the
surface of the lens.
If the digital camera is not used for a long period, an electric
discharge can occur. It is a good idea to remove the battery
and the memory card if you do not intend to use the camera
for an extended period of time.
If the camera is exposed to electronic interference, it will turn
itself off to protect the memory card.
Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the
lens and LCD assemblies. If this does not work, lens-cleaning
paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera
to come into contact with solvent materials such as benzol,
insecticide, thinners etc. This may damage the body shell of the
camera and also affect its performance. Rough handling can
damage the LCD screen. Take care to avoid damage and keep
the camera in its protective carry case at all times when not in
use.
Do not attempt to disassemble or modify the camera.
Under certain conditions, static electricity can cause the flash
unit to fire. This is not harmful to the camera and is not a
malfunction.
When images are uploaded or downloaded, the data transfer
may be affected by static electricity. In this case, disconnect
and re-connect the USB cable before trying the transfer again.
Before an important event or going on a trip, you should
check the camera condition.
- Take a picture to test the camera’s condition and prepare an extra battery.
- Samsung cannot be held responsible for camera malfunctions.
If the digital camera is not used for a long period, the date and
time may return to the default settings because the battery has
discharged. In this case, reset the date and time before the
recording.
100
Warning indicator
There are several warnings that may appear on the LCD display.
[Card Error]
Memory card error.
Turn off the camera power and turn it on again.
Insert the memory card again.
Insert and format the memory card. (p.68)
[Card Locked]
The memory card is locked.
SD/SDHC memory card : Slide the write protect switch to the
top of the memory card.
[Memory Full]
The memory card or internal memory is full.
Insert new memory card.
Delete the unnecessary image files.
[File Error]
File error.
Delete the file.
Memory card error.
Contact a camera service center.
[Low Battery]
There is low battery capacity.
Insert a charged battery or recharge the battery.
[Power turns off automatically to prevent malfunction due to
high temperatures. Wait a minute before use.]
The power automatically turns off at temperature above 60˚C (140˚F).
If the camera turns off because its internal temperature has
increased, let the camera cool off, and then turn it on again.
If the camera turns off because of high ambient, external
temperatures, turn the camera on in a cooler place.
[No Image File]
There are no images stored on the memory.
Take images.
Insert a memory card that is holding some images.
101
Before contacting a service center
Please check the following
The camera doesn’t switch on
There is low battery capacity
Insert a charged battery or recharge the battery. (p.16)
Battery is inserted incorrectly with the polarities reversed
Insert the battery according to the polarity marks (+, -).
The camera power ceases while in use
The battery is exhausted
Insert a charged battery or recharge the battery.
The Camera is turned off automatically
Turn on the camera power again.
The camera has stopped working in a cold environment.
Take the battery out of the camera and warm both by placing
them in your pocket, etc. and then immediately before shooting,
place the battery in the camera and then shoot.
Camera does not take images when you press the Shutter button
There is insufficient memory capacity
Delete unnecessary image files
The memory card has not been formatted
Format the memory card (p.68)
The memory card is exhausted
Insert a new memory card
The memory card is locked
Refer to the [Card Locked] error message
The camera's power is off
Turn the camera power on
The battery is exhausted
Insert a charged battery or recharge the battery (p.16)
The battery is inserted incorrectly with the polarities reversed.
Insert the battery according to the polarity marks (+, -)
The camera suddenly stops working while in use
The camera stopped due to a malfunction
Remove /re-insert battery and switch the camera on
The images are unclear
A picture was taken of the subject without setting an appropriate
macro mode
Select an appropriate macro mode to take a clear image.
The picture was teken beyond the flash’s range
Take a picture within the flash’s range
The lens is smudged or dirty
Clean the lens
102
Before contacting a service center
The flash does not fire
Flash off mode has been selected
Disengage flash off mode
The camera mode can't use the flash
Refer to the FLASH instructions. (p.41)
No image on external screen
The external screen has not been connected properly to the camera
Check the connection cables
There are incorrect files on the memory card
Insert a memory card that has correct files
Incorrect date and time is displayed
The date and time have been set incorrectly or the camera has
adopted the default settings
Reset the date and time.
The [Removable Disk] file does not appear in my computer’s file
system.
The cable connection is incorrect
Check the connection
The camera is off
Turn the camera on
The operating system is not Windows XP, Vista, 7 / Mac OS 10.4.
Alternatively the PC does not support USB
Install Windows XP, Vista, 7 on a PC or Mac OS 10.4 or later
on a computer that supports USB
The camera buttons do not operate
The camera has malfunctioned.
Remove/re-insert battery and switch the camera on
A card error has occurred while the memory card is in the camera.
The memory card format is incorrect.
Re-format the memory card
The images don't play back
Incorrect file name (Violation of DCF format)
Do not change the image file name
Color of image is different to the original scene
White balance or effect setting is incorrect
Select the appropriate White balance and effect
Images are too bright
Exposure is excessive
Reset exposure compensation
A part of the LCD screen does not occasionally turn on or a spot appears.
Although the LCD screen is manufactured with high precision
technology, the precision pixels are not occasionally do not light or
red, white, and blue spots appear.
ĺ This phenomenon does not affect the quality of the recorded
image and it is not a malfunction.
A vertical line appears on the LCD screen when taking a picture
of a bright object.
If a subject is reflecting a very bright light, a gray, black, red, or
purple vertical line may appear.
ĺ This is a phenomenon called smear and it does not affect the
quality of the recorded image. This is not a malfunction.
103
Specifications
Image Sensor
- Type : 1/2.33" CCD
- Effective Pixel : Approx. 13.8 Mega-pixel
- Total Pixel : Approx. 14.5 Mega-pixel
Lens
- Focal Length : Schneider-Kreuznach Lens
f = 4.6 ~ 119.6mm (35mm film
equivalent : 26 ~ 676mm), 26X Zoom
- F No. : F2.8(W) ~ F5.0(T)
- Digital Zoom : · Still Image mode :1.0X ~ 5.0X
· Play mode : 1.0X ~ 13.4X
(depends on image size)
Image Stabilization - Dual IS (OIS + DIS)
Ä OIS (Optical Image Stabilization),
DIS (Digital Image Stabilization)
LCD screen
- 3.0"(7.62cm) color TFT LCD (230,000 dots)
View finder (EVF) : 0.24" color TFT LCD
(230,000 dot)
Focusing
- Type : TTL auto focus
(Multi AF, Center AF, Selection AF,
Tracking AF, Face Detection AF)
- Range
Normal
Focus
range
Shutter
104
Auto Macro
Macro
Wide
Wide
Wide
80cm ~ Infinity
10cm ~ Infinity
10cm ~ 80cm
Tele
Tele
Tele
170cm ~ Infinity
170cm ~ Infinity
80cm ~ 150cm
Super Macro Manual Focus
1cm ~ 10cm
- Program : 1/2 ~ 1/2,000 sec.,
A·S/Manual/User : 16 ~ 1/2,000 sec.
(Continuous, AEB : 1/4 ~ 1/2,000 sec.)
10cm ~
Infinity
Exposure
- Control : Program AE
- Metering : Multi, Spot, Center-weighted,
Face Detection AE
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 80, 100, 200, 400, 800, 1600, 3200,
6400 (Up to 3M Size)
Flash
- Modes : Auto, Auto & Red-eye reduction, Fill-in
flash, Slow sync, Flash off, Red Eye Fix
- Range : Wide: 0.3 ~ 6.0 m (XX ~ XX inches),
Tele: 0.8 ~3.0 m (XX ~ XX inches)
(ISO Auto)
- Recharging Time : Approx. 5 sec
Sharpness
- Soft+, Soft, Normal, Vivid, Vivid+
White Balance
Auto, Daylight, Cloudy, Fluorescent_H,
Fluorescent_L, Tungsten, Custom
Voice Recording - Voice Recording (maximum 5 hours at once)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting
- Date, Date & Time, Off (user selectable)
Shooting
- Still Image
·Mode : Smart Auto, Program, A·S, Manual, Night,
Beauty Shot, Scene, User1, User2
·Scene : Frame Guide, Portrait, Children,
Landscape, Close Up, Text, Sunset, Dawn,
Backlight, Fireworks, Beach & Snow
·Smart Auto : Portrait, Night Portrait, Night, Backlight
Portrait, Backlight, Landscape, White,
Macro, Macro Text, Tripod, Action,
Sunset, Blue Sky, Natural Green,
Macro Color, Macro Portrait
Specifications
·Shooting : Single, Continuous, High Speed,
Motion Capture, AEB
·Self-timer : 10 sec., 2 sec., Double
- Movie Clip
·With Audio or without Audio
(user selectable, recording time : max 20min)
·Size : 1280x720HQ (30FPS & 15FPS),
640x480 (30FPS & 15FPS),
320x240 (60FPS & 30FPS & 15FPS)
·Movie Editing (Embedded):
Pause during recording, Still Image Capture,
Time Trimming
Storage
4288x
3216
- Media
·Internal memory : About 8MB flash memory
·External memory (Optional) :
SD card (Up to 2GB guaranteed)
SDHC card (Up to 32GB guaranteed)
- File Format
·Still Image : RAW (DNG1.1), JPEG (DCF),
EXIF 2.21, DPOF 1.1, PictBridge 1.0
·Movie Clip : MP4 (H.264(MPEG4.AVC))
·Audio : WAV
- Image Size
4288x
2848
4288x
2416
3264x
2448
2592x
1944
2048x
1536
1920x
1080
- Capacity (1GB Size)
29
-
-
-
-
-
-
33
-
-
-
-
-
-
-
116
131
154
199
311
487
716
1640
191
215
252
324
502
779
1113
2397
285
321
375
479
733
1113
1558
3116
Ä These figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
Effect
- Effect : Photo Style Selector, Smart Filter, Image
Adjust (Sharpness, Contrast, Saturation)
- Editing : Resize, Rotate, Photo Style Selector,
Smart Filter, Image Adjust (ACB, Face
Retouch, Red Eye Fix, Brightness,
Contrast, Saturation, Add Noise)
Image Play
- Type : Single image, Thumbnails, Smart Album,
Multi slide show, Movie Clip
Ä Multi slide show : Slide show with Effect & Music
1024x
768
105
Specifications
Interface
- Digital output connector : USB 2.0
- Audio : Microphone: Stereo,
Internal Speaker: Mono
- Video output :
AV : NTSC, PAL (user selectable)
HDMI (Built-in, D-type Standard)
- DC power input connector : 4.4 V
Power Source
- Rechargeable battery : SLB-11A, 3.8V
(1130mAh)
Ä Included battery may vary depending on
sales region.
Dimensions
(WxHxD)
- 116.1 × 82.8 × 91.1 mm (XX × XX × XX inches)
(excluding protrusions)
Weight
- Approx. XX oz. (396 g) (without battery and card)
Operating
Temperature
- 32~104°F (0 ~ 40°C)
Operating Humidity - 5 ~ 85%
Software
- Intelli-studio, Adobe Reader, Samsung RAW
Converter
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.
106
Transferring files to your Windows computer
For Windows users
Transfer files by connecting your camera to your PC.
Installing programs
Hardware and software requirements
Item
Requirements
CPU
Intel® Pentium®4 3.2 GHz or higher
AMD Athlon™ FX 2.6 GHz or higher
RAM
512 MB or more (1 GB or more recommended)
OS
Others
Using a self-assembled PC or a PC and OS that are not supported
may void your warranty.
The programs may not work properly on 64-bit Edition of Windows
XP, Vista, and 7.
Intelli-studio may not perform correctly on some computers, even
when the computer meets the requirements.
If your computer does not meet the requirements, videos may not
play correctly or it may take longer to edit videos.
Install DirectX 9.0c or above before you use the program.
Windows XP/Vista/7
- USB port
- CD-ROM drive
- nVIDIA Geforce 7600GT or higher
Ati X1600 series or higher
- 1024 X 768 pixels, 16-bit color display compatible
screen (1280 X 1024 pixels, 32-bit color display
recommended)
- Microsoft DirectX 9.0c or later
107
Transferring files to your Windows computer
1. Insert the installation CD into a compatible CD-ROM drive.
2. When the setup screen is displayed, click Samsung Digital Camera
Installer to start installation.
Transferring files to your PC
Once you connect the camera to your PC, the camera will be
recognized as a removable drive.
The battery charges while the camera is connected to a PC with
the USB cable.
1. Connect your camera to your PC with the USB cable.
3. Select the programs to install, and then follow the on-screen
instructions.
4. Click Exit to complete the installation, and then restart your computer.
108
You must plug the end of the cable with the indicator light (Ÿ)
into your camera. If the cable is reversed, it may damage your
files. The manufacturer is not responsible for any loss of data.
Transferring files to your Windows computer
2. Turn on the camera.
- The computer recognizes the camera automatically.
If the camera fails to connect, a pop-up window will appear.
Select Computer.
3. On your PC, select [My Computer ĺ Removable Disk ĺ DCIM
ĺ 100PHOTO].
Disconnecting the camera (for Windows XP)
The way to disconnect the USB cable for Windows Vista / 7 is
similar.
1. If the status lamp on your camera is blinking, wait until it stops.
2. Click (
screen.
) on the tool bar at the bottom right of your PC
4. Select the files you want, and then drag or save them to your PC.
3. Click the pop-up message.
4. Remove the USB cable.
109
Transferring files to your Windows computer
Using Intelli-studio
Once you have installed the Intelli-studio on your PC, the Intelli-studio starts automatically when a camera is connected to your PC.
If Intelli-studio does not start after you have connected the camera to your PC, double-click the Intelli-studio icon on your Windows desktop.
Intelli-studio allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube. For details, select
[Menu ĺ Help] in the program.
You cannot edit files directly on the camera. Transfer files to a folder on your computer before editing.
You cannot copy files in your computer to the camera.
Intelli-studio supports the following formats
- Videos: AVI(MJPEG), MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9)
- Photos: JPG, GIF, BMP, PNG, TIFF
110
Transferring files to your Windows computer
Icon
Description
Transferring files to your Mac computer
For Mac users
When you connect the camera to a Macintosh computer, the
computer will recognize the device automatically. You can transfer
files directly from the camera to the computer without installing any
programs.
1
Open menus
2
Display files in the selected folder
3
Change to the Photo edit mode
4
Change to the Video edit mode
5
Change to the Sharing mode (You can send files by email or
upload files to websites, such as Flickr or YouTube.)
6
Enlarge or reduce the thumbnails in the list
Item
7
Select a file type
CPU
Power Mac G3 or later
8
View files of the selected folder on your computer
RAM
Minimum 256MB RAM
9
Show or hide files of the connected camera
OS
Mac OS 10.4 or higher
10
View files of the selected folder on the camera
11
View files as thumbnails, in Smart Album, or on a map
12
Browse folders in the connected device
13
Browse folders in your computer
14
Move to the previous or next folder
15
Print files, view files on a map, store files in My Folder, or
register faces
Installing programs
Hardware and software requirements
Others
Requirements
- USB port
- CD-ROM drive
111
Transferring files to your Mac computer
1. Connect your camera to a Macintosh computer with the USB
cable.
You must plug the end of the cable with the indicator light (Ÿ)
into your camera. If the cable is reversed, it may damage your
files. The manufacturer is not responsible for any loss of data.
2. Turn on the camera.
- The computer recognizes the camera automatically and a
removable disk icon will be displayed.
3. Double-click the removable disk icon.
4. Transfer photos or videos to the computer.
112
Using the Samsung RAW Converter
Using the Samsung RAW Converter, you can develop RAW files
after editing them as you like. You can also edit JPEG or TIFF files
in the same way you edit the RAW files. This software is only
compatible with Windows OS. This software is only compatible with
Windows XP and Vista.
To start the program, click [Start ĺ All Programs ĺ Samsung RAW
Converter ĺ Samsung RAW Converter]
Developing the RAW files
- Image edit functions are listed below.
Ì Menu bar
Í Image editing tools
[Exposure bias] : Compensates for the exposure value.
[White balance] : Adjusts the white balance value.
[Tone]
: Adjusts the contrast.
[Color]
: Changes the color.
[Sharpness]
: Adjusts the sharpness.
[Development] : Lets you preview before the final output.
Highlight controller
Adjusts the saturation and highlights of the selected image.
Histogram
Displays the color layers of the selected image.
Preview window
Displays the selected image.
Ä Refer to the [Help] menu in Samsung RAW Converter for further
information.
You can download the Samsung RAW Converter program for
Macintosh from the Samsung website.
113
Using the Samsung RAW Converter
Correcting the exposure
The Samsung RAW Converter lets you retain the best features of an
image as you make changes to the RAW file.
The following images show how you can change the exposure of an
image using the Samsung RAW Converter.
You can adjust the exposure by using the menu option as shown in
the illustration below.
Ÿ Original image
P Mode, Aperture: f = 2.8,
Shutter Speed: 1/30 sec, ISO = 80
Ÿ Changed image after
correcting the exposure.
You can see the changed results in the histogram windows as shown
images:
Menu option for
adjusting the
exposure.
Ÿ Original image
114
Ÿ Changed image after
correcting the exposure.
Using the Samsung RAW Converter
Editing JPEG/TIFF files the same as RAW files
Saving the RAW files into JPEG or TIFF format
Using the Samsung RAW Converter, you can edit JPEG/TIFF files in the
same way as RAW files. You can adjust the white balance, sharpness,
reduce noise, etc. The images below show how to change the contrast
on a TIFF image using the Samsung RAW Converter.
You can save the RAW files in JPEG or TIFF format using the
Samsung RAW Converter.
You can adjust the
contrast by using
the menu option
as shown in the
picture.
Menu option for
adjusting the
contrast
Ÿ Original image
P Mode, Aperture: f = 2.8,
Shutter Speed: 1/30 sec, ISO = 80
1. Choose the image
you want to edit and
then select [File(F)] ĺ
[Development...].
2. Select JPEG or TIFF as
the file type, and then
click [Save(S)].
- The selected file is
saved in JPEG or TIFF
format.
Ÿ Changed image after
correcting the contrast.
115
FAQ
Please check the following if the USB connection malfunctions.
Case 1
USB cable is not connected or it is not the supplied USB
cable.
Connect the supplied USB cable.
Case 2
The camera is not recognized by your PC.
Sometimes, the camera may appear under [Unknown
Devices] in Device Manager.
Turn off the camera, remove the USB cable, plug in the
USB cable again, and then turn on the camera.
Case 3
There is an unexpected error during file transfer.
Turn the camera power off and on again. Transfer the file
again.
Case 4
When using a USB hub.
There may be a problem with connecting the camera to
the PC through the USB hub if the PC and the hub are
not compatible. Wherever possible, connect the camera
to the PC directly.
Case 5
116
Are other USB devices connected to the PC?
The camera may malfunction when it is connected to
the PC at the same time as another USB device. In this
case, disconnect the other USB device, and connect
only the camera to your PC.
Case 6
When I open the Device Manager (by clicking Start
(Settings) Control Panel (Performance and Maintenance) System (Hardware) Device Manager),
there are Unknown Devices or Other Devices entries
with a yellow question mark(?) beside them or devices
with an exclamation mark(!) beside them.
Right-click the entry with the question (?) or exclamation (!)
mark, and then select "Remove". Restart the PC and connect the camera again.
Case 7
In some security programs (Norton Anti Virus, V3, etc.),
the computer may not recognize the camera as a removable disk.
Stop the security programs and connect the camera to
the computer. Refer to the security program instructions
about how to temporarily disable the program.
Case 8
The camera is connected to the USB port located on
the front of the computer.
When the camera is connected to the USB port located
on the front of the computer, the computer may not
recognize the camera. Connect the camera to the USB
port located on the back of the computer.
FAQ
If DirectX 9.0c or later is not installed
Install DirectX 9.0c or later.
1) Insert the CD provided with the camera
2) Run Windows Explorer. Select the [CD-ROM drive:\DirectX]
folder, and then click the DXSETUP.exe file. Windows installs
DirectX. To download and install DirectX, from the Internet,
visit the Microsoft website.
If a PC connected to the camera stops responding while Windows
is starting.
Disconnect the PC and the camera and Windows will start. If the
problem happens continuously, set the Legacy USB Support to
disable, and then re-start the PC. The Legacy USB Support is in
the BIOS setup menu. (The BIOS setup menu differs between
PC manufacturers. Some BIOS menus don’t have Legacy USB
Support.) If you can’t change the menu by yourself, contact to
the PC manufacturer or BIOS manufacturer.
Samsung Eco-mark
It is Samsung’s own symbol mark is used to effectively
communicate Samsung’s environmental friendly product
activities to the consumers. The mark represents
Samsung’s continuous effort on development of
environmental conscious products.
117
FCC notice
NOTE :
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION :
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate
the equipment.
118
Declaration of Conformity
Trade Name
: SAMSUNG ELECTRONICS AMERICA, INC.
Model No.
: SAMSUNG HZ50W
Responsible Party : SAMSUNG ELECTRONICS AMERICA, INC.
Address
: 105 Challenger Road Ridgefield Park NJ
Telephone No. : 1-800-SAMSUNG(726-7864)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
