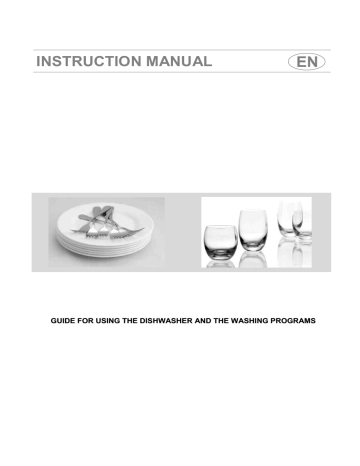

INSTRUCTION MANUAL

INSTRUCTION MANUAL

G U I I D E F O R U S I I N G T H E D I S H W A S H E R A N D T H E W A S H I N G P R O G R A M S

Contents

1.

Safety and operating instructions __________________________ 2

2.

Installation and hook-up _________________________________ 8

3.

Description of the controls ______________________________ 13

4.

Operating instructions __________________________________ 22

5.

Cleaning and maintenance ______________________________ 29

6.

Troubleshooting ______________________________________ 41

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher.

The individual sections are laid out to provide you with a step-by-step guide to all your appliance's functions; the texts are easy to understand and are complete with detailed illustrations.

Recommendations are given for the correct use of the baskets, spray arms, containers, filters, washing programs, and for operating the controls.

Following the cleaning instructions provided here will keep your dishwasher's performance at peak levels in the long term.

This user-friendly manual will provide answers to all your questions about use of the dishwasher.

INSTALLATION INSTRUCTIONS: these are intended for the qualified

technician who must carry out the installation, hook-up and testing of the appliance.

USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of its controls and of the correct cleaning and maintenance procedures.

1

User instructions

2

1. Safety and operating instructions

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE; IT MUST

ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER FOR FUTIRE

REFERENCE. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE

INSTRUCTIONS CONTAINED IN THIS MANUAL. THEY CONTAIN IMPORTANT

INFORMATION FOR THE INSTALLATION, USE AND MAINTENANCE OF THE

APPLIANCE. IN THE EVENT OF SALE OR TRANSFER, ENSURE THAT THE

MANUAL ALWAYS ACCOMPANIES THE APPLIANCE.

THIS APPLIANCE IS INTENDED FOR INDOOR USE IN A HOUSEHOLD

ENVIRONMENT AND SIMILAR SUCH AS STAFF KITCHENS OF SHOPS,

OFFICES AND OTHER WORKPLACES, INSTITUTIONS, AND FOR THE USE BY

GUESTS AT HOTELS, HOSTELS, BED AND BREAKFAST AND OTHER

RESIDENTIAL FACILITIES.

THIS APPLIANCE IS DESIGNED TO BE USED ONLY IN STATIONARY

LOCATIONS.

THIS APPLIANCE COMPLIES WITH

DIRECTIVES 2006/95/EC AND

2004/108/EC CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND

ELIMINATION OF RADIO FREQUENCY INTERFERENCE AND IS DESIGNED

FOR THE FOLLOWING PURPOSE: WASHING AND DRYING OF DISHES; ANY

OTHER USE SHALL BE CONSIDERED IMPROPER. THE MANUFACTURER

DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE

DESCRIBED ABOVE.

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT!

IF IN DOUBT, CONSULT YOUR DEALER.

THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE

WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER.

INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN

COMPLIANCE WITH THE REGULATIONS IN FORCE.

DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED

WITHIN THE HOME. DO NOT ALLOW CHILDREN TO PLAY WITH PACKAGING

MATERIALS. SEPARATE THE VARIOUS MATERIALS WHICH MAKE UP THE

PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE

COLLECTION CENTRE.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND

MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE DOOR.

THE NAME PLATE MUST NEVER BE REMOVED.

THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN

ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO

PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE

APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.

User instructions

DURING THE INSTALLATION THE APPLIANCE MUST BE DISCONNECTED

FROM THE NETWORK..

DO NOT INSTALL THE APPLIANCE IN A PLACE SUBJECT TO FREEZING.

IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,

ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT OBSTRUCTED.

DO NOT INSTALL THE APPLIANCE NEAR EQUIPMENT WITH HIGH

IRRADIATION TEMPERATURES (EG. GAS BURNERS, FIREPLACES, ETC.) AS

THEY MAY CAUSE DAMAGE.

IF THE APPLIANCE IS INSTALLED IN A COMPARTMENT ABOVE OR BELOW

ANOTHER EQUIPMENT (EG. GAS BURNERS, OVENS, ETC.), READ

CAREFULLY THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OF

THE EQUIPMENT. IF THE INSTRUCTIONS OF THE EQUIPMENT DO NOT

CONTAIN INFORMATION, CONTACT THE MANUFACTURER OF THE

EQUIPMENT TO ENSURE THAT THE APPLIANCE CAN BE INSTALLED ABOVE

OR BELOW IT.

BUILDING-IN THE APPLIANCE UNDERNEATH A HOB IS ABSOLUTELY

FORBIDDEN.

INSTALL A HOB ON TOP OF A FREE-STANDING APPLIANCE IS ABSOLUTELY

FORBIDDEN.

TO ENSURE STABILITY, INSTALL THE APPLIANCE ONLY UNDER

CONTINUOUS WORKTOP, SECURELY FIXED TO ADJACENT CABINETS. IF

THE APPLIANCE IS INSTALLED IN A HIGH CABINET BOTH, THE APPLIANCE

AND THE CABINET, MUST BE ADEQUATELY FIXED.

IF THE APPLIANCE IS NOT BUILT-IN AND IS THEREFORE ACCESSIBLE ON

ONE SIDE, THE DOOR HINGE AREA MUST BE COVERED FOR SAFETY

REASON (INJURY HAZARD). THE COVERING FIXTURES ARE AVAILABLE AS

AN ACCESSORY FROM SPECIALIST DEALERS OR THE AFTER-SALES.

CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH

THE RATINGS ON THE NAME PLATE OF THE APPLIANCE.

THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET

OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATION IN

FORCE.

DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID

THE POSSIBILITY OF OVERHEATING OR BURNING.

THE PLUG OF THE APPLIANCE MUST BE ACCESSIBLE AFTER

INSTALLATION.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER CORD.

IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD, A

CIRCUIT BREAKER PROVIDING A FULL DISCONNECTION IN OVERVOLTAGE

PROTECTION CLASS III MUST BE INSTALLED IN AN EASILY ACCESSIBLE

POSITION ON THE SUPPLY LINE.

3

4

User instructions

THE APPLIANCE MUST BE CONNECTED TO THE WATER SUPPLY BY NEW

HOSES; OLD HOSES MUST NEVER BE REUSED.

IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK

TEST OF THE APPLIANCE. IF THE DISHWASHER FAILS TO OPERATE

CORRECTLY, DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY

AND CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT

TO REPAIR THE APPLIANCE.

THIS DISHWASHER MUST BE USED BY ADULTS. USE OF THE APPLIANCE

BY CHILDREN AGED FROM EIGHT YEARS AND PERSONS WITH REDUCED

PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE

AND KNOWLEDGE IS ONLY PERMITTED UNDER THE SUPERVISION OF A

PERSON RESPONSIBLE FOR THEIR SAFETY.

DO NOT ALLOW CHILDREN TO PLAY WITH THE APPLIANCE.

SOME DETERGENTS ARE STRONGLY ALKALINE. AVOID CONTACT WITH

THE SKIN AND EYES. DETERGENTS CAN BE EXTREMELY DANGEROUS IF

SWALLOWED. THEY CONTAIN SUBSTANCES CAPABLE OF CAUSING

PERMANENT DAMAGE TO THE MOUTH AND THROAT, AND EVEN LEADING

TO SUFFOCATION. OBSERVE ALL THE SAFETY INSTRUCTIONS ON THE

PACKAGING OF THESE PRODUCTS.

KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS

OPEN. ALWAYS CHECK THAT THE DETERGENT RECEPTACLE IS EMPTY

AFTER COMPLETION OF THE WASH CYCLE.

DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE

THE DISHES OR APPLIANCE AT THE END OF THE WASHING PROGRAM.

DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE IN

THE APPLIANCE, AS THIS MAY CAUSE AN EXPLOSION.

DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINT.

NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP OVER

IT.

LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY

CAUSE THE APPLIANCE TO OVERTURN.

KNIVES OR OTHER SHARP-ENDED COOKING TOOLS MUST BE PLACED IN

THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP

BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT THEY DO

NOT PROJECT FROM THE BASKET.

THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE

REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL

EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED

EXCLUSIVELY BY TRAINED AND AUTHORISED TECHNICIANS: REPAIRS

CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE

WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.

User instructions

IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE

ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP.

IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED BY

THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE CENTRE.

SOME COMPONENTS ARE LIVE EVEN WITH THE ON/OFF BUTTON IN THE

OFF POSITION. BEFORE MAINTENANCE WORK ON THE APPLIANCE,

DISCONNECT THE PLUG OR TURN OFF THE MAINS SWITCH IN THE FIXED

WIRING

CLEANING AND REGULAR MAINTENANCE OF THE APPLIANCE BY

CHILDREN IS ONLY PERMITTED UNDER THE SUPERVISION OF A PERSON

RESPONSIBLE FOR THEIR SAFETY.

DO NOT USE STEAM CLEANERS TO CLEAN THE DISHWASHER.

MODELS WITH “AQUASTOP” DEVICE

THE “AQUASTOP” DEVICE PREVENTS FLOODING IN THE EVENT OF A

WATER LEAK. WHEN THE “AQUASTOP” DEVICE IS TRIPPED, CALL IN A

QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.

INSIDE THE “AQUASTOP” WATER INTAKE HOSE, THERE ARE ELECTRICAL

PARTS. DO NOT CUT THE HOSE AND DO NOT ALLOW THE “AQUASTOP”

DEVICE TO DROP INTO WATER. IN THE EVENT OF DAMAGE TO THE

“AQUASTOP” WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM

THE ELECTRICAL SUPPLY AND FROM THE WATER SUPPLY.

MODELS WITH INTERNAL LIGHTING

THE LIGHTING SYSTEM OF THE APPLIANCE BELONGS TO RISK GROUP 1

UNDER THE IEC/EN 62471 STANDARD. THIS MEANS THAT THERE IS NO

PHOTOBIOLOGICAL RISK IN NORMAL CONDITIONS OF USE.

IN ACCORDANCE TO ART. 26 OF THE LEGISLATIVE DECREE 14 MARCH

2014, NR. 49 “IMPLEMENTATION OF THE DIRECTIVE 2012/19/EU ON WASTE

OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)”.

THE SYMBOL OF A CROSSED OUT WHEELIE BIN ON THE DEVICE OR

PACKAGE SHOWS THAT THE PRODUCT MUST BE COLLECTED SEPARATE

FROM OTHER WASTE, AT THE END OF ITS SERVICE LIFE. THEREFORE, THE

USER HAS TO TAKE ANY EQUIPMENT THAT HAS REACHED THE END OF ITS

SERVICE LIFE TO LOCAL WASTE DISPOSAL CENTRES FOR ELECTRICAL

AND ELECTRONIC EQUIPMENT WASTE.

AS AN ALTERNATIVE TO THE IDEPENDENT MANAGEMENT, IT IS POSSIBLE

TO DELIVER THE EQUIPMENT WHICH HAS TO BE DISPOSED OF TO THE

DEALER, AT THE MOMENT OF PURCHASING A NEW EQUIVALENT DEVICE

AT THE ELECTRONIC EQUIPMENT DEALERS WITH A SALES AREA OF AT

LEAST OF 400 M

2

. ALSO, FOR DISUSED DEVICES WITH DIMENSIONS

INFERIOR TO 25 CM, FREE DELIVERY TO THE DEALERS IS POSSIBLE, WITH

NO PURCHASE OBLIGATION

A PROPER SEPARATE WASTE COLLECTION AND THE CONSEQUENT

HEADING OF THE DISUSED DEVICE TOWARDS ITS RECYCLING, TREATMENT

AND ENVIRONMENTALLY COMPATIBLE DISPOSAL, CONTRIBUTES IN

5

User instructions

PREVENTING ANY POSSIBLE NEGATIVE EFFECTS ON ENVIRONMENT AND

HEALTH; ALSO, IT SUPPORTS THE REUSE AND/OR RECYCLE OF THE

MATERIALS WHICH COMPOSED THE DEVICE.

OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE

MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET,

AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR

CHILDREN (LOCKS, DOORS, CABLES, HOSES, ETC.).

The manufacturer declines all responsibility for damage to persons or property resulting from failure to observe the above precautions, from tampering with even a single component of the appliance, or from the use of non original spare

parts.

6

User instructions

TECHNICAL DATA

Water supply pressure

Water supply temperature

Protection against electric shock

Class of protection against moisture

Electrical characteristics

Capacity 45 cm models:

Capacity 60 cm models:

min. 0,05 - max. 0,9 MPa

(min. 0,5 – max. 9 bar) max. 60 °C class I

IPX0 see rating plate

10 standard place settings

12/13/14 standard place settings

7

8

User instructions

2. Installation and hook-up

Remove the polystyrene basket retainers.

Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.

To ensure stability, install integrated or built-under dishwashers only under continuous worktops, and screw them to the adjacent units. To facilitate the installation procedure, the intake and drain hoses can be positioned in any direction; make sure that the hoses are not kinked, crushed or pulled too tightly. Make sure to tighten the locking ring-nut once the pipes have been placed in the direction required. A hole at least 8 cm in diameter is required to allow the power supply cable and pipes to pass. Before putting the dishwasher into its definitive position, turn on the water tap and check that there are no leaks from the tap connection, the dishwasher connection or the hose.

Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring correct operation of the dishwasher.

Some models are equipped with only one adjustable foot at the rear, which can be adjusted by turning the screw on the lower front part of the appliance.

Building-in a dishwasher underneath a hob is absolutely forbidden.

Moreover, dishwashers may not be installed directly touching appliances which are not conventional built-in kitchen appliances (e.g. fireplaces, stoves, etc.).

When installing the dishwasher in a compartment next to one or more other appliances, it is essential to comply with all the recommendations provided by the appliance’s manufacturer (minimum distances, installation procedures, etc.).

For free-standing models only:

- Installing a hob on top of a free-standing dishwasher is absolutely

forbidden.

- The tops of free-standing dishwashers can be removed to allow them to be installed underneath a worktop. This procedure must be carried

out by authorised staff.

Service.

- To build in the dishwasher, the special kit must be purchased from authorised dealers or the After-Sales Service.

User instructions

2.1 Water supply connection

Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.

The dishwasher must always be connected to the water system with

new hoses; old or used hoses must never be reused.

CONNECTING TO THE WATER SUPPLY

Connect the intake hose to a cold water supply with ¾” gas thread, inserting the filter A supplied with the dishwasher.

Take care to screw the hose firmly into place with your hands and then complete by tightening about ¼ of a turn with pliers.

In dishwashers equipped with the ACQUASTOP device,

the filters is already fitted inside the threaded ring.

The dishwasher can also be connected to a hot water supply not exceeding

60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. Make the connection to the domestic hot water supply using the same procedure described for connecting to the cold water supply.

9

10

User instructions

DRAIN CONNECTION

Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose. It is important to prevent the hose from coming loose and falling. For this purpose, the plastic support is equipped with a hole for tying it to the wall or water tap.

The free end should be positioned at a height of between 30 and 100 cm, and should never be submerged in water. If a horizontal drain extension hose is used (for a maximum of 3 m) the drain hose can be placed at a maximum height of 85 cm from the ground.

Class of protection against moisture: IPX0

User instructions

2.2 Electrical connection and precautions

CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH

THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON

THE INNER EDGE OF THE DOOR.

THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET

OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN

FORCE.

THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.

NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY

LEAD.

AFTER CHANGING THE SUPPLY CORD, MAKE SURE THAT THE BRACKET

WHICH SECURES THE CORD IS FIXED SECURELY IN PLACE.

DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID

THE POSSIBILITY OF OVERHEATING OR BURNING.

In the event of damage to the supply cord, have it replaced by the manufacturer or an Authorized Technical Service Centre in order to avoid any risk.

Some components are live even with the ON/OFF button in the OFF position.

Before maintenance work on the appliance, remove the plug or turn off the power supply at the wall switch.

IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD:

AN OMNIPOLAR CIRCUIT BREAKER IN OVERVOLTAGE PROTECTION CLASS

III MUST BE INSTALLED IN AN EASILY ACCESSIBLE POSITION ON THE

POWER SUPPLY LINE.

THE CONNECTION TO THE MAINS MUST BE CARRIED OUT BY A QUALIFIED

TECHNICIAN IN ACCORDANCE TO THE SCHEME SHOWN BELOW AND THE

REGULATIONS IN FORCE.

L = brown

N = blue

= yellow-green

11

User instructions

12

Class of protection against electric shock: I

FOR GREAT BRITAIN ONLY:

THIS APPLIANCE MUST BE EARTHED.

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an

A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover A and fuse B.

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

User instructions

3. Description of the controls

3.1 Front panel

All the dishwasher controls are grouped on the upper panel. Switch-on, programming, switch-off etc. procedures are only possible when the door is open.

1

2

3

4

5

6

7

ON/OFF BUTTON

Pressing this button energises the appliance.

SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the occurrence of a fault (troubleshooting).

PROGRAM SELECTION BUTTON

By pressing this button in sequence it is possible to select the desired program.

WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT

The light flashes to indicate that the appliance is in “water hardness adjustment” mode.

SALT WARNIN LIGHT (on some models only)

If the symbol is present, illumination of this light denotes a regenerating salt warning level.

RINSE AID WARNING LIGHT (on some models only)

Illumination of this light signals that rinse aid dispenser is empty.

QUICK TIME + EXTRA OPTION BUTTON

(see “EXTRA OPTIONS” section)

The button controls selection of the quick time programs.

(see table).

QUICK TIME PROGRAM LIGHT

Illuminates to indicate that one of the extra programs (see table) is going to be executed.

13

14

User instructions

8

9

10

ENERSAVE OPTION + EXTRA OPTION BUTTON

(see “EXTRA OPTIONS” section)

Press the button to enable/disable the option.

ENERSAVE OPTION LIGHT

Illuminates to indicate that the function is activated.

HALF LOAD BUTTON

Press this button to activate the half load wash option.

11

12

"Flexi Tabs" OPTION (EXTRA OPTION) LIGHT

Illuminates to indicate that the function is activated.

HALF LOAD LIGHT

Illuminates to indicate that the function is activated.

13

PROGRAM DELAY BUTTON

Press this button to delay the start of the program.

14 INFORMATION DISPLAY

N.B.: symbols and styling are guideline and may vary depending on the model or version of the dishwasher purchased.

SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to the table below, which indicates the most appropriate program according to dish type and degree of soiling.

After using the table to identify the most appropriate washing program:

 press the ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

 keep pressing the PROGRAM SELECTION button (3) until the indicator light corresponding to the desired program illuminates;

 close the door; after about 2" the program will start. While it is in progress, the relative LIGHT will flash (indicating that the program is being executed).

User instructions

PROGRAMME

NUMBER

& SYMBOL

1

RAPID 27’

LOAD CROCKERY AND

CUTLERY

Dishes with light dirt, washed immediately after use

PROGRAM

PROGRESS

Wash at 38°C

Rinse at 50°C

DURATION

MINUTES

(1)

27

(3)

CONSUMPTION

WATER

LITRES

POWER kWh (1)

6,5 0,70

2 GLASS

Glass, china and mixed dishes with light dirt.

Wash at 45°C

Cold rinse

Rinse at 70°C

Dry

80

(3)

7,5 1,10

3 ECO (*)

EN 50242

Dishes with normal dirt, even with dried-on residues

Wash at 45°C

Cold rinse

Rinse at 55°C

Dry

** ** **

4

AUTO 45-65

Pans and dishes with normal dirt, even with dried-on residues.

When the "

AUTO

" program is selected, the dishwasher recognises the type of dirt and automatically adjusts the washing parameters as appropriate.

IEC/DIN***

5 ULTRA

CLEAN

Very dirty pans and dishes, even with dried-on residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

160 15,5 1,70

****

The ULTRA CLEAN program terminate with an extra anti-bacteria rinse that ensures a further reduction in the bacteria level. If the temperature falls during this stage of the program (e.g. because the door is opened or due to a power blackout), the program

lights flash to warn that the anti-bacteria effect is not guaranteed.

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle will not start.

15

User instructions

QUICK TIME PROGRAMS

(see relevant section for explanation of functioning modes)

DURATION

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY

PROGRAM

PROGRESS

MINUTI

(1)

CONSUMPTION

WATER

LITRES

POWER kWh (1)

6

SOAK

Pans and dishes awaiting completion of the load

Cold prewash

15

(3)

3,5 0,02

+

7

DELICATE

QUICK

Delicate dishes with normal dirt.

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 70°C

80

(3)

10,5 1,15

+

8

ECO

QUICK

Dishes with normal dirt, washed immediately after use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

95

(3)

10,5 1,25

+

9

NORMAL

QUICK

Dishes with normal dirt, washed immediately after use.

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

100

(3)

11 1,40

+

10

STRONG and FAST

Mixed dishes with normal dirt without dried-on residues.

Wash at 65°C

Cold rinse

Rinse at 70°C

65

(3)

8 1,20

+

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle will not start.

16

User instructions

NOTES AND REFERENCES

Only run the soak program with half loads.

Options cannot be used with the soak program.

The ENERSAVE option (if featured) cannot be used with soak, ultra clean, or any programs which do not include the final drying stage.

* Standard programme under EN 50242. If present, the ENERSAVE option must

be enabled.

** See information sheet provided

*** IEC/DIN reference programme. If present, the ENERSAVE option must be

enabled.

**** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in the door or tablet. Configuration: see photo in “Using the baskets”.

(1) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes.

REFERENCES for the ENERGY LABEL supplied with the dishwasher:

- Annual energy consumption is based on 280 standard wash cycles with cold water and consumption of low-energy operating modes. Actual consumption depends on the way in which the appliance is used.

- Water consumption is based on 280 standard wash cycles. Actual consumption depends on the way in which the appliance is used.

- Information refers to the EN 50242 STANDARD programme (identified in the programmes table), which is the most effective in terms of combined energy and water consumption. The programme is recommended for dishes with a normal level of dirt.

- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”

(maximum efficiency).

17

User instructions

3.2 Washing programs

Before starting a washing program make sure that:

The water supply tap is open.

The correct amount of detergent has been added to the

dispenser.

The baskets have been correctly loaded.

The spray arms are able to rotate freely and without obstruction.

The dishwasher door is securely closed.

Warning: during the initial phase of the washing program, the operation of sprayers is not perceived because they start rotating about 5 minutes after the start.

This is the normal operation of the washing cycle.

QUICK TIME PROGRAMS

Select this option together with any washing program (except the soak program) to

SHORTEN the cycle by from a minimum of 10% to a maximum of 55%, depending on the cycle selected. To activate this option, press the QUICK OPTION button

(light comes on) after selecting the program required. The option is automatically deactivated at the end of the program.

ENERSAVE

This option allows the further reduction of energy consumption, thanks to the assisted drying when the door opens at the end of the cycle. At the end of the wash, a device automatically releases the door, which slowly opens a few centimeters. This allows the best drying possible, even at low rinse temperature, permitting an important energy saving.

When the door is completely open, a brief sound signal indicates that the wash cycle has ended.

Enersave is automatically activated in all programs that include a final drying phase (see program table). It is possible to disable it before starting the program.

If this function is active, never prevent the door from opening by any means, clear the space necessary to allow the opening of the door. Do

not force the closure of the door before the end of cycle signal, because this would damage the mechanism.

18

User instructions

SPREAD HALF LOAD

Suitable when there are not many dishes to be washed, it saves energy and reduces the program duration. Place dishes in both baskets then load the detergent dispenser than less than the normal amount for a full load.

EXTRA OPTIONS - “Flexi Tabs” BUTTON

Press buttons 6 + 8 (QUICK TIME PROGRAMS button + ENERSAVE option button) simultaneously to activate the "Flexi Tabs" option; the respective light comes on to confirm the selection. The option is optimised for use of detergents which are complete with salt and rinse aid, known on the market as "3 in 1", "triple action", etc. With this option activated, any salt and rinse aid If you wish to use detergents which already contain salt and rinse aid already in the dishwasher will not be used.

N.B.: even with the " Flexi Tabs " option selected, the regenerating salt/rinse aid lights will still stay on if their containers are empty.

IMPORTANT: the option continues to be active until it is deactivated by pressing buttons 6 + 8 simultaneously; the light will then go out.

If the water hardness has been set on a value above H3, and the “Flexi

Tabs” option is activated, the relative light flashes, warning of a setting error. Multi-function products are not suitable for use with very "hard" water; this does not prevent the use of the option, but the washing results

might not be of the best.

DELAYED START

The start of the washing program can be delayed to program the dishwasher to operate at the preferred time of day (e.g. overnight). Press the

PROGRAM DELAY button to activate the option and display a 1 hour delay. Keep pressing to select the delay required, which may be up to 9, 12

or 24 hours depending on the model.

When the door is closed, the appliance will prewash the dishes, after which the "program delay" set will come into effect.

19

User instructions

CANCELLING THE CURRENT PROGRAM

 To cancel the currently selected program, open the door and hold down the PROGRAM SELECTION (3) button for a few seconds until the indicator lights for programs 4 and 5 illuminate simultaneously

(the word "end" is displayed on the window).

Close the door.

 After approximately 1 minute the dishwasher will advance to the end of cycle.

20

CHANGING THE PROGRAM

To change the program in progress, simply open the door and select a new program. When the door is closed the dishwasher will automatically select the new program.

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

Always try to run the dishwasher fully loaded.

Do not wash the dishes in running water.

Use the washing program that is most appropriate for each type of load.

Do not carry out any preliminary rinsing.

If available, connect the dishwasher to a hot water supply up to 60°C.

Use the ENERSAVE option.

User instructions

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the environment. To avoid using excessive amounts of detergent and to save on electricity, observe the following:

separate the more delicate items from dishes that are more resistant to aggressive detergents and high temperatures;

do not pour the detergent directly on the dishes.

If the door has to be opened while washing is in progress, the program will be interrupted. The relative light will keep flashing and a beeper will signal that the cycle has not been completed. You must wait about 1 minute before closing the door to restart the program. When the door is closed the program will continue from where it was interrupted. This operation should only be carried out if strictly necessary, because it might cause problems in execution of the program.

END OF CYCLE

At the end of the washing cycle the dishwasher gives a short acustic signal and the program

indicators nr 4 and 5 start blinking (the word

"end" is displayed on the window).

To switch off the dishwasher, open the door and press the ON/OFF button

(1).

ENERGY MANAGEMENT

After 5 minutes of waiting (washing cycle completed, stopped or set but not started) the dishwasher switches to a standby state to reduce energy consumption.

In this state, the dishwasher indicator panel (lights or display depending on model) functions more slowly (switch-on once every 5 seconds).

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before removing the dishes, to allow them to cool down. To prevent any water droplets on the upper basket from falling on the dishes in the lower basket, it is advisable to unload the lower basket first, and then the upper basket.

21

User instructions

22

4. Operating instructions

Once the dishwasher has been correctly installed, prepare for use as follows:

 Adjust the water softening system;

 Add the regenerating salt;

 Add the rinse aid and detergent.

4.1 Using the water softening system

The amount of scale contained in the water

(water hardness index) can cause whitish staining on the dry dishes, which tend to become dull over time. The dishwasher is equipped with an automatic softening system which uses a special regenerating salt to reduce the hardness of the water.

The dishwasher is factory set for water hardness level 3 (average hardness).

SALT

When using water of medium hardness, the regenerating salt container should be refilled after approximately 20 washing cycles. The salt container can hold approximately 1.7 Kg of salt in grains. Some models are equipped with an optical no-salt indicator. In these models, the cap of the salt container contains a green float which descends as the salt concentration in the water drops. When the green float can no longer be seen through the transparent cap, the container must be topped up with regenerating salt. The container is situated at the bottom of the dishwasher. After removing the lower basket, unscrew the salt container cap by turning it anticlockwise and pour in the salt using the funnel supplied with the dishwasher. Before replacing the cap, remove any salt residues from around the opening.

When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container.

Each time the salt container is refilled, make sure that the cap is

securely closed. The mixture of water and detergent must never penetrate the salt container, as this would compromise the operation of the regeneration system. In the event of this occurring, the warranty will be invalidated.

Only use regenerating salt specially formulated for domestic dishwashers. If using salt tablets, do not fill the container

completely.

User instructions

Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system.

When necessary, refill the regenerating salt container before

starting the washing program. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion.

Be careful not to confuse the salt and detergent packages; adding detergent to the salt container will damage the water softening system.

ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with a device which allows the softener setting to be varied to suit the hardness of the mains water. The hardness is set using the PROGRAM SELECTION BUTTON (3).

To access the setting function, hold the button down for more than 15 seconds. The WATER HARDNESS ADJUSTMENT INDICATOR LIGHT

(4) flashes, while the SELECTED PROGRAM INDICATOR LIGHTS (2) show the current setting. Each pressure on the button changes the setting following the sequence in the table below:

>

23

User instructions

WATER HARDNESS TABLE

WATER HARDNESS

German degrees (°dH)

French

Degrees (°dF)

SETTING

0 - 6 0 - 11

All lights off

(no salt)

One light on

7 - 10 12 - 18

11 - 15 19 - 27

Two lights on

16 - 21 28 - 37

Three lights on

22 - 28 38 - 50

Four lights on

29 - 35 51 - 62

Five lights on

36 - 50 63 - 90

Two lights on

Contact your local water board for information on the hardness of your water supply.

After adjustment or display of the current setting, simply do not touch the button for a few seconds; the dishwasher will automatically return to standard mode, quitting the adjustment mode.

4.2 Using the rinse aid and detergent dispensers

The detergent and rinse aid dispensers are situated on the inner part of the door: the detergent

dispenser is on the left, and the rinse

aid dispenser is on the right.

24

With the exception of the SOAK program, before every washing cycle it is necessary to add the required amount of detergent to the detergent

dispenser. The rinse aid, on the other hand, should only be added as required.

User instructions

ADDING THE RINSE AID

The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door.

To add rinse aid:

Open the door.

 Rotate the container cap anticlockwise by ¼ of a turn and remove it.

 Add the rinse aid until the container is full (approximately 140 cc). The optical level indicator on the side of the cap should be completely obscured. Refill the rinse aid when the optical level indicator becomes clear again, or when the rinse aid warning light illuminates.

 Replace the cover and turn it in a clockwise direction.

 Use a cloth to remove any spillage of rinse aid which might lead to the formation of excess foam.

ADJUSTING THE RINSE AID DISPENSER SETTING

The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.

To adjust the rinse aid setting, rotate the dispenser cap through a quarter turn in an anticlockwise direction and remove it.

Then use a screwdriver to rotate the rinse aid selector to the desired position.

 Replace the cap, turning it clockwise.

The amount of rinse aid must be increased if the washed dishes appear dull or feature circular stains.

If, on the other hand, the dishes are sticky or have white streaks, it is necessary to reduce the rinse aid setting.

25

User instructions

ADDING THE DETERGENT

To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully.

During the washing cycle, the dispenser will be opened automatically.

26

When a program with hot prewash is selected (see program table), extra detergent must be placed in the cavity G/H (depending on models).

Use only detergents specially formulated for dishwashers. For optimal washing results it is important to use a good quality detergent.

The detergent packs must be sealed and stored in a dry place to prevent the formation of lumps which may negatively affect washing results. Once opened the detergent packs should not be kept for too long, otherwise the detergent loses its effectiveness.

Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher.

Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results.

The market offers liquid and powder detergents with differing chemical compositions, which may contain phosphates, or be phosphate-free but contain natural enzymes.

- Detergents containing phosphates are more effective against grease and starch at temperatures above 60°C.

- Enzyme detergents, on the other hand, are also effective at lower temperatures (from 40 to 55°C) and are more easily biodegradable.

With enzyme detergents it is possible to obtain at low temperatures comparable results to those which can only be achieved at 65°C using traditional detergents.

For the safeguarding of the environment we recommend the use of

phosphate- and chlorine free detergents.

User instructions

The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher.

4.3 General warnings and recommendations

Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.

There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.

Before loading the dishes into the baskets it is necessary to:

remove coarse food remains: e.g. bones, fish-bones, etc. which may clog the filter or damage the wash pump.

soak any pots or pans with burnt-on food remains on the bottom to facilitate removal, then load them into the LOWER BASKET.

There is no need to pre-wash the dishes under running water before loading them into the baskets since this only wastes water.

Correct loading of the dishes helps ensure optimal washing results.

27

User instructions

WARNING!

Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle.

Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump.

Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out.

Do not stack dishes or place them in such a way that they cover one other.

Do not place glasses too close together because they may knock against each other and break, or there might be staining at the point where they touch.

MAKE SURE that the items being washed are dishwasher-safe.

Items which are not dishwasher-safe:

Wooden dishes, pots or pans: these may be damaged by the high washing temperatures.

Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.

Plastic dishes: heat resistant plastic dishes must be washed in the upper basket.

Dishes and objects in copper, tin, zinc or brass: these tend to stain.

Aluminium dishes: items made from anodised aluminium may lose their colour.

Silverware: silver items may stain.

Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.

Decorated items: the decorated objects available on the market are generally able to withstand washing in the dishwasher, although the colours may fade after a great many washes. If in doubt as to the fastness of the colours, it is advisable to wash just a few items at a time for approximately one month.

28

User instructions

4.4 Using the baskets

The dishwasher has a capacity of 13 place-settings, including serving dishes.

LOWER BASKET

The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.

All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.

With fixed supports

To make the most of the space inside the basket when loading large items, certain models are equipped with tip-up supports for plates in 2 or 4 sections.

With tip-up supports

BOTTOM BASKET INSERTS

Some models are equipped with bottom basket inserts which improve the drying of dishes. The inserts are supplied in the accessories bag; to use them, simply fit them into place as shown.

29

User instructions

LOADING THE LOWER BASKET

Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them.

Loading examples:

30

UPPER BASKET

It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.

LOADING THE UPPER BASKET

Load plates facing forward; cups, bowls etc. must always be facing downwards. The left side of the basket can be loaded with cups and glasses on two levels. In the centre section, plates and saucers can be loaded vertically into the supports provided.

Loading examples:

User instructions

CUTLERY BASKET

The basket has removable top grids into which items of cutlery should be inserted to keep them properly spaced and allow water to pass between them effectively. The top grids and central lid are in the bag of

accessories. The central lid functions as a lid only.

The top grids can be detached and used separately.

The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards. Take care during loading to avoid injury from the knife blades. The basket is suitable for all types of cutlery, except those long enough to interfere with the upper spray arm. Ladles, wooden spoons and cooking knives can be placed in the upper basket,

making sure that the knife blades do not protrude from the basket.

The cutlery basket slides across the dishwasher and can be placed in

any position to allow optimal use of the space in the bottom basket.

31

User instructions

FLEXI DUO TOP RACK (on some models only)

This comprises two independent sliding, pull-out tray racks for easier loading/unloading of cutlery. Various loading systems and configurations are possible. For example, tea cups can be loaded with the right-hand rack set in the low position, while the left-hand rack or both can be removed to allow large dishes to be put in the top basket

32

User instructions

Examples of loading for intensive dirt

:

33

34

User instructions

Examples of loading for intensive dirt

:

FLEXI DUO TOP RACK (on some models only)

User instructions

Depending on the models, the basket may be equipped with some or all of the following accessories:

- Supports for cups or long objects (ladles, spoons…), on the left; can be tipped to the vertical position when not in use.

- Long-stemmed glass holder, on the left; to use, simply lift and fix onto the hooks provided.

-

Cutlery racks, on the right, designed for knives and teaspoons; for teaspoons, pull out the sliding support. The racks can be tipped to the vertical position when not in use.

- Fixed or movable racks in the middle. The movable supports can be fixed vertical, resting on the bottom of the basket when not in use, or set in the intermediate position, as required.

35

User instructions

ADJUSTING THE UPPER BASKET

The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket.

The adjustment procedure may be type A or B, depending on the dishwasher model purchased.

Version A: pull-out with adjustment in two positions.

 Pull out both the basket guides.

Remove the stops, first releasing them as shown in the diagram.

 Pull out the basket.

Fit the upper or lower pair of wheels into the guide, depending on the setting required

;

 Return the stops to their original position.

The left hand and right hand sides of the basket must always be set at

the same height.

36

Version B: with adjustment in three positions on both sides.

The sides of the basket must always be set at the same height.

 Raise the basket by pulling on the top edge (1), to the first or second catch depending on the height required.

 To lower the basket, first release it by pulling the release lever (2).

Adjustment is also possible with the basket loaded, but in this case when lowering the basket it should be held steady with one hand to avoid knocking the dishes.

User instructions

5. Cleaning and maintenance

Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device.

5.1 General warnings and recommendations

Avoid the use of acidic or abrasive detergents.

Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge.

Periodically (once or twice a year) it is advisable to clean the tank and gaskets, using a soft cloth and water to remove any deposits.

CLEANING THE WATER INTAKE FILTER

The water intake filter A located at the outlet of the water supply tap needs to be cleaned periodically.

After having closed the water supply tap, unscrew the end of the water intake hose, remove the filter A and clean it delicately under running water. Reassemble filter A in its seat and carefully screw the water intake hose back into position.

CLEANING THE SPRAY ARMS

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary

movement is in no way impeded.

 To remove the upper spray arm, unscrew locking ring R.

To remove the lower spray arm, simply lift it up, pulling by the central part.

To remove the orbital spray arm assembly, take hold of the longer arm and pull the orbital unit upward. Wash the arms under a jet of running water and return them carefully to their seat. After

reassembly, check that the spray arms turn freely. Otherwise, check that they have been installed correctly.

ORBITAL

37

User instructions

CLEANING THE FILTER UNIT

 It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards;

 push the centre filter D from the underside to remove it from the microfilter:

 separate the two parts which make up the plastic filter by pressing the body of the filter in the zone shown by the arrows;

 remove the centre filter by lifting it upwards.

38

GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT

MAINTENANCE:

The filters should be cleaned under running water using a stiff brush.

When removing the filter, take care that there are no food residues on it. If any residues fall into the washing pit they might block hydraulic components, or foul the spray arm nozzles.

It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged.

Carefully replace the filters in their seats, to avoid damaging the wash pump.

PROLONGED DISUSE:

Run the soak program twice in succession.

Unplug the power cord from the socket.

Leave the door slightly open, in order to prevent the formation of unpleasant odours inside the washing tank.

Fill the rinse aid dispenser.

Shut off the water supply tap.

User instructions

BEFORE STARTING THE DISHWASHER AFTER PROLONGED

DISUSE:

Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes.

Plug the power cord back into the socket.

Reconnect the water intake hose and open the tap again.

TROUBLESHOOTING MINOR PROBLEMS

In some cases it is possible to remedy minor problems by referring to the following instructions:

If the program fails to start, check that:

the dishwasher is connected to the electrical power supply;

there is no power failure;

the water tap is open;

the dishwasher door is properly closed.

The door won’t close > The door latch was released > Use greater strength to close the door

If water remains inside the dishwasher, check that:

the drain hose is not kinked;

the drain siphon is not obstructed;

the dishwasher filters are not clogged.

If the dishes are not being cleaned properly, check that:

the correct amount of detergent has been added;

there is regenerating salt inside the special container;

the dishes are being loaded correctly;

the selected program is suitable for the dish types and their degree of soiling;

all the filters are clean and positioned correctly;

the spray arm nozzles are not obstructed;

there is no object obstructing the rotation of the spray arms.

39

User instructions

If the dishes fail to dry or remain dull, check that:

there is rinse aid inside the special container;

the rinse aid dispenser setting is correct;

the detergent used is of good quality and has not lost its effectiveness

(for example, through incorrect storage, with the box left open).

If the dishes show signs of streaking, staining, etc., check that:

the rinse aid dispenser setting is not too high.

If there are visible traces of rust inside the tank:

the tank is made of steel, and therefore any rust marks are due to external elements (fragments of rust from the water pipes, pots, cutlery, etc.). Special products are commercially available to remove such marks;

check that the amount of detergent being used is correct. Certain detergents can be more corrosive than others.

check that the cap of the salt container is securely closed, and that the water softening setting is correct.

If after following the above troubleshooting instructions the problem persists, call the nearest After-Sales Centre.

WARNING: any operations performed on the appliance by unauthorised persons are not covered by the warranty and shall be

paid for by the user.

40

E1

E2

E3

E4

E5

E6

User instructions

6. Troubleshooting

The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings:

FAULT

DESCRIPTION

Acquastop failure

The anti-flooding system has been activated (for the relevant models only). The system is tripped in case of water leaks. Contact the after-sales service.

Safety level

The system which limits the water level inside the dishwasher has been tripped. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Water heating malfunction

The water is not heated or the heating parameters are not correct. Repeat the washing program; if the problem persists, contact the after-sales service.

Water temperature monitoring malfunction

Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Water intake malfunction

The appliance does not take in water or does not do so correctly. Check that the water connections are correct, the water intake tap is turned on and the filter is not fouled. If the problem persists, contact the after-sales service.

Water pump-out malfunction

The appliance does not pump out the water or does not do so correctly. Check that the drain hose is not kinked or crushed and that the siphon and filter are not fouled. If the problem persists, contact the after-sales service.

41

E7

E8

E9

E

11

FAULT

User instructions

DESCRIPTION

Turbine flow-regulator malfunction

(for the relevant models only)

The appliance is not able to "measure" the amount of water loaded accurately. Interrupt the program and switch off the dishwasher.

Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Alternate washing system malfunction

Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.

Water intake system malfunction

Contact the after-sales service.

Wash motor pump does not work

Light off Light on Light flashing

If an alarm occurs the appliance interrupts the program in progress and signals a fault.

 Alarms E1, E2, E3, E4, E8 and E9 interrupt the current program immediately.

 The E5, E6 alarms interrupts the running program once the cause is resolved, it will bring bach the execution of the program.

The alarm E7 is visualized at the end of the cycle that comes, however, brought to the end since the operation of the dishwasher is not harmed.

E11: Contact your Service Centre.

To “reset” an alarm is necessary:

 Open and close the door, or turn off and on the machine. At this point is possible to program the dishwasher again.

If the malfunction persists, contact your authorised Service Centre.

42

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
