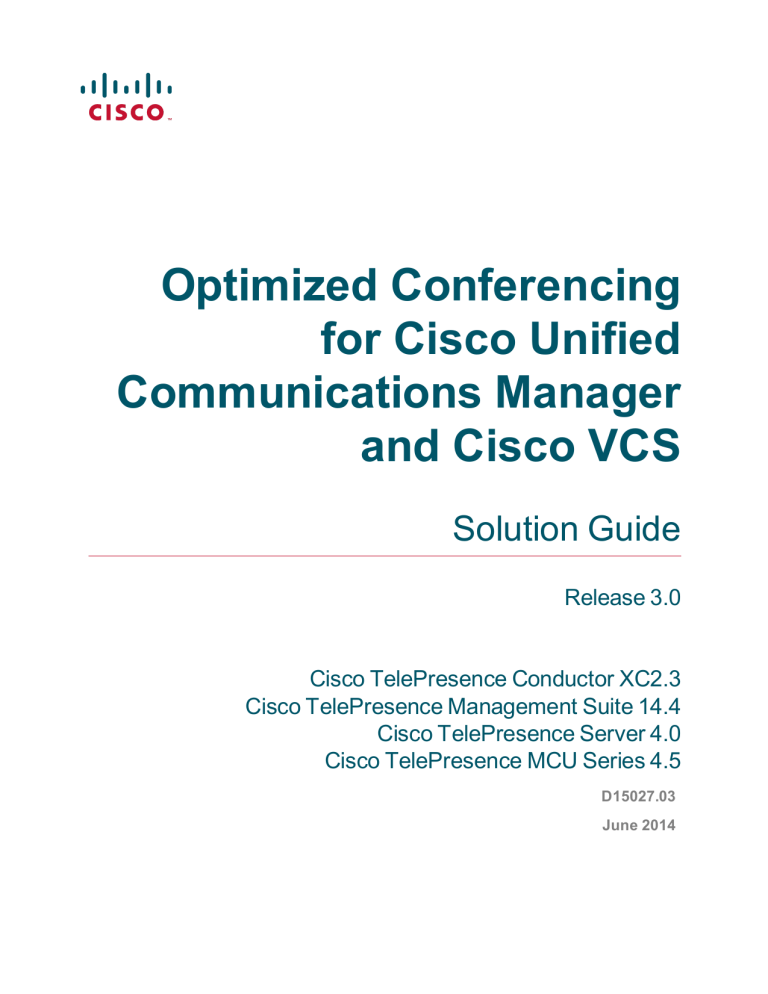

Optimized Conferencing
for Cisco Unified
Communications Manager
and Cisco VCS
Solution Guide
Release 3.0
Cisco TelePresence Conductor XC2.3
Cisco TelePresence Management Suite 14.4
Cisco TelePresence Server 4.0
Cisco TelePresence MCU Series 4.5
D15027.03
June 2014
Contents
Introduction
4
About this document
4
Overview of Optimized Conferencing
6
Key benefits
Conferencing types
Supported deployment scenarios
Which deployment to use?
Solution at a glance
What's new
6
7
7
8
9
9
Core architecture for Optimized Conferencing
10
Solution components and required versions
12
Infrastructure
Endpoints, soft clients and peripherals
12
13
Deploying Optimized Conferencing in virtualized environments
15
Deployments for Unified CM-centric networks
16
Unified CM-centric standard deployment
Unified CM-centric external deployment
Unified CM-centric with Microsoft Lync 2013 deployment
Unified CM-centric legacy deployment
Unified CM-centric combined deployment
16
19
20
21
22
Deployments for Cisco VCS-centric networks
23
Cisco VCS-centric standard deployment
Cisco VCS-centric external deployment
Cisco VCS-centric interop deployment
Cisco VCS-centric combined deployment
23
25
26
28
Deployments for Cisco Business Edition 6000
29
BE6000 standard deployment
BE6000 external deployment
31
32
Conferencing services
33
Rendezvous, ad hoc and Multiway™ conferencing
Personal CMRs
Scheduled conferencing
WebEx Enabled TelePresence
Conference control for non-scheduled conferences
33
34
34
35
35
Conferencing features and options
36
ActiveControl to endpoints
ClearPath packet loss resilience
User-based licensing (Cisco Personal Multiparty)
Administration for TIP multiscreen devices
TelePresence Server resource optimization
Microsoft Lync 2013 interoperability
Segment-switched display of TelePresence rooms
36
36
36
37
37
38
38
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 2 of 66
Configuration and technology considerations
39
Locations, Pools and Service Preferences
Encryption
Unified CM normalization script settings
Early Offer for SIP messaging
Configuring Early Offer (and fallback to Delayed Offer) for SIP trunks
Endpoints
Audio-only quality setting in ad hoc conferencing (TelePresence Servers)
IPv4
Content channel
H.323 interworking
Resilience and clustering
39
39
40
40
41
42
42
43
43
43
44
Entry-level conferencing
45
Implementing Optimized Conferencing
46
Recommended order for upgrading / installing
Prerequisites for configuration
Configuration process
Step 1. Check the release notes
Step 2. Configure the TelePresence Conductor
Step 3. [Unified CM-centric deployments] Convert to Early Offer
Step 4. [Unified CM-centric deployments] Add latest normalization scripts to Unified CM
Step 5. [Unified CM-centric deployments] Trunk scheduling bridges to Unified CM
Step 6. [Optional] Configure the Cisco Expressway / Cisco VCS for Microsoft Lync
Step 7. [Optional] Configure iX protocol for ActiveControl support
Step 8. Configure Cisco TMS for scheduled conferencing
Step 9. [Unified CM-centric deployments] Check external endpoints are registered to the enterprise
Unified CM
More information
47
48
49
49
49
50
50
50
50
50
50
Related documentation
52
More product documentation on Cisco.com
53
Appendix 1: Conferencing fundamentals
55
Ad hoc (instant) conferences
Multiway (instant) conferences
Rendezvous / personal (permanent) conferences
Scheduled conferences
Chained conferences
Auto-dialed participants (ADP)
55
55
55
56
56
56
Appendix 2: Understanding Locations, Pools and Service Preferences
57
Locations
Pools
Service Preferences
More information
57
58
58
59
Appendix 3: Adding the Unified CM normalization scripts
60
Appendix 4: Migration paths to Optimized Conferencing Release 3.0
61
Accessibility notice
65
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
51
51
Page 3 of 66
Introduction
Introduction
The Optimized Conferencing for Cisco Unified Communications Manager and Cisco Video Communication
Server solution (Optimized Conferencing) is one part of our Pervasive Conferencing program to integrate
Unified CM-based and TelePresence-based collaboration networks into a common architecture. The goal of
the program is to provide a simple, scalable platform which supports optimal use of conference resources
and the best possible conference experience for participants.
About this document
This document explains the recommended architecture to support Optimized Conferencing across your video
network, and the underlying concepts of the architecture. It is intended to provide a high-level view of Cisco's
recommended solution for optimal deployment of video conferencing. This document does not describe how
to deploy the solution. Instead it provides links to external deployment guides which contain step by step
instructions for deploying the infrastructure required to support the solution.
The deployment guides referenced by this document are written for partners and technical sales people who
have a good technical understanding of Cisco video infrastructure products and their place in a video
architecture. They expect as a minimum that readers are familiar with installing and configuring the
associated product.
Terms used
Standards-based. Describes devices or technology that support the wider ITU-T standards for video
conferencing (including H.323, H.320, and SIP). In contrast to SIP-only elements designed specifically for
SIP environments.
WebEx conferencing. Describes conferences that allow joint video participation by Cisco TelePresence
users and WebEx users. Also known as Cisco WebEx Enabled TelePresence (formerly Cisco TelePresence
WebEx OneTouch).
Product names
For clarity the following short versions of Cisco product names are used:
Table 1: Product names used in this document
Product
Short name
Optimized Conferencing for Cisco Unified Communications Manager and Cisco Video
Communication Server
Optimized
Conferencing
Cisco Unified Communications Manager
Unified CM
Cisco TelePresence Conductor
TelePresence
Conductor
Cisco TelePresence Server
TelePresence
Server
Cisco TelePresence MCU Series
MCU
Cisco TelePresence Management Suite
Cisco TMS
Cisco TelePresence Management Suite Provisioning Extension
Cisco TMSPE
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 4 of 66
Introduction
Table 1: Product names used in this document (continued)
Cisco TelePresence Management Suite Extension for Microsoft Exchange
Cisco TMSXE
Cisco TelePresence Video Communication Server
Cisco VCS
Cisco Business Edition 6000
BE6000
Cisco Unified Communications Manager Session Management Edition
Unified CM SME
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 5 of 66
Overview of Optimized Conferencing
Overview of Optimized Conferencing
The Optimized Conferencing Release 3.0 solution provides a streamlined network architecture to extend
video conferencing functionality across Cisco TelePresence products. It supports the following video
conferencing methods:
n
Personal conferences. Permanent conferences with pre-defined numbers that participants can call into at
any time.
n
Scheduled conferences. Conferences with a pre-booked start and end time, including Cisco WebEx
participation.
n
Instant conferences. Spontaneous conferences which are "escalated" from point to point calls.
The solution comprises a SIP-based core conferencing architecture with a set of supported deployments and
endpoints. Each supported deployment extends the core architecture in a specific configuration, depending
on the call controller used and the conference services required.
Core architecture
The core architecture contains these key video conferencing elements, which are identical in all
deployments:
n
Cisco TelePresence Server (TelePresence Server) and/or Cisco TelePresence MCU Series (MCU)
conference bridges.
n
Cisco TelePresence Conductor (TelePresence Conductor) for bridge resource management.
n
Cisco TelePresence Management Suite (Cisco TMS) for conference provisioning, monitoring, and
scheduling.
Call control
Either the Cisco Unified Communications Manager (Unified CM) or the Cisco TelePresence Video
Communication Server (Cisco VCS) can be used for call control. The Unified CM is recommended.
Deployments with Unified CM are known as "Unified CM-centric" and deployments with Cisco VCS are
known as "Cisco VCS-centric".
CAUTION: Support for any given deployment, feature, or component in Optimized Conferencing Release 3.0
is dependent on the requirements described in this guide regarding supported device types, software
versions, and interoperability.
Key benefits
n
Simplified, optimal user experience for conference participants.
n
Flexible, extendable architecture that supports deployment of one or more of permanent, scheduled, and
instant (ad hoc and Multiway™) conferencing capabilities.
n
Dynamic optimization of conference resources on the TelePresence Server for inbound calls.
n
Ability to increase the number of conference participants beyond the capacity of a single MCU bridge.
n
Resilience in the video network, which allows bridges to be taken offline for maintenance (excluding
scheduled bridges).
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 6 of 66
Overview of Optimized Conferencing
Conferencing types
The Optimized Conferencing solution supports the following conference types:
Table 2: Conferencing capabilities in Optimized Conferencing
Conference type
Description
Rendezvous / personal
(permanent
conferences)
Pre-defined addresses that allow conferencing without previous scheduling. The host
shares the address with other users, who can call in to that address at any time.
Scheduled
Pre-booked conferences with a start and end time. Optionally with a pre-defined set of
participants.
Ad hoc (instant /
escalated)
Manually escalated from a point-to-point call hosted on a Unified CM, to a three-party
call hosted on a conference bridge.
Multiway (instant /
escalated)
Manually escalated from a point-to-point call hosted on a Cisco VCS Control, to a
three-party call hosted on a conference bridge.
Ad hoc and Multiway are different types of instant (or escalated) conferencing. Ad hoc is the Unified CMbased version and Multiway is the Cisco VCS equivalent. Appendix 1: Conferencing fundamentals [p.55]
describes each conference type in detail.
In all deployment models the solution supports conferencing between individuals in any Location, using the
endpoints listed in Solution components and required versions [p.12]. As conference attendees join the
conference, they join at the resolution supported by their endpoint provided that it is below or equal to the
maximum level set by the conference administrator.
Supported deployment scenarios
Unified CM-centric deployments
The standard Unified CM-centric deployment supports Optimized Conferencing within the local Unified CMmanaged enterprise. It can be extended to support any of these scenarios:
n
Participation by external users—remote and mobile workers registered to the local Unified CM, WebEx
users, and business-to-business conferencing.
n
Interoperability with Microsoft Lync.
n
Interoperability with standards-based endpoints.
Cisco VCS-centric deployments
The standard Cisco VCS-centric deployment supports Optimized Conferencing within the local Cisco VCSmanaged enterprise. It can be extended to support any of these scenarios:
n
Participation by external users—remote and mobile workers registered to the Cisco VCS Expressway,
Cisco WebEx users, and business-to-business conferencing.
n
Interoperability with Microsoft Lync.
n
Interoperability with endpoints managed by a Unified CM or other non-VCS call controller within the
enterprise.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 7 of 66
Overview of Optimized Conferencing
Cisco Business Edition 6000
Optimized Conferencing is also available for Cisco Business Edition 6000 (BE6000) environments. The
basic deployment for video conferencing in the local BE6000 enterprise can be extended for remote access.
Which deployment to use?
The choice of which deployment to use is based on the primary call controller. Organizations that are
exclusively Unified CM-based should use one or more of the Unified CM-centric deployments. Organizations
that are exclusively Cisco VCS-based should use one or more of the Cisco VCS-centric deployments.
The Unified CM is the recommended call control device for the solution.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 8 of 66
Overview of Optimized Conferencing
Solution at a glance
Table 3: Services and features in Optimized Conferencing
Service / feature
Comments
Ad hoc, rendezvous, and Multiway conferencing
Conference bridges managed through TelePresence
Conductor.
Scheduled conferencing
Conference bridges managed by Cisco TMS directly
onto the bridges. Supported on all MCUs and on
TelePresence Server 7010 and 8710.
ActiveControl for conference participants
TelePresence Server bridges.
Cisco Business Edition 6000 deployments
New
Cisco ClearPath video quality technology
TelePresence Server, MCU 8510 and MCU 5300
Series bridges.
Collaboration Meeting Room provisioning and user
portal
New Using Cisco TelePresence Management Suite
Provisioning Extension (Cisco TMSPE) provisioning
extension for Cisco TMS.
Entry-level conference bridges
n
Cisco TelePresence Server on Virtual Machine
n
Cisco TelePresence Server on Multiparty Media
310/320
Microsoft Lync interoperability
New Interoperability with Microsoft Lync 2013 is
supported, using the Cisco Expressway-C or Cisco
VCS Control for interworking.
Optimization of conference bridge resources
TelePresence Server bridges.
Segment switching (multiscreen immersive systems)
New TelePresence Server bridges. Segment switching
is the default behavior in this release.
Simplified configuration for TIP multiscreen endpoints
TelePresence Server bridges.
User-based licensing (some cases only)
New Via Cisco Personal Multiparty licenses.
Virtual conference bridges
Cisco TelePresence Server on Virtual Machine
Cisco WebEx-based conference participation
Conference bridges managed by Cisco TMS directly
onto the bridges. Supported on all MCUs and on
TelePresence Server 7010 and 8710.
What's new
For details of new and changed features in Optimized Conferencing Release 3.0, see the latest solution
release notes on Cisco.com.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 9 of 66
Core architecture for Optimized Conferencing
Core architecture for Optimized Conferencing
The core elements of Optimized Conferencing are present in all deployments:
n
TelePresence Server and/or MCU conference bridges
n
TelePresence Conductor
n
Cisco TMS
With the exception of bridges used for scheduled conferences, the TelePresence Conductor manages the
conference bridges. SIP trunks connect the bridges to the TelePresence Conductor, which in turn is trunked
to one or more call controllers. All XML RPC connections also go via the TelePresence Conductor. Bridges
used for scheduled conferences are trunked direct to the call controller. The Cisco TMS is linked by XML
RPC connections to the TelePresence Conductor for provisioning and monitoring of non-scheduled
conferences, and direct to the bridges for scheduled conference management.
The architecture is exclusively SIP. Conferencing with H.323 endpoints requires interworking by a Cisco
VCS.
Note: The solution is IPv4 based.
Figure 1: High-level view of the architecture
Role of the TelePresence Conductor
TelePresence Conductor manages the bridge resources for rendezvous conferences, and for ad hoc
conferences (Unified CM-centric deployments) or Multiway conferences (Cisco VCS-centric deployments).
It selects which bridge or bridge pools to host a specific conference and balances the conference load across
the bridges in the defined pools. The call control element (Unified CM or Cisco VCS) is unaware of the
individual bridges in the network and communicates only with the TelePresence Conductor.
In certain cases TelePresence Server bridges are optimized dynamically by TelePresence Conductor if
Optimize resources is enabled in the TelePresence Conductor conference template.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 10 of 66
Core architecture for Optimized Conferencing
Role of the Cisco TMS
For non-scheduled conferences, Cisco TMS allows administrators to control ongoing conferences using the
Cisco TMS Conference Control Center (see Conference control for non-scheduled conferences [p.35]).
Cisco TMS with the Cisco TMSPE also supports automated bulk provisioning by administrators of personal
Collaboration Meeting Rooms (CMRs), and a user portal for individuals to define and manage their own
personal CMRs.
For scheduled conferences, the Cisco TMS performs conference scheduling and conference control
functions directly on the bridges (see Scheduled conferencing [p.34]).
Conference bridges for non-scheduled conferencing
For rendezvous, ad hoc and Multiway conferencing, bridges are grouped into pools of like devices in
TelePresence Conductor, to which Conductor applies Service Preferences to prioritize use of the pools for
specific conference calls. The illustration above shows co-located bridges in Pools 1-3 behind TelePresence
Conductor for rendezvous and escalated conferencing.
TelePresence Server bridges must be configured in remotely managed mode. The TelePresence Server on
Multiparty Media 310/320 and Cisco TelePresence Server on Virtual Machine do not need configuring as they
are always in remotely managed mode.
Conference bridges for scheduled conferencing
Scheduled conferencing, including WebEx Enabled TelePresence meetings for participation by Cisco
WebEx users, is supported on MCU and TelePresence Server 7010 and 8710 conference bridges. The
bridges must be connected directly to the call controller and not via TelePresence Conductor. Figure 1: Highlevel view of the architecture [p.10] above shows two dedicated bridges used for scheduled/Cisco WebEx
conferencing.
TelePresence Server 7010 and 8710 bridges must be configured in locally managed mode. Scheduled
conferencing is not supported on the TelePresence Server on Multiparty Media 310/320 or the Cisco
TelePresence Server on Virtual Machine.
For guidance about configuring TelePresence Server bridges see the TelePresence Server product
documentation. For information about resource optimization see Cisco TelePresence Conductor
Administrator Guide XC2.3 and Cisco TelePresence Server Version 4.0 Printed Help.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 11 of 66
Solution components and required versions
Solution components and required versions
The products used in Optimized Conferencing and the required software/firmware versions for each product
are listed below. Your organization may not use all the products but those that are used must be running the
specified version. (For information about upgrading see Implementing Optimized Conferencing [p.46].)
n
Infrastructure [p.12]
n
Endpoints, soft clients and peripherals [p.13]
Note: In networks with multiple Unified CM or Cisco VCS installations, for full Optimized Conferencing
functionality every installed Unified CM or Cisco VCS must be at the required version.
Infrastructure
Table 4: Required software for infrastructure products
Product
Required version
Role
TelePresence Conductor
XC2.3
Conference resource
allocation
Cisco TMS
14.4
Conference management
& scheduling
TelePresence Server
7010 and MSE 8710, TelePresence Server on
Multiparty Media 310/320, TelePresence Server on
Virtual Machine
4.0
Conference bridges
MCU 5300 Series, 4500 Series, 4501 Series, 4200
Series, MCU MSE Series 8420 and 8510
4.5
Conference bridges
Unified CM
9.1(2)SU2 or 10.5(1)
Call control
Cisco Expressway-C
X8.1.1 or later
X8.2 recommended—
required for Microsoft Lync
interoperability.
Proxy registration to
Unified CM for remote,
secure endpoint
registration.
Media termination
capabilities.
Microsoft Lync
interworking.
Cisco Expressway-E
X8.1.1 or later
X8.2 recommended
Secure firewall traversal
Cisco VCS Control
X8.1.1 or later (except
X7.2.3 can be used for
H.323 registration).
Call control (Cisco VCScentric deployments).
H.323 interworking.
Microsoft Lync
interworking.
X8.2 recommended—
required for Microsoft Lync
interoperability.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 12 of 66
Solution components and required versions
Table 4: Required software for infrastructure products (continued)
Cisco VCS Expressway
X8.1.1 or later
X8.2 recommended
Secure firewall traversal.
Registration of standardsbased endpoints across
the Internet.
Cisco TMSPE
1.2
Conference provisioning
Cisco TMSXE
4.0 or 4.0.1
[Optional] Conference
management & scheduling
for Microsoft environments
Cisco WebEx
T28.12 or later
Participation by WebEx
users (WebEx Enabled
Conferencing)
Endpoints, soft clients and peripherals
Table 5: Required software for endpoints, soft clients and peripherals
Product
Version
Supported in
deployments...
Cisco TelePresence EX Series
(EX60, EX90)
TC7.1.3
Unified CM-centric
Cisco VCS-centric
Cisco Desktop Collaboration Experience DX650
10.1(2.33)
Unified CM-centric
Cisco TelePresence Systems
CTS 3010, CTS 3210, CTS 1100 and CTS 1300
CTS 1.10.5 or later
Unified CM-centric
Cisco TelePresence System CTS 500-32
TX6.1.2 or later
Unified CM-centric
Cisco TelePresence TX9000 Series
(TX9000 and TX9200 immersive systems)
TX6.1.2 or later
Unified CM-centric
(although these endpoints
can register to the VCS
they are not supported for
Optimized Conferencing
Cisco VCS-centric
deployments)
Cisco IP Video Phone E20
TE4.1.3 or later
Cisco VCS-centric
Cisco Unified IP Phone 9900 Series and 8900 Series
9.4(1)
Unified CM-centric
Cisco Jabber for Android
9.6
Unified CM-centric
Cisco Jabber for iPad
9.6.1
Unified CM-centric
Cisco Jabber for iPhone
9.6.1
Unified CM-centric
Cisco TelePresence Quick Set C20, SX10, SX20,
SX80
Cisco TelePresence Codec C Series
(C40, C60, C90)
Cisco TelePresence Profile Series
Cisco TelePresence MX200 and MX300
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 13 of 66
Solution components and required versions
Table 5: Required software for endpoints, soft clients and peripherals (continued)
Cisco Jabber for Mac
9.6
Unified CM-centric
Cisco Jabber for Windows
9.7
Unified CM-centric
Cisco Jabber Video for TelePresence
4.7
Unified CM-centric
Microsoft Lync Client
Lync 2013 Client
Unified CM-centric
Cisco VCS-centric
Note: The video conference network may also include other endpoints that support H.323 or SIP, and are
registered to the Cisco VCS or call into it.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 14 of 66
Deploying Optimized Conferencing in virtualized environments
Deploying Optimized Conferencing in virtualized
environments
Optimized Conferencing is supported for virtualized environments. As with all Cisco Unified
Communications (UC) on Unified CM deployments, the following sizing guidelines and hardware
requirements must be followed:
n
n
http://docwiki.cisco.com/wiki/Unified_Communications_Virtualization_Sizing_Guidelines
http://docwiki.cisco.com/wiki/UC_Virtualization_Supported_Hardware
In particular, physical CPU cores may not be over-subscribed for UC virtual machines. So one physical CPU
core must equal one virtual machine vCPU core.
Hyperthreading on the CPU should be enabled when available. However, the resulting logical cores do not
change UC app rules. The UC rules are based on a one-to-one mapping of physical cores-to-vcpu, not logical
cores-to-vcpu.
Further details on running UC in a virtualized environment are available in
http://docwiki.cisco.com/wiki/Unified_Communications_in_a_Virtualized_Environment
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 15 of 66
Deployments for Unified CM-centric networks
Deployments for Unified CM-centric networks
For clarity each deployment type is shown separately in the deployment diagrams here. However, you can
use any or all of the deployments together. The final diagram shows all the deployments used in combination.
Unified CM-centric standard deployment
The standard deployment has one or more Unified CMs for call control. The TelePresence Conductor is
trunked to the Unified CM. Conference bridges can be TelePresence Servers, MCUs, or both. Conference
management facilities are provided by Cisco TMS over XML RPC connections.
Bridges used for rendezvous and ad hoc conferences are trunked to the TelePresence Conductor where they
are organized into pools and service preferences and managed by the TelePresence Conductor. Bridges
used for scheduled conferences (including Cisco WebEx participation) are trunked direct to the Unified CM.
TelePresence Server bridges are configured in remotely managed mode when trunked to the TelePresence
Conductor and in locally managed mode when trunked to Unified CM.
Figure 2: Unified CM-centric standard deployment
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 16 of 66
Deployments for Unified CM-centric networks
The standard deployment can be viewed as a single, large conference bridge behind the Conductor,
combined with Unified CM call control and Unified CM-managed endpoints, and Cisco TMS for conference
management. These elements together provide Optimized Conferencing for the local enterprise.
Limitations and requirements for all Unified CM-centric deployments
n
Early Offer messaging is strongly recommended for all Unified CM-connected SIP trunks which carry
TelePresence calls.
n
The Multiway™ method of escalated conferencing is not recommended in Unified CM-centric
deployments.
n
TelePresence Server conference bridges used for scheduling must be configured in locally managed mode.
n
The MCU auto attendant is not supported.
n
If your deployment uses a Cisco VCS, note that Cisco Expressway and Cisco VCS do not support Early
Media. So for calls involving a Cisco VCS, media is only heard after the call has connected (pre-answer
messages and far end ring tones will not be heard).
Conference call flows
The Unified CM provides call registration and routing of voice and video between the connected endpoints.
Rendezvous, ad hoc and scheduled calls are carried over SIP trunks. XML RPC connections are established
between each Unified CM and the TelePresence Conductor.
Rendezvous and scheduled calls respectively are routed along (separate) single trunks from the Unified CM.
In each case the same trunk is also used for all outgoing calls, so that incoming and outgoing calls follow the
same path. In contrast, ad hoc calls route directly to Conductor from the Unified CM which created the
conference, so multiple ad hoc trunks may exist. Each one has an associated XML RPC connection. Ad hoc
conferences are controlled by their originating Unified CM, so an API/SIP trunk pair is required from each
Unified CM that supports conferencing.
Rendezvous and scheduled conferences can route from any Unified CM. If a Cisco Unified Communications
Manager Session Management Edition (Unified CM SME) is deployed it is assumed that it will be used for
these trunks.
Rendezvous conferences for endpoints registered to Unified CM are channeled through TelePresence
Conductor to the conference bridge.
Ad hoc call flows (which are managed by Unified CM) cannot be used to add participants to conferences
created by any other method, such as a rendezvous conference. Other call flows cannot be used to add
participants to ad hoc conferences. So the ad hoc call escalation method is only supported in an ad hoc
conference that was created by it, and conferences generated by other methods cannot be extended by the
ad hoc mechanism. This avoids any potential for chained conferences.
Note: Unified CM delivers ad hoc and rendezvous conferences to different IP addresses on TelePresence
Conductor. Multiple Unified CMs (from Version 8.6.2) can access the same IP address on TelePresence
Conductor. The Unified CMs do not need to be in the same physical location.
Rendezvous and ad hoc configuration summary
These are the configuration steps to route rendezvous and ad hoc calls through the Unified CM:
1. Configure all SIP trunks that carry TelePresence calls for Early Offer messaging. If you do not want to do
this you may leave the trunks as Delayed Offer for the standard deployment, but note that some extended
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 17 of 66
Deployments for Unified CM-centric networks
deployments may require Early Offer for certain trunks.
2. Configure the appropriate Locations in TelePresence Conductor. For details, see Cisco TelePresence
Conductor with Unified Communications Manager Deployment Guide.
3. [For ad hoc] Configure a Unified CM bridge resource (and a Media Resource Group and Media Resource
Group List).
4. [For rendezvous] Configure a Unified CM Trunk and Route Pattern with a special TelePresence Conductor
IP for rendezvous conferencing.
5. Configure the TelePresence Servers to use TelePresence Conductor for remote management. The
TelePresence Server on Multiparty Media 310/320 and TelePresence Server on Virtual Machine do not
need configuring as they are always in remotely managed mode.
From Optimized Conferencing Release 3.0, permanent conferences can also be provisioned on
TelePresence Conductor using Cisco TelePresence Management Suite Provisioning Extension (Cisco
TMSPE) and the Conductor Provisioning API. You configure bridge pools and Service Preferences on
TelePresence Conductor, and define group-level templates in Cisco TMSPE which allow end-users to define
their own personal CMRs through the Cisco TMSPE user portal. For details, see Cisco TelePresence
Management Suite Provisioning Extension with Cisco Unified CM Deployment Guide and Cisco
TelePresence Conductor Product Programming Reference Guide XC2.3.
Scheduled conferences
Conference scheduling and conference control functions are performed by Cisco TMS directly onto the
conference bridges (not via the TelePresence Conductor).
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 18 of 66
Deployments for Unified CM-centric networks
Unified CM-centric external deployment
By trunking a Cisco Expressway to the Unified CM, the standard Unified CM-centric configuration can be
extended to support access by participants who are external to the local enterprise:
n
Remote and mobile workers registered to the local Unified CM.
n
WebEx based users.
n
Users in other organizations (business-to-business conferencing).
Figure 3: Optimized Conferencing with external access (Unified CM-centric)
Requirements for external deployments
If you have not configured all SIP trunks for Early Offer (as recommended) you must configure Early Offer
between any bridges used for WebEx Enabled TelePresence calls and the Cisco Expressway.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 19 of 66
Deployments for Unified CM-centric networks
Unified CM-centric with Microsoft Lync 2013 deployment
This deployment extends the standard Unified CM-centric configuration to support interoperability with the
Microsoft Lync 2013 service, over a Cisco Expressway-to-Unified CM trunk.
Figure 4: Optimized Conferencing with MS Lync 2013 (Unified CM-centric)
Limitations and requirements for Lync 2013 deployments
n
Microsoft Lync Server 2013 and Lync 2013 clients.
n
Cisco Expressway-C / Cisco VCS Control must be running Version X8.2 software.
n
For capacity reasons we recommend that you implement separate Cisco Expressway-C or Cisco VCS
Control devices for Lync access, and for other networking requirements respectively. Figure 6: Optimized
Conferencing combined deployment (Unified CM-centric) [p.22] shows three devices: one for remote
networking, one for Lync, and one for legacy interworking.
n
You can optionally use a Cisco Expressway-C or a Cisco VCS Control as the Microsoft Lync gateway,
depending on the Lync functionality required and your local organization preferences.
n
The Microsoft interoperability key (formerly known as Enhanced OCS Collaboration) is required for the
Cisco Expressway-C or Cisco VCS Control.
n
Lync endpoints cannot share their content, although they can receive content as part of a composed
TelePresence Server layout.
n
Cisco TelePresence CTS 500-32 endpoints must be running TX6.1.2 software.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 20 of 66
Deployments for Unified CM-centric networks
Unified CM-centric legacy deployment
This deployment extends the standard Unified CM-centric configuration to support interworking with
standards-based endpoints, over a Cisco VCS-to-Unified CM trunk.
Figure 5: Optimized Conferencing with standards-based endpoints (Unified CM-centric)
Conference support for endpoints
As in the standard deployment, rendezvous conferences for endpoints registered to Unified CM are
channeled through TelePresence Conductor to the conference bridge. Additionally for this deployment,
endpoints registered to a Cisco VCS Control can be included in the following conferences:
n
Ad hoc conferences initiated by an endpoint registered to Unified CM. Cisco VCS Control-registered
endpoints cannot initiate ad hoc conferences, but can be involved in them in every other way.
n
Rendezvous conferences hosted on bridges behind the TelePresence Conductor connected to Unified CM.
n
Scheduled/Cisco WebEx conferences hosted on the conference bridges connected directly to Unified CM.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 21 of 66
Deployments for Unified CM-centric networks
Unified CM-centric combined deployment
Any or all of the extended Unified CM-centric deployments can be used together. This diagram shows a
combined configuration that uses all the available deployment types:
Figure 6: Optimized Conferencing combined deployment (Unified CM-centric)
Note: Use dedicated gateways with the Lync 2013 deployment
If you use Lync 2013 interworking in a combined deployment, for capacity reasons we recommend that you
implement separate Cisco Expressway-C or Cisco VCS Control devices for Lync access and for general
remote networking respectively. A further dedicated Cisco VCS Control is recommended if you need to
support standards-based devices. The previous diagram shows three devices: one for remote networking,
one for Lync, and one for standards-based conferencing.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 22 of 66
Deployments for Cisco VCS-centric networks
Deployments for Cisco VCS-centric networks
Cisco VCS-centric standard deployment
The standard deployment has one or more Cisco VCSs for call control. The TelePresence Conductor is
trunked to the VCS. Conference bridges can be TelePresence Servers, MCUs, or both.
Bridges used for rendezvous and Multiway conferences are trunked to the TelePresence Conductor where
they are organized into pools and service preferences and managed by the TelePresence Conductor. Bridges
used for scheduled conferences (including Cisco WebEx participation) are registered direct to the Cisco
VCS. TelePresence Server bridges are configured in remotely managed mode when trunked to the
TelePresence Conductor and in locally managed mode when trunked to the Cisco VCS.
Figure 7: Cisco VCS-centric standard deployment
The standard deployment can be viewed as a single, large conference bridge behind the Conductor,
combined with Cisco VCS call control and Cisco VCS-managed endpoints, and Cisco TMS for conference
management. These elements together provide Optimized Conferencing for the local enterprise.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 23 of 66
Deployments for Cisco VCS-centric networks
Limitations and requirements for all Cisco VCS-centric deployments
n
The TelePresence Conductor must be deployed using its back-to-back user agent (B2BUA). The external
policy server interface is not supported.
n
The ad hoc method of escalated conferencing is not recommended in Cisco VCS-centric deployments.
n
TelePresence Server bridges used for scheduling must be configured in locally managed mode and must
not be connected to Conductor.
Conference call flows
The Cisco VCS provides call registration and routing of voice and video between the connected standardsbased endpoints. Rendezvous, Multiway and scheduled calls are carried over SIP trunks. XML RPC
connections are established between each Cisco VCS Control and the TelePresence Conductor.
Calls associated with non-scheduled conferences are managed by TelePresence Conductor on the
conference bridges. Calls associated with scheduled conferences flow directly between the Cisco VCS
Control and the bridges.
Rendezvous / Multiway and scheduled calls respectively are routed along (separate) single trunks from the
Cisco VCS. In each case the same trunk is also used for all outgoing calls, so that incoming and outgoing
calls follow the same path.
Conference support for endpoints
Rendezvous conferences for endpoints registered to Unified CM are channeled through TelePresence
Conductor to the conference bridge (via Cisco VCS).
Endpoints registered to a Cisco VCS Control can be included in the following conferences:
n
Rendezvous calls hosted on the bridges behind TelePresence Conductor (via Cisco VCS).
n
Multiway conferences initiated by an endpoint registered to Cisco VCS Control, but hosted on the bridges
behind TelePresence Conductor (via Cisco VCS).
Rendezvous and Multiway configuration summary
These are the configuration steps to route rendezvous and Multiway calls through the Cisco VCS Control:
1. Configure a zone for the SIP trunk between Cisco VCS Control and the TelePresence Conductor.
2. Define search rules in the Cisco VCS to point to the appropriate zone.
3. Configure any TelePresence Server 7010 and 8710 conference bridges to use the TelePresence
Conductor for remote management (the TelePresence Server on Multiparty Media 310/320 and Cisco
TelePresence Server on Virtual Machine do not need configuring as they are always in remotely managed
mode).
Scheduled conferences
Conference scheduling and conference control functions are performed by Cisco TMS directly onto the
conference bridges.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 24 of 66
Deployments for Cisco VCS-centric networks
Cisco VCS-centric external deployment
By trunking a Cisco VCS Expressway to the Cisco VCS Control, the standard Cisco VCS-centric
configuration can be extended to support access by participants who are external to the local enterprise:
n
Remote and mobile workers registered to the local Cisco VCS.
n
WebEx based users.
n
Users in other organizations (business-to-business conferencing).
Figure 8: Optimized Conferencing with external access (Cisco VCS-centric)
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 25 of 66
Deployments for Cisco VCS-centric networks
Cisco VCS-centric interop deployment
This deployment extends the standard Cisco VCS-centric configuration to support interoperability with nonVCS call control systems or Microsoft Lync 2013 services within the enterprise.
Figure 9: Optimized Conferencing with interop support (Cisco VCS-centric)
Non-VCS call control
The diagram above shows a network configured to interoperate with a generic, third party call control system
for additional SIP-based voice and video endpoints. Note that this could be one or more Unified CM systems,
although we only recommend this approach for transitioning from a Cisco VCS-centric model to a Unified
CM-centric model. Organizations that use the Unified CM are advised always to use the Unified CM-centric
model.
Calls managed by the third party call controller are SIP-trunked to the Cisco VCS.
Limitations and requirements for interop deployments
n
Conference participation by users of some external services, including Cisco WebEx, requires
SIP messaging to be Early Offer. This is the default for VCS-managed systems. However, if you have a
Unified CM in the network which is required to support WebEx or other Early Offer-based services, you
must configure Early Offer messaging on the SIP trunks between the following elements:
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 26 of 66
Deployments for Cisco VCS-centric networks
l
l
l
Bridges used for calls between Early Offer-based services and the Cisco Expressway.
Any third-party call controller and the Cisco VCS Control.
Any Unified CM-managed endpoints and the Cisco Expressway. The entire path from the calling device
to the service must be configured to support Early Offer.
n
If you do not need external Early Offer-based services, then any Unified CMs may be configured for either
Delayed Offer or Early Offer.
n
If you use Unified CMs, the Unified CM-based ad hoc conference method is not supported in Cisco VCScentric deployments.
n
Encrypted CTS systems are not supported. We do not recommend using encrypted CTS endpoints in
Cisco VCS-centric deployments.
n
The following requirements apply if you need Microsoft Lync interoperability:
l Microsoft Lync Server 2013 and Lync 2013 clients.
l Cisco VCS Control must be running Version X8.2 software.
l For capacity reasons we recommend that you implement separate Cisco VCS Control devices for Lync
access, and for general remote networking respectively. This is illustrated in Figure 10: Optimized
Conferencing combined deployment (Cisco VCS-centric) [p.28],which shows separate devices for Lync
and for remote networking.
l The Microsoft interoperability key (formerly known as Enhanced OCS Collaboration) is required for the
Cisco VCS Control.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 27 of 66
Deployments for Cisco VCS-centric networks
Cisco VCS-centric combined deployment
Any or all of the extended Cisco VCS-centric deployments can be used together. The diagram shows a
combined configuration that uses all of the individual deployment types.
Figure 10: Optimized Conferencing combined deployment (Cisco VCS-centric)
Note: Use dedicated gateways with the Lync 2013 deployment
If you use Lync 2013 interworking in a combined deployment, for capacity reasons we recommend that you
implement separate Cisco VCS Control devices for Lync access and for general remote networking
respectively. The diagram above shows two devices: one for remote networking and one for Lync.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 28 of 66
Deployments for Cisco Business Edition 6000
Deployments for Cisco Business Edition 6000
The Cisco Business Edition 6000 (BE6000) consolidates multiple Cisco Unified Communications (UC)
applications onto a single platform.
By using only the applications provided on the BE6000 platform it is possible to build an Optimized
Conferencing deployment. This deployment uses the TelePresence Conductor and Cisco TelePresence
Server on Virtual Machine together for conferencing and orchestration facilities, and Cisco TMS for
conference provisioning and monitoring.
The following conferencing methods are supported:
n
Ad hoc and rendezvous if using a Unified CM for call control
n
Multiway and rendezvous if using a Cisco VCS for call control
Conferencing architecture
Although many BE6000 configurations are compatible with Optimized Conferencing, only the following
configuration is recommended:
n
BE6000 Product ID BE6K-SW-9X10X.
n
Cisco Business Edition 6000 High Density server (this has two 8-core CPUs).
n
Hyperthreading enabled.
n
One 2-core virtualized Cisco TMS.
n
One 2-core virtualized Cisco TelePresence Conductor (Essentials version).
n
One 8-core Cisco TelePresence Server on Virtual Machine conference bridge.
It is assumed that call control is run on the remaining cores or on another BE6000 unit. The call control is
either Unified CM (recommended) Version 10.5(1) or later, or Cisco VCS Version 8.1.1 or later.
This deployment can be scaled up by running additional vTS instances on further BE6000 systems or by
adding dedicated hardware. Depending on their capacity requirements, scaled-up deployments may need
either Conductor Select or full capacity Conductor licenses.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 29 of 66
Deployments for Cisco Business Edition 6000
Figure 11: Conferencing architecture for Optimized Conferencing in BE6000 deployments
Implementation summary
Sizing and hardware must meet the general requirements for Cisco Unified Communications (UC) on Unified
CM deployments (see Deploying Optimized Conferencing in virtualized environments [p.15]).
Due to third-party licensing restrictions the Optimized Conferencing components must be manually installed
into the BE6000 after the BE6000 server system software is installed. That is, after installing the call
controller and configuring the dial plan. Install the Optimized Conferencing components in the following order:
1. Cisco TelePresence Server on Virtual Machine and the TelePresence Conductor (in any order)
2. Cisco TMS
3. Cisco TMSPE
4. Cisco TMSXE
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 30 of 66
Deployments for Cisco Business Edition 6000
BE6000 standard deployment
In this example of a standard BE6000 deployment a Unified CM is used for call control, although a Cisco
VCS could be used instead. The core conferencing elements are running on one BE6000 unit and the Unified
CM is running on a second unit.
Figure 12: Standard deployment for Optimized Conferencing in BE6000
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 31 of 66
Deployments for Cisco Business Edition 6000
BE6000 external deployment
By trunking an Expressway to the call controller the standard configuration can be extended to support
access by remote and mobile users who are registered to the local call controller. The example shows a
Unified CM for call control. If you use a Cisco VCS, the Cisco Expressway-C would typically be replaced by
a Cisco VCS Control, and the Cisco Expressway-E by a Cisco VCS Expressway.
Figure 13: External deployment for Optimized Conferencing in BE6000
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 32 of 66
Conferencing services
Conferencing services
For explanations of each conferencing type described here, see Appendix 1: Conferencing fundamentals
[p.55].
Rendezvous, ad hoc and Multiway™ conferencing
Note: In this context, references to "rendezvous" also include CMR conferences provisioned through Cisco
TMS.
In Optimized Conferencing deployments, rendezvous conferences are configured on the TelePresence
Conductor, so the conference is never statically defined on a single bridge. TelePresence Conductor load
balances the conferences across the available bridges in a pool, increasing conference resilience while
maintaining the ability to have unique conference settings per rendezvous conference. Rendezvous
conferences in a Unified CM-centric deployment require a SIP trunk between Unified CM and TelePresence
Conductor. Unified CM routes rendezvous participants to the IP address of this SIP trunk.
Multiway conference requests are routed from Cisco VCS direct to the TelePresence Conductor. The
Multiway conference is hosted on a bridge connected to TelePresence Conductor. The endpoint user who
escalates the call requires an endpoint that supports the Merge and Accept button. Multiway callers can be
joined to a rendezvous conference. See the latest Cisco TelePresence Multiway™ Deployment Guide for the
steps to configure Multiway conferences.
Ad hoc and rendezvous conference requirements may differ
For optimal user experience, ad hoc and rendezvous conferences may have different configuration
requirements for conference PINs, quality, number of screens and so on. For example, if you define a
conference PIN for rendezvous conferences in the conference template and you use the same template for
ad hoc conferences, a PIN will also be required for ad hoc conferences (which you may not intend). To
prevent the PIN being applied in the ad hoc case, define a separate template for ad hoc with no PIN set.
Avoid ad hoc escalations in other conference types and vice versa
An ad hoc escalation of a participant in a rendezvous, Multiway, or scheduled conference will cause a
chained conference. Clicking the conference button on the Unified CM endpoint causes the endpoint to try to
create a new ad hoc conference escalation rather than extending the existing conference. The ad hoc
conference will be chained with the existing conference. This results in the endpoints being across the two
chained conferences, causing a degraded conference experience for participants.
Similarly, participants of ad hoc conferences should not be added to rendezvous, Multiway or scheduled
conferences. Attempting to add a whole conference as a participant to an existing conference will also lead to
a chained conference.
Note: Conference bridges can be set up in the TelePresence Conductor to host ad hoc conferences only,
rendezvous conferences only, or both. Selecting both types of conference can mimimize the number of
bridges needed, as you only need equipment for the overall maximum number of conference participants,
rather than the maximum ad hoc participants and the maximum rendezvous participants.
Do not use ad hoc in Cisco VCS-centric or Multiway in Unified CM-centric deployments
We do not recommend using ad hoc conferencing (the Unified CM method of escalated conferencing) in
Cisco VCS-centric deployments, or Multiway (the Cisco VCS method) in Unified CM-centric deployments.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 33 of 66
Conferencing services
Third-party endpoints
Endpoints from other equipment providers can participate in ad hoc, Multiway, and rendezvous conferences
using standard SIP. For Multiway, endpoints must implement the “join” button in order to be hosts. For ad
hoc, endpoints must be registered to Unified CM, and must implement the “conference” button in order to be
hosts.
Personal CMRs
In Optimized Conferencing, personal Collaboration Meeting Rooms (CMRs) provide rendezvous-type
permanent conference numbers which are created with Cisco TMSPE in conjunction with the Conductor
Provisioning API. (Note they are known as "personal CMRs" in Optimized Conferencing and just "CMRs" in
Cisco TMSPE.) Users can dial a personal CMR number at any time to start a meeting.
Individual end-users create their own personal CMRs through the Cisco TMSPE user portal, based on grouplevel templates provisioned by their administrator. Each CMR created through the user portal has a
corresponding conferencing bundle entity ("ConfBundle") on TelePresence Conductor, which is created and
managed through the Conductor Provisioning API and contains the data required to create a conference for
one or more end-users, including conference template information, a set of conference aliases, a set of autodialed participants and a conference name. Note that ConfBundles are reported in the web UI as
"Collaboration meeting rooms". CMRs created using Cisco TMSPE cannot be modified through the
TelePresence Conductor web UI. Conversely, conference templates and aliases created using Conductor
cannot be modified through Cisco TMSPE.
Note: Cisco TMSPE is accessed from Cisco TMS (Systems > Provisioning menu).
Configuration information
For details about Cisco TMSPE settings, see Cisco TelePresence Management Suite Provisioning
Extension with Cisco Unified CM Deployment Guide or Cisco TelePresence Management Suite Provisioning
Extension with Cisco VCS Deployment Guide.
For details about the Conductor Provisioning API, see Cisco TelePresence Conductor Product Programming
Reference Guide XC2.3.
Scheduled conferencing
The solution supports direct scheduling for conferences onto the MCU and/or TelePresence Server
conference bridges, rather than through TelePresence Conductor. Scheduling is performed with Cisco TMS,
using any of the following:
n
The Cisco TMS Booking > New Conference page.
n
Smart Scheduler, which is part of the Cisco TMSPE user portal.
n
Microsoft Outlook, through Cisco TelePresence Management Suite Extension for Microsoft Exchange
(Cisco TMSXE).
n
Other clients using Cisco TelePresence Management Suite Extension Booking API (Cisco TMSBA).
Configuration information
For guidance on using Cisco TMS to schedule conferences, see Cisco TelePresence Management Suite
Administrator Guide 14.4.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 34 of 66
Conferencing services
Avoid ad hoc escalations
An ad hoc escalation of a participant in a scheduled conference will cause a chained conference. This
happens because the escalation creates a new three-party conference, where one of the participants is the
scheduled meeting. The result is a degraded conference experience for the participants.
Requirements for scheduled conferencing
n
TelePresence Servers must be configured in locally managed mode.
n
Scheduling is not supported on the TelePresence Server on Multiparty Media 310/320 and TelePresence
Server on Virtual Machine.
Third-party endpoints
Endpoints from other equipment providers can participate in scheduled conferences.
WebEx Enabled TelePresence
Cisco WebEx and TelePresence users can participate jointly in scheduled meetings hosted on MCU or
TelePresence Server 7010 and MSE 8710 bridges. Both SIP and PSTN-based audio is supported for the
audio portion of the call between Cisco WebEx and the conference bridges (the audio connections between
WebEx participants and the WebEx conference can be PSTN audio, SIP audio or computer telephony).
Requirements for WebEx Enabled TelePresence conferencing
n
The standard requirements for scheduled conferencing apply (see Requirements for scheduled
conferencing [p.35] above).
n
Early Offer messaging is required (see Early Offer for SIP messaging [p.40]).
Conference control for non-scheduled conferences
For non-scheduled conferences, the solution supports only the following subset of the standard Cisco TMS
Conference Control Center features. These allow administrators to control certain aspects of ongoing
conferences—see which conferences are running on conference bridge resources, add or remove
participants, hand over conference controls to a participant, and end a conference:
Table 6: Cisco TMS Conference Control Center features for non-scheduled conferences
On a conference
On a participant
Set picture mode mode (only applied to participants who join
after the setting is changed)
Mute/unmute audio
Add participant
Mute/unmute outgoing audio
End
Mute/unmute video
Disconnect
Change display name (the new name is not
updated in the TMS interface)
Send message
Show snapshot (MCU bridges only)
Set picture mode
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 35 of 66
Conferencing features and options
Conferencing features and options
ActiveControl to endpoints
ActiveControl provides conference control functions and conference information for endpoints that have
Touch controllers and run appropriate TC software (Version TC7.1.3 or later is recommended). From the
touchpad users can see a list of participants and other information during a conference. On certain endpoints
they can change the conference layout displayed locally, and users can disconnect other participants.
Requirements for ActiveControl
TelePresence Server must be running in remotely managed operation mode.
We recommend software Version TC7.1.3 or later.
Configuration information
From version TC7.1, ActiveControl is set to auto mode by default. This means that by default ActiveControl
is always enabled on Unified CM-managed systems from Version 9.1(2) and later (which advertise iX
protocol support) and Cisco VCS systems from Version X8.2 (these include an optional zone filter to disable
the iX protocol from INVITE requests—by default the filter is off).
CAUTION: Enabling ActiveControl may cause call failures in some situations
ActiveControl, or more specifically the iX protocol which supports it, must be used with care if you connect
the Optimized Conferencing network to external networks or to older systems. In these cases limitations
exist on where you can enable iX. For details of the configuration requirements, see ActiveControl in
Optimized Conferencing for Cisco Unified CM and Cisco VCS Deployment Guide.
ClearPath packet loss resilience
Cisco ClearPath technology is supported for conferences, and uses advanced error correction techniques to
optimize video quality over low quality connections. No configuration is required as ClearPath is enabled by
default in all supported devices.
User-based licensing (Cisco Personal Multiparty)
In Unified CM deployments, product licenses for rendezvous and ad hoc conferences can be purchased
based on user numbers rather than device capacities, via Cisco Personal Multiparty licenses. These are
available through the Cisco Unified Workspace Licensing (Cisco UWL) Professional license package or as
separate licenses.
For each license a named host can set up rendezvous or ad hoc conferences with up to three other
participants, on devices such as Cisco Jabber-enabled mobile and desktop products, using a dedicated
personal conference address.
Requirements for user-based licensing
n
Only Unified CM-centric deployments support this feature.
n
Ad hoc and rendezvous conference types, including personal CMRs, are supported.
n
Service levels (quality settings) up to HD 720p30 are supported.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 36 of 66
Conferencing features and options
Configuration information
Cisco TelePresence Conductor with Cisco Unified Communications Manager Deployment Guide, Appendix:
Personal 4-Way Multiway Conferencing
Administration for TIP multiscreen devices
This feature applies to deployments with Cisco TIP multiscreen endpoints and TelePresence Server bridges.
Cisco TIP devices are automatically allocated the appropriate number of screens, up to the Default
maximum screens setting in the template, except in the following cases:
n
Pre-configured endpoints. Resources are allocated according to the configured settings.
n
Ad hoc conferences. The default maximum screens defined in the conference template are allocated
(although on subsequent successful connection, the allocation is optimized down if appropriate).
Manual configuration may still be needed for multiscreen devices that do not support TIP, and for some thirdparty devices. For details about resource allocation and optimization settings, see Cisco TelePresence
Conductor Administrator Guide
TelePresence Server resource optimization
TelePresence Server resources are allocated to an individual endpoint based primarily on the number of
screens it should use and the quality settings to be applied for that endpoint. Resources are initially allocated
when a participant joins the conference. Resource optimization refers to the ability subsequently to free up
any unused portion of the initial allocation and make those resources available for other conferences or later
attendees.
One of the following TelePresence Server optimization profiles can be applied via the Conductor advanced
template parameters, to define varying levels of media token optimization for conference participants:
Table 7: TelePresence Server resource optimization levels
Setting
Description
maximizeEfficiency
Participants will be assigned a very low number of far end media tokens based on their
call capabilities and call bandwidth.
favorEfficiency
Participants will be assigned a low number of far end media tokens based on their call
capabilities and call bandwidth.
favorExperience
Participants will be assigned a high number of far end media tokens based on their call
capabilities and call bandwidth.
maximizeExperience Participants will be assigned a very high number of far end media tokens based on their
call capabilities and call bandwidth.
capabilitySetOnly
Participants will be assigned the maximum number of far end media tokens based on their
call capabilities only. (This was the behavior in previous releases.)
Note: Resource optimization does not occur for out-dialed participants. Out-dialed calling methods have their
own mechanisms for defining specific quality requirements, which it would be inappropriate to override.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 37 of 66
Conferencing features and options
Microsoft Lync 2013 interoperability
Optimized Conferencing supports interoperability with Microsoft Lync 2013 environments via interworking by
the Cisco Expressway-C or Cisco VCS Control, which interworks as follows:
n
Between Microsoft H.264 SVC (Scalable Video Coding) and standard H.264 SVC.
n
Between Microsoft H.264 SVC and standard H.264 AVC (Advanced Video Coding).
Lync users can call into ad hoc, rendezvous and scheduled conferences.
Requirements for Lync 2013 interoperability
Requirements for Lync 2013 interoperability are detailed in Unified CM-centric with Microsoft Lync 2013
deployment [p.20] and Cisco VCS-centric interop deployment [p.26] respectively.
Configuration information
In Cisco VCS-centric deployments, the Cisco VCS and Lync are peers. In Unified CM-centric deployments,
the Unified CM connects to the Lync server via the VCS, which acts as a SIP back-to-back user agent and
media helper.
n
For configuration details in Unified CM-centric deployments, see Cisco Expressway and Microsoft Lync
Deployment Guide (X8.2)
n
For configuration details in Cisco VCS-centric deployments, see Cisco VCS and Microsoft Lync
Deployment Guide (X8.2)
Segment-switched display of TelePresence rooms
By default, Cisco TelePresence Server conference bridges use segment switching when displaying
speakers in TelePresence rooms with multiple cameras onto multiscreen endpoints. This is a change to the
previous, room-based default behavior.
With traditional room-based switching, all of the streams from a multi-camera room are switched
simultaneously when the loudest speaker is in that room, into the display on multiscreen endpoints
(assuming those endpoints had enough screens). With segment switching, the TelePresence Server
independently switches the display for each individual camera (segment). So only the stream for the
speaker's table segment is switched, not the other streams in the room. Segment switching is also known as
speaker switching or panel switching.
Conference participants with Cisco CTS or TX Series endpoints can manually choose between segmentswitched or room-switched mode.
Configuration information
Administrators can choose between segment-switched or room-switched mode in the TelePresence
Conductor conference template (or through the TelePresence Server API). If you use Cisco TMS to provision
conferences on Conductor, you need to set this option in the Cisco TMS Custom Parameters for the
conference template, using the following JSON command:
“callAttributes: {“displayLayoutSwitchingMode”: <******>}” where <******> should
be specified as switchingRoomSwitched or switchingSegmentSwitched
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 38 of 66
Configuration and technology considerations
Configuration and technology considerations
Locations, Pools and Service Preferences
In the context of Optimized Conferencing, Locations are configured in the TelePresence Conductor and are
used for two purposes:
n
Unified CM-centric deployments. To mimic the expectation of the Unified CM that it is connecting to
separate conference bridges in different locations.
n
Cisco VCS-centric deployments. To define a connection between the TelePresence Conductor and one or
more Cisco VCSs via the back-to-back user agent (B2BUA) on TelePresence Conductor.
Pools are configured in the TelePresence Conductor to organize and manage conference bridges. Each
bridge (except those used for scheduling) is assigned to a conference bridge pool. Service Preferences are
configured to define a prioritized order in which to use the conference bridge pools if conference resources are
limited. At least one Service Preference is required, although you can optionally place all pools into a single
Service Preference. Each standard TelePresence Conductor license supports up to 30 bridges and 30
locations. See Appendix 2: Understanding Locations, Pools and Service Preferences [p.57] for detailed
information.
Figure 14: Locations, Pools and Service Preferences in Optimized Conferencing
Encryption
Communication security across Optimized Conferencing is provided by TLS encryption of the signaling and
SRTP encryption of the media. All SIP communication can be encrypted with SIP TLS between Unified CM
and TelePresence Conductor. All TelePresence Conductor-to-bridge SIP communication must be encrypted.
Configuration information
See the appropriate deployment guide:
n
Cisco TelePresence Conductor with Unified Communications Manager Deployment Guide for Unified CMcentric deployments
n
Cisco TelePresence Conductor with Cisco VCS (B2BUA) Deployment Guide for Cisco VCS-centric
deployments
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 39 of 66
Configuration and technology considerations
Unified CM normalization script settings
This section applies if you use any of the SIP normalization scripts in Unified CM (for encryption and TLS on
SIP trunks used for TelePresence):
n
telepresence-conductor-interop for TelePresence Conductor-connected trunks.
n
vcs-interop for Cisco VCS Control / Cisco Expressway-C-connected trunks.
n
telepresence-mcu-ts-direct-interop for MCU / TelePresence Server-connected trunks.
The script content is identical in each case, but they are designed to apply in different situations.
You must set the following threshold values for each script that you use.
Setting
Value
Memory Threshold
1000
Lua Instruction Threshold
2000
To work with script settings, on the Unified CM go to Device > Device Settings > SIP Normalization
Script. To apply the scripts to SIP trunks, on the Unified CM go to Device > Trunk. Details about how to
download the scripts and add them to Unified CM are in Appendix 3: Adding the Unified CM normalization
scripts [p.60].
Early Offer for SIP messaging
With Early Offer, the session initiator sends its capabilities in the SIP Invite and the called device chooses
the preferred codec. For the Optimized Conferencing solution we recommend that all SIP trunks which carry
TelePresence calls are configured for Early Offer.
Additionally, Early Offer is required from any direct scheduled bridges to Cisco Expressway or Cisco VCS to
support WebEx Enabled TelePresence calls, and from Unified CM endpoints to Cisco Expressway for any
other services that require Early Offer, such as Cisco WebEx and some third party conferencing services.
The entire path from the calling device to the service must be configured to support Early Offer.
Cisco VCS-centric deployments always run in Early Offer mode and this section is only relevant to Unified
CM-centric deployments. It provides the recommended approach for configuring outbound trunks as Early
Offer.
Note: The default configuration for Unified CM trunks is Delayed Offer.
All trunks between the following Optimized Conferencing elements should be enabled for Early Offer. No
media termination point (MTP) resources should be made available to these trunks, directly or indirectly:
n
Unified CM to Cisco Expressway-C
n
Unified CM to Cisco VCS Control
n
Unified CM to TelePresence Conductor
n
Unified CM to TelePresence Server
n
Unified CM to MCU
n
Unified CM to Unified CM trunks which carry traffic originating from a TelePresence endpoint and any of
the network elements listed above should also be enabled for Early Offer, with no media termination point
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 40 of 66
Configuration and technology considerations
(MTP) resources. For example, in a call flow scenario of EX90 >> UCM1 >> UCM2 >> Conductor >>
TelePresence Server, the trunk between UCM1 >> UCM2 and the trunk between UCM2 >> Conductor
should be enabled for Early Offer.
To restrict the use of MTPs, all MTP resources should be removed from all Cisco Unified Communications
Manager Session Management Edition (Unified CM SME) clusters, and all MTP resources on Unified CM
clusters should be placed in Media Resource Groups that are inaccessible both to TelePresence endpoints
and to SIP trunks carrying TelePresence traffic.
Some specific points apply in various deployment scenarios:
Scenario 1. Configuring Early Offer in a single Unified CM system
TelePresence Conductor and conference bridges are connected to the Unified CM, with Unified CM trunked
to the Cisco Expressway. Endpoints are registered to the Unified CM. In this scenario the following trunks
must be configured for Early Offer:
n
Unified CM to Cisco Expressway-C.
n
Unified CM to the TelePresence Conductor.
Scenario 2. Configuring Early Offer in a multi-cluster system (TelePresence Conductor connected
to Unified CM SME)
One or more Unified CM SME clusters with connected leaf Unified CM clusters. The TelePresence
Conductor and conference bridges are connected to the Unified CM SME. The Unified CM SME is trunked to
the Cisco Expressway-C. In this scenario the following trunks must be configured for Early Offer:
n
Unified CM SME to Cisco Expressway-C.
n
Unified CM SME to the TelePresence Conductor.
Note: In multi-cluster systems with three or more clusters, where one Unified CM cluster is a dedicated
Unified CM SME, endpoints never register to the Unified CM SME but always to a leaf Unified CM cluster.
Scenario 3. Configuring Early Offer in a multi-cluster system (TelePresence Conductor connected
to leaf clusters)
One or more Unified CM SME clusters with connected leaf Unified CM clusters. The TelePresence
Conductor and conference bridges are connected to the leaf cluster(s). A single trunk connects the Unified
CM SME to the Cisco Expressway-C. In this scenario the following trunks must be configured for Early
Offer:
n
Unified CM SME to Cisco Expressway-C.
n
Leaf Unified CM clusters to the TelePresence Conductor.
n
Leaf Unified CM clusters to the Unified CM SME.
Configuring Early Offer (and fallback to Delayed Offer) for SIP trunks
1. For each trunk, do one of the following depending on your Unified CM version:
l For Unified CM Version 9.1(2) systems, enable the Early Offer support for voice and video calls
(insert MTP if needed).
l For Unified CM Version 10.5(1) systems, in the Early Offer support for voice and video calls
dropdown, select Best Effort (no MTP inserted).
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 41 of 66
Configuration and technology considerations
2. Remove all MTP resources from the following elements:
a. Unified CM SME clusters (in the case of Unified CM SME deployments).
b. All TelePresence endpoints and SIP trunks on all Unified CM clusters.
3. Set SIP Trunk DTMF Signaling Method to RFC 2833 (the default).
4. Enable the Accept Audio Codec Preference in Received Offer option on the following elements:
a. All Unified CM SME SIP trunks (in the case of Unified CM SME deployments).
b. All SIP trunks that carry TelePresence calls on all Unified CM clusters.
Fallback to Delayed Offer
For outgoing calls, the default settings provide for automatic fallback to Delayed Offer in cases where no
MTP resource exists. Without fallback, issues may arise in non-Optimized Conferencing areas of the
network. For incoming calls, Early Offer is supported with no requirement for MTP resources.
Endpoints
Any TelePresence endpoints registered to Unified CM should be configured with a Media Resource Group
List (MRGL) that does not contain any MTP resources. So that when the endpoints place a call that traverses
one of the above trunk types an MTP will not be available within the MRGL of the endpoint.
Audio-only quality setting in ad hoc conferencing
(TelePresence Servers)
TelePresence Conductor Version XC2.3 supports audio-only as a quality setting (service level) for
TelePresence Server conference bridges. A default audio-only option is provided (Conference
configuration > Quality settings) which like other quality settings is applied through the conference
template, auto-dialed participant, or pre-configured endpoint codec values.
This section describes some limitations and recommendations to be aware of when using the audio-only
quality setting with ad hoc conferencing in Unified CM deployments. System behavior may not be as you
expect.
Note: The issues described in this section apply to ad hoc conferences only and are not relevant to
rendezvous and CMR conferences.
Limitations
n
For Intelligent Bridge Selection purposes, in ad hoc conferences Unified CM always treats TelePresence
Conductor as a video resource regardless of the Conductor template settings. It does not differentiate
between audio and video templates. The implications of this are described in the example below.
n
TelePresence Conductor does not support the audio-only quality setting for MCU bridges.
Example: audio-only handling for ad hoc conferences
Assume a single-TelePresence Conductor configuration with these templates defined for Unified CM Media
Resource Group 1:
n
Cond-Video (HD specified for Participant quality)
n
Cond-Audio (Audio-only specified for Participant quality)
The Conductor is added to Unified CM as two separate conference bridges, using separate IP addresses.
One address is linked to the Cond-Video template and the other to Cond-Audio.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 42 of 66
Configuration and technology considerations
Note that Unified CM’s Intelligent Bridge Selection does not favor the Cond-Video resource for ad hoc
conferences involving two or more video endpoints, and the Cond-Audio resource for ad hoc conferences
involving audio-only endpoints. Instead, because Unified CM believes all Conductor resources to be video
resources, load balancing is performed between Cond-Video and Cond-Audio. This may result in a group of
video endpoints being allocated to the Cond-Audio resource and having no video (because audio and video
templates are not differentiated).
Recommendations for audio-only in ad hoc conferences
1. In Unified CM, use a dedicated Media Resource Group (MRG) for TelePresence Conductor conference
bridges with an audio-only template.
2. Do not add any other type of audio conference bridge (such as PVDMs) to the MRG.
3. Assign the MRG to a Media Resource Group List (MRGL) and assign this MRGL to your audio-only
endpoints.
IPv4
Optimized Conferencing deployments support IPv4 only. All Unified CM bridges and endpoints within the
deployment must be configured to use IPv4. Bridges and endpoints connected to a Cisco VCS Control may
be configured to use IPv6 provided that the Cisco VCS Control is also configured to use IPv6.
Content channel
Most TelePresence endpoints support the use of a second video channel known as the content channel.
Typically this is used for presentations running alongside live video.
Configuration information for MCU conference bridges
n
For MCU bridges managed by TelePresence Conductor, set the Content mode for the Conference
template in Conductor to Transcoded (Advanced parameters).
n
For directly managed MCU bridges, set the Content mode to Hybrid.
Note: Transcoded mode is only relevant for MCU bridges. When this mode is selected in a TelePresence
Conductor template, a dedicated content port or video port will be allocated depending on the MCU model
and configuration.
H.323 interworking
The Optimized Conferencing network is SIP-based. If you want to connect H.323 endpoints to conferences
within the Optimized Conferencing network, the call must be interworked before reaching the TelePresence
Conductor. This can be done by configuring the Cisco VCS Control or Cisco Expressway-C to perform the
necessary SIP/H.323 interworking.
Configuration information
n
To perform interworking only for locally registered endpoints, set the H.323 <-> SIP interworking mode to
Registered only (accessed from VCS configuration > Protocols > Interworking).
n
If you want to allow interworking of business-to-business H.323 calling between external networks and
your conferences, set the H.323 <-> SIP interworking mode to On. This will interwork all incoming calls.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 43 of 66
Configuration and technology considerations
Resilience and clustering
A full capacity standard TelePresence Conductor can be part of a cluster of up to three Conductors. Each full
capacity Conductor (or each cluster) can manage up to 30 conference bridges or 2400 concurrent conference
calls. Clustering does not increase the maximum number of conference bridges / concurrent calls that can be
supported, which remains at 30 bridges / 2400 calls for full capacity Conductors.
Note: The TelePresence Conductor Select supports two Conductors in a cluster. The TelePresence
Conductor Essentials does not support clustering.
Deploying clusters of TelePresence Conductors and bridges ensures service availability even if individual
conference bridges or Conductors are taken out of service.
Configuration information
For details see the appropriate clustering deployment guide (Cisco TelePresence Conductor Clustering with
Cisco Unified Communications Manager Deployment Guide or Cisco TelePresence Conductor Clustering
with Cisco VCS (B2BUA) Deployment Guide).
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 44 of 66
Entry-level conferencing
Entry-level conferencing
Optimized Conferencing supports entry-level SIP-based video conferencing, with lower cost platforms—
virtualized or physical—that can support lower capacity configurations. Capacity can be grown subsequently
by adding screen licenses. Single-bridge configurations can use a trial version of Cisco TelePresence
Conductor (TelePresence Conductor Essentials), which does not need a release key, running as a virtual
machine.
Table 8: Bridges that support entry-level SIP-based video conferencing in an Optimized Conferencing
deployment
Bridge
Type
Cisco TelePresence Server on Multiparty Media 310
Physical
Cisco TelePresence Server on Multiparty Media 320
Physical
Cisco TelePresence Server on Virtual Machine
Virtual
All bridges support a conference service level (quality setting) for 360p30 video. Physical bridges can be
clustered (stacked) as two units together in any combination to increase capacity.
Note: The overall media capacity of clustered bridges is restricted to the normal call limits for the relevant
bridge type.
Limitations
In this release, Cisco WebEx-based conferencing is not available on entry-level and virtual platforms.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 45 of 66
Implementing Optimized Conferencing
Implementing Optimized Conferencing
Optimized Conferencing Release 3.0 is intended primarily for organizations with an existing Optimized
Conferencing Release 2.0 deployment, who want to take advantage of the new features in Release 3.0.
This section describes how to implement Release 3.0 across your network:
1. Upgrade / install each product in your solution deployment to the required version for Release 3.0. Follow
the sequence specified in Recommended order for upgrading / installing [p.47].
At this stage, do not update your configuration for Release 3.0 functionality.
2. Verify the new software runs satisfactorily on your existing Release 2.0 configuration and that the network
functions as expected.
3. Check that all Release 3.0 configuration prerequisites are complete. See Prerequisites for configuration
[p.48].
4. Configure the deployment for Release 3.0 functionality. See Configuration process [p.49].
CAUTION: To ensure continuity of operation, we recommend that the products are upgraded / installed in the
recommended order.
This section does not cover the Cisco Business Edition 6000 (BE6000). For information about implementing
a BE6000 deployment, see Deployments for Cisco Business Edition 6000 [p.29].
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 46 of 66
Implementing Optimized Conferencing
Recommended order for upgrading / installing
Follow the sequence in the table below to implement Optimized Conferencing in your video network. This
sequence applies to upgrades from the previous Optimized Conferencing Release 2.0 or to first-time
implementations of Optimized Conferencing, and to Unified CM-centric and Cisco VCS-centric
deployments. It has been tested by Cisco and verified to interoperate at all stages.
The software can be downloaded from http://www.cisco.com/cisco/software/navigator.html. See the
associated product documentation for instructions on how to upgrade each software component.
Note: This sequence differs from the previous Optimized Conferencing release.
Table 9: Recommended upgrade / install sequence for Optimized Conferencing components
Order Component
Software version
1
9.1(2)SU2 or 10.5(1) (if not already on a supported release).
Version 10.5(1) is required for Microsoft Lync interoperability.
Unified CM
This component is not relevant to Cisco VCS-centric deployments unless a Unified CM
exists in the VCS enterprise.
2
Cisco VCS
X8.1.1 or later. X8.2 is recommended—and required for Microsoft Lync interoperability.
X7.2.3 or later is supported for H.323 registration.
Not relevant to Unified CM-centric deployments unless a Cisco VCS exists in the Unified
CM enterprise.
3
Cisco
Expressway
X8.1.1 or later. X8.2 is recommended—and required for Microsoft Lync interoperability.
Not relevant to Cisco VCS-centric deployments unless a Unified CM exists in the
enterprise.
4
Cisco TMS
14.4
5
MCU
4.5
6
TelePresence 4.0
Server
7
TelePresence XC2.3
Conductor
8
Cisco TMSPE 1.2
9
Endpoints
Endpoints can be upgraded in any order except the newly introduced Cisco
TelePresence MX 300 G2, SX10 and SX80, which should be upgraded after other
endpoints in the deployment.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 47 of 66
Implementing Optimized Conferencing
Prerequisites for configuration
Before you start the system configuration for Optimized Conferencing, make sure the following prerequisites
are complete:
n
[First-time installations] You have access to the administration web interfaces of the following devices on
your network:
l
l
l
l
l
A Unified CM is required for Unified CM-centric deployments, already configured with a base
configuration. Ensure connectivity by registering at least three endpoints to Unified CM, and make sure
they are all capable of calling each other with voice and video communications. For Unified CM-related
information, see the Cisco Unified Communications Manager documentation on Cisco.com.
A Cisco VCS is required for Cisco VCS-centric deployments. For Cisco VCS-related information, see
the Cisco TelePresence Video Communication Server documentation on Cisco.com.
Cisco TMS is required for scheduled conferencing, and for conference provisioning and monitoring. For
Cisco TMS-related information, see the Cisco TelePresence Management Suite documentation on
Cisco.com.
A TelePresence Conductor, deployed using its back-to-back user agent (B2BUA). For Conductorrelated information, see the Cisco TelePresence Conductor documentation on Cisco.com.
One or more conference bridges, either TelePresence Servers or MCUs.
n
[First-time installations] Basic configuration for each conference bridge must be complete, as described in
the relevant Installation Guide or Getting Started Guide:
TelePresence Server 7010
TelePresence Server MSE 8710
TelePresence Server on Virtual Machine
TelePresence Server on Multiparty Media 310/320
MCU 5300 Series
MCU 4500 Series
MCU 4200 Series
MCU MSE 8420
MCU MSE 8510
n
For TelePresence Server bridges the operation mode must be configured as follows:
l Remotely managed for bridges pooled behind TelePresence Conductor.
l Locally managed for bridges used for scheduling, which must be directly connected to the call control
device.
n
Unified CM endpoints and bridges must be configured to use IPv4. Bridges and endpoints connected to a
Cisco VCS Control may be configured to use IPv6 provided that the Cisco VCS is also configured to use
IPv6.
n
Endpoints must be registered to Unified CM and/or to Cisco VCS as appropriate.
n
All devices must be running the required software / firmware versions (see Solution components and
required versions [p.12]).
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 48 of 66
Implementing Optimized Conferencing
Configuration process
This topic summarizes the Optimized Conferencing configuration process. Appendix 4: Migration paths to
Optimized Conferencing Release 3.0 [p.61] provides detailed upgrade paths, depending on whether you are
an existing Optimized Conferencing site or are implementing the solution for the first time.
CAUTION: It is essential that you follow in full the steps in the deployment guides referenced below for each
task that applies to your chosen deployment.
Step 1. Check the release notes
Check the release-specific configuration considerations described in the latest solution release notes for
Optimized Conferencing Release 3.0 on Cisco.com.
Step 2. Configure the TelePresence Conductor
Configure the TelePresence Conductor for Optimized Conferencing. To do this follow the step by step
instructions in the relevant deployment guide:
Unified CM- Cisco TelePresence Conductor with Unified CM Deployment Guide (XC2.3) (D14998)
centric
If you intend to use TMS to provision conferences, after configuring the bridge pools and Service
deployments Preferences on Conductor see Cisco TelePresence Management Suite Provisioning Extension
with Cisco Unified CM Deployment Guide for instructions about TMS configuration.
Cisco VCS- Cisco TelePresence Conductor with Cisco VCS (B2BUA) Deployment Guide (XC2.3) (D15014)
centric
If you intend to use TMS to provision conferences, after configuring the bridge pools and Service
deployments Preferences on Conductor see Cisco TelePresence Management Suite Provisioning Extension
with Cisco VCS Deployment Guide for instructions about TMS configuration.
In either case the TelePresence Conductor is deployed using its B2BUA and the external policy service
interface is not supported. In addition to the steps described in the deployment guides, the following specific
configuration requirements apply for Optimized Conferencing:
Note: The TelePresence Conductor configuration settings required for Optimized Conferencing have
changed in this release.
n
If you want to take advantage of automatic resource allocation and optimization of TelePresence Server
resources, the Conference template in TelePresence Conductor must define appropriate maximum screen
and quality settings, and enable the Optimize resources setting. Note that if you provision conferences
through Cisco TMSPE these settings are configured through the Cisco TMSPE. For details about
Conductor template settings, see Cisco TelePresence Conductor Administrator Guide. For details about
Cisco TMSPE settings, see Cisco TelePresence Management Suite Provisioning Extension with Cisco
Unified CM Deployment Guide or Cisco TelePresence Management Suite Provisioning Extension with
Cisco VCS Deployment Guide.
n
[Cisco VCS-centric deployments only] The VCS Zone profile for the trunk between Cisco VCS Control
and TelePresence Conductor should be set to Custom with Automatically respond to SIP searches set
to On. For details, see Adding the TelePresence Conductor as a neighbor zone in Cisco TelePresence
Conductor with Cisco TelePresence VCS (B2BUA) Deployment Guide.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 49 of 66
Implementing Optimized Conferencing
Step 3. [Unified CM-centric deployments] Convert to Early Offer
We recommend that TelePresence SIP trunks are configured for Early Offer messaging (and this is required
for WebEx Enabled TelePresence conferences and some third party services). See Configuring Early Offer
(and fallback to Delayed Offer) for SIP trunks [p.41] for instructions. Skip this step for Cisco VCS-centric
deployments, which always run in Early Offer mode.
Step 4. [Unified CM-centric deployments] Add latest normalization
scripts to Unified CM
Unified CM-centric deployments that use encryption and TLS on SIP trunks for TelePresence must install
the latest normalization scripts on the trunks. See Appendix 3: Adding the Unified CM normalization scripts
[p.60] for instructions. Skip this step for Cisco VCS-centric deployments, unless a Unified CM exists in the
enterprise.
Step 5. [Unified CM-centric deployments] Trunk scheduling bridges to
Unified CM
In the previous Optimized Conferencing release, bridges used to host scheduled conferences were trunked
to a Cisco VCS. In this release, bridges you use for scheduled conferencing should be trunked to the Unified
CM. Skip this step for Cisco VCS-centric deployments.
Step 6. [Optional] Configure the Cisco Expressway / Cisco VCS for
Microsoft Lync
If your deployment requires interoperability with Microsoft Lync, you need to configure the Cisco Expressway
(Unified CM-centric deployments) or Cisco VCS (Cisco VCS-centric deployments) to support Lync.
n
For details in Unified CM-centric deployments, see Cisco Expressway and Microsoft Lync Deployment
Guide (X8.2)
n
For details in Cisco VCS-centric deployments, see Cisco VCS and Microsoft Lync Deployment Guide
(X8.2)
Step 7. [Optional] Configure iX protocol for ActiveControl support
To use ActiveControl in the Optimized Conferencing network, you need to enable the iX protocol, which by
default is disabled in some devices. Detailed instructions are in ActiveControl in Optimized Conferencing for
Cisco Unified CM and Cisco VCS Deployment Guide.
CAUTION: If your Optimized Conferencing network connects to Unified CM systems running Version 8.x or
earlier, or to third-party networks, before you enable ActiveControl you must first disable the iX protocol on all
relevant trunks to isolate iX traffic from systems that do not support it. If you do not do this, the
consequences may be unpredictable and include dropped calls.
Step 8. Configure Cisco TMS for scheduled conferencing
See Cisco TelePresence Management Suite Administrator Guide 14.4 for guidelines on setting up scheduled
conferences through Cisco TMS.
Cisco WebEx Enabled TelePresence Configuration Guide has guidelines on setting up scheduled
conferences for participants to join from either WebEx or TelePresence (Unified CM-centric deployments)
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 50 of 66
Implementing Optimized Conferencing
Step 9. [Unified CM-centric deployments] Check external endpoints are
registered to the enterprise Unified CM
In the previous Optimized Conferencing release, endpoints that were external from the local enterprise
needed to be registered to a Cisco VCS. In this release they can be registered to the local Unified CM,
through Cisco Expressway. Skip this step for Cisco VCS-centric deployments.
More information
Links to the relevant deployment guides and associated product documentation for all devices in your
Optimized Conferencing network are available in Related documentation [p.52].
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 51 of 66
Related documentation
Related documentation
Title
Reference Link
Optimized Conferencing for
Cisco Unified Communications
Manager and Cisco VCS
Solution Release Notes 3.0
D15028
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-release-notes-list.html
Cisco TelePresence Conductor
with Cisco Unified
Communications Manager
Deployment Guide XC2.3,
CUCM 10.0 [see Appendix for
9.x]
D14998
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-installation-and-configuration-guideslist.html
Cisco TelePresence
Management Suite Provisioning
Extension with Cisco Unified CM
Deployment Guide
D15110
http://www.cisco.com/c/en/us/support/conferencing/telepresencemanagement-suite-extensions/products-installation-guideslist.html
Cisco TelePresence Conductor
with Cisco TelePresence VCS
(B2BUA) Deployment Guide
XC2.3, X8.1
D15014
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-installation-and-configuration-guideslist.html
Cisco TelePresence
Management Suite Provisioning
Extension with Cisco VCS
Deployment Guide
D14941
http://www.cisco.com/c/en/us/support/conferencing/telepresencemanagement-suite-extensions/products-installation-guideslist.html
ActiveControl in Optimized
Conferencing for Cisco Unified
Communications Manager and
Cisco VCS Deployment Guide
D15051
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-installation-and-configuration-guides-list.html
Provisioning Display Names in
Optimized Conferencing for
Cisco Unified Communications
Manager and Cisco VCS
Deployment Guide
D15127
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-installation-and-configuration-guides-list.html
Cisco TelePresence Conductor
Administrator Guide XC2.3
D14826
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-maintenance-guides-list.html
Cisco Unified Communications
Manager Administration Guide,
Release 9.1n
OL-27945
http://www.cisco.com/c/en/us/support/unifiedcommunications/unified-communications-managercallmanager/products-maintenance-guides-list.html
Cisco Unified Communications
Manager Administration Guide,
Release 10.0(1)
OL-29000
http://www.cisco.com/c/en/us/support/unifiedcommunications/unified-communications-managercallmanager/products-maintenance-guides-list.html
Cisco Unified Communications
Manager with Cisco Expressway
(SIP Trunk) Deployment Guide,
Cisco Expressway X8.2
D15062
http://www.cisco.com/c/en/us/support/unifiedcommunications/expressway-series/products-installation-andconfiguration-guides-list.html
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 52 of 66
Related documentation
Title
Reference Link
Cisco Unified Communications
Manager with Cisco VCS (SIP
Trunk) Deployment Guide, Cisco
VCS X8.2
D14602
http://www.cisco.com/c/en/us/support/unifiedcommunications/telepresence-video-communication-servervcs/products-installation-and-configuration-guides-list.html
Cisco TelePresence Multiway™
Deployment Guide, Cisco VCS,
MCU, Conductor
D14366
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-installation-and-configuration-guideslist.html
Cisco Expressway Basic
D15060
Configuration Deployment Guide
X8.2
http://www.cisco.com/c/en/us/support/unifiedcommunications/expressway-series/products-installation-andconfiguration-guides-list.html
Cisco TelePresence Video
Communication Server Basic
Configuration (Control with
Expressway) Deployment Guide
Cisco VCS X8.2
http://www.cisco.com/c/en/us/support/unifiedcommunications/telepresence-video-communication-servervcs/products-installation-and-configuration-guides-list.html
D14651
Cisco TelePresence
D13741
Management Suite Administrator
Guide Version 14.4
http://www.cisco.com/c/en/us/support/conferencing/telepresencemanagement-suite-tms/products-maintenance-guides-list.html
Cisco WebEx Enabled
TelePresence Configuration
Guide
http://www.cisco.com/c/en/us/support/conferencing/telepresencemanagement-suite-tms/products-installation-and-configurationguides-list.html
OL-21352
Cisco TelePresence Conductor
D14948
Product Programming Reference
Guide XC2.3 (includes
Conductor Provisioning API
reference)
http://www.cisco.com/c/en/us/support/conferencing/telepresenceconductor/products-programming-reference-guides-list.html
Cisco Expressway Administrator
Guide X8.2
D15058
http://www.cisco.com/c/en/us/support/unifiedcommunications/expressway-series/products-maintenanceguides-list.html
Cisco TelePresence Video
Communication Server
Administrator Guide X8.2
D14049
http://www.cisco.com/c/en/us/support/unifiedcommunications/telepresence-video-communication-servervcs/products-maintenance-guides-list.html
More product documentation on Cisco.com
Product
Link
TelePresence
Conductor
http://www.cisco.com/c/en/us/support/conferencing/telepresence-conductor/tsd-productssupport-series-home.html
Unified CM
http://www.cisco.com/c/en/us/support/unified-communications/unified-communicationsmanager-callmanager/tsd-products-support-series-home.html
MCU 5300
Series
http://www.cisco.com/c/en/us/support/conferencing/telepresence-mcu-5300-series/tsd-productssupport-series-home.html
MCU 4500
Series
http://www.cisco.com/c/en/us/support/conferencing/telepresence-mcu-4500-series/tsd-productssupport-series-home.html
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 53 of 66
Related documentation
Product
Link
MCU MSE
Series
http://www.cisco.com/c/en/us/support/conferencing/telepresence-mcu-mse-series/tsd-productssupport-series-home.html
TelePresence
Server
http://www.cisco.com/c/en/us/support/conferencing/telepresence-server/tsd-products-supportseries-home.html
Cisco
Expressway
http://www.cisco.com/c/en/us/support/unified-communications/expressway-series/productsinstallation-and-configuration-guides-list.html
Cisco VCS
http://www.cisco.com/c/en/us/support/unified-communications/telepresence-videocommunication-server-vcs/tsd-products-support-series-home.html
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 54 of 66
Appendix 1: Conferencing fundamentals
Appendix 1: Conferencing fundamentals
When three or more participants are involved in a call, the call becomes a conference. Optimized
Conferencing supports the following conference types:
n
Ad hoc (instant)
n
Multiway (instant)
n
Rendezvous and personal CMRs (permanent)
n
Scheduled
Ad hoc (instant) conferences
Point-to-point calls hosted on a Unified CM can be escalated to an ad hoc conference hosted on a bridge. A
third party calling one of the parties already in a point-to-point call can be added to the ad hoc conference.
Alternatively, a third party can be added by one of the parties in the point-to-point call by putting the call on
hold, dialing the third party and adding them to the conversation using the conference button on the phone.
For details on the actual steps to escalate a point-to-point call, refer to the user documentation supplied with
the endpoints. Only endpoints with the conference key can create an ad hoc conference.
Optionally an ad hoc conference can be further extended by adding more participants. As additional
participant(s) leave, the conference is automatically returned to a point-to-point call when only two
participants remain, without any disruption to the call.
The ability to escalate point-to-point calls into an ad hoc conference now includes Unified CM-managed
endpoints which are located remotely from the enterprise Optimized Conferencing network and registered
through Cisco Expressway to the Unified CM.
Multiway (instant) conferences
Cisco TelePresence Multiway conferences are conferences that escalate from a point-to-point call on a
Cisco VCS Control to a three-party call, similar to the ad hoc call escalation on Unified CM.
Multiway enables endpoint users to introduce a third party into a call, or when the third party calls one of the
parties already in the point-to-point call and the participants wish to include the third party in the call.
Rendezvous / personal (permanent) conferences
Rendezvous conferences can occur at any time spontaneously without the need for the conference to be
scheduled. The administrator creates the conference number as a conference alias on TelePresence
Conductor, the host is told this number and shares it with all participants of the conference. Rendezvous
conferences are created when multiple participants dial the configured number. See Cisco TelePresence
Conductor Administrator Guide for information about creating conference aliases.
Rendezvous conferences can be created as generic conferences or conferences with unique configuration
for a specific user or group.
From Optimized Conferencing Release 3.0, permanent conferences can also be provisioned on
TelePresence Conductor using Cisco TelePresence Management Suite Provisioning Extension (Cisco
TMSPE) and the Conductor Provisioning API. You configure bridge pools and Service Preferences on
TelePresence Conductor, and define group-level templates in Cisco TMSPE which allow end-users to define
their own personal CMRs through the Cisco TMSPE user portal. For details, see Cisco TelePresence
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 55 of 66
Appendix 1: Conferencing fundamentals
Management Suite Provisioning Extension with Cisco Unified CM Deployment Guide and Cisco
TelePresence Conductor Product Programming Reference Guide XC2.3.
Scheduled conferences
Scheduled conferences are pre-booked conferences with a start and end time, and optionally a pre-defined
set of participants. Participants for scheduled conferences can be configured to dial in or dial out.
Chained conferences
A chained conference occurs when a participant in an ad hoc conference (that is, managed by CUCM) is
added into a rendezvous, Multiway, or scheduled conference, or vice versa. Because different call flows are
involved, rather than the first conference simply being extended to include the new participants, a second
conference is created and “chained” to the first. The result is a degraded conference experience because
each of the conferences appears as a single participant in the other conference (so multiple participants will
appear in a single video stream).
Auto-dialed participants (ADP)
Both TelePresence Conductor and Cisco TMSPE support auto-dialing participants for permanent
conferences. This is particularly useful for conferences which need to be recorded or when senior
management need to easily join a conference. Auto-dialed participants are addresses that are automatically
dialed when a conference starts. The address can relate to a device such as an endpoint or recording device
(multiscreen endpoints are not supported), or could be any dial-able ID.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 56 of 66
Appendix 2: Understanding Locations, Pools and Service Preferences
Appendix 2: Understanding Locations, Pools and
Service Preferences
Locations
The Locations feature in Unified CM enables administrators to implement call admission control and
determine the maximum permitted bandwidth between and within Locations. To avoid overloading the
network, administrators often configure Unified CM with different Locations for each office site or campus.
Note: If you do not use call admission control to limit the audio and video bandwidth on an IP WAN link, an
unlimited number of calls can be active on that link at the same time. This can cause the audio quality of each
audio call and the video and audio quality of each video call to degrade as the link becomes oversubscribed.
In Cisco VCS-centric deployments, a Location is used to allow the Cisco VCS to forward conference call
requests directly to the TelePresence Conductor back-to-back user agent (B2BUA). A single Location can be
set up for all traffic between any Cisco VCS (or Cisco VCS cluster) and the TelePresence Conductor.
Connecting Unified CM to bridges through TelePresence Conductor
TelePresence Conductor supports conferences from endpoints registered directly with Unified CM. Unified
CM call admission control is supported by TelePresence Conductor if the TelePresence Conductor is
configured with multiple IP addresses to emulate the connectivity Unified CM would expect.
The steps required to connect TelePresence Conductor to Unified CMs which are configured to support
Locations are described in Cisco TelePresence Conductor with Cisco Unified Communications Manager
Deployment Guide. The end result of the configuration is:
n
Unified CM sees TelePresence Conductor as one or more bridges in each Location.
n
A SIP trunk is established between Unified CM and TelePresence Conductor for rendezvous calls.
n
TelePresence Conductor is configured with Locations to support ad hoc, rendezvous or both types of
conferences, according to the specific requirements of each Location.
n
Locations are configured within TelePresence Conductor, and conference bridge pools and Service
Preferences are assigned. These elements are associated with conferences indirectly through the
conference template for ad hoc conferencing, and directly by selecting the appropriate Location per bridge
pool for rendezvous conferencing.
Note: Unified CM delivers ad hoc and rendezvous conferences to different IP addresses on TelePresence
Conductor. Multiple Unified CMs (from Version 8.6.2) can access the same IP address on TelePresence
Conductor. The Unified CMs do not need to be in the same physical location.
Note: Bridge pools and Service Preferences configured in TelePresence Conductor should only contain
bridges within the same physical location.
Outbound calls from conference bridges to participants registered on or available via Unified CM are
supported. Bridge pools are assigned a Location within TelePresence Conductor and outbound calls use the
same SIP trunk as incoming rendezvous calls. Outbound calls are typically used for automatic dialing of
conference participants into a conference, or to add a participant to an existing conference via the Cisco TMS
Conference Control Center, or to add a recording server or an audio bridge.
The conference administrator must ensure that aliases dialed from endpoints connected to Unified CM only
use bridges in the Location expected by Unified CM. If bridges in a different Location are specified and used,
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 57 of 66
Appendix 2: Understanding Locations, Pools and Service Preferences
TelePresence Conductor will place the call on the bridge in a different Location from that expected by Unified
CM. This means Unified CM will account for the call bandwidth in the wrong Location, and wrongly allocate
the bandwidth to the expected Location with no bandwidth allocation to the actual Location.
Unified CM Version 9.1 extends Location handling, enabling multiple Unified CM clusters to support the
same Location. The following illustration shows multiple Unified CM clusters communicating with specific IP
addresses on a TelePresence Conductor. For example, both UCM1 and UCM2 route ad hoc calls to Location
1 using the same IP address on TelePresence Conductor. UCM1 and UCM2 route ad hoc calls to Location 2
using another IP address. Similarly, rendezvous calls are routed from both UCM1 and UCM2 to a single IP
for Location 1 and to a single IP for Location 2.
Figure 15: Using Locations with Unified CMs running 9.1
Pools
With the exception of conference bridges used for scheduling, each conference bridge in the deployment
must be assigned to a conference bridge pool in TelePresence Conductor. A conference bridge can belong to
only one pool. All bridges in a pool are configured with the same capabilities. Pools must reflect the bridge
type (and location) of the bridge. For example, in Figure 1: High-level view of the architecture [p.10] Pool 1
could be a group of TelePresence Servers located in the London office, Pool 2 a group of MCUs with HD
ports in New York, and Pool 3 a group of TelePresence Servers with SD ports, also in New York.
All conference bridges configured in a TelePresence Conductor pool must be in the same physical location
and of the same type (MCU or TelePresence Server).
Service Preferences
A Service Preference is a prioritized list of conference bridge pools set up through TelePresence Conductor,
which defines the order to use pools if conference resources are limited. For any particular conference the
administrator can determine the order of preference for the pools that TelePresence Conductor will attempt to
use to host that conference. If no conference bridges in the first pool can be used to host a conference (for
example insufficient resources are available to meet the conference requirements), TelePresence Conductor
will check whether the second pool in the list can be used.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 58 of 66
Appendix 2: Understanding Locations, Pools and Service Preferences
A Service Preference can contain anywhere between 1 and 30 conference bridge pools. A single conference
bridge pool can be used in any number of Service Preferences.
Note: If Unified CM call admission control is implemented to control bandwidth usage, each Service
Preference must only contain pools of bridges for a single location.
As with pools, all conference bridges configured in a TelePresence Conductor Service Preference must be in
the same physical location and of the same type (MCU or TelePresence Server).
More information
See the appropriate deployment guide:
n
Cisco TelePresence Conductor with Unified Communications Manager Deployment Guide for Unified CMcentric deployments
n
Cisco TelePresence Conductor with Cisco VCS (B2BUA) Deployment Guide for Cisco VCS-centric
deployments
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 59 of 66
Appendix 3: Adding the Unified CM normalization scripts
Appendix 3: Adding the Unified CM normalization
scripts
If your deployment uses encryption and TLS on SIP trunks used for TelePresence, you must add one or more
of the normalization scripts to Unified CM, as follows:
Table 10: Normalization scripts for Unified CM
Script
Install on ...
telepresence-conductorinterop
SIP trunks that directly interface with a TelePresence Conductor as the next hop
peer.
vcs-interop
SIP trunks that directly interface with a Cisco VCS Control or Cisco Expressway-C
as the next hop peer.
telepresence-mcu-ts-directinterop
SIP trunks that directly interface with a TelePresence Server or MCU as the next
hop peer.
To add the scripts:
1. Download the scripts that you need from the Cisco website (go to the relevant Unified CM software
version and select SIP Normalization and Transparency Scripts > Scripts).
2. On Unified CM, go to Device > Device Settings > SIP Normalization Script.
3. Click Add new.
4. Click Import File.
5. Select the script that you downloaded.
6. Click Import File.
7. Enter or change the following details:
Name
Enter the script name. For example, telepresence-conductor-interop
Description
Enter a description. For example, Provides interoperability for calls
through the TelePresence Conductor
Memory
Threshold
Enter 1000
Lua Instruction
Threshold
Enter 2000
8. Click Save.
9. Repeat these steps until all the scripts you need are added.
10. To install the scripts onto the SIP trunks:
a. On the Unified CM go to Device > Trunk [or Media Resources > Conference Bridge for ad hoc
conference bridges in Unified CM Version 9.1(2)SU2] and select the relevant trunk / bridge.
b. In the Normalization script area of the SIP Information section, from the drop-down list select the
appropriate script for the trunk / bridge.
c. Click Save.
d. Click Reset.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 60 of 66
Appendix 4: Migration paths to Optimized Conferencing Release 3.0
Appendix 4: Migration paths to Optimized
Conferencing Release 3.0
This appendix describes how to migrate previous Optimized Conferencing deployments and non-Optimized
Conferencing deployments to the Release 3.0 preferred architecture. This release of Optimized Conferencing
has two recommended deployment architectures for deploying conferencing infrastructure:
n
Conferencing infrastructure connected to Unified CM. This is the preferred architecture.
n
Conferencing infrastructure connected to Cisco VCS.
For new deployments the Unified CM-connected deployment should be implemented.
For existing audio and video deployments which do not match either of the two scenarios, we recommend
that deployments are migrated to the Optimized Conferencing Release 3.0 deployment using the Release 3.0
recommended code levels, as this is the tested architecture on top of which new feature developments are
being planned.
To move to the Optimized Conferencing Release 3.0 deployment ("Release 3.0"):
1. Start by moving the infrastructure to the Release 3.0 standard.
2. Then, if endpoints are currently registered to the Cisco VCS, move the endpoints that can register to
Unified CM to Unified CM.
Prerequisites
Release 3.0 makes use of endpoint caller IDs, displaying them in Roster lists and, if enabled, on-screen in
conferences in TS Active presence mode. We recommended reviewing the dial plan to ensure that displayed
caller IDs are meaningful.
Release 3.0 software versions
Table 11: Required software versions
Product
Recommended
Minimum
Notes
TelePresence Server
4.0
4.0
When connected to
TelePresence
Conductor,
TelePresence
Server must be
configured in
remotely managed
mode. When
connected to call
control for assured
scheduling
TelePresence
Server must be
configured in locally
managed mode.
TelePresence Conductor
XC2.3
XC2.3
MCU
4.5
4.5
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 61 of 66
Appendix 4: Migration paths to Optimized Conferencing Release 3.0
Table 11: Required software versions (continued)
Cisco VCS
X8.2
X8.1.1 (X8.2 required
for Microsoft Lync)
Cisco VCS—for H.323 registration
X8.2
X7.2.3
Cisco Expressway
X8.2
X8.1.1 (X8.2 required
for Microsoft Lync)
Cisco TMS
14.4
14.4
Cisco TMSPE
1.2
1.2
Unified CM
10.5(1)
9.1(2)SU2
Unified CM only system to Release 3.0
1. Upgrade Unified CM to the recommended version for Optimized Conferencing Release 3.0.
2. Add TelePresence Conductor to Unified CM and deploy bridges trunked to TelePresence Conductor—
these components support ad hoc (telephone button) conferences and CMR conferences.
3. Upgrade endpoint software to the version supplied with Unified CM.
4. Only if assured scheduling is required, deploy bridges directly trunked to Unified CM and control them
using Cisco TMS.
5. If WebEx participants are to be included in calls, ensure that Unified CM is running at least code version
9.1(2)SU2 and update Unified CM configuration to support Early Offer.
6. To allow participants external to the company network to join conferences, deploy Cisco Expressway-C
and Cisco Expressway-E for the firewall traversal.
7. If Lync interop is required add a Cisco Expressway-C / Cisco VCS Control to be the gateway to the
Microsoft Lync infrastructure. Version X8.2 or later is required. (See the Cisco VCS / Cisco Expressway
deployment guides to identify whether Cisco VCS Control or Cisco Expressway-C is most appropriate for
your needs.)
8. In the unlikely event you wish to add Legacy and H.323 endpoints to the solution, add a Cisco VCS
Control onto which those endpoints can register.
Separate audio-only endpoint Unified CM and video endpoint Unified CM to Release 3.0
Some Unified CM deployments use a Unified CM for audio-only endpoints and a separate Unified CM for
video endpoints. The ideal solution is to run both systems at the same Unified CM version, and in that case
you should follow the Unified CM only system to Release 3.0 [p.62] instructions above.
If there are reasons why audio and video endpoints need to register to separate Unified CMs and they need to
run different versions, then, before proceeding, verify with your account manager that the two Unified CM
versions are acceptable in the deployment. In this case follow the Unified CM only system to Release 3.0
[p.62] instructions above on the video Unified CM.
Cisco VCS only to Cisco VCS and Unified CM Release 3.0
1. Upgrade Cisco VCS to the recommended version for Optimized Conferencing Release 3.0.
2. Neighbor (SIP trunk) the Cisco VCS to a new Unified CM running code version 9.1(2) or 10.5(1) and
configure it to support Early Offer.
3. Move the TelePresence Conductor to connect to Unified CM, and ensure that the search rules used to
send calls to the TelePresence Conductor under Cisco VCS now send the calls to Unified CM, and that
the Unified CM forwards these calls to TelePresence Conductor.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 62 of 66
Appendix 4: Migration paths to Optimized Conferencing Release 3.0
4. Only if assured scheduling is required, move or deploy bridges directly trunked to Unified CM and control
them using Cisco TMS.
5. Migrate endpoints that can register to Unified CM to Unified CM, upgrading software to the required
versions for this Optimized Conferencing release.
Unified CM and Cisco VCS to Release 3.0
1. Upgrade Cisco VCS to the recommended version for Optimized Conferencing Release 3.0.
2. Upgrade Unified CM to the recommended version for Optimized Conferencing Release 3.0.
3. Move / keep TelePresence Conductor connected to Unified CM with bridges (that are used to support ad
hoc conferences and CMR conferences) trunked to TelePresence Conductor.
4. If the TelePresence Conductor is moved from Cisco VCS, ensure that the search rules that used to send
calls to the TelePresence Conductor under Cisco VCS now send the calls to Unified CM and that the
Unified CM forwards these calls to TelePresence Conductor.
5. Only if assured scheduling is required, deploy bridges directly trunked to Unified CM and control them
using Cisco TMS—remove any bridges registering or trunked to Cisco VCS.
6. Cisco VCS architecture can remain as configured for firewall traversal, Lync interop and Legacy / H.323
endpoint registration.
7. Migrate endpoints that can register to Unified CM to Unified CM, upgrading software to the required
versions for this Optimized Conferencing release.
Comparison of capabilities of endpoints registered to Unified CM and endpoints registered to
Cisco VCS
Table 12: Comparison of capabilities of endpoints registered to Unified CM and endpoints registered to Cisco
VCS
Capability
Registered to Unified CM
Registered to Cisco VCS
Phone books
User Data Services (UDS) phonebooks
Non-hierarchical
TMS phone books
Hierarchical directory
Management
Managed by Unified CM & Prime Collaboration suite
Provisioned by Unified CM
Managed by Cisco TMS
Provisioned by Cisco TMS
Conference scheduling
Managed by Cisco TMS
Managed by Cisco TMS
Firewall traversal
Using Cisco Expressway-C and Cisco Expressway-E
Using Cisco VCS Expressway
Conference escalation
Ad hoc
Multiway
Release 3.0 features and version dependencies
Table 13: Release 3.0 features and version dependencies
Feature
Versions required
Segment switching
TS 4.0 and XC2.3, TMS 14.4, TMSPE 1.2
BE6000
XC2.3, vTS 4.0, TMS 14.4, TMSPE 1.2
MS Lync interoperability
VCS X8.2, Expressway-C 8.1.1, Unified CM 9.1
(2)SU2 or 10.5(1) Early Offer configuration
Increased TelePresence Server call limit (200)
TS 4.0 and XC2.3
CMR provisioning and user portal
XC2.3, TMS 14.4, TMSPE 1.2
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 63 of 66
Appendix 4: Migration paths to Optimized Conferencing Release 3.0
Table 13: Release 3.0 features and version dependencies (continued)
Cisco TMS direct scheduling
TMS 14.4, TS 4.0, MCU 4.5
New TelePresence Server optimization
TS 4.0, TMS 14.4, TMSPE 1.2, Conductor
XC2.3
Optimization configured in JSON on TMS for
provisioned conferences, or in JSON in the
TelePresence Conductor template.
The iX protocol (XCCP) can be enabled in the local Unified CM
and Cisco VCS network and can be configured to be blocked
from transmission at network boundaries
Unified CM 9.1(2)SU2 or 10.5(1), VCS X8.1.1,
Expressway X8.1.1
Associated products, versions and features
Table 14: Associated products, versions and features
Product
Version
Features
MCU
4.5
Minimum version for Release 3.0 operation. Adds:
Unified CM
Cisco VCS
n
ClearPath (Flux 1)
n
Separate content channel for encrypted SIP participants
n
Domain added for out dial requests without a domain—needed for WebEx out dial
(for TSP conferenced audio) when the MCU is trunked to Unified CM.
Unified CM
9.1(2)SU2
Minimum version for Release 3.0 operation
10.5(1)
Ad hoc bridge now configured as data connection and explicit SIP trunk
X8.1.1
Minimum version for Release 3.0 operation
(X7.2.3 for H.323 registration)
X8.2
Minimum version for Lync gateway operation in Release 3.0
Cisco
X8.1.1
Expressway
Minimum version for Release 3.0 operation
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 64 of 66
Accessibility notice
Accessibility notice
Cisco is committed to designing and delivering accessible products and technologies.
The Voluntary Product Accessibility Template (VPAT) for Optimized Conferencing for Cisco Unified
Communications Manager and Cisco Video Communication Server is available here:
http://www.cisco.com/web/about/responsibility/accessibility/legal_regulatory/vpats.html#telepresence
You can find more information about accessibility here:
www.cisco.com/web/about/responsibility/accessibility/index.html
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 65 of 66
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE
SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE
SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE
INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE
SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR
A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the
University of California, Berkeley (UCB) as part of UCB's public domain version of the UNIX operating
system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE
OF THESE SUPPLIERS ARE PROVIDED "AS IS" WITH ALL FAULTS. CISCO AND THE ABOVENAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING,
WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE
PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST
PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS
MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other
countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party
trademarks mentioned are the property of their respective owners. The use of the word partner does not imply
a partnership relationship between Cisco and any other company. (1005R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual
addresses and phone numbers. Any examples, command display output, network topology diagrams, and
other figures included in the document are shown for illustrative purposes only. Any use of actual IP
addresses or phone numbers in illustrative content is unintentional and coincidental.
© 2014 Cisco Systems, Inc. All rights reserved.
Optimized Conferencing for Cisco Unified Communications Manager and Cisco VCS Solution Guide
(Release 3.0)
Page 66 of 66
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
