Samsung | SDP-860 | User's Manual | Samsung SDP-860 User's Manual

Samsung
Digital Presenter Series
UF-130 DX/ST
UF-80 DX/ST
SDP-950 DX/ST
SDP-850 DX/ST

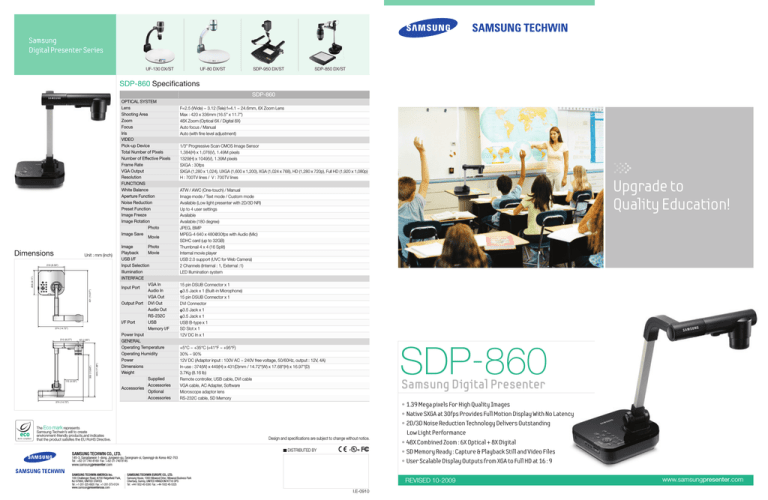

SDP-860 Specifications
SDP-860
Optical System
Lens
Shooting Area
Zoom
Focus
Iris
Video
Pick-up Device
Total Number of Pixels
Number of Effective Pixels
Frame Rate
VGA Output
Resolution
Functions
White Balance
Aperture Function
Noise Reduction
Preset Function
Image Freeze
Image Rotation
Image Save
Movie
Dimensions
Unit : mm (inch)
431 (16.97")
206 (8.11")
218 (8.58")
374 (14.72")
210 (8.27")
449 (17.68")
352 (13.86")
42 (1.65")
115 (4.53")
374 (14.72")
PlaybackMovie
USB I/F
Input Selection
Illumination
Interface
VGA In
Input Port
Audio In
VGA Out
Output Port DVI Out
Audio Out
RS-232C
I/F PortUSB
Memory I/F
Power Input
General
Operating Temperature
Operating Humidity
Power
Dimensions
Weight
Supplied
Accessories
Accessories
Optional
Accessories
F=2.5 (Wide) ~ 3.12 (Tele) f=4.1 ~ 24.6mm, 6X Zoom Lens
Max : 420 x 336mm (16.5" x 11.7")
48X Zoom (Optical 6X / Digital 8X)
Auto focus / Manual
Auto (with fine level adjustment)
1/3" Progressive Scan CMOS Image Sensor
1,384(H) x 1,076(V), 1.49M pixels
1329(H) x 1049(V), 1.39M pixels
SXGA : 30fps
SXGA (1,280 x 1,024), UXGA (1,600 x 1,200), XGA (1,024 x 768), HD (1,280 x 720p), Full HD (1,920 x 1,080p)
H : 700TV lines / V : 700TV lines
ATW / AWC (One-touch) / Manual
Image mode / Text mode / Custom mode
Available (Low light presenter with 2D/3D NR)
Up to 4 user settings
Available
Available (180 degree)
JPEG, BMP
MPEG-4 640 x 480@30fps with Audio (Mic)
SDHC card (up to 32GB)
Thumbnail 4 x 4 (16 Split)
Internal movie player
USB 2.0 support (UVC for Web Camera)
2 Channels (Internal : 1, External :1)
LED Illumination system
15 pin DSUB Connector x 1
φ3.5 Jack x 1 (Built-in Microphone)
15 pin DSUB Connector x 1
DVI Connector
φ3.5 Jack x 1
φ3.5 Jack x 1
USB B-type x 1
SD Slot x 1
12V DC In x 1
+5°C ~ +35°C (+41°F ~ +95°F)
30% ~ 90%
12V DC (Adaptor input : 100V AC ~ 240V free voltage, 50/60Hz, output : 12V, 4A)
In-use : 374(W) x 449(H) x 431(D)mm / 14.72"(W) x 17.68"(H) x 16.97"(D)
3.7Kg (8.16 lb)
Remote controller, USB cable, DVI cable
VGA cable, AC Adapter, Software
Microscope adaptor lens RS-232C cable, SD Memory
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
DISTRIBUTED BY
145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do Korea 462-703
Tel : +82-31-740-8160 Fax : +82-31-740-8145
www.samsungpresenter.com
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, #700 Ridgefield Park,
NJ 07660, UNITED STATES
Tel : +1-201-325-6920 Fax : +1-201-373-0124
www.samsungpresenterusa.com
SDP-860
Samsung Digital Presenter
Design and specifications are subject to change without notice.
SAMSUNG TECHWIN CO., LTD.
Upgrade to
Quality Education!
SAMSUNG TECHWIN EUROPE CO., LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
• 1.39 Mega pixels For High Quality Images
• Native SXGA at 30fps Provides Full Motion Display With No Latency
• 2D/3D Noise Reduction Technology Delivers Outstanding
Low Light Performance
• 48X Combined Zoom : 6X Optical + 8X Digital
• SD Memory Ready : Capture & Playback Still and Video Files
• User Scalable Display Outputs from XGA to Full HD at 16 : 9
REVISED 10-2009
I.E-0910
www.samsungpresenter.com
Samsung Digital Presenter I SDP-860
Engage and Inspire Your Students!
Samsung's SDP-860 Can Enhance All Your Classroom Presentations!
Samsung Digital Presenter
SDP-860
True SXGA Graphics at 30fps!
Clear Images Achieved by Our Proprietary ISP!
Introducing the SDP-860, an economical, yet high performance presenter from Samsung. Experience
crystal clear image quality in your own classroom delivered by Samsung's new SDP-860 and our
advanced ISP chip set with 2D/3D noise reduction technology. With the ability to record up to 32Gb via
an SDHC memory card, the SDP-860 is a complete classroom recording solution, capable of capturing
and viewing high resolution still shots as well as movies with audio.
Smooth Video Output with
True SXGA at 30fps
Our Proprietary ISP Chip &
2D/3D Noise Reduction Technology
The SDP-860 supports true SXGA at 30fps for smooth
and fast video display.
Conventional Presenter
SDP-860
Equipped with our proprietary ISP chipset and the world’s
first 2D/3D dual noise reduction technology, the SDP860 provides crystal-clear, noise-free graphics even in the
darkest rooms.
Conventional Presenter
6X Optical Zoom & 48X Combined Zoom
Providing a 48X combined zoom (6X Optical + 8X Digital), the
SDP-860 delivers the quality you'd expect from Samsung.
The fast and accurate auto focus lens can display 3D
subjects with great detail and documents up to A3 size on
a single display.
SDP-860
Video Storage Capacity
up to 640 x 480 VGA at 30fps
The SDP-860 is compatible with SDHC (SD Ver.2), and
can store up to 32GB of data. it can save not only still
images but also record movies with audio up to 640 x
480 at 30fps.
+
Normal
48X Zoom
Microscope View
DVI Output Support
The SDP-860 supports VGA and DVI outputs with a
VGA bypass feature when the unit is turned off. Users
can change display resolutions from the default SXGA
up to wide screen (16 : 9) resolutions for use with most
projectors, plasma and LCD devices.
Compact Design
Enhanced user-friendly design with educators in mind. Multiple joints
allow ease of movement when in use and folding for storage.
180°
330°
290°
55°
Samsung Digital Presenter I SDP-860
Engage and Inspire Your Students!
Samsung's SDP-860 Can Enhance All Your Classroom Presentations!
Samsung Digital Presenter
SDP-860
True SXGA Graphics at 30fps!
Clear Images Achieved by Our Proprietary ISP!
Introducing the SDP-860, an economical, yet high performance presenter from Samsung. Experience
crystal clear image quality in your own classroom delivered by Samsung's new SDP-860 and our
advanced ISP chip set with 2D/3D noise reduction technology. With the ability to record up to 32Gb via
an SDHC memory card, the SDP-860 is a complete classroom recording solution, capable of capturing
and viewing high resolution still shots as well as movies with audio.
Smooth Video Output with
True SXGA at 30fps
Our Proprietary ISP Chip &
2D/3D Noise Reduction Technology
The SDP-860 supports true SXGA at 30fps for smooth
and fast video display.
Conventional Presenter
SDP-860
Equipped with our proprietary ISP chipset and the world’s
first 2D/3D dual noise reduction technology, the SDP860 provides crystal-clear, noise-free graphics even in the
darkest rooms.
Conventional Presenter
6X Optical Zoom & 48X Combined Zoom
Providing a 48X combined zoom (6X Optical + 8X Digital), the
SDP-860 delivers the quality you'd expect from Samsung.
The fast and accurate auto focus lens can display 3D
subjects with great detail and documents up to A3 size on
a single display.
SDP-860
Video Storage Capacity
up to 640 x 480 VGA at 30fps
The SDP-860 is compatible with SDHC (SD Ver.2), and
can store up to 32GB of data. it can save not only still
images but also record movies with audio up to 640 x
480 at 30fps.
+
Normal
48X Zoom
Microscope View
DVI Output Support
The SDP-860 supports VGA and DVI outputs with a
VGA bypass feature when the unit is turned off. Users
can change display resolutions from the default SXGA
up to wide screen (16 : 9) resolutions for use with most
projectors, plasma and LCD devices.
Compact Design
Enhanced user-friendly design with educators in mind. Multiple joints
allow ease of movement when in use and folding for storage.
180°
330°
290°
55°
