Model
Part No:

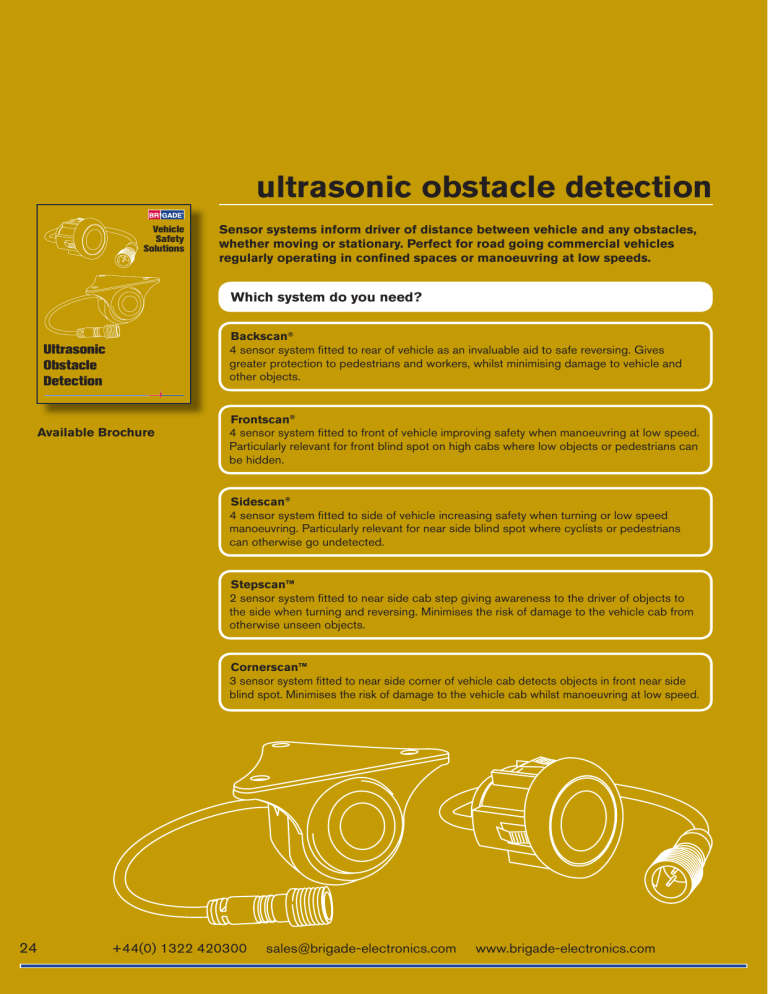

ultrasonic obstacle detection
Vehicle
Safety
Solutions
Sensor systems inform driver of distance between vehicle and any obstacles,
whether moving or stationary. Perfect for road going commercial vehicles
regularly operating in confined spaces or manoeuvring at low speeds.
Which system do you need?
Backscan®
4 sensor system fitted to rear of vehicle as an invaluable aid to safe reversing. Gives
greater protection to pedestrians and workers, whilst minimising damage to vehicle and
other objects.
Ultrasonic
Obstacle
Detection
Available Brochure
Frontscan®
4 sensor system fitted to front of vehicle improving safety when manoeuvring at low speed.
Particularly relevant for front blind spot on high cabs where low objects or pedestrians can
be hidden.
Sidescan®
4 sensor system fitted to side of vehicle increasing safety when turning or low speed
manoeuvring. Particularly relevant for near side blind spot where cyclists or pedestrians
can otherwise go undetected.
Stepscan™
2 sensor system fitted to near side cab step giving awareness to the driver of objects to
the side when turning and reversing. Minimises the risk of damage to the vehicle cab from
otherwise unseen objects.
Cornerscan™
3 sensor system fitted to near side corner of vehicle cab detects objects in front near side
blind spot. Minimises the risk of damage to the vehicle cab whilst manoeuvring at low speed.
24
+44(0) 1322 420300
[email protected]
www.brigade-electronics.com
Model
Part No:
BACKSCAN® ULTRASONIC DETECTION SYSTEM
BS-4000W - Backscan reversing sensor system
• 4 sensor system
• 12-24 Volts
• 2.5m detection range outer sensors 2.5m/0.6m
(selectable via dip switch)
• Graduated visual and audible
distance warning display
• Underslung and flush-mount
fixings included
• 50cm compensation range
for sensors fitted inboard of
vehicle rear (selectable via
dip switch)
• 2 year warranty
Contents
• 4 x sensors
• Visual and audible display
• 4 x 0° flush mount fixings
• 4 x 11° flush mount fixings
• 4 x underslung fixings
• Waterproof control box
• 15m display cable
• 4 x 2.5m sensor cables
3744
Durability &
Standards
• Operating temperature:
-40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from tow-hooks
and other ancillary
equipment that intrudes
in the first 100cm of the
detection zone
• Self-diagnostic function
• 1.5m detection range
model also available Please contact us for
details
REQUIRED ADDITIONS FOR ARTICULATED VEHICLES
SK-15-04
SK-UDS-05
UDS-10BC
Truck/trailer camera/sensor cable kit - see p16
Truck/trailer sensor only cable kit
10m Buzzer/display cable
3997
4219
3716
FRONTSCAN® ULTRASONIC DETECTION SYSTEM
FS-4000W - Frontscan sensor system
• 4 sensor system
3747
Contents
• 2.1m/1.0m detection range outer sensors can be reduced
to 0.6m
(selectable via dip switches)
• 4 x sensors
• Buzzer
• 4 x 11° flush mount fixings
• 4 x 18° flush mount fixings
• 4 x 26° flush mount fixings
• Waterproof control box
• 2.5m buzzer cable
• 4 x 2.5m sensor cables
• Audible distance warning
Features
• 12-24 Volts
• Flush-mount
• 2 year warranty
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from tow-hooks
and other ancillary
equipment that intrudes
in the first 100cm of the
detection zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature:
-40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
RECOMMENDED EXTRA
LS-20-A
Low speed trigger module
(enables sensors below designated speed)
3177
25
Model
Part No:
SIDESCAN® ULTRASONIC DETECTION SYSTEM
SS-4000W - Sidescan sensor system
• 4 sensor system
• 12-24 Volts
• 1.0/1.5m detection range (selectable via dip switch)
• Audible distance warning
• Underslung and flush-mount
fixings included
• 2 levels of sensitivity (selectable via dip switch)
• 2 year warranty
3711
Contents
• 4 x sensors
• Buzzer
• 4 x 0° flush mount fixings
• 4 x 11° flush mount fixings
• 4 x underslung fixings
• Waterproof control box
•10m buzzer cable
• 4 x 4.5m sensor cables
• 2 x 2.5m extension cables
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from ancillary
equipment that intrudes
in the first 100cm of the
detection zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature:
-40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
ADDITIONS FOR ARTICULATED VEHICLES
SK-15-04
SK-UDS-05
UDS-10BC
SS-4000W
Truck/trailer camera/sensor cable kit - see p16
Truck/trailer sensor only cable kit (required)
10m display cable (required)
Additional Sidescan sensor system for cab (optional)
3997
4219
3716
3711
RECOMMENDED EXTRA
LS-20-A
Low speed trigger module
(enables sensors below designated speed)
3177
TS-001ECU
Turn indicator trigger for system activation
1362
OPTIONAL EXTRA
SS-BC-08
26
+44(0) 1322 420300
Backchat speaking alarm with side turn
warning for cyclists/pedestrians
[email protected]
www.brigade-electronics.com
1334
Model
Part No:
CORNERSCAN™ ULTRASONIC DETECTION SYSTEM
CS-3000 - Cornerscan sensor system
• 3 sensor system
• 12-24 Volts
• 0.6/1.0m detection range (selectable via dip switch)
• Audible distance warning
• Flush-mount
• 2 levels of sensitivity (selectable via dip switch)
• 2 year warranty
3712
Contents
• 3 x sensors
• Buzzer
• 3 x 11° flush mount fixings
• 3 x 18° flush mount fixings
• 3 x 26° flush mount fixings
• Waterproof control box
• 2.5m buzzer cable
• 3 x 2.5m sensor cables
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from ancillary
equipment that intrudes
in the first 100cm of the
detection zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature:
-40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
RECOMMENDED EXTRA
LS-20-A
Low speed trigger module
(enables sensors below designated speed)
3177
STEPSCAN™ ULTRASONIC DETECTION SYSTEM
ST-2000 - Stepscan sensor system
• 2 sensor system
• 12-24 Volts
• 0.6/1.0m detection range (selectable via dip switch)
• Audible distance warning
• Flush-mount
• 2 levels of sensitivity (selectable via dip switch)
• 2 year warranty
3742
Contents
• 2 x sensors
• Buzzer
• 2 x 11° flush mount fixings
• 2 x 18° flush mount fixings
• 2 x 26° flush mount fixings
• Waterproof control box
• 2.5m buzzer cable
• 2 x 2.5m sensor cables
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from ancillary
equipment that intrudes
in the first 100cm of the
detection zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature:
-40 to +80ºC
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
EXTENSION CABLES
UDS-2.5BC - Buzzer/display extension cable 2.5m
UDS-10BC - Buzzer/display extension cable 10m
UDS-15BC - Buzzer/display extension cable 15m
UDS-2.5SC - Sensor extension cable 2.5m
UDS-4.5SC - Sensor extension cable 4.5m
3717
3716
3746
3719
3720
27
