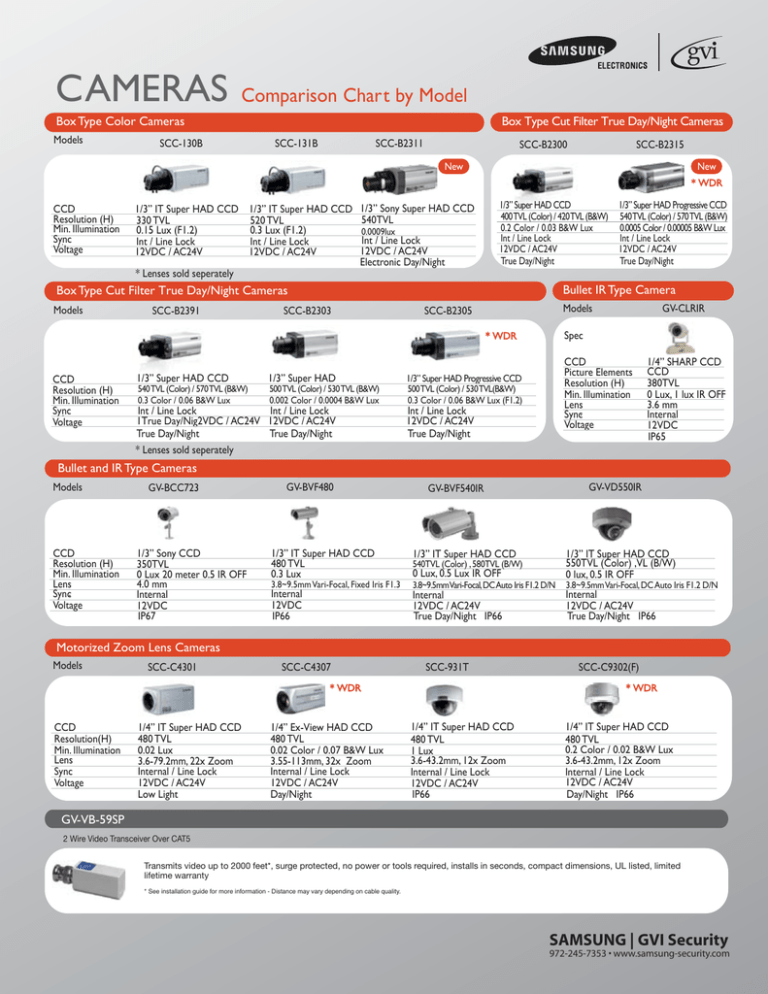

CAMERAS
Comparison Chart by Model
Box Type Cut Filter True Day/Night Cameras
Box Type Color Cameras
Models
SCC-130B
SCC-131B
SCC-B2311
SCC-B2300
SCC-B2315
New
New
* WDR
CCD
Resolution (H)
Min. Illumination
Sync
.
Voltage
1/3” IT Super HAD CCD 1/3” IT Super HAD CCD
330 TVL
520 TVL
0.15 Lux (F1.2)
0.3 Lux (F1.2)
Int / Line Lock
Int / Line Lock
12VDC / AC24V
12VDC / AC24V
* Lenses sold seperately
1/3” Sony Super HAD CCD
540TVL
0.0009lux
Int / Line Lock
12VDC / AC24V
Electronic Day/Night
1/3” Super HAD CCD
1/3” Super HAD Progressive CCD
400 TVL (Color) / 420 TVL (B&W) 540 TVL (Color) / 570 TVL (B&W)
0.2 Color / 0.03 B&W Lux
0.0005 Color / 0.00005 B&W Lux
Int / Line Lock
Int / Line Lock
12VDC / AC24V
12VDC / AC24V
True Day/Night
True Day/Night
Bullet IR Type Camera
Box Type Cut Filter True Day/Night Cameras
Models
SCC-B2391
SCC-B2303
Models
SCC-B2305
Spec
* WDR
CCD
Resolution (H)
Min. Illumination
Sync
.
Voltage
1/3” Super HAD CCD
540 TVL (Color) / 570 TVL (B&W)
0.3 Color / 0.06 B&W Lux
1/3” Super HAD
500 TVL (Color) / 530 TVL (B&W)
0.002 Color / 0.0004 B&W Lux
Int / Line Lock
Int / Line Lock
1True Day/Nig2VDC / AC24V 12VDC / AC24V
True Day/Night
True Day/Night
* Lenses sold seperately
GV-CLRIR
CCD
Picture Elements
Resolution (H)
Min. Illumination
Lens
Sync.
Voltage
1/3” Super HAD Progressive CCD
500 TVL (Color) / 530 TVL(B&W)
0.3 Color / 0.06 B&W Lux (F1.2)
Int / Line Lock
12VDC / AC24V
True Day/Night
1/4” SHARP CCD
CCD
380TVL
0 Lux, 1 lux IR OFF
3.6 mm
Internal
12VDC
IP65
Bullet and IR Type Cameras
Models
CCD
Resolution (H)
Min. Illumination
Lens
Sync.
Voltage
GV-BCC723
1/3” Sony CCD
350TVL
0 Lux 20 meter 0.5 IR OFF
4.0 mm
Internal
12VDC
IP67
GV-BVF480
1/3” IT Super HAD CCD
480 TVL
0.3 Lux
3.8~9.5mm Vari-Focal, Fixed Iris F1.3
Internal
12VDC
IP66
GV-VD550IR
GV-BVF540IR
0 Lux, 0.5 Lux IR OFF
1/3” IT Super HAD CCD
550TVL (Color) ,VL (B/W)
0 lux, 0.5 IR OFF
Internal
12VDC / AC24V
True Day/Night IP66
Internal
12VDC / AC24V
True Day/Night IP66
1/3” IT Super HAD CCD
540TVL (Color) , 580TVL (B/W)
3.8~9.5mmVari-Focal, DC Auto Iris F1.2 D/N
3.8~9.5mm Vari-Focal, DC Auto Iris F1.2 D/N
Motorized Zoom Lens Cameras
Models
SCC-C4301
SCC-C4307
SCC-931T
* WDR
CCD
Resolution(H)
Min. Illumination
Lens
Sync
Voltage
1/4” IT Super HAD CCD
480 TVL
0.02 Lux
3.6-79.2mm, 22x Zoom
Internal / Line Lock
12VDC / AC24V
Low Light
1/4” Ex-View HAD CCD
480 TVL
0.02 Color / 0.07 B&W Lux
3.55-113mm, 32x Zoom
Internal / Line Lock
12VDC / AC24V
Day/Night
SCC-C9302(F)
* WDR
1/4” IT Super HAD CCD
480 TVL
1 Lux
3.6-43.2mm, 12x Zoom
Internal / Line Lock
12VDC / AC24V
IP66
1/4” IT Super HAD CCD
480 TVL
0.2 Color / 0.02 B&W Lux
3.6-43.2mm, 12x Zoom
Internal / Line Lock
12VDC / AC24V
Day/Night IP66
GV-VB-59SP
2 Wire Video Transceiver Over CAT5
Transmits video up to 2000 feet*, surge protected, no power or tools required, installs in seconds, compact dimensions, UL listed, limited
lifetime warranty
* See installation guide for more information - Distance may vary depending on cable quality.
