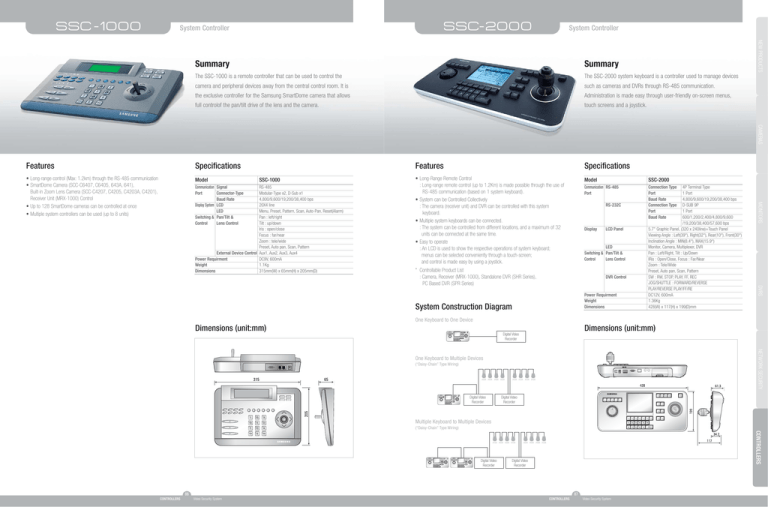

S S C -1 0 0 0
SSC-2000
System Controller
System Controller
NEW PRODUCTS
Summary
Summary
The SSC-1000 is a remote controller that can be used to control the
The SSC-2000 system keyboard is a controller used to manage devices
camera and peripheral devices away from the central control room. It is
such as cameras and DVRs through RS-485 communication.
the exclusive controller for the Samsung SmartDome camera that allows
Administration is made easy through user-friendly on-screen menus,
full controlof the pan/tilt drive of the lens and the camera.
touch screens and a joystick.
CAMERAS
Specifications
• Long-range control (Max: 1.2km) through the RS-485 communication
• SmartDome Camera (SCC-C6407, C6405, 643A, 641),
Built-in Zoom Lens Camera (SCC-C4207, C4205, C4203A, C4201),
Receiver Unit (MRX-1000) Control
• Up to 128 SmartDome cameras can be controlled at once
• Multiple system controllers can be used (up to 8 units)
Model
SSC-1000
Communication Signal
Port
Connector-Type
Baud Rate
Display System LCD
LED
Switching & Pan/Tilt &
Control
Lens Control
RS-485
Modular-Type x2, D-Sub x1
4,800/9,600/19,200/38,400 bps
20X4 line
Menu, Preset, Pattern, Scan, Auto-Pan, Reset(Alarm)
Pan : left/right
Tilt : up/down
Iris : open/close
Focus : far/near
Zoom : tele/wide
Preset, Auto pan, Scan, Pattern
External Device Control Aux1, Aux2, Aux3, Aux4
Power Requirment
DC9V, 600mA
Weight
1.1Kg
Dimensions
315mm(W) x 65mm(H) x 205mm(D)
Features
Specifications
• Long-Range Remote Control
: Long-range remote control (up to 1.2Km) is made possible through the use of
RS-485 communication (based on 1 system keyboard).
• System can be Controlled Collectively
: The camera (receiver unit) and DVR can be controlled with this system
keyboard.
• Multiple system keyboards can be connected.
: The system can be controlled from different locations, and a maximum of 32
units can be connected at the same time.
• Easy to operate
: An LCD is used to show the respective operations of system keyboard;
menus can be selected conveniently through a touch-screen;
and control is made easy by using a joystick.
Model
SSC-2000
Communication RS-485
Port
Connection Type
Port
Baud Rate
Connection Type
Port
Baud Rate
RS-232C
Display
LCD Panel
LED
Switching & Pan/Tilt &
Control
Lens Control
DVR Control
Power Requirment
Weight
Dimensions
System Construction Diagram
DVRS
* Controllable Product List
: Camera, Receiver (MRX-1000), Standalone DVR (SHR Series),
PC Based DVR (SPR Series)
4P Terminal Type
1 Port
4,800/9,600/19,200/38,400 bps
D-SUB 9P
1 Port
600/1,200/2,400/4,800/9,600
/19,200/38,400/57,600 bps
5.7" Graphic Panel, (320 x 240line)+Touch Panel
Viewing Angle : Left(39°), Right(32°), Rear(10°), Front(30°)
Inclination Angle : MIN(8.4°), MAX(15.9°)
Monitor, Camera, Multiplexer, DVR
Pan : Left/Right, Tilt : Up/Down
IRis : Open/Close, Focus : Far/Near
Zoom : Tele/Wide
Preset, Auto pan, Scan, Pattern
SW : RW, STOP, PLAY, FF, REC
JOG/SHUTTLE : FORWARD/REVERSE
PLAY/REVERSE PLAY/FF/RE
DC12V, 600mA
1.36Kg
428(W) x 117(H) x 199(D)mm
MONITORS
Features
One Keyboard to One Device
Dimensions (unit:mm)
Dimensions (unit:mm)
Digital Video
Recorder
NETWORK SECURITY
One Keyboard to Multiple Devices
(“Daisy-Chain” Type Wiring)
Digital Video
Recorder
Digital Video
Recorder
Multiple Keyboard to Multiple Devices
(“Daisy-Chain” Type Wiring)
CONTROLLERS
Digital Video
Recorder
Digital Video
Recorder
86
CONTROLLERS
87
Video Security System
CONTROLLERS
Video Security System
