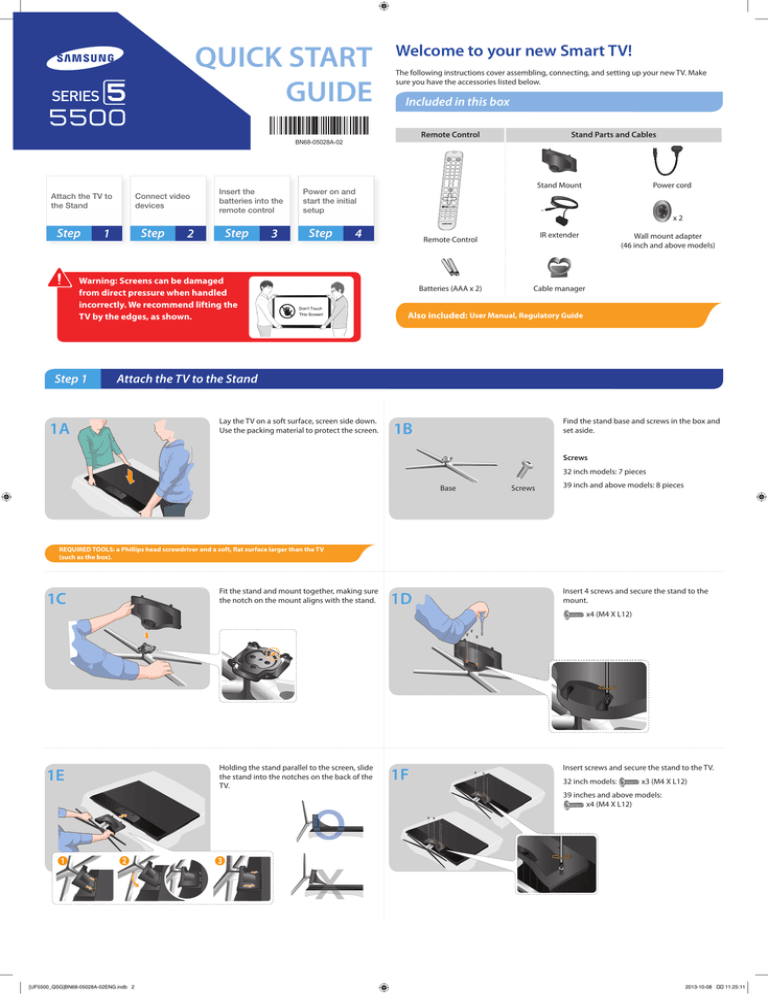

QUICK START
GUIDE
Welcome to your new Smart TV!
The following instructions cover assembling, connecting, and setting up your new TV. Make
sure you have the accessories listed below.
Included in this box
Remote Control
BN68-05028A-02
Attach the TV to
the Stand
Step
Connect video
devices
Step
1
2
Insert the
batteries into the
remote control
Step
3
Stand Mount
Power on and
start the initial
setup
Step
Power cord
x2
4
Warning: Screens can be damaged
from direct pressure when handled
incorrectly. We recommend lifting the
TV by the edges, as shown.
Step 1
Stand Parts and Cables
IR extender
Remote Control
Batteries (AAA x 2)
Wall mount adapter
(46 inch and above models)
Cable manager
Also included: User Manual, Regulatory Guide
Attach the TV to the Stand
Lay the TV on a soft surface, screen side down.
Use the packing material to protect the screen.
1A
Find the stand base and screws in the box and
set aside.
1B
Screws
32 inch models: 7 pieces
Base
Screws
39 inch and above models: 8 pieces
REQUIRED TOOLS: a Phillips head screwdriver and a soft, flat surface larger than the TV
(such as the box).
Fit the stand and mount together, making sure
the notch on the mount aligns with the stand.
1C
1D
Insert 4 screws and secure the stand to the
mount.
x4 (M4 X L12)
Holding the stand parallel to the screen, slide
the stand into the notches on the back of the
TV.
1E
1F
Insert screws and secure the stand to the TV.
32 inch models:
x3 (M4 X L12)
39 inches and above models:
x4 (M4 X L12)
1
2
[UF5500_QSG]BN68-05028A-02ENG.indb 2
3
2013-10-08 �� 11:25:11
Step 2
Connect video devices
We suggest using HDMI connections whenever possible for the best picture quality.
✎✎ Please check the shape of the plugs to avoid inserting them upside down.
✎✎ The appearance of your TV may differ from the images below, depending on the model.
Power Input
Plug in after you have made all other connections.
USB Connections
Wired Ethernet
You can connect USB storage devices
to the USB ports and enjoy personal
photos, videos, and music.
USB
(HDD 5V 1A)
USB
(TV CAMERA)
Good Connection : Component and AV
Best Connection : HDMI
We suggest using HDMI whenever
possible.
HDMI IN 2
COMPONENT
/ AV IN
HDMI IN 3
(DVI)
LAN
HDMI Port
HDMI IN 1
(STB)
Use the other ports for Blu-ray players,
game consoles, and other devices.
VIDEO
HDMI 1 is the default port for a cable
or satellite set-top box.
Match the colors on your device's cables to the colors
on the ports. Connect the yellow composite video out
connector from an AV device to the green AV IN port.
HDMI Cable
IR OUT
AUDIO OUT
DIGITAL
AUDIO OUT
(OPTICAL)
AV also accepts component video
connections (red/green/blue).
+
EX-LINK
AUDIO
ANT IN
AIR/CABLE
You can connect home theater systems to the
OPTICAL or AUDIO OUT ports.
Connect the cable from the antenna
or cable TV outlet.
or
Connect the IR extender to the IR Out
port to control external devices connected to the TV using the Smart Touch Control. For more detailed information, refer
to the "Universal Remote Control Setup"
section in the User manual.
Step 3
Insert the batteries into the remote control
Troubleshooting
The stand is wobbly or crooked
Make sure the arrows on the stand are properly aligned.
1
The TV won’t turn on
2
Make sure all cables are fully inserted, and that the remote has batteries installed.
3
I have extra parts
The TV includes some optional parts to help with wall mounting and cable routing.
If you experience issues, please do not take the TV back
to the store.
Step 4
In the United States of America, call us at
1-800-SAMSUNG (1-800-726-7864) or visit us at www.
samsung.com or www.samsung.com/spsn for support
and warranty service.
Power on and start the initial setup
Information required:
• Wi-Fi network password (if you use one)
• Zip code
• Cable or satellite provider info
Plug in the TV. Press the power button on the remote to turn on the TV and start the initial set-up.
✎✎ The TV must be connected to the Internet to use the Smart Features. If you have a wireless
network, confirm that your network router is working before you start the initial setup. If you
have a wired network, connect the TV to the network with a CAT 7 cable before you begin.
[UF5500_QSG]BN68-05028A-02ENG.indb 3
For other countries, refer to "Contact SAMSUNG
WORLDWIDE" in the user guide.
\
Congratulations on your new Smart TV!
2013-10-08 �� 11:25:14
