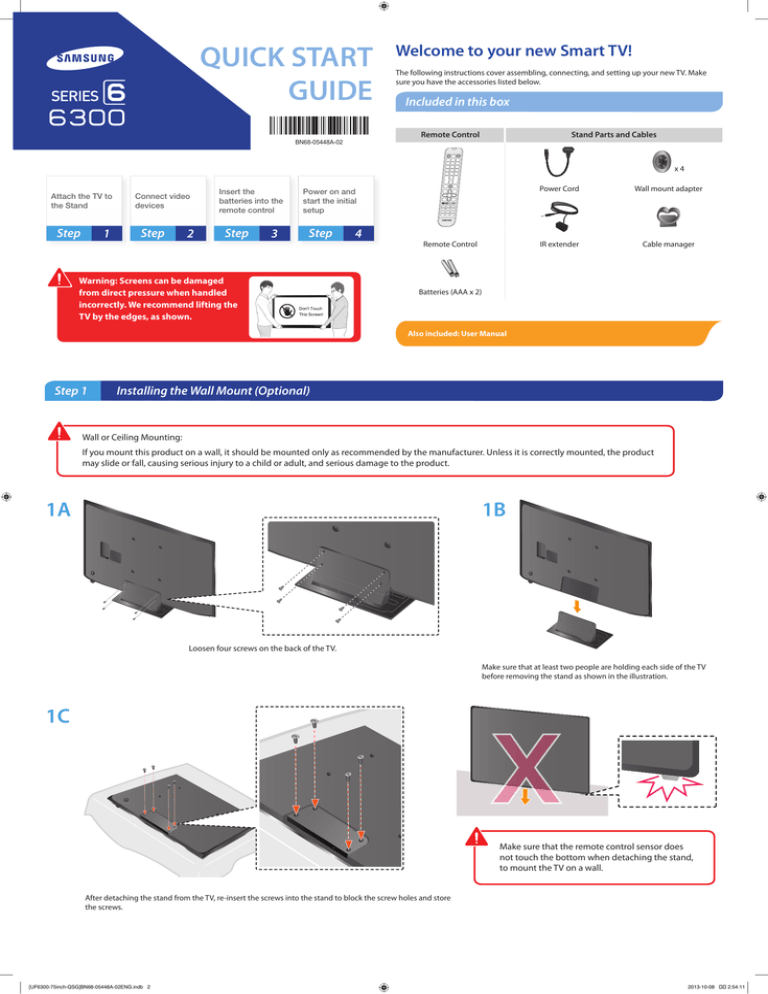

QUICK START
GUIDE
Welcome to your new Smart TV!
The following instructions cover assembling, connecting, and setting up your new TV. Make
sure you have the accessories listed below.
Included in this box
Remote Control
BN68-05448A-02
Stand Parts and Cables
x4
Attach the TV to
the Stand
Step
1
Connect video
devices
Step
2
Insert the
batteries into the
remote control
Step
3
Power on and
start the initial
setup
Step
Warning: Screens can be damaged
from direct pressure when handled
incorrectly. We recommend lifting the
TV by the edges, as shown.
4
Remote Control
Power Cord
Wall mount adapter
IR extender
Cable manager
Batteries (AAA x 2)
Also included: User Manual
Step 1
Installing the Wall Mount (Optional)
Wall or Ceiling Mounting:
If you mount this product on a wall, it should be mounted only as recommended by the manufacturer. Unless it is correctly mounted, the product
may slide or fall, causing serious injury to a child or adult, and serious damage to the product.
1A
1B
Loosen four screws on the back of the TV.
Make sure that at least two people are holding each side of the TV
before removing the stand as shown in the illustration.
1C
Make sure that the remote control sensor does
not touch the bottom when detaching the stand,
to mount the TV on a wall.
After detaching the stand from the TV, re-insert the screws into the stand to block the screw holes and store
the screws.
[UF6300-75inch-QSG]BN68-05448A-02ENG.indb 2
2013-10-08 �� 2:54:11
Step 2
Connect video devices
We suggest using HDMI connections whenever possible for the best picture quality.
✎✎ Please check the shape of the plugs to avoid inserting them upside down.
✎✎ The appearance of your TV may differ from the images below, depending on the model.
USB Connections
Power Input
You can connect USB storage devices to
the USB ports and enjoy personal photos,
videos, and music.
Plug in after you have made all other connections.
USB
(5V 0.5A)
Wired Ethernet
USB
(HDD 5V 1A)
Best Connection : HDMI
HDMI Cable
We suggest using HDMI whenever
possible.
USB
(TV CAMERA)
HDMI IN 3
COMPONENT
/ AV IN
HDMI IN 4
(DVI)
LAN
Use the other ports for Blu-ray players,
game consoles, and other devices.
VIDEO
HDMI 1 is the default port for a cable
or satellite set-top box.
HDMI Port
HDMI IN 2
(ARC)
IR OUT
DIGITAL
AUDIO OUT
(OPTICAL)
Good Connection : Component and AV
Match the colors on your device's cables to the colors
on the ports. Connect the yellow composite video out
connector from an AV device to the green AV IN port.
HDMI IN 1
(STB)
AUDIO OUT
EX-LINK
AUDIO
ANT IN
AIR/CABLE
Connect the IR extender to the IR
Out port to control external devices
connected to the TV using the Smart
Touch Control. For more detailed
information, refer to the "Universal
Remote Control Setup" section in the
User manual.
AV also accepts component video
connections (red/green/blue).
+
You can connect home theater systems to the
OPTICAL or AUDIO OUT ports.
or
Connect the cable from the
antenna or cable TV outlet.
Step 3
Using the Smart Touch Control
Troubleshooting
The stand is wobbly or crooked
Make sure the arrows on the stand are properly aligned.
The TV won’t turn on
1
2
Make sure all cables are fully inserted, and that the remote has batteries installed.
3
I have extra parts
The TV includes some optional parts to help with wall mounting and cable routing.
If you experience issues, please do not take the TV back
to the store.
Step 4
In the United States of America, call us at
1-800-SAMSUNG (1-800-726-7864) or visit us at www.
samsung.com or www.samsung.com/spsn for support
and warranty service.
Power on and start the initial setup
Information required:
• Wi-Fi network password (if you use one)
• Zip code
• Cable or satellite provider info
Plug in the TV. Press the power button on the remote to turn on the TV and start the initial set-up.
✎✎ The TV must be connected to the Internet to use the Smart Features. If you have a wireless
network, confirm that your network router is working before you start the initial setup. If you
have a wired network, connect the TV to the network with a CAT 7 cable before you begin.
[UF6300-75inch-QSG]BN68-05448A-02ENG.indb 3
For other countries, refer to "Contact SAMSUNG
WORLDWIDE" in the user guide.
\
Congratulations on your new Smart TV!
2013-10-08 �� 2:54:15
