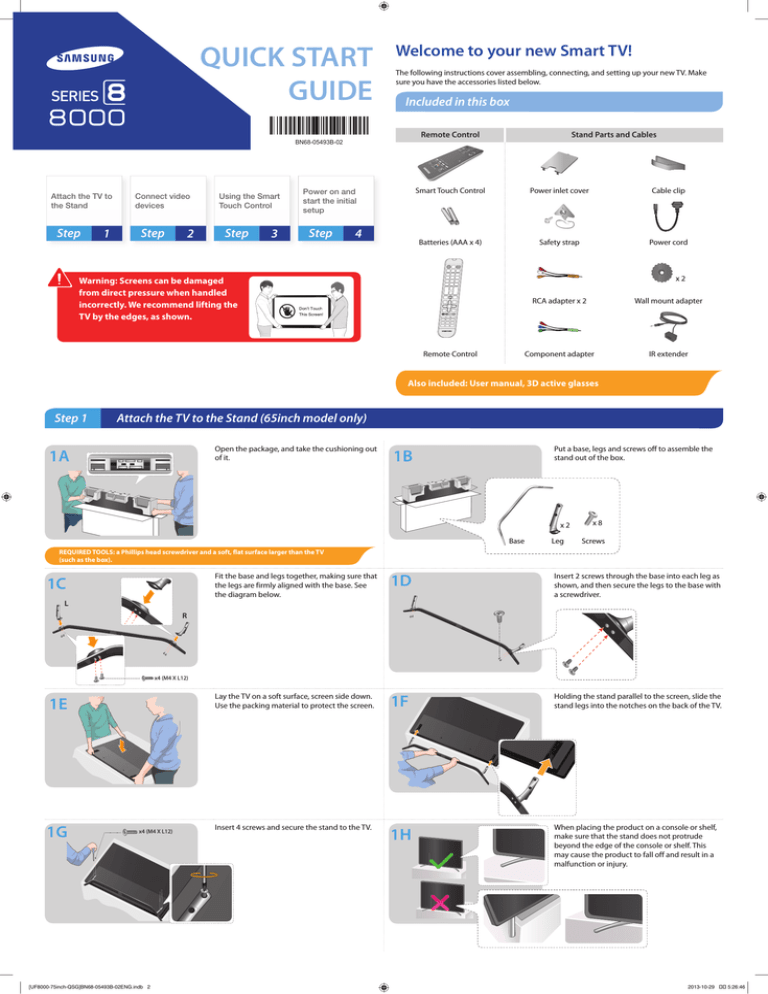

QUICK START
GUIDE
Welcome to your new Smart TV!
The following instructions cover assembling, connecting, and setting up your new TV. Make
sure you have the accessories listed below.
Included in this box
Remote Control
BN68-05493B-02
Attach the TV to
the Stand
Step
1
Connect video
devices
Step
2
Using the Smart
Touch Control
Step
3
Power on and
start the initial
setup
Step
4
Stand Parts and Cables
Smart Touch Control
Power inlet cover
Cable clip
Batteries (AAA x 4)
Safety strap
Power cord
x2
Warning: Screens can be damaged
from direct pressure when handled
incorrectly. We recommend lifting the
TV by the edges, as shown.
Remote Control
RCA adapter x 2
Wall mount adapter
Component adapter
IR extender
Also included: User manual, 3D active glasses
Step 1
Attach the TV to the Stand (65inch model only)
Open the package, and take the cushioning out
of it.
1A
Put a base, legs and screws off to assemble the
stand out of the box.
1B
x2
Base
Leg
x8
Screws
REQUIRED TOOLS: a Phillips head screwdriver and a soft, flat surface larger than the TV
(such as the box).
1C
L
Fit the base and legs together, making sure that
the legs are firmly aligned with the base. See
the diagram below.
1D
Insert 2 screws through the base into each leg as
shown, and then secure the legs to the base with
a screwdriver.
Lay the TV on a soft surface, screen side down.
Use the packing material to protect the screen.
1F
Holding the stand parallel to the screen, slide the
stand legs into the notches on the back of the TV.
Insert 4 screws and secure the stand to the TV.
1H
When placing the product on a console or shelf,
make sure that the stand does not protrude
beyond the edge of the console or shelf. This
may cause the product to fall off and result in a
malfunction or injury.
R
x4 (M4 X L12)
1E
1G
x4 (M4 X L12)
[UF8000-75inch-QSG]BN68-05493B-02ENG.indb 2
2013-10-29 �� 5:26:46
Step 2
Connect video devices
We suggest using HDMI connections whenever possible for the best picture quality. Use the included AV adapters to connect older devices.
✎✎ Please check the shape of the plugs to avoid inserting them upside down.
✎✎ The appearance of your TV may differ from the images below, depending on the model.
TV Camera
Press the camera down to activate it. The camera enables voice recognition and motion
control for your TV.
Use the Scroll wheel on the back of the camera to adjust the camera's angle.
Remove the Connection Cover
Scroll wheel for
camera angle
adjustment
USB Connections
You can connect USB storage devices
to the USB ports and enjoy personal
photos, videos, and music.
Power Input
Plug in after you have made all other connections.
You can connect home theater systems to the OPTICAL or
AUDIO OUT ports.
Good Connection:
Component (Y, PB, PR) or AV (Composite)
USB
(5V 0.5A)
Match the colors on your device's cables to the colors on the
device's out ports. Connect the device's cables to the included
adapters, and then connect the adapters to the appropriate
ports on the TV as shown in the table below. Make sure the
colors match. The Component connection is shown on the top.
The AV connection is shown on the bottom.
USB
(5V 0.5A)
USB
(HDD 5V 1A)
or
DIGITAL
AUDIO OUT
(OPTICAL)
AV IN 1
Audio (L/R)
COMPONENT IN
Video
AUDIO
OUT
Best Connection : HDMI
Wired Ethernet
HDMI Cable
EX-LINK
We suggest using HDMI whenever
possible.
Audio (L/R)
AV IN 2
HDMI 1 is the default port for a cable
or satellite set-top box.
Video
HDMI IN 4
(MHL)
HDMI Port
IR OUT
Use the other ports for Blu-ray
players, game consoles, and other
devices.
HDMI IN 1
(STB)
HDMI IN 2
(DVI)
HDMI IN 3
(ARC)
ANT IN
AIR/CABLE
LAN
Connect the cable from
the antenna or cable
TV outlet.
Connect the IR extender to the IR Out
port to control external devices connected to the TV using the Smart Touch Control. For more detailed information, refer
to the "Universal Remote Control Setup"
section in the User manual.
Step 3
Using the Smart Touch Control
Step 4
Power on and start the initial setup
Information required:
Insert the batteries into the Smart Touch Control
Insert the tip of a credit card or similar item into the notch on the side of the Smart Touch Control,
and then twist the card to open and remove the remote's back cover.
• Wi-Fi network password (if you use one)
• Zip code
• Cable or satellite provider info
Plug in the TV. Press the power button on the remote to turn on the TV and start the initial setup.
✎✎ The TV must be connected to the Internet to use the Smart Features. If you have a wireless
network, confirm that your network router is working before you start the initial setup. If
you have a wired network, connect the TV to the network with a CAT 7 cable before you
begin.
Troubleshooting
The stand is wobbly or crooked
✎✎ The notch's location may vary depending on the type of Smart Touch Control provided.
Make sure the stand is properly assembled.
Using the touch pad
The TV won’t turn on
navigation
selection
scrolling
Make sure all cables are fully inserted, and that the remote has batteries installed.
I don’t know where to plug in <device>
Devices without HDMI may require the included A/V adapter.
I have extra parts
The TV includes some optional parts to help with wall mounting and cable routing.
To control the highlight, move
your thumb across the pad.
To select an item, press the
pad until you hear a click.
Move your thumb along the
ridges to quickly scroll through
items.
Pairing the Smart Touch Control
If you need to reestablish the connection between the TV and the Smart Touch Control, press the
pairing button at the back of the Smart Touch Control, pointing at the remote control sensor of the
TV.
Congratulations on your new Smart TV!
[UF8000-75inch-QSG]BN68-05493B-02ENG.indb 3
If you experience issues, please do not take the TV
back to the store.
In the United States of America, call us at
1-800-SAMSUNG (1-800-726-7864) or visit us at www.
samsung.com or www.samsung.com/spsn for support
and warranty service.
For other countries, refer to "Contact SAMSUNG
WORLDWIDE" in the user guide.
2013-10-29 �� 5:26:53
