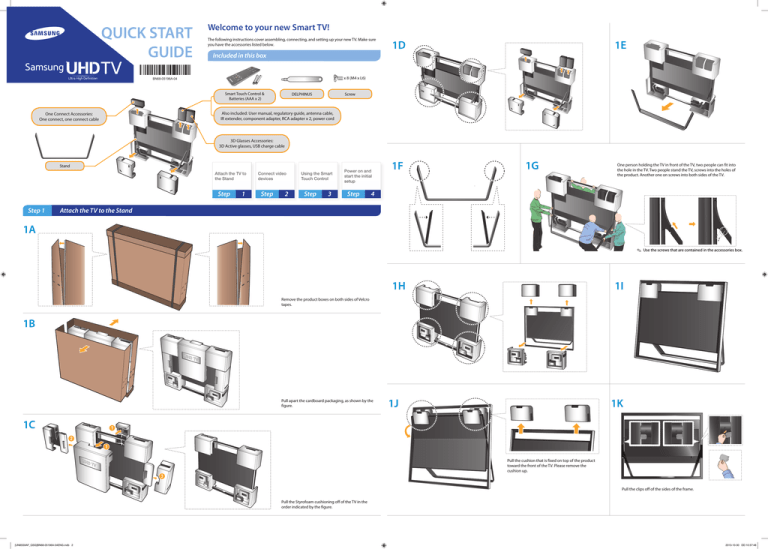

QUICK START
GUIDE
Welcome to your new Smart TV!
The following instructions cover assembling, connecting, and setting up your new TV. Make sure
you have the accessories listed below.
Included in this box
1E
x 8 (M4 x L6)
BN68-05196A-04
Smart Touch Control &
Batteries (AAA x 2)
One Connect Accessories:
One connect, one connect cable
1D
DELPHINUS
Screw
Also included: User manual, regulatory guide, antenna cable,
IR extender, component adapter, RCA adapter x 2, power cord
3D Glasses Accessories:
3D Active glasses, USB charge cable
Stand
Attach the TV to
the Stand
Step
Step 1
1
Connect video
devices
Step
2
Using the Smart
Touch Control
Step
3
Power on and
start the initial
setup
Step
1F
1G
One person holding the TV in front of the TV, two people can fit into
the hole in the TV. Two people stand the TV, screws into the holes of
the product. Another one on screws into both sides of the TV.
4
Attach the TV to the Stand
1A
✎✎ Use the screws that are contained in the accessories box.
1H
1I
Remove the product boxes on both sides of Velcro
tapes.
1B
Pull apart the cardboard packaging, as shown by the
figure.
1J
1K
1C
Pull the cushion that is fixed on top of the product
toward the front of the TV. Please remove the
cushion up.
Pull the clips off of the sides of the frame.
Pull the Styrofoam cushioning off of the TV in the
order indicated by the figure.
[UN85S9AF_QSG]BN68-05196A-04ENG.indb 2
2013-10-30 �� 10:57:48
1L
1M
The connectors at both ends of the One Connect cable are different
from each other in shape. When connecting the One Connect cable
to the TV, make sure that the right connector is plugged into the TV.
Otherwise, it may cause product failure.
One Connect
Step 2
Connect video devices
We suggest using HDMI connections whenever possible for the best picture quality. Use the included AV adapter to connect older devices.
✎✎ Please check the shape of the plugs to avoid inserting them upside down.
✎✎ The appearance of your TV may differ from the images below, depending on the model.
You can connect home theater systems to the
OPTICAL or AUDIO OUT ports.
Best Connection : HDMI
Wired Ethernet
HDMI Cable
We suggest using HDMI whenever
possible.
HDMI 1 is the default port for a cable
or satellite set-top box.
or
1N
<One Connect-end Connector>
USB Connections
You can connect USB storage devices
to the USB ports and enjoy personal
photos, videos, and music.
Use the other ports for Blu-ray
players, game consoles, and other
devices.
Connect the cable
from the antenna or
cable TV outlet.
Remove the stickers from the top and bottom of TV.
HDMI Port
<TV-end Connector>
1O
Good Connection: Component (Y, PB, PR) or AV (Composite)
Connect One Connect to the TV, and then turn on the TV.
Installation Height & Angle Adjustment
1. Using the provided Delphinus, unlock the frame lock on either side of the product's rear middle
as shown.
3. When adjusting the height of the TV, make sure the frame ends up in the designated position.
Match the colors on your device's cables to the colors on the device's out ports.
Connect the device's cables to the included adapters, and then connect the adapters
to the appropriate ports on the TV as shown in the table below. Make sure the colors
match. The Component connection is shown on the top. The AV connection is shown
on the bottom.
Connect the IR extender to the
IR Out port to control external
devices connected to the TV
using the Smart Touch Control.
For more detailed information,
refer to the "Universal Remote
Control Setup" section in the
User manual.
AV IN 1
Audio (L/R)
COMPONENT IN
Video
Audio (L/R)
AV IN 2
Step 3
Using the Smart Touch Control
Step 4
Information required:
Insert the tip of a credit card or similar item into the notch on the side of the Smart Touch Control,
and then twist the card to open and remove the remote's back cover.
• Wi-Fi network password (if you use one)
• Zip code
• Cable or satellite provider info
Plug in the TV. Press the power button on the remote to turn on the TV and start the initial set-up.
✎✎ The TV must be connected to the Internet to use the Smart Features. If you have a wireless
network, confirm that your network router is working before you start the initial setup. If you
have a wired network, connect the TV to the network with a CAT 7 cable before you begin.
5. Grab the middle part of the top or bottom edge of the product and push or pull to adjust the TV
angle.
✎✎ Adjustable angles
<TV Screen Unlock>
Troubleshooting
Front angle:
•• When installing the TV, the maximum height is: 2.7 ± 1.0°
✎✎ The notch’s location may vary depending on the type of Smart Touch Control provided.
•• When installing the TV to the minimum height: 7.7 ± 1.0°
Using the touch pad
Rear angle: 9.5 ± 1.0°
Power on and start the initial setup
Insert the batteries into the Smart Touch Control
4. Use the DELPHINUS (included) to tighten the locking devices attached to the frame on both sides
and secure the TV in place.
<TV Screen Lock>
Video
navigation
The stand is wobbly or crooked
Make sure the arrows on the stand are properly aligned.
selection
scrolling
2. Refer to the diagram and adjust the height of the TV.
The TV won’t turn on
Make sure all cables are fully inserted, and that the remote has batteries installed.
I don’t know where to plug in <device>
Devices without HDMI may require the included A/V adapter.
I have extra parts
The TV includes some optional parts to help with wall mounting and cable routing.
To control the highlight, move
your thumb across the pad.
To select an item, press the
pad until you hear a click.
Move your thumb along the
ridges to quickly scroll through
items.
Pairing the Smart Touch Control
<Diagram 1> Pull the product up slowly while
holding it at the bottom center.
<Diagram 2> Push the product down slowly
while holding it at the top center.
]]When moving the product, make sure there are no small children nearby. In addition, the
]]When adjusting the TV angle, make sure there are no small children nearby. In addition, the
improper handling of the product may result in injury.
If you need to reestablish the connection between the TV and the Smart Touch Control, press the
pairing button at the back of the Smart Touch Control, pointing at the remote control sensor of
the TV.
Congratulations on your new Smart TV!
If you experience issues, please do not take the TV back
to the store.
In the United States of America, call us at
1-800-SAMSUNG (1-800-726-7864) or visit us at www.
samsung.com or www.samsung.com/spsn for support
and warranty service.
For other countries, refer to "Contact SAMSUNG
WORLDWIDE" in the user guide.
improper handling of the product may result in injury.
