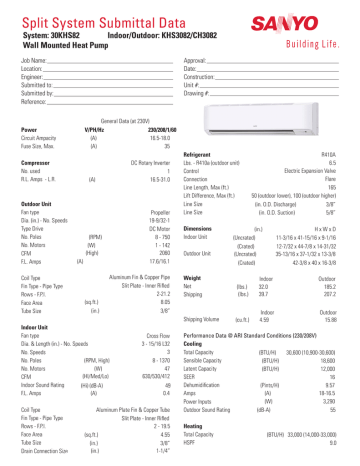

Split System Submittal Data
System: 30KHS82
Indoor/Outdoor: KHS3082/CH3082
Wall Mounted Heat Pump
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit #:
Drawing #:
General Data (at 230V)
V/PH/Hz
230/208/1/60
(A)
16.5-18.0
(A)
35
Power
Circuit Ampacity
Fuse Size, Max.
Compressor
No. used
R.L. Amps - L.R.
Outdoor Unit
Fan type
Dia. (in.) - No. Speeds
Type Drive
No. Poles
No. Motors
CFM
F.L. Amps
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area
Tube Size
DC Rotary Inverter
1
16.5-31.0
(A)
Propeller
19-9/32-1
DC Motor
8 - 750
1 - 142
2060
17.6/16.1
(RPM)
(W)
(High)
(A)
(sq.ft.)
(in.)
Aluminum Fin & Copper Pipe
Slit Plate - Inner Rifled
2-21.2
8.05
3/8”
Indoor Unit
Fan type
Dia. & Length (in.) - No. Speeds
No. Speeds
(RPM, High)
No. Poles
(W)
No. Motors
(HI/Med/Lo)
CFM
Indoor Sound Rating
(Hi) (dB-A)
(A)
F.L. Amps
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area
Tube Size
Drain Connection Size
Cross Flow
3 - 15/16 L32
3
8 - 1370
47
630/530/412
49
0.4
Aluminum Plate Fin & Copper Tube
Slit Plate - Inner Rifled
2 - 19.5
(sq.ft.)
4.55
(in.)
3/8”
(in.)
1-1/4”
Refrigerant
Lbs. - R410a (outdoor unit)
Control
Connection
Line Length, Max (ft.)
Lift Difference, Max (ft.)
Line Size
Line Size
Dimensions
Indoor Unit
Outdoor Unit
R410A
6.5
Electric Expansion Valve
Flare
165
50 (outdoor lower), 100 (outdoor higher)
(in. O.D. Discharge)
3/8”
(in. O.D. Suction)
5/8”
(in.)
(Uncrated)
(Crated)
(Uncrated)
(Crated)
HxWxD
11-3/16 x 41-15/16 x 9-1/16
12-7/32 x 44-7/8 x 14-31/32
35-13/16 x 37-1/32 x 13-3/8
42-3/8 x 40 x 16-3/8
Weight
Net
Shipping
(lbs.)
(lbs.)
Indoor
32.0
39.7
Outdoor
185.2
207.2
Shipping Volume
(cu.ft.)
Indoor
4.59
Outdoor
15.88
Performance Data @ ARI Standard Conditions (230/208V)
Cooling
Total Capacity
(BTU/H)
30,600 (10,900-30,600)
Sensible Capacity
(BTU/H)
18,600
Latent Capacity
(BTU/H)
12,000
SEER
16
Dehumidification
(Pints/H)
9.57
(A)
18-16.5
Amps
(W)
3,290
Power Inputs
Outdoor Sound Rating
(dB-A)
55
Heating
Total Capacity
HSPF
(BTU/H) 33,000 (14,000-33,000)
9.0
Dimensions
Heating
Amps
Max. Amps
Power Inputs
Outdoor Sounds Rating
Features
Controls
Remote Controller
Temperature Control
Timer
Night Setback
Air Louver
(A)
(A)
(W)
(dB-A)
Options
15.3/16.8 Refrigerant Line Set
15.3/16.8 Fresh Air Intake
3,070/3,070 Airduct Extension
55 Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con Bracket
Microprocessor
LCD Wireless Type, Temp. Sensor Built In
IC Thermostat
24 Hr. Program
Built-In
(Horizontal)
Manual
(Vertical)
AutomaticBuilt-In
Power Failure Automatic Restart
Heating/Cooling Automatic Changeover
Built-In
Self-Diagnosis
Built-In
Air Filter
Washable, Anti-Mold
Sanyo Commercial Solutions
A Division of SANYO North America
1300 Michael Drive
Wood Dale, IL 60191 USA
www.sanyohvac.com
Available
N/A
N/A
N/A
Available
Available
Operating Range
Indoor Air Intake Temp.
Outdoor Air Intake Temp.
Cooling
Maximum
Minimum
95F DB/71F WB
67F DB/57F WB
115F DB
0F DB
Indoor Air Intake Temp.
Outdoor Air Intake Temp.
Heating
Maximum
Minimum
80F DB/67F WB
-DB/-WB
75F DB/65F WB
0F WB
