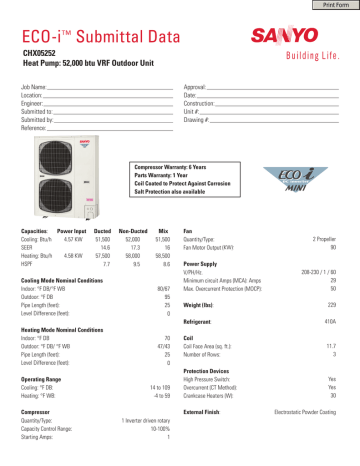

ECO-i™ Submittal Data
CHX05252
Heat Pump: 52,000 btu VRF Outdoor Unit
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit #:
Drawing #:
Compressor Warranty: 6 Years
Parts Warranty: 1 Year
Coil Coated to Protect Against Corrosion
Salt Protection also available
Capacities:
Power Input
4.57 KW
Cooling: Btu/h
SEER
Heating: Btu/h
4.58 KW
HSPF
Ducted
51,500
14.6
57,500
7.7
Cooling Mode Nominal Conditions
Indoor: °F DB/°F WB
Outdoor: °F DB
Pipe Length (feet):
Level Difference (feet):
Heating Mode Nominal Conditions
Indoor: °F DB
Outdoor: °F DB/ °F WB
Pipe Length (feet):
Level Difference (feet):
Operating Range
Cooling: °F DB:
Heating: °F WB:
Compressor
Quantity/Type:
Capacity Control Range:
Starting Amps:
Non-Ducted
52,000
17.3
58,000
9.5
Mix
51,500
16
58,500
8.6
80/67
95
25
0
70
47/43
25
0
14 to 109
-4 to 59
Fan
Quantity/Type:
Fan Motor Output (KW):
Power Supply
V/PH/Hz.
Minimum circuit Amps (MCA): Amps
Max. Overcurrent Protection (MOCP):
208-230 / 1 / 60
29
50
Weight (lbs):
229
Refrigerant:
410A
Coil
Coil Face Area (sq. ft.):
Number of Rows:
11.7
3
Protection Devices
High Pressure Switch:
Overcurrent (CT Method):
Crankcase Heaters (W):
Yes
Yes
30
External Finish:
1 Inverter driven rotary
10-100%
1
2 Propeller
90
Electrostatic Powder Coating
