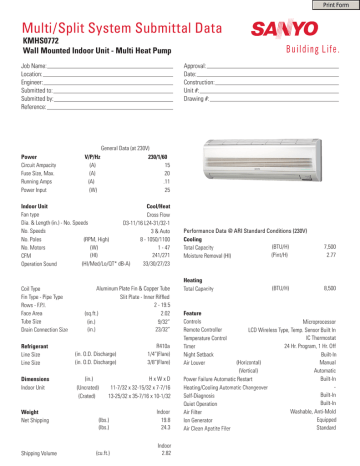

Multi/Split System Submittal Data
KMHS0772
Wall Mounted Indoor Unit - Multi Heat Pump
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Power
Circuit Ampacity
Fuse Size, Max.
Running Amps
Power Input
Approval:
Date:
Construction:
Unit #:
Drawing #:
General Data (at 230V)
V/P/Hz
230/1/60
(A)
15
(A)
20
(A)
.11
(W)
25
Indoor Unit
Cool/Heat
Fan type
Cross Flow
Dia. & Length (in.) - No. Speeds
D3-11/16 L24-31/32-1
No. Speeds
3 & Auto
No. Poles
(RPM, High)
8 - 1050/1100
No. Motors
(W)
1 - 47
(HI)
241/271
CFM
(HI/Med/Lo/QT* dB-A)
33/30/27/23
Operation Sound
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area
Tube Size
Drain Connection Size
Refrigerant
Line Size
Line Size
Dimensions
Indoor Unit
Weight
Net Shipping
Shipping Volume
Aluminum Plate Fin & Copper Tube
Slit Plate - Inner Riffed
2 - 19.5
(sq.ft.)
2.02
(in.)
9/32”
(in.)
23/32”
(in. O.D. Discharge)
(in. O.D. Discharge)
(in.)
(Uncrated)
(Crated)
R410a
1/4”(Flare)
3/8”(Flare)
HxWxD
11-7/32 x 32-15/32 x 7-7/16
13-25/32 x 35-7/16 x 10-1/32
(lbs.)
(lbs.)
Indoor
19.8
24.3
(cu.ft.)
Indoor
2.82
Performance Data @ ARI Standard Conditions (230V)
Cooling
(BTU/H)
Total Capacity
(Pint/H)
Moisture Removal (HI)
7,500
2.77
Heating
Total Capacity
8,500
Feature
Controls
Remote Controller
Temperature Control
Timer
Night Setback
Air Louver
(BTU/H)
Microprocessor
LCD Wireless Type, Temp. Sensor Built In
IC Thermostat
24 Hr. Program, 1 Hr. Off
Built-In
(Horizontal)
Manual
(Vertical)
Automatic
Built-In
Power Failure Automatic Restart
Heating/Cooling Automatic Changeover
Built-In
Self-Diagnosis
Built-In
Quiet Operation
Washable,
Anti-Mold
Air Filter
Equipped
Ion Generator
Standard
Air Clean Apatite Filer
Dimensions
Option
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con Bracket
Available
N/A
N/A
N/A
Available
Available
Operating Range
Indoor Air Intake Temp.
Cooling
Maximum
(CMH Model)
Minimum
Heating
Maximum
(CMH Model)
Minimum
Outdoor Air Intake Temp.
95F DB/71F WB
67F DB/57F WB
115F DB
67F DB
80F DB/67F WB
-DB/-WB
75F DB/65F WB
0 DB
