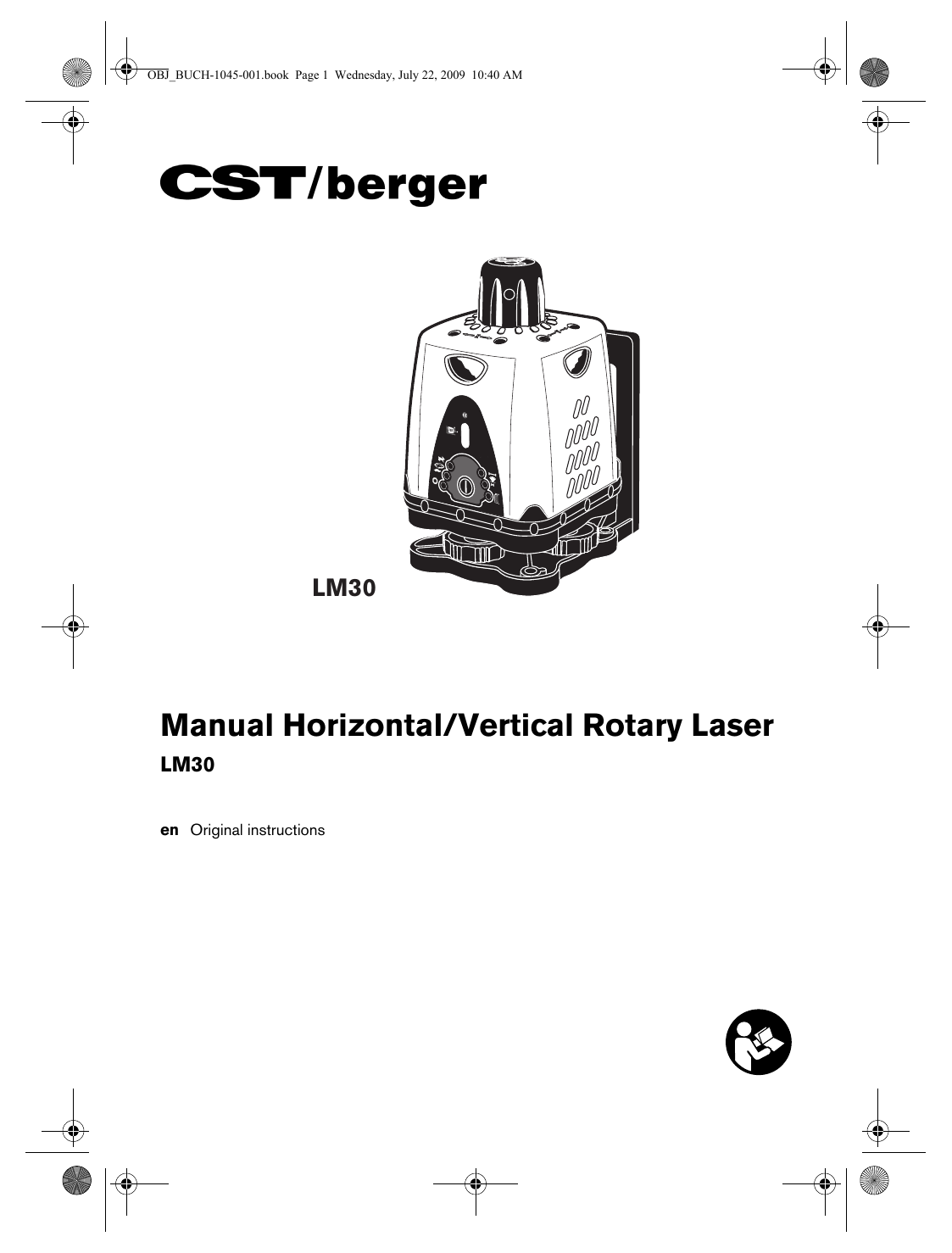

LM30

Manual Horizontal/Vertical Rotary Laser

LM30

en Original instructions

2

OBJ_BUCH-1045-001.book Page 2 Wednesday, July 22, 2009 10:40 AM

18

17

16

15

11

12

13

14

9

10

2

8

1

2

3

LM30

4

7

5

6

5

19

20

21

22

2 610 A12 214 • 22.7.09

OBJ_BUCH-1045-001.book Page 3 Wednesday, July 22, 2009 10:40 AM

A

23

24

25

26

27

B

C

2 610 A12 214 • 22.7.09

3

4

OBJ_BUCH-1045-001.book Page 4 Wednesday, July 22, 2009 10:40 AM

34

30

31

32

33

28

29

RC30

2 610 A12 214 • 22.7.09

OBJ_BUCH-1045-001.book Page 5 Wednesday, July 22, 2009 10:40 AM

Rotational Laser Level

Safety Notes

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE THESE INSTRUC-

TIONS.

f Caution – The use of other operating or

adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure.

f The measuring tool is provided with a warn-

ing label in English (marked with number 19 in the representation of the measuring tool on the graphics pages).

Keep the laser target plate 24 away from cardiac pacemakers.

The magnets on the laser target plate generate a field that can impair the function of cardiac pacemakers.

f Keep the laser target plate 24 away from mag-

netic data medium and magnetically-sensi-

tive equipment. The effect of the magnets on the laser target plate can lead to irreversible data loss.

Functional Description

Intended Use

The measuring tool is intended for determining and checking precise horizontal partitions, vertical lines, building lines and plumb points.

The measuring tool is suitable for indoor and outdoor use.

f Do not direct the laser beam at persons or

animals and do not stare into the laser beam

yourself. This measuring tool produces laser class 2M laser radiation according to

IEC 60825-1. Looking or viewing directly into the laser beam – especially with optical instruments such as binoculars etc. – can damage the eye.

f Do not use the laser viewing glasses as

safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.

f Do not use the laser viewing glasses as sun

glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

f Have the measuring tool repaired only

through qualified specialists using original

spare parts. This ensures that the safety of the measuring tool is maintained.

f Do not allow children to use the laser meas-

uring tool without supervision. They could unintentionally blind other persons or themselves.

f Do not operate the measuring tool in explo-

sive environments, such as in the presence

of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

1 Plumb beam

2 Exit opening for laser beam

3 Rotation head

4 Spirit level for alignment of the Y-axis in horizontal position

5 Tripod mount 5/8"

6 Levelling screw for alignment of the X-axis

7 Levelling screw for alignment of the Y-axis

8 Spirit level for alignment in vertical position

9 Spirit level for alignment of the X-axis in horizontal position

10 Variable laser beam

11 Reception lens for remote control

12 Indicator for line operation with large aperture angle

13 Indicator for line operation with small aperture angle

14 Battery low indicator

15 On/Off and function-mode button

16 Indicator for point operation

17 Indicator for rotational operation with low rotational speed

18 Indicator for rotational operation with high rotational speed

2 610 A12 214 • 22.7.09

English | 5

OBJ_BUCH-1045-001.book Page 6 Wednesday, July 22, 2009 10:40 AM

19 Laser warning label

20 Serial number

21 Screw for battery lid

22 Battery lid of the rotational laser level

23 Laser viewing glasses*

24 Laser target plate

25 Laser receiver

26 Wall holder/alignment unit*

27 Remote control

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Rotational Laser Level

Article number

Plumb beam

Point Operation

Line Operation

Working range (radius) with laser receiver, approx.

1)

Levelling accuracy

1) 2)

– in horizontal position

– in vertical position

Levelling accuracy of the spirit level

– in horizontal position

– in vertical position

Rotational speed

Operating temperature

Relative air humidity, max.

Laser class

Laser type

Laser beam Ø at the exit opening, approx.

1)

Tripod mount

(horizontal and vertical)

Batteries (alkali-manganese)

Rechargeable batteries

Operating life time, approx.

– Batteries (alkali-manganese)

– Rechargeable batteries

Weight according to

EPTA-Procedure 01/2003

Dimensions

1) at 20 °C

F 034 K61 07B z

–

LM30

z z

240 m

±0.2 mm/m

±0.2 mm/m

±8"

±15"

150/600 min

-1

6 ... +49 °C

90 %

2M

635 nm, <1 mW

5 mm

5/8"

4 x 1.5 V LR14 (C)

4 x 1.2 V HR14 (C)

60 h

48 h

1.1 kg

130 x 107 x 180 mm

2) alongside the axes

Please observe the article number on the type plate of your measuring tool. The trade names of the individual measuring tools may vary.

The measuring tool can be clearly identified with the serial number 20 on the type plate.

Noise Information

Measured values determined according to EN 60745.

Typically the A-weighted sound pressure level of the measuring tool is less than 70 dB(A).

Declaration of Conformity

We declare under our sole responsibility, that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60825-1 according to the provisions of the directives 2006/95/EC, 2004/108/EC,

98/37/EC (until 28 Dec 2009), 2006/42/EC (from

29 Dec 2009).

Technical file at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Leinfelden, 14.07.2009

Assembly

Inserting/Replacing the Battery

(see figure A)

Using alkali-manganese or rechargeable batteries is recommended for operation of the measuring tool.

The measuring tool is provided with batteries inserted.

Before putting into operation for the first time, remove the safety strip in the battery compartment (“Remove before Use”).

When the battery low indicator 14 lights up, the batteries/rechargeable batteries must be replaced.

To open the battery lid 22, loosen screw 21 and remove the battery lid.

When changing the batteries/rechargeable batteries, pay attention to the correct polarity according to the representation on the outside of the battery lid.

Replace all batteries/rechargeable batteries at the same time. Do not use different brands or types of batteries/rechargeable batteries together.

6 | English

2 610 A12 214 • 22.7.09

OBJ_BUCH-1045-001.book Page 7 Wednesday, July 22, 2009 10:40 AM

Mount the battery lid 22 again and tighten it with screw 21.

f Remove the batteries/rechargeable batter-

ies from the measuring tool when not using

it for longer periods. When storing for longer periods, the batteries/rechargeable batteries can corrode and discharge themselves.

Operation

Initial Operation

f Protect the measuring tool against moisture

and direct sun light.

f Do not subject the measuring tool to

extreme temperatures or variations in tem-

perature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.

f Avoid heavy impact to or falling down of the

measuring tool. After severe exterior effects to the measuring tool, it is recommended to carry out an accuracy check (see “Accuracy Check of the

Measuring Tool”, page 8) each time before continuing to work.

Setting Up/Aligning the Measuring Tool

Horizontal position

Note: Precise levelling work is only possible with exactly centred spirit levels. While working, periodically check if the air bubbles are still centred in the respective spirit levels.

If the air bubble in a spirit level should not move when turning the levelling screws, lightly tap your finger against the measuring tool above the spirit level to free the air bubble.

Switching On and Off

f Do not point the laser beam at persons or

animals and do not look into the laser beam yourself, not even from a large distance.

f Do not leave the switched on measuring tool

unattended and switch the measuring tool

off after use. Other persons could be blinded by the laser beam.

To switch on the measuring tool, press button 15.

Immediately after switching on, the measuring tool sends out the variable laser beam 10 and the plumb beam 1. The measuring tool starts in rotational operation with high rotational speed.

To switch off the measuring tool, press button 15 until all indicators and the laser beams go out.

Operating Modes

Overview

All three operating modes are possible with the measuring tool in horizontal and vertical position.

Rotational Operation

Rotational operation is especially recommended when using the laser receiver. You can select between different rotational speeds.

Vertical position

Position the measuring tool on a firm surface in the horizontal or vertical position, mount it to a tripod or to the wall mount 26 with alignment unit.

The course of the X- and Y-axis on the measuring tool are marked on the housing next to the rotation head 3.

Horizontal position: Align the measuring tool in the

X-axis by turning levelling screw 6 so that the air bubble of spirit level 9 for the X-axis is exactly centred.

Then align the measuring tool in the Y-axis by turning levelling screw 7 so that the air bubble of spirit level 4 for the Y-axis is exactly centred.

Vertical position: Align the measuring tool by turning levelling screw 7 so that the air bubble of spirit level 8 for the vertical position is exactly centred.

Line Operation

In this operation mode, the variable laser beam moves within a limited aperture angle. This increases the visibility of the laser beam in comparison to rotational operation. You can select between different aperture angles.

Point Operation

This operation mode enables the best visibility of the variable laser beam. As an example, it is used for easy projecting of heights or checking building lines.

2 610 A12 214 • 22.7.09

English | 7

OBJ_BUCH-1045-001.book Page 8 Wednesday, July 22, 2009 10:40 AM

Rotational Operation (600/150 min

-1

)

For rotational operation with high rotational speed, press button 15 until indicator 18 lights up.

For rotational operation with low rotational speed, press button 15 until indicator 17 lights up.

When working with the laser receiver, the highest rotational speed should be set. When working without laser receiver, reduce the rotational speed for improved visibility of the laser beam and use the laser viewing glasses 23.

Point Operation

For point operation, press button 15 until indicator 16 lights up.

Line Operation (45°/22°)

For rotational operation with large aperture angle, press button 15 until indicator 12 lights up.

For rotational operation with small aperture angle, press button 15 until indicator 13 lights up.

Note: Due to inertia, it is possible for the laser to slightly move beyond the end point of the laser line.

Rotating the Laser Point/Laser Line in the Rotational Plane

To direct the laser point or the laser line onto a desired location, rotate the rotation head 3 manually or with the remote control 27 to the desired position.

For manual rotating in line operation, briefly hold the rotation head 3 tight until the rotation is stopped, and then turn it to the desired position.

Checking the Levelling Accuracy in the Horizontal Position

A free measuring distance of 30 m on a firm surface in front of a wall is required for the check. A complete measuring procedure each must be carried out for the

X- and Y-axis.

– Mount the measuring tool in the horizontal position onto a tripod or place it on a firm and level surface at a distance of 30 m to the wall. Align the measuring tool accurately with the spirit levels and then switch it on again.

30 m

– Mark the centre of the laser beam on the wall

(point I).

180˚

Accuracy Check of the Measuring Tool

Influences on Accuracy

After the precise spirit level centring, the ambient temperature has the largest influence on the accuracy.

Especially temperature differences occurring from the ground upward can deflect the laser beam.

The deviations play a role in excess of approx. 20 m measuring distance and can easily reach two to four times the deviation at 100 m.

Because the largest difference in temperature layers is close to the ground, the measuring tool should always be mounted on a tripod when measuring distances exceeding 20 m. If possible, also set up the measuring tool in the centre of the work area.

Apart from exterior influences, device-specific influences (such as heavy impact or falling down) can lead to deviations. Therefore, check the accuracy of the measuring tool each time before starting your work.

To check the accuracy, select rotational operation and, if required, use the laser receiver to mark the centre of the rotating laser beam.

Should the measuring tool exceed the maximum deviation during one of the tests, please have it repaired by a Bosch after-sales service.

8 | English

– Rotate the measuring tool by 180°, re-align it accurately with the spirit levels and mark the centre point of the laser beam on the wall (point II).

Take care that point II is as vertical as possible above or below point I.

– The difference d of both marked points I and II on the wall results in the actual height deviation of the measuring tool for the measured axis.

Repeat the measuring procedure for the other axis.

For this, turn the measuring tool by 90° before starting the measuring procedure.

On the measuring distance of 2 x 30 m = 60 m, the maximum allowable deviation is:

60 m x ±0.2 mm/m = ±12 mm.

Consequently, the difference d between points I and

II for each of the two measurements may not exceed

12 mm.

2 610 A12 214 • 22.7.09

OBJ_BUCH-1045-001.book Page 9 Wednesday, July 22, 2009 10:40 AM

Checking the Levelling Accuracy in the Vertical

Position

A free measuring distance of 10 m on a firm surface in front of a wall is required for the check. Fasten a plumb bob rope to the wall.

– Mount the measuring tool in the vertical position onto a tripod, or place it on a firm and level surface.

Align the measuring tool accurately with the spirit level and switch it on.

– Align the measuring tool such that the laser beam impinges centrally on the plumb bob rope at the upper end. The difference d between laser beam and plumb bob rope at the bottom end of the rope results in the deviation of the measuring tool to the vertical line.

For a 10 m high measuring distance, the maximum allowable deviation is:

10 m x ±0.2 mm/m = ±2 mm.

Thus, the difference d must not exceed 2 mm.

Working Advice

f Always use the centre of the laser point for

marking. The size of the laser point changes with the distance.

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light.

This makes the red light of the laser appear brighter for the eyes.

f Do not use the laser viewing glasses as

safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.

f Do not use the laser viewing glasses as sun

glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.

Working with the Laser Receiver (Accessory)

(see figure C)

Under unfavourable light conditions (bright environment, direct sunlight) and for larger distances, use the laser receiver for improved finding of the laser beam 25.

When working with the laser receiver, select rotational operation with the highest rotational speed.

Before working with the laser receiver, read and observe the laser receiver operating instructions.

Working with the Remote Control (Accessory)

When pressing the operating controls, it is possible to bring the measuring tool out of its level position. This effect is prevented by using the remote control 27.

The receiption lense 11 for the remote control is located on the front side of the measuring tool.

For information on working with the remote control 27, see “Remote control”, page 12.

Working with the Tripod (Accessory)

The measuring tool is equipped with a 5/8" tripod mount 5 each for horizontal and vertical operation.

Place the measuring tool via the tripod mount 5 onto the 5/8" male thread of the tripod and screw the locking screw of the tripod tight.

Adjust the tripod roughly before switching on the measuring tool.

Working with Wall Holder/Alignment Unit

(Accessory) (see figure B)

You can also mount the measuring tool to the wall mount with alignment unit 26. For this, screw the 5/8" screw of the wall mount into one of the tripod mounts

5 of the measuring tool.

Fasten the wall holder 26 with the clamping screws to stable, as level or vertical as possible objects, with a max. thickness of 6 mm.

Mounting to a wall: Mounting to a wall is recommended, e.g., for work above the elevation height of tripods or for work on unstable surfaces and without tripod. For this, fasten the wall holder 26, with the measuring tool mounted, as vertical as possible to a wall.

Horizontal assembly: The wall holder can ease the alignment of the vertical laser plane to a reference line.

For this, fasten the wall holder horizontally and mount the measuring tool in vertical position.

With the alignment unit, the mounted measuring tool can be moved vertically (when mounted to the wall) or horizontally within a range of approx. 17 cm.

Working with the laser target plate (Accessory)

With the laser target plate 24, the laser mark can be projected on the ground/floor or against a wall. With the magnetic holder, the laser target plate can also be fastened to ceiling constructions.

With the zero field and the scale, the offset or drop to the required height can be measured and projected at another location. This eliminates the necessity of precisely adjusting the measuring tool to the height to be projected.

The laser target plate 24 has a reflecting coating which improves the visibility of the laser beam from a larger distance or in case of strong sun rays. The luminosity can be recognized only if you look to the laser target plate in parallel to the laser beam.

2 610 A12 214 • 22.7.09

English | 9

OBJ_BUCH-1045-001.book Page 10 Wednesday, July 22, 2009 10:40 AM

Work Examples

Sighting Out a Reference Height

At the beginning of your work, mark a reference height at a suitable distance (furthest possible) on a stable surface (e.g. on a tree or building), which you can use as your reference point.

While working, periodically check the working height to ensure that it has not changed with respect to the reference height.

Projecting/Checking Heights

Place the measuring tool in horizontal position on a firm surface or mount it to a tripod (accessory).

Working with expandable tripod: Align the laser beam to the requested height. Project or check the height at the target location.

Working without tripod: Determine the height difference between the laser beam and the height at the reference point with the laser target plate 24. Project or check the measured height difference at the target location.

Indicating a Plumb Line/Vertical Plane

To indicate a plumb line or a vertical plane, set up the measuring tool in the vertical position. When the vertical plane is supposed to run at a right angle to a reference line (e.g. a wall), then align the plumb beam 1 with this reference line.

The plumb line is indicated by the variable laser beam 10.

Troubleshooting

–

Causes and

Corrective Measures

Cause Corrective Measure

Measuring tool does not switch on or reacts incorrectly

Batteries/rechargeable batteries dead or defective

Check batteries/rechargeable batteries with battery tester and replace as required, or charge rechargeable batteries

Batteries/rechargeable batteries incorrectly inserted (wrong polarity)

Properly insert batteries/ rechargeable batteries

Battery contacts damaged from leaky batteries/ rechargeable batteries

Clean battery contacts

Safety strip in battery compartment not or not completely removed before starting operation for the first time

Remove paper or paper remainders between the battery contacts

Cause Corrective Measure

Measuring tool reacts implausible after pressing a button

For a reset of the software, remove battery lid

22 and then mount again

When the corrective measures do not eliminate an error, please contact an authorised service agent for

Bosch power tools.

Maintenance and Service

Maintenance and Cleaning

Store and transport the measuring tool only in the supplied case.

Keep the measuring tool clean at all times.

Do not immerse the measuring tool in water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Regularly clean the surfaces at the exit opening of the laser in particular, and pay attention to any fluff of fibres.

Note: Before storing, allow the measuring tool and the case to dry completely. Otherwise, vapours can develope in the closed case due to residual moisture, leading to corrosion of the measuring tool's circuit board.

In this case, warranty claims shall be rendered void.

If the measuring tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorised after-sales service centre for Bosch power tools. Do not open the measuring tool yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool.

10 | English

2 610 A12 214 • 22.7.09

OBJ_BUCH-1045-001.book Page 11 Wednesday, July 22, 2009 10:40 AM

After-sales Service and Customer

Assistance

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: +44 (0844) 736 0109

Fax: +44 (0844) 736 0146

E-Mail: [email protected]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: +353 (01) 4 66 67 00

Fax: +353 (01) 4 66 68 88

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: +61 (01300) 307 044

Fax: +61 (01300) 307 045

Inside New Zealand:

Phone: +64 (0800) 543 353

Fax: +64 (0800) 428 570

Outside AU and NZ:

Phone: +61 (03) 9541 5555 www.bosch.com.au

Republic of South Africa

Customer service

Hotline: +27 (011) 6 51 96 00

Gauteng – BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: +27 (011) 4 93 93 75

Fax: +27 (011) 4 93 01 26

E-Mail: [email protected]

KZN – BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: +27 (031) 7 01 21 20

Fax: +27 (031) 7 01 24 46

E-Mail: [email protected]

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: +27 (021) 5 51 25 77

Fax: +27 (021) 5 51 32 23

E-Mail: [email protected]

Bosch Headquarters

Midrand, Gauteng

Tel.: +27 (011) 6 51 96 00

Fax: +27 (011) 6 51 98 80

E-Mail: [email protected]

Disposal

Measuring tools, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of measuring tools into household waste!

According the European Guideline

2002/96/EC for Waste Electrical and ing tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Electronic Equipment and its implementation into national right, measur-

Battery packs/batteries:

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Battery packs/batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: +44 (0844) 736 0109

Fax: +44 (0844) 736 0146

E-Mail: [email protected]

Subject to change without notice.

2 610 A12 214 • 22.7.09

English | 11

OBJ_BUCH-1045-001.book Page 12 Wednesday, July 22, 2009 10:40 AM

Remote control

Safety Notes

Read and observe all instructions.

SAVE THESE INSTRUCTIONS FOR

FUTURE REFERENCE.

f Have the remote control repaired only

through a qualified repair person and only using identical replacement parts.

This will ensure that the functionality of the remote control is maintained.

f Do not operate the remote control in explo-

sive atmospheres, such as in the presence of flammable liquids, gases or dusts.

Sparks can be created in the remote control which may ignite the dust or fumes.

f Read and strictly observe the safety warn-

ings in the operating instructions of the rotational laser.

Functional Description

Intended Use

The remote control is intended for controlling the rotational laser LM30 indoors and outdoors.

Product Features

The numbering of the product features refers to the illustration of the remote control on the graphics page.

28 Outlet opening for infra-red beam

29 Remote control operation indicator

30 Function-mode button

31 Button on the remote control for clockwise rotation of the rotation head

32 Battery lid latch of the remote control (on the rear side)

33 Battery lid of the remote control (on the rear side)

34 Button on the remote control for anticlockwise rotation of the rotation head

Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Remote control

Working range

1)

Batteries

RC30

30 m

2 x 1.5 V LR06 (AA)

Weight according to

EPTA-Procedure 01/2003 115 g

1) The working range can be decreased by unfavourable environmental conditions (e.g. direct sun irradiation).

Assembly

Inserting/Replacing the Battery

Using alkali-manganese batteries is recommended for operation of the remote control.

The remote control is provided with batteries inserted.

Before putting into operation for the first time, remove the safety strip in the battery compartment (“Remove before Use”).

The batteries must be replaced when operation indicator 29 no longer lights up after pressing any button on the remote control.

To open the battery lid 33, press on the latch 32 and remove the battery lid. Insert the batteries. When inserting, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.

f Remove the batteries from the remote con-

trol when not using it for longer periods.

When storing for longer periods, the batteries can corrode and discharge themselves.

12 | English

2 610 A12 214 • 22.7.09

OBJ_BUCH-1045-001.book Page 13 Wednesday, July 22, 2009 10:40 AM

Operation Maintenance and Service

Initial Operation

f Protect the remote control against moisture

and direct sunlight.

f Do not subject the remote control to extreme

temperatures or variations in temperature.

As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the remote control to adjust to the ambient temperature before putting it into operation.

The remote control remains ready for operation as long as batteries with sufficient voltage are inserted.

Set up the rotational laser level in such a manner that the signals of the remote control directly reach the receiption lens on the rotational laser level (for this, see the operating instructions of the rotational laser).

When the remote control cannot be pointed directly against a receiption lens, the working range is reduced. By reflecting the signal (e.g. against walls), the working range can be improved even for indirect signals.

After pressing a button on the remote control, the illuminated operation indicator 29 indicates that a signal was sent out.

Switching the rotational laser on/off with the remote control is not possible.

Maintenance and Cleaning

Keep the remote control clean at all times.

Do not immerse the remote control into water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

If the remote control should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for

Bosch power tools. Do not open the remote control yourself.

After-sales Service and Customer

Assistance

For addresses, see “After-sales Service and Customer Assistance”, page 11.

Disposal

For disposal of the measuring tool, please observe the information under “Disposal”, page 11.

Subject to change without notice.

Operating Modes

For detailed information of the rotational laser level functions, see the operating instructions of the rotational laser level (see “Rotational Laser Level”, from page 5 on).

Rotation, Line and Point Operation

By pressing the function-mode button 30, you can change between rotational operation with two aperture angles and point operation.

Rotating the Laser Point/Laser Line in the Rotational Plane

The laser point or the laser line can be rotated in steps by 360° within the rotational plane. Press button 31 to rotate in clockwise direction, and button 34 to rotate in anticlockwise direction. Pressing and holding the buttons increases the speed of the rotation head in the desired direction.

2 610 A12 214 • 22.7.09

English | 13

OBJ_BUCH-1045-001.book Page 14 Wednesday, July 22, 2009 10:40 AM

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

2 610 A12 214 (2009.07) T / 14 XXX
