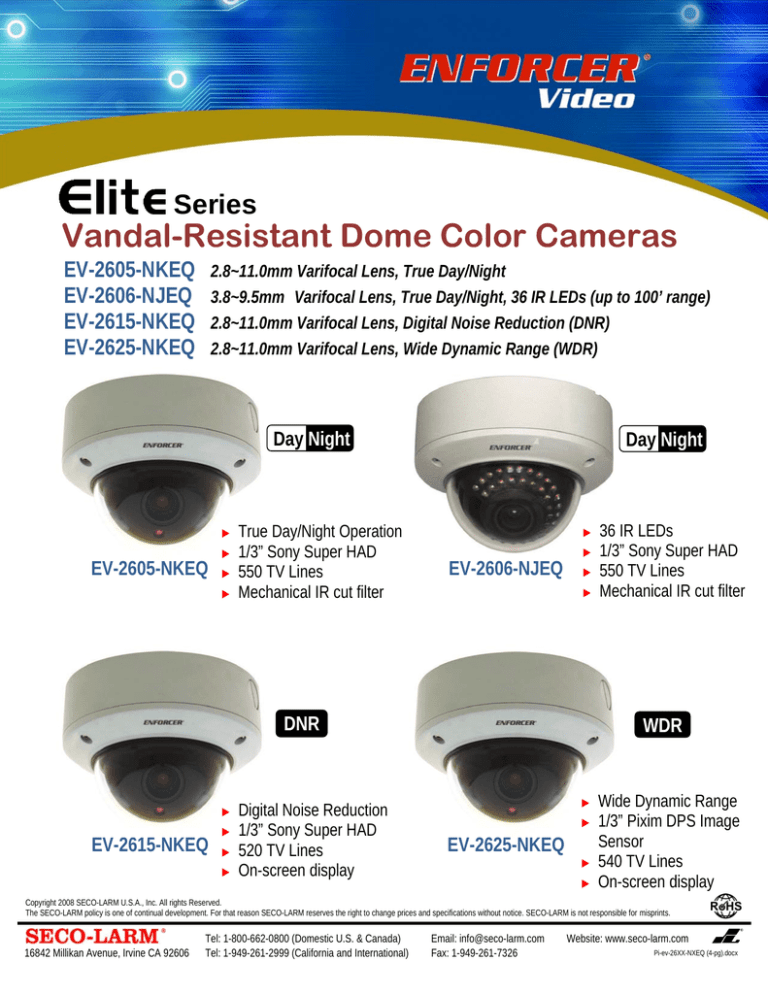

Vandal-Resistant Dome Color Cameras
EV-2605-NKEQ
EV-2606-NJEQ
EV-2615-NKEQ
EV-2625-NKEQ
2.8~11.0mm Varifocal Lens, True Day/Night
3.8~9.5mm Varifocal Lens, True Day/Night, 36 IR LEDs (up to 100’ range)
2.8~11.0mm Varifocal Lens, Digital Noise Reduction (DNR)
2.8~11.0mm Varifocal Lens, Wide Dynamic Range (WDR)
Day Night
X
EV-2605-NKEQ
X
X
X
True Day/Night Operation
1/3” Sony Super HAD
550 TV Lines
Mechanical IR cut filter
Day Night
X
EV-2606-NJEQ
X
X
X
DNR
X
EV-2615-NKEQ
X
X
X
Digital Noise Reduction
1/3” Sony Super HAD
520 TV Lines
On-screen display
36 IR LEDs
1/3” Sony Super HAD
550 TV Lines
Mechanical IR cut filter
WDR
X
X
EV-2625-NKEQ
X
X
Wide Dynamic Range
1/3” Pixim DPS Image
Sensor
540 TV Lines
On-screen display
Copyright 2008 SECO-LARM U.S.A., Inc. All rights Reserved.
The SECO-LARM policy is one of continual development. For that reason SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
16842 Millikan Avenue, Irvine CA 92606
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Tel: 1-949-261-2999 (California and International)
Email: [email protected]
Fax: 1-949-261-7326
Website: www.seco-larm.com
Pi-ev-26XX-NXEQ (4-pg).docx
All Cameras Incorporate the Following Outstanding Features:
X
X
X
X
Varifocal lens can cover a wide area or focus in
on a specific target
360° triple-axis rotation
Surface or flush mountable
Vandal-resistant and weatherproof
X
X
X
X
X
Dual Voltage: 12VDC or 24VAC
Iris control adjustment built-in
Easy adjustment of zoom and focus
Service monitor port
Corner and Wall Mounts available
Table 1: Model Comparison:
For a complete list of technical specifications please see Tables 2 and 3.
Model Number
EV-2605-NKEQ
Image sensor
Resolution
Pickup elements
Varifocal lens
Minimum illumination
Power consumption @ 24VAC
Power consumption @ 12VDC
EV-2606-NJEQ
EV-2615-NKEQ
1/3" Sony Super HAD CCD
550 TV lines
520 TV lines
768 x 494 pixels
2.8~11.0 mm
3.8~9.5 mm
2.8~11.0 mm
0.03 lux / F1.2
0 lux IR LEDs on
.002 lux / F1.2
Max. 4.8Watts
Max: 12Watts
Max. 5.5Watts
Max. 250mA
Max: 650mA
Max: 220mA
EV-2625-NKEQ
1/3" Pixim DPS
540 TV lines
720 x 540 pixels
2.8~11.0 mm
.08 lux / F1.2
Max. 4.8Watts
Max: 240mA
Easy to Use Zoom and Focus Adjustment
The ENFORCER EV-2606-NJEQ and
EV-2605-NKEQ feature a unique zoom
and focus adjustment system. Two levers,
one for zoom and one for focus extend
from the camera to smoothly and precisely
adjust the focal length and depth.
Mounting Brackets
The EV-260CM Ceiling-Mount Bracket and EV-260WM Wall-Mount Bracket are designed to easily
mount the ELITE Series of Vandal-Resistant Color Dome Cameras:
Ceiling-Mount
Bracket
Wall-Mount
Bracket
EV-260CM
EV-260WM
