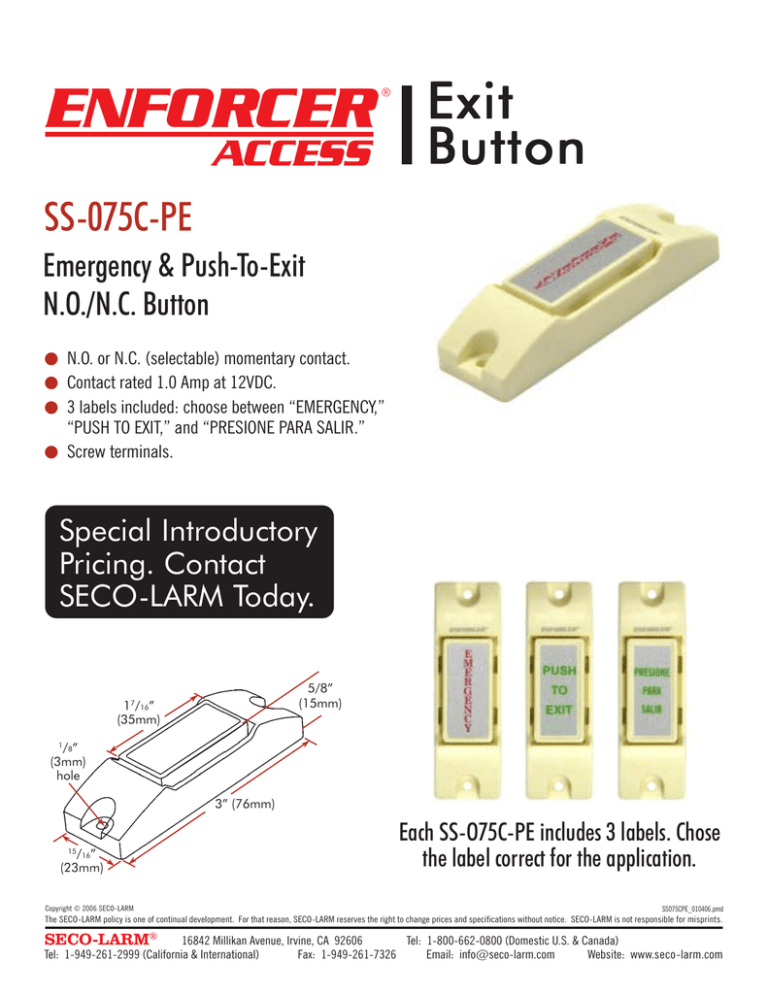

ENFORCER Exit
®
ACCESS
Button
SS-075C-PE
Emergency & Push-To-Exit
N.O./N.C. Button
!
!
!
!
N.O. or N.C. (selectable) momentary contact.
Contact rated 1.0 Amp at 12VDC.
3 labels included: choose between “EMERGENCY,”
“PUSH TO EXIT,” and “PRESIONE PARA SALIR.”
Screw terminals.
Special Introductory
Pricing. Contact
SECO-LARM Today.
5/8”
(15mm)
17/16”
(35mm)
1
/8 ”
(3mm)
hole
3” (76mm)
/16”
(23mm)
15
Copyright © 2006 SECO-LARM
Each SS-O75C-PE includes 3 labels. Chose
the label correct for the application.
SS075CPE_010406.pmd
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
SECO-LARM®
16842 Millikan Avenue, Irvine, CA 92606
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Tel: 1-949-261-2999 (California & International)
Fax: 1-949-261-7326
Email: [email protected]
Website: www.seco-larm.com
