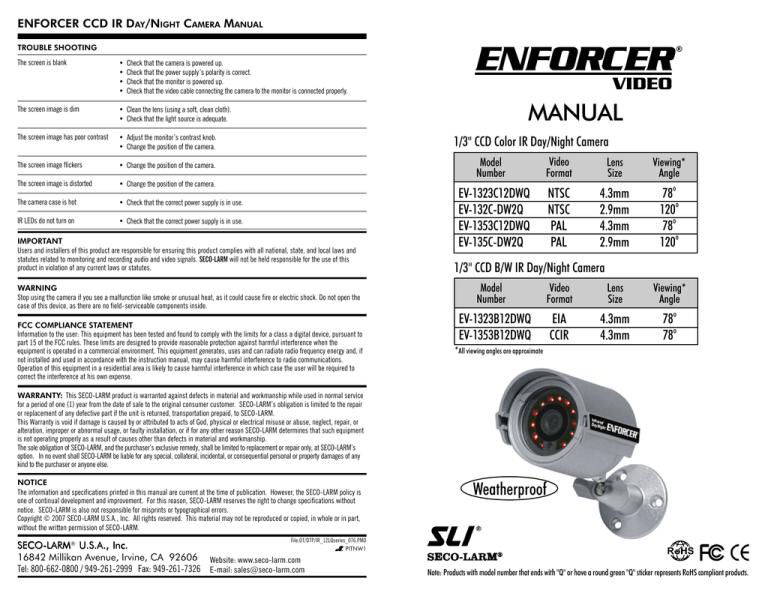

ENFORCER CCD IR DAY/NIGHT CAMERA MANUAL
TROUBLE SHOOTING
The screen is blank
•
•
•
•
Check that the camera is powered up.
Check that the power supply’s polarity is correct.
Check that the monitor is powered up.
Check that the video cable connecting the camera to the monitor is connected properly.
The screen image is dim
• Clean the lens (using a soft, clean cloth).
• Check that the light source is adequate.
The screen image has poor contrast
• Adjust the monitor’s contrast knob.
• Change the position of the camera.
The screen image flickers
• Change the position of the camera.
The screen image is distorted
• Change the position of the camera.
The camera case is hot
• Check that the correct power supply is in use.
IR LEDs do not turn on
• Check that the correct power supply is in use.
ENFORCER
®
VIDEO
MANUAL
1/3" CCD Color IR Day/Night Camera
IMPORTANT
Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and
statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this
product in violation of any current laws or statutes.
WARNING
Stop using the camera if you see a malfunction like smoke or unusual heat, as it could cause fire or electric shock. Do not open the
case of this device, as there are no field-serviceable components inside.
FCC COMPLIANCE STATEMENT
Information to the user: This equipment has been tested and found to comply with the limits for a class a digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Model
Number
Video
Format
Lens
Size
Viewing*
Angle
EV-1323C12DWQ
EV-132C-DW2Q
EV-1353C12DWQ
EV-135C-DW2Q
NTSC
NTSC
PAL
PAL
4.3mm
2.9mm
4.3mm
2.9mm
78o
120o
78o
120o
1/3" CCD B/W IR Day/Night Camera
Model
Number
Video
Format
Lens
Size
Viewing*
Angle
EIA
CCIR
4.3mm
4.3mm
78o
78o
EV-1323B12DWQ
EV-1353B12DWQ
*All viewing angles are approximate
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service
for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair
or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or
alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM’s
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any
kind to the purchaser or anyone else.
NOTICE
The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is
one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without
notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2007 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of SECO-LARM.
File:DT/DTP/IR_12LQseries_076.PMD
PITNW1
SECO-LARM
C ., Inc.
I c
M® U.S.A.,
16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 E-mail: [email protected]
Weatherproof
®
SECO-LARM
E
M®
Note: Products with model number that ends with "Q" or have a round green "Q" sticker represents RoHS compliant products.
ENFORCER CCD IR DAY/NIGHT CAMERA MANUAL
Specifications
EV-1323C12DWQ (NTSC)
EV-132C-DW2Q (NTSC)
EV-1353C12DWQ (PAL)
EV-135C-DW2Q (PAL)
ENFORCER CCD IR DAY/NIGHT CAMERA MANUAL
EV-1323B12DWQ (EIA)
EV-1353B12DWQ (CCIR)
Type
Color camera
B/W camera
Chip
1/3” CCD, Sony
1/3” CCD, A1 PROs
Resolution
A.
B.
C.
D.
E.
Camera
F. BNC connector (female)
Adjustable Sunshield G. Adjustment nut
Mounting bracket
H. Mounting holes
36” cord
DC jack
420 TV lines
Pickup elements
512 x 492 pixels (NTSC / EIA)
512 x 582 pixels (PAL / CCIR)
Scanning system
2:1 interlace
Sync
Video output
1V pp composite output, 75 ohms
Lens
0.1 lux (LED off), 0.0 lux (LED on)
Gamma correction
S/N ratio
>48dB (AGC off)
>50dB (AGC off)
Shutter control
Important:
0.45
Auto Electronic Shutter (AES)
1/60~1/100,000 sec. (NTSC / EIA), 1/50~1/100,000 sec. (PAL / CCIR)
auto
BEFORE STARTING
Automatic gain control (AGC)
auto
1.
2.
3.
4.
Enclosure
IP68 weatherproof
# of infrared LEDs
Max. LED range
Power source
Power consumption
Operating temperature
Dimensions
12
Up to 40 ft. (12m)
12VDC±10%
110mA (IR off), 240mA (IR on)
100mA (IR off), 230mA (IR on)
16 oz. (454g)
* All viewing angles are approximate
21/4” (57mm)
211/16” (68mm)
31/16” (78mm)
®
Infrared
Day/Night
/16” (14.5mm)
ENFORCER
113/16” (46mm)
29/16” (65mm)
9
Dimensions:
d
n rare t
ig
Day/N
F
Please read this manual carefully and keep it for future reference.
Use the camera within given temperature and electricity limits.
Do not aim the LED light directly at the eyes when the LEDs are on.
Do not point the camera at the sun. Heat could damage the
camera, even when not in use.
5. Do not mount the camera in areas exposed to radiation, strong
magnetic fields, or strong electrical signals.*
G
A
C
Hx3
6. Do not open or disassemble the camera. There are no userserviceable parts inside.
7. Do not drop the camera or subject it to strong vibrations.
* Note: Many video monitors produce strong electromagnetic fields
close to the display CRT, especially when the monitor is turned
on or during de-Gaussing, which occurs automatically with many
monitors when the monitor is turned on.
14°~131° F (-10°~55° C)
31/16”(L) x 21/4”(D) (78 x 57 mm) (without sunshield)
Weight
ENFO
D
Do not cut DC Jack (E) or
Video Jack (F) as warranty
will be voided.
Backlight compensation
RCER
®
E
EV-1323C12DWQ / EV-1323B12DWQ (78o)
EV-1353C12DWQ / EV-1353B12DWQ (78o)
EV-132C-DW2Q / EV-135C-DW2Q (120o)
Minimum illumination
B
Do not remove label or
open case as warranty will
be voided.
Use SECO-LARM’s included
Pigtail Connector for easy
installation and serviceability.
EV-1323C12DWQ / EV-1323B12DWQ (4 3mm)
EV-1353C12DWQ / EV-1353B12DWQ (4.3mm)
EV-132C-DW2Q / EV-135C-DW2Q (2 9mm)
Viewing Angle*
3 x Mounting screws
3 x Screw anchors
1 x Manual
Important:
NOTE: For additional pigtail connectors,
inquire SECO-LARM’s EVA-F5521-3Q
pigtail connector with 3-ft. length cable.
Internal
Parts List
1 x IR camera
1 x Sunshield
1 x Mounting bracket
1 x Pigtail connector
INSTALLATION
1. Run a 12VDC power supply wire and a video cable with a male
BNC connector through the wall to where the camera is to be
mounted (if necessary).
2. Assemble the mounting bracket; then screw it into the back of the
camera. Make sure the mounting base is tightened to the bracket.
3. Temporarily connect the camera to the 12VDC power supply.
Do not cut DC jack or video jack as warranty will be voided.
Use the included SECO-LARM’s pigtail connector.
4. Temporarily connect the camera’s female BNC connector to the
video cable’s male BNC connector.
5. While watching the monitor, hold the camera bracket against the
wall by hand where it is to be mounted, then twist the camera until
it is certain that this mounting location is correct. Use a pencil to
mark the location of the three screw holes in the bracket.
6. Disconnect the 12VDC power supply and video cable.
7. Mount the bracket to the wall using the three included mounting
screws. If the wall is made of dry wall, brick, or similar material, it
may be necessary to use the three included screw anchors.
8. Reconnect the 12VDC power supply and video cable. Turn the monitor
on, and make sure the camera is sending the proper video signal.
9. Adjust the camera angle:
(a) Loosen and tighten the bracket’s thumb screw to turn the
camera and change its angle relative to the bracket. This
ensures the camera is pointing in the right direction.
(b) Loosen and tighten the adjustment plate to rotate the camera
on its axis. This rotates the angle of the video image.
10. Tighten the bracket’s thumb screw and the adjustment plate so
that the camera does not move, but not so tight that it cracks the
case or bracket.
11. Do a final test of the video camera and monitor.
