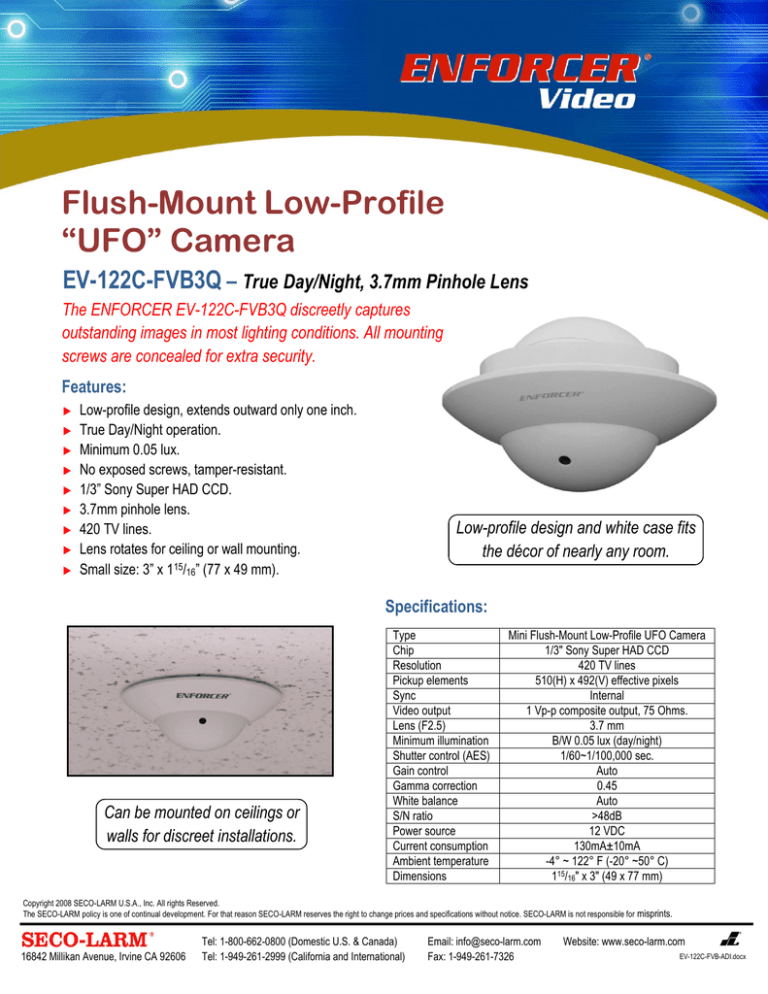

Flush-Mount Low-Profile
“UFO” Camera
EV-122C-FVB3Q – True Day/Night, 3.7mm Pinhole Lens
The ENFORCER EV-122C-FVB3Q discreetly captures
outstanding images in most lighting conditions. All mounting
screws are concealed for extra security.
Features:









Low-profile design, extends outward only one inch.
True Day/Night operation.
Minimum 0.05 lux.
No exposed screws, tamper-resistant.
1/3” Sony Super HAD CCD.
3.7mm pinhole lens.
420 TV lines.
Lens rotates for ceiling or wall mounting.
Small size: 3” x 115/16” (77 x 49 mm).
Low-profile design and white case fits
the décor of nearly any room.
Specifications:
Can be mounted on ceilings or
walls for discreet installations.
Type
Chip
Resolution
Pickup elements
Sync
Video output
Lens (F2.5)
Minimum illumination
Shutter control (AES)
Gain control
Gamma correction
White balance
S/N ratio
Power source
Current consumption
Ambient temperature
Dimensions
Mini Flush-Mount Low-Profile UFO Camera
1/3" Sony Super HAD CCD
420 TV lines
510(H) x 492(V) effective pixels
Internal
1 Vp-p composite output, 75 Ohms.
3.7 mm
B/W 0.05 lux (day/night)
1/60~1/100,000 sec.
Auto
0.45
Auto
>48dB
12 VDC
130mA±10mA
-4° ~ 122° F (-20° ~50° C)
115/16" x 3" (49 x 77 mm)
Copyright 2008 SECO-LARM U.S.A., Inc. All rights Reserved.
The SECO-LARM policy is one of continual development. For that reason SECO-LARM reserves the right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
16842 Millikan Avenue, Irvine CA 92606
Tel: 1-800-662-0800 (Domestic U.S. & Canada)
Tel: 1-949-261-2999 (California and International)
Email: [email protected]
Fax: 1-949-261-7326
Website: www.seco-larm.com
