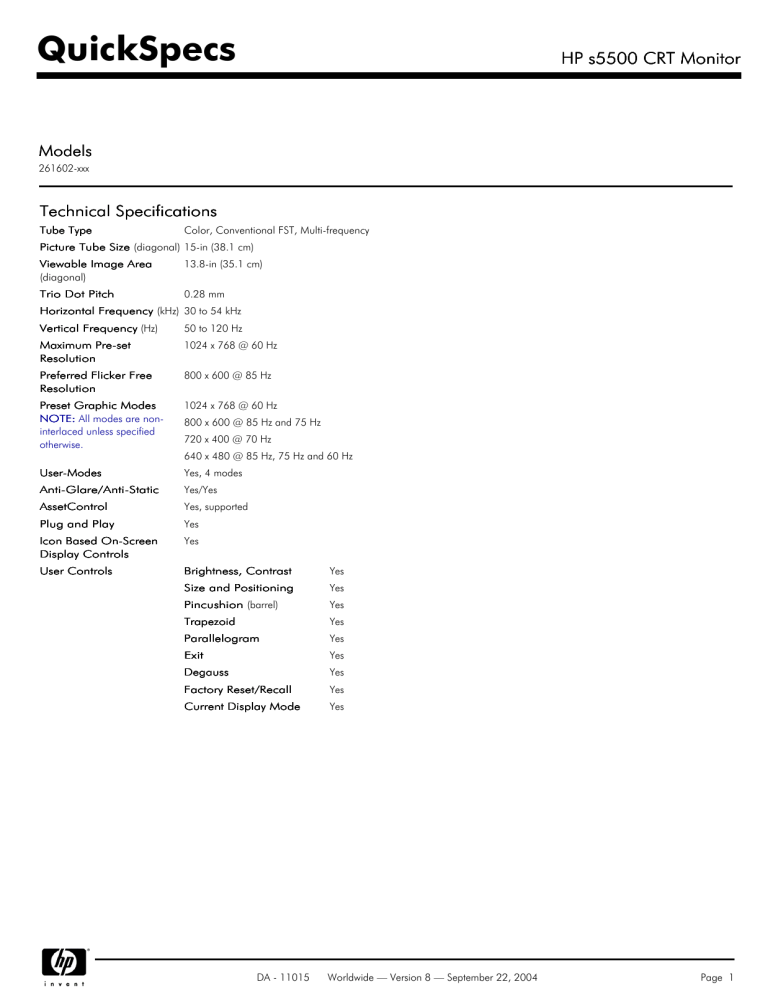

QuickSpecs
HP s5500 CRT Monitor
Models
261602-xxx
Technical Specifications
Tube Type
Color, Conventional FST, Multi-frequency
Picture Tube Size (diagonal) 15-in (38.1 cm)
Viewable Image Area
(diagonal)
13.8-in (35.1 cm)
Trio Dot Pitch
0.28 mm
Horizontal Frequency (kHz) 30 to 54 kHz
Vertical Frequency (Hz)
50 to 120 Hz
Maximum Pre-set
Resolution
1024 x 768 @ 60 Hz
Preferred Flicker Free
Resolution
800 x 600 @ 85 Hz
Preset Graphic Modes
NOTE: All modes are noninterlaced unless specified
otherwise.
1024 x 768 @ 60 Hz
800 x 600 @ 85 Hz and 75 Hz
720 x 400 @ 70 Hz
640 x 480 @ 85 Hz, 75 Hz and 60 Hz
User-Modes
Yes, 4 modes
Anti-Glare/Anti-Static
Yes/Yes
AssetControl
Yes, supported
Plug and Play
Yes
Icon Based On-Screen
Display Controls
Yes
User Controls
Brightness, Contrast
Yes
Size and Positioning
Yes
Pincushion (barrel)
Yes
Trapezoid
Yes
Parallelogram
Yes
Exit
Yes
Degauss
Yes
Factory Reset/Recall
Yes
Current Display Mode
Yes
DA - 11015
Worldwide — Version 8 — September 22, 2004
Page 1
QuickSpecs
Approvals/
Certifications
HP s5500 CRT Monitor
UL/CSA/CUL Approval
Yes
ISO9241-3, -7, -8 VDT
Guidelines Approval
Yes
MPR-II Compliant
Yes
FCC Approval
Yes
Microsoft®
Microsoft WHQL
Certified
Yes
CE
Yes
Energy Star Compliant
Yes
Maximum Pixel Clock
Speed
70 MHz
Power Supply
Universal; 100 to 240 V, 50 ± 3Hz and 60 ± 3Hz
Typical Power
Consumption
58.5 watts
Maximum Power Rating
= 80 watts
Low Power Sleep Mode
< 5 watts
Signal Cable
15-pin miniature D-sub, attached, 4.9 ft (1.5 m)
Dimensions (H x W x D)
Unpacked
15.7 x 14.4 x 16.5 in (40 x 36.5 x 41.8 cm)
Packaged
20.9 x 17.9 x 20.4 in (53.0 x 45.5 x 51.8 cm)
Unpacked
29 lb (13.15 kg)
Packaged
39.9 lb (18.1 kg)
Weight
Operating Temperature
(non-condensing)
50° to 95° F (10° to 35° C)
Operating Humidity
(non-condensing)
20% to 80%
Compatibility
Recommended for use with HP products.
Warranty
Limited one-year parts, one-year repair labor and one-year on-site service warranty 48 hour advanced exchange service
available during warranty period. Certain restrictions and exclusions apply. For details, contact HP Customer Support.
©2004 Hewlett-Packard Development Company, L.P.
Microsoft is a trademark or registered trademark of Microsoft Corporation in the U.S. and other countries.
All performance specifications are provided by the component manufacturers. Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance. Actual performance may vary either higher or lower.
The information in this document is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are
set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
