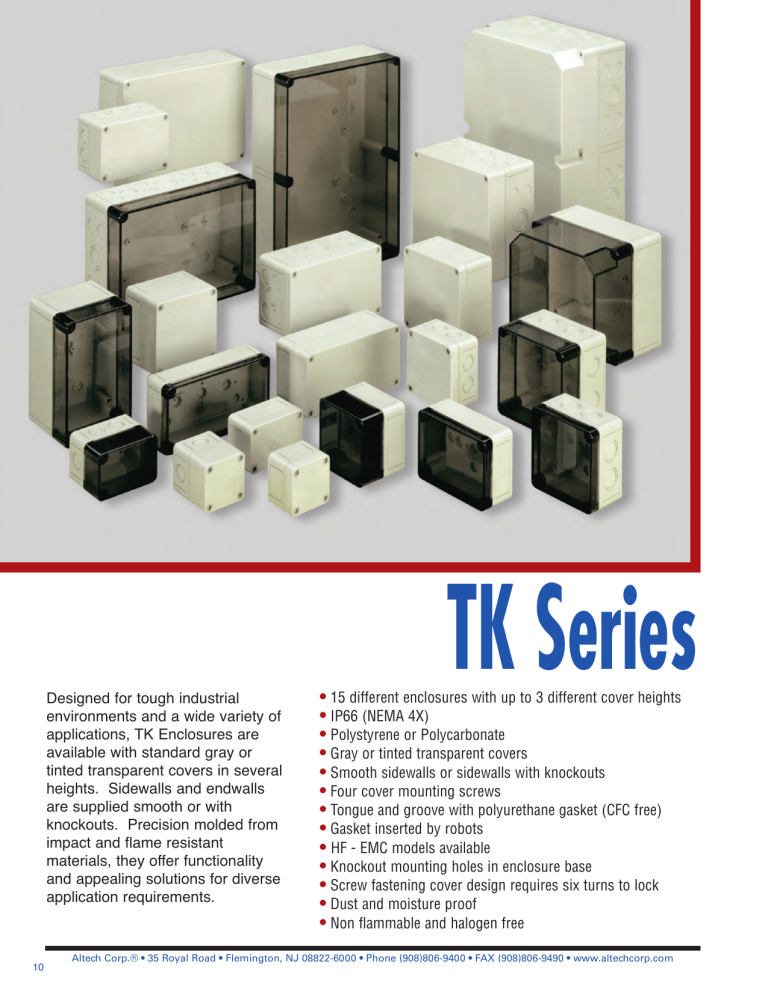

Designed for tough industrial environments and a wide variety of

Designed for tough industrial environments and a wide variety of

10

Designed for tough industrial environments and a wide variety of applications, TK Enclosures are available with standard gray or tinted transparent covers in several heights. Sidewalls and endwalls are supplied smooth or with knockouts. Precision molded from impact and flame resistant materials, they offer functionality and appealing solutions for diverse application requirements.

TK Series

15 different enclosures with up to 3 different cover heights

IP66 (NEMA 4X)

Polystyrene or Polycarbonate

Gray or tinted transparent covers

Smooth sidewalls or sidewalls with knockouts

Four cover mounting screws

Tongue and groove with polyurethane gasket (CFC free)

Gasket inserted by robots

HF - EMC models available

Knockout mounting holes in enclosure base

Screw fastening cover design requires six turns to lock

Dust and moisture proof

Non flammable and halogen free

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

Enclosure Mounting

enclosures by can be mounted directly onto a panel, frame or other mounting surface through corner mounting holes, knockout holes molded into the base, or with optional mounting flanges. Sealing caps for base mounted screws are included.

Note: Corner hole or flange mounting is required to maintain the NEMA 4X rating on TK and EK Enclosures.

Customization

Our enclosures can be factory supplied with custom openings. Using state of the art machining, we can punch, drill, mill or cut to your most exacting specifications.

We customize quickly and accurately, ...

at a reasonable cost!

EMI/RFI shielding is also available to protect sensitive electronic components.

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

11

TK 55/TK75 – Polystyrene and Polycarbonate

– 50x52mm (1.97x2.05in.) / 65x50mm (2.56x1.97in.)

1

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth Sidewalls

1 Sidewall Knockout or Integral

Cable Gland (5-10mm cable diameter)

Gray or Clear Transparent Cover

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

E208470

TK55

Ordering

Information

Height mm (in)

Enclosure - smooth sidewall

Enclosure - smooth sidewall

Enclosure - metric knockout

Enclosure - metric knockout

35 mm (1.38 in)

35 mm (1.38 in)

35 mm (1.38 in)

35 mm (1.38 in)

Enclosure - Integral Cable Gland 35 mm (1.38 in)

Enclosure - Integral Cable Gland 35 mm (1.38 in)

Cat. No.

110-455

111-455

105-455

106-455

145-455

146-455

Polystyrene

Type

PS 55-4-o

PS 55-4-to

PS 55-4-m

PS 55-4-tm

PS 55-4-v

PS 55-4-tv

Cover Std.

Color Pk.

gray trans.

gray trans.

gray trans.

5

5

5

5

5

5

TK75

Ordering

Information

Height mm (in)

Enclosure - smooth sidewall

Enclosure - smooth sidewall

Enclosure - metric knockout

Enclosure - metric knockout

35 mm (1.38 in)

35 mm (1.38 in)

35 mm (1.38 in)

35 mm (1.38 in)

Enclosure - Integral Cable Gland 35 mm (1.38 in)

Enclosure - Integral Cable Gland 35 mm (1.38 in)

Cat. No.

110-475

111-475

105-475

106-475

145-475

146-475

Polystyrene

Type

PS 75-4-o

PS 75-4-to

PS 75-4-m

PS 75-4-tm

PS 75-4-v

PS 75-4-tv

Cover Std.

Color Pk.

gray trans.

gray trans.

gray trans.

5

5

5

5

5

5

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate (TK55)

Mounting Plate (TK75)

PCB Bracket

Mounting Bracket

195-055

195-075

194-110

194-002

MP55

MP75

MP/LPH

MB

1

1

Please refer to pages 116-120 for additional accessories and detailed information.

2

1

Cat. No.

120-455

130-455

127-455

137-455

129-455

139-455

Polycarbonate 1

Type

Cover

Color

PC55-4-o

PC55-4-to

PC 55-4-m

PC 55-4-tm

PC 55-4-v

PC 55-4-tv gray trans.

gray trans.

gray trans.

Std.

Pk.

5

5

5

5

5

5

Cat. No.

120-475

130-475

127-475

137-475

129-475

139-475

Polycarbonate 1

Type

Cover

Color

PC75-4-o

PC75-4-to

PC 75-4-m

PC 75-4-tm

PC 75-4-v

PC 75-4-tv gray trans.

gray trans.

gray trans.

Std.

Pk.

5

5

5

5

5

5

12

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 55/TK75

Dimensions

45 mm

(1.77 in)

28.4 mm

(1.12 in)

6 mm

(0.24 in)

24.5 mm

(0.96 in)

38 mm

(1.50 in)

50 mm

(1.97 in)

45 mm

(1.77 in)

28 mm

(1.10 in)

6 mm

(0.24 in)

25.5 mm

(1.00 in)

35.5 mm

(1.40 in)

24.5 mm

(0.96 in)

38 mm

(1.50 in)

50 mm

(1.97 in)

32.5 mm

(1.28 in)

25.5 mm

(1.00 in)

35.5 mm

(1.40 in)

M16 - 16.0 mm (0.63 in)

M12 - 12.0 mm (0.47 in)

Knockout Positions

(one side only)

50 mm

(1.97 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

13

TK 77 – Polystyrene and Polycarbonate

– 65x65mm (2.56x2.56in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

Accessories:

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

Type

Polystyrene

Cover

Color

110-401 PS 77-6-o

110-901 PS 77-8-o

111-001 PS 77-6-to

111-501 PS 77-8-to gray gray trans.

trans.

E208470

1

Std.

Pk.

5

5

5

5

Cat. No.

120-401

120-901

130-001

130-501

Polycarbonate 1

Type

Cover

Color

PC 77-6-o

PC 77-8-o

PC 77-6-to

PC 77-8-to gray gray trans.

trans.

Std.

Pk.

5

5

5

5

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Polystyrene

Cat. No.

Type

105-401 PS 77-6-m

105-901 PS 77-8-m

106-001 PS 77-6-tm

106-501 PS 77-8-tm

Cover

Color

gray gray trans.

trans.

Std.

Pk.

5

5

5

5

Cat. No.

127-401

127-901

137-001

137-501

Polycarbonate 1

Type.

Cover

Color

PC 77-6-m

PC 77-8-m

PC 77-6-tm

PC 77-8-tm gray gray trans.

trans.

Std.

Pk.

5

5

5

5

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS15-49.5mm

Hinge Kit Set

Mounting Tab Kit

195-001

197-049

190-002

194-001

MP77

TS 15/49.5

HK1

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

14

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 77

Dimensions

65.0 mm

(2.56 in)

50.0 mm

(1.97 in)

31.0 mm

(1.22 in)

A

81.0 mm

(3.19 in)

57.0 mm

(2.24 in)

42.0 mm

(1.65 in)

25.0 mm

(0.98 in)

36.0 mm

(1.42 in)

59.0 mm

(2.32 in)

B

45.0 mm

(1.77 in)

69.0 mm

(2.72 in)

Knockout Positions

(all 4 sides)

32.5 mm

(1.28 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

65.0 mm

(2.56 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

15

TK 97 – Polystyrene and Polycarbonate

– 94x65mm (3.70x2.56in.)

Standard Features

Protection Level:

IP66 (NEMA Type: 4X with gray cover,

Technical:

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

Accessories:

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

110-402

110-902

111-002

111-502

E208470

1

Polystyrene

Type

Cover

Color

PS 97-6-o gray

PS 97-8-o gray

PS 97-6-to trans.

PS 97-8-to trans.

Std.

Pk.

5

5

5

5

Cat. No.

120-402

120-902

130-002

130-502

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 97-6-o

PC 97-8-o

PC 97-6-to

PC 97-8-to gray gray trans.

trans.

5

5

5

5

Sidewalls with Metric Knockouts

Ordering

Information

Enclosure - low cover

Height mm (in)

57 mm (2.24 in)

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

105-402

105-902

106-002

106-502

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS15-80mm

Hinge Kit Set

Mounting Tab Kit

195-002

197-080

190-002

194-001

MP97

TS 15/80

HK1

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

Polystyrene

Type

Cover

Color

PS 97-6-m gray

PS 97-8-m gray

PS 97-6-tm trans.

PS 97-8-tm trans.

Std.

Pk.

5

5

5

5

Cat. No.

127-402

127-902

137-002

137-502

Polycarbonate 1

Type

PC 97-6-m

Cover Std.

Color Pk.

gray 5

PC 97-8-m

PC 97-6-tm

PC 97-8-tm gray trans.

trans.

5

5

5

16

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 97

Dimensions

65.0 mm

(2.56 in)

50.0 mm

(1.97 in)

31.0 mm

(1.22 in)

A

57.0 mm

(2.24 in)

42.0 mm

(1.65 in)

81.0 mm

(3.19 in)

23.0 mm

(0.9 in)

36.0 mm

(1.42 in)

59.0 mm

(2.32 in)

B

Knockout Positions

Side A

32.5 mm

(1.28 in)

43.0 mm

(1.69 in)

65.0 mm

(2.56 in)

Side B

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

21.5 mm

(0.85 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

45.0 mm

(1.77 in)

69.0 mm

(2.72 in)

31.75 mm

(1.25 in)

30.5 mm

(1.20 in)

94.0 mm

(3.70 in)

31.75 mm

(1.25 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

17

TK 99 – Polystyrene and Polycarbonate

– 94x94mm (3.70x3.70in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

Accessories:

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

110-403

110-903

111-003

111-503

Polystyrene

Type

PS 99-6-o

PS 99-8-o

PS 99-6-to

PS 99-8-to

Cover Std.

Color Pk.

Cat. No.

gray gray trans.

trans.

4

3

4

3

120-403

120-903

130-003

130-503

E208470

1

Polycarbonate 1

Type

PC 99-6-o

PC 99-8-o

PC 99-6-to

PC 99-8-to

Cover Std.

Color Pk.

gray gray trans.

trans.

4

3

4

3

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

105-403

105-903

106-003

106-503

Polystyrene

Type

PS 99-6-m

PS 99-8-m

PS 99-6-tm

PS 99-8-tm

Cover Std.

Color Pk.

Cat. No.

gray gray trans.

trans.

4

3

4

3

127-403

127-903

137-003

137-503

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 99-6-m

PC 99-8-m

PC 99-6-tm

PC 99-8-tm gray gray trans.

trans.

4

3

4

3

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS15 - 80 mm

Hinge Kit Set

Mounting Tab Kit

195-003

197-080

190-002

194-001

MP99

TS 15/80

HK1

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

18

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 99

Dimensions

94.0 mm

(3.70 in)

79.0 mm

(3.11 in)

60.0 mm

(2.36 in)

50.0 mm

(1.97 in)

A

81.0 mm

(3.19 in)

57.0 mm

(2.24 in)

42.0 mm

(1.65 in)

28.0 mm

(1.1 in)

64.0 mm

(2.52 in)

88.0 mm

(3.46 in)

B

45.0 mm

(1.77 in)

69.0 mm

(2.72 in)

Knockout Positions

Side A

47.0 mm

(1.85 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

(Only 1 Side)

Side B

94.0 mm

(3.70 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

(Only 3 Sides)

31.75 mm

(1.25 in)

30.5 mm

(1.20 in)

94.0 mm

(3.70 in)

31.75 mm

(1.25 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

19

TK 1111 – Polystyrene and Polycarbonate

– 110x110mm (4.33x4.33in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

Accessories:

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

66 mm (2.60 in)

90 mm (3.54 in)

66 mm (2.60 in)

90 mm (3.54 in)

Cat. No.

110-404

110-904

111-004

111-504

E208470

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1111-7-o gray

PS 1111-9-o gray

PS 1111-7-to trans.

PS 1111-9-to trans.

3

3

3

3

120-404

120-904

130-004

130-504

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1111-7-o gray

PC 1111-9-o gray

PC 1111-7-to trans.

PC 1111-9-to trans.

3

3

3

3

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

66 mm (2.60 in)

90 mm (3.54 in)

66 mm (2.60 in)

90 mm (3.54 in)

Cat. No.

105-404

105-904

106-004

106-504

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1111-7-m gray

PS 1111-9-m gray

PS 1111-7-tm trans.

PS 1111-9-tm trans.

3

3

3

3

127-404

127-904

137-004

137-504

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1111-7-m gray

PC 1111-9-m gray

PC 1111-7-tm trans.

PC 1111-9-tm trans.

3

3

3

3

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-81mm

DIN Rail TS15-92mm

Hinge Kit Set

Mounting Tab Kit

195-004

198-081

197-092

190-002

194-001

MP1111

TS 35/81

TS 15/92

HK1

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

1

20

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1111

Dimensions

110.0mm

(4.33 in)

95.0 mm

(3.74 in)

65.0 mm

(2.56 in)

76.0 mm

(3.00 in)

A 89.0 mm

(3.50 in)

65.0 mm

(2.56 in)

50.0 mm

(1.97 in)

Knockout Positions

Side A

28.0 mm

(1.10 in)

104.0 mm

(4.09 in)

80.0 mm

(3.15 in)

55.0 mm

(2.17 in)

B

53.0 mm

(2.09 in)

77.0 mm

(3.03 in)

M 25 - 25.0 mm (0.98 in)

M 20 - 20.0 mm (0.79 in)

(Only 1 Side)

110.0 mm

(4.33 in)

Side B

M 25 - 25.0 mm (0.98 in)

M 20 - 20.0 mm (0.79 in)

(Only 3 Sides)

36.5 mm

(1.44 in)

37.0 mm

(1.46 in)

110.0 mm

(4.33 in)

36.5 mm

(1.44 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

21

TK 1309 – Polystyrene and Polycarbonate

– 130x94mm (5.12x3.70in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

110-409

110-909

111-009

111-509

E208470

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1309-6-o gray

PS 1309-8-o gray

PS 1309-6-to trans.

PS 1309-8-to trans.

3

3

3

3

120-409

120-909

130-009

130-509

Polycarbonate 1

Type

Cover

Color

PC 1309-6-o gray

PC 1309-8-o gray

PC 1309-6-to trans.

PC 1309-8-to trans.

Std.

Pk.

3

3

3

3

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

105-409

105-909

106-009

106-509

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1309-6-m gray

PS 1309-8-m gray

PS 1309-6-tm trans.

PS 1309-8-tm trans.

3

3

3

3

127-409

127-909

137-009

137-509

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1309-6-m gray

PC 1309-8-m gray

PC 1309-6-tm trans.

PC 1309-8-tm trans.

3

3

3

3

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-106mm

DIN Rail TS15-111mm

Hinge Kit Set

Mounting Tab Kit

195-009

198-106

197-111

190-002

194-001

MP1309

TS 35/106

TS 15/111

HK1

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

1

22

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1309

Dimensions

130.0 mm

(5.12 in)

115.0 mm

(4.53 in)

90.0 mm

(3.54 in)

A in) 79.0

124.0 mm

(4.88 in)

28.0 mm

(1.10 in)

101.0 mm

(3.98 in)

96.0 mm

(3.78 in)

B

56.0 mm

(2.20 in)

41.0 mm

(1.61 in)

80.0 mm

(3.15 in)

44.0 mm

(1.73 in)

68.0 mm

(2.68 in)

Knockout Positions

Side A

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

Side B

31.75 mm

(1.25 in)

30.5 mm

(1.20 in)

94.0 mm

(3.70 in)

31.75 mm

(1.25 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

32.5 mm

(1.28 in)

32.5 mm

(1.28 in)

32.5 mm

(1.28 in)

130.0 mm

(5.12 in)

32.5 mm

(1.28 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

23

TK 1313 – Polystyrene and Polycarbonate

– 130x130mm (5.12x5.12in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

75 mm (2.95 in)

99 mm (3.90 in)

75 mm (2.95 in)

99 mm (3.90 in)

Cat. No.

110-405

110-905

111-005

111-505

E208470

1

Polystyrene Polycarbonate 1

Cover Std.

Color Pk.

Cat. No.

Type

Cover Std.

Color Pk.

Type

PS 1313-7-o

PS 1313-10-o gray gray

PS 1313-7-to trans.

PS 1313-10-to trans.

2 120-405 PC 1313-7-o

2 120-905 PC 1313-10-o

2 130-005 PC 1313-7-to

2 130-505 PC 1313-10-to gray gray trans.

trans.

2

2

2

2

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

75 mm (2.95 in)

99 mm (3.90 in)

75 mm (2.95 in)

99 mm (3.90 in)

Polystyrene

Cat. No.

Type

105-405 PS 1313-7-m

105-905 PS 1313-10-m

106-005 PS 1313-7-tm

106-505 PS 1313-10-tm

Cover Std.

Color Pk.

Cat. No.

gray gray trans.

trans.

2

2

2

2

127-405

127-905

137-005

137-505

Polycarbonate 1

Type

Cover

Color

PC 1313-7-m

PC 1313-10-m gray gray

PC 1313-7-tm trans.

PC 1313-10-tm trans.

Std.

Pk.

2

2

2

2

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-106mm

DIN Rail TS15-111mm

Hinge Kit Set

195-005

198-106

197-111

190-002

MP1313

TS 35/106

TS 15/111

HK1

Mounting Tab Kit 194-001 MT1 1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

24

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1313

Dimensions

130.0 mm

(5.12 in)

115.0 mm

(4.53 in)

70.0 mm

(2.76 in)

A

99.0 mm

(3.90 in)

75.0 mm

60.0 mm

(2.95 in)

(2.36 in)

28.0 mm

(1.10 in)

101.0 mm

96.0 mm

(3.78 in)

124.0 mm

(4.88 in)

(3.98 in)

Knockout Positions

Side A

31.0 mm

(1.22 in)

65.0 mm

(2.56 in)

B

63.0 mm

(2.48 in)

87.0 mm

(3.43 in)

M 32 - 32.0 mm (1.26 in)

M 25 - 25.0 mm (0.98 in)

M 20 - 20.0 mm (0.79 in)

(Only 1 Side)

Side B

65.0 mm

(2.56 in)

130.0 mm

(5.12 in)

M 25 - 25.0 mm (0.98 in)

M 20 - 20.0 mm (0.79 in)

(Only 3 Sides)

32.0 mm

(1.26 in)

33.0 mm

(1.30 in)

33.0 mm

(1.30 in)

130.0 mm

(5.12 in)

32.0 mm

(1.26 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

25

TK 1809 – Polystyrene and Polycarbonate

– 180x94mm (7.09x3.70in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in)

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

110-410

110-910

111-010

111-510

E208470

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1809-6-o gray

PS 1809-8-o gray

PS 1809-6-to trans.

PS 1809-8-to trans.

2 120-410

2 120-910

2 130-010

2 130-510

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1809-6-o gray

PC 1809-8-o gray

PC 1809-6-to trans.

PC 1809-8-to trans.

2

2

2

2

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

57 mm (2.24 in)

81 mm (3.19 in)

57 mm (2.24 in)

81 mm (3.19 in)

Cat. No.

105-410

105-910

106-010

106-510

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-144mm

DIN Rail TS15-154mm

Hinge Kit Set

Mounting Tab Kit

195-010

198-144

197-154

190-002

194-001

MP1809

TS 35/144

TS 15/154

HK1

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1809-6-m gray

PS 1809-8-m gray

PS 1809-6-tm trans.

PS 1809-8-tm trans.

2

2

2

2

127-410

127-910

137-010

137-510

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1809-6-m gray

PC 1809-8-m gray

PC 1809-6-tm trans.

PC 1809-8-tm trans.

2

2

2

2

26

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1809

Dimensions

180.0 mm

(7.09 in)

165.0 mm

(6.50 in)

120.0 mm

(4.72 in)

A

81.0 mm

(3.19 in)

57.0 mm

(2.24 in)

42.0 mm

(1.65 in)

28.0 mm

(1.10 in)

50.0 mm

(1.97 in)

Knockout Positions

Side A

146.0 mm

(5.75 in)

150.0 mm

(5.91 in)

174.0 mm

(6.85 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

B

45.0 mm

(1.77 in)

69.0 mm

(2.72 in)

Side B

32 mm

(1.26 in)

30 mm

(1.18 in)

94.0 mm

(3.70 in)

32 mm

(1.26 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

30 mm

(1.18 in)

30 mm

(1.18 in)

30 mm

(1.18 in)

30 mm

(1.18 in)

180.0 mm

(7.09 in)

30 mm

(1.18 in)

30 mm

(1.18 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

27

TK 1811 – Polystyrene and Polycarbonate

– 180x110mm (7.09x4.33in.)

Standard Features

Protection Level:

IP66 (NEMA Type: 4X with gray cover,

Technical:

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

E254144

1

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Height mm (in) Cat. No.

90 mm (3.54 in) 110-406

111 mm (4.37 in) 110-906

165 mm (6.50 in) 109-406

90 mm (3.54 in) 111-006

111 mm (4.37 in) 111-506

165 mm (6.50 in) 112-006

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Cat. No.

90 mm (3.54 in) 105-406

111 mm (4.37 in) 105-906

165 mm (6.50 in) 104-406

90 mm (3.54 in) 106-006

111 mm (4.37 in) 106-506

165 mm (6.50 in) 107-006

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-144mm

Hinge Kit Set

Mounting Tab Kit

195-006

198-144

190-005

194-001

MP1811

TS 35/144

HK2

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1811-9-o gray

PS 1811-11-o gray

PS 1811-16-o gray

PS 1811-9-to trans.

PS 1811-11-to trans.

PS 1811-16-to trans.

2

2

2

2

2

2

120-406

120-906

121-406

130-006

130-506

131-006

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1811-9-m gray

PS 1811-11-m gray

PS 1811-16-m gray

PS 1811-9-tm trans.

PS 1811-11-tm trans.

PS 1811-16-tm trans.

2 127-406

2 127-906

2 128-406

2 137-006

2 137-506

2 138-006

Polycarbonate 1

Type

Cover

Color

PC 1811-9-o gray

PC 1811-11-o gray

PC 1811-16-o gray

PC 1811-9-to trans.

PC 1811-11-to trans.

PC 1811-16-to trans.

Std.

Pk.

2

2

2

2

2

2

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1811-9-m

PC 1811-11-m

PC 1811-16-m gray gray gray

PC 1811-9-tm trans.

PC 1811-11-tm trans.

PC 1811-16-tm trans.

2

2

2

2

2

2

28

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1811

Dimensions

110.0 mm

(4.33 in)

95.0 mm

(3.74 in)

50.0 mm

(1.97 in)

A

165.0 mm

(6.50 in)

111.0 mm

(4.37 in)

90.0 mm

(3.54 in)

28.0 mm

(1.10 in)

75.0 mm

(2.95 in)

97.0 mm

(3.82 in)

150.0 mm

(5.91 in)

Knockout Positions

Side A

80.0 mm

(3.15 in)

103.0 mm

(4.06 in)

55.0 mm

(2.17 in)

B

72.0 mm

(2.83 in)

M 25 - 25.0 mm (0.98 in)

M 20 - 20.0 mm (0.79 in)

M 20 - 20.0 mm (0.79 in)

Side B

28.5 mm

(1.12 in)

26.5 mm

(1.04 in)

26.5 mm

(1.04 in)

110 mm

(4.33 in)

28.5 mm

(1.12 in)

M 20 - 20.0 mm (0.79 in)

M 40 - 40.0 mm (1.57 in)

M 32 - 32.0 mm (1.26 in)

45.5 mm

(1.79 in)

90 mm

(3.54 in)

44.5 mm

(1.75 in)

180 mm

(7.09 in)

44.5 mm

(1.75 in)

45.5 mm

(1.79 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

29

TK 1818f – Polystyrene and Polycarbonate

– 182x180mm (7.17x7.09in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

NEW

E254144

1

Smooth Sidewalls

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

63 mm (2.48 in)

84 mm (3.31 in)

Enclosure - top hat cover 137 mm (5.39 in)

Enclosure - low cover 63 mm (2.48 in)

Enclosure - high cover 84 mm (3.31 in)

Enclosure - top hat cover 137 mm (5.39 in)

Cat. No.

110-413

110-913

109-413

111-013

111-513

112-013

Polystyrene

Type

PS 1818-6f-o

PS 1818-8f-o

PS 1818-13f-o

PS 1818-6f-to

PS 1818-8f-to

PS 1818-13f-to

Cover Std.

Color Pk.

Cat. No.

gray gray gray trans.

trans.

trans.

2

2

1

2

2

1

120-413

120-913

121-413

130-013

130-513

131-013

Polycarbonate 1

Type

PC 1818-6f-o

PC 1818-8f-o

PC 1818-13f-o

PC 1818-6f-to

PC 1818-8f-to

PC 1818-13f-to

Cover Std.

Color Pk.

gray gray gray trans.

trans.

trans.

1

2

2

2

2

1

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

63 mm (2.48 in)

84 mm (3.31 in)

Enclosure - top hat cover 137 mm (5.39 in)

Enclosure - low cover 63 mm (2.48 in)

Enclosure - high cover 84 mm (3.31 in)

Enclosure - top hat cover 137 mm (5.39 in)

Cat. No.

105-413

105-913

104-413

106-013

106-513

107-013

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1818-6f-m

PS 1818-8f-m gray gray

PS 1818-13f-m gray

PS 1818-6f-tm trans.

PS 1818-8f-tm trans.

PS 1818-13f-tm trans.

2

2

1

2

2

1

127-413

127-913

128-413

137-013

137-513

138-013

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1818-6f-m

PC 1818-8f-m

PC 1818-13f-m

PC 1818-6f-tm gray gray gray trans.

PC 1818-8f-tm trans.

PC 1818-13f-tm trans

1

2

2

2

2

1

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-144mm

Hinge Kit Set

Mounting Tab Kit

195-007

198-144

190-005

194-001

MP1818

TS 35/144

HK2

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

30

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1818f

Dimensions

182 mm (7.17 in)

167 mm (6.57 in)

120 mm (4.72 in)

137 mm (5.39 in)

83.5 mm (3.29 in)

62.5 mm (2.46 in)

44.5 mm

(1.75 in)

Knockout Positions

118 mm (4.65 in)

152.8 mm (6.02 in)

176 mm (6.93 in)

48 mm

(1.89 in)

70 mm (2.76 in)

123.5 mm (4.86 in)

M 32 - 32.0 mm (1.26 in)

M 25 - 25.0 mm (0.98 in)

M 20 - 20.0 mm (0.79 in)

M 16 - 16.0 mm (0.63 in)

76.8 mm

(3.02 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

31

TK 1818 – Polystyrene and Polycarbonate

– 182x180mm (7.17x7.09in.)

Standard Features

Protection Level:

IP66 (NEMA Type: 4X with gray cover,

Technical:

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Height mm (in) Cat. No.

90 mm (3.54 in) 110-407

111 mm (4.37 in) 110-907

165 mm (6.50 in) 109-407

90 mm (3.54 in) 111-007

111 mm (4.37 in) 111-507

165 mm (6.50 in) 112-007

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Cat. No.

90 mm (3.54 in) 105-407

111 mm (4.37 in) 105-907

165 mm (6.50 in) 104-407

90 mm (3.54 in) 106-007

111 mm (4.37 in) 106-507

165 mm (6.50 in) 107-007

E254144

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1818-9-o gray

PS 1818-11-o gray

PS 1818-16-o gray

PS 1818-9-to trans.

PS 1818-11-to trans.

PS 1818-16-to trans.

2

2

1

2

2

1

120-407

120-907

121-407

130-007

130-507

131-007

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1818-9-o gray

PC 1818-11-o gray

PC 1818-16-o gray

PC 1818-9-to trans.

PC 1818-11-to trans.

PC 1818-16-to trans.

1

2

2

2

2

1

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 1818-9-m gray

PS 1818-11-m gray

PS 1818-16-m gray

PS 1818-9-tm trans.

PS 1818-11-tm trans.

PS 1818-16-tm trans.

2

2

1

127-407

127-907

128-407

2 137-007

2 137-507

1 138-007

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 1818-9-m gray

PC 1818-11-m gray

PC 1818-16-m gray

PC 1818-9-tm trans.

PC 1818-11-tm trans.

PC 1818-16-tm trans

1

2

2

1

2

2

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-144mm

Hinge Kit Set

Mounting Tab Kit

195-007

198-144

190-005

194-001

MP1818

TS 35/144

HK2

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

32

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 1818

Dimensions

182.0 mm

(7.17 in)

120.0 mm

(4.72 in)

167.0 mm

(6.57 in)

A

90 mm

(3.54 in)

111 mm

(4.37 in)

165 mm

(6.50 in)

118.0 mm

(4.65 in)

118.0 mm

(4.65 in)

75.0 mm

(2.95 in)

97.0 mm

(3.82 in)

150.0 mm

(5.91 in)

72.0 mm

(2.83 in)

175.0 mm

(6.89 in)

152.0 mm

(5.98 in)

Knockout Positions

Side A

M 20 - 20.0 mm (0.79 in)

B

M 32 - 32.0 mm (1.26 in)

M 25 - 25.0 mm (0.98 in)

Side B

28.5 mm

(1.12 in)

30.0 mm

(1.18 in)

32.5 mm

(1.28 in)

182 mm

(7.17 in)

M 20 - 20.0 mm (0.79 in)

M 40 - 40.0 mm (1.57 in)

M 32 - 32.0 mm (1.26 in)

45.5 mm

(1.79 in)

44.5 mm

(1.75 in)

180 mm

(7.09 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

33

TK 2518f – Polystyrene and Polycarbonate

– 254x180mm (10.0x7.09in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

E254144

1

Smooth Sidewalls

Ordering

Information

Height mm (in) Cat. No.

Enclosure - low cover 63 mm (2.48 in) 110-411

Enclosure - high cover 84 mm (3.31 in) 110-911

Enclosure - top hat cover 137 mm (5.39 in) 109-411

Enclosure - low cover

Enclosure - high cover

63 mm (2.48 in)

84 mm (3.31 in)

111-011

111-511

Enclosure - top hat cover 137 mm (5.39 in) 112-011

Polystyrene

Type

PS 2518-6f-o

PS 2518-8f-o

PS 2518-14f-o

PS 2518-6f-to

PS 2518-8f-to

PS 2518-14f-to

Cover Std.

Color Pk.

Cat. No.

gray gray gray trans.

trans.

trans.

1 120-411

1 120-911

1 121-411

1 130-011

1 130-511

1 131-011

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 2518-6f-o

PC 2518-8f-o

PC 2518-14f-o gray gray gray

PC 2518-6f-to

PC 2518-8f-to trans.

trans.

PC 2518-14f-to trans.

1

1

1

1

1

1

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in) Cat. No.

Enclosure - low cover

Enclosure - high cover

63 mm (2.48 in) 105-411

84 mm (3.31 in) 105-911

Enclosure - top hat cover 137 mm (5.39 in) 104-411

Enclosure - low cover 63 mm (2.48 in) 106-011

Enclosure - high cover 84 mm (3.31 in) 106-511

Enclosure - top hat cover 137 mm (5.39 in) 107-011

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 2518-6f-m

PS 2518-8f-m

PS 2518-14f-m

PS 2518-6f-tm gray gray gray trans.

PS 2518-8f-tm trans.

PS 2518-14f-tm trans.

1

1

1

1

1

1

127-411

127-911

128-411

137-011

137-511

138-011

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 2518-6f-m gray

PC 2518-8f-m gray

PC 2518-14f-m gray

PC 2518-6f-tm trans.

PC 2518-8f-tm trans.

PC 2518-14f-tm trans.

1

1

1

1

1

1

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-216mm

Hinge Kit Set

Mounting Tab Kit

195-008

198-216

190-005

194-001

MP2518

TS 35/216

HK2

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

34

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 2518f

Dimensions

254 mm

(10.0 in)

239 mm

(9.41 in)

190 mm

(7.48 in)

120 mm

(4.72 in)

84 mm

(3.31 in)

137 mm

(5.39 in)

63 mm

(2.48 in)

45 mm

(1.77 in)

224 mm

(8.82 in)

247 mm

(9.72 in)

Knockout Positions

Side A

51.6 mm

(2.03 in)

38.4 mm

(1.51 in)

M 32 - 32 mm (1.26 in)

M 25 - 25 mm (0.98 in)

M 20 - 20 mm (0.79 in)

M 16 - 16 mm (0.63 in)

49 mm

(1.93 in)

70 mm

(2.76 in)

123 mm

(4.84 in)

Side B

M 32 - 32 mm (1.26 in)

M 25 - 25 mm (0.98 in)

M 20 - 20 mm (0.79 in)

M 16 - 16 mm (0.63 in)

38.4 mm

(1.51 in)

29.5 mm

(1.16 in)

29.5 mm

(1.16 in)

29.6 mm

(1.17 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

35

TK 2518 – Polystyrene and Polycarbonate

– 254x180mm (10.0x7.09in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Accessories:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

See section below

E254144

1

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Height mm (in) Cat. No.

90 mm (3.54 in) 110-408

111 mm (4.37 in) 110-908

165 mm (6.50 in) 109-408

90 mm (3.54 in) 111-008

111 mm (4.37 in) 111-508

165 mm (6.50 in) 112-008

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 2518-9-o

PS 2518-11-o

PS 2518-16-o gray gray gray

PS 2518-9-to trans.

PS 2518-11-to trans.

PS 2518-16-to trans.

1 120-408

1 120-908

1 121-408

1 130-008

1 130-508

1 131-008

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 2518-9-o gray

PC 2518-11-o gray

PC 2518-16-o gray

PC 2518-9-to trans.

PC 2518-11-to trans.

PC 2518-16-to trans.

1

1

1

1

1

1

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Enclosure - low cover

Enclosure - high cover

Enclosure - top hat cover

Cat. No.

90 mm (3.54 in) 105-408

111 mm (4.37 in) 105-908

165 mm (6.50 in) 104-408

90 mm (3.54 in) 106-008

111 mm (4.37 in) 106-508

165 mm (6.50 in) 107-008

Accessories

Ordering

Information

Mounting Plate

DIN Rail TS35-216mm

Hinge Kit Set

Mounting Tab Kit

Cat. No.

195-008

198-216

190-005

194-001

Type

MP2518

TS 35/216

HK2

MT1

Std.

Pk.

1

1

1

1

Please refer to pages 116-120 for additional accessories and detailed information.

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 2518-9-m gray

PS 2518-11-m gray

PS 2518-16-m gray

PS 2518-9-tm trans.

PS 2518-11-tm trans.

PS 2518-16-tm trans.

1

1

1

1

1

1

127-408

127-908

128-408

137-008

137-508

138-008

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 2518-9-m gray

PC 2518-11-m gray

PC 2518-16-m gray

PC 2518-9-tm trans.

PC 2518-11-tm trans.

PC 2518-16-tm trans.

1

1

1

1

1

1

36

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 2518

Dimensions

254.0 mm

(10.0 in)

190.0 mm

(7.48 in)

239.0 mm

(9.41 in)

A

111.0 mm

(4.37 in)

90.0 mm

(3.54 in)

165.0 mm

(6.50 in)

118 mm

(4.65 in)

185.0 mm

(7.28 in)

75.0 mm

(2.95 in)

150.0 mm

(5.91 in)

97.0 mm

(3.82 in)

72.0 mm

(2.83 in)

120.0 mm

(4.72 in)

224.0 mm

(8.82 in)

247.0 mm

(9.72 in)

B

Knockout Positions

Side A

M 40 - 40.0 mm (1.57 in)

M 32 - 32.0 mm (1.26 in)

M 20 - 20.0 mm (0.79 in)

73.0 mm

(2.87 in)

Side B

45.5 mm

(1.79 in)

89.0 mm

(3.50 in)

180 mm

(7.09 in)

M 32 - 32.0 mm (1.26 in)

M 25 - 25.0 mm (0.98 in)

M 40 - 40.0 mm (1.57 in)

M 32 - 32.0 mm (1.26 in)

M 20 - 20.0 mm (0.79 in)

72.0 mm

(2.83 in)

197.0 mm

(7.76 in)

134.5 mm

(5.30 in)

254.0 mm

(10.0 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

37

TK 3625 – Polystyrene and Polycarbonate

– 360x254mm (14.2x10.0in.)

Standard Features

Protection Level:

Technical:

IP66 (NEMA Type: 4X with gray cover,

12K with transparent cover)

Smooth or Knockout Sidewalls

Gray or Tinted Transparent Cover

Multiple Enclosure Mounting Options

Enclosure Material:

Polystyrene or Polycarbonate

Gasket Material:

Polyurethane

Color:

Light Gray

Temperature Range:

Polystyrene

-40°C to 70°C (-40°F to 158°F)

Polycarbonate

-35°C to 120°C (-31°F to 248°F)

Accessories:

See section below

E254144

1

Smooth Sidewalls

Ordering

Information

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Height mm (in) Cat. No.

111 mm (4.37 in) 110-412

165 mm (6.50 in) 110-912

111 mm (4.37 in) 111-012

165 mm (6.50 in) 111-512

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 3625-11-o

PS 3625-16-o gray gray

PS 3625-11-to trans.

PS 3625-16-to trans.

1

1

1

1

120-412

120-912

130-012

130-512

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 3625-11-o gray

PC 3625-16-o gray

PC 3625-11-to trans.

PC 3625-16-to trans.

1

1

1

1

Sidewalls with Metric Knockouts

Ordering

Information

Height mm (in)

Enclosure - low cover

Enclosure - high cover

Enclosure - low cover

Enclosure - high cover

Cat. No.

111 mm (4.37 in) 105-412

165 mm (6.50 in) 105-912

111 mm (4.37 in) 106-012

165 mm (6.50 in) 106-512

Polystyrene

Type

Cover Std.

Color Pk.

Cat. No.

PS 3625-11-m gray

PS 3625-16-m gray

PS 3625-11-tm trans.

PS 3625-16-tm trans.

1 127-412

1 127-912

1 137-012

1 137-512

Accessories

Ordering

Information Cat. No.

Type

Std.

Pk.

Mounting Plate

DIN Rail TS35-336mm

Hinge Kit Set

Mounting Tab Kit

195-012

198-336

190-005

194-001

MP3625

TS 35/ 336

HK2

MT1

Please refer to pages 116-120 for additional accessories and detailed information.

1

1

1

1

Polycarbonate 1

Type

Cover Std.

Color Pk.

PC 3625-11-m gray

PC 3625-16-m gray

PC 3625-11-tm trans.

PC 3625-16-tm trans.

1

1

1

1

38

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

TK 3625

Dimensions

346.0 mm

(13.62 in)

320.0 mm

(12.60 in)

355.0 mm

(13.98 in)

125.0 mm

(4.92 in)

A

111.0 mm

(4.37 in)

165.0 mm

(6.50 in)

309.0 mm

(12.17 in)

240.0 mm

(9.45 in)

361.0 mm

(14.21 in)

Knockout Positions

Side A

30.4 mm

(1.20 in)

127.0 mm

(5.0 in)

B

M 32 - 32.0 mm (1.26 in)

M 25 - 25.0 mm (0.98 in)

M 40 - 40.0 mm (1.57 in)

M 32 - 32.0 mm (1.26 in)

M 20 - 20.0 mm (0.79 in)

97.0 mm

(3.82 in)

150.0 mm

(5.91 in)

72.0 mm

(2.83 in)

Side B

46.0 mm

(1.81 in)

44.5 mm

(1.75 in)

31.75 mm

(1.25 in)

254.0 mm

(10.0 in)

60.7 mm

(2.39 in)

91.0 mm

(3.58 in)

M 40 - 40.0 mm (1.57 in)

M 32 - 32.0 mm (1.26 in)

M 20 - 20.0 mm (0.79 in)

89.0 mm

(3.50 in)

89.0 mm

(3.50 in)

133.0 mm

(5.24 in)

361.0 mm

(14.2 in)

Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

39

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
