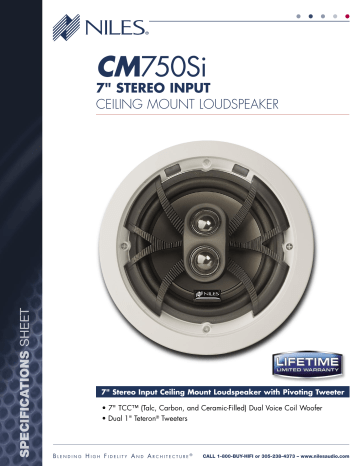

CM750Si
SPECIFICATIONS SHEET
7" STEREO INPUT
CEILING MOUNT LOUDSPEAKER
7" Stereo Input Ceiling Mount Loudspeaker with Pivoting Tweeter
• 7" TCC™ (Talc, Carbon, and Ceramic-Filled) Dual Voice Coil Woofer
• Dual 1" Teteron® Tweeters
BLENDING HIGH FIDELITY AND ARCHITECTURE®
CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
7
INCH STEREO INPUT CEILING MOUNT LOUDSPEAKER
7" Stereo Input Loudspeaker
with Pivoting Tweeter
Features
CM750Si
■ Injection-molded TCC™ (Talc, Carbon, and Ceramic-filled) dual voice coil woofer reproduces left
and right channel inputs from a single speaker
Stock Number
■ Butyl rubber cone surround damps resonance and provides exceptional durability
FG01305
■ Dual 1" pivoting fluid-cooled Teteron® dome tweeters offer ultra-wide dispersion and silkysmooth high-frequency response
■ Integrated woofer/baffle design delivers greater low frequency response by employing a
7" woofer where competitive models of the same outer size employ 6 1/2" woofers
■ Bridge-mounted stereo imaging (Si) tweeter array directs the high-frequency sounds from both
the left and right channels at opposing angles to preserve stereo separation
■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look
■ Weather resistant construction reduces installation limitations and provides unique solutions in
showers or outdoors under eaves
Specifications
■ Frequency Response: 55Hz to 21kHz +/-3dB
■ Impedance: 8 ohm nominal; 6 ohm minimum
■ Recommended Amplifier Power: 10 to 125 Watts
■ Frame Dimensions: 9 1/4 inches (23.49 cm)
■ Hole cutout dimensions: 8 inches (20.32 cm)
■ Depth behind ceiling: 4 3/8 inches (11.11 cm)
Warranty: Lifetime Limited
P RODUCT CONSTRUCTION AND ACCESSORIES
4-3/8" (11.11 cm) Depth
SPECIFICATIONS SHEET
8" (20.32 cm)
Hole
Cutout
9-1/4" (23.49 cm)
Frame Outer
Diameter
8" (20.32 cm)
Hole
Cutout
4-11/16" (11.90 cm) Depth
Loudspeaker Model
Model
Stock Number
CM750Si
FG01305
Works With
Previous Bracket
New Bracket
CM6 Series
Bracket Kit
FG00655
Metal Enclosure
Hole Cover
CM700 BKT
CE 6
CM700 Hole Cover
FG01308
FG00944
FG01309
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – 305-238-4373 – www.nilesaudio.com
©2007 Niles Audio Corporation. All Rights Reserved. Niles, Blending High Fidelity and Architecture and the Niles logo are registered trademarks of Niles Audio Corporation. MicroPerf and TCC
are trademarks of Niles Audio Corporation. CS0056B
