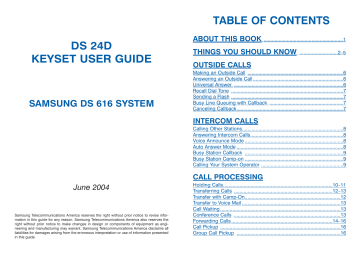

DS 24D

KEYSET USER GUIDE

SAMSUNG DS 616 SYSTEM

June 2004

Samsung Telecommunications America reserves the right without prior notice to revise information in this guide for any reason. Samsung Telecommunications America also reserves the right without prior notice to make changes in design or components of equipment as engineering and manufacturing may warrant. Samsung Telecommunications America disclaims all liabilities for damages arising from the erroneous interpretation or use of information presented in this guide.

TABLE OF CONTENTS

ABOUT THIS BOOK

..........................................................1

THINGS YOU SHOULD KNOW

............................2–5

OUTSIDE CALLS

Making an Outside Call ......................................................................6

Answering an Outside Call ..................................................................6

Universal Answer ................................................................................6

Recall Dial Tone ..................................................................................7

Sending a Flash ..................................................................................7

Busy Line Queuing with Callback ......................................................7

Canceling Callback..............................................................................7

INTERCOM CALLS

Calling Other Stations..........................................................................8

Answering Intercom Calls....................................................................8

Voice Announce Mode ........................................................................8

Auto Answer Mode ..............................................................................8

Busy Station Callback ........................................................................9

Busy Station Camp-on ........................................................................9

Calling Your System Operator ............................................................9

CALL PROCESSING

Holding Calls................................................................................10–11

Transferring Calls ........................................................................12–13

Transfer with Camp-On......................................................................12

Transfer to Voice Mail ........................................................................13

Call Waiting ........................................................................................13

Conference Calls ..............................................................................13

Forwarding Calls ..........................................................................14–16

Call Pickup ........................................................................................16

Group Call Pickup ............................................................................16

DIALING FEATURES

Speed Dialing ....................................................................................17

Programming Personal Speed Dial Numbers ............................17–18

One Touch Speed Dialing ................................................................18

Last Number Redial ..........................................................................18

Save Number with Redial ..................................................................18

Chain Dialing ....................................................................................19

Automatic Redial/Retry ......................................................................19

Pulse to Tone Changeover ................................................................19

PAGING AND MESSAGING

Making an Internal Page....................................................................20

Making an External Page ..................................................................20

All Page ..............................................................................................20

Meet Me Page....................................................................................21

Call Park and Page ............................................................................21

Messages—Set and Cancel ..............................................................22

Returning Messages..........................................................................22

Programmed Messages ....................................................................23

CONVENIENCE FEATURES

Do Not Disturb ..................................................................................24

One Time DND ..................................................................................24

Mute ..................................................................................................24

Background Music ............................................................................24

Appointment Reminder/Alarm Clock ................................................25

Door Phone Calls ..............................................................................25

Executive/Secretary Hotline ..............................................................26

Group Listening ................................................................................26

Account Codes ..................................................................................27

Locking Your Keyset ..........................................................................27

Off-Hook Voice Announce ..........................................................27–28

OHVA Block ......................................................................................28

OHVA Reject ......................................................................................28

In Group/Out of Group ......................................................................28

CUSTOMIZING YOUR KEYSET

AME Password ..................................................................................30

Select Ring Tone................................................................................30

Change Your Passcode ....................................................................30

Set Answer Mode ..............................................................................31

Automatic Hold ..................................................................................31

Headset Operation ............................................................................31

Hot Keypad ........................................................................................32

Key Confirmation Tone ......................................................................32

Rejoining a Page ..............................................................................32

Ring Preference ................................................................................32

DISPLAY FEATURES

Interactive Display Keys ....................................................................33

Directory Information ...................................................................... 33

Dial by Directory ................................................................................34

Call Progress Displays ......................................................................34

Display Number Dialed......................................................................34

Call Duration Timer............................................................................34

Auto Timer..........................................................................................35

Timer Function ..................................................................................35

Viewing Message Indications ............................................................35

Alarm Reminder Messages ..............................................................35

Personal Speed Dial Names ............................................................36

Station Names ..................................................................................37

Managing Key Assignments ..............................................................37

Caller ID .......................................................................................38–41

LCR with Clear....................................................................................41

PERSONAL SPEED DIAL NUMBERS

........42–43

ABOUT THIS BOOK

Your DS 24D keyset is the most visible part of your telephone system.

Please take the time to study this guide and to become familiar with the operation of your keyset. Keep this guide handy. You may need to look up instructions for infrequently used features.

Learning to use your keyset correctly will make everyday telephone communications a breeze.

This book is written based on the factory default settings for the feature access codes. Sometimes, due to programming requirements, these codes may be changed. If you find that a feature code does not work as described in this book, please contact your installation and service company to determine the correct code.

NOTE: DS 24D keysets are available only for Samsung DS 616 phone systems.

1

2

THINGS YOU SHOULD KNOW

USER ORIENTATION

DS 24D telephones are called “keysets.” They contain buttons or “keys” that are used to access or activate the many features of your office phone system. The keys with paper designation strips are programmable keys. This means they can be programmed for a specific function on your keyset and that same button can be something different on another keyset. See the system manager to get your most frequently used features assigned to your programmable keys. When changes are made, be sure that your programmable keys are relabeled properly.

Lines from the telephone company are “C.O. lines.” Calls on these lines are referred to as “outside calls.” Your system can have individual C.O. line keys or lines may be assigned to groups. When they are in a group, you access a line by dialing an access code or pressing a route button. For example, dial

9 or press a “LOCAL” key to get a local outside line. If Least Cost Routing is used, pressing the “LCR” key will automatically select a preprogrammed

C.O. line according to what digits are dialed. Each line in the system is numbered, beginning with 701, then 702, 703, etc.

Direct Station Selection (DSS) keys are programmed to ring specific stations. You can press a DSS key instead of dialing the extension number. A

DSS key lights red when that station is busy (Busy Lamp Indication).

DS 24D keysets provide distinctive ring patterns:

• Outside calls have a single ring tone repeated.

• Internal calls have a double ring tone repeated.

• Door phone calls and alarm/appointment reminders have a triple ring tone repeated.

CALL INDICATIONS

The keys on your phone have light emitting diodes (LEDs). These are tri-colored LEDs that light green, red or amber (green and red together).

Intercom calls, also called internal calls, always appear on your CALL buttons. They will always light green. You can have up to eight CALL buttons, but at least two are recommended.

Outside calls appear on individual line keys if they are assigned. When an individual line is not assigned to its own key, it will appear on a CALL button.

Your outside calls will light green on your keyset and red on other keysets.

You never lose sight of your calls while they are on hold. They stay right where you put them and are identified with a green flashing light.

Some simple rules to remember:

• Any steady LED indicates the line or feature is in use.

• A fast flashing green LED indicates a new call ringing in.

• A slow flashing green or red LED indicates a call is on hold.

• A slow flashing amber LED indicates a recall to your keyset.

SPEAKERPHONE

DS 24D keysets are speaker phones. Pressing the

SPEAKER

key will answer or release a call on the speakerphone. Switching from the handset to the speakerphone is easy. Simply press the

SPEAKER

key and hang up the handset.

VOLUME CONTROLS

The DS 24D keyset uses the UP and DOWN keys to adjust the ringer volume while the keyset is ringing, the speaker volume while the speakerphone is in use and the handset volume while you are listening. These three levels will be stored in memory until changed. If background music is turned on at your keyset, the volume keys will also control the level of music. The volume of pages heard through the speaker of a keyset can be adjusted during a page announcement by using the volume keys. There are 16 levels for each volume setting, except Ring volume, Off-Hook volume, and Handset volume.

The are 8 levels for Ring volume, Off-Hook volume, and Handset volume.

The volume of Off-Hook ring is controlled by a user-programmable setting.

FEATURE ACCESS CODES

This user guide is written based on the default access code for using system features. If the system numbering plan has been changed some of the access codes may not be correct. Your installing company can inform you of the correct codes.

3

4

SYSTEM TONES

The system provides several tones to assist you. Some of these tones are already familiar to you.

Intercom Dial Tone —A steady tone that indicates you can begin dialing.

DIAL TONE—CONTINUOS

CONTINUOUS

Ringback Tone —Indicates the station you dialed is ringing.

RINGBACK TONE —

400 ms ON/200 ms OFF/400 ms ON/2000 ms OFF

CONTINUOUS

Busy Tone —Indicates the station you dialed is busy.

BUSY TONE —350 ms ON/350 ms OFF

CONTINUOUS

DND/No More Calls Tone —Fast busy tone indicates the station you dialed is in the Do Not Disturb mode or cannot receive any more calls.

DND/NO MORE CALLS TONE —250 ms ON/250 ms OFF

FOR TEN SECONDS

Transfer/Conference Tone—Indicates your call is being held and you can dial another party.

TRANSFER/CONF TONE —100 ms ON/100 ms OFF

CONTINUOUS

Confirmation Tone—Very short beeps followed by dial tone indicate you have correctly set or canceled a system feature.

CONFIRMATION TONE —100 ms ON/100 ms OFF

FOR ONE SECOND

Error Tone—A continuous single level tone indicates you have done something incorrectly. Try again.

ERROR TONE —CONTINUOUS

CONTINUOUS

DS 24D KEYSET

32 CHARACTER DISPLAY

Two lines with 16 characters each.

SOFT KEYS

Used to activate features via the display.

DS 24D

Scroll

SCROLL KEY

Used to scroll through displays.

1 2

ABC

3

DEF

4

GHI

5

JKL

6

MNO

7

PRS

8

TUV

9

WXYZ

0

Volume Transfer Redial Hold Speaker

SPEAKER

For handsfree operation and ringing.

TRANSFER KEY

REDIAL KEY

SPEAKER KEY

HOLD KEY

8 PROGRAMMABLE KEYS WITH

TRI-COLORED LIGHTS

Keys 1-3 (1-6) are automatically assigned as Direct Trunk keys. Key

#8 is a message key, by default.

Although all 8 keys may be programmed for any system features/functions.

VOLUME CONTROL KEYS

Used to set independent levels for handset, speaker, background music, ring and page volumes.

MICROPHONE

For handsfree operation.

16 PROGRAMMABLE KEYS WITH

TRI-COLORED LIGHTS

Used to call stations directly, to indicate busy conditions of other stations, for

One Touch dialing and many other system features.

5

6

OUTSIDE CALLS

MAKING AN OUTSIDE CALL

• Lift the handset and press an idle outside line button, line group button or dial a line access code to receive dial tone—

OR

—press an idle outside line button, line group button or dial a line access code to receive dial tone through the speaker—

OR

—press

SPEAKER

, receive intercom dial tone and dial a line access code.

• Dial the telephone number.

• Finish the call by replacing the handset or pressing the

SPEAKER

key.

NOTE: You will receive No More Calls tone when you attempt to make a call and there is no key available for that line.

• If Least Cost Routing is enabled on your phone system, this button may be labeled

LCR

or accessed by dialing an access code (usually

9

).

• If your system is programmed to require an authorization code before making a call, dial

4 plus a valid code before selecting a C.O. line.

• If your system is programmed to require an account code before making a call, press the

ACCT

button or dial

47

plus a valid code, press the

ACCT

button again and then select a C.O. line.

For more information on authorization and account codes, see your system administrator.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before dialing.

ANSWERING AN OUTSIDE CALL

• Lift the handset and you are automatically connected to the ringing call.

See

Ring Preference under Customizing Your Keyset

OR

—press the

SPEAKER

key to automatically answer on the speakerphone.

NOTE: If a call is flashing at your keyset but not ringing, you must press the flashing button to answer.

UNIVERSAL ANSWER

Outside lines may be programmed to ring a general alerting device. To answer calls ringing this device, dial

67

or press the

UA

key. This device can operate in the Day or Night mode.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before dialing.

RECALL DIAL TONE

Press the

NEW

button to disconnect your existing call, wait for dial tone and then make a new call on the same line.

NOTE: If this button does not appear on your keyset, the

FLASH

key may be programmed to recall dial tone.

SENDING A FLASH

While on an outside call, press the

FLASH

key to send a flash to the telephone company. This is required for some custom calling features or CEN-

TREX use.

BUSY LINE QUEUING WITH CALLBACK

If you receive a busy signal when you are selecting an outside line, this means that the line or group of lines is busy.

• Press the

CBK

key or dial

44

. You will hear confirmation tone.

• When the line becomes free, the system will call you back.

• Lift the handset or press the

SPEAKER

key to answer, wait for dial tone and dial the telephone number or speed dial number again.

NOTES:

1.

A callback will be canceled if not answered within 30 seconds. If you have set a callback, your

CBK

key will light.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before dialing.

CANCELING CALLBACK

A callback will be canceled if not answered within 30 seconds. If you have set a callback, your

CBK

key will light.

Your phone may have a maximum of five callbacks to lines and/or stations set at a time. To cancel a callback:

• Press the

CBK

key or dial

44

. You will hear confirmation tone.

• While you are listening to confirmation tone, press the

HOLD

key. This will cancel the oldest set callback that you have set.

NOTES:

1.

If the hot keypad feature is turned off, you must first lift the handset or press the

SPEAKER

key before dialing.

7

8

INTERCOM CALLS

CALLING OTHER STATIONS

• Dial the extension number or group number.

• Wait for the party to answer. If you hear a brief tone burst instead of ringback tone, the station you called is set for Voice Announce or Auto

Answer. Begin speaking immediately after the tone.

• Finish the call by replacing the handset or pressing the

SPEAKER

key.

NOTES:

1.

If you have a

DSS

key assigned to an extension or station group, you may press this key instead of dialing the number.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

ANSWERING INTERCOM CALLS

• When your keyset rings, simply lift the handset—

OR

—press the

SPEAKER

key to be connected to the calling station.

• Finish the call by replacing the handset or pressing the

SPEAKER

key.

See

Ring Preference

under

Customizing Your Keyset

.

VOICE ANNOUNCE MODE

(INTERCOM CALLS ONLY)

When another station calls you, your keyset will sound a brief attention tone and you will hear the caller’s announcement.

• Press

SPEAKER

to turn on the microphone and speak handsfree—

OR

— lift the handset to reply.

• To finish the call, replace the handset or press the

SPEAKER

key.

AUTO ANSWER MODE

(INTERCOM CALLS ONLY)

When another station calls you, your keyset will sound a brief attention tone and then automatically answer the call.

• Your microphone and speaker are turned on and you can speak handsfree. For privacy, use the handset.

• To finish the call, replace the handset or press the

SPEAKER

key.

BUSY STATION CALLBACK

When you call another station and receive a busy signal:

• Press the

CBK

key or dial

44

.

• When the busy station becomes free, your keyset will ring.

• Lift the handset or press

SPEAKER

to call the now idle station.

NOTES:

1.

A callback will be canceled if not answered within 30 seconds. If you have set a callback, your

CBK

key will light.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before dialing.

BUSY STATION CAMP-ON

When you call another station and receive a busy signal but you do not want to wait for a callback:

• Press the

CAMP

key or dial

45

.

• The called station will receive off-hook ring tone repeated every few seconds and its first available

CALL

button will flash green to indicate your call is waiting.

• Wait for the called party to answer.

• The called station must release its first call or place it on hold before answering your camp-on.

NOTES:

1.

If you receive No More Calls tone, that station has no available key to accept your call. Hang up or leave a message.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before dialing.

CALLING YOUR SYSTEM OPERATOR

• Dial

0

to call your system operator or group of operators.

• If you want to call a specific operator, dial that person’s extension number.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

9

CALL PROCESSING

SYSTEM HOLD

• When you are connected to any call, press

HOLD

. The call will flash green at your keyset. If this call appears on a line key at other keysets, it will flash red at those keysets.

• To take the caller off hold, press that key and the green flashing light will go steady green again. Resume the conversation.

NOTE: While on a call, pressing a line key, route key or flashing

CALL

button will automatically put your first call on hold and connect you to the new call. See

Automatic Hold

under

Customizing Your Keyset

.

EXCLUSIVE HOLD

To place an outside call on hold at your phone so that other users cannot get it:

• Press the

HOLD

button twice. The call will flash green on your keyset and this line will show a steady red light on other keysets.

• To retrieve the call, press the flashing green line button or press the

HOLD

button a third time.

NOTE: Intercom calls will always be placed on exclusive hold.

REMOTE HOLD

When you wish to place a call on hold at another station. Press

TRANSFER

and a dial the station number (or press the appropriate DSS key). Press the

HOLD

key. This will place the call on system hold on an available

CALL

button or Line Key at the remote station and return you to dial tone.

NOTES:

1.

If the destination station does not have any free CALL buttons or line keys you will hear No More Calls tone and must return to the other party by pressing the

TRANSFER

key (or the RETURN soft key in the display).

2.

Intercom calls cannot be remote held.

HOLD RECALL

If you leave a call on hold longer than the hold timer, it will recall your station. The button that the call appears on will have a slow flashing amber light.

• When your phone rings, lift the handset or press the

SPEAKER

key to answer the recall.

10

• If you do not answer this recall within a pre-programmed period of time, it will go to the system operator.

CONSULTATION HOLD

When you are talking on an outside line and it is necessary to consult with another extension:

• Press the

TRANSFER

key; you will receive transfer dial tone. Your call is placed on transfer hold.

• Dial the extension number.

• Consult with the internal party.

• Press

TRANSFER

to return to the outside party or hang up to transfer the call.

NOTE: Repeatedly pressing the

TRANSFER

key will toggle between the outside party and internal extension.

RETRIEVING CALLS HELD AT

ANOTHER STATION

When a line is on hold and it appears on your keyset, press the line button with the red flashing light.

When a line is on hold and it does not appear on your keyset, dial

12

plus the line number or the extension number of the station that placed the call on hold.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

CALL PARK

You can park an outside call in one of 10 “parking orbits”.

• Press the

PARK

key and dial the orbit number required (0-9); the key which the call was on will flash.

OR

• Press a dedicated

PARK

key which will also flash.

• To have the call picked up by another station notify the station user of the parking orbit number.

To pick up a parked call.

• Press the

PARK

key followed by the orbit number required or press the flashing

PARK

key.

11

TRANSFERRING CALLS

Transfer is used to send any call to another extension in one of two ways.

You can do a screened transfer by informing the other extension who is calling or you can do a blind transfer without notification.

• While on a call, press the

TRANSFER

key and dial an extension number or group number. Your call is automatically put on transfer hold.

OR

Press a

DSS

key or station group key. Your call is automatically put on transfer hold.

• Hang up when you hear ringing (this is an unscreened or blind transfer).

OR

Wait for the called party to answer and advise him/her of the call and hang up. If the transfer is refused, you will be reconnected to the outside line when the called station hangs up or you can press

TRANSFER

to return to the outside party. If you wish to send the call to another extension without waiting for the first station to hang up, simply press another

DSS

button.

OR

Press the

CALL

button or C.O. line key to return to the outside party and begin the transfer process again.

When you are transferring a call to a keyset set for Voice Announce or Auto

Answer, the transferred call will always ring.

NOTES:

1.

After the inside party answers, you may alternate back and forth between the parties by pressing the

TRANSFER

key.

2.

If you receive No More Calls tone, that station has no key available to receive another call. Press

TRANSFER

to return to the other party.

3.

You cannot transfer an Intercom call by pressing a

DSS

key. You must press the

TRANSFER

key and dial the destination extension number.

TRANSFER WITH CAMP-ON

When you are transferring a call to another station and you receive a busy signal, you may camp the call on to this station. Simply hang up when you hear the busy signal. The called party will be alerted that a call is waiting for them.

NOTE: If you receive No More Calls tone, that station has no key available to receive another call. Press

TRANSFER

to return to the outside caller.

12

TRANSFER TO VOICE MAIL

This feature is used to send a call directly to a voice mailbox. Your keyset must have a correctly programmed

VT

key to accomplish this. To transfer a call directly to a voice mailbox:

• While on a call, press the

VT

key and dial the mailbox number.

• Hang up when dialing is completed.

CALL WAITING

If an outside call has been camped-on to your phone or another station has camped-on to you:

• Your keyset will ring and the call that is waiting for you (camped-on) will flash green.

• Press the flashing button to answer; your other call will go on hold automatically if your station has the Automatic Hold feature set. If not, you must press

HOLD

and then the flashing button.

OR

Finish the first call and hang up; the waiting call will ring.

• Lift the handset or press the

SPEAKER

key to answer.

NOTE: Intercom calls will not go on Automatic Hold.

CONFERENCE CALLS

You may conference up to five parties (you and four others) with a maximum of 2 external parties (eg. outside lines or remote extensions) in any order.

• While engaged in a conversation, press the

CONF

key and receive conference tone.

• Make another call, either intercom or outside, press the

CONF

key and receive conference tone.

• Make another call or press the

CONF

key to join all parties.

• Repeat the last step until all parties are added.

NOTE: When attempting to add another party to the conference and you are not able to reach the desired person, hang up. Simply press the

CONF

key again to return to your previous conversation.

To drop a party from your conference call:

• Press

CONF

and dial the extension or line number that is to be dropped.

• Press

CONF

again to reestablish the conference.

NOTE: To leave the conference, hang up. Control is passed to the next internal station. If there are no internal stations and you wish to leave outside

13

lines connected together in a trunk to trunk conference, press the

CONF

key plus the

CALL

button that the call appears on or follow the instructions to drop a party and use your extension number. When they hang up, the lines will release automatically. Press

CONF

to rejoin a trunk to trunk conference.

FORWARDING CALLS

You may forward your calls to another station, group of stations or an external telephone number. Program a destination for the type of forwarding you want as detailed below. If you have

FWD ALL

,

FWD BUSY

and

FWD NO

ANSWER

keys, press one to turn that forward feature on. A steady red light reminds you what forward condition is activated.

You can clear all call forward conditions set at your station by lifting the handset and dialing

600

.

FORWARD ALL CALLS

To forward all your calls under any condition to another station:

• Dial

601

plus the extension or group number.

• Receive confirmation tone and hang up.

NOTES:

1.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

2.

The station that receives a Forwarded All call can transfer the call to the forwarded station. This is useful when you are expecting an important call but you do not wish to be disturbed by other calls.

3.

When a station user places his/her keyset in Forward All mode and he/she does not have a

FORWARD ALL

key, the

TRANSFER

key will light to indicate Forward All has been set and calls to this station have been transferred elsewhere.

FORWARD BUSY

To forward calls to another station when you are on the phone:

• Dial

602

plus the extension or group number.

• Receive confirmation tone and hang up.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press

SPEAKER

before you begin dialing.

14

FORWARD NO ANSWER

To forward calls to another station when you do not answer:

• Dial

603

plus the extension or group number.

• Receive confirmation tone and hang up.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

FORWARD BUSY/NO ANSWER

If you have both a Forward on Busy destination and a Forward No Answer destination programmed, you may set both of these at the same time:

• Dial

604

.

• Receive confirmation tone and hang up.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

FORWARD FOLLOW ME

When you want all calls to your extension forwarded to the extension where you are now:

• Dial

605

plus your extension number.

• Receive confirmation tone and hang up.

If you want a specific extension's calls forwarded to your phone (Remote Call

Forward):

• Dial

605

plus the desired extension number.

• Receive confirmation tone and hang up.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

FORWARD TO AN EXTERNAL NUMBER

To forward outside calls to a number outside of your business, you must have a

FWD EXTERNAL

button on your keyset.

• While on-hook, press

TRANSFER

and then dial

102

.

• Dial

6

.

• Dial the outside line access code followed by the telephone number that you want.

• Press

TRANSFER

to store.

15

• Press

FWD EXTERNAL

to turn the feature on and press it again to turn the feature off.

NOTES:

1.

External Call Forward will cancel all other call forwarding instructions.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

CALL FORWARD OPTIONS

A display keyset may review or change call forward options and destinations. Call forward access can be done via the keypad or by accessing the keyset display features. To review or change call forward options:

• Press

TRANSFER 102

.

• Dial

0-6

to select the forward type (e.g., 1)

OR

Press

UP

or

DOWN

to select the forward type

Press the right soft key to move the cursor

• Dial the destination number (e.g.,

202

)

OR

Press

UP

or

DOWN

to select the destination

Press the right soft key to move the cursor

• Dial

1

to set

OR

Press

UP

or

DOWN

to select

YES

or

NO

• Press

Transfer

to store and exit

STATION CALL PICKUP

To pick up (answer) a call ringing at another station, lift the handset and dial

65

plus the extension number of the ringing phone.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

GROUP CALL PICKUP

To pick up (answer) a call ringing in any pickup group, lift the handset and dial

66

plus the desired group number

01–08

or press the flashing

GROUP

PICKUP

key if available.

NOTES:

1.

A group pickup key can have an extender for a specific pickup group.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before dialing the access code.

16

DIALING FEATURES

SPEED DIALING

You can dial a preprogrammed telephone number stored in the system-wide speed dial list of numbers 500–799 or from your personal list of numbers

00–49:

• With the handset on-hook, press the

SPD

key or dial

16

.

• Dial the desired speed dial number.

• The telephone number is automatically dialed for you.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

PROGRAMMING PERSONAL SPEED

DIAL NUMBERS

You can program frequently dialed telephone numbers in a personal speed dial list. A station may be assigned up to fifty numbers,

00–49

. See your system administrator to determine the amount assigned to your station.

• While on-hook, press

TRANSFER

and then dial

105

.

• Dial a speed dial number (

00–49

).

• Dial a line or line group access code.

• Dial the telephone number to be stored (24 digits maximum). It can include #,

4

, FLASH and PAUSE.

• Press

TRANSFER

to store the number.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

For the purposes of programming speed dial numbers, the programmable keys are known as

A

,

B

,

C

,

D

,

E

and

F

and are defined below.

• The

A

key is not used.

• The

B

key inserts a flash.

• The

C

key inserts a pause.

• The

D

key is used for pulse to tone conversion. If your system uses rotary (or

C

D

A

B

E

F

DS 24D DEFAULT

PROGRAMMING

KEYS LAYOUT

17

pulse) dialing C.O. lines, pressing

D

while entering a speed dial number causes all subsequent digits to be sent as DTMF tones.

• The

E

key is used to hide digits. Display keyset users may want to hide some speed dial numbers so that they will not show in the display. When you are entering a telephone number, press

E

. All subsequent digits will be hidden. Press

E

again to begin displaying digits.

• The

F

key is used to enter a name. See

Personal Speed Dial Names

under

Display Features.

• Use the

HOLD

key to clear a speed dial number.

ONE TOUCH SPEED DIALING

You may assign any speed dial number to an already existing One Touch

Speed Dial button for quick and easy dialing of frequently used numbers.

• While on-hook, press

TRANSFER

and then dial

107

.

• Press a One Touch Speed Dial button.

• Dial the speed dial number (

00

49

or

500

799

) that you want assigned to this button.

• Press

TRANSFER

to store your selection.

To call this telephone number, just press the One Touch Speed Dial button.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

LAST NUMBER REDIAL

To redial the last telephone number you dialed, press the

LNR

key or dial

19

.

NOTES:

1.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

2.

Redial does not apply to intercom calls.

SAVE NUMBER WITH REDIAL

To save the number you just dialed for later use, press the

SNR

key before hanging up.

To redial this saved number at any time, press the

SNR

key or dial

17

. The same line will be selected for you.

NOTES:

1.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

18

2.

The saved telephone number is stored in memory until you save another number.

3.

Redial does not apply to intercom calls.

CHAIN DIALING

You may manually dial additional digits following a speed dial number or chain as many speed dial numbers together as required:

• After the first speed number is dialed, press

SPD

again and dial another speed number

OR

manually dial additional digits following a speed dial number.

AUTOMATIC REDIAL/RETRY

When you are making an outside call and you receive a busy signal, the system can automatically redial the number for you. It will automatically redial at a pre-programmed interval for up to 15 attempts.

• When you hear a busy signal, press the

RETRY

button.

• The system will reserve the line and automatically redial the same number for you. You will hear the call being made through the keyset speaker. The microphone is muted.

• When the called party answers, you must pick up the handset or press the

SPEAKER

key before you can begin speaking. You must answer within 10 seconds.

NOTES:

1.

If you make another call, auto-redial is canceled.

2.

To cancel a retry, lift and replace the handset.

PULSE TO TONE CHANGEOVER

When making an outside call on a dial pulse line, press #. All digits dialed after the # with be sent as tones.

19

PAGING AND MESSAGING

MAKING AN INTERNAL PAGE

To make an announcement through the keyset speakers:

• Lift the handset.

• Press the

PAGE

key or dial

55

.

• Dial the desired zone number

1

,

2

,

3

or

4

.

OR

Dial

0

to page all internal zones.

• After the attention tone, make your announcement.

NOTE: If you have a dedicated page zone key, it is not necessary to press

PAGE

and dial a zone number.

MAKING AN EXTERNAL PAGE

To make an announcement through the external paging speakers:

• Lift the handset.

• Press the

PAGE

key or dial

55

.

• Dial the desired zone number

5

.

• After the attention tone, make your announcement.

NOTE: If you have a dedicated page zone key, it is not necessary to press

PAGE

and dial a zone number.

ALL PAGE

To page all designated keysets and external speakers at the same time:

• Lift the handset.

• Press the

PAGE

key or dial

55

.

• Dial

4 or press the

ALL PAGE

key.

• After the attention tone, make your announcement.

NOTE: The LED on the

ALL PAGE

key will only light when an All Page is in progress.

20

MEET ME PAGE

• Lift the handset.

• Press the Meet Me Page (

MMPG

) key or dial

54

.

• Dial the desired zone number.

• After the attention tone, instruct the paged person to dial

56

.

• Press

WAIT

or

TRANSFER

.

• Remain off-hook until the person dials

56

from any phone.

• The paged person will be automatically connected with you.

CALL PARK AND PAGE

When you have an outside call for someone who is not at his/her desk, you can park the call prior to paging.

To retrieve a parked call from orbit:

• Press the

PARK

button and dial the announced orbit number (

0-9

).

• You will be connected to the parked call.

NOTES:

1.

You must have a

PARK

button or park access code to retrieve and place calls in park orbits.

2.

If the parked call is not retrieved within a pre-programmed period of time, it will recall your keyset and have a slow flashing amber light. You cannot park and page intercom calls.

3.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

AUTOMATIC PARK WITH PAGE KEY

• While in conversation, press the

PAGE

button. The call is automatically parked at your station.

• Receive page tone and dial a desired page zone number.

• Make announcement indicating your extension number or the line number. Hang up.

To retrieve an automatically parked call:

• Dial

10

plus the number that was announced. If you have a

PAGPK

key, press it and dial the number that was announced. If you have a

PARK

key, press it and dial the announced orbit number.

• You will be connected to the parked call.

NOTES:

1.

If the call is not retrieved within a pre-programmed period of time, it will recall your keyset and have a slow flashing amber light. You cannot park and page intercom calls.

21

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

SETTING A MESSAGE INDICATION

When you are calling another station and no one answers or you receive a busy signal, you can leave a message indication:

• Press the

MESSAGE

key or dial

43

and receive confirmation tone.

• Hang up. The

MESSAGE

key on the called station will light. Standard telephones receive special dial tone as a message indication.

NOTES:

1.

A station can have up to five message indications.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

CANCELING MESSAGES

To cancel a message indication that you left at another station, dial

42

plus the extension number of the station at which you left a message.

To cancel all message indications left at your keyset, dial

42

plus your extension. Your

MESSAGE

light will go out.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

RETURNING MESSAGES

• Press the

MESSAGE

key or dial

43

. The first station that left a message will be called automatically. If that station does not answer, your

MES-

SAGE

light will stay on.

• Repeat until all messages have been returned in the order received.

• Your

MESSAGE

light will turn off when all messages have been returned.

NOTES:

1.

Display keyset users can view message indications and return them in any order. See

Viewing Message Indications

under

Display Features

.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

3.

If a message has been left at your keyset by a keyset in Auto Answer, you must manually cancel the message after it has been returned.

22

PROGRAMMED MESSAGES

When you will be away from your phone for any length of time, you can leave a programmed station message. Display stations calling you will see this message and be informed of your status or follow your instructions.

• Dial

48

plus any of the message codes (

01–30

) listed on the back of this user guide.

• To cancel any of these messages dial

48

plus

00

.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key.

You can have multiple programmed message keys and each one can have a different message code:

• Press any programmed message (PMSG) button. The message is set and the button will light red. Press the key again to turn off.

• Pressing another programmed message (PMSG) button will turn the previous one off and set a new programmed message.

23

CONVENIENCE FEATURES

DO NOT DISTURB

Use this feature when you want to block calls to your keyset.

• While on-hook, press the

DND

key or dial

401

. The

DND

key lights steady red to remind you of this mode.

• To cancel DND, press the

DND

key again or dial

400

. The

DND

light turns off. You can make calls while in the DND mode.

NOTES:

1.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key.

2.

If you place your keyset in DND mode and you do not have a

DND

key, your

KEYSET STATUS INDICATOR

will flash to indicate DND status.

ONE TIME DND

If you are on a call and you do not wish to be interrupted while on that call, you can press the

DND

key and place your station in Do Not Disturb. When you hang up at the end of the call, DND will be automatically canceled and your keyset will be able to receive new calls. This feature requires a

DND

key.

MUTE

You can mute the handset transmitter or the microphone during any conversation:

• Press the

MUTE

key. It will light red.

• To resume speaking, press the

MUTE

button again. The light turns off.

BACKGROUND MUSIC

When a music source is supplied, you may listen to music through the speaker in your keyset:

• While on-hook, press the

HOLD

button to hear music.

• Press the

HOLD

button again to turn music off.

You can set the level of background music by using the

VOLUME

keys while listening to the music. This does not affect the speakerphone level.

24

APPOINTMENT REMINDER/ALARM

CLOCK

This feature works like an alarm clock. Use it to remind yourself of an appointment later in the day (TODAY ONLY) or as a daily reminder every day

(DAILY). You can set up to three alarms. Each one can be either a TODAY

ONLY or a DAILY alarm.

When the alarm rings, you will hear three short rings repeated three times.

Lift the handset to answer the alarm. If you do not, the alarm will alert you two more times at five minute intervals.

To set alarms:

• Press

TRANSFER

and then dial

112

.

• Dial the alarm number

1

or

2

.

• Dial the time at which you want the alarm to sound. Enter the time as

HHMM (hours and minutes) using the 24 hour clock.

• Dial

0

(NOT SET),

1

(TODAY ONLY) or

2

(DAILY) to select the alarm type.

• Press

TRANSFER

to save.

• Repeat for each alarm if needed.

To cancel individual alarms:

• Press

TRANSFER

and then dial

112

.

• Dial alarm number

1

, or

2

.

• Press the

HOLD

key.

NOTE: Display keysets can show a reminder message. See

Alarm Reminder Messages

under

Display Features

.

ANSWERING THE DOOR PHONE

When you are programmed to receive calls from a door phone:

• You will receive three short rings repeated.

• Lift the handset or press the

SPEAKER

key. You are connected to the door phone.

• If an electric door lock release is installed, dial

13

to unlock the door.

25

CALLING THE DOOR PHONE/ROOM

MONITOR

You may call the door phone and listen to what may be happening outside or in another room.

• Dial the extension number of the door phone.

• You will be connected to the door phone and you can listen or have a conversation.

• If an electric door lock release is installed, dial

13

to unlock the door.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key.

EXECUTIVE/SECRETARY HOT LINE

If programmed, an executive and a secretary can have a hot line between them. When the executive station is in the DND mode, all of its calls will ring the secretary station.

• Either person can press the

BOSS

key to make a voice call to the other station.

• Using the hot line will override DND at the other station. This key will light red when the other station is in use.

To transfer a call to a Boss in DND:

• Press the

TRANSFER

key followed by the

BOSS

key.

• Wait for the

BOSS

to answer to announce the call and hang up to complete the transfer

OR

• Hang up to complete a blind transfer after pressing the

BOSS

key.

GROUP LISTENING

When you are engaged on a call and you are using the handset, you may want other people to hear the distant party’s voice over the speaker:

• Press the

LISTEN

key to turn on the speaker. The microphone is not in use, so the distant party does not hear other parties present in your office.

• Press

LISTEN

again to turn the speaker off and resume private conversation.

• Repeat if necessary.

26

NOTE: Depending on speaker volume and the acoustics of your office, it may be advisable to turn the group listening feature off before hanging up.

This will eliminate a momentary squeal.

ACCOUNT CODES

When equipped with optional equipment, your system will allow calls to be charged to a specific account:

• During any outside C.O. call, press the account (

ACCT

) key.

• Enter the account code (maximum 12 characters including

4 and

#

).

Press the

ACCT

key again. Your conversation will not be interrupted.

NOTE: If you make an error before you complete the account code, press the

ACCT

key twice and redial the correct code. Only the last account code dialed will be printed.

LOCKING YOUR KEYSET

You can lock your keyset to control misuse of your phone while you are away. You can unlock it when you return. Your default station passcode is

1234.

M a k e o u t s i d e c a ll s

R e c e i v e o u t s i d e c a ll s

U N L O

0

C K E D

Y E S

Y E S

O

L

U

O

T

C

1

K E D

G O I N G

A C C E S

N

S

O

D E N I E D

Y E S

A

L

L

O

L

C

2

K

C

E D

A L L S

N O

N O

M a k e i n t e r c o m c a ll s

R e c e i v e c a i n t e r c o m ll s

Y E S

Y E S

Y E S

Y E S

N O

N O

• While on-hook, press

TRANSFER

and then dial

100

.

• Dial your four digit station passcode.

• Dial

1

to locking outgoing,

2

for locked all calls, or

0

to unlock.

• Press

TRANSFER

to store your selection.

OFF-HOOK VOICE ANNOUNCE

Keysets may receive a voice announcement while on another call. The calling station must have an

OHVA

key. When you are in DND, you cannot receive OHVA calls. The OHVA feature will work with intercom and transferred calls.

27

To make an off-hook voice announcement:

• Dial the extension number or press the

DSS

key.

• When you receive a busy signal, press the

OHVA

key.

• After the attention tone, begin speaking.

• Finish the call by replacing the handset or pressing the

SPEAKER

key.

NOTES:

1.

When you are voice announcing to a station close to you, use the handset to avoid an echo effect.

2.

You cannot off-hook voice announce to single line telephones.

When you receive an off-hook voice announcement, if you are using the handset, you will hear the announcement in the handset receiver. If you are using the speakerphone, you will hear the announcement over the keyset speaker. In both cases, you can continue to speak to the original party.

• Press the flashing

CALL

button on your keyset. This will place the original party on hold and allow you to talk to the announcing party.

• To return to your first party, press the key corresponding to your original call. This will disconnect the OHVA call.

OHVA BLOCK

Your keyset can be programmed with an OHVA Block (

BLOCK

) key. Pressing this key will prevent anyone from making an OHVA to you until you press the button again and cancel the blocking.

OHVA REJECT

Your keyset can be programmed with an OHVA Reject (

REJECT

) key.

Pressing this key while receiving an OHVA call will disconnect the voice announcing party and return you to your original call.

IN GROUP/OUT OF GROUP

If your keyset is assigned to a station ring group, you can remove your keyset from the group and then put it back in. While you are out of the group, you can receive calls to your extension number but not calls to the group number. If you have an

IN/OUT

key:

• Press the

IN/OUT

key. It will light red when your keyset is in the group.

• Press the

IN/OUT

key again to exit the group and turn the light off. Repeat as necessary.

If you do not have an

IN/OUT

key:

28

• Dial

53

plus the group number plus

0

to exit the group or

1

to enter the group. Repeat as necessary.

NOTE: If the Hot Keypad feature has been turned off, you must first lift the handset or press

SPEAKER

key.

The

IN/OUT

key can include an extender to indicate the specific group that this key will affect. This means that if you are in multiple groups, you can decide for which groups you will receive calls.

29

CUSTOMIZING YOUR KEYSET

AME PASSWORD

This feature allows people using the AME (Answer Machine Emulation) feature to enable password protection. This will prevent unauthorized people from listening to your messages being left. The passcode is the same as your station passcode. This feature only applies if there is a Samsung Voice

Mail card installed in the system and your keyset has a programmed AME key.

• While on-hook, press

TRANSFER

and then dial

110

.

• Dial

101

to turn on AME PASSCODE or

100

to turn it off.

• Press

TRANSFER

to store your selection.

SELECT RING TONE

Each keyset user can select any one of eight ring frequencies:

• While on-hook, press

TRANSFER

and then dial

111

.

• Dial

1

8

or press the

UP

and

DOWN

keys to hear each tone.

• When you hear the tone that you prefer, press

TRANSFER

to save it.

NOTE: Specific lines or stations may be programmed to ring with a different tune than what you have selected for your keyset.

CHANGE YOUR PASSCODE

From the factory, your station passcode is 1234. You can change your station passcode whenever you desire.

• While on-hook, press

TRANSFER

and then dial

101

.

• Dial your old passcode.

• Dial a new passcode (must be four characters). You can use

0

9

.

• Redial the new passcode to verify. If successful, you will hear two beeps.

Four beeps indicate an incorrect code. Reenter the code again.

• Press

TRANSFER

to store the new passcode.

SET ANSWER MODE

You can receive internal calls in one of three modes (see

Answering Intercom

Calls

under

Intercom Calls

for descriptions):

• While on-hook, press

TRANSFER

and then dial

103

.

• Dial

0

for Ringing,

1

for Auto Answer or

2

for Voice Announce.

• Press

TRANSFER

to store your selection.

NOTE: When your keyset is programmed for Auto Answer and you have Forward No Answer (FNA) turned on, you must answer screened transfers by pressing the

SPEAKER

key before your FNA timer expires or the call will forward.

AUTOMATIC HOLD

While on an outside call, pressing a line key, route key or a flashing

CALL

button will automatically put your call on hold and connect you to the next call. This feature can be turned on or off at your keyset.

• With the handset on-hook, press

TRANSFER

and then dial

110

.

• Dial

01

to turn Automatic Hold on or

00

to turn it off.

• Press

TRANSFER

to store your selection.

NOTE: Intercom calls can be automatically put on hold by pressing

TRANSFER.

HEADSET OPERATION

Keyset users can switch between headset mode and handset mode. When using headset mode, press the

SPEAKER

key to answer and release calls.

• With the handset on-hook, press

TRANSFER

and then dial

110

.

• Dial

21

to use the headset or

20

to use the handset.

• Press

TRANSFER

to store your selection.

Your keyset may be equipped with a Headset mode key. If it is so equipped pressing this key while the light is out will cause the keyset to enter headset mode and the light will illuminate to indicate this. Pressing the key while the light is lit will cause the keyset to return to handset mode and the light will go out.

30 31

HOT KEYPAD

On your phone system your keyset’s keypad can be made “live” or “hot” so that it is not necessary to lift the handset or press the

SPEAKER

key before you begin dialing. Calls can be made and features activated by simply dialing the C.O. line number, trunk group access code, intercom number or feature access code. To activate this feature:

• With the handset on-hook, press

TRANSFER

and then dial

110

.

• Dial

31

to turn the Hot Keypad on or

30

to turn it off.

• Press

TRANSFER

to store your selection.

KEY CONFIRMATION TONE

You can hear a short beep (confirmation tone) each time you press a button on the dial pad. This tone can be turned on or off.

• While on-hook, press

TRANSFER

and then dial

110

.

• Dial

40

to turn tones off or

41

to turn tones on.

• Press

TRANSFER

to store your selection.

REJOINING A PAGE

This feature allows you to hear the remaining portion of an ongoing internal page after you return your keyset to idle. To enable this feature:

• With the handset on-hook, press

TRANSFER

and then dial

110

.

• Dial

51

to turn this feature on or

50

to turn it off.

• Press

TRANSFER

to store your selection.

RING PREFERENCE

This feature automatically answers ringing calls when you lift the handset or press the

SPEAKER

key. This method will always answer calls in the order they arrived at your keyset. When you turn ring preference off, you must press the flashing button to answer a call, allowing you to answer calls in the order you choose.

• With the handset on-hook, press

TRANSFER

and then dial

110

.

• Dial

61

to turn ring preference on or

60

to turn it off.

• Press

TRANSFER

to store your selection.

32

DISPLAY FEATURES

INTERACTIVE DISPLAY KEYS

The three keys below the display are substitutes for dedicated feature keys and access codes. Pressing one of these keys has the same effect as pressing a programmable key. These keys are called soft keys as their functions are not fixed. They change to present you with the best options for that call condition. The use of soft keys allows the programmable keys to be used for more

DSS

and speed dial keys.

The

SCROLL

key is used to display options available to the user at a particular time or during a specific procedure. Press this key once while in the idle state to view the three main categories available.

201: STN NAME

CALL OTHER ANS

ANSWER:

Guides you through the options to answer calls.

OTHER:

Guides you through features other than making or answering calls.

CALL:

Guides you through the options to make a call.

Select one of the main categories:

CALL

,

OTHER

or

ANS

(

ANSWER

). Press the

SCROLL

key to display additional options available under each of the three main categories. The symbol

° displayed as the last character on the lower line of the display indicates that there are additional options. Press the

SCROLL

key to display these additional options.

User instructions will be displayed in lower case letters. Options assigned to soft keys will be in upper case letters.

DIRECTORY INFORMATION

An 11 character directory name can be assigned to each extension number.

Display keyset users can view the name of the called or calling station before answering.

Each outside line can have an 11 character directory name. Incoming calls can be easily identified and answered with different greetings.

Outside and internal calls ringing to a station group will display [CALL FOR xxx] where xxx is the station group number. This allows you to answer calls directed to you differently than calls directed to your group.

33

DIAL BY DIRECTORY

Each station or speed dial number can have an associated directory name.

A station or speed dial number can be selected by scrolling alphabetically through a directory name list. This on-line “phone book” allows the user to look up and dial any station or speed dial number in seconds.

• Press the

DIR

key (

DIRECTORY

).

• Select the directory you wish to use:

PERS

(personal speed dial numbers),

SYS

(system speed dial numbers) or

STN

(station names).

• Dial the key on the keypad that corresponds to the first letter of the name you wish to search for.

• Use the

UP

and

DOWN

arrows to scroll through the names.

• Press the

DIAL

soft key to dial the number.

NOTE: A

DIR

key can have an extender to take you directly to one of the above lists.

CALL PROGRESS DISPLAYS

During everyday call handling, your keyset display will provide information that is helpful and in some cases invaluable. Displays like [CALL FROM 203],

[TRANSFER TO 202], [701: RINGING], [TRANSFER FM 203], [708 busy],

[Camp on to 204], [Recall from 204], [Call for 501], [message frm 204] and

[FWD ALL to 204] keep you informed of what is happening and where you are. In some conditions you are prompted to take an action and in other cases you receive directory information.

DISPLAY NUMBER DIALED

Display keysets begin showing digits as they are dialed. They will stay in the display until the call duration timer comes on automatically or the

TIMER

button is pressed. If the call duration timer is not used, the number dialed will be displayed until the call is released, transferred or put on hold.

CALL DURATION TIMER

The system can be set to automatically time outside calls. A few seconds after you dial a telephone number, the timer appears in the display. It appears immediately for incoming calls. The call timer continues for the duration of the call. Call duration times are displayed in minutes and seconds.

If a call lasts longer than 60 minutes, the timer restarts.

You can press the

TIMER

key to manually begin timing a call. Press it again to stop timing. If you press it while the automatic timer is on, the call duration time is restarted.

34

AUTO TIMER

Display keyset users may have the timer automatically start when they answer incoming calls or after a short delay on an outgoing call.

• With the handset on-hook, press

TRANSFER

and then dial

110

.

• Dial

11

to turn the auto timer on or

10

to turn it off.

• Press

TRANSFER

to store your selection.

TIMER FUNCTION

Display keyset users may use this feature as a simple stopwatch.

• When the keyset is idle, press the

TIMER

button to start timing.

• Press the

TIMER

button again to stop timing.

• Read the elapsed time in the display.

• Lift the handset and replace it. The display will return to date and time.

VIEWING MESSAGE INDICATIONS

You can view all of your message indications before you return them:

• With the handset on-hook, press the

MSG

key with the red flashing light.

• The first station that left a message indication will be displayed.

• Press the

UP

and

DOWN

arrows to scroll through the stations that left message indications. Use the soft keys to reply, clear or advance to the next message.

• Press the

SPEAKER

key to return your keyset to the idle condition.

ALARM REMINDER MESSAGES

When you use the alarm/appointment reminder feature, you create a 16 character reminder message. When the alarm rings, your message will appear instead of [ALARM REMINDER]. To program reminder messages:

• Press

TRANSFER

and then dial

116

.

• Dial the alarm number

1

or

2

.

• Dial the time you want the alarm to go off. Enter the time as HHMM

(hours and minutes) using the 24 hour clock.

• Dial

0

(NOT SET),

1

(TODAY) or

2

(DAILY) to select the alarm type.

• Write your message using the dial pad keys. Each press of a key selects a character. Pressing the next key moves the cursor to the next position.

For example, if your message is “TAKE MEDICATION,” press

8

once to get the letter “T.” Press

2

once to get “A.” Press

5

twice to get “K.” Continue selecting characters from the following table to complete your message.

• Press the

TRANSFER

key to store the alarm and reminder message.

• Repeat for each alarm if needed.

35

COUNT 1 2 3 4

DIAL 0 < > . )

DIAL 1

DIAL 2 space

A

?

B

,

C

!

@

DIAL 3

DIAL 4

DIAL 5

DIAL 6

D

G

J

M

E

H

K

N

F

I

L

O

#

$

%

^

5

0

1

2

3

4

5

6

DIAL 7

DIAL 8

DIAL 9

P

T

W

Q

U

X

R

V

Y

S

4

Z

7

8

9

DIAL

4

: = [ ]

4

NOTES:

1.

When the character you want appears on the same dial pad key as the previous character, press

UP

to move the cursor one space to the right.

2.

Other symbols are available for DIAL #.

To cancel an individual alarm and reminder message:

• Press

TRANSFER

and then dial

112

.

• Dial alarm number

1

or

2

.

• Press the

HOLD

key.

• Press the

TRANSFER

key.

PERSONAL SPEED DIAL NAMES

Each personal speed dial number can have an 11 character name assigned to it. This name is used to select the speed dial bin when you are dialing by directory.

• Press

TRANSFER

and then dial

106

.

• Dial the speed dial bin number

00–49

.

• Write your message using the procedure described in

Alarm Reminder

Messages

.

• Press the

TRANSFER

key to store the speed dial name.

• Repeat for each speed dial bin if necessary.

36

STATION NAMES

You can assign an 11 character name to your keyset. This allows other display keyset users to call you using the directory dial feature.

To program a station name:

• Press

TRANSFER

and then dial

104

.

• Enter the 11 character name using the procedure described in

Alarm

Reminder Messages

.

• Press

TRANSFER

to store the name.

MANAGING KEY ASSIGNMENTS

You can view your key assignments and add extenders to some of your programmable keys for easy one touch operation of frequently used features.

An extender is a number that makes an otherwise general key very specific.

Adding the digit “4” to a PAGE key defines this key for paging zone four.

Adding “225” to a different pickup key will define this key as pickup for extension 225 only. The key must already be assigned by the technician.

• While on-hook, press

TRANSFER

and then dial

107

.

• Use the

VOLUME

keys to scroll through all of your programmable keys

OR

Press the programmable key to which you want to add the extender.

• When you reach a key listed below, dial the corresponding extender.

• Press

TRANSFER

to store and exit programming.

KEY DESCRIPTION EXTENDER

BOSS

. . . . . . .Boss/Secretary . . . . . . .1–4

DP

. . . . . . . . . .Direct Pickup . . . . . . . .Extension or station group number

DS

. . . . . . . . . .Direct Station . . . . . . . .Any extension number

FWRD

. . . . . . .Call Forwarding . . . . . .0–5

GPIK

. . . . . . . .Group Pick-Up . . . . . . .01–08

IG

. . . . . . . . . . .In/Out of Group . . . . . .Any group you are part of 5XX

MMPG

. . . . . . .Meet Me Page . . . . . . .0–5,

4

PAGE

. . . . . . . .Page . . . . . . . . . . . . . . .0–5,

4

PSMG

. . . . . . .Programmed Message 01–20

SG

. . . . . . . . . .Station Group . . . . . . . .5XX

SPD

. . . . . . . . .Speed Dialing . . . . . . .00–49, 500–799

DIR

. . . . . . . . .Directory . . . . . . . . . . . .PERS (1), SYS (2) or STN (3)

VT

. . . . . . . . . .Voice Mail Transfer . . .Voice Mail Group (5XX)

NOTE: Confirm that the cursor is placed correctly before you enter the extender.

37

WHAT IS CALLER ID?

Caller ID is the name given to the telephone company-provided feature that delivers the telephone number and sometimes the name of the person calling your phone.

The Samsung DS 616 system supports Caller ID and in fact in the case where the number only is delivered, the system can be programmed to insert a name for a specific telephone number received. Up to a maximum of 200 numbers can be programmed.

Caller ID is provided by telephone companies as a charged service on analog PSTN lines. However, there are some circumstances where you will not receive the information. The most common reasons for this are:

• The caller has requested the Telephone Company to stop their telephone number being sent.

• The caller is calling from an area that cannot provide Caller ID, e.g. international calls.

• Callers are calling from a pay phone.

• The Caller ID information is corrupted when received from the telephone company.

• The Telephone Company does not send the Caller ID.

• The Telephone Company may send the name

MOBILE

to the system.

SELECTING YOUR CALLER ID

DISPLAY

You can decide if you want to see the Caller ID name or Caller ID number in the display. Regardless of which one is selected, you can press the

NND

key to view the other pieces of Caller ID information. To select the type of

Caller ID information you wish to view first:

• With the handset on-hook, press

TRANSFER

and then dial

119

.

• Dial

0

if you do not wish to view CID information,

1

to view the NUMBER first or

2

to view the NAME first.

• Press

TRANSFER

to exit and store your selection.

38

VIEWING THE NEXT CALLER ID CALL

In the event that you have a call waiting or a camped-on call at your keyset, you can press the

NEXT

key to display the Caller ID information associated with the call in queue at your keyset. Either the CID name or CID number will show in the display depending on your Name/Number selection.

To view Caller ID information for calls that have been camped-on to your keyset, press the

NEXT

key. If your keyset does not have a

NEXT

key, press the

CID

key and then the

NEXT

soft key.

SAVING THE CALLER ID NUMBER

At any time during an incoming call that provides CID information, you may press the

SAVE

key to save the CID number. If your keyset does not have a

SAVE

key, press the

CID

key, the

SCROLL

key and then the

SAVE

soft key.

The system must be using LCR to dial the saved number.

REDIALING A SAVED CALLER ID

NUMBER

To redial a number that has been saved, press the

SAVE

key or dial

17

.

NOTES:

1.

Your telephone system must have LCR correctly programmed to redial the saved number.

2.

If the Hot Keypad feature has been turned off, you must first lift the handset or press the

SPEAKER

key before you begin dialing.

STORING A CALLER ID NUMBER

At any time during an incoming call that provides CID information, you may save the CID number as a speed dial number in your personal speed dial list.

To store a Caller ID number in a personal speed dial bin:

• Press the

STORE

key. The system displays the speed dial bin in which the number was stored,

OR

• Press the

CID

key and then press the

SCROLL

key.

• Press the

STORE

soft key.

• The system displays the speed dial bin in which the number was stored.

NOTE: Your telephone system must have LCR correctly programmed to redial the saved number. If LCR is not being used on your system, you will not be allowed to STORE CID numbers.

39

INQUIRE CALLER ID PARK/HOLD INFO

If you are informed that an incoming call is on hold or has been parked for you, you may view the Caller ID information before you retrieve the call. This may influence how you choose to handle the call.

From an idle keyset:

• Press the

INQUIRE

key,

OR

Press the

CID

key and then the

INQUIRE

soft key.

• Dial the trunk number.

• You may now answer the call by pressing the

ANS

key,

OR

You may use

NND

to view more information about this call,

OR

You can return to the idle condition by pressing

IGNORE

.

If you are on a call:

• Press the

INQUIRE

key. Your existing call will go on hold,

OR

Press the

CID

key and then the

INQUIRE

soft key to place the first call on hold.

• Dial the trunk number.

• You may now answer the call by pressing the

ANS

key,

OR

You may use

NND

to view more information about this call,

OR

You can return to the idle condition by pressing

IGNORE

.

NOTES:

1.

If you are on an intercom call or you have Automatic Hold turned off, you must finish the existing call or place it on hold before inquiring.

2.

If you inquire about an outgoing call, you will receive a [call no longer available] display.

REVIEWING PAST CALLER ID CALLS

This feature allows you to review CID information for calls sent to your keyset. This list can contain 10–50 calls in a last-in, first-out basis. The list includes calls that you answered and calls that rang your keyset but that you did not answer. When reviewing this list, you can press one button to dial the person back. The system must be using LCR to dial the stored number. To access the CID information stored in your REVIEW list:

• Press the

REVIEW

key,

OR

Press the

CID

key and then press the

REVIEW

soft key.

• If you have entries in your review list, the most recent call will be shown first.

• You can now

CLEAR

this entry,

OR

Use

NND

to view more information about this call,

OR

Press

DIAL

to call this person back,

OR

40

Press

SCROLL

and then press

STORE

to save this number in a personal speed dial bin.

NOTES:

1.

Each keyset defaults with ten review bins. Please see your system administrator to determine the number of bins assigned to your keyset.

2.

Your system must have LCR correctly programmed to allow you to

DIAL

numbers from the review list or to

STORE

entries from the review list.

LCR WITH CLEAR

When you are making an outside call using LCR and dial an incorrect digit, you can press the CLEAR soft key to cancel the digit and continue dialing the telephone number.

41

PERSONAL SPEED DIAL NUMBERS

CODE

12

13

14

15

08

09

10

11

04

05

06

07

00

01

02

03

20

21

22

23

24

16

17

18

19

NAME TELEPHONE NUMBER

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

42

PERSONAL SPEED DIAL NUMBERS

CODE

37

38

39

40

33

34

35

36

29

30

31

32

25

26

27

28

45

46

47

48

49

41

42

43

44

NAME TELEPHONE NUMBER

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

43

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
