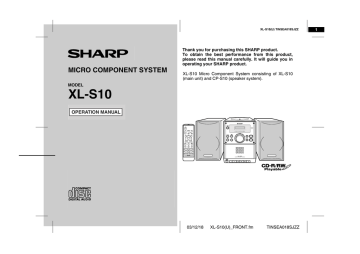

Thank you for purchasing this SHARP product.
To obtain the best performance from this product,
please read this manual carefully. It will guide you in
operating your SHARP product.
MICRO COMPONENT SYSTEM
XL-S10 Micro Component System consisting of XL-S10
(main unit) and CP-S10 (speaker system).
MODEL
XL-S10
OPERATION MANUAL
03/12/18
XL-S10(U)_FRONT.fm
TINSEA018SJZZ
1
XL-S10
SPECIAL NOTES
Important Instruction
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING
FCC Regulations state that any unauthorized changes or modifications
to this equipment not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
NOTE
It is the intent of Sharp that this product be used in full compliance with
the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary.
0210
0012
FOR YOUR RECORDS
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
0012
Caution - use of controls or adjustments or performance
of procedures other than those specified herein may result in hazardous radiation exposure.
0012
For your assistance in reporting this unit in case of loss or theft,
please record below the model number and serial number which
are located on the rear of the unit.
Please retain this information.
Model number
.......................................................
Serial number
.......................................................
Date of purchase .......................................................
Place of purchase .......................................................
0202
2
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
IMPORTANT SAFETY INSTRUCTIONS
be read before the product is operated.
2 Retain Instructions - The safety and operating instructions should be
retained for future reference.
3 Heed Warnings - All warnings on the product and in the operating
instructions should be adhered to.
4 Follow Instructions - All operating and use instructions should be
followed.
10 Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on
a bed, sofa, rug, or other similar surface. This product should not be
placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have been
adhered to.
11 Power Sources - This product should be operated only from the type
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
of power source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power, or other sources, refer to the operating instructions.
6 Attachments - Do not use attachments not recommended by the prod-
12 Grounding or Polarization - This product may be equipped with a
5 Cleaning - Unplug this product from the wall outlet before cleaning.
uct manufacturer as they may cause hazards.
7 Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a
wet basement; or near a swimming pool; and the like.
8 Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury to
a child or adult, and serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should
follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
polarized alternating-current line plug (a plug having one blade wider
than the other). This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
Alternate Warnings - This product is equipped with a three-wire
grounding-type plug, a plug having a third (grounding) pin. This plug
will only fit into a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose
of the grounding-type plug.
9 A product and cart combination should be moved with
13 Power-Cord Protection - Power-supply cords should be routed so
care. Quick stops, excessive force, and uneven surfaces
may cause the product and cart combination to overturn.
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the product.
Important Instruction
1 Read Instructions - All the safety and operating instructions should
XL-S10
14 Protective Attachment Plug - The product is equipped with an attachment plug having overload protection. This is a safety feature. See
Instruction Manual for replacement or resetting of protective device. If
replacement of the plug is required, be sure the service technician has
used a replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
0304
3
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
Important Instruction
XL-S10
IMPORTANT SAFETY INSTRUCTIONS (continued)
15 Outdoor Antenna Grounding - If an outside antenna or cable system
19 Object and Liquid Entry - Never push objects of any kind into this
is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical Code, ANSI/
NFPA 70, provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements
for the grounding electrode.
product through openings as they may touch dangerous voltage points
or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
Example of antenna grounding as per
National Electrical Code, ANSI/NFPA 70
ANTENNA LEAD IN WIRE
GROUND
CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERV ICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC - NATIONAL ELECTRICAL CODE
S2898A
P OWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
16 Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and
power-line surges.
17 Power Lines - An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be
fatal.
18 Overloading - Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric shock.
20 Servicing - Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
21 Damage Requiring Service - Unplug this product from the wall outlet
and refer servicing to qualified service personnel under the following
conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this
indicates a need for service.
22 Replacement Parts - When replacement parts are required, be sure
the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
23 Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine
that the product is in proper operating condition.
24 Wall or Ceiling Mounting - The product should be mounted to a wall
or ceiling only as recommended by the manufacturer.
25 Heat - The product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
0304
4
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
Accessories
Contents
Please confirm that the following accessories are included.
XL-S10
! General Information
Page
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
! Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FM/AM loop antenna
(RRMCGA002SJSA)
(QANTL0004SJZZ)
Note:
Only the above accessories are included.
1
! Basic Operation
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
! CD Playback
Listening to a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 16
Programmed play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
! Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Listening to the memorized station . . . . . . . . . . . . . . . . . . . . . 19
! Tape Playback
Listening to a cassette tape . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
! Tape Recording
Recording to a cassette tape . . . . . . . . . . . . . . . . . . . . . . . 21, 22
General Information
Remote control 1
! Advanced Features
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . 23, 24
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 26
! References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 28
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
CONSUMER LIMITED WARRANTY . . . . . . . . . . . . . .Back cover
5
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
XL-S10
Precautions
! General
" Please ensure that the equipment is positioned in a well-ventilated area and that there is at least 4" (10 cm) of free space along
the sides and back. There must also be a minimum of 8" (20 cm)
of free space on the top of the unit.
4" (10 cm) 4" (10 cm)
8" (20 cm)
General Information
4" (10 cm)
" Use the unit on a firm, level surface free from
vibration.
" Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which
generate electrical noise.
" Do not place anything on top of the unit.
" Do not expose the unit to moisture, to temperatures higher than
140°F (60°C) or to extremely low temperatures.
" If the system does not work properly, unplug and plug it in again.
Then turn on the system.
" In case of an electrical storm, unplug the unit
for safety.
" Hold the AC power plug by the head when removing it from the AC outlet, as pulling the
cord can damage internal wires.
" Do not remove the outer cover, as this
may result in electric shock. Refer internal
service to your local SHARP service facility.
" This unit should only be used within the range of 41°F - 95°F
(5°C - 35°C).
Warnings:
" The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other
than that which is specified.
" CD players use a laser pickup which can damage the eyes if
viewed directly. Do not look at the pickup, and do not touch
the pickup directly.
! Volume control
The sound level at a given volume setting depends on speaker efficiency, location and various other factors. It is advisable to avoid
exposure to high volume levels, which occurs while turning the unit
on with the volume control setting up high, or while continually listening at high volumes.
6
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
Controls and indicators
XL-S10
9
2
3
4
5
6
7
10
11
12
13
14
8
15 16 17 18 19 20 21
24
25
26
22
23
27 28 29 30
31
32 33
34
35
36
37
38
22. Volume Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
23. Equalizer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
24. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
25. Tape Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
26. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
27. CD Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 16
28. CD Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
29. Auxiliary Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
30. CD Random Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 16
31. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 19
32. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 18
33. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 18
1
General Information
1
Reference page
1. CD Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2. Power On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. Bass/Treble Selector Button . . . . . . . . . . . . . . . . . . . . . . . . 12
5. Function Selector Button . . . . . . . . . . . . . . . . . . 14, 18, 20, 23
6. Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 19
7. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 19
8. Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9. CD Eject Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
11. CD Track Up or Fast Forward,
Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . 15, 19
12. CD Play or Pause, Tuning Up Button . . . . . . . . . . . 14, 15, 18
13. CD Stop, Tuning Down Button . . . . . . . . . . . . . . . . . . . 15, 18
14. CD Track Down or Fast Reverse,
Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . 15, 19
15. Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
16. Tape Record Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
17. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 21, 22
18. Tape Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
19. Tape Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . 20
20. Tape Stop/Eject Button . . . . . . . . . . . . . . . . . . . . . . 20, 21, 22
21. Tape Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . 20, 21, 22
34. FM/AM Loop Antenna Jack . . . . . . . . . . . . . . . . . . . . . . . . . . 9
35. Video/Auxiliary (Audio Signal) Input Jacks . . . . . . . . . . . . 25
36. Subwoofer Pre-output Jack . . . . . . . . . . . . . . . . . . . . . . . . 26
37. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
38. AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
XL-S10
Controls and indicators (continued)
1. Full-Range Speaker
2. Speaker Wire
1
General Information
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Reference page
3. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 11
4. Power On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6. CD Fast Reverse, Tuning Down Button . . . . . . . . . . . . 15, 18
7. Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8. CD Track Down, Tuner Preset Down Button . . . . . . . . 15, 19
9. CD Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
10. CD Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 22
11. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 17, 19
12. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 19
13. Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
14. Treble Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . 12
15. Bass Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . 12
16. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . 12, 23
17. Tuner and Band Selector Button . . . . . . . . . . . . . . . . . . . . 18
18. Tape Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
19. CD Fast Forward, Tuning Up Button . . . . . . . . . . . . . . 15, 18
20. CD Track Up, Tuner Preset Up Button . . . . . . . . . . . . . 15, 19
21. CD Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
22. Random/Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
23. Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
24. Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
XL-S10(U) TINSEA018SJZZ
System connections
XL-S10
Make sure to unplug the AC power cord before any connections.
AM loop
antenna
Right speaker
! Antenna connection
Left speaker
Connect the FM/AM loop antenna to the ANTENNA jack.
Position the FM antenna wire and rotate the AM loop antenna for
optimum reception. Place the AM loop antenna on a shelf, or attach
it to a stand or a wall.
Notes:
" Placing the antenna on the unit or near the AC power cord may
cause noise pickup. Place the antenna away from the unit for better reception.
" Do not connect the attached FM antenna to an external FM
antenna. Otherwise, trouble may occur.
Installing the AM loop antenna:
< Assembling >
< Attaching to the wall >
Wall
Screws (not supplied)
! Speaker connection
Connect the wire with the white line to the minus (-) terminal and the
black wire to the plus (+) terminal.
AC outlet
(AC 120 V, 60 Hz)
Right speaker
2
Preparation for Use
FM
antenna
2
Left speaker
White line
Black
Caution:
" Do not let the bare speaker wires touch
each other.
" Use speakers with an impedance of 4 ohms or
more, as lower impedance speakers can damage the unit.
" Do not mistake the right and the left channels.
The right speaker is the one on the right side
when you face the unit.
Incorrect
9
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
XL-S10
System connections (continued)
! Placing the speaker system
! Connecting the AC power cord
There is no distinction between the right and the left speakers.
After checking all the connections have been made correctly, plug
the AC power cord of this unit into the wall socket.
Left speaker
Right speaker
Note:
Unplug the unit if it will not be used for a prolonged period of time.
! To turn the power on
Preparation for Use
Press the POWER ON/STAND-BY button to turn the power on.
Notes:
" The speakers are magnetically shielded.
Therefore, they do not affect the display even if you use them near
the TV. However, some color variation may occur, depending on
the type of TV used.
To set the unit to the stand-by mode:
Press the POWER ON/STAND-BY button again.
If color variation occurs...
Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.
If the color variation is still present...
Move the speakers further away from the TV.
" If any kind of magnet or an electromagnet is placed too close to
the TV and the system, irregular colors may appear on the TV
screen.
Note:
The speaker grilles are not removable.
10
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
Remote control
! Battery installation
Use 2 "AAA" size batteries (UM-4, R03, HP-16 or similar).
Batteries are not included.
1
2
3
Remove the battery cover.
Insert the batteries according to the direction indicated in
the battery compartment.
When inserting or removing the batteries, push them toward the
battery terminals.
Replace the cover.
XL-S10
Notes concerning use:
" Replace the batteries if the operating distance is reduced or if the
operation becomes erratic.
" Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
" Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit if this
occurs.
" Keep the remote control away from moisture, heat, shock, and
vibrations.
2
Face the remote control directly
to the remote sensor on the unit.
Press the ON/STAND-BY button. Does the power turn on?
Now, you can enjoy the music.
Precautions for battery use:
" Replace all old batteries with new ones at the same time.
" Do not mix old and new batteries.
" Remove the batteries if the unit is not to be used for long periods
of time. This will prevent potential damage due to battery leakage.
Remote sensor
8" - 20'
(0.2 m - 6 m)
Preparation for Use
! Test of the remote control
Caution:
" Do not use rechargeable batteries (nickel-cadmium battery, etc.).
" Installing the batteries incorrectly may cause the unit to malfunction.
11
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
XL-S10
Sound control
! Adjusting the volume
Main unit operation:
When the VOLUME control is turned clockwise, the volume will
increase. When it is turned counterclockwise, the volume will
decrease.
Remote control operation:
Press the VOLUME + button to increase the volume and the VOLUME - button to decrease the volume.
Basic Operation
0 1
2 ..... 28 29 30
! Adjusting the bass
Main unit operation:
1 Press the BASS/TREBLE button to select "BASS".
2 Within 5 seconds, turn the VOLUME control to adjust the bass.
Remote control operation:
Press the BASS (- or +) button to adjust the bass.
-3
...
0
...
4
! Adjusting the treble
Main unit operation:
1 Press the BASS/TREBLE button to select "TrE".
2 Within 5 seconds, turn the VOLUME control to adjust the treble.
Remote control operation:
Press the TREBLE (- or +) button to adjust the treble.
-3
...
0
...
4
12
03/12/18
XL-S10(U)1.fm
TINSEA018SJZZ
Setting the clock
XL-S10
3
Within 1 minute, press the PRESET ( or ) button to adjust the hour and then press the MEMORY button.
3
When the 12-hour display is selected, "AM" will change automatically to "PM".
1
Within 1 minute, press the PRESET ( or ) button to adjust the minutes and then press the MEMORY button.
Press the CLOCK button and within 5 seconds, press the
MEMORY button.
The clock starts from "0" second. (Seconds are not displayed.)
2
Within 1 minute, press the PRESET ( or ) button to select 12-hour or 24-hour display and then press the MEMORY button.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The "AM 12:00" or time will flash when the AC power supply is
restored after a power failure or unplugging the unit.
Readjust the clock as follows.
Basic Operation
4
This may be operated only with the remote control.
In this example, the clock is set for the 12-hour (AM 12:00) display.
To readjust the clock:
Perform "Setting the clock" from the beginning.
"AM 12:00"
The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"0:00"
The 24-hour display will appear.
(0:00 - 23:59)
Note that this can only be set when the unit is first installed or it
has been reset. (Refer to "Clearing all the memory (reset)" on
page 28.)
To change the 12-hour or 24-hour display:
1 Clear all the programmed contents. [Refer to "Clearing all the
memory (reset)" on page 28 for details.]
2 Perform "Setting the clock" from the beginning.
13
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
XL-S10
Listening to a CD
CD Playback
This system can play audio CDs, and CD-R/RW discs but can not
record CDs.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the device that was used for recording.
1
2
Press the ON/STAND-BY button to turn the power on.
3
Press the
ment.
4
Place a CD on the spindle, label side up.
5
Close the CD compartment by firmly pushing the corner
marked "PUSH CLOSE".
Press the FUNCTION button until "Cd dISC" appears on the
display.
When operating with the remote control, press the CD button.
CD EJECT button to open the CD compart-
Total number
of tracks
6
Press the
Total playing
time
( ) button to start playback from track 1.
When the last track on the disc has finished playing, the CD
player will stop automatically.
14
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
XL-S10
" To locate the beginning of a track
button.
To stop playback:
Press the button.
To remove the CD:
While in the stop mode, press the
CD EJECT button.
To move to the beginning of the next track:
Press the
button for less than 0.5 seconds during playback.
! You can skip to any track by pressing the
button repeatedly until the desired track
number appears.
To restart the track being played:
Press the
button for less than 0.5 seconds during playback.
! You can skip to any track by pressing the
button repeatedly until the desired track
number appears.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
Caution:
! If a disc is damaged, dirty, or loaded upside down, "no dISC" will
appear on the display.
! Keep foreign objects out of the CD compartment.
! Subjecting the unit to shock or vibration may cause mistracking.
! When the unit is not being used, be sure to close the CD compartment. If it is left open, the lens may be covered with dust and
the unit may not operate properly.
! If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.
4
" To locate the desired portion
For audible fast forward:
Press and hold down the
button on the main unit or the
ton on the remote control during playback.
For audible fast reverse:
Press and hold down the
button on the main unit or the
ton on the remote control during playback.
but-
CD Playback
To interrupt playback:
Main unit operation:
Press the
button.
To resume playback from the same point, press
the
button again.
Remote control operation:
Press the button.
To resume playback from the same point, press the
but-
Notes:
( ) or
( ) but! Normal playback will resume when the
ton is released.
! When the end of the last track is reached during fast forward,
"End" will appear on the display and CD operation will be paused.
When the beginning of the first track is reached during fast
reverse, the disc will start playback automatically.
15
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
XL-S10
Listening to a CD (continued)
" Repeat or Random play
You can select one of the CD playback mode; "Repeat play", "Random play" and "Normal play".
1
When in the CD mode, press the RANDOM/REPEAT button
on the remote control repeatedly to select the playback
mode.
Notes:
! The random play will stop automatically when all tracks are
played once. (The same track will not be played back twice.)
! In random play, the CD player will select and play tracks automatically. (You cannot select the order of the tracks.)
button during random play, you can move to
! If you press the
the track selected next by the random operation. On the other
hand, the
button does not allow you to move to the previous
track. The beginning of the track being played will be located.
CD Playback
Caution:
After performing repeat play or random repeat play, be sure to press
the button. Otherwise, the disc will play continuously.
2
Press the
Normal playback
mode
Random playback
mode
Random repeat playback mode
Repeat playback
mode
To cancel repeat or random play:
Press the RANDOM/REPEAT button on the remote control repeatedly to select the normal playback mode.
button to start playback.
To repeat a programmed sequence:
Perform steps 1 - 4 in the "Programmed Play" section and then
select the repeat playback.
16
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
Programmed play
1
While in the stop mode, press the
the desired track.
or
button to select
4
Selected track number
2
Press the MEMORY (MEMORY/SET) button to save the
track number.
3
Repeat steps 1 - 2 for other tracks. Up to 32 tracks can be
programmed.
4
Press the
Playback order
(
) button to start playback.
To clear the programmed selections:
Press the CLEAR button while the "MEMORY" indicator is lit.
Each time the button is pressed, one track will be cleared, beginning
with the last track programmed.
CD Playback
You can choose up to 32 selections for playback in the order you
like.
XL-S10
Adding tracks to the program:
If a program has been previously stored, the "MEMORY" indicator
will be displayed. Then follow steps 1 - 2 to add tracks. The new
tracks will be stored after the last track of the original program.
Notes:
! Opening the CD compartment automatically cancels the programmed sequence.
! Even if you press the ON/STAND-BY button to enter the stand-by
mode or the function is changed from CD to some other function,
the programmed selections will not be cleared.
! During program operation, random play is not possible.
17
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
Listening to the radio
Radio
XL-S10
1
2
Press the ON/STAND-BY button to turn the power on.
3
Press the TUNING ( or ) button to tune in to the desired
station.
Manual tuning:
Press the TUNING button as many times as required to tune in
to the desired station.
Auto tuning:
When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at
the first receivable broadcast station.
Notes:
! When radio interference occurs, auto scan tuning may stop
automatically at that point.
! Auto scan tuning will skip weak signal stations.
! To stop the auto tuning, press the TUNING button again.
Press the FUNCTION button until "FM" or "AM" appears on
the display.
When operating with the remote control, press the TUNER
(BAND) button to select "FM" or "AM".
To receive an FM stereo transmission:
Press the FUNCTION (TUNER (BAND)) button to display the "ST"
indicator.
! " " will appear when an FM broadcast is in stereo.
! If the FM reception is weak, press the FUNCTION (TUNER
(BAND)) button to extinguish the "ST" indicator. The reception
changes to monaural, and the sound becomes clearer.
FM stereo mode indicator
FM stereo receiving indicator
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
18
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
Listening to the memorized station
You can store 40 AM and FM stations in memory and recall them at
the push of a button. (Preset tuning)
1
2
Perform steps 1 - 3 in "Listening to the radio" on page 18.
3
Within 5 seconds, press the
PRESET ( or ) button to select the preset channel number.
Store the stations in memory, in order, starting with preset
channel 1.
4
5
" To recall a memorized station
Press the PRESET ( or ) button for less than 0.5 seconds to
select the desired station.
Press
the
MEMORY/SET
(MEMORY) button to enter the
preset tuning saving mode.
Within 5 seconds, press the
MEMORY/SET
(MEMORY)
button to store that station in
memory.
If the "MEMORY" and preset number indicators go out before
the station is memorized, repeat the operation from step 2.
Repeat steps 1 - 4 to set other stations, or to change a preset station.
When a new station is stored in memory, the station previously
memorized will be erased.
Note:
The backup function protects the memorized stations for a few
hours should there be a power failure or the AC power cord get disconnected.
Preset channel
Frequency and frequency band
5
" To scan the preset stations
The stations saved in memory can be scanned automatically. (Preset memory scan)
1
Press the PRESET ( or ) button for more than 0.5 seconds.
The preset number will flash and the programmed stations will
be tuned in sequentially, for 5 seconds each.
2
Press the PRESET (
station is located.
or
) button again when the desired
Radio
" Memorizing a station
XL-S10
" To clear a memorized station
1
2
3
Recall the memorized station.
While it is displayed, press the MEMORY/SET (MEMORY) button.
Within 5 seconds, press the CLEAR button on the remote control.
19
03/12/18
XL-S10(U)2.fm
TINSEA018SJZZ
XL-S10
Listening to a cassette tape
Tape Playback
Before playback:
! For playback, use normal or low-noise tapes for
the best sound. (Metal or CrO tapes are not recommended.)
! Do not use C-120 tapes or poor-quality tapes, as they
may cause malfunctions.
! Before loading a tape into the cassette compartment,
tighten the slack with a pen or a pencil.
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until "TAPE" appears on the
display.
When operating with the remote control, press the TAPE button.
3
Press the
4
Load a cassette into the cassette compartment with the
side to be played facing toward you.
5
Close the cassette compartment.
6
Press the
button to open the cassette compartment.
button to start playback.
To stop playback:
Press the
button.
Fast forward/rewind:
To advance the tape, press the
button, then press the
button. To rewind, press the
button, then press the
button.
To interrupt playback:
Press the button during playback.
Press the button again to resume playback.
Caution:
! Do not press the button while fast forwarding or rewinding. The
or
button will not be released when the tape end is
reached. Once this occurs, press the
button.
! Before changing from one tape operation to another, press the
button.
20
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
Recording to a cassette tape
" Recording from a CD
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until "Cd dISC" appears on the
display.
When operating with the remote control, press the CD button.
3
Load the desired disc.
4
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
5
Press the
6
Press the
gages the
7
Press the
8
Press the
button.
button, which also enbutton.
button again to cancel the pause mode.
( ) button for CD.
6
Tape Recording
Before recording:
! When recording important selections, make a preliminary test to
ensure that the desired material is properly recorded.
! SHARP is not liable for damage or loss of your recording arising
from malfunction of this unit.
! The volume and sound controls can be adjusted with no effect on
the recorded signal (Variable Sound Monitor).
! For recording, use only normal tapes. Do not use metal or
CrO tapes.
XL-S10
To perform programmed recording:
1 Program tracks (see page 17).
2 Press the button.
3 Press the button, which also engages the button.
4 Press the button again to cancel the pause mode.
5 Press the
( ) button for CD.
To interrupt recording:
Press the button.
To resume recording, press the
button.
To stop recording:
Press the
button.
The tape will stop.
21
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
XL-S10
Recording to a cassette tape (continued)
" Recording from the radio
1
Tune in to the desired station (see page 18).
2
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Tape Recording
Wind past the leader of the tape, on which recording cannot be
performed.
3
Press the
4
Press the
gages the
5
Press the
button.
button, which also enbutton.
button again to begin recording.
To stop recording:
Press the
button.
Note:
If you hear a whistling noise while recording an AM station, move
the AM loop antenna.
" Erasing a recorded tape
1. Load the tape to be erased into the cassette compartment with
the side to be erased facing toward you.
2. Press the FUNCTION button until "TAPE" appears on the display.
3. Press the button which also engages the button to begin
erasing.
Erase-prevention tabs of cassette tapes:
! When recording on a cassette
tape, make sure that the eraseprevention tabs are not removed. Cassettes have removable tabs that prevent
accidental recording or erasing.
! To protect the recorded sound,
remove the tab after recording.
Cover the tab hole with the adhesive tape to record on the
tape without the tab.
Side A
Tab for side B Tab for side A
22
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
Timer and sleep operation
Timer playback:
The unit turns on and plays the desired source (CD, tuner) at the
preset time.
Sleep operation:
The radio and compact disc can all be turned off automatically.
Note:
The timer and sleep operations are not available during the tape
mode.
" Timer playback
1
2
Press the ON/STAND-BY button to turn the power on.
3
Adjust the volume using the VOLUME buttons.
Press the CD or TUNER (BAND) button to select the desired function.
If you select TUNER (BAND), tune in to the desired station.
Do not turn the volume up too high.
4
Before setting timer:
1 Press the CLOCK button to check that
the clock is set to the correct time.
2 Load a disc to be played.
Press the TIMER button and within 6 seconds, press the
MEMORY button.
5
Within 1 minute, press the PRESET ( or ) button to
specify the hour to start, then press the MEMORY button.
6
Within 1 minute, press the PRESET ( or ) button to
specify the minutes to start, then press the MEMORY button.
! The timer playback starting time, function, and volume will be
displayed, and then the unit will enter the stand-by mode automatically.
! " " will light up and the current time will be displayed.
Advanced Features
This may be operated only with the remote control.
XL-S10
To cancel the timer playback:
Press the ON/STAND-BY button to turn the power on.
Continued to the next page
23
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
7
XL-S10
Timer and sleep operation (continued)
7
When the preset time is reached, playback will start.
The volume will increase gradually until it reaches the volume
you were listening at before your system enters the timer standby mode.
Advanced Features
8
The unit will enter the stand-by mode one hour after the
timer playback starts. However, when CD playing time is
one hour or less, it will enter the stand-by mode after completing playback.
To reset or change the timer setting:
Perform "Timer playback" from the beginning.
Press the SLEEP button.
To change the sleep time:
Press the SLEEP button repeatedly to select the desired sleep
time. The time will decrease as follows.
The amount of sleep time can also be changed while in the
sleep mode.
3
2:00
OFF
5
1:30
10
15
" To use timer and sleep operation together
1
2
Play back the desired sound source.
3:00
To confirm the remaining sleep time:
Press the SLEEP button once while the sleep timer is set.
The remaining sleep time is displayed for about 5 seconds.
Example: To fall asleep and wake up to the same radio station
You can play back the same source only (the function cannot be
switched).
" Sleep operation
1
2
To cancel the sleep operation:
Press the ON/STAND-BY button while "SLEEP" is indicated.
To cancel the sleep operation without setting the system to the
stand-by mode, press the SLEEP button until "OFF" appears on the
display.
Set the sleep time (steps 1 - 2, page 24).
While the sleep timer is set, set the timer playback start
time (steps 4 - 6, page 23).
1.Sleep timer setting
2.Timer playback setting
5 minutes - 3 hours
Sleep operation will
automatically stop.
1:00
Timer playback
start time
30
Your system will enter the power stand-by mode automatically after the preset time has elapsed.
The volume will be turned down 1 minute before the sleep operation finishes.
24
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
Enhancing your system
XL-S10
The connection cord is not included. Purchase a commercially available cord as shown below.
" Listening to the playback sounds from VCR,
DVD, etc.
1
Use a connection cord to connect the VCR, DVD, etc. to the
VIDEO/AUX IN jacks.
VCR, DVD, etc.
2
Press the ON/STAND-BY button to turn the power on.
3
Press the FUNCTION button until "AUX" appears on the
display.
When operating with the remote control, press the VIDEO/AUX
button.
To the line
output jacks
4
White
Play the connected equipment.
Red
Note:
To prevent noise interference, place this unit away from a television.
" To record on a tape
RCA cord
(not supplied)
1
Insert a cassette in the cassette compartment.
2
Press the FUNCTION button until "AUX" appears on the
display.
Advanced Features
When using video equipment, connect the audio output to this
unit and the video output to a television.
When operating with the remote control, press the VIDEO/AUX
button.
White
3
Press the
button.
Red
4
Press the
button, which also engages the
5
Press the
button again to cancel the pause mode.
6
Play the VCR, DVD, etc.
button.
25
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
7
XL-S10
Enhancing your system (continued)
" Subwoofer connection
Advanced Features
Speaker with a
built-in amplifier
When a commercially available speaker with a built-in amplifier is
connected to this unit, you can enjoy sound with emphasized bass.
Connect an RCA cord from a commercially available speaker with a
built-in amplifier to the SUBWOOFER OUT jack.
" Headphones
! Before plugging in or unplugging the headphones, reduce the
volume.
! Be sure your headphones have a 1/8" (3.5 mm) diameter plug
and are between 16 ohms and 50 ohms impedance. The recommended impedance is 32 ohms.
! Plugging in the headphones disconnects the speakers automatically. Adjust the volume using the VOLUME control.
26
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
Troubleshooting chart
" General
Symptom
Possible cause
The clock is not set ! Did a power failure occur? Reset the clock
(refer to page 13).
to the correct time.
When a button is
pressed, the unit
does not respond.
! Set this unit to the power stand-by mode
and then turn it back on.
! If the unit still malfunctions, reset it. (Refer
to page 28.)
No sound is heard. ! Is the volume level set to "0"?
The radio makes un- ! Is the unit placed near the TV or computusual noises continer?
uously.
! Is the FM/AM loop antenna placed properly? Move the antenna away from the AC
power cord if located nearby.
" Cassette deck
Cannot record.
! Is the erase-prevention tab removed?
Cannot record tracks ! Is it a normal tape? (You cannot record on
with proper sound
a metal or CrO tape.)
quality.
Cannot erase completely.
! Are the headphones connected?
Sound skipping.
! Is there any slack?
! Are the speaker wires disconnected?
Cannot hear treble.
! Is the tape stretched?
Sound fluctuation.
! Are the capstan, pinch roller, or heads
dirty?
" CD player
Playback does not
start.
" Tuner
! Is the disc loaded upside down?
Playback stops in ! Does the disc satisfy the standards?
the middle or is not
performed proper- ! Is the disc distorted or scratched?
ly.
References
Many potential problems can be resolved by the owner without calling a service technician.
If something is wrong with this product, check the following before
calling your authorized SHARP dealer or service center.
XL-S10
" Remote control
The remote control
does not operate.
! Is the AC power cord of the unit plugged
in?
! Is the battery polarity correct?
! Are the batteries dead?
! Is the unit located near excessive vibraPlayback sounds
tions?
are skipped, or
stopped in the mid! Is the disc very dirty?
dle of a track.
! Has condensation formed inside the unit?
! Is the distance or angle incorrect?
! Does the remote control sensor receive
strong light?
27
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
8
XL-S10
Troubleshooting chart (continued)
" If trouble occurs
" Condensation
When this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal supply
voltage due to lightning, etc.) or if it is operated incorrectly, it may
malfunction.
Sudden temperature changes, storage or operation in an extremely
humid environment may cause condensation inside the cabinet (CD
pickup, tape heads, etc.) or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on with no disc (or cassette) in the unit until normal
playback is possible (about 1 hour). Wipe off any condensation on
the transmitter with a soft cloth before operating the unit.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.
References
Note:
If neither operation above restores the unit, clear all the memory by
resetting it.
" Clearing all the memory (reset)
1
2
Press the ON/STAND-BY button to enter the power stand-by
mode.
While pressing down the MEMORY/SET button and the CLEAR
button, press the ON/STAND-BY button until "CL" appears.
Caution:
This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD program.
28
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
Maintenance
XL-S10
" Cleaning the CD pickup lens
" Care of compact discs
Do not touch the laser pickup lens. If fingerprints or dust accumulate on the
pickup, clean it gently with a dry cotton
swab.
Compact discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collection and player.
! Do not write on either side of the disc, particularly the non-label
side from which signals are read. Do not mark this surface.
! Keep your discs away from direct sunlight, heat, and excessive
moisture.
! Always hold the CDs by the edges. Fingerprints, dirt, or water on
the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the center, along the radius.
Periodically wipe the cabinet with a soft cloth and a diluted soap
solution, then with a dry cloth.
Caution:
! Do not use chemicals for cleaning (gasoline, paint thinner, etc.).
It may damage the cabinet finish.
! Do not apply oil to the inside of the unit. It may cause malfunctions.
NO
YES
Correct
References
" Cleaning the cabinet
" Cleaning the tape-handling parts
! Dirty heads, capstan or pinch roller can cause poor sound and
tape jams. Clean these parts with a cotton swab moistened with
commercial head/pinch roller cleaner or isopropyl alcohol.
! When cleaning the heads, pinch roller, etc., unplug the unit which
contains high voltages.
Erase head
Recording/Playback
C
A
B
D
head
Capstan
Pinch roller
! After long use, the deck's heads and capstan may become magnetized, causing poor sound. Demagnetize these parts once
every 30 hours of playing/recording time by using a commercial
tape head demagnetizer. Read the demagnetizer's instructions
carefully before use.
29
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
8
XL-S10
Specifications
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
References
" General
Power source
AC 120 V, 60 Hz
Power
consumption
28 W
Dimensions
Width: 6-5/16" (160 mm)
Height: 9-1/2" (242 mm)
Depth: 9-7/8" (250 mm)
Weight
5.1 lbs. (2.3 kg)
" Amplifier
Output power
5 watts minimum RMS per channel into 4
ohms from 100 Hz to 15 kHz, 10% total harmonic distortion
Output terminals
Speakers: 4 ohms
Input terminals
" CD player
Type
Compact disc player
Signal readout
Non-contact, 3-beam semiconductor laser
pickup
D/A converter
1-bit D/A converter
Frequency
response
20 - 20,000 Hz
Dynamic range
90 dB (1 kHz)
" Cassette deck
Frequency
response
125 - 8,000 Hz (normal tape)
Signal/noise ratio
50 dB (recording/playback)
Wow and flutter
0.3 % (WRMS)
" Speaker
Type
4" (10 cm) full-range speaker (magnetically
shielded)
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
Maximum input
power
10 W
Subwoofer pre-out (audio signal):
500 mV/47 k ohms
Rated input power
5W
Impedance
4 ohms
Video/Auxiliary (audio signal):
500 mV/47 k ohms
Dimensions
Width: 5-1/8" (130 mm)
Height: 9-7/16" (240 mm)
Depth: 6-5/16" (161 mm)
Weight
3.3 lbs. (1.5 kg)/each
" Tuner
Frequency range
FM: 87.5 - 108.0 MHz
AM: 530 - 1,720 kHz
30
03/12/18
XL-S10(U)3.fm
TINSEA018SJZZ
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof
with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has
been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in
design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any
warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser.
Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the
purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event
shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone
other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states
do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Model Specific Section
Your Product Model Number & Description:
SHARP ELECTRONICS CORPORATION
Sharp Plaza,
Mahwah,
New
Jersey 07430-2135
XL-S10
Micro
Component
System
(Be sure to have this information available when you need service for your Product.)
Warranty Period for this Product:
One (1)CORPORATION
year parts and labor from the date
9906of purchase.
SHARP
Additional Item(s) Excluded from Warranty Coverage (if any): Non-functional accessories, supplies, and consumable items.
Where to Obtain Service:
At a Sharp Authorized Servicer located in the United States.
To find a location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.
What to do to Obtain Service:
Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and
packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP.
0311
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
SHARP CORPORATION
03/12/18
9906
XL-S10(U)_BACK.fm
Printed in China
TINSEA018SJZZ
03M N YT 1
TINSEA018SJZZ
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
