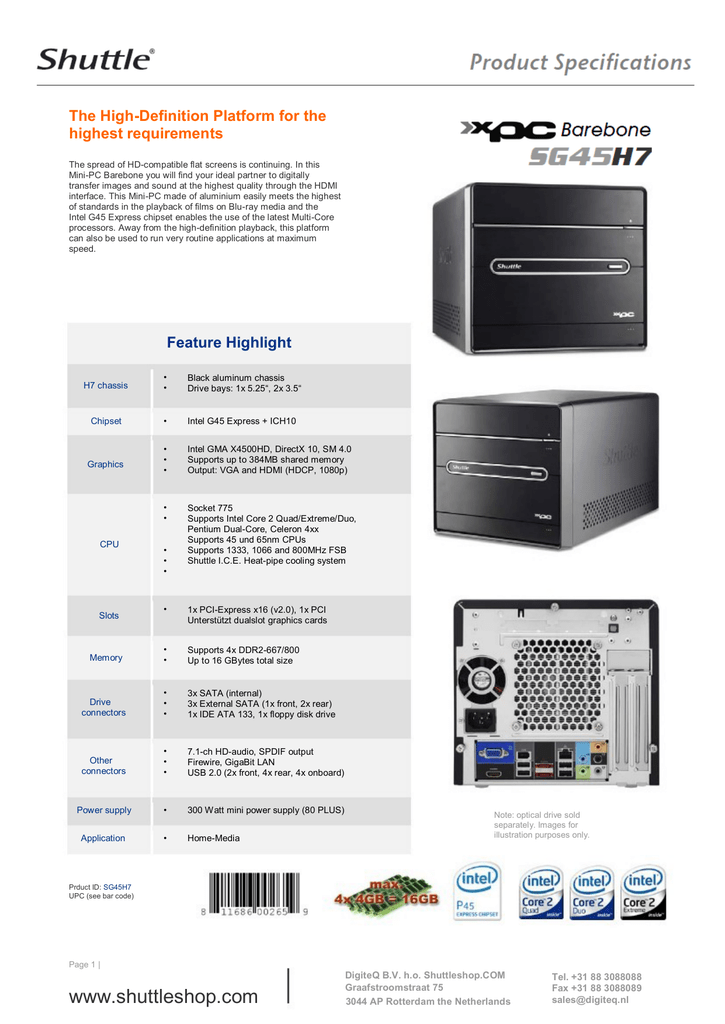

Shuttle Computer Group SG45H7 User's Manual

The High-Definition Platform for the
highest requirements
SG45H7
The spread of HD-compatible flat screens is continuing. In this
Mini-PC Barebone you will find your ideal partner to digitally
transfer images and sound at the highest quality through the HDMI
interface. This Mini-PC made of aluminium easily meets the highest
of standards in the playback of films on Blu-ray media and the
Intel G45 Express chipset enables the use of the latest Multi-Core
processors. Away from the high-definition playback, this platform
can also be used to run very routine applications at maximum
speed.
Feature Highlight
H7 chassis
•
•
Black aluminum chassis
Drive bays: 1x 5.25“, 2x 3.5“
Chipset
•
Intel G45 Express + ICH10
•
•
•
Intel GMA X4500HD, DirectX 10, SM 4.0
Supports up to 384MB shared memory
Output: VGA and HDMI (HDCP, 1080p)
•
•
Socket 775
Supports Intel Core 2 Quad/Extreme/Duo,
Pentium Dual-Core, Celeron 4xx
Supports 45 und 65nm CPUs
Supports 1333, 1066 and 800MHz FSB
Shuttle I.C.E. Heat-pipe cooling system
Graphics
CPU
•
•
•
•
1x PCI-Express x16 (v2.0), 1x PCI
Unterstützt dualslot graphics cards
Memory
•
•
Supports 4x DDR2-667/800
Up to 16 GBytes total size
Drive
connectors
•
•
•
3x SATA (internal)
3x External SATA (1x front, 2x rear)
1x IDE ATA 133, 1x floppy disk drive
Other
connectors
•
•
•
7.1-ch HD-audio, SPDIF output
Firewire, GigaBit LAN
USB 2.0 (2x front, 4x rear, 4x onboard)
Power supply
•
300 Watt mini power supply (80 PLUS)
Application
•
Home-Media
Slots
Note: optical drive sold
separately. Images for
illustration purposes only.
Prduct ID: SG45H7
UPC (see bar code)
Page 1 |
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam the Netherlands
Tel. +31 88 3088088
Fax +31 88 3088089
[email protected]
Shuttle XPC Barebone SG45H7 – Special Product Features
New H7 chassis with enhance expansion ability
The new H7 chassis dimensions have grown slightly in contrast to the
previous G-Series adding various of welcome improvements to the
Shuttle XPC Barebone SG45H7. The larger power supply fan of 5cm in
size helps to cut down on noise level even more also providing a better
thermal efficiency for the entire system. The rear side now features two
perforations for parallel port and/or PS/2 expansion. The front panel
sports an eSATA port for instant access to an external hard disk. With a
renewed mainboard layout, the SG45H7 is capable of running dual-slot
graphics cards and up to four memory modules with a max. capacity
of 16GB.
Supports Quadcore, 1333 MHz FSB and 45nm processors
This Shuttle product supports the Intel® Core™2 Duo and Intel®
Core™2 Quad processors with up to 1333 MHz front side bus and the
new power-saving 45nm technology. Multi core brings multi power!
Integrated Cooling Engine (I.C.E.)
Shuttle's XPCs offer the power of a desktop PC in a form factor onethird the size. In order to ensure proper airflow inside a smaller unit,
more advanced cooling technologies have been developed and
implemented in the Shuttle XPC. Shuttle's industry-leading I.C.E.
heatpipe technology delivers efficient cooling and is exceptionally
quiet.
Built-in Intel GMA X4500HD Graphics Engine
The next-generation Intel® Graphics Media Accelerator X4500HD
(Intel® GMA X4500HD) includes built-in support for full 1080p highdefinition video playback, including Blu-ray disc movies. This powerful
video engine provides users with a rich, new media experience to
deliver smooth HD playback without the need for add-in video cards or
decoders. Intel® GMA X4500HD comes with Intel® Clear Video
Technology, a combination of video processing hardware and
software technologies designed to enhance the visual experience. In
addition to video, the optimized 3D graphics engine supports DirectX
10, Shader Model 4.0 and OpenGL 2.0 and delivers the performance
and compatibility you need for entertaining, everyday gameplay for
the most popular game titles.
DVI-to-HDMI adapter cable included
Dual View Technology with HDMI (DVI) and VGA
Dual View technology offers multiple display support on up to two
separate monitors. This improves the capabilities and productivity of
the user by allowing them to spread multiple windows over two
monitors and view them simultaneously. The integrated Intel graphics
processor delivers best-in-class 3D performance and leading graphics
compatibility to play top games the way they are meant to be played.
PCI-Express V2.0 for high-performance graphics cards
The Shuttle XPC Barebone SG45H7 is equipped with one PCI-Express
x16 Version 2.0 slot delivering a bandwidth of up to 16GB/s, twice the
speed of PCI-E 1.0, thus providing plenty of potential for the newest
graphics cards. It is downward compatible, allowing use for most of the
Page 2
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam the Netherlands
Tel. +31 88 3088088
Fax +31 88 3088089
[email protected]
present graphics cards as well.
Supports large dualslot graphics cards
The Shuttle XPC Barebone SG45H7 surpports large dual-slot graphics
cards like ATI Radeon HD4870 or NVIDIA Geforce GTX280 which occupy
two slots. Please note, that in this case you cannot use the PCI slot for
another expansion card.
80 PLUS® Certified Power Supplies
The 80 PLUS® performance specification requires power supplies in
computers and servers to be 80% or greater energy-efficient. The
Shuttle XPC Barebone SG45H7 features a powerful 300W power supply
with 80 PLUS® validation as standard. The new power supplies of the H7
chassis series use a 50mm cooling fan providing the same airflow, but
spins slower than previous 40mm models to make the system run even
more quietly.
Supports up to 16GB of memory
This Shuttle XPC supports up to 16GB DDR2-800 memory which is ideal
for workstations powered by 64-bit operating systems, enabling users to
take full advantage of high-performance configurations.
New Era of All-Solid Capacitor Shuttle Mainboards
By using all-solid capacitors Shuttle mainboards provide industry
leading stability, reliability and longevity for PC gaming and
entertainment systems. The average lifespan for a solid capacitor is
more than six times greater than the more common and less expensive
electrolytic capacitors.
External Serial ATA ports on front and back panel
In addition to the two eSATA ports at the back panel, the SG45H7 also
comes with one eSATA at the front panel for plugging in high-speed
external hard-drives. The eSATA interface is up to three times faster than
the USB 2.0 standard.
Supports Windows Vista Premium
Breathtaking Windows Aero™ 3D visual interface and a host of
groundbreaking new features, Windows® Vista™ Premium promises to
deliver a streamlined computing experience designed to
fundamentally change how users view, find and organize their digital
information.
Shuttle XPC Accessory
Shuttle offers a wide variety of accessories for XPC barebones and
complete systems such as WLAN modules or expansion kits. The XPC
carrying bag is also a popular accessory - it is the ideal solution for
LAN party gamers and business people, who need to transport their
XPC.
Page 3
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam the Netherlands
Tel. +31 88 3088088
Fax +31 88 3088089
[email protected]
Shuttle XPC Barebone SG45H7 Specifications
Chassis
Mainboard
Power Supply
H7-type aluminum chassis, color: black
storage bays: 1 x 5.25", 2 x 3.5" (1 internal)
stealthed drive doors
Dimensions: 32.5 x 20.8 x 18.9 cm (LWH),
Weight: 3.6 kg net / 5.0 kg gross
Shuttle FG45, Shuttle form factor, proprietary design for XPC SG45H7
Chipset: Intel G45 Express (MCH) + ICH10 (I/O Conroller Hub)
Solid Capacitors for excellent heat resistance for enhanced system durability
300 Watt mini PSU, AC input voltage: 100~240V
80 PLUS® certified (80% or greater energy-efficient)
Active PFC circuit (Power Factor Correction)
Dimension: 190 x 82 x 43 mm (LWH)
Processor
Support
Socket 775 supports Intel processors with Core Technology
Supports 1333, 1066 or 800MHz front side bus (not 533MHz)
Supports Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core,
Celeron Dual-Core, Celeron 4xx
Supports 65nm and 45nm processors
Please refer the support list for detailed processor support information.
Mainboard BIOS supports Dynamic Overclock *) **)
Processor
Cooling
Shuttle I.C.E. (Integrated Cooling Engine)
advanced I.C.E. Heatpipe technology, linear controlled 92mm fan
SilentX cooling and noise reduction technology with Active Airflow
Memory
Support
Integrated
graphics
4 x 240 pin slots, supports Dual Channel
supports DDR2-667/800 SDRAM memory
max. 4 GB per DIMM, up to a total size of 16 GB
Intel® Graphics Media Accelerator (GMA) X4500HD
256-bit 3D engine with a powerful 400MHz core
Supports full 1080p high-definition video playback including Blu-ray disc movies
Supports Intel® Clear Video Technology
Supports MS DirectX 10, Shader Model 4.0 and OpenGL 2.0
Supports Dynamic Video Memory Technology 3.0 (DVMT)
Supports up to 384MB of video memory (Shared memory)
Analog VGA and digital HDMI connector in the back panel
HDMI supports HDCP (High Definition Content Protection)
HDMI-to-DVI-Adapter included
Expansion
Slots
1x PCI-Express v2.0 slot
Supports Dual-slot (double-width) graphics cards
1x PCI 32 bit slot
8-channel
Audio
7.1 channel High Definition Audio with Realtek ALC888 codec
analog: line-out (8-ch), line-in, microphone, CD-in, AUX
digital: optical S/PDIF-out
Page 4
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam the Netherlands
Tel. +31 88 3088088
Fax +31 88 3088089
[email protected]
Gigabit-LAN
Controller
FirewireController
Marvell 88E8056 Ethernet network controller
With PCI Express interface
IEEE 802.3u 1000Base-T compliant
Supports 10 / 100 / 1.000 MBit/s operation
Supports Wake-on-LAN
IEEE1394 Firewire controller TI TSB43AB22A
Complies with 1394 OHCI specification revision 1.0
1x 6pin Firewire connector at the backpanel
Supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
Drive
connectors
Serial-ATA II, 3 Gb/s (300 MB/s) bandwidth
3x internal (SATA) plus 3x external (eSATA)
1x IDE ATA 100 drives
1x floppy disk drive
Front panel
connectors
Microphone
Headphone (Line-out)
2x USB 2.0
External Serial ATA Hotplug (eSATA)
Power button
Reset button
Power indicator (blue LED)
HDD indicator (orange LED)
Back panel
connectors
HDMI (digital video out, DVI via adapter)
D-Sub VGA (analog video out)
4x USB 2.0, Firewire (6 pin), GigaBit LAN (RJ45)
2x External Serial ATA Hotplug (eSATA)
8-ch Audio line-out (2x rear/front, bass/center, surround/back)
Audio Line-in, Digital Audio: optical S/PDIF output
Clear CMOS button
Optional
Back panel
connectors
Wireless LAN Antenna (Perforation for PN20)
PS/2 Mouse & Keyboard (Perforation for PS10)
Parallel port (Perforation for PC8)
Other
connectors
6x USB 2.0 (three sets with 2x5 pins)
2x fan connectors (4 pins and 3 pins)
Headers for PS/2 mouse and PS/2 keyboard
Accessories
Multilanguage XPC Installation Guide (En, De, Fr, Es, TC, Jp)
XPC 32/64bit Driver CDROM for Windows XP/Vista
Data cables: floppy, PATA, SATA, eSATA (PATA/SATA preinstalled)
HDMI-to-DVI-Adapter
Power Cord, Screws, Heatsink Compound
*) Overclocking Warning
Please note there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using
third-party overclocking tools. Overclocking may affect your system stability or even cause damage of the
components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held
responsible for possible damage caused by overclocking.
**) Dynamic Overclocking Technology (D.O.C.)
This is the overclocking function in the BIOS Setup, which is designed to detect the load balance of CPU while
running programs, and to adjust the best CPU frequency automatically. When the mainboard detects CPU is
running programs, it will speed up CPU automatically to make the program run smoothly and faster. When the CPU
is temporarily suspending or staying in the low load balance, it will restore the default settings instead.
Page 5
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam the Netherlands
Tel. +31 88 3088088
Fax +31 88 3088089
[email protected]
Shuttle XPC Barebone SG45H7 – Connectors and Components
Front Panel
Back Panel
opt. P arallel
and P S/2 ports
opt. W LAN
opt. W LAN
PS U Fan
S/PDIF out
5.25” Bay
Eject
Button
I.C.E .
Heat pipe
Cooling
3.5” Bay
Power
Button
AC Power
Soc ket
PCI s lot
1394
LAN
eSATA
VGA
PCIe x 16
slot
HDMI
Mic- in
Headphone
Reset Button
Ex ternal S ATA
2x USB
Bac k panel
Audio c hip
AUX -in
Fan
S/PDIF
LAN chip
PCI s lot
PCIe x 16 slot
Battery
BIOS
South bridge
Intel ICH10
6x USB (3x2)
USB
USB Audio
Mainboard
I/O controller
Parallel port
Floppy port
PS /2 port
Soc ket 775
for CPU
All s olid
capacitor s
North bridge
Intel G45
ATX Power
ID E c hip
Front connector
Serial ATA
ID E P ort
CIR Header
4x DDR2
Slots
ATX Power
Front connector
GPIO header
Page 6
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam the Netherlands
Tel. +31 88 3088088
Fax +31 88 3088089
[email protected]
