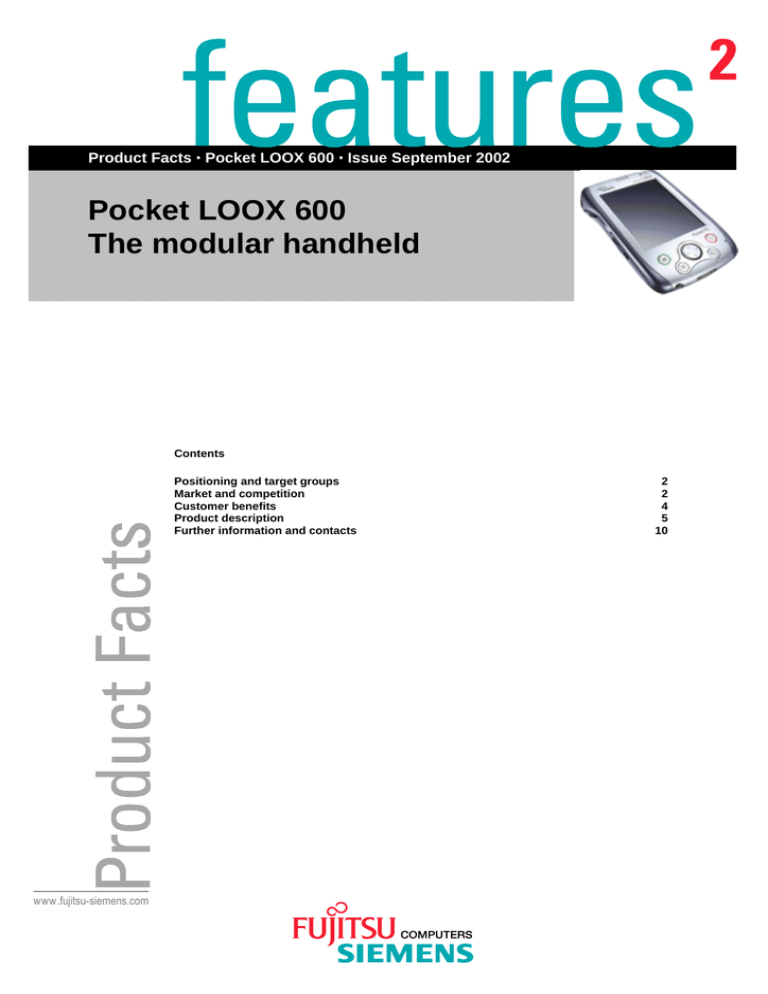

Product Facts Pocket LOOX 600 Issue September 2002
Pocket LOOX 600
The modular handheld
Positioning and target groups
Market and competition
Customer benefits
Product description
Further information and contacts
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 2 of 11
Positioning and target groups
Pocket LOOX supports the user with a modular concept, integrated Bluetooth module, a range of Plug-On modules
and expandability due to its integrated Compact Flash Type II and SD/MMCard Slot. With these possibilities the user is
able to expand his Personal Companion to his current needs.
Due to its modularity Pocket LOOX can be used for all different environments @home, @move and @work.
Positioning: Modular handheld with several connectivity options for mobile professionals as well as demanding
Target groups:
Sales Force
Service Engineers
Early adopters
Demanding Consumer
direct and indirect
Value Proposition:
Pocket LOOX is the most modular Handheld Computing device with a maximum
flexibility through its broad range of expansion possibilities. Due to its modular connectivity
concept and open software platform, Pocket LOOX can be used as a stylish personal tool up
to being the platform of a high integrated “mobility solution”.
Bluetooth integrated, CF Type II Card Slot, SD/MMCard Slot, small form factor, advanced
one hand usage
Market and competition
The market for a variety of highly portable-computing products, including Personal Companions, clamshell PDAs
(includes a keyboard) and smart phones is growing not as fast as during the last year due to the economic situation, but
nevertheless is still growing with a high potential. Previously used as organisers, their use and value as business tool is
more and more recognised.
The general term PDA (Personal Digital Assistant) can be divided into several sub-groups: Clamshell PDAs with
keyboard, and pen-based palm size tablet PDAs are the main groups. The Pocket LOOX belongs to the pocket PDA
group, nowadays called Personal Companion.
PDAs use an embedded operating system. With Microsoft’s launch of PocketPC 2002 in October 2001 the successor of
PocketPC is available. New OS, new CPU and the development of other components of Personal Companions give the
vendors the possibility to build a new generation of devices. In case of the Pocket LOOX it is the device with the latest
technologies available. Microsoft PocketPC 2002 is in the family of operating systems for PDAs that is expected to be the
one with the highest potential in gaining market share. Because of it being a standard OS, an ever-growing number of
companies are developing software solutions based on PocketPC, be it navigation software or server-based
synchronisation etc. Seamless information exchange with Microsoft Outlook – either on the desktop or directly through
the server – is guaranteed because of the close family relationship.
Main Competition:
HP iPAQ H3950: Bluetooth connectivity not integrated; fewer interfaces without CF card slots or USB and serial
ports (Jacket adds 200g weight/double size/costs); no automatic brightness control with light sensor for
optimised readable display and power saving; no NT support
HP iPAQ H3970: fewer interfaces without CF card slots or USB and serial ports (Jacket adds 200g
weight/double size/costs); no automatic brightness control with light sensor for optimised readable display and
power saving; no NT support; more weight; expansive
Toshiba PocketPC e740: no automatic brightness control with light sensor for optimised readable display and
power saving; no NT support; no expansion for GSM/GPRS; smaller battery capacity
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 3 of 11
Toshiba Pocket PC e570: Bluetooth connectivity not integrated; no possibility to expend for e.g. GRRS; only 5TM
step scaling for display brightness instead of automatic brightness control; not the actual Intel® XScale
Casio Cassiopeia E200G: no integrated Bluetooth connectivity; only 5-step scaling for display brightness
instead of automatic brightness control; not the actual Intel® XScale microarchitecture; heavier
HP Jornada 568: no integrated Bluetooth connectivity; only Compact Flash type I extended expansion slot (not
useable for all type II cards like IBM Microdrive); no SD card slot, not the actual Intel® XScale
Main advantages of Pocket LOOX:
Advanced one hand usage
Intel XScale microarchitecture
Integrated Bluetooth
Modular concept
For a more detailed competitive analysis, please refer to our extranet under:
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 4 of 11
Customer benefits
Pocket LOOX is a powerful combination of a high-end PDA and modular connectivity concepts.
Due to an integrated Compact Flash (CF) Card slot type II and SD/MMCard slot it offers the user several connectivity
possibilities. The wide range of available CF Card Type II solutions on the market such as cameras, storage solutions,
GPS, WLAN and modem together with the synchronous usage of SD/MMCard storage solutions shows the advanced
On top Pocket LOOX is based on a modular concept. Modules like a 2 battery can be plugged onto the back of the
Pocket LOOX.
All these solutions open the field for usage of Pocket LOOX as a business tool and not just for Personal Information
Management (PIM). Simply connect with Bluetooth wireless to your notebook or desktop PC and synchronize calendar
entries, contacts, inbox, programs and files. Join a Bluetooth hot spot and browse the web, look for new E-mails and
get up-to-date information wherever you are. Insert a WLAN CF Card and roam through the company staying always
connected. Due to its advanced concept, Pocket LOOX is prepared for @home, @move and @work requirements.
Communication:With integrated Bluetooth module the communication to mobile phones, Bluetooth enabled printers,
computers and other devices can be established in an easy manner. Surfing the Internet or connecting
to the company net is practicable with Bluetooth , WLAN and other possibilities. Synchronization of
Pocket LOOX with the desktop system can be done also over Bluetooth as over USB, serial cable or
With PocketOutlook a powerful organizer is embedded. Not only does it keep track of appointments,
with several reminder functions, it also manages contacts and tasks.
Pocket LOOX is able to work with HTML/WAP based documents also with MS Word, text, SMS, Emails, Adobe files and other documents. This ability gives the user a wide spectrum of information
mining and content viewing possibilities.
Pocket Outlook, PocketExcel and PocketWord are integrated into the OS, allowing document viewing
and editing while away from the PC.
Pocket LOOX is developed for advanced one-hand-usage. It comes in an industrial design (ID) and
with an additional speed menu.
Other applications are amongst others Media- and Video player (for MP3 and MPEG4)
Through the open nature of the PocketPC Operating System, many third-party applications such as
car-navigation or database systems are available on the market.
Bluetooth is integrated in Pocket LOOX as standard. If the integrated Bluetooth functionality is not
needed or the use is prohibited, e.g. in aircrafts or hospitals or wherever radio interference could cause
problems, you can easily mechanically switch off the Bluetooth module and continue using the
In the integrated CF Card slot type II you are also able to use WLAN CF Cards to access shared
information without the need of any physical links.
With a GPRS plug-on module, which will be available in Q4/2002, Pocket LOOX even offers full mobile
phone functionality and enables the user to access information anytime and anywhere.
Through SD/MMCard: easy data exchange with digital cameras, MP3 players etc.
Through CF Card: a wide range of 3 party peripherals are available, ranging from GPS Satellite
antennas to barcode readers
Through plug-on modules: connection to GSM/GPRS, expand the battery lifetime
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 5 of 11
Product description
Pocket LOOX 600
Intel® XScale microarchitecture
32 MB ROM, 64 MB RAM
240x320 pixel 65.536-colour reflective TouchScreen
Operating system
1520 mAh Lithium Polymer (2 battery plug-on module available)
Microsoft Pocket PC 2002 software
Intel® XScale microarchitecture
Users of the new generation of highly scalable, integrated microprocessors will enjoy high-performance processing
functions, such as voice and secure data transmission on enterprise infrastructure equipment. The processor offers high
performance for Pocket LOOX for processing hungry applications such as streaming audio and video. The Intel XScale
technology pushes RISC performance to new heights, allowing complex data to be processed over both the wired and
wireless Internet. The technology's low power consumption enables long battery life for wireless and handheld
multimedia devices, and allows for increased device density in Internet infrastructure applications through reduced
thermal constraints.
The Intel® XScale™ technology delivers key advantages for a wide range of market segments from battery-powered,
wireless and handheld applications such as digital phones and personal digital assistants to such Internet infrastructure
applications as network processors and intelligent I/O processors. Fully compliant with the ARM* v.5TE instruction set,
this new technology provides a full-featured, cost-effective, low-power solution with support for both 16-bit Thumb*
instructions and integrated digital signal processor (DSP) instructions.
The Intel® XScale™ technology will break new ground in the devices that expand the future of the Internet.
It is the availability of new wireless communication technologies that will bring new functionality to the PDA market. With
the introduction of GPRS, higher speeds than ever before are possible, opening up not only fast E-mail transfer and fast
web browsing, but even streaming video and other multimedia applications.
With the integrated Bluetooth module the communication to mobile phones, printers, computers and other devices with
Bluetooth technology can be established in an easy manner. Surfing the Internet or connecting to the company net is
practicable with Bluetooth, WLAN and other possibilities. Synchronization of Pocket LOOX with the desktop system can
be done also over Bluetooth as well as over USB, serial cable or IrDA.
The Pocket LOOX is the perfect device for creating, sending and receiving E-mails while on the move. It offers you a lot
of possibilities without carrying heavy equipment with you or going through the hassle of connecting different devices.
With the use of the integrated Pocket Outlook, E-mails can also easily be managed and synchronized with the PC or
GPRS connectivity (General Packet Radio Service)
A GSM/GPRS plug-on module will be available as an accessory from Q4/2002 onwards. It is a dual band 900/1800mHz,
GPRS ClassB/8, which allows wireless Internet access, using either the HTML standard, WAP or offers even full mobile
functionality with or without a headset.
GPRS is a packet based GSM-technology, whereby customers are only charged for the communication resources they
use. A major goal of GPRS is to provide fast and efficient end-to-end packet mode access to Internet network services.
GPRS makes it possible and cost-effective to remain constantly connected, as well as to send and receive data at much
higher speeds than current mobile phones.
Theoretical maximum speeds of up to 171.2 kilobits per second (kbps) are achievable with GPRS, using all eight
timeslots at the same time. This is about three times as fast as the data transmission speeds possible over today's fixed
telecommunications networks and ten times as fast as current Circuit Switched Data services on GSM networks.
By allowing information to be transmitted more quickly, immediately and efficiently across the mobile network, GPRS
may well be a relatively less costly mobile data service compared to SMS and Circuit Switched Data.
With the GPRS Class 8/B, the device can handle up to 4 timeslots downstream and one upstream. A, B or C stands for
the capability of having voice calls simultaneously to data calls. The Pocket LOOX has class B, meaning you cannot
make voice calls at the same time as data calls, but it will alert you during the data call that you have an incoming voice
call. “A” means voice and data can be mixed and C means not even an alert can be given.
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 6 of 11
Bluetooth is designed as a short-range (10 – 100m) cable replacement technology linking multiple devices wirelessly
for synchronization, data transmission and file transfer. Furthermore it allows Bluetooth equipped devices to access
the LAN or Internet quickly and easily. Pocket LOOX has an internal Bluetooth module with a range of 100m.
More information like White Papers can be found under:
The Pocket LOOX comes with various interfaces such as an integrated microphone and loudspeaker as well as the
stereo headphone connector - and of course an infrared port and the cradle connector. With help of the standard USB or
optional serial cable you are able to connect the Pocket LOOX to your PC.
The Pocket LOOX comes with a built-in Infrared (IrDA) interface as standard. This allows wireless data transfer, e.g. to
desktop computers and notebooks, or communication with other peripheral devices such as printers, beamers or mobile
Compact Flash (CF) Card slot
Above all, the Pocket LOOX sports a CF Card slot type II and a SD/MMCard slot (MultiMediaCard). The CF Card slot,
originally made for flash memory cards, can be compared to the PCMCIA slots on a laptop. With an adapter, they are
even interchangeable – with the difference that the form factor is less than half the size and thus much lighter. As they
are meant for battery operated PDAs, they use power much more efficient as PCMCIA cards. Several types of CF Cards
such as WLAN Cards and IBM Microdrive (1GB) are available. Of course, flash memory cards for memory expansion still
work as well.
Secure Digital (SD) / Multimediacard (MMCard) slot
The SD Card is mainly used in digital cameras or MP3 players. With a much smaller form factor than CF Cards, these
storage cards - the SD/MMCards - are the ideal way of exchanging and storing information.
Pocket LOOX comes with a bright 240x320 pixel 65.536-colour reflective TouchScreen, which is intended for use with a
stylus or with fingertip and offers best indoor and outdoor usage.
Operating System
Pocket LOOX is based on the latest Microsoft operating system for PDAs, the Pocket PC 2002 software. This very
powerful OS has become a standard in PDA operating systems. Its constantly growing market share and the large
developer community is ensuring compatibility and many software solutions. Not that the standard software offering
leaves much to complain about. Pocket Outlook, Pocket Word and Pocket Excel will give you a small office away from
the office. Together with terminal client functionality and server based synchronization, it gives the user a fully functional
mobile office in a handy form factor.
Additional to the standard delivery package, which includes a protection bag, cradle, USB cable and TouchScreen stylus,
there are several optional accessories available. For instance a second battery plug-on, a GSM/GPRS plug-on module
(as of Q4/2002), various CF Cards like wLAN and IBM microdrive as well as a foldable keyboard and sync cables to
mention just a few.
It would be difficult to deploy a business application on a mobile device throughout an organization without any thought to
security such as a password that is automatically set when powered off. Pocket LOOX is designed with this feature for
which there is no back door – no way for someone to get access to the applications or data on the device without the
power-on password as long as the password is set.
In addition to device password protection, mobile device security includes a documented security policy in the enterprise,
authentication, encryption, public key infrastructure (PKI), virtual private networking, and protection against viruses.
There are many security offerings for Pocket PCs, from Microsoft and third parties.
Flash-able ROM.
Organizations deploying large numbers of mobile devices should evaluate the cost and benefits of devices that store the
operating system and core applications on an updateable, “flash” ROM chip. While this may add a little more to the cost
of each device, updates to the operating system and core applications can be remotely installed in the field without
having to swap or replace devices.
Fujitsu Siemens Computers will offer customized devices for projects/companies as an additional service. Therefore the
customer will receive one device as the other, fitting to his needs after consideration of his needs and specifications.
In some cases, systems management, virus protection and custom applications may be placed in flash ROM so that
even if a user does a hard reset of the device by removing all batteries, these applications are not lost or deactivated.
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 7 of 11
Accessing corporate networks or restricted Internet sites requires support for secure authentication protocols. These
include dial-up authentication using Windows NT® Challenge/Response and optionally SecureID card support,
authentication when accessing a secure Web site with Secure Sockets Layer (SSL) technology, fingerprint
authentication, picture-based passwords, and signature authentication for certain applications. Pocket PC 2002 supports
both 4-digit and strong alphanumeric power-on passwords. Each time an incorrect password is attempted, a time delay
that increases exponentially is enforced. The File Explorer application has new support for accessing shared Windowsbased file servers. User authentication is required for accessing these servers.
Networking security
To encrypt data for protection from unauthorized access, a device must support industry-standard 40-bit or 128-bit
encryption or be able to use a corporate standard encryption technique that can plug into the industry-standard
CryptoAPI. Data is also encrypted when using the Internet to connect to a corporate server using a virtual private
networking protocol (e.g., PPTP or IPSec). Pocket PC 2002 now includes support for the Point-to-Point Tunneling VPN
Protocol. Additional VPN protocol support is available from third parties.
The static shared-key Wired Equivalent Privacy (WEP) algorithm has now been documented by researchers at the
University of California to be easily defeated. As a result, this means alternative approaches are necessary for securely
connecting over 802.11b wireless LANs using Pocket PCs. These two secure alternatives are available today:
In the first approach, the 802.11b access points can be directly connected to the Internet. Virtual Private Networking
software on the Pocket PC can then be used to authenticate the user and provide a strongly encrypted connection to an
organization’s network.
The second approach is done with the 802.11b access points connecting directly to an organization’s internal network.
Cisco offers an authentication scheme based on the Extensible Authentication Protocol (EAP) called EAP-Cisco Wireless
or LEAP. This uses the 802.1x draft standard as a foundation and adds modifications necessary for wireless LANs.
Virus scanning.
Anti-virus products are now available from a number of companies. The latest Pocket PC 2002 version contains an antivirus API designed by feedback from software companies creating virus-scanning products. This is intended to simplify
their process for finding new potential viruses by easily detecting new files coming onto the device through different
mechanisms (e.g., attached to e-mail, cut and paste from a network file server, etc.) These products are intended to
prevent known viruses from being passed into the corporate network via a Windows Powered mobile device.
Pocket Excel and Pocket Word are integrated into the operating system. This allows viewing documents and making
changes while away from the PC. Other applications are amongst others Media- and Video players (for MP3 and
Through the open nature of the Pocket PC Operating System, many third-party applications,e.g. car-navigation or
database systems run on Pocket LOOX. With Pocket Outlook, a powerful organizer is also embedded. Not only does it
keep track of appointments, with several reminder functions, it also manages contacts and tasks.
The GSM/GPRS module gets its phonebook out of the Pocket Outlook Contacts. No need to enter phone numbers
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 8 of 11
Additional Software
Truefax by KSE
Numerous function support in preparing and dispatching fax documents. This enables to easily prepare and collect faxes
and sent them via FaxOnTheJob (i.e. prepare several faxes before sending them all together in one go). The integrated
document management helps to manage all faxes, whether they are sent, received, deleted or prepared for the dispatch.
Pocket Informant by Web Information Solutions, Inc.
Pocket Informant is a Personal and Business Information Manager expanding built in Contacts/ Calendar/ Tasks
applications with more powerful full featured versions in one integrated application. It contains amongst other things the
following features:
1. Calendar view with Week, Agenda, and Month View
2. A special Task view
3. A special Contacts View
FileCrypto Personal Edition by F-Secure
F-Secure FileCrypto for Pocket PC Personal Edition is a file encryption application that provides protection against
unwanted data disclosure. With this application, special encrypted folders for storing confidential and personal
information can be created. All files stored in the encrypted folders are automatically encrypted when the folders are
locked, sensitive information remains always safe.
Virtual Display by Nyditot
Nyditot Virtual Display 2.0 enables Windows CE devices to display at virtually any resolution, including industry standard
VGA, SVGA, XGA, etc.. Even custom resolutions such as 900x300 or 2000x2000 can be defined! Output can be viewed
at full-scale or compressed to fit your display. An innovative, onscreen control allows the virtual display to be
dynamically panned and zoomed. Any of four orientations can be chosen: normal, rotated 90° in either direction to
accommodate both left and right-handed users, even upside-down. On Pocket PC devices, landscape modes offer an
aspect ratio similar to the desktop. Landscape with high resolution produces a perfect solution for running thin-client
applications designed for larger desktop displays or for viewing websites as they were meant to be viewed.
Any Resolution (VGA, SVGA, XGA or custom resolutions)
Any Orientation (normal, landscape or upside down)
View in Panned or Compressed mode.
Pan with onscreen control OR cursor keys
ClearVue Office by Westtek
ClearVue Office is a package of Document, Presentation & Worksheet File Viewers. It provides the ability to view
Microsoft PowerPoint, Excel and Word files in their native file formats (extensions .ppt, .xls or .doc). ClearVue Office
supports most native viewing capabilities present in Microsoft Office 97, 2000 and 2002 (XP) files without the
requirement for a filter or conversion step.
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 9 of 11
Service & Quality
2 years Global Limited Standard Warranty
For the Pocket LOOX, Fujitsu Siemens Computers offers a send-in warranty (also called return-to-base warranty) for a
period of two years after purchase.
End-users will find the details of this warranty statement and contacts to the Fujitsu-Siemens web-service and national
helpdesks in the product package.
End-user Service at Fujitsu-Siemens
The international network of Fujitsu-Siemens Service Organizations and Authorized Service Partners offer its services
and warranties directly to the end-user. For claims of legal warranty and assistance the owner of a Pocket LOOX may
contact his dealer, but customers can rely on Fujitsu-Siemens: Global access to web-support, helpdesk assistance and
Fujitsu Siemens local service centers guarantee customer satisfaction even in case of operational problems.
Fujitsu Siemens national helpdesks will assist end-users in remote troubleshooting and will - in case of hardware
problems - guide him through the repair process for his Pocket LOOX.
The Fujitsu-Siemens web-site offers up-to-date information about country-specific services and free download service for
the complete bit-image of updated Pocket PC 2002 versions for the Pocket LOOX as well as drivers
and a variety of free software applications.
Within the scope of warranty, labour and materials for the repair will be free-of-charge, as well as the return shipment to
the repair center in the specific country.
Top-Up Services
A Top-Up Service Package can be purchased which offers warranty extension up to three years and fast reacting nextday service by ship & collect exchange of a defective Pocket LOOX.
Easy Guide
The Easy Guide is a CD delivered with every handheld. It contains all the information you will need to successfully
operate your handheld.
Driver and Technology CD
More detailed information on handhelds can be found on the Internet:
Fujitsu Siemens Computers brings the latest technologies to market and guarantees the quality and performance it
Great care is taken with the selection and qualification of suppliers; special attention is given to compliance with
international standards and to exhaustive function tests both on components and on the system as a whole.
Fujitsu Siemens invests heavily in designing its own handhelds and building them in the most cost effective way, this
guarantees control over the whole design and production process.
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 10 of 11
Technical overview
System, processors, architecture
Intel® PXA250 Applications Processor at 400 MHz
based on Intel® XScale™ microarchitecture
32 MB ROM, 64 MB RAM
240 x 320 colour reflective TFT TouchScreen, 65.536
Colours, light sensor with autodim
Active Area: 53.6(H) x 71.5(V), 0.22 mm pixel pitch
Built-in microphone,
Headphone (3,5mm), headset via Cradle connector
IrDA (115 KB),
USB 1.1, Serial,
Power jack
Operating time
Standby: up to 100h
Working: up to 10h (depending on usage)
Included in the device, backup portion included in the
Lithium Polymer, rechargeable;
Capacity: 1520 mAh
Power supply
100 to 240 AC (50 to 60 Hz) to 5 V DC 2,4 Amp
(switched), with EU cable, UK cable additionally
available, standard in UK versions
Dimensions (W x D x H)
132 x 82 x 17 mm
175 g
Ergonomic Features
Five-way navigation button
Touch Screen for stylus or fingertip
3 way Scroll button (up / down / enter)
Voice record button
Status LED
Power on / off
5 customisable buttons (4 at front, one on the left side)
Standard Delivery Package
Handheld device
USB Docking station
Protection bag
USB sync cable
AC Adapter with cable (Country specific)
Companion CD
Pocket LOOX AddOn&Doc (CD)
Easy Guide (printed manual)
Getting Started (printed manual)
Safety instructions and warranty booklet
Bluetooth module
Power Class 1 (high range)
Profiles: Serial, File Transfer, Personal Area
Networking, Dial Up, LAN access, FAX
Point to Multipoint
Bluetooth hardware on/off switch
Import and usage of wireless technologies
According to country-specific regulations
Country-specific terms
Expansion Slots
Compact Flash slot type II
Operating system
Microsoft Pocket PC 2002 Software
Fujitsu Siemens Computers SpeedMenu
Plugfree for Pocket PC (Bluetooth software)
Pocket Outlook, Pocket Word, Pocket Excel,
Terminal Services Client,
MSN Messenger
Pocket Internet Explorer, Microsoft Reader 2.0
Windows Media Player
Voice recorder
Microsoft Active Sync 3.5
SyncSoftware support (MS Outlook 98, 2000 and 2002)
Additional software
KSE Truefax – Tool for sending and receiving fax
Web Information Solutions, Inc. Pocket Informant Personal and Business Information Manager (
F-Secure FileCrypto for Pocket PC Personal Edition –
Security Software for encryption of folders and storage
Nyditot Virtual Display – Software for switching the
display to landscape modus
Westtek ClearVue Office – Document, Presentation
Worksheet File Viewers
Options / Accessories
IBM microdrive,
GSM/GPRS plug-on module (as of Q4/2002),
Second battery plug-on module (Li-Ion),
Foldable keyboard,
Leather case,
Leather combo case
USB Docking station,
AC adapter,
Car adapter,
USB sync cable,
Serial sync cable
Additional accessories like GPS Card, LAN Card and
much more will be available on a project bases.
Product Facts · Pocket LOOX 600 · Issue September 2002
Page 11 of 11
Further information and contacts
Sales and marketing, advertising and
technical media for business PCs
explicIT magazine
International Mobile Marketing
Pocket LOOX
E-mail: [email protected]
Regional Product Marketing
[email protected]
[email protected]
[email protected]
Czech Rep.: [email protected]
[email protected]
[email protected]
[email protected]
[email protected]
Great Britain: [email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
Netherlands: [email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
[email protected]
Switzerland: [email protected]
[email protected]
Published by department:
Product Marketing
Christina Wagner
Phone: ++49 821 804 4939
++49 821 804 3461
[email protected]
All rights, including rights created by patent grant or registration of a
utility model or design, are reserved. Delivery subject to availability;
right of technical modifications reserved.
All hardware and software names used are trade names or trademarks of
their respective manufacturers.
Fujitsu Siemens Computers, 07/2002
Company stamp
Last changes
September 6th,
-some corrections
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
