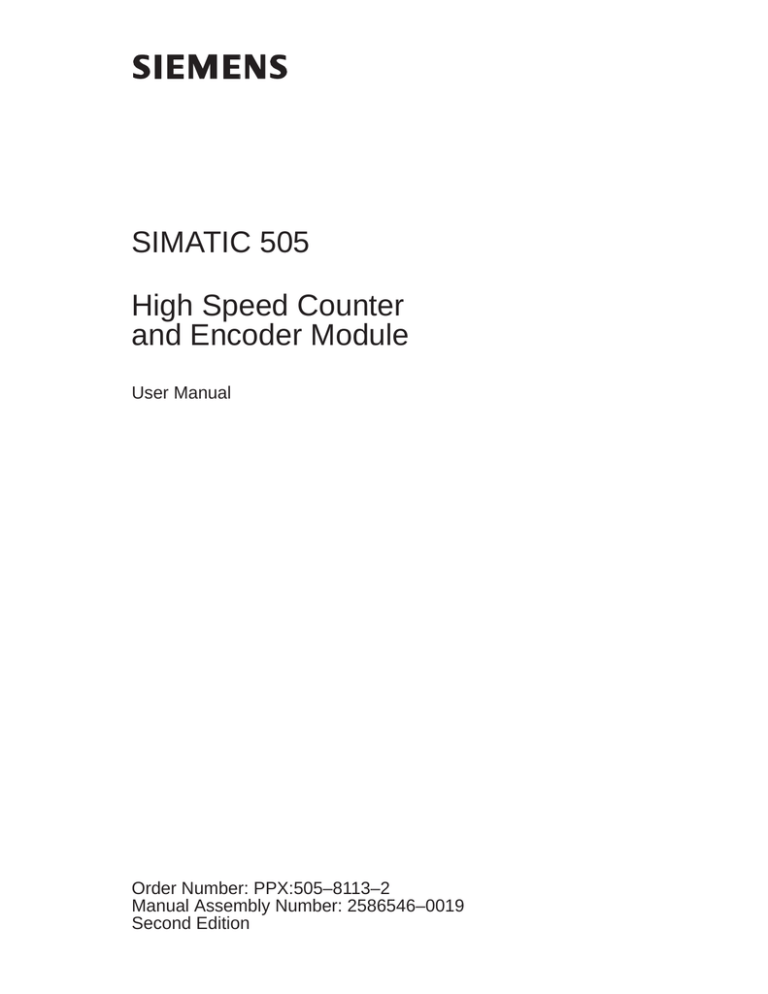

SIMATIC 505
High Speed Counter
and Encoder Module
User Manual
Order Number: PPX:505–8113–2
Manual Assembly Number: 2586546–0019
Second Edition
Copyright 1992 by Siemens Industrial Automation, Inc.
All Rights Reserved — Printed in USA
Reproduction, transmission or use of this document or
contents is not permitted without express consent of
Siemens Industrial Automation, Inc. All rights, including rights
created by patent grant or registration of a utility model or
design, are reserved.
Since Siemens Industrial Automation, Inc. does not possess
full access to data concerning all of the uses and applications
of customer’s products, we do not assume responsibility either
for customer product design or for any infringements of patents
or rights of others which may result from our assistance.
01/21/92
Technical data is subject to change.
We check the contents of every manual for accuracy at the
time it is approved for printing; however, there may be
undetected errors. Any errors found will be corrected in
subsequent editions. Any suggestions for improvement are
welcomed.
Contents
Chapter 1
Overview
1.1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2
1.2
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–4
1.3
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–5
1.4
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–6
1.5
Counting Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–7
1.5.1
1.5.2
1.5.3
1.5.4
1.5.5
1–7
1–8
1-8
1-9
1-10
Chapter 2
2.1
Pulse-Counter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quadrature Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1X Quadrature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2X Quadrature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4X Quadrature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation
Before Installing the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.1
2.1.2
2.1.3
2.1.4
2.1.5
2.2
2–2
Visual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handling the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Wiring Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hierarchy of Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2
2-2
2-2
2-3
2-4
Selecting Counter Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-5
2.2.1
2.2.2
Selecting Counter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Reset Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-5
2-6
2.3
Inserting the Module in the I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-7
2.4
Wiring the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-8
2.4.1
2.4.2
2.5
Wiring the Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Powering Up the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-8
2-8
Logging the Module into the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2.5.1
2.5.2
2.5.3
Chapter 3
3.1
Updating the I/O Configuration Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Viewing I/O Configuration Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming
Controller Input Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
2-10
2-10
2-11
WX1 (Status Word) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WX2 and WX3 (Channel Count) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WY4 (Setup Word) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WY5 – WY8 (Preset Words) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Update Consideration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2
3-2
3-3
3-3
3-4
3-4
Contents
iii
Chapter 4
4.1
Checking the Operation of the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 5
5.1
5-2
5-3
Flow Rate Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
5-5
Tank Filling Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-6
5.3.1
5.3.2
Appendix A
A.1
5-2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2.1
5.2.2
5.3
4-2
Applications
Sprayer Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.1
5.1.2
5.2
Troubleshooting
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-6
5-6
Terminal Block Worksheet
Terminal Block Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Appendix B
Specifications
B.1
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-2
B.2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-3
B.3
Additional Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-6
iv
Contents
List of Figures
1-1
1-2
1-3
1-4
1-5
1-6
1-7
High Speed Counter Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
High Speed Counter LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Pulse Counter Mode 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1X Quadrature Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
2X Quadrature Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
4X Quadrature Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
2-1
2-2
2-3
2-4
2-5
2-6
2-7
Hierarchy of Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Inserting the Module into the I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Sample Terminal Block Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Sample I/O Definition Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
I/O Configuration Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
3-1
3-2
Status Word Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup Word Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2
3-3
5-1
5-2
5-3
5-4
5-5
5-6
5-7
Sprayer Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HSC Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Waveform Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ladder Logic for Sprayer Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ladder Logic for Flow Rate Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tank Filling Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ladder Logic for Tank Filling Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-2
5-3
5-3
5-4
5-5
5-6
5-7
Contents
v
List of Tables
1-1
Determining Count in Pulse Counter Mode . . . . . . . . . . . . . . . . . . . . . . . . .
1-7
B-1
B-2
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-2
B-3
vi
Contents
Chapter 1
Overview
1.1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2
1.2
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4
1.3
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-5
1.4
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-6
1.5
Counting Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.5.1 Pulse-Counter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.5.2 Quadrature Mode Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.5.3 1X Quadrature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.5.4 2X Quadrature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.5.5 4X Quadrature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Overview
1-1
1.1
Features
The Series 505 High Speed Counter (HSC) module (PPX:505-7002)
provides two independent high-speed counter channels.
Each channel has the following features.
Four counter modes:
Pulse counter
Quadrature counter modes: 1X, 2X, 4X
A 10 kHz count rate with a minimum pulse width of 25 s.
Four inputs:
two count inputs
reset
inhibit
Two field outputs, each controlled by a separate programmable preset.
LED indicators display the status of the A and B count inputs, and of
Y1 and Y2 outputs.
All inputs may be sinking or sourcing (with external 24 VDC power
supply).
The HSC module operates asynchronously from the controller scan. You
can program the controller to monitor the HSC and/or to provide high-level
control of the HSC’s operation. To support these functions, the HSC
provides reset, inhibit, output and counter status to the controller and
accepts reset and inhibit commands, and preset values from the controller.
! 1-2
The HSC module controls its four outputs. If the controller switches from the Run
mode to the Program mode, the HSC continues to function as programmed, and
outputs may be activated by the HSC. This means that if you switch the controller
to Program mode, any devices controlled by the four outputs of the HSC will
continue to operate as programmed.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Base
Plane
Connector
Bezel Screw
LEDs
Printed
Circuit
Board
Terminal
Block
Front Bezel
Bezel Screw
Figure 1-1 High Speed Counter Module
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Overview
1-3
1.2
Inputs
The HSC module has two independent channels. Each channel has four
inputs.
Reset
Inhibit
Two counter inputs
Each input may be used as either sinking or sourcing (with external 5–24
VDC power supply). The input signals are connected to the field wiring
terminal block on the front bezel.
Counter InputsąEach channel has two counter inputs — Input A and
Input B.
ResetCurrent flow through the reset input sets the channel’s counter to
zero. The counter will be held at zero until the reset input becomes
inactive.
InhibitąCurrent flow through the inhibit input inhibits the channel from
counting. The counter holds at the last value and does not change until the
inhibit input becomes inactive.
NOTE: When in the pulse counter mode, if the A or B input is in a
different state at the beginning and end of an inhibit signal, the count will
change according to the normal counting logic. If both A and B inputs are
in different states, the change may be as much as two counts.
NOTE: There are also software reset and inhibit functions. See Section 3.
1-4
Series 505 High Speed Counter
and Encoder Module User ’s Manual
1.3
Outputs
Each channel has two open collector outputs capable of driving TTL level
signals or sinking up to 0.4 Amps of current (at 40_C) from an external 24
VDC source and load.
Y Output
Output Return
Output Circuit
Y2
Y1
0
P1
P2
65,535
Counter Value
Figure 1-2 Output
The output transistor (Y1 or Y2) turns on when the count is greater than or
equal to the corresponding preset. Figure 1-2 shows the field output
operation. You can invert this operation by setting the appropriate bits in
the setup word, WY4. See Section 4.1.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Overview
1-5
1.4
LED Indicators
Each channel contains four LED indicators which provide a visual
indication of the channel’s status as shown in Figure 1-3.
Figure 1-3 High Speed Counter LEDs
A
Turns on when there is current flow through the A input.
B
Turns on when there is current flow through the B input.
Y1
Turns on when Output 1 is on.
Y2
Turns on when Output 2 is on.
NOTE:ăIf Reset or Inhibit is turned on, the HSC does not count, and the A
and B LEDs are frozen.
1-6
Series 505 High Speed Counter
and Encoder Module User ’s Manual
1.5
Counting Modes
1.5.1
Pulse Counter
Mode
Each channel has two inputs, A and B. In the pulse counter mode, counting
occurs on the rising or falling edge of the incoming pulses. The relationship
of the states of these two inputs determines the direction of the count. See
Table 1-1. Typical devices for counting are high-speed static switches or
incremental encoders.
Table 1-1 Determining Count in Pulse Counter Mode
Counter
Direction
Edge
up
up
”
#
low
down
”
high
down
#
A Input
B Input
high
low
In the pulse counter mode, the channel senses the edges of the A or the B
input to count up or down. See Figure 1-4. To reliably record this transition
from low to high, the pulse width must be at least 8 s.
Pulse Counter Mode
Count Value
1
2
8 s
min
3
2
1
11 s
min
Count Input
Input A
Input B
Count Up
Count Down
Figure 1-4 Pulse Counter Mode 0
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Overview
1-7
Counting Modes (continued)
1.5.2
Quadrature Mode
1.5.3
1X Quadrature
For quadrature mode, each channel counts according to rising and/or
falling edges. Typical devices for quadrature inputs are optical encoders.
Different quadrature modes are selected based on the resolution required
by the application and the encoder used.
The module counts on the edges of the A input pulses.
When input A leads input B, the HSC counts up on each rising edge of
input A.
When input B leads input A, the HSC counts down on the falling edge
of input A.
Figure 1-5 illustrates the relationship between inputs A and B and the
count value in 1X Quadrature mode.
1X Quadrature
Count Value
1
2
1
0
A
B
25 s
min
26.7 s
min
Count Up
(A Leading)
Count Down
(B Leading)
Figure 1-5 1X Quadrature Mode
1-8
Overview
Series 505 High Speed Counter
and Encoder Module User ’s Manual
1.5.4
2X Quadrature
If input A leads input B, the module counts up on both the rising and
falling edges of input A. If input B leads input A, the module counts down
on the rising and falling edges of input A.
Figure 1-6 illustrates the relationship between inputs A and B and the
count value in the 2X quadrature mode.
2X Quadrature
Count Value
1
2
3
4
3
2
1
0
A
B
25 s
min
26.7 s
min
Counts Up
(A Leading)
Counts Down
(B Leading)
Figure 1-6 2X Quadrature Mode
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Overview
1-9
Counting Modes (continued)
1.5.5
4X Quadrature
If input A leads input B, the module counts up on rising and falling edges
of both input A and input B. If input B leads input A, the module counts
down on the rising and falling edges of input A and input B.
Figure 1-7 shows the relationship between inputs A and B and the count
value in the 4X quadrature mode.
4X Quadrature
Count Value
1
2
3
4
5
6
7
8
7
6
5
4
3 2
1
0
A
B
25 s
min
26.7 s
min
Counts Up
(A Leading)
Counts Down
(B Leading)
Figure 1-7 4X Quadrature Mode
1-10
Overview
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Chapter 2
Installation
2.1
Before Installing the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.1 Visual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.2 Additional References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.3 Handling the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.4 General Wiring Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1.5 Hierarchy of Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–2
2-2
2-2
2-2
2-3
2-4
2.2
Selecting Counter Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.1 Selecting Counter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2.2 Selecting the Reset Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-5
2-5
2-6
2.3
Inserting the Module in the I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-7
2.4
Wiring the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4.1 Wiring the Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4.2 Powering Up the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-8
2-8
2-8
2.5
Logging the Module into the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.5.1 Updating the I/O Configuration Definition . . . . . . . . . . . . . . . . . . . .
2.5.2 Selecting the I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.5.3 Viewing I/O Configuration Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-10
2-10
2-10
2-11
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Installation
2-1
2.1
Before Installing the Module
2.1.1
Visual Inspection
2.1.2
Additional
References
2.1.3
Handling the
Module
If there is any visible damage to the module, contact your Siemens
Industrial Automation, Inc. distributor for replacement.
Refer to the manuals listed below for instructions on installing,
programming, and troubleshooting your Series 505E controller.
D
SIMATICr TI545 System Manual (PPX:545–8101)
D
SIMATICr TI525/TI535 Hardware and Installation Manual
(PPX:505–8103)
D
SIMATICr TI505 Programming Reference Manual (PPX:505–8104)
Many integrated circuit (IC) devices are susceptible to damage by the
discharge of static electricity. Follow the suggestions listed below to reduce
the probability of damage to these devices when you are handling a
controller, a base controller, or any of the I/O modules.
Both the module and the person handling the module should be at the
same ground potential. To accomplish this, ensure the following.
2-2
Installation
D
The module is transported in an anti-static container or antistatic
material.
D
The work area has a conductive pad with a lead connecting it to a
common ground.
D
You are grounded by making contact with the conductive pad and/or by
wearing a grounded wrist strap.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
2.1.4
General Wiring
Considerations
The count, inhibit, and unfiltered reset inputs are high-speed inputs which
may respond to noise present on the lines. To avoid problems, follow these
guidelines when installing the HSC module.
D
Use the shortest possible wires.
D
Avoid placing signal wires parallel to high-energy wires. If the two
must meet, cross them at right angles.
D
Avoid bending the wire into sharp angles.
D
Use wireways for wire routing.
D
When using shielded wires, ground them only at the source end for
better noise immunity.
D
Place wires so that they don’t interfere with existing wiring.
D
Label the wires.
In some installations when both the HSC and TI505-49XX series of relay
modules are used, false counts may be induced when switching high
voltage in the relay module, (voltage > 40 Vrms). This is the result of
internal arcing of the relay contacts.
If you encounter this problem, place a snubber consisting of a 47 ohm 1/4
watt resistor and a 0.022 Fd capacitor across the relay contact terminals
on the terminal block. Snubbers were not included in the relay modules in
order to meet the need for lower current leakage in many applications.
: Snubber components must be ULr component recognized
and/or CSA Certified for use across the rated voltage being switched
by the relay module.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Installation
2-3
Before Installing the Module (continued)
2.1.5
Hierarchy of
Installation
Figure 2-1 provides a simple flowchart of the installation process.
Set Jumper Configuration on Module
Insert the Module
Connect Wires
Power Up
Log into Controller
Figure 2-1 Hierarchy of Installation
2-4
Installation
Series 505 High Speed Counter
and Encoder Module User ’s Manual
2.2
Selecting Counter Operation
2.2.1
Selecting
Counter Mode
The HSC module has two channels. You can configure each channel
to operate in any of four counter modes.
Prior to installing the module into the I/O backplane, configure the module
by setting the jumper for each channel. Figure 2-2 shows the location of the
jumpers on the printed circuit board. The top set of four pins set the
counter mode for Channel 1. The bottom set of four pins set the counter
mode for Channel 2. The default setting for the jumpers is 1X Quadrature
mode for both channels.
CH 1
Jumper in SLW
(filtered) position
CH 2
Jumper in FST
(unfiltered) position
Figure 2-2 Jumper Settings
Each channel must have one (and only one) jumper installed.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Installation
2-5
Selecting Counter Operation (continued)
2.2.2
Selecting the
Reset Filter
Some applications require faster response on the reset input line than
the standard 3.75-ms filter allows. For faster response, select the optional
0.95-ms filter. (The 0.9-ms filter is more sensitive to noisy signals, as noted
in the Environmental Specifications in Appendix B.)
The reset filter may be selected independently for each input channel by
placing the jumper in the (fast) or (slow) position as shown in
Figure 2-2.
2-6
Installation
Series 505 High Speed Counter
and Encoder Module User ’s Manual
2.3
Inserting the Module in the I/O Base
The HSC is a single-wide module. Insert it into any available slot on any
Series 505 I/O base. Do not touch the printed circuit board while inserting
the module. This could cause electrostatic damage to the components on
the board. Insert the module as shown in Figure 2-3.
! To minimize potential shock, turn off power to the I/O base and any
modules installed in the base before inserting or removing a module.
Failure to do so may result in potential injury to personnel or damage to
equipment.
3ĂĂ Ă(2.6
ĂĂ)Ă maxĂ Base Plane
Connectors
Figure 2-3 Inserting the Module into the I/O Base
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Installation
2-7
2.4
Wiring the Module
2.4.1
Wiring the
Terminal Block
Wiring the module consists of wiring the the input and output signals.
See Figure 2-4 and Figure 2-5 for general guidelines. All connections are
made at the module terminal block. See Figure 2-5. Output returns for
Channel 1 and 2 are internally connected.
Use the Terminal Block Worksheet in Appendix B for planning your wiring.
! 2.4.2
Powering Up
the Module
Turn off power to the I/O base and any modules installed in the base
before inserting or removing a module. Failure to do so may cause
potential injury to personnel or can damage equipment.
After wiring the terminal block for the HSC, restore power to the
base.
1 cm
Wire Gauge: 22–16
(0.4 in.)
Max. Width: 5.54 mm (.218 in.)
Stud Size: #4 (2.5mm)
Amp Part#: 321462
Max. Width: 4.62 mm (.182 in.)
Stud Size: #4 (2.5mm)
Amp Part#: 327891
(Specify 2pt. connector)
Figure 2-4 Wiring Guidelines
2-8
Installation
Series 505 High Speed Counter
and Encoder Module User ’s Manual
5–24 VDC
Sinking
Driver
Ch1 A–
Ch1 A+
Ch1 B+
Ch1 B–
Ch1 RST+
Encoder
Ch1 RST–
Ch1 INH+
Ch1 INH–
5–24 VDC
+–
Ch1 Y1
Ch1 Y2
5–24 VDC
Ch2 A+
Sourcing
Driver
Ch2 A–
Ch2 B+
Ch2 B–
Ch2 RST+
Ch2 RST–
Ch2 INH+
Ch2 INH–
5–24 VDC
+–
Ch2 Y1
Ch2 Y2
Figure 2-5 Sample Terminal Block Wiring Diagram
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Installation
2-9
2.5
Logging the Module into the Controller
2.5.1
Updating the I/O
Configuration
Definition
2.5.2
Selecting the I/O
Configuration
After inserting the module into the base, update the I/O configuration
in the controller. The module does not automatically onfigure itself.
A VPU or other programming device must be connected to the controller to
register and verify controller module communication.
With your VPU or other programming device, select the I/O Configuration
option. For example, if you have the module inserted into the first slot of
the first I/O base, configure it as displayed in Figure 2-6. Refer to the
manual that came with the programming device for instructions.
I/O Address
The HSC module is logged in as
three input words (WX) and five
output words (WY).
Base Number
Displays number
of the current
base.
I/O MODULE DEFINITION FOR : CHANNEL 1 BASE 00
I/O
Address
Slot
Number of Bit and Word I/O
X
Y
WX
WY
00
00
00
00
00
00
1
2
3
4
5
6
.....
.....
.....
.....
.....
.....
0001
0000
0000
0000
0000
0000
.....
.....
.....
.....
.....
.....
7
8
.....
.....
0000
0000
..... 00
..... 00
Slot Number
Install the HSC into any available I/O slot on the Series 505
base.
..
..
..
..
..
..
00
00
00
00
00
00
.. 00
.. 00
..
..
..
..
..
..
03
00
00
00
00
00
.. 00
.. 00
Special
Function
05
00
00
00
00
00
.......
.......
.......
.......
.......
.......
No
No
No
No
No
No
.. 00
.. 00
.......
.......
No
No
..
..
..
..
..
..
SF Module
The HSC is not an SF
Module. The default for this
definition is NO.
Figure 2-6 Sample I/O Definition Chart
2-10
Installation
Series 505 High Speed Counter
and Encoder Module User ’s Manual
2.5.3
Viewing the I/O
Configuration
Chart
Use SHOW to view the I/O Configuration Chart. If the HSC is
installed in slot 1, for channel 1, base 00, the I/O chart will appear
as displayed in Figure 2-7.
I/O CONFIGURATION CHART FOR : CHANNEL 1, BASE 00
I/O POINTS
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
WX001
00000
00000
00000
00000
00000
WX002 WX003 WY004 WY005 WY006
00000 00000 00000 00000 00000
00000 00000 00000 00000 00000
00000 00000 00000 00000 00000
00000 00000 00000 00000 00000
00000 00000 00000 00000 00000
WY007
00000
00000
00000
00000
00000
WY008
00000
00000
00000
00000
00000
Figure 2-7 I/O Configuration Chart
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Installation
2-11
Chapter 3
Programming
3.1
Controller Input Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3.1.1
3.1.2
3.1.3
3.1.4
3.1.5
WX1 (Status Word) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WX2 and WX3 (Channel Count) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WY4 (Setup Word) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WY5 – WY8 (Preset Words) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Update Consideration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2
3-3
3-3
3-4
3-4
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Programming
3-1
3.1
Controller Input Words
The HSC module is configured as three word inputs (WX) and five word
outputs (WY). It occupies eight words of the controller’s word image
register.
3.1.1
WX1 (Status Word)
Word 1 (WX) is the module’s status word. Eight bits provide the status of
each of the two channels. Figure 3-1 shows the format of the status word.
BIT
MSB
1
CH 1 — RESET STATUS
(1 = Counter reset)
2
CH 1 — INHIBIT STATUS
(1 = Count inhibited)
3
CH 1 — OUTPUT 1 STATUS
(1 = On)
4
CH 1 — OUTPUT 2 STATUS
(1 = On)
5
CH 2 — RESET STATUS
(1 = Counter reset)
6
CH 2 — INHIBIT STATUS
(1 = Counts inhibited)
7
CH 2 — OUTPUT 1 STATUS
(1 = On)
8
CH 2 — OUTPUT 2 STATUS
(1 = On)
9
10
11
12
Reserved and will be returned as zeros
13
14
15
LSB
16
Figure 3-1 Status Word Format
Each channel has a Reset Status bit in the status word. If
the channel’s RESET field input is active, this bit will be 1; otherwise this
bit will be 0.
The Reset Command bit (see Setup Word, Section 3.1.3) does not
affect the reset status bit.
3-2
Programming
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Inhibit Status. Each channel has an Inhibit Status bit in the status word. If
the channel’s Inhibit field input is active or if its Inhibit Command bit is 1
(see Setup Word, Section 3.1.3), this bit will be 1 and the counter will not
count. Otherwise, this bit will be 0.
Output Status. Each channel has an Output 1 Status and an Output 2
Status bit in the status word. If the corresponding field output is on, the bit
will be 1. Otherwise, the bit will be 0.
3.1.2
WX2 and WX3
(Channel Count)
3.1.3
WY4 (Setup Word)
Word 2 (WX2) contains the current value of the Channel 1 count
register, and Word 3 (WX3) contains the current value of the Channel 2
count register. These values are unsigned integers between 0 and 65,535
(inclusive).
Word 4 (WY4) is the module setup word. The controller uses eight bits to
control the HSC module’s operation. See Figure 3-2.
BIT
MSB
1
CH 1 — RESET
(1 = Reset counter; default: 0)
2
CH 1 — INHIBIT
(1 = Inhibits counts; default: 0)
3
CH 1 — OUTPUT 1
4
CH 1 — OUTPUT 2
5
CH 2 — RESET
(1 = Reset counter; default: 0)
6
CH 2 — INHIBIT
(1 = Inhibits counts; default: 0)
7
CH 2 — OUTPUT 1
8
CH 2 — OUTPUT 2
0: Count P = On (default)
1: Count < P = On
0: Count P = On (default)
1: Count < P = On
9
10
11
12
Reserved and should be set to 0 (off)
13
14
LSB
15
16
Figure 3-2 Setup Word Format
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Programming
3-3
Controller Input Words (continued)
Reset Command. Both channels have a Reset Command bit. A transition
from 0 (off) to 1 (on) of the Reset Command acts as a one-shot (providing a
momentary reset of the channel), setting the count to 0. Even though the
bit remains 1, counting resumes.
Inhibit Command. Both channels have an Inhibit Command bit. When this
bit is set to 1, the channel stops counting.
NOTE: When in the pulse counter mode, if the A or B input is in a
different state at the beginning and end of an inhibit signal, the count
will change according to the normal counting logic. If both A and B
inputs are in different states, the change may be as much as two
counts.
Output Level. The output level bit specifies when the outputs for each
channel turn on.
3.1.4
WY5 – WY8
(Preset Words)
3.1.5
I/O Update
Consideration
3-4
Programming
Setting the output level bit to 0 turns the output on when the current
count is greater than or equal to the preset. If the current count is less
than the preset, the output is off.
Setting the output level bit to 1 turns the output on when the current
count is less than the preset. If the current count is greater than or
equal to the preset, the output is off.
Words WY5 through WY8 specifies preset values for each channel.
You can specify any value between 0 and 65,535.
WY5 specifies the value for Preset 1, Channel 1.
WY6 specifies the value for Preset 2, Channel 1.
WY7 specifies the value for Preset 1, Channel 2.
WY8 specifies the value for Preset 2, Channel 2.
In each scan, the controller reads the module WX words before updating
the WY words. For example, during a scan when the controller resets the
module, the WX word(s) contain counter values existing prior to the reset.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Chapter 4
Troubleshooting
Symptom
Input LED is
not on
and
Output LED is
not on
Probable Cause
No power to board
Corrective Action
Re-seat board
Check for bent pins on board connector
Problems with input
signals, or output being
reset or inhibited
Check your base power supply
Check wiring
Check encoder or field inputs
Check Reset and Inhibit bits in Setup word (WY4)
Counts in wrong
direction
Connections wrong
Reverse wiring for inputs A and B
Input wires substantially
different lengths
Check that wires are as short as possible, and make
wires the same length (if possible)
Incorrect count
Connections wrong
Trace wiring connections
Input wires substantially
different lengths
Check that wires are as short as possible, and make
wires the same length (if possible)
Broken wire
Check continuity
Wrong quadrature mode
or 2 jumpers on same channel
Check jumper position
and condition of jumper (metal insert intact)
Signal wire noise
See wiring considerations ( Section 2.1.4)
Broken wire
Check continuity
Count being reset or inhibited
Check Reset and Inhibit signals from field
Broken wire
Check continuity
Pulse too narrow, or
frequency too high
Use slower gear ratio and
higher resolution count
Counts erratically
Does not count
Counts too fast
or too slow
Check Reset and Inhibit bits in Setup word (WY4)
Check quadrature mode
Check signal wire noise
Marginal input signal
Controller does
not communicate
with module
Module not configured
in controller I/O
configuration table
Configure module
Nonfatal error
as a result of the
module
Module configured
incorrectly in controller
Reconfigure the module
Module has failed
self-diagnostics
Return module for repair
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Troubleshooting
4-1
4.1
Checking the Operation of the Module
To check the operation of the module, follow these steps.
Module outputs will turn on during this procedure.
1. Using a programming device, force all presets to 0.
2. Reset both counters through the reset signals from your application.
Using the default configuration, the outputs should turn on.
3. Using your programming device, force the presets to any number
greater than 0.
The outputs should turn off.
Before resuming normal operation, clear any words that you have
forced. Otherwise, these words remain forced during operation and could
yield unexpected results.
If you used the setup word to configure the module, then the output follows
your configuration.
To check the output operation look at the counter status word (WX1), the
outputs correspond to the following bits.
4-2
Troubleshooting
Channel 1, Output 1
bit 3
Channel 1, Output 2
bit 4
Channel 2, Output 1
bit 7
Channel 2, Output 2
bit 8
0 = Output off
1 = Output on
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Chapter 5
Applications
5.1
Sprayer Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1.1
5.1.2
5.2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-2
5-3
Flow Rate Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
5.2.1
5.2.2
5.3
5-2
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-5
5-5
Tank Filling Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-6
5.3.1
5.3.2
5-6
5-6
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Applications
5-1
5.1
Sprayer Example
5.1.1
Description
A reversible DC motor drives a paint sprayer up and down a vertical
assembly. A quadrature encoder on the drive shaft senses the direction and
relative position of the sprayer. Channel 1 of the HSC will be used to
enable the sprayer during a pre-defined section of travel. (See Figure 5-1.)
The encoder resolution is 500 cycles per revolution. One shaft revolution
equals 1 inch of sprayer travel. When encoder signal A leads, the direction
of travel is up.
ÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉ
LS2 – Reverse Motor
“Stop Spray”
“Start Spray”
LS1 – (Home) Reverses Motor
ÉÉÉÉÉÉÉÉÉÉ
Figure 5-1 Sprayer Application
5-2
Applications
Series 505 High Speed Counter
and Encoder Module User ’s Manual
5.1.2
Solution
Connect encoder signals A and B to inputs A and B of the HSC. See Figure
5–2. Limit switch 1 (sprayer home) drives channel 1 Reset. Channel 1
outputs 1 and 2 are wire ORed and drive the sprayer enable. Select 1X
Quadrature mode for channel 1, setup channel 1 output 1 to turn off when
count preset, output 2 to turn on when count preset. Presets 1 and 2
are loaded with the Start Sprayer and Stop Sprayer counts, respectively.
The Start Sprayer count = 500 X Distance (inches) from LS1 to Start
Sprayer position. The Stop Sprayer count = 500 X Distance (inches) from
LS1 to Stop Sprayer position.
HSC
Channel 1
Encoder A
Input A
Encoder B
Input B
LS1
Reset
Spray
Enable
Output 1
Output 2
Figure 5-2 HSC Connections
As the sprayer moves up and down, the channel 1 outputs and the sprayer
enable signal levels produce the waveform shown in Figure 5-3.
Travels Up
Sprayer Travel LS1
P1
P2
Travels Down
LS2
P2
P1
LS1
OUTPUT 1
OUTPUT 2
Sprayer Enable
OFF
ON
OFF
ON
OFF
Figure 5-3 Waveform Pattern
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Applications
5-3
Sprayer Example (continued)
C1
C14
CLEAR CHANNEL 1
SETUP WORD
SETUP CHANNEL 1
OUTPUT 2 TO GO
LOW AT PRESET
LDC1
BITS1
SELECT COUNT
INHIBIT
ON CHANNEL 1
BITS2
A:
WY4
A:
WY4
A:
WY4
N=
0
N=
4
N=
2
LOADS CHANNEL 1
PRESETS 1 & 2
FROM V200 & V201
INHIBIT CHANNEL 1
BIT IS CLEARED
COUNTING IS ENABLED
MOVW1
C12
C15
BITC23
A:
B:
V200
WY5
A:
WY4
N=
2
N=
2
Figure 5-4 Ladder Logic for Sprayer Example
5-4
Applications
Series 505 High Speed Counter
and Encoder Module User ’s Manual
5.2
Flow Rate Example
5.2.1
Description
5.2.2
Solution
A flow meter outputs 200 pulses per gallon. The program requires
calculation of flow rate in gallons per minute (GPM).
Configure the HSC as WX9–WX11, WY12–WY16. Attach channel 1 to the
flow meter. The HSC accumulates flow meter pulses for the duration of a
1-second fast timer. In the controller, accumulated pulses are scaled to
GPM by the following calculation (using the controller memory locations).
Equation:
GPM = Pulses per Sec Program Locations: (V23,V24) =
(WX10)
60 ? 200
(V20) ? (V19)
Following each calculation, reset the HSC, restart the Timer, and perform
a new calculation 1 second later.
C23
:
ONE SECOND TIMER HAS EXPIRED, COMPUTE FLOW
RESTART TIMER ON NEXT SCAN
C20
C23
TMRF2
P=
01.000
C23
C24
:
SCALE COUNTER VALUE IN GALS/MINUTE PUT RESULTS
IN LOCATIONS V23–V24, RESET HSC CHANNEL 1
C23
C24
MULT1
A:
B:
C:
C25
:
WX10
V20
V21
DIV1
A:
B:
C:
V21
V19
V23
BITS1
A:
WY12
N=
1
TURN OFF CHANNEL 1 RESET TO HSC
C23
C25
BITC1
A:
WY12
N=
1
Figure 5-5 Ladder Logic for Flow Rate Example
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Applications
5-5
5.3
Tank Filling Example
5.3.1
Description
The HSC module measures the volume of liquid and control the filling
valve. (See Figure 5-6.) A flow meter, generating 200 pulses per gallon, is
connected to the HSC channel 2, input A. Output 2 controls the filling
valve. In this example, the HSC operates in the pulse counter mode.
Solution
A count of 100,000 pulses is required to fill the tank to 500 gallons. As this
would overflow the HSC, the following RLL is used to count 10 sets of
10,000 pulses before closing the filling valve. In this program, output 1 is
used to indicate 10,000 pulses. Since the HSC runs asynchronous to the
PLC, the program accumulates overcounts for each loop and adjusts the
final loop to reach the exact count. The program utilizes the fact that the
HSC WX’s are read before the WY’s are written in an I/O cycle.
Several V memory locations are used in the program, their initial values
are:
V200
=
10,000
=
channel 2, preset 1
V201
=
30,000
=
channel 2, preset 2 initial value
V100
=
0
(overcounts will be accumulated here)
Input A
Output 2
HSC Channel 2
Y20
Figure 5-6 Tank Filling Application
5-6
Applications
Series 505 High Speed Counter
and Encoder Module User ’s Manual
C140
C140 IS USED TO INITIATE/TERMINATE FILLING
C140
X128
C140
C1
C256
: RESET HSC, LOAD INITAL PRESETS
C140
C1
Y20
LDC4
A:
WY4
N=0
C141
BITS1
A:
WY4
N=5
MOVW1
A:
V200
B:
WY7
N=2
: CLEAR RESET BIT
C141
C1
BITC1
A:
WY4
N=5
Y20
: ENABLE LIQUID FLOW
Y20
C1
Y20
C140
Figure 5-7 Ladder Logic for Tank Filling Example
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Applications
5-7
Tank Filling Example (continued)
C61
: ACCUMULATE THE OVERCOUNTS
C61
C51
SUB1
ADD1
A:
WX3
A:
V101
B:
V200
B:
V100
C:
V101
C:
V100
: AFTER 90,000 PULSES, SUBTRACT THE OVERCOUNTS FROM 10,000
AND LOAD THE REMAINING COUNT INTO PRESET 2.
C8
C8
C51
CTR2
SUB2
P= 9
C140
MOVW2
A:
V200
A:
V201
B:
V100
B:
WY7
C:
WY8
N=1
C256
C8
: TEST FOR COMPLETION OF 100,000 COUNTS, INHIBIT FURTHER
COUNTS, AND CLEAR OVERCOUNT ACCUMULATOR. C256 WILL THEN
TURN OFF C140 AND DISABLE THE VALVE.
BITS2
BITP2
A:
A:
WX1
N=8
C51
C256
LDC3
WY4
A:
N=6
V100
N=0
: WHEN HSC CH2 OUTPUT 1 TURNS ON, PULSE COUNT IS 10,000
OR GREATER, RESET COUNTER AND START NEW COUNT.
C51
C8
C51
Y20
BITP5
A:
WX1
N=7
BITS5
A:
WY4
N=5
Figure 5-7 Ladder Logic for Tank Filling Example (continued)
5-8
Applications
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Appendix A
Terminal Block Worksheet
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Terminal Block Worksheet
A-1
Appendix B
Specifications
B.1
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-2
B.2
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-3
B.3
Additional Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B-6
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Specifications
B-1
B.1
Environmental Specifications
Table B-1 Environmental Specifications
Operating Temperature
0_ to 60_C (32_ to 140_F)
Storage Temperature
–40_ to 70_C (–40_ to 158_F)
Relative Humidity
5% to 95% noncondensing
Pollution Degree
2, IEC 664, 664A
Vibration
Sinusoidal
Random
Impact Shock
IEC 68–2–27, Test Ea;
Half Sine, 15 g, 11 ms
Electrostatic Discharge2
IEC 801, Part 2, Level 4 (15 kV)1
Electrical Noise Immunity
Conducted2
IEC 801, Part 4, Level 3
MIL STD 461B, Part 4;
CS01, CS02, CS061
IEC 255–4, Appendix E1
EEC 4517/79 Com(78) 766 Final, Part 4
IEEE 472, 2.5 kV
Radiated
All parts are of corrosion resistant material
or are plated or painted as corrosion
protection.
Agency Approvals
ULr Listed, CSA Certified
2The
Specifications
IEC 801, Part 3, Level 3
MIL STD 461B, Part 4; RS01, RS02
Corrosion Protection
1The
B-2
IEC 68–2–6, Test Fc;
0.15 mm, peak-to-peak, 10-57 Hz;
1.0 g 57-150 Hz
NAVMAT P–9492 or IEC 68–2–34,
Test Fdc with
0.04 [email protected]/Hz, 80–350 Hz,
and 3 dB/octave rolloff, 80–20 Hz
and 350–2000 Hz at 10 min/axis
unfilltered reset input may be susceptible to these types of EMI.
module responds to noise signals at its count or inhibit inputs that are within its passband.
Series 505 High Speed Counter
and Encoder Module User ’s Manual
B.2
Electrical Specifications
Table B-2 Electrical Specifications
Count Inputs
Frequency (maximum)
Duty
Cycle
Count Mode
Freq.
10%
20%
25%
30%
40%
50%
60%
Quadrature Mode
Freq. (w/ 15 max. phase error)
10 Khz
25 Khz
30 Khz
35 Khz
50 Khz
45 Khz
35 Khz
On voltage:
Current on:
Off voltage:
Current off:
4 Khz
8 Khz
10 Khz
12 Khz
15 Khz
15 Khz
15 Khz
4 to 28 VDC, Class 2 supply
8 to 16 mA
–1.5 to 1.5 VDC
0 to 1 mA
Volt–Ampere Curve for Count Inputs
30
Min
Max
25
20
Vin
(Volts)
15
10
5
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉÉÉÉÉ
ÉÉ
2
4
6
8
10
12
14
16
Iin (mA)
Off Region
Transition Region
On Region
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Specifications
B-3
Electrical Specifications (continued)
Count inputs are constant current type inputs.
Reset and Inhibit Inputs:
On voltage: to 28 VDC, Class 2 supply
Current on: 2 to 40 mA
Off voltage: –1.5 to 1.5 VDC
Current off: 0 to 0.75 mA
Reset delay time: unfiltered 950 s on
950 s off
filtered
3.75 ms on
5.00 ms off
Inhibit delay time: 200 s on
200 s off
Volt–Ampere Curve for Reset and Inhibit Inputs
30
Min
Max
25
20
Vin
(Volts)
15
10
5
ÉÉÉ
ÉÉÉ
10
Off Region
B-4
Specifications
20
É
É
30
40
Iin (mA)
Transition Region
On Region
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Outputs
User voltage: . . . . . . . . . . . . . . . . . . . . . . . . . 28 VDC max.
Voltage drop: . . . . . . . . . . . . . . . 1.8 VDC max. @ 400 mA
1.0 VDC max. @ 25 mA
Leakage current: . . . . . . . . . . . . . 500 A max.
Peak current: . . . . . . . . . . . . . . . . 500 mA for 1 ms
Output current:
400
1 Point per channel
I(mA)
300
275 mA
2 Points per channel
200
175 mA
100
20
40
60
80
100
T (C)
Isolation:
User-side to P/C-side . . . . . . . . . . . . . . . . . . . . 1500 V rms
Channel 1 to 2 (inputs) . . . . . . . . . . . . . . . . . . 1500 V rms
Channel 1 to 2 (outputs) . . . . . . . . . . . . . . . . . 0 V rms
Inputs to outputs . . . . . . . . . . . . . . . . . . . . . . . . 1500 V rms
Power Required from Base: . . . . . . . . . . . . . . . . . . 2.5 W
Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 ms
(Input pulse to output action)
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Specifications
B-5
B.3
Additional Compliances
In addition, the system complies with applicable requirements of Verband
Deutscher Elektrotechniker (VDE) 0160: Electrical Equipment
Series 505 products have been developed with consideration of the draft
standard for programmable controllers as described in the proposed
standard of the International Electrotechnical Commission Committee
(IEC–65A/WG6, Part 2).
Information concerning product reliability and compliance to the IEC or
other standards can be provided upon request. Contact your Siemens
Industrial Automation, Inc. distributor for additional information.
B-6
Specifications
Series 505 High Speed Counter
and Encoder Module User ’s Manual
Customer Registration
We would like to know what you think about our user manuals so that we can serve you better.
How would you rate the quality of our manuals?
Excellent
Good
Fair
Poor
Accuracy
Organization
Clarity
Completeness
Overall design
Size
Index
Would you be interested in giving us more detailed comments about our manuals?
Yes! Please send me a questionnaire.
No. Thanks anyway.
Your Name:
Title:
Telephone Number:
(
)
Company Name:
Company Address:
Manual Name:
High Speed Counter and Encoder Module User Manual
Manual Assembly Number: 2586546-0019
Order Number:
PPX:505–8113–2
Edition:
Date:
Second
12/92
FOLD
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST CLASS
PERMIT NO.3
JOHNSON CITY, TN
POSTAGE WILL BE PAID BY ADDRESSEE
SIEMENS INDUSTRIAL AUTOMATION, INC.
3000 BILL GARLAND RD.
P.O. BOX 1255
JOHNSON CITY TN 37605–1255
ATTN: Technical Communications M/S 3519
FOLD
Index
A
Assistance, 2-2
C
Configuration
selecting, 2-10
updating, 2-10
Configuring
jumpers, 2-5
User Options, 2-10
Count input, 1-4
Count rate, 1-2
Counter mode, 1-7
I
I/O
address, 2-10
configuration chart, 2-11
definition chart, 2-10
I/O base, 2-7
Inhibit, 1-2, 1-4
Input, 1-4
count, 1-4
inhibit, 1-4
reset, 1-4
Specifications, B-3
J
Jumper, 2-5
Jumper pins, 2-5
D
Double-count quadrature, 1-9
E
L
LED, 1-2
A input, 1-6
B input, 1-6
LED indicator, 1-6
Logging module into controller, 2-10
Electrical specifications, B-3
Environmental specifications, B-2
F
O
Output, 1-5
open collector, 1-5
specifications, B-5
Features, 1-2
P
H
Handling the HSC, 2-2
Powering up the module, 2-8
Pulse counter mode, 1-7
Pulse width, 1-2, B-4
Index-1
Q
Quadrature Mode, quadruple count, 1-10
Quadrature mode
double-count, 1-9
single-count, 1-8
T
Terminal block, 2-8
wiring diagram, 2-9
worksheet, 2-8
Quadruple count, quadrature mode, 1-10
R
References, 2-2
U
Using status words, 3-2
Reset, 1-2, 1-4
S
Single-count quadrature, 1-8
Static electricity, 2-2
Index-2
W
Wiring, 2-3, 2-8
considerations, 2-3
SIMATIC is a registered trademark of Siemens AG.
Series 505 and TISOFT are trademarks of Siemens Industrial Automation, Inc.
Texas Instruments and TI are registered trademarks of Texas Instruments Incorporated.
TI505, TI525, TI535, and TI545 are trademarks of Texas Instruments Incorporated.
UL is a registered trademark of Underwriters Laboratories.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
