Philips CMD310/05 User manual

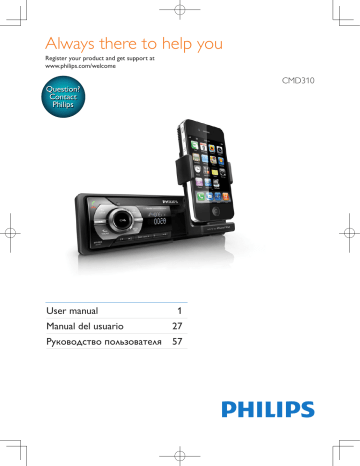

Always there to help you
Register your product and get support at
www.philips.com/welcome
CMD310
Question?
Contact
Philips
User manual
Manual del usuario
1
27
Руководство пользователя 57
Contents
1Important
2
Safety2
Notice2
2 Your car audio system
4
Introduction4
What's in the box
4
Overview of the system
5
9 Use the dock
17
17
17
18
18
19
19
20
20
20
21
10 Adjust sound
21
21
21
21
21
21
22
22
22
Compatible iPod/iPhone models
Prepare for docking
Load your iPhone or iPod touch
Adjust the dock bracket
Pair your iPhone via Bluetooth
Enjoy audio through the dock
Use the CarStudio application
Charge your iPhone or iPod touch
Undock your iPhone or iPod touch
Store the dock bracket
3 Before use
7
7
4 Get started
10
10
10
11
11
5 Listen to radio
12
12
12
12
12
13
13
11 Adjust system settings
22
12 Additional information
15
15
15
15
23
23
23
13 Product information
24
Install the car audio system
Turn on
Change system settings
Set the clock
Select a source
Select a radio region
Select a tuner sensitivity
Tune to a radio station
Store radio stations in memory
Tune to a preset station
Play with RDS
6 Use Bluetooth devices
Pair a device
Play audio from a Bluetooth device
Make a call
7 Play from a USB storage device
16
16
8 Listen to an external device
17
Control play
Adjust the volume level
Mute sound
Use the DBB sound effect
Enable the max sound
Select a listening zone
Enable the full-range sound
Select a preset sound equalizer
Other sound settings
Reset the system
Replace the fuse
14Troubleshooting
25
General25
About Bluetooth device
25
15 Glossary
26
EN
1
English
Contents
1Important
•
•
Safety
Read and understand all instructions before you
use the device. If damage is caused by failure to
follow instructions, the warranty does not apply.
• Modification of the product could result
in hazardous radiation of EMC or other
unsafe operation.
• The device is designed for negative ground
(earth) 12 V DC operation only.
• To reduce the risk of traffic accidents, do
not pick up or make a phone call, nor
watch video when driving.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
fire. When you need to change the fuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuits, do not expose the
device, remote control or remote control
batteries to rain or water.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
the device (e.g. liquid filled objects, lighted
candles).
• Never insert objects into the ventilation
slots or other openings on the device.
• Clean the device with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
device.
• The dock is designed for iPhone and iPod
touch only. Do not connect any other
device to it.
• Risk of damage to the dock bracket: Do
not place or hang any object on it.
2
EN
Risk of firing or damage to the car audio
system: Do not place any other object into
the compartment for dock bracket.
Risk of damage to your iPhone or iPod
touch: Unload your iPhone or iPod touch
from the dock before you store the dock
bracket.
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Compliance
This product complies with the radio
interference requirements of the European
Community.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Other trademarks and trade names are those
of their respective owners.
Copyright
2012 © Koninklijke Philips Electronics N.V.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
EN
3
English
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this system, you can:
• enjoy audio from USB storage devices,
iPhone, iPod touch, and other external
devices,
• listen to radio stations,
• charge your iPhone or iPod touch, and
• make phone calls.
You can enrich sound output with these sound
effects:
• Dynamic bass boost (DBB)
• Automatic loudness control
Playable media:
• USB storage device
• Compatibility: USB 2.0, USB 1.1
• Class support: MSC (Mass Storage
Class)
• File system: FAT16, FAT32
• Files: .mp3, .wma
• Maximum number of albums/folders:
99
• Maximum number of tracks/files: 999
• Maximum level of directory: 8
• iPhone and iPod models
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPod touch (3rd and 4th generations)
4
EN
What's in the box
Check and identify the contents of the package:
a
b
c
d
e
f
g
h
Quick start guide
a Main unit and front panel (with a sleeve)
b Trim plate
c ISO standard connector
d Rubber cushion
e 1 x Screw
f 2 x Disassembly tools
g User manual
h Quick start guide
u t sr
q
p
English
Overview of the system
on
a
b
c
d
ef
jk
ghi
a
b
c
d
e
l
f
• Press to answer or redial a call.
• Press to hang up a call.
• Tune to a radio station.
• Press to skip to the previous track.
• Press and hold to rewind a track.
• Press to enable or disable the full
sound.
• Press and hold to access the sound
setting menu.
• Press repeatedly to select a source.
• Press and hold to activate the selection
of listening zones.
• In radio mode, press to select the
preset radio station of No. 1.
• In radio mode, press and hold to store
the current radio station at channel
No. 1.
• For .wma/.mp3 tracks, press to select
the next album/folder.
g
h
m
• In radio mode, press to select the
preset radio station of No. 2.
• In radio mode, press and hold to store
the current radio station at channel
No. 2.
• For .wma/.mp3 tracks, press to select
the previous album or folder.
• Press to enable or disable the
maximum volume.
• Press and hold to enable or disable
the DBB (dynamic bass boost) sound
effect.
• In radio mode, press to select the
preset radio station of No. 3.
• In radio mode, press and hold to store
the current radio station at channel
No. 3.
• For tracks, press to select a repeat
mode: repeat the current track, or
repeat all tracks in the current album
or folder.
EN
5
i
j
k
• In radio mode, press to select the
preset radio station of No. 4.
• In radio mode, press and hold to store
the current radio station at channel
No. 4.
• For tracks, press to start playing all
tracks in the current album or folder
randomly.
• In radio mode, press to select the
preset radio station of No. 5.
• In radio mode, press and hold to store
the current radio station at channel
No. 5.
• In radio mode, press to select the
preset radio station of No. 6.
• In radio mode, press and hold to store
the current radio station at channel
No. 6.
• Start, pause, or resume the play of
tracks.
l Dock for iPhone/iPod touch
m MP3-LINK
• Connect to the audio output socket
(usually the headphone socket) of an
external device.
n USB
• Connect to a USB storage device.
o RESET
• Press to reset the system to factory
default settings.
p
• Press to eject the dock bracket.
q LCD screen
r
6
• Press once to display the system clock.
• Press and hold to access the system
menu.
EN
s
• Press to turn on the system.
• Press and hold to turn off the system.
• Press to mute the system or release it
from mute status.
• Press to confirm an option.
• Rotate to switch between menu
options.
• Rotate to adjust the volume level.
t MIC
• Integrated microphone.
u
• Press to exit the current menu.
• Press repeatedly to select a tuner band.
• Press and hold to transfer a call.
Caution
•• This system is designed for negative ground (earth) 12V
DC operation only.
Caution
•• Use the controls only as stated in this user manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model number and serial number of your car
audio system. The model number and serial
number are on its bottom. Write the numbers
here:
Model No.: __________________________
Serial No.: ___________________________
Install the car audio system
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
•• Always install this system in the car dashboard. Other
locations can be dangerous as the rear of the system
heats up during use.
•• To avoid short-circuit: before you connect, make sure
that the ignition is off.
•• Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
•• Make sure that all loose leads are insulated with
electrical tape.
•• Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
•• Make sure that all ground (earth) leads are run to a
common ground (earth) point.
•• Use only the supplied mounting hardware for a safe
and secure installation.
•• Improper fuses can cause damage or fire. When you
need to change the fuse, consult a professional.
•• When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
•• Never connect speaker wires to the metal body or
chassis of the car.
•• Never connect speaker wires with stripes to one
another.
Connect wires
Caution
•• Make sure that all loose leads are insulated with
electrical tape.
1
Check the car's wiring carefully, and then
connect them to the supplied ISO wires.
h
a
b
c
g
d
f
e
EN
7
English
3 Before use
Connector
1
2
3
4
5
6
7
8
Yellow
wire
Blue/White
wire
Connect to
The +12V car battery which is
live at all times
The electric antenna control
lead or power supply lead of
the antenna booster. If there is
no electric antenna or antenna
booster, or it is manually
operated telescopic antenna,
it is unnecessary to connect
this lead.
Black wire A metal surface of the car.
Connect the black ground
(earth) lead before connecting
the yellow and red power
supply leads.
Red wire
The +12V power terminal
which is live in the accessory
(ACC) position of the ignition
switch. If there is no accessory
position, connect to the +12V
car battery terminal that is
always live. Make sure that the
black ground (earth) lead is
connected to a metal surface
of the car first.
Green and Left speaker (rear)
green/black
wires
White and Left speaker (front)
white/black
wires
Gray and
Right speaker (front)
gray/black
wires
Right speaker (rear)
Purple
and
purple/
black
wires
2
Connect the other end of the supplied
standard connector to the car audio
system.
a
b
SUB-W
L
R
REAR LINE OUT
f
c
e
d
g
h
Connector
Connect to
1
2
ANTENNA
External Mic
3
SUBWOOFER
(Socket)
REAR LINE OUT L
(Socket)
REAR LINE OUT R
(Socket)
OE REMOTE
(Brown)
FRONT LINE OUT L
FRONT LINE OUT
R
Antenna for radio
An external
microphone for
phone call
Subwoofer
4
5
6
7
8
Rear left speaker
Rear right speaker
OE remote
Front left speaker
Front right speaker
Tip
•• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the system.
8
EN
1
If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
• If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
• If the car battery is not disconnected, to
avoid short-circuit, make sure that the
bare wires do not touch each other.
18
3m
53.5 mm
2
English
Mount into the dashboard
m
Make sure that the car dashboard opening
is within these measurements:
4
m
5m
mm
53mm
183
Place the supplied rubber cushion over the
end of the mounting bolt.
3
5
Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
Slide the system into the sleeve until you
hear a "click".
Note
•• If the system is not fixed by sleeve but by the supplied
screws, skip this step.
EN
9
6
Attach the trim plate.
4 Get started
Turn on
Press
.
»» [WELCOME] scrolls.
7
• To turn off the system, press and hold
until [GOODBYE] is displayed.
Reconnect the negative terminal of the car
battery.
Change system settings
1
2
3
10
EN
Press and hold
menu.
to access the system
Press
repeatedly to select an option.
• [RDS]
• [PTY >]
• [RDS AF]
• [RDS TA]
• [RDS REG]
• [RDS CT]
• [STORE >]
• [AREA]
• [LOCAL]
• [CLOCK]
• [CLOCK 12H]
• [BEEP]
• [BKO]
• [DIMMER]
• [DEMO]
Rotate
to select a setting.
• To exit the setting, press .
1
2
3
4
5
6
Press and hold
menu.
to access the system
Press
repeatedly until [CLOCK] and
the current time are displayed.
»» If the clock is not set before, [00:00] is
displayed.
Rotate
Press
Rotate
Press
•
[USB]: When a USB storage device is
connected and recognized, you can select
this source to play audio files that are
stored on it.
[iPHONE]: When an iPhone or iPod touch
is connected and recognized, you can
select this source to play the playlist of
iPhone or iPod touch.
to set the hour.
to confirm.
to set the minute.
to confirm.
Set the clock format
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [CLOCK 12H]or
[CLOCK 24H] is displayed.
Rotate
to select a setting.
• [CLOCK 12H]: 12-hour time format
• [CLOCK 24H]: 24-hour time format
Display the clock
Press
to display the clock.
• To exit, press any button.
Select a source
Note
•• When all other sources are unavailable, the system
switches the source to [RADIO] automatically.
Press
repeatedly to select a source.
• [RADIO]: FM/AM radio
• [MP3-LINK]: the audio input through the
MP3-LINK socket
• [BT AUDIO]: the audio transferred from a
Bluetooth device
EN
11
English
•
Set the clock
5 Listen to radio
Tune to a radio station
1
Select a radio region
You can select a radio region that matches your
location.
1
2
3
Press and hold
menu.
to access the system
Rotate
to select an option.
• [USA] (United States)
• [EUR] (Western Europe)
• [RUS] (Russia)
• [AUS] (Australia)
• [EAS] (Middle East)
• [ASI] (Asia Pacific)
• [JAP] (Japan)
• [LAT] (Latin America)
To receive stations with strong signals only or
more radio stations, you can change the tuner
sensitivity.
2
3
12
3
4
Press
repeatedly until [AREA] is
displayed.
Select a tuner sensitivity
1
2
Press and hold
menu.
to access the system
Press
repeatedly until [LOCAL] is
displayed.
Rotate
to select a setting.
• [LOCAL ON] (local on): Search
stations with strong signals only.
• [LOCAL OFF] (local off): Search
stations with strong and weak signals.
EN
Press
repeatedly to switch the source
to [RADIO].
Press
repeatedly to select a band:
[FM1], [FM2], [FM3], [AM1], or [AM2].
Press and hold
or
frequency digits blink.
until the
Press
or
repeatedly to tune to a
radio station manually.
»» The radio station is broadcast.
• To search for a radio station
automatically, press
or
.
Store radio stations in
memory
Note
•• You can store a maximum of six stations in each band.
Store stations automatically
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [STORE >] is
displayed.
Press
to confirm.
»» The strongest stations of the selected
band are saved in preset channels
automatically.
Store stations manually
1
2
Press
repeatedly to select a band.
Tune to a radio station that you want to
store.
4
Press and hold a numeric button for three
seconds.
»» The station is saved in the selected
channel.
Select a program type
Repeat steps 2 and 3 to store more radio
stations.
• To replace a radio station, store
another one in its channel.
1
Tune to a preset station
1
2
Press
repeatedly to select a band.
Press a numeric key to select a preset
station.
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name is displayed.
Enable the RDS function
Note
•• The RDS function is enabled by default.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [RDS] is
displayed.
Rotate
to select [RDS ON].
»» The RDS function is enabled.
• To disable the RDS function, rotate
to select [RDS OFF].
English
3
Before tuning to RDS stations, you can select
a program type to search for programs of the
selected category only.
2
3
4
Press and hold
menu.
to access the system
Press
repeatedly until [PTY >] is
displayed.
Press
Rotate
then press
to confirm.
to select a program type, and
to confirm.
Item
Program
type
Description
1
2
NEWS
AFFAIRS
3
INFO
4
5
SPORT
EDUCATE
6
DRAMA
7
CULTURE
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
SCIENCE
VARIED
POP M
ROCK M
EASY M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL
RELIGION
PHONE IN
TRAVEL
LEISURE
News services
Politics and current
affairs
Special information
programs
Sports
Education and advanced
training
Radio plays and
literature
Culture, religion and
society
Science
Entertainment programs
Pop music
Rock music
Light music
Light classical music
Classical music
Special music programs
Weather
Finance
Children’s programs
Social Affairs
Religion
Phone In
Travel
Leisure
EN
13
Item
Program
type
Description
24
25
26
27
28
29
30
31
JAZZ
COUNTRY
NATION M
OLDIES
FOLK M
DOCUMENT
TEST
ALARM
Jazz Music
Country Music
National Music
Oldies Music
Folk Music
Documentary
Alarm Test
Alarm
Receive traffic announcement
If you do not want to miss traffic
announcement, enable the TA (Traffic
Announcement) function.
1
2
3
Use alternate frequencies
If the signal of an RDS station is poor, enable
the AF (Alternate Frequency) function to search
for another station that transmits the same
program.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [RDS AF] is
displayed.
Rotate
to select a setting:
• [AF ON]: Enable the AF function.
• [AF OFF]: Disable the AF function.
Set the region for AF tuning
You can set the region for AF tuning:
[REG
ON]
[REG
OFF]
1
2
3
Only RDS stations in current
region can be tuned to
automatically.
All RDS stations can be tuned to
automatically.
Press and hold
menu.
to access the system
Press
repeatedly until [RDS REG] is
displayed.
Rotate
to select a setting.
Press and hold
menu.
to access the system
Press
repeatedly until [RDS TA] is
displayed.
Rotate
to select a setting:
• [TA ON]: When a traffic
announcement is on air, the system
automatically switches to the tuner
mode and begins to broadcast the
traffic announcement. When the traffic
announcement is over, the system
returns to the previous mode.
• [TA OFF]: Traffic announcement does
not cut in.
Tip
•• When a traffic announcement cuts in, you can press
to switch the system to the previous mode.
Synchronize the system clock
You can synchronize the system clock with an
RDS station that transmits time signals.
1
2
3
Press and hold
menu.
to access the system
Press
repeatedly until [RDS CT] is
displayed.
Rotate
to select a setting:
• [CT ON]: Synchronize the system
clock with the RDS station.
• [CT OFF]: Do not synchronize the
system clock.
Tip
•• The accuracy of time depends on the RDS station that
transmits the time signal.
14
EN
With this car audio system, you can listen to
audio from a player or make a call through
Bluetooth.
Pair a device
Note
•• Philips does not guarantee compatibility with all
Bluetooth devices.
•• Before pairing a device with this system, read its user
manual for compatibility.
On your device, follow the steps below.
1
2
3
Enable it to search for other Bluetooth
devices.
Tip
•• You can also control the play on the Bluetooth device.
Make a call
Note
•• Keep the Bluetooth connection active between the
system and your mobile.
Call a number
On your mobile, call a number.
»» [CALL---] is displayed.
Redial the last called number
1
Press .
»» [REDIAL] is displayed.
In the device list, select CMD310.
2
Enter the default password "0000".
»» If the pairing is successful, [PAIRED] is
displayed.
Pick up an incoming call
• To disconnect the device, disable the
Bluetooth feature on it.
Press
to confirm.
»» [CALL---] is displayed.
When the system receives an incoming call, the
phone number or [PHONE IN] is displayed.
Press to answer the call.
Play audio from a Bluetooth
device
Reject an incoming call
1
2
End an call
Pair the Bluetooth device with this system.
Press
repeatedly to switch the source
to [BT AUDIO].
»» Play starts automatically.
• If play does not start, press
.
• To pause play, press
again.
• To skip to the previous or next track,
press
/
.
English
6 Use Bluetooth
devices
Press and hold
until [END] is displayed.
To end an on-going call, press .
Transfer voice to mobile
Press and hold
until [TRANSFER] is
displayed.
»» The loudspeakers are muted, and the
voice comes from your mobile only.
EN
15
7 Play from a USB
storage device
This system can play .mp3 and .wma files that
are copied onto a compatible USB storage
device.
Control play
During play, follow the instructions below to
control play.
Buttons
Pause or resume play.
/
Note
•• Philips does not guarantee compatibility with all USB
storage devices.
•• NTFS (New Technology File System) file system is not
supported.
RESET
1
2
Connect the USB storage device to the
socket.
Press
repeatedly until [USB] is
displayed.
»» Play starts automatically.
If play does not start automatically,
1
2
3
16
Press
Press
Press
EN
/
to select a folder.
/
to select a file.
to start play.
Functions
/
Skip to the previous or next track.
Press and hold to rewind a track or
search forward fast within a track.
Skip to the previous or next folder
when one or more folders exist.
Select a repeat mode.
• [REPEAT TRACK]: repeat the current track
• [REPEAT ALL]: repeat all tracks
• [REPEAT FOLDER]: repeat all
tracks in the current folder
Enable or disable shuffle play.
• [SHUF FOLDER]: play all tracks in
the current folder randomly
• [SHUF ALL]: play all tracks randomly
• [SHUF OFF]: play tracks in sequence
You can use the system to amplify the audio
input that is transferred from an external
device, for example, MP3 player.
1
2
3
Press
repeatedly to switch the source
to [MP3-LINK].
Connect the MP3 link cable to
• the MP3-LINK socket on the system,
and
• the audio output socket (usually the
headphone socket) on the external
device.
9 Use the dock
An application CarStudio is available in the
iTunes App Store for this car audio system. To
enjoy full features, download the application to
your iPhone or iPod touch.
Note
•• If the CarStudio application is not installed, a dialog box
prompts you to download it when your iPhone or iPod
touch is docked and recognized.
•• If the CarAudio application is installed, a dialog box
prompts you to launch it when your iPhone or iPod
touch is docked and recognized.
Play the external device.
Compatible iPod/iPhone
models
This car audio system supports the following
iPod and iPhone models.
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPod touch (3rd and 4th generations)
Prepare for docking
1
Press
to eject the dock bracket.
EN
17
English
8 Listen to an
external device
2
Pull out the dock bracket until you hear a
"click".
1
Connect your iPhone or iPod touch to the
dock with its screen facing you.
»» The system switches the source to
[iPHONE] automatically. If not, press
repeatedly to switch the source.
K
CLIC
3
Flip the dock bracket upwards.
2
4
Pinch the hooks to secure your iPhone or
iPod touch.
Press and hold RELEASE to loosen the
hooks.
Adjust the dock bracket
Caution
•• When the dock bracket is in portrait position, do not
turn it clockwise.
•• When the dock bracket is in landscape position, do not
turn it anti-clockwise.
Load your iPhone or iPod
touch
Switch to landscape mode
Note
Note
•• Before you load your iPhone or iPod touch, make sure
that the dock bracket is in portrait position.
18
EN
•• Before you turn the dock bracket anti-clockwise, make
sure that you can see the indication line on its left side.
If not, pull the dock bracket outwards.
2
Turn the dock bracket anti-clockwise by 90
degrees.
Adjust the viewing angle.
2
Adjust the viewing angle.
English
1
Pair your iPhone via
Bluetooth
Note
•• To use the hands-free function, pair your iPhone with
the car audio system via Bluetooth first.
•• Make sure that the Bluetooth feature is enabled on
your iPhone.
Switch to portrait mode
1
Turn the dock bracket clockwise by 90
degrees.
For an iPhone using iOS 4.X or under
• Manually complete the pairing. (Refer to
"Use Bluetooth devices" > "Pair a device")
For an iPhone using iOS 5.X
• For the first time, manually complete
the pairing. Afterwards, the pairing is
automatically complete after your iPhone is
docked and recognized.
Enjoy audio through the dock
If the CarStudio application is not installed on
your iPhone or iPod touch, follow the steps
below.
1
2
3
Turn on the car audio system.
Press
repeatedly to switch the source
to [iPHONE].
Play an audio file or radio station on your
iPhone or iPod touch.
EN
19
Use the CarStudio application
Note
Undock your iPhone or iPod
touch
•• To enjoy the latest features, update the application on
your iPhone or iPod touch when an update message
prompts.
•• After update, the interface and features may be
different from the description in this section. Follow the
actual operations.
•• To switch between portrait mode and landscape
mode smoothly, make sure that the auto-orientation
feature on your iPhone or iPod touch is set to
[Portrait Orientation Unlocked] (Portrait Orientation
Unlocked).
Note
•• Before you undock your iPhone or iPod touch, make
sure that the dock bracket is in portrait position.
1
Press and hold RELEASE to loosen the
hooks.
Portrait mode
In portrait mode, swipe the screen to use one
of the following features.
• Display available time and weather
information.
• Listen to the playlist on the iPhone or iPod
touch.
• Listen to radio.
• Change settings.
• Listen to audio that is transferred through
the MP3-LINK socket.
2
Pull out your iPhone or iPod touch.
Landscape mode
In landscape mode, tap the icons to access the
following features.
• Listen to the playlist on the iPhone or iPod
touch.
• Listen to radio.
• Listen to audio that is transferred through
the MP3-LINK socket.
• Use the phone call.
• Change sound settings.
Charge your iPhone or iPod
touch
Once the iPhone or iPod touch is docked and
recognized, the charging starts.
20
EN
Tip
•• For the safety of your property, undock your iPhone or
iPod touch before leaving your car.
10Adjust sound
English
Store the dock bracket
The following operations are applicable to all
compatible media.
Note
•• Before storage, make sure that you have unloaded your
iPhone or iPod touch and pinched the hooks.
1
Flip the dock bracket downwards until you
hear a "click".
»» You can see the indication line on top
of the dock panel. If not, pull the dock
panel outwards until you see it.
Adjust the volume level
Rotate
clockwise or anti-clockwise.
Mute sound
Press
.
• To restore sound, press
Use the DBB sound effect
K
CLIC
2
Push the dock panel inwards until you hear
a "click".
CLICK
3
Flip up the cover.
again.
Press and hold
until one of the following
settings is displayed.
• [DBB ON]: Dynamic bass boost (DBB) is
enabled.
• [DBB OFF]: DBB is disabled.
Enable the max sound
Press
repeatedly to select one of the
following settings.
• [MAX ON]: Use the maximum sound.
• [MAX OFF]: Return to the customized
sound.
Select a listening zone
1
2
Press and hold
until one of the
following settings is displayed.
• [ALL]: For all passengers
• [FRONT-L]: For the front-left seat only
• [FRONT-R]: For the front-right seat
only
• [FRONT]: For front passengers only
Rotate
to select a setting.
EN
21
Enable the full-range sound
Press
repeatedly to select one of the
following settings.
• [FULL ON]: Enable the full-range sound
• [FULL OFF]: Use the preset equalizer that
you select
Select a preset sound
equalizer
1
2
3
Press and hold
displayed.
until [SUBW] is
Press
repeatedly until one of the
following preset sound equalizer settings is
displayed.
• [FLAT] (flat)
• [POP] (pop)
• [ROCK] (rock)
• [JAZZ] (jazz)
• [CLASSIC] (classic)
• [TECHNO] (techno)
• [OPTIMAL] (optimal)
• [USER] (user settings)
Rotate
to select the sound equalizer
that you want.
11Adjust system
settings
1
2
3
Press and hold
menu.
Press
repeatedly until one of the
following settings is displayed.
• [BEEP], [BKO], [DIMMER], or [DEMO]
Rotate
[BEEP]
[BKO]
[DIMMER]
Other sound settings
1
2
3
22
Press and hold
displayed.
until [SUBW] is
Press
repeatedly to select a setting.
• [SUBW]: Enable or mute the
subwoofer
• [BALANCE]: Balance of sound from
left and right speakers (12L to 12R)
• [FADER]: Fade of sound from front
and rear speakers (12R to 12F)
• [BASS]: Bass level (-7 to +7)
• [TREBLE]: Treble level (-7 to +7)
Rotate
clockwise or anti-clockwise
to change the setting.
EN
to access the system
[DEMO]
to change the setting.
[BEEP
ON]
[BEEP
OFF]
[BKO
10S]
Enable the beep
sound of buttons.
Disable the beep
sound of buttons.
Turn off the screen
automatically 10
seconds after the last
operation.
[BKO
Turn off the screen
20S]
automatically 20
seconds after the last
operation.
[BKO
Never turn off the
OFF]
screen automatically.
[DIMMER Increase the
HIGH]
brightness level of the
screen.
[DIMMER Decrease the
LOW]
brightness level of the
screen.
[DEMO Demonstrate all
ON]
features after the
system stays inactive
for 120 seconds.
[DEMO Disable the demo
OFF]
mode.
4
Insert a new fuse with the same
specifications (15 A).
English
12Additional
information
SUB-W
L
R
REAR LINE OUT
Reset the system
You can reset the system to factory default
settings.
Note
1
2
•• If the fuse gets damaged immediately after it is replaced,
Open the protective cover for the USB
socket, MP3-LINK socket, and RESET
button.
an internal malfunction may occur. In this case, consult
your Philips retailer.
Press RESET with the tip of a ball-point
pen or toothpick.
»» The system is reset.
Replace the fuse
If there is no power, check the fuse and replace
it if it is damaged.
1
2
3
Detach the system from dashboard.
Check the electric connection.
Remove the damaged fuse from the rear
panel.
EN
23
13Product
information
Note
•• Product information is subject to change without prior
notice.
Power supply
Fuse
Suitable speaker
impedance
Maximum power
output
Continuous power
output
Pre-Amp output
voltage
Aux-in level
Dimensions
(W x H x D)
Weight
12 V DC (11V - 16V),
negative ground
15 A
4-8
50 W x 4 channels
22 W x 4 RMS
(4 10% T.H.D.)
2.5 V
500 mV
188 x 58 x 199.5 mm
1.32 kg
Radio
Frequency range
- FM
Frequency range
- AM(MW)
Usable sensitivity
- FM
Usable sensitivity
- AM(MW)
(S/N = 20 dB)
24
EN
87.5-108.0 MHz (100
kHz per step in auto
search and 50 kHz per
step in manual search)
522-1620 kHz (9 kHz)
530-1710 kHz (10 kHz)
8 µV
30 µV
Bluetooth
Output
power
Frequency
band
Range
Standard
0 dBm (Class 2)
2.4000 GHz - 2.4835 GHz ISM
Band
3 meters(free space)
Bluetooth 2.0 specification
Compatible USB storage devices:
• USB flash memory (USB 2.0 or USB1.1)
• USB flash players (USB 2.0 or USB1.1)
Supported formats:
• USB or memory file format: FAT16, FAT32
• WMA V4, V7, V8, V9 (L1, L2)
• Sampling frequencies:
• MP3: 32 kKz, 44.1 kKz, 48kKz
• WMA: 44.1 kKz, 48 kKz
• Bitrates:
• MP3: 8-320 kbps and variable bitrates
• WMA: 64-192 kbps and variable
bitrates
• Directory nesting up to a maximum of 8
levels
• Number of albums/folders: maximum 99
• Number of tracks/titles/files: maximum 999
• ID3 tag v2.0 or later
Unsupported formats:
• Empty albums: An empty album is an
album that does not contain MP3/WMA
files, and is not shown on the display.
• Unsupported file formats are skipped. For
example, Word documents (.doc) or MP3
files with extension .dlf are ignored and
not played.
• AAC, WAV, PCM audio files
• DRM protected WMA files (.wav, .m4a,
.m4p, .mp4, .aac)
• WMA files in Lossless format
Warning
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page
(www.philips.com/welcome). When you contact
Philips, make sure that the product is nearby
and the model number and serial number are
available.
General
No power or no sound.
•• The power supply from car battery is cut
off, or the car battery runs out of energy.
Power the system with car battery.
•• Car engine is not on.Turn the car engine on.
•• Cable is not correctly connected. Check
connections.
•• Fuse is burnt. Replace fuse.
•• Volume is too low. Adjust volume.
•• If the above solutions cannot help, press
the RESET button.
•• Make sure that the current track is in a
compatible format.
Noise in broadcasts.
•• Signals are too weak. Select other stations
with stronger signals.
•• Check the connection of the car antenna.
•• Change the broadcast setting from stereo
to mono.
Preset stations lost.
•• Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-12
•• USB data error. Check the USB storage
device.
GPS signal reception of the iPhone or iPod
touch is poor.
• Remove the iPhone or iPod touch from
the dock, and place it in aother location for
better signal reception.
About Bluetooth device
Cannot pair the Bluetooth enabled device
with the car audio system.
•• The device does not support the profiles
required for the system.
•• The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
The audio quality is poor after connection
with a Bluetooth-enabled device.
•• The microphone is not correctly
positioned. Adjust the position of the
microphone. For example, stick the
microphone onto the dashboard where
close to the driver.
•• The Bluetooth reception is poor. Move the
device closer to the car audio system or
remove any obstacle between the device
and the system.
Music playback is unavailable on the system
even after successful Bluetooth connection.
• The device cannot be used with the
system to play music.
The paired mobile phone connects and
disconnects constantly.
•• The Bluetooth reception is poor. Move
the mobile phone closer to the car audio
system or remove any obstacle between
the mobile phone and the system.
•• Some mobile phones may connect and
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
EN
25
English
14Troubleshooting
••
For some mobile phones, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
15Glossary
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
26
EN
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
CMD310_05_UM_V3.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
