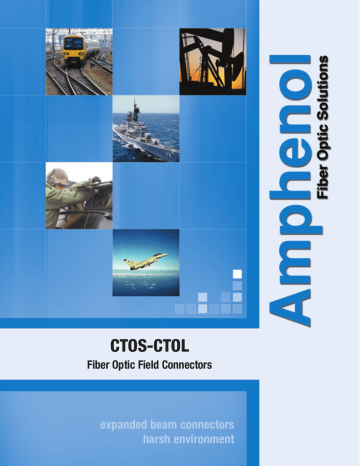

CTOS-CTOL
Fiber Optic Field Connectors
expanded beam connectors
harsh environment
Introduction
CTOS and CTOL series are robust optical connectors for rapid deployment
of high-speed transmission links under harsh environments. The hermaphroditic mating makes it possible to “daisy chain" cable assemblies without
using any interconnect adapters. The specific lens design guarantees a
large beam diameter and a low loss connection, less sensitive to dirt and
dust. A specific front design and ergonomic keys ensure blind mating. The
flat protective window mounted on shock absorbers provides an easy to
clean surface for improved performances and protection. CTOS and CTOL
harnesses are easily and cost effective field maintainable with the FTOS
splice kit.
Amphenol unique CTOS and CTOL design have already gained worldwide
acceptance in the military. CTOS has been qualified by NATO according to
STANAG 4290 requirements. These products are also widely used in geophysical, civil safety, railway, broadcast and industrial markets.
In the CTOS, 1, 2 or 4 channels are inserted in a small size design (o.d.
38mm). CTOL is a CTOS larger version up to 8 channels (o.d. 52mm). CTOL
is intermateable with CTO, the first expanded beam connectors version.
2
• Hermaphroditic interface with rapid ramp coupling
• Design for gloved handling and blind mating in difficult conditions
• Large expanded beam
• Anti-reflective protective window easily reached and cleaned
• The rubber ergonomic shell allows an easy handling with or without
gloves and ensures a high protection against shocks
• Up to 8 channels
• Cost effective field repairs
• Wavelength 850 - 1300 nm (Z version); 1300 nm (Y version)
• Multimode (for single mode, consult us)
Table of contents
CTOS and CTOL presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p2
CTOS and CTOL Expanded beam technology assets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p4
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p4
CTOS: SMALL OPTICAL FIELD CONNECTOR
CTOS plug with protective cap (06M) - CTOS 06M . . . . . . . . . . . . . . . . . . p6
How to order CTOS plug piece parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p7
How to order plug to plug patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p7
How to order plug to plug patchcord reeled on a drum
with or without accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p8
CTOS PLUG - CTOS F (terminated)
How to order plug patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p9
CTOS “jam nut” Receptacle - rear mount (77) . . . . . . . . . . . . . . . . . . . . . p10
CTOS 77P: straight backshell receptacle for pigtail . . . . . . . . . . . . . . . . . p10
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p10
CTOS “jam nut” Receptacle - rear mount (77) - CTOS 77P
How to order CTOS receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . p11
CTOS “jam nut” Receptacle - rear mount (77) . . . . . . . . . . . . . . . . . . . . . p12
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p12
CTOS 77C00: straight backshell receptacle for tactical cable . . . . . . . . . p10
How to order CTOS receptacle piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . p12
CTOS “jam nut” Receptacle - rear mount (77) - CTOS 77C00 . . . . . . . . . p13
CTOS “jam nut” Receptacle - rear mount (77) . . . . . . . . . . . . . . . . . . . . . p14
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p14
CTOS “jam nut” Receptacle - rear mount (77) - CTOS 77M00
How to order plug to plug patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . p15
CTOS “jam nut” Receptacle - rear mount (77)
CTOS 77C90: 90° backshell receptacle for tactical cable . . . . . . . . . . . . p16
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p16
CTOS “jam nut” Receptacle - rear mount (77) - CTOS 77C90 . . . . . . . . . p17
CTOS “jam nut” Receptacle - rear mount (77)
CTOS 77M90: sealed 90° backshell receptacle for tactical cable . . . . . . p18
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p18
CTOS “jam nut” Receptacle - rear mount (77) - CTOS 77M90. . . . . . . . . p19
CTOS “jam nut” Receptacle - rear mount (77) . . . . . . . . . . . . . . . . . . . . . p20
CTOS “Square flange” Receptacle - rear mount (00) . . . . . . . . . . . . . . . . p21
CTOS 00P: straight backshell receptacle for pig tail . . . . . . . . . . . . . . . . p21
CTOL: LARGE OPTICAL FIELD CONNECTOR
CTOL plug with protective cap 06M. . . . . . . . . . . . . . . . . . . . . . . . . . . . . p34
How to order CTOL plug piece parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . p35
How to order plug to plug patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . p35
How to order plug to plug patchcord reeled on a drum
with or without accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p36
CTOL PLUG - CTOL F (terminated)
How to order plug patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p37
CTOL “Square flange” Receptacle - rear mount (00) . . . . . . . . . . . . . . . . p38
CTOL 00P: straight backshell receptacle for pig tail. . . . . . . . . . . . . . . . . p38
How to order CTOL receptacle piece parts. . . . . . . . . . . . . . . . . . . . . . . . p38
CTOL “Square flange” Receptacle - rear mount (00) - CTOL 00P
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p39
CTOL “Square flange” Receptacle - rear mount (00)
CTOL 00C00: straight backshell receptacle for tactical cable. . . . . . . . . . p40
How to order CTOL receptacle piece parts. . . . . . . . . . . . . . . . . . . . . . . . p40
CTOL “Square flange” Receptacle - rear mount (00) - CTOL 00C00
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p41
CTOL “Square flange” Receptacle - rear mount (00)
CTOL 00M00: straight backshell receptacle for sealed tactical cable. . . . p42
p5
................
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p21
CTOS “Square flange” Receptacle - rear mount (00) - CTOS 00P
How to order CTOS receptacle patch cord . . . . . . . . . . . . . . . . . . . . . . . . p22
CTOS “Square flange” Receptacle - rear mount (00)
CTOS 00C00: straight backshell receptacle for tactical cable . . . . . . . . . p23
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p23
CTOS “Square flange” Receptacle - rear mount (00) - CTOS 00C00
How to order CTOS receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . p24
CTOS “Square flange” Receptacle - rear mount (00)
CTOS 00M00: sealed straight backshell receptacle for tactical cable . . . p25
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p25
CTOS “Square flange” Receptacle - rear mount (00) - CTOS 00M00
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p26
CTOS “Square flange” Receptacle - rear mount (00)
CTOS 00C90: 90° backshell receptacle for tactical cable . . . . . . . . . . . . p27
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p27
CTOS “Square flange” Receptacle - rear mount (00) - CTOS 00C90
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p28
CTOS “Square flange” Receptacle - rear mount (00)
CTOS 00M90: sealed 90° backshell receptacle for tactical cable . . . . . . p29
How to order CTOS receptacle piece parts . . . . . . . . . . . . . . . . . . . . . . . p29
CTOS “Square flange” Receptacle - rear mount (00) - CTOS 00M90
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p30
CTOS “Square flange” Receptacle - rear mount (00) . . . . . . . . . . . . . . . . p31
CTOS Shunt caps
CTOS receptacle protective shunt cap (BPPSA) . . . . . . . . . . . . . . . . . . . . p32
How to order CTOS receptacle protective shunt cap . . . . . . . . . . . . . . . . p32
CTOS BSA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p32
How to order CTOS receptacle protective shunt cap . . . . . . . . . . . . . . . . p32
p33
...............
How to order CTOL receptacle piece parts. . . . . . . . . . . . . . . . . . . . . . . . p42
CTOL “Square flange” Receptacle - rear mount (00) - CTOL 00M00
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p43
CTOL “Square flange” Receptacle - rear mount (00)
CTOL 00C90: 90° backshell receptacle for a tactical cable . . . . . . . . . . . p44
How to order CTOL receptacle piece parts. . . . . . . . . . . . . . . . . . . . . . . . p44
CTOL “Square flange” Receptacle - rear mount (00) - CTOL 00C90
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p45
CTOL “Square flange” Receptacle - rear mount (00)
CTOL 00M90: 90° sealed backshell receptacle for tactical cable. . . . . . . p46
How to order CTOL receptacle piece parts. . . . . . . . . . . . . . . . . . . . . . . . p46
CTOL “Square flange” Receptacle - rear mount (00) - CTOL 00M90
How to order receptacle patchcord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p47
CTOL “SQUARE FLANGE” Receptacle - rear mount (00). . . . . . . . . . . . . . p48
CTOL Shunt caps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p49
CTOL receptacle protective shunt cap (BPPSA) . . . . . . . . . . . . . . . . . . . . p49
How to order CTOL receptacle protective shunt cap . . . . . . . . . . . . . . . . p49
CTOL BSA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p49
How to order CTOL plug shunt cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p49
Fiber optic cable catalogue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p50
Tactical cables technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p51
3
Expanded Beam
J
CTOS AND CTOL EXPANDED BEAM TECHNOLOGY ASSETS
With AMPHENOL expanded beam technology , fibers are not in physical contact. The beam is expanded through the first lens
and refocused through the second lens then into the fiber. By increasing the light beam surface (680 times for multimode
technology), the connector becomes highly resistant to vibrations, shocks, small debris contamination and optical misalignment. A coated protective window makes the connectors easy to clean and easily field maintainable should any damage
occurs.
Emitting fiber
J
Lens
Windows
Lens
Recepting fiber
TECHNICAL SPECIFICATIONS
• Plugs and Receptacles (straight and 90°), Tactical Harnesses and Test caps for maintenance
• Hermaphroditic interface with rapid ramp coupling
• Large expanded beams with protective windows
• Stainless steel body with ergonomic rubber shell
• Termination and Maintenance FTOS tool kits available
• Tactical drums and accessories available
4
CTOS
CTOL
1, 2 or 4
2, 4, 6 or 8
Multimode 50/125 @ 1300 nm
(per mated pair of plug)
DEL source : 1.5dB typical ; 2dB max
Single mode LASER source: 0.8dB typ ; 1.2dB max
Durability
10000 mating min
Operating temperature
-40°C, + 85°C
Vibrations
10 to 2000Hz, 10g, 1.5 mm p/p, 3 directions
Bump resistance
4000 Bumps, 40g, 6ms, 6 directions
Mechanical shock
50g, 1/2 sinus, 3 shocks by direction, 3 axes
Mud resistance
Compliant
Free drops
26 drops 1.2m on concrete (plugs)
Water immersion
> 5m depth
Salt frog
500 hours
Low pressure
85 mbars 48 hours
Storage temperature
-55°C, +85°C
Crush resistance
1 tonne, 10sec
Tensile load
Short time: 2200 N
(cable dependant)
Permanent: 1300 N
Decontamination Fluid Resistance
Compliant
STANDARD
Number of channel
Insertion loss
MIL-STD-810E
MIL-STD-810D
MIL-STD-810E
MIL-STD-810E
MIL-C-83526 13
MIL-STD-810D
MIL-STD-810D
NFC 20706
MIL-STD-810E
NF 93810
DOD-STD-1678
DOD-STD-1678
976 Series
CTOS:
SMALL OPTICAL FIELD CONNECTOR
5
CTOS
CTOS PLUG WITH PROTECTIVE CAP (06M) - CTOS 06M
The CTOS plug provides hermaphroditic optical
links between two points. This plug is designed
to be used in harsh environment applications.
It can be terminated by a 1, 2, 4 fibers tactical
cable.
The tensile strength between plug and cable
can reach 200 daN (depending on cable performance)
6
Channel arrangements :
1 Channel
2 Channels
4 Channels
CTOS
HOW TO ORDER CTOS PLUG PIECE PARTS
Example: CTOS 06
M 2 01 Z 55 X BPF
Small Optical Field Connector
Plug
Tactical cable termination
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm max (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Plug Protective cap
HOW TO ORDER PLUG TO PLUG PATCHCORD
CTOS F
CTOS F
Example: CTOS FF
Small Optical Field Connector
Plug to plug
Number of channel : 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm max (see cable catalog)
Ex: 3,4 ➞ 34
Cable supplier (see cable catalog)
Plug Protective cap
7
4 02 Y 0200 55 X BPF
CTOS
HOW TO ORDER PLUG TO PLUG PATCHCORD REELED ON A DRUM
WITH OR WITHOUT ACCESSORIES
See tactical and economical drum description on to the crums catalog
CTOS F
CTOS F
Example:
CTOS
Small Optical Field Connector
Tactical drums
T06: 100 m
T05: 250 m
T01: 350 m
T03: 500 m
T04: 1000 m
T07: 2000 m
Economical drum (drum and frame integrated)
8
L1:
L2:
L3:
L345:
L36:
Economical drum (with hand holder)
D
Patchcord definition (see above):
Drum accessories:
Frame: Sup (for T01 to T07)
Handle: Poi (for T01 to T07)
Cranking tool: Man (for T01 to T07)
Back Pack: BP
Front pack (for 100 and 200 m tactical drums): SV (consult us)
T01
FF 4 02 Y 0200 55 X BPF
Sup+Poi+Man
CTOS
CTOS PLUG - CTOS F (TERMINATED)
CTOS F
ST2
ST2
How to order plug patchcord
Example: CTOS
F
2
01 Y 2.50
28 X BPF ST2
Small Optical Field Connector
Plug terminated
Channel number : 1, 2, 4
50 / 125 µm fiber fiber: 01
62,5 / 125 µm fiber fiber: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 2,8 to 7 mm max (see cable catalog)
Ex: 2,8 mm ➞ 28
Others: consult us.
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
Patchcord other end connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, SC duplex
Others consult us
9
CTOS
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77)
The jam nut receptacle has to be mounted on the vehicle or on a box , it provides the link between
the inside electro optic device and the outside optical link.
The jam nut receptacle is mated with the first CTOS plug of the outer link patchcord.
Fixed by means of an hexagonal nut with possibility to be stopped using a brake wire.
Front sealing ensured by an “O” ring.
Electrical contact between panel receptacle and protective cap (for EMI,CEM protection when cap
is on). Protective cap attached to the receptacle by a stainless steel rope and ring.
CTOS 77P: STRAIGHT BACKSHELL RECEPTACLE FOR PIGTAIL
10
How to order CTOS receptacle piece parts
Backshell main use:
To be used inside a vehicle or on a box to connect CTOS receptacle to the electro-optic
transceivers, in a protected area.
This rear part provides an easy cross connect
output.
Straight rear part to be used with 1, 2, 4 pigtails (2.8 mm single cable or duplex cable 2 x
3 , 2x 1.6 ). Each pigtail can be terminated with
ST, SC, FC, duplex SC, duplex LC, MTRJ connectors.
Pigtails tensile strength: 10 daN. (depending
on cable performance).
Example: CTOS 77
Small Optical Field Connector:
Jam nut receptacle:
Pig tails termination:
Number of channel : 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 1,5 to 3 mm (see cable catalog)
Ex : 2,8 mm ➞ 28
Others: consult us.
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
P
2 01
Z
28 X BPE
CTOS
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77) - CTOS 77P
How to order CTOS receptacle patchcord
ST2
ST2
CTOS 77P
Example: CTOS 77
P
4 01 Y 2.50 230 X BPE ST2
Small Optical Field Connector
Jam nut receptacle
Pig tails termination
Number of chanel : 1, 2, 4
50 / 125 µm fiber diameter : 01
62,5 / 125 µm fiber diameter : 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 1,5 to 3 mm max (see cable catalog)
Ex: 1,5 mm ➞ 15
Others: consult us.
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
Patchcord other end connectors
ST2, SC, FC, LC, duplex SC, duplex LC, MTRJ
Others consult us
11
CTOS
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77)
CTOS 77C00: straight backshell receptacle for tactical cable
Backshell main use:
To be used inside a vehicle or on a box to connect CTOS receptacle to the electro-optic
transceivers, in a non protected area.
Unsealed straight backshell to be used with 1
or 2 tactical cables (1,2 or 4 number of channels) inside a vehicle.
The rear part is made of 2 half shells molded
in aluminum alloy.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 100 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
Small Optical Field connector
Jam nut receptacle
12
Two half shells rear part for tactical cable
Straight backshell
Number of channel : 1, 2, 4
50 / 125 µm fiber diameter : 01
62,5 / 125 µm fiber diameter : 02
Compatible wavelength 1300 nm : Y
Compatible wavelength 840 - 1300 nm : Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
77
C
00 2
01
Z 55
X BPE
CTOS
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77) - CTOS 77C00
How to order receptacle patchcord
CTOS 77C00
TVOP
Example: CTOS 77 C 00 2 01
Z 0015 70
X
BPE TVOP
Small Optical Field Connector
Jam nut receptacle
Two half shells rear part for tactical cable
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 7 mm ➞ 70
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
Patchcord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
13
CTOS
J
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77)
CTOS 77M00: sealed straight backshell receptacle for tactical cable
Backshell main use:
To be used inside and outside a vehicle to connect CTOS receptacle to the electro-optic transceivers, in a non protected and humid area.
Straight backshell to be used with a 1, 2, 4 fibers
tactical cables inside or outside a vehicle.
The rear part is made of an aluminum alloy shell
with a cable retention clamp.
Complete front and rear sealing.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 100 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
Small Optical Field Connector
14
Jam nut receptacle
Tactical cable sealed termination
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
77
M 00 2
01
Z 55
X BPE
CTOS
J
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77) - CTOS 77M00
How to order receptacle patchcord
CTOS 77M00
TVOP
Example: CTOS 77 M 00 2 01
Z 0015 70
X
BPE TVOP
Small Optical Field Connector
Jam nut receptacle
Tactical cable sealed termination
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable cable)
Jam nut receptacle protective cap
Patchcord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC, FC, duplex SC
Others consult us
For other configurations consult us.
15
CTOS
J
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77)
CTOS 77C90: 90° backshell receptacle for tactical cable
Backshell main use:
To be used inside a vehicle or on a box to connect CTOS receptacle to the electro-optic
transceivers, in non protected area, or when
the rear space is too narrow.
90° backshell not sealed to be used with a 1,
2, 4 fiber tactical cable inside a vehicle.
The rear part is made of 2 half shells molded
in aluminum alloy.
Backshell with reduced overall dimensions.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 50 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
Small Optical Field Connector
16
Jam nut receptacle
Two half shell rear part for tactical cable
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
77
C
90 2
01
Z 55
X BPE
CTOS
J
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77) - CTOS 77C90
How to order receptacle patchcord
CTOS 77C90
STA
Example: CTOS 77 C 90 2 02
Y 1.50 70
X
BPE STA
Small Optical Field Connector
Jam nut receptacle
Two half shells rear part for tactical cable
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5 mm ➞ 50
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
Patch cord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
17
CTOS
J
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77)
CTOS 77M90: sealed 90° backshell receptacle for tactical cable
Backshell main use:
To be used inside and outside a vehicle to
connect CTOS receptacle to the electro-optic
transceivers, in a non protected or humid
area, or when the rear space is too narrow.
90° backshell to be used with a 2 or 4 fibers
tactical cable outside a vehicle.
Complete front and rear sealing.
Backshell with reduced overall dimensions.
Possibility to add a multi channel connector
at the other cable end.
Cable/receptacle tensile strength: 50 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
Small Optical Field Connector
18
Jam nut receptacle
Tactical cable sealed termination
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
77
M 90 2
01
Z 55
X BPE
CTOS
J
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77) - CTOS 77M90
How to order receptacle patchcord
CTOS 77M90
TVOP
Example: CTOS 77 M 90 2 02
Y 1.50 55
X
BPE TVOP
Small Optical Field Connector
Jam nut receptacle
Tactical cable sealed termination
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
Patch cord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
19
CTOS
J
20
CTOS “JAM NUT” RECEPTACLE – REAR MOUNT (77)
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00)
The square flange receptacle has to be mounted on to the vehicle panel. It provides the link
between the inside electro-optic device and the outside optical link.
The square flange receptacle receives the first CTOS plug of the outer link patchcord.
The square flange type makes it possible to have a high density of receptacles on a panel.
Easy panel cut off of 5 round holes.
Fixation by 4 screws. - Front sealing ensured by a flat gasket.
Electrical contact between panel receptacle and protective cap (EMI,CEM protection when cap is
on). Protective cap attached to the panel or to the receptacle by a stainless steel rope.
J
CTOS 00P: STRAIGHT BACKSHELL RECEPTACLE FOR PIG TAIL
Backshell main use:
To be used inside a vehicle or on a box to connect CTOS receptacle to the electro-optic
transceivers, in a protected area.
This rear part makes possible an easy cross
connect output.
Straight rear part to be used with 1, 2, 4, pigtails (2.8 mm single cable or duplex cable 2 x
3 ,2x 1.6 ). Each pigtail can be terminated with
ST,SC,FC, duplex SC and MTRJ connectors.
Pig tails tensile strength: 10 daN.
(depending on cable performance)
How to order CTOS receptacle piece parts
Example: CTOS
Small Optical Field Connector:
Square flange receptacle:
Pig tails termination:
Number of channel : 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 1,5 to 3 mm (see cable catalog)
Ex : 2,8 mm ➞ 28
Others: consult us.
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
00
P
2 01
Z
28 X BPP
21
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00) - CTOS 00P
How to order CTOS receptacle patchcord
CTOS 00P
SC
SC
Example: CTOS 00
Small Optical Field Connector
Square receptacle
Pig tails termination
Number of channel : 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 1,5 to 3 mm max (see cable catalog)
Ex: 1,5 mm ➞ 15
Others: consult us.
Cable supplier (see cable catalog)
22
Jam nut receptacle protective cap
Patchcord other end connectors
ST2, SC, FC, LC,duplex SC, LC duplex, MTRJ
Others consult us
P
4 01 Y 2.50 230 X BPP ST2
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00)
CTOS 00C00: straight backshell receptacle for tactical cable
Backshell main use:
To be used inside a vehicle or on a box to connect CTOS receptacle to the electro-optic
transceivers, in non protected area.
Unsealed straight backshell to be used with 1
or 2 tactical cables (1,2 or 4 number of channels) inside a vehicle.
The rear part is made of 2 half shells molded
in aluminum alloy.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 100 daN
(depending on cable performances).
How to order CTOS receptacle piece parts
Example: CTOS
00
C
00
2 01 Z
55
X BPP
Small Optical Field connector
Square flange receptacle
Two half shell rear part for tactical cable
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
23
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00) - CTOS 00C00
How to order CTOS receptacle patchcord
CTOS 00C00
TVOP
Example: CTOS 00 C 00 2 01
Small Optical Field Connector
Square flange receptacle
Two half shell rear part for tactical cable
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 7 mm ➞ 70
Cable supplier (see cable catalog)
24
Jam nut receptacle protective cap
Patchcord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
Z 0015 70
X
BPP TVOP
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00)
CTOS 00M00: sealed straight backshell receptacle for tactical cable
Backshell main use:
To be used inside and outside of a vehicle to
connect CTOS receptacle to the electro-optic
transceivers, in a non protected or humid area.
Straight backshell to be used with a 1,2, 4 fibers
tactical cable inside or outside a vehicle.
The rear part is made of an aluminum alloy shell
with bit of cable retention gland.
Complete front and rear sealing.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 100 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
00
M
00
2 01 Z
55
X BPP
Small Optical Field Connector
Square flange receptacle
Tactical cable sealed termination
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
25
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00) - CTOS 00M00
How to order receptacle patchcord
CTOS 00M00
AXOS
Example: CTOS 00 M 00 2 01
Small Optical Field Connector
Square flange receptacle
Tactical cable sealed termination
Straight backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable cable)
26
Jam nut receptacle protective cap
Patchcord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
Z 0015 55
X
BPP TVOP
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00)
CTOS 00C90: 90° backshell receptacle for tactical cable
Backshell main use:
To be used inside a vehicle or on a box to connect CTOL receptacle to the electro-optic transceivers, in a non protected area, or when the
rear space is too narrow.
Unsealed 90° backshell to be used with a 1, 2,
4, fibers tactical cable inside a vehicle.
The rear part is made of 2 half shells molded in
aluminum alloy.
Backshell with reduced overall dimensions.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 50 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
00
C
90
2 01 Z
55
X BPP
Small Optical Field Connector
Square flange receptacle
Two half shell rear part for tactical cable
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
27
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00) - CTOS 00C90
How to order receptacle patchcord
CTOS 77M90
STA
Example: CTOS 00 C 90 2 02
Small Optical Field Connector
Square flange receptacle
Two half shell rear part for tactical cable
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5 mm ➞ 50
Cable supplier (see cable catalog)
28
Jam nut receptacle protective cap
Patchcord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
Y 1.50 50
X
BPP STA
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00)
CTOS 00M90: sealed 90° backshell receptacle for tactical cable
Backshell main use:
To be used inside and outside a vehicle to connect CTOS receptacle to the electro-optic transceivers, in a non protected or humid area, or
when the rear space is too narrow.
90° backshell to be used with a 1, 2, 4 fibers
tactical cable inside or outside a vehicle.
Complete front and rear sealing.
Backshell with reduced overall dimensions.
Possibility to add a multi channel connector at
the other cable end.
Cable/receptacle tensile strength: 50 daN
(depending on cable performance).
How to order CTOS receptacle piece parts
Example: CTOS
00
M
90
2 01 Z
55
X BPP
Small Optical Field Connector
Square flange receptacle
Tactical cable sealed termination
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
Jam nut receptacle protective cap
29
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00) - CTOS 00M90
How to order receptacle patchcord
CTOS 00M90
TVOP
Example: CTOS 00 M 90 2 02
Small Optical Field Connector
Square flange receptacle
Tactical cable sealed termination
90° backshell
Number of channel: 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter ( if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm (see cable catalog)
Ex: 5,5 mm ➞ 55
Cable supplier (see cable catalog)
30
Jam nut receptacle protective cap
Patchcord other end plug connectors
STA, TVOP, AXOS, CTOS, ST, SC,FC, duplex SC
Others consult us
For other configurations consult us.
Y 1.50 55
X
BPP TVOP
CTOS
J
CTOS “SQUARE FLANGE” RECEPTACLE – REAR MOUNT (00)
31
CTOS
J
CTOS SHUNT CAPS
This device is designed to test the electronic emitter and receiver as well as the optical receptacle and the link
before the optical link deployment in the field.
The loop back is done by channel pairs: channel 1 with channel 2, channel 3 with channel 4.
CTOS receptacle protective shunt cap (BPPSA/BPESA)
BPESA shunt cap
The receptacle protective shunt cap is used to test the emitter, the
receiver and the CTOS receptacle on a vehicle before using the link.
This shunt cap introduces a large insertion loss which is optical
power budget dependent and has to be defined with the customer
(generally 20 dB max).
The BPESA is dedicated to test the jam nut receptacle. It is delivered
with a rope and a ring to be fixed under the hexagonal nut in order
to replace the receptacle protective cap (see the drawing).
The BPPSA is dedicated to test square flange receptacle. It is delivered with a panel attachement cord and can replace the receptacle
protective cap.
The BPBSA itself is equipped with a protective cap.
How to order CTOS receptacle protective shunt cap
CTOS
BPPSA
20
BSA
4
Small Optical Field Connector
32
Protective shunt attenuating cap for jam nut receptacle: BPESA
Protective shunt attenuating cap for square flange receptacle: BPPSA
Protective shunt attenuating cap for receptacle equipped with a protective cap: BPBSA
Insertion loss in dB:
J
CTOS BSA
The BSA is a plug shunt cap with a low insertion loss,
to test the plug to plug CTOS patchcord on a reel before
the optical link is deployed.
The maximum insertion loss is fixed at 4 dB.
The BSA is equipped with a protective cap.
How to order CTOS receptacle protective shunt cap
CTOS
Small Optical Field Connector
Attenuating shunt cap for plug equipped with a protective cap:
Insertion loss maximum in dB:
Fiber optic cable catalogue
Every “How to order” related to plug, patchcord and receptacles requires fiber
optic cables informations as below:
Example: CTOS FF
4
02 Y 0200 55 X BPF
Number of channel : 1, 2, 4
50 / 125 µm fiber diameter: 01
62,5 / 125 µm fiber diameter: 02
Compatible wavelength 1300 nm: Y
Compatible wavelength 840 - 1300 nm: Z
Cable length in meter (if L<10 m: x.xx)
Cable diameter from 3,4 to 7 mm max (see below)
Ex: 3,4 ➞ 34
Cable supplier (see below)
Cable diameter & supplier:
Cable diameter and supplier have to be indicated in the « How to order » document.
They are describe as below under « Specifications to write down ».
50
Cable diameter
(mm)
Specifications
to write down
on the
how to order
1.5 1.6 2.8 mono 3 duplex 3 scindex 3.8 5.5 6 6.6 7 7.5
15 16
28
230
231
38 55 60 65 70 75
Cable suppliers
Specifications
to write down
on the
how to order
NEXANS
SPECTRA
PIRELLI
NOKIA
BOSH
DRAKA
BRUGG
No customer requirements
A
S
P
N
B
D
G
X
Tactical cables technical information
OCC
Company
NEXANS
SPECTRA STRIP
BRUGG
Number of fibers
2
4
6
8
1
2-4
6
8
1-2-4-6-8
1
2
4
Cable diameter mm (in)
5
(0,2)
5,5
(0,22)
6.0
(0,24)
6,5
(0,26)
6
(0,24)
5,4
(0,21)
6,1
(0,24)
6,3
(0,25)
5,5 (0,22)
3,4
(0,13)
3,8
(0,15)
3,8
(0,15)
Cable weight kg/km (lb/1,000ft)
23
(15)
28 (19)
28
(19)
38
(26)
26
(18)
25
(17)
32
(22)
35
(24)
18
(12)
25
(17)
26
(17)
Reinforcing protection
Outside jacket
Fiber minimum
bandwidth
Fiber maximal
attenuation
Multimode
850nm (MHz/km)
Multimode 1300nm
(MHz/km)
Single mode
1310nm (GHz/km)
Single mode
1550nm (GHz/km)
Multimode
850nm (dB/km)
aramid yarns
aramid yarns
polyurethan
polyurethan
spectraloy
25
stainless-steel wires
polyamid
200 (50/125)
400 (62,5/125)
400 (50/125)
600 (62,5/125)
500 (50/125)
200 (62,5/125)
800 (50/125)
500 (62,5/125)
500 (62,5/125)
500
800
-
-
3,5
3,5
-
-
18
18
3 (62,5/125)
3,5
3,5
2,7
1 (62,5/125)
1,5
1,5
0,8
Single mode
1310nm (dB/km)
-
0,42
0,45
0,36
Single mode
1550nm (dB/km)
-
0,28
0,3
0,25
Storage
-70°C / +85°C
(-94°F / +185°F)
-40°C / +70°C
(-40°F / +158°F)
-60°C / +85°C
(-76°F / +185°F)
Operating
-55°C / +85°C
(-67°F / +185°F)
-40°C / +70°C
(-40°F / +158°F)
-55°C / +85°C
(-67°F / +185°F)
Temperature
range
Minimum bending radius mm (in)
Maximum tensile
strength
aramid yarns
200 (62,5/125)
Multimode 1300nm
(dB/km)
(2-4 core typically)
(17)
60
(2,36)
8 X OD cable
-60°C / +85°C
(-76°F / +185°F)
-55°C / +85°C
(-67°F / +185°F)
30
(1,18)
35
(1,38)
35
(1,38)
(2-4 core typically)
(60- 1 part.3 cl.15.1)
2000 (450)
1000
(225)
2500
(562)
1600
(360)
10 X OD cable
50 (1,97)
Short term
N (lbs.f)
1800
(405)
1800
(405)
1800
(405)
1800
(405)
(IEC 794 1E1)
2200 (495)
Operating
N (lbs.f)
600
(135)
600
(135)
600
(135)
600
(135)
1300 (292)
(2-4 core typically)
2600
750
(169)
1800
(405)
1100
(247)
(2-4 core typically)
(IEC 60794-1-1 &2)
1200 (685)
2500
(1428)
1200
(685)
1000
(571)
Crush resistance N/cm (lbs/in)
(EIA 455 41)
440 (251)
(IEC 794 1E3)
300 (171)
Impact resistance (1J impact)
(EIA 455 25)
200
(IEC 794 1E4)
100
100 min
(TIA/EIA-455-104)
2000 cycles
(IEC 794 1E8)
30000 cycles
(2-4 core typically)
(IEC 60794-1-1)
1000 cycles
Torsion/torque
100 min
10000
min
7000
min
7000
min
Technical information given by the supplier
Tactical cables with aramid yarn reinforcing protection
Optical fiber
Fiber coating
Buffer (900 µm)
Aramid yarns
Outside jacket
Tactical cable with stainless steel wires reinforcing protection
1 - Polyamide jacket
2 - Stainless steel wires
3 - Optical fibres (250 µm)
4 - Stainless steel loose tube
51
NORTH AMERICA
AMPHENOL PCD, Inc.
2 technology Drive
Peabody, MA 01960
Telephone: 1-978-532-8800
Fax: 1-978-532-6800
AMPHENOL AEROSPACE OPERATIONS
AMPHENOL INDUSTRIAL OPERATIONS
40-60 Delaware Street
Sidney, New York 13838-1395 - USA
Telephone: 1-607-563-5011
Fax: 1-607-563-5157
AMPHENOL BACKPLANE SYSTEMS
18 Celina Avenue
Nashua, New Hampshire 03063 - USA
Telephone: 1-603-883-5100
Fax: 1-603-883-0171
AMPHENOL CANADA CORPORATION
20 Melford Drive - Scarborough, Ontario M1B 2X6
Canada
Telephone: 1-416-291-4401
Fax: 1-416-292-0647
1870 boul. des Sources, Suite 204
Pointe Claire, Quebec H9R 5N4 - Canada
Telephone: 1-514-630-7242 ext. 225
Fax: 1-514-630-7697
AMPHENOL FIBER OPTIC PRODUCTSRICHARDSON OPERATION
1778 North Plano Road, Suite 212
Richardson, Texas 75081
Telephone: 1-972-744-9801
Fax: 1-972-744-9022
EUROPE
AMPHENOL SOCAPEX
MIL-AERO & INDUSTRIAL Business Unit
948 Promenade de l’Arve - B. P. 29
74311 Thyez Cedex - France
Telephone: 33-4-5089-2800
Fax: 33-4-5096-1941
AMPHENOL LIMITED WHITSTABLE
Thanet Way, Whitstable - Kent, CT5 3JF
United Kingdom
Telephone: 44-1227-773-200
Fax: 44-1227-276-571
AMPHENOL LIMITED NOTTHINGHAM
Unit D1 Crossgate Drive, Queens Drive Industrial
Estate - NG2 1LW - Notthingham - United Kingdom
Telephone: 44-1159-866-200
Fax: 44-1159-866-212
AMPHENOL AIR LB GmbH
Am Kleinbahnhof 4 - 66740 Saarlouis Germany
Telephone: 49-6831-981-00
Fax: 49-6831-981-030
AMPHENOL ITALIA
Via Barbaiana n. 5, 20020 Lainate - Milano - Italy
Telephone: 39-293-55-03-71
Fax: 39-348-361-7249
AMPHENOL IBERICA
C/Calderon de la barca, 3 4A, 28 100 Alcobendas,
Madrid - Spain
Telephone: 34-91-654-83-52
Fax: 34-91-640-73-07
AMPHENOL JAPAN MIL/AERO INDUSTRIAL
689-1, Iseochi, Ritto-shi Shiga 520-3044 - Japan
Telephone: 81-77-553-8501
Fax: 81-77-551-2200
AMPHENOL DAESHIN
558 Sosa, SongNea
Bucheon-city, Kyunggi-Do - Korea 420-130
Telephone : 82-32-610-3800
Fax: 82-32-673-2507/665-6219
REST OF THE WORLD
AMPHENOL SCANDINAVIA
Snosvangen 14 13466 Ingaro - Sweden
Telephone: 46-8-571-423-90
Fax: 46-8-571-423-89
AMPHENOL BENELUX
Zadelmaker 121 NL-2401 PD Alphen aan den Rijn
The Netherlands
Telephone: 31-172-444-903
Fax: 31-172-240-254
AMPHENOL CENTRAL EUROPE
Topolowa 13, 41 600 Swietochlowice - Poland
Telephone: 48-32-3484-201
Fax: 48-32-3484-202
AMPHENOL EUROPEAN
SALES OPERATIONS
Hoofdveste 19 - 3992 DH Houten - The Netherlands
Telephone: 31-30-635-8000
Fax: 31-30-637-7034
ASIA
CHINA (FOP)
3rd Floor, The 4th Ind. District of Ind.
Headquarters Dong Keng Road, Gong Ming Town
Shenzen 518132, Guangdong Province - PR China
Telephone: 86-755-717-7945
Fax: 86-755-717-7622
AMPHENOL TAIWAN CORPORATION
No. 116, Lane 956, Zhong Shan Road
Taoyuan City, R. O. C., 330 - Taiwan
Telephone: 886-3-379-5677
Fax: 886-3-360-7259 Sales/CS/Eng./QA/MIS
AMPHENOL MEXICO
Prolongacion Reforma 61-6 B2
Col. Paseo de las Lomas - C.P. 013130 Mexico
Telephone : 52-55-5258-9984
Fax: 52-55-5081-6890
AMPHENOL SOUTH AFRICA
30 Impala Road
2196 Chislehurston-Sandton - South Africa
Telephone: 27-11-783-9517
Fax : 27-11-783-9519
BAR TEC LTD
4 Hagavish St, PO Box 279 - Kfar Saba 44102 Israel
Telephone: 972-9-767-4097
Fax: 972-9-767-4324
GESTAS
34630, Besyol Londra Asfalti
Florya is Merkezi Kat.2 - Sefakoy / Istanbul - Turkey
Telephone: 90-212-624-52-29
Fax: 90-212-599-30-68
AMPHENOL ARGENTINA
“Av. Callao 930 2do piso Oficina B “Plaza”
C1023” - AAP Buenos Aires - Argentina
Telephone: 54-11-4815-6886
Fax: 54-11-4814-5779
TFC SOUTH AMERICA
BUENOS AIRES, ARGENTINA
Local Sales Office - Tucuman 540 - Suite 28 “C”
C1049AAL- Buenos Aires - Argentina
Telephone: 54-11-4325-3471
Fax: 54-11-4327-1339
AMPHENOL EAST ASIA LIMITED
2201 Railway Plaza, 39 Chatham Road South
Tsmishatsui, Kowloon - Hong Kong
Telephone: 852-2699-2663
Fax : 852-2691-1774
AMPHENOL INTERCONNECT INDIA
PRIVATE LIMITED
105 Bhosari Industrial Area - Pune 411 026 - India
Telephone: 91-20-712-0363/0463/0155
Fax: 91-20-712-0581
AMPHENOL AUSTRALIA PTY LIMITED
2 Fiveways Blvd., Keysborough
Melbourne, Victoria 3173 - Australia
Telephone: 61-3-8796-8888
Fax: 61-3-8796-8801
AMPHENOL DO BRAZIL
Rua Diogo Moreira, 132, 20 andar, rooms 2001-2-3
CEP: 05423-010 Sao Paulo SP - Brazil
Telephone: 55-11-3815-1003
Fax: 55-11-3815-1629
DOC-000502-ANG
Amphenol reserves the right to change the content of this document without prior notice
Realisation : wanagen:studios - Steven Kilgallon - 01/2004
Printed in France by MenloPark
For more informations, please consult our website :
www.amphenol-fiberopticsolutions.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
