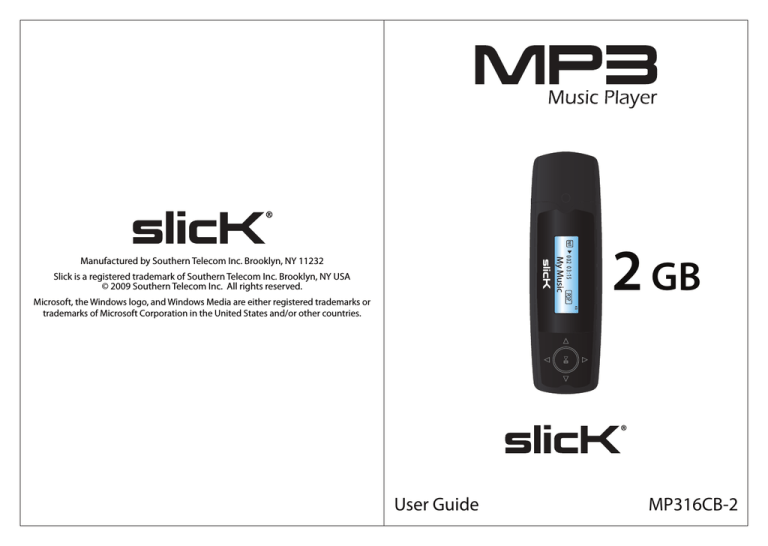

Slick MP316CB-2 User manual

Slick MP316CB-2 User manual
mp3
My Music
Slick is a registered trademark of Southern Telecom Inc. Brooklyn, NY USA
© 2009 Southern Telecom Inc. All rights reserved.
002 03:15
Manufactured by Southern Telecom Inc. Brooklyn, NY 11232
POP
Microsoft, the Windows logo, and Windows Media are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
User Guide
2 GB
MP316CB-2
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device
under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended
to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Re-orient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this equipment not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Introduction
Congratulations on purchasing the Slick MP3 Music Player.
This manual contains important safety information and correct operation instructions.
Before using the player, read this manual thoroughly and keep it for future reference.
Copyright Information
Trademarks and trade names used in this instruction manual are owned by their respective companies
or organizations.
Unauthorized duplication of any recordings whether downloaded from the internet or made from audio
CDs is a violation of copyright laws and international treaties.
The making of unauthorized copies of copy-protected material, may be an infringement of copyrights
and constitute a criminal offence. This equipment should not be used for such purposes.
Imortant Safety Information
Always follow these basic safety precautions when using your player. This will reduce the risk of product
damage and personal injury.
● Do not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel.
● This device requires a “AAA” size battery, do not dispose of in fire.
● In the event that the battery is leaking, do not handle the device with your bare hands. Contact the
service center for help since the liquid may remain in the player. If your body or clothes had contact with
the battery liquid, wash it off thoroughly with water. Also, if some liquid gets into your eyes, do not rub
your eyes but immediately wash them with clean water and consult a doctor.
● Keep the player away from direct sunlight and any direct heat source.
● Do not expose the unit to rain or moisture.
● Do not use the player in dry environments to avoid static.
● Never apply heavy impact on the player, or place it on a magnet.
● Disconnect from the computer, if you will not be using the player for a long time.
● Clean only with a dry cloth. Make sure the player is turned off before cleaning. Do not use a liquid
cleanser.
● Be sure to back up your files to avoid data loss.
Should you have any questions or problems concerning this
product, please contact our customer service department at:
1-877-768-8483 (Toll Free)
Monday - Thursday: 9AM - 5PM (EST)
Friday: 9AM - 3PM (EST)
or
via e-mail at
[email protected]
To obtain service after the warranty period, please e-mail: [email protected] with
product information, date of purchase and nature of the problem. Customer service will reply
to the e-mail with service instructions.
Warranty service not provided:
This warranty does not cover damage resulting from accident, misuse, abuse, improper
installation or operation, lack of reasonable care, and unauthorized modification. This
warranty is voided in the event any unauthorized person opens, alters, or repairs this
product. All products being returned to the authorized service center for repair must be
suitably packaged.
Limitation of Warranty:
● THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY SOUTHERN TELECOM INC.
IT’S AGENTS, OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS
WARRANTY.
● REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER,
SOUTHERN TELECOM INC. SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT. THIS DISLAIMER OF WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE
OF NEW YORK, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE APPLICABLE
WARRANTY PERIOD SET FORTH ABOVE.
How state law relates to this warranty:
● Some states do not allow the exclusion nor limitation of incidental, consequential
damages, or limitations on how long an implied warranty lasts so the above limitations or
exclusion may not apply to you.
● This warranty gives you specific legal rights, and you also may have other rights that vary
from state to state.
1
14
Specification
Audio Format
MP3 bit Rate
WMA bit rate
S/N rate
Dynamic range
Distortion
Power out
EQ
Precautions in using the headphones
MP3/WMA/WAV
8 ~ 320 Kbps
32 Kbps~320 Kbps
≥ 85 dB
≥ 80 dB
< 0.2 %
2 x 5 mW
Natural, Rock, Pop,
Classic, Soft, Jazz,
DBB, SRS WOW
Size (L x W x H)
Weight
Frequency
response
Dynamic current
85 x 28 x 20.5 mm
< 25 g (without accessories)
20 Hz ~ 20 KHz
≤40mA(Play MP3,
backlight off)
Power off current ≤ 0.30 mA
Recording format WAV
Limited Warranty
In the unlikely event that this product is defective, or does not perform properly, you may
within ninety (90) days from your original date of purchase return it to the authorized service
center for repair or exchange.
TO OBTAIN WARRANTY SERVICE:
- Provide proof of the date of purchase within the package (dated bill of sale).
- Prepay all shipping costs to the authorized service center, and remember to insure your
return.
- Include a return shipping address (no P.O.Boxes), a telephone contact number, and the
defective unit within the package.
- Describe the defect or reason you are returning the product.
Your product will be repaired or replaced, at our option, for the same or similar model of equal
value if examination by the service center determines this product is defective. Products
received damaged, as a result of shipping will require you to file a claim with the carrier.
Location of controls
3
4
5 7 2
10
9 8 6
1. [ ] - Press and HOLD to turn the player “ON” or “OFF” / Enter / Enter
submenu for all modes
2. Headphone jack
3. Cap for USB connector
4. Display screen
5. [◄ ] - Left / Previous button
6. [ ►] - Right / Next button
7. [ ▲] - Volume up
8. [ ▼] - Volume down
9. [►ІІ] - Play / Pause button / Press and HOLD to enter the main menu
10. Microphone
Battery installation (battery not included)
1
● Remove the USB cap.
● Open the battery cover on the back of the player by sliding it in the direction of
the arrow.
● Insert one alkaline “AAA” size battery into the battery compartment.
● Replace the battery cover.
Battery level indication
The approximate power levels of your battery are indicated as follows:
The shipping address of the authorized
service center is:
Southern Telecom Inc.
ATTN: Returns Department
14-C 53rd Street
Brooklyn, NY 11232
13
● Do not use the headphones while driving
an automobile or riding a bicycle. It is
dangerous, and against the law. To avoid an
accident, do not turn up the volume of the
headphones too high while walking.
● It is not recommended that you use the headphones at a high volume for an extended
time, as this may cause hearing damage.
Continued →
Full Two-thirds full Half full
2
Low
Empty
System requirements
Troubleshooting
Your computer system must meet the following specifications:
● Pentium 200MHz or above
● Microsoft Windows 2000/ME/XP/Vista
● USB port supported
Connecting to a computer
Connect the player to a computer to transfer your music files.
1. Connect the player to the computer’s USB port.
2. The computer system detects “New hardware” and starts to install the driver
automatically. Wait for the system to finish the installation.
When it has finished, “Slick MP3” will appear in “ My Computer”.
Slick MP3 (G:)
If you have problems while operating your player, please check the points below
before sending it to the service center.
Cannot power on
The battery may be exhausted, please change the battery.
Files can not be transferred to the player
● Check if the driver is installed correctly in the computer by disconnecring and
then reconnecting the player to the computer
● Check the connection between the player and PC, and confirm that it is properly
connected to the computer’s USB port
No sound from the headphones
● Please ensure the volume is turned up, and the headphones are properly
connected
● Check if the format of music file is supported by the player
Can not record
Check if there is enough memory and battery capacity
Display is in the wrong language
Please ensure you selected the correct language from the “Settings” menu
The buttons do not work
● The player may be locked. Press and HOLD the [ ►ІІ ] button to deactivate the
lock function
● To adjust this feature select: Settings > Lock
My computer is not detecting the MP3 Player with Windows Vista
There is a USB mass storage devices recognition issue with Windows Vista
acknowledged by Microsoft. A solution is available in the Service Pack 1 which
may be downloaded from Microsoft’s website
“Slick MP3”
3
12
Folder navigation
In the File View mode, you can browse all files stored on the player.
1. Select “Folder” from the main menu, and press the [ ►ІІ ] button.
2. Use the [◄ ] or [ ►] button to select a folder or file, and press the [ ►ІІ ] button.
Main Menu Screen
Select “Folder”
Changing player settings
In the “Settings” mode you can customize and configure your MP3 Player.
Main Menu Screen
Select “Settings”
Transferring media files to the player
To copy and transfer your music to the player follow the steps below:
1) Connect the MP3 Player to the USB port of your computer.
2) Open the “Windows Explorer” or click on “My Computer”, and locate
“Slick MP3”.
3) Select the files on your computer and simply move it into “Slick MP3” in the
usual way (drag and drop, or copy and paste). After copying is completed, the
data will be available on the player.
Find your music files on your
computer
Connect the MP3 player to your
computer, and locate “Slick MP3”.
Drag the files into the area shown below.
Slick MP3
1. Select “Settings” from the main menu, and press the [ ►ІІ ] button.
2. Use the [◄ ] or [ ►] button to select an option, and press the [ ►ІІ ] button.
3. Use the [◄ ] or [ ►] button to select a value, and press the [ ►ІІ ] button to
confirm, or press the [ ] button to exit and not confirm.
4. Press and HOLD the [ ►ІІ ] button to return to the main menu.
Drag or copy
files here
Slick MP3 (G:)
Setting and options
Settings
Backlight
Language
Power Off
Firmware version
Default set
Lock
Exit
Options
Set up the backlight time of the display. The available options
include: 0s, 3s, 5s, 10s, 15s, 30s
Select a language
Off time
To power off automatically after a certain time in
playing mode. The available options include:
0m, 1m, 15m, 30m, 60m, 120m
Sleep time To power off automatically after a certain time
in standby mode. The available options
include: 0s, 5s, 10s, 30s, 60s, 120s, 255s
View software version
Reset all settings back to factory default settings
Set the amount of time before the player locks the buttons.
The available options include: 0s, 3s. 5s, 10s, 30s, 60s, 255s
Exit and return to the main menu
NOTE: selecting “0” disables the option.
11
Locate “Slick MP3”
Note: Please do not disconnect the player during loading as it may cause a
malfunction of the player and the files.
Disconnecting the player
After completing the file transfer, disconnect the player the following way:
1. Double click the green arrow “Safely Remove Hardware” in the task bar on the
bottom right of the window.
2. Select “USB Device” and click “Stop”.
3. When the “Stop a Hardware device”
appears, click “OK” to disconnect the
USB mass storage device, and unplug
the player safely.
4
Basic operation
Make sure the battery and headphones are installed properly before using the
player.
Turning on/off
● To turn on the player, press and HOLD the [ ] button until the display turns on.
● To turn off the player, press and HOLD the [ ] button until the display turns off.
Adjusting the volume
● To increase the volume, press the [ ▲] button.
● To decrease the volume, press the [ ▼] button.
Main menu
Main Menu Screen
1. Press and HOLD the [ ►ІІ ] button to enter the main
menu from any mode.
2. Press the [◄ ] or [ ►] button to select : Music,
Record,Voice, Folder or Settings.
3. Press the [ ►ІІ ] button to enter and confirm your selections.
Main menu items Description
Music
Play music
Record
Voice recording
Voice
Listen to recordings
Folder
View folders
Settings
Customize the settings of your player
Unlock buttons
The buttons of the player are locked when not used for a certain period of time.
This feature prevents you from accidentally pressing the buttons while using the
player on the move.
● To unlock the buttons, press and HOLD the [ ►ІІ ] button.
● To adjust select: Settings > Lock.
1. Recording No./Total recordings
2. File name
3. Battery status
4. Recording mode
5. Time elapsed/Total time
Recording Screen
Playing back voice recordings
1. Select “Voice” from the main menu, and press the [ ►ІІ ] button.
2. Use the [◄ ] or [ ►] button to select a recorded file.
3. Press the [ ►ІІ ] button to start playing.
Main Menu Screen
Select “Voice”
While playing back voice recordings you can:
● Pause/Resume Playing: Press the [ ►ІІ ] button to pause or resume playback.
● Skipping Tracks: Use the [◄ ] or [ ►] button to skip to the previous or next
track.
● Searching: Press and HOLD the [◄ ] button to fast rewind within a track; Press
and HOLD the [ ►] button to fast forward within a track.
● Adjust Volume: Press the [ ▲] or [ ▼] button to increase or decrease the
volume.
● Main Menu: Press and HOLD the [ ►ІІ ] button to return to the main menu.
1. Recording No./Total recordings
2. File name
3. Battery status
4. Voice mode
5. Time elapsed/Total time
Windows Media Player
To organize and play your music, rip CD tracks to your hard drive, and transfer
music to your player, we recommend using Windows Media Player. If Windows
Media Player is not installed on your computer, you may download the latest version
(Windows Media Player 11) of the player from:
www.microsoft.com/windows/windowsmedia/player/download
If you are unsure of which version of Windows Media Player is compatible with your
operating system, you may use the link below for more information regarding
previous versions of the Windows Media Player.
www.microsoft.com/windows/windowsmedia/player/versions.aspx
5
Playback Screen
NOTE: To delete a voice recording, please refer to “Mangaing/deleting audio
files” on page 9.
10
● Tempo rate: Set the music playing rate. Use the [◄ ] or [ ►] button to select:
-8, -7, -6, -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5, 6, 7, 8.
● Favorite: Add or view songs to the “Favorite” playlist. Select “Add” to add the
current song to the “Favorite” playlist, or “View” to select songs that you have
previously strored to your “Favorite” playlist.
● Exit: Exit and return to the music playing mode.
Getting music on your computer using Windows Media Player 11
1. Open Windows Media Player.
2. Click on the “Rip” tab.
Click “Rip” tab to start ripping
Managing/deleting audio files
Manage or delete files and folders containing your music and voice recordings.
1. Press the [ ] button while a song or voice recording is in the “Stop” mode.
2. Use the [◄ ] or [ ►] button to select: Local folder, Delete file, Delete all,
or Exit.
3. Press the [ ►ІІ ] button to enter and confirm your selections.
● Local folder: View all audio files from the local folder. Use the [◄ ] or [ ►]
button to select an audio file or folder, and press the [ ►ІІ ] button to select the
file and enter the music playing mode.
● Delete file: Delete the current file. Use the [◄ ] or [ ►] button to select “YES”
or “NO”, and press the [ ►ІІ ] button to confirm.
● Delete all: Delete all files stored in the local folder. Use the [◄ ] or [ ►]
button to select “YES” or “NO”, and press the [ ►ІІ ] button to confirm.
● Exit: Exit and return to music mode.
Voice Recording and Playback
Default Setting
3. Insert a music CD into the CD-ROM drive of your computer.
4. Click the check boxes to select which tracks to rip. If you would like to rip the
entire album, click the check box next to “Album”.
5. Cllick “Start Rip”.
Recording
1. Select “Record” from the main menu, and press the [ ►ІІ ] button.
2. Press the [ ►ІІ ] button again to start recording.
Check here to rip
entire album
Main Menu Screen
Select “Record”
Select individual
tracks to rip
While recording you can:
● Pause/Resume Recording: Press the [ ►ІІ ] button to pause or resume
recording.
● Save the Recording: Press and HOLD the [ ►ІІ ] button to save the recording.
● Main Menu: Press and HOLD the [ ►ІІ ] button to return to the main menu.
9
Click “Start Rip”
6
Getting music on your MP3 Player using Windows Media Player 11
1. Open Windows Media Player.
2. Windows Media Player will display the
music that you have on your computer
(you will need to search for your music
files if they are not located in the default
folder).
3. Connect your MP3 Player to the USB
port of the computer.
4. Click on the “Sync” tab.
5. To easily identify your player within
Windows Media Player, name it in the
“Device Setup” screen.
Music
Store and playback music on your MP3 Player. See “Transferring Media to the
player” (page 4) to transfer songs to the MP3 Player.
1. Select “Music” from the main menu, and press the [ ►ІІ ] button.
2. Use the [◄ ] or [ ►] button to select a song, and press the [ ►ІІ ] button to
begin playback.
Main Menu Screen
Select “Music”
“Device Setup” window
“Sync” Tab
Drag your
songs here
While playing music you can:
● Pause/Resume Playing: Press the [ ►ІІ ] button to pause or resume playback.
● Skipping Tracks: Use the [◄ ] or [ ►] button to skip to the previous or next
track.
● Searching: Press and HOLD the [◄ ] button to fast rewind within a track; Press
and HOLD the [ ►] button to fast forward within a track.
● Adjust Volume: Press the [ ▲] or [ ▼] button to increase or decrease the
volume.
● Main Menu: Press and HOLD the [ ►ІІ ] button to return to the main menu.
1. Bit rate
2. File name/ID3 tag
3. Battery status
4. Track No./Total tracks
5. Music repeat mode
6. Time elapsed/Total time
Click on “Start Sync”
6. Drag the songs you would like to sync to your MP3 player, and click on the
“Start Sync” button.
7. The selected songs will sync to your MP3 Player.
Sync in Progress
You may also transfer music
files by dragging / copying
them directly into your player.
See “Transferring media
files to the player” on
page 4.
7
Music Screen
Using the music menu
While the music is playing, press the [ ] button to access the music menu
1. Use the [◄ ] or [ ►] button to select among Repeat, Equalizer, Tempo rate,
Favorite and Exit.
2. Press the [ ►ІІ ] button to enter, and confirm your selections.
● Repeat: Set the music repeat mode. Use the [ ◄ ] or [ ►] button to select:
Normal, Repeat One, Repeat All, Random, or Intro, and press the [ ►ІІ ]
button.
● Equalizer: Set the music playing mode. Use the [ ◄ ] or [ ►] button to select:
Natural, Rock, Pop, Classic, Soft, Jazz, DBB, or SRS WOW, and press the
[ ►ІІ ] button.
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
