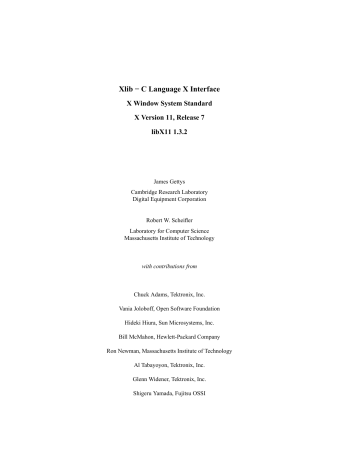

Xlib − C Language X Interface

X Window System Standard

X Version 11, Release 7 libX11 1.3.2

James Gettys

Cambridge Research Laboratory

Digital Equipment Corporation

Robert W. Scheifler

Laboratory for Computer Science

Massachusetts Institute of Technology

with contributions from

Chuck Adams, Tektronix, Inc.

Vania Joloboff, Open Software Foundation

Hideki Hiura, Sun Microsystems, Inc.

Bill McMahon, Hewlett-Packard Company

Ron Newman, Massachusetts Institute of Technology

Al Tabayoyon, Tektronix, Inc.

Glenn Widener, Tektronix, Inc.

Shigeru Yamada, Fujitsu OSSI

The X Window System is a trademark of The Open Group.

TekHVC is a trademark of Tektronix, Inc.

Copyright © 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1994, 1996, 2002 The Open Group

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTIC-

ULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE X CONSORTIUM BE LIABLE FOR

ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTH-

ERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER

DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of The Open Group shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from The Open Group.

Copyright © 1985, 1986, 1987, 1988, 1989, 1990, 1991 by Digital Equipment Corporation

Portions Copyright © 1990, 1991 by Tektronix, Inc.

Permission to use, copy, modify and distribute this documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and this permission notice appear in all copies, and that the names of Digital and Tektronix not be used in in advertising or publicity pertaining to this documentation without specific, written prior permission. Digital and Tektronix makes no representations about the suitability of this documentation for any purpose. It is provided ‘‘as is’’ without express or implied warranty.

Acknowledgments

The design and implementation of the first 10 versions of X were primarily the work of three individuals: Robert Scheifler of the MIT Laboratory for Computer Science and Jim Gettys of Digital Equipment Corporation and Ron Newman of MIT, both at MIT Project Athena. X version 11, however, is the result of the efforts of dozens of individuals at almost as many locations and organizations. At the risk of offending some of the players by exclusion, we would like to acknowledge some of the people who deserve special credit and recognition for their work on

Xlib. Our apologies to anyone inadvertently overlooked.

Release 1

Our thanks does to Ron Newman (MIT Project Athena), who contributed substantially to the design and implementation of the Version 11 Xlib interface.

Our thanks also goes to Ralph Swick (Project Athena and Digital) who kept it all together for us during the early releases. He handled literally thousands of requests from people everywhere and saved the sanity of at least one of us. His calm good cheer was a foundation on which we could build.

Our thanks also goes to Todd Brunhoff (Tektronix) who was ‘‘loaned’’ to Project Athena at exactly the right moment to provide very capable and much-needed assistance during the alpha and beta releases. He was responsible for the successful integration of sources from multiple sites; we would not have had a release without him.

Our thanks also goes to Al Mento and Al Wojtas of Digital’s ULTRIX Documentation Group.

With good humor and cheer, they took a rough draft and made it an infinitely better and more useful document. The work they hav e done will help many everywhere. We also would like to thank

Hal Murray (Digital SRC) and Peter George (Digital VMS) who contributed much by proofreading the early drafts of this document.

Our thanks also goes to Jeff Dike (Digital UEG), Tom Benson, Jackie Granfield, and Vince Orgovan (Digital VMS) who helped with the library utilities implementation; to Hania Gajewska (Digital UEG-WSL) who, along with Ellis Cohen (CMU and Siemens), was instrumental in the semantic design of the window manager properties; and to Dave Rosenthal (Sun Microsystems) who also contributed to the protocol and provided the sample generic color frame buffer devicedependent code.

The alpha and beta test participants deserve special recognition and thanks as well. It is significant that the bug reports (and many fixes) during alpha and beta test came almost exclusively from just a few of the alpha testers, mostly hardware vendors working on product implementations of X. The continued public contribution of vendors and universities is certainly to the benefit of the entire X community.

Our special thanks must go to Sam Fuller, Vice-President of Corporate Research at Digital, who has remained committed to the widest public availability of X and who made it possible to greatly supplement MIT’s resources with the Digital staff in order to make version 11 a reality. Many of the people mentioned here are part of the Western Software Laboratory (Digital UEG-WSL) of the ULTRIX Engineering group and work for Smokey Wallace, who has been vital to the project’s success. Others not mentioned here worked on the toolkit and are acknowledged in the

X Toolkit documentation.

Of course, we must particularly thank Paul Asente, formerly of Stanford University and now of

Digital UEG-WSL, who wrote W, the predecessor to X, and Brian Reid, formerly of Stanford

University and now of Digital WRL, who had much to do with W’s design.

Finally, our thanks goes to MIT, Digital Equipment Corporation, and IBM for providing the environment where it could happen.

Release 4

Our thanks go to Jim Fulton (MIT X Consortium) for designing and specifying the new Xlib functions for Inter-Client Communication Conventions (ICCCM) support.

We also thank Al Mento of Digital for his continued effort in maintaining this document and Jim

Fulton and Donna Converse (MIT X Consortium) for their much-appreciated efforts in reviewing the changes.

Release 5

The principal authors of the Input Method facilities are Vania Joloboff (Open Software Foundation) and Bill McMahon (Hewlett-Packard). The principal author of the rest of the internationalization facilities is Glenn Widener (Tektronix). Our thanks to them for keeping their sense of humor through a long and sometimes difficult design process. Although the words and much of the design are due to them, many others have contributed substantially to the design and implementation. Tom McFarland (HP) and Frank Rojas (IBM) deserve particular recognition for their contributions. Other contributors were: Tim Anderson (Motorola), Alka Badshah (OSF), Gabe

Beged-Dov (HP), Chih-Chung Ko (III), Vera Cheng (III), Michael Collins (Digital), Walt Daniels

(IBM), Noritoshi Demizu (OMRON), Keisuke Fukui (Fujitsu), Hitoshoi Fukumoto (Nihon Sun),

Tim Greenwood (Digital), John Harvey (IBM), Hideki Hiura (Sun), Fred Horman (AT&T),

Norikazu Kaiya (Fujitsu), Yuji Kamata (IBM), Yutaka Kataoka (Waseda University), Ranee

Khubchandani (Sun), Akira Kon (NEC), Hiroshi Kuribayashi (OMRON), Teruhiko Kurosaka

(Sun), Seiji Kuwari (OMRON), Sandra Martin (OSF), Narita Masahiko (Fujitsu), Masato

Morisaki (NTT), Nelson Ng (Sun), Takashi Nishimura (NTT America), Makato Nishino (IBM),

Akira Ohsone (Nihon Sun), Chris Peterson (MIT), Sam Shteingart (AT&T), Manish Sheth

(AT&T), Muneiyoshi Suzuki (NTT), Cori Mehring (Digital), Shoji Sugiyama (IBM), and Eiji

Tosa (IBM).

We are deeply indebted to Tatsuya Kato (NTT), Hiroshi Kuribayashi (OMRON), Seiji Kuwari

(OMRON), Muneiyoshi Suzuki (NTT), and Li Yuhong (OMRON) for producing one of the first complete sample implementation of the internationalization facilities, and Hiromu Inukai (Nihon

Sun), Takashi Fujiwara (Fujitsu), Hideki Hiura (Sun), Yasuhiro Kawai (Oki Technosystems Laboratory), Kazunori Nishihara (Fuji Xerox), Masaki Takeuchi (Sony), Katsuhisa Yano (Toshiba),

Makoto Wakamatsu (Sony Corporation) for producing the another complete sample implementation of the internationalization facilities.

The principal authors (design and implementation) of the Xcms color management facilities are

Al Tabayoyon (Tektronix) and Chuck Adams (Tektronix). Joann Taylor (Tektronix), Bob Toole

(Tektronix), and Keith Packard (MIT X Consortium) also contributed significantly to the design.

Others who contributed are: Harold Boll (Kodak), Ken Bronstein (HP), Nancy Cam (SGI), Donna

Converse (MIT X Consortium), Elias Israel (ISC), Deron Johnson (Sun), Jim King (Adobe),

Ricardo Motta (HP), Chuck Peek (IBM), Wil Plouffe (IBM), Dave Sternlicht (MIT X Consortium), Kumar Talluri (AT&T), and Richard Verberg (IBM).

We also once again thank Al Mento of Digital for his work in formatting and reformatting text for this manual, and for producing man pages. Thanks also to Clive Feather (IXI) for proof-reading and finding a number of small errors.

Release 6

Stephen Gildea (X Consortium) authored the threads support. Ovais Ashraf (Sun) and Greg

Olsen (Sun) contributed substantially by testing the facilities and reporting bugs in a timely fashion.

The principal authors of the internationalization facilities, including Input and Output Methods, are Hideki Hiura (SunSoft) and Shigeru Yamada (Fujitsu OSSI). Although the words and much

of the design are due to them, many others have contributed substantially to the design and implementation. They are: Takashi Fujiwara (Fujitsu), Yoshio Horiuchi (IBM), Makoto Inada (Digital),

Hiromu Inukai (Nihon SunSoft), Song JaeKyung (KAIST), Franky Ling (Digital), Tom McFarland (HP), Hiroyuki Miyamoto (Digital), Masahiko Narita (Fujitsu), Frank Rojas (IBM),

Hidetoshi Tajima (HP), Masaki Takeuchi (Sony), Makoto Wakamatsu (Sony), Masaki Wakao

(IBM), Katsuhisa Yano(Toshiba) and Jinsoo Yoon (KAIST).

The principal producers of the sample implementation of the internationalization facilities are:

Jeffrey Bloomfield (Fujitsu OSSI), Takashi Fujiwara (Fujitsu), Hideki Hiura (SunSoft), Yoshio

Horiuchi (IBM), Makoto Inada (Digital), Hiromu Inukai (Nihon SunSoft), Song JaeKyung

(KAIST), Riki Kawaguchi (Fujitsu), Franky Ling (Digital), Hiroyuki Miyamoto (Digital),

Hidetoshi Tajima (HP), Toshimitsu Terazono (Fujitsu), Makoto Wakamatsu (Sony), Masaki

Wakao (IBM), Shigeru Yamada (Fujitsu OSSI) and Katsuhisa Yano (Toshiba).

The coordinators of the integration, testing, and release of this implementation of the internationalization facilities are Nobuyuki Tanaka (Sony) and Makoto Wakamatsu (Sony).

Others who have contributed to the architectural design or testing of the sample implementation of the internationalization facilities are: Hector Chan (Digital), Michael Kung (IBM), Joseph

Kwok (Digital), Hiroyuki Machida (Sony), Nelson Ng (SunSoft), Frank Rojas (IBM), Yoshiyuki

Segawa (Fujitsu OSSI), Makiko Shimamura (Fujitsu), Shoji Sugiyama (IBM), Lining Sun (SGI),

Masaki Takeuchi (Sony), Jinsoo Yoon (KAIST) and Akiyasu Zen (HP).

Jim Gettys

Cambridge Research Laboratory

Digital Equipment Corporation

Robert W. Scheifler

Laboratory for Computer Science

Massachusetts Institute of Technology

Chapter 1

Introduction to Xlib

The X Window System is a network-transparent window system that was designed at MIT. X display servers run on computers with either monochrome or color bitmap display hardware. The server distributes user input to and accepts output requests from various client programs located either on the same machine or elsewhere in the network. Xlib is a C subroutine library that application programs (clients) use to interface with the window system by means of a stream connection. Although a client usually runs on the same machine as the X server it is talking to, this need not be the case.

Xlib − C Language X Interface is a reference guide to the low-level C language interface to the X

Window System protocol. It is neither a tutorial nor a user’s guide to programming the X Window System. Rather, it provides a detailed description of each function in the library as well as a discussion of the related background information. Xlib − C Language X Interface assumes a basic understanding of a graphics window system and of the C programming language. Other higher-level abstractions (for example, those provided by the toolkits for X) are built on top of the

Xlib library. For further information about these higher-level libraries, see the appropriate toolkit documentation. The X Window System Protocol provides the definitive word on the behavior of

X. Although additional information appears here, the protocol document is the ruling document.

To provide an introduction to X programming, this chapter discusses:

• Overview of the X Window System

Errors

Standard header files

Generic values and types

Naming and argument conventions within Xlib

Programming considerations

Character sets and encodings

Formatting conventions

1.1. Overview of the X Window System

Some of the terms used in this book are unique to X, and other terms that are common to other window systems have different meanings in X. You may find it helpful to refer to the glossary, which is located at the end of the book.

The X Window System supports one or more screens containing overlapping windows or subwindows. A screen is a physical monitor and hardware that can be color, grayscale, or monochrome.

There can be multiple screens for each display or workstation. A single X server can provide display services for any number of screens. A set of screens for a single user with one keyboard and one pointer (usually a mouse) is called a display.

All the windows in an X server are arranged in strict hierarchies. At the top of each hierarchy is a root window, which covers each of the display screens. Each root window is partially or completely covered by child windows. All windows, except for root windows, have parents. There is usually at least one window for each application program. Child windows may in turn have their own children. In this way, an application program can create an arbitrarily deep tree on each screen. X provides graphics, text, and raster operations for windows.

A child window can be larger than its parent. That is, part or all of the child window can extend beyond the boundaries of the parent, but all output to a window is clipped by its parent. If several

1

Xlib − C Library libX11 1.3.2

children of a window hav e overlapping locations, one of the children is considered to be on top of or raised over the others, thus obscuring them. Output to areas covered by other windows is suppressed by the window system unless the window has backing store. If a window is obscured by a second window, the second window obscures only those ancestors of the second window that are also ancestors of the first window.

A window has a border zero or more pixels in width, which can be any pattern (pixmap) or solid color you like. A window usually but not always has a background pattern, which will be repainted by the window system when uncovered. Child windows obscure their parents, and graphic operations in the parent window usually are clipped by the children.

Each window and pixmap has its own coordinate system. The coordinate system has the X axis horizontal and the Y axis vertical with the origin [0, 0] at the upper-left corner. Coordinates are integral, in terms of pixels, and coincide with pixel centers. For a window, the origin is inside the border at the inside, upper-left corner.

X does not guarantee to preserve the contents of windows. When part or all of a window is hidden and then brought back onto the screen, its contents may be lost. The server then sends the client program an Expose ev ent to notify it that part or all of the window needs to be repainted.

Programs must be prepared to regenerate the contents of windows on demand.

X also provides off-screen storage of graphics objects, called pixmaps. Single plane (depth 1) pixmaps are sometimes referred to as bitmaps. Pixmaps can be used in most graphics functions interchangeably with windows and are used in various graphics operations to define patterns or tiles. Windows and pixmaps together are referred to as drawables.

Most of the functions in Xlib just add requests to an output buffer. These requests later execute asynchronously on the X server. Functions that return values of information stored in the server do not return (that is, they block) until an explicit reply is received or an error occurs. You can provide an error handler, which will be called when the error is reported.

If a client does not want a request to execute asynchronously, it can follow the request with a call to XSync, which blocks until all previously buffered asynchronous events have been sent and acted on. As an important side effect, the output buffer in Xlib is always flushed by a call to any function that returns a value from the server or waits for input.

Many Xlib functions will return an integer resource ID, which allows you to refer to objects stored on the X server. These can be of type Window, Font, Pixmap, Colormap, Cursor, and

GContext, as defined in the file <X11/X.h>. These resources are created by requests and are destroyed (or freed) by requests or when connections are closed. Most of these resources are potentially sharable between applications, and in fact, windows are manipulated explicitly by window manager programs. Fonts and cursors are shared automatically across multiple screens.

Fonts are loaded and unloaded as needed and are shared by multiple clients. Fonts are often cached in the server. Xlib provides no support for sharing graphics contexts between applications.

Client programs are informed of events. Events may either be side effects of a request (for example, restacking windows generates Expose ev ents) or completely asynchronous (for example, from the keyboard). A client program asks to be informed of events. Because other applications can send events to your application, programs must be prepared to handle (or ignore) events of all types.

Input events (for example, a key pressed or the pointer moved) arrive asynchronously from the server and are queued until they are requested by an explicit call (for example, XNextEvent or

XWindowEvent). In addition, some library functions (for example, XRaiseWindow) generate

Expose and ConfigureRequest ev ents. These ev ents also arrive asynchronously, but the client may wish to explicitly wait for them by calling XSync after calling a function that can cause the server to generate events.

2

Xlib − C Library libX11 1.3.2

1.2. Errors

Some functions return Status, an integer error indication. If the function fails, it returns a zero.

If the function returns a status of zero, it has not updated the return arguments. Because C does not provide multiple return values, many functions must return their results by writing into clientpassed storage. By default, errors are handled either by a standard library function or by one that you provide. Functions that return pointers to strings return NULL pointers if the string does not exist.

The X server reports protocol errors at the time that it detects them. If more than one error could be generated for a given request, the server can report any of them.

Because Xlib usually does not transmit requests to the server immediately (that is, it buffers them), errors can be reported much later than they actually occur. For debugging purposes, howev er, Xlib provides a mechanism for forcing synchronous behavior (see section 11.8.1). When synchronization is enabled, errors are reported as they are generated.

When Xlib detects an error, it calls an error handler, which your program can provide. If you do not provide an error handler, the error is printed, and your program terminates.

1.3. Standard Header Files

The following include files are part of the Xlib standard:

• <X11/Xlib.h>

This is the main header file for Xlib. The majority of all Xlib symbols are declared by including this file. This file also contains the preprocessor symbol XlibSpecificationRe-

lease. This symbol is defined to have the 6 in this release of the standard. (Release 5 of

Xlib was the first release to have this symbol.)

<X11/X.h>

This file declares types and constants for the X protocol that are to be used by applications.

It is included automatically from <X11/Xlib.h>, so application code should never need to reference this file directly.

<X11/Xcms.h>

This file contains symbols for much of the color management facilities described in chapter

6. All functions, types, and symbols with the prefix ‘‘Xcms’’, plus the Color Conversion

Contexts macros, are declared in this file. <X11/Xlib.h> must be included before including this file.

<X11/Xutil.h>

This file declares various functions, types, and symbols used for inter-client communication and application utility functions, which are described in chapters 14 and 16. <X11/Xlib.h> must be included before including this file.

<X11/Xresource.h>

This file declares all functions, types, and symbols for the resource manager facilities, which are described in chapter 15. <X11/Xlib.h> must be included before including this file.

<X11/Xatom.h>

This file declares all predefined atoms, which are symbols with the prefix ‘‘XA_’’.

<X11/cursorfont.h>

This file declares the cursor symbols for the standard cursor font, which are listed in appendix B. All cursor symbols have the prefix ‘‘XC_’’.

<X11/keysymdef.h>

This file declares all standard KeySym values, which are symbols with the prefix ‘‘XK_’’.

The KeySyms are arranged in groups, and a preprocessor symbol controls inclusion of each

3

Xlib − C Library libX11 1.3.2

• group. The preprocessor symbol must be defined prior to inclusion of the file to obtain the associated values. The preprocessor symbols are XK_MISCELLANY, XK_XKB_KEYS,

XK_3270, XK_LATIN1, XK_LATIN2, XK_LATIN3, XK_LATIN4, XK_KATAKANA,

XK_ARABIC, XK_CYRILLIC, XK_GREEK, XK_TECHNICAL, XK_SPECIAL,

XK_PUBLISHING, XK_APL, XK_HEBREW, XK_THAI, and XK_KOREAN.

<X11/keysym.h>

This file defines the preprocessor symbols XK_MISCELLANY, XK_XKB_KEYS,

XK_LATIN1, XK_LATIN2, XK_LATIN3, XK_LATIN4, and XK_GREEK and then includes <X11/keysymdef.h>.

<X11/Xlibint.h>

This file declares all the functions, types, and symbols used for extensions, which are described in appendix C. This file automatically includes <X11/Xlib.h>.

<X11/Xproto.h>

This file declares types and symbols for the basic X protocol, for use in implementing extensions. It is included automatically from <X11/Xlibint.h>, so application and extension code should never need to reference this file directly.

<X11/Xprotostr.h>

This file declares types and symbols for the basic X protocol, for use in implementing extensions. It is included automatically from <X11/Xproto.h>, so application and extension code should never need to reference this file directly.

<X11/X10.h>

This file declares all the functions, types, and symbols used for the X10 compatibility functions, which are described in appendix D.

1.4. Generic Values and Types

The following symbols are defined by Xlib and used throughout the manual:

Xlib defines the type Bool and the Boolean values True and False.

None is the universal null resource ID or atom.

The type XID is used for generic resource IDs.

The type XPointer is defined to be char* and is used as a generic opaque pointer to data.

1.5. Naming and Argument Conventions within Xlib

Xlib follows a number of conventions for the naming and syntax of the functions. Given that you remember what information the function requires, these conventions are intended to make the syntax of the functions more predictable.

The major naming conventions are:

• To differentiate the X symbols from the other symbols, the library uses mixed case for external symbols. It leaves lowercase for variables and all uppercase for user macros, as per existing convention.

• All Xlib functions begin with a capital X.

The beginnings of all function names and symbols are capitalized.

All user-visible data structures begin with a capital X. More generally, anything that a user might dereference begins with a capital X.

Macros and other symbols do not begin with a capital X. To distinguish them from all user symbols, each word in the macro is capitalized.

All elements of or variables in a data structure are in lowercase. Compound words, where needed, are constructed with underscores (_).

4

Xlib − C Library libX11 1.3.2

The display argument, where used, is always first in the argument list.

All resource objects, where used, occur at the beginning of the argument list immediately after the display argument.

When a graphics context is present together with another type of resource (most commonly, a drawable), the graphics context occurs in the argument list after the other resource. Drawables outrank all other resources.

Source arguments always precede the destination arguments in the argument list.

The x argument always precedes the y argument in the argument list.

The width argument always precedes the height argument in the argument list.

Where the x, y, width, and height arguments are used together, the x and y arguments always precede the width and height arguments.

Where a mask is accompanied with a structure, the mask always precedes the pointer to the structure in the argument list.

1.6. Programming Considerations

The major programming considerations are:

• Coordinates and sizes in X are actually 16-bit quantities. This decision was made to minimize the bandwidth required for a given lev el of performance. Coordinates usually are declared as an int in the interface. Values larger than 16 bits are truncated silently. Sizes

(width and height) are declared as unsigned quantities.

Keyboards are the greatest variable between different manufacturers’ workstations. If you want your program to be portable, you should be particularly conservative here.

Many display systems have limited amounts of off-screen memory. If you can, you should minimize use of pixmaps and backing store.

The user should have control of his screen real estate. Therefore, you should write your applications to react to window management rather than presume control of the entire screen. What you do inside of your top-level window, howev er, is up to your application.

For further information, see chapter 14 and the Inter-Client Communication Conventions

Manual.

1.7. Character Sets and Encodings

Some of the Xlib functions make reference to specific character sets and character encodings.

The following are the most common:

• X Portable Character Set

A basic set of 97 characters, which are assumed to exist in all locales supported by Xlib.

This set contains the following characters: a..z A..Z 0..9

!"#$%&’()*+,-./:;<=>[email protected][\]ˆ_‘{|}˜

<space>, <tab>, and <newline>

This set is the left/lower half of the graphic character set of ISO8859-1 plus space, tab, and newline. It is also the set of graphic characters in 7-bit ASCII plus the same three control characters. The actual encoding of these characters on the host is system dependent.

Host Portable Character Encoding

The encoding of the X Portable Character Set on the host. The encoding itself is not defined by this standard, but the encoding must be the same in all locales supported by Xlib on the host. If a string is said to be in the Host Portable Character Encoding, then it only contains characters from the X Portable Character Set, in the host encoding.

5

Xlib − C Library libX11 1.3.2

Latin-1

The coded character set defined by the ISO8859-1 standard.

Latin Portable Character Encoding

The encoding of the X Portable Character Set using the Latin-1 codepoints plus ASCII control characters. If a string is said to be in the Latin Portable Character Encoding, then it only contains characters from the X Portable Character Set, not all of Latin-1.

STRING Encoding

Latin-1, plus tab and newline.

POSIX Portable Filename Character Set

The set of 65 characters, which can be used in naming files on a POSIX-compliant host, that are correctly processed in all locales. The set is: a..z A..Z 0..9 ._-

1.8. Formatting Conventions

Xlib − C Language X Interface uses the following conventions:

Global symbols are printed in this special font. These can be either function names, symbols defined in include files, or structure names. When declared and defined, function arguments are printed in italics. In the explanatory text that follows, they usually are printed in regular type.

Each function is introduced by a general discussion that distinguishes it from other functions. The function declaration itself follows, and each argument is specifically explained.

Although ANSI C function prototype syntax is not used, Xlib header files normally declare functions using function prototypes in ANSI C environments. General discussion of the function, if any is required, follows the arguments. Where applicable, the last paragraph of the explanation lists the possible Xlib error codes that the function can generate. For a complete discussion of the Xlib error codes, see section 11.8.2.

To eliminate any ambiguity between those arguments that you pass and those that a function returns to you, the explanations for all arguments that you pass start with the word

specifies or, in the case of multiple arguments, the word specify. The explanations for all arguments that are returned to you start with the word returns or, in the case of multiple arguments, the word return. The explanations for all arguments that you can pass and are returned start with the words specifies and returns.

Any pointer to a structure that is used to return a value is designated as such by the _return suffix as part of its name. All other pointers passed to these functions are used for reading only. A few arguments use pointers to structures that are used for both input and output and are indicated by using the _in_out suffix.

6

Xlib − C Library libX11 1.3.2

Chapter 2

Display Functions

Before your program can use a display, you must establish a connection to the X server. Once you have established a connection, you then can use the Xlib macros and functions discussed in this chapter to return information about the display. This chapter discusses how to:

Open (connect to) the display

Obtain information about the display, image formats, or screens

Generate a NoOperation protocol request

Free client-created data

Close (disconnect from) a display

Use X Server connection close operations

Use Xlib with threads

Use internal connections

2.1. Opening the Display

To open a connection to the X server that controls a display, use XOpenDisplay.

Display *XOpenDisplay(display_name) char *display_name;

display_name

Specifies the hardware display name, which determines the display and communications domain to be used. On a POSIX-conformant system, if the display_name is NULL, it defaults to the value of the DISPLAY environment variable.

The encoding and interpretation of the display name are implementation-dependent. Strings in the Host Portable Character Encoding are supported; support for other characters is implementation-dependent. On POSIX-conformant systems, the display name or DISPLAY environment variable can be a string in the format:

protocol hostname number

protocol/hostname:number.screen_number

Specifies a protocol family or an alias for a protocol family. Supported protocol families are implementation dependent. The protocol entry is optional. If protocol is not specified, the / separating protocol and hostname must also not be specified.

Specifies the name of the host machine on which the display is physically attached. You follow the hostname with either a single colon (:) or a double colon (::).

Specifies the number of the display server on that host machine. You may optionally follow this display number with a period (.). A single CPU can have more than one display. Multiple displays are usually numbered starting with zero.

7

Xlib − C Library libX11 1.3.2

screen_number Specifies the screen to be used on that server. Multiple screens can be controlled by a single X server. The screen_number sets an internal variable that can be accessed by using the DefaultScreen macro or the XDefaultScreen function if you are using languages other than C (see section 2.2.1).

For example, the following would specify screen 1 of display 0 on the machine named ‘‘dualheaded’’: dual-headed:0.1

The XOpenDisplay function returns a Display structure that serves as the connection to the X server and that contains all the information about that X server. XOpenDisplay connects your application to the X server through TCP or DECnet communications protocols, or through some local inter-process communication protocol. If the protocol is specified as "tcp", "inet", or

"inet6", or if no protocol is specified and the hostname is a host machine name and a single colon

(:) separates the hostname and display number, XOpenDisplay connects using TCP streams. (If the protocol is specified as "inet", TCP over IPv4 is used. If the protocol is specified as "inet6",

TCP over IPv6 is used. Otherwise, the implementation determines which IP version is used.) If the hostname and protocol are both not specified, Xlib uses whatever it believes is the fastest transport. If the hostname is a host machine name and a double colon (::) separates the hostname and display number, XOpenDisplay connects using DECnet. A single X server can support any or all of these transport mechanisms simultaneously. A particular Xlib implementation can support many more of these transport mechanisms.

If successful, XOpenDisplay returns a pointer to a Display structure, which is defined in

<X11/Xlib.h>. If XOpenDisplay does not succeed, it returns NULL. After a successful call to

XOpenDisplay, all of the screens in the display can be used by the client. The screen number specified in the display_name argument is returned by the DefaultScreen macro (or the XDe-

faultScreen function). You can access elements of the Display and Screen structures only by using the information macros or functions. For information about using macros and functions to obtain information from the Display structure, see section 2.2.1.

X servers may implement various types of access control mechanisms (see section 9.8).

2.2. Obtaining Information about the Display, Image Formats, or Screens

The Xlib library provides a number of useful macros and corresponding functions that return data from the Display structure. The macros are used for C programming, and their corresponding function equivalents are for other language bindings. This section discusses the:

Display macros

Image format functions and macros

Screen information macros

All other members of the Display structure (that is, those for which no macros are defined) are private to Xlib and must not be used. Applications must never directly modify or inspect these private members of the Display structure.

Note

The XDisplayWidth, XDisplayHeight, XDisplayCells, XDisplayPlanes, XDis-

playWidthMM, and XDisplayHeightMM functions in the next sections are misnamed. These functions really should be named Screenwhatever and XScreenwhat-

ever, not Displaywhatever or XDisplaywhatever. Our apologies for the resulting confusion.

8

Xlib − C Library libX11 1.3.2

2.2.1. Display Macros

Applications should not directly modify any part of the Display and Screen structures. The members should be considered read-only, although they may change as the result of other operations on the display.

The following lists the C language macros, their corresponding function equivalents that are for other language bindings, and what data both can return.

AllPlanes unsigned long XAllPlanes()

Both return a value with all bits set to 1 suitable for use in a plane argument to a procedure.

Both BlackPixel and WhitePixel can be used in implementing a monochrome application.

These pixel values are for permanently allocated entries in the default colormap. The actual RGB

(red, green, and blue) values are settable on some screens and, in any case, may not actually be black or white. The names are intended to convey the expected relative intensity of the colors.

BlackPixel (display, screen_number) unsigned long XBlackPixel (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the black pixel value for the specified screen.

WhitePixel (display, screen_number) unsigned long XWhitePixel (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the white pixel value for the specified screen.

ConnectionNumber (display) int XConnectionNumber(display)

Display *display;

display

Specifies the connection to the X server.

Both return a connection number for the specified display. On a POSIX-conformant system, this

9

Xlib − C Library

is the file descriptor of the connection.

libX11 1.3.2

DefaultColormap (display, screen_number)

Colormap XDefaultColormap (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the default colormap ID for allocation on the specified screen. Most routine allocations of color should be made out of this colormap.

DefaultDepth (display, screen_number) int XDefaultDepth (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the depth (number of planes) of the default root window for the specified screen.

Other depths may also be supported on this screen (see XMatchVisualInfo).

To determine the number of depths that are available on a given screen, use XListDepths.

int *XListDepths(display, screen_number, count_return)

Display *display; int screen_number; int *count_return;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

count_return

Returns the number of depths.

The XListDepths function returns the array of depths that are available on the specified screen.

If the specified screen_number is valid and sufficient memory for the array can be allocated,

XListDepths sets count_return to the number of available depths. Otherwise, it does not set count_return and returns NULL. To release the memory allocated for the array of depths, use

XFree.

10

Xlib − C Library libX11 1.3.2

DefaultGC (display, screen_number)

GC XDefaultGC (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the default graphics context for the root window of the specified screen. This GC is created for the convenience of simple applications and contains the default GC components with the foreground and background pixel values initialized to the black and white pixels for the screen, respectively. You can modify its contents freely because it is not used in any Xlib function. This GC should never be freed.

DefaultRootWindow(display)

Window XDefaultRootWindow(display)

Display *display;

display

Specifies the connection to the X server.

Both return the root window for the default screen.

DefaultScreenOfDisplay (display)

Screen *XDefaultScreenOfDisplay (display)

Display *display;

display

Specifies the connection to the X server.

Both return a pointer to the default screen.

ScreenOfDisplay (display, screen_number)

Screen *XScreenOfDisplay(display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return a pointer to the indicated screen.

11

Xlib − C Library libX11 1.3.2

DefaultScreen (display) int XDefaultScreen (display)

Display *display;

display

Specifies the connection to the X server.

Both return the default screen number referenced by the XOpenDisplay function. This macro or function should be used to retrieve the screen number in applications that will use only a single screen.

DefaultVisual (display, screen_number)

Visual *XDefaultVisual (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the default visual type for the specified screen. For further information about visual types, see section 3.1.

DisplayCells (display, screen_number) int XDisplayCells(display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the number of entries in the default colormap.

DisplayPlanes (display, screen_number) int XDisplayPlanes(display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the depth of the root window of the specified screen. For an explanation of depth, see the glossary.

12

Xlib − C Library libX11 1.3.2

DisplayString (display) char *XDisplayString(display)

Display *display;

display

Specifies the connection to the X server.

Both return the string that was passed to XOpenDisplay when the current display was opened.

On POSIX-conformant systems, if the passed string was NULL, these return the value of the DIS-

PLAY environment variable when the current display was opened. These are useful to applications that invoke the fork system call and want to open a new connection to the same display from the child process as well as for printing error messages.

long XExtendedMaxRequestSize(display)

Display *display;

display

Specifies the connection to the X server.

The XExtendedMaxRequestSize function returns zero if the specified display does not support an extended-length protocol encoding; otherwise, it returns the maximum request size (in 4-byte units) supported by the server using the extended-length encoding. The Xlib functions XDraw-

Lines, XDrawArcs, XFillPolygon, XChangeProperty, XSetClipRectangles, and XSetRe-

gion will use the extended-length encoding as necessary, if supported by the server. Use of the extended-length encoding in other Xlib functions (for example, XDrawPoints, XDrawRectan-

gles, XDrawSegments, XFillArcs, XFillRectangles, XPutImage) is permitted but not required; an Xlib implementation may choose to split the data across multiple smaller requests instead.

long XMaxRequestSize(display)

Display *display;

display

Specifies the connection to the X server.

The XMaxRequestSize function returns the maximum request size (in 4-byte units) supported by the server without using an extended-length protocol encoding. Single protocol requests to the server can be no larger than this size unless an extended-length protocol encoding is supported by the server. The protocol guarantees the size to be no smaller than 4096 units (16384 bytes). Xlib automatically breaks data up into multiple protocol requests as necessary for the following functions: XDrawPoints, XDrawRectangles, XDrawSegments, XFillArcs, XFillRectangles, and

XPutImage.

LastKnownRequestProcessed (display) unsigned long XLastKnownRequestProcessed (display)

Display *display;

display

Specifies the connection to the X server.

Both extract the full serial number of the last request known by Xlib to have been processed by

13

Xlib − C Library libX11 1.3.2

the X server. Xlib automatically sets this number when replies, events, and errors are received.

NextRequest (display) unsigned long XNextRequest (display)

Display *display;

display

Specifies the connection to the X server.

Both extract the full serial number that is to be used for the next request. Serial numbers are maintained separately for each display connection.

ProtocolVersion (display) int XProtocolVersion (display)

Display *display;

display

Specifies the connection to the X server.

Both return the major version number (11) of the X protocol associated with the connected display.

ProtocolRevision (display) int XProtocolRevision (display)

Display *display;

display

Specifies the connection to the X server.

Both return the minor protocol revision number of the X server.

QLength (display) int XQLength(display)

Display *display;

display

Specifies the connection to the X server.

Both return the length of the event queue for the connected display. Note that there may be more ev ents that have not been read into the queue yet (see XEventsQueued).

14

Xlib − C Library libX11 1.3.2

RootWindow(display, screen_number)

Window XRootWindow(display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the root window. These are useful with functions that need a drawable of a particular screen and for creating top-level windows.

ScreenCount (display) int XScreenCount(display)

Display *display;

display

Specifies the connection to the X server.

Both return the number of available screens.

ServerVendor (display) char *XServerVendor (display)

Display *display;

display

Specifies the connection to the X server.

Both return a pointer to a null-terminated string that provides some identification of the owner of the X server implementation. If the data returned by the server is in the Latin Portable Character

Encoding, then the string is in the Host Portable Character Encoding. Otherwise, the contents of the string are implementation-dependent.

VendorRelease (display) int XVendorRelease (display)

Display *display;

display

Specifies the connection to the X server.

Both return a number related to a vendor’s release of the X server.

2.2.2. Image Format Functions and Macros

Applications are required to present data to the X server in a format that the server demands. To help simplify applications, most of the work required to convert the data is provided by Xlib (see sections 8.7 and 16.8).

The XPixmapFormatValues structure provides an interface to the pixmap format information that is returned at the time of a connection setup. It contains:

15

Xlib − C Library libX11 1.3.2

typedef struct { int depth; int bits_per_pixel; int scanline_pad;

} XPixmapFormatValues;

To obtain the pixmap format information for a given display, use XListPixmapFormats.

XPixmapFormatValues *XListPixmapFormats (display, count_return)

Display *display; int *count_return;

display

Specifies the connection to the X server.

count_return

Returns the number of pixmap formats that are supported by the display.

The XListPixmapFormats function returns an array of XPixmapFormatValues structures that describe the types of Z format images supported by the specified display. If insufficient memory is available, XListPixmapFormats returns NULL. To free the allocated storage for the

XPixmapFormatValues structures, use XFree.

The following lists the C language macros, their corresponding function equivalents that are for other language bindings, and what data they both return for the specified server and screen.

These are often used by toolkits as well as by simple applications.

ImageByteOrder (display) int XImageByteOrder(display)

Display *display;

display

Specifies the connection to the X server.

Both specify the required byte order for images for each scanline unit in XY format (bitmap) or for each pixel value in Z format. The macro or function can return either LSBFirst or MSB-

First.

BitmapUnit (display) int XBitmapUnit(display)

Display *display;

display

Specifies the connection to the X server.

Both return the size of a bitmap’s scanline unit in bits. The scanline is calculated in multiples of this value.

16

Xlib − C Library libX11 1.3.2

BitmapBitOrder (display) int XBitmapBitOrder(display)

Display *display;

display

Specifies the connection to the X server.

Within each bitmap unit, the left-most bit in the bitmap as displayed on the screen is either the least significant or most significant bit in the unit. This macro or function can return LSBFirst or

MSBFirst.

BitmapPad (display) int XBitmapPad (display)

Display *display;

display

Specifies the connection to the X server.

Each scanline must be padded to a multiple of bits returned by this macro or function.

DisplayHeight (display, screen_number) int XDisplayHeight(display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return an integer that describes the height of the screen in pixels.

DisplayHeightMM (display, screen_number) int XDisplayHeightMM(display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the height of the specified screen in millimeters.

17

Xlib − C Library libX11 1.3.2

DisplayWidth (display, screen_number) int XDisplayWidth (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the width of the screen in pixels.

DisplayWidthMM (display, screen_number) int XDisplayWidthMM (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

Both return the width of the specified screen in millimeters.

2.2.3. Screen Information Macros

The following lists the C language macros, their corresponding function equivalents that are for other language bindings, and what data they both can return. These macros or functions all take a pointer to the appropriate screen structure.

BlackPixelOfScreen (screen) unsigned long XBlackPixelOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the black pixel value of the specified screen.

WhitePixelOfScreen (screen) unsigned long XWhitePixelOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the white pixel value of the specified screen.

18

Xlib − C Library libX11 1.3.2

CellsOfScreen (screen) int XCellsOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the number of colormap cells in the default colormap of the specified screen.

DefaultColormapOfScreen (screen)

Colormap XDefaultColormapOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the default colormap of the specified screen.

DefaultDepthOfScreen (screen) int XDefaultDepthOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the depth of the root window.

DefaultGCOfScreen (screen)

GC XDefaultGCOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return a default graphics context (GC) of the specified screen, which has the same depth as the root window of the screen. The GC must never be freed.

DefaultVisualOfScreen (screen)

Visual *XDefaultVisualOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the default visual of the specified screen. For information on visual types, see section

3.1.

19

Xlib − C Library libX11 1.3.2

DoesBackingStore (screen) int XDoesBackingStore(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return a value indicating whether the screen supports backing stores. The value returned can be one of WhenMapped, NotUseful, or Always (see section 3.2.4).

DoesSaveUnders (screen)

Bool XDoesSaveUnders (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return a Boolean value indicating whether the screen supports save unders. If True, the screen supports save unders. If False, the screen does not support save unders (see section 3.2.5).

DisplayOfScreen (screen)

Display *XDisplayOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the display of the specified screen.

int XScreenNumberOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

The XScreenNumberOfScreen function returns the screen index number of the specified screen.

EventMaskOfScreen (screen) long XEventMaskOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the event mask of the root window for the specified screen at connection setup time.

20

Xlib − C Library libX11 1.3.2

WidthOfScreen (screen) int XWidthOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the width of the specified screen in pixels.

HeightOfScreen (screen) int XHeightOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the height of the specified screen in pixels.

WidthMMOfScreen (screen) int XWidthMMOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the width of the specified screen in millimeters.

HeightMMOfScreen (screen) int XHeightMMOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the height of the specified screen in millimeters.

MaxCmapsOfScreen (screen) int XMaxCmapsOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the maximum number of installed colormaps supported by the specified screen (see section 9.3).

21

Xlib − C Library libX11 1.3.2

MinCmapsOfScreen (screen) int XMinCmapsOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the minimum number of installed colormaps supported by the specified screen (see section 9.3).

PlanesOfScreen (screen) int XPlanesOfScreen(screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the depth of the root window.

RootWindowOfScreen (screen)

Window XRootWindowOfScreen (screen)

Screen *screen;

screen

Specifies the appropriate Screen structure.

Both return the root window of the specified screen.

2.3. Generating a NoOperation Protocol Request

To execute a NoOperation protocol request, use XNoOp.

XNoOp (display)

Display *display;

display

Specifies the connection to the X server.

The XNoOp function sends a NoOperation protocol request to the X server, thereby exercising the connection.

2.4. Freeing Client-Created Data

To free in-memory data that was created by an Xlib function, use XFree.

XFree (data) void *data;

data

Specifies the data that is to be freed.

The XFree function is a general-purpose Xlib routine that frees the specified data. You must use it to free any objects that were allocated by Xlib, unless an alternate function is explicitly

22

Xlib − C Library libX11 1.3.2

specified for the object. A NULL pointer cannot be passed to this function.

2.5. Closing the Display

To close a display or disconnect from the X server, use XCloseDisplay.

XCloseDisplay (display)

Display *display;

display

Specifies the connection to the X server.

The XCloseDisplay function closes the connection to the X server for the display specified in the

Display structure and destroys all windows, resource IDs (Window, Font, Pixmap, Colormap,

Cursor, and GContext), or other resources that the client has created on this display, unless the close-down mode of the resource has been changed (see XSetCloseDownMode). Therefore, these windows, resource IDs, and other resources should never be referenced again or an error will be generated. Before exiting, you should call XCloseDisplay explicitly so that any pending errors are reported as XCloseDisplay performs a final XSync operation.

XCloseDisplay can generate a BadGC error.

Xlib provides a function to permit the resources owned by a client to survive after the client’s connection is closed. To change a client’s close-down mode, use XSetCloseDownMode.

XSetCloseDownMode (display, close_mode)

Display *display; int close_mode;

display

Specifies the connection to the X server.

close_mode

Specifies the client close-down mode. You can pass DestroyAll, RetainPerma-

nent, or RetainTemporary.

The XSetCloseDownMode defines what will happen to the client’s resources at connection close. A connection starts in DestroyAll mode. For information on what happens to the client’s resources when the close_mode argument is RetainPermanent or RetainTemporary, see section 2.6.

XSetCloseDownMode can generate a BadValue error.

2.6. Using X Server Connection Close Operations

When the X server’s connection to a client is closed either by an explicit call to XCloseDisplay or by a process that exits, the X server performs the following automatic operations:

• It disowns all selections owned by the client (see XSetSelectionOwner).

• It performs an XUngrabPointer and XUngrabKeyboard if the client has actively grabbed the pointer or the keyboard.

It performs an XUngrabServer if the client has grabbed the server.

It releases all passive grabs made by the client.

• It marks all resources (including colormap entries) allocated by the client either as permanent or temporary, depending on whether the close-down mode is RetainPermanent or

RetainTemporary. Howev er, this does not prevent other client applications from explicitly destroying the resources (see XSetCloseDownMode).

When the close-down mode is DestroyAll, the X server destroys all of a client’s resources as follows:

23

Xlib − C Library libX11 1.3.2

It examines each window in the client’s sav e-set to determine if it is an inferior (subwindow) of a window created by the client. (The save-set is a list of other clients’ windows that are referred to as save-set windows.) If so, the X server reparents the save-set window to the closest ancestor so that the save-set window is not an inferior of a window created by the client. The reparenting leaves unchanged the absolute coordinates (with respect to the root window) of the upper-left outer corner of the save-set window.

It performs a MapWindow request on the save-set window if the save-set window is unmapped. The X server does this even if the save-set window was not an inferior of a window created by the client.

It destroys all windows created by the client.

It performs the appropriate free request on each nonwindow resource created by the client in the server (for example, Font, Pixmap, Cursor, Colormap, and GContext).

It frees all colors and colormap entries allocated by a client application.

Additional processing occurs when the last connection to the X server closes. An X server goes through a cycle of having no connections and having some connections. When the last connection to the X server closes as a result of a connection closing with the close_mode of DestroyAll, the X server does the following:

• It resets its state as if it had just been started. The X server begins by destroying all lingering resources from clients that have terminated in RetainPermanent or RetainTempo-

rary mode.

It deletes all but the predefined atom identifiers.

It deletes all properties on all root windows (see section 4.3).

It resets all device maps and attributes (for example, key click, bell volume, and acceleration) as well as the access control list.

It restores the standard root tiles and cursors.

It restores the default font path.

• It restores the input focus to state PointerRoot.

However, the X server does not reset if you close a connection with a close-down mode set to

RetainPermanent or RetainTemporary.

2.7. Using Xlib with Threads

On systems that have threads, support may be provided to permit multiple threads to use Xlib concurrently.

To initialize support for concurrent threads, use XInitThreads.

Status XInitThreads( );

The XInitThreads function initializes Xlib support for concurrent threads. This function must be the first Xlib function a multi-threaded program calls, and it must complete before any other

Xlib call is made. This function returns a nonzero status if initialization was successful; otherwise, it returns zero. On systems that do not support threads, this function always returns zero.

It is only necessary to call this function if multiple threads might use Xlib concurrently. If all calls to Xlib functions are protected by some other access mechanism (for example, a mutual exclusion lock in a toolkit or through explicit client programming), Xlib thread initialization is not required. It is recommended that single-threaded programs not call this function.

24

Xlib − C Library libX11 1.3.2

To lock a display across several Xlib calls, use XLockDisplay.

void XLockDisplay(display)

Display *display;

display

Specifies the connection to the X server.

The XLockDisplay function locks out all other threads from using the specified display. Other threads attempting to use the display will block until the display is unlocked by this thread.

Nested calls to XLockDisplay work correctly; the display will not actually be unlocked until

XUnlockDisplay has been called the same number of times as XLockDisplay. This function has no effect unless Xlib was successfully initialized for threads using XInitThreads.

To unlock a display, use XUnlockDisplay.

void XUnlockDisplay(display)

Display *display;

display

Specifies the connection to the X server.

The XUnlockDisplay function allows other threads to use the specified display again. Any threads that have blocked on the display are allowed to continue. Nested locking works correctly; if XLockDisplay has been called multiple times by a thread, then XUnlockDisplay must be called an equal number of times before the display is actually unlocked. This function has no effect unless Xlib was successfully initialized for threads using XInitThreads.

2.8. Using Internal Connections

In addition to the connection to the X server, an Xlib implementation may require connections to other kinds of servers (for example, to input method servers as described in chapter 13). Toolkits and clients that use multiple displays, or that use displays in combination with other inputs, need to obtain these additional connections to correctly block until input is available and need to process that input when it is available. Simple clients that use a single display and block for input in an Xlib event function do not need to use these facilities.

To track internal connections for a display, use XAddConnectionWatch.

typedef void (*XConnectionWatchProc) (display, client_data, fd, opening, watch_data)

Display *display;

XPointer client_data; int fd;

Bool opening;

XPointer *watch_data;

Status XAddConnectionWatch (display, procedure, client_data)

Display *display;

XWatchProc procedure;

XPointer client_data;

display procedure client_data

Specifies the connection to the X server.

Specifies the procedure to be called.

Specifies the additional client data.

The XAddConnectionWatch function registers a procedure to be called each time Xlib opens or

25

Xlib − C Library libX11 1.3.2

closes an internal connection for the specified display. The procedure is passed the display, the specified client_data, the file descriptor for the connection, a Boolean indicating whether the connection is being opened or closed, and a pointer to a location for private watch data. If opening is

True, the procedure can store a pointer to private data in the location pointed to by watch_data; when the procedure is later called for this same connection and opening is False, the location pointed to by watch_data will hold this same private data pointer.

This function can be called at any time after a display is opened. If internal connections already exist, the registered procedure will immediately be called for each of them, before XAddConnec-

tionWatch returns. XAddConnectionWatch returns a nonzero status if the procedure is successfully registered; otherwise, it returns zero.

The registered procedure should not call any Xlib functions. If the procedure directly or indirectly causes the state of internal connections or watch procedures to change, the result is not defined. If Xlib has been initialized for threads, the procedure is called with the display locked and the result of a call by the procedure to any Xlib function that locks the display is not defined unless the executing thread has externally locked the display using XLockDisplay.

To stop tracking internal connections for a display, use XRemoveConnectionWatch.

Status XRemoveConnectionWatch (display, procedure, client_data)

Display *display;

XWatchProc procedure;

XPointer client_data;

display procedure client_data

Specifies the connection to the X server.

Specifies the procedure to be called.

Specifies the additional client data.

The XRemoveConnectionWatch function removes a previously registered connection watch procedure. The client_data must match the client_data used when the procedure was initially registered.

To process input on an internal connection, use XProcessInternalConnection.

void XProcessInternalConnection(display, fd)

Display *display; int fd;

display fd

Specifies the connection to the X server.

Specifies the file descriptor.

The XProcessInternalConnection function processes input available on an internal connection.

This function should be called for an internal connection only after an operating system facility

(for example, select or poll) has indicated that input is available; otherwise, the effect is not defined.

To obtain all of the current internal connections for a display, use XInternalConnectionNum-

bers.

26

Xlib − C Library libX11 1.3.2

Status XInternalConnectionNumbers(display, fd_return, count_return)

Display *display; int **fd_return; int *count_return;

display fd_return

Specifies the connection to the X server.

Returns the file descriptors.

count_return

Returns the number of file descriptors.

The XInternalConnectionNumbers function returns a list of the file descriptors for all internal connections currently open for the specified display. When the allocated list is no longer needed, free it by using XFree. This functions returns a nonzero status if the list is successfully allocated; otherwise, it returns zero.

27

Xlib − C Library libX11 1.3.2

Chapter 3

Window Functions

In the X Window System, a window is a rectangular area on the screen that lets you view graphic output. Client applications can display overlapping and nested windows on one or more screens that are driven by X servers on one or more machines. Clients who want to create windows must first connect their program to the X server by calling XOpenDisplay. This chapter begins with a discussion of visual types and window attributes. The chapter continues with a discussion of the

Xlib functions you can use to:

Create windows

Destroy windows

Map windows

Unmap windows

Configure windows

Change window stacking order

Change window attributes

This chapter also identifies the window actions that may generate events.

Note that it is vital that your application conform to the established conventions for communicating with window managers for it to work well with the various window managers in use (see section 14.1). Toolkits generally adhere to these conventions for you, relieving you of the burden.

Toolkits also often supersede many functions in this chapter with versions of their own. For more information, refer to the documentation for the toolkit that you are using.

3.1. Visual Types

On some display hardware, it may be possible to deal with color resources in more than one way.

For example, you may be able to deal with a screen of either 12-bit depth with arbitrary mapping of pixel to color (pseudo-color) or 24-bit depth with 8 bits of the pixel dedicated to each of red, green, and blue. These different ways of dealing with the visual aspects of the screen are called visuals. For each screen of the display, there may be a list of valid visual types supported at different depths of the screen. Because default windows and visual types are defined for each screen, most simple applications need not deal with this complexity. Xlib provides macros and functions that return the default root window, the default depth of the default root window, and the default visual type (see sections 2.2.1 and 16.7).

Xlib uses an opaque Visual structure that contains information about the possible color mapping.

The visual utility functions (see section 16.7) use an XVisualInfo structure to return this information to an application. The members of this structure pertinent to this discussion are class, red_mask, green_mask, blue_mask, bits_per_rgb, and colormap_size. The class member specifies one of the possible visual classes of the screen and can be StaticGray, StaticColor, True-

Color, GrayScale, PseudoColor, or DirectColor.

The following concepts may serve to make the explanation of visual types clearer. The screen can be color or grayscale, can have a colormap that is writable or read-only, and can also have a colormap whose indices are decomposed into separate RGB pieces, provided one is not on a grayscale screen. This leads to the following diagram:

28

Xlib − C Library libX11 1.3.2

Color Gray-scale

R/O R/W R/O R/W

Undecomposed Static Pseudo Static Gray

Colormap Color Color Gray Scale

Decomposed True Direct

Colormap Color Color

Conceptually, as each pixel is read out of video memory for display on the screen, it goes through a look-up stage by indexing into a colormap. Colormaps can be manipulated arbitrarily on some hardware, in limited ways on other hardware, and not at all on other hardware. The visual types affect the colormap and the RGB values in the following ways:

For PseudoColor, a pixel value indexes a colormap to produce independent RGB values, and the RGB values can be changed dynamically.

GrayScale is treated the same way as PseudoColor except that the primary that drives the screen is undefined. Thus, the client should always store the same value for red, green, and blue in the colormaps.

For DirectColor, a pixel value is decomposed into separate RGB subfields, and each subfield separately indexes the colormap for the corresponding value. The RGB values can be changed dynamically.

TrueColor is treated the same way as DirectColor except that the colormap has predefined, read-only RGB values. These RGB values are server dependent but provide linear or near-linear ramps in each primary.

StaticColor is treated the same way as PseudoColor except that the colormap has predefined, read-only, server-dependent RGB values.

StaticGray is treated the same way as StaticColor except that the RGB values are equal for any single pixel value, thus resulting in shades of gray. StaticGray with a two-entry colormap can be thought of as monochrome.

The red_mask, green_mask, and blue_mask members are only defined for DirectColor and

TrueColor. Each has one contiguous set of bits with no intersections. The bits_per_rgb member specifies the log base 2 of the number of distinct color values (individually) of red, green, and blue. Actual RGB values are unsigned 16-bit numbers. The colormap_size member defines the number of available colormap entries in a newly created colormap. For DirectColor and True-

Color, this is the size of an individual pixel subfield.

To obtain the visual ID from a Visual, use XVisualIDFromVisual.

VisualID XVisualIDFromVisual (visual)

Visual *visual;

visual

Specifies the visual type.

The XVisualIDFromVisual function returns the visual ID for the specified visual type.

3.2. Window Attributes

All InputOutput windows have a border width of zero or more pixels, an optional background, an event suppression mask (which suppresses propagation of events from children), and a property list (see section 4.3). The window border and background can be a solid color or a pattern, called a tile. All windows except the root have a parent and are clipped by their parent. If a window is stacked on top of another window, it obscures that other window for the purpose of input.

29

Xlib − C Library libX11 1.3.2

If a window has a background (almost all do), it obscures the other window for purposes of output. Attempts to output to the obscured area do nothing, and no input events (for example, pointer motion) are generated for the obscured area.

Windows also have associated property lists (see section 4.3).

Both InputOutput and InputOnly windows have the following common attributes, which are the only attributes of an InputOnly window: win-gravity event-mask do-not-propagate-mask override-redirect

• cursor

If you specify any other attributes for an InputOnly window, a BadMatch error results.

InputOnly windows are used for controlling input events in situations where InputOutput windows are unnecessary. InputOnly windows are invisible; can only be used to control such things as cursors, input event generation, and grabbing; and cannot be used in any graphics requests.

Note that InputOnly windows cannot have InputOutput windows as inferiors.

Windows have borders of a programmable width and pattern as well as a background pattern or tile. Pixel values can be used for solid colors. The background and border pixmaps can be destroyed immediately after creating the window if no further explicit references to them are to be made. The pattern can either be relative to the parent or absolute. If ParentRelative, the parent’s background is used.

When windows are first created, they are not visible (not mapped) on the screen. Any output to a window that is not visible on the screen and that does not have backing store will be discarded.

An application may wish to create a window long before it is mapped to the screen. When a window is eventually mapped to the screen (using XMapWindow), the X server generates an

Expose ev ent for the window if backing store has not been maintained.

A window manager can override your choice of size, border width, and position for a top-level window. Your program must be prepared to use the actual size and position of the top window. It is not acceptable for a client application to resize itself unless in direct response to a human command to do so. Instead, either your program should use the space given to it, or if the space is too small for any useful work, your program might ask the user to resize the window. The border of your top-level window is considered fair game for window managers.

To set an attribute of a window, set the appropriate member of the XSetWindowAttributes structure and OR in the corresponding value bitmask in your subsequent calls to XCreateWindow and XChangeWindowAttributes, or use one of the other convenience functions that set the appropriate attribute. The symbols for the value mask bits and the XSetWindowAttributes structure are:

30

Xlib − C Library libX11 1.3.2

/* Window attribute value mask bits */

#define

CWBackPixmap

#define

CWBackPixel

#define

CWBorderPixmap

#define

CWBorderPixel

#define

CWBitGravity

#define

CWWinGravity

#define

CWBackingStore

#define

CWBackingPlanes

#define

CWBackingPixel

#define

CWOverrideRedirect

#define

CWSaveUnder

#define

CWEventMask

#define

CWDontPropagate

#define

CWColormap

#define

CWCursor

(1L<<0)

(1L<<1)

(1L<<2)

(1L<<3)

(1L<<4)

(1L<<5)

(1L<<6)

(1L<<7)

(1L<<8)

(1L<<9)

(1L<<10)

(1L<<11)

(1L<<12)

(1L<<13)

(1L<<14)

/* Values */ typedef struct {

Pixmap background_pixmap; /* background, None, or ParentRelative */ unsigned long background_pixel; /* background pixel */

Pixmap border_pixmap; /* border of the window or CopyFromParent */ unsigned long border_pixel; /* border pixel value */ int bit_gravity; /* one of bit gravity values */ int win_gravity; /* one of the window gravity values */ int backing_store; unsigned long backing_planes;

/* NotUseful, WhenMapped, Always */

/* planes to be preserved if possible */ unsigned long backing_pixel; /* value to use in restoring planes */

Bool save_under; /* should bits under be saved? (popups) */ long event_mask; /* set of events that should be saved */ long do_not_propagate_mask; /* set of events that should not propagate */

Bool override_redirect; /* boolean value for override_redirect */

Colormap colormap; /* color map to be associated with window */

Cursor cursor;

} XSetWindowAttributes;

/* cursor to be displayed (or None) */

The following lists the defaults for each window attribute and indicates whether the attribute is applicable to InputOutput and InputOnly windows:

Attribute Default InputOutput InputOnly

background-pixmap

None

background-pixel Undefined border-pixmap

CopyFromParent

border-pixel Undefined

Yes

Yes

Yes

Yes

No

No

No

No bit-gravity win-gravity

ForgetGravity

NorthWestGravity

Yes

Yes

No

Yes backing-store

NotUseful

Yes No backing-planes All ones Yes No backing-pixel zero Yes No

31

Xlib − C Library libX11 1.3.2

Attribute Default InputOutput InputOnly

save-under

False

Yes No ev ent-mask empty set Yes Yes do-not-propagate-mask empty set Yes Yes override-redirect

False

Yes Yes colormap cursor

CopyFromParent

None

Yes

Yes

No

Yes

3.2.1. Background Attribute

Only InputOutput windows can have a background. You can set the background of an

InputOutput window by using a pixel or a pixmap.

The background-pixmap attribute of a window specifies the pixmap to be used for a window’s background. This pixmap can be of any size, although some sizes may be faster than others. The background-pixel attribute of a window specifies a pixel value used to paint a window’s background in a single color.

You can set the background-pixmap to a pixmap, None (default), or ParentRelative. You can set the background-pixel of a window to any pixel value (no default). If you specify a background-pixel, it overrides either the default background-pixmap or any value you may have set in the background-pixmap. A pixmap of an undefined size that is filled with the background-pixel is used for the background. Range checking is not performed on the background pixel; it simply is truncated to the appropriate number of bits.

If you set the background-pixmap, it overrides the default. The background-pixmap and the window must have the same depth, or a BadMatch error results. If you set background-pixmap to

None, the window has no defined background. If you set the background-pixmap to ParentRel-

ative:

The parent window’s background-pixmap is used. The child window, howev er, must have the same depth as its parent, or a BadMatch error results.

If the parent window has a background-pixmap of None, the window also has a background-pixmap of None.

A copy of the parent window’s background-pixmap is not made. The parent’s backgroundpixmap is examined each time the child window’s background-pixmap is required.

The background tile origin always aligns with the parent window’s background tile origin.

If the background-pixmap is not ParentRelative, the background tile origin is the child window’s origin.

Setting a new background, whether by setting background-pixmap or background-pixel, overrides any previous background. The background-pixmap can be freed immediately if no further explicit reference is made to it (the X server will keep a copy to use when needed). If you later draw into the pixmap used for the background, what happens is undefined because the X implementation is free to make a copy of the pixmap or to use the same pixmap.

When no valid contents are available for regions of a window and either the regions are visible or the server is maintaining backing store, the server automatically tiles the regions with the window’s background unless the window has a background of None. If the background is None, the previous screen contents from other windows of the same depth as the window are simply left in place as long as the contents come from the parent of the window or an inferior of the parent.

Otherwise, the initial contents of the exposed regions are undefined. Expose ev ents are then generated for the regions, even if the background-pixmap is None (see section 10.9).

32

Xlib − C Library libX11 1.3.2

3.2.2. Border Attribute

Only InputOutput windows can have a border. You can set the border of an InputOutput window by using a pixel or a pixmap.

The border-pixmap attribute of a window specifies the pixmap to be used for a window’s border.

The border-pixel attribute of a window specifies a pixmap of undefined size filled with that pixel be used for a window’s border. Range checking is not performed on the background pixel; it simply is truncated to the appropriate number of bits. The border tile origin is always the same as the background tile origin.

You can also set the border-pixmap to a pixmap of any size (some may be faster than others) or to

CopyFromParent (default). You can set the border-pixel to any pixel value (no default).

If you set a border-pixmap, it overrides the default. The border-pixmap and the window must have the same depth, or a BadMatch error results. If you set the border-pixmap to Copy-

FromParent, the parent window’s border-pixmap is copied. Subsequent changes to the parent window’s border attribute do not affect the child window. Howev er, the child window must have the same depth as the parent window, or a BadMatch error results.

The border-pixmap can be freed immediately if no further explicit reference is made to it. If you later draw into the pixmap used for the border, what happens is undefined because the X implementation is free either to make a copy of the pixmap or to use the same pixmap. If you specify a border-pixel, it overrides either the default border-pixmap or any value you may have set in the border-pixmap. All pixels in the window’s border will be set to the border-pixel. Setting a new border, whether by setting border-pixel or by setting border-pixmap, overrides any previous border.

Output to a window is always clipped to the inside of the window. Therefore, graphics operations never affect the window border.

3.2.3. Gravity Attributes

The bit gravity of a window defines which region of the window should be retained when an

InputOutput window is resized. The default value for the bit-gravity attribute is ForgetGrav-

ity. The window gravity of a window allows you to define how the InputOutput or InputOnly window should be repositioned if its parent is resized. The default value for the win-gravity attribute is NorthWestGravity.

If the inside width or height of a window is not changed and if the window is moved or its border is changed, then the contents of the window are not lost but move with the window. Changing the inside width or height of the window causes its contents to be moved or lost (depending on the bit-gravity of the window) and causes children to be reconfigured (depending on their win-gravity). For a change of width and height, the (x, y) pairs are defined:

Gravity Direction Coordinates

NorthWestGravity

(0, 0)

NorthGravity

(Width/2, 0)

NorthEastGravity

(Width, 0)

WestGravity

(0, Height/2)

CenterGravity

EastGravity

(Width/2, Height/2)

(Width, Height/2)

SouthWestGravity

(0, Height)

SouthGravity

(Width/2, Height)

SouthEastGravity

(Width, Height)

When a window with one of these bit-gravity values is resized, the corresponding pair defines the change in position of each pixel in the window. When a window with one of these win-gravities

33

Xlib − C Library libX11 1.3.2

has its parent window resized, the corresponding pair defines the change in position of the window within the parent. When a window is so repositioned, a GravityNotify ev ent is generated

(see section 10.10.5).

A bit-gravity of StaticGravity indicates that the contents or origin should not move relative to the origin of the root window. If the change in size of the window is coupled with a change in position (x, y), then for bit-gravity the change in position of each pixel is (−x, −y), and for wingravity the change in position of a child when its parent is so resized is (−x, −y). Note that Stat-

icGravity still only takes effect when the width or height of the window is changed, not when the window is moved.

A bit-gravity of ForgetGravity indicates that the window’s contents are always discarded after a size change, even if a backing store or save under has been requested. The window is tiled with its background and zero or more Expose ev ents are generated. If no background is defined, the existing screen contents are not altered. Some X servers may also ignore the specified bit-gravity and always generate Expose ev ents.

The contents and borders of inferiors are not affected by their parent’s bit-gravity. A server is permitted to ignore the specified bit-gravity and use Forget instead.

A win-gravity of UnmapGravity is like NorthWestGravity (the window is not moved), except the child is also unmapped when the parent is resized, and an UnmapNotify ev ent is generated.

3.2.4. Backing Store Attribute

Some implementations of the X server may choose to maintain the contents of InputOutput windows. If the X server maintains the contents of a window, the off-screen saved pixels are known as backing store. The backing store advises the X server on what to do with the contents of a window. The backing-store attribute can be set to NotUseful (default), WhenMapped, or

Always.

A backing-store attribute of NotUseful advises the X server that maintaining contents is unnecessary, although some X implementations may still choose to maintain contents and, therefore, not generate Expose ev ents. A backing-store attribute of WhenMapped advises the X server that maintaining contents of obscured regions when the window is mapped would be beneficial. In this case, the server may generate an Expose ev ent when the window is created. A backing-store attribute of Always advises the X server that maintaining contents even when the window is unmapped would be beneficial. Even if the window is larger than its parent, this is a request to the X server to maintain complete contents, not just the region within the parent window boundaries. While the X server maintains the window’s contents, Expose ev ents normally are not generated, but the X server may stop maintaining contents at any time.

When the contents of obscured regions of a window are being maintained, regions obscured by noninferior windows are included in the destination of graphics requests (and source, when the window is the source). However, regions obscured by inferior windows are not included.

3.2.5. Save Under Flag

Some server implementations may preserve contents of InputOutput windows under other

InputOutput windows. This is not the same as preserving the contents of a window for you.

You may get better visual appeal if transient windows (for example, pop-up menus) request that the system preserve the screen contents under them, so the temporarily obscured applications do not have to repaint.

You can set the save-under flag to True or False (default). If save-under is True, the X server is advised that, when this window is mapped, saving the contents of windows it obscures would be beneficial.

34

Xlib − C Library libX11 1.3.2

3.2.6. Backing Planes and Backing Pixel Attributes

You can set backing planes to indicate (with bits set to 1) which bit planes of an InputOutput window hold dynamic data that must be preserved in backing store and during save unders. The default value for the backing-planes attribute is all bits set to 1. You can set backing pixel to specify what bits to use in planes not covered by backing planes. The default value for the backing-pixel attribute is all bits set to 0. The X server is free to save only the specified bit planes in the backing store or the save under and is free to regenerate the remaining planes with the specified pixel value. Any extraneous bits in these values (that is, those bits beyond the specified depth of the window) may be simply ignored. If you request backing store or save unders, you should use these members to minimize the amount of off-screen memory required to store your window.

3.2.7. Event Mask and Do Not Propagate Mask Attributes

The event mask defines which events the client is interested in for this InputOutput or Inpu-

tOnly window (or, for some event types, inferiors of this window). The ev ent mask is the bitwise inclusive OR of zero or more of the valid event mask bits. You can specify that no maskable ev ents are reported by setting NoEventMask (default).

The do-not-propagate-mask attribute defines which events should not be propagated to ancestor windows when no client has the event type selected in this InputOutput or InputOnly window.

The do-not-propagate-mask is the bitwise inclusive OR of zero or more of the following masks:

KeyPress, KeyRelease, ButtonPress, ButtonRelease, PointerMotion, Button1Motion, But-

ton2Motion, Button3Motion, Button4Motion, Button5Motion, and ButtonMotion. You can specify that all events are propagated by setting NoEventMask (default).

3.2.8. Override Redirect Flag

To control window placement or to add decoration, a window manager often needs to intercept

(redirect) any map or configure request. Pop-up windows, however, often need to be mapped without a window manager getting in the way. To control whether an InputOutput or Inpu-

tOnly window is to ignore these structure control facilities, use the override-redirect flag.

The override-redirect flag specifies whether map and configure requests on this window should override a SubstructureRedirectMask on the parent. You can set the override-redirect flag to

True or False (default). Window managers use this information to avoid tampering with pop-up windows (see also chapter 14).

3.2.9. Colormap Attribute

The colormap attribute specifies which colormap best reflects the true colors of the InputOutput window. The colormap must have the same visual type as the window, or a BadMatch error results. X servers capable of supporting multiple hardware colormaps can use this information, and window managers can use it for calls to XInstallColormap. You can set the colormap attribute to a colormap or to CopyFromParent (default).

If you set the colormap to CopyFromParent, the parent window’s colormap is copied and used by its child. However, the child window must have the same visual type as the parent, or a Bad-

Match error results. The parent window must not have a colormap of None, or a BadMatch error results. The colormap is copied by sharing the colormap object between the child and parent, not by making a complete copy of the colormap contents. Subsequent changes to the parent window’s colormap attribute do not affect the child window.

3.2.10. Cursor Attribute

The cursor attribute specifies which cursor is to be used when the pointer is in the InputOutput or InputOnly window. You can set the cursor to a cursor or None (default).

If you set the cursor to None, the parent’s cursor is used when the pointer is in the InputOutput or InputOnly window, and any change in the parent’s cursor will cause an immediate change in the displayed cursor. By calling XFreeCursor, the cursor can be freed immediately as long as

35

Xlib − C Library libX11 1.3.2

no further explicit reference to it is made.

3.3. Creating Windows

Xlib provides basic ways for creating windows, and toolkits often supply higher-level functions specifically for creating and placing top-level windows, which are discussed in the appropriate toolkit documentation. If you do not use a toolkit, however, you must provide some standard information or hints for the window manager by using the Xlib inter-client communication functions (see chapter 14).

If you use Xlib to create your own top-level windows (direct children of the root window), you must observe the following rules so that all applications interact reasonably across the different styles of window management:

You must never fight with the window manager for the size or placement of your top-level window.

You must be able to deal with whatever size window you get, even if this means that your application just prints a message like ‘‘Please make me bigger’’ in its window.

You should only attempt to resize or move top-level windows in direct response to a user request. If a request to change the size of a top-level window fails, you must be prepared to live with what you get. You are free to resize or move the children of top-level windows as necessary. (Toolkits often have facilities for automatic relayout.)

If you do not use a toolkit that automatically sets standard window properties, you should set these properties for top-level windows before mapping them.

For further information, see chapter 14 and the Inter-Client Communication Conventions Manual.

XCreateWindow is the more general function that allows you to set specific window attributes when you create a window. XCreateSimpleWindow creates a window that inherits its attributes from its parent window.

The X server acts as if InputOnly windows do not exist for the purposes of graphics requests, exposure processing, and VisibilityNotify ev ents. An InputOnly window cannot be used as a drawable (that is, as a source or destination for graphics requests). InputOnly and InputOutput windows act identically in other respects (properties, grabs, input control, and so on). Extension packages can define other classes of windows.

To create an unmapped window and set its window attributes, use XCreateWindow.

36

Xlib − C Library libX11 1.3.2

Window XCreateWindow(display, parent, x, y, width, height, border_width, depth,

class, visual, valuemask, attributes)

Display *display;

Window parent; int x, y; unsigned int width, height; unsigned int border_width; int depth; unsigned int class;

Visual *visual; unsigned long valuemask;

XSetWindowAttributes *attributes;

x y display parent

Specifies the connection to the X server.

Specifies the parent window.

Specify the x and y coordinates, which are the top-left outside corner of the created window’s borders and are relative to the inside of the parent window’s borders.

width height border_width

Specifies the width of the created window’s border in pixels.

depth

Specifies the window’s depth. A depth of CopyFromParent means the depth is taken from the parent.

class

Specifies the created window’s class. You can pass InputOutput, InputOnly, or CopyFromParent. A class of CopyFromParent means the class is taken from the parent.

visual

Specify the width and height, which are the created window’s inside dimensions and do not include the created window’s borders. The dimensions must be nonzero, or a BadValue error results.

valuemask attributes

Specifies the visual type. A visual of CopyFromParent means the visual type is taken from the parent.

Specifies which window attributes are defined in the attributes argument. This mask is the bitwise inclusive OR of the valid attribute mask bits. If valuemask is zero, the attributes are ignored and are not referenced.

Specifies the structure from which the values (as specified by the value mask) are to be taken. The value mask should have the appropriate bits set to indicate which attributes have been set in the structure.

The XCreateWindow function creates an unmapped subwindow for a specified parent window, returns the window ID of the created window, and causes the X server to generate a CreateNo-

tify ev ent. The created window is placed on top in the stacking order with respect to siblings.

The coordinate system has the X axis horizontal and the Y axis vertical with the origin [0, 0] at the upper-left corner. Coordinates are integral, in terms of pixels, and coincide with pixel centers.

Each window and pixmap has its own coordinate system. For a window, the origin is inside the border at the inside, upper-left corner.

The border_width for an InputOnly window must be zero, or a BadMatch error results. For class InputOutput, the visual type and depth must be a combination supported for the screen, or a BadMatch error results. The depth need not be the same as the parent, but the parent must not be a window of class InputOnly, or a BadMatch error results. For an InputOnly window, the depth must be zero, and the visual must be one supported by the screen. If either condition is not

37

Xlib − C Library libX11 1.3.2

met, a BadMatch error results. The parent window, howev er, may have any depth and class. If you specify any inv alid window attribute for a window, a BadMatch error results.

The created window is not yet displayed (mapped) on the user’s display. To display the window, call XMapWindow. The new window initially uses the same cursor as its parent. A new cursor can be defined for the new window by calling XDefineCursor. The window will not be visible on the screen unless it and all of its ancestors are mapped and it is not obscured by any of its ancestors.

XCreateWindow can generate BadAlloc, BadColor, BadCursor, BadMatch, BadPixmap,

BadValue, and BadWindow errors.

To create an unmapped InputOutput subwindow of a giv en parent window, use XCreateSim-

pleWindow.

Window XCreateSimpleWindow(display, parent, x, y, width, height, border_width,

border, background)

Display *display;

Window parent; int x, y; unsigned int width, height; unsigned int border_width; unsigned long border; unsigned long background;

display parent x y

Specifies the connection to the X server.

Specifies the parent window.

Specify the x and y coordinates, which are the top-left outside corner of the new window’s borders and are relative to the inside of the parent window’s borders.

width height

Specify the width and height, which are the created window’s inside dimensions and do not include the created window’s borders. The dimensions must be nonzero, or a BadValue error results.

border_width

Specifies the width of the created window’s border in pixels.

border

Specifies the border pixel value of the window.

background

Specifies the background pixel value of the window.

The XCreateSimpleWindow function creates an unmapped InputOutput subwindow for a specified parent window, returns the window ID of the created window, and causes the X server to generate a CreateNotify ev ent. The created window is placed on top in the stacking order with respect to siblings. Any part of the window that extends outside its parent window is clipped.

The border_width for an InputOnly window must be zero, or a BadMatch error results. XCre-

ateSimpleWindow inherits its depth, class, and visual from its parent. All other window attributes, except background and border, hav e their default values.

XCreateSimpleWindow can generate BadAlloc, BadMatch, BadValue, and BadWindow errors.

3.4. Destroying Windows

Xlib provides functions that you can use to destroy a window or destroy all subwindows of a window.

38

Xlib − C Library libX11 1.3.2

To destroy a window and all of its subwindows, use XDestroyWindow.

XDestroyWindow(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XDestroyWindow function destroys the specified window as well as all of its subwindows and causes the X server to generate a DestroyNotify ev ent for each window. The window should never be referenced again. If the window specified by the w argument is mapped, it is unmapped automatically. The ordering of the DestroyNotify ev ents is such that for any giv en window being destroyed, DestroyNotify is generated on any inferiors of the window before being generated on the window itself. The ordering among siblings and across subhierarchies is not otherwise constrained. If the window you specified is a root window, no windows are destroyed. Destroying a mapped window will generate Expose ev ents on other windows that were obscured by the window being destroyed.

XDestroyWindow can generate a BadWindow error.

To destroy all subwindows of a specified window, use XDestroySubwindows.

XDestroySubwindows (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XDestroySubwindows function destroys all inferior windows of the specified window, in bottom-to-top stacking order. It causes the X server to generate a DestroyNotify ev ent for each window. If any mapped subwindows were actually destroyed, XDestroySubwindows causes the

X server to generate Expose ev ents on the specified window. This is much more efficient than deleting many windows one at a time because much of the work need be performed only once for all of the windows, rather than for each window. The subwindows should never be referenced again.

XDestroySubwindows can generate a BadWindow error.

3.5. Mapping Windows

A window is considered mapped if an XMapWindow call has been made on it. It may not be visible on the screen for one of the following reasons:

It is obscured by another opaque window.

One of its ancestors is not mapped.

• It is entirely clipped by an ancestor.

Expose ev ents are generated for the window when part or all of it becomes visible on the screen.

A client receives the Expose ev ents only if it has asked for them. Windows retain their position in the stacking order when they are unmapped.

A window manager may want to control the placement of subwindows. If SubstructureRedi-

rectMask has been selected by a window manager on a parent window (usually a root window), a map request initiated by other clients on a child window is not performed, and the window manager is sent a MapRequest ev ent. However, if the override-redirect flag on the child had been set

39

Xlib − C Library libX11 1.3.2

to True (usually only on pop-up menus), the map request is performed.

A tiling window manager might decide to reposition and resize other clients’ windows and then decide to map the window to its final location. A window manager that wants to provide decoration might reparent the child into a frame first. For further information, see sections 3.2.8 and

10.10. Only a single client at a time can select for SubstructureRedirectMask.

Similarly, a single client can select for ResizeRedirectMask on a parent window. Then, any attempt to resize the window by another client is suppressed, and the client receives a Resiz-

eRequest ev ent.

To map a given window, use XMapWindow.

XMapWindow(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XMapWindow function maps the window and all of its subwindows that have had map requests. Mapping a window that has an unmapped ancestor does not display the window but marks it as eligible for display when the ancestor becomes mapped. Such a window is called unviewable. When all its ancestors are mapped, the window becomes viewable and will be visible on the screen if it is not obscured by another window. This function has no effect if the window is already mapped.

If the override-redirect of the window is False and if some other client has selected Substructur-

eRedirectMask on the parent window, then the X server generates a MapRequest ev ent, and the

XMapWindow function does not map the window. Otherwise, the window is mapped, and the X server generates a MapNotify ev ent.

If the window becomes viewable and no earlier contents for it are remembered, the X server tiles the window with its background. If the window’s background is undefined, the existing screen contents are not altered, and the X server generates zero or more Expose ev ents. If backing-store was maintained while the window was unmapped, no Expose ev ents are generated. If backingstore will now be maintained, a full-window exposure is always generated. Otherwise, only visible regions may be reported. Similar tiling and exposure take place for any newly viewable inferiors.

If the window is an InputOutput window, XMapWindow generates Expose ev ents on each

InputOutput window that it causes to be displayed. If the client maps and paints the window and if the client begins processing events, the window is painted twice. To avoid this, first ask for

Expose ev ents and then map the window, so the client processes input events as usual. The event list will include Expose for each window that has appeared on the screen. The client’s normal response to an Expose ev ent should be to repaint the window. This method usually leads to simpler programs and to proper interaction with window managers.

XMapWindow can generate a BadWindow error.

To map and raise a window, use XMapRaised.

40

Xlib − C Library libX11 1.3.2

XMapRaised (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XMapRaised function essentially is similar to XMapWindow in that it maps the window and all of its subwindows that have had map requests. However, it also raises the specified window to the top of the stack. For additional information, see XMapWindow.

XMapRaised can generate multiple BadWindow errors.

To map all subwindows for a specified window, use XMapSubwindows.

XMapSubwindows (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XMapSubwindows function maps all subwindows for a specified window in top-to-bottom stacking order. The X server generates Expose ev ents on each newly displayed window. This may be much more efficient than mapping many windows one at a time because the server needs to perform much of the work only once, for all of the windows, rather than for each window.

XMapSubwindows can generate a BadWindow error.

3.6. Unmapping Windows

Xlib provides functions that you can use to unmap a window or all subwindows.

To unmap a window, use XUnmapWindow.

XUnmapWindow(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XUnmapWindow function unmaps the specified window and causes the X server to generate an UnmapNotify ev ent. If the specified window is already unmapped, XUnmapWindow has no effect. Normal exposure processing on formerly obscured windows is performed. Any child window will no longer be visible until another map call is made on the parent. In other words, the subwindows are still mapped but are not visible until the parent is mapped. Unmapping a window will generate Expose ev ents on windows that were formerly obscured by it.

XUnmapWindow can generate a BadWindow error.

To unmap all subwindows for a specified window, use XUnmapSubwindows.

41

Xlib − C Library libX11 1.3.2

XUnmapSubwindows (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XUnmapSubwindows function unmaps all subwindows for the specified window in bottomto-top stacking order. It causes the X server to generate an UnmapNotify ev ent on each subwindow and Expose ev ents on formerly obscured windows. Using this function is much more efficient than unmapping multiple windows one at a time because the server needs to perform much of the work only once, for all of the windows, rather than for each window.

XUnmapSubwindows can generate a BadWindow error.

3.7. Configuring Windows

Xlib provides functions that you can use to move a window, resize a window, move and resize a window, or change a window’s border width. To change one of these parameters, set the appropriate member of the XWindowChanges structure and OR in the corresponding value mask in subsequent calls to XConfigureWindow. The symbols for the value mask bits and the XWin-

dowChanges structure are:

/* Configure window value mask bits */

#define

CWX

#define

CWY

#define

CWWidth

#define

CWHeight

#define

CWBorderWidth

#define

CWSibling

#define

CWStackMode

/* Values */ typedef struct { int x, y; int width, height; int border_width;

Window sibling; int stack_mode;

} XWindowChanges;

(1<<0)

(1<<1)

(1<<2)

(1<<3)

(1<<4)

(1<<5)

(1<<6)

The x and y members are used to set the window’s x and y coordinates, which are relative to the parent’s origin and indicate the position of the upper-left outer corner of the window. The width and height members are used to set the inside size of the window, not including the border, and must be nonzero, or a BadValue error results. Attempts to configure a root window hav e no effect.

The border_width member is used to set the width of the border in pixels. Note that setting just the border width leaves the outer-left corner of the window in a fixed position but moves the absolute position of the window’s origin. If you attempt to set the border-width attribute of an Inpu-

tOnly window nonzero, a BadMatch error results.

42

Xlib − C Library libX11 1.3.2

The sibling member is used to set the sibling window for stacking operations. The stack_mode member is used to set how the window is to be restacked and can be set to Above, Below, TopIf,

BottomIf, or Opposite.

If the override-redirect flag of the window is False and if some other client has selected Sub-

structureRedirectMask on the parent, the X server generates a ConfigureRequest ev ent, and no further processing is performed. Otherwise, if some other client has selected ResizeRedirect-

Mask on the window and the inside width or height of the window is being changed, a Resiz-

eRequest ev ent is generated, and the current inside width and height are used instead. Note that the override-redirect flag of the window has no effect on ResizeRedirectMask and that Sub-

structureRedirectMask on the parent has precedence over ResizeRedirectMask on the window.

When the geometry of the window is changed as specified, the window is restacked among siblings, and a ConfigureNotify ev ent is generated if the state of the window actually changes.

GravityNotify ev ents are generated after ConfigureNotify ev ents. If the inside width or height of the window has actually changed, children of the window are affected as specified.

If a window’s size actually changes, the window’s subwindows move according to their window gravity. Depending on the window’s bit gravity, the contents of the window also may be moved

(see section 3.2.3).

If regions of the window were obscured but now are not, exposure processing is performed on these formerly obscured windows, including the window itself and its inferiors. As a result of increasing the width or height, exposure processing is also performed on any new regions of the window and any regions where window contents are lost.

The restack check (specifically, the computation for BottomIf, TopIf, and Opposite) is performed with respect to the window’s final size and position (as controlled by the other arguments of the request), not its initial position. If a sibling is specified without a stack_mode, a Bad-

Match error results.

If a sibling and a stack_mode are specified, the window is restacked as follows:

Above

Below

The window is placed just above the sibling.

The window is placed just below the sibling.

TopIf

BottomIf

Opposite

If the sibling occludes the window, the window is placed at the top of the stack.

If the window occludes the sibling, the window is placed at the bottom of the stack.

If the sibling occludes the window, the window is placed at the top of the stack.

If the window occludes the sibling, the window is placed at the bottom of the stack.

If a stack_mode is specified but no sibling is specified, the window is restacked as follows:

Above

The window is placed at the top of the stack.

Below

TopIf

BottomIf

The window is placed at the bottom of the stack.

If any sibling occludes the window, the window is placed at the top of the stack.

Opposite

If the window occludes any sibling, the window is placed at the bottom of the stack.

If any sibling occludes the window, the window is placed at the top of the stack.

If the window occludes any sibling, the window is placed at the bottom of the stack.

Attempts to configure a root window hav e no effect.

43

Xlib − C Library libX11 1.3.2

To configure a window’s size, location, stacking, or border, use XConfigureWindow.

XConfigureWindow(display, w, value_mask, values)

Display *display;

Window w; unsigned int value_mask;

XWindowChanges *values;

display w

Specifies the connection to the X server.

Specifies the window to be reconfigured.

value_mask

Specifies which values are to be set using information in the values structure.

This mask is the bitwise inclusive OR of the valid configure window values bits.

values

Specifies the XWindowChanges structure.

The XConfigureWindow function uses the values specified in the XWindowChanges structure to reconfigure a window’s size, position, border, and stacking order. Values not specified are taken from the existing geometry of the window.

If a sibling is specified without a stack_mode or if the window is not actually a sibling, a Bad-

Match error results. Note that the computations for BottomIf, TopIf, and Opposite are performed with respect to the window’s final geometry (as controlled by the other arguments passed to XConfigureWindow), not its initial geometry. Any backing store contents of the window, its inferiors, and other newly visible windows are either discarded or changed to reflect the current screen contents (depending on the implementation).

XConfigureWindow can generate BadMatch, BadValue, and BadWindow errors.

To move a window without changing its size, use XMoveWindow.

XMoveWindow(display, w, x, y)

Display *display;

Window w; int x, y;

display w x y

Specifies the connection to the X server.

Specifies the window to be moved.

Specify the x and y coordinates, which define the new location of the top-left pixel of the window’s border or the window itself if it has no border.

The XMoveWindow function moves the specified window to the specified x and y coordinates, but it does not change the window’s size, raise the window, or change the mapping state of the window. Moving a mapped window may or may not lose the window’s contents depending on if the window is obscured by nonchildren and if no backing store exists. If the contents of the window are lost, the X server generates Expose ev ents. Moving a mapped window generates

Expose ev ents on any formerly obscured windows.

If the override-redirect flag of the window is False and some other client has selected Substruc-

tureRedirectMask on the parent, the X server generates a ConfigureRequest ev ent, and no further processing is performed. Otherwise, the window is moved.

XMoveWindow can generate a BadWindow error.

To change a window’s size without changing the upper-left coordinate, use XResizeWindow.

44

Xlib − C Library libX11 1.3.2

XResizeWindow(display, w, width, height)

Display *display;

Window w; unsigned int width, height;

display w width height

Specifies the connection to the X server.

Specifies the window.

Specify the width and height, which are the interior dimensions of the window after the call completes.

The XResizeWindow function changes the inside dimensions of the specified window, not including its borders. This function does not change the window’s upper-left coordinate or the origin and does not restack the window. Changing the size of a mapped window may lose its contents and generate Expose ev ents. If a mapped window is made smaller, changing its size generates Expose ev ents on windows that the mapped window formerly obscured.

If the override-redirect flag of the window is False and some other client has selected Substruc-

tureRedirectMask on the parent, the X server generates a ConfigureRequest ev ent, and no further processing is performed. If either width or height is zero, a BadValue error results.

XResizeWindow can generate BadValue and BadWindow errors.

To change the size and location of a window, use XMoveResizeWindow.

XMoveResizeWindow(display, w, x, y, width, height)

Display *display;

Window w; int x, y; unsigned int width, height;

display w x y

Specifies the connection to the X server.

Specifies the window to be reconfigured.

Specify the x and y coordinates, which define the new position of the window relative to its parent.

width height

Specify the width and height, which define the interior size of the window.

The XMoveResizeWindow function changes the size and location of the specified window without raising it. Moving and resizing a mapped window may generate an Expose ev ent on the window. Depending on the new size and location parameters, moving and resizing a window may generate Expose ev ents on windows that the window formerly obscured.

If the override-redirect flag of the window is False and some other client has selected Substruc-

tureRedirectMask on the parent, the X server generates a ConfigureRequest ev ent, and no further processing is performed. Otherwise, the window size and location are changed.

XMoveResizeWindow can generate BadValue and BadWindow errors.

To change the border width of a given window, use XSetWindowBorderWidth.

45

Xlib − C Library libX11 1.3.2

XSetWindowBorderWidth (display, w, width)

Display *display;

Window w; unsigned int width;

display w width

Specifies the connection to the X server.

Specifies the window.

Specifies the width of the window border.

The XSetWindowBorderWidth function sets the specified window’s border width to the specified width.

XSetWindowBorderWidth can generate a BadWindow error.

3.8. Changing Window Stacking Order

Xlib provides functions that you can use to raise, lower, circulate, or restack windows.

To raise a window so that no sibling window obscures it, use XRaiseWindow.

XRaiseWindow(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XRaiseWindow function raises the specified window to the top of the stack so that no sibling window obscures it. If the windows are regarded as overlapping sheets of paper stacked on a desk, then raising a window is analogous to moving the sheet to the top of the stack but leaving its x and y location on the desk constant. Raising a mapped window may generate Expose ev ents for the window and any mapped subwindows that were formerly obscured.

If the override-redirect attribute of the window is False and some other client has selected Sub-

structureRedirectMask on the parent, the X server generates a ConfigureRequest ev ent, and no processing is performed. Otherwise, the window is raised.

XRaiseWindow can generate a BadWindow error.

To lower a window so that it does not obscure any sibling windows, use XLowerWindow.

XLowerWindow(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XLowerWindow function lowers the specified window to the bottom of the stack so that it does not obscure any sibling windows. If the windows are regarded as overlapping sheets of paper stacked on a desk, then lowering a window is analogous to moving the sheet to the bottom of the stack but leaving its x and y location on the desk constant. Lowering a mapped window will generate Expose ev ents on any windows it formerly obscured.

46

Xlib − C Library libX11 1.3.2

If the override-redirect attribute of the window is False and some other client has selected Sub-

structureRedirectMask on the parent, the X server generates a ConfigureRequest ev ent, and no processing is performed. Otherwise, the window is lowered to the bottom of the stack.

XLowerWindow can generate a BadWindow error.

To circulate a subwindow up or down, use XCirculateSubwindows.

XCirculateSubwindows (display, w, direction)

Display *display;

Window w; int direction;

display w direction

Specifies the connection to the X server.

Specifies the window.

Specifies the direction (up or down) that you want to circulate the window. You can pass RaiseLowest or LowerHighest.

The XCirculateSubwindows function circulates children of the specified window in the specified direction. If you specify RaiseLowest, XCirculateSubwindows raises the lowest mapped child (if any) that is occluded by another child to the top of the stack. If you specify LowerHigh-

est, XCirculateSubwindows lowers the highest mapped child (if any) that occludes another child to the bottom of the stack. Exposure processing is then performed on formerly obscured windows. If some other client has selected SubstructureRedirectMask on the window, the X server generates a CirculateRequest ev ent, and no further processing is performed. If a child is actually restacked, the X server generates a CirculateNotify ev ent.

XCirculateSubwindows can generate BadValue and BadWindow errors.

To raise the lowest mapped child of a window that is partially or completely occluded by another child, use XCirculateSubwindowsUp.

XCirculateSubwindowsUp (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XCirculateSubwindowsUp function raises the lowest mapped child of the specified window that is partially or completely occluded by another child. Completely unobscured children are not affected. This is a convenience function equivalent to XCirculateSubwindows with RaiseLow-

est specified.

XCirculateSubwindowsUp can generate a BadWindow error.

To lower the highest mapped child of a window that partially or completely occludes another child, use XCirculateSubwindowsDown.

47

Xlib − C Library libX11 1.3.2

XCirculateSubwindowsDown (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XCirculateSubwindowsDown function lowers the highest mapped child of the specified window that partially or completely occludes another child. Completely unobscured children are not affected. This is a convenience function equivalent to XCirculateSubwindows with Lower-

Highest specified.

XCirculateSubwindowsDown can generate a BadWindow error.

To restack a set of windows from top to bottom, use XRestackWindows.

XRestackWindows (display, windows, nwindows);

Display *display;

Window windows[]; int nwindows;

display windows nwindows

Specifies the connection to the X server.

Specifies an array containing the windows to be restacked.

Specifies the number of windows to be restacked.

The XRestackWindows function restacks the windows in the order specified, from top to bottom. The stacking order of the first window in the windows array is unaffected, but the other windows in the array are stacked underneath the first window, in the order of the array. The stacking order of the other windows is not affected. For each window in the window array that is not a child of the specified window, a BadMatch error results.

If the override-redirect attribute of a window is False and some other client has selected Sub-

structureRedirectMask on the parent, the X server generates ConfigureRequest ev ents for each window whose override-redirect flag is not set, and no further processing is performed. Otherwise, the windows will be restacked in top-to-bottom order.

XRestackWindows can generate a BadWindow error.

3.9. Changing Window Attributes

Xlib provides functions that you can use to set window attributes. XChangeWindowAttributes is the more general function that allows you to set one or more window attributes provided by the

XSetWindowAttributes structure. The other functions described in this section allow you to set one specific window attribute, such as a window’s background.

To change one or more attributes for a given window, use XChangeWindowAttributes.

48

Xlib − C Library libX11 1.3.2

XChangeWindowAttributes (display, w, valuemask, attributes)

Display *display;

Window w; unsigned long valuemask;

XSetWindowAttributes *attributes;

display w valuemask

Specifies the connection to the X server.

Specifies the window.

Specifies which window attributes are defined in the attributes argument. This mask is the bitwise inclusive OR of the valid attribute mask bits. If valuemask is zero, the attributes are ignored and are not referenced. The values and restrictions are the same as for XCreateWindow.

attributes

Specifies the structure from which the values (as specified by the value mask) are to be taken. The value mask should have the appropriate bits set to indicate which attributes have been set in the structure (see section 3.2).

Depending on the valuemask, the XChangeWindowAttributes function uses the window attributes in the XSetWindowAttributes structure to change the specified window attributes.

Changing the background does not cause the window contents to be changed. To repaint the window and its background, use XClearWindow. Setting the border or changing the background such that the border tile origin changes causes the border to be repainted. Changing the background of a root window to None or ParentRelative restores the default background pixmap.

Changing the border of a root window to CopyFromParent restores the default border pixmap.

Changing the win-gravity does not affect the current position of the window. Changing the backing-store of an obscured window to WhenMapped or Always, or changing the backing-planes, backing-pixel, or save-under of a mapped window may have no immediate effect. Changing the colormap of a window (that is, defining a new map, not changing the contents of the existing map) generates a ColormapNotify ev ent. Changing the colormap of a visible window may have no immediate effect on the screen because the map may not be installed (see XInstallCol-

ormap). Changing the cursor of a root window to None restores the default cursor. Whenever possible, you are encouraged to share colormaps.

Multiple clients can select input on the same window. Their event masks are maintained separately. When an event is generated, it is reported to all interested clients. However, only one client at a time can select for SubstructureRedirectMask, ResizeRedirectMask, and Button-

PressMask. If a client attempts to select any of these event masks and some other client has already selected one, a BadAccess error results. There is only one do-not-propagate-mask for a window, not one per client.

XChangeWindowAttributes can generate BadAccess, BadColor, BadCursor, BadMatch,

BadPixmap, BadValue, and BadWindow errors.

To set the background of a window to a giv en pixel, use XSetWindowBackground.

49

Xlib − C Library libX11 1.3.2

XSetWindowBackground (display, w, background_pixel)

Display *display;

Window w; unsigned long background_pixel;

display w

Specifies the connection to the X server.

Specifies the window.

background_pixel

Specifies the pixel that is to be used for the background.

The XSetWindowBackground function sets the background of the window to the specified pixel value. Changing the background does not cause the window contents to be changed. XSetWin-

dowBackground uses a pixmap of undefined size filled with the pixel value you passed. If you try to change the background of an InputOnly window, a BadMatch error results.

XSetWindowBackground can generate BadMatch and BadWindow errors.

To set the background of a window to a giv en pixmap, use XSetWindowBackgroundPixmap.

XSetWindowBackgroundPixmap (display, w, background_pixmap)

Display *display;

Window w;

Pixmap background_pixmap;

display w

Specifies the connection to the X server.

Specifies the window.

background_pixmap

Specifies the background pixmap, ParentRelative, or None.

The XSetWindowBackgroundPixmap function sets the background pixmap of the window to the specified pixmap. The background pixmap can immediately be freed if no further explicit references to it are to be made. If ParentRelative is specified, the background pixmap of the window’s parent is used, or on the root window, the default background is restored. If you try to change the background of an InputOnly window, a BadMatch error results. If the background is set to None, the window has no defined background.

XSetWindowBackgroundPixmap can generate BadMatch, BadPixmap, and BadWindow errors.

Note

XSetWindowBackground and XSetWindowBackgroundPixmap do not change the current contents of the window.

To change and repaint a window’s border to a given pixel, use XSetWindowBorder.

50

Xlib − C Library libX11 1.3.2

XSetWindowBorder (display, w, border_pixel)

Display *display;

Window w; unsigned long border_pixel;

display w

Specifies the connection to the X server.

Specifies the window.

border_pixel

Specifies the entry in the colormap.

The XSetWindowBorder function sets the border of the window to the pixel value you specify.

If you attempt to perform this on an InputOnly window, a BadMatch error results.

XSetWindowBorder can generate BadMatch and BadWindow errors.

To change and repaint the border tile of a given window, use XSetWindowBorderPixmap.

XSetWindowBorderPixmap (display, w, border_pixmap)

Display *display;

Window w;

Pixmap border_pixmap;

display

Specifies the connection to the X server.

w

Specifies the window.

border_pixmap Specifies the border pixmap or CopyFromParent.

The XSetWindowBorderPixmap function sets the border pixmap of the window to the pixmap you specify. The border pixmap can be freed immediately if no further explicit references to it are to be made. If you specify CopyFromParent, a copy of the parent window’s border pixmap is used. If you attempt to perform this on an InputOnly window, a BadMatch error results.

XSetWindowBorderPixmap can generate BadMatch, BadPixmap, and BadWindow errors.

To set the colormap of a given window, use XSetWindowColormap.

XSetWindowColormap (display, w, colormap)

Display *display;

Window w;

Colormap colormap;

display w colormap

Specifies the connection to the X server.

Specifies the window.

Specifies the colormap.

The XSetWindowColormap function sets the specified colormap of the specified window. The colormap must have the same visual type as the window, or a BadMatch error results.

XSetWindowColormap can generate BadColor, BadMatch, and BadWindow errors.

To define which cursor will be used in a window, use XDefineCursor.

51

Xlib − C Library libX11 1.3.2

XDefineCursor (display, w, cursor)

Display *display;

Window w;

Cursor cursor;

display w cursor

Specifies the connection to the X server.

Specifies the window.

Specifies the cursor that is to be displayed or None.

If a cursor is set, it will be used when the pointer is in the window. If the cursor is None, it is equivalent to XUndefineCursor.

XDefineCursor can generate BadCursor and BadWindow errors.

To undefine the cursor in a given window, use XUndefineCursor.

XUndefineCursor (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XUndefineCursor function undoes the effect of a previous XDefineCursor for this window. When the pointer is in the window, the parent’s cursor will now be used. On the root window, the default cursor is restored.

XUndefineCursor can generate a BadWindow error.

52

Xlib − C Library libX11 1.3.2

Chapter 4

Window Information Functions

After you connect the display to the X server and create a window, you can use the Xlib window information functions to:

Obtain information about a window

Translate screen coordinates

Manipulate property lists

Obtain and change window properties

Manipulate selections

4.1. Obtaining Window Information

Xlib provides functions that you can use to obtain information about the window tree, the window’s current attributes, the window’s current geometry, or the current pointer coordinates.

Because they are most frequently used by window managers, these functions all return a status to indicate whether the window still exists.

To obtain the parent, a list of children, and number of children for a given window, use XQuery-

Tr ee.

Status XQueryTree (display, w, root_return, parent_return, children_return, nchildren_return)

Display *display;

Window w;

Window *root_return;

Window *parent_return;

Window **children_return; unsigned int *nchildren_return;

display

Specifies the connection to the X server.

w

Specifies the window whose list of children, root, parent, and number of children you want to obtain.

root_return

Returns the root window.

parent_return

Returns the parent window.

children_return Returns the list of children.

nchildren_returnReturns the number of children.

The XQueryTree function returns the root ID, the parent window ID, a pointer to the list of children windows (NULL when there are no children), and the number of children in the list for the specified window. The children are listed in current stacking order, from bottom-most (first) to top-most (last). XQueryTree returns zero if it fails and nonzero if it succeeds. To free a non-

NULL children list when it is no longer needed, use XFree.

XQueryTree can generate a BadWindow error.

To obtain the current attributes of a given window, use XGetWindowAttributes.

53

Xlib − C Library libX11 1.3.2

Status XGetWindowAttributes (display, w, window_attributes_return)

Display *display;

Window w;

XWindowAttributes *window_attributes_return;

display w

Specifies the connection to the X server.

Specifies the window whose current attributes you want to obtain.

window_attributes_return

Returns the specified window’s attributes in the XWindowAttributes structure.

The XGetWindowAttributes function returns the current attributes for the specified window to an XWindowAttributes structure.

typedef struct { int x, y; int width, height; int border_width; int depth;

Visual *visual;

/* location of window */

/* width and height of window */

/* border width of window */

/* depth of window */

/* the associated visual structure */

Window root; /* root of screen containing window */ int class; /* InputOutput, InputOnly*/ int bit_gravity; /* one of the bit gravity values */ int win_gravity; /* one of the window gravity values */ int backing_store; /* NotUseful, WhenMapped, Always */ unsigned long backing_planes; /* planes to be preserved if possible */ unsigned long backing_pixel; /* value to be used when restoring planes */

Bool save_under; /* boolean, should bits under be saved? */

Colormap colormap; /* color map to be associated with window */

Bool map_installed; int map_state;

/* boolean, is color map currently installed*/

/* IsUnmapped, IsUnviewable, IsViewable */ long all_event_masks; /* set of events all people have interest in*/ long your_event_mask; /* my event mask */ long do_not_propagate_mask; /* set of events that should not propagate */

Bool override_redirect; /* boolean value for override-redirect */

Screen *screen;

} XWindowAttributes;

/* back pointer to correct screen */

The x and y members are set to the upper-left outer corner relative to the parent window’s origin.

The width and height members are set to the inside size of the window, not including the border.

The border_width member is set to the window’s border width in pixels. The depth member is set to the depth of the window (that is, bits per pixel for the object). The visual member is a pointer to the screen’s associated Visual structure. The root member is set to the root window of the screen containing the window. The class member is set to the window’s class and can be either

InputOutput or InputOnly.

The bit_gravity member is set to the window’s bit gravity and can be one of the following:

ForgetGravity

NorthWestGravity

NorthGravity

NorthEastGravity

EastGravity

SouthWestGravity

SouthGravity

SouthEastGravity

54

Xlib − C Library libX11 1.3.2

WestGravity

CenterGravity

StaticGravity

The win_gravity member is set to the window’s window gravity and can be one of the following:

UnmapGravity

NorthWestGravity

NorthGravity

NorthEastGravity

WestGravity

CenterGravity

EastGravity

SouthWestGravity

SouthGravity

SouthEastGravity

StaticGravity

For additional information on gravity, see section 3.2.3.

The backing_store member is set to indicate how the X server should maintain the contents of a window and can be WhenMapped, Always, or NotUseful. The backing_planes member is set to indicate (with bits set to 1) which bit planes of the window hold dynamic data that must be preserved in backing_stores and during save_unders. The backing_pixel member is set to indicate what values to use for planes not set in backing_planes.

The save_under member is set to True or False. The colormap member is set to the colormap for the specified window and can be a colormap ID or None. The map_installed member is set to indicate whether the colormap is currently installed and can be True or False. The map_state member is set to indicate the state of the window and can be IsUnmapped, IsUnviewable, or

IsViewable. IsUnviewable is used if the window is mapped but some ancestor is unmapped.

The all_event_masks member is set to the bitwise inclusive OR of all event masks selected on the window by all clients. The your_event_mask member is set to the bitwise inclusive OR of all ev ent masks selected by the querying client. The do_not_propagate_mask member is set to the bitwise inclusive OR of the set of events that should not propagate.

The override_redirect member is set to indicate whether this window overrides structure control facilities and can be True or False. Window manager clients should ignore the window if this member is True.

The screen member is set to a screen pointer that gives you a back pointer to the correct screen.

This makes it easier to obtain the screen information without having to loop over the root window fields to see which field matches.

XGetWindowAttributes can generate BadDrawable and BadWindow errors.

To obtain the current geometry of a given drawable, use XGetGeometry.

55

Xlib − C Library libX11 1.3.2

Status XGetGeometry(display, d, root_return, x_return, y_return, width_return,

height_return, border_width_return, depth_return)

Display *display;

Drawable d;

Window *root_return; int *x_return, *y_return; unsigned int *width_return, *height_return; unsigned int *border_width_return; unsigned int *depth_return;

display d root_return x_return y_return

Specifies the connection to the X server.

Specifies the drawable, which can be a window or a pixmap.

Returns the root window.

Return the x and y coordinates that define the location of the drawable. For a window, these coordinates specify the upper-left outer corner relative to its parent’s origin. For pixmaps, these coordinates are always zero.

width_return height_return

Return the drawable’s dimensions (width and height). For a window, these dimensions specify the inside size, not including the border.

border_width_return

Returns the border width in pixels. If the drawable is a pixmap, it returns zero.

depth_return

Returns the depth of the drawable (bits per pixel for the object).

The XGetGeometry function returns the root window and the current geometry of the drawable.

The geometry of the drawable includes the x and y coordinates, width and height, border width, and depth. These are described in the argument list. It is legal to pass to this function a window whose class is InputOnly.

XGetGeometry can generate a BadDrawable error.

4.2. Translating Screen Coordinates

Applications sometimes need to perform a coordinate transformation from the coordinate space of one window to another window or need to determine which window the pointing device is in.

XTranslateCoordinates and XQueryPointer fulfill these needs (and avoid any race conditions) by asking the X server to perform these operations.

To translate a coordinate in one window to the coordinate space of another window, use XTrans-

lateCoordinates.

56

Xlib − C Library libX11 1.3.2

Bool XTranslateCoordinates (display, src_w, dest_w, src_x, src_y, dest_x_return,

dest_y_return, child_return)

Display *display;

Window src_w, dest_w; int src_x, src_y; int *dest_x_return, *dest_y_return;

Window *child_return;

display src_w dest_w src_x src_y

Specifies the connection to the X server.

Specifies the source window.

Specifies the destination window.

Specify the x and y coordinates within the source window.

dest_x_return dest_y_return

Return the x and y coordinates within the destination window.

child_return

Returns the child if the coordinates are contained in a mapped child of the destination window.

If XTranslateCoordinates returns True, it takes the src_x and src_y coordinates relative to the source window’s origin and returns these coordinates to dest_x_return and dest_y_return relative to the destination window’s origin. If XTranslateCoordinates returns False, src_w and dest_w are on different screens, and dest_x_return and dest_y_return are zero. If the coordinates are contained in a mapped child of dest_w, that child is returned to child_return. Otherwise, child_return is set to None.

XTranslateCoordinates can generate a BadWindow error.

To obtain the screen coordinates of the pointer or to determine the pointer coordinates relative to a specified window, use XQueryPointer.

Bool XQueryPointer(display, w, root_return, child_return, root_x_return, root_y_return,

win_x_return, win_y_return, mask_return)

Display *display;

Window w;

Window *root_return, *child_return; int *root_x_return, *root_y_return; int *win_x_return, *win_y_return; unsigned int *mask_return;

display w root_return

Specifies the connection to the X server.

Specifies the window.

Returns the root window that the pointer is in.

child_return

Returns the child window that the pointer is located in, if any.

root_x_return root_y_return

Return the pointer coordinates relative to the root window’s origin.

win_x_return win_y_return

Return the pointer coordinates relative to the specified window.

mask_return

Returns the current state of the modifier keys and pointer buttons.

The XQueryPointer function returns the root window the pointer is logically on and the pointer

57

Xlib − C Library libX11 1.3.2

coordinates relative to the root window’s origin. If XQueryPointer returns False, the pointer is not on the same screen as the specified window, and XQueryPointer returns None to child_return and zero to win_x_return and win_y_return. If XQueryPointer returns True, the pointer coordinates returned to win_x_return and win_y_return are relative to the origin of the specified window. In this case, XQueryPointer returns the child that contains the pointer, if any, or else None to child_return.

XQueryPointer returns the current logical state of the keyboard buttons and the modifier keys in mask_return. It sets mask_return to the bitwise inclusive OR of one or more of the button or modifier key bitmasks to match the current state of the mouse buttons and the modifier keys.

Note that the logical state of a device (as seen through Xlib) may lag the physical state if device ev ent processing is frozen (see section 12.1).

XQueryPointer can generate a BadWindow error.

4.3. Properties and Atoms

A property is a collection of named, typed data. The window system has a set of predefined properties (for example, the name of a window, size hints, and so on), and users can define any other arbitrary information and associate it with windows. Each property has a name, which is an ISO

Latin-1 string. For each named property, a unique identifier (atom) is associated with it. A property also has a type, for example, string or integer. These types are also indicated using atoms, so arbitrary new types can be defined. Data of only one type may be associated with a single property name. Clients can store and retrieve properties associated with windows. For efficiency reasons, an atom is used rather than a character string. XInternAtom can be used to obtain the atom for property names.

A property is also stored in one of several possible formats. The X server can store the information as 8-bit quantities, 16-bit quantities, or 32-bit quantities. This permits the X server to present the data in the byte order that the client expects.

Note

If you define further properties of complex type, you must encode and decode them yourself. These functions must be carefully written if they are to be portable. For further information about how to write a library extension, see appendix C.

The type of a property is defined by an atom, which allows for arbitrary extension in this type scheme.

Certain property names are predefined in the server for commonly used functions. The atoms for these properties are defined in <X11/Xatom.h>. To avoid name clashes with user symbols, the

#define name for each atom has the XA_ prefix. For an explanation of the functions that let you get and set much of the information stored in these predefined properties, see chapter 14.

The core protocol imposes no semantics on these property names, but semantics are specified in other X Consortium standards, such as the Inter-Client Communication Conventions Manual and the X Logical Font Description Conventions.

You can use properties to communicate other information between applications. The functions described in this section let you define new properties and get the unique atom IDs in your applications.

Although any particular atom can have some client interpretation within each of the name spaces, atoms occur in five distinct name spaces within the protocol:

• Selections

Property names

Property types

58

Xlib − C Library

Font properties

Type of a ClientMessage ev ent (none are built into the X server)

The built-in selection property names are:

PRIMARY

SECONDARY

The built-in property names are:

CUT_BUFFER0 RESOURCE_MANAGER

CUT_BUFFER1 WM_CLASS

CUT_BUFFER2 WM_CLIENT_MACHINE

CUT_BUFFER3 WM_COLORMAP_WINDOWS

CUT_BUFFER4 WM_COMMAND

CUT_BUFFER5 WM_HINTS

CUT_BUFFER6 WM_ICON_NAME

CUT_BUFFER7 WM_ICON_SIZE

RGB_BEST_MAP WM_NAME

RGB_BLUE_MAP WM_NORMAL_HINTS

RGB_DEFAULT_MAP WM_PROT OCOLS

RGB_GRAY_MAP WM_STATE

RGB_GREEN_MAP WM_TRANSIENT_FOR

RGB_RED_MAP WM_ZOOM_HINTS

The built-in property types are:

ARC POINT

AT OM RGB_COLOR_MAP

BITMAP RECTANGLE

CARDINAL STRING

COLORMAP VISUALID

CURSOR WINDOW

DRAWABLE WM_HINTS

FONT WM_SIZE_HINTS

INTEGER

PIXMAP

The built-in font property names are:

MIN_SPACE

NORM_SPACE

MAX_SPACE

END_SPACE

STRIKEOUT_DESCENT

STRIKEOUT_ASCENT

ITALIC_ANGLE

X_HEIGHT

SUPERSCRIPT_X QUAD_WIDTH

SUPERSCRIPT_Y WEIGHT

SUBSCRIPT_X POINT_SIZE

SUBSCRIPT_Y RESOLUTION

UNDERLINE_POSITION COPYRIGHT

UNDERLINE_THICKNESS NOTICE

FONT_NAME FAMILY_NAME

FULL_NAME CAP_HEIGHT

59 libX11 1.3.2

Xlib − C Library libX11 1.3.2

For further information about font properties, see section 8.5.

To return an atom for a given name, use XInternAtom.

Atom XInternAtom(display, atom_name, only_if_exists)

Display *display; char *atom_name;

Bool only_if_exists;

display

Specifies the connection to the X server.

atom_name

Specifies the name associated with the atom you want returned.

only_if_exists

Specifies a Boolean value that indicates whether the atom must be created.

The XInternAtom function returns the atom identifier associated with the specified atom_name string. If only_if_exists is False, the atom is created if it does not exist. Therefore, XInter-

nAtom can return None. If the atom name is not in the Host Portable Character Encoding, the result is implementation-dependent. Uppercase and lowercase matter; the strings ‘‘thing’’,

‘‘Thing’’, and ‘‘thinG’’ all designate different atoms. The atom will remain defined even after the client’s connection closes. It will become undefined only when the last connection to the X server closes.

XInternAtom can generate BadAlloc and BadValue errors.

To return atoms for an array of names, use XInternAtoms.

Status XInternAtoms(display, names, count, only_if_exists, atoms_return)

Display *display; char **names; int count;

Bool only_if_exists;

Atom *atoms_return;

display names count

Specifies the connection to the X server.

Specifies the array of atom names.

Specifies the number of atom names in the array.

only_if_exists

Specifies a Boolean value that indicates whether the atom must be created.

atoms_return

Returns the atoms.

The XInternAtoms function returns the atom identifiers associated with the specified names.

The atoms are stored in the atoms_return array supplied by the caller. Calling this function is equivalent to calling XInternAtom for each of the names in turn with the specified value of only_if_exists, but this function minimizes the number of round-trip protocol exchanges between the client and the X server.

This function returns a nonzero status if atoms are returned for all of the names; otherwise, it returns zero.

XInternAtoms can generate BadAlloc and BadValue errors.

To return a name for a given atom identifier, use XGetAtomName.

60

Xlib − C Library libX11 1.3.2

char *XGetAtomName(display, atom)

Display *display;

Atom atom;

display atom

Specifies the connection to the X server.

Specifies the atom for the property name you want returned.

The XGetAtomName function returns the name associated with the specified atom. If the data returned by the server is in the Latin Portable Character Encoding, then the returned string is in the Host Portable Character Encoding. Otherwise, the result is implementation-dependent. To free the resulting string, call XFree.

XGetAtomName can generate a BadAtom error.

To return the names for an array of atom identifiers, use XGetAtomNames.

Status XGetAtomNames(display, atoms, count, names_return)

Display *display;

Atom *atoms; int count; char **names_return;

display atoms

Specifies the connection to the X server.

Specifies the array of atoms.

count

Specifies the number of atoms in the array.

names_return

Returns the atom names.

The XGetAtomNames function returns the names associated with the specified atoms. The names are stored in the names_return array supplied by the caller. Calling this function is equivalent to calling XGetAtomName for each of the atoms in turn, but this function minimizes the number of round-trip protocol exchanges between the client and the X server.

This function returns a nonzero status if names are returned for all of the atoms; otherwise, it returns zero.

XGetAtomNames can generate a BadAtom error.

4.4. Obtaining and Changing Window Properties

You can attach a property list to every window. Each property has a name, a type, and a value

(see section 4.3). The value is an array of 8-bit, 16-bit, or 32-bit quantities, whose interpretation is left to the clients. The type char is used to represent 8-bit quantities, the type short is used to represent 16-bit quantities, and the type long is used to represent 32-bit quantities.

Xlib provides functions that you can use to obtain, change, update, or interchange window properties. In addition, Xlib provides other utility functions for inter-client communication (see chapter 14).

To obtain the type, format, and value of a property of a given window, use XGetWindowProp-

erty.

61

Xlib − C Library libX11 1.3.2

int XGetWindowProperty (display, w, property, long_offset, long_length, delete, req_type,

actual_type_return, actual_format_return, nitems_return, bytes_after_return,

prop_return)

Display *display;

Window w;

Atom property; long long_offset, long_length;

Bool delete;

Atom req_type;

Atom *actual_type_return; int *actual_format_return; unsigned long *nitems_return; unsigned long *bytes_after_return; unsigned char **prop_return;

display w property long_offset

Specifies the connection to the X server.

Specifies the window whose property you want to obtain.

Specifies the property name.

Specifies the offset in the specified property (in 32-bit quantities) where the data is to be retrieved.

long_length

Specifies the length in 32-bit multiples of the data to be retrieved.

delete

Specifies a Boolean value that determines whether the property is deleted.

req_type

Specifies the atom identifier associated with the property type or AnyProperty-

Type.

actual_type_return

Returns the atom identifier that defines the actual type of the property.

actual_format_return

Returns the actual format of the property.

nitems_return

Returns the actual number of 8-bit, 16-bit, or 32-bit items stored in the prop_return data.

bytes_after_return

Returns the number of bytes remaining to be read in the property if a partial read was performed.

prop_return

Returns the data in the specified format.

The XGetWindowProperty function returns the actual type of the property; the actual format of the property; the number of 8-bit, 16-bit, or 32-bit items transferred; the number of bytes remaining to be read in the property; and a pointer to the data actually returned. XGetWindowProp-

erty sets the return arguments as follows:

• If the specified property does not exist for the specified window, XGetWindowProperty returns None to actual_type_return and the value zero to actual_format_return and bytes_after_return. The nitems_return argument is empty. In this case, the delete argument is ignored.

• If the specified property exists but its type does not match the specified type, XGetWin-

dowProperty returns the actual property type to actual_type_return, the actual property format (never zero) to actual_format_return, and the property length in bytes (even if the actual_format_return is 16 or 32) to bytes_after_return. It also ignores the delete argument.

The nitems_return argument is empty.

62

Xlib − C Library libX11 1.3.2

• If the specified property exists and either you assign AnyPropertyType to the req_type argument or the specified type matches the actual property type, XGetWindowProperty returns the actual property type to actual_type_return and the actual property format (never zero) to actual_format_return. It also returns a value to bytes_after_return and nitems_return, by defining the following values:

N = actual length of the stored property in bytes

(even if the format is 16 or 32)

I = 4 * long_offset

T = N - I

L = MINIMUM(T, 4 * long_length)

A = N - (I + L)

The returned value starts at byte index I in the property (indexing from zero), and its length in bytes is L. If the value for long_offset causes L to be negative, a BadValue error results.

The value of bytes_after_return is A, giving the number of trailing unread bytes in the stored property.

If the returned format is 8, the returned data is represented as a char array. If the returned format is 16, the returned data is represented as a short array and should be cast to that type to obtain the elements. If the returned format is 32, the returned data is represented as a long array and should be cast to that type to obtain the elements.

XGetWindowProperty always allocates one extra byte in prop_return (even if the property is zero length) and sets it to zero so that simple properties consisting of characters do not have to be copied into yet another string before use.

If delete is True and bytes_after_return is zero, XGetWindowProperty deletes the property from the window and generates a PropertyNotify ev ent on the window.

The function returns Success if it executes successfully. To free the resulting data, use XFree.

XGetWindowProperty can generate BadAtom, BadValue, and BadWindow errors.

To obtain a given window’s property list, use XListProperties.

Atom *XListProperties(display, w, num_prop_return)

Display *display;

Window w; int *num_prop_return;

display

Specifies the connection to the X server.

w

Specifies the window whose property list you want to obtain.

num_prop_returnReturns the length of the properties array.

The XListProperties function returns a pointer to an array of atom properties that are defined for the specified window or returns NULL if no properties were found. To free the memory allocated by this function, use XFree.

XListProperties can generate a BadWindow error.

To change a property of a given window, use XChangeProperty.

63

Xlib − C Library libX11 1.3.2

XChangeProperty (display, w, property, type, format, mode, data, nelements)

Display *display;

Window w;

Atom property, type; int format; int mode; unsigned char *data; int nelements;

display w property type format mode data nelements

Specifies the connection to the X server.

Specifies the window whose property you want to change.

Specifies the property name.

Specifies the type of the property. The X server does not interpret the type but simply passes it back to an application that later calls XGetWindowProperty.

Specifies whether the data should be viewed as a list of 8-bit, 16-bit, or 32-bit quantities. Possible values are 8, 16, and 32. This information allows the X server to correctly perform byte-swap operations as necessary. If the format is 16-bit or 32-bit, you must explicitly cast your data pointer to an (unsigned char *) in the call to XChangeProperty.

Specifies the mode of the operation. You can pass PropModeReplace, Prop-

ModePrepend, or PropModeAppend.

Specifies the property data.

Specifies the number of elements of the specified data format.

The XChangeProperty function alters the property for the specified window and causes the X server to generate a PropertyNotify ev ent on that window. XChangeProperty performs the following:

If mode is PropModeReplace, XChangeProperty discards the previous property value and stores the new data.

If mode is PropModePrepend or PropModeAppend, XChangeProperty inserts the specified data before the beginning of the existing data or onto the end of the existing data, respectively. The type and format must match the existing property value, or a BadMatch error results. If the property is undefined, it is treated as defined with the correct type and format with zero-length data.

If the specified format is 8, the property data must be a char array. If the specified format is 16, the property data must be a short array. If the specified format is 32, the property data must be a

long array.

The lifetime of a property is not tied to the storing client. Properties remain until explicitly deleted, until the window is destroyed, or until the server resets. For a discussion of what happens when the connection to the X server is closed, see section 2.6. The maximum size of a property is server dependent and can vary dynamically depending on the amount of memory the server has available. (If there is insufficient space, a BadAlloc error results.)

XChangeProperty can generate BadAlloc, BadAtom, BadMatch, BadValue, and BadWin-

dow errors.

To rotate a window’s property list, use XRotateWindowProperties.

64

Xlib − C Library libX11 1.3.2

XRotateWindowProperties (display, w, properties, num_prop, npositions)

Display *display;

Window w;

Atom properties[] ; int num_prop; int npositions;

display w properties num_prop npositions

Specifies the connection to the X server.

Specifies the window.

Specifies the array of properties that are to be rotated.

Specifies the length of the properties array.

Specifies the rotation amount.

The XRotateWindowProperties function allows you to rotate properties on a window and causes the X server to generate PropertyNotify ev ents. If the property names in the properties array are viewed as being numbered starting from zero and if there are num_prop property names in the list, then the value associated with property name I becomes the value associated with property name (I + npositions) mod N for all I from zero to N − 1. The effect is to rotate the states by npositions places around the virtual ring of property names (right for positive npositions, left for negative npositions). If npositions mod N is nonzero, the X server generates a PropertyNotify ev ent for each property in the order that they are listed in the array. If an atom occurs more than once in the list or no property with that name is defined for the window, a BadMatch error results. If a BadAtom or BadMatch error results, no properties are changed.

XRotateWindowProperties can generate BadAtom, BadMatch, and BadWindow errors.

To delete a property on a given window, use XDeleteProperty.

XDeleteProperty (display, w, property)

Display *display;

Window w;

Atom property;

display w property

Specifies the connection to the X server.

Specifies the window whose property you want to delete.

Specifies the property name.

The XDeleteProperty function deletes the specified property only if the property was defined on the specified window and causes the X server to generate a PropertyNotify ev ent on the window unless the property does not exist.

XDeleteProperty can generate BadAtom and BadWindow errors.

4.5. Selections

Selections are one method used by applications to exchange data. By using the property mechanism, applications can exchange data of arbitrary types and can negotiate the type of the data. A selection can be thought of as an indirect property with a dynamic type. That is, rather than having the property stored in the X server, the property is maintained by some client (the owner). A selection is global in nature (considered to belong to the user but be maintained by clients) rather than being private to a particular window subhierarchy or a particular set of clients.

Xlib provides functions that you can use to set, get, or request conversion of selections. This allows applications to implement the notion of current selection, which requires that notification

65

Xlib − C Library libX11 1.3.2

be sent to applications when they no longer own the selection. Applications that support selection often highlight the current selection and so must be informed when another application has acquired the selection so that they can unhighlight the selection.

When a client asks for the contents of a selection, it specifies a selection target type. This target type can be used to control the transmitted representation of the contents. For example, if the selection is ‘‘the last thing the user clicked on’’ and that is currently an image, then the target type might specify whether the contents of the image should be sent in XY format or Z format.

The target type can also be used to control the class of contents transmitted, for example, asking for the ‘‘looks’’ (fonts, line spacing, indentation, and so forth) of a paragraph selection, not the text of the paragraph. The target type can also be used for other purposes. The protocol does not constrain the semantics.

To set the selection owner, use XSetSelectionOwner.

XSetSelectionOwner (display, selection, owner, time)

Display *display;

Atom selection;

Window owner;

Time time;

display selection owner time

Specifies the connection to the X server.

Specifies the selection atom.

Specifies the owner of the specified selection atom. You can pass a window or

None.

Specifies the time. You can pass either a timestamp or CurrentTime.

The XSetSelectionOwner function changes the owner and last-change time for the specified selection and has no effect if the specified time is earlier than the current last-change time of the specified selection or is later than the current X server time. Otherwise, the last-change time is set to the specified time, with CurrentTime replaced by the current server time. If the owner window is specified as None, then the owner of the selection becomes None (that is, no owner).

Otherwise, the owner of the selection becomes the client executing the request.

If the new owner (whether a client or None) is not the same as the current owner of the selection and the current owner is not None, the current owner is sent a SelectionClear ev ent. If the client that is the owner of a selection is later terminated (that is, its connection is closed) or if the owner window it has specified in the request is later destroyed, the owner of the selection automatically reverts to None, but the last-change time is not affected. The selection atom is uninterpreted by the X server. XGetSelectionOwner returns the owner window, which is reported in Selection-

Request and SelectionClear ev ents. Selections are global to the X server.

XSetSelectionOwner can generate BadAtom and BadWindow errors.

To return the selection owner, use XGetSelectionOwner.

Window XGetSelectionOwner (display, selection)

Display *display;

Atom selection;

display selection

Specifies the connection to the X server.

Specifies the selection atom whose owner you want returned.

The XGetSelectionOwner function returns the window ID associated with the window that

66

Xlib − C Library libX11 1.3.2

currently owns the specified selection. If no selection was specified, the function returns the constant None. If None is returned, there is no owner for the selection.

XGetSelectionOwner can generate a BadAtom error.

To request conversion of a selection, use XConvertSelection.

XConvertSelection (display, selection, target, property, requestor, time)

Display *display;

Atom selection, target;

Atom property;

Window requestor;

Time time;

display selection target property requestor time

Specifies the connection to the X server.

Specifies the selection atom.

Specifies the target atom.

Specifies the property name. You also can pass None.

Specifies the requestor.

Specifies the time. You can pass either a timestamp or CurrentTime.

XConvertSelection requests that the specified selection be converted to the specified target type:

If the specified selection has an owner, the X server sends a SelectionRequest ev ent to that owner.

If no owner for the specified selection exists, the X server generates a SelectionNotify ev ent to the requestor with property None.

The arguments are passed on unchanged in either of the events. There are two predefined selection atoms: PRIMARY and SECONDARY.

XConvertSelection can generate BadAtom and BadWindow errors.

67

Xlib − C Library libX11 1.3.2

Chapter 5

Pixmap and Cursor Functions

Once you have connected to an X server, you can use the Xlib functions to:

Create and free pixmaps

Create, recolor, and free cursors

5.1. Creating and Freeing Pixmaps

Pixmaps can only be used on the screen on which they were created. Pixmaps are off-screen resources that are used for various operations, such as defining cursors as tiling patterns or as the source for certain raster operations. Most graphics requests can operate either on a window or on a pixmap. A bitmap is a single bit-plane pixmap.

To create a pixmap of a given size, use XCreatePixmap.

Pixmap XCreatePixmap(display, d, width, height, depth)

Display *display;

Drawable d; unsigned int width, height; unsigned int depth;

display d width height depth

Specifies the connection to the X server.

Specifies which screen the pixmap is created on.

Specify the width and height, which define the dimensions of the pixmap.

Specifies the depth of the pixmap.

The XCreatePixmap function creates a pixmap of the width, height, and depth you specified and returns a pixmap ID that identifies it. It is valid to pass an InputOnly window to the drawable argument. The width and height arguments must be nonzero, or a BadValue error results. The depth argument must be one of the depths supported by the screen of the specified drawable, or a

BadValue error results.

The server uses the specified drawable to determine on which screen to create the pixmap. The pixmap can be used only on this screen and only with other drawables of the same depth (see

XCopyPlane for an exception to this rule). The initial contents of the pixmap are undefined.

XCreatePixmap can generate BadAlloc, BadDrawable, and BadValue errors.

To free all storage associated with a specified pixmap, use XFreePixmap.

XFreePixmap (display, pixmap)

Display *display;

Pixmap pixmap;

display pixmap

Specifies the connection to the X server.

Specifies the pixmap.

68

Xlib − C Library libX11 1.3.2

The XFreePixmap function first deletes the association between the pixmap ID and the pixmap.

Then, the X server frees the pixmap storage when there are no references to it. The pixmap should never be referenced again.

XFreePixmap can generate a BadPixmap error.

5.2. Creating, Recoloring, and Freeing Cursors

Each window can have a different cursor defined for it. Whenever the pointer is in a visible window, it is set to the cursor defined for that window. If no cursor was defined for that window, the cursor is the one defined for the parent window.

From X’s perspective, a cursor consists of a cursor source, mask, colors, and a hotspot. The mask pixmap determines the shape of the cursor and must be a depth of one. The source pixmap must have a depth of one, and the colors determine the colors of the source. The hotspot defines the point on the cursor that is reported when a pointer event occurs. There may be limitations imposed by the hardware on cursors as to size and whether a mask is implemented.

XQueryBestCursor can be used to find out what sizes are possible. There is a standard font for creating cursors, but Xlib provides functions that you can use to create cursors from an arbitrary font or from bitmaps.

To create a cursor from the standard cursor font, use XCreateFontCursor.

#include <X11/cursorfont.h>

Cursor XCreateFontCursor (display, shape)

Display *display; unsigned int shape;

display shape

Specifies the connection to the X server.

Specifies the shape of the cursor.

X provides a set of standard cursor shapes in a special font named cursor. Applications are encouraged to use this interface for their cursors because the font can be customized for the individual display type. The shape argument specifies which glyph of the standard fonts to use.

The hotspot comes from the information stored in the cursor font. The initial colors of a cursor are a black foreground and a white background (see XRecolorCursor). For further information about cursor shapes, see appendix B.

XCreateFontCursor can generate BadAlloc and BadValue errors.

To create a cursor from font glyphs, use XCreateGlyphCursor.

69

Xlib − C Library libX11 1.3.2

Cursor XCreateGlyphCursor(display, source_font, mask_font, source_char, mask_char,

foreground_color, background_color)

Display *display;

Font source_font, mask_font; unsigned int source_char, mask_char;

XColor *foreground_color;

XColor *background_color;

display

Specifies the connection to the X server.

source_font

Specifies the font for the source glyph.

mask_font

Specifies the font for the mask glyph or None.

source_char

Specifies the character glyph for the source.

mask_char

Specifies the glyph character for the mask.

foreground_colorSpecifies the RGB values for the foreground of the source.

background_color

Specifies the RGB values for the background of the source.

The XCreateGlyphCursor function is similar to XCreatePixmapCursor except that the source and mask bitmaps are obtained from the specified font glyphs. The source_char must be a defined glyph in source_font, or a BadValue error results. If mask_font is given, mask_char must be a defined glyph in mask_font, or a BadValue error results. The mask_font and character are optional. The origins of the source_char and mask_char (if defined) glyphs are positioned coincidently and define the hotspot. The source_char and mask_char need not have the same bounding box metrics, and there is no restriction on the placement of the hotspot relative to the bounding boxes. If no mask_char is given, all pixels of the source are displayed. You can free the fonts immediately by calling XFreeFont if no further explicit references to them are to be made.

For 2-byte matrix fonts, the 16-bit value should be formed with the byte1 member in the most significant byte and the byte2 member in the least significant byte.

XCreateGlyphCursor can generate BadAlloc, BadFont, and BadValue errors.

To create a cursor from two bitmaps, use XCreatePixmapCursor.

70

Xlib − C Library libX11 1.3.2

Cursor XCreatePixmapCursor(display, source, mask, foreground_color, background_color, x, y)

Display *display;

Pixmap source;

Pixmap mask;

XColor *foreground_color;

XColor *background_color; unsigned int x, y;

display source

Specifies the connection to the X server.

Specifies the shape of the source cursor.

mask

Specifies the cursor’s source bits to be displayed or None.

foreground_colorSpecifies the RGB values for the foreground of the source.

x y background_color

Specifies the RGB values for the background of the source.

Specify the x and y coordinates, which indicate the hotspot relative to the source’s origin.

The XCreatePixmapCursor function creates a cursor and returns the cursor ID associated with it. The foreground and background RGB values must be specified using foreground_color and background_color, even if the X server only has a StaticGray or GrayScale screen. The foreground color is used for the pixels set to 1 in the source, and the background color is used for the pixels set to 0. Both source and mask, if specified, must have depth one (or a BadMatch error results) but can have any root. The mask argument defines the shape of the cursor. The pixels set to 1 in the mask define which source pixels are displayed, and the pixels set to 0 define which pixels are ignored. If no mask is given, all pixels of the source are displayed. The mask, if present, must be the same size as the pixmap defined by the source argument, or a BadMatch error results. The hotspot must be a point within the source, or a BadMatch error results.

The components of the cursor can be transformed arbitrarily to meet display limitations. The pixmaps can be freed immediately if no further explicit references to them are to be made. Subsequent drawing in the source or mask pixmap has an undefined effect on the cursor. The X server might or might not make a copy of the pixmap.

XCreatePixmapCursor can generate BadAlloc and BadPixmap errors.

To determine useful cursor sizes, use XQueryBestCursor.

Status XQueryBestCursor(display, d, width, height, width_return, height_return)

Display *display;

Drawable d; unsigned int width, height; unsigned int *width_return, *height_return;

display d

Specifies the connection to the X server.

Specifies the drawable, which indicates the screen.

width height

Specify the width and height of the cursor that you want the size information for.

width_return height_return

Return the best width and height that is closest to the specified width and height.

Some displays allow larger cursors than other displays. The XQueryBestCursor function

71

Xlib − C Library libX11 1.3.2

provides a way to find out what size cursors are actually possible on the display. It returns the largest size that can be displayed. Applications should be prepared to use smaller cursors on displays that cannot support large ones.

XQueryBestCursor can generate a BadDrawable error.

To change the color of a given cursor, use XRecolorCursor.

XRecolorCursor (display, cursor, foreground_color, background_color)

Display *display;

Cursor cursor;

XColor *foreground_color, *background_color;

display cursor

Specifies the connection to the X server.

Specifies the cursor.

foreground_colorSpecifies the RGB values for the foreground of the source.

background_color

Specifies the RGB values for the background of the source.

The XRecolorCursor function changes the color of the specified cursor, and if the cursor is being displayed on a screen, the change is visible immediately. The pixel members of the

XColor structures are ignored; only the RGB values are used.

XRecolorCursor can generate a BadCursor error.

To free (destroy) a given cursor, use XFreeCursor.

XFreeCursor (display, cursor)

Display *display;

Cursor cursor;

display cursor

Specifies the connection to the X server.

Specifies the cursor.

The XFreeCursor function deletes the association between the cursor resource ID and the specified cursor. The cursor storage is freed when no other resource references it. The specified cursor

ID should not be referred to again.

XFreeCursor can generate a BadCursor error.

72

Xlib − C Library libX11 1.3.2

Chapter 6

Color Management Functions

Each X window always has an associated colormap that provides a level of indirection between pixel values and colors displayed on the screen. Xlib provides functions that you can use to manipulate a colormap. The X protocol defines colors using values in the RGB color space. The

RGB color space is device dependent; rendering an RGB value on differing output devices typically results in different colors. Xlib also provides a means for clients to specify color using device-independent color spaces for consistent results across devices. Xlib supports device-independent color spaces derivable from the CIE XYZ color space. This includes the CIE XYZ, xyY,

L*u*v*, and L*a*b* color spaces as well as the TekHVC color space.

This chapter discusses how to:

• Create, copy, and destroy a colormap

• Specify colors by name or value

Allocate, modify, and free color cells

Read entries in a colormap

Convert between color spaces

Control aspects of color conversion

Query the color gamut of a screen

• Add new color spaces

All functions, types, and symbols in this chapter with the prefix ‘‘Xcms’’ are defined in

<X11/Xcms.h>. The remaining functions and types are defined in <X11/Xlib.h>.

Functions in this chapter manipulate the representation of color on the screen. For each possible value that a pixel can take in a window, there is a color cell in the colormap. For example, if a window is 4 bits deep, pixel values 0 through 15 are defined. A colormap is a collection of color cells. A color cell consists of a triple of red, green, and blue (RGB) values. The hardware imposes limits on the number of significant bits in these values. As each pixel is read out of display memory, the pixel is looked up in a colormap. The RGB value of the cell determines what color is displayed on the screen. On a grayscale display with a black-and-white monitor, the values are combined to determine the brightness on the screen.

Typically, an application allocates color cells or sets of color cells to obtain the desired colors.

The client can allocate read-only cells. In which case, the pixel values for these colors can be shared among multiple applications, and the RGB value of the cell cannot be changed. If the client allocates read/write cells, they are exclusively owned by the client, and the color associated with the pixel value can be changed at will. Cells must be allocated (and, if read/write, initialized with an RGB value) by a client to obtain desired colors. The use of pixel value for an unallocated cell results in an undefined color.

Because colormaps are associated with windows, X supports displays with multiple colormaps and, indeed, different types of colormaps. If there are insufficient colormap resources in the display, some windows will display in their true colors, and others will display with incorrect colors.

A window manager usually controls which windows are displayed in their true colors if more than one colormap is required for the color resources the applications are using. At any time, there is a set of installed colormaps for a screen. Windows using one of the installed colormaps display with true colors, and windows using other colormaps generally display with incorrect colors. You can control the set of installed colormaps by using XInstallColormap and XUninstall-

Colormap.

73

Xlib − C Library libX11 1.3.2

Colormaps are local to a particular screen. Screens always have a default colormap, and programs typically allocate cells out of this colormap. Generally, you should not write applications that monopolize color resources. Although some hardware supports multiple colormaps installed at one time, many of the hardware displays built today support only a single installed colormap, so the primitives are written to encourage sharing of colormap entries between applications.

The DefaultColormap macro returns the default colormap. The DefaultVisual macro returns the default visual type for the specified screen. Possible visual types are StaticGray,

GrayScale, StaticColor, PseudoColor, TrueColor, or DirectColor (see section 3.1).

6.1. Color Structures

Functions that operate only on RGB color space values use an XColor structure, which contains: typedef struct { unsigned long pixel; /* pixel value */ unsigned short red, green, blue; /* rgb values */ char flags; /* DoRed, DoGreen, DoBlue */ char pad;

} XColor;

The red, green, and blue values are always in the range 0 to 65535 inclusive, independent of the number of bits actually used in the display hardware. The server scales these values down to the range used by the hardware. Black is represented by (0,0,0), and white is represented by

(65535,65535,65535). In some functions, the flags member controls which of the red, green, and blue members is used and can be the inclusive OR of zero or more of DoRed, DoGreen, and

DoBlue.

Functions that operate on all color space values use an XcmsColor structure. This structure contains a union of substructures, each supporting color specification encoding for a particular color space. Like the XColor structure, the XcmsColor structure contains pixel and color specification information (the spec member in the XcmsColor structure).

typedef unsigned long XcmsColorFormat;/* Color Specification Format */ typedef struct { union {

XcmsRGB RGB;

XcmsRGBi RGBi;

XcmsCIEXYZ CIEXYZ;

XcmsCIEuvY CIEuvY;

XcmsCIExyY CIExyY;

XcmsCIELab CIELab;

XcmsCIELuv CIELuv;

XcmsTekHVC TekHVC;

XcmsPad Pad;

} spec; unsigned long pixel;

XcmsColorFormat format;

} XcmsColor; /* Xcms Color Structure */

Because the color specification can be encoded for the various color spaces, encoding for the spec

74

Xlib − C Library libX11 1.3.2

member is identified by the format member, which is of type XcmsColorFormat. The following macros define standard formats.

#define

XcmsUndefinedFormat

0x00000000

#define

XcmsCIEXYZFormat

0x00000001

#define

XcmsCIEuvYFormat

#define

XcmsCIExyYFormat

0x00000002

0x00000003

#define

XcmsCIELabFormat

#define

XcmsCIELuvFormat

#define

XcmsTekHVCFormat

#define

XcmsRGBFormat

#define

XcmsRGBiFormat

0x00000004

0x00000005

0x00000006

0x80000000

0x80000001

/* CIE XYZ */

/* CIE u’v’Y */

/* CIE xyY */

/* CIE L*a*b* */

/* CIE L*u*v* */

/* TekHVC */

/* RGB Device */

/* RGB Intensity */

Formats for device-independent color spaces are distinguishable from those for device-dependent spaces by the 32nd bit. If this bit is set, it indicates that the color specification is in a devicedependent form; otherwise, it is in a device-independent form. If the 31st bit is set, this indicates that the color space has been added to Xlib at run time (see section 6.12.4). The format value for a color space added at run time may be different each time the program is executed. If references to such a color space must be made outside the client (for example, storing a color specification in a file), then reference should be made by color space string prefix (see XcmsFormatOfPrefix and XcmsPrefixOfFormat).

Data types that describe the color specification encoding for the various color spaces are defined as follows: typedef double XcmsFloat; typedef struct { unsigned short red; unsigned short green; unsigned short blue;

/* 0x0000 to 0xffff */

/* 0x0000 to 0xffff */

/* 0x0000 to 0xffff */

} XcmsRGB; /* RGB Device */ typedef struct {

XcmsFloat red;

XcmsFloat green;

XcmsFloat blue;

/* 0.0 to 1.0 */

/* 0.0 to 1.0 */

/* 0.0 to 1.0 */

} XcmsRGBi; /* RGB Intensity */ typedef struct {

XcmsFloat X;

XcmsFloat Y;

XcmsFloat Z;

/* 0.0 to 1.0 */

} XcmsCIEXYZ; /* CIE XYZ */ typedef struct {

XcmsFloat u_prime;

XcmsFloat v_prime;

XcmsFloat Y;

} XcmsCIEuvY;

/* 0.0 to ˜0.6 */

/* 0.0 to ˜0.6 */

/* 0.0 to 1.0 */

/* CIE u’v’Y */

75

Xlib − C Library libX11 1.3.2

typedef struct {

XcmsFloat x;

XcmsFloat y;

XcmsFloat Y;

} XcmsCIExyY;

/* 0.0 to ˜.75 */

/* 0.0 to ˜.85 */

/* 0.0 to 1.0 */

/* CIE xyY */ typedef struct {

XcmsFloat L_star;

XcmsFloat a_star;

XcmsFloat b_star;

/* 0.0 to 100.0 */

} XcmsCIELab; /* CIE L*a*b* */ typedef struct {

XcmsFloat L_star;

XcmsFloat u_star;

XcmsFloat v_star;

/* 0.0 to 100.0 */

} XcmsCIELuv; /* CIE L*u*v* */ typedef struct {

XcmsFloat H;

XcmsFloat V;

XcmsFloat C;

/* 0.0 to 360.0 */

/* 0.0 to 100.0 */

/* 0.0 to 100.0 */

} XcmsTekHVC; /* TekHVC */ typedef struct {

XcmsFloat pad0;

XcmsFloat pad1;

XcmsFloat pad2;

XcmsFloat pad3;

} XcmsPad; /* four doubles */

The device-dependent formats provided allow color specification in:

• RGB Intensity (XcmsRGBi)

Red, green, and blue linear intensity values, floating-point values from 0.0 to 1.0, where 1.0

indicates full intensity, 0.5 half intensity, and so on.

RGB Device (XcmsRGB)

Red, green, and blue values appropriate for the specified output device. XcmsRGB values are of type unsigned short, scaled from 0 to 65535 inclusive, and are interchangeable with the red, green, and blue values in an XColor structure.

It is important to note that RGB Intensity values are not gamma corrected values. In contrast,

RGB Device values generated as a result of converting color specifications are always gamma corrected, and RGB Device values acquired as a result of querying a colormap or passed in by the client are assumed by Xlib to be gamma corrected. The term RGB value in this manual always refers to an RGB Device value.

6.2. Color Strings

Xlib provides a mechanism for using string names for colors. A color string may either contain an abstract color name or a numerical color specification. Color strings are case-insensitive.

Color strings are used in the following functions:

76

Xlib − C Library libX11 1.3.2

XAllocNamedColor

XcmsAllocNamedColor

XLookupColor

XcmsLookupColor

XParseColor

XStoreNamedColor

Xlib supports the use of abstract color names, for example, red or blue. A value for this abstract name is obtained by searching one or more color name databases. Xlib first searches zero or more client-side databases; the number, location, and content of these databases is implementation-dependent and might depend on the current locale. If the name is not found, Xlib then looks for the color in the X server’s database. If the color name is not in the Host Portable Character

Encoding, the result is implementation-dependent.

A numerical color specification consists of a color space name and a set of values in the following syntax:

<color_space_name>:<value>/.../<value>

The following are examples of valid color strings.

"CIEXYZ:0.3227/0.28133/0.2493"

"RGBi:1.0/0.0/0.0"

"rgb:00/ff/00"

"CIELuv:50.0/0.0/0.0"

The syntax and semantics of numerical specifications are given for each standard color space in the following sections.

6.2.1. RGB Device String Specification

An RGB Device specification is identified by the prefix ‘‘rgb:’’ and conforms to the following syntax: rgb:<red>/<green>/<blue>

<red>, <green>, <blue> := h | hh | hhh | hhhh

h := single hexadecimal digits (case insignificant)

Note that h indicates the value scaled in 4 bits, hh the value scaled in 8 bits, hhh the value scaled in 12 bits, and hhhh the value scaled in 16 bits, respectively.

Typical examples are the strings ‘‘rgb:ea/75/52’’ and ‘‘rgb:ccc/320/320’’, but mixed numbers of hexadecimal digit strings (‘‘rgb:ff/a5/0’’ and ‘‘rgb:ccc/32/0’’) are also allowed.

For backward compatibility, an older syntax for RGB Device is supported, but its continued use is not encouraged. The syntax is an initial sharp sign character followed by a numeric specification, in one of the following formats:

#RGB (4 bits each)

#RRGGBB (8 bits each)

#RRRGGGBBB (12 bits each)

#RRRRGGGGBBBB (16 bits each)

The R, G, and B represent single hexadecimal digits. When fewer than 16 bits each are specified, they represent the most significant bits of the value (unlike the ‘‘rgb:’’ syntax, in which values are

77

Xlib − C Library libX11 1.3.2

scaled). For example, the string ‘‘#3a7’’ is the same as ‘‘#3000a0007000’’.

6.2.2. RGB Intensity String Specification

An RGB intensity specification is identified by the prefix ‘‘rgbi:’’ and conforms to the following syntax: rgbi:<red>/<green>/<blue>

Note that red, green, and blue are floating-point values between 0.0 and 1.0, inclusive. The input format for these values is an optional sign, a string of numbers possibly containing a decimal point, and an optional exponent field containing an E or e followed by a possibly signed integer string.

6.2.3. Device-Independent String Specifications

The standard device-independent string specifications have the following syntax:

CIEXYZ:<X>/<Y>/<Z>

CIEuvY:<u>/<v>/<Y>

CIExyY:<x>/<y>/<Y>

CIELab:<L>/<a>/<b>

CIELuv:<L>/<u>/<v>

TekHVC:<H>/<V>/<C>

All of the values (C, H, V, X, Y, Z, a, b, u, v, y, x) are floating-point values. The syntax for these values is an optional plus or minus sign, a string of digits possibly containing a decimal point, and an optional exponent field consisting of an ‘‘E’’ or ‘‘e’’ followed by an optional plus or minus followed by a string of digits.

6.3. Color Conversion Contexts and Gamut Mapping

When Xlib converts device-independent color specifications into device-dependent specifications and vice versa, it uses knowledge about the color limitations of the screen hardware. This information, typically called the device profile, is available in a Color Conversion Context (CCC).

Because a specified color may be outside the color gamut of the target screen and the white point associated with the color specification may differ from the white point inherent to the screen, Xlib applies gamut mapping when it encounters certain conditions:

• Gamut compression occurs when conversion of device-independent color specifications to device-dependent color specifications results in a color out of the target screen’s gamut.

• White adjustment occurs when the inherent white point of the screen differs from the white point assumed by the client.

Gamut handling methods are stored as callbacks in the CCC, which in turn are used by the color space conversion routines. Client data is also stored in the CCC for each callback. The CCC also contains the white point the client assumes to be associated with color specifications (that is, the

Client White Point). The client can specify the gamut handling callbacks and client data as well as the Client White Point. Xlib does not preclude the X client from performing other forms of gamut handling (for example, gamut expansion); however, Xlib does not provide direct support for gamut handling other than white adjustment and gamut compression.

Associated with each colormap is an initial CCC transparently generated by Xlib. Therefore, when you specify a colormap as an argument to an Xlib function, you are indirectly specifying a

CCC. There is a default CCC associated with each screen. Newly created CCCs inherit attributes from the default CCC, so the default CCC attributes can be modified to affect new CCCs.

Xcms functions in which gamut mapping can occur return Status and have specific status values defined for them, as follows:

78

Xlib − C Library libX11 1.3.2

XcmsFailure indicates that the function failed.

XcmsSuccess indicates that the function succeeded. In addition, if the function performed any color conversion, the colors did not need to be compressed.

XcmsSuccessWithCompression indicates the function performed color conversion and at least one of the colors needed to be compressed. The gamut compression method is determined by the gamut compression procedure in the CCC that is specified directly as a function argument or in the CCC indirectly specified by means of the colormap argument.

6.4. Creating, Copying, and Destroying Colormaps

To create a colormap for a screen, use XCreateColormap.

Colormap XCreateColormap(display, w, visual, alloc)

Display *display;

Window w;

Visual *visual; int alloc;

display w visual alloc

Specifies the connection to the X server.

Specifies the window on whose screen you want to create a colormap.

Specifies a visual type supported on the screen. If the visual type is not one supported by the screen, a BadMatch error results.

Specifies the colormap entries to be allocated. You can pass AllocNone or Allo-

cAll.

The XCreateColormap function creates a colormap of the specified visual type for the screen on which the specified window resides and returns the colormap ID associated with it. Note that the specified window is only used to determine the screen.

The initial values of the colormap entries are undefined for the visual classes GrayScale, Pseu-

doColor, and DirectColor. For StaticGray, StaticColor, and TrueColor, the entries have defined values, but those values are specific to the visual and are not defined by X. For Stat-

icGray, StaticColor, and TrueColor, alloc must be AllocNone, or a BadMatch error results.

For the other visual classes, if alloc is AllocNone, the colormap initially has no allocated entries, and clients can allocate them. For information about the visual types, see section 3.1.

If alloc is AllocAll, the entire colormap is allocated writable. The initial values of all allocated entries are undefined. For GrayScale and PseudoColor, the effect is as if an XAllocColorCells call returned all pixel values from zero to N − 1, where N is the colormap entries value in the specified visual. For DirectColor, the effect is as if an XAllocColorPlanes call returned a pixel value of zero and red_mask, green_mask, and blue_mask values containing the same bits as the corresponding masks in the specified visual. However, in all cases, none of these entries can be freed by using XFreeColors.

XCreateColormap can generate BadAlloc, BadMatch, BadValue, and BadWindow errors.

To create a new colormap when the allocation out of a previously shared colormap has failed because of resource exhaustion, use XCopyColormapAndFree.

79

Xlib − C Library libX11 1.3.2

Colormap XCopyColormapAndFree (display, colormap)

Display *display;

Colormap colormap;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

The XCopyColormapAndFree function creates a colormap of the same visual type and for the same screen as the specified colormap and returns the new colormap ID. It also moves all of the client’s existing allocation from the specified colormap to the new colormap with their color values intact and their read-only or writable characteristics intact and frees those entries in the specified colormap. Color values in other entries in the new colormap are undefined. If the specified colormap was created by the client with alloc set to AllocAll, the new colormap is also created with AllocAll, all color values for all entries are copied from the specified colormap, and then all entries in the specified colormap are freed. If the specified colormap was not created by the client with AllocAll, the allocations to be moved are all those pixels and planes that have been allocated by the client using XAllocColor, XAllocNamedColor, XAllocColorCells, or XAllocColor-

Planes and that have not been freed since they were allocated.

XCopyColormapAndFree can generate BadAlloc and BadColor errors.

To destroy a colormap, use XFreeColormap.

XFreeColormap (display, colormap)

Display *display;

Colormap colormap;

display colormap

Specifies the connection to the X server.

Specifies the colormap that you want to destroy.

The XFreeColormap function deletes the association between the colormap resource ID and the colormap and frees the colormap storage. However, this function has no effect on the default colormap for a screen. If the specified colormap is an installed map for a screen, it is uninstalled

(see XUninstallColormap). If the specified colormap is defined as the colormap for a window

(by XCreateWindow, XSetWindowColormap, or XChangeWindowAttributes), XFreeCol-

ormap changes the colormap associated with the window to None and generates a Colormap-

Notify ev ent. X does not define the colors displayed for a window with a colormap of None.

XFreeColormap can generate a BadColor error.

6.5. Mapping Color Names to Values

To map a color name to an RGB value, use XLookupColor.

80

Xlib − C Library libX11 1.3.2

Status XLookupColor(display, colormap, color_name, exact_def_return, screen_def_return)

Display *display;

Colormap colormap; char *color_name;

XColor *exact_def_return, *screen_def_return;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

color_name

Specifies the color name string (for example, red) whose color definition structure you want returned.

exact_def_returnReturns the exact RGB values.

screen_def_return

Returns the closest RGB values provided by the hardware.

The XLookupColor function looks up the string name of a color with respect to the screen associated with the specified colormap. It returns both the exact color values and the closest values provided by the screen with respect to the visual type of the specified colormap. If the color name is not in the Host Portable Character Encoding, the result is implementation-dependent.

Use of uppercase or lowercase does not matter. XLookupColor returns nonzero if the name is resolved; otherwise, it returns zero.

XLookupColor can generate a BadColor error.

To map a color name to the exact RGB value, use XParseColor.

Status XParseColor (display, colormap, spec, exact_def_return)

Display *display;

Colormap colormap; char *spec;

XColor *exact_def_return;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

spec

Specifies the color name string; case is ignored.

exact_def_returnReturns the exact color value for later use and sets the DoRed, DoGreen, and

DoBlue flags.

The XParseColor function looks up the string name of a color with respect to the screen associated with the specified colormap. It returns the exact color value. If the color name is not in the

Host Portable Character Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter. XParseColor returns nonzero if the name is resolved; otherwise, it returns zero.

XParseColor can generate a BadColor error.

To map a color name to a value in an arbitrary color space, use XcmsLookupColor.

81

Xlib − C Library libX11 1.3.2

Status XcmsLookupColor(display, colormap, color_string, color_exact_return, color_screen_return,

result_format)

Display *display;

Colormap colormap; char *color_string;

XcmsColor *color_exact_return, *color_screen_return;

XcmsColorFormat result_format;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

color_string

Specifies the color string.

color_exact_return

Returns the color specification parsed from the color string or parsed from the corresponding string found in a color-name database.

color_screen_return

Returns the color that can be reproduced on the screen.

result_format

Specifies the color format for the returned color specifications (color_screen_return and color_exact_return arguments). If the format is XcmsUndefinedFor-

mat and the color string contains a numerical color specification, the specification is returned in the format used in that numerical color specification. If the format is XcmsUndefinedFormat and the color string contains a color name, the specification is returned in the format used to store the color in the database.

The XcmsLookupColor function looks up the string name of a color with respect to the screen associated with the specified colormap. It returns both the exact color values and the closest values provided by the screen with respect to the visual type of the specified colormap. The values are returned in the format specified by result_format. If the color name is not in the Host Portable

Character Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter. XcmsLookupColor returns XcmsSuccess or XcmsSuccessWithCompression if the name is resolved; otherwise, it returns XcmsFailure. If XcmsSuccessWithCompression is returned, the color specification returned in color_screen_return is the result of gamut compression.

6.6. Allocating and Freeing Color Cells

There are two ways of allocating color cells: explicitly as read-only entries, one pixel value at a time, or read/write, where you can allocate a number of color cells and planes simultaneously. A read-only cell has its RGB value set by the server. Read/write cells do not have defined colors initially; functions described in the next section must be used to store values into them. Although it is possible for any client to store values into a read/write cell allocated by another client, read/write cells normally should be considered private to the client that allocated them.

Read-only colormap cells are shared among clients. The server counts each allocation and freeing of the cell by clients. When the last client frees a shared cell, the cell is finally deallocated. If a single client allocates the same read-only cell multiple times, the server counts each such allocation, not just the first one.

To allocate a read-only color cell with an RGB value, use XAllocColor.

82

Xlib − C Library libX11 1.3.2

Status XAllocColor(display, colormap, screen_in_out)

Display *display;

Colormap colormap;

XColor *screen_in_out;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

screen_in_out

Specifies and returns the values actually used in the colormap.

The XAllocColor function allocates a read-only colormap entry corresponding to the closest

RGB value supported by the hardware. XAllocColor returns the pixel value of the color closest to the specified RGB elements supported by the hardware and returns the RGB value actually used. The corresponding colormap cell is read-only. In addition, XAllocColor returns nonzero if it succeeded or zero if it failed. Multiple clients that request the same effective RGB value can be assigned the same read-only entry, thus allowing entries to be shared. When the last client deallocates a shared cell, it is deallocated. XAllocColor does not use or affect the flags in the

XColor structure.

XAllocColor can generate a BadColor error.

To allocate a read-only color cell with a color in arbitrary format, use XcmsAllocColor.

Status XcmsAllocColor(display, colormap, color_in_out, result_format)

Display *display;

Colormap colormap;

XcmsColor *color_in_out;

XcmsColorFormat result_format;

display

Specifies the connection to the X server.

colormap

Specifies the colormap.

color_in_out

Specifies the color to allocate and returns the pixel and color that is actually used in the colormap.

result_format

Specifies the color format for the returned color specification.

The XcmsAllocColor function is similar to XAllocColor except the color can be specified in any format. The XcmsAllocColor function ultimately calls XAllocColor to allocate a read-only color cell (colormap entry) with the specified color. XcmsAllocColor first converts the color specified to an RGB value and then passes this to XAllocColor. XcmsAllocColor returns the pixel value of the color cell and the color specification actually allocated. This returned color specification is the result of converting the RGB value returned by XAllocColor into the format specified with the result_format argument. If there is no interest in a returned color specification, unnecessary computation can be bypassed if result_format is set to XcmsRGBFormat. The corresponding colormap cell is read-only. If this routine returns XcmsFailure, the color_in_out color specification is left unchanged.

XcmsAllocColor can generate a BadColor error.

To allocate a read-only color cell using a color name and return the closest color supported by the hardware in RGB format, use XAllocNamedColor.

83

Xlib − C Library libX11 1.3.2

Status XAllocNamedColor(display, colormap, color_name, screen_def_return, exact_def_return)

Display *display;

Colormap colormap; char *color_name;

XColor *screen_def_return, *exact_def_return;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

color_name

Specifies the color name string (for example, red) whose color definition structure you want returned.

screen_def_return

Returns the closest RGB values provided by the hardware.

exact_def_returnReturns the exact RGB values.

The XAllocNamedColor function looks up the named color with respect to the screen that is associated with the specified colormap. It returns both the exact database definition and the closest color supported by the screen. The allocated color cell is read-only. The pixel value is returned in screen_def_return. If the color name is not in the Host Portable Character Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter. If screen_def_return and exact_def_return point to the same structure, the pixel field will be set correctly, but the color values are undefined. XAllocNamedColor returns nonzero if a cell is allocated; otherwise, it returns zero.

XAllocNamedColor can generate a BadColor error.

To allocate a read-only color cell using a color name and return the closest color supported by the hardware in an arbitrary format, use XcmsAllocNamedColor.

84

Xlib − C Library libX11 1.3.2

Status XcmsAllocNamedColor(display, colormap, color_string, color_screen_return, color_exact_return,

result_format)

Display *display;

Colormap colormap; char *color_string;

XcmsColor *color_screen_return;

XcmsColor *color_exact_return;

XcmsColorFormat result_format;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

color_string

Specifies the color string whose color definition structure is to be returned.

color_screen_return

Returns the pixel value of the color cell and color specification that actually is stored for that cell.

color_exact_return

Returns the color specification parsed from the color string or parsed from the corresponding string found in a color-name database.

result_format

Specifies the color format for the returned color specifications (color_screen_return and color_exact_return arguments). If the format is XcmsUndefinedFor-

mat and the color string contains a numerical color specification, the specification is returned in the format used in that numerical color specification. If the format is XcmsUndefinedFormat and the color string contains a color name, the specification is returned in the format used to store the color in the database.

The XcmsAllocNamedColor function is similar to XAllocNamedColor except that the color returned can be in any format specified. This function ultimately calls XAllocColor to allocate a read-only color cell with the color specified by a color string. The color string is parsed into an

XcmsColor structure (see XcmsLookupColor), converted to an RGB value, and finally passed to XAllocColor. If the color name is not in the Host Portable Character Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter.

This function returns both the color specification as a result of parsing (exact specification) and the actual color specification stored (screen specification). This screen specification is the result of converting the RGB value returned by XAllocColor into the format specified in result_format.

If there is no interest in a returned color specification, unnecessary computation can be bypassed if result_format is set to XcmsRGBFormat. If color_screen_return and color_exact_return point to the same structure, the pixel field will be set correctly, but the color values are undefined.

XcmsAllocNamedColor can generate a BadColor error.

To allocate read/write color cell and color plane combinations for a PseudoColor model, use

XAllocColorCells.

85

Xlib − C Library libX11 1.3.2

Status XAllocColorCells(display, colormap, contig, plane_masks_return, nplanes,

pixels_return, npixels)

Display *display;

Colormap colormap;

Bool contig; unsigned long plane_masks_return[]; unsigned int nplanes; unsigned long pixels_return[]; unsigned int npixels;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

contig

Specifies a Boolean value that indicates whether the planes must be contiguous.

plane_mask_return

Returns an array of plane masks.

nplanes

Specifies the number of plane masks that are to be returned in the plane masks array.

pixels_return

Returns an array of pixel values.

npixels

Specifies the number of pixel values that are to be returned in the pixels_return array.

The XAllocColorCells function allocates read/write color cells. The number of colors must be positive and the number of planes nonnegative, or a BadValue error results. If ncolors and nplanes are requested, then ncolors pixels and nplane plane masks are returned. No mask will have any bits set to 1 in common with any other mask or with any of the pixels. By ORing together each pixel with zero or more masks, ncolors * 2

nplanes

distinct pixels can be produced.

All of these are allocated writable by the request. For GrayScale or PseudoColor, each mask has exactly one bit set to 1. For DirectColor, each has exactly three bits set to 1. If contig is

True and if all masks are ORed together, a single contiguous set of bits set to 1 will be formed for GrayScale or PseudoColor and three contiguous sets of bits set to 1 (one within each pixel subfield) for DirectColor. The RGB values of the allocated entries are undefined. XAllocCol-

orCells returns nonzero if it succeeded or zero if it failed.

XAllocColorCells can generate BadColor and BadValue errors.

To allocate read/write color resources for a DirectColor model, use XAllocColorPlanes.

86

Xlib − C Library libX11 1.3.2

Status XAllocColorPlanes(display, colormap, contig, pixels_return, ncolors, nreds, ngreens,

nblues, rmask_return, gmask_return, bmask_return)

Display *display;

Colormap colormap;

Bool contig; unsigned long pixels_return[]; int ncolors; int nreds, ngreens, nblues; unsigned long *rmask_return, *gmask_return, *bmask_return;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

contig

Specifies a Boolean value that indicates whether the planes must be contiguous.

pixels_return

Returns an array of pixel values. XAllocColorPlanes returns the pixel values in this array.

ncolors

Specifies the number of pixel values that are to be returned in the pixels_return array.

nreds ngreens nblues

Specify the number of red, green, and blue planes. The value you pass must be nonnegative.

rmask_return gmask_return bmask_return

Return bit masks for the red, green, and blue planes.

The specified ncolors must be positive; and nreds, ngreens, and nblues must be nonnegative, or a

BadValue error results. If ncolors colors, nreds reds, ngreens greens, and nblues blues are requested, ncolors pixels are returned; and the masks have nreds, ngreens, and nblues bits set to 1, respectively. If contig is True, each mask will have a contiguous set of bits set to 1. No mask will have any bits set to 1 in common with any other mask or with any of the pixels. For Direct-

Color, each mask will lie within the corresponding pixel subfield. By ORing together subsets of masks with each pixel value, ncolors * 2

(nreds

+

ngreens

+

nblues) distinct pixel values can be produced.

All of these are allocated by the request. However, in the colormap, there are only ncolors *

2

nreds

independent red entries, ncolors * 2

ngreens

independent green entries, and ncolors * 2

nblues

independent blue entries. This is true even for PseudoColor. When the colormap entry of a pixel value is changed (using XStoreColors, XStoreColor, or XStoreNamedColor), the pixel is decomposed according to the masks, and the corresponding independent entries are updated.

XAllocColorPlanes returns nonzero if it succeeded or zero if it failed.

XAllocColorPlanes can generate BadColor and BadValue errors.

To free colormap cells, use XFreeColors.

87

Xlib − C Library libX11 1.3.2

XFreeColors (display, colormap, pixels, npixels, planes)

Display *display;

Colormap colormap; unsigned long pixels[]; int npixels; unsigned long planes;

display colormap pixels npixels planes

Specifies the connection to the X server.

Specifies the colormap.

Specifies an array of pixel values that map to the cells in the specified colormap.

Specifies the number of pixels.

Specifies the planes you want to free.

The XFreeColors function frees the cells represented by pixels whose values are in the pixels array. The planes argument should not have any bits set to 1 in common with any of the pixels.

The set of all pixels is produced by ORing together subsets of the planes argument with the pixels. The request frees all of these pixels that were allocated by the client (using XAllocColor,

XAllocNamedColor, XAllocColorCells, and XAllocColorPlanes). Note that freeing an individual pixel obtained from XAllocColorPlanes may not actually allow it to be reused until all of its related pixels are also freed. Similarly, a read-only entry is not actually freed until it has been freed by all clients, and if a client allocates the same read-only entry multiple times, it must free the entry that many times before the entry is actually freed.

All specified pixels that are allocated by the client in the colormap are freed, even if one or more pixels produce an error. If a specified pixel is not a valid index into the colormap, a BadValue error results. If a specified pixel is not allocated by the client (that is, is unallocated or is only allocated by another client) or if the colormap was created with all entries writable (by passing

AllocAll to XCreateColormap), a BadAccess error results. If more than one pixel is in error, the one that gets reported is arbitrary.

XFreeColors can generate BadAccess, BadColor, and BadValue errors.

6.7. Modifying and Querying Colormap Cells

To store an RGB value in a single colormap cell, use XStoreColor.

XStoreColor (display, colormap, color)

Display *display;

Colormap colormap;

XColor *color;

display colormap color

Specifies the connection to the X server.

Specifies the colormap.

Specifies the pixel and RGB values.

The XStoreColor function changes the colormap entry of the pixel value specified in the pixel member of the XColor structure. You specified this value in the pixel member of the XColor structure. This pixel value must be a read/write cell and a valid index into the colormap. If a specified pixel is not a valid index into the colormap, a BadValue error results. XStoreColor also changes the red, green, and/or blue color components. You specify which color components are to be changed by setting DoRed, DoGreen, and/or DoBlue in the flags member of the

XColor structure. If the colormap is an installed map for its screen, the changes are visible

88

Xlib − C Library libX11 1.3.2

immediately.

XStoreColor can generate BadAccess, BadColor, and BadValue errors.

To store multiple RGB values in multiple colormap cells, use XStoreColors.

XStoreColors (display, colormap, color, ncolors)

Display *display;

Colormap colormap;

XColor color[]; int ncolors;

display colormap color ncolors

Specifies the connection to the X server.

Specifies the colormap.

Specifies an array of color definition structures to be stored.

Specifies the number of XColor structures in the color definition array.

The XStoreColors function changes the colormap entries of the pixel values specified in the pixel members of the XColor structures. You specify which color components are to be changed by setting DoRed, DoGreen, and/or DoBlue in the flags member of the XColor structures. If the colormap is an installed map for its screen, the changes are visible immediately. XStoreCol-

ors changes the specified pixels if they are allocated writable in the colormap by any client, even if one or more pixels generates an error. If a specified pixel is not a valid index into the colormap, a BadValue error results. If a specified pixel either is unallocated or is allocated read-only, a

BadAccess error results. If more than one pixel is in error, the one that gets reported is arbitrary.

XStoreColors can generate BadAccess, BadColor, and BadValue errors.

To store a color of arbitrary format in a single colormap cell, use XcmsStoreColor.

Status XcmsStoreColor(display, colormap, color)

Display *display;

Colormap colormap;

XcmsColor *color;

display colormap color

Specifies the connection to the X server.

Specifies the colormap.

Specifies the color cell and the color to store. Values specified in this XcmsCol-

or structure remain unchanged on return.

The XcmsStoreColor function converts the color specified in the XcmsColor structure into

RGB values. It then uses this RGB specification in an XColor structure, whose three flags

(DoRed, DoGreen, and DoBlue) are set, in a call to XStoreColor to change the color cell specified by the pixel member of the XcmsColor structure. This pixel value must be a valid index for the specified colormap, and the color cell specified by the pixel value must be a read/write cell. If the pixel value is not a valid index, a BadValue error results. If the color cell is unallocated or is allocated read-only, a BadAccess error results. If the colormap is an installed map for its screen, the changes are visible immediately.

Note that XStoreColor has no return value; therefore, an XcmsSuccess return value from this function indicates that the conversion to RGB succeeded and the call to XStoreColor was made.

To obtain the actual color stored, use XcmsQueryColor. Because of the screen’s hardware limitations or gamut compression, the color stored in the colormap may not be identical to the color specified.

89

Xlib − C Library libX11 1.3.2

XcmsStoreColor can generate BadAccess, BadColor, and BadValue errors.

To store multiple colors of arbitrary format in multiple colormap cells, use XcmsStoreColors.

Status XcmsStoreColors(display, colormap, colors, ncolors, compression_flags_return)

Display *display;

Colormap colormap;

XcmsColor colors[]; int ncolors;

Bool compression_flags_return[];

display colormap colors

Specifies the connection to the X server.

Specifies the colormap.

Specifies the color specification array of XcmsColor structures, each specifying a color cell and the color to store in that cell. Values specified in the array remain unchanged upon return.

ncolors

Specifies the number of XcmsColor structures in the color-specification array.

compression_flags_return

Returns an array of Boolean values indicating compression status. If a non-

NULL pointer is supplied, each element of the array is set to True if the corresponding color was compressed and False otherwise. Pass NULL if the compression status is not useful.

The XcmsStoreColors function converts the colors specified in the array of XcmsColor structures into RGB values and then uses these RGB specifications in XColor structures, whose three flags (DoRed, DoGreen, and DoBlue) are set, in a call to XStoreColors to change the color cells specified by the pixel member of the corresponding XcmsColor structure. Each pixel value must be a valid index for the specified colormap, and the color cell specified by each pixel value must be a read/write cell. If a pixel value is not a valid index, a BadValue error results. If a color cell is unallocated or is allocated read-only, a BadAccess error results. If more than one pixel is in error, the one that gets reported is arbitrary. If the colormap is an installed map for its screen, the changes are visible immediately.

Note that XStoreColors has no return value; therefore, an XcmsSuccess return value from this function indicates that conversions to RGB succeeded and the call to XStoreColors was made.

To obtain the actual colors stored, use XcmsQueryColors. Because of the screen’s hardware limitations or gamut compression, the colors stored in the colormap may not be identical to the colors specified.

XcmsStoreColors can generate BadAccess, BadColor, and BadValue errors.

To store a color specified by name in a single colormap cell, use XStoreNamedColor.

90

Xlib − C Library libX11 1.3.2

XStoreNamedColor (display, colormap, color, pixel, flags)

Display *display;

Colormap colormap; char *color; unsigned long pixel; int flags;

display colormap color pixel flags

Specifies the connection to the X server.

Specifies the colormap.

Specifies the color name string (for example, red).

Specifies the entry in the colormap.

Specifies which red, green, and blue components are set.

The XStoreNamedColor function looks up the named color with respect to the screen associated with the colormap and stores the result in the specified colormap. The pixel argument determines the entry in the colormap. The flags argument determines which of the red, green, and blue components are set. You can set this member to the bitwise inclusive OR of the bits DoRed,

DoGreen, and DoBlue. If the color name is not in the Host Portable Character Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter. If the specified pixel is not a valid index into the colormap, a BadValue error results. If the specified pixel either is unallocated or is allocated read-only, a BadAccess error results.

XStoreNamedColor can generate BadAccess, BadColor, BadName, and BadValue errors.

The XQueryColor and XQueryColors functions take pixel values in the pixel member of

XColor structures and store in the structures the RGB values for those pixels from the specified colormap. The values returned for an unallocated entry are undefined. These functions also set the flags member in the XColor structure to all three colors. If a pixel is not a valid index into the specified colormap, a BadValue error results. If more than one pixel is in error, the one that gets reported is arbitrary.

To query the RGB value of a single colormap cell, use XQueryColor.

XQueryColor (display, colormap, def_in_out)

Display *display;

Colormap colormap;

XColor *def_in_out;

display colormap def_in_out

Specifies the connection to the X server.

Specifies the colormap.

Specifies and returns the RGB values for the pixel specified in the structure.

The XQueryColor function returns the current RGB value for the pixel in the XColor structure and sets the DoRed, DoGreen, and DoBlue flags.

XQueryColor can generate BadColor and BadValue errors.

To query the RGB values of multiple colormap cells, use XQueryColors.

91

Xlib − C Library libX11 1.3.2

XQueryColors (display, colormap, defs_in_out, ncolors)

Display *display;

Colormap colormap;

XColor defs_in_out[]; int ncolors;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

defs_in_out

Specifies and returns an array of color definition structures for the pixel specified in the structure.

ncolors

Specifies the number of XColor structures in the color definition array.

The XQueryColors function returns the RGB value for each pixel in each XColor structure and sets the DoRed, DoGreen, and DoBlue flags in each structure.

XQueryColors can generate BadColor and BadValue errors.

To query the color of a single colormap cell in an arbitrary format, use XcmsQueryColor.

Status XcmsQueryColor(display, colormap, color_in_out, result_format)

Display *display;

Colormap colormap;

XcmsColor *color_in_out;

XcmsColorFormat result_format;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

color_in_out

Specifies the pixel member that indicates the color cell to query. The color specification stored for the color cell is returned in this XcmsColor structure.

result_format

Specifies the color format for the returned color specification.

The XcmsQueryColor function obtains the RGB value for the pixel value in the pixel member of the specified XcmsColor structure and then converts the value to the target format as specified by the result_format argument. If the pixel is not a valid index in the specified colormap, a Bad-

Value error results.

XcmsQueryColor can generate BadColor and BadValue errors.

To query the color of multiple colormap cells in an arbitrary format, use XcmsQueryColors.

92

Xlib − C Library libX11 1.3.2

Status XcmsQueryColors(display, colormap, colors_in_out, ncolors, result_format)

Display *display;

Colormap colormap;

XcmsColor colors_in_out[]; unsigned int ncolors;

XcmsColorFormat result_format;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

colors_in_out

Specifies an array of XcmsColor structures, each pixel member indicating the color cell to query. The color specifications for the color cells are returned in these structures.

ncolors

Specifies the number of XcmsColor structures in the color-specification array.

result_format

Specifies the color format for the returned color specification.

The XcmsQueryColors function obtains the RGB values for pixel values in the pixel members of XcmsColor structures and then converts the values to the target format as specified by the result_format argument. If a pixel is not a valid index into the specified colormap, a BadValue error results. If more than one pixel is in error, the one that gets reported is arbitrary.

XcmsQueryColors can generate BadColor and BadValue errors.

6.8. Color Conversion Context Functions

This section describes functions to create, modify, and query Color Conversion Contexts (CCCs).

Associated with each colormap is an initial CCC transparently generated by Xlib. Therefore, when you specify a colormap as an argument to a function, you are indirectly specifying a CCC.

The CCC attributes that can be modified by the X client are:

Client White Point

Gamut compression procedure and client data

White point adjustment procedure and client data

The initial values for these attributes are implementation specific. The CCC attributes for subsequently created CCCs can be defined by changing the CCC attributes of the default CCC. There is a default CCC associated with each screen.

6.8.1. Getting and Setting the Color Conversion Context of a Colormap

To obtain the CCC associated with a colormap, use XcmsCCCOfColormap.

XcmsCCC XcmsCCCOfColormap(display, colormap)

Display *display;

Colormap colormap;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

The XcmsCCCOfColormap function returns the CCC associated with the specified colormap.

Once obtained, the CCC attributes can be queried or modified. Unless the CCC associated with the specified colormap is changed with XcmsSetCCCOfColormap, this CCC is used when the specified colormap is used as an argument to color functions.

93

Xlib − C Library libX11 1.3.2

To change the CCC associated with a colormap, use XcmsSetCCCOfColormap.

XcmsCCC XcmsSetCCCOfColormap(display, colormap, ccc)

Display *display;

Colormap colormap;

XcmsCCC ccc;

display colormap ccc

Specifies the connection to the X server.

Specifies the colormap.

Specifies the CCC.

The XcmsSetCCCOfColormap function changes the CCC associated with the specified colormap. It returns the CCC previously associated with the colormap. If they are not used again in the application, CCCs should be freed by calling XcmsFreeCCC. Sev eral colormaps may share the same CCC without restriction; this includes the CCCs generated by Xlib with each colormap.

Xlib, however, creates a new CCC with each new colormap.

6.8.2. Obtaining the Default Color Conversion Context

You can change the default CCC attributes for subsequently created CCCs by changing the CCC attributes of the default CCC. A default CCC is associated with each screen.

To obtain the default CCC for a screen, use XcmsDefaultCCC.

XcmsCCC XcmsDefaultCCC (display, screen_number)

Display *display; int screen_number;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

The XcmsDefaultCCC function returns the default CCC for the specified screen. Its visual is the default visual of the screen. Its initial gamut compression and white point adjustment procedures as well as the associated client data are implementation specific.

6.8.3. Color Conversion Context Macros

Applications should not directly modify any part of the XcmsCCC. The following lists the C language macros, their corresponding function equivalents for other language bindings, and what data they both can return.

DisplayOfCCC (ccc)

XcmsCCC ccc;

Display *XcmsDisplayOfCCC(ccc)

XcmsCCC ccc;

ccc

Specifies the CCC.

Both return the display associated with the specified CCC.

94

Xlib − C Library

VisualOfCCC (ccc)

XcmsCCC ccc;

Visual *XcmsVisualOfCCC (ccc)

XcmsCCC ccc;

ccc

Specifies the CCC.

Both return the visual associated with the specified CCC.

ScreenNumberOfCCC (ccc)

XcmsCCC ccc; int XcmsScreenNumberOfCCC(ccc)

XcmsCCC ccc;

ccc

Specifies the CCC.

Both return the number of the screen associated with the specified CCC.

ScreenWhitePointOfCCC (ccc)

XcmsCCC ccc;

XcmsColor *XcmsScreenWhitePointOfCCC(ccc)

XcmsCCC ccc;

ccc

Specifies the CCC.

Both return the white point of the screen associated with the specified CCC.

ClientWhitePointOfCCC (ccc)

XcmsCCC ccc;

XcmsColor *XcmsClientWhitePointOfCCC(ccc)

XcmsCCC ccc;

ccc

Specifies the CCC.

Both return the Client White Point of the specified CCC.

6.8.4. Modifying Attributes of a Color Conversion Context

To set the Client White Point in the CCC, use XcmsSetWhitePoint.

libX11 1.3.2

95

Xlib − C Library libX11 1.3.2

Status XcmsSetWhitePoint(ccc, color)

XcmsCCC ccc;

XcmsColor *color;

ccc color

Specifies the CCC.

Specifies the new Client White Point.

The XcmsSetWhitePoint function changes the Client White Point in the specified CCC. Note that the pixel member is ignored and that the color specification is left unchanged upon return.

The format for the new white point must be XcmsCIEXYZFormat, XcmsCIEuvYFormat,

XcmsCIExyYFormat, or XcmsUndefinedFormat. If the color argument is NULL, this function sets the format component of the Client White Point specification to XcmsUndefinedFor-

mat, indicating that the Client White Point is assumed to be the same as the Screen White Point.

This function returns nonzero status if the format for the new white point is valid; otherwise, it returns zero.

To set the gamut compression procedure and corresponding client data in a specified CCC, use

XcmsSetCompressionProc.

XcmsCompressionProc XcmsSetCompressionProc(ccc, compression_proc, client_data)

XcmsCCC ccc;

XcmsCompressionProc compression_proc;

XPointer client_data;

ccc

Specifies the CCC.

compression_proc

Specifies the gamut compression procedure that is to be applied when a color lies outside the screen’s color gamut. If NULL is specified and a function using this

CCC must convert a color specification to a device-dependent format and encounters a color that lies outside the screen’s color gamut, that function will return XcmsFailure.

client_data

Specifies client data for the gamut compression procedure or NULL.

The XcmsSetCompressionProc function first sets the gamut compression procedure and client data in the specified CCC with the newly specified procedure and client data and then returns the old procedure.

To set the white point adjustment procedure and corresponding client data in a specified CCC, use

XcmsSetWhiteAdjustProc.

96

Xlib − C Library libX11 1.3.2

XcmsWhiteAdjustProc XcmsSetWhiteAdjustProc(ccc, white_adjust_proc, client_data)

XcmsCCC ccc;

XcmsWhiteAdjustProc white_adjust_proc;

XPointer client_data;

ccc

Specifies the CCC.

white_adjust_proc

Specifies the white point adjustment procedure.

client_data

Specifies client data for the white point adjustment procedure or NULL.

The XcmsSetWhiteAdjustProc function first sets the white point adjustment procedure and client data in the specified CCC with the newly specified procedure and client data and then returns the old procedure.

6.8.5. Creating and Freeing a Color Conversion Context

You can explicitly create a CCC within your application by calling XcmsCreateCCC. These created CCCs can then be used by those functions that explicitly call for a CCC argument. Old

CCCs that will not be used by the application should be freed using XcmsFreeCCC.

To create a CCC, use XcmsCreateCCC.

97

Xlib − C Library libX11 1.3.2

XcmsCCC XcmsCreateCCC(display, screen_number, visual, client_white_point, compression_proc,

compression_client_data, white_adjust_proc, white_adjust_client_data)

Display *display; int screen_number;

Visual *visual;

XcmsColor *client_white_point;

XcmsCompressionProc compression_proc;

XPointer compression_client_data;

XcmsWhiteAdjustProc white_adjust_proc;

XPointer white_adjust_client_data;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

visual

Specifies the visual type.

client_white_point

Specifies the Client White Point. If NULL is specified, the Client White Point is to be assumed to be the same as the Screen White Point. Note that the pixel member is ignored.

compression_proc

Specifies the gamut compression procedure that is to be applied when a color lies outside the screen’s color gamut. If NULL is specified and a function using this

CCC must convert a color specification to a device-dependent format and encounters a color that lies outside the screen’s color gamut, that function will return XcmsFailure.

compression_client_data

Specifies client data for use by the gamut compression procedure or NULL.

white_adjust_proc

Specifies the white adjustment procedure that is to be applied when the Client

White Point differs from the Screen White Point. NULL indicates that no white point adjustment is desired.

white_adjust_client_data

Specifies client data for use with the white point adjustment procedure or NULL.

The XcmsCreateCCC function creates a CCC for the specified display, screen, and visual.

To free a CCC, use XcmsFreeCCC.

void XcmsFreeCCC(ccc)

XcmsCCC ccc;

ccc

Specifies the CCC.

The XcmsFreeCCC function frees the memory used for the specified CCC. Note that default

CCCs and those currently associated with colormaps are ignored.

6.9. Converting between Color Spaces

To convert an array of color specifications in arbitrary color formats to a single destination format, use XcmsConvertColors.

98

Xlib − C Library libX11 1.3.2

Status XcmsConvertColors (ccc, colors_in_out, ncolors, target_format, compression_flags_return)

XcmsCCC ccc;

XcmsColor colors_in_out[]; unsigned int ncolors;

XcmsColorFormat target_format;

Bool compression_flags_return[];

ccc

Specifies the CCC. If conversion is between device-independent color spaces only (for example, TekHVC to CIELuv), the CCC is necessary only to specify the

Client White Point.

colors_in_out

Specifies an array of color specifications. Pixel members are ignored and remain unchanged upon return.

ncolors

Specifies the number of XcmsColor structures in the color-specification array.

target_format

Specifies the target color specification format.

compression_flags_return

Returns an array of Boolean values indicating compression status. If a non-

NULL pointer is supplied, each element of the array is set to True if the corresponding color was compressed and False otherwise. Pass NULL if the compression status is not useful.

The XcmsConvertColors function converts the color specifications in the specified array of

XcmsColor structures from their current format to a single target format, using the specified

CCC. When the return value is XcmsFailure, the contents of the color specification array are left unchanged.

The array may contain a mixture of color specification formats (for example, 3 CIE XYZ, 2 CIE

Luv, and so on). When the array contains both device-independent and device-dependent color specifications and the target_format argument specifies a device-dependent format (for example,

XcmsRGBiFormat, XcmsRGBFormat), all specifications are converted to CIE XYZ format and then to the target device-dependent format.

6.10. Callback Functions

This section describes the gamut compression and white point adjustment callbacks.

The gamut compression procedure specified in the CCC is called when an attempt to convert a color specification from XcmsCIEXYZ to a device-dependent format (typically XcmsRGBi) results in a color that lies outside the screen’s color gamut. If the gamut compression procedure requires client data, this data is passed via the gamut compression client data in the CCC.

During color specification conversion between device-independent and device-dependent color spaces, if a white point adjustment procedure is specified in the CCC, it is triggered when the

Client White Point and Screen White Point differ. If required, the client data is obtained from the

CCC.

6.10.1. Prototype Gamut Compression Procedure

The gamut compression callback interface must adhere to the following:

99

Xlib − C Library libX11 1.3.2

typedef Status (*XcmsCompressionProc ) (ccc, colors_in_out, ncolors, index, compression_flags_return)

XcmsCCC ccc;

XcmsColor colors_in_out[]; unsigned int ncolors; unsigned int index;

Bool compression_flags_return[];

ccc

Specifies the CCC.

colors_in_out

Specifies an array of color specifications. Pixel members should be ignored and must remain unchanged upon return.

ncolors index

Specifies the number of XcmsColor structures in the color-specification array.

Specifies the index into the array of XcmsColor structures for the encountered color specification that lies outside the screen’s color gamut. Valid values are 0

(for the first element) to ncolors − 1.

compression_flags_return

Returns an array of Boolean values for indicating compression status. If a non-

NULL pointer is supplied and a color at a given index is compressed, then True should be stored at the corresponding index in this array; otherwise, the array should not be modified.

When implementing a gamut compression procedure, consider the following rules and assumptions:

• The gamut compression procedure can attempt to compress one or multiple specifications at a time.

When called, elements 0 to index − 1 in the color specification array can be assumed to fall within the screen’s color gamut. In addition, these color specifications are already in some device-dependent format (typically XcmsRGBi). If any modifications are made to these color specifications, they must be in their initial device-dependent format upon return.

When called, the element in the color specification array specified by the index argument contains the color specification outside the screen’s color gamut encountered by the calling routine. In addition, this color specification can be assumed to be in XcmsCIEXYZ.

Upon return, this color specification must be in XcmsCIEXYZ.

When called, elements from index to ncolors − 1 in the color specification array may or may not fall within the screen’s color gamut. In addition, these color specifications can be assumed to be in XcmsCIEXYZ. If any modifications are made to these color specifications, they must be in XcmsCIEXYZ upon return.

The color specifications passed to the gamut compression procedure have already been adjusted to the Screen White Point. This means that at this point the color specification’s white point is the Screen White Point.

If the gamut compression procedure uses a device-independent color space not initially accessible for use in the color management system, use XcmsAddColorSpace to ensure that it is added.

6.10.2. Supplied Gamut Compression Procedures

The following equations are useful in describing gamut compression functions:

CIELab Psychometric Chroma

=

sqrt(a_star

2

+

b_star

2

)

CIELab Psychometric Hue

= tan

1

b_star

a_star

100

Xlib − C Library libX11 1.3.2

CIELuv Psychometric Chroma

=

sqrt(u_star

2

+

v_star

2

)

CIELuv Psychometric Hue

= tan

1

v_star

u_star

The gamut compression callback procedures provided by Xlib are as follows:

XcmsCIELabClipL

This brings the encountered out-of-gamut color specification into the screen’s color gamut by reducing or increasing CIE metric lightness (L*) in the CIE L*a*b* color space until the color is within the gamut. If the Psychometric Chroma of the color specification is beyond maximum for the Psychometric Hue Angle, then while maintaining the same Psychometric

Hue Angle, the color will be clipped to the CIE L*a*b* coordinates of maximum Psychometric Chroma. See XcmsCIELabQueryMaxC. No client data is necessary.

XcmsCIELabClipab

This brings the encountered out-of-gamut color specification into the screen’s color gamut by reducing Psychometric Chroma, while maintaining Psychometric Hue Angle, until the color is within the gamut. No client data is necessary.

XcmsCIELabClipLab

This brings the encountered out-of-gamut color specification into the screen’s color gamut by replacing it with CIE L*a*b* coordinates that fall within the color gamut while maintaining the original Psychometric Hue Angle and whose vector to the original coordinates is the shortest attainable. No client data is necessary.

XcmsCIELuvClipL

This brings the encountered out-of-gamut color specification into the screen’s color gamut by reducing or increasing CIE metric lightness (L*) in the CIE L*u*v* color space until the color is within the gamut. If the Psychometric Chroma of the color specification is beyond maximum for the Psychometric Hue Angle, then, while maintaining the same Psychometric

Hue Angle, the color will be clipped to the CIE L*u*v* coordinates of maximum Psychometric Chroma. See XcmsCIELuvQueryMaxC. No client data is necessary.

XcmsCIELuvClipuv

This brings the encountered out-of-gamut color specification into the screen’s color gamut by reducing Psychometric Chroma, while maintaining Psychometric Hue Angle, until the color is within the gamut. No client data is necessary.

XcmsCIELuvClipLuv

This brings the encountered out-of-gamut color specification into the screen’s color gamut by replacing it with CIE L*u*v* coordinates that fall within the color gamut while maintaining the original Psychometric Hue Angle and whose vector to the original coordinates is the shortest attainable. No client data is necessary.

XcmsTekHVCClipV

This brings the encountered out-of-gamut color specification into the screen’s color gamut by reducing or increasing the Value dimension in the TekHVC color space until the color is within the gamut. If Chroma of the color specification is beyond maximum for the particular Hue, then, while maintaining the same Hue, the color will be clipped to the Value and

Chroma coordinates that represent maximum Chroma for that particular Hue. No client data is necessary.

XcmsTekHVCClipC

This brings the encountered out-of-gamut color specification into the screen’s color gamut by reducing the Chroma dimension in the TekHVC color space until the color is within the gamut. No client data is necessary.

101

Xlib − C Library libX11 1.3.2

XcmsTekHVCClipVC

This brings the encountered out-of-gamut color specification into the screen’s color gamut by replacing it with TekHVC coordinates that fall within the color gamut while maintaining the original Hue and whose vector to the original coordinates is the shortest attainable. No client data is necessary.

6.10.3. Prototype White Point Adjustment Procedure

The white point adjustment procedure interface must adhere to the following: typedef Status (*XcmsWhiteAdjustProc ) (ccc, initial_white_point, target_white_point, target_format,

colors_in_out, ncolors, compression_flags_return)

XcmsCCC ccc;

XcmsColor *initial_white_point;

XcmsColor *target_white_point;

XcmsColorFormat target_format;

XcmsColor colors_in_out[]; unsigned int ncolors;

Bool compression_flags_return[];

ccc

Specifies the CCC.

initial_white_point

Specifies the initial white point.

target_white_point

Specifies the target white point.

target_format

Specifies the target color specification format.

colors_in_out

Specifies an array of color specifications. Pixel members should be ignored and must remain unchanged upon return.

ncolors

Specifies the number of XcmsColor structures in the color-specification array.

compression_flags_return

Returns an array of Boolean values for indicating compression status. If a non-

NULL pointer is supplied and a color at a given index is compressed, then True should be stored at the corresponding index in this array; otherwise, the array should not be modified.

6.10.4. Supplied White Point Adjustment Procedures

White point adjustment procedures provided by Xlib are as follows:

XcmsCIELabWhiteShiftColors

This uses the CIE L*a*b* color space for adjusting the chromatic character of colors to compensate for the chromatic differences between the source and destination white points.

This procedure simply converts the color specifications to XcmsCIELab using the source white point and then converts to the target specification format using the destination’s white point. No client data is necessary.

XcmsCIELuvWhiteShiftColors

This uses the CIE L*u*v* color space for adjusting the chromatic character of colors to compensate for the chromatic differences between the source and destination white points.

This procedure simply converts the color specifications to XcmsCIELuv using the source white point and then converts to the target specification format using the destination’s white point. No client data is necessary.

102

Xlib − C Library libX11 1.3.2

XcmsTekHVCWhiteShiftColors

This uses the TekHVC color space for adjusting the chromatic character of colors to compensate for the chromatic differences between the source and destination white points. This procedure simply converts the color specifications to XcmsTekHVC using the source white point and then converts to the target specification format using the destination’s white point. An advantage of this procedure over those previously described is an attempt to minimize hue shift. No client data is necessary.

From an implementation point of view, these white point adjustment procedures convert the color specifications to a device-independent but white-point-dependent color space (for example, CIE

L*u*v*, CIE L*a*b*, TekHVC) using one white point and then converting those specifications to the target color space using another white point. In other words, the specification goes in the color space with one white point but comes out with another white point, resulting in a chromatic shift based on the chromatic displacement between the initial white point and target white point.

The CIE color spaces that are assumed to be white-point-independent are CIE u’v’Y, CIE XYZ, and CIE xyY. When developing a custom white point adjustment procedure that uses a deviceindependent color space not initially accessible for use in the color management system, use

XcmsAddColorSpace to ensure that it is added.

As an example, if the CCC specifies a white point adjustment procedure and if the Client White

Point and Screen White Point differ, the XcmsAllocColor function will use the white point adjustment procedure twice:

• Once to convert to XcmsRGB

• A second time to convert from XcmsRGB

For example, assume the specification is in XcmsCIEuvY and the adjustment procedure is Xcm-

sCIELuvWhiteShiftColors. During conversion to XcmsRGB, the call to XcmsAllocColor results in the following series of color specification conversions:

From XcmsCIEuvY to XcmsCIELuv using the Client White Point

From XcmsCIELuv to XcmsCIEuvY using the Screen White Point

From XcmsCIEuvY to XcmsCIEXYZ (CIE u’v’Y and XYZ are white-point-independent color spaces)

From XcmsCIEXYZ to XcmsRGBi

From XcmsRGBi to XcmsRGB

The resulting RGB specification is passed to XAllocColor, and the RGB specification returned by XAllocColor is converted back to XcmsCIEuvY by reversing the color conversion sequence.

6.11. Gamut Querying Functions

This section describes the gamut querying functions that Xlib provides. These functions allow the client to query the boundary of the screen’s color gamut in terms of the CIE L*a*b*, CIE

L*u*v*, and TekHVC color spaces. Functions are also provided that allow you to query the color specification of:

• White (full-intensity red, green, and blue)

Red (full-intensity red while green and blue are zero)

Green (full-intensity green while red and blue are zero)

Blue (full-intensity blue while red and green are zero)

Black (zero-intensity red, green, and blue)

The white point associated with color specifications passed to and returned from these gamut querying functions is assumed to be the Screen White Point. This is a reasonable assumption, because the client is trying to query the screen’s color gamut.

103

Xlib − C Library libX11 1.3.2

The following naming convention is used for the Max and Min functions:

Xcms<color_space>QueryMax<dimensions>

Xcms<color_space>QueryMin<dimensions>

The <dimensions> consists of a letter or letters that identify the dimensions of the color space that are not fixed. For example, XcmsTekHVCQueryMaxC is given a fixed Hue and Value for which maximum Chroma is found.

6.11.1. Red, Green, and Blue Queries

To obtain the color specification for black (zero-intensity red, green, and blue), use XcmsQuery-

Black.

Status XcmsQueryBlack(ccc, target_format, color_return)

XcmsCCC ccc;

XcmsColorFormat target_format;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

target_format

Specifies the target color specification format.

color_return

Returns the color specification in the specified target format for zero-intensity red, green, and blue. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsQueryBlack function returns the color specification in the specified target format for zero-intensity red, green, and blue.

To obtain the color specification for blue (full-intensity blue while red and green are zero), use

XcmsQueryBlue.

Status XcmsQueryBlue(ccc, target_format, color_return)

XcmsCCC ccc;

XcmsColorFormat target_format;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

target_format

Specifies the target color specification format.

color_return

Returns the color specification in the specified target format for full-intensity blue while red and green are zero. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsQueryBlue function returns the color specification in the specified target format for full-intensity blue while red and green are zero.

To obtain the color specification for green (full-intensity green while red and blue are zero), use

XcmsQueryGreen.

104

Xlib − C Library libX11 1.3.2

Status XcmsQueryGreen(ccc, target_format, color_return)

XcmsCCC ccc;

XcmsColorFormat target_format;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

target_format

Specifies the target color specification format.

color_return

Returns the color specification in the specified target format for full-intensity green while red and blue are zero. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsQueryGreen function returns the color specification in the specified target format for full-intensity green while red and blue are zero.

To obtain the color specification for red (full-intensity red while green and blue are zero), use

XcmsQueryRed.

Status XcmsQueryRed(ccc, target_format, color_return)

XcmsCCC ccc;

XcmsColorFormat target_format;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

target_format

Specifies the target color specification format.

color_return

Returns the color specification in the specified target format for full-intensity red while green and blue are zero. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsQueryRed function returns the color specification in the specified target format for full-intensity red while green and blue are zero.

To obtain the color specification for white (full-intensity red, green, and blue), use XcmsQuery-

White.

Status XcmsQueryWhite(ccc, target_format, color_return)

XcmsCCC ccc;

XcmsColorFormat target_format;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

target_format

Specifies the target color specification format.

color_return

Returns the color specification in the specified target format for full-intensity red, green, and blue. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

105

Xlib − C Library libX11 1.3.2

The XcmsQueryWhite function returns the color specification in the specified target format for full-intensity red, green, and blue.

6.11.2. CIELab Queries

The following equations are useful in describing the CIELab query functions:

CIELab Psychometric Chroma

=

sqrt(a_star

2

+

b_star

2

)

CIELab Psychometric Hue

= tan

1

b_star

a_star

To obtain the CIE L*a*b* coordinates of maximum Psychometric Chroma for a given Psychometric Hue Angle and CIE metric lightness (L*), use XcmsCIELabQueryMaxC.

Status XcmsCIELabQueryMaxC(ccc, hue_angle, L_star, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsFloat L_star;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

hue_angle

L_star

Specifies the hue angle (in degrees) at which to find maximum chroma.

Specifies the lightness (L*) at which to find maximum chroma.

color_return

Returns the CIE L*a*b* coordinates of maximum chroma displayable by the screen for the given hue angle and lightness. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELabQueryMaxC function, given a hue angle and lightness, finds the point of maximum chroma displayable by the screen. It returns this point in CIE L*a*b* coordinates.

To obtain the CIE L*a*b* coordinates of maximum CIE metric lightness (L*) for a given Psychometric Hue Angle and Psychometric Chroma, use XcmsCIELabQueryMaxL.

Status XcmsCIELabQueryMaxL(ccc, hue_angle, chroma, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsFloat chroma;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

hue_angle chroma

Specifies the hue angle (in degrees) at which to find maximum lightness.

Specifies the chroma at which to find maximum lightness.

color_return

Returns the CIE L*a*b* coordinates of maximum lightness displayable by the screen for the given hue angle and chroma. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELabQueryMaxL function, given a hue angle and chroma, finds the point in CIE

106

Xlib − C Library libX11 1.3.2

L*a*b* color space of maximum lightness (L*) displayable by the screen. It returns this point in

CIE L*a*b* coordinates. An XcmsFailure return value usually indicates that the given chroma is beyond maximum for the given hue angle.

To obtain the CIE L*a*b* coordinates of maximum Psychometric Chroma for a given Psychometric Hue Angle, use XcmsCIELabQueryMaxLC.

Status XcmsCIELabQueryMaxLC(ccc, hue_angle, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

hue_angle

Specifies the hue angle (in degrees) at which to find maximum chroma.

color_return

Returns the CIE L*a*b* coordinates of maximum chroma displayable by the screen for the given hue angle. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELabQueryMaxLC function, given a hue angle, finds the point of maximum chroma displayable by the screen. It returns this point in CIE L*a*b* coordinates.

To obtain the CIE L*a*b* coordinates of minimum CIE metric lightness (L*) for a given Psychometric Hue Angle and Psychometric Chroma, use XcmsCIELabQueryMinL.

Status XcmsCIELabQueryMinL(ccc, hue_angle, chroma, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsFloat chroma;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

hue_angle chroma

Specifies the hue angle (in degrees) at which to find minimum lightness.

Specifies the chroma at which to find minimum lightness.

color_return

Returns the CIE L*a*b* coordinates of minimum lightness displayable by the screen for the given hue angle and chroma. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELabQueryMinL function, given a hue angle and chroma, finds the point of minimum lightness (L*) displayable by the screen. It returns this point in CIE L*a*b* coordinates.

An XcmsFailure return value usually indicates that the given chroma is beyond maximum for the given hue angle.

6.11.3. CIELuv Queries

The following equations are useful in describing the CIELuv query functions:

CIELuv Psychometric Chroma

=

sqrt(u_star

2

+

v_star

2

)

CIELuv Psychometric Hue

= tan

1

v_star

u_star

107

Xlib − C Library libX11 1.3.2

To obtain the CIE L*u*v* coordinates of maximum Psychometric Chroma for a given Psychometric Hue Angle and CIE metric lightness (L*), use XcmsCIELuvQueryMaxC.

Status XcmsCIELuvQueryMaxC(ccc, hue_angle, L_star, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsFloat L_star;

XcmsColor *color_return;

ccc hue_angle

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the hue angle (in degrees) at which to find maximum chroma.

L_star

Specifies the lightness (L*) at which to find maximum chroma.

color_return

Returns the CIE L*u*v* coordinates of maximum chroma displayable by the screen for the given hue angle and lightness. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELuvQueryMaxC function, given a hue angle and lightness, finds the point of maximum chroma displayable by the screen. It returns this point in CIE L*u*v* coordinates.

To obtain the CIE L*u*v* coordinates of maximum CIE metric lightness (L*) for a given Psychometric Hue Angle and Psychometric Chroma, use XcmsCIELuvQueryMaxL.

Status XcmsCIELuvQueryMaxL(ccc, hue_angle, chroma, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsFloat chroma;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

hue_angle

L_star

Specifies the hue angle (in degrees) at which to find maximum lightness.

Specifies the lightness (L*) at which to find maximum lightness.

color_return

Returns the CIE L*u*v* coordinates of maximum lightness displayable by the screen for the given hue angle and chroma. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELuvQueryMaxL function, given a hue angle and chroma, finds the point in CIE

L*u*v* color space of maximum lightness (L*) displayable by the screen. It returns this point in

CIE L*u*v* coordinates. An XcmsFailure return value usually indicates that the given chroma is beyond maximum for the given hue angle.

To obtain the CIE L*u*v* coordinates of maximum Psychometric Chroma for a given Psychometric Hue Angle, use XcmsCIELuvQueryMaxLC.

108

Xlib − C Library libX11 1.3.2

Status XcmsCIELuvQueryMaxLC(ccc, hue_angle, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the hue angle (in degrees) at which to find maximum chroma.

hue_angle color_return

Returns the CIE L*u*v* coordinates of maximum chroma displayable by the screen for the given hue angle. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELuvQueryMaxLC function, given a hue angle, finds the point of maximum chroma displayable by the screen. It returns this point in CIE L*u*v* coordinates.

To obtain the CIE L*u*v* coordinates of minimum CIE metric lightness (L*) for a given Psychometric Hue Angle and Psychometric Chroma, use XcmsCIELuvQueryMinL.

Status XcmsCIELuvQueryMinL(ccc, hue_angle, chroma, color_return)

XcmsCCC ccc;

XcmsFloat hue_angle;

XcmsFloat chroma;

XcmsColor *color_return;

ccc hue_angle

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the hue angle (in degrees) at which to find minimum lightness.

chroma

Specifies the chroma at which to find minimum lightness.

color_return

Returns the CIE L*u*v* coordinates of minimum lightness displayable by the screen for the given hue angle and chroma. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsCIELuvQueryMinL function, given a hue angle and chroma, finds the point of minimum lightness (L*) displayable by the screen. It returns this point in CIE L*u*v* coordinates.

An XcmsFailure return value usually indicates that the given chroma is beyond maximum for the given hue angle.

6.11.4. TekHVC Queries

To obtain the maximum Chroma for a given Hue and Value, use XcmsTekHVCQueryMaxC.

109

Xlib − C Library libX11 1.3.2

Status XcmsTekHVCQueryMaxC (ccc, hue, value, color_return)

XcmsCCC ccc;

XcmsFloat hue;

XcmsFloat value;

XcmsColor *color_return;

ccc hue

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the Hue in which to find the maximum Chroma.

value

Specifies the Value in which to find the maximum Chroma.

color_return

Returns the maximum Chroma along with the actual Hue and Value at which the maximum Chroma was found. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsTekHVCQueryMaxC function, given a Hue and Value, determines the maximum

Chroma in TekHVC color space displayable by the screen. It returns the maximum Chroma along with the actual Hue and Value at which the maximum Chroma was found.

To obtain the maximum Value for a given Hue and Chroma, use XcmsTekHVCQueryMaxV.

Status XcmsTekHVCQueryMaxV (ccc, hue, chroma, color_return)

XcmsCCC ccc;

XcmsFloat hue;

XcmsFloat chroma;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

hue chroma

Specifies the Hue in which to find the maximum Value.

Specifies the chroma at which to find maximum Value.

color_return

Returns the maximum Value along with the Hue and Chroma at which the maximum Value was found. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsTekHVCQueryMaxV function, given a Hue and Chroma, determines the maximum

Value in TekHVC color space displayable by the screen. It returns the maximum Value and the actual Hue and Chroma at which the maximum Value was found.

To obtain the maximum Chroma and Value at which it is reached for a specified Hue, use Xcm-

sTekHVCQueryMaxVC.

110

Xlib − C Library libX11 1.3.2

Status XcmsTekHVCQueryMaxVC (ccc, hue, color_return)

XcmsCCC ccc;

XcmsFloat hue;

XcmsColor *color_return;

ccc

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the Hue in which to find the maximum Chroma.

hue color_return

Returns the color specification in XcmsTekHVC for the maximum Chroma, the

Value at which that maximum Chroma is reached, and the actual Hue at which the maximum Chroma was found. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsTekHVCQueryMaxVC function, given a Hue, determines the maximum Chroma in

TekHVC color space displayable by the screen and the Value at which that maximum Chroma is reached. It returns the maximum Chroma, the Value at which that maximum Chroma is reached, and the actual Hue for which the maximum Chroma was found.

To obtain a specified number of TekHVC specifications such that they contain maximum Values for a specified Hue and the Chroma at which the maximum Values are reached, use Xcm-

sTekHVCQueryMaxVSamples.

Status XcmsTekHVCQueryMaxVSamples (ccc, hue, colors_return, nsamples)

XcmsCCC ccc;

XcmsFloat hue;

XcmsColor colors_return[]; unsigned int nsamples;

ccc hue

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the Hue for maximum Chroma/Value samples.

nsamples

Specifies the number of samples.

colors_return

Returns nsamples of color specifications in XcmsTekHVC such that the Chroma is the maximum attainable for the Value and Hue. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsTekHVCQueryMaxVSamples returns nsamples of maximum Value, the Chroma at which that maximum Value is reached, and the actual Hue for which the maximum Chroma was found. These sample points may then be used to plot the maximum Value/Chroma boundary of the screen’s color gamut for the specified Hue in TekHVC color space.

To obtain the minimum Value for a given Hue and Chroma, use XcmsTekHVCQueryMinV.

111

Xlib − C Library libX11 1.3.2

Status XcmsTekHVCQueryMinV (ccc, hue, chroma, color_return)

XcmsCCC ccc;

XcmsFloat hue;

XcmsFloat chroma;

XcmsColor *color_return;

ccc hue

Specifies the CCC. The CCC’s Client White Point and white point adjustment procedures are ignored.

Specifies the Hue in which to find the minimum Value.

value

Specifies the Value in which to find the minimum Value.

color_return

Returns the minimum Value and the actual Hue and Chroma at which the minimum Value was found. The white point associated with the returned color specification is the Screen White Point. The value returned in the pixel member is undefined.

The XcmsTekHVCQueryMinV function, given a Hue and Chroma, determines the minimum

Value in TekHVC color space displayable by the screen. It returns the minimum Value and the actual Hue and Chroma at which the minimum Value was found.

6.12. Color Management Extensions

The Xlib color management facilities can be extended in two ways:

• Device-Independent Color Spaces

Device-independent color spaces that are derivable to CIE XYZ space can be added using the XcmsAddColorSpace function.

Color Characterization Function Set

A Color Characterization Function Set consists of device-dependent color spaces and their functions that convert between these color spaces and the CIE XYZ color space, bundled together for a specific class of output devices. A function set can be added using the Xcm-

sAddFunctionSet function.

6.12.1. Color Spaces

The CIE XYZ color space serves as the hub for all conversions between device-independent and device-dependent color spaces. Therefore, the knowledge to convert an XcmsColor structure to and from CIE XYZ format is associated with each color space. For example, conversion from

CIE L*u*v* to RGB requires the knowledge to convert from CIE L*u*v* to CIE XYZ and from

CIE XYZ to RGB. This knowledge is stored as an array of functions that, when applied in series, will convert the XcmsColor structure to or from CIE XYZ format. This color specification conversion mechanism facilitates the addition of color spaces.

Of course, when converting between only device-independent color spaces or only device-dependent color spaces, shortcuts are taken whenever possible. For example, conversion from TekHVC to CIE L*u*v* is performed by intermediate conversion to CIE u*v*Y and then to CIE L*u*v*, thus bypassing conversion between CIE u*v*Y and CIE XYZ.

6.12.2. Adding Device-Independent Color Spaces

To add a device-independent color space, use XcmsAddColorSpace.

112

Xlib − C Library libX11 1.3.2

Status XcmsAddColorSpace(color_space)

XcmsColorSpace *color_space;

color_space

Specifies the device-independent color space to add.

The XcmsAddColorSpace function makes a device-independent color space (actually an Xcms-

ColorSpace structure) accessible by the color management system. Because format values for unregistered color spaces are assigned at run time, they should be treated as private to the client.

If references to an unregistered color space must be made outside the client (for example, storing color specifications in a file using the unregistered color space), then reference should be made by color space prefix (see XcmsFormatOfPrefix and XcmsPrefixOfFormat).

If the XcmsColorSpace structure is already accessible in the color management system, Xcm-

sAddColorSpace returns XcmsSuccess.

Note that added XcmsColorSpaces must be retained for reference by Xlib.

6.12.3. Querying Color Space Format and Prefix

To obtain the format associated with the color space associated with a specified color string prefix, use XcmsFormatOfPrefix.

XcmsColorFormat XcmsFormatOfPrefix (prefix) char *prefix;

prefix

Specifies the string that contains the color space prefix.

The XcmsFormatOfPrefix function returns the format for the specified color space prefix (for example, the string ‘‘CIEXYZ’’). The prefix is case-insensitive. If the color space is not accessible in the color management system, XcmsFormatOfPrefix returns XcmsUndefinedFormat.

To obtain the color string prefix associated with the color space specified by a color format, use

XcmsPrefixOfFormat.

char *XcmsPrefixOfFormat (format)

XcmsColorFormat format;

format

Specifies the color specification format.

The XcmsPrefixOfFormat function returns the string prefix associated with the color specification encoding specified by the format argument. Otherwise, if no encoding is found, it returns

NULL. The returned string must be treated as read-only.

6.12.4. Creating Additional Color Spaces

Color space specific information necessary for color space conversion and color string parsing is stored in an XcmsColorSpace structure. Therefore, a new structure containing this information is required for each additional color space. In the case of device-independent color spaces, a handle to this new structure (that is, by means of a global variable) is usually made accessible to the client program for use with the XcmsAddColorSpace function.

If a new XcmsColorSpace structure specifies a color space not registered with the X Consortium, they should be treated as private to the client because format values for unregistered color spaces are assigned at run time. If references to an unregistered color space must be made outside the client (for example, storing color specifications in a file using the unregistered color space), then reference should be made by color space prefix (see XcmsFormatOfPrefix and

113

Xlib − C Library libX11 1.3.2

XcmsPrefixOfFormat).

typedef (*XcmsConversionProc)(); typedef XcmsConversionProc *XcmsFuncListPtr;

/* A NULL terminated list of function pointers*/ typedef struct _XcmsColorSpace { char *prefix;

XcmsColorFormat format;

XcmsParseStringProc parseString;

XcmsFuncListPtr to_CIEXYZ;

XcmsFuncListPtr from_CIEXYZ; int inverse_flag;

} XcmsColorSpace;

The prefix member specifies the prefix that indicates a color string is in this color space’s string format. For example, the strings ‘‘ciexyz’’ or ‘‘CIEXYZ’’ for CIE XYZ, and ‘‘rgb’’ or ‘‘RGB’’ for RGB. The prefix is case insensitive. The format member specifies the color specification format. Formats for unregistered color spaces are assigned at run time. The parseString member contains a pointer to the function that can parse a color string into an XcmsColor structure. This function returns an integer (int): nonzero if it succeeded and zero otherwise. The to_CIEXYZ and from_CIEXYZ members contain pointers, each to a NULL terminated list of function pointers. When the list of functions is executed in series, it will convert the color specified in an Xcm-

sColor structure from/to the current color space format to/from the CIE XYZ format. Each function returns an integer (int): nonzero if it succeeded and zero otherwise. The white point to be associated with the colors is specified explicitly, even though white points can be found in the

CCC. The inverse_flag member, if nonzero, specifies that for each function listed in to_CIEXYZ, its inverse function can be found in from_CIEXYZ such that:

Given: n = number of functions in each list for each i, such that 0 <= i < n from_CIEXYZ[n - i - 1] is the inverse of to_CIEXYZ[i].

This allows Xlib to use the shortest conversion path, thus bypassing CIE XYZ if possible (for example, TekHVC to CIE L*u*v*).

6.12.5. Parse String Callback

The callback in the XcmsColorSpace structure for parsing a color string for the particular color space must adhere to the following software interface specification: typedef int (*XcmsParseStringProc) (color_string, color_return) char *color_string;

XcmsColor *color_return;

color_string

Specifies the color string to parse.

color_return

Returns the color specification in the color space’s format.

114

Xlib − C Library libX11 1.3.2

6.12.6. Color Specification Conversion Callback

Callback functions in the XcmsColorSpace structure for converting a color specification between device-independent spaces must adhere to the following software interface specification:

Status ConversionProc (ccc, white_point, colors_in_out, ncolors)

XcmsCCC ccc;

XcmsColor *white_point;

XcmsColor *colors_in_out; unsigned int ncolors;

ccc

Specifies the CCC.

white_point

Specifies the white point associated with color specifications. The pixel member should be ignored, and the entire structure remain unchanged upon return.

colors_in_out

Specifies an array of color specifications. Pixel members should be ignored and must remain unchanged upon return.

ncolors

Specifies the number of XcmsColor structures in the color-specification array.

Callback functions in the XcmsColorSpace structure for converting a color specification to or from a device-dependent space must adhere to the following software interface specification:

Status ConversionProc (ccc, colors_in_out, ncolors, compression_flags_return)

XcmsCCC ccc;

XcmsColor *colors_in_out; unsigned int ncolors;

Bool compression_flags_return[];

ccc

Specifies the CCC.

colors_in_out

Specifies an array of color specifications. Pixel members should be ignored and must remain unchanged upon return.

ncolors

Specifies the number of XcmsColor structures in the color-specification array.

compression_flags_return

Returns an array of Boolean values for indicating compression status. If a non-

NULL pointer is supplied and a color at a given index is compressed, then True should be stored at the corresponding index in this array; otherwise, the array should not be modified.

Conversion functions are available globally for use by other color spaces. The conversion functions provided by Xlib are:

Function Converts from Converts to

XcmsCIELabToCIEXYZ

XcmsCIELuvToCIEuvY

XcmsCIEXYZToCIELab

XcmsCIEXYZToCIEuvY

XcmsCIEXYZToCIExyY

XcmsCIEXYZToRGBi

XcmsCIEuvYToCIELuv

XcmsCIEuvYToCIEXYZ

XcmsCIEuvYToTekHVC

XcmsCIELabFormat

XcmsCIELuvFormat

XcmsCIEXYZFormat

XcmsCIEXYZFormat

XcmsCIEXYZFormat

XcmsCIEXYZFormat

XcmsCIEuvYFormat

XcmsCIEuvYFormat

XcmsCIEuvYFormat

XcmsCIEXYZFormat

XcmsCIEuvYFormat

XcmsCIELabFormat

XcmsCIEuvYFormat

XcmsCIExyYFormat

XcmsRGBiFormat

XcmsCIELabFormat

XcmsCIEXYZFormat

XcmsTekHVCFormat

115

Xlib − C Library libX11 1.3.2

Function Converts from Converts to

XcmsCIExyYToCIEXYZ

XcmsRGBToRGBi

XcmsRGBiToCIEXYZ

XcmsRGBiToRGB

XcmsTekHVCToCIEuvY

XcmsCIExyYFormat

XcmsRGBFormat

XcmsRGBiFormat

XcmsRGBiFormat

XcmsTekHVCFormat

XcmsCIEXYZFormat

XcmsRGBiFormat

XcmsCIEXYZFormat

XcmsRGBFormat

XcmsCIEuvYFormat

6.12.7. Function Sets

Functions to convert between device-dependent color spaces and CIE XYZ may differ for different classes of output devices (for example, color versus gray monitors). Therefore, the notion of a

Color Characterization Function Set has been developed. A function set consists of devicedependent color spaces and the functions that convert color specifications between these devicedependent color spaces and the CIE XYZ color space appropriate for a particular class of output devices. The function set also contains a function that reads color characterization data off root window properties. It is this characterization data that will differ between devices within a class of output devices. For details about how color characterization data is stored in root window properties, see the section on Device Color Characterization in the Inter-Client Communication

Conventions Manual. The LINEAR_RGB function set is provided by Xlib and will support most color monitors. Function sets may require data that differs from those needed for the LIN-

EAR_RGB function set. In that case, its corresponding data may be stored on different root window properties.

6.12.8. Adding Function Sets

To add a function set, use XcmsAddFunctionSet.

Status XcmsAddFunctionSet(function_set)

XcmsFunctionSet *function_set;

function_set

Specifies the function set to add.

The XcmsAddFunctionSet function adds a function set to the color management system. If the function set uses device-dependent XcmsColorSpace structures not accessible in the color management system, XcmsAddFunctionSet adds them. If an added XcmsColorSpace structure is for a device-dependent color space not registered with the X Consortium, they should be treated as private to the client because format values for unregistered color spaces are assigned at run time. If references to an unregistered color space must be made outside the client (for example, storing color specifications in a file using the unregistered color space), then reference should be made by color space prefix (see XcmsFormatOfPrefix and XcmsPrefixOfFormat).

Additional function sets should be added before any calls to other Xlib routines are made. If not, the XcmsPerScrnInfo member of a previously created XcmsCCC does not have the opportunity to initialize with the added function set.

6.12.9. Creating Additional Function Sets

The creation of additional function sets should be required only when an output device does not conform to existing function sets or when additional device-dependent color spaces are necessary.

A function set consists primarily of a collection of device-dependent XcmsColorSpace structures and a means to read and store a screen’s color characterization data. This data is stored in an XcmsFunctionSet structure. A handle to this structure (that is, by means of global variable) is usually made accessible to the client program for use with XcmsAddFunctionSet.

116

Xlib − C Library libX11 1.3.2

If a function set uses new device-dependent XcmsColorSpace structures, they will be transparently processed into the color management system. Function sets can share an XcmsColorSpace structure for a device-dependent color space. In addition, multiple XcmsColorSpace structures are allowed for a device-dependent color space; however, a function set can reference only one of them. These XcmsColorSpace structures will differ in the functions to convert to and from CIE

XYZ, thus tailored for the specific function set.

typedef struct _XcmsFunctionSet {

XcmsColorSpace **DDColorSpaces;

XcmsScreenInitProc screenInitProc;

XcmsScreenFreeProc screenFreeProc;

} XcmsFunctionSet;

The DDColorSpaces member is a pointer to a NULL terminated list of pointers to XcmsCol-

orSpace structures for the device-dependent color spaces that are supported by the function set.

The screenInitProc member is set to the callback procedure (see the following interface specification) that initializes the XcmsPerScrnInfo structure for a particular screen.

The screen initialization callback must adhere to the following software interface specification: typedef Status (*XcmsScreenInitProc)(display, screen_number, screen_info)

Display *display; int screen_number;

XcmsPerScrnInfo *screen_info;

display

Specifies the connection to the X server.

screen_number Specifies the appropriate screen number on the host server.

screen_info

Specifies the XcmsPerScrnInfo structure, which contains the per screen information.

The screen initialization callback in the XcmsFunctionSet structure fetches the color characterization data (device profile) for the specified screen, typically off properties on the screen’s root window. It then initializes the specified XcmsPerScrnInfo structure. If successful, the procedure fills in the XcmsPerScrnInfo structure as follows:

It sets the screenData member to the address of the created device profile data structure

(contents known only by the function set).

It next sets the screenWhitePoint member.

It next sets the functionSet member to the address of the XcmsFunctionSet structure.

It then sets the state member to XcmsInitSuccess and finally returns XcmsSuccess.

If unsuccessful, the procedure sets the state member to XcmsInitFailure and returns XcmsFail-

ure.

The XcmsPerScrnInfo structure contains:

117

Xlib − C Library libX11 1.3.2

typedef struct _XcmsPerScrnInfo {

XcmsColor screenWhitePoint;

XPointer functionSet;

XPointer screenData; unsigned char state; char pad[3];

} XcmsPerScrnInfo;

The screenWhitePoint member specifies the white point inherent to the screen. The functionSet member specifies the appropriate function set. The screenData member specifies the device profile. The state member is set to one of the following:

XcmsInitNone indicates initialization has not been previously attempted.

XcmsInitFailure indicates initialization has been previously attempted but failed.

XcmsInitSuccess indicates initialization has been previously attempted and succeeded.

The screen free callback must adhere to the following software interface specification: typedef void (*XcmsScreenFreeProc)(screenData)

XPointer screenData;

screenData

Specifies the data to be freed.

This function is called to free the screenData stored in an XcmsPerScrnInfo structure.

118

Xlib − C Library libX11 1.3.2

Chapter 7

Graphics Context Functions

A number of resources are used when performing graphics operations in X. Most information about performing graphics (for example, foreground color, background color, line style, and so on) is stored in resources called graphics contexts (GCs). Most graphics operations (see chapter

8) take a GC as an argument. Although in theory the X protocol permits sharing of GCs between applications, it is expected that applications will use their own GCs when performing operations.

Sharing of GCs is highly discouraged because the library may cache GC state.

Graphics operations can be performed to either windows or pixmaps, which collectively are called drawables. Each drawable exists on a single screen. A GC is created for a specific screen and drawable depth and can only be used with drawables of matching screen and depth.

This chapter discusses how to:

• Manipulate graphics context/state

• Use graphics context convenience functions

7.1. Manipulating Graphics Context/State

Most attributes of graphics operations are stored in GCs. These include line width, line style, plane mask, foreground, background, tile, stipple, clipping region, end style, join style, and so on.

Graphics operations (for example, drawing lines) use these values to determine the actual drawing operation. Extensions to X may add additional components to GCs. The contents of a GC are private to Xlib.

Xlib implements a write-back cache for all elements of a GC that are not resource IDs to allow

Xlib to implement the transparent coalescing of changes to GCs. For example, a call to XSet-

Foreground of a GC followed by a call to XSetLineAttributes results in only a single-change

GC protocol request to the server. GCs are neither expected nor encouraged to be shared between client applications, so this write-back caching should present no problems. Applications cannot share GCs without external synchronization. Therefore, sharing GCs between applications is highly discouraged.

To set an attribute of a GC, set the appropriate member of the XGCValues structure and OR in the corresponding value bitmask in your subsequent calls to XCreateGC. The symbols for the value mask bits and the XGCValues structure are:

119

Xlib − C Library libX11 1.3.2

/* GC attribute value mask bits */

#define

GCFunction

#define

GCPlaneMask

#define

GCForeground

#define

GCBackground

#define

GCLineWidth

#define

GCLineStyle

#define

GCCapStyle

#define

GCJoinStyle

#define

GCFillStyle

#define

GCFillRule

#define

GCTile

#define

GCStipple

#define

GCTileStipXOrigin

#define

GCTileStipYOrigin

#define

GCFont

#define

GCSubwindowMode

#define

GCGraphicsExposures

#define

GCClipXOrigin

#define

GCClipYOrigin

#define

GCClipMask

#define

GCDashOffset

#define

GCDashList

#define

GCArcMode

(1L<<0)

(1L<<1)

(1L<<2)

(1L<<3)

(1L<<4)

(1L<<5)

(1L<<6)

(1L<<7)

(1L<<8)

(1L<<9)

(1L<<10)

(1L<<11)

(1L<<12)

(1L<<13)

(1L<<14)

(1L<<15)

(1L<<16)

(1L<<17)

(1L<<18)

(1L<<19)

(1L<<20)

(1L<<21)

(1L<<22)

/* Values */ typedef struct { int function; unsigned long plane_mask;

/* logical operation */

/* plane mask */ unsigned long foreground; /* foreground pixel */ unsigned long background; int line_width;

/* background pixel */

/* line width (in pixels) */ int line_style; int cap_style; int join_style; int fill_style;

/* LineSolid, LineOnOffDash, LineDoubleDash */

/* CapNotLast, CapButt, CapRound, CapProjecting */

/* JoinMiter, JoinRound, JoinBevel */

/* FillSolid, FillTiled, FillStippled FillOpaqueStippled*/ int fill_rule; int arc_mode;

Pixmap tile;

Pixmap stipple;

/* EvenOddRule, WindingRule */

/* ArcChord, ArcPieSlice */

/* tile pixmap for tiling operations */

/* stipple 1 plane pixmap for stippling */

/* offset for tile or stipple operations */ int ts_x_origin; int ts_y_origin;

Font font; /* default text font for text operations */ int subwindow_mode; /* ClipByChildren, IncludeInferiors */

Bool graphics_exposures; /* boolean, should exposures be generated */ int clip_x_origin; /* origin for clipping */ int clip_y_origin;

Pixmap clip_mask; /* bitmap clipping; other calls for rects */ int dash_offset; /* patterned/dashed line information */ char dashes;

} XGCValues;

120

Xlib − C Library libX11 1.3.2

The default GC values are:

Component Default

function

GXcopy

plane_mask All ones foreground 0 background 1 line_width 0 line_style

LineSolid

cap_style join_style

CapButt

JoinMiter

fill_style fill_rule

FillSolid

EvenOddRule

arc_mode

ArcPieSlice

tile Pixmap of unspecified size filled with foreground pixel

(that is, client specified pixel if any, else 0)

(subsequent changes to foreground do not affect this pixmap) stipple Pixmap of unspecified size filled with ones ts_x_origin 0 ts_y_origin 0 font <implementation dependent> subwindow_mode

ClipByChildren

graphics_exposures

True

clip_x_origin 0 clip_y_origin 0 clip_mask

None

dash_offset 0 dashes 4 (that is, the list [4, 4])

Note that foreground and background are not set to any values likely to be useful in a window.

The function attributes of a GC are used when you update a section of a drawable (the destination) with bits from somewhere else (the source). The function in a GC defines how the new destination bits are to be computed from the source bits and the old destination bits. GXcopy is typically the most useful because it will work on a color display, but special applications may use other functions, particularly in concert with particular planes of a color display. The 16 GC functions, defined in <X11/X.h>, are:

Function Name

GXclear

GXand

GXandReverse

GXcopy

GXandInverted

GXnoop

GXxor

GXor

GXnor

GXequiv

Value Operation

0x0

0x1

0x2

0x3

0x4

0x5

0x6

0x7

0x8

0x9

0 src AND dst src AND NOT dst src

(NOT src) AND dst dst src XOR dst src OR dst

(NOT src) AND (NOT dst)

(NOT src) XOR dst

121

Xlib − C Library libX11 1.3.2

Function Name

GXinvert

GXorReverse

GXcopyInverted

GXorInverted

GXnand

GXset

Value Operation

0xa

0xb

0xc

0xd

0xe

0xf

NOT dst src OR (NOT dst)

NOT src

(NOT src) OR dst

(NOT src) OR (NOT dst)

1

Many graphics operations depend on either pixel values or planes in a GC. The planes attribute is of type long, and it specifies which planes of the destination are to be modified, one bit per plane.

A monochrome display has only one plane and will be the least significant bit of the word. As planes are added to the display hardware, they will occupy more significant bits in the plane mask.

In graphics operations, given a source and destination pixel, the result is computed bitwise on corresponding bits of the pixels. That is, a Boolean operation is performed in each bit plane. The plane_mask restricts the operation to a subset of planes. A macro constant AllPlanes can be used to refer to all planes of the screen simultaneously. The result is computed by the following:

((src FUNC dst) AND plane-mask) OR (dst AND (NOT plane-mask))

Range checking is not performed on the values for foreground, background, or plane_mask. They are simply truncated to the appropriate number of bits. The line-width is measured in pixels and either can be greater than or equal to one (wide line) or can be the special value zero (thin line).

Wide lines are drawn centered on the path described by the graphics request. Unless otherwise specified by the join-style or cap-style, the bounding box of a wide line with endpoints [x1, y1],

[x2, y2] and width w is a rectangle with vertices at the following real coordinates:

[x1-(w*sn/2), y1+(w*cs/2)], [x1+(w*sn/2), y1-(w*cs/2)],

[x2-(w*sn/2), y2+(w*cs/2)], [x2+(w*sn/2), y2-(w*cs/2)]

Here sn is the sine of the angle of the line, and cs is the cosine of the angle of the line. A pixel is part of the line and so is drawn if the center of the pixel is fully inside the bounding box (which is viewed as having infinitely thin edges). If the center of the pixel is exactly on the bounding box, it is part of the line if and only if the interior is immediately to its right (x increasing direction).

Pixels with centers on a horizontal edge are a special case and are part of the line if and only if the interior or the boundary is immediately below (y increasing direction) and the interior or the boundary is immediately to the right (x increasing direction).

Thin lines (zero line-width) are one-pixel-wide lines drawn using an unspecified, device-dependent algorithm. There are only two constraints on this algorithm.

1. If a line is drawn unclipped from [x1,y1] to [x2,y2] and if another line is drawn unclipped from [x1+dx,y1+dy] to [x2+dx,y2+dy], a point [x,y] is touched by drawing the first line if and only if the point [x+dx,y+dy] is touched by drawing the second line.

2. The effective set of points comprising a line cannot be affected by clipping. That is, a point is touched in a clipped line if and only if the point lies inside the clipping region and the point would be touched by the line when drawn unclipped.

A wide line drawn from [x1,y1] to [x2,y2] always draws the same pixels as a wide line drawn from [x2,y2] to [x1,y1], not counting cap-style and join-style. It is recommended that this property be true for thin lines, but this is not required. A line-width of zero may differ from a linewidth of one in which pixels are drawn. This permits the use of many manufacturers’ line drawing hardware, which may run many times faster than the more precisely specified wide lines.

122

Xlib − C Library libX11 1.3.2

In general, drawing a thin line will be faster than drawing a wide line of width one. However, because of their different drawing algorithms, thin lines may not mix well aesthetically with wide lines. If it is desirable to obtain precise and uniform results across all displays, a client should always use a line-width of one rather than a line-width of zero.

The line-style defines which sections of a line are drawn:

LineSolid

LineDoubleDash

LineOnOffDash

The full path of the line is drawn.

The full path of the line is drawn, but the even dashes are filled differently from the odd dashes (see fill-style) with CapButt style used where ev en and odd dashes meet.

Only the even dashes are drawn, and cap-style applies to all internal ends of the individual dashes, except CapNotLast is treated as CapButt.

The cap-style defines how the endpoints of a path are drawn:

CapNotLast

This is equivalent to CapButt except that for a line-width of zero the final endpoint is not drawn.

CapButt

CapRound

The line is square at the endpoint (perpendicular to the slope of the line) with no projection beyond.

The line has a circular arc with the diameter equal to the line-width, centered on the endpoint. (This is equivalent to CapButt for line-width of zero).

CapProjecting

The line is square at the end, but the path continues beyond the endpoint for a distance equal to half the line-width. (This is equivalent to Cap-

Butt for line-width of zero).

The join-style defines how corners are drawn for wide lines:

JoinMiter

The outer edges of two lines extend to meet at an angle. However, if the angle is less than 11 degrees, then a JoinBevel join-style is used instead.

JoinRound

JoinBevel

The corner is a circular arc with the diameter equal to the line-width, centered on the joinpoint.

The corner has CapButt endpoint styles with the triangular notch filled.

For a line with coincident endpoints (x1=x2, y1=y2), when the cap-style is applied to both endpoints, the semantics depends on the line-width and the cap-style:

CapNotLast

thin The results are device dependent, but the desired effect is that nothing is drawn.

CapButt

thin

CapRound

CapProjecting

CapButt

CapRound

thin thin wide wide

The results are device dependent, but the desired effect is that a single pixel is drawn.

The results are the same as for CapButt/thin.

The results are the same as for CapButt/thin.

Nothing is drawn.

The closed path is a circle, centered at the endpoint, and with the diameter equal to the line-width.

CapProjecting

wide The closed path is a square, aligned with the coordinate axes, centered at the endpoint, and with the sides equal to the linewidth.

123

Xlib − C Library libX11 1.3.2

For a line with coincident endpoints (x1=x2, y1=y2), when the join-style is applied at one or both endpoints, the effect is as if the line was removed from the overall path. However, if the total path consists of or is reduced to a single point joined with itself, the effect is the same as when the capstyle is applied at both endpoints.

The tile/stipple represents an infinite two-dimensional plane, with the tile/stipple replicated in all dimensions. When that plane is superimposed on the drawable for use in a graphics operation, the upper-left corner of some instance of the tile/stipple is at the coordinates within the drawable specified by the tile/stipple origin. The tile/stipple and clip origins are interpreted relative to the origin of whatever destination drawable is specified in a graphics request. The tile pixmap must have the same root and depth as the GC, or a BadMatch error results. The stipple pixmap must have depth one and must have the same root as the GC, or a BadMatch error results. For stipple operations where the fill-style is FillStippled but not FillOpaqueStippled, the stipple pattern is tiled in a single plane and acts as an additional clip mask to be ANDed with the clip-mask.

Although some sizes may be faster to use than others, any size pixmap can be used for tiling or stippling.

The fill-style defines the contents of the source for line, text, and fill requests. For all text and fill requests (for example, XDrawText, XDrawText16, XFillRectangle, XFillPolygon, and XFil-

lArc); for line requests with line-style LineSolid (for example, XDrawLine, XDrawSegments,

XDrawRectangle, XDrawArc); and for the even dashes for line requests with line-style

LineOnOffDash or LineDoubleDash, the following apply:

FillSolid

FillTiled

FillOpaqueStippled

Foreground

Tile

FillStippled

A tile with the same width and height as stipple, but with background everywhere stipple has a zero and with foreground everywhere stipple has a one

Foreground masked by stipple

When drawing lines with line-style LineDoubleDash, the odd dashes are controlled by the fillstyle in the following manner:

FillSolid

FillTiled

Background

Same as for even dashes

FillOpaqueStippled

FillStippled

Same as for even dashes

Background masked by stipple

Storing a pixmap in a GC might or might not result in a copy being made. If the pixmap is later used as the destination for a graphics request, the change might or might not be reflected in the

GC. If the pixmap is used simultaneously in a graphics request both as a destination and as a tile or stipple, the results are undefined.

For optimum performance, you should draw as much as possible with the same GC (without changing its components). The costs of changing GC components relative to using different GCs depend on the display hardware and the server implementation. It is quite likely that some amount of GC information will be cached in display hardware and that such hardware can only cache a small number of GCs.

The dashes value is actually a simplified form of the more general patterns that can be set with

XSetDashes. Specifying a value of N is equivalent to specifying the two-element list [N, N] in

XSetDashes. The value must be nonzero, or a BadValue error results.

The clip-mask restricts writes to the destination drawable. If the clip-mask is set to a pixmap, it must have depth one and have the same root as the GC, or a BadMatch error results. If clipmask is set to None, the pixels are always drawn regardless of the clip origin. The clip-mask also

124

Xlib − C Library libX11 1.3.2

can be set by calling the XSetClipRectangles or XSetRegion functions. Only pixels where the clip-mask has a bit set to 1 are drawn. Pixels are not drawn outside the area covered by the clipmask or where the clip-mask has a bit set to 0. The clip-mask affects all graphics requests. The clip-mask does not clip sources. The clip-mask origin is interpreted relative to the origin of whatev er destination drawable is specified in a graphics request.

You can set the subwindow-mode to ClipByChildren or IncludeInferiors. For ClipByChil-

dren, both source and destination windows are additionally clipped by all viewable InputOut-

put children. For IncludeInferiors, neither source nor destination window is clipped by inferiors. This will result in including subwindow contents in the source and drawing through subwindow boundaries of the destination. The use of IncludeInferiors on a window of one depth with mapped inferiors of differing depth is not illegal, but the semantics are undefined by the core protocol.

The fill-rule defines what pixels are inside (drawn) for paths given in XFillPolygon requests and can be set to EvenOddRule or WindingRule. For EvenOddRule, a point is inside if an infinite ray with the point as origin crosses the path an odd number of times. For WindingRule, a point is inside if an infinite ray with the point as origin crosses an unequal number of clockwise and counterclockwise directed path segments. A clockwise directed path segment is one that crosses the ray from left to right as observed from the point. A counterclockwise segment is one that crosses the ray from right to left as observed from the point. The case where a directed line segment is coincident with the ray is uninteresting because you can simply choose a different ray that is not coincident with a segment.

For both EvenOddRule and WindingRule, a point is infinitely small, and the path is an infinitely thin line. A pixel is inside if the center point of the pixel is inside and the center point is not on the boundary. If the center point is on the boundary, the pixel is inside if and only if the polygon interior is immediately to its right (x increasing direction). Pixels with centers on a horizontal edge are a special case and are inside if and only if the polygon interior is immediately below (y increasing direction).

The arc-mode controls filling in the XFillArcs function and can be set to ArcPieSlice or Arc-

Chord. For ArcPieSlice, the arcs are pie-slice filled. For ArcChord, the arcs are chord filled.

The graphics-exposure flag controls GraphicsExpose ev ent generation for XCopyArea and

XCopyPlane requests (and any similar requests defined by extensions).

To create a new GC that is usable on a given screen with a depth of drawable, use XCreateGC.

GC XCreateGC(display, d, valuemask, values)

Display *display;

Drawable d; unsigned long valuemask;

XGCValues *values;

display d valuemask values

Specifies the connection to the X server.

Specifies the drawable.

Specifies which components in the GC are to be set using the information in the specified values structure. This argument is the bitwise inclusive OR of zero or more of the valid GC component mask bits.

Specifies any values as specified by the valuemask.

The XCreateGC function creates a graphics context and returns a GC. The GC can be used with any destination drawable having the same root and depth as the specified drawable. Use with other drawables results in a BadMatch error.

125

Xlib − C Library libX11 1.3.2

XCreateGC can generate BadAlloc, BadDrawable, BadFont, BadMatch, BadPixmap, and

BadValue errors.

To copy components from a source GC to a destination GC, use XCopyGC.

XCopyGC (display, src, valuemask, dest)

Display *display;

GC src, dest; unsigned long valuemask;

display src valuemask dest

Specifies the connection to the X server.

Specifies the components of the source GC.

Specifies which components in the GC are to be copied to the destination GC.

This argument is the bitwise inclusive OR of zero or more of the valid GC component mask bits.

Specifies the destination GC.

The XCopyGC function copies the specified components from the source GC to the destination

GC. The source and destination GCs must have the same root and depth, or a BadMatch error results. The valuemask specifies which component to copy, as for XCreateGC.

XCopyGC can generate BadAlloc, BadGC, and BadMatch errors.

To change the components in a given GC, use XChangeGC.

XChangeGC (display, gc, valuemask, values)

Display *display;

GC gc; unsigned long valuemask;

XGCValues *values;

display gc valuemask values

Specifies the connection to the X server.

Specifies the GC.

Specifies which components in the GC are to be changed using information in the specified values structure. This argument is the bitwise inclusive OR of zero or more of the valid GC component mask bits.

Specifies any values as specified by the valuemask.

The XChangeGC function changes the components specified by valuemask for the specified GC.

The values argument contains the values to be set. The values and restrictions are the same as for

XCreateGC. Changing the clip-mask overrides any previous XSetClipRectangles request on the context. Changing the dash-offset or dash-list overrides any previous XSetDashes request on the context. The order in which components are verified and altered is server dependent. If an error is generated, a subset of the components may have been altered.

XChangeGC can generate BadAlloc, BadFont, BadGC, BadMatch, BadPixmap, and Bad-

Value errors.

To obtain components of a given GC, use XGetGCValues.

126

Xlib − C Library libX11 1.3.2

Status XGetGCValues (display, gc, valuemask, values_return)

Display *display;

GC gc; unsigned long valuemask;

XGCValues *values_return;

display gc

Specifies the connection to the X server.

Specifies the GC.

valuemask

Specifies which components in the GC are to be returned in the values_return argument. This argument is the bitwise inclusive OR of zero or more of the valid

GC component mask bits.

values_return

Returns the GC values in the specified XGCValues structure.

The XGetGCValues function returns the components specified by valuemask for the specified

GC. If the valuemask contains a valid set of GC mask bits (GCFunction, GCPlaneMask,

GCForeground, GCBackground, GCLineWidth, GCLineStyle, GCCapStyle, GCJoin-

Style, GCFillStyle, GCFillRule, GCTile, GCStipple, GCTileStipXOrigin, GCTileStipYO-

rigin, GCFont, GCSubwindowMode, GCGraphicsExposures, GCClipXOrigin, GCCLipY-

Origin, GCDashOffset, or GCArcMode) and no error occurs, XGetGCValues sets the requested components in values_return and returns a nonzero status. Otherwise, it returns a zero status. Note that the clip-mask and dash-list (represented by the GCClipMask and GCDashList bits, respectively, in the valuemask) cannot be requested. Also note that an invalid resource ID

(with one or more of the three most significant bits set to 1) will be returned for GCFont,

GCTile, and GCStipple if the component has never been explicitly set by the client.

To free a given GC, use XFreeGC.

XFreeGC (display, gc)

Display *display;

GC gc;

display gc

Specifies the connection to the X server.

Specifies the GC.

The XFreeGC function destroys the specified GC as well as all the associated storage.

XFreeGC can generate a BadGC error.

To obtain the GContext resource ID for a given GC, use XGContextFromGC.

GContext XGContextFromGC (gc)

GC gc;

gc

Specifies the GC for which you want the resource ID.

Xlib usually defers sending changes to the components of a GC to the server until a graphics function is actually called with that GC. This permits batching of component changes into a single server request. In some circumstances, however, it may be necessary for the client to explicitly force sending the changes to the server. An example might be when a protocol extension uses the GC indirectly, in such a way that the extension interface cannot know what GC will be used.

To force sending GC component changes, use XFlushGC.

127

Xlib − C Library libX11 1.3.2

void XFlushGC(display, gc)

Display *display;

GC gc;

display gc

Specifies the connection to the X server.

Specifies the GC.

7.2. Using Graphics Context Convenience Routines

This section discusses how to set the:

Foreground, background, plane mask, or function components

Line attributes and dashes components

Fill style and fill rule components

Fill tile and stipple components

Font component

Clip region component

Arc mode, subwindow mode, and graphics exposure components

7.2.1. Setting the Foreground, Background, Function, or Plane Mask

To set the foreground, background, plane mask, and function components for a given GC, use

XSetState.

XSetState (display, gc, foreground, background, function, plane_mask)

Display *display;

GC gc; unsigned long foreground, background; int function; unsigned long plane_mask;

display gc foreground

Specifies the connection to the X server.

Specifies the GC.

Specifies the foreground you want to set for the specified GC.

background

Specifies the background you want to set for the specified GC.

function

Specifies the function you want to set for the specified GC.

plane_mask

Specifies the plane mask.

XSetState can generate BadAlloc, BadGC, and BadValue errors.

To set the foreground of a given GC, use XSetForeground.

128

Xlib − C Library

XSetForeground (display, gc, foreground)

Display *display;

GC gc; unsigned long foreground;

display gc foreground

Specifies the connection to the X server.

Specifies the GC.

Specifies the foreground you want to set for the specified GC.

XSetForeground can generate BadAlloc and BadGC errors.

To set the background of a given GC, use XSetBackground.

XSetBackground (display, gc, background)

Display *display;

GC gc; unsigned long background;

display gc

Specifies the connection to the X server.

Specifies the GC.

background

Specifies the background you want to set for the specified GC.

XSetBackground can generate BadAlloc and BadGC errors.

To set the display function in a given GC, use XSetFunction.

XSetFunction (display, gc, function)

Display *display;

GC gc; int function;

display gc function

Specifies the connection to the X server.

Specifies the GC.

Specifies the function you want to set for the specified GC.

XSetFunction can generate BadAlloc, BadGC, and BadValue errors.

To set the plane mask of a given GC, use XSetPlaneMask.

XSetPlaneMask (display, gc, plane_mask)

Display *display;

GC gc; unsigned long plane_mask;

display

Specifies the connection to the X server.

gc

Specifies the GC.

plane_mask

Specifies the plane mask.

XSetPlaneMask can generate BadAlloc and BadGC errors.

129 libX11 1.3.2

Xlib − C Library libX11 1.3.2

7.2.2. Setting the Line Attributes and Dashes

To set the line drawing components of a given GC, use XSetLineAttributes.

XSetLineAttributes (display, gc, line_width, line_style, cap_style, join_style)

Display *display;

GC gc; unsigned int line_width; int line_style; int cap_style; int join_style;

display gc line_width line_style cap_style join_style

Specifies the connection to the X server.

Specifies the GC.

Specifies the line-width you want to set for the specified GC.

Specifies the line-style you want to set for the specified GC. You can pass

LineSolid, LineOnOffDash, or LineDoubleDash.

Specifies the line-style and cap-style you want to set for the specified GC. You can pass CapNotLast, CapButt, CapRound, or CapProjecting.

Specifies the line join-style you want to set for the specified GC. You can pass

JoinMiter, JoinRound, or JoinBevel.

XSetLineAttributes can generate BadAlloc, BadGC, and BadValue errors.

To set the dash-offset and dash-list for dashed line styles of a given GC, use XSetDashes.

XSetDashes (display, gc, dash_offset, dash_list, n)

Display *display;

GC gc; int dash_offset; char dash_list[] ; int n;

display gc dash_offset dash_list n

Specifies the connection to the X server.

Specifies the GC.

Specifies the phase of the pattern for the dashed line-style you want to set for the specified GC.

Specifies the dash-list for the dashed line-style you want to set for the specified

GC.

Specifies the number of elements in dash_list.

The XSetDashes function sets the dash-offset and dash-list attributes for dashed line styles in the specified GC. There must be at least one element in the specified dash_list, or a BadValue error results. The initial and alternating elements (second, fourth, and so on) of the dash_list are the ev en dashes, and the others are the odd dashes. Each element specifies a dash length in pixels.

All of the elements must be nonzero, or a BadValue error results. Specifying an odd-length list is equivalent to specifying the same list concatenated with itself to produce an even-length list.

The dash-offset defines the phase of the pattern, specifying how many pixels into the dash-list the pattern should actually begin in any single graphics request. Dashing is continuous through path elements combined with a join-style but is reset to the dash-offset between each sequence of joined lines.

130

Xlib − C Library libX11 1.3.2

The unit of measure for dashes is the same for the ordinary coordinate system. Ideally, a dash length is measured along the slope of the line, but implementations are only required to match this ideal for horizontal and vertical lines. Failing the ideal semantics, it is suggested that the length be measured along the major axis of the line. The major axis is defined as the x axis for lines drawn at an angle of between −45 and +45 degrees or between 135 and 225 degrees from the x axis. For all other lines, the major axis is the y axis.

XSetDashes can generate BadAlloc, BadGC, and BadValue errors.

7.2.3. Setting the Fill Style and Fill Rule

To set the fill-style of a given GC, use XSetFillStyle.

XSetFillStyle (display, gc, fill_style)

Display *display;

GC gc; int fill_style;

display gc fill_style

Specifies the connection to the X server.

Specifies the GC.

Specifies the fill-style you want to set for the specified GC. You can pass Fill-

Solid, FillTiled, FillStippled, or FillOpaqueStippled.

XSetFillStyle can generate BadAlloc, BadGC, and BadValue errors.

To set the fill-rule of a given GC, use XSetFillRule.

XSetFillRule (display, gc, fill_rule)

Display *display;

GC gc; int fill_rule;

display gc fill_rule

Specifies the connection to the X server.

Specifies the GC.

Specifies the fill-rule you want to set for the specified GC. You can pass Even-

OddRule or WindingRule.

XSetFillRule can generate BadAlloc, BadGC, and BadValue errors.

7.2.4. Setting the Fill Tile and Stipple

Some displays have hardware support for tiling or stippling with patterns of specific sizes. Tiling and stippling operations that restrict themselves to those specific sizes run much faster than such operations with arbitrary size patterns. Xlib provides functions that you can use to determine the best size, tile, or stipple for the display as well as to set the tile or stipple shape and the tile or stipple origin.

To obtain the best size of a tile, stipple, or cursor, use XQueryBestSize.

131

Xlib − C Library libX11 1.3.2

Status XQueryBestSize(display, class, which_screen, width, height, width_return, height_return)

Display *display; int class;

Drawable which_screen; unsigned int width, height; unsigned int *width_return, *height_return;

display class

Specifies the connection to the X server.

Specifies the class that you are interested in. You can pass TileShape, Cursor-

Shape, or StippleShape.

which_screen

Specifies any drawable on the screen.

width height

Specify the width and height.

width_return height_return

Return the width and height of the object best supported by the display hardware.

The XQueryBestSize function returns the best or closest size to the specified size. For Cursor-

Shape, this is the largest size that can be fully displayed on the screen specified by which_screen.

For TileShape, this is the size that can be tiled fastest. For StippleShape, this is the size that can be stippled fastest. For CursorShape, the drawable indicates the desired screen. For Tile-

Shape and StippleShape, the drawable indicates the screen and possibly the window class and depth. An InputOnly window cannot be used as the drawable for TileShape or StippleShape, or a BadMatch error results.

XQueryBestSize can generate BadDrawable, BadMatch, and BadValue errors.

To obtain the best fill tile shape, use XQueryBestTile.

Status XQueryBestTile (display, which_screen, width, height, width_return, height_return)

Display *display;

Drawable which_screen; unsigned int width, height; unsigned int *width_return, *height_return;

display

Specifies the connection to the X server.

which_screen

Specifies any drawable on the screen.

width height

Specify the width and height.

width_return height_return

Return the width and height of the object best supported by the display hardware.

The XQueryBestTile function returns the best or closest size, that is, the size that can be tiled fastest on the screen specified by which_screen. The drawable indicates the screen and possibly the window class and depth. If an InputOnly window is used as the drawable, a BadMatch error results.

XQueryBestTile can generate BadDrawable and BadMatch errors.

To obtain the best stipple shape, use XQueryBestStipple.

132

Xlib − C Library libX11 1.3.2

Status XQueryBestStipple(display, which_screen, width, height, width_return, height_return)

Display *display;

Drawable which_screen; unsigned int width, height; unsigned int *width_return, *height_return;

display

Specifies the connection to the X server.

which_screen

Specifies any drawable on the screen.

width height

Specify the width and height.

width_return height_return

Return the width and height of the object best supported by the display hardware.

The XQueryBestStipple function returns the best or closest size, that is, the size that can be stippled fastest on the screen specified by which_screen. The drawable indicates the screen and possibly the window class and depth. If an InputOnly window is used as the drawable, a Bad-

Match error results.

XQueryBestStipple can generate BadDrawable and BadMatch errors.

To set the fill tile of a given GC, use XSetTile.

XSetTile (display, gc, tile)

Display *display;

GC gc;

Pixmap tile;

display gc tile

Specifies the connection to the X server.

Specifies the GC.

Specifies the fill tile you want to set for the specified GC.

The tile and GC must have the same depth, or a BadMatch error results.

XSetTile can generate BadAlloc, BadGC, BadMatch, and BadPixmap errors.

To set the stipple of a given GC, use XSetStipple.

XSetStipple (display, gc, stipple)

Display *display;

GC gc;

Pixmap stipple;

display gc stipple

Specifies the connection to the X server.

Specifies the GC.

Specifies the stipple you want to set for the specified GC.

The stipple must have a depth of one, or a BadMatch error results.

XSetStipple can generate BadAlloc, BadGC, BadMatch, and BadPixmap errors.

To set the tile or stipple origin of a given GC, use XSetTSOrigin.

133

Xlib − C Library libX11 1.3.2

XSetTSOrigin (display, gc, ts_x_origin, ts_y_origin)

Display *display;

GC gc; int ts_x_origin, ts_y_origin;

display gc ts_x_origin ts_y_origin

Specifies the connection to the X server.

Specifies the GC.

Specify the x and y coordinates of the tile and stipple origin.

When graphics requests call for tiling or stippling, the parent’s origin will be interpreted relative to whatever destination drawable is specified in the graphics request.

XSetTSOrigin can generate BadAlloc and BadGC errors.

7.2.5. Setting the Current Font

To set the current font of a given GC, use XSetFont.

XSetFont (display, gc, font)

Display *display;

GC gc;

Font font;

display gc font

Specifies the connection to the X server.

Specifies the GC.

Specifies the font.

XSetFont can generate BadAlloc, BadFont, and BadGC errors.

7.2.6. Setting the Clip Region

Xlib provides functions that you can use to set the clip-origin and the clip-mask or set the clipmask to a list of rectangles.

To set the clip-origin of a given GC, use XSetClipOrigin.

XSetClipOrigin (display, gc, clip_x_origin, clip_y_origin)

Display *display;

GC gc; int clip_x_origin, clip_y_origin;

display

Specifies the connection to the X server.

gc

Specifies the GC.

clip_x_origin clip_y_origin

Specify the x and y coordinates of the clip-mask origin.

The clip-mask origin is interpreted relative to the origin of whatever destination drawable is specified in the graphics request.

XSetClipOrigin can generate BadAlloc and BadGC errors.

To set the clip-mask of a given GC to the specified pixmap, use XSetClipMask.

134

Xlib − C Library libX11 1.3.2

XSetClipMask (display, gc, pixmap)

Display *display;

GC gc;

Pixmap pixmap;

display gc pixmap

Specifies the connection to the X server.

Specifies the GC.

Specifies the pixmap or None.

If the clip-mask is set to None, the pixels are always drawn (regardless of the clip-origin).

XSetClipMask can generate BadAlloc, BadGC, BadMatch, and BadPixmap errors.

To set the clip-mask of a given GC to the specified list of rectangles, use XSetClipRectangles.

XSetClipRectangles (display, gc, clip_x_origin, clip_y_origin, rectangles, n, ordering)

Display *display;

GC gc; int clip_x_origin, clip_y_origin;

XRectangle rectangles[] ; int n; int ordering;

display n ordering

Specifies the connection to the X server.

gc

Specifies the GC.

clip_x_origin clip_y_origin

Specify the x and y coordinates of the clip-mask origin.

rectangles

Specifies an array of rectangles that define the clip-mask.

Specifies the number of rectangles.

Specifies the ordering relations on the rectangles. You can pass Unsorted,

YSorted, YXSorted, or YXBanded.

The XSetClipRectangles function changes the clip-mask in the specified GC to the specified list of rectangles and sets the clip origin. The output is clipped to remain contained within the rectangles. The clip-origin is interpreted relative to the origin of whatever destination drawable is specified in a graphics request. The rectangle coordinates are interpreted relative to the clip-origin.

The rectangles should be nonintersecting, or the graphics results will be undefined. Note that the list of rectangles can be empty, which effectively disables output. This is the opposite of passing

None as the clip-mask in XCreateGC, XChangeGC, and XSetClipMask.

If known by the client, ordering relations on the rectangles can be specified with the ordering argument. This may provide faster operation by the server. If an incorrect ordering is specified, the X server may generate a BadMatch error, but it is not required to do so. If no error is generated, the graphics results are undefined. Unsorted means the rectangles are in arbitrary order.

YSorted means that the rectangles are nondecreasing in their Y origin. YXSorted additionally constrains YSorted order in that all rectangles with an equal Y origin are nondecreasing in their

X origin. YXBanded additionally constrains YXSorted by requiring that, for every possible Y scanline, all rectangles that include that scanline have an identical Y origins and Y extents.

XSetClipRectangles can generate BadAlloc, BadGC, BadMatch, and BadValue errors.

Xlib provides a set of basic functions for performing region arithmetic. For information about these functions, see section 16.5.

135

Xlib − C Library libX11 1.3.2

7.2.7. Setting the Arc Mode, Subwindow Mode, and Graphics Exposure

To set the arc mode of a given GC, use XSetArcMode.

XSetArcMode (display, gc, arc_mode)

Display *display;

GC gc; int arc_mode;

display gc arc_mode

Specifies the connection to the X server.

Specifies the GC.

Specifies the arc mode. You can pass ArcChord or ArcPieSlice.

XSetArcMode can generate BadAlloc, BadGC, and BadValue errors.

To set the subwindow mode of a given GC, use XSetSubwindowMode.

XSetSubwindowMode (display, gc, subwindow_mode)

Display *display;

GC gc; int subwindow_mode;

display

Specifies the connection to the X server.

gc

Specifies the GC.

subwindow_mode

Specifies the subwindow mode. You can pass ClipByChildren or IncludeInfe-

riors.

XSetSubwindowMode can generate BadAlloc, BadGC, and BadValue errors.

To set the graphics-exposures flag of a given GC, use XSetGraphicsExposures.

XSetGraphicsExposures (display, gc, graphics_exposures)

Display *display;

GC gc;

Bool graphics_exposures;

display gc

Specifies the connection to the X server.

Specifies the GC.

graphics_exposures

Specifies a Boolean value that indicates whether you want GraphicsExpose and

NoExpose ev ents to be reported when calling XCopyArea and XCopyPlane with this GC.

XSetGraphicsExposures can generate BadAlloc, BadGC, and BadValue errors.

136

Xlib − C Library libX11 1.3.2

Chapter 8

Graphics Functions

Once you have established a connection to a display, you can use the Xlib graphics functions to:

Clear and copy areas

Draw points, lines, rectangles, and arcs

Fill areas

Manipulate fonts

Draw text

• Transfer images between clients and the server

If the same drawable and GC is used for each call, Xlib batches back-to-back calls to XDraw-

Point, XDrawLine, XDrawRectangle, XFillArc, and XFillRectangle. Note that this reduces the total number of requests sent to the server.

8.1. Clearing Areas

Xlib provides functions that you can use to clear an area or the entire window. Because pixmaps do not have defined backgrounds, they cannot be filled by using the functions described in this section. Instead, to accomplish an analogous operation on a pixmap, you should use XFillRect-

angle, which sets the pixmap to a known value.

To clear a rectangular area of a given window, use XClearArea.

XClearArea (display, w, x, y, width, height, exposures)

Display *display;

Window w; int x, y; unsigned int width, height;

Bool exposures;

display w x y

Specifies the connection to the X server.

Specifies the window.

Specify the x and y coordinates, which are relative to the origin of the window and specify the upper-left corner of the rectangle.

width height exposures

Specify the width and height, which are the dimensions of the rectangle.

Specifies a Boolean value that indicates if Expose ev ents are to be generated.

The XClearArea function paints a rectangular area in the specified window according to the specified dimensions with the window’s background pixel or pixmap. The subwindow-mode effectively is ClipByChildren. If width is zero, it is replaced with the current width of the window minus x. If height is zero, it is replaced with the current height of the window minus y. If the window has a defined background tile, the rectangle clipped by any children is filled with this tile. If the window has background None, the contents of the window are not changed. In either case, if exposures is True, one or more Expose ev ents are generated for regions of the rectangle that are either visible or are being retained in a backing store. If you specify a window whose

137

Xlib − C Library libX11 1.3.2

class is InputOnly, a BadMatch error results.

XClearArea can generate BadMatch, BadValue, and BadWindow errors.

To clear the entire area in a given window, use XClearWindow.

XClearWindow(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XClearWindow function clears the entire area in the specified window and is equivalent to

XClearArea (display, w, 0, 0, 0, 0, False). If the window has a defined background tile, the rectangle is tiled with a plane-mask of all ones and GXcopy function. If the window has background None, the contents of the window are not changed. If you specify a window whose class is InputOnly, a BadMatch error results.

XClearWindow can generate BadMatch and BadWindow errors.

8.2. Copying Areas

Xlib provides functions that you can use to copy an area or a bit plane.

To copy an area between drawables of the same root and depth, use XCopyArea.

XCopyArea (display, src, dest, gc, src_x, src_y, width, height, dest_x, dest_y)

Display *display;

Drawable src, dest;

GC gc; int src_x, src_y; unsigned int width, height; int dest_x, dest_y;

Specifies the connection to the X server.

display src dest gc src_x src_y

Specify the source and destination rectangles to be combined.

Specifies the GC.

Specify the x and y coordinates, which are relative to the origin of the source rectangle and specify its upper-left corner.

width height

Specify the width and height, which are the dimensions of both the source and destination rectangles.

dest_x dest_y

Specify the x and y coordinates, which are relative to the origin of the destination rectangle and specify its upper-left corner.

The XCopyArea function combines the specified rectangle of src with the specified rectangle of dest. The drawables must have the same root and depth, or a BadMatch error results.

If regions of the source rectangle are obscured and have not been retained in backing store or if regions outside the boundaries of the source drawable are specified, those regions are not copied.

138

Xlib − C Library libX11 1.3.2

Instead, the following occurs on all corresponding destination regions that are either visible or are retained in backing store. If the destination is a window with a background other than None, corresponding regions of the destination are tiled with that background (with plane-mask of all ones and GXcopy function). Regardless of tiling or whether the destination is a window or a pixmap, if graphics-exposures is True, then GraphicsExpose ev ents for all corresponding destination regions are generated. If graphics-exposures is True but no GraphicsExpose ev ents are generated, a NoExpose ev ent is generated. Note that by default graphics-exposures is True in new

GCs.

This function uses these GC components: function, plane-mask, subwindow-mode, graphicsexposures, clip-x-origin, clip-y-origin, and clip-mask.

XCopyArea can generate BadDrawable, BadGC, and BadMatch errors.

To copy a single bit plane of a given drawable, use XCopyPlane.

XCopyPlane (display, src, dest, gc, src_x, src_y, width, height, dest_x, dest_y, plane)

Display *display;

Drawable src, dest;

GC gc; int src_x, src_y; unsigned int width, height; int dest_x, dest_y; unsigned long plane;

Specifies the connection to the X server.

display src dest gc src_x src_y

Specify the source and destination rectangles to be combined.

Specifies the GC.

Specify the x and y coordinates, which are relative to the origin of the source rectangle and specify its upper-left corner.

width height

Specify the width and height, which are the dimensions of both the source and destination rectangles.

dest_x dest_y plane

Specify the x and y coordinates, which are relative to the origin of the destination rectangle and specify its upper-left corner.

Specifies the bit plane. You must set exactly one bit to 1.

The XCopyPlane function uses a single bit plane of the specified source rectangle combined with the specified GC to modify the specified rectangle of dest. The drawables must have the same root but need not have the same depth. If the drawables do not have the same root, a Bad-

Match error results. If plane does not have exactly one bit set to 1 and the value of plane is not less than 2

n

, where n is the depth of src, a BadValue error results.

Effectively, XCopyPlane forms a pixmap of the same depth as the rectangle of dest and with a size specified by the source region. It uses the foreground/background pixels in the GC (foreground everywhere the bit plane in src contains a bit set to 1, background everywhere the bit plane in src contains a bit set to 0) and the equivalent of a CopyArea protocol request is performed with all the same exposure semantics. This can also be thought of as using the specified region of the source bit plane as a stipple with a fill-style of FillOpaqueStippled for filling a rectangular area of the destination.

139

Xlib − C Library libX11 1.3.2

This function uses these GC components: function, plane-mask, foreground, background, subwindow-mode, graphics-exposures, clip-x-origin, clip-y-origin, and clip-mask.

XCopyPlane can generate BadDrawable, BadGC, BadMatch, and BadValue errors.

8.3. Drawing Points, Lines, Rectangles, and Arcs

Xlib provides functions that you can use to draw:

• A single point or multiple points

• A single line or multiple lines

A single rectangle or multiple rectangles

A single arc or multiple arcs

Some of the functions described in the following sections use these structures: typedef struct { short x1, y1, x2, y2;

} XSegment; typedef struct { short x, y;

} XPoint; typedef struct { short x, y; unsigned short width, height;

} XRectangle; typedef struct { short x, y; unsigned short width, height; short angle1, angle2; /* Degrees * 64 */

} XArc;

All x and y members are signed integers. The width and height members are 16-bit unsigned integers. You should be careful not to generate coordinates and sizes out of the 16-bit ranges, because the protocol only has 16-bit fields for these values.

8.3.1. Drawing Single and Multiple Points

To draw a single point in a given drawable, use XDrawPoint.

140

Xlib − C Library libX11 1.3.2

XDrawPoint (display, d, gc, x, y)

Display *display;

Drawable d;

GC gc; int x, y;

display d gc x y

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates where you want the point drawn.

To draw multiple points in a given drawable, use XDrawPoints.

XDrawPoints (display, d, gc, points, npoints, mode)

Display *display;

Drawable d;

GC gc;

XPoint *points; int npoints; int mode;

display d gc points npoints mode

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of points.

Specifies the number of points in the array.

Specifies the coordinate mode. You can pass CoordModeOrigin or Coord-

ModePrevious.

The XDrawPoint function uses the foreground pixel and function components of the GC to draw a single point into the specified drawable; XDrawPoints draws multiple points this way. Coord-

ModeOrigin treats all coordinates as relative to the origin, and CoordModePrevious treats all coordinates after the first as relative to the previous point. XDrawPoints draws the points in the order listed in the array.

Both functions use these GC components: function, plane-mask, foreground, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask.

XDrawPoint can generate BadDrawable, BadGC, and BadMatch errors. XDrawPoints can generate BadDrawable, BadGC, BadMatch, and BadValue errors.

8.3.2. Drawing Single and Multiple Lines

To draw a single line between two points in a given drawable, use XDrawLine.

141

Xlib − C Library libX11 1.3.2

XDrawLine (display, d, gc, x1, y1, x2, y2)

Display *display;

Drawable d;

GC gc; int x1, y1, x2, y2;

display d gc x1 y1 x2 y2

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the points (x1, y1) and (x2, y2) to be connected.

To draw multiple lines in a given drawable, use XDrawLines.

XDrawLines (display, d, gc, points, npoints, mode)

Display *display;

Drawable d;

GC gc;

XPoint *points; int npoints; int mode;

display d gc points npoints mode

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of points.

Specifies the number of points in the array.

Specifies the coordinate mode. You can pass CoordModeOrigin or Coord-

ModePrevious.

To draw multiple, unconnected lines in a given drawable, use XDrawSegments.

142

Xlib − C Library libX11 1.3.2

XDrawSegments (display, d, gc, segments, nsegments)

Display *display;

Drawable d;

GC gc;

XSegment *segments; int nsegments;

display d gc segments nsegments

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of segments.

Specifies the number of segments in the array.

The XDrawLine function uses the components of the specified GC to draw a line between the specified set of points (x1, y1) and (x2, y2). It does not perform joining at coincident endpoints.

For any giv en line, XDrawLine does not draw a pixel more than once. If lines intersect, the intersecting pixels are drawn multiple times.

The XDrawLines function uses the components of the specified GC to draw npoints−1 lines between each pair of points (point[i], point[i+1]) in the array of XPoint structures. It draws the lines in the order listed in the array. The lines join correctly at all intermediate points, and if the first and last points coincide, the first and last lines also join correctly. For any giv en line,

XDrawLines does not draw a pixel more than once. If thin (zero line-width) lines intersect, the intersecting pixels are drawn multiple times. If wide lines intersect, the intersecting pixels are drawn only once, as though the entire PolyLine protocol request were a single, filled shape.

CoordModeOrigin treats all coordinates as relative to the origin, and CoordModePrevious treats all coordinates after the first as relative to the previous point.

The XDrawSegments function draws multiple, unconnected lines. For each segment,

XDrawSegments draws a line between (x1, y1) and (x2, y2). It draws the lines in the order listed in the array of XSegment structures and does not perform joining at coincident endpoints.

For any giv en line, XDrawSegments does not draw a pixel more than once. If lines intersect, the intersecting pixels are drawn multiple times.

All three functions use these GC components: function, plane-mask, line-width, line-style, capstyle, fill-style, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask. The XDrawLines function also uses the join-style GC component. All three functions also use these GC modedependent components: foreground, background, tile, stipple, tile-stipple-x-origin, tile-stipple-yorigin, dash-offset, and dash-list.

XDrawLine, XDrawLines, and XDrawSegments can generate BadDrawable, BadGC, and

BadMatch errors. XDrawLines also can generate BadValue errors.

8.3.3. Drawing Single and Multiple Rectangles

To draw the outline of a single rectangle in a given drawable, use XDrawRectangle.

143

Xlib − C Library libX11 1.3.2

XDrawRectangle (display, d, gc, x, y, width, height)

Display *display;

Drawable d;

GC gc; int x, y; unsigned int width, height;

display d gc x y

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates, which specify the upper-left corner of the rectangle.

width height

Specify the width and height, which specify the dimensions of the rectangle.

To draw the outline of multiple rectangles in a given drawable, use XDrawRectangles.

XDrawRectangles (display, d, gc, rectangles, nrectangles)

Display *display;

Drawable d;

GC gc;

XRectangle rectangles[]; int nrectangles;

display d gc rectangles nrectangles

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of rectangles.

Specifies the number of rectangles in the array.

The XDrawRectangle and XDrawRectangles functions draw the outlines of the specified rectangle or rectangles as if a five-point PolyLine protocol request were specified for each rectangle:

[x,y] [x+width,y] [x+width,y+height] [x,y+height] [x,y]

For the specified rectangle or rectangles, these functions do not draw a pixel more than once.

XDrawRectangles draws the rectangles in the order listed in the array. If rectangles intersect, the intersecting pixels are drawn multiple times.

Both functions use these GC components: function, plane-mask, line-width, line-style, cap-style, join-style, fill-style, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask. They also use these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, tile-stipple-y-origin, dash-offset, and dash-list.

XDrawRectangle and XDrawRectangles can generate BadDrawable, BadGC, and Bad-

Match errors.

8.3.4. Drawing Single and Multiple Arcs

To draw a single arc in a given drawable, use XDrawArc.

144

Xlib − C Library libX11 1.3.2

XDrawArc (display, d, gc, x, y, width, height, angle1, angle2)

Display *display;

Drawable d;

GC gc; int x, y; unsigned int width, height; int angle1, angle2;

display d gc x y

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates, which are relative to the origin of the drawable and specify the upper-left corner of the bounding rectangle.

width height angle1 angle2

Specify the width and height, which are the major and minor axes of the arc.

Specifies the start of the arc relative to the three-o’clock position from the center, in units of degrees * 64.

Specifies the path and extent of the arc relative to the start of the arc, in units of degrees * 64.

To draw multiple arcs in a given drawable, use XDrawArcs.

XDrawArcs (display, d, gc, arcs, narcs)

Display *display;

Drawable d;

GC gc;

XArc *arcs; int narcs;

display d gc arcs narcs

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of arcs.

Specifies the number of arcs in the array.

XDrawArc draws a single circular or elliptical arc, and XDrawArcs draws multiple circular or elliptical arcs. Each arc is specified by a rectangle and two angles. The center of the circle or ellipse is the center of the rectangle, and the major and minor axes are specified by the width and height. Positive angles indicate counterclockwise motion, and negative angles indicate clockwise motion. If the magnitude of angle2 is greater than 360 degrees, XDrawArc or XDrawArcs truncates it to 360 degrees.

For an arc specified as [ x, y, width, height, angle1, angle2], the origin of the major and minor axes is at [x

+

width

2 ellipse intersects the horizontal axis at [x, y the vertical axis at [x

, y

+

+

width

2

height

2

], and the infinitely thin path describing the entire circle or

, y] and [x

+

+

width

2

2

height

] and [x

+

width, y

+

height

2

] and intersects

, y

+

height]. These coordinates can be frac-

145

Xlib − C Library libX11 1.3.2

tional and so are not truncated to discrete coordinates. The path should be defined by the ideal mathematical path. For a wide line with line-width lw, the bounding outlines for filling are given by the two infinitely thin paths consisting of all points whose perpendicular distance from the path of the circle/ellipse is equal to lw/2 (which may be a fractional value). The cap-style and join-style are applied the same as for a line corresponding to the tangent of the circle/ellipse at the endpoint.

For an arc specified as [ x, y, width, height, angle1, angle2], the angles must be specified in the effectively skewed coordinate system of the ellipse (for a circle, the angles and coordinate systems are identical). The relationship between these angles and angles expressed in the normal coordinate system of the screen (as measured with a protractor) is as follows: skewed-angle

=

atan

 tan(normal-angle) *

width height

+

adjust

in the range [0, 2

π

] and where atan returns a value in the range [

2

0

π

2

π for normal-angle in the range [0, for normal-angle in the range [

π

2

π

π

,

]

2

3

π

2 for normal-angle in the range [

]

, 2

π

]

2

,

2

] and adjust is:

For any giv en arc, XDrawArc and XDrawArcs do not draw a pixel more than once. If two arcs join correctly and if the line-width is greater than zero and the arcs intersect, XDrawArc and

XDrawArcs do not draw a pixel more than once. Otherwise, the intersecting pixels of intersecting arcs are drawn multiple times. Specifying an arc with one endpoint and a clockwise extent draws the same pixels as specifying the other endpoint and an equivalent counterclockwise extent, except as it affects joins.

If the last point in one arc coincides with the first point in the following arc, the two arcs will join correctly. If the first point in the first arc coincides with the last point in the last arc, the two arcs will join correctly. By specifying one axis to be zero, a horizontal or vertical line can be drawn.

Angles are computed based solely on the coordinate system and ignore the aspect ratio.

Both functions use these GC components: function, plane-mask, line-width, line-style, cap-style, join-style, fill-style, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask. They also use these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, tile-stipple-y-origin, dash-offset, and dash-list.

XDrawArc and XDrawArcs can generate BadDrawable, BadGC, and BadMatch errors.

8.4. Filling Areas

Xlib provides functions that you can use to fill:

A single rectangle or multiple rectangles

A single polygon

A single arc or multiple arcs

8.4.1. Filling Single and Multiple Rectangles

To fill a single rectangular area in a given drawable, use XFillRectangle.

146

Xlib − C Library libX11 1.3.2

XFillRectangle (display, d, gc, x, y, width, height)

Display *display;

Drawable d;

GC gc; int x, y; unsigned int width, height;

display d gc x y

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates, which are relative to the origin of the drawable and specify the upper-left corner of the rectangle.

width height

Specify the width and height, which are the dimensions of the rectangle to be filled.

To fill multiple rectangular areas in a given drawable, use XFillRectangles.

XFillRectangles (display, d, gc, rectangles, nrectangles)

Display *display;

Drawable d;

GC gc;

XRectangle *rectangles; int nrectangles;

display d gc rectangles nrectangles

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of rectangles.

Specifies the number of rectangles in the array.

The XFillRectangle and XFillRectangles functions fill the specified rectangle or rectangles as if a four-point FillPolygon protocol request were specified for each rectangle:

[x,y] [x+width,y] [x+width,y+height] [x,y+height]

Each function uses the x and y coordinates, width and height dimensions, and GC you specify.

XFillRectangles fills the rectangles in the order listed in the array. For any giv en rectangle,

XFillRectangle and XFillRectangles do not draw a pixel more than once. If rectangles intersect, the intersecting pixels are drawn multiple times.

Both functions use these GC components: function, plane-mask, fill-style, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask. They also use these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, and tile-stipple-y-origin.

XFillRectangle and XFillRectangles can generate BadDrawable, BadGC, and BadMatch errors.

147

Xlib − C Library libX11 1.3.2

8.4.2. Filling a Single Polygon

To fill a polygon area in a given drawable, use XFillPolygon.

XFillPolygon (display, d, gc, points, npoints, shape, mode)

Display *display;

Drawable d;

GC gc;

XPoint *points; int npoints; int shape; int mode;

display d gc points npoints shape mode

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of points.

Specifies the number of points in the array.

Specifies a shape that helps the server to improve performance. You can pass

Complex, Convex, or Nonconvex.

Specifies the coordinate mode. You can pass CoordModeOrigin or Coord-

ModePrevious.

XFillPolygon fills the region closed by the specified path. The path is closed automatically if the last point in the list does not coincide with the first point. XFillPolygon does not draw a pixel of the region more than once. CoordModeOrigin treats all coordinates as relative to the origin, and

CoordModePrevious treats all coordinates after the first as relative to the previous point.

Depending on the specified shape, the following occurs:

• If shape is Complex, the path may self-intersect. Note that contiguous coincident points in the path are not treated as self-intersection.

• If shape is Convex, for every pair of points inside the polygon, the line segment connecting them does not intersect the path. If known by the client, specifying Convex can improve performance. If you specify Convex for a path that is not convex, the graphics results are undefined.

• If shape is Nonconvex, the path does not self-intersect, but the shape is not wholly convex.

If known by the client, specifying Nonconvex instead of Complex may improve performance. If you specify Nonconvex for a self-intersecting path, the graphics results are undefined.

The fill-rule of the GC controls the filling behavior of self-intersecting polygons.

This function uses these GC components: function, plane-mask, fill-style, fill-rule, subwindowmode, clip-x-origin, clip-y-origin, and clip-mask. It also uses these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, and tile-stipple-y-origin.

XFillPolygon can generate BadDrawable, BadGC, BadMatch, and BadValue errors.

8.4.3. Filling Single and Multiple Arcs

To fill a single arc in a given drawable, use XFillArc.

148

Xlib − C Library libX11 1.3.2

XFillArc (display, d, gc, x, y, width, height, angle1, angle2)

Display *display;

Drawable d;

GC gc; int x, y; unsigned int width, height; int angle1, angle2;

display d gc x y

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates, which are relative to the origin of the drawable and specify the upper-left corner of the bounding rectangle.

width height angle1 angle2

Specify the width and height, which are the major and minor axes of the arc.

Specifies the start of the arc relative to the three-o’clock position from the center, in units of degrees * 64.

Specifies the path and extent of the arc relative to the start of the arc, in units of degrees * 64.

To fill multiple arcs in a given drawable, use XFillArcs.

XFillArcs (display, d, gc, arcs, narcs)

Display *display;

Drawable d;

GC gc;

XArc *arcs; int narcs;

display d gc arcs narcs

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies an array of arcs.

Specifies the number of arcs in the array.

For each arc, XFillArc or XFillArcs fills the region closed by the infinitely thin path described by the specified arc and, depending on the arc-mode specified in the GC, one or two line segments. For ArcChord, the single line segment joining the endpoints of the arc is used. For

ArcPieSlice, the two line segments joining the endpoints of the arc with the center point are used. XFillArcs fills the arcs in the order listed in the array. For any giv en arc, XFillArc and

XFillArcs do not draw a pixel more than once. If regions intersect, the intersecting pixels are drawn multiple times.

Both functions use these GC components: function, plane-mask, fill-style, arc-mode, subwindowmode, clip-x-origin, clip-y-origin, and clip-mask. They also use these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, and tile-stipple-y-origin.

XFillArc and XFillArcs can generate BadDrawable, BadGC, and BadMatch errors.

149

Xlib − C Library libX11 1.3.2

8.5. Font Metrics

A font is a graphical description of a set of characters that are used to increase efficiency whenev er a set of small, similar sized patterns are repeatedly used.

This section discusses how to:

• Load and free fonts

• Obtain and free font names

Compute character string sizes

Compute logical extents

• Query character string sizes

The X server loads fonts whenever a program requests a new font. The server can cache fonts for quick lookup. Fonts are global across all screens in a server. Sev eral levels are possible when dealing with fonts. Most applications simply use XLoadQueryFont to load a font and query the font metrics.

Characters in fonts are regarded as masks. Except for image text requests, the only pixels modified are those in which bits are set to 1 in the character. This means that it makes sense to draw text using stipples or tiles (for example, many menus gray-out unusable entries).

The XFontStruct structure contains all of the information for the font and consists of the fontspecific information as well as a pointer to an array of XCharStruct structures for the characters contained in the font. The XFontStruct, XFontProp, and XCharStruct structures contain: typedef struct { short lbearing; short rbearing; short width; short ascent; short descent;

/* origin to left edge of raster */

/* origin to right edge of raster */

/* advance to next char’s origin */

/* baseline to top edge of raster */

/* baseline to bottom edge of raster */ unsigned short attributes; /* per char flags (not predefined) */

} XCharStruct; typedef struct {

Atom name; unsigned long card32;

} XFontProp; typedef struct { unsigned char byte1; unsigned char byte2;

} XChar2b;

/* normal 16 bit characters are two bytes */ typedef struct {

XExtData *ext_data; /* hook for extension to hang data */

Font fid; unsigned direction;

/* Font id for this font */

/* hint about the direction font is painted */ unsigned min_char_or_byte2; unsigned max_char_or_byte2; unsigned min_byte1; unsigned max_byte1;

/* first character */

/* last character */

/* first row that exists */

/* last row that exists */

Bool all_chars_exist; /* flag if all characters have nonzero size */ unsigned default_char; /* char to print for undefined character */ int n_properties; /* how many properties there are */

150

Xlib − C Library libX11 1.3.2

XFontProp *properties;

XCharStruct min_bounds;

XCharStruct max_bounds;

XCharStruct *per_char; int ascent; int descent;

} XFontStruct;

/* pointer to array of additional properties */

/* minimum bounds over all existing char */

/* maximum bounds over all existing char */

/* first_char to last_char information */

/* logical extent above baseline for spacing */

/* logical descent below baseline for spacing */

X supports single byte/character, two bytes/character matrix, and 16-bit character text operations.

Note that any of these forms can be used with a font, but a single byte/character text request can only specify a single byte (that is, the first row of a 2-byte font). You should view 2-byte fonts as a two-dimensional matrix of defined characters: byte1 specifies the range of defined rows and byte2 defines the range of defined columns of the font. Single byte/character fonts have one row defined, and the byte2 range specified in the structure defines a range of characters.

The bounding box of a character is defined by the XCharStruct of that character. When characters are absent from a font, the default_char is used. When fonts have all characters of the same size, only the information in the XFontStruct min and max bounds are used.

The members of the XFontStruct have the following semantics:

• The direction member can be either FontLeftToRight or FontRightToLeft. It is just a hint as to whether most XCharStruct elements have a positive (FontLeftToRight) or a negative (FontRightToLeft) character width metric. The core protocol defines no support for vertical text.

• If the min_byte1 and max_byte1 members are both zero, min_char_or_byte2 specifies the linear character index corresponding to the first element of the per_char array, and max_char_or_byte2 specifies the linear character index of the last element.

If either min_byte1 or max_byte1 are nonzero, both min_char_or_byte2 and max_char_or_byte2 are less than 256, and the 2-byte character index values corresponding to the per_char array element N (counting from 0) are:

• where: byte1 = N/D + min_byte1 byte2 = N\D + min_char_or_byte2

D = max_char_or_byte2 − min_char_or_byte2 + 1

/ = integer division

\ = integer modulus

If the per_char pointer is NULL, all glyphs between the first and last character indexes inclusive hav e the same information, as given by both min_bounds and max_bounds.

If all_chars_exist is True, all characters in the per_char array have nonzero bounding boxes.

The default_char member specifies the character that will be used when an undefined or nonexistent character is printed. The default_char is a 16-bit character (not a 2-byte character). For a font using 2-byte matrix format, the default_char has byte1 in the most-significant byte and byte2 in the least significant byte. If the default_char itself specifies an undefined or nonexistent character, no printing is performed for an undefined or nonexistent character.

The min_bounds and max_bounds members contain the most extreme values of each individual XCharStruct component over all elements of this array (and ignore nonexistent characters). The bounding box of the font (the smallest rectangle enclosing the shape obtained by superimposing all of the characters at the same origin [x,y]) has its upper-left coordinate at:

[x + min_bounds.lbearing, y − max_bounds.ascent]

151

Xlib − C Library libX11 1.3.2

Its width is: max_bounds.rbearing − min_bounds.lbearing

Its height is: max_bounds.ascent + max_bounds.descent

The ascent member is the logical extent of the font above the baseline that is used for determining line spacing. Specific characters may extend beyond this.

The descent member is the logical extent of the font at or below the baseline that is used for determining line spacing. Specific characters may extend beyond this.

If the baseline is at Y-coordinate y, the logical extent of the font is inclusive between the

Y-coordinate values (y − font.ascent) and (y + font.descent − 1). Typically, the minimum interline spacing between rows of text is given by ascent + descent.

For a character origin at [x,y], the bounding box of a character (that is, the smallest rectangle that encloses the character’s shape) described in terms of XCharStruct components is a rectangle with its upper-left corner at:

[x + lbearing, y − ascent]

Its width is: rbearing − lbearing

Its height is: ascent + descent

The origin for the next character is defined to be:

[x + width, y]

The lbearing member defines the extent of the left edge of the character ink from the origin. The rbearing member defines the extent of the right edge of the character ink from the origin. The ascent member defines the extent of the top edge of the character ink from the origin. The descent member defines the extent of the bottom edge of the character ink from the origin. The width member defines the logical width of the character.

Note that the baseline (the y position of the character origin) is logically viewed as being the scanline just below nondescending characters. When descent is zero, only pixels with Y-coordinates less than y are drawn, and the origin is logically viewed as being coincident with the left edge of a nonkerned character. When lbearing is zero, no pixels with X-coordinate less than x are drawn. Any of the XCharStruct metric members could be negative. If the width is negative, the next character will be placed to the left of the current origin.

The X protocol does not define the interpretation of the attributes member in the XCharStruct structure. A nonexistent character is represented with all members of its XCharStruct set to zero.

A font is not guaranteed to have any properties. The interpretation of the property value (for example, long or unsigned long) must be derived from a priori knowledge of the property. A basic set of font properties is specified in the X Consortium standard X Logical Font Description

Conventions.

8.5.1. Loading and Freeing Fonts

Xlib provides functions that you can use to load fonts, get font information, unload fonts, and free font information. A few font functions use a GContext resource ID or a font ID interchangeably.

152

Xlib − C Library libX11 1.3.2

To load a given font, use XLoadFont.

Font XLoadFont (display, name)

Display *display; char *name;

display name

Specifies the connection to the X server.

Specifies the name of the font, which is a null-terminated string.

The XLoadFont function loads the specified font and returns its associated font ID. If the font name is not in the Host Portable Character Encoding, the result is implementation-dependent.

Use of uppercase or lowercase does not matter. When the characters ‘‘?’’ and ‘‘*’’ are used in a font name, a pattern match is performed and any matching font is used. In the pattern, the ‘‘?’’ character will match any single character, and the ‘‘*’’ character will match any number of characters. A structured format for font names is specified in the X Consortium standard X Logical

Font Description Conventions. If XLoadFont was unsuccessful at loading the specified font, a

BadName error results. Fonts are not associated with a particular screen and can be stored as a component of any GC. When the font is no longer needed, call XUnloadFont.

XLoadFont can generate BadAlloc and BadName errors.

To return information about an available font, use XQueryFont.

XFontStruct *XQueryFont (display, font_ID)

Display *display;

XID font_ID;

display font_ID

Specifies the connection to the X server.

Specifies the font ID or the GContext ID.

The XQueryFont function returns a pointer to the XFontStruct structure, which contains information associated with the font. You can query a font or the font stored in a GC. The font ID stored in the XFontStruct structure will be the GContext ID, and you need to be careful when using this ID in other functions (see XGContextFromGC). If the font does not exist, XQuery-

Font returns NULL. To free this data, use XFreeFontInfo.

To perform a XLoadFont and XQueryFont in a single operation, use XLoadQueryFont.

XFontStruct *XLoadQueryFont (display, name)

Display *display; char *name;

display name

Specifies the connection to the X server.

Specifies the name of the font, which is a null-terminated string.

The XLoadQueryFont function provides the most common way for accessing a font. XLoad-

QueryFont both opens (loads) the specified font and returns a pointer to the appropriate

XFontStruct structure. If the font name is not in the Host Portable Character Encoding, the result is implementation-dependent. If the font does not exist, XLoadQueryFont returns NULL.

XLoadQueryFont can generate a BadAlloc error.

To unload the font and free the storage used by the font structure that was allocated by

153

Xlib − C Library libX11 1.3.2

XQueryFont or XLoadQueryFont, use XFreeFont.

XFreeFont (display, font_struct)

Display *display;

XFontStruct *font_struct;

display font_struct

Specifies the connection to the X server.

Specifies the storage associated with the font.

The XFreeFont function deletes the association between the font resource ID and the specified font and frees the XFontStruct structure. The font itself will be freed when no other resource references it. The data and the font should not be referenced again.

XFreeFont can generate a BadFont error.

To return a given font property, use XGetFontProperty.

Bool XGetFontProperty (font_struct, atom, value_return)

XFontStruct *font_struct;

Atom atom; unsigned long *value_return;

font_struct atom

Specifies the storage associated with the font.

Specifies the atom for the property name you want returned.

value_return

Returns the value of the font property.

Given the atom for that property, the XGetFontProperty function returns the value of the specified font property. XGetFontProperty also returns False if the property was not defined or

True if it was defined. A set of predefined atoms exists for font properties, which can be found in <X11/Xatom.h>. This set contains the standard properties associated with a font. Although it is not guaranteed, it is likely that the predefined font properties will be present.

To unload a font that was loaded by XLoadFont, use XUnloadFont.

XUnloadFont (display, font)

Display *display;

Font font;

display font

Specifies the connection to the X server.

Specifies the font.

The XUnloadFont function deletes the association between the font resource ID and the specified font. The font itself will be freed when no other resource references it. The font should not be referenced again.

XUnloadFont can generate a BadFont error.

8.5.2. Obtaining and Freeing Font Names and Information

You obtain font names and information by matching a wildcard specification when querying a font type for a list of available sizes and so on.

To return a list of the available font names, use XListFonts.

154

Xlib − C Library libX11 1.3.2

char **XListFonts (display, pattern, maxnames, actual_count_return)

Display *display; char *pattern; int maxnames; int *actual_count_return;

display pattern

Specifies the connection to the X server.

Specifies the null-terminated pattern string that can contain wildcard characters.

maxnames

Specifies the maximum number of names to be returned.

actual_count_return

Returns the actual number of font names.

The XListFonts function returns an array of available font names (as controlled by the font search path; see XSetFontPath) that match the string you passed to the pattern argument. The pattern string can contain any characters, but each asterisk (*) is a wildcard for any number of characters, and each question mark (?) is a wildcard for a single character. If the pattern string is not in the Host Portable Character Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter. Each returned string is null-terminated. If the data returned by the server is in the Latin Portable Character Encoding, then the returned strings are in the Host Portable Character Encoding. Otherwise, the result is implementation-dependent. If there are no matching font names, XListFonts returns NULL. The client should call XFree-

FontNames when finished with the result to free the memory.

To free a font name array, use XFreeFontNames.

XFreeFontNames (list) char *list[];

list

Specifies the array of strings you want to free.

The XFreeFontNames function frees the array and strings returned by XListFonts or XList-

FontsWithInfo.

To obtain the names and information about available fonts, use XListFontsWithInfo.

char **XListFontsWithInfo (display, pattern, maxnames, count_return, info_return)

Display *display; char *pattern; int maxnames; int *count_return;

XFontStruct **info_return;

display

Specifies the connection to the X server.

pattern maxnames

Specifies the null-terminated pattern string that can contain wildcard characters.

Specifies the maximum number of names to be returned.

count_return

Returns the actual number of matched font names.

info_return

Returns the font information.

The XListFontsWithInfo function returns a list of font names that match the specified pattern and their associated font information. The list of names is limited to size specified by maxnames.

155

Xlib − C Library libX11 1.3.2

The information returned for each font is identical to what XLoadQueryFont would return except that the per-character metrics are not returned. The pattern string can contain any characters, but each asterisk (*) is a wildcard for any number of characters, and each question mark (?) is a wildcard for a single character. If the pattern string is not in the Host Portable Character

Encoding, the result is implementation-dependent. Use of uppercase or lowercase does not matter. Each returned string is null-terminated. If the data returned by the server is in the Latin Portable Character Encoding, then the returned strings are in the Host Portable Character Encoding.

Otherwise, the result is implementation-dependent. If there are no matching font names, XList-

FontsWithInfo returns NULL.

To free only the allocated name array, the client should call XFreeFontNames. To free both the name array and the font information array or to free just the font information array, the client should call XFreeFontInfo.

To free font structures and font names, use XFreeFontInfo.

XFreeFontInfo(names, free_info, actual_count) char **names;

XFontStruct *free_info; int actual_count;

names

Specifies the list of font names.

free_info

Specifies the font information.

actual_count

Specifies the actual number of font names.

The XFreeFontInfo function frees a font structure or an array of font structures and optionally an array of font names. If NULL is passed for names, no font names are freed. If a font structure for an open font (returned by XLoadQueryFont) is passed, the structure is freed, but the font is not closed; use XUnloadFont to close the font.

8.5.3. Computing Character String Sizes

Xlib provides functions that you can use to compute the width, the logical extents, and the server information about 8-bit and 2-byte text strings. The width is computed by adding the character widths of all the characters. It does not matter if the font is an 8-bit or 2-byte font. These functions return the sum of the character metrics in pixels.

To determine the width of an 8-bit character string, use XTextWidth.

int XTextWidth (font_struct, string, count)

XFontStruct *font_struct; char *string; int count;

font_struct string count

Specifies the font used for the width computation.

Specifies the character string.

Specifies the character count in the specified string.

To determine the width of a 2-byte character string, use XTextWidth16.

156

Xlib − C Library libX11 1.3.2

int XTextWidth16 (font_struct, string, count)

XFontStruct *font_struct;

XChar2b *string; int count;

font_struct string count

Specifies the font used for the width computation.

Specifies the character string.

Specifies the character count in the specified string.

8.5.4. Computing Logical Extents

To compute the bounding box of an 8-bit character string in a given font, use XTextExtents.

XTextExtents (font_struct, string, nchars, direction_return, font_ascent_return,

font_descent_return, overall_return)

XFontStruct *font_struct; char *string; int nchars; int *direction_return; int *font_ascent_return, *font_descent_return;

XCharStruct *overall_return;

font_struct string

Specifies the XFontStruct structure.

Specifies the character string.

nchars

Specifies the number of characters in the character string.

direction_returnReturns the value of the direction hint (FontLeftToRight or FontRightToLeft).

font_ascent_return

Returns the font ascent.

font_descent_return

Returns the font descent.

overall_return Returns the overall size in the specified XCharStruct structure.

To compute the bounding box of a 2-byte character string in a given font, use XTextExtents16.

157

Xlib − C Library libX11 1.3.2

XTextExtents16 (font_struct, string, nchars, direction_return, font_ascent_return,

font_descent_return, overall_return)

XFontStruct *font_struct;

XChar2b *string; int nchars; int *direction_return; int *font_ascent_return, *font_descent_return;

XCharStruct *overall_return;

font_struct string

Specifies the XFontStruct structure.

Specifies the character string.

nchars

Specifies the number of characters in the character string.

direction_returnReturns the value of the direction hint (FontLeftToRight or FontRightToLeft).

font_ascent_return

Returns the font ascent.

font_descent_return

Returns the font descent.

overall_return Returns the overall size in the specified XCharStruct structure.

The XTextExtents and XTextExtents16 functions perform the size computation locally and, thereby, avoid the round-trip overhead of XQueryTextExtents and XQueryTextExtents16.

Both functions return an XCharStruct structure, whose members are set to the values as follows.

The ascent member is set to the maximum of the ascent metrics of all characters in the string.

The descent member is set to the maximum of the descent metrics. The width member is set to the sum of the character-width metrics of all characters in the string. For each character in the string, let W be the sum of the character-width metrics of all characters preceding it in the string.

Let L be the left-side-bearing metric of the character plus W. Let R be the right-side-bearing metric of the character plus W. The lbearing member is set to the minimum L of all characters in the string. The rbearing member is set to the maximum R.

For fonts defined with linear indexing rather than 2-byte matrix indexing, each XChar2b structure is interpreted as a 16-bit number with byte1 as the most significant byte. If the font has no defined default character, undefined characters in the string are taken to have all zero metrics.

8.5.5. Querying Character String Sizes

To query the server for the bounding box of an 8-bit character string in a given font, use XQuery-

TextExtents.

158

Xlib − C Library libX11 1.3.2

XQueryTextExtents (display, font_ID, string, nchars, direction_return, font_ascent_return,

font_descent_return, overall_return)

Display *display;

XID font_ID; char *string; int nchars; int *direction_return; int *font_ascent_return, *font_descent_return;

XCharStruct *overall_return;

display font_ID string nchars

Specifies the connection to the X server.

Specifies either the font ID or the GContext ID that contains the font.

Specifies the character string.

Specifies the number of characters in the character string.

direction_returnReturns the value of the direction hint (FontLeftToRight or FontRightToLeft).

font_ascent_return

Returns the font ascent.

font_descent_return

Returns the font descent.

overall_return Returns the overall size in the specified XCharStruct structure.

To query the server for the bounding box of a 2-byte character string in a given font, use

XQueryTextExtents16.

XQueryTextExtents16 (display, font_ID, string, nchars, direction_return, font_ascent_return,

font_descent_return, overall_return)

Display *display;

XID font_ID;

XChar2b *string; int nchars; int *direction_return; int *font_ascent_return, *font_descent_return;

XCharStruct *overall_return;

display font_ID string

Specifies the connection to the X server.

Specifies either the font ID or the GContext ID that contains the font.

Specifies the character string.

nchars

Specifies the number of characters in the character string.

direction_returnReturns the value of the direction hint (FontLeftToRight or FontRightToLeft).

font_ascent_return

Returns the font ascent.

font_descent_return

Returns the font descent.

overall_return Returns the overall size in the specified XCharStruct structure.

The XQueryTextExtents and XQueryTextExtents16 functions return the bounding box of the specified 8-bit and 16-bit character string in the specified font or the font contained in the specified GC. These functions query the X server and, therefore, suffer the round-trip overhead that is

159

Xlib − C Library libX11 1.3.2

avoided by XTextExtents and XTextExtents16. Both functions return a XCharStruct structure, whose members are set to the values as follows.

The ascent member is set to the maximum of the ascent metrics of all characters in the string.

The descent member is set to the maximum of the descent metrics. The width member is set to the sum of the character-width metrics of all characters in the string. For each character in the string, let W be the sum of the character-width metrics of all characters preceding it in the string.

Let L be the left-side-bearing metric of the character plus W. Let R be the right-side-bearing metric of the character plus W. The lbearing member is set to the minimum L of all characters in the string. The rbearing member is set to the maximum R.

For fonts defined with linear indexing rather than 2-byte matrix indexing, each XChar2b structure is interpreted as a 16-bit number with byte1 as the most significant byte. If the font has no defined default character, undefined characters in the string are taken to have all zero metrics.

Characters with all zero metrics are ignored. If the font has no defined default_char, the undefined characters in the string are also ignored.

XQueryTextExtents and XQueryTextExtents16 can generate BadFont and BadGC errors.

8.6. Drawing Text

This section discusses how to draw:

• Complex text

Text characters

Image text characters

The fundamental text functions XDrawText and XDrawText16 use the following structures: typedef struct { char *chars; int nchars; int delta;

Font font;

} XTe xtItem; typedef struct {

XChar2b *chars; int nchars; int delta;

Font font;

} XTe xtItem16;

/* pointer to string */

/* number of characters */

/* delta between strings */

/* Font to print it in, None don’t change */

/* pointer to two-byte characters */

/* number of characters */

/* delta between strings */

/* font to print it in, None don’t change */

If the font member is not None, the font is changed before printing and also is stored in the GC.

If an error was generated during text drawing, the previous items may have been drawn. The baseline of the characters are drawn starting at the x and y coordinates that you pass in the text drawing functions.

For example, consider the background rectangle drawn by XDrawImageString. If you want the upper-left corner of the background rectangle to be at pixel coordinate (x,y), pass the (x,y + ascent) as the baseline origin coordinates to the text functions. The ascent is the font ascent, as given in the XFontStruct structure. If you want the lower-left corner of the background rectangle to be at pixel coordinate (x,y), pass the (x,y − descent + 1) as the baseline origin coordinates to the text functions. The descent is the font descent, as given in the XFontStruct structure.

160

Xlib − C Library libX11 1.3.2

8.6.1. Drawing Complex Text

To draw 8-bit characters in a given drawable, use XDrawText.

display d gc x y

XDrawText(display, d, gc, x, y, items, nitems)

Display *display;

Drawable d;

GC gc; int x, y;

XTextItem *items; int nitems;

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

items nitems

Specify the x and y coordinates, which are relative to the origin of the specified drawable and define the origin of the first character.

Specifies an array of text items.

Specifies the number of text items in the array.

To draw 2-byte characters in a given drawable, use XDrawText16.

XDrawText16 (display, d, gc, x, y, items, nitems)

Display *display;

Drawable d;

GC gc; int x, y;

XTextItem16 *items; int nitems;

display x y d gc items nitems

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates, which are relative to the origin of the specified drawable and define the origin of the first character.

Specifies an array of text items.

Specifies the number of text items in the array.

The XDrawText16 function is similar to XDrawText except that it uses 2-byte or 16-bit characters. Both functions allow complex spacing and font shifts between counted strings.

Each text item is processed in turn. A font member other than None in an item causes the font to be stored in the GC and used for subsequent text. A text element delta specifies an additional change in the position along the x axis before the string is drawn. The delta is always added to the character origin and is not dependent on any characteristics of the font. Each character image, as defined by the font in the GC, is treated as an additional mask for a fill operation on the drawable. The drawable is modified only where the font character has a bit set to 1. If a text item generates a BadFont error, the previous text items may have been drawn.

161

Xlib − C Library libX11 1.3.2

For fonts defined with linear indexing rather than 2-byte matrix indexing, each XChar2b structure is interpreted as a 16-bit number with byte1 as the most significant byte.

Both functions use these GC components: function, plane-mask, fill-style, font, subwindowmode, clip-x-origin, clip-y-origin, and clip-mask. They also use these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, and tile-stipple-y-origin.

XDrawText and XDrawText16 can generate BadDrawable, BadFont, BadGC, and Bad-

Match errors.

8.6.2. Drawing Text Characters

To draw 8-bit characters in a given drawable, use XDrawString.

display x y d gc

XDrawString (display, d, gc, x, y, string, length)

Display *display;

Drawable d;

GC gc; int x, y; char *string; int length;

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

string length

Specify the x and y coordinates, which are relative to the origin of the specified drawable and define the origin of the first character.

Specifies the character string.

Specifies the number of characters in the string argument.

To draw 2-byte characters in a given drawable, use XDrawString16.

display d gc x y

XDrawString16 (display, d, gc, x, y, string, length)

Display *display;

Drawable d;

GC gc; int x, y;

XChar2b *string; int length;

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

string length

Specify the x and y coordinates, which are relative to the origin of the specified drawable and define the origin of the first character.

Specifies the character string.

Specifies the number of characters in the string argument.

Each character image, as defined by the font in the GC, is treated as an additional mask for a fill operation on the drawable. The drawable is modified only where the font character has a bit set to

162

Xlib − C Library libX11 1.3.2

1. For fonts defined with 2-byte matrix indexing and used with XDrawString16, each byte is used as a byte2 with a byte1 of zero.

Both functions use these GC components: function, plane-mask, fill-style, font, subwindowmode, clip-x-origin, clip-y-origin, and clip-mask. They also use these GC mode-dependent components: foreground, background, tile, stipple, tile-stipple-x-origin, and tile-stipple-y-origin.

XDrawString and XDrawString16 can generate BadDrawable, BadGC, and BadMatch errors.

8.6.3. Drawing Image Text Characters

Some applications, in particular terminal emulators, need to print image text in which both the foreground and background bits of each character are painted. This prevents annoying flicker on many displays.

To draw 8-bit image text characters in a given drawable, use XDrawImageString.

display d gc x y

XDrawImageString (display, d, gc, x, y, string, length)

Display *display;

Drawable d;

GC gc; int x, y; char *string; int length;

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

string length

Specify the x and y coordinates, which are relative to the origin of the specified drawable and define the origin of the first character.

Specifies the character string.

Specifies the number of characters in the string argument.

To draw 2-byte image text characters in a given drawable, use XDrawImageString16.

163

Xlib − C Library libX11 1.3.2

display d gc x y

XDrawImageString16 (display, d, gc, x, y, string, length)

Display *display;

Drawable d;

GC gc; int x, y;

XChar2b *string; int length;

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

string length

Specify the x and y coordinates, which are relative to the origin of the specified drawable and define the origin of the first character.

Specifies the character string.

Specifies the number of characters in the string argument.

The XDrawImageString16 function is similar to XDrawImageString except that it uses 2-byte or 16-bit characters. Both functions also use both the foreground and background pixels of the

GC in the destination.

The effect is first to fill a destination rectangle with the background pixel defined in the GC and then to paint the text with the foreground pixel. The upper-left corner of the filled rectangle is at:

[x, y − font-ascent]

The width is: overall-width

The height is: font-ascent + font-descent

The overall-width, font-ascent, and font-descent are as would be returned by XQueryTextEx-

tents using gc and string. The function and fill-style defined in the GC are ignored for these functions. The effective function is GXcopy, and the effective fill-style is FillSolid.

For fonts defined with 2-byte matrix indexing and used with XDrawImageString, each byte is used as a byte2 with a byte1 of zero.

Both functions use these GC components: plane-mask, foreground, background, font, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask.

XDrawImageString and XDrawImageString16 can generate BadDrawable, BadGC, and

BadMatch errors.

8.7. Transferring Images between Client and Server

Xlib provides functions that you can use to transfer images between a client and the server.

Because the server may require diverse data formats, Xlib provides an image object that fully describes the data in memory and that provides for basic operations on that data. You should reference the data through the image object rather than referencing the data directly. Howev er, some implementations of the Xlib library may efficiently deal with frequently used data formats by replacing functions in the procedure vector with special case functions. Supported operations include destroying the image, getting a pixel, storing a pixel, extracting a subimage of an image,

164

Xlib − C Library libX11 1.3.2

and adding a constant to an image (see section 16.8).

All the image manipulation functions discussed in this section make use of the XImage structure, which describes an image as it exists in the client’s memory.

typedef struct _XImage { int width, height; /* size of image */ int xoffset; /* number of pixels offset in X direction */ int format; char *data;

/* XYBitmap, XYPixmap, ZPixmap */

/* pointer to image data */ int byte_order; int bitmap_unit; int bitmap_bit_order; int bitmap_pad;

/* data byte order, LSBFirst, MSBFirst */

/* quant. of scanline 8, 16, 32 */

/* LSBFirst, MSBFirst */

/* 8, 16, 32 either XY or ZPixmap */ int depth; int bytes_per_line;

/* depth of image */

/* accelerator to next scanline */ int bits_per_pixel; /* bits per pixel (ZPixmap) */ unsigned long red_mask; /* bits in z arrangement */ unsigned long green_mask; unsigned long blue_mask;

XPointer obdata; struct funcs {

/* hook for the object routines to hang on */

/* image manipulation routines */ struct _XImage *(*create_image)(); int (*destroy_image)(); unsigned long (*get_pixel)(); int (*put_pixel)(); struct _XImage *(*sub_image)(); int (*add_pixel)();

} f;

} XImage;

To initialize the image manipulation routines of an image structure, use XInitImage.

Status XInitImage(image)

XImage *image;

ximage

Specifies the image.

The XInitImage function initializes the internal image manipulation routines of an image structure, based on the values of the various structure members. All fields other than the manipulation routines must already be initialized. If the bytes_per_line member is zero, XInitImage will assume the image data is contiguous in memory and set the bytes_per_line member to an appropriate value based on the other members; otherwise, the value of bytes_per_line is not changed.

All of the manipulation routines are initialized to functions that other Xlib image manipulation functions need to operate on the type of image specified by the rest of the structure.

This function must be called for any image constructed by the client before passing it to any other

Xlib function. Image structures created or returned by Xlib do not need to be initialized in this fashion.

This function returns a nonzero status if initialization of the structure is successful. It returns zero if it detected some error or inconsistency in the structure, in which case the image is not changed.

165

Xlib − C Library libX11 1.3.2

To combine an image with a rectangle of a drawable on the display, use XPutImage.

XPutImage (display, d, gc, image, src_x, src_y, dest_x, dest_y, width, height)

Display *display;

Drawable d;

GC gc;

XImage *image; int src_x, src_y; int dest_x, dest_y; unsigned int width, height;

display d gc image src_x src_y

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specifies the image you want combined with the rectangle.

Specifies the offset in X from the left edge of the image defined by the XImage structure.

Specifies the offset in Y from the top edge of the image defined by the XImage structure.

dest_x dest_y

Specify the x and y coordinates, which are relative to the origin of the drawable and are the coordinates of the subimage.

width height

Specify the width and height of the subimage, which define the dimensions of the rectangle.

The XPutImage function combines an image with a rectangle of the specified drawable. The section of the image defined by the src_x, src_y, width, and height arguments is drawn on the specified part of the drawable. If XYBitmap format is used, the depth of the image must be one, or a BadMatch error results. The foreground pixel in the GC defines the source for the one bits in the image, and the background pixel defines the source for the zero bits. For XYPixmap and

ZPixmap, the depth of the image must match the depth of the drawable, or a BadMatch error results.

If the characteristics of the image (for example, byte_order and bitmap_unit) differ from what the server requires, XPutImage automatically makes the appropriate conversions.

This function uses these GC components: function, plane-mask, subwindow-mode, clip-x-origin, clip-y-origin, and clip-mask. It also uses these GC mode-dependent components: foreground and background.

XPutImage can generate BadDrawable, BadGC, BadMatch, and BadValue errors.

To return the contents of a rectangle in a given drawable on the display, use XGetImage. This function specifically supports rudimentary screen dumps.

166

Xlib − C Library libX11 1.3.2

XImage *XGetImage(display, d, x, y, width, height, plane_mask, format)

Display *display;

Drawable d; int x, y; unsigned int width, height; unsigned long plane_mask; int format;

x y display d

Specifies the connection to the X server.

Specifies the drawable.

Specify the x and y coordinates, which are relative to the origin of the drawable and define the upper-left corner of the rectangle.

width height

Specify the width and height of the subimage, which define the dimensions of the rectangle.

plane_mask

Specifies the plane mask.

format

Specifies the format for the image. You can pass XYPixmap or ZPixmap.

The XGetImage function returns a pointer to an XImage structure. This structure provides you with the contents of the specified rectangle of the drawable in the format you specify. If the format argument is XYPixmap, the image contains only the bit planes you passed to the plane_mask argument. If the plane_mask argument only requests a subset of the planes of the display, the depth of the returned image will be the number of planes requested. If the format argument is ZPixmap, XGetImage returns as zero the bits in all planes not specified in the plane_mask argument. The function performs no range checking on the values in plane_mask and ignores extraneous bits.

XGetImage returns the depth of the image to the depth member of the XImage structure. The depth of the image is as specified when the drawable was created, except when getting a subset of the planes in XYPixmap format, when the depth is given by the number of bits set to 1 in plane_mask.

If the drawable is a pixmap, the given rectangle must be wholly contained within the pixmap, or a

BadMatch error results. If the drawable is a window, the window must be viewable, and it must be the case that if there were no inferiors or overlapping windows, the specified rectangle of the window would be fully visible on the screen and wholly contained within the outside edges of the window, or a BadMatch error results. Note that the borders of the window can be included and read with this request. If the window has backing-store, the backing-store contents are returned for regions of the window that are obscured by noninferior windows. If the window does not have backing-store, the returned contents of such obscured regions are undefined. The returned contents of visible regions of inferiors of a different depth than the specified window’s depth are also undefined. The pointer cursor image is not included in the returned contents. If a problem occurs, XGetImage returns NULL.

XGetImage can generate BadDrawable, BadMatch, and BadValue errors.

To copy the contents of a rectangle on the display to a location within a preexisting image structure, use XGetSubImage.

167

Xlib − C Library libX11 1.3.2

XImage *XGetSubImage(display, d, x, y, width, height, plane_mask, format, dest_image, dest_x,

dest_y)

Display *display;

Drawable d; int x, y; unsigned int width, height; unsigned long plane_mask; int format;

XImage *dest_image; int dest_x, dest_y;

x y display d

Specifies the connection to the X server.

Specifies the drawable.

Specify the x and y coordinates, which are relative to the origin of the drawable and define the upper-left corner of the rectangle.

width height

Specify the width and height of the subimage, which define the dimensions of the rectangle.

plane_mask

Specifies the plane mask.

format

Specifies the format for the image. You can pass XYPixmap or ZPixmap.

dest_image

Specifies the destination image.

dest_x dest_y

Specify the x and y coordinates, which are relative to the origin of the destination rectangle, specify its upper-left corner, and determine where the subimage is placed in the destination image.

The XGetSubImage function updates dest_image with the specified subimage in the same manner as XGetImage. If the format argument is XYPixmap, the image contains only the bit planes you passed to the plane_mask argument. If the format argument is ZPixmap, XGetSubImage returns as zero the bits in all planes not specified in the plane_mask argument. The function performs no range checking on the values in plane_mask and ignores extraneous bits. As a convenience, XGetSubImage returns a pointer to the same XImage structure specified by dest_image.

The depth of the destination XImage structure must be the same as that of the drawable. If the specified subimage does not fit at the specified location on the destination image, the right and bottom edges are clipped. If the drawable is a pixmap, the given rectangle must be wholly contained within the pixmap, or a BadMatch error results. If the drawable is a window, the window must be viewable, and it must be the case that if there were no inferiors or overlapping windows, the specified rectangle of the window would be fully visible on the screen and wholly contained within the outside edges of the window, or a BadMatch error results. If the window has backing-store, then the backing-store contents are returned for regions of the window that are obscured by noninferior windows. If the window does not have backing-store, the returned contents of such obscured regions are undefined. The returned contents of visible regions of inferiors of a different depth than the specified window’s depth are also undefined. If a problem occurs, XGet-

SubImage returns NULL.

XGetSubImage can generate BadDrawable, BadGC, BadMatch, and BadValue errors.

168

Xlib − C Library libX11 1.3.2

Chapter 9

Window and Session Manager Functions

Although it is difficult to categorize functions as exclusively for an application, a window manager, or a session manager, the functions in this chapter are most often used by window managers and session managers. It is not expected that these functions will be used by most application programs. Xlib provides management functions to:

Change the parent of a window

Control the lifetime of a window

Manage installed colormaps

Set and retrieve the font search path

Grab the server

Kill a client

Control the screen saver

Control host access

9.1. Changing the Parent of a Window

To change a window’s parent to another window on the same screen, use XReparentWindow.

There is no way to move a window between screens.

XReparentWindow(display, w, parent, x, y)

Display *display;

Window w;

Window parent; int x, y;

display w parent x y

Specifies the connection to the X server.

Specifies the window.

Specifies the parent window.

Specify the x and y coordinates of the position in the new parent window.

If the specified window is mapped, XReparentWindow automatically performs an UnmapWin-

dow request on it, removes it from its current position in the hierarchy, and inserts it as the child of the specified parent. The window is placed in the stacking order on top with respect to sibling windows.

After reparenting the specified window, XReparentWindow causes the X server to generate a

ReparentNotify ev ent. The override_redirect member returned in this event is set to the window’s corresponding attribute. Window manager clients usually should ignore this window if this member is set to True. Finally, if the specified window was originally mapped, the X server automatically performs a MapWindow request on it.

The X server performs normal exposure processing on formerly obscured windows. The X server might not generate Expose ev ents for regions from the initial UnmapWindow request that are immediately obscured by the final MapWindow request. A BadMatch error results if:

169

Xlib − C Library libX11 1.3.2

The new parent window is not on the same screen as the old parent window.

The new parent window is the specified window or an inferior of the specified window.

The new parent is InputOnly, and the window is not.

The specified window has a ParentRelative background, and the new parent window is not the same depth as the specified window.

XReparentWindow can generate BadMatch and BadWindow errors.

9.2. Controlling the Lifetime of a Window

The save-set of a client is a list of other clients’ windows that, if they are inferiors of one of the client’s windows at connection close, should not be destroyed and should be remapped if they are unmapped. For further information about close-connection processing, see section 2.6. To allow an application’s window to survive when a window manager that has reparented a window fails,

Xlib provides the save-set functions that you can use to control the longevity of subwindows that are normally destroyed when the parent is destroyed. For example, a window manager that wants to add decoration to a window by adding a frame might reparent an application’s window. When the frame is destroyed, the application’s window should not be destroyed but be returned to its previous place in the window hierarchy.

The X server automatically removes windows from the save-set when they are destroyed.

To add or remove a window from the client’s sav e-set, use XChangeSaveSet.

XChangeSaveSet (display, w, change_mode)

Display *display;

Window w; int change_mode;

display w

Specifies the connection to the X server.

Specifies the window that you want to add to or delete from the client’s sav e-set.

change_mode

Specifies the mode. You can pass SetModeInsert or SetModeDelete.

Depending on the specified mode, XChangeSaveSet either inserts or deletes the specified window from the client’s sav e-set. The specified window must have been created by some other client, or a BadMatch error results.

XChangeSaveSet can generate BadMatch, BadValue, and BadWindow errors.

To add a window to the client’s sav e-set, use XAddToSaveSet.

XAddToSaveSet (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window that you want to add to the client’s sav e-set.

The XAddToSaveSet function adds the specified window to the client’s sav e-set. The specified window must have been created by some other client, or a BadMatch error results.

XAddToSaveSet can generate BadMatch and BadWindow errors.

To remove a window from the client’s sav e-set, use XRemoveFromSaveSet.

170

Xlib − C Library libX11 1.3.2

XRemoveFromSaveSet (display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window that you want to delete from the client’s sav e-set.

The XRemoveFromSaveSet function removes the specified window from the client’s sav e-set.

The specified window must have been created by some other client, or a BadMatch error results.

XRemoveFromSaveSet can generate BadMatch and BadWindow errors.

9.3. Managing Installed Colormaps

The X server maintains a list of installed colormaps. Windows using these colormaps are guaranteed to display with correct colors; windows using other colormaps may or may not display with correct colors. Xlib provides functions that you can use to install a colormap, uninstall a colormap, and obtain a list of installed colormaps.

At any time, there is a subset of the installed maps that is viewed as an ordered list and is called the required list. The length of the required list is at most M, where M is the minimum number of installed colormaps specified for the screen in the connection setup. The required list is maintained as follows. When a colormap is specified to XInstallColormap, it is added to the head of the list; the list is truncated at the tail, if necessary, to keep its length to at most M. When a colormap is specified to XUninstallColormap and it is in the required list, it is removed from the list. A colormap is not added to the required list when it is implicitly installed by the X server, and the X server cannot implicitly uninstall a colormap that is in the required list.

To install a colormap, use XInstallColormap.

XInstallColormap (display, colormap)

Display *display;

Colormap colormap;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

The XInstallColormap function installs the specified colormap for its associated screen. All windows associated with this colormap immediately display with true colors. You associated the windows with this colormap when you created them by calling XCreateWindow, XCreateSim-

pleWindow, XChangeWindowAttributes, or XSetWindowColormap.

If the specified colormap is not already an installed colormap, the X server generates a Col-

ormapNotify ev ent on each window that has that colormap. In addition, for every other colormap that is installed as a result of a call to XInstallColormap, the X server generates a Col-

ormapNotify ev ent on each window that has that colormap.

XInstallColormap can generate a BadColor error.

To uninstall a colormap, use XUninstallColormap.

171

Xlib − C Library libX11 1.3.2

XUninstallColormap (display, colormap)

Display *display;

Colormap colormap;

display colormap

Specifies the connection to the X server.

Specifies the colormap.

The XUninstallColormap function removes the specified colormap from the required list for its screen. As a result, the specified colormap might be uninstalled, and the X server might implicitly install or uninstall additional colormaps. Which colormaps get installed or uninstalled is server dependent except that the required list must remain installed.

If the specified colormap becomes uninstalled, the X server generates a ColormapNotify ev ent on each window that has that colormap. In addition, for every other colormap that is installed or uninstalled as a result of a call to XUninstallColormap, the X server generates a ColormapNo-

tify ev ent on each window that has that colormap.

XUninstallColormap can generate a BadColor error.

To obtain a list of the currently installed colormaps for a given screen, use XListInstalledCol-

ormaps.

Colormap *XListInstalledColormaps(display, w, num_return)

Display *display;

Window w; int *num_return;

display

Specifies the connection to the X server.

w

Specifies the window that determines the screen.

num_return

Returns the number of currently installed colormaps.

The XListInstalledColormaps function returns a list of the currently installed colormaps for the screen of the specified window. The order of the colormaps in the list is not significant and is no explicit indication of the required list. When the allocated list is no longer needed, free it by using XFree.

XListInstalledColormaps can generate a BadWindow error.

9.4. Setting and Retrieving the Font Search Path

The set of fonts available from a server depends on a font search path. Xlib provides functions to set and retrieve the search path for a server.

To set the font search path, use XSetFontPath.

172

Xlib − C Library libX11 1.3.2

XSetFontPath (display, directories, ndirs)

Display *display; char **directories; int ndirs;

display directories ndirs

Specifies the connection to the X server.

Specifies the directory path used to look for a font. Setting the path to the empty list restores the default path defined for the X server.

Specifies the number of directories in the path.

The XSetFontPath function defines the directory search path for font lookup. There is only one search path per X server, not one per client. The encoding and interpretation of the strings are implementation-dependent, but typically they specify directories or font servers to be searched in the order listed. An X server is permitted to cache font information internally; for example, it might cache an entire font from a file and not check on subsequent opens of that font to see if the underlying font file has changed. However, when the font path is changed, the X server is guaranteed to flush all cached information about fonts for which there currently are no explicit resource

IDs allocated. The meaning of an error from this request is implementation-dependent.

XSetFontPath can generate a BadValue error.

To get the current font search path, use XGetFontPath.

char **XGetFontPath (display, npaths_return)

Display *display; int *npaths_return;

display

Specifies the connection to the X server.

npaths_return

Returns the number of strings in the font path array.

The XGetFontPath function allocates and returns an array of strings containing the search path.

The contents of these strings are implementation-dependent and are not intended to be interpreted by client applications. When it is no longer needed, the data in the font path should be freed by using XFreeFontPath.

To free data returned by XGetFontPath, use XFreeFontPath.

XFreeFontPath (list) char **list;

list

Specifies the array of strings you want to free.

The XFreeFontPath function frees the data allocated by XGetFontPath.

9.5. Grabbing the Server

Xlib provides functions that you can use to grab and ungrab the server. These functions can be used to control processing of output on other connections by the window system server. While the server is grabbed, no processing of requests or close downs on any other connection will occur. A client closing its connection automatically ungrabs the server. Although grabbing the server is highly discouraged, it is sometimes necessary.

173

Xlib − C Library libX11 1.3.2

To grab the server, use XGrabServer.

XGrabServer (display)

Display *display;

display

Specifies the connection to the X server.

The XGrabServer function disables processing of requests and close downs on all other connections than the one this request arrived on. You should not grab the X server any more than is absolutely necessary.

To ungrab the server, use XUngrabServer.

XUngrabServer (display)

Display *display;

display

Specifies the connection to the X server.

The XUngrabServer function restarts processing of requests and close downs on other connections. You should avoid grabbing the X server as much as possible.

9.6. Killing Clients

Xlib provides a function to cause the connection to a client to be closed and its resources to be destroyed. To destroy a client, use XKillClient.

XKillClient (display, resource)

Display *display;

XID resource;

display resource

Specifies the connection to the X server.

Specifies any resource associated with the client that you want to destroy or All-

Temporary.

The XKillClient function forces a close down of the client that created the resource if a valid resource is specified. If the client has already terminated in either RetainPermanent or Retain-

Temporary mode, all of the client’s resources are destroyed. If AllTemporary is specified, the resources of all clients that have terminated in RetainTemporary are destroyed (see section 2.5).

This permits implementation of window manager facilities that aid debugging. A client can set its close-down mode to RetainTemporary. If the client then crashes, its windows would not be destroyed. The programmer can then inspect the application’s window tree and use the window manager to destroy the zombie windows.

XKillClient can generate a BadValue error.

9.7. Controlling the Screen Saver

Xlib provides functions that you can use to set or reset the mode of the screen saver, to force or activate the screen saver, or to obtain the current screen saver values.

To set the screen saver mode, use XSetScreenSaver.

174

Xlib − C Library libX11 1.3.2

XSetScreenSaver(display, timeout, interval, prefer_blanking, allow_exposures)

Display *display; int timeout, interval; int prefer_blanking; int allow_exposures;

display timeout

Specifies the connection to the X server.

Specifies the timeout, in seconds, until the screen saver turns on.

interval

Specifies the interval, in seconds, between screen saver alterations.

prefer_blanking Specifies how to enable screen blanking. You can pass DontPreferBlanking,

PreferBlanking, or DefaultBlanking.

allow_exposuresSpecifies the screen save control values. You can pass DontAllowExposures,

AllowExposures, or DefaultExposures.

Timeout and interval are specified in seconds. A timeout of 0 disables the screen saver (but an activated screen saver is not deactivated), and a timeout of −1 restores the default. Other negative values generate a BadValue error. If the timeout value is nonzero, XSetScreenSaver enables the screen saver. An interval of 0 disables the random-pattern motion. If no input from devices

(keyboard, mouse, and so on) is generated for the specified number of timeout seconds once the screen saver is enabled, the screen saver is activated.

For each screen, if blanking is preferred and the hardware supports video blanking, the screen simply goes blank. Otherwise, if either exposures are allowed or the screen can be regenerated without sending Expose ev ents to clients, the screen is tiled with the root window background tile randomly re-origined each interval seconds. Otherwise, the screens’ state do not change, and the screen saver is not activated. The screen saver is deactivated, and all screen states are restored at the next keyboard or pointer input or at the next call to XForceScreenSaver with mode

ScreenSaverReset.

If the server-dependent screen saver method supports periodic change, the interval argument serves as a hint about how long the change period should be, and zero hints that no periodic change should be made. Examples of ways to change the screen include scrambling the colormap periodically, moving an icon image around the screen periodically, or tiling the screen with the root window background tile, randomly re-origined periodically.

XSetScreenSaver can generate a BadValue error.

To force the screen saver on or off, use XForceScreenSaver.

XForceScreenSaver(display, mode)

Display *display; int mode;

display mode

Specifies the connection to the X server.

Specifies the mode that is to be applied. You can pass ScreenSaverActive or

ScreenSaverReset.

If the specified mode is ScreenSaverActive and the screen saver currently is deactivated,

XForceScreenSaver activates the screen saver even if the screen saver had been disabled with a timeout of zero. If the specified mode is ScreenSaverReset and the screen saver currently is enabled, XForceScreenSaver deactivates the screen saver if it was activated, and the activation timer is reset to its initial state (as if device input had been received).

175

Xlib − C Library

XForceScreenSaver can generate a BadValue error.

To activate the screen saver, use XActivateScreenSaver.

XActivateScreenSaver(display)

Display *display;

display

Specifies the connection to the X server.

libX11 1.3.2

To reset the screen saver, use XResetScreenSaver.

XResetScreenSaver(display)

Display *display;

display

Specifies the connection to the X server.

To get the current screen saver values, use XGetScreenSaver.

XGetScreenSaver(display, timeout_return, interval_return, prefer_blanking_return,

allow_exposures_return)

Display *display; int *timeout_return, *interval_return; int *prefer_blanking_return; int *allow_exposures_return;

display

Specifies the connection to the X server.

timeout_return Returns the timeout, in seconds, until the screen saver turns on.

interval_return Returns the interval between screen saver inv ocations.

prefer_blanking_return

Returns the current screen blanking preference (DontPreferBlanking,

PreferBlanking, or DefaultBlanking).

allow_exposures_return

Returns the current screen save control value (DontAllowExposures, AllowEx-

posures, or DefaultExposures).

9.8. Controlling Host Access

This section discusses how to:

• Add, get, or remove hosts from the access control list

• Change, enable, or disable access

X does not provide any protection on a per-window basis. If you find out the resource ID of a resource, you can manipulate it. To provide some minimal level of protection, however, connections are permitted only from machines you trust. This is adequate on single-user workstations but obviously breaks down on timesharing machines. Although provisions exist in the X protocol for proper connection authentication, the lack of a standard authentication server leaves host-level access control as the only common mechanism.

The initial set of hosts allowed to open connections typically consists of:

• The host the window system is running on.

176

Xlib − C Library libX11 1.3.2

• On POSIX-conformant systems, each host listed in the /etc/X?.hosts file. The ? indicates the number of the display. This file should consist of host names separated by newlines.

DECnet nodes must terminate in :: to distinguish them from Internet hosts.

If a host is not in the access control list when the access control mechanism is enabled and if the host attempts to establish a connection, the server refuses the connection. To change the access list, the client must reside on the same host as the server and/or must have been granted permission in the initial authorization at connection setup.

Servers also can implement other access control policies in addition to or in place of this host access facility. For further information about other access control implementations, see ‘‘X Window System Protocol.’’

9.8.1. Adding, Getting, or Removing Hosts

Xlib provides functions that you can use to add, get, or remove hosts from the access control list.

All the host access control functions use the XHostAddress structure, which contains: typedef struct { int family; /* for example FamilyInternet */ int length; char *address;

} XHostAddress;

/* length of address, in bytes */

/* pointer to where to find the address */

The family member specifies which protocol address family to use (for example, TCP/IP or DECnet) and can be FamilyInternet, FamilyInternet6, FamilyServerInterpreted, FamilyDEC-

net, or FamilyChaos. The length member specifies the length of the address in bytes. The address member specifies a pointer to the address.

For TCP/IP, the address should be in network byte order. For IP version 4 addresses, the family should be FamilyInternet and the length should be 4 bytes. For IP version 6 addresses, the family should be FamilyInternet6 and the length should be 16 bytes.

For the DECnet family, the server performs no automatic swapping on the address bytes. A Phase

IV address is 2 bytes long. The first byte contains the least significant 8 bits of the node number.

The second byte contains the most significant 2 bits of the node number in the least significant 2 bits of the byte and the area in the most significant 6 bits of the byte.

For the ServerInterpreted family, the length is ignored and the address member is a pointer to a

XServerInterpretedAddress structure, which contains: typedef struct { int typelength; /* length of type string, in bytes */ int valuelength;/* length of value string, in bytes */ char *type; /* pointer to where to find the type string */ char *value; /* pointer to where to find the address */

} XServerInterpretedAddress;

The type and value members point to strings representing the type and value of the server interpreted entry. These strings may not be NULL-terminated so care should be used when accessing them. The typelength and valuelength members specify the length in byte of the type and value strings.

To add a single host, use XAddHost.

177

Xlib − C Library libX11 1.3.2

XAddHost (display, host)

Display *display;

XHostAddress *host;

display host

Specifies the connection to the X server.

Specifies the host that is to be added.

The XAddHost function adds the specified host to the access control list for that display. The server must be on the same host as the client issuing the command, or a BadAccess error results.

XAddHost can generate BadAccess and BadValue errors.

To add multiple hosts at one time, use XAddHosts.

XAddHosts (display, hosts, num_hosts)

Display *display;

XHostAddress *hosts; int num_hosts;

display hosts num_hosts

Specifies the connection to the X server.

Specifies each host that is to be added.

Specifies the number of hosts.

The XAddHosts function adds each specified host to the access control list for that display. The server must be on the same host as the client issuing the command, or a BadAccess error results.

XAddHosts can generate BadAccess and BadValue errors.

To obtain a host list, use XListHosts.

XHostAddress *XListHosts(display, nhosts_return, state_return)

Display *display; int *nhosts_return;

Bool *state_return;

display

Specifies the connection to the X server.

nhosts_return

Returns the number of hosts currently in the access control list.

state_return

Returns the state of the access control.

The XListHosts function returns the current access control list as well as whether the use of the list at connection setup was enabled or disabled. XListHosts allows a program to find out what machines can make connections. It also returns a pointer to a list of host structures that were allocated by the function. When no longer needed, this memory should be freed by calling XFree.

To remove a single host, use XRemoveHost.

178

Xlib − C Library libX11 1.3.2

XRemoveHost (display, host)

Display *display;

XHostAddress *host;

display host

Specifies the connection to the X server.

Specifies the host that is to be removed.

The XRemoveHost function removes the specified host from the access control list for that display. The server must be on the same host as the client process, or a BadAccess error results. If you remove your machine from the access list, you can no longer connect to that server, and this operation cannot be reversed unless you reset the server.

XRemoveHost can generate BadAccess and BadValue errors.

To remove multiple hosts at one time, use XRemoveHosts.

XRemoveHosts (display, hosts, num_hosts)

Display *display;

XHostAddress *hosts; int num_hosts;

display hosts num_hosts

Specifies the connection to the X server.

Specifies each host that is to be removed.

Specifies the number of hosts.

The XRemoveHosts function removes each specified host from the access control list for that display. The X server must be on the same host as the client process, or a BadAccess error results. If you remove your machine from the access list, you can no longer connect to that server, and this operation cannot be reversed unless you reset the server.

XRemoveHosts can generate BadAccess and BadValue errors.

9.8.2. Changing, Enabling, or Disabling Access Control

Xlib provides functions that you can use to enable, disable, or change access control.

For these functions to execute successfully, the client application must reside on the same host as the X server and/or have been given permission in the initial authorization at connection setup.

To change access control, use XSetAccessControl.

XSetAccessControl (display, mode)

Display *display; int mode;

display mode

Specifies the connection to the X server.

Specifies the mode. You can pass EnableAccess or DisableAccess.

The XSetAccessControl function either enables or disables the use of the access control list at each connection setup.

XSetAccessControl can generate BadAccess and BadValue errors.

To enable access control, use XEnableAccessControl.

179

Xlib − C Library libX11 1.3.2

XEnableAccessControl (display)

Display *display;

display

Specifies the connection to the X server.

The XEnableAccessControl function enables the use of the access control list at each connection setup.

XEnableAccessControl can generate a BadAccess error.

To disable access control, use XDisableAccessControl.

XDisableAccessControl (display)

Display *display;

display

Specifies the connection to the X server.

The XDisableAccessControl function disables the use of the access control list at each connection setup.

XDisableAccessControl can generate a BadAccess error.

180

Xlib − C Library libX11 1.3.2

Chapter 10

Events

A client application communicates with the X server through the connection you establish with the XOpenDisplay function. A client application sends requests to the X server over this connection. These requests are made by the Xlib functions that are called in the client application.

Many Xlib functions cause the X server to generate events, and the user’s typing or moving the pointer can generate events asynchronously. The X server returns events to the client on the same connection.

This chapter discusses the following topics associated with events:

• Event types

• Event structures

Event masks

Event processing

Functions for handling events are dealt with in the next chapter.

10.1. Event Types

An event is data generated asynchronously by the X server as a result of some device activity or as side effects of a request sent by an Xlib function. Device-related events propagate from the source window to ancestor windows until some client application has selected that event type or until the event is explicitly discarded. The X server generally sends an event to a client application only if the client has specifically asked to be informed of that event type, typically by setting the event-mask attribute of the window. The mask can also be set when you create a window or by changing the window’s event-mask. You can also mask out events that would propagate to ancestor windows by manipulating the do-not-propagate mask of the window’s attributes. Howev er, MappingNotify ev ents are always sent to all clients.

An event type describes a specific event generated by the X server. For each event type, a corresponding constant name is defined in <X11/X.h>, which is used when referring to an event type.

The following table lists the event category and its associated event type or types. The processing associated with these events is discussed in section 10.5.

Event Category

Ke yboard events

Pointer events

Window crossing events

Input focus events

Ke ymap state notification event

Exposure events

Structure control events

Event Type

KeyPress, KeyRelease

ButtonPress, ButtonRelease, MotionNotify

EnterNotify, LeaveNotify

FocusIn, FocusOut

KeymapNotify

Expose, GraphicsExpose, NoExpose

CirculateRequest, ConfigureRequest, MapRequest,

ResizeRequest

181

Xlib − C Library libX11 1.3.2

Event Category

Window state notification events

Colormap state notification event

Client communication events

Event Type

CirculateNotify, ConfigureNotify, CreateNotify,

DestroyNotify, GravityNotify, MapNotify, Map-

pingNotify, ReparentNotify, UnmapNotify,

VisibilityNotify

ColormapNotify

ClientMessage, PropertyNotify, SelectionClear,

SelectionNotify, SelectionRequest

10.2. Event Structures

For each event type, a corresponding structure is declared in <X11/Xlib.h>. All the event structures have the following common members: typedef struct { int type; unsigned long serial; /* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */

} XAnyEvent;

The type member is set to the event type constant name that uniquely identifies it. For example, when the X server reports a GraphicsExpose ev ent to a client application, it sends an XGraph-

icsExposeEvent structure with the type member set to GraphicsExpose. The display member is set to a pointer to the display the event was read on. The send_event member is set to True if the ev ent came from a SendEvent protocol request. The serial member is set from the serial number reported in the protocol but expanded from the 16-bit least-significant bits to a full 32-bit value.

The window member is set to the window that is most useful to toolkit dispatchers.

The X server can send events at any time in the input stream. Xlib stores any events received while waiting for a reply in an event queue for later use. Xlib also provides functions that allow you to check events in the event queue (see section 11.3).

In addition to the individual structures declared for each event type, the XEvent structure is a union of the individual structures declared for each event type. Depending on the type, you should access members of each event by using the XEvent union.

182

Xlib − C Library libX11 1.3.2

typedef union _XEvent { int type;

XAnyEvent xany;

XKeyEvent xkey;

XButtonEvent xbutton;

XMotionEvent xmotion;

XCrossingEvent xcrossing;

XFocusChangeEvent xfocus;

/* must not be changed */

XExposeEvent xexpose;

XGraphicsExposeEvent xgraphicsexpose;

XNoExposeEvent xnoexpose;

XVisibilityEvent xvisibility;

XCreateWindowEvent xcreatewindow;

XDestroyWindowEvent xdestroywindow;

XUnmapEvent xunmap;

XMapEvent xmap;

XMapRequestEvent xmaprequest;

XReparentEvent xreparent;

XConfigureEvent xconfigure;

XGravityEvent xgravity;

XResizeRequestEvent xresizerequest;

XConfigureRequestEvent xconfigurerequest;

XCirculateEvent xcirculate;

XCirculateRequestEvent xcirculaterequest;

XPropertyEvent xproperty;

XSelectionClearEvent xselectionclear;

XSelectionRequestEvent xselectionrequest;

XSelectionEvent xselection;

XColormapEvent xcolormap;

XClientMessageEvent xclient;

XMappingEvent xmapping;

XErrorEvent xerror;

XKeymapEvent xkeymap; long pad[24];

} XEvent;

An XEvent structure’s first entry always is the type member, which is set to the event type. The second member always is the serial number of the protocol request that generated the event. The third member always is send_event, which is a Bool that indicates if the event was sent by a different client. The fourth member always is a display, which is the display that the event was read from. Except for keymap events, the fifth member always is a window, which has been carefully selected to be useful to toolkit dispatchers. To avoid breaking toolkits, the order of these first five entries is not to change. Most events also contain a time member, which is the time at which an ev ent occurred. In addition, a pointer to the generic event must be cast before it is used to access any other information in the structure.

10.3. Event Masks

Clients select event reporting of most events relative to a window. To do this, pass an event mask to an Xlib event-handling function that takes an event_mask argument. The bits of the event mask are defined in <X11/X.h>. Each bit in the event mask maps to an event mask name, which describes the event or events you want the X server to return to a client application.

183

Xlib − C Library libX11 1.3.2

Unless the client has specifically asked for them, most events are not reported to clients when they are generated. Unless the client suppresses them by setting graphics-exposures in the GC to

False, GraphicsExpose and NoExpose are reported by default as a result of XCopyPlane and

XCopyArea. SelectionClear, SelectionRequest, SelectionNotify, or ClientMessage cannot be masked. Selection-related ev ents are only sent to clients cooperating with selections (see section 4.5). When the keyboard or pointer mapping is changed, MappingNotify is always sent to clients.

The following table lists the event mask constants you can pass to the event_mask argument and the circumstances in which you would want to specify the event mask:

Event Mask

NoEventMask

KeyPressMask

KeyReleaseMask

ButtonPressMask

ButtonReleaseMask

EnterWindowMask

LeaveWindowMask

PointerMotionMask

PointerMotionHintMask

Button1MotionMask

Button2MotionMask

Button3MotionMask

Button4MotionMask

Button5MotionMask

ButtonMotionMask

KeymapStateMask

ExposureMask

VisibilityChangeMask

StructureNotifyMask

ResizeRedirectMask

SubstructureNotifyMask

SubstructureRedirectMask

FocusChangeMask

PropertyChangeMask

ColormapChangeMask

OwnerGrabButtonMask

Circumstances

No events wanted

Ke yboard down events wanted

Ke yboard up events wanted

Pointer button down events wanted

Pointer button up events wanted

Pointer window entry events wanted

Pointer window leave events wanted

Pointer motion events wanted

Pointer motion hints wanted

Pointer motion while button 1 down

Pointer motion while button 2 down

Pointer motion while button 3 down

Pointer motion while button 4 down

Pointer motion while button 5 down

Pointer motion while any button down

Ke yboard state wanted at window entry and focus in

Any exposure wanted

Any change in visibility wanted

Any change in window structure wanted

Redirect resize of this window

Substructure notification wanted

Redirect structure requests on children

Any change in input focus wanted

Any change in property wanted

Any change in colormap wanted

Automatic grabs should activate with owner_events set to True

10.4. Event Processing Overview

The event reported to a client application during event processing depends on which event masks you provide as the event-mask attribute for a window. For some event masks, there is a one-toone correspondence between the event mask constant and the event type constant. For example, if you pass the event mask ButtonPressMask, the X server sends back only ButtonPress ev ents.

Most events contain a time member, which is the time at which an event occurred.

In other cases, one event mask constant can map to several event type constants. For example, if you pass the event mask SubstructureNotifyMask, the X server can send back CirculateNo-

tify, ConfigureNotify, CreateNotify, DestroyNotify, GravityNotify, MapNotify, Reparent-

Notify, or UnmapNotify ev ents.

184

Xlib − C Library libX11 1.3.2

In another case, two event masks can map to one event type. For example, if you pass either

PointerMotionMask or ButtonMotionMask, the X server sends back a MotionNotify ev ent.

The following table lists the event mask, its associated event type or types, and the structure name associated with the event type. Some of these structures actually are typedefs to a generic structure that is shared between two event types. Note that N.A. appears in columns for which the information is not applicable.

Event Mask Event Type Structure Generic Structure

ButtonMotionMask MotionNotify

Button1MotionMask

Button2MotionMask

Button3MotionMask

Button4MotionMask

Button5MotionMask

ButtonPressMask ButtonPress

ButtonReleaseMask ButtonRelease

XPointerMovedEvent XMotionEvent

ColormapChangeMask ColormapNotify

EnterWindowMask EnterNotify

XButtonPressedEvent XButtonEvent

XButtonReleasedEvent XButtonEvent

XColormapEvent

XEnterWindowEvent XCrossingEvent

LeaveWindowMask LeaveNotify XLeaveWindowEvent XCrossingEvent

ExposureMask Expose XExposeEvent

GCGraphicsExposures in GC GraphicsExpose XGraphicsExposeEvent

NoExpose XNoExposeEvent

FocusChangeMask FocusIn XFocusInEvent XFocusChangeEvent

FocusOut XFocusOutEvent XFocusChangeEvent

Ke ymapStateMask KeymapNotify XKeymapEvent

Ke yPressMask KeyPress XKeyPressedEvent XKeyEvent

Ke yReleaseMask KeyRelease XKeyReleasedEvent XKeyEvent

OwnerGrabButtonMask N.A.

N.A.

PointerMotionMask MotionNotify

PointerMotionHintMask N.A.

PropertyChangeMask PropertyNotify

ResizeRedirectMask ResizeRequest

XPointerMovedEvent XMotionEvent

N.A.

XPropertyEvent

XResizeRequestEvent

StructureNotifyMask CirculateNotify XCirculateEvent

ConfigureNotify XConfigureEvent

DestroyNotify XDestroyWindowEvent

GravityNotify XGravityEvent

MapNotify XMapEvent

ReparentNotify XReparentEvent

UnmapNotify XUnmapEvent

SubstructureNotifyMask CirculateNotify XCirculateEvent

ConfigureNotify XConfigureEvent

CreateNotify XCreateWindowEvent

DestroyNotify XDestroyWindowEvent

GravityNotify XGravityEvent

185

Xlib − C Library libX11 1.3.2

Event Mask Event Type Structure

MapNotify XMapEvent

ReparentNotify XReparentEvent

UnmapNotify XUnmapEvent

SubstructureRedirectMask CirculateRequest XCirculateRequestEvent

ConfigureRequest XConfigureRequestEvent

MapRequest XMapRequestEvent

N.A. ClientMessage

N.A. MappingNotify

N.A. SelectionClear

N.A. SelectionNotify

XClientMessageEvent

XMappingEvent

XSelectionClearEvent

XSelectionEvent

N.A. SelectionRequest XSelectionRequestEvent

VisibilityChangeMask VisibilityNotify XVisibilityEvent

Generic Structure

The sections that follow describe the processing that occurs when you select the different event masks. The sections are organized according to these processing categories:

Keyboard and pointer events

Window crossing events

Input focus events

Keymap state notification events

Exposure events

Window state notification events

Structure control events

Colormap state notification events

Client communication events

10.5. Keyboard and Pointer Events

This section discusses:

Pointer button events

Keyboard and pointer events

10.5.1. Pointer Button Events

The following describes the event processing that occurs when a pointer button press is processed with the pointer in some window w and when no active pointer grab is in progress.

The X server searches the ancestors of w from the root down, looking for a passive grab to activate. If no matching passive grab on the button exists, the X server automatically starts an active grab for the client receiving the event and sets the last-pointer-grab time to the current server time. The effect is essentially equivalent to an XGrabButton with these client passed arguments:

Argument Value

w

The event window

186

Xlib − C Library libX11 1.3.2

Argument Value

event_mask pointer_mode keyboard_mode owner_events confine_to cursor

The client’s selected pointer events on the event window

GrabModeAsync

GrabModeAsync

True, if the client has selected OwnerGrabButton-

Mask on the event window, otherwise False

None

None

The active grab is automatically terminated when the logical state of the pointer has all buttons released. Clients can modify the active grab by calling XUngrabPointer and XChangeAc-

tivePointerGrab.

10.5.2. Keyboard and Pointer Events

This section discusses the processing that occurs for the keyboard events KeyPress and KeyRe-

lease and the pointer events ButtonPress, ButtonRelease, and MotionNotify. For information about the keyboard event-handling utilities, see chapter 11.

The X server reports KeyPress or KeyRelease ev ents to clients wanting information about keys that logically change state. Note that these events are generated for all keys, even those mapped to modifier bits. The X server reports ButtonPress or ButtonRelease ev ents to clients wanting information about buttons that logically change state.

The X server reports MotionNotify ev ents to clients wanting information about when the pointer logically moves. The X server generates this event whenever the pointer is moved and the pointer motion begins and ends in the window. The granularity of MotionNotify ev ents is not guaranteed, but a client that selects this event type is guaranteed to receive at least one event when the pointer moves and then rests.

The generation of the logical changes lags the physical changes if device event processing is frozen.

To receive KeyPress, KeyRelease, ButtonPress, and ButtonRelease ev ents, set KeyPress-

Mask, KeyReleaseMask, ButtonPressMask, and ButtonReleaseMask bits in the event-mask attribute of the window.

To receive MotionNotify ev ents, set one or more of the following event masks bits in the eventmask attribute of the window.

Button1MotionMask Button5MotionMask

The client application receives MotionNotify ev ents only when one or more of the specified buttons is pressed.

ButtonMotionMask

The client application receives MotionNotify ev ents only when at least one button is pressed.

PointerMotionMask

The client application receives MotionNotify ev ents independent of the state of the pointer buttons.

PointerMotionHintMask

If PointerMotionHintMask is selected in combination with one or more of the above masks, the X server is free to send only one MotionNotify ev ent (with the is_hint member of the XPointerMovedEvent structure set to NotifyHint) to the client for the event window, until either the key or button state changes, the pointer leaves the event window, or the client calls XQueryPointer or XGetMotionEvents. The server still may send

187

Xlib − C Library libX11 1.3.2

MotionNotify ev ents without is_hint set to NotifyHint.

The source of the event is the viewable window that the pointer is in. The window used by the X server to report these events depends on the window’s position in the window hierarchy and whether any intervening window prohibits the generation of these events. Starting with the source window, the X server searches up the window hierarchy until it locates the first window specified by a client as having an interest in these events. If one of the intervening windows has its do-not-propagate-mask set to prohibit generation of the event type, the events of those types will be suppressed. Clients can modify the actual window used for reporting by performing active grabs and, in the case of keyboard events, by using the focus window.

The structures for these event types contain: typedef struct { int type; unsigned long serial;

/* ButtonPress or ButtonRelease */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window window; /* ‘‘ev ent’’ window it is reported relative to */

Window root; /* root window that the event occurred on */

Window subwindow; /* child window */

Time time; int x, y;

/* milliseconds */

/* pointer x, y coordinates in event window */ int x_root, y_root; unsigned int state;

/* coordinates relative to root */

/* key or button mask */ unsigned int button; /* detail */

Bool same_screen; /* same screen flag */

} XButtonEvent; typedef XButtonEvent XButtonPressedEvent; typedef XButtonEvent XButtonReleasedEvent; typedef struct { int type; unsigned long serial;

/* KeyPress or KeyRelease */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window window; /* ‘‘ev ent’’ window it is reported relative to */

Window root; /* root window that the event occurred on */

Window subwindow; /* child window */

Time time; int x, y;

/* milliseconds */

/* pointer x, y coordinates in event window */ int x_root, y_root; unsigned int state;

/* coordinates relative to root */

/* key or button mask */ unsigned int keycode; /* detail */

Bool same_screen; /* same screen flag */

} XKe yEvent; typedef XKeyEvent XKeyPressedEvent; typedef XKeyEvent XKeyReleasedEvent; typedef struct { int type; unsigned long serial;

/* MotionNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

188

Xlib − C Library libX11 1.3.2

Window window; /* ‘‘ev ent’’ window reported relative to */

Window root; /* root window that the event occurred on */

Window subwindow; /* child window */

Time time; /* milliseconds */ int x, y; int x_root, y_root; unsigned int state; char is_hint;

/* pointer x, y coordinates in event window */

/* coordinates relative to root */

/* key or button mask */

/* detail */

/* same screen flag */ Bool same_screen;

} XMotionEvent; typedef XMotionEvent XPointerMovedEvent;

These structures have the following common members: window, root, subwindow, time, x, y, x_root, y_root, state, and same_screen. The window member is set to the window on which the ev ent was generated and is referred to as the event window. As long as the conditions previously discussed are met, this is the window used by the X server to report the event. The root member is set to the source window’s root window. The x_root and y_root members are set to the pointer’s coordinates relative to the root window’s origin at the time of the event.

The same_screen member is set to indicate whether the event window is on the same screen as the root window and can be either True or False. If True, the event and root windows are on the same screen. If False, the event and root windows are not on the same screen.

If the source window is an inferior of the event window, the subwindow member of the structure is set to the child of the event window that is the source window or the child of the event window that is an ancestor of the source window. Otherwise, the X server sets the subwindow member to

None. The time member is set to the time when the event was generated and is expressed in milliseconds.

If the event window is on the same screen as the root window, the x and y members are set to the coordinates relative to the event window’s origin. Otherwise, these members are set to zero.

The state member is set to indicate the logical state of the pointer buttons and modifier keys just prior to the event, which is the bitwise inclusive OR of one or more of the button or modifier key masks: Button1Mask, Button2Mask, Button3Mask, Button4Mask, Button5Mask, Shift-

Mask, LockMask, ControlMask, Mod1Mask, Mod2Mask, Mod3Mask, Mod4Mask, and

Mod5Mask.

Each of these structures also has a member that indicates the detail. For the XKeyPressedEvent and XKeyReleasedEvent structures, this member is called a keycode. It is set to a number that represents a physical key on the keyboard. The keycode is an arbitrary representation for any key on the keyboard (see sections 12.7 and 16.1).

For the XButtonPressedEvent and XButtonReleasedEvent structures, this member is called button. It represents the pointer button that changed state and can be the Button1, Button2,

Button3, Button4, or Button5 value. For the XPointerMovedEvent structure, this member is called is_hint. It can be set to NotifyNormal or NotifyHint.

Some of the symbols mentioned in this section have fixed values, as follows:

Symbol Value

Button1MotionMask

Button2MotionMask

Button3MotionMask

Button4MotionMask

Button5MotionMask

(1L<<8)

(1L<<9)

(1L<<10)

(1L<<11)

(1L<<12)

189

Xlib − C Library libX11 1.3.2

Symbol Value

Button1Mask

Button2Mask

Button3Mask

Button4Mask

Button5Mask

ShiftMask

LockMask

ControlMask

Mod1Mask

Mod2Mask

Mod3Mask

Mod4Mask

Mod5Mask

Button1

Button2

Button3

Button4

Button5

(1<<8)

(1<<9)

(1<<10)

(1<<11)

(1<<12)

(1<<0)

(1<<1)

(1<<2)

4

5

(1<<3)

(1<<4)

(1<<5)

(1<<6)

2

3

(1<<7)

1

10.6. Window Entry/Exit Events

This section describes the processing that occurs for the window crossing events EnterNotify and LeaveNotify. If a pointer motion or a window hierarchy change causes the pointer to be in a different window than before, the X server reports EnterNotify or LeaveNotify ev ents to clients who have selected for these events. All EnterNotify and LeaveNotify ev ents caused by a hierarchy change are generated after any hierarchy event (UnmapNotify, MapNotify, ConfigureNo-

tify, GravityNotify, CirculateNotify) caused by that change; however, the X protocol does not constrain the ordering of EnterNotify and LeaveNotify ev ents with respect to FocusOut, Visi-

bilityNotify, and Expose ev ents.

This contrasts with MotionNotify ev ents, which are also generated when the pointer moves but only when the pointer motion begins and ends in a single window. An EnterNotify or LeaveNo-

tify ev ent also can be generated when some client application calls XGrabPointer and XUn-

grabPointer.

To receive EnterNotify or LeaveNotify ev ents, set the EnterWindowMask or LeaveWindow-

Mask bits of the event-mask attribute of the window.

The structure for these event types contains:

190

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* EnterNotify or LeaveNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window window; /* ‘‘ev ent’’ window reported relative to */

Window root; /* root window that the event occurred on */

Window subwindow; /* child window */

Time time; int x, y;

/* milliseconds */

/* pointer x, y coordinates in event window */ int x_root, y_root; int mode; int detail;

/* coordinates relative to root */

/* NotifyNormal, NotifyGrab, NotifyUngrab */

Bool same_screen;

Bool focus; unsigned int state;

} XCrossingEvent; typedef XCrossingEvent XEnterWindowEvent; typedef XCrossingEvent XLeaveWindowEvent;

/*

* NotifyAncestor, NotifyVirtual, NotifyInferior,

* NotifyNonlinear,NotifyNonlinearVirtual

*/

/* same screen flag */

/* boolean focus */

/* key or button mask */

The window member is set to the window on which the EnterNotify or LeaveNotify ev ent was generated and is referred to as the event window. This is the window used by the X server to report the event, and is relative to the root window on which the event occurred. The root member is set to the root window of the screen on which the event occurred.

For a LeaveNotify ev ent, if a child of the event window contains the initial position of the pointer, the subwindow component is set to that child. Otherwise, the X server sets the subwindow member to None. For an EnterNotify ev ent, if a child of the event window contains the final pointer position, the subwindow component is set to that child or None.

The time member is set to the time when the event was generated and is expressed in milliseconds. The x and y members are set to the coordinates of the pointer position in the event window.

This position is always the pointer’s final position, not its initial position. If the event window is on the same screen as the root window, x and y are the pointer coordinates relative to the event window’s origin. Otherwise, x and y are set to zero. The x_root and y_root members are set to the pointer’s coordinates relative to the root window’s origin at the time of the event.

The same_screen member is set to indicate whether the event window is on the same screen as the root window and can be either True or False. If True, the event and root windows are on the same screen. If False, the event and root windows are not on the same screen.

The focus member is set to indicate whether the event window is the focus window or an inferior of the focus window. The X server can set this member to either True or False. If True, the ev ent window is the focus window or an inferior of the focus window. If False, the event window is not the focus window or an inferior of the focus window.

The state member is set to indicate the state of the pointer buttons and modifier keys just prior to the event. The X server can set this member to the bitwise inclusive OR of one or more of the button or modifier key masks: Button1Mask, Button2Mask, Button3Mask, Button4Mask,

Button5Mask, ShiftMask, LockMask, ControlMask, Mod1Mask, Mod2Mask,

Mod3Mask, Mod4Mask, Mod5Mask.

191

Xlib − C Library libX11 1.3.2

The mode member is set to indicate whether the events are normal events, pseudo-motion events when a grab activates, or pseudo-motion events when a grab deactivates. The X server can set this member to NotifyNormal, NotifyGrab, or NotifyUngrab.

The detail member is set to indicate the notify detail and can be NotifyAncestor, NotifyVirtual,

NotifyInferior, NotifyNonlinear, or NotifyNonlinearVirtual.

10.6.1. Normal Entry/Exit Events

EnterNotify and LeaveNotify ev ents are generated when the pointer moves from one window to another window. Normal events are identified by XEnterWindowEvent or XLeaveWindow-

Event structures whose mode member is set to NotifyNormal.

• When the pointer moves from window A to window B and A is an inferior of B, the X server does the following:

− It generates a LeaveNotify ev ent on window A, with the detail member of the

XLeaveWindowEvent structure set to NotifyAncestor.

It generates a LeaveNotify ev ent on each window between window A and window

B, exclusive, with the detail member of each XLeaveWindowEvent structure set to

NotifyVirtual.

It generates an EnterNotify ev ent on window B, with the detail member of the XEn-

terWindowEvent structure set to NotifyInferior.

When the pointer moves from window A to window B and B is an inferior of A, the X server does the following:

− It generates a LeaveNotify ev ent on window A, with the detail member of the

XLeaveWindowEvent structure set to NotifyInferior.

− It generates an EnterNotify ev ent on each window between window A and window

B, exclusive, with the detail member of each XEnterWindowEvent structure set to

NotifyVirtual.

− It generates an EnterNotify ev ent on window B, with the detail member of the XEn-

terWindowEvent structure set to NotifyAncestor.

When the pointer moves from window A to window B and window C is their least common ancestor, the X server does the following:

It generates a LeaveNotify ev ent on window A, with the detail member of the

XLeaveWindowEvent structure set to NotifyNonlinear.

It generates a LeaveNotify ev ent on each window between window A and window

C, exclusive, with the detail member of each XLeaveWindowEvent structure set to

NotifyNonlinearVirtual.

It generates an EnterNotify ev ent on each window between window C and window

B, exclusive, with the detail member of each XEnterWindowEvent structure set to

NotifyNonlinearVirtual.

− It generates an EnterNotify ev ent on window B, with the detail member of the XEn-

terWindowEvent structure set to NotifyNonlinear.

When the pointer moves from window A to window B on different screens, the X server does the following:

It generates a LeaveNotify ev ent on window A, with the detail member of the

XLeaveWindowEvent structure set to NotifyNonlinear.

If window A is not a root window, it generates a LeaveNotify ev ent on each window above window A up to and including its root, with the detail member of each

XLeaveWindowEvent structure set to NotifyNonlinearVirtual.

If window B is not a root window, it generates an EnterNotify ev ent on each window from window B’s root down to but not including window B, with the detail

192

Xlib − C Library libX11 1.3.2

− member of each XEnterWindowEvent structure set to NotifyNonlinearVirtual.

It generates an EnterNotify ev ent on window B, with the detail member of the XEn-

terWindowEvent structure set to NotifyNonlinear.

10.6.2. Grab and Ungrab Entry/Exit Events

Pseudo-motion mode EnterNotify and LeaveNotify ev ents are generated when a pointer grab activates or deactivates. Events in which the pointer grab activates are identified by XEnterWin-

dowEvent or XLeaveWindowEvent structures whose mode member is set to NotifyGrab.

Events in which the pointer grab deactivates are identified by XEnterWindowEvent or

XLeaveWindowEvent structures whose mode member is set to NotifyUngrab (see XGrab-

Pointer).

• When a pointer grab activates after any initial warp into a confine_to window and before generating any actual ButtonPress ev ent that activates the grab, G is the grab_window for the grab, and P is the window the pointer is in, the X server does the following:

− It generates EnterNotify and LeaveNotify ev ents (see section 10.6.1) with the mode members of the XEnterWindowEvent and XLeaveWindowEvent structures set to

NotifyGrab. These events are generated as if the pointer were to suddenly warp from its current position in P to some position in G. However, the pointer does not warp, and the X server uses the pointer position as both the initial and final positions for the events.

• When a pointer grab deactivates after generating any actual ButtonRelease ev ent that deactivates the grab, G is the grab_window for the grab, and P is the window the pointer is in, the X server does the following:

− It generates EnterNotify and LeaveNotify ev ents (see section 10.6.1) with the mode members of the XEnterWindowEvent and XLeaveWindowEvent structures set to

NotifyUngrab. These events are generated as if the pointer were to suddenly warp from some position in G to its current position in P. Howev er, the pointer does not warp, and the X server uses the current pointer position as both the initial and final positions for the events.

10.7. Input Focus Events

This section describes the processing that occurs for the input focus events FocusIn and Focu-

sOut. The X server can report FocusIn or FocusOut ev ents to clients wanting information about when the input focus changes. The keyboard is always attached to some window (typically, the root window or a top-level window), which is called the focus window. The focus window and the position of the pointer determine the window that receives keyboard input. Clients may need to know when the input focus changes to control highlighting of areas on the screen.

To receive FocusIn or FocusOut ev ents, set the FocusChangeMask bit in the event-mask attribute of the window.

The structure for these event types contains:

193

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* FocusIn or FocusOut */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window window; /* window of event */ int mode; int detail;

/* NotifyNormal, NotifyGrab, NotifyUngrab */

/*

* NotifyAncestor, NotifyVirtual, NotifyInferior,

* NotifyNonlinear,NotifyNonlinearVirtual, NotifyPointer,

* NotifyPointerRoot, NotifyDetailNone

*/

} XFocusChangeEvent; typedef XFocusChangeEvent XFocusInEvent; typedef XFocusChangeEvent XFocusOutEvent;

The window member is set to the window on which the FocusIn or FocusOut ev ent was generated. This is the window used by the X server to report the event. The mode member is set to indicate whether the focus events are normal focus events, focus events while grabbed, focus ev ents when a grab activates, or focus events when a grab deactivates. The X server can set the mode member to NotifyNormal, NotifyWhileGrabbed, NotifyGrab, or NotifyUngrab.

All FocusOut ev ents caused by a window unmap are generated after any UnmapNotify ev ent; however, the X protocol does not constrain the ordering of FocusOut ev ents with respect to generated EnterNotify, LeaveNotify, VisibilityNotify, and Expose ev ents.

Depending on the event mode, the detail member is set to indicate the notify detail and can be

NotifyAncestor, NotifyVirtual, NotifyInferior, NotifyNonlinear, NotifyNonlinearVirtual,

NotifyPointer, NotifyPointerRoot, or NotifyDetailNone.

10.7.1. Normal Focus Events and Focus Events While Grabbed

Normal focus events are identified by XFocusInEvent or XFocusOutEvent structures whose mode member is set to NotifyNormal. Focus events while grabbed are identified by XFocusIn-

Event or XFocusOutEvent structures whose mode member is set to NotifyWhileGrabbed.

The X server processes normal focus and focus events while grabbed according to the following:

• When the focus moves from window A to window B, A is an inferior of B, and the pointer is in window P, the X server does the following:

− It generates a FocusOut ev ent on window A, with the detail member of the XFocu-

sOutEvent structure set to NotifyAncestor.

It generates a FocusOut ev ent on each window between window A and window B, exclusive, with the detail member of each XFocusOutEvent structure set to Noti-

fyVirtual.

It generates a FocusIn ev ent on window B, with the detail member of the XFocu-

sOutEvent structure set to NotifyInferior.

If window P is an inferior of window B but window P is not window A or an inferior or ancestor of window A, it generates a FocusIn ev ent on each window below window B, down to and including window P, with the detail member of each XFocusIn-

Event structure set to NotifyPointer.

• When the focus moves from window A to window B, B is an inferior of A, and the pointer is in window P, the X server does the following:

194

Xlib − C Library libX11 1.3.2

− It generates a FocusIn ev ent on each window between window A and window B, exclusive, with the detail member of each XFocusInEvent structure set to Noti-

fyVirtual.

− It generates a FocusIn ev ent on window B, with the detail member of the XFocusIn-

Event structure set to NotifyAncestor.

When the focus moves from window A to window B, window C is their least common ancestor, and the pointer is in window P, the X server does the following:

If window P is an inferior of window A but P is not an inferior of window B or an ancestor of B, it generates a FocusOut ev ent on each window from window P up to but not including window A, with the detail member of each XFocusOutEvent structure set to NotifyPointer.

It generates a FocusOut ev ent on window A, with the detail member of the XFocu-

sOutEvent structure set to NotifyInferior.

If window P is an inferior of window A, it generates a FocusOut ev ent on each window from window P up to but not including window A, with the detail member of the

XFocusOutEvent structure set to NotifyPointer.

It generates a FocusOut ev ent on window A, with the detail member of the XFocu-

sOutEvent structure set to NotifyNonlinear.

It generates a FocusOut ev ent on each window between window A and window C, exclusive, with the detail member of each XFocusOutEvent structure set to Noti-

fyNonlinearVirtual.

It generates a FocusIn ev ent on each window between C and B, exclusive, with the detail member of each XFocusInEvent structure set to NotifyNonlinearVirtual.

It generates a FocusIn ev ent on window B, with the detail member of the XFocusIn-

Event structure set to NotifyNonlinear.

− If window P is an inferior of window B, it generates a FocusIn ev ent on each window below window B down to and including window P, with the detail member of the XFocusInEvent structure set to NotifyPointer.

When the focus moves from window A to window B on different screens and the pointer is in window P, the X server does the following:

If window P is an inferior of window A, it generates a FocusOut ev ent on each window from window P up to but not including window A, with the detail member of each XFocusOutEvent structure set to NotifyPointer.

It generates a FocusOut ev ent on window A, with the detail member of the XFocu-

sOutEvent structure set to NotifyNonlinear.

If window A is not a root window, it generates a FocusOut ev ent on each window above window A up to and including its root, with the detail member of each XFocu-

sOutEvent structure set to NotifyNonlinearVirtual.

If window B is not a root window, it generates a FocusIn ev ent on each window from window B’s root down to but not including window B, with the detail member of each XFocusInEvent structure set to NotifyNonlinearVirtual.

It generates a FocusIn ev ent on window B, with the detail member of each XFo-

cusInEvent structure set to NotifyNonlinear.

− If window P is an inferior of window B, it generates a FocusIn ev ent on each window below window B down to and including window P, with the detail member of each XFocusInEvent structure set to NotifyPointer.

When the focus moves from window A to PointerRoot (events sent to the window under the pointer) or None (discard), and the pointer is in window P, the X server does the following:

195

Xlib − C Library libX11 1.3.2

If window P is an inferior of window A, it generates a FocusOut ev ent on each window from window P up to but not including window A, with the detail member of each XFocusOutEvent structure set to NotifyPointer.

It generates a FocusOut ev ent on window A, with the detail member of the XFocu-

sOutEvent structure set to NotifyNonlinear.

If window A is not a root window, it generates a FocusOut ev ent on each window above window A up to and including its root, with the detail member of each XFocu-

sOutEvent structure set to NotifyNonlinearVirtual.

It generates a FocusIn ev ent on the root window of all screens, with the detail member of each XFocusInEvent structure set to NotifyPointerRoot (or NotifyDetail-

None).

If the new focus is PointerRoot, it generates a FocusIn ev ent on each window from window P’s root down to and including window P, with the detail member of each

XFocusInEvent structure set to NotifyPointer.

When the focus moves from PointerRoot (events sent to the window under the pointer) or

None to window A, and the pointer is in window P, the X server does the following:

− If the old focus is PointerRoot, it generates a FocusOut ev ent on each window from window P up to and including window P’s root, with the detail member of each

XFocusOutEvent structure set to NotifyPointer.

It generates a FocusOut ev ent on all root windows, with the detail member of each

XFocusOutEvent structure set to NotifyPointerRoot (or NotifyDetailNone).

If window A is not a root window, it generates a FocusIn ev ent on each window from window A’s root down to but not including window A, with the detail member of each XFocusInEvent structure set to NotifyNonlinearVirtual.

It generates a FocusIn ev ent on window A, with the detail member of the XFo-

cusInEvent structure set to NotifyNonlinear.

− If window P is an inferior of window A, it generates a FocusIn ev ent on each window below window A down to and including window P, with the detail member of each XFocusInEvent structure set to NotifyPointer.

When the focus moves from PointerRoot (events sent to the window under the pointer) to

None (or vice versa), and the pointer is in window P, the X server does the following:

If the old focus is PointerRoot, it generates a FocusOut ev ent on each window from window P up to and including window P’s root, with the detail member of each

XFocusOutEvent structure set to NotifyPointer.

It generates a FocusOut ev ent on all root windows, with the detail member of each

XFocusOutEvent structure set to either NotifyPointerRoot or NotifyDetailNone.

It generates a FocusIn ev ent on all root windows, with the detail member of each

XFocusInEvent structure set to NotifyDetailNone or NotifyPointerRoot.

− If the new focus is PointerRoot, it generates a FocusIn ev ent on each window from window P’s root down to and including window P, with the detail member of each

XFocusInEvent structure set to NotifyPointer.

10.7.2. Focus Events Generated by Grabs

Focus events in which the keyboard grab activates are identified by XFocusInEvent or XFocu-

sOutEvent structures whose mode member is set to NotifyGrab. Focus events in which the keyboard grab deactivates are identified by XFocusInEvent or XFocusOutEvent structures whose mode member is set to NotifyUngrab (see XGrabKeyboard).

• When a keyboard grab activates before generating any actual KeyPress ev ent that activates the grab, G is the grab_window, and F is the current focus, the X server does the following:

196

Xlib − C Library libX11 1.3.2

− It generates FocusIn and FocusOut ev ents, with the mode members of the XFo-

cusInEvent and XFocusOutEvent structures set to NotifyGrab. These events are generated as if the focus were to change from F to G.

When a keyboard grab deactivates after generating any actual KeyRelease ev ent that deactivates the grab, G is the grab_window, and F is the current focus, the X server does the following:

− It generates FocusIn and FocusOut ev ents, with the mode members of the XFo-

cusInEvent and XFocusOutEvent structures set to NotifyUngrab. These events are generated as if the focus were to change from G to F.

10.8. Key Map State Notification Events

The X server can report KeymapNotify ev ents to clients that want information about changes in their keyboard state.

To receive KeymapNotify ev ents, set the KeymapStateMask bit in the event-mask attribute of the window. The X server generates this event immediately after every EnterNotify and

FocusIn ev ent.

The structure for this event type contains:

/* generated on EnterWindow and FocusIn when KeymapState selected */ typedef struct { int type; unsigned long serial;

/* KeymapNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window window; char key_vector[32];

} XKe ymapEvent;

The window member is not used but is present to aid some toolkits. The key_vector member is set to the bit vector of the keyboard. Each bit set to 1 indicates that the corresponding key is currently pressed. The vector is represented as 32 bytes. Byte N (from 0) contains the bits for keys

8N to 8N + 7 with the least significant bit in the byte representing key 8N.

10.9. Exposure Events

The X protocol does not guarantee to preserve the contents of window regions when the windows are obscured or reconfigured. Some implementations may preserve the contents of windows.

Other implementations are free to destroy the contents of windows when exposed. X expects client applications to assume the responsibility for restoring the contents of an exposed window region. (An exposed window region describes a formerly obscured window whose region becomes visible.) Therefore, the X server sends Expose ev ents describing the window and the region of the window that has been exposed. A naive client application usually redraws the entire window. A more sophisticated client application redraws only the exposed region.

10.9.1. Expose Events

The X server can report Expose ev ents to clients wanting information about when the contents of window regions have been lost. The circumstances in which the X server generates Expose ev ents are not as definite as those for other events. However, the X server never generates

Expose ev ents on windows whose class you specified as InputOnly. The X server can generate

Expose ev ents when no valid contents are available for regions of a window and either the regions are visible, the regions are viewable and the server is (perhaps newly) maintaining backing store on the window, or the window is not viewable but the server is (perhaps newly) honoring

197

Xlib − C Library libX11 1.3.2

the window’s backing-store attribute of Always or WhenMapped. The regions decompose into an (arbitrary) set of rectangles, and an Expose ev ent is generated for each rectangle. For any given window, the X server guarantees to report contiguously all of the regions exposed by some action that causes Expose ev ents, such as raising a window.

To receive Expose ev ents, set the ExposureMask bit in the event-mask attribute of the window.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* Expose */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */ int x, y; int width, height; int count;

} XExposeEvent;

/* if nonzero, at least this many more */

The window member is set to the exposed (damaged) window. The x and y members are set to the coordinates relative to the window’s origin and indicate the upper-left corner of the rectangle.

The width and height members are set to the size (extent) of the rectangle. The count member is set to the number of Expose ev ents that are to follow. If count is zero, no more Expose ev ents follow for this window. Howev er, if count is nonzero, at least that number of Expose ev ents (and possibly more) follow for this window. Simple applications that do not want to optimize redisplay by distinguishing between subareas of its window can just ignore all Expose ev ents with nonzero counts and perform full redisplays on events with zero counts.

10.9.2. GraphicsExpose and NoExpose Events

The X server can report GraphicsExpose ev ents to clients wanting information about when a destination region could not be computed during certain graphics requests: XCopyArea or

XCopyPlane. The X server generates this event whenever a destination region could not be computed because of an obscured or out-of-bounds source region. In addition, the X server guarantees to report contiguously all of the regions exposed by some graphics request (for example, copying an area of a drawable to a destination drawable).

The X server generates a NoExpose ev ent whenever a graphics request that might produce a

GraphicsExpose ev ent does not produce any. In other words, the client is really asking for a

GraphicsExpose ev ent but instead receives a NoExpose ev ent.

To receive GraphicsExpose or NoExpose ev ents, you must first set the graphics-exposure attribute of the graphics context to True. You also can set the graphics-expose attribute when creating a graphics context using XCreateGC or by calling XSetGraphicsExposures.

The structures for these event types contain:

198

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* GraphicsExpose */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Drawable drawable;

/* Display the event was read from */ int x, y; int width, height; int count; int major_code; int minor_code;

} XGraphicsExposeEvent;

/* if nonzero, at least this many more */

/* core is CopyArea or CopyPlane */

/* not defined in the core */ typedef struct { int type; unsigned long serial;

/* NoExpose */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Drawable drawable;

/* Display the event was read from */ int major_code; int minor_code;

} XNoExposeEvent;

/* core is CopyArea or CopyPlane */

/* not defined in the core */

Both structures have these common members: drawable, major_code, and minor_code. The drawable member is set to the drawable of the destination region on which the graphics request was to be performed. The major_code member is set to the graphics request initiated by the client and can be either X_CopyArea or X_CopyPlane. If it is X_CopyArea, a call to XCopyArea initiated the request. If it is X_CopyPlane, a call to XCopyPlane initiated the request. These constants are defined in <X11/Xproto.h>. The minor_code member, like the major_code member, indicates which graphics request was initiated by the client. However, the minor_code member is not defined by the core X protocol and will be zero in these cases, although it may be used by an extension.

The XGraphicsExposeEvent structure has these additional members: x, y, width, height, and count. The x and y members are set to the coordinates relative to the drawable’s origin and indicate the upper-left corner of the rectangle. The width and height members are set to the size

(extent) of the rectangle. The count member is set to the number of GraphicsExpose ev ents to follow. If count is zero, no more GraphicsExpose ev ents follow for this window. Howev er, if count is nonzero, at least that number of GraphicsExpose ev ents (and possibly more) are to follow for this window.

10.10. Window State Change Events

The following sections discuss:

CirculateNotify ev ents

ConfigureNotify ev ents

CreateNotify ev ents

DestroyNotify ev ents

GravityNotify ev ents

MapNotify ev ents

199

Xlib − C Library libX11 1.3.2

MappingNotify ev ents

ReparentNotify ev ents

UnmapNotify ev ents

VisibilityNotify ev ents

10.10.1. CirculateNotify Events

The X server can report CirculateNotify ev ents to clients wanting information about when a window changes its position in the stack. The X server generates this event type whenever a window is actually restacked as a result of a client application calling XCirculateSubwindows,

XCirculateSubwindowsUp, or XCirculateSubwindowsDown.

To receive CirculateNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of the parent window (in which case, circulating any child generates an event).

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* CirculateNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window; int place;

} XCirculateEvent;

/* PlaceOnTop, PlaceOnBottom */

The event member is set either to the restacked window or to its parent, depending on whether

StructureNotify or SubstructureNotify was selected. The window member is set to the window that was restacked. The place member is set to the window’s position after the restack occurs and is either PlaceOnTop or PlaceOnBottom. If it is PlaceOnTop, the window is now on top of all siblings. If it is PlaceOnBottom, the window is now below all siblings.

10.10.2. ConfigureNotify Events

The X server can report ConfigureNotify ev ents to clients wanting information about actual changes to a window’s state, such as size, position, border, and stacking order. The X server generates this event type whenever one of the following configure window requests made by a client application actually completes:

A window’s size, position, border, and/or stacking order is reconfigured by calling XCon-

figureWindow.

The window’s position in the stacking order is changed by calling XLowerWindow,

XRaiseWindow, or XRestackWindows.

A window is moved by calling XMoveWindow.

A window’s size is changed by calling XResizeWindow.

A window’s size and location is changed by calling XMoveResizeWindow.

• A window is mapped and its position in the stacking order is changed by calling

XMapRaised.

A window’s border width is changed by calling XSetWindowBorderWidth.

To receive ConfigureNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of the parent

200

Xlib − C Library libX11 1.3.2

window (in which case, configuring any child generates an event).

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* ConfigureNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window; int x, y; int width, height; int border_width;

Window above;

Bool override_redirect;

} XConfigureEvent;

The event member is set either to the reconfigured window or to its parent, depending on whether

StructureNotify or SubstructureNotify was selected. The window member is set to the window whose size, position, border, and/or stacking order was changed.

The x and y members are set to the coordinates relative to the parent window’s origin and indicate the position of the upper-left outside corner of the window. The width and height members are set to the inside size of the window, not including the border. The border_width member is set to the width of the window’s border, in pixels.

The above member is set to the sibling window and is used for stacking operations. If the X server sets this member to None, the window whose state was changed is on the bottom of the stack with respect to sibling windows. However, if this member is set to a sibling window, the window whose state was changed is placed on top of this sibling window.

The override_redirect member is set to the override-redirect attribute of the window. Window manager clients normally should ignore this window if the override_redirect member is True.

10.10.3. CreateNotify Events

The X server can report CreateNotify ev ents to clients wanting information about creation of windows. The X server generates this event whenever a client application creates a window by calling XCreateWindow or XCreateSimpleWindow.

To receive CreateNotify ev ents, set the SubstructureNotifyMask bit in the event-mask attribute of the window. Creating any children then generates an event.

The structure for the event type contains:

201

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* CreateNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window parent; /* parent of the window */

Window window; /* window id of window created */ int x, y; /* window location */ int width, height; int border_width;

/* size of window */

/* border width */

Bool override_redirect; /* creation should be overridden */

} XCreateWindowEvent;

The parent member is set to the created window’s parent. The window member specifies the created window. The x and y members are set to the created window’s coordinates relative to the parent window’s origin and indicate the position of the upper-left outside corner of the created window. The width and height members are set to the inside size of the created window (not including the border) and are always nonzero. The border_width member is set to the width of the created window’s border, in pixels. The override_redirect member is set to the override-redirect attribute of the window. Window manager clients normally should ignore this window if the override_redirect member is True.

10.10.4. DestroyNotify Events

The X server can report DestroyNotify ev ents to clients wanting information about which windows are destroyed. The X server generates this event whenever a client application destroys a window by calling XDestroyWindow or XDestroySubwindows.

The ordering of the DestroyNotify ev ents is such that for any giv en window, DestroyNotify is generated on all inferiors of the window before being generated on the window itself. The X protocol does not constrain the ordering among siblings and across subhierarchies.

To receive DestroyNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of the parent window

(in which case, destroying any child generates an event).

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* DestroyNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window;

} XDestroyWindowEvent;

The event member is set either to the destroyed window or to its parent, depending on whether

StructureNotify or SubstructureNotify was selected. The window member is set to the window that is destroyed.

202

Xlib − C Library libX11 1.3.2

10.10.5. GravityNotify Events

The X server can report GravityNotify ev ents to clients wanting information about when a window is moved because of a change in the size of its parent. The X server generates this event whenever a client application actually moves a child window as a result of resizing its parent by calling XConfigureWindow, XMoveResizeWindow, or XResizeWindow.

To receive GravityNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of the parent window

(in which case, any child that is moved because its parent has been resized generates an event).

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* GravityNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window; int x, y;

} XGravityEvent;

The event member is set either to the window that was moved or to its parent, depending on whether StructureNotify or SubstructureNotify was selected. The window member is set to the child window that was moved. The x and y members are set to the coordinates relative to the new parent window’s origin and indicate the position of the upper-left outside corner of the window.

10.10.6. MapNotify Events

The X server can report MapNotify ev ents to clients wanting information about which windows are mapped. The X server generates this event type whenever a client application changes the window’s state from unmapped to mapped by calling XMapWindow, XMapRaised, XMap-

Subwindows, XReparentWindow, or as a result of save-set processing.

To receive MapNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of the parent window

(in which case, mapping any child generates an event).

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* MapNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window;

Bool override_redirect; /* boolean, is override set... */

} XMapEvent;

The event member is set either to the window that was mapped or to its parent, depending on whether StructureNotify or SubstructureNotify was selected. The window member is set to the window that was mapped. The override_redirect member is set to the override-redirect

203

Xlib − C Library libX11 1.3.2

attribute of the window. Window manager clients normally should ignore this window if the override-redirect attribute is True, because these events usually are generated from pop-ups, which override structure control.

10.10.7. MappingNotify Events

The X server reports MappingNotify ev ents to all clients. There is no mechanism to express disinterest in this event. The X server generates this event type whenever a client application successfully calls:

XSetModifierMapping to indicate which KeyCodes are to be used as modifiers

XChangeKeyboardMapping to change the keyboard mapping

XSetPointerMapping to set the pointer mapping

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* MappingNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display; /* Display the event was read from */

Window window; /* unused */ int request; /* one of MappingModifier, MappingKeyboard,

MappingPointer */ int first_keycode; /* first keycode */ int count; /* defines range of change w. first_keycode*/

} XMappingEvent;

The request member is set to indicate the kind of mapping change that occurred and can be Map-

pingModifier, MappingKeyboard, or MappingPointer. If it is MappingModifier, the modifier mapping was changed. If it is MappingKeyboard, the keyboard mapping was changed. If it is MappingPointer, the pointer button mapping was changed. The first_keycode and count members are set only if the request member was set to MappingKeyboard. The number in first_keycode represents the first number in the range of the altered mapping, and count represents the number of keycodes altered.

To update the client application’s knowledge of the keyboard, you should call XRefreshKey-

boardMapping.

10.10.8. ReparentNotify Events

The X server can report ReparentNotify ev ents to clients wanting information about changing a window’s parent. The X server generates this event whenever a client application calls XRepar-

entWindow and the window is actually reparented.

To receive ReparentNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of either the old or the new parent window (in which case, reparenting any child generates an event).

The structure for this event type contains:

204

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* ReparentNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window;

Window parent; int x, y;

Bool override_redirect;

} XReparentEvent;

The event member is set either to the reparented window or to the old or the new parent, depending on whether StructureNotify or SubstructureNotify was selected. The window member is set to the window that was reparented. The parent member is set to the new parent window. The x and y members are set to the reparented window’s coordinates relative to the new parent window’s origin and define the upper-left outer corner of the reparented window. The override_redirect member is set to the override-redirect attribute of the window specified by the window member. Window manager clients normally should ignore this window if the override_redirect member is True.

10.10.9. UnmapNotify Events

The X server can report UnmapNotify ev ents to clients wanting information about which windows are unmapped. The X server generates this event type whenever a client application changes the window’s state from mapped to unmapped.

To receive UnmapNotify ev ents, set the StructureNotifyMask bit in the event-mask attribute of the window or the SubstructureNotifyMask bit in the event-mask attribute of the parent window

(in which case, unmapping any child window generates an event).

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* UnmapNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window event;

/* Display the event was read from */

Window window;

Bool from_configure;

} XUnmapEvent;

The event member is set either to the unmapped window or to its parent, depending on whether

StructureNotify or SubstructureNotify was selected. This is the window used by the X server to report the event. The window member is set to the window that was unmapped. The from_configure member is set to True if the event was generated as a result of a resizing of the window’s parent when the window itself had a win_gravity of UnmapGravity.

10.10.10. VisibilityNotify Events

The X server can report VisibilityNotify ev ents to clients wanting any change in the visibility of the specified window. A region of a window is visible if someone looking at the screen can

205

Xlib − C Library libX11 1.3.2

actually see it. The X server generates this event whenever the visibility changes state. However, this event is never generated for windows whose class is InputOnly.

All VisibilityNotify ev ents caused by a hierarchy change are generated after any hierarchy event

(UnmapNotify, MapNotify, ConfigureNotify, GravityNotify, CirculateNotify) caused by that change. Any VisibilityNotify ev ent on a given window is generated before any Expose ev ents on that window, but it is not required that all VisibilityNotify ev ents on all windows be generated before all Expose ev ents on all windows. The X protocol does not constrain the ordering of VisibilityNotify ev ents with respect to FocusOut, EnterNotify, and LeaveNotify ev ents.

To receive VisibilityNotify ev ents, set the VisibilityChangeMask bit in the event-mask attribute of the window.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* VisibilityNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */ int state;

} XVisibilityEvent;

The window member is set to the window whose visibility state changes. The state member is set to the state of the window’s visibility and can be VisibilityUnobscured, VisibilityPartiallyOb-

scured, or VisibilityFullyObscured. The X server ignores all of a window’s subwindows when determining the visibility state of the window and processes VisibilityNotify ev ents according to the following:

• When the window changes state from partially obscured, fully obscured, or not viewable to viewable and completely unobscured, the X server generates the event with the state member of the XVisibilityEvent structure set to VisibilityUnobscured.

When the window changes state from viewable and completely unobscured or not viewable to viewable and partially obscured, the X server generates the event with the state member of the XVisibilityEvent structure set to VisibilityPartiallyObscured.

When the window changes state from viewable and completely unobscured, viewable and partially obscured, or not viewable to viewable and fully obscured, the X server generates the event with the state member of the XVisibilityEvent structure set to VisibilityFully-

Obscured.

10.11. Structure Control Events

This section discusses:

CirculateRequest ev ents

ConfigureRequest ev ents

MapRequest ev ents

ResizeRequest ev ents

10.11.1. CirculateRequest Events

The X server can report CirculateRequest ev ents to clients wanting information about when another client initiates a circulate window request on a specified window. The X server generates this event type whenever a client initiates a circulate window request on a window and a subwindow actually needs to be restacked. The client initiates a circulate window request on the window

206

Xlib − C Library libX11 1.3.2

by calling XCirculateSubwindows, XCirculateSubwindowsUp, or XCirculateSubwindows-

Down.

To receive CirculateRequest ev ents, set the SubstructureRedirectMask in the event-mask attribute of the window. Then, in the future, the circulate window request for the specified window is not executed, and thus, any subwindow’s position in the stack is not changed. For example, suppose a client application calls XCirculateSubwindowsUp to raise a subwindow to the top of the stack. If you had selected SubstructureRedirectMask on the window, the X server reports to you a CirculateRequest ev ent and does not raise the subwindow to the top of the stack.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* CirculateRequest */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window parent;

/* Display the event was read from */

Window window; int place;

} XCirculateRequestEvent;

/* PlaceOnTop, PlaceOnBottom */

The parent member is set to the parent window. The window member is set to the subwindow to be restacked. The place member is set to what the new position in the stacking order should be and is either PlaceOnTop or PlaceOnBottom. If it is PlaceOnTop, the subwindow should be on top of all siblings. If it is PlaceOnBottom, the subwindow should be below all siblings.

10.11.2. ConfigureRequest Events

The X server can report ConfigureRequest ev ents to clients wanting information about when a different client initiates a configure window request on any child of a specified window. The configure window request attempts to reconfigure a window’s size, position, border, and stacking order. The X server generates this event whenever a different client initiates a configure window request on a window by calling XConfigureWindow, XLowerWindow, XRaiseWindow,

XMapRaised, XMoveResizeWindow, XMoveWindow, XResizeWindow, XRestackWin-

dows, or XSetWindowBorderWidth.

To receive ConfigureRequest ev ents, set the SubstructureRedirectMask bit in the event-mask attribute of the window. ConfigureRequest ev ents are generated when a ConfigureWindow protocol request is issued on a child window by another client. For example, suppose a client application calls XLowerWindow to lower a window. If you had selected SubstructureRedi-

rectMask on the parent window and if the override-redirect attribute of the window is set to

False, the X server reports a ConfigureRequest ev ent to you and does not lower the specified window.

The structure for this event type contains:

207

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* ConfigureRequest */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window parent;

/* Display the event was read from */

Window window; int x, y; int width, height; int border_width;

Window above; int detail; unsigned long value_mask;

} XConfigureRequestEvent;

/* Above, Below, TopIf, BottomIf, Opposite */

The parent member is set to the parent window. The window member is set to the window whose size, position, border width, and/or stacking order is to be reconfigured. The value_mask member indicates which components were specified in the ConfigureWindow protocol request. The corresponding values are reported as given in the request. The remaining values are filled in from the current geometry of the window, except in the case of above (sibling) and detail (stack-mode), which are reported as None and Above, respectively, if they are not given in the request.

10.11.3. MapRequest Events

The X server can report MapRequest ev ents to clients wanting information about a different client’s desire to map windows. A window is considered mapped when a map window request completes. The X server generates this event whenever a different client initiates a map window request on an unmapped window whose override_redirect member is set to False. Clients initiate map window requests by calling XMapWindow, XMapRaised, or XMapSubwindows.

To receive MapRequest ev ents, set the SubstructureRedirectMask bit in the event-mask attribute of the window. This means another client’s attempts to map a child window by calling one of the map window request functions is intercepted, and you are sent a MapRequest instead.

For example, suppose a client application calls XMapWindow to map a window. If you (usually a window manager) had selected SubstructureRedirectMask on the parent window and if the override-redirect attribute of the window is set to False, the X server reports a MapRequest ev ent to you and does not map the specified window. Thus, this event gives your window manager client the ability to control the placement of subwindows.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* MapRequest */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window parent;

/* Display the event was read from */

Window window;

} XMapRequestEvent;

The parent member is set to the parent window. The window member is set to the window to be mapped.

208

Xlib − C Library libX11 1.3.2

10.11.4. ResizeRequest Events

The X server can report ResizeRequest ev ents to clients wanting information about another client’s attempts to change the size of a window. The X server generates this event whenever some other client attempts to change the size of the specified window by calling XConfig-

ureWindow, XResizeWindow, or XMoveResizeWindow.

To receive ResizeRequest ev ents, set the ResizeRedirect bit in the event-mask attribute of the window. Any attempts to change the size by other clients are then redirected.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* ResizeRequest */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */ int width, height;

} XResizeRequestEvent;

The window member is set to the window whose size another client attempted to change. The width and height members are set to the inside size of the window, excluding the border.

10.12. Colormap State Change Events

The X server can report ColormapNotify ev ents to clients wanting information about when the colormap changes and when a colormap is installed or uninstalled. The X server generates this ev ent type whenever a client application:

• Changes the colormap member of the XSetWindowAttributes structure by calling

XChangeWindowAttributes, XFreeColormap, or XSetWindowColormap

Installs or uninstalls the colormap by calling XInstallColormap or XUninstallColormap

To receive ColormapNotify ev ents, set the ColormapChangeMask bit in the event-mask attribute of the window.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* ColormapNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */

/* colormap or None */ Colormap colormap;

Bool new; int state;

} XColormapEvent;

/* ColormapInstalled, ColormapUninstalled */

The window member is set to the window whose associated colormap is changed, installed, or uninstalled. For a colormap that is changed, installed, or uninstalled, the colormap member is set to the colormap associated with the window. For a colormap that is changed by a call to XFree-

Colormap, the colormap member is set to None. The new member is set to indicate whether the colormap for the specified window was changed or installed or uninstalled and can be True or

False. If it is True, the colormap was changed. If it is False, the colormap was installed or

209

Xlib − C Library libX11 1.3.2

uninstalled. The state member is always set to indicate whether the colormap is installed or uninstalled and can be ColormapInstalled or ColormapUninstalled.

10.13. Client Communication Events

This section discusses:

ClientMessage ev ents

PropertyNotify ev ents

SelectionClear ev ents

SelectionNotify ev ents

SelectionRequest ev ents

10.13.1. ClientMessage Events

The X server generates ClientMessage ev ents only when a client calls the function XSendE-

vent.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* ClientMessage */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */

Atom message_type; int format; union { char b[20]; short s[10]; long l[5];

} data;

} XClientMessageEvent;

The message_type member is set to an atom that indicates how the data should be interpreted by the receiving client. The format member is set to 8, 16, or 32 and specifies whether the data should be viewed as a list of bytes, shorts, or longs. The data member is a union that contains the members b, s, and l. The b, s, and l members represent data of twenty 8-bit values, ten 16-bit values, and five 32-bit values. Particular message types might not make use of all these values. The

X server places no interpretation on the values in the window, message_type, or data members.

10.13.2. PropertyNotify Events

The X server can report PropertyNotify ev ents to clients wanting information about property changes for a specified window.

To receive PropertyNotify ev ents, set the PropertyChangeMask bit in the event-mask attribute of the window.

The structure for this event type contains:

210

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* PropertyNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */

Atom atom;

Time time; int state;

} XPropertyEvent;

/* PropertyNewValue or PropertyDelete */

The window member is set to the window whose associated property was changed. The atom member is set to the property’s atom and indicates which property was changed or desired. The time member is set to the server time when the property was changed. The state member is set to indicate whether the property was changed to a new value or deleted and can be PropertyNew-

Value or PropertyDelete. The state member is set to PropertyNewValue when a property of the window is changed using XChangeProperty or XRotateWindowProperties (even when adding zero-length data using XChangeProperty) and when replacing all or part of a property with identical data using XChangeProperty or XRotateWindowProperties. The state member is set to PropertyDelete when a property of the window is deleted using XDeleteProperty or, if the delete argument is True, XGetWindowProperty.

10.13.3. SelectionClear Events

The X server reports SelectionClear ev ents to the client losing ownership of a selection. The X server generates this event type when another client asserts ownership of the selection by calling

XSetSelectionOwner.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* SelectionClear */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window window;

/* Display the event was read from */

Atom selection;

Time time;

} XSelectionClearEvent;

The selection member is set to the selection atom. The time member is set to the last change time recorded for the selection. The window member is the window that was specified by the current owner (the owner losing the selection) in its XSetSelectionOwner call.

10.13.4. SelectionRequest Events

The X server reports SelectionRequest ev ents to the owner of a selection. The X server generates this event whenever a client requests a selection conversion by calling XConvertSelection for the owned selection.

The structure for this event type contains:

211

Xlib − C Library libX11 1.3.2

typedef struct { int type; unsigned long serial;

/* SelectionRequest */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window owner;

/* Display the event was read from */

Window requestor;

Atom selection;

Atom target;

Atom property;

Time time;

} XSelectionRequestEvent;

The owner member is set to the window that was specified by the current owner in its XSetSelec-

tionOwner call. The requestor member is set to the window requesting the selection. The selection member is set to the atom that names the selection. For example, PRIMARY is used to indicate the primary selection. The target member is set to the atom that indicates the type the selection is desired in. The property member can be a property name or None. The time member is set to the timestamp or CurrentTime value from the ConvertSelection request.

The owner should convert the selection based on the specified target type and send a Selection-

Notify ev ent back to the requestor. A complete specification for using selections is given in the X

Consortium standard Inter-Client Communication Conventions Manual.

10.13.5. SelectionNotify Events

This event is generated by the X server in response to a ConvertSelection protocol request when there is no owner for the selection. When there is an owner, it should be generated by the owner of the selection by using XSendEvent. The owner of a selection should send this event to a requestor when a selection has been converted and stored as a property or when a selection conversion could not be performed (which is indicated by setting the property member to None).

If None is specified as the property in the ConvertSelection protocol request, the owner should choose a property name, store the result as that property on the requestor window, and then send a

SelectionNotify giving that actual property name.

The structure for this event type contains: typedef struct { int type; unsigned long serial;

/* SelectionNotify */

/* # of last request processed by server */

Bool send_event; /* true if this came from a SendEvent request */

Display *display;

Window requestor;

/* Display the event was read from */

Atom selection;

Atom target;

Atom property;

Time time;

} XSelectionEvent;

/* atom or None */

The requestor member is set to the window associated with the requestor of the selection. The selection member is set to the atom that indicates the selection. For example, PRIMARY is used for the primary selection. The target member is set to the atom that indicates the converted type.

212

Xlib − C Library libX11 1.3.2

For example, PIXMAP is used for a pixmap. The property member is set to the atom that indicates which property the result was stored on. If the conversion failed, the property member is set to None. The time member is set to the time the conversion took place and can be a timestamp or

CurrentTime.

213

Xlib − C Library libX11 1.3.2

Chapter 11

Event Handling Functions

This chapter discusses the Xlib functions you can use to:

Select events

Handle the output buffer and the event queue

Select events from the event queue

Send and get events

Handle protocol errors

Note

Some toolkits use their own event-handling functions and do not allow you to interchange these event-handling functions with those in Xlib. For further information, see the documentation supplied with the toolkit.

Most applications simply are event loops: they wait for an event, decide what to do with it, execute some amount of code that results in changes to the display, and then wait for the next ev ent.

11.1. Selecting Events

There are two ways to select the events you want reported to your client application. One way is to set the event_mask member of the XSetWindowAttributes structure when you call XCre-

ateWindow and XChangeWindowAttributes. Another way is to use XSelectInput.

XSelectInput (display, w, event_mask)

Display *display;

Window w; long event_mask;

display w

Specifies the connection to the X server.

Specifies the window whose events you are interested in.

event_mask

Specifies the event mask.

The XSelectInput function requests that the X server report the events associated with the specified event mask. Initially, X will not report any of these events. Events are reported relative to a window. If a window is not interested in a device event, it usually propagates to the closest ancestor that is interested, unless the do_not_propagate mask prohibits it.

Setting the event-mask attribute of a window overrides any previous call for the same window but not for other clients. Multiple clients can select for the same events on the same window with the following restrictions:

Multiple clients can select events on the same window because their event masks are disjoint. When the X server generates an event, it reports it to all interested clients.

Only one client at a time can select CirculateRequest, ConfigureRequest, or MapRe-

quest ev ents, which are associated with the event mask SubstructureRedirectMask.

Only one client at a time can select a ResizeRequest ev ent, which is associated with the ev ent mask ResizeRedirectMask.

214

Xlib − C Library libX11 1.3.2

• Only one client at a time can select a ButtonPress ev ent, which is associated with the ev ent mask ButtonPressMask.

The server reports the event to all interested clients.

XSelectInput can generate a BadWindow error.

11.2. Handling the Output Buffer

The output buffer is an area used by Xlib to store requests. The functions described in this section flush the output buffer if the function would block or not return an event. That is, all requests residing in the output buffer that have not yet been sent are transmitted to the X server. These functions differ in the additional tasks they might perform.

To flush the output buffer, use XFlush.

XFlush (display)

Display *display;

display

Specifies the connection to the X server.

The XFlush function flushes the output buffer. Most client applications need not use this function because the output buffer is automatically flushed as needed by calls to XPending, XNex-

tEvent, and XWindowEvent. Events generated by the server may be enqueued into the library’s ev ent queue.

To flush the output buffer and then wait until all requests have been processed, use XSync.

XSync (display, discard)

Display *display;

Bool discard;

display discard

Specifies the connection to the X server.

Specifies a Boolean value that indicates whether XSync discards all events on the event queue.

The XSync function flushes the output buffer and then waits until all requests have been received and processed by the X server. Any errors generated must be handled by the error handler. For each protocol error received by Xlib, XSync calls the client application’s error handling routine

(see section 11.8.2). Any events generated by the server are enqueued into the library’s event queue.

Finally, if you passed False, XSync does not discard the events in the queue. If you passed

True, XSync discards all events in the queue, including those events that were on the queue before XSync was called. Client applications seldom need to call XSync.

11.3. Event Queue Management

Xlib maintains an event queue. However, the operating system also may be buffering data in its network connection that is not yet read into the event queue.

To check the number of events in the event queue, use XEventsQueued.

215

Xlib − C Library libX11 1.3.2

int XEventsQueued (display, mode)

Display *display; int mode;

display mode

Specifies the connection to the X server.

Specifies the mode. You can pass QueuedAlready, QueuedAfterFlush, or

QueuedAfterReading.

If mode is QueuedAlready, XEventsQueued returns the number of events already in the event queue (and never performs a system call). If mode is QueuedAfterFlush, XEventsQueued returns the number of events already in the queue if the number is nonzero. If there are no events in the queue, XEventsQueued flushes the output buffer, attempts to read more events out of the application’s connection, and returns the number read. If mode is QueuedAfterReading,

XEventsQueued returns the number of events already in the queue if the number is nonzero. If there are no events in the queue, XEventsQueued attempts to read more events out of the application’s connection without flushing the output buffer and returns the number read.

XEventsQueued always returns immediately without I/O if there are events already in the queue.

XEventsQueued with mode QueuedAfterFlush is identical in behavior to XPending.

XEventsQueued with mode QueuedAlready is identical to the XQLength function.

To return the number of events that are pending, use XPending.

int XPending(display)

Display *display;

display

Specifies the connection to the X server.

The XPending function returns the number of events that have been received from the X server but hav e not been removed from the event queue. XPending is identical to XEventsQueued with the mode QueuedAfterFlush specified.

11.4. Manipulating the Event Queue

Xlib provides functions that let you manipulate the event queue. This section discusses how to:

• Obtain events, in order, and remove them from the queue

• Peek at events in the queue without removing them

• Obtain events that match the event mask or the arbitrary predicate procedures that you provide

11.4.1. Returning the Next Event

To get the next event and remove it from the queue, use XNextEvent.

XNextEvent (display, event_return)

Display *display;

XEvent *event_return;

display

Specifies the connection to the X server.

event_return

Returns the next event in the queue.

The XNextEvent function copies the first event from the event queue into the specified XEvent structure and then removes it from the queue. If the event queue is empty, XNextEvent flushes

216

Xlib − C Library libX11 1.3.2

the output buffer and blocks until an event is received.

To peek at the event queue, use XPeekEvent.

XPeekEvent (display, event_return)

Display *display;

XEvent *event_return;

display

Specifies the connection to the X server.

event_return

Returns a copy of the matched event’s associated structure.

The XPeekEvent function returns the first event from the event queue, but it does not remove the ev ent from the queue. If the queue is empty, XPeekEvent flushes the output buffer and blocks until an event is received. It then copies the event into the client-supplied XEvent structure without removing it from the event queue.

11.4.2. Selecting Events Using a Predicate Procedure

Each of the functions discussed in this section requires you to pass a predicate procedure that determines if an event matches what you want. Your predicate procedure must decide if the event is useful without calling any Xlib functions. If the predicate directly or indirectly causes the state of the event queue to change, the result is not defined. If Xlib has been initialized for threads, the predicate is called with the display locked and the result of a call by the predicate to any Xlib function that locks the display is not defined unless the caller has first called XLockDisplay.

The predicate procedure and its associated arguments are:

Bool (*predicate)(display, event, arg)

Display *display;

XEvent *event;

XPointer arg;

display event arg

Specifies the connection to the X server.

Specifies the XEvent structure.

Specifies the argument passed in from the XIfEvent, XCheckIfEvent, or

XPeekIfEvent function.

The predicate procedure is called once for each event in the queue until it finds a match. After finding a match, the predicate procedure must return True. If it did not find a match, it must return False.

To check the event queue for a matching event and, if found, remove the event from the queue, use XIfEvent.

217

Xlib − C Library libX11 1.3.2

XIfEvent (display, event_return, predicate, arg)

Display *display;

XEvent *event_return;

Bool (*predicate)();

XPointer arg;

display

Specifies the connection to the X server.

event_return

Returns the matched event’s associated structure.

predicate arg

Specifies the procedure that is to be called to determine if the next event in the queue matches what you want.

Specifies the user-supplied argument that will be passed to the predicate procedure.

The XIfEvent function completes only when the specified predicate procedure returns True for an event, which indicates an event in the queue matches. XIfEvent flushes the output buffer if it blocks waiting for additional events. XIfEvent removes the matching event from the queue and copies the structure into the client-supplied XEvent structure.

To check the event queue for a matching event without blocking, use XCheckIfEvent.

Bool XCheckIfEvent (display, event_return, predicate, arg)

Display *display;

XEvent *event_return;

Bool (*predicate)();

XPointer arg;

display

Specifies the connection to the X server.

event_return

Returns a copy of the matched event’s associated structure.

predicate

Specifies the procedure that is to be called to determine if the next event in the queue matches what you want.

arg

Specifies the user-supplied argument that will be passed to the predicate procedure.

When the predicate procedure finds a match, XCheckIfEvent copies the matched event into the client-supplied XEvent structure and returns True. (This event is removed from the queue.) If the predicate procedure finds no match, XCheckIfEvent returns False, and the output buffer will have been flushed. All earlier events stored in the queue are not discarded.

To check the event queue for a matching event without removing the event from the queue, use

XPeekIfEvent.

218

Xlib − C Library libX11 1.3.2

XPeekIfEvent (display, event_return, predicate, arg)

Display *display;

XEvent *event_return;

Bool (*predicate)();

XPointer arg;

display

Specifies the connection to the X server.

event_return

Returns a copy of the matched event’s associated structure.

predicate arg

Specifies the procedure that is to be called to determine if the next event in the queue matches what you want.

Specifies the user-supplied argument that will be passed to the predicate procedure.

The XPeekIfEvent function returns only when the specified predicate procedure returns True for an event. After the predicate procedure finds a match, XPeekIfEvent copies the matched ev ent into the client-supplied XEvent structure without removing the event from the queue.

XPeekIfEvent flushes the output buffer if it blocks waiting for additional events.

11.4.3. Selecting Events Using a Window or Event Mask

The functions discussed in this section let you select events by window or event types, allowing you to process events out of order.

To remove the next event that matches both a window and an event mask, use XWindowEvent.

XWindowEvent (display, w, event_mask, event_return)

Display *display;

Window w; long event_mask;

XEvent *event_return;

display w

Specifies the connection to the X server.

Specifies the window whose events you are interested in.

event_mask

Specifies the event mask.

event_return

Returns the matched event’s associated structure.

The XWindowEvent function searches the event queue for an event that matches both the specified window and event mask. When it finds a match, XWindowEvent removes that event from the queue and copies it into the specified XEvent structure. The other events stored in the queue are not discarded. If a matching event is not in the queue, XWindowEvent flushes the output buffer and blocks until one is received.

To remove the next event that matches both a window and an event mask (if any), use XCheck-

WindowEvent. This function is similar to XWindowEvent except that it never blocks and it returns a Bool indicating if the event was returned.

219

Xlib − C Library libX11 1.3.2

Bool XCheckWindowEvent (display, w, event_mask, event_return)

Display *display;

Window w; long event_mask;

XEvent *event_return;

display w

Specifies the connection to the X server.

Specifies the window whose events you are interested in.

event_mask

Specifies the event mask.

event_return

Returns the matched event’s associated structure.

The XCheckWindowEvent function searches the event queue and then the events available on the server connection for the first event that matches the specified window and event mask. If it finds a match, XCheckWindowEvent removes that event, copies it into the specified XEvent structure, and returns True. The other events stored in the queue are not discarded. If the event you requested is not available, XCheckWindowEvent returns False, and the output buffer will have been flushed.

To remove the next event that matches an event mask, use XMaskEvent.

XMaskEvent (display, event_mask, event_return)

Display *display; long event_mask;

XEvent *event_return;

display

Specifies the connection to the X server.

event_mask

Specifies the event mask.

event_return

Returns the matched event’s associated structure.

The XMaskEvent function searches the event queue for the events associated with the specified mask. When it finds a match, XMaskEvent removes that event and copies it into the specified

XEvent structure. The other events stored in the queue are not discarded. If the event you requested is not in the queue, XMaskEvent flushes the output buffer and blocks until one is received.

To return and remove the next event that matches an event mask (if any), use XCheck-

MaskEvent. This function is similar to XMaskEvent except that it never blocks and it returns a

Bool indicating if the event was returned.

Bool XCheckMaskEvent (display, event_mask, event_return)

Display *display; long event_mask;

XEvent *event_return;

display

Specifies the connection to the X server.

event_mask

Specifies the event mask.

event_return

Returns the matched event’s associated structure.

The XCheckMaskEvent function searches the event queue and then any events available on the server connection for the first event that matches the specified mask. If it finds a match,

220

Xlib − C Library libX11 1.3.2

XCheckMaskEvent removes that event, copies it into the specified XEvent structure, and returns True. The other events stored in the queue are not discarded. If the event you requested is not available, XCheckMaskEvent returns False, and the output buffer will have been flushed.

To return and remove the next event in the queue that matches an event type, use XCheckType-

dEvent.

Bool XCheckTypedEvent (display, event_type, event_return)

Display *display; int event_type;

XEvent *event_return;

display event_type

Specifies the connection to the X server.

Specifies the event type to be compared.

event_return

Returns the matched event’s associated structure.

The XCheckTypedEvent function searches the event queue and then any events available on the server connection for the first event that matches the specified type. If it finds a match, XCheck-

TypedEvent removes that event, copies it into the specified XEvent structure, and returns True.

The other events in the queue are not discarded. If the event is not available, XCheckTypedE-

vent returns False, and the output buffer will have been flushed.

To return and remove the next event in the queue that matches an event type and a window, use

XCheckTypedWindowEvent.

Bool XCheckTypedWindowEvent (display, w, event_type, event_return)

Display *display;

Window w; int event_type;

XEvent *event_return;

display w event_type

Specifies the connection to the X server.

Specifies the window.

Specifies the event type to be compared.

event_return

Returns the matched event’s associated structure.

The XCheckTypedWindowEvent function searches the event queue and then any events available on the server connection for the first event that matches the specified type and window. If it finds a match, XCheckTypedWindowEvent removes the event from the queue, copies it into the specified XEvent structure, and returns True. The other events in the queue are not discarded.

If the event is not available, XCheckTypedWindowEvent returns False, and the output buffer will have been flushed.

11.5. Putting an Event Back into the Queue

To push an event back into the event queue, use XPutBackEvent.

221

Xlib − C Library libX11 1.3.2

XPutBackEvent (display, event)

Display *display;

XEvent *event;

display event

Specifies the connection to the X server.

Specifies the event.

The XPutBackEvent function pushes an event back onto the head of the display’s event queue by copying the event into the queue. This can be useful if you read an event and then decide that you would rather deal with it later. There is no limit to the number of times in succession that you can call XPutBackEvent.

11.6. Sending Events to Other Applications

To send an event to a specified window, use XSendEvent. This function is often used in selection processing. For example, the owner of a selection should use XSendEvent to send a Selec-

tionNotify ev ent to a requestor when a selection has been converted and stored as a property.

Status XSendEvent (display, w, propagate, event_mask, event_send)

Display *display;

Window w;

Bool propagate; long event_mask;

XEvent *event_send;

display w

Specifies the connection to the X server.

Specifies the window the event is to be sent to, or PointerWindow, or InputFo-

cus.

Specifies a Boolean value.

propagate event_mask

Specifies the event mask.

event_send

Specifies the event that is to be sent.

The XSendEvent function identifies the destination window, determines which clients should receive the specified events, and ignores any active grabs. This function requires you to pass an ev ent mask. For a discussion of the valid event mask names, see section 10.3. This function uses the w argument to identify the destination window as follows:

If w is PointerWindow, the destination window is the window that contains the pointer.

If w is InputFocus and if the focus window contains the pointer, the destination window is the window that contains the pointer; otherwise, the destination window is the focus window.

To determine which clients should receive the specified events, XSendEvent uses the propagate argument as follows:

• If event_mask is the empty set, the event is sent to the client that created the destination window. If that client no longer exists, no event is sent.

• If propagate is False, the event is sent to every client selecting on destination any of the ev ent types in the event_mask argument.

• If propagate is True and no clients have selected on destination any of the event types in ev ent-mask, the destination is replaced with the closest ancestor of destination for which some client has selected a type in event-mask and for which no intervening window has that type in its do-not-propagate-mask. If no such window exists or if the window is an

222

Xlib − C Library libX11 1.3.2

ancestor of the focus window and InputFocus was originally specified as the destination, the event is not sent to any clients. Otherwise, the event is reported to every client selecting on the final destination any of the types specified in event_mask.

The event in the XEvent structure must be one of the core events or one of the events defined by an extension (or a BadValue error results) so that the X server can correctly byte-swap the contents as necessary. The contents of the event are otherwise unaltered and unchecked by the X server except to force send_event to True in the forwarded event and to set the serial number in the event correctly; therefore these fields and the display field are ignored by XSendEvent.

XSendEvent returns zero if the conversion to wire protocol format failed and returns nonzero otherwise.

XSendEvent can generate BadValue and BadWindow errors.

11.7. Getting Pointer Motion History

Some X server implementations will maintain a more complete history of pointer motion than is reported by event notification. The pointer position at each pointer hardware interrupt may be stored in a buffer for later retrieval. This buffer is called the motion history buffer. For example, a few applications, such as paint programs, want to have a precise history of where the pointer traveled. However, this historical information is highly excessive for most applications.

To determine the approximate maximum number of elements in the motion buffer, use XDisplay-

MotionBufferSize.

unsigned long XDisplayMotionBufferSize (display)

Display *display;

display

Specifies the connection to the X server.

The server may retain the recent history of the pointer motion and do so to a finer granularity than is reported by MotionNotify ev ents. The XGetMotionEvents function makes this history available.

To get the motion history for a specified window and time, use XGetMotionEvents.

XTimeCoord *XGetMotionEvents (display, w, start, stop, nevents_return)

Display *display;

Window w;

Time start, stop; int *nevents_return;

display w

Specifies the connection to the X server.

Specifies the window.

start stop

Specify the time interval in which the events are returned from the motion history buffer. You can pass a timestamp or CurrentTime.

nevents_return Returns the number of events from the motion history buffer.

The XGetMotionEvents function returns all events in the motion history buffer that fall between the specified start and stop times, inclusive, and that have coordinates that lie within the specified window (including its borders) at its present placement. If the server does not support motion history, if the start time is later than the stop time, or if the start time is in the future, no events are returned; XGetMotionEvents returns NULL. If the stop time is in the future, it is equivalent to

223

Xlib − C Library libX11 1.3.2

specifying CurrentTime. The return type for this function is a structure defined as follows: typedef struct {

Time time; short x, y;

} XTimeCoord;

The time member is set to the time, in milliseconds. The x and y members are set to the coordinates of the pointer and are reported relative to the origin of the specified window. To free the data returned from this call, use XFree.

XGetMotionEvents can generate a BadWindow error.

11.8. Handling Protocol Errors

Xlib provides functions that you can use to enable or disable synchronization and to use the default error handlers.

11.8.1. Enabling or Disabling Synchronization

When debugging X applications, it often is very convenient to require Xlib to behave synchronously so that errors are reported as they occur. The following function lets you disable or enable synchronous behavior. Note that graphics may occur 30 or more times more slowly when synchronization is enabled. On POSIX-conformant systems, there is also a global variable _Xde-

bug that, if set to nonzero before starting a program under a debugger, will force synchronous library behavior.

After completing their work, all Xlib functions that generate protocol requests call what is known as an after function. XSetAfterFunction sets which function is to be called.

int (*XSetAfterFunction(display, procedure))()

Display *display; int (*procedure)();

display procedure

Specifies the connection to the X server.

Specifies the procedure to be called.

The specified procedure is called with only a display pointer. XSetAfterFunction returns the previous after function.

To enable or disable synchronization, use XSynchronize.

int (*XSynchronize(display, onoff))()

Display *display;

Bool onoff;

display onoff

Specifies the connection to the X server.

Specifies a Boolean value that indicates whether to enable or disable synchronization.

The XSynchronize function returns the previous after function. If onoff is True, XSynchronize turns on synchronous behavior. If onoff is False, XSynchronize turns off synchronous behavior.

224

Xlib − C Library libX11 1.3.2

11.8.2. Using the Default Error Handlers

There are two default error handlers in Xlib: one to handle typically fatal conditions (for example, the connection to a display server dying because a machine crashed) and one to handle protocol errors from the X server. These error handlers can be changed to user-supplied routines if you prefer your own error handling and can be changed as often as you like. If either function is passed a NULL pointer, it will reinvoke the default handler. The action of the default handlers is to print an explanatory message and exit.

To set the error handler, use XSetErrorHandler.

int (*XSetErrorHandler(handler))() int (*handler)(Display *, XErrorEvent *)

handler

Specifies the program’s supplied error handler.

Xlib generally calls the program’s supplied error handler whenever an error is received. It is not called on BadName errors from OpenFont, LookupColor, or AllocNamedColor protocol requests or on BadFont errors from a QueryFont protocol request. These errors generally are reflected back to the program through the procedural interface. Because this condition is not assumed to be fatal, it is acceptable for your error handler to return; the returned value is ignored.

However, the error handler should not call any functions (directly or indirectly) on the display that will generate protocol requests or that will look for input events. The previous error handler is returned.

The XErrorEvent structure contains: typedef struct { int type;

Display *display; unsigned long serial;

/* Display the event was read from */

/* serial number of failed request */ unsigned char error_code; /* error code of failed request */ unsigned char request_code; /* Major op-code of failed request */ unsigned char minor_code;

XID resourceid;

} XErrorEvent;

/* Minor op-code of failed request */

/* resource id */

The serial member is the number of requests, starting from one, sent over the network connection since it was opened. It is the number that was the value of NextRequest immediately before the failing call was made. The request_code member is a protocol request of the procedure that failed, as defined in <X11/Xproto.h>. The following error codes can be returned by the functions described in this chapter:

Error Code Description

225

Xlib − C Library

Error Code

BadAccess

BadAlloc

BadAtom

BadColor

BadCursor

BadDrawable

BadFont

BadGC

BadIDChoice

BadImplementation

BadLength libX11 1.3.2

Description

A client attempts to grab a key/button combination already grabbed by another client.

A client attempts to free a colormap entry that it had not already allocated or to free an entry in a colormap that was created with all entries writable.

A client attempts to store into a read-only or unallocated colormap entry.

A client attempts to modify the access control list from other than the local (or otherwise authorized) host.

A client attempts to select an event type that another client has already selected.

The server fails to allocate the requested resource. Note that the explicit listing of BadAlloc errors in requests only covers allocation errors at a very coarse level and is not intended to (nor can it in practice hope to) cover all cases of a server running out of allocation space in the middle of service. The semantics when a server runs out of allocation space are left unspecified, but a server may generate a BadAlloc error on any request for this reason, and clients should be prepared to receive such errors and handle or discard them.

A value for an atom argument does not name a defined atom.

A value for a colormap argument does not name a defined colormap.

A value for a cursor argument does not name a defined cursor.

A value for a drawable argument does not name a defined window or pixmap.

A value for a font argument does not name a defined font (or, in some cases, GContext).

A value for a GContext argument does not name a defined

GContext.

The value chosen for a resource identifier either is not included in the range assigned to the client or is already in use. Under normal circumstances, this cannot occur and should be considered a server or Xlib error.

The server does not implement some aspect of the request. A server that generates this error for a core request is deficient. As such, this error is not listed for any of the requests, but clients should be prepared to receive such errors and handle or discard them.

The length of a request is shorter or longer than that required to contain the arguments. This is an internal Xlib or server error.

The length of a request exceeds the maximum length accepted by the server.

226

Xlib − C Library libX11 1.3.2

Error Code

BadMatch

BadName

BadPixmap

BadRequest

BadValue

BadWindow

Description

In a graphics request, the root and depth of the graphics context do not match those of the drawable.

An InputOnly window is used as a drawable.

Some argument or pair of arguments has the correct type and range, but it fails to match in some other way required by the request.

An InputOnly window lacks this attribute.

A font or color of the specified name does not exist.

A value for a pixmap argument does not name a defined pixmap.

The major or minor opcode does not specify a valid request.

This usually is an Xlib or server error.

Some numeric value falls outside of the range of values accepted by the request. Unless a specific range is specified for an argument, the full range defined by the argument’s type is accepted.

Any argument defined as a set of alternatives typically can generate this error (due to the encoding).

A value for a window argument does not name a defined window.

Note

The BadAtom, BadColor, BadCursor, BadDrawable, BadFont, BadGC, Bad-

Pixmap, and BadWindow errors are also used when the argument type is extended by a set of fixed alternatives.

To obtain textual descriptions of the specified error code, use XGetErrorText.

XGetErrorText(display, code, buffer_return, length)

Display *display; int code; char *buffer_return; int length;

display code

Specifies the connection to the X server.

Specifies the error code for which you want to obtain a description.

buffer_return

Returns the error description.

length

Specifies the size of the buffer.

The XGetErrorText function copies a null-terminated string describing the specified error code into the specified buffer. The returned text is in the encoding of the current locale. It is recommended that you use this function to obtain an error description because extensions to Xlib may define their own error codes and error strings.

To obtain error messages from the error database, use XGetErrorDatabaseText.

227

Xlib − C Library libX11 1.3.2

XGetErrorDatabaseText(display, name, message, default_string, buffer_return, length)

Display *display; char *name, *message; char *default_string; char *buffer_return; int length;

display name

Specifies the connection to the X server.

Specifies the name of the application.

message

Specifies the type of the error message.

default_string

Specifies the default error message if none is found in the database.

buffer_return

Returns the error description.

length

Specifies the size of the buffer.

The XGetErrorDatabaseText function returns a null-terminated message (or the default message) from the error message database. Xlib uses this function internally to look up its error messages. The text in the default_string argument is assumed to be in the encoding of the current locale, and the text stored in the buffer_return argument is in the encoding of the current locale.

The name argument should generally be the name of your application. The message argument should indicate which type of error message you want. If the name and message are not in the

Host Portable Character Encoding, the result is implementation-dependent. Xlib uses three predefined ‘‘application names’’ to report errors. In these names, uppercase and lowercase matter.

XProtoError The protocol error number is used as a string for the message argument.

XlibMessage These are the message strings that are used internally by the library.

XRequest For a core protocol request, the major request protocol number is used for the message argument. For an extension request, the extension name (as given by

InitExtension) followed by a period (.) and the minor request protocol number is used for the message argument. If no string is found in the error database, the default_string is returned to the buffer argument.

To report an error to the user when the requested display does not exist, use XDisplayName.

char *XDisplayName(string) char *string;

string

Specifies the character string.

The XDisplayName function returns the name of the display that XOpenDisplay would attempt to use. If a NULL string is specified, XDisplayName looks in the environment for the display and returns the display name that XOpenDisplay would attempt to use. This makes it easier to report to the user precisely which display the program attempted to open when the initial connection attempt failed.

To handle fatal I/O errors, use XSetIOErrorHandler.

228

Xlib − C Library libX11 1.3.2

int (*XSetIOErrorHandler(handler))() int (*handler)(Display *);

handler

Specifies the program’s supplied error handler.

The XSetIOErrorHandler sets the fatal I/O error handler. Xlib calls the program’s supplied error handler if any sort of system call error occurs (for example, the connection to the server was lost). This is assumed to be a fatal condition, and the called routine should not return. If the I/O error handler does return, the client process exits.

Note that the previous error handler is returned.

229

Xlib − C Library libX11 1.3.2

Chapter 12

Input Device Functions

You can use the Xlib input device functions to:

Grab the pointer and individual buttons on the pointer

Grab the keyboard and individual keys on the keyboard

Resume event processing

Move the pointer

Set the input focus

Manipulate the keyboard and pointer settings

Manipulate the keyboard encoding

12.1. Pointer Grabbing

Xlib provides functions that you can use to control input from the pointer, which usually is a mouse. Usually, as soon as keyboard and mouse events occur, the X server delivers them to the appropriate client, which is determined by the window and input focus. The X server provides sufficient control over event delivery to allow window managers to support mouse ahead and various other styles of user interface. Many of these user interfaces depend on synchronous delivery of events. The delivery of pointer and keyboard events can be controlled independently.

When mouse buttons or keyboard keys are grabbed, events will be sent to the grabbing client rather than the normal client who would have received the event. If the keyboard or pointer is in asynchronous mode, further mouse and keyboard events will continue to be processed. If the keyboard or pointer is in synchronous mode, no further events are processed until the grabbing client allows them (see XAllowEvents). The keyboard or pointer is considered frozen during this interval. The ev ent that triggered the grab can also be replayed.

Note that the logical state of a device (as seen by client applications) may lag the physical state if device event processing is frozen.

There are two kinds of grabs: active and passive. An active grab occurs when a single client grabs the keyboard and/or pointer explicitly (see XGrabPointer and XGrabKeyboard). A passive grab occurs when clients grab a particular keyboard key or pointer button in a window, and the grab will activate when the key or button is actually pressed. Passive grabs are convenient for implementing reliable pop-up menus. For example, you can guarantee that the pop-up is mapped before the up pointer button event occurs by grabbing a button requesting synchronous behavior.

The down event will trigger the grab and freeze further processing of pointer events until you have the chance to map the pop-up window. You can then allow further event processing. The up ev ent will then be correctly processed relative to the pop-up window.

For many operations, there are functions that take a time argument. The X server includes a timestamp in various events. One special time, called CurrentTime, represents the current server time. The X server maintains the time when the input focus was last changed, when the keyboard was last grabbed, when the pointer was last grabbed, or when a selection was last changed. Your application may be slow reacting to an event. You often need some way to specify that your request should not occur if another application has in the meanwhile taken control of the keyboard, pointer, or selection. By providing the timestamp from the event in the request, you can arrange that the operation not take effect if someone else has performed an operation in the meanwhile.

230

Xlib − C Library libX11 1.3.2

A timestamp is a time value, expressed in milliseconds. It typically is the time since the last server reset. Timestamp values wrap around (after about 49.7 days). The server, giv en its current time is represented by timestamp T, always interprets timestamps from clients by treating half of the timestamp space as being later in time than T. One timestamp value, named CurrentTime, is never generated by the server. This value is reserved for use in requests to represent the current server time.

For many functions in this section, you pass pointer event mask bits. The valid pointer event mask bits are: ButtonPressMask, ButtonReleaseMask, EnterWindowMask, LeaveWindow-

Mask, PointerMotionMask, PointerMotionHintMask, Button1MotionMask, But-

ton2MotionMask, Button3MotionMask, Button4MotionMask, Button5MotionMask, But-

tonMotionMask, and KeyMapStateMask. For other functions in this section, you pass keymask bits. The valid keymask bits are: ShiftMask, LockMask, ControlMask, Mod1Mask,

Mod2Mask, Mod3Mask, Mod4Mask, and Mod5Mask.

To grab the pointer, use XGrabPointer.

int XGrabPointer(display, grab_window, owner_events, event_mask, pointer_mode,

keyboard_mode, confine_to, cursor, time)

Display *display;

Window grab_window;

Bool owner_events; unsigned int event_mask; int pointer_mode, keyboard_mode;

Window confine_to;

Cursor cursor;

Time time;

display

Specifies the connection to the X server.

grab_window

Specifies the grab window.

owner_events

Specifies a Boolean value that indicates whether the pointer events are to be reported as usual or reported with respect to the grab window if selected by the ev ent mask.

event_mask

Specifies which pointer events are reported to the client. The mask is the bitwise inclusive OR of the valid pointer event mask bits.

pointer_mode

Specifies further processing of pointer events. You can pass GrabModeSync or

GrabModeAsync.

keyboard_mode Specifies further processing of keyboard events. You can pass GrabModeSync or GrabModeAsync.

confine_to

Specifies the window to confine the pointer in or None.

cursor time

Specifies the cursor that is to be displayed during the grab or None.

Specifies the time. You can pass either a timestamp or CurrentTime.

The XGrabPointer function actively grabs control of the pointer and returns GrabSuccess if the grab was successful. Further pointer events are reported only to the grabbing client. XGrab-

Pointer overrides any active pointer grab by this client. If owner_events is False, all generated pointer events are reported with respect to grab_window and are reported only if selected by ev ent_mask. If owner_events is True and if a generated pointer event would normally be reported to this client, it is reported as usual. Otherwise, the event is reported with respect to the grab_window and is reported only if selected by event_mask. For either value of owner_events, unreported events are discarded.

231

Xlib − C Library libX11 1.3.2

If the pointer_mode is GrabModeAsync, pointer event processing continues as usual. If the pointer is currently frozen by this client, the processing of events for the pointer is resumed. If the pointer_mode is GrabModeSync, the state of the pointer, as seen by client applications, appears to freeze, and the X server generates no further pointer events until the grabbing client calls XAllowEvents or until the pointer grab is released. Actual pointer changes are not lost while the pointer is frozen; they are simply queued in the server for later processing.

If the keyboard_mode is GrabModeAsync, keyboard event processing is unaffected by activation of the grab. If the keyboard_mode is GrabModeSync, the state of the keyboard, as seen by client applications, appears to freeze, and the X server generates no further keyboard events until the grabbing client calls XAllowEvents or until the pointer grab is released. Actual keyboard changes are not lost while the pointer is frozen; they are simply queued in the server for later processing.

If a cursor is specified, it is displayed regardless of what window the pointer is in. If None is specified, the normal cursor for that window is displayed when the pointer is in grab_window or one of its subwindows; otherwise, the cursor for grab_window is displayed.

If a confine_to window is specified, the pointer is restricted to stay contained in that window. The confine_to window need have no relationship to the grab_window. If the pointer is not initially in the confine_to window, it is warped automatically to the closest edge just before the grab activates and enter/leave events are generated as usual. If the confine_to window is subsequently reconfigured, the pointer is warped automatically, as necessary, to keep it contained in the window.

The time argument allows you to avoid certain circumstances that come up if applications take a long time to respond or if there are long network delays. Consider a situation where you have two applications, both of which normally grab the pointer when clicked on. If both applications specify the timestamp from the event, the second application may wake up faster and successfully grab the pointer before the first application. The first application then will get an indication that the other application grabbed the pointer before its request was processed.

XGrabPointer generates EnterNotify and LeaveNotify ev ents.

Either if grab_window or confine_to window is not viewable or if the confine_to window lies completely outside the boundaries of the root window, XGrabPointer fails and returns Grab-

NotViewable. If the pointer is actively grabbed by some other client, it fails and returns

AlreadyGrabbed. If the pointer is frozen by an active grab of another client, it fails and returns

GrabFrozen. If the specified time is earlier than the last-pointer-grab time or later than the current X server time, it fails and returns GrabInvalidTime. Otherwise, the last-pointer-grab time is set to the specified time (CurrentTime is replaced by the current X server time).

XGrabPointer can generate BadCursor, BadValue, and BadWindow errors.

To ungrab the pointer, use XUngrabPointer.

XUngrabPointer (display, time)

Display *display;

Time time;

display time

Specifies the connection to the X server.

Specifies the time. You can pass either a timestamp or CurrentTime.

The XUngrabPointer function releases the pointer and any queued events if this client has actively grabbed the pointer from XGrabPointer, XGrabButton, or from a normal button press.

XUngrabPointer does not release the pointer if the specified time is earlier than the last-pointergrab time or is later than the current X server time. It also generates EnterNotify and LeaveNo-

tify ev ents. The X server performs an UngrabPointer request automatically if the event window or confine_to window for an active pointer grab becomes not viewable or if window reconfiguration causes the confine_to window to lie completely outside the boundaries of the root window.

232

Xlib − C Library libX11 1.3.2

To change an active pointer grab, use XChangeActivePointerGrab.

XChangeActivePointerGrab (display, event_mask, cursor, time)

Display *display; unsigned int event_mask;

Cursor cursor;

Time time;

display

Specifies the connection to the X server.

event_mask

Specifies which pointer events are reported to the client. The mask is the bitwise inclusive OR of the valid pointer event mask bits.

cursor time

Specifies the cursor that is to be displayed or None.

Specifies the time. You can pass either a timestamp or CurrentTime.

The XChangeActivePointerGrab function changes the specified dynamic parameters if the pointer is actively grabbed by the client and if the specified time is no earlier than the last-pointergrab time and no later than the current X server time. This function has no effect on the passive parameters of an XGrabButton. The interpretation of event_mask and cursor is the same as described in XGrabPointer.

XChangeActivePointerGrab can generate BadCursor and BadValue errors.

To grab a pointer button, use XGrabButton.

233

Xlib − C Library libX11 1.3.2

XGrabButton (display, button, modifiers, grab_window, owner_events, event_mask,

pointer_mode, keyboard_mode, confine_to, cursor)

Display *display; unsigned int button; unsigned int modifiers;

Window grab_window;

Bool owner_events; unsigned int event_mask; int pointer_mode, keyboard_mode;

Window confine_to;

Cursor cursor;

display button

Specifies the connection to the X server.

Specifies the pointer button that is to be grabbed or AnyButton.

modifiers

Specifies the set of keymasks or AnyModifier. The mask is the bitwise inclusive

OR of the valid keymask bits.

grab_window

Specifies the grab window.

owner_events

Specifies a Boolean value that indicates whether the pointer events are to be reported as usual or reported with respect to the grab window if selected by the ev ent mask.

event_mask

Specifies which pointer events are reported to the client. The mask is the bitwise inclusive OR of the valid pointer event mask bits.

pointer_mode

Specifies further processing of pointer events. You can pass GrabModeSync or

GrabModeAsync.

keyboard_mode Specifies further processing of keyboard events. You can pass GrabModeSync or GrabModeAsync.

confine_to

Specifies the window to confine the pointer in or None.

cursor

Specifies the cursor that is to be displayed or None.

The XGrabButton function establishes a passive grab. In the future, the pointer is actively grabbed (as for XGrabPointer), the last-pointer-grab time is set to the time at which the button was pressed (as transmitted in the ButtonPress ev ent), and the ButtonPress ev ent is reported if all of the following conditions are true:

• The pointer is not grabbed, and the specified button is logically pressed when the specified modifier keys are logically down, and no other buttons or modifier keys are logically down.

The grab_window contains the pointer.

The confine_to window (if any) is viewable.

• A passive grab on the same button/key combination does not exist on any ancestor of grab_window.

The interpretation of the remaining arguments is as for XGrabPointer. The active grab is terminated automatically when the logical state of the pointer has all buttons released (independent of the state of the logical modifier keys).

Note that the logical state of a device (as seen by client applications) may lag the physical state if device event processing is frozen.

This request overrides all previous grabs by the same client on the same button/key combinations on the same window. A modifiers of AnyModifier is equivalent to issuing the grab request for all possible modifier combinations (including the combination of no modifiers). It is not required that all modifiers specified have currently assigned KeyCodes. A button of AnyButton is

234

Xlib − C Library libX11 1.3.2

equivalent to issuing the request for all possible buttons. Otherwise, it is not required that the specified button currently be assigned to a physical button.

If some other client has already issued an XGrabButton with the same button/key combination on the same window, a BadAccess error results. When using AnyModifier or AnyButton, the request fails completely, and a BadAccess error results (no grabs are established) if there is a conflicting grab for any combination. XGrabButton has no effect on an active grab.

XGrabButton can generate BadCursor, BadValue, and BadWindow errors.

To ungrab a pointer button, use XUngrabButton.

XUngrabButton (display, button, modifiers, grab_window)

Display *display; unsigned int button; unsigned int modifiers;

Window grab_window;

display

Specifies the connection to the X server.

button modifiers

Specifies the pointer button that is to be released or AnyButton.

Specifies the set of keymasks or AnyModifier. The mask is the bitwise inclusive

OR of the valid keymask bits.

grab_window

Specifies the grab window.

The XUngrabButton function releases the passive button/key combination on the specified window if it was grabbed by this client. A modifiers of AnyModifier is equivalent to issuing the ungrab request for all possible modifier combinations, including the combination of no modifiers.

A button of AnyButton is equivalent to issuing the request for all possible buttons. XUngrab-

Button has no effect on an active grab.

XUngrabButton can generate BadValue and BadWindow errors.

12.2. Keyboard Grabbing

Xlib provides functions that you can use to grab or ungrab the keyboard as well as allow events.

For many functions in this section, you pass keymask bits. The valid keymask bits are: Shift-

Mask, LockMask, ControlMask, Mod1Mask, Mod2Mask, Mod3Mask, Mod4Mask, and

Mod5Mask.

To grab the keyboard, use XGrabKeyboard.

235

Xlib − C Library libX11 1.3.2

int XGrabKeyboard (display, grab_window, owner_events, pointer_mode, keyboard_mode, time)

Display *display;

Window grab_window;

Bool owner_events; int pointer_mode, keyboard_mode;

Time time;

display

Specifies the connection to the X server.

grab_window

Specifies the grab window.

owner_events

Specifies a Boolean value that indicates whether the keyboard events are to be reported as usual.

pointer_mode

Specifies further processing of pointer events. You can pass GrabModeSync or

GrabModeAsync.

keyboard_mode Specifies further processing of keyboard events. You can pass GrabModeSync or GrabModeAsync.

time

Specifies the time. You can pass either a timestamp or CurrentTime.

The XGrabKeyboard function actively grabs control of the keyboard and generates FocusIn and FocusOut ev ents. Further key events are reported only to the grabbing client. XGrabKey-

board overrides any active keyboard grab by this client. If owner_events is False, all generated key events are reported with respect to grab_window. If owner_events is True and if a generated key event would normally be reported to this client, it is reported normally; otherwise, the event is reported with respect to the grab_window. Both KeyPress and KeyRelease ev ents are always reported, independent of any event selection made by the client.

If the keyboard_mode argument is GrabModeAsync, keyboard event processing continues as usual. If the keyboard is currently frozen by this client, then processing of keyboard events is resumed. If the keyboard_mode argument is GrabModeSync, the state of the keyboard (as seen by client applications) appears to freeze, and the X server generates no further keyboard events until the grabbing client issues a releasing XAllowEvents call or until the keyboard grab is released. Actual keyboard changes are not lost while the keyboard is frozen; they are simply queued in the server for later processing.

If pointer_mode is GrabModeAsync, pointer event processing is unaffected by activation of the grab. If pointer_mode is GrabModeSync, the state of the pointer (as seen by client applications) appears to freeze, and the X server generates no further pointer events until the grabbing client issues a releasing XAllowEvents call or until the keyboard grab is released. Actual pointer changes are not lost while the pointer is frozen; they are simply queued in the server for later processing.

If the keyboard is actively grabbed by some other client, XGrabKeyboard fails and returns

AlreadyGrabbed. If grab_window is not viewable, it fails and returns GrabNotViewable. If the keyboard is frozen by an active grab of another client, it fails and returns GrabFrozen. If the specified time is earlier than the last-keyboard-grab time or later than the current X server time, it fails and returns GrabInvalidTime. Otherwise, the last-keyboard-grab time is set to the specified time (CurrentTime is replaced by the current X server time).

XGrabKeyboard can generate BadValue and BadWindow errors.

To ungrab the keyboard, use XUngrabKeyboard.

236

Xlib − C Library libX11 1.3.2

XUngrabKeyboard (display, time)

Display *display;

Time time;

display time

Specifies the connection to the X server.

Specifies the time. You can pass either a timestamp or CurrentTime.

The XUngrabKeyboard function releases the keyboard and any queued events if this client has it actively grabbed from either XGrabKeyboard or XGrabKey. XUngrabKeyboard does not release the keyboard and any queued events if the specified time is earlier than the last-keyboardgrab time or is later than the current X server time. It also generates FocusIn and FocusOut ev ents. The X server automatically performs an UngrabKeyboard request if the event window for an active keyboard grab becomes not viewable.

To passively grab a single key of the keyboard, use XGrabKey.

XGrabKey (display, keycode, modifiers, grab_window, owner_events, pointer_mode,

keyboard_mode)

Display *display; int keycode; unsigned int modifiers;

Window grab_window;

Bool owner_events; int pointer_mode, keyboard_mode;

display keycode modifiers

Specifies the connection to the X server.

Specifies the KeyCode or AnyKey.

Specifies the set of keymasks or AnyModifier. The mask is the bitwise inclusive

OR of the valid keymask bits.

grab_window

Specifies the grab window.

owner_events

Specifies a Boolean value that indicates whether the keyboard events are to be reported as usual.

pointer_mode

Specifies further processing of pointer events. You can pass GrabModeSync or

GrabModeAsync.

keyboard_mode Specifies further processing of keyboard events. You can pass GrabModeSync or GrabModeAsync.

The XGrabKey function establishes a passive grab on the keyboard. In the future, the keyboard is actively grabbed (as for XGrabKeyboard), the last-keyboard-grab time is set to the time at which the key was pressed (as transmitted in the KeyPress ev ent), and the KeyPress ev ent is reported if all of the following conditions are true:

The keyboard is not grabbed and the specified key (which can itself be a modifier key) is logically pressed when the specified modifier keys are logically down, and no other modifier keys are logically down.

Either the grab_window is an ancestor of (or is) the focus window, or the grab_window is a descendant of the focus window and contains the pointer.

A passive grab on the same key combination does not exist on any ancestor of grab_window.

237

Xlib − C Library libX11 1.3.2

The interpretation of the remaining arguments is as for XGrabKeyboard. The active grab is terminated automatically when the logical state of the keyboard has the specified key released (independent of the logical state of the modifier keys).

Note that the logical state of a device (as seen by client applications) may lag the physical state if device event processing is frozen.

A modifiers argument of AnyModifier is equivalent to issuing the request for all possible modifier combinations (including the combination of no modifiers). It is not required that all modifiers specified have currently assigned KeyCodes. A keycode argument of AnyKey is equivalent to issuing the request for all possible KeyCodes. Otherwise, the specified keycode must be in the range specified by min_keycode and max_keycode in the connection setup, or a BadValue error results.

If some other client has issued a XGrabKey with the same key combination on the same window, a BadAccess error results. When using AnyModifier or AnyKey, the request fails completely, and a BadAccess error results (no grabs are established) if there is a conflicting grab for any combination.

XGrabKey can generate BadAccess, BadValue, and BadWindow errors.

To ungrab a key, use XUngrabKey.

XUngrabKey (display, keycode, modifiers, grab_window)

Display *display; int keycode; unsigned int modifiers;

Window grab_window;

display keycode

Specifies the connection to the X server.

Specifies the KeyCode or AnyKey.

modifiers

Specifies the set of keymasks or AnyModifier. The mask is the bitwise inclusive

OR of the valid keymask bits.

grab_window

Specifies the grab window.

The XUngrabKey function releases the key combination on the specified window if it was grabbed by this client. It has no effect on an active grab. A modifiers of AnyModifier is equivalent to issuing the request for all possible modifier combinations (including the combination of no modifiers). A keycode argument of AnyKey is equivalent to issuing the request for all possible key codes.

XUngrabKey can generate BadValue and BadWindow errors.

12.3. Resuming Event Processing

The previous sections discussed grab mechanisms with which processing of events by the server can be temporarily suspended. This section describes the mechanism for resuming event processing.

To allow further events to be processed when the device has been frozen, use XAllowEvents.

238

Xlib − C Library libX11 1.3.2

XAllowEvents (display, event_mode, time)

Display *display; int event_mode;

Time time;

display

Specifies the connection to the X server.

event_mode

Specifies the event mode. You can pass AsyncPointer, SyncPointer, AsyncK-

eyboard, SyncKeyboard, ReplayPointer, ReplayKeyboard, AsyncBoth, or

SyncBoth.

time

Specifies the time. You can pass either a timestamp or CurrentTime.

The XAllowEvents function releases some queued events if the client has caused a device to freeze. It has no effect if the specified time is earlier than the last-grab time of the most recent active grab for the client or if the specified time is later than the current X server time. Depending on the event_mode argument, the following occurs:

AsyncPointer

If the pointer is frozen by the client, pointer event processing continues as usual. If the pointer is frozen twice by the client on behalf of two separate grabs, AsyncPointer thaws for both. AsyncPointer has no effect if the pointer is not frozen by the client, but the pointer need not be grabbed by the client.

SyncPointer

ReplayPointer

AsyncKeyboard

If the pointer is frozen and actively grabbed by the client, pointer event processing continues as usual until the next ButtonPress or ButtonRe-

lease ev ent is reported to the client. At this time, the pointer again appears to freeze. However, if the reported event causes the pointer grab to be released, the pointer does not freeze. SyncPointer has no effect if the pointer is not frozen by the client or if the pointer is not grabbed by the client.

If the pointer is actively grabbed by the client and is frozen as the result of an event having been sent to the client (either from the activation of an

XGrabButton or from a previous XAllowEvents with mode Sync-

Pointer but not from an XGrabPointer), the pointer grab is released and that event is completely reprocessed. This time, however, the function ignores any passive grabs at or above (toward the root of) the grab_window of the grab just released. The request has no effect if the pointer is not grabbed by the client or if the pointer is not frozen as the result of an event.

If the keyboard is frozen by the client, keyboard event processing continues as usual. If the keyboard is frozen twice by the client on behalf of two separate grabs, AsyncKeyboard thaws for both. AsyncKeyboard has no effect if the keyboard is not frozen by the client, but the keyboard need not be grabbed by the client.

SyncKeyboard

If the keyboard is frozen and actively grabbed by the client, keyboard ev ent processing continues as usual until the next KeyPress or KeyRe-

lease ev ent is reported to the client. At this time, the keyboard again appears to freeze. However, if the reported event causes the keyboard grab to be released, the keyboard does not freeze. SyncKeyboard has no effect if the keyboard is not frozen by the client or if the keyboard is not grabbed by the client.

239

Xlib − C Library libX11 1.3.2

ReplayKeyboard

SyncBoth

AsyncBoth

If the keyboard is actively grabbed by the client and is frozen as the result of an event having been sent to the client (either from the activation of an XGrabKey or from a previous XAllowEvents with mode

SyncKeyboard but not from an XGrabKeyboard), the keyboard grab is released and that event is completely reprocessed. This time, however, the function ignores any passive grabs at or above (toward the root of) the grab_window of the grab just released. The request has no effect if the keyboard is not grabbed by the client or if the keyboard is not frozen as the result of an event.

If both pointer and keyboard are frozen by the client, event processing for both devices continues as usual until the next ButtonPress, Button-

Release, KeyPress, or KeyRelease ev ent is reported to the client for a grabbed device (button event for the pointer, key event for the keyboard), at which time the devices again appear to freeze. However, if the reported event causes the grab to be released, then the devices do not freeze (but if the other device is still grabbed, then a subsequent event for it will still cause both devices to freeze). SyncBoth has no effect unless both pointer and keyboard are frozen by the client. If the pointer or keyboard is frozen twice by the client on behalf of two separate grabs,

SyncBoth thaws for both (but a subsequent freeze for SyncBoth will only freeze each device once).

If the pointer and the keyboard are frozen by the client, event processing for both devices continues as usual. If a device is frozen twice by the client on behalf of two separate grabs, AsyncBoth thaws for both.

AsyncBoth has no effect unless both pointer and keyboard are frozen by the client.

AsyncPointer, SyncPointer, and ReplayPointer have no effect on the processing of keyboard ev ents. AsyncKeyboard, SyncKeyboard, and ReplayKeyboard have no effect on the processing of pointer events. It is possible for both a pointer grab and a keyboard grab (by the same or different clients) to be active simultaneously. If a device is frozen on behalf of either grab, no ev ent processing is performed for the device. It is possible for a single device to be frozen because of both grabs. In this case, the freeze must be released on behalf of both grabs before ev ents can again be processed. If a device is frozen twice by a single client, then a single Allow-

Events releases both.

XAllowEvents can generate a BadValue error.

12.4. Moving the Pointer

Although movement of the pointer normally should be left to the control of the end user, sometimes it is necessary to move the pointer to a new position under program control.

To move the pointer to an arbitrary point in a window, use XWarpPointer.

240

Xlib − C Library libX11 1.3.2

XWarpPointer (display, src_w, dest_w, src_x, src_y, src_width, src_height, dest_x,

dest_y)

Display *display;

Window src_w, dest_w; int src_x, src_y; unsigned int src_width, src_height; int dest_x, dest_y;

display src_w dest_w src_x src_y src_width src_height dest_x dest_y

Specifies the connection to the X server.

Specifies the source window or None.

Specifies the destination window or None.

Specify a rectangle in the source window.

Specify the x and y coordinates within the destination window.

If dest_w is None, XWarpPointer moves the pointer by the offsets (dest_x, dest_y) relative to the current position of the pointer. If dest_w is a window, XWarpPointer moves the pointer to the offsets (dest_x, dest_y) relative to the origin of dest_w. Howev er, if src_w is a window, the move only takes place if the window src_w contains the pointer and if the specified rectangle of src_w contains the pointer.

The src_x and src_y coordinates are relative to the origin of src_w. If src_height is zero, it is replaced with the current height of src_w minus src_y. If src_width is zero, it is replaced with the current width of src_w minus src_x.

There is seldom any reason for calling this function. The pointer should normally be left to the user. If you do use this function, however, it generates events just as if the user had instantaneously moved the pointer from one position to another. Note that you cannot use XWarp-

Pointer to move the pointer outside the confine_to window of an active pointer grab. An attempt to do so will only move the pointer as far as the closest edge of the confine_to window.

XWarpPointer can generate a BadWindow error.

12.5. Controlling Input Focus

Xlib provides functions that you can use to set and get the input focus. The input focus is a shared resource, and cooperation among clients is required for correct interaction. See the Inter-

Client Communication Conventions Manual for input focus policy.

To set the input focus, use XSetInputFocus.

241

Xlib − C Library libX11 1.3.2

XSetInputFocus (display, focus, re vert_to, time)

Display *display;

Window focus; int re vert_to;

Time time;

display focus re vert_to time

Specifies the connection to the X server.

Specifies the window, PointerRoot, or None.

Specifies where the input focus reverts to if the window becomes not viewable.

You can pass RevertToParent, RevertToPointerRoot, or RevertToNone.

Specifies the time. You can pass either a timestamp or CurrentTime.

The XSetInputFocus function changes the input focus and the last-focus-change time. It has no effect if the specified time is earlier than the current last-focus-change time or is later than the current X server time. Otherwise, the last-focus-change time is set to the specified time (Cur-

rentTime is replaced by the current X server time). XSetInputFocus causes the X server to generate FocusIn and FocusOut ev ents.

Depending on the focus argument, the following occurs:

• If focus is None, all keyboard events are discarded until a new focus window is set, and the revert_to argument is ignored.

If focus is a window, it becomes the keyboard’s focus window. If a generated keyboard ev ent would normally be reported to this window or one of its inferiors, the event is reported as usual. Otherwise, the event is reported relative to the focus window.

If focus is PointerRoot, the focus window is dynamically taken to be the root window of whatever screen the pointer is on at each keyboard event. In this case, the revert_to argument is ignored.

The specified focus window must be viewable at the time XSetInputFocus is called, or a Bad-

Match error results. If the focus window later becomes not viewable, the X server evaluates the revert_to argument to determine the new focus window as follows:

• If rev ert_to is RevertToParent, the focus reverts to the parent (or the closest viewable ancestor), and the new rev ert_to value is taken to be RevertToNone.

• If rev ert_to is RevertToPointerRoot or RevertToNone, the focus reverts to PointerRoot or None, respectively. When the focus reverts, the X server generates FocusIn and Focu-

sOut ev ents, but the last-focus-change time is not affected.

XSetInputFocus can generate BadMatch, BadValue, and BadWindow errors.

To obtain the current input focus, use XGetInputFocus.

XGetInputFocus (display, focus_return, re vert_to_return)

Display *display;

Window *focus_return; int *re vert_to_return;

display

Specifies the connection to the X server.

focus_return

Returns the focus window, PointerRoot, or None.

re vert_to_returnReturns the current focus state (RevertToParent, RevertToPointerRoot, or Re-

vertToNone).

The XGetInputFocus function returns the focus window and the current focus state.

242

Xlib − C Library libX11 1.3.2

12.6. Manipulating the Keyboard and Pointer Settings

Xlib provides functions that you can use to change the keyboard control, obtain a list of the autorepeat keys, turn keyboard auto-repeat on or off, ring the bell, set or obtain the pointer button or keyboard mapping, and obtain a bit vector for the keyboard.

This section discusses the user-preference options of bell, key click, pointer behavior, and so on.

The default values for many of these options are server dependent. Not all implementations will actually be able to control all of these parameters.

The XChangeKeyboardControl function changes control of a keyboard and operates on a

XKeyboardControl structure:

/* Mask bits for ChangeKeyboardControl */

#define

KBKeyClickPercent

#define

KBBellPercent

#define

KBBellPitch

#define

KBBellDuration

#define

KBLed

#define

KBLedMode

#define

KBKey

#define

KBAutoRepeatMode

/* Values */ typedef struct { int key_click_percent; int bell_percent; int bell_pitch; int bell_duration; int led; int led_mode; int key; int auto_repeat_mode;

} XKe yboardControl;

(1L<<0)

(1L<<1)

(1L<<2)

(1L<<3)

(1L<<4)

(1L<<5)

(1L<<6)

(1L<<7)

/* LedModeOn, LedModeOff */

/* AutoRepeatModeOff, AutoRepeatModeOn,

AutoRepeatModeDefault */

The key_click_percent member sets the volume for key clicks between 0 (off) and 100 (loud) inclusive, if possible. A setting of −1 restores the default. Other negative values generate a Bad-

Value error.

The bell_percent sets the base volume for the bell between 0 (off) and 100 (loud) inclusive, if possible. A setting of −1 restores the default. Other negative values generate a BadValue error.

The bell_pitch member sets the pitch (specified in Hz) of the bell, if possible. A setting of −1 restores the default. Other negative values generate a BadValue error. The bell_duration member sets the duration of the bell specified in milliseconds, if possible. A setting of −1 restores the default. Other negative values generate a BadValue error.

If both the led_mode and led members are specified, the state of that LED is changed, if possible.

The led_mode member can be set to LedModeOn or LedModeOff. If only led_mode is specified, the state of all LEDs are changed, if possible. At most 32 LEDs numbered from one are supported. No standard interpretation of LEDs is defined. If led is specified without led_mode, a

BadMatch error results.

If both the auto_repeat_mode and key members are specified, the auto_repeat_mode of that key is changed (according to AutoRepeatModeOn, AutoRepeatModeOff, or AutoRepeatModeDe-

fault), if possible. If only auto_repeat_mode is specified, the global auto_repeat_mode for the

243

Xlib − C Library libX11 1.3.2

entire keyboard is changed, if possible, and does not affect the per-key settings. If a key is specified without an auto_repeat_mode, a BadMatch error results. Each key has an individual mode of whether or not it should auto-repeat and a default setting for the mode. In addition, there is a global mode of whether auto-repeat should be enabled or not and a default setting for that mode.

When global mode is AutoRepeatModeOn, keys should obey their individual auto-repeat modes. When global mode is AutoRepeatModeOff, no keys should auto-repeat. An autorepeating key generates alternating KeyPress and KeyRelease ev ents. When a key is used as a modifier, it is desirable for the key not to auto-repeat, regardless of its auto-repeat setting.

A bell generator connected with the console but not directly on a keyboard is treated as if it were part of the keyboard. The order in which controls are verified and altered is server-dependent. If an error is generated, a subset of the controls may have been altered.

XChangeKeyboardControl (display, value_mask, values)

Display *display; unsigned long value_mask;

XKeyboardControl *values;

display

Specifies the connection to the X server.

value_mask

Specifies which controls to change. This mask is the bitwise inclusive OR of the valid control mask bits.

values

Specifies one value for each bit set to 1 in the mask.

The XChangeKeyboardControl function controls the keyboard characteristics defined by the

XKeyboardControl structure. The value_mask argument specifies which values are to be changed.

XChangeKeyboardControl can generate BadMatch and BadValue errors.

To obtain the current control values for the keyboard, use XGetKeyboardControl.

XGetKeyboardControl (display, values_return)

Display *display;

XKeyboardState *values_return;

display

Specifies the connection to the X server.

values_return

Returns the current keyboard controls in the specified XKeyboardState structure.

The XGetKeyboardControl function returns the current control values for the keyboard to the

XKeyboardState structure.

typedef struct { int key_click_percent; int bell_percent; unsigned int bell_pitch, bell_duration; unsigned long led_mask; int global_auto_repeat; char auto_repeats[32];

} XKe yboardState;

244

Xlib − C Library libX11 1.3.2

For the LEDs, the least significant bit of led_mask corresponds to LED one, and each bit set to 1 in led_mask indicates an LED that is lit. The global_auto_repeat member can be set to AutoRe-

peatModeOn or AutoRepeatModeOff. The auto_repeats member is a bit vector. Each bit set to 1 indicates that auto-repeat is enabled for the corresponding key. The vector is represented as

32 bytes. Byte N (from 0) contains the bits for keys 8N to 8N + 7 with the least significant bit in the byte representing key 8N.

To turn on keyboard auto-repeat, use XAutoRepeatOn.

XAutoRepeatOn (display)

Display *display;

display

Specifies the connection to the X server.

The XAutoRepeatOn function turns on auto-repeat for the keyboard on the specified display.

To turn off keyboard auto-repeat, use XAutoRepeatOff.

XAutoRepeatOff(display)

Display *display;

display

Specifies the connection to the X server.

The XAutoRepeatOff function turns off auto-repeat for the keyboard on the specified display.

To ring the bell, use XBell.

XBell (display, percent)

Display *display; int percent;

display percent

Specifies the connection to the X server.

Specifies the volume for the bell, which can range from −100 to 100 inclusive.

The XBell function rings the bell on the keyboard on the specified display, if possible. The specified volume is relative to the base volume for the keyboard. If the value for the percent argument is not in the range −100 to 100 inclusive, a BadValue error results. The volume at which the bell rings when the percent argument is nonnegative is: base − [(base * percent) / 100] + percent

The volume at which the bell rings when the percent argument is negative is: base + [(base * percent) / 100]

To change the base volume of the bell, use XChangeKeyboardControl.

XBell can generate a BadValue error.

To obtain a bit vector that describes the state of the keyboard, use XQueryKeymap.

245

Xlib − C Library libX11 1.3.2

XQueryKeymap (display, keys_return)

Display *display; char keys_return[32] ;

display

Specifies the connection to the X server.

keys_return

Returns an array of bytes that identifies which keys are pressed down. Each bit represents one key of the keyboard.

The XQueryKeymap function returns a bit vector for the logical state of the keyboard, where each bit set to 1 indicates that the corresponding key is currently pressed down. The vector is represented as 32 bytes. Byte N (from 0) contains the bits for keys 8N to 8N + 7 with the least significant bit in the byte representing key 8N.

Note that the logical state of a device (as seen by client applications) may lag the physical state if device event processing is frozen.

To set the mapping of the pointer buttons, use XSetPointerMapping.

int XSetPointerMapping(display, map, nmap)

Display *display; unsigned char map[] ; int nmap;

display map nmap

Specifies the connection to the X server.

Specifies the mapping list.

Specifies the number of items in the mapping list.

The XSetPointerMapping function sets the mapping of the pointer. If it succeeds, the X server generates a MappingNotify ev ent, and XSetPointerMapping returns MappingSuccess. Element map[i] defines the logical button number for the physical button i+1. The length of the list must be the same as XGetPointerMapping would return, or a BadValue error results. A zero element disables a button, and elements are not restricted in value by the number of physical buttons. However, no two elements can have the same nonzero value, or a BadValue error results.

If any of the buttons to be altered are logically in the down state, XSetPointerMapping returns

MappingBusy, and the mapping is not changed.

XSetPointerMapping can generate a BadValue error.

To get the pointer mapping, use XGetPointerMapping.

int XGetPointerMapping(display, map_return, nmap)

Display *display; unsigned char map_return[] ; int nmap;

display

Specifies the connection to the X server.

map_return

Returns the mapping list.

nmap

Specifies the number of items in the mapping list.

The XGetPointerMapping function returns the current mapping of the pointer. Pointer buttons are numbered starting from one. XGetPointerMapping returns the number of physical buttons actually on the pointer. The nominal mapping for a pointer is map[i]=i+1. The nmap argument

246

Xlib − C Library libX11 1.3.2

specifies the length of the array where the pointer mapping is returned, and only the first nmap elements are returned in map_return.

To control the pointer’s interactive feel, use XChangePointerControl.

XChangePointerControl (display, do_accel, do_threshold, accel_numerator,

accel_denominator, threshold)

Display *display;

Bool do_accel, do_threshold; int accel_numerator, accel_denominator; int threshold;

display

Specifies the connection to the X server.

do_accel

Specifies a Boolean value that controls whether the values for the accel_numerator or accel_denominator are used.

do_threshold

Specifies a Boolean value that controls whether the value for the threshold is used.

accel_numeratorSpecifies the numerator for the acceleration multiplier.

accel_denominator

Specifies the denominator for the acceleration multiplier.

threshold

Specifies the acceleration threshold.

The XChangePointerControl function defines how the pointing device moves. The acceleration, expressed as a fraction, is a multiplier for movement. For example, specifying 3/1 means the pointer moves three times as fast as normal. The fraction may be rounded arbitrarily by the X server. Acceleration only takes effect if the pointer moves more than threshold pixels at once and only applies to the amount beyond the value in the threshold argument. Setting a value to −1 restores the default. The values of the do_accel and do_threshold arguments must be True for the pointer values to be set, or the parameters are unchanged. Negative values (other than −1) generate a BadValue error, as does a zero value for the accel_denominator argument.

XChangePointerControl can generate a BadValue error.

To get the current pointer parameters, use XGetPointerControl.

XGetPointerControl (display, accel_numerator_return, accel_denominator_return,

threshold_return)

Display *display; int *accel_numerator_return, *accel_denominator_return; int *threshold_return;

display

Specifies the connection to the X server.

accel_numerator_return

Returns the numerator for the acceleration multiplier.

accel_denominator_return

Returns the denominator for the acceleration multiplier.

threshold_returnReturns the acceleration threshold.

The XGetPointerControl function returns the pointer’s current acceleration multiplier and acceleration threshold.

247

Xlib − C Library libX11 1.3.2

12.7. Manipulating the Keyboard Encoding

A KeyCode represents a physical (or logical) key. KeyCodes lie in the inclusive range [8,255]. A

Ke yCode value carries no intrinsic information, although server implementors may attempt to encode geometry (for example, matrix) information in some fashion so that it can be interpreted in a server-dependent fashion. The mapping between keys and KeyCodes cannot be changed.

A KeySym is an encoding of a symbol on the cap of a key. The set of defined KeySyms includes the ISO Latin character sets (1−4), Katakana, Arabic, Cyrillic, Greek, Technical, Special, Publishing, APL, Hebrew, Thai, Korean and a miscellany of keys found on keyboards (Return, Help, Tab, and so on). To the extent possible, these sets are derived from international standards. In areas where no standards exist, some of these sets are derived from Digital Equipment Corporation standards. The list of defined symbols can be found in <X11/keysymdef.h>. Unfortunately, some C preprocessors have limits on the number of defined symbols. If you must use KeySyms not in the Latin 1−4, Greek, and miscellaneous classes, you may have to define a symbol for those sets. Most applications usually only include <X11/keysym.h>, which defines symbols for ISO

Latin 1−4, Greek, and miscellaneous.

A list of KeySyms is associated with each KeyCode. The list is intended to convey the set of symbols on the corresponding key. If the list (ignoring trailing NoSymbol entries) is a single

Ke ySym ‘‘K’’, then the list is treated as if it were the list ‘‘K NoSymbol K NoSymbol’’. If the list

(ignoring trailing NoSymbol entries) is a pair of KeySyms ‘‘K1 K2’’, then the list is treated as if it were the list ‘‘K1 K2 K1 K2’’. If the list (ignoring trailing NoSymbol entries) is a triple of

Ke ySyms ‘‘K1 K2 K3’’, then the list is treated as if it were the list ‘‘K1 K2 K3 NoSymbol’’.

When an explicit ‘‘void’’ element is desired in the list, the value VoidSymbol can be used.

The first four elements of the list are split into two groups of KeySyms. Group 1 contains the first and second KeySyms; Group 2 contains the third and fourth KeySyms. Within each group, if the second element of the group is NoSymbol, then the group should be treated as if the second element were the same as the first element, except when the first element is an alphabetic KeySym

‘‘K’’ for which both lowercase and uppercase forms are defined. In that case, the group should be treated as if the first element were the lowercase form of ‘‘K’’ and the second element were the uppercase form of ‘‘K’’.

The standard rules for obtaining a KeySym from a KeyPress ev ent make use of only the Group 1 and Group 2 KeySyms; no interpretation of other KeySyms in the list is given. Which group to use is determined by the modifier state. Switching between groups is controlled by the KeySym named MODE SWITCH, by attaching that KeySym to some KeyCode and attaching that

Ke yCode to any one of the modifiers Mod1 through Mod5. This modifier is called the group

modifier. For any KeyCode, Group 1 is used when the group modifier is off, and Group 2 is used when the group modifier is on.

The Lock modifier is interpreted as CapsLock when the KeySym named XK_Caps_Lock is attached to some KeyCode and that KeyCode is attached to the Lock modifier. The Lock modifier is interpreted as ShiftLock when the KeySym named XK_Shift_Lock is attached to some

Ke yCode and that KeyCode is attached to the Lock modifier. If the Lock modifier could be interpreted as both CapsLock and ShiftLock, the CapsLock interpretation is used.

The operation of keypad keys is controlled by the KeySym named XK_Num_Lock, by attaching that KeySym to some KeyCode and attaching that KeyCode to any one of the modifiers Mod1 through Mod5. This modifier is called the numlock modifier. The standard KeySyms with the prefix ‘‘XK_KP_’’ in their name are called keypad KeySyms; these are KeySyms with numeric value in the hexadecimal range 0xFF80 to 0xFFBD inclusive. In addition, vendor-specific

Ke ySyms in the hexadecimal range 0x11000000 to 0x1100FFFF are also keypad KeySyms.

Within a group, the choice of KeySym is determined by applying the first rule that is satisfied from the following list:

• The numlock modifier is on and the second KeySym is a keypad KeySym. In this case, if the Shift modifier is on, or if the Lock modifier is on and is interpreted as ShiftLock, then the first KeySym is used, otherwise the second KeySym is used.

248

Xlib − C Library libX11 1.3.2

The Shift and Lock modifiers are both off. In this case, the first KeySym is used.

The Shift modifier is off, and the Lock modifier is on and is interpreted as CapsLock. In this case, the first KeySym is used, but if that KeySym is lowercase alphabetic, then the corresponding uppercase KeySym is used instead.

The Shift modifier is on, and the Lock modifier is on and is interpreted as CapsLock. In this case, the second KeySym is used, but if that KeySym is lowercase alphabetic, then the corresponding uppercase KeySym is used instead.

The Shift modifier is on, or the Lock modifier is on and is interpreted as ShiftLock, or both. In this case, the second KeySym is used.

No spatial geometry of the symbols on the key is defined by their order in the KeySym list, although a geometry might be defined on a server-specific basis. The X server does not use the mapping between KeyCodes and KeySyms. Rather, it merely stores it for reading and writing by clients.

To obtain the legal KeyCodes for a display, use XDisplayKeycodes.

XDisplayKeycodes (display, min_keycodes_return, max_keycodes_return)

Display *display; int *min_keycodes_return, *max_keycodes_return;

display

Specifies the connection to the X server.

min_keycodes_return

Returns the minimum number of KeyCodes.

max_keycodes_return

Returns the maximum number of KeyCodes.

The XDisplayKeycodes function returns the min-keycodes and max-keycodes supported by the specified display. The minimum number of KeyCodes returned is never less than 8, and the maximum number of KeyCodes returned is never greater than 255. Not all KeyCodes in this range are required to have corresponding keys.

To obtain the symbols for the specified KeyCodes, use XGetKeyboardMapping.

Ke ySym *XGetKeyboardMapping(display, first_keycode, keycode_count,

keysyms_per_keycode_return)

Display *display;

Ke yCode first_keycode; int keycode_count; int *keysyms_per_keycode_return;

display

Specifies the connection to the X server.

first_keycode

Specifies the first KeyCode that is to be returned.

keycode_count Specifies the number of KeyCodes that are to be returned.

keysyms_per_keycode_return

Returns the number of KeySyms per KeyCode.

The XGetKeyboardMapping function returns the symbols for the specified number of

Ke yCodes starting with first_keycode. The value specified in first_keycode must be greater than or equal to min_keycode as returned by XDisplayKeycodes, or a BadValue error results. In addition, the following expression must be less than or equal to max_keycode as returned by

XDisplayKeycodes:

249

Xlib − C Library libX11 1.3.2

first_keycode + keycode_count − 1

If this is not the case, a BadValue error results. The number of elements in the KeySyms list is: keycode_count * keysyms_per_keycode_return

Ke ySym number N, counting from zero, for KeyCode K has the following index in the list, counting from zero:

(K − first_code) * keysyms_per_code_return + N

The X server arbitrarily chooses the keysyms_per_keycode_return value to be large enough to report all requested symbols. A special KeySym value of NoSymbol is used to fill in unused elements for individual KeyCodes. To free the storage returned by XGetKeyboardMapping, use

XFree.

XGetKeyboardMapping can generate a BadValue error.

To change the keyboard mapping, use XChangeKeyboardMapping.

XChangeKeyboardMapping(display, first_keycode, keysyms_per_keycode, keysyms, num_codes)

Display *display; int first_keycode; int keysyms_per_keycode;

Ke ySym *keysyms; int num_codes;

display

Specifies the connection to the X server.

first_keycode

Specifies the first KeyCode that is to be changed.

keysyms_per_keycode

Specifies the number of KeySyms per KeyCode.

keysyms num_codes

Specifies an array of KeySyms.

Specifies the number of KeyCodes that are to be changed.

The XChangeKeyboardMapping function defines the symbols for the specified number of

Ke yCodes starting with first_keycode. The symbols for KeyCodes outside this range remain unchanged. The number of elements in keysyms must be: num_codes * keysyms_per_keycode

The specified first_keycode must be greater than or equal to min_keycode returned by XDis-

playKeycodes, or a BadValue error results. In addition, the following expression must be less than or equal to max_keycode as returned by XDisplayKeycodes, or a BadValue error results: first_keycode + num_codes − 1

Ke ySym number N, counting from zero, for KeyCode K has the following index in keysyms, counting from zero:

(K − first_keycode) * keysyms_per_keycode + N

The specified keysyms_per_keycode can be chosen arbitrarily by the client to be large enough to hold all desired symbols. A special KeySym value of NoSymbol should be used to fill in unused elements for individual KeyCodes. It is legal for NoSymbol to appear in nontrailing positions of the effective list for a KeyCode. XChangeKeyboardMapping generates a MappingNotify ev ent.

250

Xlib − C Library libX11 1.3.2

There is no requirement that the X server interpret this mapping. It is merely stored for reading and writing by clients.

XChangeKeyboardMapping can generate BadAlloc and BadValue errors.

The next six functions make use of the XModifierKeymap data structure, which contains: typedef struct { int max_keypermod; /* This server’s max number of keys per modifier */

Ke yCode *modifiermap;

} XModifierKeymap;

/* An 8 by max_keypermod array of the modifiers */

To create an XModifierKeymap structure, use XNewModifiermap.

XModifierKeymap *XNewModifiermap(max_keys_per_mod) int max_keys_per_mod;

max_keys_per_mod

Specifies the number of KeyCode entries preallocated to the modifiers in the map.

The XNewModifiermap function returns a pointer to XModifierKeymap structure for later use.

To add a new entry to an XModifierKeymap structure, use XInsertModifiermapEntry.

XModifierKeymap *XInsertModifiermapEntry(modmap, keycode_entry, modifier)

XModifierKeymap *modmap;

Ke yCode keycode_entry; int modifier;

modmap

Specifies the XModifierKeymap structure.

keycode_entry Specifies the KeyCode.

modifier

Specifies the modifier.

The XInsertModifiermapEntry function adds the specified KeyCode to the set that controls the specified modifier and returns the resulting XModifierKeymap structure (expanded as needed).

To delete an entry from an XModifierKeymap structure, use XDeleteModifiermapEntry.

XModifierKeymap *XDeleteModifiermapEntry(modmap, keycode_entry, modifier)

XModifierKeymap *modmap;

Ke yCode keycode_entry; int modifier;

modmap

Specifies the XModifierKeymap structure.

keycode_entry Specifies the KeyCode.

modifier

Specifies the modifier.

The XDeleteModifiermapEntry function deletes the specified KeyCode from the set that controls the specified modifier and returns a pointer to the resulting XModifierKeymap structure.

To destroy an XModifierKeymap structure, use XFreeModifiermap.

251

Xlib − C Library libX11 1.3.2

XFreeModifiermap(modmap)

XModifierKeymap *modmap;

modmap

Specifies the XModifierKeymap structure.

The XFreeModifiermap function frees the specified XModifierKeymap structure.

To set the KeyCodes to be used as modifiers, use XSetModifierMapping.

int XSetModifierMapping(display, modmap)

Display *display;

XModifierKeymap *modmap;

display modmap

Specifies the connection to the X server.

Specifies the XModifierKeymap structure.

The XSetModifierMapping function specifies the KeyCodes of the keys (if any) that are to be used as modifiers. If it succeeds, the X server generates a MappingNotify ev ent, and XSetMod-

ifierMapping returns MappingSuccess. X permits at most 8 modifier keys. If more than 8 are specified in the XModifierKeymap structure, a BadLength error results.

The modifiermap member of the XModifierKeymap structure contains 8 sets of max_keypermod KeyCodes, one for each modifier in the order Shift, Lock, Control, Mod1, Mod2, Mod3,

Mod4, and Mod5. Only nonzero KeyCodes have meaning in each set, and zero KeyCodes are ignored. In addition, all of the nonzero KeyCodes must be in the range specified by min_keycode and max_keycode in the Display structure, or a BadValue error results.

An X server can impose restrictions on how modifiers can be changed, for example, if certain keys do not generate up transitions in hardware, if auto-repeat cannot be disabled on certain keys, or if multiple modifier keys are not supported. If some such restriction is violated, the status reply is MappingFailed, and none of the modifiers are changed. If the new KeyCodes specified for a modifier differ from those currently defined and any (current or new) keys for that modifier are in the logically down state, XSetModifierMapping returns MappingBusy, and none of the modifiers is changed.

XSetModifierMapping can generate BadAlloc and BadValue errors.

To obtain the KeyCodes used as modifiers, use XGetModifierMapping.

XModifierKeymap *XGetModifierMapping(display)

Display *display;

display

Specifies the connection to the X server.

The XGetModifierMapping function returns a pointer to a newly created XModifierKeymap structure that contains the keys being used as modifiers. The structure should be freed after use by calling XFreeModifiermap. If only zero values appear in the set for any modifier, that modifier is disabled.

252

Xlib − C Library libX11 1.3.2

Chapter 13

Locales and Internationalized Text Functions

An internationalized application is one that is adaptable to the requirements of different native languages, local customs, and character string encodings. The process of adapting the operation to a particular native language, local custom, or string encoding is called localization. A goal of internationalization is to permit localization without program source modifications or recompilation.

As one of the localization mechanisms, Xlib provides an X Input Method (XIM) functional interface for internationalized text input and an X Output Method (XOM) functional interface for internationalized text output.

Internationalization in X is based on the concept of a locale. A locale defines the localized behavior of a program at run time. Locales affect Xlib in its:

• Encoding and processing of input method text

Encoding of resource files and values

Encoding and imaging of text strings

• Encoding and decoding for inter-client text communication

Characters from various languages are represented in a computer using an encoding. Different languages have different encodings, and there are even different encodings for the same characters in the same language.

This chapter defines support for localized text imaging and text input and describes the locale mechanism that controls all locale-dependent Xlib functions. Sets of functions are provided for multibyte (char *) text as well as wide character (wchar_t) text in the form supported by the host

C language environment. The multibyte and wide character functions are equivalent except for the form of the text argument.

The Xlib internationalization functions are not meant to provide support for multilingual applications (mixing multiple languages within a single piece of text), but they make it possible to implement applications that work in limited fashion with more than one language in independent contexts.

The remainder of this chapter discusses:

X locale management

Locale and modifier dependencies

Variable argument lists

Output methods

Input methods

String constants

13.1. X Locale Management

X supports one or more of the locales defined by the host environment. On implementations that conform to the ANSI C library, the locale announcement method is setlocale. This function configures the locale operation of both the host C library and Xlib. The operation of Xlib is governed by the LC_CTYPE category; this is called the current locale. An implementation is permitted to provide implementation-dependent mechanisms for announcing the locale in addition to setlo-

cale.

253

Xlib − C Library libX11 1.3.2

On implementations that do not conform to the ANSI C library, the locale announcement method is Xlib implementation-dependent.

The mechanism by which the semantic operation of Xlib is defined for a specific locale is implementation-dependent.

X is not required to support all the locales supported by the host. To determine if the current locale is supported by X, use XSupportsLocale.

Bool XSupportsLocale( )

The XSupportsLocale function returns True if Xlib functions are capable of operating under the current locale. If it returns False, Xlib locale-dependent functions for which the XLocaleNot-

Supported return status is defined will return XLocaleNotSupported. Other Xlib locale-dependent routines will operate in the ‘‘C’’ locale.

The client is responsible for selecting its locale and X modifiers. Clients should provide a means for the user to override the clients’ locale selection at client invocation. Most single-display X clients operate in a single locale for both X and the host processing environment. They will configure the locale by calling three functions: the host locale configuration function, XSupportsLo-

cale, and XSetLocaleModifiers.

The semantics of certain categories of X internationalization capabilities can be configured by setting modifiers. Modifiers are named by implementation-dependent and locale-specific strings.

The only standard use for this capability at present is selecting one of several styles of keyboard input method.

To configure Xlib locale modifiers for the current locale, use XSetLocaleModifiers.

char *XSetLocaleModifiers(modifier_list) char *modifier_list;

modifier_list

Specifies the modifiers.

The XSetLocaleModifiers function sets the X modifiers for the current locale setting. The modifier_list argument is a null-terminated string of the form ‘‘{@category=value}’’, that is, having zero or more concatenated ‘‘@category=value’’ entries, where category is a category name and

value is the (possibly empty) setting for that category. The values are encoded in the current locale. Category names are restricted to the POSIX Portable Filename Character Set.

The local host X locale modifiers announcer (on POSIX-compliant systems, the XMODIFIERS environment variable) is appended to the modifier_list to provide default values on the local host.

If a given category appears more than once in the list, the first setting in the list is used. If a given category is not included in the full modifier list, the category is set to an implementation-dependent default for the current locale. An empty value for a category explicitly specifies the implementation-dependent default.

If the function is successful, it returns a pointer to a string. The contents of the string are such that a subsequent call with that string (in the same locale) will restore the modifiers to the same settings. If modifier_list is a NULL pointer, XSetLocaleModifiers also returns a pointer to such a string, and the current locale modifiers are not changed.

If invalid values are given for one or more modifier categories supported by the locale, a NULL pointer is returned, and none of the current modifiers are changed.

At program startup, the modifiers that are in effect are unspecified until the first successful call to set them. Whenever the locale is changed, the modifiers that are in effect become unspecified until the next successful call to set them. Clients should always call XSetLocaleModifiers with

254

Xlib − C Library libX11 1.3.2

a non-NULL modifier_list after setting the locale before they call any locale-dependent Xlib routine.

The only standard modifier category currently defined is ‘‘im’’, which identifies the desired input method. The values for input method are not standardized. A single locale may use multiple input methods, switching input method under user control. The modifier may specify the initial input method in effect or an ordered list of input methods. Multiple input methods may be specified in a single im value string in an implementation-dependent manner.

The returned modifiers string is owned by Xlib and should not be modified or freed by the client.

It may be freed by Xlib after the current locale or modifiers are changed. Until freed, it will not be modified by Xlib.

The recommended procedure for clients initializing their locale and modifiers is to obtain locale and modifier announcers separately from one of the following prioritized sources:

• A command line option

A resource

The empty string ("")

The first of these that is defined should be used. Note that when a locale command line option or locale resource is defined, the effect should be to set all categories to the specified locale, overriding any category-specific settings in the local host environment.

13.2. Locale and Modifier Dependencies

The internationalized Xlib functions operate in the current locale configured by the host environment and X locale modifiers set by XSetLocaleModifiers or in the locale and modifiers configured at the time some object supplied to the function was created. For each locale-dependent function, the following table describes the locale (and modifiers) dependency:

Locale from Affects the Function In setlocale setlocale

XrmDatabase setlocale setlocale

Locale Query/Configuration:

XSupportsLocale

XSetLocaleModifiers

Resources:

XrmGetFileDatabase

XrmGetStringDatabase

XrmPutFileDatabase

XrmLocaleOfDatabase

Setting Standard Properties:

XmbSetWMProperties

Locale queried

Locale modified

Locale of XrmDatabase

Locale of XrmDatabase

Encoding of supplied/returned text (some WM_ property text in environment locale)

Encoding of supplied/returned text

XmbTextPropertyToTextList

XwcTextPropertyToTextList

XmbTextListToTextProperty

XwcTextListToTextProperty

Te xt Input:

255

Xlib − C Library libX11 1.3.2

Locale from Affects the Function setlocale

XIM

XIC setlocale

XOM

XFontSet setlocale

XOpenIM

XRegisterIMInstantiateCallback

XUnregisterIMInstantiateCallback

XCreateIC

XLocaleOfIM, and so on

XmbLookupString

XwcLookupString

Te xt Drawing:

XOpenOM

XCreateFontSet

XCreateOC

XLocaleOfOM, and so on

XmbDrawText,

XwcDrawText, and so on

XExtentsOfFontSet, and so on

XmbTextExtents,

XwcTextExtents, and so on

Xlib Errors:

XGetErrorDatabaseText

XGetErrorText

In

XIM input method selection

XIM selection

XIM selection

XIC input method configuration

Queried locale

Ke yboard layout

Encoding of returned text

XOM output method selection

Charsets of fonts in XFontSet

XOC output method configuration

Queried locale

Locale of supplied text

Locale of supplied text

Locale-dependent metrics

Locale of error message

Clients may assume that a locale-encoded text string returned by an X function can be passed to a

C library routine, or vice versa, if the locale is the same at the two calls.

All text strings processed by internationalized Xlib functions are assumed to begin in the initial state of the encoding of the locale, if the encoding is state-dependent.

All Xlib functions behave as if they do not change the current locale or X modifier setting. (This means that if they do change locale or call XSetLocaleModifiers with a non-NULL argument, they must save and restore the current state on entry and exit.) Also, Xlib functions on implementations that conform to the ANSI C library do not alter the global state associated with the ANSI

C functions mblen, mbtowc, wctomb, and strtok.

13.3. Variable Argument Lists

Various functions in this chapter have arguments that conform to the ANSI C variable argument list calling convention. Each function denoted with an argument of the form ‘‘...’’ takes a variable-length list of name and value pairs, where each name is a string and each value is of type

XPointer. A name argument that is NULL identifies the end of the list.

A variable-length argument list may contain a nested list. If the name XNVaNestedList is specified in place of an argument name, then the following value is interpreted as an XVaNestedList value that specifies a list of values logically inserted into the original list at the point of declaration. A NULL identifies the end of a nested list.

To allocate a nested variable argument list dynamically, use XVaCreateNestedList.

256

Xlib − C Library libX11 1.3.2

typedef void * XVaNestedList;

XVaNestedList XVaCreateNestedList (dummy, ...) int dummy;

dummy

Specifies an unused argument (required by ANSI C).

... Specifies the variable length argument list.

The XVaCreateNestedList function allocates memory and copies its arguments into a single list pointer, which may be used as a value for arguments requiring a list value. Any entries are copied as specified. Data passed by reference is not copied; the caller must ensure data remains valid for the lifetime of the nested list. The list should be freed using XFree when it is no longer needed.

13.4. Output Methods

This section provides discussions of the following X Output Method (XOM) topics:

Output method overview

Output method functions

Output method values

Output context functions

Output context values

Creating and freeing a font set

Obtaining font set metrics

Drawing text using font sets

13.4.1. Output Method Overview

Locale-dependent text may include one or more text components, each of which may require different fonts and character set encodings. In some languages, each component might have a different drawing direction, and some components might contain context-dependent characters that change shape based on relationships with neighboring characters.

When drawing such locale-dependent text, some locale-specific knowledge is required; for example, what fonts are required to draw the text, how the text can be separated into components, and which fonts are selected to draw each component. Further, when bidirectional text must be drawn, the internal representation order of the text must be changed into the visual representation order to be drawn.

An X Output Method provides a functional interface so that clients do not have to deal directly with such locale-dependent details. Output methods provide the following capabilities:

Creating a set of fonts required to draw locale-dependent text.

Drawing locale-dependent text with a font set without the caller needing to be aware of locale dependencies.

Obtaining the escapement and extents in pixels of locale-dependent text.

Determining if bidirectional or context-dependent drawing is required in a specific locale with a specific font set.

Tw o different abstractions are used in the representation of the output method for clients.

The abstraction used to communicate with an output method is an opaque data structure represented by the XOM data type. The abstraction for representing the state of a particular output thread is called an output context. The Xlib representation of an output context is an XOC, which is compatible with XFontSet in terms of its functional interface, but is a broader, more generalized abstraction.

257

Xlib − C Library libX11 1.3.2

13.4.2. Output Method Functions

To open an output method, use XOpenOM.

XOM XOpenOM(display, db, res_name, res_class)

Display *display;

XrmDatabase db; char *res_name; char *res_class;

display db res_name res_class

Specifies the connection to the X server.

Specifies a pointer to the resource database.

Specifies the full resource name of the application.

Specifies the full class name of the application.

The XOpenOM function opens an output method matching the current locale and modifiers specification. The current locale and modifiers are bound to the output method when XOpenOM is called. The locale associated with an output method cannot be changed.

The specific output method to which this call will be routed is identified on the basis of the current locale and modifiers. XOpenOM will identify a default output method corresponding to the current locale. That default can be modified using XSetLocaleModifiers to set the output method modifier.

The db argument is the resource database to be used by the output method for looking up resources that are private to the output method. It is not intended that this database be used to look up values that can be set as OC values in an output context. If db is NULL, no database is passed to the output method.

The res_name and res_class arguments specify the resource name and class of the application.

They are intended to be used as prefixes by the output method when looking up resources that are common to all output contexts that may be created for this output method. The characters used for resource names and classes must be in the X Portable Character Set. The resources looked up are not fully specified if res_name or res_class is NULL.

The res_name and res_class arguments are not assumed to exist beyond the call to XOpenOM.

The specified resource database is assumed to exist for the lifetime of the output method.

XOpenOM returns NULL if no output method could be opened.

To close an output method, use XCloseOM.

Status XCloseOM(om)

XOM om;

om

Specifies the output method.

The XCloseOM function closes the specified output method.

To set output method attributes, use XSetOMValues.

258

Xlib − C Library libX11 1.3.2

char * XSetOMValues (om, ...)

XOM om;

om

Specifies the output method.

... Specifies the variable-length argument list to set XOM values.

The XSetOMValues function presents a variable argument list programming interface for setting properties or features of the specified output method. This function returns NULL if it succeeds; otherwise, it returns the name of the first argument that could not be obtained.

No standard arguments are currently defined by Xlib.

To query an output method, use XGetOMValues.

char * XGetOMValues (om, ...)

XOM om;

om

Specifies the output method.

... Specifies the variable-length argument list to get XOM values.

The XGetOMValues function presents a variable argument list programming interface for querying properties or features of the specified output method. This function returns NULL if it succeeds; otherwise, it returns the name of the first argument that could not be obtained.

To obtain the display associated with an output method, use XDisplayOfOM.

Display * XDisplayOfOM(om)

XOM om;

om

Specifies the output method.

The XDisplayOfOM function returns the display associated with the specified output method.

To get the locale associated with an output method, use XLocaleOfOM.

char * XLocaleOfOM(om)

XOM om;

om

Specifies the output method.

The XLocaleOfOM returns the locale associated with the specified output method.

13.4.3. X Output Method Values

The following table describes how XOM values are interpreted by an output method. The first column lists the XOM values. The second column indicates how each of the XOM values are treated by a particular output style.

The following key applies to this table.

Key Explanation

259

Xlib − C Library libX11 1.3.2

Key

G

Explanation

This value may be read using XGetOMValues.

XOM Value Key

XNRequiredCharSet

XNQueryOrientation

XNDirectionalDependentDrawing

XNContextualDrawing

G

G

G

G

13.4.3.1. Required Char Set

The XNRequiredCharSet argument returns the list of charsets that are required for loading the fonts needed for the locale. The value of the argument is a pointer to a structure of type XOM-

CharSetList.

The XOMCharSetList structure is defined as follows: typedef struct { int charset_count; char **charset_list;

} XOMCharSetList;

The charset_list member is a list of one or more null-terminated charset names, and the charset_count member is the number of charset names.

The required charset list is owned by Xlib and should not be modified or freed by the client. It will be freed by a call to XCloseOM with the associated XOM. Until freed, its contents will not be modified by Xlib.

13.4.3.2. Query Orientation

The XNQueryOrientation argument returns the global orientation of text when drawn. Other than XOMOrientation_LTR_TTB, the set of orientations supported is locale-dependent. The value of the argument is a pointer to a structure of type XOMOrientation. Clients are responsible for freeing the XOMOrientation structure by using XFree; this also frees the contents of the structure.

260

Xlib − C Library libX11 1.3.2

typedef struct { int num_orientation;

XOrientation *orientation;

} XOMOrientation; typedef enum {

XOMOrientation_LTR_TTB,

XOMOrientation_RTL_TTB,

XOMOrientation_TTB_LTR,

XOMOrientation_TTB_RTL,

XOMOrientation_Context

} XOrientation;

/* Input Text description */

The possible value for XOrientation may be:

XOMOrientation_LTR_TTB left-to-right, top-to-bottom global orientation

XOMOrientation_RTL_TTB right-to-left, top-to-bottom global orientation

XOMOrientation_TTB_LTR top-to-bottom, left-to-right global orientation

XOMOrientation_TTB_RTL top-to-bottom, right-to-left global orientation

XOMOrientation_Context contextual global orientation

13.4.3.3. Directional Dependent Drawing

The XNDirectionalDependentDrawing argument indicates whether the text rendering functions implement implicit handling of directional text. If this value is True, the output method has knowledge of directional dependencies and reorders text as necessary when rendering text. If this value is False, the output method does not implement any directional text handling, and all character directions are assumed to be left-to-right.

Regardless of the rendering order of characters, the origins of all characters are on the primary draw direction side of the drawing origin.

This OM value presents functionality identical to the XDirectionalDependentDrawing function.

13.4.3.4. Context Dependent Drawing

The XNContextualDrawing argument indicates whether the text rendering functions implement implicit context-dependent drawing. If this value is True, the output method has knowledge of context dependencies and performs character shape editing, combining glyphs to present a single character as necessary. The actual shape editing is dependent on the locale implementation and the font set used.

This OM value presents functionality identical to the XContextualDrawing function.

13.4.4. Output Context Functions

An output context is an abstraction that contains both the data required by an output method and the information required to display that data. There can be multiple output contexts for one output method. The programming interfaces for creating, reading, or modifying an output context use a variable argument list. The name elements of the argument lists are referred to as XOC values. It is intended that output methods be controlled by these XOC values. As new XOC values are created, they should be registered with the X Consortium. An XOC can be used anywhere an

XFontSet can be used, and vice versa; XFontSet is retained for compatibility with previous releases. The concepts of output methods and output contexts include broader, more generalized abstraction than font set, supporting complex and more intelligent text display, and dealing not only with multiple fonts but also with context dependencies. However, XFontSet is widely used

261

Xlib − C Library libX11 1.3.2

in several interfaces, so XOC is defined as an upward compatible type of XFontSet.

To create an output context, use XCreateOC.

XOC XCreateOC(om, ...)

XOM om;

om

Specifies the output method.

... Specifies the variable-length argument list to set XOC values.

The XCreateOC function creates an output context within the specified output method.

The base font names argument is mandatory at creation time, and the output context will not be created unless it is provided. All other output context values can be set later.

XCreateOC returns NULL if no output context could be created. NULL can be returned for any of the following reasons:

• A required argument was not set.

A read-only argument was set.

An argument name is not recognized.

• The output method encountered an output method implementation-dependent error.

XCreateOC can generate a BadAtom error.

To destroy an output context, use XDestroyOC.

void XDestroyOC (oc)

XOC oc;

oc

Specifies the output context.

The XDestroyOC function destroys the specified output context.

To get the output method associated with an output context, use XOMOfOC.

XOM XOMOfOC(oc)

XOC oc;

oc

Specifies the output context.

The XOMOfOC function returns the output method associated with the specified output context.

Xlib provides two functions for setting and reading output context values, respectively, XSetOC-

Values and XGetOCValues. Both functions have a variable-length argument list. In that argument list, any XOC value’s name must be denoted with a character string using the X Portable

Character Set.

To set XOC values, use XSetOCValues.

262

Xlib − C Library libX11 1.3.2

char * XSetOCValues (oc, ...)

XOC oc;

oc

Specifies the output context.

... Specifies the variable-length argument list to set XOC values.

The XSetOCValues function returns NULL if no error occurred; otherwise, it returns the name of the first argument that could not be set. An argument might not be set for any of the following reasons:

• The argument is read-only.

The argument name is not recognized.

An implementation-dependent error occurs.

Each value to be set must be an appropriate datum, matching the data type imposed by the semantics of the argument.

XSetOCValues can generate a BadAtom error.

To obtain XOC values, use XGetOCValues.

char * XGetOCValues (oc, ...)

XOC oc;

oc

Specifies the output context.

... Specifies the variable-length argument list to get XOC values.

Key

C

D

G

S

The XGetOCValues function returns NULL if no error occurred; otherwise, it returns the name of the first argument that could not be obtained. An argument might not be obtained for any of the following reasons:

The argument name is not recognized.

An implementation-dependent error occurs.

Each argument value following a name must point to a location where the value is to be stored.

13.4.5. Output Context Values

The following table describes how XOC values are interpreted by an output method. The first column lists the XOC values. The second column indicates the alternative interfaces that function identically and are provided for compatibility with previous releases. The third column indicates how each of the XOC values is treated.

The following keys apply to this table.

Explanation

This value must be set with XCreateOC.

This value may be set using XCreateOC. If it is not set, a default is provided.

This value may be read using XGetOCValues.

This value must be set using XSetOCValues.

XOC Value Alternative Interface Key

263

Xlib − C Library libX11 1.3.2

XOC Value Alternative Interface Key

BaseFontName

MissingCharSet

DefaultString

Orientation

ResourceName

ResourceClass

FontInfo

OMAutomatic

XCreateFontSet

XCreateFontSet

XCreateFontSet

XFontsOfFontSet

C-G

G

G

D-S-G

S-G

S-G

G

G

13.4.5.1. Base Font Name

The XNBaseFontName argument is a list of base font names that Xlib uses to load the fonts needed for the locale. The base font names are a comma-separated list. The string is null-terminated and is assumed to be in the Host Portable Character Encoding; otherwise, the result is implementation-dependent. White space immediately on either side of a separating comma is ignored.

Use of XLFD font names permits Xlib to obtain the fonts needed for a variety of locales from a single locale-independent base font name. The single base font name should name a family of fonts whose members are encoded in the various charsets needed by the locales of interest.

An XLFD base font name can explicitly name a charset needed for the locale. This allows the user to specify an exact font for use with a charset required by a locale, fully controlling the font selection.

If a base font name is not an XLFD name, Xlib will attempt to obtain an XLFD name from the font properties for the font. If Xlib is successful, the XGetOCValues function will return this

XLFD name instead of the client-supplied name.

This argument must be set at creation time and cannot be changed. If no fonts exist for any of the required charsets, or if the locale definition in Xlib requires that a font exist for a particular charset and a font is not found for that charset, XCreateOC returns NULL.

When querying for the XNBaseFontName XOC value, XGetOCValues returns a null-terminated string identifying the base font names that Xlib used to load the fonts needed for the locale.

This string is owned by Xlib and should not be modified or freed by the client. The string will be freed by a call to XDestroyOC with the associated XOC. Until freed, the string contents will not be modified by Xlib.

13.4.5.2. Missing CharSet

The XNMissingCharSet argument returns the list of required charsets that are missing from the font set. The value of the argument is a pointer to a structure of type XOMCharSetList.

If fonts exist for all of the charsets required by the current locale, charset_list is set to NULL and charset_count is set to zero. If no fonts exist for one or more of the required charsets, charset_list is set to a list of one or more null-terminated charset names for which no fonts exist, and charset_count is set to the number of missing charsets. The charsets are from the list of the required charsets for the encoding of the locale and do not include any charsets to which Xlib may be able to remap a required charset.

The missing charset list is owned by Xlib and should not be modified or freed by the client. It will be freed by a call to XDestroyOC with the associated XOC. Until freed, its contents will not be modified by Xlib.

264

Xlib − C Library libX11 1.3.2

13.4.5.3. Default String

When a drawing or measuring function is called with an XOC that has missing charsets, some characters in the locale will not be drawable. The XNDefaultString argument returns a pointer to a string that represents the glyphs that are drawn with this XOC when the charsets of the available fonts do not include all glyphs required to draw a character. The string does not necessarily consist of valid characters in the current locale and is not necessarily drawn with the fonts loaded for the font set, but the client can draw or measure the default glyphs by including this string in a string being drawn or measured with the XOC.

If the XNDefaultString argument returned the empty string (""), no glyphs are drawn and the escapement is zero. The returned string is null-terminated. It is owned by Xlib and should not be modified or freed by the client. It will be freed by a call to XDestroyOC with the associated

XOC. Until freed, its contents will not be modified by Xlib.

13.4.5.4. Orientation

The XNOrientation argument specifies the current orientation of text when drawn. The value of this argument is one of the values returned by the XGetOMValues function with the XNQuery-

Orientation argument specified in the XOrientation list. The value of the argument is of type

XOrientation. When XNOrientation is queried, the value specifies the current orientation.

When XNOrientation is set, a value is used to set the current orientation.

When XOMOrientation_Context is set, the text orientation of the text is determined according to an implementation-defined method (for example, ISO 6429 control sequences), and the initial text orientation for locale-dependent Xlib functions is assumed to be XOMOrienta-

tion_LTR_TTB.

The XNOrientation value does not change the prime drawing direction for Xlib drawing functions.

13.4.5.5. Resource Name and Class

The XNResourceName and XNResourceClass arguments are strings that specify the full name and class used by the client to obtain resources for the display of the output context. These values should be used as prefixes for name and class when looking up resources that may vary according to the output context. If these values are not set, the resources will not be fully specified.

It is not intended that values that can be set as XOM values be set as resources.

When querying for the XNResourceName or XNResourceClass XOC value, XGetOCValues returns a null-terminated string. This string is owned by Xlib and should not be modified or freed by the client. The string will be freed by a call to XDestroyOC with the associated XOC or when the associated value is changed via XSetOCValues. Until freed, the string contents will not be modified by Xlib.

13.4.5.6. Font Info

The XNFontInfo argument specifies a list of one or more XFontStruct structures and font names for the fonts used for drawing by the given output context. The value of the argument is a pointer to a structure of type XOMFontInfo.

typedef struct { int num_font;

XFontStruct **font_struct_list; char **font_name_list;

} XOMFontInfo;

A list of pointers to the XFontStruct structures is returned to font_struct_list. A list of pointers

265

Xlib − C Library libX11 1.3.2

to null-terminated, fully-specified font name strings in the locale of the output context is returned to font_name_list. The font_name_list order corresponds to the font_struct_list order. The number of XFontStruct structures and font names is returned to num_font.

Because it is not guaranteed that a given character will be imaged using a single font glyph, there is no provision for mapping a character or default string to the font properties, font ID, or direction hint for the font for the character. The client may access the XFontStruct list to obtain these values for all the fonts currently in use.

Xlib does not guarantee that fonts are loaded from the server at the creation of an XOC. Xlib may choose to cache font data, loading it only as needed to draw text or compute text dimensions.

Therefore, existence of the per_char metrics in the XFontStruct structures in the XFontStruct-

Set is undefined. Also, note that all properties in the XFontStruct structures are in the STRING encoding.

The client must not free the XOMFontInfo struct itself; it will be freed when the XOC is closed.

13.4.5.7. OM Automatic

The XNOMAutomatic argument returns whether the associated output context was created by

XCreateFontSet or not. Because the XFreeFontSet function not only destroys the output context but also closes the implicit output method associated with it, XFreeFontSet should be used with any output context created by XCreateFontSet. Howev er, it is possible that a client does not know how the output context was created. Before a client destroys the output context, it can query whether XNOMAutomatic is set to determine whether XFreeFontSet or XDestroyOC should be used to destroy the output context.

13.4.6. Creating and Freeing a Font Set

Xlib international text drawing is done using a set of one or more fonts, as needed for the locale of the text. Fonts are loaded according to a list of base font names supplied by the client and the charsets required by the locale. The XFontSet is an opaque type representing the state of a particular output thread and is equivalent to the type XOC.

The XCreateFontSet function is a convenience function for creating an output context using only default values. The returned XFontSet has an implicitly created XOM. This XOM has an

OM value XNOMAutomatic automatically set to True so that the output context self indicates whether it was created by XCreateOC or XCreateFontSet.

266

Xlib − C Library libX11 1.3.2

XFontSet XCreateFontSet (display, base_font_name_list, missing_charset_list_return,

missing_charset_count_return, def_string_return)

Display *display; char *base_font_name_list; char ***missing_charset_list_return; int *missing_charset_count_return; char **def_string_return;

display

Specifies the connection to the X server.

base_font_name_list

Specifies the base font names.

missing_charset_list_return

Returns the missing charsets.

missing_charset_count_return

Returns the number of missing charsets.

def_string_returnReturns the string drawn for missing charsets.

The XCreateFontSet function creates a font set for the specified display. The font set is bound to the current locale when XCreateFontSet is called. The font set may be used in subsequent calls to obtain font and character information and to image text in the locale of the font set.

The base_font_name_list argument is a list of base font names that Xlib uses to load the fonts needed for the locale. The base font names are a comma-separated list. The string is null-terminated and is assumed to be in the Host Portable Character Encoding; otherwise, the result is implementation-dependent. White space immediately on either side of a separating comma is ignored.

Use of XLFD font names permits Xlib to obtain the fonts needed for a variety of locales from a single locale-independent base font name. The single base font name should name a family of fonts whose members are encoded in the various charsets needed by the locales of interest.

An XLFD base font name can explicitly name a charset needed for the locale. This allows the user to specify an exact font for use with a charset required by a locale, fully controlling the font selection.

If a base font name is not an XLFD name, Xlib will attempt to obtain an XLFD name from the font properties for the font. If this action is successful in obtaining an XLFD name, the XBase-

FontNameListOfFontSet function will return this XLFD name instead of the client-supplied name.

Xlib uses the following algorithm to select the fonts that will be used to display text with the

XFontSet.

For each font charset required by the locale, the base font name list is searched for the first appearance of one of the following cases that names a set of fonts that exist at the server:

The first XLFD-conforming base font name that specifies the required charset or a superset of the required charset in its CharSetRegistry and CharSetEncoding fields. The implementation may use a base font name whose specified charset is a superset of the required charset, for example, an ISO8859-1 font for an ASCII charset.

The first set of one or more XLFD-conforming base font names that specify one or more charsets that can be remapped to support the required charset. The Xlib implementation may recognize various mappings from a required charset to one or more other charsets and use the fonts for those charsets. For example, JIS Roman is ASCII with tilde and backslash replaced by yen and overbar; Xlib may load an ISO8859-1 font to support this character set if a JIS Roman font is not available.

267

Xlib − C Library libX11 1.3.2

The first XLFD-conforming font name or the first non-XLFD font name for which an

XLFD font name can be obtained, combined with the required charset (replacing the

CharSetRegistry and CharSetEncoding fields in the XLFD font name). As in case 1, the implementation may use a charset that is a superset of the required charset.

The first font name that can be mapped in some implementation-dependent manner to one or more fonts that support imaging text in the charset.

For example, assume that a locale required the charsets:

ISO8859-1

JISX0208.1983

JISX0201.1976

GB2312-1980.0

The user could supply a base_font_name_list that explicitly specifies the charsets, ensuring that specific fonts are used if they exist. For example:

"-JIS-Fixed-Medium-R-Normal--26-180-100-100-C-240-JISX0208.1983-0,\

-JIS-Fixed-Medium-R-Normal--26-180-100-100-C-120-JISX0201.1976-0,\

-GB-Fixed-Medium-R-Normal--26-180-100-100-C-240-GB2312-1980.0,\

-Adobe-Courier-Bold-R-Normal--25-180-75-75-M-150-ISO8859-1"

Alternatively, the user could supply a base_font_name_list that omits the charsets, letting Xlib select font charsets required for the locale. For example:

"-JIS-Fixed-Medium-R-Normal--26-180-100-100-C-240,\

-JIS-Fixed-Medium-R-Normal--26-180-100-100-C-120,\

-GB-Fixed-Medium-R-Normal--26-180-100-100-C-240,\

-Adobe-Courier-Bold-R-Normal--25-180-100-100-M-150"

Alternatively, the user could simply supply a single base font name that allows Xlib to select from all available fonts that meet certain minimum XLFD property requirements. For example:

"-*-*-*-R-Normal--*-180-100-100-*-*"

If XCreateFontSet is unable to create the font set, either because there is insufficient memory or because the current locale is not supported, XCreateFontSet returns NULL, missing_charset_list_return is set to NULL, and missing_charset_count_return is set to zero. If fonts exist for all of the charsets required by the current locale, XCreateFontSet returns a valid

XFontSet, missing_charset_list_return is set to NULL, and missing_charset_count_return is set to zero.

If no font exists for one or more of the required charsets, XCreateFontSet sets missing_charset_list_return to a list of one or more null-terminated charset names for which no font exists and sets missing_charset_count_return to the number of missing fonts. The charsets are from the list of the required charsets for the encoding of the locale and do not include any charsets to which Xlib may be able to remap a required charset.

If no font exists for any of the required charsets or if the locale definition in Xlib requires that a font exist for a particular charset and a font is not found for that charset, XCreateFontSet returns

NULL. Otherwise, XCreateFontSet returns a valid XFontSet to font_set.

When an Xmb/wc drawing or measuring function is called with an XFontSet that has missing charsets, some characters in the locale will not be drawable. If def_string_return is non-NULL,

XCreateFontSet returns a pointer to a string that represents the glyphs that are drawn with this

XFontSet when the charsets of the available fonts do not include all font glyphs required to draw a codepoint. The string does not necessarily consist of valid characters in the current locale and is not necessarily drawn with the fonts loaded for the font set, but the client can draw and measure the default glyphs by including this string in a string being drawn or measured with the

268

Xlib − C Library libX11 1.3.2

XFontSet.

If the string returned to def_string_return is the empty string (""), no glyphs are drawn, and the escapement is zero. The returned string is null-terminated. It is owned by Xlib and should not be modified or freed by the client. It will be freed by a call to XFreeFontSet with the associated

XFontSet. Until freed, its contents will not be modified by Xlib.

The client is responsible for constructing an error message from the missing charset and default string information and may choose to continue operation in the case that some fonts did not exist.

The returned XFontSet and missing charset list should be freed with XFreeFontSet and

XFreeStringList, respectively. The client-supplied base_font_name_list may be freed by the client after calling XCreateFontSet.

To obtain a list of XFontStruct structures and full font names given an XFontSet, use

XFontsOfFontSet.

int XFontsOfFontSet (font_set, font_struct_list_return, font_name_list_return)

XFontSet font_set;

XFontStruct ***font_struct_list_return; char ***font_name_list_return;

font_set

Specifies the font set.

font_struct_list_return

Returns the list of font structs.

font_name_list_return

Returns the list of font names.

The XFontsOfFontSet function returns a list of one or more XFontStructs and font names for the fonts used by the Xmb and Xwc layers for the given font set. A list of pointers to the

XFontStruct structures is returned to font_struct_list_return. A list of pointers to null-terminated, fully specified font name strings in the locale of the font set is returned to font_name_list_return. The font_name_list order corresponds to the font_struct_list order. The number of XFontStruct structures and font names is returned as the value of the function.

Because it is not guaranteed that a given character will be imaged using a single font glyph, there is no provision for mapping a character or default string to the font properties, font ID, or direction hint for the font for the character. The client may access the XFontStruct list to obtain these values for all the fonts currently in use.

Xlib does not guarantee that fonts are loaded from the server at the creation of an XFontSet.

Xlib may choose to cache font data, loading it only as needed to draw text or compute text dimensions. Therefore, existence of the per_char metrics in the XFontStruct structures in the

XFontStructSet is undefined. Also, note that all properties in the XFontStruct structures are in the STRING encoding.

The XFontStruct and font name lists are owned by Xlib and should not be modified or freed by the client. They will be freed by a call to XFreeFontSet with the associated XFontSet. Until freed, their contents will not be modified by Xlib.

To obtain the base font name list and the selected font name list given an XFontSet, use XBase-

FontNameListOfFontSet.

269

Xlib − C Library libX11 1.3.2

char *XBaseFontNameListOfFontSet (font_set)

XFontSet font_set;

font_set

Specifies the font set.

The XBaseFontNameListOfFontSet function returns the original base font name list supplied by the client when the XFontSet was created. A null-terminated string containing a list of comma-separated font names is returned as the value of the function. White space may appear immediately on either side of separating commas.

If XCreateFontSet obtained an XLFD name from the font properties for the font specified by a non-XLFD base name, the XBaseFontNameListOfFontSet function will return the XLFD name instead of the non-XLFD base name.

The base font name list is owned by Xlib and should not be modified or freed by the client. It will be freed by a call to XFreeFontSet with the associated XFontSet. Until freed, its contents will not be modified by Xlib.

To obtain the locale name given an XFontSet, use XLocaleOfFontSet.

char *XLocaleOfFontSet (font_set)

XFontSet font_set;

font_set

Specifies the font set.

The XLocaleOfFontSet function returns the name of the locale bound to the specified

XFontSet, as a null-terminated string.

The returned locale name string is owned by Xlib and should not be modified or freed by the client. It may be freed by a call to XFreeFontSet with the associated XFontSet. Until freed, it will not be modified by Xlib.

The XFreeFontSet function is a convenience function for freeing an output context. XFree-

FontSet also frees its associated XOM if the output context was created by XCreateFontSet.

void XFreeFontSet (display, font_set)

Display *display;

XFontSet font_set;

display font_set

Specifies the connection to the X server.

Specifies the font set.

The XFreeFontSet function frees the specified font set. The associated base font name list, font name list, XFontStruct list, and XFontSetExtents, if any, are freed.

13.4.7. Obtaining Font Set Metrics

Metrics for the internationalized text drawing functions are defined in terms of a primary draw direction, which is the default direction in which the character origin advances for each succeeding character in the string. The Xlib interface is currently defined to support only a left-to-right primary draw direction. The drawing origin is the position passed to the drawing function when the text is drawn. The baseline is a line drawn through the drawing origin parallel to the primary draw direction. Character ink is the pixels painted in the foreground color and does not include interline or intercharacter spacing or image text background pixels.

270

Xlib − C Library libX11 1.3.2

The drawing functions are allowed to implement implicit text directionality control, reversing the order in which characters are rendered along the primary draw direction in response to locale-specific lexical analysis of the string.

Regardless of the character rendering order, the origins of all characters are on the primary draw direction side of the drawing origin. The screen location of a particular character image may be determined with XmbTextPerCharExtents or XwcTextPerCharExtents.

The drawing functions are allowed to implement context-dependent rendering, where the glyphs drawn for a string are not simply a concatenation of the glyphs that represent each individual character. A string of two characters drawn with XmbDrawString may render differently than if the two characters were drawn with separate calls to XmbDrawString. If the client appends or inserts a character in a previously drawn string, the client may need to redraw some adjacent characters to obtain proper rendering.

To find out about direction-dependent rendering, use XDirectionalDependentDrawing.

Bool XDirectionalDependentDrawing (font_set)

XFontSet font_set;

font_set

Specifies the font set.

The XDirectionalDependentDrawing function returns True if the drawing functions implement implicit text directionality; otherwise, it returns False.

To find out about context-dependent rendering, use XContextualDrawing.

Bool XContextualDrawing (font_set)

XFontSet font_set;

font_set

Specifies the font set.

The XContextualDrawing function returns True if text drawn with the font set might include context-dependent drawing; otherwise, it returns False.

To find out about context-dependent or direction-dependent rendering, use XContextDependent-

Drawing.

Bool XContextDependentDrawing (font_set)

XFontSet font_set;

font_set

Specifies the font set.

The XContextDependentDrawing function returns True if the drawing functions implement implicit text directionality or if text drawn with the font_set might include context-dependent drawing; otherwise, it returns False.

The drawing functions do not interpret newline, tab, or other control characters. The behavior when nonprinting characters other than space are drawn is implementation-dependent. It is the client’s responsibility to interpret control characters in a text stream.

The maximum character extents for the fonts that are used by the text drawing layers can be accessed by the XFontSetExtents structure: typedef struct {

XRectangle max_ink_extent; /* over all drawable characters */

271

Xlib − C Library libX11 1.3.2

XRectangle max_logical_extent; /* over all drawable characters */

} XFontSetExtents;

The XRectangle structures used to return font set metrics are the usual Xlib screen-oriented rectangles with x, y giving the upper left corner, and width and height always positive.

The max_ink_extent member gives the maximum extent, over all drawable characters, of the rectangles that bound the character glyph image drawn in the foreground color, relative to a constant origin. See XmbTextExtents and XwcTextExtents for detailed semantics.

The max_logical_extent member gives the maximum extent, over all drawable characters, of the rectangles that specify minimum spacing to other graphical features, relative to a constant origin.

Other graphical features drawn by the client, for example, a border surrounding the text, should not intersect this rectangle. The max_logical_extent member should be used to compute minimum interline spacing and the minimum area that must be allowed in a text field to draw a giv en number of arbitrary characters.

Due to context-dependent rendering, appending a given character to a string may change the string’s extent by an amount other than that character’s individual extent.

The rectangles for a given character in a string can be obtained from XmbPerCharExtents or

XwcPerCharExtents.

To obtain the maximum extents structure given an XFontSet, use XExtentsOfFontSet.

XFontSetExtents *XExtentsOfFontSet (font_set)

XFontSet font_set;

font_set

Specifies the font set.

The XExtentsOfFontSet function returns an XFontSetExtents structure for the fonts used by the Xmb and Xwc layers for the given font set.

The XFontSetExtents structure is owned by Xlib and should not be modified or freed by the client. It will be freed by a call to XFreeFontSet with the associated XFontSet. Until freed, its contents will not be modified by Xlib.

To obtain the escapement in pixels of the specified text as a value, use XmbTextEscapement or

XwcTextEscapement.

int XmbTextEscapement (font_set, string, num_bytes)

XFontSet font_set; char *string; int num_bytes; int XwcTextEscapement (font_set, string, num_wchars)

XFontSet font_set; wchar_t *string; int num_wchars;

font_set string num_bytes

Specifies the font set.

Specifies the character string.

Specifies the number of bytes in the string argument.

num_wchars

Specifies the number of characters in the string argument.

The XmbTextEscapement and XwcTextEscapement functions return the escapement in pixels of the specified string as a value, using the fonts loaded for the specified font set. The escapement

272

Xlib − C Library libX11 1.3.2

is the distance in pixels in the primary draw direction from the drawing origin to the origin of the next character to be drawn, assuming that the rendering of the next character is not dependent on the supplied string.

Regardless of the character rendering order, the escapement is always positive.

To obtain the overall_ink_return and overall_logical_return arguments, the overall bounding box of the string’s image, and a logical bounding box, use XmbTextExtents or XwcTextExtents.

int XmbTextExtents (font_set, string, num_bytes, overall_ink_return, overall_logical_return)

XFontSet font_set; char *string; int num_bytes;

XRectangle *overall_ink_return;

XRectangle *overall_logical_return; int XwcTextExtents (font_set, string, num_wchars,

overall_ink_return, overall_logical_return)

XFontSet font_set; wchar_t *string; int num_wchars;

XRectangle *overall_ink_return;

XRectangle *overall_logical_return;

font_set string num_bytes

Specifies the font set.

Specifies the character string.

Specifies the number of bytes in the string argument.

num_wchars

Specifies the number of characters in the string argument.

overall_ink_return

Returns the overall ink dimensions.

overall_logical_return

Returns the overall logical dimensions.

The XmbTextExtents and XwcTextExtents functions set the components of the specified overall_ink_return and overall_logical_return arguments to the overall bounding box of the string’s image and a logical bounding box for spacing purposes, respectively. They return the value returned by XmbTextEscapement or XwcTextEscapement. These metrics are relative to the drawing origin of the string, using the fonts loaded for the specified font set.

If the overall_ink_return argument is non-NULL, it is set to the bounding box of the string’s character ink. The overall_ink_return for a nondescending, horizontally drawn Latin character is conventionally entirely above the baseline; that is, overall_ink_return.height <= −overall_ink_return.y. The overall_ink_return for a nonkerned character is entirely at, and to the right of, the origin; that is, overall_ink_return.x >= 0. A character consisting of a single pixel at the origin would set overall_ink_return fields y = 0, x = 0, width = 1, and height = 1.

If the overall_logical_return argument is non-NULL, it is set to the bounding box that provides minimum spacing to other graphical features for the string. Other graphical features, for example, a border surrounding the text, should not intersect this rectangle.

When the XFontSet has missing charsets, metrics for each unavailable character are taken from the default string returned by XCreateFontSet so that the metrics represent the text as it will actually be drawn. The behavior for an invalid codepoint is undefined.

273

Xlib − C Library libX11 1.3.2

To determine the effective drawing origin for a character in a drawn string, the client should call

XmbTextPerCharExtents on the entire string, then on the character, and subtract the x values of the returned rectangles for the character. This is useful to redraw portions of a line of text or to justify words, but for context-dependent rendering, the client should not assume that it can redraw the character by itself and get the same rendering.

To obtain per-character information for a text string, use XmbTextPerCharExtents or Xwc-

TextPerCharExtents.

Status XmbTextPerCharExtents (font_set, string, num_bytes, ink_array_return,

logical_array_return, array_size, num_chars_return, overall_ink_return, overall_logical_return)

XFontSet font_set; char *string; int num_bytes;

XRectangle *ink_array_return;

XRectangle *logical_array_return; int array_size; int *num_chars_return;

XRectangle *overall_ink_return;

XRectangle *overall_logical_return;

Status XwcTextPerCharExtents (font_set, string, num_wchars, ink_array_return,

logical_array_return, array_size, num_chars_return, overall_ink_return, overall_ink_return)

XFontSet font_set; wchar_t *string; int num_wchars;

XRectangle *ink_array_return;

XRectangle *logical_array_return; int array_size; int *num_chars_return;

XRectangle *overall_ink_return;

XRectangle *overall_logical_return;

font_set

Specifies the font set.

string num_bytes

Specifies the character string.

Specifies the number of bytes in the string argument.

num_wchars

Specifies the number of characters in the string argument.

ink_array_returnReturns the ink dimensions for each character.

logical_array_return

Returns the logical dimensions for each character.

array_size

Specifies the size of ink_array_return and logical_array_return. The caller must pass in arrays of this size.

num_chars_return

Returns the number of characters in the string argument.

overall_ink_return

Returns the overall ink extents of the entire string.

overall_logical_return

Returns the overall logical extents of the entire string.

The XmbTextPerCharExtents and XwcTextPerCharExtents functions return the text dimensions of each character of the specified text, using the fonts loaded for the specified font set. Each successive element of ink_array_return and logical_array_return is set to the successive

274

Xlib − C Library libX11 1.3.2

character’s drawn metrics, relative to the drawing origin of the string and one rectangle for each character in the supplied text string. The number of elements of ink_array_return and logical_array_return that have been set is returned to num_chars_return.

Each element of ink_array_return is set to the bounding box of the corresponding character’s drawn foreground color. Each element of logical_array_return is set to the bounding box that provides minimum spacing to other graphical features for the corresponding character. Other graphical features should not intersect any of the logical_array_return rectangles.

Note that an XRectangle represents the effective drawing dimensions of the character, reg ardless of the number of font glyphs that are used to draw the character or the direction in which the character is drawn. If multiple characters map to a single character glyph, the dimensions of all the

XRectangles of those characters are the same.

When the XFontSet has missing charsets, metrics for each unavailable character are taken from the default string returned by XCreateFontSet so that the metrics represent the text as it will actually be drawn. The behavior for an invalid codepoint is undefined.

If the array_size is too small for the number of characters in the supplied text, the functions return zero and num_chars_return is set to the number of rectangles required. Otherwise, the functions return a nonzero value.

If the overall_ink_return or overall_logical_return argument is non-NULL, XmbTextPer-

CharExtents and XwcTextPerCharExtents return the maximum extent of the string’s metrics to overall_ink_return or overall_logical_return, as returned by XmbTextExtents or XwcTextEx-

tents.

13.4.8. Drawing Text Using Font Sets

The functions defined in this section draw text at a specified location in a drawable. They are similar to the functions XDrawText, XDrawString, and XDrawImageString except that they work with font sets instead of single fonts and interpret the text based on the locale of the font set instead of treating the bytes of the string as direct font indexes. See section 8.6 for details of the use of Graphics Contexts (GCs) and possible protocol errors. If a BadFont error is generated, characters prior to the offending character may have been drawn.

The text is drawn using the fonts loaded for the specified font set; the font in the GC is ignored and may be modified by the functions. No validation that all fonts conform to some width rule is performed.

The text functions XmbDrawText and XwcDrawText use the following structures: typedef struct { char *chars; int nchars; int delta;

XFontSet font_set;

} XmbTextItem; typedef struct { wchar_t *chars; int nchars; int delta;

XFontSet font_set;

} XwcTextItem;

/* pointer to string */

/* number of bytes */

/* pixel delta between strings */

/* fonts, None means don’t change */

/* pointer to wide char string */

/* number of wide characters */

/* pixel delta between strings */

/* fonts, None means don’t change */

To draw text using multiple font sets in a given drawable, use XmbDrawText or XwcDrawText.

275

Xlib − C Library libX11 1.3.2

void XmbDrawText(display, d, gc, x, y, items, nitems)

Display *display;

Drawable d;

GC gc; int x, y;

XmbTextItem *items; int nitems; void XwcDrawText(display, d, gc, x, y, items, nitems)

Display *display;

Drawable d;

GC gc; int x, y;

XwcTextItem *items; int nitems;

display d gc x y items nitems

Specifies the connection to the X server.

Specifies the drawable.

Specifies the GC.

Specify the x and y coordinates.

Specifies an array of text items.

Specifies the number of text items in the array.

The XmbDrawText and XwcDrawText functions allow complex spacing and font set shifts between text strings. Each text item is processed in turn, with the origin of a text element advanced in the primary draw direction by the escapement of the previous text item. A text item delta specifies an additional escapement of the text item drawing origin in the primary draw direction. A font_set member other than None in an item causes the font set to be used for this and subsequent text items in the text_items list. Leading text items with a font_set member set to

None will not be drawn.

XmbDrawText and XwcDrawText do not perform any context-dependent rendering between text segments. Clients may compute the drawing metrics by passing each text segment to Xmb-

TextExtents and XwcTextExtents or XmbTextPerCharExtents and XwcTextPerCharEx-

tents. When the XFontSet has missing charsets, each unavailable character is drawn with the default string returned by XCreateFontSet. The behavior for an invalid codepoint is undefined.

To draw text using a single font set in a given drawable, use XmbDrawString or XwcDraw-

String.

276

Xlib − C Library libX11 1.3.2

void XmbDrawString (display, d, font_set, gc, x, y, string, num_bytes)

Display *display;

Drawable d;

XFontSet font_set;

GC gc; int x, y; char *string; int num_bytes; void XwcDrawString (display, d, font_set, gc, x, y, string, num_wchars)

Display *display;

Drawable d;

XFontSet font_set;

GC gc; int x, y; wchar_t *string; int num_wchars;

display d x y font_set gc

Specifies the connection to the X server.

Specifies the drawable.

Specifies the font set.

Specifies the GC.

Specify the x and y coordinates.

string num_bytes

Specifies the character string.

Specifies the number of bytes in the string argument.

num_wchars

Specifies the number of characters in the string argument.

The XmbDrawString and XwcDrawString functions draw the specified text with the foreground pixel. When the XFontSet has missing charsets, each unavailable character is drawn with the default string returned by XCreateFontSet. The behavior for an invalid codepoint is undefined.

To draw image text using a single font set in a given drawable, use XmbDrawImageString or

XwcDrawImageString.

277

Xlib − C Library libX11 1.3.2

void XmbDrawImageString (display, d, font_set, gc, x, y, string, num_bytes)

Display *display;

Drawable d;

XFontSet font_set;

GC gc; int x, y; char *string; int num_bytes; void XwcDrawImageString (display, d, font_set, gc, x, y, string, num_wchars)

Display *display;

Drawable d;

XFontSet font_set;

GC gc; int x, y; wchar_t *string; int num_wchars;

display d x y font_set gc

Specifies the connection to the X server.

Specifies the drawable.

Specifies the font set.

Specifies the GC.

Specify the x and y coordinates.

string num_bytes

Specifies the character string.

Specifies the number of bytes in the string argument.

num_wchars

Specifies the number of characters in the string argument.

The XmbDrawImageString and XwcDrawImageString functions fill a destination rectangle with the background pixel defined in the GC and then paint the text with the foreground pixel.

The filled rectangle is the rectangle returned to overall_logical_return by XmbTextExtents or

XwcTextExtents for the same text and XFontSet.

When the XFontSet has missing charsets, each unavailable character is drawn with the default string returned by XCreateFontSet. The behavior for an invalid codepoint is undefined.

13.5. Input Methods

This section provides discussions of the following X Input Method (XIM) topics:

• Input method overview

Input method management

Input method functions

Input method values

Input context functions

Input context values

Input method callback semantics

Event filtering

Getting keyboard input

Input method conventions

278

Xlib − C Library libX11 1.3.2

13.5.1. Input Method Overview

This section provides definitions for terms and concepts used for internationalized text input and a brief overview of the intended use of the mechanisms provided by Xlib.

A large number of languages in the world use alphabets consisting of a small set of symbols (letters) to form words. To enter text into a computer in an alphabetic language, a user usually has a keyboard on which there exist key symbols corresponding to the alphabet. Sometimes, a few characters of an alphabetic language are missing on the keyboard. Many computer users who speak a Latin-alphabet-based language only have an English-based keyboard. They need to hit a combination of keystrokes to enter a character that does not exist directly on the keyboard. A number of algorithms have been developed for entering such characters. These are known as

European input methods, compose input methods, or dead-key input methods.

Japanese is an example of a language with a phonetic symbol set, where each symbol represents a specific sound. There are two phonetic symbol sets in Japanese: Katakana and Hiragana. In general, Katakana is used for words that are of foreign origin, and Hiragana is used for writing native

Japanese words. Collectively, the two systems are called Kana. Each set consists of 48 characters.

Korean also has a phonetic symbol set, called Hangul. Each of the 24 basic phonetic symbols (14 consonants and 10 vowels) represents a specific sound. A syllable is composed of two or three parts: the initial consonants, the vowels, and the optional last consonants. With Hangul, syllables can be treated as the basic units on which text processing is done. For example, a delete operation may work on a phonetic symbol or a syllable. Korean code sets include several thousands of these syllables. A user types the phonetic symbols that make up the syllables of the words to be entered. The display may change as each phonetic symbol is entered. For example, when the second phonetic symbol of a syllable is entered, the first phonetic symbol may change its shape and size. Likewise, when the third phonetic symbol is entered, the first two phonetic symbols may change their shape and size.

Not all languages rely solely on alphabetic or phonetic systems. Some languages, including

Japanese and Korean, employ an ideographic writing system. In an ideographic system, rather than taking a small set of symbols and combining them in different ways to create words, each word consists of one unique symbol (or, occasionally, sev eral symbols). The number of symbols can be very large: approximately 50,000 have been identified in Hanzi, the Chinese ideographic system.

Tw o major aspects of ideographic systems impact their use with computers. First, the standard computer character sets in Japan, China, and Korea include roughly 8,000 characters, while sets in Taiwan have between 15,000 and 30,000 characters. This makes it necessary to use more than one byte to represent a character. Second, it obviously is impractical to have a keyboard that includes all of a given language’s ideographic symbols. Therefore, a mechanism is required for entering characters so that a keyboard with a reasonable number of keys can be used. Those input methods are usually based on phonetics, but there also exist methods based on the graphical properties of characters.

In Japan, both Kana and the ideographic system Kanji are used. In Korea, Hangul and sometimes the ideographic system Hanja are used. Now consider entering ideographs in Japan, Korea,

China, and Taiwan.

In Japan, either Kana or English characters are typed and then a region is selected (sometimes automatically) for conversion to Kanji. Several Kanji characters may have the same phonetic representation. If that is the case with the string entered, a menu of characters is presented and the user must choose the appropriate one. If no choice is necessary or a preference has been established, the input method does the substitution directly. When Latin characters are converted to

Kana or Kanji, it is called a romaji conversion.

In Korea, it is usually acceptable to keep Korean text in Hangul form, but some people may choose to write Hanja-originated words in Hanja rather than in Hangul. To change Hangul to

Hanja, the user selects a region for conversion and then follows the same basic method as that

279

Xlib − C Library libX11 1.3.2

described for Japanese.

Probably because there are well-accepted phonetic writing systems for Japanese and Korean, computer input methods in these countries for entering ideographs are fairly standard. Ke yboard keys have both English characters and phonetic symbols engraved on them, and the user can switch between the two sets.

The situation is different for Chinese. While there is a phonetic system called Pinyin promoted by authorities, there is no consensus for entering Chinese text. Some vendors use a phonetic decomposition (Pinyin or another), others use ideographic decomposition of Chinese words, with various implementations and keyboard layouts. There are about 16 known methods, none of which is a clear standard.

Also, there are actually two ideographic sets used: Traditional Chinese (the original written Chinese) and Simplified Chinese. Several years ago, the People’s Republic of China launched a campaign to simplify some ideographic characters and eliminate redundancies altogether. Under the plan, characters would be streamlined every five years. Characters have been revised several times now, resulting in the smaller, simpler set that makes up Simplified Chinese.

13.5.1.1. Input Method Architecture

As shown in the previous section, there are many different input methods in use today, each varying with language, culture, and history. A common feature of many input methods is that the user may type multiple keystrokes to compose a single character (or set of characters). The process of composing characters from keystrokes is called preediting. It may require complex algorithms and large dictionaries involving substantial computer resources.

Input methods may require one or more areas in which to show the feedback of the actual keystrokes, to propose disambiguation to the user, to list dictionaries, and so on. The input method areas of concern are as follows:

• The status area is a logical extension of the LEDs that exist on the physical keyboard. It is a window that is intended to present the internal state of the input method that is critical to the user. The status area may consist of text data and bitmaps or some combination.

The preedit area displays the intermediate text for those languages that are composing prior to the client handling the data.

The auxiliary area is used for pop-up menus and customizing dialogs that may be required for an input method. There may be multiple auxiliary areas for an input method. Auxiliary areas are managed by the input method independent of the client. Auxiliary areas are assumed to be separate dialogs, which are maintained by the input method.

There are various user interaction styles used for preediting. The ones supported by Xlib are as follows:

For on-the-spot input methods, preediting data will be displayed directly in the application window. Application data is moved to allow preedit data to appear at the point of insertion.

Over-the-spot preediting means that the data is displayed in a preedit window that is placed over the point of insertion.

Off-the-spot preediting means that the preedit window is inside the application window but not at the point of insertion. Often, this type of window is placed at the bottom of the application window.

Root-window preediting refers to input methods that use a preedit window that is the child of RootWindow.

It would require a lot of computing resources if portable applications had to include input methods for all the languages in the world. To avoid this, a goal of the Xlib design is to allow an application to communicate with an input method placed in a separate process. Such a process is called an input server. The server to which the application should connect is dependent on the environment when the application is started up, that is, the user language and the actual encoding

280

Xlib − C Library libX11 1.3.2

to be used for it. The input method connection is said to be locale-dependent. It is also userdependent. For a given language, the user can choose, to some extent, the user interface style of input method (if choice is possible among several).

Using an input server implies communication overhead, but applications can be migrated without relinking. Input methods can be implemented either as a stub communicating to an input server or as a local library.

An input method may be based on a front-end or a back-end architecture. In a front-end architecture, there are two separate connections to the X server: keystrokes go directly from the X server to the input method on one connection and other events to the regular client connection. The input method is then acting as a filter and sends composed strings to the client. A front-end architecture requires synchronization between the two connections to avoid lost key events or locking issues.

In a back-end architecture, a single X server connection is used. A dispatching mechanism must decide on this channel to delegate appropriate keystrokes to the input method. For instance, it may retain a Help keystroke for its own purpose. In the case where the input method is a separate process (that is, a server), there must be a special communication protocol between the back-end client and the input server.

A front-end architecture introduces synchronization issues and a filtering mechanism for noncharacter keystrokes (Function keys, Help, and so on). A back-end architecture sometimes implies more communication overhead and more process switching. If all three processes (X server, input server, client) are running on a single workstation, there are two process switches for each keystroke in a back-end architecture, but there is only one in a front-end architecture.

The abstraction used by a client to communicate with an input method is an opaque data structure represented by the XIM data type. This data structure is returned by the XOpenIM function, which opens an input method on a given display. Subsequent operations on this data structure encapsulate all communication between client and input method. There is no need for an X client to use any networking library or natural language package to use an input method.

A single input server may be used for one or more languages, supporting one or more encoding schemes. But the strings returned from an input method will always be encoded in the (single) locale associated with the XIM object.

13.5.1.2. Input Contexts

Xlib provides the ability to manage a multi-threaded state for text input. A client may be using multiple windows, each window with multiple text entry areas, and the user possibly switching among them at any time. The abstraction for representing the state of a particular input thread is called an input context. The Xlib representation of an input context is an XIC.

An input context is the abstraction retaining the state, properties, and semantics of communication between a client and an input method. An input context is a combination of an input method, a locale specifying the encoding of the character strings to be returned, a client window, internal state information, and various layout or appearance characteristics. The input context concept somewhat matches for input the graphics context abstraction defined for graphics output.

One input context belongs to exactly one input method. Different input contexts may be associated with the same input method, possibly with the same client window. An XIC is created with the XCreateIC function, providing an XIM argument and affiliating the input context to the input method for its lifetime. When an input method is closed with XCloseIM, all of its affiliated input contexts should not be used any more (and should preferably be destroyed before closing the input method).

Considering the example of a client window with multiple text entry areas, the application programmer could, for example, choose to implement as follows:

• As many input contexts are created as text entry areas, and the client will get the input accumulated on each context each time it looks up in that context.

281

Xlib − C Library libX11 1.3.2

• A single context is created for a top-level window in the application. If such a window contains several text entry areas, each time the user moves to another text entry area, the client has to indicate changes in the context.

A range of choices can be made by application designers to use either a single or multiple input contexts, according to the needs of their application.

13.5.1.3. Getting Keyboard Input

To obtain characters from an input method, a client must call the function XmbLookupString or

XwcLookupString with an input context created from that input method. Both a locale and display are bound to an input method when it is opened, and an input context inherits this locale and display. Any strings returned by XmbLookupString or XwcLookupString will be encoded in that locale.

13.5.1.4. Focus Management

For each text entry area in which the XmbLookupString or XwcLookupString functions are used, there will be an associated input context.

When the application focus moves to a text entry area, the application must set the input context focus to the input context associated with that area. The input context focus is set by calling

XSetICFocus with the appropriate input context.

Also, when the application focus moves out of a text entry area, the application should unset the focus for the associated input context by calling XUnsetICFocus. As an optimization, if XSet-

ICFocus is called successively on two different input contexts, setting the focus on the second will automatically unset the focus on the first.

To set and unset the input context focus correctly, it is necessary to track application-level focus changes. Such focus changes do not necessarily correspond to X server focus changes.

If a single input context is being used to do input for multiple text entry areas, it will also be necessary to set the focus window of the input context whenever the focus window changes (see section 13.5.6.3).

13.5.1.5. Geometry Management

In most input method architectures (on-the-spot being the notable exception), the input method will perform the display of its own data. To provide better visual locality, it is often desirable to have the input method areas embedded within a client. To do this, the client may need to allocate space for an input method. Xlib provides support that allows the size and position of input method areas to be provided by a client. The input method areas that are supported for geometry management are the status area and the preedit area.

The fundamental concept on which geometry management for input method windows is based is the proper division of responsibilities between the client (or toolkit) and the input method. The division of responsibilities is as follows:

The client is responsible for the geometry of the input method window.

The input method is responsible for the contents of the input method window.

An input method is able to suggest a size to the client, but it cannot suggest a placement. Also the input method can only suggest a size. It does not determine the size, and it must accept the size it is given.

Before a client provides geometry management for an input method, it must determine if geometry management is needed. The input method indicates the need for geometry management by setting XIMPreeditArea or XIMStatusArea in its XIMStyles value returned by XGetIMVal-

ues. When a client has decided that it will provide geometry management for an input method, it indicates that decision by setting the XNInputStyle value in the XIC.

282

Xlib − C Library libX11 1.3.2

After a client has established with the input method that it will do geometry management, the client must negotiate the geometry with the input method. The geometry is negotiated by the following steps:

• The client suggests an area to the input method by setting the XNAreaNeeded value for that area. If the client has no constraints for the input method, it either will not suggest an area or will set the width and height to zero. Otherwise, it will set one of the values.

The client will get the XIC value XNAreaNeeded. The input method will return its suggested size in this value. The input method should pay attention to any constraints suggested by the client.

The client sets the XIC value XNArea to inform the input method of the geometry of its window. The client should try to honor the geometry requested by the input method. The input method must accept this geometry.

Clients doing geometry management must be aware that setting other XIC values may affect the geometry desired by an input method. For example, XNFontSet and XNLineSpacing may change the geometry desired by the input method.

The table of XIC values (see section 13.5.6) indicates the values that can cause the desired geometry to change when they are set. It is the responsibility of the client to renegotiate the geometry of the input method window when it is needed.

In addition, a geometry management callback is provided by which an input method can initiate a geometry change.

13.5.1.6. Event Filtering

A filtering mechanism is provided to allow input methods to capture X events transparently to clients. It is expected that toolkits (or clients) using XmbLookupString or XwcLookupString will call this filter at some point in the event processing mechanism to make sure that events needed by an input method can be filtered by that input method.

If there were no filter, a client could receive and discard events that are necessary for the proper functioning of an input method. The following provides a few examples of such events:

• Expose events on preedit window in local mode.

Events may be used by an input method to communicate with an input server. Such input server protocol-related events have to be intercepted if one does not want to disturb client code.

Key events can be sent to a filter before they are bound to translations such as those the X

Toolkit Intrinsics library provides.

Clients are expected to get the XIC value XNFilterEvents and augment the event mask for the client window with that event mask. This mask may be zero.

13.5.1.7. Callbacks

When an on-the-spot input method is implemented, only the client can insert or delete preedit data in place and possibly scroll existing text. This means that the echo of the keystrokes has to be achieved by the client itself, tightly coupled with the input method logic.

When the user enters a keystroke, the client calls XmbLookupString or XwcLookupString. At this point, in the on-the-spot case, the echo of the keystroke in the preedit has not yet been done.

Before returning to the client logic that handles the input characters, the look-up function must call the echoing logic to insert the new keystroke. If the keystrokes entered so far make up a character, the keystrokes entered need to be deleted, and the composed character will be returned.

Hence, what happens is that, while being called by client code, the input method logic has to call back to the client before it returns. The client code, that is, a callback procedure, is called from the input method logic.

283

Xlib − C Library libX11 1.3.2

There are a number of cases where the input method logic has to call back the client. Each of those cases is associated with a well-defined callback action. It is possible for the client to specify, for each input context, what callback is to be called for each action.

There are also callbacks provided for feedback of status information and a callback to initiate a geometry request for an input method.

13.5.1.8. Visible Position Feedback Masks

In the on-the-spot input style, there is a problem when attempting to draw preedit strings that are longer than the available space. Once the display area is exceeded, it is not clear how best to display the preedit string. The visible position feedback masks of XIMText help resolve this problem by allowing the input method to specify hints that indicate the essential portions of the preedit string. For example, such hints can help developers implement scrolling of a long preedit string within a short preedit display area.

13.5.1.9. Preedit String Management

As highlighted before, the input method architecture provides preediting, which supports a type of preprocessor input composition. In this case, composition consists of interpreting a sequence of key events and returning a committed string via XmbLookupString or XwcLookupString.

This provides the basics for input methods.

In addition to preediting based on key events, a general framework is provided to give a client that desires it more advanced preediting based on the text within the client. This framework is called

string conversion and is provided using XIC values. The fundamental concept of string conversion is to allow the input method to manipulate the client’s text independent of any user preediting operation.

The need for string conversion is based on language needs and input method capabilities. The following are some examples of string conversion:

• Transliteration conversion provides language-specific conversions within the input method.

In the case of Korean input, users wish to convert a Hangul string into a Hanja string while in preediting, after preediting, or in other situations (for example, on a selected string). The conversion is triggered when the user presses a Hangul-to-Hanja key sequence (which may be input method specific). Sometimes the user may want to invoke the conversion after finishing preediting or on a user-selected string. Thus, the string to be converted is in an application buffer, not in the preedit area of the input method. The string conversion services allow the client to request this transliteration conversion from the input method.

There are many other transliteration conversions defined for various languages, for example, Kana-to-Kanji conversion in Japanese.

The key to remember is that transliteration conversions are triggered at the request of the user and returned to the client immediately without affecting the preedit area of the input method.

Reconversion of a previously committed string or a selected string is supported by many input methods as a convenience to the user. For example, a user tends to mistype the commit key while preediting. In that case, some input methods provide a special key sequence to request a ‘‘reconvert’’ operation on the committed string, similiar to the undo facility provided by most text editors. Another example is where the user is proofreading a document that has some misconversions from preediting and wants to correct the misconverted text. Such reconversion is again triggered by the user invoking some special action, but reconversions should not affect the state of the preedit area.

Context-sensitive conversion is required for some languages and input methods that need to retrieve text that surrounds the current spot location (cursor position) of the client’s buffer.

Such text is needed when the preediting operation depends on some surrounding characters

(usually preceding the spot location). For example, in Thai language input, certain

284

Xlib − C Library libX11 1.3.2

character sequences may be invalid and the input method may want to check whether characters constitute a valid word. Input methods that do such context-dependent checking need to retrieve the characters surrounding the current cursor position to obtain complete words.

Unlike other conversions, this conversion is not explicitly requested by the user. Input methods that provide such context-sensitive conversion continuously need to request context from the client, and any change in the context of the spot location may affect such conversions. The client’s context would be needed if the user moves the cursor and starts editing again.

For this reason, an input method supporting this type of conversion should take notice of when the client calls XmbResetIC or XwcResetIC, which is usually an indication of a context change.

Context-sensitive conversions just need a copy of the client’s text, while other conversions replace the client’s text with new text to achieve the reconversion or transliteration. Yet in all cases the result of a conversion, either immediately or via preediting, is returned by the XmbLookup-

String and XwcLookupString functions.

String conversion support is dependent on the availability of the XNStringConversion or

XNStringConversionCallback XIC values. Because the input method may not support string conversions, clients have to query the availability of string conversion operations by checking the supported XIC values list by calling XGetIMValues with the XNQueryICValuesList IM value.

The difference between these two values is whether the conversion is invoked by the client or the input method. The XNStringConversion XIC value is used by clients to request a string conversion from the input method. The client is responsible for determining which events are used to trigger the string conversion and whether the string to be converted should be copied or deleted.

The type of conversion is determined by the input method; the client can only pass the string to be converted. The client is guaranteed that no XNStringConversionCallback will be issued when this value is set; thus, the client need only set one of these values.

The XNStringConversionCallback XIC value is used by the client to notify the input method that it will accept requests from the input method for string conversion. If this value is set, it is the input method’s responsibility to determine which events are used to trigger the string conversion. When such events occur, the input method issues a call to the client-supplied procedure to retrieve the string to be converted. The client’s callback procedure is notified whether to copy or delete the string and is provided with hints as to the amount of text needed. The XIMStringCon-

versionCallbackStruct specifies which text should be passed back to the input method.

Finally, the input method may call the client’s XNStringConversionCallback procedure multiple times if the string returned from the callback is not sufficient to perform a successful conversion. The arguments to the client’s procedure allow the input method to define a position (in character units) relative to the client’s cursor position and the size of the text needed. By varying the position and size of the desired text in subsequent callbacks, the input method can retrieve additional text.

13.5.2. Input Method Management

The interface to input methods might appear to be simply creating an input method (XOpenIM) and freeing an input method (XCloseIM). However, input methods may require complex communication with input method servers (IM servers), for example:

• If the X server, IM server, and X clients are started asynchronously, some clients may attempt to connect to the IM server before it is fully operational, and fail. Therefore, some mechanism is needed to allow clients to detect when an IM server has started.

It is up to clients to decide what should be done when an IM server is not available (for example, wait, or use some other IM server).

285

Xlib − C Library libX11 1.3.2

• Some input methods may allow the underlying IM server to be switched. Such customization may be desired without restarting the entire client.

To support management of input methods in these cases, the following functions are provided:

XRegisterIMInstantiateCallback

XOpenIM

XSetIMValue, XSetICValue

XUnregisterIMInstantiateCallback

This function allows clients to register a callback procedure to be called when Xlib detects that an IM server is up and available.

A client calls this function as a result of the callback procedure being called.

These functions use the XIM and XIC values, XNDe-

stroyCallback, to allow a client to register a callback procedure to be called when Xlib detects that an IM server that was associated with an opened input method is no longer available.

In addition, this function can be used to switch IM servers for those input methods that support such functionality. The IM value for switching IM servers is implementation-dependent; see the description below about switching IM servers.

This function removes a callback procedure registered by the client.

Input methods that support switching of IM servers may exhibit some side-effects:

• The input method will ensure that any new IM server supports any of the input styles being used by input contexts already associated with the input method. However, the list of supported input styles may be different.

• Geometry management requests on previously created input contexts may be initiated by the new IM server.

13.5.2.1. Hot Keys

Some clients need to guarantee which keys can be used to escape from the input method, regardless of the input method state; for example, the client-specific Help key or the keys to move the input focus. The HotKey mechanism allows clients to specify a set of keys for this purpose.

However, the input method might not allow clients to specify hot keys. Therefore, clients have to query support of hot keys by checking the supported XIC values list by calling XGetIMValues with the XNQueryICValuesList IM value. When the hot keys specified conflict with the key bindings of the input method, hot keys take precedence over the key bindings of the input method.

13.5.2.2. Preedit State Operation

An input method may have sev eral internal states, depending on its implementation and the locale. However, one state that is independent of locale and implementation is whether the input method is currently performing a preediting operation. Xlib provides the ability for an application to manage the preedit state programmatically. Two methods are provided for retrieving the preedit state of an input context. One method is to query the state by calling XGetICValues with the XNPreeditState XIC value. Another method is to receive notification whenever the preedit state is changed. To receive such notification, an application needs to register a callback by calling XSetICValues with the XNPreeditStateNotifyCallback XIC value. In order to change the preedit state programmatically, an application needs to call XSetICValues with XNPreedit-

State.

Av ailability of the preedit state is input method dependent. The input method may not provide the ability to set the state or to retrieve the state programmatically. Therefore, clients have to query availability of preedit state operations by checking the supported XIC values list by calling

286

Xlib − C Library libX11 1.3.2

XGetIMValues with the XNQueryICValuesList IM value.

13.5.3. Input Method Functions

To open a connection, use XOpenIM.

XIM XOpenIM(display, db, res_name, res_class)

Display *display;

XrmDatabase db; char *res_name; char *res_class;

display db res_name res_class

Specifies the connection to the X server.

Specifies a pointer to the resource database.

Specifies the full resource name of the application.

Specifies the full class name of the application.

The XOpenIM function opens an input method, matching the current locale and modifiers specification. Current locale and modifiers are bound to the input method at opening time. The locale associated with an input method cannot be changed dynamically. This implies that the strings returned by XmbLookupString or XwcLookupString, for any input context affiliated with a given input method, will be encoded in the locale current at the time the input method is opened.

The specific input method to which this call will be routed is identified on the basis of the current locale. XOpenIM will identify a default input method corresponding to the current locale. That default can be modified using XSetLocaleModifiers for the input method modifier.

The db argument is the resource database to be used by the input method for looking up resources that are private to the input method. It is not intended that this database be used to look up values that can be set as IC values in an input context. If db is NULL, no database is passed to the input method.

The res_name and res_class arguments specify the resource name and class of the application.

They are intended to be used as prefixes by the input method when looking up resources that are common to all input contexts that may be created for this input method. The characters used for resource names and classes must be in the X Portable Character Set. The resources looked up are not fully specified if res_name or res_class is NULL.

The res_name and res_class arguments are not assumed to exist beyond the call to XOpenIM.

The specified resource database is assumed to exist for the lifetime of the input method.

XOpenIM returns NULL if no input method could be opened.

To close a connection, use XCloseIM.

Status XCloseIM(im)

XIM im;

im

Specifies the input method.

The XCloseIM function closes the specified input method.

To set input method attributes, use XSetIMValues.

287

Xlib − C Library libX11 1.3.2

char * XSetIMValues (im, ...)

XIM im;

im

Specifies the input method.

... Specifies the variable-length argument list to set XIM values.

The XSetIMValues function presents a variable argument list programming interface for setting attributes of the specified input method. It returns NULL if it succeeds; otherwise, it returns the name of the first argument that could not be set. Xlib does not attempt to set arguments from the supplied list that follow the failed argument; all arguments in the list preceding the failed argument have been set correctly.

To query an input method, use XGetIMValues.

char * XGetIMValues (im, ...)

XIM im;

im

Specifies the input method.

... Specifies the variable length argument list to get XIM values.

The XGetIMValues function presents a variable argument list programming interface for querying properties or features of the specified input method. This function returns NULL if it succeeds; otherwise, it returns the name of the first argument that could not be obtained.

Each XIM value argument (following a name) must point to a location where the XIM value is to be stored. That is, if the XIM value is of type T, the argument must be of type T*. If T itself is a pointer type, then XGetIMValues allocates memory to store the actual data, and the client is responsible for freeing this data by calling XFree with the returned pointer.

To obtain the display associated with an input method, use XDisplayOfIM.

Display * XDisplayOfIM(im)

XIM im;

im

Specifies the input method.

The XDisplayOfIM function returns the display associated with the specified input method.

To get the locale associated with an input method, use XLocaleOfIM.

char * XLocaleOfIM(im)

XIM im;

im

Specifies the input method.

The XLocaleOfIM function returns the locale associated with the specified input method.

To register an input method instantiate callback, use XRegisterIMInstantiateCallback.

288

Xlib − C Library libX11 1.3.2

Bool XRegisterIMInstantiateCallback (display, db, res_name, res_class, callback, client_data)

Display *display;

XrmDatabase db; char *res_name; char *res_class;

XIMProc callback;

XPointer *client_data;

display db res_name res_class callback client_data

Specifies the connection to the X server.

Specifies a pointer to the resource database.

Specifies the full resource name of the application.

Specifies the full class name of the application.

Specifies a pointer to the input method instantiate callback.

Specifies the additional client data.

The XRegisterIMInstantiateCallback function registers a callback to be invoked whenever a new input method becomes available for the specified display that matches the current locale and modifiers.

The function returns True if it succeeds; otherwise, it returns False.

The generic prototype is as follows: void IMInstantiateCallback(display, client_data, call_data)

Display *display;

XPointer client_data;

XPointer call_data;

display client_data call_data

Specifies the connection to the X server.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

To unregister an input method instantiation callback, use XUnregisterIMInstantiateCallback.

Bool XUnregisterIMInstantiateCallback (display, db, res_name, res_class, callback, client_data)

Display *display;

XrmDatabase db; char *res_name; char *res_class;

XIMProc callback;

XPointer *client_data;

display db res_name res_class callback client_data

Specifies the connection to the X server.

Specifies a pointer to the resource database.

Specifies the full resource name of the application.

Specifies the full class name of the application.

Specifies a pointer to the input method instantiate callback.

Specifies the additional client data.

The XUnregisterIMInstantiateCallback function removes an input method instantiation

289

Xlib − C Library libX11 1.3.2

Key

D

S

G callback previously registered. The function returns True if it succeeds; otherwise, it returns

False.

13.5.4. Input Method Values

The following table describes how XIM values are interpreted by an input method. The first column lists the XIM values. The second column indicates how each of the XIM values are treated by that input style.

The following keys apply to this table.

Explanation

This value may be set using XSetIMValues. If it is not set, a default is provided.

This value may be set using XSetIMValues.

This value may be read using XGetIMValues.

XIM Value Key

XNQueryInputStyle

XNResourceName

XNResourceClass

XNDestroyCallback

XNQueryIMValuesList

XNQueryICValuesList

XNVisiblePosition

XNR6PreeditCallbackBehavior

G

D-S-G

D-S-G

D-S-G

G

G

G

D-S-G

XNR6PreeditCallbackBehavior is obsolete and its use is not recommended (see section

13.5.4.6).

13.5.4.1. Query Input Style

A client should always query the input method to determine which input styles are supported.

The client should then find an input style it is capable of supporting.

If the client cannot find an input style that it can support, it should negotiate with the user the continuation of the program (exit, choose another input method, and so on).

The argument value must be a pointer to a location where the returned value will be stored. The returned value is a pointer to a structure of type XIMStyles. Clients are responsible for freeing the XIMStyles structure. To do so, use XFree.

The XIMStyles structure is defined as follows: typedef unsigned long XIMStyle;

#define

XIMPreeditArea

#define

XIMPreeditCallbacks

#define

XIMPreeditPosition

#define

XIMPreeditNothing

#define

XIMPreeditNone

0x0001L

0x0002L

0x0004L

0x0008L

0x0010L

290

Xlib − C Library libX11 1.3.2

#define

XIMStatusArea

#define

XIMStatusCallbacks

#define

XIMStatusNothing

#define

XIMStatusNone

typedef struct { unsigned short count_styles;

XIMStyle * supported_styles;

} XIMStyles;

0x0100L

0x0200L

0x0400L

0x0800L

An XIMStyles structure contains the number of input styles supported in its count_styles field.

This is also the size of the supported_styles array.

The supported styles is a list of bitmask combinations, which indicate the combination of styles for each of the areas supported. These areas are described later. Each element in the list should select one of the bitmask values for each area. The list describes the complete set of combinations supported. Only these combinations are supported by the input method.

The preedit category defines what type of support is provided by the input method for preedit information.

XIMPreeditArea

XIMPreeditPosition

If chosen, the input method would require the client to provide some area values for it to do its preediting. Refer to XIC values XNArea and XNAreaNeeded.

If chosen, the input method would require the client to provide positional values. Refer to XIC values XNSpotLocation and XNFo-

cusWindow.

XIMPreeditCallbacks

If chosen, the input method would require the client to define the set of preedit callbacks. Refer to XIC values XNPreeditStartCallback,

XIMPreeditNothing

XIMPreeditNone

XNPreeditDoneCallback, XNPreeditDrawCallback, and

XNPreeditCaretCallback.

If chosen, the input method can function without any preedit values.

The input method does not provide any preedit feedback. Any preedit value is ignored. This style is mutually exclusive with the other preedit styles.

The status category defines what type of support is provided by the input method for status information.

XIMStatusArea

XIMStatusCallbacks

XIMStatusNothing

XIMStatusNone

The input method requires the client to provide some area values for it to do its status feedback. See XNArea and XNAreaNeeded.

The input method requires the client to define the set of status callbacks, XNStatusStartCallback, XNStatusDoneCallback, and

XNStatusDrawCallback.

The input method can function without any status values.

The input method does not provide any status feedback. If chosen, any status value is ignored. This style is mutually exclusive with the other status styles.

13.5.4.2. Resource Name and Class

The XNResourceName and XNResourceClass arguments are strings that specify the full name and class used by the input method. These values should be used as prefixes for the name and class when looking up resources that may vary according to the input method. If these values are not set, the resources will not be fully specified.

291

Xlib − C Library libX11 1.3.2

It is not intended that values that can be set as XIM values be set as resources.

13.5.4.3. Destroy Callback

The XNDestroyCallback argument is a pointer to a structure of type XIMCallback. XNDe-

stroyCallback is triggered when an input method stops its service for any reason. After the callback is invoked, the input method is closed and the associated input context(s) are destroyed by

Xlib. Therefore, the client should not call XCloseIM or XDestroyIC.

The generic prototype of this callback function is as follows: void DestroyCallback (im, client_data, call_data)

XIM im;

XPointer client_data;

XPointer call_data;

im client_data call_data

Specifies the input method.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

A DestroyCallback is always called with a NULL call_data argument.

13.5.4.4. Query IM/IC Values List

XNQueryIMValuesList and XNQueryICValuesList are used to query about XIM and XIC values supported by the input method.

The argument value must be a pointer to a location where the returned value will be stored. The returned value is a pointer to a structure of type XIMValuesList. Clients are responsible for freeing the XIMValuesList structure. To do so, use XFree.

The XIMValuesList structure is defined as follows: typedef struct { unsigned short count_values; char **supported_values;

} XIMValuesList;

13.5.4.5. Visible Position

The XNVisiblePosition argument indicates whether the visible position masks of XIMFeed-

back in XIMText are available.

The argument value must be a pointer to a location where the returned value will be stored. The returned value is of type Bool. If the returned value is True, the input method uses the visible position masks of XIMFeedback in XIMText; otherwise, the input method does not use the masks.

Because this XIM value is optional, a client should call XGetIMValues with argument

XNQueryIMValues before using this argument. If the XNVisiblePosition does not exist in the

IM values list returned from XNQueryIMValues, the visible position masks of XIMFeedback in XIMText are not used to indicate the visible position.

292

Xlib − C Library libX11 1.3.2

13.5.4.6. Preedit Callback Behavior

The XNR6PreeditCallbackBehavior argument originally included in the X11R6 specification has been deprecated.†

The XNR6PreeditCallbackBehavior argument indicates whether the behavior of preedit callbacks regarding XIMPreeditDrawCallbackStruct values follows Release 5 or Release 6 semantics.

The value is of type Bool. When querying for XNR6PreeditCallbackBehavior, if the returned value is True, the input method uses the Release 6 behavior; otherwise, it uses the Release 5 behavior. The default value is False. In order to use Release 6 semantics, the value of

XNR6PreeditCallbackBehavior must be set to True.

Because this XIM value is optional, a client should call XGetIMValues with argument

XNQueryIMValues before using this argument. If the XNR6PreeditCallbackBehavior does not exist in the IM values list returned from XNQueryIMValues, the PreeditCallback behavior is

Release 5 semantics.

13.5.5. Input Context Functions

An input context is an abstraction that is used to contain both the data required (if any) by an input method and the information required to display that data. There may be multiple input contexts for one input method. The programming interfaces for creating, reading, or modifying an input context use a variable argument list. The name elements of the argument lists are referred to as XIC values. It is intended that input methods be controlled by these XIC values. As new

XIC values are created, they should be registered with the X Consortium.

To create an input context, use XCreateIC.

XIC XCreateIC(im, ...)

XIM im;

im

Specifies the input method.

... Specifies the variable length argument list to set XIC values.

The XCreateIC function creates a context within the specified input method.

Some of the arguments are mandatory at creation time, and the input context will not be created if those arguments are not provided. The mandatory arguments are the input style and the set of text callbacks (if the input style selected requires callbacks). All other input context values can be set later.

XCreateIC returns a NULL value if no input context could be created. A NULL value could be returned for any of the following reasons:

A required argument was not set.

A read-only argument was set (for example, XNFilterEvents).

The argument name is not recognized.

The input method encountered an input method implementation-dependent error.

XCreateIC can generate BadAtom, BadColor, BadPixmap, and BadWindow errors.

To destroy an input context, use XDestroyIC.

† During formulation of the X11R6 specification, the behavior of the R6 PreeditDrawCallbacks was going to differ significantly from that of the R5 callbacks. Late changes to the specification converged the R5 and R6 behaviors, eliminating the need for XNR6PreeditCall-

backBehavior. Unfortunately, this argument was not removed from the R6 specification before it was published.

293

Xlib − C Library libX11 1.3.2

void XDestroyIC (ic)

XIC ic;

ic

Specifies the input context.

XDestroyIC destroys the specified input context.

To communicate to and synchronize with input method for any changes in keyboard focus from the client side, use XSetICFocus and XUnsetICFocus.

void XSetICFocus (ic)

XIC ic;

ic

Specifies the input context.

The XSetICFocus function allows a client to notify an input method that the focus window attached to the specified input context has received keyboard focus. The input method should take action to provide appropriate feedback. Complete feedback specification is a matter of user interface policy.

Calling XSetICFocus does not affect the focus window value.

void XUnsetICFocus (ic)

XIC ic;

ic

Specifies the input context.

The XUnsetICFocus function allows a client to notify an input method that the specified input context has lost the keyboard focus and that no more input is expected on the focus window attached to that input context. The input method should take action to provide appropriate feedback. Complete feedback specification is a matter of user interface policy.

Calling XUnsetICFocus does not affect the focus window value; the client may still receive ev ents from the input method that are directed to the focus window.

To reset the state of an input context to its initial state, use XmbResetIC or XwcResetIC.

char * XmbResetIC(ic)

XIC ic; wchar_t * XwcResetIC(ic)

XIC ic;

ic

Specifies the input context.

When XNResetState is set to XIMInitialState, XmbResetIC and XwcResetIC reset an input context to its initial state; when XNResetState is set to XIMPreserveState, the current input context state is preserved. In both cases, any input pending on that context is deleted. The input method is required to clear the preedit area, if any, and update the status accordingly. Calling

XmbResetIC or XwcResetIC does not change the focus.

The return value of XmbResetIC is its current preedit string as a multibyte string. If there is any preedit text drawn or visible to the user, then these procedures must return a non-NULL string. If

294

Xlib − C Library libX11 1.3.2

there is no visible preedit text, then it is input method implementation-dependent whether these procedures return a non-NULL string or NULL.

The client should free the returned string by calling XFree.

To get the input method associated with an input context, use XIMOfIC.

XIM XIMOfIC(ic)

XIC ic;

ic

Specifies the input context.

The XIMOfIC function returns the input method associated with the specified input context.

Xlib provides two functions for setting and reading XIC values, respectively, XSetICValues and

XGetICValues. Both functions have a variable-length argument list. In that argument list, any

XIC value’s name must be denoted with a character string using the X Portable Character Set.

To set XIC values, use XSetICValues.

char * XSetICValues (ic, ...)

XIC ic;

ic

Specifies the input context.

... Specifies the variable length argument list to set XIC values.

The XSetICValues function returns NULL if no error occurred; otherwise, it returns the name of the first argument that could not be set. An argument might not be set for any of the following reasons:

• The argument is read-only (for example, XNFilterEvents).

The argument name is not recognized.

An implementation-dependent error occurs.

Each value to be set must be an appropriate datum, matching the data type imposed by the semantics of the argument.

XSetICValues can generate BadAtom, BadColor, BadCursor, BadPixmap, and BadWin-

dow errors.

To obtain XIC values, use XGetICValues.

char * XGetICValues (ic, ...)

XIC ic;

ic

Specifies the input context.

... Specifies the variable length argument list to get XIC values.

The XGetICValues function returns NULL if no error occurred; otherwise, it returns the name of the first argument that could not be obtained. An argument could not be obtained for any of the following reasons:

The argument name is not recognized.

The input method encountered an implementation-dependent error.

295

Xlib − C Library libX11 1.3.2

Key

C

D

G

GN

GR

GS

O

S

Ignored

Each IC attribute value argument (following a name) must point to a location where the IC value is to be stored. That is, if the IC value is of type T, the argument must be of type T*. If T itself is a pointer type, then XGetICValues allocates memory to store the actual data, and the client is responsible for freeing this data by calling XFree with the returned pointer. The exception to this rule is for an IC value of type XVaNestedList (for preedit and status attributes). In this case, the argument must also be of type XVaNestedList. Then, the rule of changing type T to T* and freeing the allocated data applies to each element of the nested list.

13.5.6. Input Context Values

The following tables describe how XIC values are interpreted by an input method depending on the input style chosen by the user.

The first column lists the XIC values. The second column indicates which values are involved in affecting, negotiating, and setting the geometry of the input method windows. The subentries under the third column indicate the different input styles that are supported. Each of these columns indicates how each of the XIC values are treated by that input style.

The following keys apply to these tables.

Explanation

This value must be set with XCreateIC.

This value may be set using XCreateIC. If it is not set, a default is provided.

This value may be read using XGetICValues.

This value may cause geometry negotiation when its value is set by means of

XCreateIC or XSetICValues.

This value will be the response of the input method when any GN value is changed.

This value will cause the geometry of the input method window to be set.

This value must be set once and only once. It need not be set at create time.

This value may be set with XSetICValues.

This value is ignored by the input method for the given input style.

XIC Value Geometry

Input Style

Preedit Preedit Preedit Preedit Preedit

Management Callback Position Area Nothing None

Input Style

Client Window

Focus Window

Resource Name

GN

C-G C-G

O-G O-G

D-S-G D-S-G

Ignored D-S-G

C-G C-G C-G

O-G O-G Ignored

D-S-G D-S-G Ignored

D-S-G D-S-G Ignored

Resource Class

Geometry Callback

Ignored D-S-G D-S-G D-S-G Ignored

Ignored Ignored D-S-G Ignored Ignored

Filter Events G

Destroy Callback D-S-G

G G

D-S-G D-S-G

G Ignored

D-S-G D-S-G

String Conversion Callback S-G S-G

String Conversion D-S-G

S-G S-G S-G

D-S-G D-S-G D-S-G D-S-G

Reset State D-S-G D-S-G

HotKey S-G S-G

HotKeyState D-S-G

D-S-G D-S-G

S-G S-G

D-S-G D-S-G

Ignored

Ignored

D-S-G Ignored

Preedit

296

Xlib − C Library libX11 1.3.2

XIC Value Geometry

Input Style

Preedit Preedit Preedit Preedit Preedit

Management Callback Position Area Nothing None

Area GS

Area Needed

Ignored D-S-G

GN-GR Ignored

D-S-G Ignored

Ignored S-G

Ignored

Ignored Ignored

Spot Location Ignored D-S-G Ignored Ignored Ignored

Colormap Ignored D-S-G D-S-G D-S-G Ignored

Foreground Ignored

Background Ignored

Background Pixmap

Font Set GN Ignored

D-S-G D-S-G

D-S-G D-S-G

Ignored D-S-G

D-S-G Ignored

D-S-G Ignored

D-S-G D-S-G

D-S-G D-S-G

Ignored

D-S-G Ignored

Line Spacing GN Ignored

Cursor Ignored

Preedit State

Preedit State Notify Callback

Preedit Callbacks

D-S-G D-S-G

D-S-G D-S-G

D-S-G D-S-G

S-G S-G

C-S-G Ignored

D-S-G Ignored

D-S-G Ignored

D-S-G D-S-G

S-G S-G

Ignored

Ignored

Ignored Ignored Ignored

XIC Value Geometry

Input Style

Status Status Status Status

Management Callback Area Nothing None

Input Style

Client Window

Focus Window

Resource Name

GN

C-G C-G

O-G O-G

D-S-G D-S-G

Ignored D-S-G

C-G C-G

O-G Ignored

D-S-G Ignored

D-S-G Ignored

Resource Class

Geometry Callback

Ignored D-S-G D-S-G Ignored

Ignored D-S-G Ignored Ignored

Filter Events G G G G

Status

Area GS

Area Needed

Ignored D-S-G Ignored Ignored

GN-GR Ignored S-G Ignored Ignored

Colormap Ignored

Foreground Ignored

D-S-G D-S-G

D-S-G D-S-G

Ignored

Ignored

Background Ignored

Background Pixmap

D-S-G D-S-G

Ignored D-S-G

Ignored

D-S-G Ignored

Font Set

Line Spacing

GN Ignored

GN Ignored

D-S-G D-S-G

D-S-G D-S-G

Ignored

Ignored

Cursor Ignored

Status Callbacks

D-S-G D-S-G

C-S-G Ignored

Ignored

Ignored Ignored

13.5.6.1. Input Style

The XNInputStyle argument specifies the input style to be used. The value of this argument must be one of the values returned by the XGetIMValues function with the XNQueryInput-

Style argument specified in the supported_styles list.

Note that this argument must be set at creation time and cannot be changed.

297

Xlib − C Library libX11 1.3.2

13.5.6.2. Client Window

The XNClientWindow argument specifies to the input method the client window in which the input method can display data or create subwindows. Geometry values for input method areas are given with respect to the client window. Dynamic change of client window is not supported.

This argument may be set only once and should be set before any input is done using this input context. If it is not set, the input method may not operate correctly.

If an attempt is made to set this value a second time with XSetICValues, the string XNClien-

tWindow will be returned by XSetICValues, and the client window will not be changed.

If the client window is not a valid window ID on the display attached to the input method, a Bad-

Window error can be generated when this value is used by the input method.

13.5.6.3. Focus Window

The XNFocusWindow argument specifies the focus window. The primary purpose of the

XNFocusWindow is to identify the window that will receive the key event when input is composed. In addition, the input method may possibly affect the focus window as follows:

Select events on it

Send events to it

Modify its properties

Grab the keyboard within that window

The associated value must be of type Window. If the focus window is not a valid window ID on the display attached to the input method, a BadWindow error can be generated when this value is used by the input method.

When this XIC value is left unspecified, the input method will use the client window as the default focus window.

13.5.6.4. Resource Name and Class

The XNResourceName and XNResourceClass arguments are strings that specify the full name and class used by the client to obtain resources for the client window. These values should be used as prefixes for name and class when looking up resources that may vary according to the input context. If these values are not set, the resources will not be fully specified.

It is not intended that values that can be set as XIC values be set as resources.

13.5.6.5. Geometry Callback

The XNGeometryCallback argument is a structure of type XIMCallback (see section

13.5.6.13.12).

The XNGeometryCallback argument specifies the geometry callback that a client can set. This callback is not required for correct operation of either an input method or a client. It can be set for a client whose user interface policy permits an input method to request the dynamic change of that input method’s window. An input method that does dynamic change will need to filter any ev ents that it uses to initiate the change.

13.5.6.6. Filter Events

The XNFilterEvents argument returns the event mask that an input method needs to have selected for. The client is expected to augment its own event mask for the client window with this one.

This argument is read-only, is set by the input method at create time, and is never changed.

The type of this argument is unsigned long. Setting this value will cause an error.

298

Xlib − C Library libX11 1.3.2

13.5.6.7. Destroy Callback

The XNDestroyCallback argument is a pointer to a structure of type XIMCallback (see section

13.5.6.13.12). This callback is triggered when the input method stops its service for any reason; for example, when a connection to an IM server is broken. After the destroy callback is called, the input context is destroyed and the input method is closed. Therefore, the client should not call

XDestroyIC and XCloseIM.

13.5.6.8. String Conversion Callback

The XNStringConversionCallback argument is a structure of type XIMCallback (see section

13.5.6.13.12).

The XNStringConversionCallback argument specifies a string conversion callback. This callback is not required for correct operation of either the input method or the client. It can be set by a client to support string conversions that may be requested by the input method. An input method that does string conversions will filter any events that it uses to initiate the conversion.

Because this XIC value is optional, a client should call XGetIMValues with argument

XNQueryICValuesList before using this argument.

13.5.6.9. String Conversion

The XNStringConversion argument is a structure of type XIMStringConversionText.

The XNStringConversion argument specifies the string to be converted by an input method.

This argument is not required for correct operation of either the input method or the client.

String conversion facilitates the manipulation of text independent of preediting. It is essential for some input methods and clients to manipulate text by performing context-sensitive conversion, reconversion, or transliteration conversion on it.

Because this XIC value is optional, a client should call XGetIMValues with argument

XNQueryICValuesList before using this argument.

The XIMStringConversionText structure is defined as follows: typedef struct _XIMStringConversionText { unsigned short length;

XIMStringConversionFeedback *feedback;

Bool encoding_is_wchar; union { char *mbs; wchar_t *wcs;

} string;

} XIMStringConversionText; typedef unsigned long XIMStringConversionFeedback;

The feedback member is reserved for future use. The text to be converted is defined by the string and length members. The length is indicated in characters. To prevent the library from freeing memory pointed to by an uninitialized pointer, the client should set the feedback element to

NULL.

299

Xlib − C Library libX11 1.3.2

13.5.6.10. Reset State

The XNResetState argument specifies the state the input context will return to after calling

XmbResetIC or XwcResetIC.

The XIC state may be set to its initial state, as specified by the XNPreeditState value when

XCreateIC was called, or it may be set to preserve the current state.

The valid masks for XIMResetState are as follows: typedef unsigned long XIMResetState;

#define

XIMInitialState

#define

XIMPreserveState

(1L)

(1L<<1)

If XIMInitialState is set, then XmbResetIC and XwcResetIC will return to the initial

XNPreeditState state of the XIC.

If XIMPreserveState is set, then XmbResetIC and XwcResetIC will preserve the current state of the XIC.

If XNResetState is left unspecified, the default is XIMInitialState.

XIMResetState values other than those specified above will default to XIMInitialState.

Because this XIC value is optional, a client should call XGetIMValues with argument

XNQueryICValuesList before using this argument.

13.5.6.11. Hot Keys

The XNHotKey argument specifies the hot key list to the XIC. The hot key list is a pointer to the structure of type XIMHotKeyTriggers, which specifies the key events that must be received without any interruption of the input method. For the hot key list set with this argument to be utilized, the client must also set XNHotKeyState to XIMHotKeyStateON.

Because this XIC value is optional, a client should call XGetIMValues with argument

XNQueryICValuesList before using this functionality.

The value of the argument is a pointer to a structure of type XIMHotKeyTriggers.

If an event for a key in the hot key list is found, then the process will receive the event and it will be processed inside the client.

typedef struct {

Ke ySym keysym; unsigned int modifier; unsigned int modifier_mask;

} XIMHotKeyTrigger; typedef struct { int num_hot_key;

XIMHotKeyTrigger *key;

} XIMHotKeyTriggers;

The combination of modifier and modifier_mask are used to represent one of three states for each modifier: either the modifier must be on, or the modifier must be off, or the modifier is a ‘‘don’t care’’ − it may be on or off. When a modifier_mask bit is set to 0, the state of the associated modifier is ignored when evaluating whether the key is hot or not.

300

Xlib − C Library libX11 1.3.2

Modifier Bit

0

1 n/a

Mask Bit

1

1

0

Meaning

The modifier must be off.

The modifier must be on.

Do not care if the modifier is on or off.

13.5.6.12. Hot Key State

The XNHotKeyState argument specifies the hot key state of the input method. This is usually used to switch the input method between hot key operation and normal input processing.

The value of the argument is a pointer to a structure of type XIMHotKeyState .

typedef unsigned long XIMHotKeyState;

#define

XIMHotKeyStateON

#define

XIMHotKeyStateOFF

(0x0001L)

(0x0002L)

If not specified, the default is XIMHotKeyStateOFF.

13.5.6.13. Preedit and Status Attributes

The XNPreeditAttributes and XNStatusAttributes arguments specify to an input method the attributes to be used for the preedit and status areas, if any. Those attributes are passed to XSet-

ICValues or XGetICValues as a nested variable-length list. The names to be used in these lists are described in the following sections.

13.5.6.13.1. Area

The value of the XNArea argument must be a pointer to a structure of type XRectangle. The interpretation of the XNArea argument is dependent on the input method style that has been set.

If the input method style is XIMPreeditPosition, XNArea specifies the clipping region within which preediting will take place. If the focus window has been set, the coordinates are assumed to be relative to the focus window. Otherwise, the coordinates are assumed to be relative to the client window. If neither has been set, the results are undefined.

If XNArea is not specified, is set to NULL, or is invalid, the input method will default the clipping region to the geometry of the XNFocusWindow. If the area specified is NULL or invalid, the results are undefined.

If the input style is XIMPreeditArea or XIMStatusArea, XNArea specifies the geometry provided by the client to the input method. The input method may use this area to display its data, either preedit or status depending on the area designated. The input method may create a window as a child of the client window with dimensions that fit the XNArea. The coordinates are relative to the client window. If the client window has not been set yet, the input method should save these values and apply them when the client window is set. If XNArea is not specified, is set to

NULL, or is invalid, the results are undefined.

13.5.6.13.2. Area Needed

When set, the XNAreaNeeded argument specifies the geometry suggested by the client for this area (preedit or status). The value associated with the argument must be a pointer to a structure of type XRectangle. Note that the x, y values are not used and that nonzero values for width or height are the constraints that the client wishes the input method to respect.

301

Xlib − C Library libX11 1.3.2

When read, the XNAreaNeeded argument specifies the preferred geometry desired by the input method for the area.

This argument is only valid if the input style is XIMPreeditArea or XIMStatusArea. It is used for geometry negotiation between the client and the input method and has no other effect on the input method (see section 13.5.1.5).

13.5.6.13.3. Spot Location

The XNSpotLocation argument specifies to the input method the coordinates of the spot to be used by an input method executing with XNInputStyle set to XIMPreeditPosition. When specified to any input method other than XIMPreeditPosition, this XIC value is ignored.

The x coordinate specifies the position where the next character would be inserted. The y coordinate is the position of the baseline used by the current text line in the focus window. The x and y coordinates are relative to the focus window, if it has been set; otherwise, they are relative to the client window. If neither the focus window nor the client window has been set, the results are undefined.

The value of the argument is a pointer to a structure of type XPoint.

13.5.6.13.4. Colormap

Tw o different arguments can be used to indicate what colormap the input method should use to allocate colors, a colormap ID, or a standard colormap name.

The XNColormap argument is used to specify a colormap ID. The argument value is of type

Colormap. An inv alid argument may generate a BadColor error when it is used by the input method.

The XNStdColormap argument is used to indicate the name of the standard colormap in which the input method should allocate colors. The argument value is an Atom that should be a valid atom for calling XGetRGBColormaps. An inv alid argument may generate a BadAtom error when it is used by the input method.

If the colormap is left unspecified, the client window colormap becomes the default.

13.5.6.13.5. Foreground and Background

The XNForeground and XNBackground arguments specify the foreground and background pixel, respectively. The argument value is of type unsigned long. It must be a valid pixel in the input method colormap.

If these values are left unspecified, the default is determined by the input method.

13.5.6.13.6. Background Pixmap

The XNBackgroundPixmap argument specifies a background pixmap to be used as the background of the window. The value must be of type Pixmap. An inv alid argument may generate a

BadPixmap error when it is used by the input method.

If this value is left unspecified, the default is determined by the input method.

13.5.6.13.7. Font Set

The XNFontSet argument specifies to the input method what font set is to be used. The argument value is of type XFontSet.

If this value is left unspecified, the default is determined by the input method.

13.5.6.13.8. Line Spacing

The XNLineSpace argument specifies to the input method what line spacing is to be used in the preedit window if more than one line is to be used. This argument is of type int.

302

Xlib − C Library libX11 1.3.2

If this value is left unspecified, the default is determined by the input method.

13.5.6.13.9. Cursor

The XNCursor argument specifies to the input method what cursor is to be used in the specified window. This argument is of type Cursor.

An invalid argument may generate a BadCursor error when it is used by the input method. If this value is left unspecified, the default is determined by the input method.

13.5.6.13.10. Preedit State

The XNPreeditState argument specifies the state of input preediting for the input method. Input preediting can be on or off.

The valid mask names for XNPreeditState are as follows: typedef unsigned long XIMPreeditState;

#define

XIMPreeditUnknown

#define

XIMPreeditEnable

#define

XIMPreeditDisable

0L

1L

(1L<<1)

If a value of XIMPreeditEnable is set, then input preediting is turned on by the input method.

If a value of XIMPreeditDisable is set, then input preediting is turned off by the input method.

If XNPreeditState is left unspecified, then the state will be implementation-dependent.

When XNResetState is set to XIMInitialState, the XNPreeditState value specified at the creation time will be reflected as the initial state for XmbResetIC and XwcResetIC.

Because this XIC value is optional, a client should call XGetIMValues with argument

XNQueryICValuesList before using this argument.

13.5.6.13.11. Preedit State Notify Callback

The preedit state notify callback is triggered by the input method when the preediting state has changed. The value of the XNPreeditStateNotifyCallback argument is a pointer to a structure of type XIMCallback. The generic prototype is as follows: void PreeditStateNotifyCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XIMPreeditStateNotifyCallbackStruct *call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Specifies the current preedit state.

The XIMPreeditStateNotifyCallbackStruct structure is defined as follows: typedef struct _XIMPreeditStateNotifyCallbackStruct {

XIMPreeditState state;

} XIMPreeditStateNotifyCallbackStruct;

303

Xlib − C Library libX11 1.3.2

Because this XIC value is optional, a client should call XGetIMValues with argument

XNQueryICValuesList before using this argument.

13.5.6.13.12. Preedit and Status Callbacks

A client that wants to support the input style XIMPreeditCallbacks must provide a set of preedit callbacks to the input method. The set of preedit callbacks is as follows:

XNPreeditStartCallback

XNPreeditDoneCallback

XNPreeditDrawCallback

XNPreeditCaretCallback

This is called when the input method starts preedit.

This is called when the input method stops preedit.

This is called when a number of preedit keystrokes should be echoed.

This is called to move the text insertion point within the preedit string.

A client that wants to support the input style XIMStatusCallbacks must provide a set of status callbacks to the input method. The set of status callbacks is as follows:

XNStatusStartCallback

XNStatusDoneCallback

XNStatusDrawCallback

This is called when the input method initializes the status area.

This is called when the input method no longer needs the status area.

This is called when updating of the status area is required.

The value of any status or preedit argument is a pointer to a structure of type XIMCallback.

typedef void (*XIMProc)(); typedef struct {

XPointer client_data;

XIMProc callback;

} XIMCallback;

Each callback has some particular semantics and will carry the data that expresses the environment necessary to the client into a specific data structure. This paragraph only describes the arguments to be used to set the callback.

Setting any of these values while doing preedit may cause unexpected results.

13.5.7. Input Method Callback Semantics

XIM callbacks are procedures defined by clients or text drawing packages that are to be called from the input method when selected events occur. Most clients will use a text editing package or a toolkit and, hence, will not need to define such callbacks. This section defines the callback semantics, when they are triggered, and what their arguments are. This information is mostly useful for X toolkit implementors.

Callbacks are mostly provided so that clients (or text editing packages) can implement on-thespot preediting in their own window. In that case, the input method needs to communicate and synchronize with the client. The input method needs to communicate changes in the preedit window when it is under control of the client. Those callbacks allow the client to initialize the preedit area, display a new preedit string, move the text insertion point during preedit, terminate preedit, or update the status area.

All callback procedures follow the generic prototype:

304

Xlib − C Library libX11 1.3.2

void CallbackPrototype(ic, client_data, call_data)

XIC ic;

XPointer client_data;

SomeType call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Specifies data specific to the callback.

The call_data argument is a structure that expresses the arguments needed to achieve the semantics; that is, it is a specific data structure appropriate to the callback. In cases where no data is needed in the callback, this call_data argument is NULL. The client_data argument is a closure that has been initially specified by the client when specifying the callback and passed back. It may serve, for example, to inherit application context in the callback.

The following paragraphs describe the programming semantics and specific data structure associated with the different reasons.

13.5.7.1. Geometry Callback

The geometry callback is triggered by the input method to indicate that it wants the client to negotiate geometry. The generic prototype is as follows: void GeometryCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XPointer call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

The callback is called with a NULL call_data argument.

13.5.7.2. Destroy Callback

The destroy callback is triggered by the input method when it stops service for any reason. After the callback is invoked, the input context will be freed by Xlib. The generic prototype is as follows: void DestroyCallback (ic, client_data, call_data)

XIC ic;

XPointer client_data;

XPointer call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

The callback is called with a NULL call_data argument.

305

Xlib − C Library libX11 1.3.2

13.5.7.3. String Conversion Callback

The string conversion callback is triggered by the input method to request the client to return the string to be converted. The returned string may be either a multibyte or wide character string, with an encoding matching the locale bound to the input context. The callback prototype is as follows: void StringConversionCallback (ic, client_data, call_data)

XIC ic;

XPointer client_data;

XIMStringConversionCallbackStruct *call_data;

ic client_data call_data

Specifies the input method.

Specifies the additional client data.

Specifies the amount of the string to be converted.

The callback is passed an XIMStringConversionCallbackStruct structure in the call_data argument. The text member is an XIMStringConversionText structure (see section 13.5.6.9) to be filled in by the client and describes the text to be sent to the input method. The data pointed to by the string and feedback elements of the XIMStringConversionText structure will be freed using

XFree by the input method after the callback returns. So the client should not point to internal buffers that are critical to the client. Similarly, because the feedback element is currently reserved for future use, the client should set feedback to NULL to prevent the library from freeing memory at some random location due to an uninitialized pointer.

The XIMStringConversionCallbackStruct structure is defined as follows: typedef struct _XIMStringConversionCallbackStruct {

XIMStringConversionPosition position;

XIMCaretDirection direction; short factor;

XIMStringConversionOperation operation;

XIMStringConversionText *text;

} XIMStringConversionCallbackStruct; typedef short XIMStringConversionPosition; typedef unsigned short XIMStringConversionOperation;

#define

XIMStringConversionSubstitution

#define

XIMStringConversionRetrieval

(0x0001)

(0x0002)

XIMStringConversionPosition specifies the starting position of the string to be returned in the

XIMStringConversionText structure. The value identifies a position, in units of characters, relative to the client’s cursor position in the client’s buffer.

The ending position of the text buffer is determined by the direction and factor members. Specifically, it is the character position relative to the starting point as defined by the XIMCaretDirec-

tion. The factor member of XIMStringConversionCallbackStruct specifies the number of

XIMCaretDirection positions to be applied. For example, if the direction specifies XIMLi-

neEnd and factor is 1, then all characters from the starting position to the end of the current display line are returned. If the direction specifies XIMForwardChar or XIMBackwardChar, then the factor specifies a relative position, indicated in characters, from the starting position.

306

Xlib − C Library libX11 1.3.2

XIMStringConversionOperation specifies whether the string to be converted should be deleted

(substitution) or copied (retrieval) from the client’s buffer. When the XIMStringConversionOp-

eration is XIMStringConversionSubstitution, the client must delete the string to be converted from its own buffer. When the XIMStringConversionOperation is XIMStringConversionRe-

trieval, the client must not delete the string to be converted from its buffer. The substitute operation is typically used for reconversion and transliteration conversion, while the retrieval operation is typically used for context-sensitive conversion.

13.5.7.4. Preedit State Callbacks

When the input method turns preediting on or off, a PreeditStartCallback or PreeditDoneCall-

back callback is triggered to let the toolkit do the setup or the cleanup for the preedit region.

int PreeditStartCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XPointer call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

When preedit starts on the specified input context, the callback is called with a NULL call_data argument. PreeditStartCallback will return the maximum size of the preedit string. A positive number indicates the maximum number of bytes allowed in the preedit string, and a value of −1 indicates there is no limit.

void PreeditDoneCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XPointer call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

When preedit stops on the specified input context, the callback is called with a NULL call_data argument. The client can release the data allocated by PreeditStartCallback.

PreeditStartCallback should initialize appropriate data needed for displaying preedit information and for handling further PreeditDrawCallback calls. Once PreeditStartCallback is called, it will not be called again before PreeditDoneCallback has been called.

13.5.7.5. Preedit Draw Callback

This callback is triggered to draw and insert, delete or replace, preedit text in the preedit region.

The preedit text may include unconverted input text such as Japanese Kana, converted text such as Japanese Kanji characters, or characters of both kinds. That string is either a multibyte or wide character string, whose encoding matches the locale bound to the input context. The callback prototype is as follows:

307

Xlib − C Library libX11 1.3.2

void PreeditDrawCallback (ic, client_data, call_data)

XIC ic;

XPointer client_data;

XIMPreeditDrawCallbackStruct *call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Specifies the preedit drawing information.

The callback is passed an XIMPreeditDrawCallbackStruct structure in the call_data argument.

The text member of this structure contains the text to be drawn. After the string has been drawn, the caret should be moved to the specified location.

The XIMPreeditDrawCallbackStruct structure is defined as follows: typedef struct _XIMPreeditDrawCallbackStruct { int caret; /* Cursor offset within preedit string */ int chg_first; int chg_length;

/* Starting change position */

/* Length of the change in character count */

XIMText *text;

} XIMPreeditDrawCallbackStruct;

The client must keep updating a buffer of the preedit text and the callback arguments referring to indexes in that buffer. The call_data fields have specific meanings according to the operation, as follows:

To indicate text deletion, the call_data member specifies a NULL text field. The text to be deleted is then the current text in the buffer from position chg_first (starting at zero) on a character length of chg_length.

When text is non-NULL, it indicates insertion or replacement of text in the buffer.

The chg_length member identifies the number of characters in the current preedit buffer that are affected by this call. A positive chg_length indicates that chg_length number of characters, starting at chg_first, must be deleted or must be replaced by text, whose length is specified in the XIMText structure.

A chg_length value of zero indicates that text must be inserted right at the position specified by chg_first. A value of zero for chg_first specifies the first character in the buffer.

chg_length and chg_first combine to identify the modification required to the preedit buffer; beginning at chg_first, replace chg_length number of characters with the text in the supplied XIMText structure. For example, suppose the preedit buffer contains the string

"ABCDE".

Text: A B C D E

ˆ ˆ ˆ ˆ ˆ ˆ

CharPos: 0 1 2 3 4 5

The CharPos in the diagram shows the location of the character position relative to the character.

If the value of chg_first is 1 and the value of chg_length is 3, this says to replace 3 characters beginning at character position 1 with the string in the XIMText structure. Hence,

BCD would be replaced by the value in the structure.

308

Xlib − C Library libX11 1.3.2

Though chg_length and chg_first are both signed integers they will never hav e a neg ative value.

The caret member identifies the character position before which the cursor should be placed

− after modification to the preedit buffer has been completed. For example, if caret is zero, the cursor is at the beginning of the buffer. If the caret is one, the cursor is between the first and second character.

typedef struct _XIMText { unsigned short length;

XIMFeedback * feedback;

Bool encoding_is_wchar; union { char * multi_byte; wchar_t * wide_char;

} string;

} XIMText;

The text string passed is actually a structure specifying as follows:

• The length member is the text length in characters.

The encoding_is_wchar member is a value that indicates if the text string is encoded in wide character or multibyte format. The text string may be passed either as multibyte or as wide character; the input method controls in which form data is passed. The client’s callback routine must be able to handle data passed in either form.

The string member is the text string.

• The feedback member indicates rendering type for each character in the string member. If string is NULL (indicating that only highlighting of the existing preedit buffer should be updated), feedback points to length highlight elements that should be applied to the existing preedit buffer, beginning at chg_first.

The feedback member expresses the types of rendering feedback the callback should apply when drawing text. Rendering of the text to be drawn is specified either in generic ways (for example, primary, secondary) or in specific ways (reverse, underline). When generic indications are given, the client is free to choose the rendering style. It is necessary, howev er, that primary and secondary be mapped to two distinct rendering styles.

If an input method wants to control display of the preedit string, an input method can indicate the visibility hints using feedbacks in a specific way. The XIMVisibleToForward, XIMVisibleTo-

Backward, and XIMVisibleCenter masks are exclusively used for these visibility hints. The

XIMVisibleToForward mask indicates that the preedit text is preferably displayed in the primary draw direction from the caret position in the preedit area forward. The XIMVisibleTo-

Backward mask indicates that the preedit text is preferably displayed from the caret position in the preedit area backward, relative to the primary draw direction. The XIMVisibleCenter mask indicates that the preedit text is preferably displayed with the caret position in the preedit area centered.

The insertion point of the preedit string could exist outside of the visible area when visibility hints are used. Only one of the masks is valid for the entire preedit string, and only one character can hold one of these feedbacks for a given input context at one time. This feedback may be OR’ed together with another highlight (such as XIMReverse). Only the most recently set feedback is valid, and any previous feedback is automatically canceled. This is a hint to the client, and the client is free to choose how to display the preedit string.

The feedback member also specifies how rendering of the text argument should be performed. If the feedback is NULL, the callback should apply the same feedback as is used for the

309

Xlib − C Library libX11 1.3.2

surrounding characters in the preedit buffer; if chg_first is at a highlight boundary, the client can choose which of the two highlights to use. If feedback is not NULL, feedback specifies an array defining the rendering for each character of the string, and the length of the array is thus length.

If an input method wants to indicate that it is only updating the feedback of the preedit text without changing the content of it, the XIMText structure will contain a NULL value for the string field, the number of characters affected (relative to chg_first) will be in the length field, and the feedback field will point to an array of XIMFeedback.

Each element in the feedback array is a bitmask represented by a value of type XIMFeedback.

The valid mask names are as follows: typedef unsigned long XIMFeedback;

#define

XIMReverse

#define

XIMUnderline

#define

XIMHighlight

#define

XIMPrimary

#define

XIMSecondary

#define

XIMTertiary

#define

XIMVisibleToForward

#define

XIMVisibleToBackward

#define

XIMVisibleCenter

1L

(1L<<1)

(1L<<2)

(1L<<5)†

(1L<<6)†

(1L<<7)†

(1L<<8)

(1L<<9)

(1L<<10)

Characters drawn with the XIMReverse highlight should be drawn by swapping the foreground and background colors used to draw normal, unhighlighted characters. Characters drawn with the

XIMUnderline highlight should be underlined. Characters drawn with the XIMHighlight,

XIMPrimary, XIMSecondary, and XIMTertiary highlights should be drawn in some unique manner that must be different from XIMReverse and XIMUnderline.

13.5.7.6. Preedit Caret Callback

An input method may have its own navigation keys to allow the user to move the text insertion point in the preedit area (for example, to move backward or forward). Consequently, input method needs to indicate to the client that it should move the text insertion point. It then calls the

PreeditCaretCallback.

void PreeditCaretCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XIMPreeditCaretCallbackStruct *call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Specifies the preedit caret information.

The input method will trigger PreeditCaretCallback to move the text insertion point during preedit. The call_data argument contains a pointer to an XIMPreeditCaretCallbackStruct structure, which indicates where the caret should be moved. The callback must move the

† The values for XIMPrimary, XIMSecondary, and XIMTertiary were incorrectly defined in the R5 specification. The X Consortium’s X11R5 implementation correctly implemented the values for these highlights. The value of these highlights has been corrected in this specification to agree with the values in the Consortium’s X11R5 and X11R6 implementations.

310

Xlib − C Library libX11 1.3.2

insertion point to its new location and return, in field position, the new offset value from the initial position.

The XIMPreeditCaretCallbackStruct structure is defined as follows: typedef struct _XIMPreeditCaretCallbackStruct { int position; /* Caret offset within preedit string */

XIMCaretDirection direction; /* Caret moves direction */

XIMCaretStyle style; /* Feedback of the caret */

} XIMPreeditCaretCallbackStruct;

The XIMCaretStyle structure is defined as follows: typedef enum {

XIMIsInvisible, /* Disable caret feedback */

XIMIsPrimary,

XIMIsSecondary,

} XIMCaretStyle;

/* UI defined caret feedback */

/* UI defined caret feedback */

The XIMCaretDirection structure is defined as follows: typedef enum {

XIMForwardChar, XIMBackwardChar,

XIMForwardWord, XIMBackwardWord,

XIMCaretUp, XIMCaretDown,

XIMNextLine, XIMPreviousLine,

XIMLineStart, XIMLineEnd,

XIMAbsolutePosition,

XIMDontChange,

} XIMCaretDirection;

These values are defined as follows:

XIMForwardChar

XIMBackwardChar

XIMForwardWord

XIMBackwardWord

XIMCaretUp

XIMCaretDown

XIMPreviousLine

XIMNextLine

XIMLineStart

XIMLineEnd

XIMAbsolutePosition

XIMDontChange

Move the caret forward one character position.

Move the caret backward one character position.

Move the caret forward one word.

Move the caret backward one word.

Move the caret up one line keeping the current horizontal offset.

Move the caret down one line keeping the current horizontal offset.

Move the caret to the beginning of the previous line.

Move the caret to the beginning of the next line.

Move the caret to the beginning of the current display line that contains the caret.

Move the caret to the end of the current display line that contains the caret.

The callback must move to the location specified by the position field of the callback data, indicated in characters, starting from the beginning of the preedit text. Hence, a value of zero means move back to the beginning of the preedit text.

The caret position does not change.

311

Xlib − C Library libX11 1.3.2

13.5.7.7. Status Callbacks

An input method may communicate changes in the status of an input context (for example, created, destroyed, or focus changes) with three status callbacks: StatusStartCallback, Status-

DoneCallback, and StatusDrawCallback.

When the input context is created or gains focus, the input method calls the StatusStartCallback callback.

void StatusStartCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XPointer call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

The callback should initialize appropriate data for displaying status and for responding to Status-

DrawCallback calls. Once StatusStartCallback is called, it will not be called again before Status-

DoneCallback has been called.

When an input context is destroyed or when it loses focus, the input method calls Status-

DoneCallback.

void StatusDoneCallback(ic, client_data, call_data)

XIC ic;

XPointer client_data;

XPointer call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Not used for this callback and always passed as NULL.

The callback may release any data allocated on StatusStart.

When an input context status has to be updated, the input method calls StatusDrawCallback.

void StatusDrawCallback (ic, client_data, call_data)

XIC ic;

XPointer client_data;

XIMStatusDrawCallbackStruct *call_data;

ic client_data call_data

Specifies the input context.

Specifies the additional client data.

Specifies the status drawing information.

The callback should update the status area by either drawing a string or imaging a bitmap in the status area.

The XIMStatusDataType and XIMStatusDrawCallbackStruct structures are defined as follows:

312

Xlib − C Library libX11 1.3.2

typedef enum {

XIMTextType,

XIMBitmapType,

} XIMStatusDataType; typedef struct _XIMStatusDrawCallbackStruct {

XIMStatusDataType type; union {

XIMText *text;

Pixmap bitmap;

} data;

} XIMStatusDrawCallbackStruct;

The feedback styles XIMVisibleToForward, XIMVisibleToBackward, and XIMVisibleTo-

Center are not relevant and will not appear in the XIMFeedback element of the XIMText structure.

13.5.8. Event Filtering

Xlib provides the ability for an input method to register a filter internal to Xlib. This filter is called by a client (or toolkit) by calling XFilterEvent after calling XNextEvent. Any client that uses the XIM interface should call XFilterEvent to allow input methods to process their events without knowledge of the client’s dispatching mechanism. A client’s user interface policy may determine the priority of event filters with respect to other event-handling mechanisms (for example, modal grabs).

Clients may not know how many filters there are, if any, and what they do. They may only know if an event has been filtered on return of XFilterEvent. Clients should discard filtered events.

To filter an event, use XFilterEvent.

Bool XFilterEvent (event, w)

XEvent *event;

Window w;

event w

Specifies the event to filter.

Specifies the window for which the filter is to be applied.

If the window argument is None, XFilterEvent applies the filter to the window specified in the

XEvent structure. The window argument is provided so that layers above Xlib that do event redirection can indicate to which window an event has been redirected.

If XFilterEvent returns True, then some input method has filtered the event, and the client should discard the event. If XFilterEvent returns False, then the client should continue processing the event.

If a grab has occurred in the client and XFilterEvent returns True, the client should ungrab the keyboard.

13.5.9. Getting Keyboard Input

To get composed input from an input method, use XmbLookupString or XwcLookupString.

313

Xlib − C Library libX11 1.3.2

int XmbLookupString(ic, event, buffer_return, bytes_buffer, keysym_return, status_return)

XIC ic;

XKeyPressedEvent *event; char *buffer_return; int bytes_buffer;

Ke ySym *keysym_return;

Status *status_return; int XwcLookupString(ic, event, buffer_return, bytes_buffer, keysym_return, status_return)

XIC ic;

XKeyPressedEvent *event; wchar_t *buffer_return; int wchars_buffer;

Ke ySym *keysym_return;

Status *status_return;

ic event

Specifies the input context.

Specifies the key event to be used.

buffer_return

Returns a multibyte string or wide character string (if any) from the input method.

bytes_buffer

wchars_buffer Specifies space available in the return buffer.

keysym_return Returns the KeySym computed from the event if this argument is not NULL.

status_return

Returns a value indicating what kind of data is returned.

The XmbLookupString and XwcLookupString functions return the string from the input method specified in the buffer_return argument. If no string is returned, the buffer_return argument is unchanged.

The KeySym into which the KeyCode from the event was mapped is returned in the keysym_return argument if it is non-NULL and the status_return argument indicates that a

Ke ySym was returned. If both a string and a KeySym are returned, the KeySym value does not necessarily correspond to the string returned.

XmbLookupString returns the length of the string in bytes, and XwcLookupString returns the length of the string in characters. Both XmbLookupString and XwcLookupString return text in the encoding of the locale bound to the input method of the specified input context.

Each string returned by XmbLookupString and XwcLookupString begins in the initial state of the encoding of the locale (if the encoding of the locale is state-dependent).

Note

To insure proper input processing, it is essential that the client pass only KeyPress ev ents to XmbLookupString and XwcLookupString. Their behavior when a client passes a KeyRelease ev ent is undefined.

Clients should check the status_return argument before using the other returned values. These two functions both return a value to status_return that indicates what has been returned in the other arguments. The possible values returned are:

314

Xlib − C Library libX11 1.3.2

XBufferOverflow

XLookupNone

XLookupChars

XLookupKeySym

XLookupBoth

The input string to be returned is too large for the supplied buffer_return. The required size (XmbLookupString in bytes;

XwcLookupString in characters) is returned as the value of the function, and the contents of buffer_return and keysym_return are not modified. The client should recall the function with the same event and a buffer of adequate size to obtain the string.

No consistent input has been composed so far. The contents of buffer_return and keysym_return are not modified, and the function returns zero.

Some input characters have been composed. They are placed in the buffer_return argument, and the string length is returned as the value of the function. The string is encoded in the locale bound to the input context. The content of the keysym_return argument is not modified.

A KeySym has been returned instead of a string and is returned in keysym_return. The content of the buffer_return argument is not modified, and the function returns zero.

Both a KeySym and a string are returned; XLookupChars and

XLookupKeySym occur simultaneously.

It does not make any difference if the input context passed as an argument to XmbLookupString and XwcLookupString is the one currently in possession of the focus or not. Input may have been composed within an input context before it lost the focus, and that input may be returned on subsequent calls to XmbLookupString or XwcLookupString ev en though it does not have any more keyboard focus.

13.5.10. Input Method Conventions

The input method architecture is transparent to the client. However, clients should respect a number of conventions in order to work properly. Clients must also be aware of possible effects of synchronization between input method and library in the case of a remote input server.

13.5.10.1. Client Conventions

A well-behaved client (or toolkit) should first query the input method style. If the client cannot satisfy the requirements of the supported styles (in terms of geometry management or callbacks), it should negotiate with the user continuation of the program or raise an exception or error of some sort.

13.5.10.2. Synchronization Conventions

A KeyPress ev ent with a KeyCode of zero is used exclusively as a signal that an input method has composed input that can be returned by XmbLookupString or XwcLookupString. No other use is made of a KeyPress ev ent with KeyCode of zero.

Such an event may be generated by either a front-end or a back-end input method in an implementation-dependent manner. Some possible ways to generate this event include:

• A synthetic event sent by an input method server

An artificial event created by a input method filter and pushed onto a client’s event queue

A KeyPress ev ent whose KeyCode value is modified by an input method filter

When callback support is specified by the client, input methods will not take action unless they explicitly called back the client and obtained no response (the callback is not specified or returned invalid data).

315

Xlib − C Library libX11 1.3.2

13.6. String Constants

The following symbols for string constants are defined in <X11/Xlib.h>. Although they are shown here with particular macro definitions, they may be implemented as macros, as global symbols, or as a mixture of the two. The string pointer value itself is not significant; clients must not assume that inequality of two values implies inequality of the actual string data.

#define

XNVaNestedList

#define

XNSeparatorofNestedList

#define

XNQueryInputStyle

#define

XNClientWindow

#define

XNInputStyle

#define

XNFocusWindow

#define

XNResourceName

#define

XNResourceClass

#define

XNGeometryCallback

#define

XNDestroyCallback

#define

XNFilterEvents

#define

XNPreeditStartCallback

#define

XNPreeditDoneCallback

#define

XNPreeditDrawCallback

#define

XNPreeditCaretCallback

#define

XNPreeditStateNotifyCallback

#define

XNPreeditAttributes

#define

XNStatusStartCallback

#define

XNStatusDoneCallback

#define

XNStatusDrawCallback

#define

XNStatusAttributes

#define

XNArea

#define

XNAreaNeeded

#define

XNSpotLocation

#define

XNColormap

#define

XNStdColormap

#define

XNForeground

#define

XNBackground

#define

XNBackgroundPixmap

#define

XNFontSet

#define

XNLineSpace

#define

XNCursor

#define

XNQueryIMValuesList

#define

XNQueryICValuesList

#define

XNStringConversionCallback

#define

XNStringConversion

#define

XNResetState

#define

XNHotKey

#define

XNHotKeyState

#define

XNPreeditState

#define

XNVisiblePosition

#define

XNR6PreeditCallbackBehavior

#define

XNRequiredCharSet

#define

XNQueryOrientation

#define

XNDirectionalDependentDrawing

#define

XNContextualDrawing

#define

XNBaseFontName

#define

XNMissingCharSet

"XNVaNestedList"

"separatorofNestedList"

"queryInputStyle"

"clientWindow"

"inputStyle"

"focusWindow"

"resourceName"

"resourceClass"

"geometryCallback"

"destroyCallback"

"filterEvents"

"preeditStartCallback"

"preeditDoneCallback"

"preeditDrawCallback"

"preeditCaretCallback"

"preeditStateNotifyCallback"

"preeditAttributes"

"statusStartCallback"

"statusDoneCallback"

"statusDrawCallback"

"statusAttributes"

"area"

"areaNeeded"

"spotLocation"

"colorMap"

"stdColorMap"

"foreground"

"background"

"backgroundPixmap"

"fontSet"

"lineSpace"

"cursor"

"queryIMValuesList"

"queryICValuesList"

"stringConversionCallback"

"stringConversion"

"resetState"

"hotkey"

"hotkeyState"

"preeditState"

"visiblePosition"

"r6PreeditCallback"

"requiredCharSet"

"queryOrientation"

"directionalDependentDrawing"

"contextualDrawing"

"baseFontName"

"missingCharSet"

316

Xlib − C Library

#define

XNDefaultString

#define

XNOrientation

#define

XNFontInfo

#define

XNOMAutomatic

"defaultString"

"orientation"

"fontInfo"

"omAutomatic"

libX11 1.3.2

317

Xlib − C Library libX11 1.3.2

Chapter 14

Inter-Client Communication Functions

The Inter-Client Communication Conventions Manual, hereafter referred to as the ICCCM, details the X Consortium approved conventions that govern inter-client communications. These conventions ensure peer-to-peer client cooperation in the use of selections, cut buffers, and shared resources as well as client cooperation with window and session managers. For further information, see the Inter-Client Communication Conventions Manual.

Xlib provides a number of standard properties and programming interfaces that are ICCCM compliant. The predefined atoms for some of these properties are defined in the <X11/Xatom.h> header file, where to avoid name conflicts with user symbols their #define name has an XA_ prefix. For further information about atoms and properties, see section 4.3.

Xlib’s selection and cut buffer mechanisms provide the primary programming interfaces by which peer client applications communicate with each other (see sections 4.5 and 16.6). The functions discussed in this chapter provide the primary programming interfaces by which client applications communicate with their window and session managers as well as share standard colormaps.

The standard properties that are of special interest for communicating with window and session managers are:

Name Type Format Description

WM_CLASS

WM_CLIENT_MACHINE

WM_COLORMAP_WINDOWS

WM_COMMAND

WM_HINTS

WM_ICON_NAME

WM_ICON_SIZE

WM_NAME

STRING

TEXT

WINDOW

TEXT

WM_HINTS

TEXT

WM_ICON_SIZE

TEXT

8

32

32

32

Set by application programs to allow window and session managers to obtain the application’s resources from the resource database.

The string name of the machine on which the client application is running.

The list of window IDs that may need a different colormap from that of their top-level window.

The command and arguments, nullseparated, used to invoke the application.

Additional hints set by the client for use by the window manager. The C type of this property is XWMHints.

The name to be used in an icon.

The window manager may set this property on the root window to specify the icon sizes it supports.

The C type of this property is

XIconSize.

The name of the application.

318

Xlib − C Library libX11 1.3.2

Name Type Format Description

WM_NORMAL_HINTS

WM_PROT OCOLS

WM_STATE

WM_TRANSIENT_FOR

WM_SIZE_HINTS

AT OM

WM_STATE

WINDOW

32

32

32

32

Size hints for a window in its normal state. The C type of this property is XSizeHints.

List of atoms that identify the communications protocols between the client and window manager in which the client is willing to participate.

Intended for communication between window and session managers only.

Set by application programs to indicate to the window manager that a transient top-level window, such as a dialog box.

The remainder of this chapter discusses:

Client to window manager communication

Client to session manager communication

Standard colormaps

14.1. Client to Window Manager Communication

This section discusses how to:

• Manipulate top-level windows

Convert string lists

Set and read text properties

Set and read the WM_NAME property

Set and read the WM_ICON_NAME property

Set and read the WM_HINTS property

Set and read the WM_NORMAL_HINTS property

Set and read the WM_CLASS property

Set and read the WM_TRANSIENT_FOR property

Set and read the WM_PROT OCOLS property

Set and read the WM_COLORMAP_WINDOWS property

Set and read the WM_ICON_SIZE property

Use window manager convenience functions

14.1.1. Manipulating Top-Level Windows

Xlib provides functions that you can use to change the visibility or size of top-level windows (that is, those that were created as children of the root window). Note that the subwindows that you create are ignored by window managers. Therefore, you should use the basic window functions described in chapter 3 to manipulate your application’s subwindows.

To request that a top-level window be iconified, use XIconifyWindow.

319

Xlib − C Library libX11 1.3.2

Status XIconifyWindow(display, w, screen_number)

Display *display;

Window w; int screen_number;

display w

Specifies the connection to the X server.

Specifies the window.

screen_number Specifies the appropriate screen number on the host server.

The XIconifyWindow function sends a WM_CHANGE_STATE ClientMessage ev ent with a format of 32 and a first data element of IconicState (as described in section 4.1.4 of the Inter-

Client Communication Conventions Manual) and a window of w to the root window of the specified screen with an event mask set to SubstructureNotifyMask| SubstructureRedirectMask.

Window managers may elect to receive this message and if the window is in its normal state, may treat it as a request to change the window’s state from normal to iconic. If the

WM_CHANGE_STATE property cannot be interned, XIconifyWindow does not send a message and returns a zero status. It returns a nonzero status if the client message is sent successfully; otherwise, it returns a zero status.

To request that a top-level window be withdrawn, use XWithdrawWindow.

Status XWithdrawWindow(display, w, screen_number)

Display *display;

Window w; int screen_number;

display w

Specifies the connection to the X server.

Specifies the window.

screen_number Specifies the appropriate screen number on the host server.

The XWithdrawWindow function unmaps the specified window and sends a synthetic Unmap-

Notify ev ent to the root window of the specified screen. Window managers may elect to receive this message and may treat it as a request to change the window’s state to withdrawn. When a window is in the withdrawn state, neither its normal nor its iconic representations is visible. It returns a nonzero status if the UnmapNotify ev ent is successfully sent; otherwise, it returns a zero status.

XWithdrawWindow can generate a BadWindow error.

To request that a top-level window be reconfigured, use XReconfigureWMWindow.

320

Xlib − C Library libX11 1.3.2

Status XReconfigureWMWindow(display, w, screen_number, value_mask, values)

Display *display;

Window w; int screen_number; unsigned int value_mask;

XWindowChanges *values;

display w

Specifies the connection to the X server.

Specifies the window.

screen_number Specifies the appropriate screen number on the host server.

value_mask

Specifies which values are to be set using information in the values structure.

This mask is the bitwise inclusive OR of the valid configure window values bits.

values

Specifies the XWindowChanges structure.

The XReconfigureWMWindow function issues a ConfigureWindow request on the specified top-level window. If the stacking mode is changed and the request fails with a BadMatch error, the error is trapped by Xlib and a synthetic ConfigureRequestEvent containing the same configuration parameters is sent to the root of the specified window. Window managers may elect to receive this event and treat it as a request to reconfigure the indicated window. It returns a nonzero status if the request or event is successfully sent; otherwise, it returns a zero status.

XReconfigureWMWindow can generate BadValue and BadWindow errors.

14.1.2. Converting String Lists

Many of the text properties allow a variety of types and formats. Because the data stored in these properties are not simple null-terminated strings, an XTextProperty structure is used to describe the encoding, type, and length of the text as well as its value. The XTextProperty structure contains: typedef struct { unsigned char *value; /* property data */

Atom encoding; int format;

/* type of property */

/* 8, 16, or 32 */ unsigned long nitems;

} XTe xtProperty;

/* number of items in value */

Xlib provides functions to convert localized text to or from encodings that support the inter-client communication conventions for text. In addition, functions are provided for converting between lists of pointers to character strings and text properties in the STRING encoding.

The functions for localized text return a signed integer error status that encodes Success as zero, specific error conditions as negative numbers, and partial conversion as a count of unconvertible characters.

321

Xlib − C Library libX11 1.3.2

#define

XNoMemory

#define

XLocaleNotSupported

#define

XConverterNotFound

−1

−2

−3 typedef enum {

XStringStyle, /* STRING */

XCompoundTextStyle, /* COMPOUND_TEXT */

XTextStyle, /* text in owner’s encoding (current locale) */

XStdICCTextStyle /* STRING, else COMPOUND_TEXT */

} XICCEncodingStyle;

To convert a list of text strings to an XTextProperty structure, use XmbTextListToTextProp-

erty or XwcTextListToTextProperty.

int XmbTextListToTextProperty (display, list, count, style, text_prop_return)

Display *display; char **list; int count;

XICCEncodingStyle style;

XTextProperty *text_prop_return; int XwcTextListToTextProperty (display, list, count, style, text_prop_return)

Display *display; wchar_t **list; int count;

XICCEncodingStyle style;

XTextProperty *text_prop_return;

display list count

Specifies the connection to the X server.

Specifies a list of null-terminated character strings.

Specifies the number of strings specified.

style

Specifies the manner in which the property is encoded.

text_prop_returnReturns the XTextProperty structure.

The XmbTextListToTextProperty and XwcTextListToTextProperty functions set the specified

XTextProperty value to a set of null-separated elements representing the concatenation of the specified list of null-terminated text strings. A final terminating null is stored at the end of the value field of text_prop_return but is not included in the nitems member.

The functions set the encoding field of text_prop_return to an Atom for the specified display naming the encoding determined by the specified style and convert the specified text list to this encoding for storage in the text_prop_return value field. If the style XStringStyle or XCom-

poundTextStyle is specified, this encoding is ‘‘STRING’’ or ‘‘COMPOUND_TEXT’’, respectively. If the style XTextStyle is specified, this encoding is the encoding of the current locale. If the style XStdICCTextStyle is specified, this encoding is ‘‘STRING’’ if the text is fully convertible to STRING, else ‘‘COMPOUND_TEXT’’.

If insufficient memory is available for the new value string, the functions return XNoMemory. If the current locale is not supported, the functions return XLocaleNotSupported. In both of these error cases, the functions do not set text_prop_return.

322

Xlib − C Library libX11 1.3.2

To determine if the functions are guaranteed not to return XLocaleNotSupported, use XSup-

portsLocale.

If the supplied text is not fully convertible to the specified encoding, the functions return the number of unconvertible characters. Each unconvertible character is converted to an implementationdefined and encoding-specific default string. Otherwise, the functions return Success. Note that full convertibility to all styles except XStringStyle is guaranteed.

To free the storage for the value field, use XFree.

To obtain a list of text strings from an XTextProperty structure, use XmbTextPropertyTo-

TextList or XwcTextPropertyToTextList.

int XmbTextPropertyToTextList (display, text_prop, list_return, count_return)

Display *display;

XTextProperty *text_prop; char ***list_return; int *count_return; int XwcTextPropertyToTextList (display, text_prop, list_return, count_return)

Display *display;

XTextProperty *text_prop; wchar_t ***list_return; int *count_return;

display text_prop

Specifies the connection to the X server.

Specifies the XTextProperty structure to be used.

list_return

Returns a list of null-terminated character strings.

count_return

Returns the number of strings.

The XmbTextPropertyToTextList and XwcTextPropertyToTextList functions return a list of text strings in the current locale representing the null-separated elements of the specified

XTextProperty structure. The data in text_prop must be format 8.

Multiple elements of the property (for example, the strings in a disjoint text selection) are separated by a null byte. The contents of the property are not required to be null-terminated; any terminating null should not be included in text_prop.nitems.

If insufficient memory is available for the list and its elements, XmbTextPropertyToTextList and XwcTextPropertyToTextList return XNoMemory. If the current locale is not supported, the functions return XLocaleNotSupported. Otherwise, if the encoding field of text_prop is not convertible to the encoding of the current locale, the functions return XConverterNotFound.

For supported locales, existence of a converter from COMPOUND_TEXT, STRING or the encoding of the current locale is guaranteed if XSupportsLocale returns True for the current locale (but the actual text may contain unconvertible characters). Conversion of other encodings is implementation-dependent. In all of these error cases, the functions do not set any return values.

Otherwise, XmbTextPropertyToTextList and XwcTextPropertyToTextList return the list of null-terminated text strings to list_return and the number of text strings to count_return.

If the value field of text_prop is not fully convertible to the encoding of the current locale, the functions return the number of unconvertible characters. Each unconvertible character is converted to a string in the current locale that is specific to the current locale. To obtain the value of this string, use XDefaultString. Otherwise, XmbTextPropertyToTextList and XwcTextProp-

ertyToTextList return Success.

323

Xlib − C Library libX11 1.3.2

To free the storage for the list and its contents returned by XmbTextPropertyToTextList, use

XFreeStringList. To free the storage for the list and its contents returned by XwcTextProperty-

ToTextList, use XwcFreeStringList.

To free the in-memory data associated with the specified wide character string list, use

XwcFreeStringList.

void XwcFreeStringList(list) wchar_t **list;

list

Specifies the list of strings to be freed.

The XwcFreeStringList function frees memory allocated by XwcTextPropertyToTextList.

To obtain the default string for text conversion in the current locale, use XDefaultString.

char *XDefaultString ( )

The XDefaultString function returns the default string used by Xlib for text conversion (for example, in XmbTextPropertyToTextList). The default string is the string in the current locale that is output when an unconvertible character is found during text conversion. If the string returned by XDefaultString is the empty string (""), no character is output in the converted text.

XDefaultString does not return NULL.

The string returned by XDefaultString is independent of the default string for text drawing; see

XCreateFontSet to obtain the default string for an XFontSet.

The behavior when an invalid codepoint is supplied to any Xlib function is undefined.

The returned string is null-terminated. It is owned by Xlib and should not be modified or freed by the client. It may be freed after the current locale is changed. Until freed, it will not be modified by Xlib.

To set the specified list of strings in the STRING encoding to a XTextProperty structure, use

XStringListToTextProperty.

Status XStringListToTextProperty (list, count, text_prop_return) char **list; int count;

XTextProperty *text_prop_return;

list

Specifies a list of null-terminated character strings.

count

Specifies the number of strings.

text_prop_returnReturns the XTextProperty structure.

The XStringListToTextProperty function sets the specified XTextProperty to be of type

STRING (format 8) with a value representing the concatenation of the specified list of null-separated character strings. An extra null byte (which is not included in the nitems member) is stored at the end of the value field of text_prop_return. The strings are assumed (without verification) to be in the STRING encoding. If insufficient memory is available for the new value string,

XStringListToTextProperty does not set any fields in the XTextProperty structure and returns a zero status. Otherwise, it returns a nonzero status. To free the storage for the value field, use

XFree.

324

Xlib − C Library libX11 1.3.2

To obtain a list of strings from a specified XTextProperty structure in the STRING encoding, use XTextPropertyToStringList.

Status XTextPropertyToStringList (text_prop, list_return, count_return)

XTextProperty *text_prop; char ***list_return; int *count_return;

text_prop list_return

Specifies the XTextProperty structure to be used.

Returns a list of null-terminated character strings.

count_return

Returns the number of strings.

The XTextPropertyToStringList function returns a list of strings representing the null-separated elements of the specified XTextProperty structure. The data in text_prop must be of type

STRING and format 8. Multiple elements of the property (for example, the strings in a disjoint text selection) are separated by NULL (encoding 0). The contents of the property are not null-terminated. If insufficient memory is available for the list and its elements, XTextProperty-

ToStringList sets no return values and returns a zero status. Otherwise, it returns a nonzero status. To free the storage for the list and its contents, use XFreeStringList.

To free the in-memory data associated with the specified string list, use XFreeStringList.

void XFreeStringList(list) char **list;

list

Specifies the list of strings to be freed.

The XFreeStringList function releases memory allocated by XmbTextPropertyToTextList and

XTextPropertyToStringList and the missing charset list allocated by XCreateFontSet.

14.1.3. Setting and Reading Text Properties

Xlib provides two functions that you can use to set and read the text properties for a given window. You can use these functions to set and read those properties of type TEXT (WM_NAME,

WM_ICON_NAME, WM_COMMAND, and WM_CLIENT_MACHINE). In addition, Xlib provides separate convenience functions that you can use to set each of these properties. For further information about these convenience functions, see sections 14.1.4, 14.1.5, 14.2.1, and 14.2.2, respectively.

To set one of a window’s text properties, use XSetTextProperty.

void XSetTextProperty (display, w, text_prop, property)

Display *display;

Window w;

XTextProperty *text_prop;

Atom property;

display w text_prop property

Specifies the connection to the X server.

Specifies the window.

Specifies the XTextProperty structure to be used.

Specifies the property name.

325

Xlib − C Library libX11 1.3.2

The XSetTextProperty function replaces the existing specified property for the named window with the data, type, format, and number of items determined by the value field, the encoding field, the format field, and the nitems field, respectively, of the specified XTextProperty structure. If the property does not already exist, XSetTextProperty sets it for the specified window.

XSetTextProperty can generate BadAlloc, BadAtom, BadValue, and BadWindow errors.

To read one of a window’s text properties, use XGetTextProperty.

Status XGetTextProperty (display, w, text_prop_return, property)

Display *display;

Window w;

XTextProperty *text_prop_return;

Atom property;

display w

Specifies the connection to the X server.

Specifies the window.

text_prop_returnReturns the XTextProperty structure.

property

Specifies the property name.

The XGetTextProperty function reads the specified property from the window and stores the data in the returned XTextProperty structure. It stores the data in the value field, the type of the data in the encoding field, the format of the data in the format field, and the number of items of data in the nitems field. An extra byte containing null (which is not included in the nitems member) is stored at the end of the value field of text_prop_return. The particular interpretation of the property’s encoding and data as text is left to the calling application. If the specified property does not exist on the window, XGetTextProperty sets the value field to NULL, the encoding field to None, the format field to zero, and the nitems field to zero.

If it was able to read and store the data in the XTextProperty structure, XGetTextProperty returns a nonzero status; otherwise, it returns a zero status.

XGetTextProperty can generate BadAtom and BadWindow errors.

14.1.4. Setting and Reading the WM_NAME Property

Xlib provides convenience functions that you can use to set and read the WM_NAME property for a given window.

To set a window’s WM_NAME property with the supplied convenience function, use XSetWM-

Name.

void XSetWMName(display, w, text_prop)

Display *display;

Window w;

XTextProperty *text_prop;

display w text_prop

Specifies the connection to the X server.

Specifies the window.

Specifies the XTextProperty structure to be used.

The XSetWMName convenience function calls XSetTextProperty to set the WM_NAME property.

326

Xlib − C Library libX11 1.3.2

To read a window’s WM_NAME property with the supplied convenience function, use

XGetWMName.

Status XGetWMName(display, w, text_prop_return)

Display *display;

Window w;

XTextProperty *text_prop_return;

display w

Specifies the connection to the X server.

Specifies the window.

text_prop_returnReturns the XTextProperty structure.

The XGetWMName convenience function calls XGetTextProperty to obtain the WM_NAME property. It returns a nonzero status on success; otherwise, it returns a zero status.

The following two functions have been superseded by XSetWMName and XGetWMName, respectively. You can use these additional convenience functions for window names that are encoded as STRING properties.

To assign a name to a window, use XStoreName.

XStoreName (display, w, window_name)

Display *display;

Window w; char *window_name;

display

Specifies the connection to the X server.

w

Specifies the window.

window_name Specifies the window name, which should be a null-terminated string.

The XStoreName function assigns the name passed to window_name to the specified window.

A window manager can display the window name in some prominent place, such as the title bar, to allow users to identify windows easily. Some window managers may display a window’s name in the window’s icon, although they are encouraged to use the window’s icon name if one is provided by the application. If the string is not in the Host Portable Character Encoding, the result is implementation-dependent.

XStoreName can generate BadAlloc and BadWindow errors.

To get the name of a window, use XFetchName.

Status XFetchName(display, w, window_name_return)

Display *display;

Window w; char **window_name_return;

display

Specifies the connection to the X server.

w

Specifies the window.

window_name_return

Returns the window name, which is a null-terminated string.

The XFetchName function returns the name of the specified window. If it succeeds, it returns a nonzero status; otherwise, no name has been set for the window, and it returns zero. If the

327

Xlib − C Library libX11 1.3.2

WM_NAME property has not been set for this window, XFetchName sets window_name_return to NULL. If the data returned by the server is in the Latin Portable Character Encoding, then the returned string is in the Host Portable Character Encoding. Otherwise, the result is implementation-dependent. When finished with it, a client must free the window name string using XFree.

XFetchName can generate a BadWindow error.

14.1.5. Setting and Reading the WM_ICON_NAME Property

Xlib provides convenience functions that you can use to set and read the WM_ICON_NAME property for a given window.

To set a window’s WM_ICON_NAME property, use XSetWMIconName.

void XSetWMIconName(display, w, text_prop)

Display *display;

Window w;

XTextProperty *text_prop;

display w text_prop

Specifies the connection to the X server.

Specifies the window.

Specifies the XTextProperty structure to be used.

The XSetWMIconName convenience function calls XSetTextProperty to set the

WM_ICON_NAME property.

To read a window’s WM_ICON_NAME property, use XGetWMIconName.

Status XGetWMIconName(display, w, text_prop_return)

Display *display;

Window w;

XTextProperty *text_prop_return;

display w

Specifies the connection to the X server.

Specifies the window.

text_prop_returnReturns the XTextProperty structure.

The XGetWMIconName convenience function calls XGetTextProperty to obtain the

WM_ICON_NAME property. It returns a nonzero status on success; otherwise, it returns a zero status.

The next two functions have been superseded by XSetWMIconName and XGetWMIconName, respectively. You can use these additional convenience functions for window names that are encoded as STRING properties.

To set the name to be displayed in a window’s icon, use XSetIconName.

328

Xlib − C Library libX11 1.3.2

XSetIconName (display, w, icon_name)

Display *display;

Window w; char *icon_name;

display w icon_name

Specifies the connection to the X server.

Specifies the window.

Specifies the icon name, which should be a null-terminated string.

If the string is not in the Host Portable Character Encoding, the result is implementation-dependent. XSetIconName can generate BadAlloc and BadWindow errors.

To get the name a window wants displayed in its icon, use XGetIconName.

Status XGetIconName(display, w, icon_name_return)

Display *display;

Window w; char **icon_name_return;

display w

Specifies the connection to the X server.

Specifies the window.

icon_name_return

Returns the window’s icon name, which is a null-terminated string.

The XGetIconName function returns the name to be displayed in the specified window’s icon. If it succeeds, it returns a nonzero status; otherwise, if no icon name has been set for the window, it returns zero. If you never assigned a name to the window, XGetIconName sets icon_name_return to NULL. If the data returned by the server is in the Latin Portable Character

Encoding, then the returned string is in the Host Portable Character Encoding. Otherwise, the result is implementation-dependent. When finished with it, a client must free the icon name string using XFree.

XGetIconName can generate a BadWindow error.

14.1.6. Setting and Reading the WM_HINTS Property

Xlib provides functions that you can use to set and read the WM_HINTS property for a given window. These functions use the flags and the XWMHints structure, as defined in the

<X11/Xutil.h> header file.

To allocate an XWMHints structure, use XAllocWMHints.

XWMHints *XAllocWMHints( )

The XAllocWMHints function allocates and returns a pointer to an XWMHints structure. Note that all fields in the XWMHints structure are initially set to zero. If insufficient memory is available, XAllocWMHints returns NULL. To free the memory allocated to this structure, use

XFree.

The XWMHints structure contains:

329

Xlib − C Library libX11 1.3.2

/* Window manager hints mask bits */

#define

#define

#define

#define

#define

#define

#define

#define

#define

InputHint

StateHint

IconPixmapHint

IconWindowHint

IconPositionHint

IconMaskHint

WindowGroupHint

UrgencyHint

AllHints

(1L << 0)

(1L << 1)

(1L << 2)

(1L << 3)

(1L << 4)

(1L << 5)

(1L << 6)

(1L << 8)

(InputHint|StateHint|IconPixmapHint|

IconWindowHint|IconPositionHint|

IconMaskHint|WindowGroupHint)

/* Values */ typedef struct { long flags;

Bool input;

/* marks which fields in this structure are defined */

/* does this application rely on the window manager to int initial_state;

Pixmap icon_pixmap; get keyboard input? */

/* see below */

/* pixmap to be used as icon */

Window icon_window; /* window to be used as icon */ int icon_x, icon_y;

Pixmap icon_mask;

XID window_group; /* id of related window group */

/* this structure may be extended in the future */

} XWMHints;

/* initial position of icon */

/* pixmap to be used as mask for icon_pixmap */

The input member is used to communicate to the window manager the input focus model used by the application. Applications that expect input but never explicitly set focus to any of their subwindows (that is, use the push model of focus management), such as X Version 10 style applications that use real-estate driven focus, should set this member to True. Similarly, applications that set input focus to their subwindows only when it is given to their top-level window by a window manager should also set this member to True. Applications that manage their own input focus by explicitly setting focus to one of their subwindows whenever they want keyboard input

(that is, use the pull model of focus management) should set this member to False. Applications that never expect any keyboard input also should set this member to False.

Pull model window managers should make it possible for push model applications to get input by setting input focus to the top-level windows of applications whose input member is True. Push model window managers should make sure that pull model applications do not break them by resetting input focus to PointerRoot when it is appropriate (for example, whenever an application whose input member is False sets input focus to one of its subwindows).

The definitions for the initial_state flag are:

#define

WithdrawnState

#define

NormalState

#define

IconicState

0

1

3

/* most applications start this way */

/* application wants to start as an icon */

The icon_mask specifies which pixels of the icon_pixmap should be used as the icon. This allows for nonrectangular icons. Both icon_pixmap and icon_mask must be bitmaps. The icon_window lets an application provide a window for use as an icon for window managers that support such use. The window_group lets you specify that this window belongs to a group of other windows.

For example, if a single application manipulates multiple top-level windows, this allows you to

330

Xlib − C Library libX11 1.3.2

provide enough information that a window manager can iconify all of the windows rather than just the one window.

The UrgencyHint flag, if set in the flags field, indicates that the client deems the window contents to be urgent, requiring the timely response of the user. The window manager will make some effort to draw the user’s attention to this window while this flag is set. The client must provide some means by which the user can cause the urgency flag to be cleared (either mitigating the condition that made the window urgent or merely shutting off the alarm) or the window to be withdrawn.

To set a window’s WM_HINTS property, use XSetWMHints.

XSetWMHints (display, w, wmhints)

Display *display;

Window w;

XWMHints *wmhints;

display w wmhints

Specifies the connection to the X server.

Specifies the window.

Specifies the XWMHints structure to be used.

The XSetWMHints function sets the window manager hints that include icon information and location, the initial state of the window, and whether the application relies on the window manager to get keyboard input.

XSetWMHints can generate BadAlloc and BadWindow errors.

To read a window’s WM_HINTS property, use XGetWMHints.

XWMHints *XGetWMHints(display, w)

Display *display;

Window w;

display w

Specifies the connection to the X server.

Specifies the window.

The XGetWMHints function reads the window manager hints and returns NULL if no

WM_HINTS property was set on the window or returns a pointer to an XWMHints structure if it succeeds. When finished with the data, free the space used for it by calling XFree.

XGetWMHints can generate a BadWindow error.

14.1.7. Setting and Reading the WM_NORMAL_HINTS Property

Xlib provides functions that you can use to set or read the WM_NORMAL_HINTS property for a given window. The functions use the flags and the XSizeHints structure, as defined in the

<X11/Xutil.h> header file.

The size of the XSizeHints structure may grow in future releases, as new components are added to support new ICCCM features. Passing statically allocated instances of this structure into Xlib may result in memory corruption when running against a future release of the library. As such, it is recommended that only dynamically allocated instances of the structure be used.

To allocate an XSizeHints structure, use XAllocSizeHints.

331

Xlib − C Library libX11 1.3.2

XSizeHints *XAllocSizeHints( )

The XAllocSizeHints function allocates and returns a pointer to an XSizeHints structure. Note that all fields in the XSizeHints structure are initially set to zero. If insufficient memory is available, XAllocSizeHints returns NULL. To free the memory allocated to this structure, use

XFree.

The XSizeHints structure contains:

/* Size hints mask bits */

#define

USPosition

#define

USSize

#define

PPosition

#define

PSize

#define

PMinSize

#define

PMaxSize

#define

PResizeInc

#define

PAspect

#define

#define

#define

PBaseSize

PWinGravity

PAllHints

(1L << 0)

(1L << 1)

(1L << 2)

(1L << 3)

(1L << 4)

(1L << 5)

(1L << 6)

(1L << 7)

(1L << 8)

(1L << 9)

(PPosition|PSize|

PMinSize|PMaxSize|

PResizeInc|PAspect)

/* user specified x, y */

/* user specified width, height */

/* program specified position */

/* program specified size */

/* program specified minimum size */

/* program specified maximum size */

/* program specified resize increments */

/* program specified min and max aspect ratios */

/* Values */ typedef struct { long flags; int x, y; int width, height; int min_width, min_height; int max_width, max_height; int width_inc, height_inc; struct {

/* marks which fields in this structure are defined */

/* Obsolete */

/* Obsolete */ int x; int y;

} min_aspect, max_aspect; int base_width, base_height;

/* numerator */

/* denominator */ int win_gravity;

/* this structure may be extended in the future */

} XSizeHints;

The x, y, width, and height members are now obsolete and are left solely for compatibility reasons. The min_width and min_height members specify the minimum window size that still allows the application to be useful. The max_width and max_height members specify the maximum window size. The width_inc and height_inc members define an arithmetic progression of sizes (minimum to maximum) into which the window prefers to be resized. The min_aspect and max_aspect members are expressed as ratios of x and y, and they allow an application to specify the range of aspect ratios it prefers. The base_width and base_height members define the desired size of the window. The window manager will interpret the position of the window and its border width to position the point of the outer rectangle of the overall window specified by the win_gravity member. The outer rectangle of the window includes any borders or decorations supplied by

332

Xlib − C Library libX11 1.3.2

the window manager. In other words, if the window manager decides to place the window where the client asked, the position on the parent window’s border named by the win_gravity will be placed where the client window would have been placed in the absence of a window manager.

Note that use of the PAllHints macro is highly discouraged.

To set a window’s WM_NORMAL_HINTS property, use XSetWMNormalHints.

void XSetWMNormalHints(display, w, hints)

Display *display;

Window w;

XSizeHints *hints;

display w hints

Specifies the connection to the X server.

Specifies the window.

Specifies the size hints for the window in its normal state.

The XSetWMNormalHints function replaces the size hints for the WM_NORMAL_HINTS property on the specified window. If the property does not already exist, XSetWMNormalHints sets the size hints for the WM_NORMAL_HINTS property on the specified window. The property is stored with a type of WM_SIZE_HINTS and a format of 32.

XSetWMNormalHints can generate BadAlloc and BadWindow errors.

To read a window’s WM_NORMAL_HINTS property, use XGetWMNormalHints.

Status XGetWMNormalHints(display, w, hints_return, supplied_return)

Display *display;

Window w;

XSizeHints *hints_return; long *supplied_return;

display w

Specifies the connection to the X server.

Specifies the window.

hints_return

Returns the size hints for the window in its normal state.

supplied_return Returns the hints that were supplied by the user.

The XGetWMNormalHints function returns the size hints stored in the

WM_NORMAL_HINTS property on the specified window. If the property is of type

WM_SIZE_HINTS, is of format 32, and is long enough to contain either an old (pre-ICCCM) or new size hints structure, XGetWMNormalHints sets the various fields of the XSizeHints structure, sets the supplied_return argument to the list of fields that were supplied by the user (whether or not they contained defined values), and returns a nonzero status. Otherwise, it returns a zero status.

If XGetWMNormalHints returns successfully and a pre-ICCCM size hints property is read, the supplied_return argument will contain the following bits:

(USPosition|USSize|PPosition|PSize|PMinSize|

PMaxSize|PResizeInc|PAspect)

If the property is large enough to contain the base size and window gravity fields as well, the supplied_return argument will also contain the following bits:

333

Xlib − C Library libX11 1.3.2

PBaseSize|PWinGravity

XGetWMNormalHints can generate a BadWindow error.

To set a window’s WM_SIZE_HINTS property, use XSetWMSizeHints.

void XSetWMSizeHints(display, w, hints, property)

Display *display;

Window w;

XSizeHints *hints;

Atom property;

display w hints property

Specifies the connection to the X server.

Specifies the window.

Specifies the XSizeHints structure to be used.

Specifies the property name.

The XSetWMSizeHints function replaces the size hints for the specified property on the named window. If the specified property does not already exist, XSetWMSizeHints sets the size hints for the specified property on the named window. The property is stored with a type of

WM_SIZE_HINTS and a format of 32. To set a window’s normal size hints, you can use the

XSetWMNormalHints function.

XSetWMSizeHints can generate BadAlloc, BadAtom, and BadWindow errors.

To read a window’s WM_SIZE_HINTS property, use XGetWMSizeHints.

Status XGetWMSizeHints(display, w, hints_return, supplied_return, property)

Display *display;

Window w;

XSizeHints *hints_return; long *supplied_return;

Atom property;

display

Specifies the connection to the X server.

w

Specifies the window.

hints_return

Returns the XSizeHints structure.

supplied_return Returns the hints that were supplied by the user.

property

Specifies the property name.

The XGetWMSizeHints function returns the size hints stored in the specified property on the named window. If the property is of type WM_SIZE_HINTS, is of format 32, and is long enough to contain either an old (pre-ICCCM) or new size hints structure, XGetWMSizeHints sets the various fields of the XSizeHints structure, sets the supplied_return argument to the list of fields that were supplied by the user (whether or not they contained defined values), and returns a nonzero status. Otherwise, it returns a zero status. To get a window’s normal size hints, you can use the XGetWMNormalHints function.

If XGetWMSizeHints returns successfully and a pre-ICCCM size hints property is read, the supplied_return argument will contain the following bits:

(USPosition|USSize|PPosition|PSize|PMinSize|

PMaxSize|PResizeInc|PAspect)

334

Xlib − C Library libX11 1.3.2

If the property is large enough to contain the base size and window gravity fields as well, the supplied_return argument will also contain the following bits:

PBaseSize|PWinGravity

XGetWMSizeHints can generate BadAtom and BadWindow errors.

14.1.8. Setting and Reading the WM_CLASS Property

Xlib provides functions that you can use to set and get the WM_CLASS property for a given window. These functions use the XClassHint structure, which is defined in the <X11/Xutil.h> header file.

To allocate an XClassHint structure, use XAllocClassHint.

XClassHint *XAllocClassHint( )

The XAllocClassHint function allocates and returns a pointer to an XClassHint structure. Note that the pointer fields in the XClassHint structure are initially set to NULL. If insufficient memory is available, XAllocClassHint returns NULL. To free the memory allocated to this structure, use XFree.

The XClassHint contains: typedef struct { char *res_name; char *res_class;

} XClassHint;

The res_name member contains the application name, and the res_class member contains the application class. Note that the name set in this property may differ from the name set as

WM_NAME. That is, WM_NAME specifies what should be displayed in the title bar and, therefore, can contain temporal information (for example, the name of a file currently in an editor’s buffer). On the other hand, the name specified as part of WM_CLASS is the formal name of the application that should be used when retrieving the application’s resources from the resource database.

To set a window’s WM_CLASS property, use XSetClassHint.

XSetClassHint (display, w, class_hints)

Display *display;

Window w;

XClassHint *class_hints;

display w class_hints

Specifies the connection to the X server.

Specifies the window.

Specifies the XClassHint structure that is to be used.

The XSetClassHint function sets the class hint for the specified window. If the strings are not in the Host Portable Character Encoding, the result is implementation-dependent.

XSetClassHint can generate BadAlloc and BadWindow errors.

335

Xlib − C Library libX11 1.3.2

To read a window’s WM_CLASS property, use XGetClassHint.

Status XGetClassHint(display, w, class_hints_return)

Display *display;

Window w;

XClassHint *class_hints_return;

display w

Specifies the connection to the X server.

Specifies the window.

class_hints_return

Returns the XClassHint structure.

The XGetClassHint function returns the class hint of the specified window to the members of the supplied structure. If the data returned by the server is in the Latin Portable Character Encoding, then the returned strings are in the Host Portable Character Encoding. Otherwise, the result is implementation-dependent. It returns a nonzero status on success; otherwise, it returns a zero status. To free res_name and res_class when finished with the strings, use XFree on each individually.

XGetClassHint can generate a BadWindow error.

14.1.9. Setting and Reading the WM_TRANSIENT_FOR Property

Xlib provides functions that you can use to set and read the WM_TRANSIENT_FOR property for a given window.

To set a window’s WM_TRANSIENT_FOR property, use XSetTransientForHint.

XSetTransientForHint (display, w, prop_window)

Display *display;

Window w;

Window prop_window;

display w

Specifies the connection to the X server.

Specifies the window.

prop_window

Specifies the window that the WM_TRANSIENT_FOR property is to be set to.

The XSetTransientForHint function sets the WM_TRANSIENT_FOR property of the specified window to the specified prop_window.

XSetTransientForHint can generate BadAlloc and BadWindow errors.

To read a window’s WM_TRANSIENT_FOR property, use XGetTransientForHint.

336

Xlib − C Library libX11 1.3.2

Status XGetTransientForHint (display, w, prop_window_return)

Display *display;

Window w;

Window *prop_window_return;

display w

Specifies the connection to the X server.

Specifies the window.

prop_window_return

Returns the WM_TRANSIENT_FOR property of the specified window.

The XGetTransientForHint function returns the WM_TRANSIENT_FOR property for the specified window. It returns a nonzero status on success; otherwise, it returns a zero status.

XGetTransientForHint can generate a BadWindow error.

14.1.10. Setting and Reading the WM_PROT OCOLS Property

Xlib provides functions that you can use to set and read the WM_PROT OCOLS property for a given window.

To set a window’s WM_PROT OCOLS property, use XSetWMProtocols.

Status XSetWMProtocols(display, w, protocols, count)

Display *display;

Window w;

Atom *protocols; int count;

display w protocols count

Specifies the connection to the X server.

Specifies the window.

Specifies the list of protocols.

Specifies the number of protocols in the list.

The XSetWMProtocols function replaces the WM_PROT OCOLS property on the specified window with the list of atoms specified by the protocols argument. If the property does not already exist, XSetWMProtocols sets the WM_PROT OCOLS property on the specified window to the list of atoms specified by the protocols argument. The property is stored with a type of ATOM and a format of 32. If it cannot intern the WM_PROT OCOLS atom, XSetWMProtocols returns a zero status. Otherwise, it returns a nonzero status.

XSetWMProtocols can generate BadAlloc and BadWindow errors.

To read a window’s WM_PROT OCOLS property, use XGetWMProtocols.

337

Xlib − C Library libX11 1.3.2

Status XGetWMProtocols(display, w, protocols_return, count_return)

Display *display;

Window w;

Atom **protocols_return; int *count_return;

display w

Specifies the connection to the X server.

Specifies the window.

protocols_returnReturns the list of protocols.

count_return

Returns the number of protocols in the list.

The XGetWMProtocols function returns the list of atoms stored in the WM_PROT OCOLS property on the specified window. These atoms describe window manager protocols in which the owner of this window is willing to participate. If the property exists, is of type ATOM, is of format 32, and the atom WM_PROT OCOLS can be interned, XGetWMProtocols sets the protocols_return argument to a list of atoms, sets the count_return argument to the number of elements in the list, and returns a nonzero status. Otherwise, it sets neither of the return arguments and returns a zero status. To release the list of atoms, use XFree.

XGetWMProtocols can generate a BadWindow error.

14.1.11. Setting and Reading the WM_COLORMAP_WINDOWS Property

Xlib provides functions that you can use to set and read the WM_COLORMAP_WINDOWS property for a given window.

To set a window’s WM_COLORMAP_WINDOWS property, use XSetWMColormapWindows.

Status XSetWMColormapWindows (display, w, colormap_windows, count)

Display *display;

Window w;

Window *colormap_windows; int count;

display w

Specifies the connection to the X server.

Specifies the window.

colormap_windows

Specifies the list of windows.

count

Specifies the number of windows in the list.

The XSetWMColormapWindows function replaces the WM_COLORMAP_WINDOWS property on the specified window with the list of windows specified by the colormap_windows argument. If the property does not already exist, XSetWMColormapWindows sets the WM_COL-

ORMAP_WINDOWS property on the specified window to the list of windows specified by the colormap_windows argument. The property is stored with a type of WINDOW and a format of

32. If it cannot intern the WM_COLORMAP_WINDOWS atom, XSetWMColormapWindows returns a zero status. Otherwise, it returns a nonzero status.

XSetWMColormapWindows can generate BadAlloc and BadWindow errors.

To read a window’s WM_COLORMAP_WINDOWS property, use XGetWMColormapWin-

dows.

338

Xlib − C Library libX11 1.3.2

Status XGetWMColormapWindows (display, w, colormap_windows_return, count_return)

Display *display;

Window w;

Window **colormap_windows_return; int *count_return;

display w

Specifies the connection to the X server.

Specifies the window.

colormap_windows_return

Returns the list of windows.

count_return

Returns the number of windows in the list.

The XGetWMColormapWindows function returns the list of window identifiers stored in the

WM_COLORMAP_WINDOWS property on the specified window. These identifiers indicate the colormaps that the window manager may need to install for this window. If the property exists, is of type WINDOW, is of format 32, and the atom WM_COLORMAP_WINDOWS can be interned, XGetWMColormapWindows sets the windows_return argument to a list of window identifiers, sets the count_return argument to the number of elements in the list, and returns a nonzero status. Otherwise, it sets neither of the return arguments and returns a zero status. To release the list of window identifiers, use XFree.

XGetWMColormapWindows can generate a BadWindow error.

14.1.12. Setting and Reading the WM_ICON_SIZE Property

Xlib provides functions that you can use to set and read the WM_ICON_SIZE property for a given window. These functions use the XIconSize structure, which is defined in the

<X11/Xutil.h> header file.

To allocate an XIconSize structure, use XAllocIconSize.

XIconSize *XAllocIconSize( )

The XAllocIconSize function allocates and returns a pointer to an XIconSize structure. Note that all fields in the XIconSize structure are initially set to zero. If insufficient memory is available, XAllocIconSize returns NULL. To free the memory allocated to this structure, use XFree.

The XIconSize structure contains: typedef struct { int min_width, min_height; int max_width, max_height; int width_inc, height_inc;

} XIconSize;

The width_inc and height_inc members define an arithmetic progression of sizes (minimum to maximum) that represent the supported icon sizes.

To set a window’s WM_ICON_SIZE property, use XSetIconSizes.

339

Xlib − C Library libX11 1.3.2

XSetIconSizes (display, w, size_list, count)

Display *display;

Window w;

XIconSize *size_list; int count;

display w size_list count

Specifies the connection to the X server.

Specifies the window.

Specifies the size list.

Specifies the number of items in the size list.

The XSetIconSizes function is used only by window managers to set the supported icon sizes.

XSetIconSizes can generate BadAlloc and BadWindow errors.

To read a window’s WM_ICON_SIZE property, use XGetIconSizes.

Status XGetIconSizes(display, w, size_list_return, count_return)

Display *display;

Window w;

XIconSize **size_list_return; int *count_return;

display w

Specifies the connection to the X server.

Specifies the window.

size_list_return Returns the size list.

count_return

Returns the number of items in the size list.

The XGetIconSizes function returns zero if a window manager has not set icon sizes; otherwise, it returns nonzero. XGetIconSizes should be called by an application that wants to find out what icon sizes would be most appreciated by the window manager under which the application is running. The application should then use XSetWMHints to supply the window manager with an icon pixmap or window in one of the supported sizes. To free the data allocated in size_list_return, use XFree.

XGetIconSizes can generate a BadWindow error.

14.1.13. Using Window Manager Convenience Functions

The XmbSetWMProperties function stores the standard set of window manager properties, with text properties in standard encodings for internationalized text communication. The standard window manager properties for a given window are WM_NAME, WM_ICON_NAME,

WM_HINTS, WM_NORMAL_HINTS, WM_CLASS, WM_COMMAND,

WM_CLIENT_MACHINE, and WM_LOCALE_NAME.

340

Xlib − C Library libX11 1.3.2

void XmbSetWMProperties(display, w, window_name, icon_name, argv, argc,

normal_hints, wm_hints, class_hints)

Display *display;

Window w; char *window_name; char *icon_name; char *argv[]; int argc;

XSizeHints *normal_hints;

XWMHints *wm_hints;

XClassHint *class_hints;

display w

Specifies the connection to the X server.

Specifies the window.

window_name Specifies the window name, which should be a null-terminated string.

icon_name

Specifies the icon name, which should be a null-terminated string.

argv argc hints wm_hints class_hints

Specifies the application’s argument list.

Specifies the number of arguments.

Specifies the size hints for the window in its normal state.

Specifies the XWMHints structure to be used.

Specifies the XClassHint structure to be used.

The XmbSetWMProperties convenience function provides a simple programming interface for setting those essential window properties that are used for communicating with other clients (particularly window and session managers).

If the window_name argument is non-NULL, XmbSetWMProperties sets the WM_NAME property. If the icon_name argument is non-NULL, XmbSetWMProperties sets the

WM_ICON_NAME property. The window_name and icon_name arguments are null-terminated strings in the encoding of the current locale. If the arguments can be fully converted to the

STRING encoding, the properties are created with type ‘‘STRING’’; otherwise, the arguments are converted to Compound Text, and the properties are created with type ‘‘COMPOUND_TEXT’’.

If the normal_hints argument is non-NULL, XmbSetWMProperties calls XSetWMNormal-

Hints, which sets the WM_NORMAL_HINTS property (see section 14.1.7). If the wm_hints argument is non-NULL, XmbSetWMProperties calls XSetWMHints, which sets the

WM_HINTS property (see section 14.1.6).

If the argv argument is non-NULL, XmbSetWMProperties sets the WM_COMMAND property from argv and argc. An argc of zero indicates a zero-length command.

The hostname of the machine is stored using XSetWMClientMachine (see section 14.2.2).

If the class_hints argument is non-NULL, XmbSetWMProperties sets the WM_CLASS property. If the res_name member in the XClassHint structure is set to the NULL pointer and the

RESOURCE_NAME environment variable is set, the value of the environment variable is substituted for res_name. If the res_name member is NULL, the environment variable is not set, and argv and argv[0] are set, then the value of argv[0], stripped of any directory prefixes, is substituted for res_name.

It is assumed that the supplied class_hints.res_name and argv, the RESOURCE_NAME environment variable, and the hostname of the machine are in the encoding of the locale announced for the LC_CTYPE category (on POSIX-compliant systems, the LC_CTYPE, else LANG environment variable). The corresponding WM_CLASS, WM_COMMAND, and

WM_CLIENT_MACHINE properties are typed according to the local host locale announcer. No

341

Xlib − C Library libX11 1.3.2

encoding conversion is performed prior to storage in the properties.

For clients that need to process the property text in a locale, XmbSetWMProperties sets the

WM_LOCALE_NAME property to be the name of the current locale. The name is assumed to be in the Host Portable Character Encoding and is converted to STRING for storage in the property.

XmbSetWMProperties can generate BadAlloc and BadWindow errors.

To set a window’s standard window manager properties with strings in client-specified encodings, use XSetWMProperties. The standard window manager properties for a given window are

WM_NAME, WM_ICON_NAME, WM_HINTS, WM_NORMAL_HINTS, WM_CLASS,

WM_COMMAND, and WM_CLIENT_MACHINE.

void XSetWMProperties(display, w, window_name, icon_name, argv, argc, normal_hints, wm_hints, class_hints)

Display *display;

Window w;

XTextProperty *window_name;

XTextProperty *icon_name; char **argv; int argc;

XSizeHints *normal_hints;

XWMHints *wm_hints;

XClassHint *class_hints;

display

Specifies the connection to the X server.

w

Specifies the window.

window_name Specifies the window name, which should be a null-terminated string.

icon_name

Specifies the icon name, which should be a null-terminated string.

argv argc

Specifies the application’s argument list.

Specifies the number of arguments.

normal_hints

Specifies the size hints for the window in its normal state.

wm_hints

Specifies the XWMHints structure to be used.

class_hints

Specifies the XClassHint structure to be used.

The XSetWMProperties convenience function provides a single programming interface for setting those essential window properties that are used for communicating with other clients (particularly window and session managers).

If the window_name argument is non-NULL, XSetWMProperties calls XSetWMName, which, in turn, sets the WM_NAME property (see section 14.1.4). If the icon_name argument is non-

NULL, XSetWMProperties calls XSetWMIconName, which sets the WM_ICON_NAME property (see section 14.1.5). If the argv argument is non-NULL, XSetWMProperties calls

XSetCommand, which sets the WM_COMMAND property (see section 14.2.1). Note that an argc of zero is allowed to indicate a zero-length command. Note also that the hostname of this machine is stored using XSetWMClientMachine (see section 14.2.2).

If the normal_hints argument is non-NULL, XSetWMProperties calls XSetWMNormalHints, which sets the WM_NORMAL_HINTS property (see section 14.1.7). If the wm_hints argument is non-NULL, XSetWMProperties calls XSetWMHints, which sets the WM_HINTS property

(see section 14.1.6).

If the class_hints argument is non-NULL, XSetWMProperties calls XSetClassHint, which sets the WM_CLASS property (see section 14.1.8). If the res_name member in the XClassHint structure is set to the NULL pointer and the RESOURCE_NAME environment variable is set, then the value of the environment variable is substituted for res_name. If the res_name member is

342

Xlib − C Library libX11 1.3.2

NULL, the environment variable is not set, and argv and argv[0] are set, then the value of argv[0], stripped of any directory prefixes, is substituted for res_name.

XSetWMProperties can generate BadAlloc and BadWindow errors.

14.2. Client to Session Manager Communication

This section discusses how to:

• Set and read the WM_COMMAND property

• Set and read the WM_CLIENT_MACHINE property

14.2.1. Setting and Reading the WM_COMMAND Property

Xlib provides functions that you can use to set and read the WM_COMMAND property for a given window.

To set a window’s WM_COMMAND property, use XSetCommand.

XSetCommand (display, w, argv, argc)

Display *display;

Window w; char **argv; int argc;

display w argv argc

Specifies the connection to the X server.

Specifies the window.

Specifies the application’s argument list.

Specifies the number of arguments.

The XSetCommand function sets the command and arguments used to invoke the application.

(Typically, argv is the argv array of your main program.) If the strings are not in the Host Portable Character Encoding, the result is implementation-dependent.

XSetCommand can generate BadAlloc and BadWindow errors.

To read a window’s WM_COMMAND property, use XGetCommand.

Status XGetCommand(display, w, argv_return, argc_return)

Display *display;

Window w; char ***argv_return; int *argc_return;

display w

Specifies the connection to the X server.

Specifies the window.

argv_return

Returns the application’s argument list.

argc_return

Returns the number of arguments returned.

The XGetCommand function reads the WM_COMMAND property from the specified window and returns a string list. If the WM_COMMAND property exists, it is of type STRING and format 8. If sufficient memory can be allocated to contain the string list, XGetCommand fills in the argv_return and argc_return arguments and returns a nonzero status. Otherwise, it returns a zero status. If the data returned by the server is in the Latin Portable Character Encoding, then the returned strings are in the Host Portable Character Encoding. Otherwise, the result is

343

Xlib − C Library libX11 1.3.2

implementation-dependent. To free the memory allocated to the string list, use XFreeStringList.

14.2.2. Setting and Reading the WM_CLIENT_MACHINE Property

Xlib provides functions that you can use to set and read the WM_CLIENT_MACHINE property for a given window.

To set a window’s WM_CLIENT_MACHINE property, use XSetWMClientMachine.

void XSetWMClientMachine(display, w, text_prop)

Display *display;

Window w;

XTextProperty *text_prop;

display w text_prop

Specifies the connection to the X server.

Specifies the window.

Specifies the XTextProperty structure to be used.

The XSetWMClientMachine convenience function calls XSetTextProperty to set the

WM_CLIENT_MACHINE property.

To read a window’s WM_CLIENT_MACHINE property, use XGetWMClientMachine.

Status XGetWMClientMachine(display, w, text_prop_return)

Display *display;

Window w;

XTextProperty *text_prop_return;

display w

Specifies the connection to the X server.

Specifies the window.

text_prop_returnReturns the XTextProperty structure.

The XGetWMClientMachine convenience function performs an XGetTextProperty on the

WM_CLIENT_MACHINE property. It returns a nonzero status on success; otherwise, it returns a zero status.

14.3. Standard Colormaps

Applications with color palettes, smooth-shaded drawings, or digitized images demand large numbers of colors. In addition, these applications often require an efficient mapping from color triples to pixel values that display the appropriate colors.

As an example, consider a three-dimensional display program that wants to draw a smoothly shaded sphere. At each pixel in the image of the sphere, the program computes the intensity and color of light reflected back to the viewer. The result of each computation is a triple of red, green, and blue (RGB) coefficients in the range 0.0 to 1.0. To draw the sphere, the program needs a colormap that provides a large range of uniformly distributed colors. The colormap should be arranged so that the program can convert its RGB triples into pixel values very quickly, because drawing the entire sphere requires many such conversions.

On many current workstations, the display is limited to 256 or fewer colors. Applications must allocate colors carefully, not only to make sure they cover the entire range they need but also to make use of as many of the available colors as possible. On a typical X display, many applications are active at once. Most workstations have only one hardware look-up table for colors, so only one application colormap can be installed at a given time. The application using the

344

Xlib − C Library libX11 1.3.2

installed colormap is displayed correctly, and the other applications go technicolor and are displayed with false colors.

As another example, consider a user who is running an image processing program to display earth-resources data. The image processing program needs a colormap set up with 8 reds, 8 greens, and 4 blues, for a total of 256 colors. Because some colors are already in use in the default colormap, the image processing program allocates and installs a new colormap.

The user decides to alter some of the colors in the image by invoking a color palette program to mix and choose colors. The color palette program also needs a colormap with eight reds, eight greens, and four blues, so just like the image processing program, it must allocate and install a new colormap.

Because only one colormap can be installed at a time, the color palette may be displayed incorrectly whenever the image processing program is active. Conversely, whenever the palette program is active, the image may be displayed incorrectly. The user can never match or compare colors in the palette and image. Contention for colormap resources can be reduced if applications with similar color needs share colormaps.

The image processing program and the color palette program could share the same colormap if there existed a convention that described how the colormap was set up. Whenever either program was active, both would be displayed correctly.

The standard colormap properties define a set of commonly used colormaps. Applications that share these colormaps and conventions display true colors more often and provide a better interface to the user.

Standard colormaps allow applications to share commonly used color resources. This allows many applications to be displayed in true colors simultaneously, even when each application needs an entirely filled colormap.

Several standard colormaps are described in this section. Usually, a window manager creates these colormaps. Applications should use the standard colormaps if they already exist.

To allocate an XStandardColormap structure, use XAllocStandardColormap.

XStandardColormap *XAllocStandardColormap( )

The XAllocStandardColormap function allocates and returns a pointer to an XStandardCol-

ormap structure. Note that all fields in the XStandardColormap structure are initially set to zero. If insufficient memory is available, XAllocStandardColormap returns NULL. To free the memory allocated to this structure, use XFree.

The XStandardColormap structure contains:

345

Xlib − C Library libX11 1.3.2

/* Hints */

#define

ReleaseByFreeingColormap

/* Values */ typedef struct {

Colormap colormap; unsigned long red_max; unsigned long red_mult; unsigned long green_max; unsigned long green_mult; unsigned long blue_max; unsigned long blue_mult; unsigned long base_pixel;

VisualID visualid;

XID killid;

} XStandardColormap;

( (XID) 1L)

The colormap member is the colormap created by the XCreateColormap function. The red_max, green_max, and blue_max members give the maximum red, green, and blue values, respectively. Each color coefficient ranges from zero to its max, inclusive. For example, a common colormap allocation is 3/3/2 (3 planes for red, 3 planes for green, and 2 planes for blue).

This colormap would have red_max = 7, green_max = 7, and blue_max = 3. An alternate allocation that uses only 216 colors is red_max = 5, green_max = 5, and blue_max = 5.

The red_mult, green_mult, and blue_mult members give the scale factors used to compose a full pixel value. (See the discussion of the base_pixel members for further information.) For a 3/3/2 allocation, red_mult might be 32, green_mult might be 4, and blue_mult might be 1. For a 6-colors-each allocation, red_mult might be 36, green_mult might be 6, and blue_mult might be 1.

The base_pixel member gives the base pixel value used to compose a full pixel value. Usually, the base_pixel is obtained from a call to the XAllocColorPlanes function. Given integer red, green, and blue coefficients in their appropriate ranges, one then can compute a corresponding pixel value by using the following expression:

(r * red_mult + g * green_mult + b * blue_mult + base_pixel) & 0xFFFFFFFF

For GrayScale colormaps, only the colormap, red_max, red_mult, and base_pixel members are defined. The other members are ignored. To compute a GrayScale pixel value, use the following expression:

(gray * red_mult + base_pixel) & 0xFFFFFFFF

Negative multipliers can be represented by converting the 2’s complement representation of the multiplier into an unsigned long and storing the result in the appropriate _mult field. The step of masking by 0xFFFFFFFF effectively converts the resulting positive multiplier into a negative one.

The masking step will take place automatically on many machine architectures, depending on the size of the integer type used to do the computation.

The visualid member gives the ID number of the visual from which the colormap was created.

The killid member gives a resource ID that indicates whether the cells held by this standard colormap are to be released by freeing the colormap ID or by calling the XKillClient function on the indicated resource. (Note that this method is necessary for allocating out of an existing colormap.)

The properties containing the XStandardColormap information have the type

RGB_COLOR_MAP.

346

Xlib − C Library libX11 1.3.2

The remainder of this section discusses standard colormap properties and atoms as well as how to manipulate standard colormaps.

14.3.1. Standard Colormap Properties and Atoms

Several standard colormaps are available. Each standard colormap is defined by a property, and each such property is identified by an atom. The following list names the atoms and describes the colormap associated with each one. The <X11/Xatom.h> header file contains the definitions for each of the following atoms, which are prefixed with XA_.

RGB_DEFAULT_MAP

This atom names a property. The value of the property is an array of XStandardCol-

ormap structures. Each entry in the array describes an RGB subset of the default color map for the Visual specified by visual_id.

Some applications only need a few RGB colors and may be able to allocate them from the system default colormap. This is the ideal situation because the fewer colormaps that are active in the system the more applications are displayed with correct colors at all times.

A typical allocation for the RGB_DEFAULT_MAP on 8-plane displays is 6 reds, 6 greens, and 6 blues. This gives 216 uniformly distributed colors (6 intensities of 36 different hues) and still leaves 40 elements of a 256-element colormap available for special-purpose colors for text, borders, and so on.

RGB_BEST_MAP

This atom names a property. The value of the property is an XStandardColormap.

The property defines the best RGB colormap available on the screen. (Of course, this is a subjective evaluation.) Many image processing and three-dimensional applications need to use all available colormap cells and to distribute as many perceptually distinct colors as possible over those cells. This implies that there may be more green values available than red, as well as more green or red than blue.

For an 8-plane PseudoColor visual, RGB_BEST_MAP is likely to be a 3/3/2 allocation.

For a 24-plane DirectColor visual, RGB_BEST_MAP is normally an 8/8/8 allocation.

RGB_RED_MAP

RGB_GREEN_MAP

RGB_BLUE_MAP

These atoms name properties. The value of each property is an XStandardColormap.

The properties define all-red, all-green, and all-blue colormaps, respectively. These maps are used by applications that want to make color-separated images. For example, a user might generate a full-color image on an 8-plane display both by rendering an image three times (once with high color resolution in red, once with green, and once with blue) and by multiply exposing a single frame in a camera.

RGB_GRAY_MAP

This atom names a property. The value of the property is an XStandardColormap.

The property describes the best GrayScale colormap available on the screen. As previously mentioned, only the colormap, red_max, red_mult, and base_pixel members of the

XStandardColormap structure are used for GrayScale colormaps.

14.3.2. Setting and Obtaining Standard Colormaps

Xlib provides functions that you can use to set and obtain an XStandardColormap structure.

To set an XStandardColormap structure, use XSetRGBColormaps.

347

Xlib − C Library libX11 1.3.2

void XSetRGBColormaps(display, w, std_colormap, count, property)

Display *display;

Window w;

XStandardColormap *std_colormap; int count;

Atom property;

display w

Specifies the connection to the X server.

Specifies the window.

std_colormap

Specifies the XStandardColormap structure to be used.

count

Specifies the number of colormaps.

property

Specifies the property name.

The XSetRGBColormaps function replaces the RGB colormap definition in the specified property on the named window. If the property does not already exist, XSetRGBColormaps sets the

RGB colormap definition in the specified property on the named window. The property is stored with a type of RGB_COLOR_MAP and a format of 32. Note that it is the caller’s responsibility to honor the ICCCM restriction that only RGB_DEFAULT_MAP contain more than one definition.

The XSetRGBColormaps function usually is only used by window or session managers. To create a standard colormap, follow this procedure:

1. Open a new connection to the same server.

2. Grab the server.

3. See if the property is on the property list of the root window for the screen.

4. If the desired property is not present:

• Create a colormap (unless you are using the default colormap of the screen).

Determine the color characteristics of the visual.

Allocate cells in the colormap (or create it with AllocAll).

Call XStoreColors to store appropriate color values in the colormap.

Fill in the descriptive members in the XStandardColormap structure.

Attach the property to the root window.

• Use XSetCloseDownMode to make the resource permanent.

5. Ungrab the server.

XSetRGBColormaps can generate BadAlloc, BadAtom, and BadWindow errors.

To obtain the XStandardColormap structure associated with the specified property, use

XGetRGBColormaps.

348

Xlib − C Library libX11 1.3.2

Status XGetRGBColormaps(display, w, std_colormap_return, count_return, property)

Display *display;

Window w;

XStandardColormap **std_colormap_return; int *count_return;

Atom property;

display w

Specifies the connection to the X server.

Specifies the window.

std_colormap_return

Returns the XStandardColormap structure.

count_return

Returns the number of colormaps.

property

Specifies the property name.

The XGetRGBColormaps function returns the RGB colormap definitions stored in the specified property on the named window. If the property exists, is of type RGB_COLOR_MAP, is of format 32, and is long enough to contain a colormap definition, XGetRGBColormaps allocates and fills in space for the returned colormaps and returns a nonzero status. If the visualid is not present, XGetRGBColormaps assumes the default visual for the screen on which the window is located; if the killid is not present, None is assumed, which indicates that the resources cannot be released. Otherwise, none of the fields are set, and XGetRGBColormaps returns a zero status.

Note that it is the caller’s responsibility to honor the ICCCM restriction that only

RGB_DEFAULT_MAP contain more than one definition.

XGetRGBColormaps can generate BadAtom and BadWindow errors.

349

Xlib − C Library libX11 1.3.2

Chapter 15

Resource Manager Functions

A program often needs a variety of options in the X environment (for example, fonts, colors, icons, and cursors). Specifying all of these options on the command line is awkward because users may want to customize many aspects of the program and need a convenient way to establish these customizations as the default settings. The resource manager is provided for this purpose.

Resource specifications are usually stored in human-readable files and in server properties.

The resource manager is a database manager with a twist. In most database systems, you perform a query using an imprecise specification, and you get back a set of records. The resource manager, howev er, allows you to specify a large set of values with an imprecise specification, to query the database with a precise specification, and to get back only a single value. This should be used by applications that need to know what the user prefers for colors, fonts, and other resources. It is this use as a database for dealing with X resources that inspired the name ‘‘Resource Manager,’’ although the resource manager can be and is used in other ways.

For example, a user of your application may want to specify that all windows should have a blue background but that all mail-reading windows should have a red background. With well-engineered and coordinated applications, a user can define this information using only two lines of specifications.

As an example of how the resource manager works, consider a mail-reading application called xmh. Assume that it is designed so that it uses a complex window hierarchy all the way down to individual command buttons, which may be actual small subwindows in some toolkits. These are often called objects or widgets. In such toolkit systems, each user interface object can be composed of other objects and can be assigned a name and a class. Fully qualified names or classes can have arbitrary numbers of component names, but a fully qualified name always has the same number of component names as a fully qualified class. This generally reflects the structure of the application as composed of these objects, starting with the application itself.

For example, the xmh mail program has a name ‘‘xmh’’ and is one of a class of ‘‘Mail’’ programs. By convention, the first character of class components is capitalized, and the first letter of name components is in lowercase. Each name and class finally has an attribute (for example,

‘‘foreground’’ or ‘‘font’’). If each window is properly assigned a name and class, it is easy for the user to specify attributes of any portion of the application.

At the top level, the application might consist of a paned window (that is, a window divided into several sections) named ‘‘toc’’. One pane of the paned window is a button box window named

‘‘buttons’’ and is filled with command buttons. One of these command buttons is used to incorporate new mail and has the name ‘‘incorporate’’. This window has a fully qualified name,

‘‘xmh.toc.buttons.incorporate’’, and a fully qualified class, ‘‘Xmh.Paned.Box.Command’’. Its fully qualified name is the name of its parent, ‘‘xmh.toc.buttons’’, followed by its name, ‘‘incorporate’’. Its class is the class of its parent, ‘‘Xmh.Paned.Box’’, followed by its particular class,

‘‘Command’’. The fully qualified name of a resource is the attribute’s name appended to the object’s fully qualified name, and the fully qualified class is its class appended to the object’s class.

The incorporate button might need the following resources: Title string, Font, Foreground color for its inactive state, Background color for its inactive state, Foreground color for its active state, and Background color for its active state. Each resource is considered to be an attribute of the button and, as such, has a name and a class. For example, the foreground color for the button in its active state might be named ‘‘activeForeground’’, and its class might be ‘‘Foreground’’.

350

Xlib − C Library libX11 1.3.2

When an application looks up a resource (for example, a color), it passes the complete name and complete class of the resource to a look-up routine. The resource manager compares this complete specification against the incomplete specifications of entries in the resource database, finds the best match, and returns the corresponding value for that entry.

The definitions for the resource manager are contained in <X11/Xresource.h>.

15.1. Resource File Syntax

The syntax of a resource file is a sequence of resource lines terminated by newline characters or the end of the file. The syntax of an individual resource line is:

ResourceLine = Comment | IncludeFile | ResourceSpec | <empty line>

Comment = "!" {<any character except null or newline>}

IncludeFile = "#" WhiteSpace "include" WhiteSpace FileName WhiteSpace

FileName = <valid filename for operating system>

ResourceSpec = WhiteSpace ResourceName WhiteSpace ":" WhiteSpace Value

ResourceName = [Binding] {Component Binding} ComponentName

Binding = "." | "*"

WhiteSpace = {<space> | <horizontal tab>}

Component = "?" | ComponentName

ComponentName = NameChar {NameChar}

NameChar = "a"−"z" | "A"−"Z" | "0"−"9" | "_" | "-"

Value = {<any character except null or unescaped newline>}

Elements separated by vertical bar (|) are alternatives. Curly braces ({...}) indicate zero or more repetitions of the enclosed elements. Square brackets ([...]) indicate that the enclosed element is optional. Quotes ("...") are used around literal characters.

IncludeFile lines are interpreted by replacing the line with the contents of the specified file. The word ‘‘include’’ must be in lowercase. The file name is interpreted relative to the directory of the file in which the line occurs (for example, if the file name contains no directory or contains a relative directory specification).

If a ResourceName contains a contiguous sequence of two or more Binding characters, the sequence will be replaced with a single ‘‘.’’ character if the sequence contains only ‘‘.’’ characters; otherwise, the sequence will be replaced with a single ‘‘*’’ character.

A resource database never contains more than one entry for a given ResourceName. If a resource file contains multiple lines with the same ResourceName, the last line in the file is used.

Any white space characters before or after the name or colon in a ResourceSpec are ignored. To allow a Value to begin with white space, the two-character sequence ‘‘\space’’ (backslash followed by space) is recognized and replaced by a space character, and the two-character sequence

‘‘ \tab’’ (backslash followed by horizontal tab) is recognized and replaced by a horizontal tab character. To allow a Value to contain embedded newline characters, the two-character sequence

‘‘ \ n’’ is recognized and replaced by a newline character. To allow a Value to be broken across multiple lines in a text file, the two-character sequence ‘‘\newline’’ (backslash followed by newline) is recognized and removed from the value. To allow a Value to contain arbitrary character codes, the four-character sequence ‘‘\nnn’’, where each n is a digit character in the range of

‘‘0’’−‘‘7’’, is recognized and replaced with a single byte that contains the octal value specified by the sequence. Finally, the two-character sequence ‘‘\\’’ is recognized and replaced with a single backslash.

As an example of these sequences, the following resource line contains a value consisting of four characters: a backslash, a null, a ‘‘z’’, and a newline: magic.values: \\\000 \ z\ n

351

Xlib − C Library libX11 1.3.2

15.2. Resource Manager Matching Rules

The algorithm for determining which resource database entry matches a given query is the heart of the resource manager. All queries must fully specify the name and class of the desired resource (use of the characters ‘‘*’’ and ‘‘?’’ is not permitted). The library supports up to 100 components in a full name or class. Resources are stored in the database with only partially specified names and classes, using pattern matching constructs. An asterisk (*) is a loose binding and is used to represent any number of intervening components, including none. A period (.) is a tight binding and is used to separate immediately adjacent components. A question mark (?) is used to match any single component name or class. A database entry cannot end in a loose binding; the final component (which cannot be the character ‘‘?’’) must be specified. The lookup algorithm searches the database for the entry that most closely matches (is most specific for) the full name and class being queried. When more than one database entry matches the full name and class, precedence rules are used to select just one.

The full name and class are scanned from left to right (from highest level in the hierarchy to lowest), one component at a time. At each level, the corresponding component and/or binding of each matching entry is determined, and these matching components and bindings are compared according to precedence rules. Each of the rules is applied at each level before moving to the next level, until a rule selects a single entry over all others. The rules, in order of precedence, are:

1. An entry that contains a matching component (whether name, class, or the character ‘‘?’’) takes precedence over entries that elide the level (that is, entries that match the level in a loose binding).

2. An entry with a matching name takes precedence over both entries with a matching class and entries that match using the character ‘‘?’’. An entry with a matching class takes precedence over entries that match using the character ‘‘?’’.

3. An entry preceded by a tight binding takes precedence over entries preceded by a loose binding.

To illustrate these rules, consider the following resource database entries: xmh*Paned*activeForeground: red

*incorporate.Foreground: blue xmh.toc*Command*activeForeground: green xmh.toc*?.Foreground: white xmh.toc*Command.activeForeground: black

(entry A)

(entry B)

(entry C)

(entry D)

(entry E)

Consider a query for the resource: xmh.toc.messagefunctions.incorporate.activeForeground (name)

Xmh.Paned.Box.Command.Foreground

(class)

At the first level (xmh, Xmh), rule 1 eliminates entry B. At the second level (toc, Paned), rule 2 eliminates entry A. At the third level (messagefunctions, Box), no entries are eliminated. At the fourth level (incorporate, Command), rule 2 eliminates entry D. At the fifth level (activeForeground, Foreground), rule 3 eliminates entry C.

15.3. Quarks

Most uses of the resource manager involve defining names, classes, and representation types as string constants. However, always referring to strings in the resource manager can be slow, because it is so heavily used in some toolkits. To solve this problem, a shorthand for a string is used in place of the string in many of the resource manager functions. Simple comparisons can be performed rather than string comparisons. The shorthand name for a string is called a quark and is the type XrmQuark. On some occasions, you may want to allocate a quark that has no string equivalent.

352

Xlib − C Library libX11 1.3.2

A quark is to a string what an atom is to a string in the server, but its use is entirely local to your application.

To allocate a new quark, use XrmUniqueQuark.

XrmQuark XrmUniqueQuark( )

The XrmUniqueQuark function allocates a quark that is guaranteed not to represent any string that is known to the resource manager.

Each name, class, and representation type is typedef’d as an XrmQuark.

typedef int XrmQuark, *XrmQuarkList; typedef XrmQuark XrmName; typedef XrmQuark XrmClass; typedef XrmQuark XrmRepresentation;

#define NULLQUARK ((XrmQuark) 0)

Lists are represented as null-terminated arrays of quarks. The size of the array must be large enough for the number of components used.

typedef XrmQuarkList XrmNameList; typedef XrmQuarkList XrmClassList;

To convert a string to a quark, use XrmStringToQuark or XrmPermStringToQuark.

#define XrmStringToName(string) XrmStringToQuark(string)

#define XrmStringToClass(string) XrmStringToQuark(string)

#define XrmStringToRepresentation(string) XrmStringToQuark(string)

XrmQuark XrmStringToQuark (string) char *string;

XrmQuark XrmPermStringToQuark (string) char *string;

string

Specifies the string for which a quark is to be allocated.

These functions can be used to convert from string to quark representation. If the string is not in the Host Portable Character Encoding, the conversion is implementation-dependent. The string argument to XrmStringToQuark need not be permanently allocated storage. XrmPermString-

ToQuark is just like XrmStringToQuark, except that Xlib is permitted to assume the string argument is permanently allocated, and, hence, that it can be used as the value to be returned by

XrmQuarkToString.

For any giv en quark, if XrmStringToQuark returns a non-NULL value, all future calls will return the same value (identical address).

To convert a quark to a string, use XrmQuarkToString.

353

Xlib − C Library libX11 1.3.2

#define XrmNameToString(name) XrmQuarkToString(name)

#define XrmClassToString(class) XrmQuarkToString(class)

#define XrmRepresentationToString(type) XrmQuarkToString(type) char *XrmQuarkToString (quark)

XrmQuark quark;

quark

Specifies the quark for which the equivalent string is desired.

These functions can be used to convert from quark representation to string. The string pointed to by the return value must not be modified or freed. The returned string is byte-for-byte equal to the original string passed to one of the string-to-quark routines. If no string exists for that quark,

XrmQuarkToString returns NULL. For any giv en quark, if XrmQuarkToString returns a non-NULL value, all future calls will return the same value (identical address).

To convert a string with one or more components to a quark list, use XrmStringToQuarkList.

#define XrmStringToNameList(str, name) XrmStringToQuarkList((str), (name))

#define XrmStringToClassList(str, class) XrmStringToQuarkList((str), (class)) void XrmStringToQuarkList (string, quarks_return) char *string;

XrmQuarkList quarks_return;

string

Specifies the string for which a quark list is to be allocated.

quarks_return Returns the list of quarks. The caller must allocate sufficient space for the quarks list before calling XrmStringToQuarkList.

The XrmStringToQuarkList function converts the null-terminated string (generally a fully qualified name) to a list of quarks. Note that the string must be in the valid ResourceName format

(see section 15.1). If the string is not in the Host Portable Character Encoding, the conversion is implementation-dependent.

A binding list is a list of type XrmBindingList and indicates if components of name or class lists are bound tightly or loosely (that is, if wildcarding of intermediate components is specified).

typedef enum {XrmBindTightly, XrmBindLoosely} XrmBinding, *XrmBindingList;

XrmBindTightly indicates that a period separates the components, and XrmBindLoosely indicates that an asterisk separates the components.

To convert a string with one or more components to a binding list and a quark list, use Xrm-

StringToBindingQuarkList.

354

Xlib − C Library libX11 1.3.2

XrmStringToBindingQuarkList (string, bindings_return, quarks_return) char *string;

XrmBindingList bindings_return;

XrmQuarkList quarks_return;

string

Specifies the string for which a quark list is to be allocated.

bindings_return Returns the binding list. The caller must allocate sufficient space for the binding list before calling XrmStringToBindingQuarkList.

quarks_return Returns the list of quarks. The caller must allocate sufficient space for the quarks list before calling XrmStringToBindingQuarkList.

Component names in the list are separated by a period or an asterisk character. The string must be in the format of a valid ResourceName (see section 15.1). If the string does not start with a period or an asterisk, a tight binding is assumed. For example, the string ‘‘*a.b*c’’ becomes: quarks: a bindings: loose b c tight loose

15.4. Creating and Storing Databases

A resource database is an opaque type, XrmDatabase. Each database value is stored in an Xrm-

Value structure. This structure consists of a size, an address, and a representation type. The size is specified in bytes. The representation type is a way for you to store data tagged by some application-defined type (for example, the strings ‘‘font’’ or ‘‘color’’). It has nothing to do with the C data type or with its class. The XrmValue structure is defined as: typedef struct { unsigned int size;

XPointer addr;

} XrmValue, *XrmValuePtr;

To initialize the resource manager, use XrmInitialize.

void XrmInitialize( );

To retrieve a database from disk, use XrmGetFileDatabase.

XrmDatabase XrmGetFileDatabase(filename) char *filename;

filename

Specifies the resource database file name.

The XrmGetFileDatabase function opens the specified file, creates a new resource database, and loads it with the specifications read in from the specified file. The specified file should contain a sequence of entries in valid ResourceLine format (see section 15.1); the database that results from reading a file with incorrect syntax is implementation-dependent. The file is parsed in the current locale, and the database is created in the current locale. If it cannot open the specified file,

XrmGetFileDatabase returns NULL.

355

Xlib − C Library libX11 1.3.2

To store a copy of a database to disk, use XrmPutFileDatabase.

void XrmPutFileDatabase(database, stored_db)

XrmDatabase database; char *stored_db;

database stored_db

Specifies the database that is to be used.

Specifies the file name for the stored database.

The XrmPutFileDatabase function stores a copy of the specified database in the specified file.

Te xt is written to the file as a sequence of entries in valid ResourceLine format (see section 15.1).

The file is written in the locale of the database. Entries containing resource names that are not in the Host Portable Character Encoding or containing values that are not in the encoding of the database locale, are written in an implementation-dependent manner. The order in which entries are written is implementation-dependent. Entries with representation types other than ‘‘String’’ are ignored.

To obtain a pointer to the screen-independent resources of a display, use XResourceManager-

String.

char *XResourceManagerString(display)

Display *display;

display

Specifies the connection to the X server.

The XResourceManagerString function returns the RESOURCE_MANAGER property from the server’s root window of screen zero, which was returned when the connection was opened using XOpenDisplay. The property is converted from type STRING to the current locale. The conversion is identical to that produced by XmbTextPropertyToTextList for a single element

STRING property. The returned string is owned by Xlib and should not be freed by the client.

The property value must be in a format that is acceptable to XrmGetStringDatabase. If no property exists, NULL is returned.

To obtain a pointer to the screen-specific resources of a screen, use XScreenResourceString.

char *XScreenResourceString(screen)

Screen *screen;

screen

Specifies the screen.

The XScreenResourceString function returns the SCREEN_RESOURCES property from the root window of the specified screen. The property is converted from type STRING to the current locale. The conversion is identical to that produced by XmbTextPropertyToTextList for a single element STRING property. The property value must be in a format that is acceptable to

XrmGetStringDatabase. If no property exists, NULL is returned. The caller is responsible for freeing the returned string by using XFree.

To create a database from a string, use XrmGetStringDatabase.

356

Xlib − C Library libX11 1.3.2

XrmDatabase XrmGetStringDatabase(data) char *data;

data

Specifies the database contents using a string.

The XrmGetStringDatabase function creates a new database and stores the resources specified in the specified null-terminated string. XrmGetStringDatabase is similar to XrmGetFile-

Database except that it reads the information out of a string instead of out of a file. The string should contain a sequence of entries in valid ResourceLine format (see section 15.1) terminated by a null character; the database that results from using a string with incorrect syntax is implementation-dependent. The string is parsed in the current locale, and the database is created in the current locale.

To obtain the locale name of a database, use XrmLocaleOfDatabase.

char *XrmLocaleOfDatabase(database)

XrmDatabase database;

database

Specifies the resource database.

The XrmLocaleOfDatabase function returns the name of the locale bound to the specified database, as a null-terminated string. The returned locale name string is owned by Xlib and should not be modified or freed by the clien
