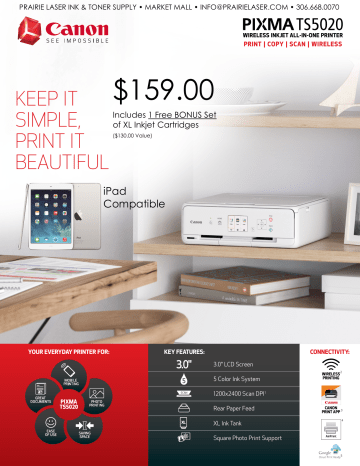

Canon PIXMA TS5020 Wireless Inkjet All-In-One

Canon PIXMA TS5020 Wireless Inkjet All-In-One
PRAIRIE LASER INK & TONER SUPPLY • MARKET MALL • [email protected] • 306.668.0070
Includes 1 Free BONUS Set
of XL Inkjet Cartridges
($130.00 Value)
3.0" LCD Screen
5 Color Ink System
1200x2400 Scan DPI1
Rear Paper Feed
XL Ink Tank
Square Photo Print Support
Print Features
AirPrint,4 Auto Photo Fix II, Borderless Printing,6 Canon PRINT app,3
Document Printing, Easy PhotoPrint+,7 Full HD Movie Print,8 Google
Cloud Print,5 Image Cropping, Mopria Device Printing,9 My Image Garden,10
Original Document Detector, Photo Printing, PIXMA Cloud Link,11 Quiet
Mode, Red-Eye Correction, Special Filters, Square Media Printing
Support, Web Template Print, Wireless PictBridge,12 Wireless Printing2
Print Speed13,14
4" x 6" Photo: Approx. 39 seconds (Borderless)
ESAT (Black): Approx. 12.6 ipm
ESAT (Color): Approx. 9.0 ipm
Number of Nozzles
Color: 3,072 / Pigment Black: 1,024 / Total: 4,096
Paper Sizes
4" x 6," 5" x 5" Square, 5" x 7," 8" x 10," Letter, Legal, U.S. #10 Envelope
Paper Tray Capacity
Rear Paper Tray: 100 Sheets of Plain Paper OR Photo Paper: 20 Sheets
of 4" x 6" / 10 Sheets of 5" x 7"
Model No.
PIXMA TS5020 Black
PIXMA TS5020 White
PIXMA TS5020 Gray
Wireless Inkjet All-In-One Printer
Wireless Inkjet All-In-One Printer
Wireless Inkjet All-In-One Printer
Compatible Inks
CLI-271 C XL
CLI-271 M XL
CLI-271 Y XL
CLI-271 BK
CLI-271 C
CLI-271 M
CLI-271 Y
XL Pigment Black Ink Tank
XL Black Ink Tank
XL Cyan Ink Tank
XL Magenta Ink Tank
XL Yellow Ink Tank
Pigment Black Ink Tank
Black Ink Tank
Cyan Ink Tank
Magenta Ink Tank
Yellow Ink Tank
specifications are subject to change without notice.
all viewscreen and printer output images are simulated.
Copy Features
2-on-1 Copy, Auto Exposure Copy, Auto Photo Fix II, Borderless Copy,
Document Removal Reminder, Fade Restoration, Fit-to-Page,
Preset Copy Ratios
Copy Speed14
FCOT (Color): Approx. 20 seconds
25% – 400%
Scan Features
Auto Scan Mode,15 Document Removal Reminder, Push Scan, Network
Scan, Wireless Scanning2
Scanner Type
Scanning Method
Contact Image Sensor (CIS)
Scanning Resolution1
1200 x 2400 dpi (Optical), 19,200 x 19,200 dpi (Interpolated)
Maximum Color Depth
48-bit Internal / 24-bit External
Maximum Document Size
8.5" x 11.7"
General Features
3.0" LCD, 5-Color Ink System, CREATIVE PARK PREMIUM,16 Auto Power
On/Off, Canon PRINT app,3 PIXMA Cloud Link,11 QuickStart
Standard Interface
Hi-Speed USB, PictBridge (Wireless LAN),12 Wireless LAN (IEEE
802.11b/g/n),2 Memory Card Slot17
14.7"(W) x 12.5"(D) x 5.0"(H) / 12.1 lbs.
Software (Windows®18/Mac®19)
PIXMA TS5020 Printer Driver, Scan Utility, Master Setup, My Printer
(Windows Only), Network Tool, My Image Garden10 (Full HD Movie Print,8
CREATIVE PARK PREMIUM,16 Special Filters, Image Correction/Enhance,
and scanning are accessed through My Image Garden), Quick Menu
OS Compatibility
Computer Operating Systems:
Windows:18 Windows® 10, Windows 8, Windows 8.1, Windows 7, Windows
7 SP1, Vista SP2
Mac:19 Mac OS®X v10.8.5–macOS v10.12 (Sierra)
Mobile Operating System:20 iOS®, Android, Windows 10 Mobile, Windows
RT,21 and Amazon Fire devices22
1-Year limited warranty with InstantExchange Program.
1-Year toll-free U.S.-based technical phone support.
For the name of the nearest dealer, call: 1-800-OK-CANON
1Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
2Wireless printing and scanning requires a working network with wireless 802.11b/g or n capability. Wireless
performance may vary based on terrain and distance between the printer and wireless network clients.
3Requires an Internet connection and the Canon PRINT Inkjet/SELPHY app, available for free on the App Store and at
Google Play. Compatible with iPad, iPhone 3GS or later, and iPod touch 3rd generation or later devices running iOS 7.0
or later, and Android mobile devices running Android 2.3.3 or later. Your device must be connected to the same working
network with wireless 802.11 b/g/n capability as your printer. For users of compatible Apple mobile devices, document
printing requires Apple AirPrint, which requires an AirPrint-enabled printer connected to the same network as your iOS
device. A printer connected to the USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.
4AirPrint functionality requires an iPad, iPhone 3GS or later, or iPod touch 3rd generation or later device running iOS 4.2
or later, and an AirPrint-enabled printer connected to the same network as your iOS device. A printer connected to the
USB port of your Mac, PC, AirPort Base station, or Time Capsule is not supported.
5Requires an Internet connection and Google account. Subject to Google Terms of Service. Certain exceptions may apply.
6Envelopes and High Resolution Paper are NOT supported for borderless printing.
7Works edited by using this application cannot be displayed, edited, or printed without this application. Compatible with
Android device of 7 inches or more using Chrome (latest version compatible with your current version of Android OS),
iOS Devices of 7 inches or more using Safari 5.1 or later, Windows PC (excluding RT) using Internet Explorer 10 or later
of Microsoft Modern UI version, Microsoft Internet Explorer 9 or later, Mozilla Firefox 31 or later, or Google Chrome
version 36 or later, and with Mac OS X 10.6.8 or later using Safari 5.1 or later.
8“Full HD Movie Print” is available from “MOV” and “MP4” movie files created by select Canon EOS Digital SLRs,
PowerShot, and VIXIA digital cameras and camcorders. Requires PC or Mac with Intel® processor and Canon ZoomBrowser
EX 6.5 or later or Canon ImageBrowser 6.5 or later for “MOV” files, or Canon ImageBrowser EX 1.0 or later for “MOV” or
“MP4” files. Print quality is determined by the video resolution. Function does not upscale video resolution.
9Requires Android mobile device with Android 4.4 operating system or later with the Mopria Print Service pre-loaded with
that device and the compatible PIXMA printer on the same wireless network. The Mopria experience is also available on
Android 4.4 mobile devices with a download of the Mopria Print Service from Google Play.
10To install using Windows® OS, .NET Framework 4 is required. Compatible still image formats are PDF (created using
Canon PDF Creator only), JPEG (Exif), TIFF, and PNG. Compatible video formats are MOV (from select Canon digital
cameras only) and MP4 (from select Canon digital camcorders only).
11Requires an Internet connection.
12DPS over IP compatible device required.
13Photo print speeds are based on the standard mode driver setting using photo test pattern(s) and select Canon Photo
Paper. Print speed is measured as soon as first page begins to feed into printer and will vary depending on system
configuration, interface, software, document complexity, print mode, types of paper used, and page coverage.
See for additional information.
14ISO/IEC 24734, 24735 define the default print and copy speed measurement methods. Print speeds are the averages
of ESAT in Office Category Test for the default simplex mode, ISO/IEC 24734, excluding time to print the first set. Copy
speed is the average of FCOT, ISO/IEC 24735 Annex D. ADF copy speed is the average of ESAT in General Performance
Test for the default simplex mode, ISO/IEC 24735,excluding time to copy the first set. See
for additional details.
15For network users, Auto Scan Mode is only available when scanning at a computer using My Image Garden software
and selecting the 1-click feature then “Save to PC.”
16CREATIVE PARK PREMIUM is a premium content service available exclusively to users only when all of the colors of
genuine Canon inks and all of the software that came with the printer are properly installed.
17Compatible memory cards include SDTM Card, SDHCTM Card. The following can be used with the addition of a special
adapter sold separately: miniSDTM Card, miniSDHCTM Card, microSDTM Card, microSDHCTM Card.
18Operation can only be guaranteed on a PC with pre-installed Windows 10, Windows 8.1, Windows 8, Windows 7 or Vista.
19Internet Connection required during software installation. For full compatibility macOS v10.12.1 or later is recommended.
20Some functions may not be available with these Operating Systems. Please refer to manual or our website for details.
21Requires a Windows RT compatible device and the Canon Easy-PhotoPrint app for Windows RT available for free in
the Windows Store.
22Requires “Canon Print Plugin” available for free from the Amazon Appstore and an Amazon Fire Phone, Amazon Kindle
Fire HD6 or HDX7 device or later running Fire OS 4.0 or later.
23Warranty programs are subject to certain conditions and restrictions. See for details.
Discover Canon’s
Social Side:
©2016 Canon U.S.A., Inc. Canon and PIXMA are registered trademarks of Canon Inc. in the U.S. and may be registered trademarks or trademarks in other countries. Microsoft, Windows, the Windows logo and Internet Explorer are trademarks or registered trademarks of the Microsoft
group of companies in the U.S. and other countries. AirPort, Apple, iPad, iPhone, iPod touch and Time Capsule are registered trademarks of Apple Inc. AirPrint is a trademark of Apple Inc. App Store is a service mark of Apple Inc. iOS is a trademark or registered trademark of Cisco in the
U.S. and other countries and is used under license. Android and Google Play are trademarks of Google Inc. Mopria is a trademark of the Mopria Alliance Inc. Amazon, Amazon Kindle, Amazon Fire phone and Amazon Kindle Fire are trademarks of Inc or its affiliates. The USB-IF
logo is a trademark of Universal Serial Bus Implementers Forum, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance. The ‘Wi-Fi CERTIFIED’ logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. All other product and brand
names are trademarks of their respective owners. As an ENERGY STAR® partner, Canon U.S.A., Inc. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
