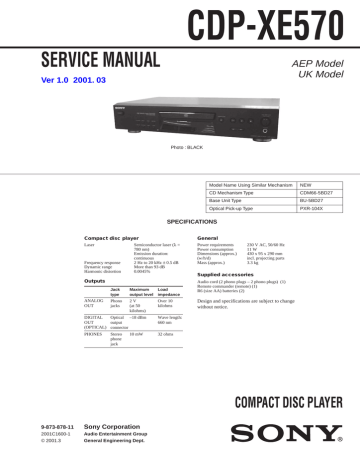

CDP-XE570
SERVICE MANUAL
AEP Model
UK Model
Ver 1.0 2001. 03
Photo : BLACK
Model Name Using Similar Mechanism
NEW
CD Mechanism Type
CDM66-5BD27
Base Unit Type
BU-5BD27
Optical Pick-up Type
PXR-104X
SPECIFICATIONS
Compact disc player
General
Laser
Power requirements
Power consumption
Dimensions (approx.)
(w/h/d)
Mass (approx.)
Frequency response
Dynamic range
Harmonic distortion
Semiconductor laser (λ =
780 nm)
Emission duration:
continuous
2 Hz to 20 kHz ± 0.5 dB
More than 93 dB
0.0045%
Outputs
ANALOG
OUT
Jack
type
Maximum
output level
Load
impedance
Phono
jacks
2V
(at 50
kilohms)
Over 10
kilohms
DIGITAL
Optical –18 dBm
OUT
output
(OPTICAL) connector
Wave length:
660 nm
PHONES
32 ohms
Stereo
phone
jack
10 mW
230 V AC, 50/60 Hz
11 W
430 x 95 x 290 mm
incl. projecting parts
3.3 kg
Supplied accessories
Audio cord (2 phono plugs – 2 phono plugs) (1)
Remote commander (remote) (1)
R6 (size AA) batteries (2)
Design and specifications are subject to change
without notice.
COMPACT DISC PLAYER
9-873-878-11
Sony Corporation
2001C1600-1
© 2001.3
Audio Entertainment Group
General Engineering Dept.
CDP-XE570
The following caution label is located inside of the unit.
TABLE OF CONTENTS
1. SERVICING NOTE ·························································· 3
2. GENERAL ·········································································· 6
3. DISASSEMBLY
3-1. Loading Panel ····································································· 7
3-2. Base Unit (BU-5BD27) ······················································ 7
4. TEST MODE
4-1. Check Mode ······································································· 8
4-2. AFADJ Mode ····································································· 8
4-3. ADJ Mode ·········································································· 9
This appliance is classified
as a CLASS 1 LASER
product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
5. ELECTRICAL BLOCK CHECKING ························ 10
6. DIAGRAMS
6-1.
6-2.
6-3.
6-4.
6-5.
6-6.
6-7.
6-8.
6-9.
6-10.
6-11.
Circuit Boards Location ··················································· 12
Schematic Diagram Loading Motor Section ·················· 13
Printed Wiring Board Loading Motor Section ················ 13
Printed Wiring Board BD Section ··································· 14
Schematic Diagram BD Section ······································ 15
Printed Wiring Board Main Section ································ 16
Schematic Diagram Main Section ··································· 17
Printed Wiring Board Display Section ···························· 18
Schematic Diagram Display Section ······························· 19
IC Pinfunctions ································································· 20
IC Block Diagrams ··························································· 21
7. EXPLODED VIEWS
7-1. Front Panel and Case Section ··········································· 23
7-2. CD Mechanism Section (CDM66-5BD27) ······················ 24
7-3. Base Unit Section (BU-5BD27) ······································· 25
8. ELECTRICAL PARTS LIST ······································· 26
MODEL IDENTIFICATION
— BACK PANEL —
Parts No.
PARTS No.
4-232-150-0s
4-232-150-1s
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
2
MODEL
AEP
UK
CDP-XE570
SECTION 1
SERVICING NOTE
HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH
TURNS OFF
Insert a tapering driver into the aperture of the unit bottom, and turn
in the direction of arrow.
Use a flat (–) head screwdriver to open the CD tray by manual operation. (Flat head screwdriver with nominal blade length of 3mm.)
* To close the disc table, turn the driver in the reverse direction.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer
electrostatic breakdown because of the potential difference
generated by the charged electrostatic load, etc. on clothing and
the human body.
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
Pull out disc table.
3
CDP-XE570
CD-TEXT TEST DISC
This unit is able to display the TEXT data (character information)
written in the CD on its fluorescent indicator tube.
The CD-TEXT TEST DISC (TGCS-313: J-2501-126-A) is used
for checking the display.
To check, perform the following procedure.
Procedure:
1. Turn ON the power and set the test disc.
2. Press the H button and play back the disc.
3. The following will be displayed on the fluorescent indicator
tube.
Display : 1kHz/0 dB/– – – –
4. Rotate the l AMS L knob to switch the track. The
text data of each track will be displayed.
Restrictions in CD-TEXT Display
In this unit, some special characters will not be displayed properly. These will be displayed as a space or a character resembling it. For details,
refer to “Table 2 : CD-TEXT DISC Recorded Contents and Display”.
Table 1 : CD-TEXT TEST DISC TEXT Data Contents (TRACKS No. 1 to 41:Normal Characters)
TRACK
No.
Displayed Contents
TRACK
No.
Displayed Contents
1kHz/0dB/L&R
22
1kHz/-90dB/L&R
2
20Hz/0dB/L&R
23
Infinity Zero w/o emphasis//L&R
3
40Hz/0dB/L&R
24
Infinity Zero with emphasis//L&R
4
100Hz/0dB/L&R
25
400Hz+7kHz(4:1)/0dB/L&R
5
200Hz/0dB/L&R
26
400Hz+7kHz(4:1)/-10dB/L&R
6
500Hz/0dB/L&R
27
19kHz+20kHz(1:1)/0dB/L&R
7
1kHz/0dB/L&R
28
19kHz+20kHz(1:1)/-10dB/L&R
8
5kHz/0dB/L&R
29
100Hz/0dB/L*
9
7kHz/0dB/L&R
30
1kHz/0dB/L*
10
10kHz/0dB/L&R
31
10kHz/0dB/L*
11
16kHz/0dB/L&R
32
20kHz/0dB/L*
12
1
18kHz/0dB/L&R
33
100Hz/0dB/R*
13
20kHz/0dB/L&R
34
1kHz/0dB/R*
14
1kHz/0dB/L&R
35
10kHz/0dB/R*
15
1kHz/-1dB/L&R
36
20kHz/0dB/R*
16
1kHz/-3dB/L&R
37
100Hz Squer Wave//L&R
17
1kHz/-6dB/L&R
38
1kHz Squer Wave//L&R
18
1kHz/-10dB/L&R
39
1kHz w/emphasis/-0.37dB/L&R
19
1kHz/-20dB/L&R
40
5kHz w/emphasis/-4.53dB/L&R
20
1kHz/-60dB/L&R
41
16kHz w/emphasis/-9.04dB/L&R
21
1kHz/-80dB/L&R
NOTE : The contents of Track No. 1 to 41 are the same as those of the current TEST DISC-their titles are displayed.
However, only 8 digits are displayed, and the 9th digit onwards are displayed as “– – – – –”.
4
CDP-XE570
Table 2: CD-TEXT TEST DISC Recorded Contents and Display
(In this unit, some special characters cannot be displayed. This is not a fault.)
TRACK
No.
42
Recorded contents
! ” # $ %& ´
Display
···· ! ” # $ % & are not displayed
(21h to 27h)1kHz 0dB L&R
43
( )
*+ , – . /
(28h to 2Fh)
( )
44
01234567
(30h to 37h)
0 1 2 3 4 5 6 7 ····
89
*+
–
/ ···· , . are not displayed
45
89 : ; <=>?
(38h to 3Fh)
46
@A B C D E F G
(40h to 47h)
47
H I J K L MNO
(48h to 4Fh)
H I J K L M N O ····
48
P Q R S T U V W (50h to 57h)
P Q R S T U V W ····
49
XYZ [ ¥ ] ^ _
(58h to 5Fh)
X Y Z [ / ] ^ _ ····
50
′ab
c de f g
(60h to 57h)
′
51
h i j k l mn o
(68h to 6Fh)
H I J K L M N O ····
52
pq r s t u vw
(70h to 77h)
P Q R S T U V W ····
53
x y z { I } ~
(78h to 7Fh)
X YZ
54
55
56
i ¢£¤¥ §
¬ PR–
9C ª
•
±
2
3
(A8h to AFh)
•
(B0h to B7h)
1
4
3
4
? ···· : ; < > are not displayed
A B C D E F G ····
···· { I }
(A0h to A7h) 8859-1
′µ¶
1
2
=
A B C D E F G ···· @ is not displayed
¬
′
.... ±
···· i ¢~ £ ¤ ¥ § are not displayed
– ···· 9 C ª P R are not displayed
···· 2 3 µ ¶ • are not displayed
57
†
¿
(B8h to BFh)
58
À Á Â Ã Ä Å ÆÇ
(C0h to C7h)
À ÁÂÃÄÅ
È É Ê Ë Ì Í Î Ï ····
1
º
¿ ···· † 1 º
ÈÉÊË Ì Í Î Ï
(C8h to CFh)
60
(D0h to C7h)
61
D ÑÒÓÔÕÖ
Ø Ù Ú Û Ü Y˙ ß
62
à á â ã ä åæç
(E0h to E7h)
ÀÁÂÃÄÅ
63
èéêë ì í î ï
(E8h to FFh)
È É Ê Ë Ì Í Î Ï ····
64
∂ ñòóôõö÷
(F0h to F7h)
65
ø ù ú û ü y´
(F8h to FFh)
66
No.66
T All the same
67
No.67
T All the same
to
99
to
No.99
ÿ
(D8h to DFh)
ÑÒÓÔÕÖ
´
ÙÚÛÜY
1
4
1
2
3
4
are not displayed
···· Æ Ç are not displayed
59
ÑÒÓÔÕÖ
Ù Ú Û Ü Y´
are not displayed
····D
are not displayed
····Ø
ß are not displayed
····æ ç are not displayed
····∂ ÷ are not displayed
···ø ÿ are not displayed
to
T All the same
5
CDP-XE570
SECTION 2
GENERAL
FRONT PANEL
CHECK qf (12)
CLEAR qg (12)
Disc compartment 6 (8)
Display qj (10)
FADER 4 (13)
PEAK SEARCH qd (14)
PHONES jack ql (9)
PLAY MODE 2 (9, 12, 14)
POWER 1 (8)
Remote sensor qh (7)
REPEAT 3 (9, 11)
TIME EDIT qs (13, 14)
TIME/TEXT 5 (10)
BACK PANEL
ANALOG OUT L/R jacks 2 (7)
CONTROL A1II jacks 3 (8, 15)
DIGITAL OUT OPTICAL jack 1 (8)
Mains lead 4 (7)
6
BUTTON DESCRIPTIONS
A OPEN/CLOSE 7 (8, 10, 12)
H 8 (9, 11, 12, 14)
X 9 (9, 14)
x 0 (9, 14)
lAMSL dial qa (9, 12, 14)
m/M qk (9, 13)
This section is extracted
from instruction manual.
CDP-XE570
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. LOADING PANEL
• In order to remove the front panel block when the power supply
does not turn on, rotate the cam with tapering driver as the figure
shows, and the loading part will be moved.
Then pull out the loading part by your hand to remove the loading
panel as the figure shows. After that take out the front panel block.
Loading panel
Tapering driver
Loading part
3-2. BASE UNIT (BU-5BD27)
3 Screw (DIA. 12), floating
BU-5BD27
1 Turn the cam to the direction of
arrow (counter clock wise) by
tapering driver.
4 Remove the Base unit
(BU-5BD27) to the direction
of arrow.
2 Take off the tray.
7
CDP-XE570
SECTION 4
TEST MODE
4-1. CHECK MODE
The following checks can be performed in the CHECK Mode.
• Offset value display
1. Turn on the set.
2. Put disc in the set.
3. Press the [PLAY MODE] , H and M buttons simultaneously.
4. The Offset measured values will be displayed as “AB 02 FE”
(typical values).
• RFDC value display
1. Turn on the set.
2. Put disc in the set.
3. Press the [PLAY MODE], H and m buttons simultaneously.
4. The RFDC measured value will be displayed as “RFDC 65”
(typical value). If there is no disc in the set, “RFDC NO” will
be displayed.
4-2. AFADJ MODE
The following checks can be performed in the AFADJ mode, which
is set by connecting the TP2 (AFADJ) terminal on DISPLAY
BOARD to the Ground and turning on the power.
• FL tube check
After all segments light up, when the H button is pressed, the
following will be displayed.
ABCDEF
The display will light up as follows when the l AMS L
knob is rotated to the right, and as follows when rotated to the
left.
JOG RIGHT
JOG LEFT
When the OPEN/CLOSE A button is pressed, all will light up
again.
• Key check
All buttons have corresponding button numbers. When a button
is pressed, the counter will count up and display the button’s number. However, the counter will only count to “15”. It will not count
for buttons already pressed once, but will display the button’s
number.
88 TOTAL= 88
X
Display of button number
When the x button is pressed, the following will be displayed.
2
4
8
6
12
16
10
14
18
20
X
Display of counting
Buttton No.
Button No.
Button
Displayed
Displayed
X
1
PEAK SEARCH
20
M
8
TIME EDIT
21
m
9
PLAY MODE
22
ENTER(AMS)
10
REPEAT
23
TIME/TEXT
16
OPEN/CLOSE
All lit
FADER
17
A
CLEAR
18
PLAY H
(ABCDEF)
CHECK
19
STOP x
(Music Calendar)
Button
• Remote commander check
When the “ H ” button is pressed, the display will light up
as follows.
REMOCON PLAY
8
CDP-XE570
4-3. ADJ MODE
[ DISPLAY BOARD ] – Conductor side –
The following operations are performed in the ADJ mode, which is
set by connecting the TP1 (ADJ) terminal to the Ground and turning
on the power.
TP2
AFADJ
Table of Button Operations in ADJ Mode
The functions of the buttons are shown in the following table.
Function of Buttons
Button
Function
TIME/TEXT Tracking servo ON/OFF
M
OFFSET(VC)/EF.BIAS display
m
OFFSET(RF,FE,TRK) display
CLEAR
RFCK/GFS/ERROR RATE check mode
* NOTE : Other buttons are not used for servicing and should not
be pressed without a reason.
GND
TP1
ADJ
l AMS L
S531
9
CDP-XE570
SECTION 5
ELECTRICAL BLOCK CHECKING
Note:
1. CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.
2. Use PATD-012 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10MΩ impedance.
4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.
1 track jump waveform
Center of the waveform
B
A (DC voltage)
0V
level : 1.15 ± 0.5Vp-p
RF Level Check
oscilloscope
symmetry
E-F Balance Check
BD board
oscilloscope
BD board
TP (RF AC)
TP (VC)
Procedure :
1. Connect oscilloscope to test point TP (RF AC) and TP (VC) on
BD BOARD.
2. Connect the test point TP1 (ADJ) on DISPLAY BOARD to the
ground with a lead wire.
3. Turn Power switch on.
4. Put disc (PATD-012) in to play the number five track.
5. Press the [CLEAR] buton and select the RFCK function.
6. Confirm that oscilloscope waveform is clear and check RF
signal level is correct or not.
Note:
A clear RF signal waveform means that the shape “◊” can be clearly
distinguished at the center of the waveform.
RF signal waveform
TP (TE1)
TP (VC)
Procedure :
1. Connect the test point TP1 (ADJ) on DISPLAY BOARD to
the ground with a lead wire on main board.
2. Connect oscilloscpe to test point TP (TE1) and TP (VC) on
BD BOARD.
3. Turn the Power switch on to set the ADJ mode.
4. Put disc (PATD-012) in to play the number five track.
5. Press the [TIME/TEXT] button. (The tracking servo are turned
OFF.)
6. Check the level B of the oscilliscope's waveform and the A
(DC voltage) of the center of the Traverse waveform.
Confirm the following :
A/B x 100 = less than ± 22%
VOLT/DIV : 200mV
TIME/DIV : 500ns
Traverse waveform
Center of the waveform
level : 1.35 ± 0.4 Vp-p
B
A (DC voltage)
0V
E-F Balance (1 Track Jump) Check
oscilloscope
level : 1.15 ± 0.5 Vp-p
7.
BD board
TP (TE1)
TP (VC)
Procedure :
1. Connect oscilloscpe to test point TP (TE1) and TP (VC) on
BD BOARD.
2. Turn Power switch on.
3. Put disc (PATD-012) in to play the number five track.
4. Press the X (Pause) button. (Becomes the 1 track jump mode)
5. Check the level B of the oscilliscope's waveform and the A
(DC voltage) of the center of the Traverse waveform.
Confirm the following :
A/B x 100 = less than ± 22%
10
Press the [TIME/TEXT] button. (The tracking servo are turned
ON.) Confirm the C (DC voltage) is almost equal to the A (DC
voltage) is step 6.
Traverse waveform
C (DC
voltage)
0V
Tracking servo
OFF
8.
Tracking servo
ON
Disconnect the lead wire of TP1 (ADJ) connected in step 1.
CDP-XE570
Adjustment Location :
[ DISPLAY BOARD ] – Conductor side –
TP2
AFADJ
TP1
ADJ
GND
l AMS L
S531
[ BD BOARD ] – Side B –
TP(VC)
TP(FE1)
IC101
TP(TE1)
CN102
TP(RF AC)
11
CDP-XE570
SECTION 6
DIAGRAMS
6-1. CIRCUIT BOARDS LOCATION
LOADING board
BD board
POWER SW board
KEY board
MAIN board
DISPLAY board
HEADPHONE board
12
CDP-XE570
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed
in each block.)
• WAVEFORMS
– BD Board –
6-2. SCHEMATIC DIAGRAM LOADING MOTOR SECTION
1 IC101 ta (RFAC)
5 IC101 wh (MDP)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
f
•
: internal component.
• C : panel designation.
2.7 V
2 IC101 rd (RFD)
5.2 Vp-p
1.4 Vp-p
(CD Play Mode)
3 IC101 el (FE)
Caution:
Pattern face side:
(Side B)
Parts face side:
(Side A)
Parts on the pattern face side seen from the
pattern face are indicated.
Parts on the parts face side seen from the
parts face are indicated.
13.4 ms
(CD Play Mode)
7 IC101 yj (XTAO)
approx.
200 mVp-p
(CD Play Mode)
5.9 Vp-p
59 ns
(CD Play Mode)
4 IC101 ra (TE)
approx.
400 mVp-p
For printed wiring boards.
Note:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
x
: parts mounted on the conductor side.
a
: Through hole.
•
• b : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
(CD Play Mode)
6 IC101 w; (SCOR)
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : STOP
(
) : PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : CD
c : digital out
7.5 µs
1.3 Vp-p
(CD Play Mode)
(CD Play Mode)
6-3. PRINTED WIRING BOARD LOADING MOTOR SECTION
– DISPLAY Board –
LOADING BOARD
8 IC501 el (EXTAL)
S272
LOAD
IN
CN151
4.5 Vp-p
40 ns
5
• Indication of transistor
C
Q
• See page 12 for Circuit Board Location.
TO MAIN BOARD
(Page 16)
These are omitted
B E
BC E
These are omitted
13
13
1
S271
LOAD
OUT
M
M151
LOADING
MOTOR
1-645-721-
11
(21)
CDP-XE570
6-4. PRINTED WIRING BOARD BD SECTION
• See page 12 for Circuit Board Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
IC150
IC131
IC101
16
• Semiconductor
Location
Ref. No.
Location
IC101
IC131
IC150
*C-2
*C-1
*B-1
Q131
Q132
C-3
C-3
* : Side B
14
14
CDP-XE570
6-5. SCHEMATIC DIAGRAM BD SECTION
• See page 21,22 for IC Block Diagrams. • See page 13 for waveforms.
IC B/D
IC B/D
15
15
CDP-XE570
6-6. PRINTED WIRING BOARD MAIN SECTION
• See page 12 for Circuit Board Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
IC801
IC681
IC651
IC671
IC672
• Semiconductor
Location
Ref. No.
IC901
18
IC603
IC631
IC601
IC602
13
14
16
16
Location
D601
D602
D603
D604
D605
D612
D613
D614
D615
D616
D621
D631
D641
D643
D681
D682
D691
D692
D-7
D-7
C-7
D-7
D-7
D-7
C-7
D-5
D-5
D-5
C-8
E-2
E-3
E-3
D-5
D-5
D-5
D-5
IC601
IC602
IC603
IC631
IC651
IC671
IC672
IC681
IC801
IC901
E-5
F-5
D-5
E-1
A-9
B-6
C-6
B-3
B-7
C-7
Q621
Q642
Q681
Q682
Q683
Q691
Q692
Q693
C-8
E-3
C-5
B-8
B-2
C-5
C-8
B-3
CDP-XE570
6-7. SCHEMATIC DIAGRAM MAIN SECTION
• See page 22 for IC Block Diagram.
IC B/D
17
17
CDP-XE570
6-8. PRINTED WIRING BOARD DISPLAY SECTION
• See page 12 for Circuit Board Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
16
IC501
IC502
• Semiconductor
Location
Ref. No.
Location
IC501
IC502
B-4
C-11
Q501
Q502
B-5
B-5
18
18
CDP-XE570
6-9. SCHEMATIC DIAGRAM DISPLAY SECTION
• See page 20 for IC Pin Functions. • See page 13 for waveform.
19
19
CDP-XE570
6-10. IC PINFUNCTIONS
• IC501 MASTER CONTROL (CXP82832-033Q)(DISPLAY BOARD)
Pin No.
1
Pin Name
13G
I/O
O
FL grid signal output
Function
Pin No.
41
Pin Name
VSS
I/O
–
Ground
2
14G
O
FL grid signal output
42
TX
–
Not used
3
NC
–
Connected to VDD
43
TEX
–
Connected to ground
4
NC
–
Connected to VDD
44
VDD (+5V)
–
Power supply (+5V)
5
SCOR
I
Sub code sync input
45
VFDP (–30V)
–
Pull down voltage (–30V)
6, 7
NC
I
Connected to VDD
46
XSEL
O
Not used
8
RMIN
I
Remote control signal input
47
—
–
Not used
9
NC
–
Connected to VDD
48 to 58
OPEN
–
Not used
VDD (+5V)
–
Power supply (+5V)
Function
10, 11
NC
–
Not used (Open)
59 to 61
12
LD OUT
O
Loading motor control
62 to 66
OPEN
–
Not used
13
LD IN
I
Loading motor control
67 to 87
S21 to S1
O
FL segment signal output
14
SENS
I
Sense signal input
88
1G
O
FL grid signal output
15
XLT
O
Serial latch output
89
VDD (+5V)
–
Power supply (+5V)
16
NC
O
Not used (Open)
90 to 100
2G to 12G
O
FL grid signal output
17
NC
O
Not used (Open)
18
NC
–
Not used (Open)
19
BUSOUT
O
CONTROL-A1 transmission output
20
BUSIN
I
CONTROL-A1 receive input
21
NC
–
Not used (Open)
22
CLK
O
Serial clock output
23
LDON/RW/OFF
O
Optical pick-up laser diode control output
24
DATA
O
Serial data output
25
SQCK
O
Subcode Q data readout clock output
26
SQSO
I
Subcode Q data input
27
DACS
O
Not used (Open)
28
AVREF
I
Analog reference voltage input
29
ADJ/AFADJ/BD TEST
I
Test mode terminal
30
IN/OUT SW
I
IN SW/OUT SW
31
KEY 0
I
Key input
32
KEY 1
I
Key input
33
KEY 2
I
Key input
34
NC
O
Not used (Open)
35
NC
O
Not used (Open)
36
NC
O
Not used (Open)
37
AVSS
–
Analog ground
38
RST
I
Reset signal input
39
EXTAL
I
8 MHz clock input
40
XTAL
O
8 MHz clock output
• Abbreviation
FL : Fluorescent indicator tube
• Abbreviation
FL : Fluorescent indicator tube
20
20
CDP-XE570
6-11. IC BLOCK DIAGRAMS
VDD
VSS
AVDD3
PCO
FILI
FILO
CLTV
AVSS3
RFAC
BIAS
ASYI
ASYO
AVDD0
IGEN
AVSS0
ADIO
RFDC
CE
TE
60
59 58 57
56 55 54 53
52
51 50 49 48
47
46 45
44
43 42 41
DIGITAL
OUT
LRCK 61
PCMD 62
D/A
INTERFACE
INTERNAL BUS
DOUT
IC101 CXD2587Q (BD BOARD)
ERROR
CORRECTOR
DIGITAL
PLL
16K
RAM
40 SE
39 FE
38 VC
ASYMMETRY
CORRECTION
OPERATIONAL
AMPLIFIER
ANALOG SWITCH
EFM
DEMODULATOR
A/D
CONVERTER
BCK 63
EMPH 64
XVDD 65
66
67
68
69
70
71
TIMING
LOGIC
CLOCK
GENERATOR
SERVO DSP
LOUT1 72
PWM
AVSS1 73
AVSS2 74
LOUT2 75
PWM
3rd ORDER
NOISE SHAPER
OVER SAMPLING
DIGITAL FILTER
AIN2 76
AOUT2 77
AVDD2 78
RMUT 79
LMUT 80
SUBCODE
PROCESSOR
PWM GENERATOR
FOCUS
SERVO
FOCUS PWM
GENERATOR
TRACKING
SERVO
TRACKING
PWM GENERATOR
SLED
SERVO
SLED PWM
GENERATOR
37 XTSL
36 TES1
35 TEST
34 VSS
33
32
31
30
29
28
FRDR
FFDR
TRDR
TFDR
SRDR
SFDR
27 SSTP
SERVO
INTERFACE
SERVO AUTO
SEQUENCER
SERIAL IN
INTERFACE
CPU
INTERFACE
DIGITAL
CLV
26 MDP
25 LOCK
MIRR, DFCT,
FOK
DETECTOR
24 FOK
23 DFCT
22 MIRR
4
5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20
XRST
SYSM
DATA
XLAT
CLOK
SENS
SCLK
VDD
ATSK
C2PO
SCOR
3
WFCK
XUGF
XPCK
GFS
1 2
SQSO
SQCK
21 COUT
SPOA
SPOB
XLON
XTAI
XTAO
XVSS
AVDD1
AOUT1
AIN1
21
CDP-XE570
IC131 CXA2518N-T4 (BD BOARD)
RW/ROM
A
30 DC OFST
29 RFDCI
–
+
B
–
+
28 RFDCO
C
D
DVC
DVC
VCC
VC
–
+
DVC
VC
RW/ROM
VOFST
27 VC
VC
LD
EQ
26 RFC
25 VFC
24 BST
RFAC
VCA
23 RFG
VCC
22 VCC
1
PD
2
EQ IN
3
APC AMP
EQ ON/OFF
RW/ROM
AC SUM
GND
RFAC
SUMMING
AMP
4
5
A
A
A
B
C
D
VOFST
–
+
B
C
B
20 CE
D
C D
DVC
A
B
C
D
6
7
8
9
21 CEI
–
+
VC
RW/ROM
19 TE BAL
RW/ROM
E 10
GM
F 11
GM
SW 12
APC-OFF
(Hi-Z)
RW/ROM
(H/L)
–
+
18 TE
VC
RW/ROM
RW/ROM
DVCC 13
B
DVC
DVC 14
17 FEI
VOFST
–
+
D
A
–
+
C
DVC
VC
RW/ROM
RFAC 15
IC631 BA6956AN (MAIN BOARD)
TSD
22
1
2
3
4
5
6
7
8
9
VREF
OUT2
RNF
OUT1
VM
VCC
FIN
GND
RIN
CONTROL LOGIC
16 FE
CDP-XE570
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•
•
The mechanical parts with no reference number
in the exploded views are not supplied.
Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
•
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
↑
Parts of Color Cabinet’s Color
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
7-1. FRONT PANEL AND CASE SECTION
27
15
16
27
UK model
26
CDM-66-5BD27
19
20
18
27
17
16
not supplied
12
2
11
12
T601
27
12
14
not
supplied
1
10
12
12
22
9
23
3
not supplied
not supplied
8
12
25
7
not supplied
6
5
27
Ref. No.
Part No.
Description
1
1
2
3
5
X-4953-456-2
X-4953-457-2
1-681-120-11
4-232-237-01
3-354-981-11
PANEL ASSY, FRONT (BLACK)(AEP,UK)
PANEL ASSY, FRONT (SILVER)(AEP)
POWER SW BOARD
FOOT (DIA. 30)
SPRING (SUS), RING
6
6
7
7
8
4-231-928-01
4-231-928-11
4-232-141-01
4-232-141-21
1-681-126-11
9
10
11
12
14
A-4725-621-A
1-773-114-11
1-681-125-11
4-951-620-01
4-231-973-01
14
15
4-231-973-11 BUTTON (POWER)(SILVER)(AEP)
4-232-149-31 CASE (408226)(BLACK)(AEP,UK)
Remarks
Ref. No.
Part No.
Description
15
16
16
16
17
4-232-580-31
4-210-291-01
4-210-291-11
4-999-877-01
1-773-149-11
CASE (408226)(SILVER)(AEP)
SCREW (CASE 3 TP2)(BLACK)(AEP)
SCREW (CASE 3 TP2)(SILVER)(AEP)
SCREW (CASE)(BLACK)(UK)
WIRE (FLAT TYPE) (21 CORE)
Remarks
KNOB (AMS)(BLACK)(AEP,UK)
KNOB (AMS)(SILVER)(AEP)
PANEL, LOADING (BLACK)(AEP,UK)
PANEL, LOADING (SILVER)(AEP)
HEADPHONE BOARD
0 18
* 19
20
20
22
1-575-651-21
3-703-244-00
4-232-150-02
4-232-150-12
A-4725-622-A
CORD, POWER
BUSHING (2104), CORD
PANEL, BACK (AEP)
PANEL, BACK (UK)
MAIN BOARD,COMPLETE
DISPLAY BOARD,COMPLETE
WIRE (FLAT TYPE) (19 CORE)
KEY BOARD
SCREW (2.6X8), +BVTP
BUTTON (POWER)(BLACK)(AEP,UK)
* 23
25
0 26
27
27
4-954-051-51
X-4953-448-1
1-770-019-11
4-974-510-01
7-685-646-79
HOLDER, PC BOARD
FOOT ASSY
ADAPTOR, CONVERSION PLUG 3P (UK)
SCREW (+BV 3X8 CU)(UK)
SCREW +BVTP 3X8 TYPE2 N-S (AEP)
0 T601
1-437-258-11 TRANSFORMER, POWER
23
CDP-XE570
7-2. CD MECHANISM SECTION (CDM66-5BD27)
a
110
110
BU-5BD27
103
111
111
not
supplied
101
106
not
supplied
105
not supplied
110
102
107
108
113
a
#1
115
117
not
supplied
M151
104
109
Ref. No.
Part No.
Description
101
102
103
104
105
1-452-925-21
4-231-531-01
4-231-530-01
1-541-632-11
4-232-713-01
MAGNET ASSY
HOLDER (66)
TRAY (66)
MOTOR, DC (LOADING)
BELT (LD)
106
107
108
4-232-711-01 GEAR (LD)
4-232-710-01 PULLEY (LD)
4-232-712-01 CAM (66)
24
Remarks
Ref. No.
Part No.
Description
109
110
111
113
115
1-645-721-11
4-227-899-01
4-959-996-01
4-231-529-01
4-993-142-03
LOADING BOARD
SCREW (DIA. 12), FROATING
SPRING (932), COMPRESSION
CHASSIS (66)
PULLEY (L), PRESS
117
M151
4-232-682-01 CUSHION (66)
A-4604-363-A MOTOR (L) ASSY (LOADING)
Remarks
CDP-XE570
7-3. BASE UNIT SECTION (BU-5BD27)
151
152
158
161
153
M101
not supplied
155
154
154
159
M102
156
160
157
#2
Ref. No.
Part No.
Description
0 151
152
153
154
155
1-796-033-11
1-782-817-11
4-917-567-01
4-951-940-01
4-917-565-01
OPTICAL PICK UP
WIRE (FLAT TYPE) (16 CORE)
GEAR (M)
INSULATOR (BU)
SHAFT, SLED
156
4-917-564-01 GEAR (P), FLATNESS
Remarks
Ref. No.
Part No.
Description
157
158
159
160
161
A-4725-568-A
3-713-786-51
4-917-566-01
X-4917-504-1
X-4917-523-3
BD BOARD,COMPLETE
SCREW +P 2X3
GEAR (S)
MOTOR ASSY
BASE (OUTSET) ASSY
M102
1-541-353-11 MOTOR (SLED)
Remarks
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
25
CDP-XE570
SECTION 8
ELECTRICAL PARTS LIST
BD
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
Ref. No.
Part No.
•
•
•
CAPACITORS:
uF: µF
RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
COILS
uH: µH
Description
Remarks
Ref. No.
Part No.
SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Description
Remarks
< CONNECTOR >
A-4725-568-A BD BOARD,COMPLETE
******************
CN101
CN102
< CAPACITOR >
C101
C102
C103
C110
C111
1-164-315-11
1-164-156-11
1-164-315-11
1-126-206-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
470PF
0.1uF
470PF
100uF
0.1uF
5.00% 50V
25V
5.00% 50V
20%
6.3V
25V
C112
C120
C121
C122
C123
1-164-156-11
1-164-156-11
1-162-970-11
1-117-863-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.01uF
0.47uF
100PF
25V
25V
10%
25V
10.00% 6.3V
5%
50V
C124
C125
C126
C130
C131
1-162-967-11
1-162-965-11
1-107-826-11
1-164-505-11
1-164-505-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0033uF 10%
0.0015uF 10%
0.1uF
10.00%
2.2uF
2.2uF
C132
C133
C134
C136
C137
1-164-505-11
1-126-607-11
1-126-607-11
1-107-826-11
1-126-209-11
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
2.2uF
47uF
47uF
0.1uF
100uF
16V
20%
4V
20%
4V
10.00% 16V
20.00% 4V
C138
C139
C140
C145
C150
1-162-964-11
1-162-921-11
1-164-505-11
1-162-908-11
1-126-204-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.001uF
33PF
2.2uF
3PF
47uF
10%
5%
C151
C152
C153
C154
C158
1-164-156-11
1-162-919-11
1-162-919-11
1-162-964-11
1-164-172-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
22PF
22PF
0.001uF
0.0056uF
25V
5%
50V
5%
50V
10%
50V
10.00% 25V
C171
C172
C173
C174
C181
1-126-206-11
1-164-156-11
1-162-928-11
1-115-412-11
1-126-206-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
100uF
0.1uF
120PF
680PF
100uF
20%
6.3V
25V
5%
50V
5.00% 25V
20%
6.3V
C182
C183
C184
C191
C192
1-164-156-11
1-162-928-11
1-115-412-11
1-126-205-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1uF
120PF
680PF
47uF
0.1uF
25V
5%
50V
5.00% 25V
20%
6.3V
25V
C193
C194
C199
1-162-920-11 CERAMIC CHIP
1-162-918-11 CERAMIC CHIP
1-164-156-11 CERAMIC CHIP
27PF
18PF
0.1uF
5%
50V
5.00% 50V
25V
26
•
50V
50V
16V
16V
16V
50V
50V
16V
0.25PF 50V
20%
16V
1-784-360-11 CONNECTOR,FFC(LIF(NON-ZIF))21P
1-777-937-11 CONNECTOR, FFC/FPC 16P
< FERRITE BEAD >
FB191
1-216-864-11 METAL CHIP
0
5%
1/16W
< IC >
IC101
IC131
IC150
8-752-386-85 IC CXD2587Q
8-752-089-74 IC CXA2581N-T4
8-759-829-14 IC AN4800SB
< TRANSISTOR >
Q131
Q132
8-729-010-08 TRANSISTOR
8-729-600-22 TRANSISTOR
MSB710-RT1
2SA1235TP-1EF
< RESISTOR >
R101
R102
R103
R110
R111
1-216-835-11
1-216-845-11
1-216-835-11
1-216-821-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
15K
100K
15K
1K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R112
R120
R121
R122
R123
1-216-833-11
1-216-839-11
1-216-833-11
1-216-845-11
1-216-857-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
33K
10K
100K
1M
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R125
R126
R127
R129
R134
1-216-827-11
1-216-833-11
1-216-821-11
1-216-815-11
1-216-853-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
3.3K
10K
1K
330
470K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R135
R136
R137
R138
R139
1-216-836-11
1-216-836-11
1-216-797-11
1-216-798-11
1-216-847-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
18K
18K
10
12
150K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R140
R141
R142
R143
R144
1-216-854-11
1-216-840-11
1-216-841-11
1-216-855-11
1-216-846-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
560K
39K
47K
680K
120K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R145
R146
R149
R151
R152
1-216-830-11
1-216-845-11
1-216-821-11
1-216-845-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
5.6K
100K
1K
100K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
CDP-XE570
BD
Ref. No.
Remarks
HEADPHONE
KEY
Part No.
Description
Part No.
Description
R153
R155
R171
R172
R173
1-216-864-11
1-216-836-11
1-218-720-11
1-218-720-11
1-218-720-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
18K
15K
15K
15K
5%
5%
0.5%
0.5%
0.5%
1/16W
1/16W
1/16W
1/16W
1/16W
R511
R512
R513
R514
R521
1-249-427-11
1-249-415-11
1-249-417-11
1-249-419-11
1-249-427-11
CARBON
CARBON
CARBON
CARBON
CARBON
6.8K
680
1K
1.5K
6.8K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R174
R181
R182
R183
R184
1-216-809-11
1-218-720-11
1-218-720-11
1-218-720-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
15K
15K
15K
100
5%
0.5%
0.5%
0.5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R531
R532
R535
R536
R537
1-249-441-11
1-249-441-11
1-249-427-11
1-249-427-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
100K
100K
6.8K
6.8K
10K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W F
1/4W F
1/4W
R191
R192
1-216-817-11 METAL CHIP
1-216-797-11 METAL CHIP
470
10
5%
5%
1/16W
1/16W
R539
R541
R542
R551
R552
1-249-429-11
1-247-807-31
1-247-807-31
1-249-415-11
1-249-417-11
CARBON
CARBON
CARBON
CARBON
CARBON
10K
100
100
680
1K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W F
1/4W F
< COMPOSITION CIRCUIT BLOCK >
RB101
RB102
1-233-576-11 RES, CHIP NETWORK 100
1-233-576-11 RES, CHIP NETWORK 100
1-572-085-11 SWITCH, LEAF(LIMIT)
< VIBRATOR >
X191
1-767-408-21 VIBRATOR, CRYSTAL 16.9344MHz
************************************************************
S501
S502
S503
S504
S511
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
S512
S531
1-771-349-21 SWITCH, KEYBOARD(m)
1-475-543-11 ENCODER, ROTARY(l AMS L)
A-4725-621-A DISPLAY BOARD,COMPLETE
***********************
1-164-159-11
1-126-382-11
1-164-159-11
1-164-159-11
CERAMIC
ELECT
CERAMIC
CERAMIC
SWITCH, KEYBOARD(x)
SWITCH, KEYBOARD(X)
SWITCH, KEYBOARD(G)
SWITCH, KEYBOARD(OPEN/CLOSE A)
SWITCH, KEYBOARD(M)
X501
1-579-125-11 VIBRATOR, CERAMIC 8MHz
************************************************************
< CAPACITOR >
C502
C503
C505
C506
F
F
F
F
F
< VIBRATOR >
4-929-709-31 GUIDE (FL TUBE)
*
Remarks
< SWITCH >
< SWITCH >
S101
Ref. No.
DISPLAY
1-681-127-11 HEADPHONE BOARD
*****************
0.1uF
100uF
0.1uF
0.1uF
50V
20.00% 10V
50V
50V
< CAPACITOR >
C402
C403
1-162-291-31 CERAMIC
1-162-291-31 CERAMIC
560PF
560PF
10.00% 50V
10.00% 50V
< CONNECTOR >
< JACK >
CN501
1-784-780-11 CONNECTOR, FFC 19P
J401
1-770-307-11 JACK (LARGE TYPE)(PHONES)
< FILTER >
< COIL >
FL501
1-517-740-11 INDICATOR TUBE, FLUORESCENT
L402
1-412-911-11 FERRITE
0uH
L403
1-412-911-11 FERRITE
0uH
************************************************************
< IC >
IC501
IC502
8-752-921-33 IC CXP82832-033Q
8-759-459-86 IC NJL64H400A(REMOTE SENSOR)
1-681-125-11 KEY BOARD
**********
< TRANSISTOR >
< RESISTOR >
Q501
Q502
8-729-029-66 TRANSISTOR
8-729-029-66 TRANSISTOR
DTC114ESA-TP
DTC114ESA-TP
< RESISTOR >
R501
R502
R503
R504
R505
1-249-427-11
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
CARBON
CARBON
CARBON
CARBON
CARBON
6.8K
680
1K
1.5K
2.2K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
F
F
F
F
F
R522
R523
R524
R525
R526
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
1-247-843-11
CARBON
CARBON
CARBON
CARBON
CARBON
680
1K
1.5K
2.2K
3.3K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
F
F
F
F
R527
R528
1-249-427-11 CARBON
1-249-431-11 CARBON
6.8K
15K
5%
5%
1/4W F
1/4W
27
CDP-XE570
KEY
Ref. No.
LOADING
Part No.
MAIN
Description
Remarks
< SWITCH >
S521
S522
S523
S524
S525
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
1-771-349-21
SWITCH, KEYBOARD(TIME/TEXT)
SWITCH, KEYBOARD(FADER)
SWITCH, KEYBOARD(CLEAR)
SWITCH, KEYBOARD(CHECK)
SWITCH, KEYBOARD(PEAK SEARCH)
S526
1-771-349-21 SWITCH, KEYBOARD(TIME EDIT)
S527
1-771-349-21 SWITCH, KEYBOARD(PLAY MODE)
S528
1-771-349-21 SWITCH, KEYBOARD(REPEART)
************************************************************
1-645-721-21 LOADING BOARD
**************
< CONNECTOR >
CN151
1-568-943-11 PIN, CONNECTOR 5P
Ref. No.
Part No.
Description
C678
C679
C682
C685
C695
1-126-024-11
1-126-024-11
1-126-963-11
1-161-494-00
1-161-494-00
ELECT
ELECT
ELECT
CERAMIC
CERAMIC
220uF
220uF
4.7uF
0.022uF
0.022uF
20.00% 25V
20.00% 25V
20.00% 50V
25V
25V
Remarks
C802
C806
C807
C808
C810
1-104-664-11
1-106-359-00
1-130-472-00
1-126-024-11
1-136-802-11
ELECT
MYLAR
MYLAR
ELECT
MYLAR
47uF
4700PF
0.0012uF
220uF
0.015uF
20.00%
5%
5%
20.00%
5.00%
10V
200V
50V
25V
100V
C811
C902
C906
C907
C908
1-136-808-11
1-104-664-11
1-106-359-00
1-130-472-00
1-126-024-11
FILM
ELECT
MYLAR
MYLAR
ELECT
100PF
47uF
4700PF
0.0012uF
220uF
5.00%
20.00%
5%
5%
20.00%
100V
10V
200V
50V
25V
C910
C911
1-136-802-11 MYLAR
1-136-808-11 FILM
0.015uF
100PF
5.00% 100V
5.00% 100V
< SWITCH >
< CONNECTOR >
S271
1-572-086-11 SWITCH, LEAF(LOAD OUT)
S272
1-572-086-11 SWITCH, LEAF(LOAD IN)
************************************************************
CN621
CN651
CN681
1-784-780-11 CONNECTOR, FFC 19P
1-568-838-11 CONNECTOR, FFC 21P
1-506-468-11 PIN, CONNECTOR 3P
A-4725-622-A MAIN BOARD,COMPLETE
********************
< DIODE >
7-685-871-01 SCREW +BVTT 3X6 (S)
< CAPACITOR >
C601
C602
C603
C604
C605
1-128-547-11
1-126-767-11
1-128-576-11
1-161-494-00
1-161-494-00
ELECT
ELECT
ELECT
CERAMIC
CERAMIC
6800uF
1000uF
100uF
0.022uF
0.022uF
20.00% 16V
20.00% 16V
20.00% 63V
25V
25V
C606
C607
C608
C609
C610
1-164-159-11
1-164-159-11
1-126-934-11
1-161-494-00
1-136-165-00
CERAMIC
CERAMIC
ELECT
CERAMIC
MYLAR
0.1uF
0.1uF
220uF
0.022uF
0.1uF
50V
50V
20.00% 10V
25V
5.00% 50V
C612
C616
C618
C619
0 C620
1-161-494-00
1-126-916-11
1-126-933-11
1-126-767-11
1-113-924-11
CERAMIC
ELECT
ELECT
ELECT
CERAMIC
0.022uF
1000uF
100uF
1000uF
0.0047uF
20.00%
20.00%
20.00%
20.00%
C624
C631
C641
C642
C651
1-162-282-31
1-161-494-00
1-126-964-11
1-126-935-11
1-126-935-11
CERAMIC
CERAMIC
ELECT
ELECT
ELECT
100PF
0.022uF
10uF
470uF
470uF
50V
25V
20.00% 50V
20.00% 10V
20.00% 10V
C653
C654
C657
C658
C659
1-104-666-11
1-164-159-11
1-164-159-11
1-164-159-11
1-161-494-00
ELECT
CERAMIC
CERAMIC
CERAMIC
CERAMIC
220uF
0.1uF
0.1uF
0.1uF
0.022uF
20.00% 25V
50V
50V
50V
25V
C661
C662
C663
C675
C677
1-162-290-31
1-162-290-31
1-162-290-31
1-161-494-00
1-161-494-00
CERAMIC
CERAMIC
CERAMIC
CERAMIC
CERAMIC
470PF
470PF
470PF
0.022uF
0.022uF
10%
10%
10%
28
25V
6.3V
16V
16V
250V
D601
D602
D603
D604
D605
8-719-024-99
8-719-024-99
8-719-024-99
8-719-024-99
8-719-024-99
DIODE
DIODE
DIODE
DIODE
DIODE
11ES2-NTA2B
11ES2-NTA2B
11ES2-NTA2B
11ES2-NTA2B
11ES2-NTA2B
D612
D613
D614
D615
D616
8-719-024-99
8-719-024-99
8-719-109-85
8-719-911-19
8-719-911-19
DIODE
DIODE
DIODE
DIODE
DIODE
11ES2-NTA2B
11ES2-NTA2B
MTZJ-T-72-5.1B
1SS133T-72
1SS133T-72
D621
D631
D641
D643
D681
8-719-911-19
8-719-983-63
8-719-983-84
8-719-109-85
8-719-911-19
DIODE
DIODE
DIODE
DIODE
DIODE
1SS133T-72
MTZJ-T-72-3.3B
MTZJ-T-72-30D
MTZJ-T-72-5.1B
1SS133T-72
D682
D691
D692
8-719-911-19 DIODE 1SS133T-72
8-719-911-19 DIODE 1SS133T-72
8-719-911-19 DIODE 1SS133T-72
10%
50V
50V
50V
25V
25V
< IC >
IC601
IC602
IC603
IC631
IC651
8-759-039-69
8-749-011-78
8-759-165-81
8-759-598-69
8-749-921-12
IC
IC
IC
IC
IC
uPC7805AHF
BA17807T
PST600D-T
BA6956AN
GP1F32T(DIGITAL OUT OPTICAL)
IC671
IC672
IC681
IC801
IC901
8-759-604-86
8-759-604-90
8-759-167-88
8-759-710-59
8-759-710-59
IC
IC
IC
IC
IC
M5F7807L
M5F7907L
NJM4565D
NJM4580D-D
NJM4580D-D
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
CDP-XE570
MAIN
Ref. No.
Part No.
Description
Remarks
Ref. No.
< JACK >
J621
J681
Description
1-779-655-21 JACK (SMALL TYPE) (2 GANG)(CONTROL A1II)
1-785-868-11 JACK, PIN 2P(ANALOG OUT)
1-414-151-11 INDUCTOR
Remarks
1-681-126-11 POWER SW BOARD
****************
< CAPACITOR >
0 C621
< COIL >
L651
Part No.
POWER SW
1-113-924-11 CERAMIC
470uH
0.0047uF 20.00% 250V
< CONNECTOR >
< TRANSISTOR >
* CN601
CN602
Q621
Q642
Q681
Q682
Q683
8-729-119-78
8-729-041-38
8-729-029-56
8-729-922-37
8-729-922-37
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC1740S-QRT
2SB1241TV2Q
DTA144ESA-TP
2SD2144S-TP-UVW
2SD2144S-TP-UVW
Q691
Q692
Q693
8-729-029-56 TRANSISTOR
8-729-922-37 TRANSISTOR
8-729-922-37 TRANSISTOR
DTA144ESA-TP
2SD2144S-TP-UVW
2SD2144S-TP-UVW
1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P
1-564-321-00 PIN, CONNECTOR 2P
< SWITCH >
0 S601
1-762-581-11 SWITCH, AC POWER PUSH (1 KEY) (POWER)
************************************************************
MISCELLANEOUS
**************
< RESISTOR >
R611
R612
R624
R625
R626
1-249-429-11
1-249-411-11
1-249-393-11
1-249-429-11
1-249-425-11
CARBON
CARBON
CARBON
CARBON
CARBON
10K
330
10
10K
4.7K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W F
1/4W
1/4W F
R631
R632
R641
R642
R646
1-249-427-11
1-215-421-00
1-249-432-11
1-249-432-11
1-249-432-11
CARBON
METAL
CARBON
CARBON
CARBON
6.8K
1K
18K
18K
18K
5%
1%
5%
5%
5%
1/4W F
1/4W
1/4W
1/4W
1/4W
R647
R648
R651
R652
R653
1-247-807-31
1-247-807-31
1-247-807-31
1-247-807-31
1-247-807-31
CARBON
CARBON
CARBON
CARBON
CARBON
100
100
100
100
100
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R681
R682
R683
R691
R692
1-249-441-11
1-249-419-11
1-249-419-11
1-249-441-11
1-249-419-11
CARBON
CARBON
CARBON
CARBON
CARBON
100K
1.5K
1.5K
100K
1.5K
5%
5%
5%
5%
5%
1/4W
1/4W F
1/4W F
1/4W
1/4W F
R693
R804
R805
R806
R807
1-249-419-11
1-215-445-00
1-249-429-11
1-215-445-00
1-215-425-00
CARBON
METAL
CARBON
METAL
METAL
1.5K
10K
10K
10K
1.5K
5%
1%
5%
1%
1%
1/4W F
1/4W
1/4W
1/4W
1/4W
R808
R809
R810
R812
R821
1-215-425-00
1-249-441-11
1-249-414-11
1-247-807-31
1-249-403-11
METAL
CARBON
CARBON
CARBON
CARBON
1.5K
100K
560
100
68
1%
5%
5%
5%
5%
1/4W
1/4W
1/4W F
1/4W
1/4W F
R904
R905
R906
R907
R908
1-215-445-00
1-249-429-11
1-215-445-00
1-215-425-00
1-215-425-00
METAL
CARBON
METAL
METAL
METAL
10K
10K
10K
1.5K
1.5K
1%
5%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R909
1-249-441-11 CARBON
100K
5%
1/4W
R910
1-249-414-11 CARBON
560
5%
1/4W F
R912
1-247-807-31 CARBON
100
5%
1/4W
R921
1-249-403-11 CARBON
68
5%
1/4W F
************************************************************
10
17
0 18
0 26
101
1-773-114-11
1-773-149-11
1-575-651-21
1-770-019-11
1-452-925-21
WIRE (FLAT TYPE) (19 CORE)
WIRE (FLAT TYPE) (21 CORE)
CORD, POWER
ADAPTOR, CONVERSION PLUG 3P (UK)
MAGNET ASSY
104
1-541-632-11 MOTOR, DC (LOADING)
0 151
1-796-033-11 OPTICAL PICK UP (PXR-104X)
152
1-782-817-11 WIRE (FLAT TYPE) (16 CORE)
M102
1-541-353-11 MOTOR (SLED)
0 T601
1-437-258-11 TRANSFORMER, POWER
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-418-765-11
1-776-263-11
4-233-601-11
4-233-601-21
REMOTE COMMANDER (RM-DX740)
CORD, CONNECTION
MANUAL, INSTRUCTION (ENGLISH,FRENCH)(AEP)
MANUAL, INSTRUCTION (GERMAN,SPANISH,
DUTCH,SWEDISH,ITALIAN,POLISH)(AEP)
4-233-601-71 MANUAL, INSTRUCTION (ENGLISH)(UK)
4-983-956-01 COVER, BATTERY
************************************************************
*************
HARDWARE LIST
*************
#1
#2
7-621-775-10 SCREW +B 2.6X4
4-951-620-01 SCREW (2.6X8), +BVTP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
29
CDP-XE570
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver.
Date
1.0
2001.03
Description of Revision
New
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
