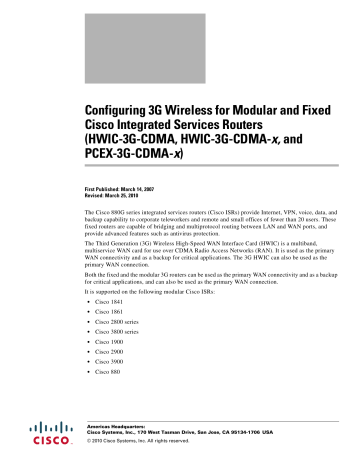

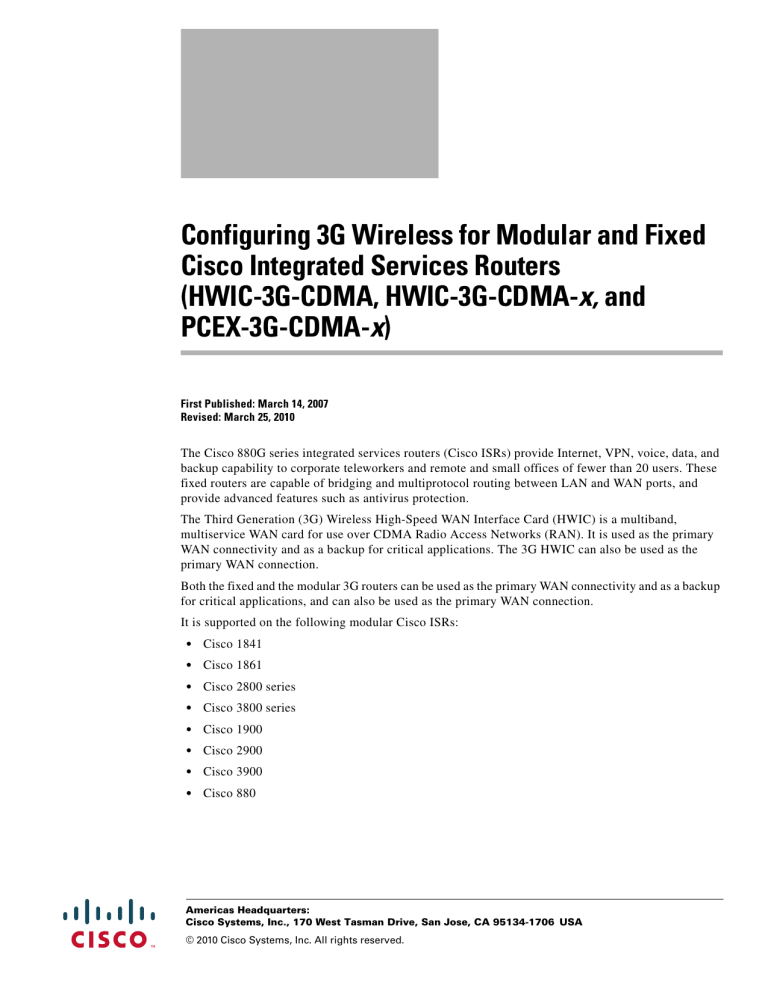

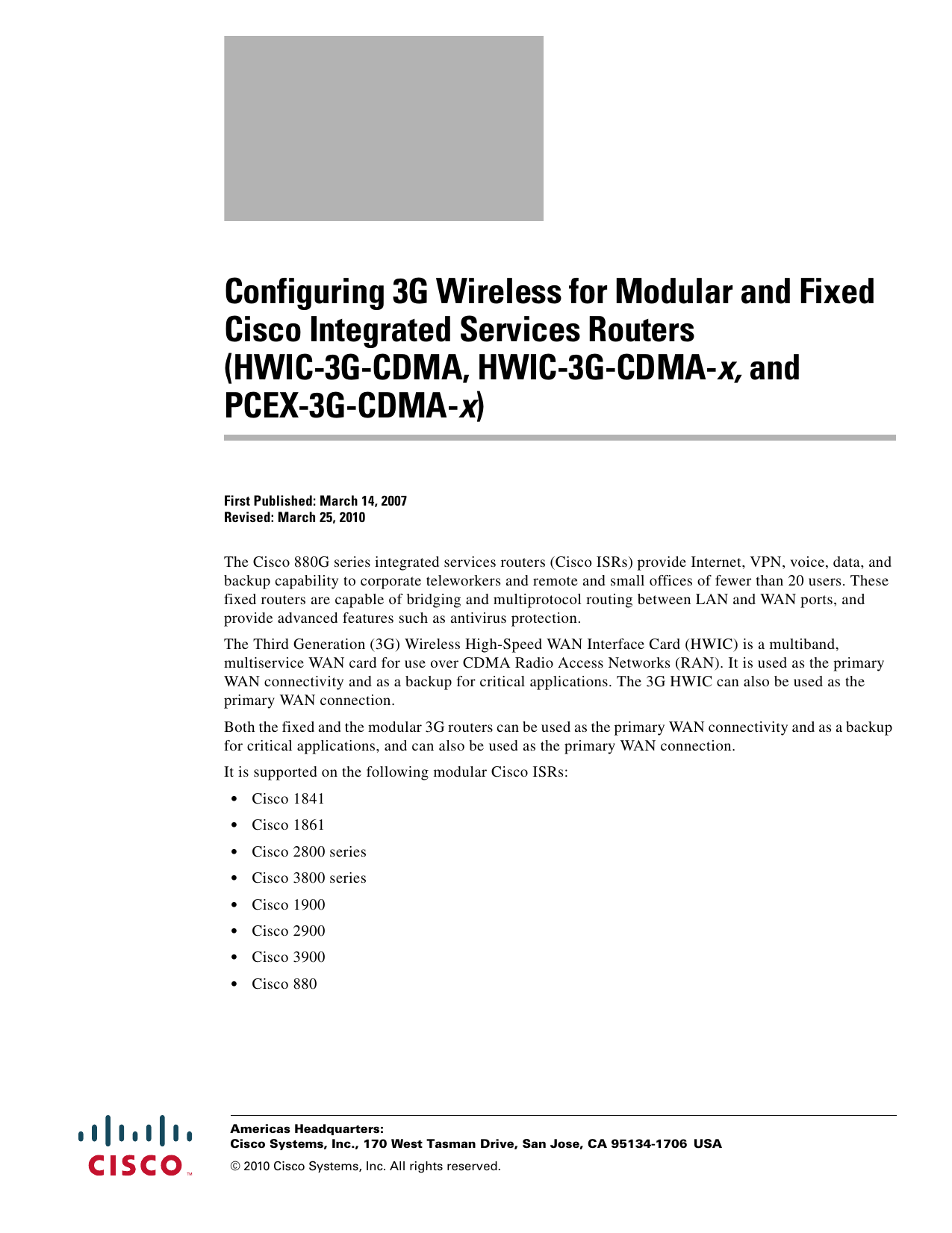

Configuring 3G Wireless WAN on Modular and Fixed ISRs
Configuring 3G Wireless for Modular and Fixed
Cisco Integrated Services Routers
(HWIC-3G-CDMA, HWIC-3G-CDMA-x, and
PCEX-3G-CDMA-x)
First Published: March 14, 2007
Revised: March 25, 2010
The Cisco 880G series integrated services routers (Cisco ISRs) provide Internet, VPN, voice, data, and backup capability to corporate teleworkers and remote and small offices of fewer than 20 users. These fixed routers are capable of bridging and multiprotocol routing between LAN and WAN ports, and provide advanced features such as antivirus protection.
The Third Generation (3G) Wireless High-Speed WAN Interface Card (HWIC) is a multiband, multiservice WAN card for use over CDMA Radio Access Networks (RAN). It is used as the primary
WAN connectivity and as a backup for critical applications. The 3G HWIC can also be used as the primary WAN connection.
Both the fixed and the modular 3G routers can be used as the primary WAN connectivity and as a backup for critical applications, and can also be used as the primary WAN connection.
It is supported on the following modular Cisco ISRs:
•
Cisco 1841
•
•
•
•
Cisco 1861
Cisco 2800 series
Cisco 3800 series
•
•
Cisco 1900
Cisco 2900
Cisco 3900
•
Cisco 880
Americas Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
© 2010 Cisco Systems, Inc. All rights reserved.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
2
The 3G wireless Modular and Fixed Cisco ISR provides the following functionality:
•
•
Broadband WAN connectivity using high speed cellular data technology
Support for the following technologies:
–
–
CDMA2000 Evolution-Data Optimized (EVDO) Revision (Rev) A
CDMA2000 EVDO Rev 0
•
•
•
•
•
•
•
•
•
–
CDMA Single channel Radio Transmission Technology (1xRTT)
Automatic best-network selection
Always-on capability
Multiple antenna and cable options:
–
–
Diversity antenna
Indoor and outdoor external antennas
–
Radio Frequency Ultra-Low Loss (RF-ULL) cable length from 10 ft to 75 ft
IOS-based Mobile IP including network mobility(NEMO)
Supports over-the-air service provisioning (OTASP), Internet over-the-air (IOTA) data profile provisioning, and Open Mobile Alliance device management (OMA-DM).
Multiple product SKUs for multiple CDMA carriers
Multiple external antenna options
Support for diversity antenna
Static and dynamic IP addressing
Modem-based support for mobile IP
•
•
•
•
•
Cellular interface based on the async interface in Cisco IOS
Mobile IP profile management for CDMA
Network Address Translation (NAT) and Port Address Translation (PAT) support
Security features such as firewall, intrusion-detection systems (IDS), and intrusion-prevention systems (IPS)
•
•
•
Support for enhanced security features, such as GET VPN, EZ VPN, DMVPN, Multi-point GRE
(mGRE), and IPSec VPN
Auto-detecting optimized WAN switchover
•
•
Support for Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)
Cellular WAN management information base (MIB)
Diagnostic and monitoring capability
Complete Cisco IOS feature capability
•
The Cisco 3G wireless Modular and Fixed Cisco ISR provides the following software functionality:
•
Modem activation—You can activate the modem either by using Cisco IOS commands either manually or by using over-the-air service provisioning (OTASP), Internet over-the-air (IOTA) data profile provisioning or the device management protocol specified by OMA-DM.
•
•
Modem management—You can access modem software and hardware information, radio and network status, and data profile information by using Cisco IOS commands and SNMP MIBs.
Dial on Demand Routing (DDR)—This allows you to set up a data call when there is data traffic to be sent over the wireless network.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
•
•
•
•
•
•
•
•
Fallback connection (DDR backup)—The 3G Modular and Fixed Cisco ISR allows you to configure the cellular modem to initiate a dialup connection when connection to a primary service is lost.
Teardown after fallback (part of fallback DDR)—After a primary connection has failed and the cellular connection is in fallback mode, the 3G Modular and Fixed Cisco ISR tears down the fallback-mode connection when the primary connection is available.
Automatic teardown—After a configurable timeout, the 3G Modular and Fixed Cisco ISR automatically tears down a connection if there has been no activity.
Autodetect—The 3G Modular and Fixed Cisco ISR automatically detects and uses the best available service.
Firmware upgrade—You can upgrade the firmware on the modem by using Cisco IOS commands.
3G HWIC support on Cisco Integrated Services Router (ISR) platforms, namely Cisco 1841,
Cisco 1861, Cisco 2801, Cisco 2811, Cisco 2821, Cisco 2851, Cisco 3825, and Cisco 3845.
Comprehensive Cisco IOS MIB support including Interface (IF) MIBs and Entity MIBs.
3G cellular MIB support.
shows the SKU and the frequencies supported by the 3G wireless WAN HWICs.
Table 1 SKU Description and Supported Frequencies
SKU Number
HWIC-3G-CDMA-x
HWIC-3G-CDMA
PCEX-3G-CDMA-x
Description
EVDO Rev A/Rev 0/1xRTT, where x is an initial for a specific carrier
Region
US
Frequency Bands
800/1900MHz
Generic SKU for worldwide CDMA network
Cisco 880G Series 3G Wireless
Integrated Services Router, where x is an initial for a specific carrier.
Worldwide 800/1900MHz
North America 800/1900 MHz
Figure 1 shows the front panel of the HWIC-3G-CDMA-x.
Figure 1 Front Panel of HWIC-3G-CDMA-x
1
Mounting Screws
2
Diagnostic Port
3
Main Antenna Connector
4
5
LEDs
Diversity Antenna Connector
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
3
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Note
The diagnostic port is not required for normal operation. It is used only for advanced radio diagnostics.
Please refer to
“Modem Troubleshooting Using the Diagnostic Port” section on page 104 for details on
enabling this port and the diagnostic tools that are supported.
explains each of the LEDs with their functionality and the different states. The LEDs provide a visual indication of your available services. Please refer to Chapter 13 in the
Cisco Interface Cards
Hardware Installation Guide
for details on hardware installation.
Table 2 3G Wireless HWIC (CDMA) LED Descriptions
LED
RSSI
Description
Off: Low RSSI (under -100 dBm).
Slow Green Blink: Low or medium RSSI (-99 to -90 dBm).
Fast Green Blink: Medium RSSI (-89 to -70 dBm).
Solid Green: High RSSI (-69 dBm or higher).
WWAN
Solid Yellow: No service.
Off: HWIC in reset mode or not powered.
Slow blink: Searching for service.
Solid Green: Active service; no traffic detected.
1xRTT
Fast Blink: Active service, and traffic detected proportional to blink rate.
1xRTT is the active service.
EVDO
Note
1xEVDO is the active service.
Both 1xRTT and EVDO Off: No service is active.
Note
Note
If the RSSI LED is solid yellow, it means that there is no service.
Active service means the currently available service. Your 3G WAN wireless HWIC automatically selects the best available connection.
Feature History
Release
12.4(11)XV
12.4(15)T
12.4(22)YB1
15.1(1)T
Modification
This feature was introduced. (This image is not supported any longer.)
This feature was integrated into Cisco IOS Release 12.4(15)T.
This feature was revised.
This feature was integrated into Cisco IOS Release 15.1(1)T
4
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
PCEX-3G-CDMA-x
Figure 2 shows the front panel of the PCEX-3G-CDMA.
Figure 2 Front Panel of PCEX-3G--CDMA
LED
3G
1
WWAN
2
3G RSSI
3
1
LEDs
2
3G express card slot—Supports third-party
1
3G card (Cisco 88xG models only)
3
USB port
1.
See the
Cisco 880 Series Integrated Services Routers
data sheet for supported vendors.
lists the LEDs and describes their functionality and different states. The LEDs provide a visual indication of your available services. Please see the
Cisco 880 Series ISR Hardware Installation Guide
for details on hardware installation.
Color
Green
Green
Amber
Table 3 LED Description for PCEX-3G-HSPA-x
Description
On—Service is established.
Slow Blinking—Searching for service.
Fast Blinking—Data is either being received or being transmitted.
Off—Low signal strength (lower than -100 dBm).
On—High RSSI (-69 dBm or higher).
Slow Blinking—Low or medium RSSI (-99 to -90 dBm).
Fast Blinking—Medium RSSI (-89 to -70 dBm).
On—No service.
880 Series
3G models
3G models
3G models
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
5
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
LED
3G GSM
4
3G CDMA
5
Color
Green
Green
Description
On—Service is established.
Off—No service.
On—Service is established.
Off—No service.
1.
3G = Third-Generation.
2.
WWAN = wireless WAN.
3.
RSSI = Received Signal Strength Indicator.
4.
GSM = Global System for Mobile Communication.
5.
CDMA = code division multiple access.
880 Series
3G models
3G models
The PCEX-3G-CDMA supports the AC501 and the AC880E modem.
shows the LED information for the LEDs located on the modem.
Table 4 Modem LED Descriptions
LED
Power
2G
3G
Description
Indicates one of the following states:
• The modem has detected or is connected to a 2G or 3G network.
• The modem is not inserted in the PC.
• The computer is off or in “suspend and resume mode”.
• The modem has been turned off using Watcher (Tools > Turn Radio
Off) or another connection client.
Solid Blue: The power is on, the modem is working normally, and the firmware is not being updated.
Blinking Blue: The firmware is being updated. Do not remove the modem from the PC.
Blinking Amber: The modem is searching for service (initializing).
Solid Amber: Error—either the modem is having a problem initializing
(searching for service) or is offline because of a failure. Contact your service provider.
Off: The modem is unable to detect 2G service.
Blinking Amber: The modem has detected a 2G network (EDGE, GPRS, GSM) and is ready to connect.
Solid Amber: The modem is connected to a 2G network and is able to send and receive data.
Off: The modem is unable to detect 3G service.
Blinking Blue: The modem has detected a 3G network (UMTS, HSDPA) and is ready to connect.
Solid Blue: The modem is connected to a 3G network and can send and receive data.
6
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Contents
Feature History
Release
12.4(11)XV
12.4(15)T
12.4(15)T1
15.0(1)M
15.1(1)T
Modification
This feature was introduced for HWIC-3G-CDMA. (This image is not supported any longer.)
This feature was integrated into Cisco IOS Release 12.4(15)T.
This feature was updated.
The HSPA feature was introduced.
The CDMA feature was integrated into the Cisco 880 Series Integrated
Service Routers with Cisco IOS Release 15.1(1)T.
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn . You must have an account on
Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Contents
•
•
•
•
•
•
•
•
•
Prerequisites for Configuring 3G Wireless, page 7
Restrictions for Configuring 3G Wireless, page 8
Overview of SNMP MIBs, page 10
Configuring the 3G Wireless Modular and Fixed Cisco ISRs, page 17
Configuring Data DedicatedTransmission Mode (DDTM), page 29
Modem Firmware Upgrade, page 34
Troubleshooting Tips, page 102
Prerequisites for Configuring 3G Wireless
The following are prerequisites to configuring the 3G wireless HWICs:
•
You must have service availability from a wireless service provider, and you must have network coverage where your router will be physically located. For a complete list of supported carriers, see the data sheet at the following URL: http://www.cisco.com/go/3g
•
You must subscribe to a service plan with a wireless service provider. For manual activation, you will need the following specific information from the provider:
–
Master Subsidy Lock (MSL) number
–
–
Mobile Directory number (MDN)
MSID
The ESN number is on the modem itself, as shown in
. Make sure that your service is registered with the ESN number. You can also obtain the ESN by using the show cellular hardware command.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
7
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Restrictions for Configuring 3G Wireless
•
•
•
You must install the required antennas before you configure the 3G wireless HWIC. See the following URLs for instructions on how to install the antennas:
–
–
3G-ANTM1919D—See the
Cisco Multiband Swivel Mount Dipole Antenna (3G-ANTM1919D)
3G-ANTM1916-CM—See the
Cisco Multiband Omnidirectional Ceiling Mount Antenna
(3G-ANTM1916-CM)
–
–
3G-AE015-R (Antenna Extension)—See the
Cisco Single-Port Antenna Stand for Multiband
TNC Male-Terminated Portable Antenna (3G-AE015-R)
3G-ANTMOUT-OM—See the
Cisco 3G Omnidirectional Outdoor Antenna
(3G-ANTM-OUT-OM)
–
–
3G-ANTM-OUT-LP—See the
Cisco 3G Low Profile Outdoor Antenna (3G-ANTM-OUT-LP)
3G-ACC-OUT-LA—See the
Cisco 3G Lightning Arrestor (3G-ACC-OUT-LA)
You must make sure to check your LEDs for signal reception as described in
.
You should be familiar with Cisco IOS.
Figure 3 Location of the ESN Number
1
The ESN is located on the modem that is attached to the back of the 3G wireless HWIC. The ESN is just below the barcode.
Restrictions for Configuring 3G Wireless
The following restrictions apply to the Cisco 3G Wireless HWICs:
•
•
Data connection can be originated only by the 3G wireless Modular and Fixed Cisco ISRs. Remote dial-in is not supported.
Throughput—Because of the shared nature of wireless communications, the amount of throughput that is experienced varies, depending on the number of active users or congestion in a network.
8
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
•
•
Cellular networks have higher latency, compared to wired networks. Latency rates depend on the technology and carrier. Latency can increase because of network congestion.
Any restrictions that are a part of the terms of service from your carrier.
Technology Overview
This section contains the following topics:
•
•
•
•
Overview of SNMP MIBs, page 10
3G Cellular WAN MIB Architecture, page 10
Supported Cisco Antennas and Cables, page 13
CDMA Network Overview
CDMA is a standard for mobile communication. A typical CDMA network includes terminal equipment, mobile termination, base transceiver station (BTS), base station controller (BSC), packet data serving node (PDSN), and other data network entities. The PDSN is the interface between a BSC and a internet gateway.
Figure 4 shows the relationship of the components of a typical CDMA network, including a PDSN and
a branch office with the 3G wireless Modular and Fixed Cisco ISRs.
As the figure shows, the branch office connects to a radio tower and a BTS. The BTS connects to a BSC, which contains a component called the packet control function (PCF). The PCF communicates with the
Cisco PDSN for data communication and with the mobile switching center (MSC) for voice.
Figure 4 Overview of the CDMA Network
Voice
MSC PSTN
Branch Office with Cellular HWIC
BTS/BSC
Data
PCF/
PDSN
Internet
Carrier Network
BTS: Base Transceiver Stations
BSC: Base Station Controller
MSC: Mobile Switching Center
PCF: Packet Control Function
PDSN: Packet Data Serving Node
Leased Line
(MPLS, FR, Fiber)
HQ
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
9
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
Overview of SNMP MIBs
Simple Management Network Protocol (SNMP) development and use is centered around the
Management Information Base (MIB). An SNMP MIB is an abstract data base, i.e., a conceptual specification for information that a management application may read and modify in a certain form. This does not imply that the information is kept in the managed system in that same form. The SNMP agent translates between the internal data structures and formats of the managed system and the external data structures and formats defined for the MIB.
The SNMP MIB is conceptually a tree structure with conceptual tables. Cisco 3G MIB is discussed in more detail in the next section. Relative to this tree structure, the term MIB is used in two senses. In one sense it is actually a MIB branch, usually containing information for a single aspect of technology, such as a transmission medium or a routing protocol. A MIB used in this sense is more accurately called a
MIB module, and is usually defined in a single document. In the other sense a MIB is a collection of such branches. Such a collection might comprise, for example, all the MIB modules implemented by a given agent, or the entire collection of MIB modules defined for SNMP.
A MIB is a tree where the leaves are individual items of data called objects. An object may be, for example, a counter or a protocol status. MIB objects are also sometimes called variables.
MIBs for the 3G cellular Modular and Fixed Cisco ISRs can be classified into three categories:
•
•
IF MIBs—describes interface statistics
Cisco-Entity-Vendortype-OID-MIB.my—ENTITY-MIBs are used to provide general hardware type for both the Modular and Fixed Cisco ISRs and the modem.
CISCO-ENTITY-VENDORTYPE-OID-MIB assigns OIDs for Cisco components (including the
HWICs & the modems). The OIDs are then used as the values of entPhysicalVendorType in the
ENTITY-MIB.
•
3G cellular MIBs—cellular or wireless-specific MIBs
3G Cellular WAN MIB Architecture
This section describes the MIB definition and implementation support for Cisco's cellular 3G WAN products on the customer premises equipment (CPE) end.
The 3G Cellular WAN MIB supports both CDMA and GSM set of cellular standards and includes the following technologies:
•
GSM—GPRS/EDGE/UMTS/HSPA
•
CDMA—1xRTT/EVDO RevA/EVDO Rev0
The 3G cellular MIB uses indexes from the cellular interface and from the modem. You can obtain the interface index using IF-MIBs and the modem index using the ENTITY MIBs.
The 3G MIB definition includes the following major sub-trees:
•
Common objects
•
•
CDMA objects
GSM objects
•
Notifications
You can use MIB object c3gStandard defined in the c3gWanCommonTable to distinguish between
CDMA or GSM and implementing MIB for CDMA or GSM.
10
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
Note
Cisco 3G MIB supports both SNMP V3 and V2.
At a high level, the Cisco 3G WAN MIBs are divided into two groups and have the following structure:
1.
2.
ciscoWan3gMIBObjects—this group defines all the MIB objects for Cisco 3G WAN MIBs ciscoWan3gMIBNotifs—this group defines all the notification events for Cisco 3G WAN MIBs
ciscoWan3gMIBObjects
The ciscoWan3gMIBObjects group has three sub-groups:
–
c3gWanCommonTable—defines the common MIB objects for both CDMA and GSM
–
–
c3gWanCdma—defines the MIB objects specific for CDMA 2000 standards (3GPP2) c3gWanGsm—defines the MIB objects specific for GSM/UMTS standards (3GPP)
c3gWanCdma
Under c3gWanCdma, there are seven sub-groups:
•
•
•
•
•
•
c3gCdmaSessionTable for session related objects c3gCdmaConnectionTable for connection related objects c3gCdmaIdentityTable for user identity related objects c3gCdmaNetworkTable for network related objects c3gCdmaProfile for user profile related objects c3gCdmaRadio for radio related objects
•
c3gCdmaSecurityTable for security related objects
c3gWanGsm
Under c3gWANGsm, there are five sub-groups:
•
c3gGsmIdentityTable for user identity related objects.
•
•
•
•
c3gGsmNetworkTable for network related objects. c3gGsmPdpProfile for PDP profile related objects. c3gGsmRadio for radio related objects.
c3gGsmSecurityTable for security related objects.
ciscoWan3gMIBNotifs
Cisco Cellular 3G WAN MIB implementation supports SNMP GET (read operation) for all MIB objects, and SNMP SET (write operation) for the following RW (read-write) objects and more:
•
c3gRssiOnsetNotifThreshold
•
•
•
•
•
•
c3gRssiAbateNotifThreshold c3gEcIoOnsetNotifThreshold c3gEcIoAbateNotifThreshold c3gModemTemperOnsetNotifThreshold c3gModemTemperAbateNotifThreshold c3gModemReset
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
11
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
•
•
•
•
•
•
•
•
•
•
•
c3gModemUpNotifEnabled c3gModemDownNotifEnabled c3gServiceChangedNotifEnabled c3gNetworkChangedNotifEnabled c3gConnectionStatusChangedNotifFlag c3gRssiOnsetNotifFlag c3gRssiAbateNotifFlag c3gEcIoOnsetNotifFlag c3gEcIoAbateNotifFlag c3gModemTemperOnsetNotifEnabled c3gModemTemperAbateNotifEnabled
Note
By default, all notifications are disabled. To receive notifications, you must enable these notifications.
Note
The IF MIBs also have traps for the cellular interface objects that are used in conjunction with the notification type. When you get a notification, you must check the associated objects.
Table 5 shows various notifications and what they mean.
Traps
ModemUpNotification
ModemDown
Change Notification
Table 5
ConnectionStatus
Traps and Notifications
Details
Modem successfully recognized.
Crash or power-cycle.
Notifies about changes in service objects related to this notification—previous service type to current service type.
Shows the connection status. Service type is included in this notification.
Restrictions
•
•
For the router that runs the SNMP agent, you must configure appropriate access control (e.g.
SNMP-server community) using the Cisco IOS CLI for the NMS and agent to work properly.
It is strongly recommended that you configure SNMP V3 with authentication/privacy when implementing SNMP GET and SET operation.
12
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
Supported Cisco Antennas and Cables
.
Table 6
lists the Cisco antennas that are supported for use on the 3G Modular and Fixed Cisco ISRs.
Cisco Antennas Supported on Modular 3G ISRs
Cisco Part Number
3G-ANTM1919D
Antenna Type
Dipole omnidirectional
Maximum Gain and
Frequency Range
0 dBi
(806–960 MHz)
Description
This is the default antenna. Multiband faceplate-mounted dipole antenna. For more information, see the
Cisco Multiband Swivel Mount
Dipole Antenna (3G-ANTM1919D)
document.
3G-ANTM1916-CM High-gain ceiling-mount omnidirectional
0 dBi
(1710–2170 MHz)
1.5 dBi
(806–960 MHz)
2.5 dBi
(1710–2170 MHz)
0.8–6.0 GHz
Multiband ceiling-mounted omnidirectional antenna.
For more information, see the
Cisco Multiband
Omnidirectional Ceiling Mount Antenna
(3G-ANTM1916-CM)
document.
3G-AE015-R
(Antenna Extension)
3G-ANTM-OUT-OM
Extension base
Outdoor
Omnidirectional
+2 dBi
800/900 MHz
This antenna extension is a base with a 15-foot cable included for use with a dipole omnidirectional antenna.
For more information, see the
Cisco Single-Port
Antenna Stand for Multiband TNC Male-Terminated
Portable Antenna (3G-AE015-R)
document.
This is an outdoor low profile omindirectional mast antenna. For more information, see
Cisco 3G
Omnidirectional Outdoor Antenna
(3G-ANTM-OUT-OM)
3G-ANTM-OUT-LP
3G-ACC-OUT-LA
(Lightning Arrestor)
Low Profile Stick
Antenna
+4 dBi
1800/1900/2100 MHz
- 1.5 dBi
850, 900 MHz
This is an omindirectional stick antenna. For more information, see
Cisco 3G Low Profile Outdoor
Antenna (3G-ANTM-OUT-LP)
- 2.5 dBi
1800, 1900, 2100 MHz
Lightning Arrestor 800 MHz to 2200 MHz This is a quarter-wave lightning protector with integrated high-pass filter. For more information, see
Cisco 3G Lightning Arrestor (3G-ACC-OUT-LA)
lists insertion loss information for the ultra-low-loss (ULL) LMR 400 extension cables available from Cisco for use with 3G Modular and Fixed Cisco ISR antennas.
Table 7 Cisco Extension Cables for Use with Antennas
Cisco Product Number
3G-CAB-ULL-20
3G-CAB-ULL-50
3G-CAB-LMR240-25
3G-CAB-LMR240-50
3G-CAB-LMR240-75
Cable Length
20 ft (6 m)
50 ft (15 m)
25 ft (7.5 m)
50 ft (15 m)
75 ft (23 m)
Insertion Loss
1.50 dB max.
3.50 dB max.
3.50 dB max.
6.90 dB max.
10.5 dB max.
Frequency (MHz)
2100
2100
2200
2200
2200
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
13
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
with 3G fixed platforms.
Table 8 Cisco Adapter Cables for using HWIC cables with 3G Fixed
Cisco Product Number
3G-ACC-SSMB-TNC
3G-ACC-TS9-TNC
Antenna Adapter
Length
14.5 inches
13.5 inches
Insertion Loss
0.66 dB
0.62 dB
Frequency (MHz)
2100
2100
Note
You can use the RG-174/U type cables to adapt the modem external antenna connection to any of the
HWIC cables and antennas.
14
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
show some antenna options for the 3G Modular and Fixed Cisco ISRs.
Figure 5 Antenna Options
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
15
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Technology Overview
Figure 6 Antenna Options
16
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
To configure the 3G wireless Modular and Fixed Cisco ISRs, follow these procedures:
•
Modem Activation and Provisioning, page 17
•
Note
The procedure to configure 3G on both modular and fixed Cisco ISRs is the same except for slot numbering.
For example, for 3G HWICs, the numbering for slot 0, wic 0 and port 0 would be 0/0/0 for all commands.
For a fixed Cisco ISR, it would be only 0.
Please refer to platform-specific documentation for details on slot numbering.
Modem Activation and Provisioning
To activate and provision your modem, follow these procedures:
•
•
Verifying Signal Strength and Service Availability, page 17
Verifying Signal Strength and Service Availability
SUMMARY STEPS
To verify the signal strength and service availability on your modem, use the following commands beginning in the EXEC mode.
Note
For modem activation, the modem should be attached to a 1xRTT/EVDO service.
1.
2.
3.
4.
show cellular network show cellular radio show cellular hardware show cellular all
DETAILED STEPS
Use the following commands to verify the signal strength and service availability on your modem beginning in the EXEC mode:
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
17
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Command or Action
Step 1
Router# show cellular <slot/wic/port> network
Example:
Router# show cellular 0/0/0 network
Step 2
Router# show cellular <slot/wic/port> radio
Example:
Router# show cellular 0/0/0 radio
Step 3
Router# show cellular <slot/wic/port> hardware
Example:
Router# show cellular 0/0/0 hardware
Step 4
Router# show cellular <slot/wic/port> all
Example:
Router# show cellular 0/0/0 all
Purpose
Displays information about the carrier network, cell site, and available service.
Shows the radio signal strength.
Note
The RSSI should be better than -90 dBm for steady and reliable connection and better than -80 dBm for optimal data throughput.
Shows the hardware details and modem type.
Shows consolidated information about the modem, profiles created, radio signal strength, network security, and so forth.
18
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Activating the Modem
The activation procedures may differ depending upon your carrier. Consult your carrier, and follow one of the following procedures:
•
•
•
Activating Using OMA-DM, page 20
Activating Using OTASP, page 21
Note
Use the show cellular controller command to obtain information for the modem type for your Modular and Fixed Cisco ISRs.
lists activation and provisioning process supported by different wireless carriers depepnding on the modem MC5725 and MC5727.
Table 9 Support for Activation Procedures by SKUs and Modem Type
Sprint (-S) Verizon (-V) Generic
MC5725 MC5727 MC5725 MC5727 MC5725 MC5727
Yes Yes No No Yes Yes
Activation Procedure
Manual Activation using
MDN/MSID/MSL
OTASP Activation
OMA-DM Activation
IOTA for Data Profile refresh
No
No
Yes
No
Yes
No
Yes
No
No
Yes
No
No
Yes
No
Yes
Yes
No
Yes
Manual Activation
Note
You must have valid MDN, MSL, and MSID information from your carrier before you start this procedure.
To configure a modem profile manually, use the following command beginning in EXEC mode:
cellular slot/wic_slot/port cdma activate manual mdn msid sid nid msl
For more infomation about the parameters, see the
“cellular cdma activate manual” section on page 41
In addition to activation, the modem data profile provisioning is done using a process called IOTA. IOTA is initiated automatically when you use the cellular cdma activate manual command.
Here is a sample output from this command: router#cellular 0/0/0 cdma activate manual 1234567890 1234567890 1234 12 12345
NAM 0 will be configured and will become Active
Modem will be activated with following Parameters
MDN :1234567890; MSID :1234567890; SID :1234; NID 12:
Checking Current Activation Status
Modem activation status: Not Activated
Begin Activation
Account activation - Step 1 of 5
Account activation - Step 2 of 5
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
19
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Account activation - Step 3 of 5
Account activation - Step 4 of 5
Account activation - Step 5 of 5
Secure Commit Result: Succeed
Done Configuring - Resetting the modem
The activation of the account is Complete
Waiting for modem to be ready to start IOTA
Beginning IOTA router#
*Feb 6 23:29:08.459: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS
*Feb 6 23:29:08.459: Please wait till IOTA END message is received
*Feb 6 23:29:08.459: It can take up to 5 minutes
*Feb 6 23:29:27.951: OTA State = SPL unlock, Result = Success
*Feb 6 23:29:32.319: OTA State = Parameters commited to NVRAM, Result = Success
*Feb 6 23:29:40.999: Over the air provisioning complete; Result:Success
*Feb 6 23:29:41.679: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS
Note
The IOTA start and end must have “success” as the resulting output. If you receive an error message, you can run IOTA independently by using the cellular cdma activate iota command.
Tip
A periodic refresh of the data profile may be needed as required by your carrier. Use the following command to refresh the data profile: cellular cdma activate iota.
Activating Using OMA-DM
When you power up the modem for the first time, the modem automatically initiates Hands Free
Activation (HFA) to receive over-the-air programming for the MDN and MSID numbers and refreshes mobile IP profile1 (MIP1). You will see the message “OMA DM Hands Free Activation session is active” on your device.
At the end of the session, you may see one of the following three messages depending on the activation status:
•
•
If activation is successful: "OMA DM Hands Free Activation completed successfully"
If activation is unsuccessful, you will see the following message (up to 5 times) indicating that modem is retrying HFA: "OMA DM Hands Free Activation, waiting for retry in <x> seconds".
•
If activation is still unsuccessful, user will see the message "OMA DM Hands Free Activation Failed
- Error: <error_code>(<error_string>). Please try again later. If the problem persists, you may need to contact Customer Service."
To check if the account is provisioned and the modem is activated, use the show cellular profile command. If the account is not activated, use the user-initiated mode using the Cisco IOS CLI to activate your modem.
To activate using the Cisco IOS CLI, use the following command beginning in EXEC mode:
cellular slot/wic/port cdma activate oma-dm device-config
Router#cellular 0/0/0 cdma activate oma-dm device-config
Modem is activated
MIP profile 1 will be updated and will be active, if command is successful
Beginning OMA-DM.
20
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Router#
*Feb 5 20:50:18.207: %CELLWAN-2-OMA_DM_ACTIVE: [Cellular0/0/0]: OMA DM Device
Configuration session is active
Enzo-sustaining_1841_Live#
*Feb 5 20:50:34.755: %CELLWAN-2-OMA_DM_SUCCESS: [Cellular0/0/0]: OMA DM Device
Configuration completed successfully
Activating Using OTASP
To provision and activate your modem using OTASP, use the following command beginning in EXEC mode:
cellular slot/wic_slot/port cdma activate otasp phone_number
Note
You need to obtain the phone number for use with this command from your carrier. The standard OTASP calling number is *22899.
router# cellular 0/1/0 cdma activate otasp *22899
Beginning OTASP activation
OTASP number is *22899 router#
*Feb 6 23:18:45.393: OTA State = SPL unlock, Result = Success
*Feb 6 23:19:10.229: OTA State = PRL downloaded, Result = Success
*Feb 6 23:19:11.169: OTA State = Profile downloaded, Result = Success
*Feb 6 23:19:11.173: OTA State = MDN downloaded, Result = Success
*Feb 6 23:19:12.537: OTA State = Parameters commited to NVRAM, Result = Success
*Feb 6 23:19:14.613: Over the air provisioning complete; Result:Success
Data Call Set up
To set up a data call, use the following procedures:
•
•
•
•
•
Configuring the Cellular Interface, page 22
Configuring DDR Backup, page 26
Configuring Multiple Mobile IP Profiles, page 29
Configuring Data DedicatedTransmission Mode (DDTM), page 29
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
21
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
shows a data call setup using the 3G wireless HWIC.
Figure 7 Data Call Setup with the HWIC-3G-CDMA
Configuring the Cellular Interface
To configure the cellular interface, enter the following commands in the cellular interface mode.
SUMMARY STEPS
4.
5.
6.
1.
2.
3.
configure terminal
interface cellular <slot/wic/port>
encapsulation ppp
ppp chap password 0 <password>
asynchronous mode interactive ip address negotiated
Note
The modem supports both mobile IP (MIP) and simple IP (SIP). In both modes, the modem authenticates with the network. However, when the modem is configured in MIP-preferred mode (ask your carrier which mode is supported), if MIP authentication fails, the modem tries to set up a SIP call. The modem uses SIP authentication parameters derived during modem provisioning and passes the CHAP authentication challenge to the cellular interface. The purpose of the authentication challenge is to keep the cellular interface informed of Link Control Protocol (LCP) negotiations between the modem and the network. The authentication challenge from the modem does not have a username, so under the cellular interface, you should configure a default CHAP password, i.e., configure only the ppp chap password and not the ppp chap hostname. If your carrier supports only MIP, you do not need to configure either of the two parameters.
22
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
DETAILED STEPS
Command or Action
Step 1
Router# configure terminal
Example:
Router# configure terminal
Step 2
Router(config)# interface cellular
<slot/wic/port>
Purpose
Enters global configuration mode from the terminal.
Specifies the cellular interface.
Example:
Router (config)# interface cellular 0/0/0
Step 3
Router(config-if)# encapsulation ppp
Example:
Router (config-if)# encapsulation ppp
Step 4
Router (config-if)# ppp chap password <password>
Specifies PPP encapsulation for an interface configured for dedicated asynchronous mode or dial-on-demand routing
(DDR).
Defines an interface-specific CHAP password.
Example:
Router (config-if)# ppp chap password cisco
Step 5
Router(config-if)# async mode interactive
Note
You can set the password to any value. This password is used only when the modem has failed
MIP authentication and fails over to SIP mode. The modem ignores the CHAP authentication response from the cellular interface.
Returns a line that has been placed into dedicated asynchronous network mode to interactive mode, thereby enabling the slip and ppp EXEC commands.
Example:
Router (config-if)# async mode interactive
Step 6
Router(config-if)# ip address negotiated
Specifies that the IP address for a particular interface is obtained via PPP/IPCP address negotiation.
Example:
Router (config-if)# ip address negotiated
Note
When static IP address is required for the cellular interface, the address may be configured as ip address
negotiated. During IPCP, the network ensures that the correct static IP address is allocated to the device.
If a tunnel interface is configured with ip address unnumbered <cellular interface>, it is necessary to configure the actual static IP address under the cellular interface, in place of ip address negotiated. For a sample cellular interface configuration, see
“Basic Cellular Interface Configuration: Example” section on page 30 .
Configuring DDR
To configure DDR for the cellular interface, follow these steps:
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
23
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
SUMMARY STEPS
2.
3.
4.
1.
5.
6.
configure terminal
interface cellular <slot/wic/port>
dialer in-band
dialer idle-timeout <seconds>
dialer string <string>
dialer group <number>
exit
7.
8.
11.
12.
dialer-list <dialer-group> protocol <protocol-name> {permit | deny | list <access-list-number> |
access-group}>
ip access-list<access list number>permit <ip source address>
9.
10.
13.
line <slot/wic/port>
script dialer <regexp>
exit
chat-script <script name> ”” “ATDT#777” TIMEOUT <timeout value> CONNECT
14.
15.
interface cellular <slot/wic/port>
dialer string <string>
Command or Action
Step 1
Router# configure terminal
Example:
Router (config)# interface cellular 0/0/0
Step 3
Router(config-if)# dialer in-band
Purpose
Enters global configuration mode from the terminal.
Example:
Router# configure terminal
Step 2
Router(config)# interface cellular <slot/wic/port>
Specifies the cellular interface.
Enables DDR and configures the specified serial interface to use in-band dialing.
Example:
Router (config-if)# dialer in-band
Step 4
Router(config-if)# dialer idle-timeout <seconds>
Specifies the duration of idle time, in seconds, after which a line will be disconnected.
Example:
Router (config-if)# dialer idle-timeout 30
Step 5
Router(config-if)# dialer string <string>
Specifies the number or string to dial. Use the name of the CHAT script here.
Example:
Router (config-if)# dialer string cdma
24
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Command or Action
Step 6
Router(config-if)# dialer-group <number>
Purpose
Specifies the number of the dialer access group to which the specific interface belongs.
Example:
Router (config-if)# dialer-group 1
Step 7
Router(config-if)# exit
Enters the global configuration mode.
Example:
Router (config-if)# exit
Step 8
Router(config)# dialer-list <dialer-group> protocol
<protocol-name> {permit | deny | list
<access-list-number> | access-group}>
Creates a dialer list for traffic of interest and permits access to an entire protocol.
Example:
Router (config)# dialer-list 1 protocol ip list 1
Step 9
Router(config)# ip access-list<access list
number>permit <ip source address>
Defines traffic of interest.
Example:
Router (config)# ip access list 1 permit any
Step 10
Router(config)# line <slot/wic/port>
Specifies the line configuration mode.
Example:
Router (config-line)# line 0/0/0
Step 11
Router(config-line)script dialer <regexp>
Specifies a default modem chat script.
Example:
Router (config-line)# script-dialer cdma
Step 12
Router(config-line)exit
Example:
Router (config)# interface cellular 0/1/0
Step 15
Router(config-if)# dialer string <string>
Exits line configuration mode.
Example:
Router (config-line)# exit
Step 13
Router(config)# chat-script <script name> ””
“ATDT#777” TIMEOUT
<timeout value> CONNECT
Defines the ATDT commands when the dialer is initiated.
Example:
Router (config)# chat-script cdma "" "ATDT#777"
TIMEOUT 60 "CONNECT“
Step 14
Router(config)# interface cellular <slot/wic/port>
Specifies the cellular interface.
Specifies the dialer script (defined using the chat
script command).
Example:
Router (config)# dialer string cdma
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
25
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Configuring DDR Backup
To monitor the primary connection and initiate the backup connection when needed, the router can use one of the following methods:
•
Backup Interface—The backup interface that stays in standby mode until the primary interface line protocol is detected as down and then is brought up.
•
•
Floating Static Route—The route through the backup interface has an administrative distance that is greater than the administrative distance of the primary connection route and therefore would not be in the routing table until the primary interface goes down.
Dialer Watch—Dialer watch is a backup feature that integrates dial backup with routing capabilities.
Configuring Interfaces to Use a Backup Interface
To configure one or more interfaces to use a backup interface, use the following commands, beginning in global configuration mode.
SUMMARY STEPS
1.
2.
3.
interface type number
backup interface cellular number
backup delay enable-delay disable-delay
DETAILED STEPS
Command or Action
Step 1
Router(config)# interface type number
Example:
Router(config)# interface ATM0/0/0
Step 2
Router(config-if)# backup interface cellular
<number>
Example:
Router(config-if)# backup interface cellular0/3/0
Step 3
Router(config-if)# backup delay enable-delay disable-delay
Example:
Router(config-if)# backup delay enable delay
Purpose
Specifies the interface to be backed up and begins interface configuration mode.
Specifies the cellular interface as backup.
Specifies delay between the physical interface going down and the backup interface being enabled, and between the physical interface coming back up and the backup being disabled.
Note
You cannot configure a backup interface for the cellular interface and any other asynchronous serial interface.
26
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Configuring DDR Backup Using Dialer Watch
To initiate dialer watch, you must configure the interface to perform DDR and backup. Use traditional
DDR configuration commands, such as dialer maps, for DDR capabilities. To enable dialer watch on the backup interface and create a dialer list, use the following commands in interface configuration mode.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
configure terminal
interface type number
dialer watch group group-number
dialer watch-list group-number ip ip-address address-mask
dialer-list <dialer-group> protocol <protocol name> {permit | deny | list <access list number> |
access-group}
ip access-list <access list number> permit <ip source address>
interface cellular <slot/wic/port>
dialer-group <dialer group number>
DETAILED STEPS
Command or Action
Step 1
Router# configure terminal
Example:
Router# configure terminal
Step 2
Router(config)# interface type number
Example:
Router (config)# interface ATM0/0/0
Step 3
Router(config-if)# dialer watch-group group-number
Purpose
Enters global configuration mode from the terminal.
Specifies the interface.
Enables dialer watch on the backup interface.
Example:
Router(config-if)# dialer watch-group 2
Step 4
Router(config)# dialer watch-list group-number ip ip-address address-mask
Defines a list of all IP addresses to be watched.
Example:
Router(config-if)# dialer watch-list 2 ip 10.4.0.254
255.255.0.0
Step 5
Router(config)# dialer-list <dialer-group> protocol
<protocol-name> {permit | deny | list
<access-list-number> | access-group}>
Creates dialer list for traffic of interest and permits access to an entire protocol.
Example:
Router(config)# dialer-list 2 protocol ip permit
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
27
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuring the 3G Wireless Modular and Fixed Cisco ISRs
Command or Action
Step 6
Router(config)# ip access-list<access list
number>permit <ip source address>
Example:
Router(config)# access list 2 permit 10.4.0.0
Step 7
Router(config)# interface
cellular
<slot/wic_slot/port>
Purpose
Defines traffic of interest.
Note
Do not use the access list permit all command to avoid sending traffic to the IP network. This may result in call termination.
Enters the interface configuration mode.
Example:
Router(config)# interface cellular 0/1/0
Step 8
Router(config-if)# dialer-group <dialer group number> Maps a dialer list to the dialer interface.
Example:
Router(config-if)# dialer-group 2
Configuring DDR Backup Using Floating Static Route
To configure a floating static default route on the secondary interface beginning in the global configuration mode, perform the following tasks.
Note
Make sure you have ip classless enabled on your router.
SUMMARY STEPS
1.
2.
configure terminal
ip route network-number network-mask {ip address | interface} [administrative distance] [name
name]
DETAILED STEPS
Command or Action
Step 1
Router# configure terminal
Purpose
Enters global configuration mode from the terminal.
Example:
Router# configure terminal
Step 2
Router(config)# ip route network-number network-mask
{ip-address | interface} [administrative distance]
[name name]
Establishes a floating static route with the configured administrative distance through the specified interface.
Example:
Router (config)# ip route 0.0.0.0 Dialer 2 track 234
Note
A higher administrative distance should be configured for the route through the backup interface, so that it is used only when the primary interface is down.
28
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuration Examples for the 3G Wireless Modular and Fixed Cisco ISRs
Configuring Multiple Mobile IP Profiles
This procedure is for the HWIC-3G-CDMA-S and HWIC-3G-CDMA SKUs only.
Note
Please verify with your carrier if mobile IP is supported on your HWIC.
SUMMARY STEPS
1.
2.
cellular cdma profile configure cellular cdma profile select
DETAILED STEPS
Command or Action Purpose
Step 1
Router# cellular <slot/wic/port> cdma profile
configure <
profile number> <primary home agent address> <secondary home agent address> <mobile home agent address> <NAI> <MN-AAA SS> <MN-HA SS> <MN-AAA
SPI> <MN-HA SPI> <Reverse Tunneling Preference>
Configures data (MIP) profile.
Note
Parameters for this command may be different for different SKUs. Please refer to the
cellular cdma profile configure
command for details.
Example:
Router# cellular 0/0/0 cdma profile configure 1
1.1.1.1 2.2.2.2 3.3.3.3 [email protected] aaa bbb 1234
1234 1
Step 2
Router# cellular <slot/wic/port> cdma profile select
<profile number>
Sets a profile as the current active profile.
Example:
Router# cellular 0/0/0 cdma profile select 1
Configuring Data DedicatedTransmission Mode (DDTM)
On CDMA modems, data transmission is disrupted by incoming voice calls if data dedicated transmission mode (DDTM) is disabled. You can enable DDTM mode so the modem will ignore incoming voice calls.
To enable dedicated data transmission mode (DDTM) on a CDMA modem, use the cdma ddtm command in configuration mode
This command is enabled by default. You can disable this feature by using the no cdma ddtm command.
Note
When DDTM is enabled, only voice calls will be blocked for the MC5728v modems, while on the
AC597E and MC5725 and MC 5727, incoming SMS messages will also be blocked.
Configuration Examples for the 3G Wireless Modular and Fixed
Cisco ISRs
This section provides the following configuration examples:
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
29
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuration Examples for the 3G Wireless Modular and Fixed Cisco ISRs
•
•
•
Basic Cellular Interface Configuration: Example
Tunnel over Cellular Interface Configuration: Example
3G Wireless Modem as Backup with NAT and IPSec: Example
Basic Cellular Interface Configuration: Example
The following is an example configuration where the cellular interface is used as a primary and is configured as the default route: chat-script cdma "" "ATDT#777" TIMEOUT 60 "CONNECT“
!
interface Cellular0/0/0
ip address negotiated
encapsulation ppp
dialer in-band
dialer string cdma
dialer-group 1
async mode interactive
ppp chap password 0 cisco ppp ipcp dns request
!
!
!
access-list 1 permit any dialer-list 1 protocol ip list 1
!
line 0/0/0
exec-timeout 0 0
script dialer cdma
login
modem InOut
Tunnel over Cellular Interface Configuration: Example
The following sample configuration shows the configuration of the static IP address when a tunnel interface is configured using the ip address unnumbered <cellular interface> command: interface Tunnel2
ip unnumbered GigabitEthernet0/1
tunnel source Cellular0/3/0
tunnel destination 128.107.248.254
interface Cellular0/3/0
!
ip address negotiated
encapsulation ppp
dialer in-band
dialer idle-timeout 0
dialer string cdma
dialer-group 1
async mode interactive
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
30
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuration Examples for the 3G Wireless Modular and Fixed Cisco ISRs
ppp chap password 0 cisco
ppp ipcp dns request
! traffic of interest through the tunnel/cellular interface ip route 10.10.0.0 255.255.0.0 Tunnel2
3G Wireless Modem as Backup with NAT and IPSec: Example
The following sample configuration shows the configuration of the 3G wireless modem on the router as backup with NAT and IPSec: ip dhcp excluded-address 10.4.0.254
!
ip dhcp pool cdma-pool
network 10.4.0.0 255.255.0.0
default-router 10.4.0.254
!
chat-script cdma "" "atdt#777” TIMEOUT 20 "CONNECT"
!
track 234 rtr 1 reachability
!
crypto isakmp policy 1
encr 3des
authentication pre-share
!
crypto isakmp key mykey address 20.20.241.234
!
crypto ipsec transform-set mytransformset ah-sha-hmac esp-3des
!
crypto map vpn1 10 ipsec-isakmp
set peer 20.20.241.234
set transform-set mytransformset
match address 103
!
interface GigabitEthernet0/0
ip address 10.4.0.254 255.255.0.0
duplex auto
speed auto
! interface ATM0/0/0
no ip address
ip virtual-reassembly
load-interval 30
no atm ilmi-keepalive
dsl operating-mode auto
! interface ATM0/0/0.1 point-to-point
ip nat outside
ip virtual-reassembly
no snmp trap link-status
pvc 0/35
pppoe-client dial-pool-number 2
!
interface Cellular0/3/0
ip address negotiated
ip nat outside
encapsulation ppp
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
31
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuration Examples for the 3G Wireless Modular and Fixed Cisco ISRs
32
dialer in-band
dialer idle-timeout 0
dialer string cdma
dialer-group 1
ppp chap hostname host@apn
ppp chap password 0 cisco123
ppp ipcp dns request
crypto map vpn1
!
interface Dialer2
ip address negotiated
ip nat outside
encapsulation ppp
dialer pool 2
dialer-group 2
ppp chap hostname [email protected]
ppp chap password 0 cisco123
ppp pap sent-username [email protected] password 0 cisco123
ppp ipcp dns request
crypto map vpn1
!
ip local policy route-map track-primary-if
!
ip route 0.0.0.0 0.0.0.0 Dialer2 track 234
!
ip route 0.0.0.0 0.0.0.0 Cellular0/3/0 254
!
ip nat inside source route-map nat2cell interface Cellular0/3/0 overload ip nat inside source route-map nat2dsl interface Dialer2 overload
!
ip sla 1
icmp-echo 209.131.36.158 source-interface Dialer2
timeout 1000
frequency 2 ip sla schedule 1 life forever start-time now
!
access-list 1 permit any access-list 101 deny ip 10.4.0.0 0.0.255.255 20.20.0.0 0.0.255.255
access-list 101 permit ip 10.4.0.0 0.0.255.255 any
!
access-list 102 permit icmp any host 209.131.36.158
!
access-list 103 permit ip 10.4.0.0 0.0.255.255 20.20.0.0 0.0.255.255
! dialer-list 1 protocol ip list 1 dialer-list 2 protocol ip permit
!
route-map track-primary-if permit 10
match ip address 102
set interface Dialer2 null0
! route-map nat2dsl permit 10
match ip address 101
match interface Dialer2
!
route-map nat2cell permit 10
match ip address 101
match interface Cellular0/3/0
!
event manager applet pri_back
event track 234 state any
action 2.0 cli command "clear ip nat trans forced"
!
line 0/3/0
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Configuration Examples for the 3G Wireless Modular and Fixed Cisco ISRs
script dialer cdma
modem InOut
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
33
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Modem Firmware Upgrade
Modem Firmware Upgrade
The 3G wireless Modular and Fixed Cisco ISR modem firmware can be upgraded by using Cisco IOS commands. The firmware is packaged in a tar distribution file and can be downloaded from the wireless software download page on Cisco.com. Use the following procedure to upgrade the modem firmware:
Caution
Before upgrading the modem to a new firmware version, please check whether the new firmware version has been certified by your wireless service provider. Using an uncertified firmware version on the modem may affect the wireless service provider network adversely.
Note
Perform modem upgrade only if necessary. Downgrade is generally not supported, and may or may not work.
Refer to the following website for the latest certified firmware version for your carrier and IOS compatibility: http://www.cisco.com/en/US/products/hw/routers/networking_solutions_products_generic_content090
0aecd80601f7e.html
SUMMARY STEPS
2.
3.
1.
4.
Go to the CDMA/EVDO firmware download website at: http://software.cisco.com/download/navigator.html?mdfid=279119319&flowid=6999 and in the third column, select Verizon or Sprint, depending on the type of card you have.
Download the appropriate CDMA firmware release under Wireless Integrated Switches and Routers.
Use the archive command to extract the firmware distribution into the router flash memory:
archive tar /xtract source-url destination-url
Use the following command to initiate the firmware upgrade process: microcode reload cellular pa-bay slot cdma modem-provision
DETAILED STEPS
Step 1
Step 2
Command or Action
Go to the Download Software site at: http://software.cisco.com/download/navigator.html
and select Wireless > Wireless Integrated Switches and
Routers. In the third column, select Verizon or Sprint, depending on the type of card you have.
Download the appropriate CDMA firmware release under Wireless Integrated Switches and Routers.
Purpose
Provides access to Cisco Wireless WAN software downloads. Select firmware for Cisco 3G wireless
Modular and Fixed Cisco ISRs.
Note
This website is only available to registered
Cisco.com users.
Downloads the modem firmware package to a
TFTP/FTP server that is accessible from the router in which the 3G wireless Modular and Fixed Cisco
ISRs is installed.
34
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Command Reference
Command or Action
Step 3
router# archive tar /xtract source-url
destination-url
Example:
Router# archive tar /xtract
tftp://192.168.1.1/MC5725_00_57_00_vzw_package.t
ar flash:
Step 4
router# microcode reload cellular pa-bay slot
cdma modem-provision
Purpose
Uncompresses the files of the modem firmware package and copies them to a location that is accessible by the router in which the 3G wireless
Modular and Fixed Cisco ISR is installed.
source-url—URL of the source location with the firmware TAR filename. Valid URLs can refer to
TFTP or HTTP servers or to router flash memory.
destination-url—URL of the destination where the tar file would be extracted. Use router flash.
Initiates the firmware upgrade process.
pa-bay—Use 0 for HWIC.
slot—Slot number where the HWIC is plugged in.
Note
This command automatically shuts down the cellular interface. The firmware upgrade process may take up to 15 minutes, during which the modem is inaccessible. After the command is complete, the interface is brought up again.
Caution
Do not disconnect power or switch the router off during the firmware upgrade process. Either action may result in permanent modem failure.
Command Reference
•
•
•
This section documents new commands only.
•
•
•
•
cellular cdma activate oma-dm device config
•
•
cellular cdma activate oma-dm ni-alert
cellular cdma activate oma-dm prl-update
cellular cdma activate otasp
•
•
cellular cdma profile configure
debug cell-hwic driver
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
35
Command Reference
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
debug cell-hwic firmware debug cell-hwic virt-con
debug cellular messages management
debug cellular messages oma-dm
show cellular connection show cellular connection
36
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cdma ddtm
cdma ddtm
On CDMA modems, data transmission is disrupted by incoming voice calls if data dedicated transmission mode (DDTM) is disabled. You can enable DDTM mode so the modem will ignore incoming voice calls.
To enable DDTM on a CDMA modem, use the cdma ddtm command in configuration mode.
cdma ddtm
To disable DDTM, use the no form of this command.
Command Default
DDTM is enabled by default.
Command Modes
Configuration.
Command History Release
15.1(4)M1
Modification
This command was introduced.
Usage Guidelines
Disable this feature only if you require the voice-initiated data callback feature.
Examples
The following example shows the configuration to enable the cdma ddtm command:
Router(config)#controller cellular 0/0
Router(config-controller)#cdma ddtm
The following example shows how to configure the no cdma ddtm command:
Router(config)#controller cellular 0/0
Router(config-controller)#no cdma ddtm
Router(config-controller)#end
The following output for the show cellular connection command shows that DDTM is enabled:
Router#show cellular 0/0/0 connection
Phone number of outgoing call =
HDR AT State = Inactive, HDR Session State = Close
HDR Session Info:
UATI (Hex) = 0000:0000:0000:0000:0000:0000:0000:0000
Color Code = 0, RATI = 0x0
Session duration = 0 msecs, Session start = 0 msecs
Session end = 0 msecs, Authentication Status = Not authenticated
HDR DRC Value = 0, DRC Cover = 0, RRI = Pilot only
Current Transmitted = 0 bytes, Received = 0 bytes
Total Transmitted = 0 KB, Received = 0 KB
Current Call Status = None
Current Call Duration = 0 secs
Total Call Duration = 376179855 seconds
Current Call Type =
Last Call Disconnect Reason = Modem offline
Last Connection Error = None
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
37
cdma ddtm
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
HDR DDTM (Data Dedicated Transmission Mode) Preference = On
Mobile IP Error Code (RFC-2002) = 0 (Registration accepted)
38
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate iota
cellular cdma activate iota
To periodically refresh the modem data profile using Internet-based over-the-air provisioning (IOTA), use the cellular cdma activate iota command in privileged EXEC mode. IOTA is used to activate the modem data profile by certain wireless service providers. Use this command to display the current active connection state and statistics. (Ask your carrier whether IOTA is supported and how often a refresh is needed.)
cellular slot/wic_slot/port cdma activate iota
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None.
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
You can verify the updated modem data profile by using the show cellular slot/wic_slot/port profile command.
Note
Use this command only if you are using an HWIC-3G-CDMA-S interface card.
Examples
The following example shows output from the cellular cdma activate iota command: router # cellular 0/0/0 cdma activate iota
Begin IOTA router#
*Feb 6 23:32:21.339: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS
*Feb 6 23:32:21.339: Please wait till IOTA END message is received
*Feb 6 23:32:21.339: It can take up to 5 minutes
*Feb 6 23:32:40.867: OTA State = SPL unlock, Result = Success
*Feb 6 23:32:45.235: OTA State = Parameters commited to NVRAM, Result = Success
*Feb 6 23:32:52.087: Over the air provisioning complete; Result:Success
*Feb 6 23:32:52.615: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
39
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate iota
Related Commands Command Description cellular cdma activate manual
Manually activates a cellular account using the over the air service
(OTA) procedure.
show cellular profile
Displays the cellular profile information.
40
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate manual
cellular cdma activate manual
To manually activate the modem, use the cellular cdma activate manual command in privileged EXEC mode.
Note
The modem activation process is specific to the carrier. Ask your carrier whether manual activation—using MDN, MSID, and MSN—or activation using over-the-air service provisioning
(OTASP) is supported.
cellular slot/wic_slot/port cdma activate manual mdn msid sid nid msl
Syntax Description
slot/wic_slot/port mdn msid sid nid msl
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Ten digit mobile directory number (MDN).
Ten digit mobile subscriber identification number (MSID).
System ID (SID) number between 0 and 32767.
Note
Use the show cellular network command to obtain the system ID.
Network ID (NID) number between 0 and 65535.
Note
Use the show cellular network command to obtain the network ID.
Mobile subscriber lock, to be obtained from your service provider.
Command Default
None.
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use the show cellular network command to obtain the SID and NID.
You can verify whether the modem has been activated using the show cellular slot/wic_slot/port all command.
Note
Use this command only if you have an HWIC-3G-CDMA-S interface card.
Examples
The following is sample output from the cellular cdma activate manual command: router# cellular 0/0/0 cdma activate manual 9135938079 9135938079 4183 87 907148
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
41
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate manual
NAM 0 will be configured and will become Active
Modem will be activated with following Parameters
MDN :9135938079; MSID :9135938079; SID :4183; NID 87:
Checking Current Activation Status
Modem activation status: Not Activated
Begin Activation
Account activation - Step 1 of 5
Account activation - Step 2 of 5
Account activation - Step 3 of 5
Account activation - Step 4 of 5
Account activation - Step 5 of 5
Secure Commit Result: Succeed
Done Configuring - Resetting the modem
The activation of the account is Complete
Waiting for modem to be ready to start IOTA
Beginning IOTA router#
*Feb 6 23:29:08.459: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS
*Feb 6 23:29:08.459: Please wait till IOTA END message is received
*Feb 6 23:29:08.459: It can take up to 5 minutes
*Feb 6 23:29:27.951: OTA State = SPL unlock, Result = Success
*Feb 6 23:29:32.319: OTA State = Parameters commited to NVRAM, Result = Success
*Feb 6 23:29:40.999: Over the air provisioning complete; Result:Success
*Feb 6 23:29:41.679: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS
The following is sample output from the show cellular profile command after the modem has been activated: router# show cellular 0/3/0 profile
Profile Information
====================
Electronic Serial Number (ESN) = 0x603C6426
Modem activated = YES
Account Information:
======================
Activation Date: 20070221
Phone Number (MDN) : 2029976763
Mobile Station Identifier (MSID) : 2029976763
Data Profile Info:
=====================
Number of data profiles configured : 1
Current active data profile : 0
Data Profile 0 Information (Active)
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 300
MN-AAA SS = Set
MN-AAA SPI = 2
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 255.255.255.255
Secondary Home Agent Address = 255.255.255.255
42
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate manual
Related
Command cellular cdma activate iota show cellular profile
Description
Manually activates a cellular account using the Internet over-the-air service procedure.
Displays the cellular profile information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
43
cellular cdma activate oma-dm device config
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate oma-dm device config
To start a user-initiated OMA-DM session to provision an account and MIP1 (Mobile IP) profile update, use the cellular cdma activate oma-dm device config command in privileged EXEC mode.
cellular slot/wic_slot/port cdma activate oma-dm device config
This refreshes the MDN and MSID numbers on the account.
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
Before you execute this command, terminate any existing active or dormant data connection. The modem is activated automatically when it powers up using Hands Free Activation. Use this command only when activation fails or you need to update your account parameters.
To view profile and MIB information, use the show cellular profile command.
Examples
This section contains sample output for cellular slot/wic_slot/port cdma activate oma-dm
device-config command:
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 0, port 0:
Router#cellular 0/0/0 cdma activate oma-dm device-config
Modem is activated
MIP profile 1 will be updated and will be active, if command is successful
Beginning OMA-DM.
Router#
*Feb 5 20:50:18.207: %CELLWAN-2-OMA_DM_ACTIVE: [Cellular0/0/0]: OMA DM Device
Configuration session is active
Router_1841_Live#
*Feb 5 20:50:34.755: %CELLWAN-2-OMA_DM_SUCCESS: [Cellular0/0/0]: OMA DM Device
Configuration completed successfully
44
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate oma-dm device config
Related Commands Command show cellular oma-dm cellular cdma activate oma-dm
ni-alert
cellular cdma activate oma-dm prl-update debug cellular messages oma-dm show cellular profile
Description
Displays an OMA-DM session details.
Allows or denies a network initiated alert (NIA) queued in the modem.
Starts a user initiated OMA-DM session to get an over-the-air PRL update.
Starts OMA-DM debugging.
Displays cellular profile information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
45
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate oma-dm ni-alert
cellular cdma activate oma-dm ni-alert
To allow or deny a network initiated alert (NIA) queued in the modem, use the cellular cdma activate
oma-dm ni-alert [allow | deny] command in privileged EXEC mode.
cellular slot/wic_slot/port cdma activate oma-dm ni-alert [allow | deny]
Syntax Description
slot/wic_slot/port
allow deny
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Allow a network initiated alert.
Deny a network initiated alert.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
On execution of this command, a warning message appears that the current data connection will be interrupted. You must confirm if you want to proceed with this command.
Note
If you deny the NIA, depending on the SKU of the modem, the NIA may be available for a later attempt or permanently deleted from the system.
Examples
This section contains sample output for cellular slot/wic_slot/port cdma activate oma-dm ni-alert command:
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 0, port 0 with Network
Initiated Alert while the modem is in dormant state (cellular slot/wic_slot/port cdma activate oma-dm
ni-alert allow):
*Feb 5 20:57:04.827: %CELLWAN-2-OMA_DM_NI_ALERT: [Cellular0/0/0]: OMA DM NI Alert is received for Device Configuration
Please execute 'cellular <unit> cdma activate oma-dm ni-alert [allow | deny]'
Router#cellular 0/0/0 cdma activate oma-dm ni-alert allow
Modem is activated
!!!WARNING: Data connection will be terminated. Service will be interrupted until the NI session is completed.
Are you sure?(y/n) [confirm]
46
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate oma-dm ni-alert
[Cellular0/0/0]:The interface will be shutdown to allow the Network-Initiated OMA DM session. This will terminate any active data connection.
OMA DM NI alert: Interactive response accepted
*Feb 5 20:57:19.611: %LINEPROTO-5-UPDOWN: Line protocol on Interface Cellular0/0/0, changed state to down
*Feb 5 20:57:20.627: %LINK-5-CHANGED: Interface Cellular0/0/0, changed state to administratively down
*Feb 5 20:57:26.063: %CELLWAN-2-OMA_DM_ACTIVE: [Cellular0/0/0]: OMA DM Device
Configuration session is active
*Feb 5 20:57:36.847: %CELLWAN-2-OMA_DM_SUCCESS: [Cellular0/0/0]: OMA DM Device
Configuration completed successfully
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 0, port 0 for the
cellular slot/wic_slot/port cdma activate oma-dm ni-alert deny command:
*Feb 5 21:01:08.487: %CELLWAN-2-OMA_DM_NI_ALERT: [Cellular0/0/0]: OMA DM NI Alert is received for Device Configuration
Please execute 'cellular <unit> cdma activate oma-dm ni-alert [allow | deny]'
Enzo-sustaining_1841_Live#cellular 0/0/0 cdma activate oma-dm ni-alert deny
Modem is activated
OMA DM NI alert: Interactive response accepted
describes the output fields from the command.
Table 10 Field Description
Field
Interactive response accepted
Fail: Interactive response not expected
Fail: Invalid response
Description
The alert response is accepted by the modem. You will see OMA-DM status messages in SYSLOG or console.
No alert queued in the modem.
Not a valid response.
Related Commands Command show cellular oma-dm cellular cdma activate oma-dm device config cellular cdma activate oma-dm prl-update debug cellular messages oma-dm show cellular profile
Description
Displays an OMA-DM session details.
Starts a user initiated OMA-DM session to provision an account and profile update.
Starts a user initiated OMA-DM session to get an over-the-air PRL update.
Starts OMA-DM debugging.
Displays cellular profile information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
47
cellular cdma activate oma-dm prl-update
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate oma-dm prl-update
To start a user initiated OMA-DM session to get an over-the-air PRL update, use the cellular cdma
activate oma-dm prl-update command in privileged EXEC mode.
cellular slot/wic_slot/port cdma activate oma-dm prl-update
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
PRL upates are available periodically by the Service Provider. If no updates are available, an empty session error message is returned.
Note
If the PRL is updated successfully, the modem will be reset.
Examples
This section contains sample output for cellular slot/wic_slot/port cdma activate oma-dm prl-update command:
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 0, port 0 when the update is successful:
Router#cellular 0/0/0 cdma activate oma-dm prl-update
Modem is activated
Beginning OMA-DM
*Jan 27 18:32:08.087: %CELLWAN-2-OMA_DM_ACTIVE: [Cellular0/0/0]: OMA DM PRL Update session is active
*Jan 27 18:32:31.643: %CELLWAN-2-OMA_DM_SUCCESS: [Cellular0/0/0]: OMA DM PRL Update completed successfully
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 0, port 0 when the update is unsuccessful:
Router#cellular 0/0/0 cdma activate oma-dm prl-update
Modem is activated
Beginning OMA-DM.
48
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate oma-dm prl-update
*Feb 5 21:33:23.795: %CELLWAN-2-OMA_DM_ACTIVE: [Cellular0/0/0]: OMA DM PRL Update session is active
*Feb 5 21:34:03.587: %CELLWAN-2-OMA_DM_ERROR: [Cellular0/0/0]: OMA DM PRL Update Failed -
Error:0x504(Unrecoverable network error)
Related Commands Command show cellular oma-dm cellular cdma activate oma-dm
ni-alert
cellular cdma activate oma-dm device config debug cellular messages oma-dm show cellular profile
Description
Displays an OMA-DM session details.
Allows or denies a network initiated alert (NIA) queued in the modem.
Starts a user initiated OMA-DM session to provision an account and profile update.
Starts OMA-DM debugging.
Displays cellular profile information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
49
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate otasp
cellular cdma activate otasp
To activate a wireless account using over-the-air service provisioning (OTASP), use the cellular cdma
activate otasp command in privileged EXEC mode.
Note
The modem activation process is specific to the carrier. Check with your carrier if they support manual activation—using MDN, MSID, and MSN—or activation using OTASP.
cellular slot/wic_slot/port cdma activate otasp phone_number
Syntax Description
slot/wic_slot/port phone_number
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Phone number that you must dial to begin activation using OTASP. This number is specific to a wireless provider. For Verizon Wireless, it is *22899.
Command Default
None.
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
You can verify the modem activation using the show cellular slot/wic_slot/port all command.
Note
Use this command only if you are using an HWIC-3G-CDMA-V interface card.
Examples
The following example shows output of the cellular cdma activate otasp command: router# cellular 0/1/0 cdma activate otasp *22899
Beginning OTASP activation
OTASP number is *22899 router#
*Feb 6 23:18:45.393: OTA State = SPL unlock, Result = Success
*Feb 6 23:19:10.229: OTA State = PRL downloaded, Result = Success
*Feb 6 23:19:11.169: OTA State = Profile downloaded, Result = Success
*Feb 6 23:19:11.173: OTA State = MDN downloaded, Result = Success
*Feb 6 23:19:12.537: OTA State = Parameters commited to NVRAM, Result = Success
*Feb 6 23:19:14.613: Over the air provisioning complete; Result:Success
50
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma activate otasp
The following is a sample output from the show cellular profile command after the modem has been activated: router#show cellular 0/3/0 profile
Profile Information
====================
Electronic Serial Number (ESN) = 0x603C6426
Modem activated = YES
Account Information:
======================
Activation Date: 20070221
Phone Number (MDN) : 2029976763
Mobile Station Identifier (MSID) : 2029976763
Data Profile Info:
=====================
Number of data profiles configured : 1
Current active data profile : 0
Data Profile 0 Information (Active)
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 300
MN-AAA SS = Set
MN-AAA SPI = 2
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 255.255.255.255
Secondary Home Agent Address = 255.255.255.255
Related Commands Command show cellular profile
Description
Displays the cellular profile information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
51
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma mode
cellular cdma mode
To configure the modem mode to connect to 1xRTT, EVDO or hybrid services, use the cellular cdma
mode command in privileged EXEC mode.
cellular slot/wic_slot/port cdma mode <hybrid | EVDO-only | 1xRTT-only>
Syntax Description
slot/wic_slot/port
hybrid
EVDO-only
1xRTT-only
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Connect to EVDO/1xRTT services (Default Mode)
Connect only to EVDO service
Connect only to 1xRTT service
Command Default
Hybrid
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
This command is executed only upon confirmation from the user. A service mode change is followed by a modem reset.
Examples
This section contains sample output for cellular slot/wic_slot/port cdma mode command:
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 1, port 1:
Router#cellular 0/0/0 cdma mode ?
1xRTT Modem will connect to 1xRTT only service
evdo Modem will connect to EVDO only service
hybrid Modem will connect to EVDO and 1xRTT service (default behavior)
describes the output fields from the command.
Table 11 Field Description
Field
1xRTT
EVDO
Hybrid
Description
Modem will connect to 1xRTT only service
Modem will connect to EVDO only service
Modem will connect to EVDO and 1xRTT service
(default)
52
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma mode
Related Commands Command cellular cdma activate otasp
Description cellular cdma activate manual
Manually activates a cellular account using the over-the-air service
(OTA) procedure.
Activates a cellular account using the over the air service provisioning (OTASP).
cellular cdma activate iota
Provisions data profile using Internet-based over-the-air provisioning (IOTA).
Note
IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
53
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma profile configure
cellular cdma profile configure
To manipulate CDMA modem data profile information, use the cellular cdma profile configure command in privileged EXEC mode.
cellular slot/wic_slot/port cdma profile configure <profile number> <primary HA address>
<secondary HA address><mobile HA><NAI> <MN-AAA SS> <MN-HA SS> <MN-AAA
SPI><MN-HA SPI> <rev-tunneling>
Syntax Description
slot/wic_slot/port profile number primary HA address
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Profile number to be configured
Primary Home Agent Address as obtained from Service Provider
secondary HA address
Secondary Home Agent Address as obtained from Service Provider
mobile HA*
Mobile Home Agent. This parameter is only needed for generic SKUs.
NAI
MN-AAA SS
MN-HA SS
MN-AAA SPI*
Network Access Identifier
Mobile Node AAA Shared Secret
Mobile Node Home Agent shared secret
Mobile Node AAA Security Parameter Index
MN-HA SPI* rev-tunneling*
Mobile Node Home Agent Security Parameter Index
Reverse tunneling preference
* denotes parameters not available in HWIC-3G-CDMA-S
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
This command is not supported for the HWIC-3G-CDMA-V SKU.
Examples
This section contains sample output for cellular slot/wic_slot/port cdma profile configure command:
Sample Output for HWIC-3G-CDMA
router#cellular 0 cdma profile configure ?
<1-5> profile number router#cellular 0 cdma profile configure 5 ?
A.B.C.D Primary HA Address router#cellular 0 cdma profile configure 5 100.1.1.1 ?
A.B.C.D Secondary HA Address
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
54
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma profile configure
router#cellular 0 cdma profile configure 5 100.1.1.1 200.1.1.1 ?
WORD Network Access Identifier (Ex:username@domain) router#$le configure 5 100.1.1.1 200.1.1.1 [email protected] ?
WORD MN-AAA Shared Secret router#$le configure 5 100.1.1.1 200.1.1.1 [email protected] kkk ?
WORD MN-HA Shared Secret router#$le configure 5 100.1.1.1 200.1.1.1 [email protected] kkk mmm ?
<cr> router#$le configure 5 100.1.1.1 200.1.1.1 [email protected] kkk mmm
Profile 5 will be configured with following parameters:
NAI (Network Access Identifier) = [email protected]
Home Address = 0.0.0.0
Primary Home Agent Address = 100.1.1.1
Secondary Home Agent Address = 200.1.1.1
MN-AAA SS = Set
MN-HA SS = Set
MN-AAA SPI = 1234
MN-HA SPI = 1234
Reverse Tunneling Preference = Set
!!!WARNING: Modem will be reset
Are you sure? [confirm]
Done configuring - Please wait while the modem resets
*Feb 25 21:21:37.504: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Feb 25 21:21:37.504: %CISCO800-2-CELLULAR_INTERFACE_NOT_SHUTDOWN: WARNING: Cellular0 interface should be shutdown before removing modem. Reload Required to reset interface
*Feb 25 21:21:38.508: %LINEPROTO-5-UPDOWN: Line protocol on Interface Cellular0, changed state to down
*Feb 25 21:21:43.264: %CELLWAN-2-HEART_BEAT_TIMEOUT: No heart beat signal from Cellular0
*Feb 25 21:21:43.540: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
*Feb 25 21:21:43.544: %CELLWAN-2-MODEM_DOWN: Cellular0 modem is DOWN
*Feb 25 21:21:45.540: %LINK-5-CHANGED: Interface Cellular0, changed state to reset
Profile 5 configured successfully router# router#
*Feb 25 21:21:48.648: %CELLWAN-2-MODEM_UP: Cellular0 modem is now UP router# router#sh
*Feb 25 21:21:50.540: %LINK-3-UPDOWN: Interface Cellular0, changed state to down router#show cellu router#show cellular 0 p router#show cellular 0 profile 5
Electronic Serial Number (ESN) = 0x605F6982 [09606252930]
Modem activated = YES
Account Information:
======================
Activation Date: Not available
Phone Number (MDN) : 4084205046
Mobile Station Identifier (MSID) : 4084205046
Data Profile Info:
=====================
Number of data profiles configurable : 5
Current active data profile : 1
Data Profile 5 Information
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 1234
MN-AAA SS = Set
MN-AAA SPI = 1234
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 100.1.1.1
Secondary Home Agent Address = 200.1.1.1
router#
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
55
cellular cdma profile configure
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Related Commands Command cellular cdma activate otasp
Description cellular cdma activate manual
Manually activates a cellular account using the over-the-air service
(OTA) procedure.
Activates a cellular account using the over the air service provisioning (OTASP).
cellular cdma activate iota
Provisions data profile using Internet-based over-the-air provisioning (IOTA).
cellular cdma activate oma-dm device config
Note
IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.
Starts a user-initiated OMA-DM session for modem activation.
Note
IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.
56
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma profile select
cellular cdma profile select
To select a CDMA modem data profile, use the cellular cdma profile select command in privileged
EXEC mode.
cellular slot/wic_slot/port cdma profile select <profile number> <primary HA address>
<secondary HA address><mobile HA><NAI> <MN-AAA SS> <MN-HA SS> <MN-AAA
SPI><MN-HA SPI> <rev-tunneling>
Syntax Description
slot/wic_slot/port profile number primary HA address
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Profile number to be configured
Primary Home Agent Address as obtained from Service Provider
secondary HA address
Secondary Home Agent Address as obtained from Service Provider
mobile HA*
Mobile Home Agent. This parameter is only needed for generic SKUs.
NAI
MN-AAA SS
MN-HA SS
MN-AAA SPI*
Network Access Identifier
Mobile Node AAA Shared Secret
Mobile Node Home Agent shared secret
Mobile Node AAA Security Parameter Index
MN-HA SPI* rev-tunneling*
Mobile Node Home Agent Security Parameter Index
Reverse tunneling preference
* denotes parameters not available in HWIC-3G-CDMA-S
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
This command is not supported for the HWIC-3G-CDMA-V SKU.
Examples
This section contains sample output for cellular slot/wic_slot/port cdma profile select command:
Sample Output for HWIC-3G-CDMA
router#cellular 0 cdma profile select 5 ?
<cr> router#cellular 0 cdma profile select 5
Profile 5 will become active
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
57
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
cellular cdma profile select
!!!WARNING: Modem will be reset
Are you sure? [confirm]
Done configuring - Please wait while the modem resets
*Feb 25 21:23:58.224: %CISCO800-2-MODEM_REMOVAL_DETECTED: Cellular0 modem is now REMOVED
*Feb 25 21:23:58.224: %CISCO800-2-CELLULAR_INTERFACE_NOT_SHUTDOWN: WARNING: Cellular0 interface should be shutdown before removing modem. Reload Required to reset interface
*Feb 25 21:23:58.232: %CELLWAN-2-MODEM_DOWN: Cellular0 modem is DOWN
*Feb 25 21:23:59.784: %CISCO800-2-MODEM_INSERTED_DETECTED: Cellular0 modem is now INSERTED
*Feb 25 21:24:04.900: %CELLWAN-2-MODEM_UP: Cellular0 modem is now UP
Profile 5 selected successfully router# router# router# router# router#show cellular 0 profile 5
Electronic Serial Number (ESN) = 0x605F6982 [09606252930]
Modem activated = YES
Account Information:
======================
Activation Date: Not available
Phone Number (MDN) : 4084205046
Mobile Station Identifier (MSID) : 4084205046
Data Profile Info:
=====================
Number of data profiles configurable : 5
Current active data profile : 5
Data Profile 5 Information (Active)
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 1234
MN-AAA SS = Set
MN-AAA SPI = 1234
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 100.1.1.1
Secondary Home Agent Address = 200.1.1.1
router#
Related Commands Command cellular cdma activate iota
Description
Provisions data profile using Internet-based over-the-air provisioning (IOTA).
Note
IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.
cellular cdma activate manual
Manually activates a cellular account using the over-the-air service
(OTA) procedure.
cellular cdma activate oma-dm device config
Starts a user-initiated OMA-DM session for modem activation.
cellular cdma activate otasp
Note
IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.
Activates a cellular account using the over the air service provisioning (OTASP).
58
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cell-hwic driver
debug cell-hwic driver
To debug the Cisco IOS driver for the cellular interface, use the debug cell-hwic driver command in
EXEC mode.
debug cell-hwic slot/wic_slot/port driver {crcdump | errdump | errors}
Syntax Description
slot/wic_slot/port
crcdump errdump errors
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
CRC error details.
Other error details.
Errors debugging.
Command Default
None
Command Modes
EXEC (#)
Command History Release
12.4(11)XV
12.4(15)T
12.2SX
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command Description debug cellular messages async
Debugs cellular async.
debug cellular messages data debug cellular firmware
Prints Cisco IOS data path debug messages.
Displays Cisco IOS firmware information.
debug cellular messages management debug cellular messages dm
Prints management path messages, such as CnS.
debug cell-hwic virt-con
Prints diagnostics monitor (DM) messages from the Qualcomm
CDMA chipset.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
59
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cell-hwic firmware
debug cell-hwic firmware
To see the Cisco IOS firmware information, use the debug cell-hwic firmware command in EXEC mode.
debug cellular slot/wic_slot/port firmware
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
12.4(22)YB1
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
This command was integrated into Cisco IOS Release 12.4(22)YB1.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command Description debug cellular messages async
Debugs cellular async.
debug cellular messages data debug cell-hwic driver
Prints Cisco IOS data path debug messages.
Debugs the Cisco IOS driver.
debug cellular messages management debug cellular messages dm
Prints management path messages, such as CnS.
debug cell-hwic virt-con
Prints diagnostics monitor (DM) messages from the Qualcomm
CDMA chipset.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
60
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cell-hwic virt-con
debug cell-hwic virt-con
To redirect the Nios II console driver messages to display them in the Cisco IOS router console environment, use the debug cell-hwic virt-con command in EXEC mode.
debug cell-hwic slot/wic_slot/port virt-con {clear | disable | dump-data-structs | log | monitor |
wrapper-on | wrapper-off}
Syntax Description
slot/wic_slot/port
clear disable
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
(Optional) Clears all virtual console debug log messages.
(Optional) Disables virtual console real-time debug monitoring.
dump-data-structurs
(Optional) Dumps virtual console data structures.
log
(Optional) Displays virtual console messages from the debug log.
monitor wrapper-on wrapper-off
(Optional) Enables monitoring of real-time virtual console debug messages.
(Optional) Disables wraparound for virtual console log messages.
(Optional) Enables wraparound for virtual console log messages.
Command Default
There is no default for this command.
Command Modes
EXEC (#)
Command History Release
12.4(11)XV
12.4(15)T
12.2SX
12.4(22)YB1
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
This command was integrated into Cisco IOS Release 12.4(22)YB1.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command debug cellular messages all
Description
Prints all Cisco IOS driver debug messages.
debug cellular messages async
Debugs cellular async.
debug cellular messages data
Prints Cisco IOS data path debug messages.
debug cell-hwic driver debug cell-hwic firmware
Debugs the Cisco IOS driver.
Displays Cisco IOS firmware information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
61
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cell-hwic virt-con
Command debug cellular messages management debug cellular messages dm
Description
Prints management path messages, such as CnS.
Prints diagnostics monitor (DM) messages from the Qualcomm
CDMA chipset.
62
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cellular messages all
debug cellular messages all
To print all Cisco IOS driver debug messages, use the debug cellular messages all command in EXEC mode.
debug cellular slot/wic_slot/port messages all
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command Description
Debugs cellular async.
debug cellular driver
Prints Cisco IOS data path debug messages.
Debugs the Cisco IOS driver.
debug cellular firmware
debug cellular messages management
debug cellular messages dm
Displays Cisco IOS firmware information.
Prints management path messages, such as CnS.
debug cellular messages virt-con
Prints diagnostics monitor (DM) messages from the Qualcomm
CDMA chipset.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
63
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cellular messages async
debug cellular messages async
To debug cellular async, use the debug cellular messages async command in EXEC mode.
debug cellular slot/wic_slot/port messages async
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command
debug cellular driver debug cellular firmware
debug cellular messages management
debug cellular messages dm debug cellular messages virt-con
Description
Prints all Cisco IOS driver debug messages.
Prints Cisco IOS data path debug messages.
Debugs the Cisco IOS driver.
Displays Cisco IOS firmware information.
Prints management path messages, such as CnS.
Prints diagnostics monitor (DM) messages from the Qualcomm
CDMA chipset.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
64
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cellular messages data
debug cellular messages data
To print Cisco IOS data path debug messages, use the debug cellular messages data command in EXEC mode.
show cellular slot/wic_slot/port messages data
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command
Description
Prints all Cisco IOS driver debug messages.
Debugs cellular async.
debug cellular driver
Debugs the Cisco IOS driver.
debug cellular firmware
debug cellular messages management
debug cellular messages dm
Displays Cisco IOS firmware information.
Prints management path messages, such as CnS.
debug cellular messages virt-con
Prints diagnostics monitor (DM) messages from the Qualcomm
CDMA chipset.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
65
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cellular messages dm
debug cellular messages dm
To print Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset, use the debug
cellular messages dm command in EXEC mode.
debug cellular slot/wic_slot/port messages dm
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
There is no default for this command.
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command
Description
Prints all Cisco IOS driver debug messages.
Debugs cellular async.
Prints Cisco IOS data path debug messages.
debug cellular driver debug cellular firmware
debug cellular messages management
debug cellular messages virt-con
Debugs the Cisco IOS driver.
Displays Cisco IOS firmware information.
Prints management path messages, such as CnS.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
66
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cellular messages management
debug cellular messages management
To print management path messages, such as CnS, use the debug cellular messages management command in EXEC mode.
debug cellular slot/wic_slot/port messages management
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use this command for debugging purposes only.
Related Commands Command
Description
Prints all Cisco IOS driver debug messages.
Debugs cellular async.
Prints Cisco IOS data path debug messages.
debug cellular driver debug cellular firmware debug cellular messages virt-con
Debugs the Cisco IOS driver.
Displays Cisco IOS firmware information.
Redirects the Nios II console driver messages to display them in the
Cisco IOS router console environment.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
67
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
debug cellular messages oma-dm
debug cellular messages oma-dm
To start OMA-DM debugging, use the debug cellular messages oma-dm command in privileged EXEC mode. This captures all the OMA DM control and status (CnS) packets.
debug cellular slot/wic_slot/port messages oma-dm
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
None
Related Commands Command show cellular oma-dm cellular cdma activate oma-dm device config cellular cdma activate oma-dm
ni-alert
cellular cdma activate oma-dm prl-update
Description
Displays an OMA-DM session details.
Starts a user initiated OMA-DM session to provision an account and profile update.
Allows or denies a network initiated alert (NIA) queued in the modem.
Starts a user initiated OMA-DM session to get an over-the-air PRL update.
68
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular all
show cellular all
To display all the modem information in one listing, use the show cellular all command in privileged
EXEC mode.
show cellular slot/wic_slot/port all
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.
Examples
This section contains:
•
•
Sample Output for 3G-HWIC-CDMA
Sample Output for 3G-HWIC-GSM
The following example shows output from the show cellular all command for slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 all
Hardware Information
====================
Modem Firmware Version = U1_2_22MCAP G:/WORK
Modem Firmware built = 04/17/06
Hardware Version = E2
International Mobile Subscriber Identity (IMSI) = 001012345678901
International Mobile Equipment Identity (IMEI) = 352678010002779
Factory Serial Number (FSN) = S2128751274E2OK
Modem Status = Online
Current Modem Temperature = 28 deg C, State = Normal
Profile Information
====================
Profile 1 = INACTIVE*
--------
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
69
show cellular all
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
PDP Type = IPv4, Header Compression = OFF
Data Compression = OFF
Access Point Name (APN) = vpn.com
Authentication = CHAP
Username: wapuser1, Password: wap
* - Default profile
Data Connection Information
===========================
Data Transmitted = 0 bytes, Received = 0 bytes
Profile 1, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 2, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 3, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 4, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 5, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 6, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 7, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 8, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 9, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Profile 10, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state router#
Network Information
===================
Current Service Status = No service, Service Error = None
Current Service = Invalid
Packet Service = None
Packet Session Status = Inactive
Current Roaming Status = Home
Network Selection Mode = Automatic
Country = 0, Network =
Mobile Country Code (MCC) = 0
Mobile Network Code (MNC) = 0
Location Area Code (LAC) = 0
Routing Area Code (RAC) = 255
Cell ID = 0
Primary Scrambling Code = 0
PLMN Selection = Automatic
Radio Information
=================
Current Band = None, Channel Number = 0
Current RSSI = -110 dBm
Modem Security Information
==========================
Card Holder Verification (CHV1) = Disabled
SIM Status = OK
SIM User Operation Required = None
Number of Retries remaining = 3 router#
70
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular all
Sample Output for 3G-HWIC-CDMA
The following example shows the output from the show cellular all command for slot 0, WIC slot 3, port 0: router# show cellular 0/0/0 all
Hardware Information
====================
Modem Firmware Version = p2005600
Modem Firmware built = 11-14-06
Hardware Version = 1.0
Electronic Serial Number (ESN) = 0x6032688F
Preferred Roaming List (PRL) Version = 20224
Current Modem Temperature = 32 degrees Celsius
Profile Information
====================
Electronic Serial Number (ESN) = 0x6032688F
Modem activated = YES
Account Information:
======================
Activation Date: Not available
Phone Number (MDN) : 9135938079
Mobile Station Identifier (MSID) : 9135938079
Data Profile Info:
=====================
Number of data profiles configured : 2
Current active data profile : 1
Data Profile 0 Information
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 1234
MN-AAA SS = Set
MN-AAA SPI = 1234
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 68.28.15.12
Secondary Home Agent Address = 68.28.31.12
Data Profile 1 Information (Active)
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 1234
MN-AAA SS = Set
MN-AAA SPI = 1234
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 68.28.81.76
Secondary Home Agent Address = 68.28.89.76
Data Connection Information
===========================
Phone number of outgoing call =
HDR AT State = Idle, HDR Session State = Open
HDR Session Info:
UATI (Hex) = 0084:0AC0:0000:0000:000A:05DC:A821:DCFC
Color Code = 32, RATI = 0xFFFFFFFF
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
71
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular all
Session duration = 0 msecs, Session start = 0 msecs
Session end = 0 msecs, Authentication Status = Not authenticated
HDR DRC Value = 11, DRC Cover = 0, RRI = Pilot only
Current Transmitted = 0 bytes, Received = 0 bytes
Total Transmitted = 0 KB, Received = 0 KB
Current Call Status = DISCONNECTED
Current Call Duration = 30 secs
Total Call Duration = 4482879 seconds
Current Call State =
Last Call Disconnect Reason = Base station release (No reason)
Last Connection Error = None
HDR DDTM (Data Dedicated Transmission Mode) Preference = Off
Mobile IP Error Code (RFC-2002) = 0 (Registration accepted)
Network Information
===================
Current Service = 1xEV-DO (Rev A) and 1xRTT
Current Roaming Status(1xRTT) = HOME, (HDR) = HOME
Current Idle Digital Mode = HDR
Current System Identifier (SID) = 4183
Current Network Identifier (NID) = 87
Current Call Setup Mode = Mobile IP only
Serving Base Station Longitude = 0 deg 0 min 0 sec
Serving Base Station Latitude = 0 deg 0 min 0 sec
Current System Time = Tue Feb 6 15:12:18 2007
Radio Information
=================
1xRTT related info
------------------
Current RSSI = -94 dBm, ECIO = -8 dBm
Current Channel Number = 50
Current Channel State = Acquired
Current Band Class = Band Class 1
HDR (1xEVDO) related info
-------------------------
Current RSSI = -83 dBm, ECIO = -0 dBm
Current Channel Number = 25
Current Band Class = Band Class 1
Sector ID (Hex) = 0084:0AC0:0000:0000:000A:05DC:A801:1202
Subnet Mask = 104, Color Code = 32, PN Offset = 240
Rx gain control(Main) = 0 dBm, Diversity = Unavailable
Tx total power = -2 dBm, Tx gain adjust = 1536 dBm
Carrier to interference (C/I) ratio = 7
Modem Security Information
==========================
Modem PIN Security UNLOCKED
Power-up lock DISABLED router#
Related Commands Command cellular cdma activate otasp show cellular hardware show cellular network show cellular profile
Description
Activates a cellular account using the over the air service provisioning (OTASP).
Displays the cellular modem hardware information.
Displays the cellular network (base station) information.
Displays the cellular profile information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
72
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular all
Command
Description
Displays the cellular modem radio statistics.
Displays the modem lock state.
Displays the SMS messages received by the cellular modem.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
73
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular connection
show cellular connection
To display the current active connection state and data statistics, use the show cellular connection command in privileged EXEC mode.
show cellular slot/wic_slot/port connection
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
15.1(1)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
This command was integrated into Cisco IOS Release 15.1(1)T.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.
Examples
This section contains:
•
•
Sample Output for 3G-HWIC-GSM
Sample Output for 3G-HWIC-CDMA
Sample Output for 3G-HWIC-GSM
The following is sample output for slot 1, wic 0, port 1.
router# show cellular 1/0/1 connection
Data Transmitted = 1066807500 bytes, Received = 1066807500 bytes
Profile 1, Packet Session Status = ACTIVE
IP address = 1.5.97.2
Profile 2, Packet Session Status = INACTIVE
Inactivity Reason = Normal inactivate state
Table 12 describes each output field.
74
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular connection
Table 12
Field
Data Received
Output Description
Data Transmitted
Profile <profile number>
Packet Session Status
IP Address
Inactivity Reason
Description
Total data transmitted by the modem. Can be cleared by the clear counters command.
Total data received by the modem. Can be cleared by the clear counters command.
Indicates the profiles configured in the modem. A total of 16 profiles can be configured.
Packet Data Protocol (PDP) session status of the profile. Active when the call is made and PDP context has become active in the modem.
IP address of the cellular interface received during
IPCP negotiation.
Reason why the profile is inactive.
Sample Output for 3G-HWIC-CDMA
The following example is sample output for slot 0, WIC slot 0, port 0 from the show cellular connection command: router# show cellular 0/0/0 connection
Phone number of outgoing call =
HDR AT State = Idle, HDR Session State = Open
HDR Session Info:
UATI (Hex) = 0084:0AC0:0000:0000:000A:05DC:A821:DCFC
Color Code = 32, RATI = 0xFFFFFFFF
Session duration = 0 msecs, Session start = 0 msecs
Session end = 0 msecs, Authentication Status = Not authenticated
HDR DRC Value = 11, DRC Cover = 0, RRI = Pilot only
Current Transmitted = 0 bytes, Received = 0 bytes
Total Transmitted = 0 KB, Received = 0 KB
Current Call Status = DISCONNECTED
Current Call Duration = 30 secs
Total Call Duration = 4482879 seconds
Current Call State =
Last Call Disconnect Reason = Base station release (No reason)
Last Connection Error = None
HDR DDTM (Data Dedicated Transmission Mode) Preference = Off
Mobile IP Error Code (RFC-2002) = 0 (Registration accepted) router#
Table 13 describes each output field.
Table 13 Description of Sample Output for CDMA
Field
Phone number of outgoing call
HDR AT State
Description
Shows the phone number of the data call dialed.
Indicates the AT state. Will show as
CONNECTED when the CONNECT is received from the modem while dialing out. This is valid only for 1xEVDO.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
75
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular connection
76
Table 13
Field
HDR Session State
UATI
Color Code
RATI
Session Duration
Session Start
Session End
Authentication Status
HDR DRC Value
DRC Cover
RRI
Privacy Mode
Service Option
Current Call Duration
Total Received
Description of Sample Output for CDMA (continued)
Current Transmitted
Current Received
Current call status
Total Transmitted
Description
Will indicate as OPEN once the HDR session is established. This is valid only for 1xEVDO
Unicast Access Terminal Identifier (UATI) obtained by the modem or access terminal (AT) from the base station during session establishment.
HDR session color code for the sector.
HDR Random Access Terminal Identifier used for opening a session.
HDR session duration in milliseconds.
Phone uptime in units of milliseconds at session start.
Phone uptime in units of milliseconds at session end.
Modem or access terminal authentication status with the base station.
The data rate channel value specified by the access terminal. The access terminal uses DRC value to specify the requested transmission rate
DRC cover value used by the access terminal to specify the transmitting sector.
Indicates the rate of the reverse traffic data channel.
Number of bytes transmitted by the modem to the base station. This will be cleared when the call is disconnected.
Number of bytes received by the modem from the base station. This will be cleared when the call is disconnected.
Current call status of the modem, such as
CONNECTED, DISCONNECTED, DORMANT,
CONNECTING, or ERROR.
Current privacy status of the call in progress.
Service option for the call in progress.
Duration of the call in progress. A call status of
DISCONNECTED displays the call duration of the last call.
Total number of kilobytes transmitted from the modem. This will be cleared by the clear
counters command.
Total number of kilobytes received by the modem.
This will be cleared by the clear counters command.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular connection
Table 13 Description of Sample Output for CDMA (continued)
Field
Total Call Duration
Current Call State
Last Call Disconnect Reason
Last Connection Error
Mobile IP Error Code
Description
Total duration of calls made from the modem.
This will be updated when the current call in progress is disconnected.
Indicates the type of call made.
Indicates why the last call was disconnected.
Indicates the error code if the call status indicates an error.
Indicates the error code in accordance with
RFC-2002 if the call is a mobile IP call.
Note
The current call setup mode is in Simple
IP only. In this case show cellular
connection will not display Mobile IP
Error Code. Mobile IP error code is displayed when call setup mode is either
“Mobile IP only” mode or “Mobile IP
Preferred with SIP fallback” mode.
Related Commands Command
cellular cdma activate manual show cellular hardware show cellular network show cellular profile show cellular radio show cellular security show controllers cellular
Description
Manually activates a cellular account using the over-the-air service
(OTA) procedure.
Displays the cellular modem hardware information.
Displays the cellular network (base station) information.
Displays the cellular profile information.
Displays the cellular modem radio statistics.
Displays the modem lock state.
Displays HWIC hardware- and driver-specific information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
77
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular connection personality
show cellular connection personality
To display the negotiated personalities when the 1xEVDO-Rev A service is acquired by the modem, use the show cellular connection personality command in EXEC mode.
show cellular slot/wic_slot/port connection personality
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
There is no default for this command.
Command Modes
EXEC
Command History Release Modification
This command was introduced.
Usage Guidelines
None
Examples
The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0: c2800#show cellular 0/0/0 connection personality
No Active Personalities Negotiated c2800#
Related Commands Command Description cellular cdma activate iota
Activates a cellular account unsing the internet over the air service
(OTA) procedure.
cellular cdma activate manual
Manually activates a cellular account unsing the over the air service
(OTA) procedure or over the air service provisioning (OTASP).
cellular cdma activate otasp
Activates a cellular account unsing the over the air service (OTA) procedure or over the air service provisioning (OTASP).
debug cellular messages management
Displays the cellular modem hardware information.
Displays the cellular network (base station) information.
Displays the cellular profile information.
Displays the cellular modem radio statistics.
Displays the modem lock state.
Displays the SMS messages received by the cellular modem.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
78
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular connection personality
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
79
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular hardware
show cellular hardware
To display the cellular modem hardware information, use the show cellular hardware command in privileged EXEC mode.
show cellular slot/wic_slot/port hardware
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.
Examples
This section contains:
•
•
Sample Output for HWIC-3G-CDMA
Sample Output for HWIC-3G-GSM
The following example shows output for slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 hardware
Modem Firmware Version = H1_0_0_1MCAP C:/WS/
Modem Firmware built = 09/08/06
Hardware Version = 1.0
International Mobile Subscriber Identity (IMSI) = <number>
International Mobile Equipment Identity (IMEI) = <number>
Factory Serial Number (FSN) = X2819460254100D
Modem Status = Online
Current Modem Temperature = 33 deg C, State = Normal
80
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular hardware
Table 14 Output Description for show cellular hardware command
Field
Modem Firmware Version
Modem Firmware Built
Hardware Version
Description
Firmware version of the modem.
Date firmware was built in mm-dd-yy format.
Modem hardware version.
International Mobile Subscriber Identity (IMSI) IMSI is stored in the SIM. IMSI consists of MCC
(mobile country code, 3 digits), MNC (mobile network code, 3 digits for N. America and 2 digits for rest of the world) and MSIN (mobile station identification number). The MCC and MNC in the
IMSI identify the subscribers in the PLMN
(Public Land Mobile Network).
International Mobile Equipment Identity (IMEI) Number that uniquely identifies the modem in a
GSM/UMTS network.
Factory Serial Number (FSN)
Modem Status
Current Modem Temperature
Unique serial number of the modem.
Will be online if the modem has booted up correctly; otherwise will be offline and the modem will not be usable.
Radio temperature of the modem in degrees
Celsius. State is normal when temperature is between 5 to 185°F (-15° to 85°C). If state reaches critical 226.4°F (108°C), the modem will be shutdown.
Sample Output for HWIC-3G-CDMA
The following example shows output for slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 hardware
Modem Firmware Version = p2005600
Modem Firmware built = 11-14-06
Hardware Version = 1.0
Electronic Serial Number (ESN) = 0x6032688F
Preferred Roaming List (PRL) Version = 20224
Current Modem Temperature = 32 degrees Celsiuss
describes each output field.
Table 15 Output Description for show cellular hardware command
Field
Modem Firmware Version
Modem Firmware Built
Hardware Version
Electronic Serial Number
Description
Firmware version of the modem.
Date firmware was built in mm-dd-yy format.
Modem hardware version.
Unique serial number of the modem.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
81
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular hardware
Related Commands
Table 15 Output Description for show cellular hardware command (continued)
Field
Preferred Roaming List (PRL) Version
Current Modem Temperature
Description
PRL version is unique to a service provider. This indicates to the modem which channels the modem should scan.
Radio temperature of the modem in degrees
Celsius.
Command
Description
Displays the cellular modem radio statistics.
Displays the modem lock state.
Displays HWIC hardware- and driver-specific information.
82
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular network
show cellular network
To display information about the carrier network and service, use the show cellular network command in privileged EXEC mode.
show cellular slot/wic_slot/port network
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the outputs differ.
Examples
This section contains:
•
•
Sample Output for HWIC-3G-CDMA
Sample Output for HWIC-3G-GSM
The following example shows output for HWIC-3G-GSM in slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 network
Current Service Status = Normal, Service Error = None
Current Service = Combined
Packet Service = UMTS/WCDMA (Attached)
Packet Session Status = Inactive
Current Roaming Status = Roaming
Network Selection Mode = Automatic
Country = USA, Network = CINGULAR
Mobile Country Code (MCC) = 310
Mobile Network Code (MNC) = 380
Location Area Code (LAC) = 56997
Routing Area Code (RAC) = 253
Cell ID = 4503
Primary Scrambling Code = 169
PLMN Selection = Automatic
Registered PLMN = Cingular , Abbreviated =
Service Provider =
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
83
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular network
describes each output field.
Table 16 Output Description for show cellular hardware command for GSM
Field
Current Service Status
Current Service Error
Current Idle Digital Mode
Packet Service
Packet Session Status
Current Roaming Status
Network Selection Mode
Country
Network
Mobile Country Code
Mobile Network Code
Location Area Code
Routing Area Code
Cell ID
PLMN Selection
Description
Indicates whether service is available.
Shows the error in case there is no service
Idle mode of the modem.
Indicates the type of service available. For normal operation, the modem should be attached.
Status of PDP session. When data transfer is taking place, packet session will be active.
Indicates whether the modem is in the home network or is roaming.
Can be manual selection mode or automatic selection mode. Set to automatic by default.
Country string given by the base station.
Network string given by the base station.
Country code given by the base station. The modem will be in the home network only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI.
Network code given by the base station. The modem will be in the home network only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI.
LAC given by the base station.
RAC given by the base station.
Cell ID given by the base station.
Default is automatic.
Sample Output for HWIC-3G-CDMA
The following example shows output for slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 network
Current Service = 1xEV-DO (Rev A) and 1xRTT
Current Roaming Status(1xRTT) = HOME, (HDR) = HOME
Current Idle Digital Mode = HDR
Current System Identifier (SID) = 4183
Current Network Identifier (NID) = 87
Current Call Setup Mode = Mobile IP only
Serving Base Station Longitude = 0 deg 0 min 0 sec
Serving Base Station Latitude = 0 deg 0 min 0 sec
Current System Time = Tue Feb 6 15:16:9 2007
84
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular network
Related Commands
Table 17 Output Description for show cellular hardware command for CDMA
Field
Current Service
Current Roaming Status
Current Idle Digital Mode
Current System Identifier
Current Network Identifier
Current BSS Longitude/Latitude
Current System Time
Description
Service attached by the modem.
Indicates whether the modem is in the home network or roaming.
Idle mode of the modem.
SID received by the modem (applicable only for
1xRTT).
NID received by the modem (applicable only for
1xRTT).
Geographic location of the BSS (if this information is received from the BSS).
System time received from the base station.
Command
Description
Displays the cellular modem radio statistics.
Displays the modem lock state.
Displays HWIC hardware and driver-specific information.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
85
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular oma-dm
show cellular oma-dm
To display an OMA-DM session details, use the show cellular oma-dm command in privileged EXEC mode.
show cellular slot/wic_slot/port oma-dm
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(22)YB1
Modification
This command was introduced.
Usage Guidelines
None
Examples
This section contains sample output for show cellular slot/wic_slot/port oma-dm command:
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 3, port 0:
Router#sh cellular 0/3/0 oma-dm
Configuration info
------------------
DM Support = Enabled
Max DM account = 1, DM account in use = 1
DM account changed = No
Device Configuration:
Client-Initiated = Supported, Enabled
Network-Initiated = Supported, Enabled
PRL Update:
Client-Initiated = Supported, Enabled
Network-Initiated = Supported, Enabled
Firmware Update:
Client-Initiated = Not supported, Disabled
Network-Initiated = Not supported, Disabled
Hands Free Activation:
Device-Initiated = Supported, Enabled
Hands Free Activation attempted = Yes
DM session state info
---------------------
DM session state = Session not active
Last session type = Unspecified
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
86
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Last session initiator = Unspecified
Last session UI mode = Unspecified
Last session result = Success
Last session updated = No
Network-Initiated alert info
----------------------------
NIA state = No NIA pending
Session type = Unspecified
Standard UI mode = Unspecified
Special UI mode = Unspecified
Router#
show cellular oma-dm
Related Commands Command cellular cdma activate oma-dm device config cellular cdma activate oma-dm
ni-alert
cellular cdma activate oma-dm prl-update debug cellular messages oma-dm
Description
Starts a user initiated OMA-DM session to provision an account and profile update.
Allows or denies a network initiated alert (NIA) queued in the modem.
Starts a user initiated OMA-DM session to get an over-the-air PRL update.
Starts OMA-DM debugging.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
87
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular profile
show cellular profile
To display the cellular profile information, use the show cellular profile command in privileged EXEC mode.
show cellular slot/wic_slot/port profile <profile number> | all
Syntax Description
slot/wic_slot/port profile number
all
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Profile number for the profile to be displayed.
Displays information of all profiles in the modem. The maximum number of supported profiles is 6.
Note
In case of HWIC-3G-CDMA-V, only one profile is supported, so only one profile is displayed.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
12.4(22)YB1
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
This command was modified to display all profiles in the modem.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.
Examples
This section contains:
•
•
Sample Output for HWIC-3G-CDMA
Sample Output for HWIC-3G-GSM
The following example shows output for HWIC-3G-GSM for slot 0, WIC slot 1, port 1: router# show cellular 0/1/1 profile
Profile 1 = ACTIVE
--------
PDP Type = IPv4, Header Compression = ON
Data Compression = ON
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
88
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular profile
PDP address = 0x7F000201
Access Point Name (APN) = enzo.cisco.com
Authentication = CHAP
Username: cisco, Password: lab
Primary DNS address = 127.0.2.1
Source Address = 127.0.2.1 255.255.255.0
Profile 2 = INACTIVE
---------
PDP Type = IPv4, Header Compression = ON
Data Compression = ON
PDP address = 0x7F000202
Access Point Name (APN) = enzo.cingular.com
Authentication = CHAP
Username: cisco, Password: lab
Primary DNS address = 127.0.2.1
Source Address = 127.0.2.2 255.255.255.0
Table 18 Field Descriptions for show cellular profile command
Field
Profile <number>
PDP Type
PDP Address
Access Point Name
Authentication
Username
Password
Description
Shows whether a particular profile is ACTIVE or
INACTIVE. The profile is ACTIVE when the
PDP context is active. This happens when a data call is successfully established.
Indicates the packet data protocol (PDP) type.
Supported type is IPv4.
Shows the IP address assigned for the PDP context during PPP negotiation.
Access Point Name for the profile. This information is provided by the service provider.
PPP authentication supported. CHAP and PAP are supported. The type of authentication to be used is provided by the service provider.
Username to be used for PPP authentication. This information is provided by the service provider.
Password to be used for PPP authentication. This information is provided by the service provider.
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 1, port 1: router# show cellular 0/0/0 profile
Electronic Serial Number (ESN) = 0x6032688F [09603303567]
Modem activated = YES
Account Information:
======================
Activation Date: Not available
Phone Number (MDN) : 1234567890
Mobile Station Identifier (MSID) : 1234567890
Data Profile Info:
=====================
Number of data profiles configured : 2
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
89
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular profile
Current active data profile : 1
Data Profile 0 Information
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 1234
MN-AAA SS = Set
MN-AAA SPI = 1234
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 68.28.15.12
Secondary Home Agent Address = 68.28.31.12
Data Profile 1 Information (Active)
==================================
NAI (Network Access Identifier) = [email protected]
MN-HA SS = Set
MN-HA SPI = 1234
MN-AAA SS = Set
MN-AAA SPI = 1234
Reverse Tunneling Preference = Set
Home Address = 0.0.0.0
Primary Home Agent Address = 68.28.81.76
Secondary Home Agent Address = 68.28.89.76
“*” Indicates the default profile.
describes the output fields from the command.
Table 19 Field Description
Field
Electronic Serial Number
Modem Activated
Data Profile
ProvDate
MDN
MIN
Description
A unique serial number for the CDMA modem displayed in decimal and hexadecimal formats.
Indicates the activation status of the modem.
Yes indicates that
the modem is activated on the carrier network.
A data profile consists of the mobile IP (MIP) settings for the data connection. These settings are populated on the modem by the network using
OTASP/IOTA.
Date the modem was provisioned, in yyyy/mm/dd format.
Mobile Directory Number assigned to the modem by the carrier during provisioning.
Mobile Identity Number assigned to the modem by the carrier during provisioning
Related Commands Command Description cellular cdma activate manual
Manually activates a cellular account using the over-the-air service
(OTA) procedure.
cellular cdma activate otasp
Activates a cellular account using the over the air service provisioning (OTASP).
90
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular profile
Command cellular cdma activate iota
Description
Provisions data profile using Internet-based over-the-air provisioning (IOTA).
cellular cdma activate oma-dm device config
Note
IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.
Starts a user-initiated OMA-DM session to provision an account.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
91
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular radio
show cellular radio
To display the cellular modem radio statistics, use the show cellular radio command in user privileged
EXEC mode.
show cellular slot/wic_slot/port radio [history <all | per-hour | per-min | per-sec>]
Syntax Description
slot/wic_slot/port
history all per-hour per-min per-sec
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Displays the RSSI history.
Complete RSSI history.
Per-hour RSSI history.
Per-minute RSSI history.
Per-second RSSI history.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.
Examples
This section contains:
•
•
Sample Output for HWIC-3G-CDMA
Sample Output for HWIC-3G-GSM
The following example shows output for HWIC-3G-GSM in slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 radio
Current Band = WCDMA 1900, Channel Number = 9721
Current RSSI(RSCP) = -91 dBm
92
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular radio
Table 20
Field
Current Band
Channel Number
Current RSSI
Output Description for show cellular radio command for GSM
Description
GPRS/UMTS band to which the modem is attached.
Channel number to which the modem is attached.
Current radio signal strength on the modem. (-125 dbm indicates no signal.)
Sample Output for HWIC-3G-CDMA
The following example shows output for HWIC-3G-CDMA in slot 0, WIC slot 0, port 0: router#show cellular 0/0/0 radio
1xRTT related info
------------------
Current RSSI = -95 dBm, ECIO = -6 dBm
Current Channel Number = 50
Current Channel State = Acquired
Current Band Class = Band Class 1
HDR (1xEVDO) related info
-------------------------
Current RSSI = -88 dBm, ECIO = -2 dBm
Current Channel Number = 25
Current Band Class = Band Class 1
Sector ID (Hex) = 0084:0AC0:0000:0000:000A:05DC:A801:1202
Subnet Mask = 104, Color Code = 32, PN Offset = 240
Rx gain control(Main) = 0 dBm, Diversity = Unavailable
Tx total power = -2 dBm, Tx gain adjust = 1536 dBm
Carrier to interference (C/I) ratio = 2
Table 21
Field
Current RSSI
Current ECIO
Current Band Class
Sector ID
Subnet Mask
Color Code
PN Offset
Rx Gain Control
Tx Total Power
Output Description for show cellular radio command for HWIC-3G-CDMA
Current Channel Number
Current Channel State
Description
Current radio signal strength in dbm (-125 dbm indicates no signal).
Current energy per chip (ECIO) in dbm.
Current channel number to which the modem is attached to the base station.
Indicates whether the modem is scanning or has acquired the channel.
Current band class that the modem is attached to.
Sector ID of the base station to which the modem is attached.
Subnet mask of the sector.
Color code of the sector.
PN offset for the sector.
Received gain control for the modem.
Transmitted power.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
93
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular radio
Related Commands Command show cellular all
Description
Displays the consolidated information about the modem.
Displays HWIC-hardware and driver-specific information.
94
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular security
show cellular security
To display the SIM status (only for HWIC-3G-GSM) and modem lock state, use the show cellular
security command in privileged EXEC mode.
show cellular slot/wic_slot/port security
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
None
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.
Examples
This section contains:
•
•
Sample Output for HWIC-3G-CDMA
Sample Output for HWIC-3G-GSM
The following example shows output for an HWIC-3G-GSM in slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 security
Card Holder Verification (CHV1) ENABLED
SIM Status = OK
SIM User Operation Required = CHV1
Number of Retries remaining = 3
describes the output from this command:
Table 22 Output Description
Filed
Card Holder Verification
SIM Status
Description
If enabled, access to the SIM is restricted.
Indicates whether the SIM is present or removed from the SIM socket.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
95
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show cellular security
Table 22 Output Description (continued)
Filed
SIM User Operation Required
Number of Retries Remaining
Description
If the SIM is protected (for example, because of
CHV1 enabled), it will indicate the type of user operation required.
Indicates the number of attempts remaining in case the SIM is locked. If the number of retries becomes zero, the SIM is blocked and becomes unusable.
Sample Output for HWIC-3G-CDMA
The following example shows output for an HWIC-3G-CDMA in slot 0, WIC slot 0, port 0: router# show cellular 0/0/0 security
Modem PIN Security UNLOCKED
Power-up lock DISABLED
describes the output for this command.
Table 23 Output Description
Field
Modem PIN Security
Power-up Lock
Description
If the modem is locked, you cannot make calls without unlocking.
Shows whether the modem will be locked on power-up.
Related Commands Command show cellular all
Description
Displays the consolidated information about the modem.
96
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show controllers cellular
show controllers cellular
To display high-speed WAN interface card (HWIC) hardware and driver-specific information, use the
show controllers cellular command in privilege EXEC mode.
show controllers cellular slot/wic_slot/port
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
There is no default for this command.
Command Modes
Privilege EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
Use this command to capture the output for debugging or troubleshooting purposes only.
Related Commands Command
Description
Displays statistics for the cellular interfaces.
Displays the current running configuration for the cellular interface.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
97
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show interfaces cellular
show interfaces cellular
To display statistics for the cellular interface, use the show interfaces cellular command in EXEC mode.
show interfaces cellular slot/wic_slot/port
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
There is no default for this command.
Command Modes
EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Usage Guidelines
When you enter this command, encapsulation should be PPP and all signals, such as DCD, DSR, DTR,
RTS, and CTS, should be up during normal operation.
Examples
This section contains:
•
•
Sample Output for 3G-HWIC-CDMA
Sample Output for HWIC-3G-GSM
The following example shows the cellular interface statistics for HWIC-3G-GSM in slot 0, WIC slot 0, port 0 for GSM: router# router# show interfaces cellular 0/0/0
Cellular0/0/0 is up, line protocol is up
Hardware is HSDPA/UMTS/EDGE/GPRS-850/900/1800/1900/2100MHz
Internet address is 1.5.97.2/32
MTU 1500 bytes, BW 384 Kbit, RxBW 2400000 Kbit, DLY 100000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation PPP, LCP Open
Open: IPCP, loopback not set
Keepalive not set
Time to interface disconnect: idle 3w3d
Last input 00:20:21, output 00:20:21, output hang never
Last clearing of "show interface" counters 00:00:01
Input queue: 1/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: weighted fair
Output queue: 0/1000/64/0 (size/max total/threshold/drops)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
98
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show interfaces cellular
Conversations 0/16/16 (active/max active/max total)
Reserved Conversations 0/0 (allocated/max allocated)
Available Bandwidth 288 kilobits/sec
30 second input rate 0 bits/sec, 0 packets/sec
30 second output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 b
*Feb 7 22:55:33.985: %CLEAR-5-COUNTERS: Clear counter on all interfaces by consoleroadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 output buffer failures, 0 output buffers swapped out
0 carrier transitions
DCD=up DSR=up DTR=up RTS=up CTS=up
Sample Output for HWIC-3G-CDMA
The following example shows the output for an HWIC-3G-CDMA in slot 0, WIC slot 0, port 0 for the
show interfaces cellular command.
router# show int cellular 0/0/0
Cellular0/0/0 is up (spoofing), line protocol is up (spoofing)
Hardware is EVDO Rev A/Rel 0/1xRTT-800/1900MHz / SP
Internet address will be negotiated using IPCP
MTU 1500 bytes, BW 9 Kbit, DLY 100000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation PPP, LCP Closed, loopback not set
Keepalive not set
Last input never, output never, output hang never
Last clearing of "show interface" counters never
Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: weighted fair
Output queue: 0/1000/64/0 (size/max total/threshold/drops)
Conversations 0/0/16 (active/max active/max total)
Reserved Conversations 0/0 (allocated/max allocated)
Available Bandwidth 6 kilobits/sec
30 second input rate 0 bits/sec, 0 packets/sec
30 second output rate 0 bits/sec, 0 packets/sec
0 packets input, 0 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
0 packets output, 0 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 output buffer failures, 0 output buffers swapped out
0 carrier transitions
DCD=up DSR=up DTR=up RTS=up CTS=up
Related Commands Command
Description
Displays the cellular modem radio statistics.
Displays HWIC hardware and driver-specific information.
Displays the current running configuration for the cellular interface.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
99
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show run interface cellular
show run interface cellular
To see the current running configuration for the cellular interface, use the show run interface cellular command in privileged EXEC mode.
show run interface cellular slot/wic_slot/port
Syntax Description
slot/wic_slot/port
Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
Command Default
There is no default for this command.
Command Modes
Privileged EXEC
Command History Release
12.4(11)XV
12.4(15)T
Modification
This command was introduced.
This command was integrated into Cisco IOS Release 12.4(15)T.
Examples
Related Commands
The following example shows the output of the command for 3G HWIC in slot 0, WIC slot 0, port 0: router#show running-config interface cellular 0/0/0 interface Cellular0/0/0
ip address negotiated
ip access-group 10 out
ip nat outside
ip virtual-reassembly
encapsulation ppp
no ip mroute-cache
load-interval 30
dialer in-band
dialer idle-timeout 2147483
dialer string cdma
dialer-group 2
async mode interactive
no peer default ip address
fair-queue
ppp ipcp dns request
routing dynamic end router#
Command
Description
Displays HWIC hardware and driver-specific information.
Displays statistics for the cellular interfaces.
100
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
show run interface cellular
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
101
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Troubleshooting Tips
Troubleshooting Tips
If you are encountering issues with the working of the 3G wireless Modular and Fixed Cisco ISRs, this section will help you troubleshoot and pinpoint the cause of failure.
Verifying Configuration
To verify your configuration and to make sure that your connection is up and running, follow these step:
Step 1
Step 2
Step 3
After creating a profile with the create cellular profile command, send a ping from a router or attached host.
If you do not get any response, to find where failure is occurring, run the following debug commands:
• debug chat script
•
•
•
• debug PPP negotiation show cellular all show interface cellular show running-config
• show controllers cellular
Save the output from all these commands and contact your system administrator.
Checking Signal Strength
If the RSSI level is very low, for example, less than -110 dBm, it means one of the following:
•
Your antenna is not connected
•
•
The antenna is not working properly
There is no service in your area
If all the above are connected and working as they should, contact your system administrator.
Call Setup Using CHAT Script
The following is a sample output for a call that is set up using CHAT script. It shows a received IP address from the network and indicates that the call setup is successful and the data path is open:
Debugs enabled:
debug modem debup chat debug ppp negotiation debug ppp event debup ppp error
router# ping www.yahoo.com
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
102
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Troubleshooting Tips
Translating "www.yahoo.com"...domain server (255.255.255.255)
*Mar 1 23:42:57.398: CHAT0/1/0: Attempting async line dialer script
*Mar 1 23:42:57.398: CHAT0/1/0: Dialing using Modem script: sprint & System script: none
*Mar 1 23:42:57.402: CHAT0/1/0: process started
*Mar 1 23:42:57.402: CHAT0/1/0: Asserting DTR
*Mar 1 23:42:57.402: CHAT0/1/0: Chat script sprint started
*Mar 1 23:42:57.402: CHAT0/1/0: Sending string: atdt#777
*Mar 1 23:42:57.402: CHAT0/1/0: Expecting string: CONNECT
*Mar 1 23:42:58.710: CHAT0/1/0: Completed match for expect: CONNECT
*Mar 1 23:42:58.710: CHAT0/1/0: Chat script sprint finished, status = Success
*Mar 1 23:42:58.878: TTY0/1/0: no timer type 1 to destroy
*Mar 1 23:42:58.878: TTY0/1/0: no timer type 0 to destroy
*Mar 1 23:42:58.878: TTY0/1/0: no timer type 2 to destroy
*Mar 1 23:43:00.878: %LINK-3-UPDOWN: Interface Cellular0/1/0, changed state to up
*Mar 1 23:43:00.878: Ce0/1/0 PPP: Using dialer call direction
*Mar 1 23:43:00.878: Ce0/1/0 PPP: Treating connection as a callout
*Mar 1 23:43:00.878: Ce0/1/0 PPP: Session handle[CD00000E] Session id[5]
*Mar 1 23:43:00.878: Ce0/1/0 PPP: Phase is ESTABLISHING, Active Open
*Mar 1 23:43:00.878: Ce0/1/0 PPP: No remote authentication for call-out
*Mar 1 23:43:00.878: Ce0/1/0 LCP: O CONFREQ [Closed] id 5 len 20
*Mar 1 23:43:00.878: Ce0/1/0 LCP: ACCM 0x000A0000 (0x0206000A0000)
*Mar 1 23:43:00.878: Ce0/1/0 LCP: MagicNumber 0x4597FB75 (0x05064597FB75)
*Mar 1 23:43:00.878: Ce0/1/0 LCP: PFC (0x0702)
*Mar 1 23:43:00.878: Ce0/1/0 LCP: ACFC (0x0802)
*Mar 1 23:43:00.878: Ce0/1/0 LCP: I CONFREQ [REQsent] id 12 len 20
*Mar 1 23:43:00.882: Ce0/1/0 LCP: ACCM 0x00000000 (0x020600000000)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: MagicNumber 0x7F576333 (0x05067F576333)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: PFC (0x0702)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: ACFC (0x0802)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: O CONFACK [REQsent] id 12 len 20
*Mar 1 23:43:00.882: Ce0/1/0 LCP: ACCM 0x00000000 (0x020600000000)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: MagicNumber 0x7F576333 (0x05067F576333)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: PFC (0x0702)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: ACFC (0x0802)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: I CONFACK [ACKsent] id 5 len 20
*Mar 1 23:43:00.882: Ce0/1/0 LCP: ACCM 0x000A0000 (0x0206000A0000)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: MagicNumber 0x4597FB75 (0x05064597FB75)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: PFC (0x0702)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: ACFC (0x0802)
*Mar 1 23:43:00.882: Ce0/1/0 LCP: State is Open
*Mar 1 23:43:00.882: Ce0/1/0 PPP: Phase is FORWARDING, Attempting Forward
*Mar 1 23:43:00.882: Ce0/1/0 PPP: Phase is ESTABLISHING, Finish LCP
*Mar 1 23:43:00.882: Ce0/1/0 PPP: Phase is UP
*Mar 1 23:43:00.882: Ce0/1/0 IPCP: O CONFREQ [Closed] id 1 len 22
*Mar 1 23:43:00.882: Ce0/1/0 IPCP: Address 0.0.0.0 (0x030600000000)
*Mar 1 23:43:00.882: Ce0/1/0 IPCP: PrimaryDNS 0.0.0.0 (0x810600000000)
*Mar 1 23:43:00.882: Ce0/1/0 IPCP: SecondaryDNS 0.0.0.0 (0x830600000000)
*Mar 1 23:43:00.882: Ce0/1/0 PPP: Process pending ncp packets
*Mar 1 23:43:00.882: Ce0/1/0 IPCP: I CONFREQ [REQsent] id 4 len 10
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: Address 68.28.57.69 (0x0306441C3945)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: O CONFACK [REQsent] id 4 len 10
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: Address 68.28.57.69 (0x0306441C3945)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: I CONFNAK [ACKsent] id 1 len 22
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: Address 70.12.159.189 (0x0306460C9FBD)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: PrimaryDNS 68.28.58.11 (0x8106441C3A0B)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: SecondaryDNS 68.28.50.11 (0x8306441C320B)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: O CONFREQ [ACKsent] id 2 len 22
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: Address 70.12.159.189 (0x0306460C9FBD)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: PrimaryDNS 68.28.58.11 (0x8106441C3A0B)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: SecondaryDNS 68.28.50.11 (0x8306441C320B)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: I CONFACK [ACKsent] id 2 len 22
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: Address 70.12.159.189 (0x0306460C9FBD)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: PrimaryDNS 68.28.58.11 (0x8106441C3A0B)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
103
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Troubleshooting Tips
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: SecondaryDNS 68.28.50.11 (0x8306441C320B)
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: State is Open
*Mar 1 23:43:00.886: Ce0/1/0 IPCP: Install negotiated IP interface address 70.12.159.189
*Mar 1 23:43:00.890: Ce0/1/0 IPCP: Install route to 68.28.57.69
*Mar 1 23:43:00.890: Ce0/1/0 IPCP: Add link info for cef entry 68.28.57.69
*Mar 1 23:43:01.878: %LINEPROTO-5-UPDOWN: Line protocol on Interface Cellular0/1/0, changed state to up
*Mar 1 23:43:01.890: %LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel1, changed state to up (68.28.50.11) [OK]
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 209.131.36.158, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 188/196/204 ms
Modem Troubleshooting Using the Diagnostic Port
The RJ-45 port on the faceplate of the 3G wireless HWIC provides access to the debug port on the Sierra
Wireless modem. By connecting an industry-standard diagnostic tool, such as Qualcomm CAIT/QXDM or Spirent UDM to this port, you can perform radio-level diagnostics and traffic monitoring on the modem. Use the following test command to turn diagnostics on: router# test cell-hwic slot/port/wic dm-port on
The cable used to connect the PC/Laptop running the diagnostic tool is the standard Cisco router console cable (RJ-45 to DB-9).
Note
To enable test commands, you must enter the service internal command in the global configuration mode.
104
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
Troubleshooting Tips
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental
CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence,
Cisco WebEx, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP,
CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo,
Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive,
HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace,
MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare,
SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0812R)
© 2010 Cisco Systems, Inc. All rights reserved.
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
105
Troubleshooting Tips
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA,
106
Configuring 3G Wireless for Modular and Fixed Cisco Integrated Services Routers (HWIC-3G-CDMA and HWIC-3G-CDMA-x)
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
