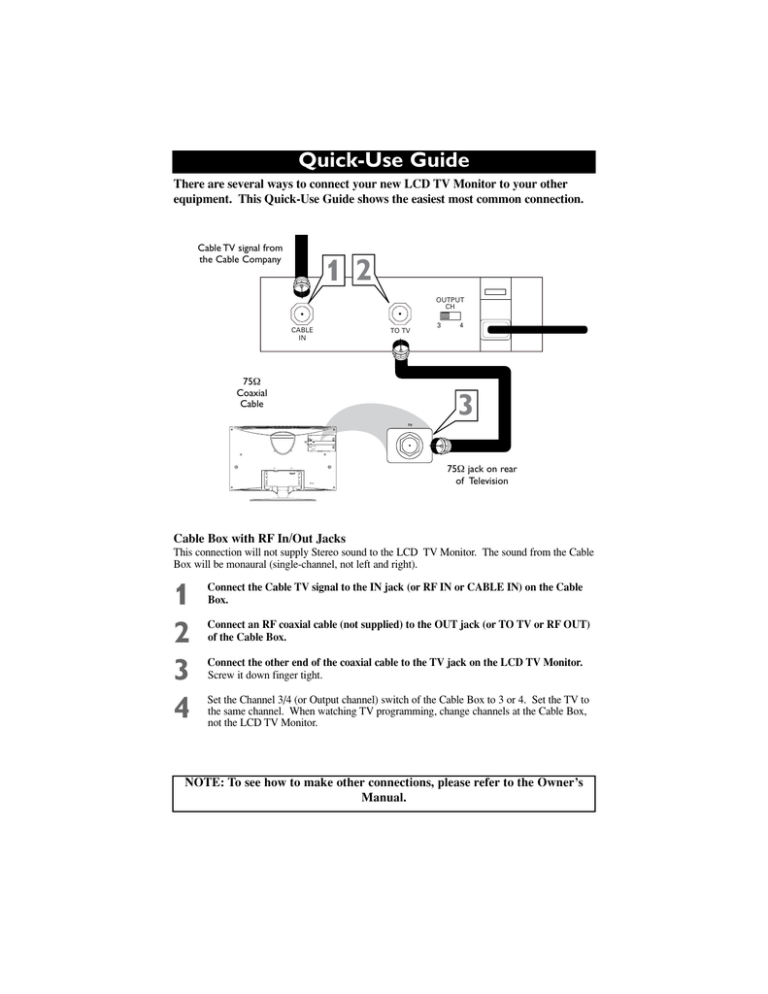

Quick-Use Guide
There are several ways to connect your new LCD TV Monitor to your other
equipment. This Quick-Use Guide shows the easiest most common connection.
Cable TV signal from
the Cable Company
1 2
OUTPUT
CH
CABLE
IN
TO TV
75Ω
Coaxial
Cable
3
4
3
TV
TV
S-VIDEO
VIDEO
DC IN
ANALOG
1
2
AUDIO OUT
AUDIO
75Ω jack on rear
of Television
Cable Box with RF In/Out Jacks
This connection will not supply Stereo sound to the LCD TV Monitor. The sound from the Cable
Box will be monaural (single-channel, not left and right).
1
2
3
4
Connect the Cable TV signal to the IN jack (or RF IN or CABLE IN) on the Cable
Box.
Connect an RF coaxial cable (not supplied) to the OUT jack (or TO TV or RF OUT)
of the Cable Box.
Connect the other end of the coaxial cable to the TV jack on the LCD TV Monitor.
Screw it down finger tight.
Set the Channel 3/4 (or Output channel) switch of the Cable Box to 3 or 4. Set the TV to
the same channel. When watching TV programming, change channels at the Cable Box,
not the LCD TV Monitor.
NOTE: To see how to make other connections, please refer to the Owner’s
Manual.
LCD TV Monitor Swivel
1
60 O
Quick-Use Guide
Press down on the stand and gently
adjust the set to a suitable viewing
angle.
SWIVEL ANGLE-L
60
NOTE:The LCD TV Monitor can only be
tilted 20 degrees backward and 5
degrees forward.
You can adjust the LCD TV Monitor
to the left and right 60 degrees.
SWIVEL ANGLE-R
Auto Program
1
Press the MENU button on the
remote control to show the onscreen
menu.
2
Press the (CH UP) or (CH DN)
buttons to highlight the TV
INSTALL menu.
3
4
Press the (VOL-) or (VOL+) buttons to enter the TV INSTALL menu.
5
Press the (VOL+) or (VOL-) button to start the Auto Program scanning of channels.
6
Press the MENU button repeatedly
to clear the menu from the screen.
Press the (CH UP) or (CH DN)
buttons to highlight the AUTO PROGRAM control.
1
6
2 3
4 5
3
5
2
4
EL6568E001
