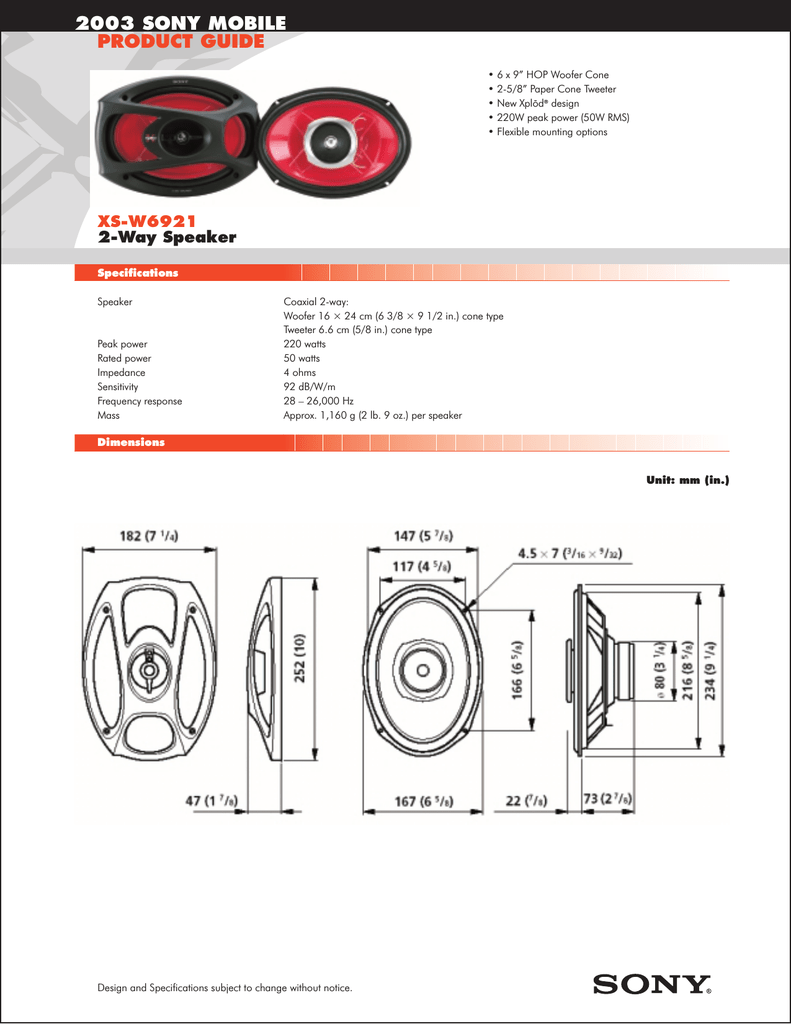

2003 SONY MOBILE
PRODUCT GUIDE
• 6 x 9” HOP Woofer Cone
• 2-5/8” Paper Cone Tweeter
- ® design
• New Xplod
• 220W peak power (50W RMS)
• Flexible mounting options
XS-W6921
2-Way Speaker
Specifications
Speaker
Peak power
Rated power
Impedance
Sensitivity
Frequency response
Mass
Coaxial 2-way:
Woofer 16 × 24 cm (6 3/8 × 9 1/2 in.) cone type
Tweeter 6.6 cm (5/8 in.) cone type
220 watts
50 watts
4 ohms
92 dB/W/m
28 – 26,000 Hz
Approx. 1,160 g (2 lb. 9 oz.) per speaker
Dimensions
Unit: mm (in.)
Design and Specifications subject to change without notice.
