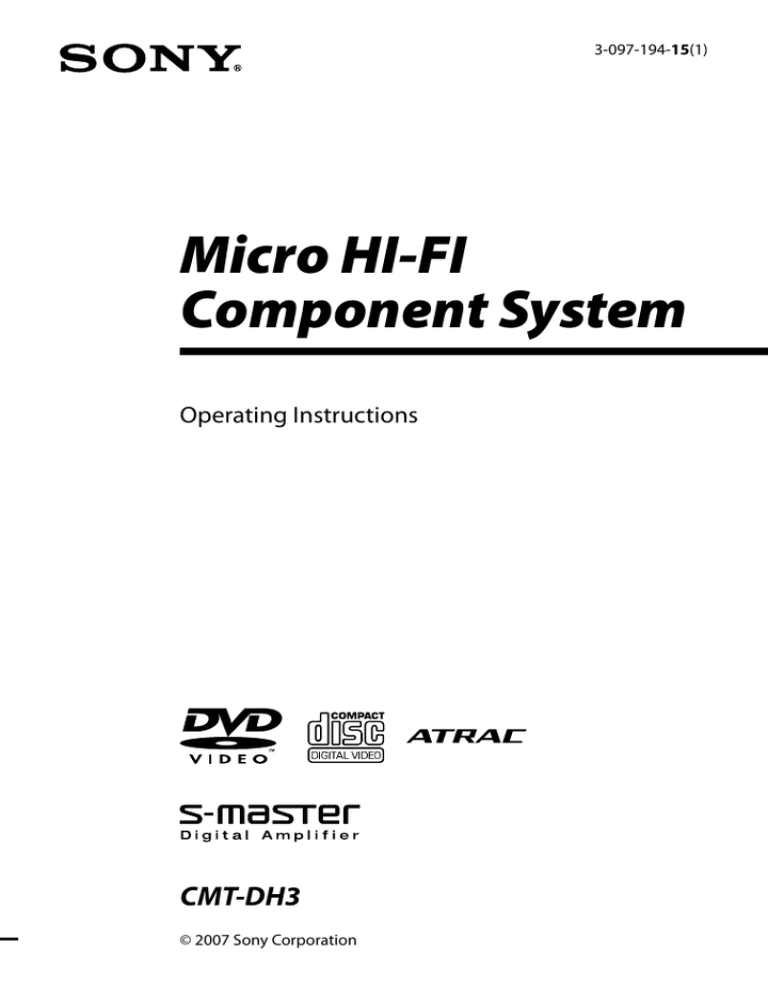

Micro HI-FI
Component System
Operating Instructions
CMT-DH3
© 2007 Sony Corporation
WARNING
To reduce the risk of fire, do not cover the
ventilation opening of the apparatus with
newspapers, tablecloths, curtains, etc. Do
not place the naked flame sources such as
lighted candles on the apparatus.
To reduce the risk of fire or electric shock,
do not expose this apparatus to dripping
or splashing, and do not place objects
filled with liquids, such as vases, on the
apparatus.
As the main plug is used to disconnect
the unit from the mains, connect the unit
to an easily accessible AC outlet. Should
you notice an abnormality in the unit,
disconnect the main plug from the AC
outlet immediately.
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
Do not expose batteries or apparatus with
battery-installed to excessive heat such as
sunshine, fire or the like.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Except for customers in the U.S.A.
and Canada
This appliance is classified as a CLASS 1
LASER product. This marking is located
on the rear exterior.
European model only
Excessive sound pressure from earphones
and headphones can cause hearing loss.
GB
Notice for the customer in the
countries applying EU Directives
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, 108-0075 Japan. The Authorized
Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For
any service or guarantee matters please
refer to the addresses given in separate
service or guarantee documents.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the
European Union and
other European countries
with separate collection
systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. The recycling of materials will
help to conserve natural resources. For
more detailed information about recycling
of this product, please contact your
local Civic Office, your household waste
disposal service or the shop where you
purchased the product.
Applicable accessories: Remote
commander
Disposal of waste
batteries (applicable
in the European Union
and other European
countries with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not be
treated as household waste. By ensuring
these batteries are disposed of correctly,
you will help prevent potentially negative
consequences for the environment and
human health which could otherwise be
caused by inappropriate waste handling
of the battery. The recycling of the
materials will help to conserve natural
resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery should
be replaced by qualified service staff only.
To ensure that the battery will be treated
properly, hand over the product at
end-of-life to the applicable collection
point for the recycling of electrical and
electronic equipment.
For all other batteries, please view the
section on how to remove the battery
from the product safely. Hand the battery
over to the applicable collection point for
the recycling of waste batteries.
For more detailed information about
recycling of this product or battery,
please contact your local Civic Office,
your household waste disposal service
or the shop where you purchased the
product.
About this manual
Icons, such as
, listed at the top
of each explanation indicate what kind
of media can be used with the function
being explained.
The English on-screen display is used
for illustration purposes only.
The Control Menu items may be
different depending on the disc.
The Setup Menu items may be different
depending on the area.
The front panel may be different
depending on the area.
GB
Table of Contents
About this manual................................ 3
Playable discs......................................... 6
Guide to parts and controls............11
Tuner
Listening to the radio........................60
Getting Started
USB Device
Hooking up the system....................18
Hooking up the TV.............................20
Setting the clock.................................23
Performing QUICK SETUP................24
Using the THEATRE SYNC
function..................................................26
Listening to music of
an USB device.......................................62
Creating your own program with
the USB device.....................................65
 Program Play
Sound Adjustment
Disc
Playing a disc........................................27
 Normal Play
Using play mode.................................33
Searching/selecting a disc...............38
Playing MP3/JPEG discs....................41
Enjoying DivX® video files................47
Adjusting the delay between the
picture and sound..............................49
 A/V SYNC
Restricting playback of the disc.....50
 CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL
Using the DVD setup menu............55
GB
Adjusting the sound..........................67
Singing along: Karaoke.....................67
Other Operations
Using the timer....................................73
Changing the display........................75
Viewing information about
the disc...................................................75
Hooking up optional
components..........................................79
Additional Information
Troubleshooting..................................81
Precautions............................................93
Specifications.......................................94
Guide to the Control Menu
display.....................................................97
Language code list.......................... 101
Playable USB devices...................... 103
Glossary............................................... 104
Index..................................................... 108
GB
Playable discs
Type
DVD VIDEO
Characteristics
DVD VIDEO
DVD-R*/-RW*/+R/+RW
in DVD VIDEO format
* also in video mode
VR mode
VIDEO CD
DVD-R/-RW
in VR (Video Recording) mode
VIDEO CD
Super VCD*
CD-ROM*/-R*/-RW*
* in VIDEO CD or Super VCD format
CD
AUDIO CD*
CD-R*/-RW*
* in AUDIO CD format
DATA CD
GB
CD-ROM/-R/-RW
in DATA CD format, containing
MP3 audio tracks1), JPEG image
files2) or DivX video files3), and
conforming to ISO 96604) Level
1 or Level 2, or Joliet (expansion
format).
Icon used in
this manual
Logo
Type
DATA DVD
Characteristics
Icon used in
this manual
Logo
DVD-ROM/-R/-RW/+R/+RW
in DATA DVD format containing
MP3 audio tracks1), JPEG image
files2) or DivX video files3), and
conforming to UDF (Universal Disk
Format).
This system can also play back discs with the following disc logos:
MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio
data. MP3 audio tracks must be in MPEG 1 Audio Layer 3 format.
2)
JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera
File System”: Image standards for digital cameras regulated by Japan Electronics and Information
Technology Industries Association (JEITA)).
3)
DivX video files must be recorded in DivX format with the extension “.AVI” or “.DIVX”.
4)
A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for
Standardization).
1)
“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.
Continued

GB
Discs that cannot be played
CD-ROMs recorded in PHOTO CD
format
DATA CDs recorded in MP3 PRO
format
Data part of CD-Extras1)
Data part of Mixed CDs2)
Super Audio CDs
DVD Audio discs
DVD-RAMs
A DVD VIDEO with a different region
code.
A disc that has a non-standard shape
(e.g., heart, square, star).
A disc that has the adhesive cellophane
tape or a sticker still left on it.
CD-Extra: This format records audio
(AUDIO CD data) on the tracks in session 1
and data on the tracks in session 2.
2)
Mixed CD: This format records data on the
first track and audio (AUDIO CD data)
on the second and subsequent tracks of a
session.
1)
GB
Region code of DVD VIDEOs you
can play back on this system
Your system has a region code printed
on the back of the unit and will only
play back DVD VIDEOs labeled with
identical region code.
DVD VIDEOs labeled
will also be
played back on this system.
If you try to play back any other region
code DVD VIDEO, the message
“Playback prohibited by area limitations.”
will appear on the TV screen. Depending
on the DVD VIDEO, no region code
indication may be labeled even though
playing the DVD VIDEO is prohibited by
area restrictions.
Note on DualDiscs
A DualDisc is a two sided disc product
which mates DVD recorded material on
one side with digital audio material on
the other side. However, since the audio
material side does not conform to the
Compact Disc (CD) standard, playback
on this product is not guaranteed.
Notes on CD-R/-RW and
DVD‑R/-RW/+R/+RW
In some cases, CD-Rs/-RWs and
DVD-Rs/-RWs/+Rs/+RWs cannot be
played back on this system due to the
recording quality or physical condition
of the disc, or the characteristics of
the recording device and authoring
software. The disc will not be played
back if it has not been correctly
finalized. For more information, see
the operation instructions for the
recording device.
Note that some playback functions
may not work with some DVD+Rs/
+RWs, even if they have been correctly
finalized. In this case, view the disc by
normal playback.
A disc created in Packet Write format
cannot be played back.
Note on playback operations of
DVD VIDEOs and VIDEO CDs
Some playback operations of DVD
VIDEOs and VIDEO CDs may be
intentionally set by software producers.
Since this system play back DVD
VIDEOs and VIDEO CDs according to
the disc contents the software producers
designed, some playback features may
not be available. Also, refer to the
instructions supplied with the DVD
VIDEOs or VIDEO CDs.
Music discs encoded with
copyright protection technologies
This product is designed to play back
discs that conform to the Compact Disc
(CD) standard. Recently, various music
discs encoded with copyright protection
technologies are marketed by some
record companies. Please be aware that
among those discs, there are some that
do not conform to the CD standard and
may not be playable by this product.
Notes on Multi Session disc
This system can play back Multi
Session discs when an MP3 audio
track, a JPEG image file or a DivX
video file is contained in the first
session. Any subsequent MP3 audio
tracks, image files or DivX video files
recorded in later sessions can also be
played back.
If the first session is recorded in
AUDIO CD or VIDEO CD format,
only the first session will be played
back.
The system will recognize a Multi
Session disc as an AUDIO CD if there
is a session recorded in AUDIO CD
format on the disc. However, the
system will only play back the disc if
the first session is recorded in AUDIO
CD format.
With DATA CD or DATA DVD, the
system will only play back DivX video
files even if it contains MP3 audio
tracks or JPEG image files.
Continued

GB
Copyrights
This product incorporates copyright
protection technology that is protected
by U.S. patents and other intellectual
property rights. Use of this copyright
protection technology must be
authorized by Macrovision, and is
intended for home and other limited
viewing uses only unless otherwise
authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
This system incorporates Dolby*
Digital and the DTS** Digital
Surround System.
* Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
**“DTS” is a registered trademark of DTS,
Inc. and “DTS 2.0 + Digital Out” is a
trademark of DTS, Inc.
U.S. and foreign patents licensed from
Dolby Laboratories.
DivX is a video file compression
technology, developed by DivX, Inc.
DivX, DivX Certified, and associated
logos are trademarks of DivX, Inc. and
are used under license.
“WALKMAN” and “WALKMAN”
logo are registered trademarks of Sony
Corporation.
MICROVAULT is a trademark of Sony
Corporation.
ATRAC, ATRAC3, ATRAC3plus and
their logos are trademarks of Sony
Corporation.
MPEG Layer-3 audio coding
technology and patents licensed from
Fraunhofer IIS and Thomson.
®
10GB
This manual mainly explains operations using the remote, but the same operations can
also be performed using the buttons on the unit having the same or similar names.
Front panel
Guide to parts and controls
Guide to parts and controls
*ECHO LEVEL is not available in European and Russian models.
Top panel
Continued

11GB
Remote control

STANDBY indicator (81)
Lights up when the system is turned off.

USB MEMORY indicator
Lights up when an optional USB device
(Digital music player or USB storage
media) is connected.

 (eject) (29)
Press to eject the disc.

Disc slot

+/ (26, 28, 63, 66)
Press to select an album.

(USB) port (62)
Connect to an optional USB device
(Digital music player or USB storage
media).

Unit:  (on/standby) (23, 24,
60, 74, 89)
Remote: TV 1) (on/standby)
(22)
Press to turn on the system.
Press to turn on the TV.
12GB

PRESET +/ (61)
PHONES jack
Press to select the preset station.
/ (go backward/
forward) (28, 43, 48, 63, 66)
Press to select a track or file.
Remote: TV CH +/1) (22)
Press to change the TV channels.
Remote: SLOW
/
(28)
Press to watch the slow‑motion play.
Remote: TUNING +/ (60)
Press to tune in the desired station.
/ (rewind/fast forward)
(28, 63)
Press to find a point in a track or file.
Connect the headphones.

DISPLAY (63, 75)
Press to display the disc information or
clock in the front panel display.

PROGRESSIVE (21, 80)
Press to change the output video format
(Interlace or Progressive format).

DSGX (67)

Press to reinforce the bass.
ECHO LEVEL (67)

(Except for European and Russian
models)
Turn to adjust the microphone echo.
MIC LEVEL (67)
Turn to adjust the microphone volume.
MIC jack (67)
Connect to a microphone.

AUDIO IN jack (80)
Connect to an optional audio
component.
Guide to parts and controls

IR Receptor

Unit: DVD  (play) (21, 27)
Press to select the DVD function.
Press to start playback of a disc.
Unit: USB  (play) (63, 66)
Press to select the USB function.
Press to start playback an optional USB
device (Digital music player or USB
storage media).
Continued

13GB
Unit: TUNER/BAND (60)

Press to select the TUNER function.
Press to switch among FM and AM band.
VOLUME +/2) (27, 63)
Unit: AUDIO IN
Press to select the AUDIO IN function.
FUNCTION +/ (21, 27, 60, 62,
65, 67)
TV VOL +/1)2) (22)
Press to adjust the TV volume.

DIMMER (75)
Press to select the function.
Press to adjust the brightness of the
display.


REPEAT/FM MODE (37, 61, 63)
PICTURE NAVI (40)
Press to listen to a disc, a single track or
file repeatedly.
Press to select FM reception mode
(monaural or stereo).
Press to select the VIEWER format for
searching the chapters, titles and tracks.
Press to display the thumbnail pictures.

AUDIO (30, 68, 69, 78)
 (stop) (28, 60, 63)
 (pause) (28, 63)
Press to stop or pause playback.
Remote: 2) (play) (27, 34, 42,
48, 53, 63, 66)
Press to start playback.
14GB
Press to adjust the volume.

Press to display the current audio signal
on the TV screen.

SUBTITLE (29)
Press to switch the language of the
subtitle (DVD VIDEO).

ANGLE (29)
ADVANCE
(28)
Press to change the angle (DVD VIDEO
with multi-angles only).
Press to advance the current scene during
playback.

Press to replay the previous scene during
playback.
DVD/USB/TUNER MENU (38, 45,
61)
Press to display the MENU items on the
TV screen.
Press to preset the radio station.
Press to select the play mode when using
an optional USB device.

EQ (67)
Press to select the sound effect.

DISPLAY (25, 33, 38, 45, 49, 50,
55, 70, 79, 90)
REPLAY
(28)
 STEP/ STEP  (28)
Press to play one frame at a time when
playback is paused.

 RETURN (32)
Press to return to the previous menu on
the TV screen.

/// (23, 24, 33, 35, 36, 38,
42, 63, 65, 73)
Press to select the MENU items.
ENTER (23, 41, 61, 65)
Press to display the Control Menu on the
TV screen.
Press to enter the settings.

DVD TOP MENU (38)
TV1) (22)
Press to operate the TV functions.
Guide to parts and controls


Press to display the DVD title on the TV
screen.
Continued

15GB


CLEAR (34, 40, 66)
TIME/TEXT (75)
Press to delete a pre-programmed track
or file.
Press to change the information in the
front panel display.
Press to enter a single digit or double
digit number.

-/--1)

Numeric buttons2) (22, 28, 31, 38,
52)
Press to select a track or file.
Press to enter a password or passcode.
10/01)
Press to enter a double digit number.

KEY CONTROL / (72)
Press to change the key to suit your vocal
range.
SCORE (71)
Press to select the difficulty level for
scoring mode.
KARAOKE MODE (68)
Press to select the Karaoke mode.
KARAOKE PON (72)
Press to activate the KARAOKE PON
function.
16GB
TV/VIDEO1) (21)
Press to switch the input sources.
SLEEP (73)
Press to set the Sleep Timer.

TIMER MENU (23, 73)
Press to set the clock and the timers.

THEATRE SYNC (26)
Press to activate the THEATRE SYNC
function.
This button is used to operate a Sony TV. For
details, see “Operating a Sony TV” (page 22).
2)
The numeric button 5, TV VOL +,
VOLUME +  and   buttons have a
tactile dot. Use the tactile dot as a reference
when operating the system.
1)
Display
Guide to parts and controls
Indicates the selected function.
Indicates the selected play mode. (33)
Lights up when timer is set. (73)
Lights up when a station is tuned in.
(60)
Lights up when DSGX is turned on.
(67)
Indicates the Playback status.
Lights up when DTS is selected. (58)
Lights up when Dolby Digital is
selected. (58)
Lights up when “P AUTO” or
“P VIDEO” is selected. (21)
Lights up when the output video
signal is NTSC. (21)
Lights up when playing VIDEO CD
with PBC. (31)
Indicates the type of audio format.
Indicates the track/album
information.
Lights up when chapter or title
number is displayed.
Indicates the type of disc being played
back. (27)
Displays the text information.
17GB
Getting Started
Hooking up the system
or
Right speaker
Wall socket
Left speaker
 AM loop antenna
 White side for North American model
 Brown side for other regions
 FM lead antenna (Extend it horizontally.)
 FM/AM antennas
Find a location and an orientation that
provide good reception, and then set up
the antenna.
Keep the antennas away from the speaker
cords, the power cord to avoid picking
up noise.
 Speakers
18GB
 Power
Attaching the speaker pads
Attach the supplied speaker pads at each
corner on the bottom of the speakers
to stabilize the speakers and to prevent
them from slipping.
Inserting two R6 (size AA)
batteries into the remote
Slide and remove the battery
compartment lid, and insert the two
supplied R6 (size AA) batteries,  side
first, matching the polarities shown
below.
Getting Started
Connect the power cord to a wall socket.
If the supplied adaptor on the plug does
not fit your wall socket, detach it from
the plug (only for models equipped with
an adaptor).
When carrying this system
Perform the following procedure to
protect the DVD mechanism.
Use buttons on the unit for the
operation.
1 Press /  to turn on the
system, then press DVD  .
2 Make sure that no disc is loaded
Note
If you do not use the remote for a long period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
Tip
With normal use, the batteries should last for
about six months. When the remote no longer
operates the system, replace both batteries with
new ones.
in the system and check that “No
Disc” appears.
3 Press /  to turn off the
system and check that “STANDBY”
disappears.
4 Unplug the power cord.
19GB
Hooking up the TV
Connect the video input jack of your
TV to the VIDEO OUT jack with the
supplied video cord.
When connecting a video deck
Connect the video deck to the TV using
a video cord (not supplied). However, do
not connect this unit to the TV through
the video deck. Otherwise, you may
experience video leakage when watching
video images from this system. Connect
this unit directly to the TV as shown
below.
TV
Video deck
Unit
Do not connect
directly
Tip
For higher quality video images:
 Use the optional component video cords to
connect the COMPONENT VIDEO input
jacks on your TV to the COMPONENT
VIDEO OUT jacks of this unit. If your
TV is compatible with progressive format
file signals, use this connection and press
PROGRESSIVE  on the unit repeatedly
until “P AUTO” or “P VIDEO” appears in
the display (page 21).
 You can use an optional S Video cord to
connect the S VIDEO input jack on your
TV to the S VIDEO OUT jack of this unit.
20GB
Changing the color system
1 Press FUNCTION +/–  repeatedly to
select “DVD” (or press DVD   on
the unit).
2 Press /  to turn off the system.
3 Press DISPLAY  to display the clock.
4 While the clock is displayed, hold
down   then press / .
The system turns on automatically and
the color system is changed.
“COLOR NTSC” or “COLOR PAL”
appears in the display.
Note
“––:––” appears in the display if you have not
set the clock.
Changing the format of the
video signal output from
COMPONENT VIDEO OUT jacks
Progressive is a method for displaying
TV images that reduces flickering and
sharpens the image. To use this method,
you need to connect to a TV that can
accept progressive signals.
You can output video signals from
COMPONENT VIDEO OUT jacks in
Interlace or Progressive format.
Getting Started
(Except for European and Russian
models)
Set the color system to PAL or NTSC
depending on the color system of your
TV.
The default setting for color system is
different depending on the area.
Each time you perform the procedure
below, the color system changes as
follows:
NTSC  PAL
1 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
2 Press PROGRESSIVE  on the
unit repeatedly.
Select “P AUTO” or “P VIDEO” if
your TV accepts progressive signals
and the TV is connected to the
COMPONENT VIDEO OUT jacks.
Otherwise, select “INTERLACE.”
P AUTO (PROGRESSIVE AUTO):
The system automatically detects
the software type and selects the
appropriate conversion method.
P VIDEO (PROGRESSIVE VIDEO):
The system fixes the conversion
method to PROGRESSIVE VIDEO
for video-based software.
Select this if the image is not clear
when you select “P AUTO.”
Continued

21GB
About DVD VIDEO software types and
the conversion method
The DVD VIDEO software can be
divided into 2 types:
Film-based software
Film-based software is derived from
film and displays the images at 24
frames per second.
Video-based software
Video-based software is derived from
TV, such as dramas and sitcoms and
displays images at 30 frames or 60
fields per second.
Some DVD VIDEO contains both types
of software. In order for these images to
appear in your TV naturally when the
video output is in progressive format, the
progressive signals need to be converted
to match your DVD VIDEO software.
Note
There would be no image on your TV or the
image is not clear if your setting does not
match your TV or connection.
When using a TV
Turn on the TV and select the video
input so that you can view the pictures
from this system.
Operating a Sony TV
You can use the following buttons to
operate a Sony TV. These buttons have
been marked in orange.
To
Turn the TV on
or off
Press
TV /  while
holding down TV
Switch the TV’s
input source
between the TV
and other input
sources
Select the TV
channels
TV/VIDEO 
while holding down
TV 

TV CH +/ 
or numeric
buttons * while
holding down TV

Adjust the
volume of the TV
speaker(s)
TV VOL +/ 
while holding down
TV 
* For double digit number, hold down TV 
and press -/-- , then press the number.
(For example, hold down TV ,
press -/-- , then 2 and 5 for entering 25.)
22GB
Setting the clock
1 Press /  to turn on the
system.
2 Press TIMER MENU .
The hour indication flashes in the
display.
If “PLAY SET?” flashes in the
display, press  or   repeatedly
to select “CLOCK SET?,” then press
ENTER .
The clock settings are canceled when you
disconnect the power cord or if a power failure
occurs.
To display the clock when the system
is off
Press DISPLAY .
The clock is displayed for about
8 seconds.
Getting Started
Use buttons on the remote to set the
clock.
Note
3 Press  or   repeatedly to set
the hour.
4 Press ENTER .
The minute indication flashes in the
display.
5 Press  or   repeatedly to set
the minutes.
6 Press ENTER .
The clock starts functioning.
23GB
Performing QUICK
SETUP
4 Press ENTER  without
inserting a disc.
“LANGUAGE SETUP” appears on
the TV screen.
Before using the system, you can make
the minimum basic adjustments in
QUICK SETUP. If you do not want
to perform QUICK SETUP, press
CLEAR  in step 3. The guide message
will disappear from the TV screen.
1 Turn on your TV and select the
video input.
2 Press /  to turn on the
system.
Note
Make sure there is no disc in the unit.
Otherwise, the guide message does not
appear. To perform QUICK SETUP, press
  on the unit to remove the disc.
3 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
The guide message appears at the
bottom of the TV screen.
24GB
5 Press  or   repeatedly to
select a language, then press
ENTER .
The setting is selected and “SCREEN
SETUP” appears on the TV screen.
Tips
The selected language is for “OSD,”
“MENU” and “SUBTITLE.”
The selectable language is different
depending on the area.
6 Press  or   repeatedly to
select the setting that matches
your TV type.
If you have a wide-screen TV or a
4:3 standard TV with wide-screen
mode:
Select “16:9” (page 57)
7 Press ENTER .
The setting is selected and “QUICK
SETUP is complete.” appears on the
TV screen.
The system is ready for playback.
If you want to change each setting
individually, see “Using the DVD
setup menu” (page 55).
1 Press
DISPLAY  when playback
is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
ENTER .
(SETUP), then press
3 Press  or   repeatedly to select
“QUICK,” then press ENTER .
Getting Started
If you have a 4:3 standard TV:
Select “4:3 LETTER BOX” or “4:3
PAN SCAN” (page 57)
To recall QUICK SETUP display
Note
The guide message appears at the bottom of
the TV screen when you turn on the system
for the first time or after performing “RESET”
(page 89).
To quit QUICK SETUP
Press
DISPLAY .
25GB
Using the THEATRE
SYNC function
THEATRE SYNC allows you to turn on
your Sony TV and this system, changes
the system’s function to “DVD” and then
switches the TV’s input source you have
set with just one button.
Preparing to use the THEATRE
SYNC function
Register the TV’s input source connected
to this system.
To select the TV’s input
Press the following buttons while holding
down SLEEP .
Press
0
TV’s input source
No input source
(Default)
1 to 8
9
CLEAR 

VIDEO 1 to VIDEO 8
COMPONENT 1
COMPONENT 2
COMPONENT 3
+
COMPONENT 4
The selected TV’s input source is
memorized into the remote.
26GB
Operating the THEATRE SYNC
function
Keep the remote pointed in the
direction of the TV until the TV is
turned on and the input source
is changed correctly, then press
THEATRE SYNC .
If this function does not work, change the
transmission time. The transmission time
varies depending on the TV.
To change the transmission time
Press the following buttons while holding
down  .
Press
1
2
3
4
5
6
7
8
Transmission time
0.5 (Default)
1
1.5
2
2.5
3
3.5
4
2 Insert a disc in the disc slot 
Disc
with the label side facing up.
Playing a disc
 Normal Play
If the playback does not start
automatically, press   (or DVD
  on the unit).
Disc
Depending on the DVD VIDEO or
VIDEO CD, some operations may
be different or restricted. Refer to the
operating instructions supplied with the
disc.
Example: When playing a DVD VIDEO
3 Press VOLUME +/  to adjust
the volume.
Title number
Elapsed playing time
1 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
Notes
Depending on the system status, the volume
level may not appear on the TV screen.
When you turn on the system, the disc is not
pulled into the disc slot  until “No Disc”
appears in the display. Do not attempt to
push in the disc until “No Disc” appears.
Do not load an 8 cm disc with an adaptor.
Doing so may cause the system to
malfunction.
When you remove a disc, handle the disc by
its edge and pull it straight out of the disc slot
. Do not touch the surface.
Continued

27GB
Other operations
To
Press
Stop playback  .
Pause playback  . Press   again
or   (or DVD
  on the unit) to
resume playback.
Select a track1),  or  
chapter or
repeatedly during
video file
playback.
Or, press the numeric
buttons  when
the Control Menu is
turned off, then press
ENTER 2).
Select an
+/  repeatedly
album3)
during playback or
when playback is
paused.
Locate a point  or  
quickly in fast during playback.
forward or fast Each time you press
reverse (Lock  or  , the
Search)4)5)
playback speed changes
cyclically.
To return to normal
playback, press  
(or DVD   on the
unit).
28GB
To
Watch frame by
frame (Slowmotion Play)6)
Press
SLOW
or
 when
SLOW
playback is paused.
Each time you
press SLOW
or
, the
SLOW
playback speed
changes.
To return to normal
playback, press  
(or DVD   on the
unit).
Play one
STEP   to go to
frame at a
the next frame when
time (Freeze
playback is paused.
6)
Frame)
Press  STEP 7)
to go to the preceding
frame when playback is
paused.
To return to normal
playback, press  
(or DVD   on the
unit).
 during
Replay the
REPLAY
previous scene playback. (Instant
Replay)7)

Briefly fast
ADVANCE
forward the
during playback.
current scene (Instant Advance)7)
To
Switch to DVD
function from
another source
You cannot select an audio track during Lock
Search operation of MP3 audio tracks.
2)
DVD VIDEO, DVD-R/-RW in VR mode,
VIDEO CD, AUDIO CD and DivX video
files only.
3)
MP3 audio tracks, JPEG image files and DivX
video files only.
4)
Except for JPEG image files.
5)
Depending on the disc, the actual speed may
differ.
6)
DVD VIDEO, DVD-R/-RW in VR mode,
DivX video files and VIDEO CD only.
7)
DVD VIDEO and DVD-R/-RW in VR mode
only.
1)
Notes
You cannot search for a still picture on a
DVD-R/-RW in VR mode.
You may not be able to use the Instant Replay
or Instant Advance function in Repeat Play
mode or with some scenes.
Displaying multi-angles and
subtitles
Changing the angles
(DVD VIDEO only)
You can change the viewing angle while
playing a DVD VIDEO on which various
angles (multi-angles) for a scene are
recorded.
Disc
Remove the
disc
Press
FUNCTION +/ 
repeatedly (or press
DVD   on the
unit) (Automatic
Source Selection).
  on the unit.
Press ANGLE  repeatedly during
playback. Each time you press
ANGLE , the angle changes.
Note
Depending on the DVD VIDEO, you may not
be able to change the angle, even if multi-angles
are recorded on the DVD VIDEO.
Displaying the subtitles
(DVD VIDEO, DVD-R/-RW in VR
mode and DivX video files only)
You can turn the subtitles on or off while
playing a DVD VIDEO, DVD-R/-RW in
VR mode or DivX video files on which
subtitles are recorded. You can also
change the language of the subtitles with
DVD VIDEO, DVD-R/-RW in VR mode
or DivX video files on which multilingual
subtitles are recorded.
Press SUBTITLE  repeatedly
during playback. Each time you press
SUBTITLE , the subtitle language
changes or turns off.
Continued

29GB
Notes
Depending on the DVD VIDEO, you may
not be able to change the subtitles even if
multilingual subtitles are recorded on the
DVD VIDEO. You also may not be able to
turn the subtitles off.
You can change the subtitles if the DivX
video file has an “.AVI” or “.DivX” extension
and contains subtitle information within the
same file.
Other useful functions
Changing the sound
When playing a DVD VIDEO or a DivX
video file recorded in multiple audio
formats, you can select the audio format
you want. If the DVD VIDEO is recorded
with multilingual tracks, you can also
change the language.
When playing a VIDEO CD, AUDIO
CD or MP3 audio tracks, you can select
the sound from the right or left channel
and listen to the sound of the selected
channel through both the right and left
speakers. For example, when playing a
track with the vocals on the right channel
and the instruments on the left channel,
you can hear the instruments from both
speakers by selecting the left channel.
Press AUDIO  repeatedly during
playback to select the audio signal you
want.
30GB
The default settings are underlined.
When playing a DVD VIDEO:
Depending on the DVD VIDEO, the
option of language and audio format
varies.
When a 4-digit number is displayed, the
digits represent a language code (see
“Language code list” (page 101)). When
the same language is displayed two or
more times, the DVD VIDEO is recorded
in multiple audio formats. Note that the
sound changes automatically depending
on the disc.
When playing a DVD-R/-RW in VR
mode:
The number of audio tracks recorded on
a disc is displayed.
Example:
1: MAIN: the main sound of the audio
track 1.
1: SUB: the sub sound of the audio
track 1.
1: MAIN+SUB: the main and sub
sound of the audio track 1.
2: MAIN*: the main sound of the audio
track 2.
2: SUB*: the sub sound of the audio
track 2.
2: MAIN+SUB*: the main and sub
sound of the audio track 2.
* These items do not appear if only one audio
stream is recorded on the disc being played
back.
When playing a DivX video file:
The options for audio format differ
depending on the DivX video files.
When playing a Super VCD:
1: STEREO: the stereo sound of the
audio track 1.
1: 1/L: the sound of the left channel of
the audio track 1 (monaural).
1: 2/R: the sound of the right channel
of the audio track 1 (monaural).
2: STEREO: the stereo sound of the
audio track 2.
2: 1/L: the sound of the left channel of
the audio track 2 (monaural).
2: 2/R: the sound of the right channel
of the audio track 2 (monaural).
(VIDEO CD only)
You can use the PBC (Playback Control)
menus on your TV screen to enjoy
the disc’s interactive software. The
menu format and structure may differ
depending on each disc.
1 Press   (or DVD   on the
Disc
When playing a VIDEO CD, AUDIO CD,
or MP3 audio track:
STEREO: the standard stereo sound.
1/L: the sound of the left channel
(monaural).
2/R: the sound of the right channel
(monaural).
Playing VIDEO CDs with PBC functions
(Version 2.0)  PBC Playback
unit) to start playing a VIDEO CD with
PBC functions (Version 2.0).
The PBC menu appears on the TV
screen. Depending on the VIDEO CD,
the menu may not appear.
2 Press the numeric buttons  to
select the item number you want.
3 Press ENTER .
Depending on the VIDEO CD,
“Press ENTER” may appear as “Press
SELECT” in the operating instructions
supplied with the disc. In this case,
press   (or DVD   on the
unit).
4 Continue playback according to the
instructions on the menus.
Refer to the operating instructions
supplied with the VIDEO CD, as
the operating procedure may differ
depending on the VIDEO CD.
Continued

31GB
To return to the previous menu
Press  RETURN .
Note
PBC playback is canceled when Shuffle Play,
Program Play or Repeat Play is activated.
To cancel playback with PBC
functions
1 Press  or   repeatedly
or press the numeric buttons 
to select a track when playback is
stopped.
2 Press   (or DVD   on the
unit) or ENTER .
Playback starts from the selected track.
Still images, such as the menu screens,
will not be shown.
To return to PBC playback, press  
twice, then press   (or DVD 
 on the unit).
Resuming playback from the point you
stopped the disc  Resume Play
This system memorizes the point where
you stopped the disc so you can resume
playback from that point. Resume Play
is not canceled when you turn off the
system except for MP3 audio tracks,
JPEG image files and DivX video files.
32GB
1 While playing a disc, press   to
stop playback.
“Resume” appears in the display.
If “Resume” does not appear, Resume
Play is not available.
2 Press   (or DVD   on the
unit).
The system starts playback from the
point you stopped the disc in step 1.
Notes
You cannot perform Resume Play during
Shuffle Play or Program Play.
This function may not work properly with
some discs.
Resume Play is canceled when
 you press   when playback is stopped.
 you eject the disc.
 you change the function.
 you change the settings in the Setup
Menu.
Depending on where you stopped the disc,
the system may not resume playback from
the exact same point.
If “MULTI-DISC RESUME” is set to “ON,”
Resume Play is not canceled for DVD
VIDEO and VIDEO CD when you eject the
disc or change the function.
Tip
To play back from the beginning of the disc,
press   twice, then press   (or DVD
  on the unit).
Resuming playback of a disc that was
stopped  Multi-disc Resume
Note
If “MULTI-DISC RESUME” in “CUSTOM
SETUP” is set to “ON” and you play back a
recorded disc such as DVD-R, the system may
play back other recorded disc from the same
playback resume point. To start playback from
the beginning of the disc, press   twice
and then press   (or DVD   on the
unit).
Using play mode
Creating your own program
 Program Play
You can make a program of up to 99
steps in the order you want them to be
played back.
Disc
(DVD VIDEO and VIDEO CD only)
This system can store the point where
you stopped the playback of the disc
for up to 40 discs and resumes playback
when you insert the same disc again. If
you store a playback resume point for the
41st disc, the playback resume point for
the first disc will be deleted.
To activate this function, set “MULTIDISC RESUME” in “CUSTOM SETUP”
to “ON” (page 58).
1 Press
DISPLAY .
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(PROGRAM), then
press ENTER .
The options for “PROGRAM” appear
on the TV screen.
3 Press  or   repeatedly
to select “SET,” then press
ENTER .
Track number
Continued

33GB
4 Press  .
The cursor moves to the track list “T”
(in this case, “01”).
5 Select the track you want to
program.
For example, select track “02.”
Press  or   repeatedly to select
“02” under “T,” then press ENTER .
Selected track
To change a programmed step:
Press  or   repeatedly to select
the programmed step number you
want to change. Then, press  .
To delete a programmed step:
Press  or   repeatedly to select
the programmed step number
you want to change. Then, press
CLEAR .
To delete all of the programmed
steps in the program list:
Press   to select “ALL CLEAR.”
Then, press ENTER .
34GB
Total time of the programmed tracks
6 To program other tracks, repeat
steps 4 to 5.
7 Press   (or DVD   on
the unit).
Program Play starts.
When the Program Play ends, you
can restart the same program by
pressing   (or DVD   on
the unit).
To cancel Program Play
Press CLEAR  or select “OFF” in
step 3. To play back the same program
again, select “ON” in step 3 and press
ENTER .
To turn off the Control Menu
Notes
When Program Play is activated, the
“REPEAT” setting is automatically changed
to “ON” if the current setting is “DISC” or
“TRACK.”
You cannot perform Program Play with
VIDEO CDs during PBC playback.
Tip
The Program Play is canceled and the program
list is cleared when
 you eject the disc.
 you turn off the system.
 you change the function.
 Shuffle Play
You can play back the tracks on the
current disc in random order. Each time
you perform Shuffle Play, the playing
order may differ.
1 Press
Disc
Press DISPLAY  repeatedly until
the Control Menu disappears from the
TV screen.
Playing in random order
DISPLAY  during
playback.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(SHUFFLE), then
press ENTER .
The options for “SHUFFLE” appear
on the TV screen.
3 Press  or   repeatedly to
select the setting you want.
When playing a VIDEO CD or
AUDIO CD:
TRACK: all tracks on the disc is
played back randomly.
When Program Play is activated:
ON: all tracks in the program list is
played back randomly.
Continued

35GB
When playing a DATA CD/DVD
(except for DivX video files):
ON: all MP3 audio tracks in the
selected album on the disc are
played back randomly.
When no album is selected, the first
album is played back randomly.
4 Press ENTER .
Shuffle Play starts.
To cancel Shuffle Play, press
CLEAR  or select “OFF” in step 3.
To turn off the Control Menu
Press DISPLAY  repeatedly until
the Control Menu disappears from the
TV screen.
Notes
Shuffle Play is canceled when
 you eject the disc.
 you turn off the system.
 you change the function.
 you perform Track/Index Search.
You cannot perform Shuffle Play with
VIDEO CDs during PBC playback.
The same song may be played back
repeatedly for MP3 audio tracks.
Playing repeatedly
 Repeat Play
You can play back all the titles, tracks,
files or a single title, chapter, track or file
on a disc repeatedly.
You can select Shuffle Play and Program
Play at the same time.
1 Press
DISPLAY  during
playback.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(REPEAT), then
press ENTER .
The options for “REPEAT” appear on
the TV screen.
3 Press  or   repeatedly to
select the setting you want.
The default setting is underlined.
When playing a DVD VIDEO or
DVD-R/DVD-RW in VR mode:
OFF: does not play back repeatedly.
DISC: repeats all the titles on the
disc.
TITLE: repeats the current title.
CHAPTER: repeats the current
chapter.
36GB
When playing a VIDEO CD or
AUDIO CD:
OFF: does not play back repeatedly.
DISC: repeats all the tracks on the
disc.
TRACK: repeats the current track.
MP3 audio tracks only.
DivX video files only.
1)
2)
When Program Play or Shuffle
Play is activated:
OFF: does not play back repeatedly.
ON: repeats the Program Play or
Shuffle Play.
4 Press ENTER .
Repeat Play starts.
To cancel Repeat Play, press
CLEAR  or select “OFF” in step 3.
Press DISPLAY  repeatedly until
the Control Menu disappears from the
TV screen.
Notes
You can also change the Repeat Play setting
by pressing REPEAT/FM MODE 
repeatedly.
“REP” lights up in the display when Repeat
Play is set to “DISC,” “ALBUM” or “ON.”
“REP1” lights up in the display when
Repeat Play is set to “ TITLE,” “CHAPTER,”
“TRACK” or “FILE.”
Depending on the DVD VIDEO, you cannot
perform Repeat Play.
You cannot perform Repeat Play with
VIDEO CDs during PBC playback.
When playing a DATA CD/DVD which
contains MP3 audio tracks and JPEG image
files, the audio sound will not match the
image if their playing time are different.
You cannot select “TRACK” when “MODE
(MP3, JPEG)” is set to “IMAGE (JPEG)”
(page 45).
Repeat Play is canceled when
 you eject the disc.
 you turn off the system.
 you change the function.
Disc
When playing a DATA CD or DATA
DVD:
OFF: does not play back repeatedly.
DISC: repeats all the albums on the
disc.
ALBUM: repeats the current
album.
TRACK1): repeats the current track.
FILE2): repeats the current file.
To turn off the Control Menu
37GB
Searching/selecting a
disc
Playing DVD VIDEOs using the
menu
Some DVD VIDEOs have menus to help
you enjoy the DVD VIDEOs. You can
play back DVD VIDEOs using these
menus on the TV screen.
Using DVD TOP MENU
A DVD VIDEO contains a lot of sections
of picture or music feature called “title.”
When you play back a DVD VIDEO
which contains several titles, you can
select the title you want using DVD TOP
MENU .
Using DVD MENU
Some DVD VIDEOs allow you to select
the disc contents using a menu. When
you play back these DVD VIDEOs, you
can select items such as the language for
the subtitles and the language for the
sound using DVD/USB/TUNER MENU
.
38GB
1 Press DVD TOP MENU  or
DVD/USB/TUNER MENU .
The menu appears on the TV screen.
The contents of the menu vary
depending on the disc.
2 Press ///  or the
numeric buttons  to select
the title or item you want to
play back.
3 Press ENTER .
Selecting “ORIGINAL” or “PLAY
LIST” on a DVD-R/-RW in VR
mode
This function is only available for DVDRs/-RWs in VR mode with a playlist
created.
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(ORIGINAL/PLAY
LIST), then press ENTER .
The options for “ORIGINAL/PLAY
LIST” appear on the TV screen.
select the setting you want.
PLAY LIST: play back according to
the playlist created on the disc.
ORIGINAL: play back according to
the originally recorded sequence.
4 Press ENTER .
Using the on-screen display
to search for a title/chapter/
scene/track/index/album/file
DISPLAY . (When
playing a DATA CD/DVD
with JPEG image files, press
DISPLAY  twice.)
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select the search item.
Disc
3 Press  or   repeatedly to
1 Press
Example: when you select
(CHAPTER)
“** (**)” is selected (** refers to a
number). The number in parentheses
indicates the total number of titles,
chapters, tracks, indexes, scenes,
albums or files.
Selected row
3 Press ENTER .
You can search by different information
recorded on a disc, such as title, track,
and album. Each item is assigned a
unique number on the disc, and you can
select the numbered item you want from
the Control Menu. You can also search
for a particular point using the time code
(Time Search) (DVD VIDEO and DVDR/-RW in VR mode only).
“** (**)” change to “– – (**).”
4 Press  or   repeatedly
or the numeric buttons  to
select the title, track, album, etc.
or file number.
If you make a mistake, press
CLEAR  to cancel the number.
Continued

39GB
5 Press ENTER .
The system starts playback from the
selected title, track, album, etc.
To turn off the Control Menu
Press DISPLAY  repeatedly until
the Control Menu disappears.
Tip
When the Control Menu display is turned off,
you can search for a chapter (DVD VIDEO and
DVD-R/-RW in VR mode) or track (AUDIO
CD and VIDEO CD) or file (DivX video files
in DATA CD/DVD) by pressing the numeric
buttons  and ENTER .
To search for a particular point using
the time code  Time Search
(DVD VIDEO and DVD-R/-RW in VR
mode only)
1 Press
DISPLAY .
2 Press  or   repeatedly to select
(TIME/TEXT).
“T **:**:**” (elapsed playing time of
the current title) is selected.
3 Press ENTER .
“T **:**:**” changes to “T--:--:--.”
40GB
4 Input the time code using the
numeric buttons , then press
ENTER .
For example, to find the scene at 2
hours, 10 minutes, and 20 seconds
after the beginning, enter “2:10:20.”
If you make a mistake, press
CLEAR  to cancel the number.
Note
Depending on the disc, you cannot perform
Time Search.
Searching by scene
 Picture Navigation
1 Press PICTURE NAVI 
repeatedly to select the VIEWER
format you want to search in.
CHAPTER VIEWER (DVD
VIDEO)
TITLE VIEWER (DVD VIDEO)
TRACK VIEWER (VIDEO CD or
Super VCD)
2 Press ENTER .
The first scene of the first 9 chapters,
titles or tracks appears. If there are
more than 9 chapters, titles, or tracks,
“” appears at the bottom right of
the screen.
chapter, title or track, then press
ENTER .
The system starts playing from the
selected scene.
To cancel searching
Press  RETURN  or
.
DISPLAY
Notes
Depending on the software you use to create
the DATA CD or DATA DVD, the playback
order may differ.
The system can play back up to 200 albums,
including albums that do not contain MP3
audio tracks and JPEG image files. The
system will not play back any albums beyond
the 200th album.
The maximum number of MP3 audio tracks
or JPEG image files on an album which this
system can recognize is:
 600 when “MODE (MP3, JPEG)” is set to
“AUDIO (MP3)” or “IMAGE (JPEG).”
 300 when “MODE (MP3, JPEG)” is set to
“AUTO.”
The system can play back MP3 audio tracks
and JPEG image files. The system will play
back any data with the extension “.MP3”,
“.JPG” or “.JPEG” even if they are not in
MP3 or JPEG format. Playing this data may
generate a loud noise which could damage
your speaker system.
Disc
3 Press ///  to select a
Playing MP3/JPEG discs
Note
Depending on the disc, you may not be able to
select some items.
Tip
To display the remaining chapters, titles, or
tracks, select a scene at the bottom row and
press  . To return to the previous scene,
select a scene at the top row and press  .
Continued

41GB
Depending on the encoding/writing software,
recording device, or the recording media
used to record an MP3 audio track, you may
encounter problems such as cannot play
back, sound interruptions and noise.
The following discs/situations can increase
the time it takes to start playback:
 a disc recorded with a complicated tree
structure.
 a disc recorded in Multi Session.
 a disc to which data can be added (nonfinalized disc).
 when the tracks or files in another album
have just been played back.
Some CD-Rs/-RWs or DVD-Rs/-RWs/+Rs/
+RWs cannot be played back on the system
depending on the file format.
When playing a DATA CD or DATA DVD
containing both MP3 audio tracks and JPEG
image files, select “MODE (MP3, JPEG)”
from the Control Menu after the disc’s TOC
reading is complete. If you want to play back
 both MP3 audio tracks and JPEG image
files, set “MODE (MP3, JPEG)” to
“AUTO.”
 MP3 audio tracks only, set “MODE (MP3,
JPEG)” to “AUDIO (MP3).”
 JPEG image files only, set “MODE (MP3,
JPEG)” to “IMAGE (JPEG).”
The system can play back to a depth of 8
folders only.
42GB
Selecting an MP3 audio track
or album
1 Insert a disc in the disc slot .
The system starts playing the first
album.
2 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
3 Press  or   repeatedly to
select an album.
Playing an album:
Press   (or DVD   on the
unit).
The system starts playback from the
first track of the selected album.
To stop playback, press  .
Playing a track:
1 Press ENTER .
The list of MP3 audio tracks of the
selected album appears.
To return to the album list when the
track list is displayed
Press  RETURN .
To turn on or off the album list or track
list
2 Press  or   repeatedly to
select the MP3 audio track you
want, then press ENTER .
The system starts playing the
selected MP3 audio track.
To stop playback, press  .
To display the next or previous page of
track list or album list
Press  or   repeatedly when the
track list or album list is displayed.
To play back the next album of MP3
audio tracks
You can select the next album by pressing
  repeatedly until the last track of
the current album, then press  
once. The first track of the next album
is selected. However, you cannot select
the previous album by pressing  
repeatedly. To select the previous album,
select the album from the album list.
Disc
Press DVD/USB/TUNER MENU 
repeatedly.
Selecting a JPEG image file or
album
1 Insert a disc in the disc slot .
The system starts playing the first
album.
2 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
3 Press  or   repeatedly to
select an album.
Playing an album:
Press   (or DVD   on the
unit).
The system starts a slide show from
the first image file of the selected
album.
To stop playback, press  .
Continued

43GB
Playing an image file:
1 Press PICTURE NAVI .
Thumbnail picture for the first 16
JPEG image files in the selected
album is displayed.
To display the next or previous page of
album list
Press  or   repeatedly when the
album list is displayed.
To display the next or previous JPEG
image file
Press  or   repeatedly during the
slide show.
To play back the next album of JPEG
image files
If there are more than 16 image
files in the selected album, the
scroll bar appears at the right.
2 Press ///  to select the
image you want to view, then
press   (or DVD   on
the unit).
The slide show starts from the
selected image file.
To stop playback, press  .
44GB
You can select the next album by pressing
  repeatedly until the last file of the
current album, then press   once.
The first file of the next album is selected.
However, you cannot select the previous
album by pressing   repeatedly. To
select the previous album, select the
album from the album list.
To turn on or off the display of album
list
Press DVD/USB/TUNER MENU 
repeatedly.
To rotate a JPEG image file
Notes
The PICTURE NAVI  button does not
work when “MODE (MP3, JPEG)” is set to
“AUDIO (MP3).”
When you press  or   to select the next
or previous image, the image will return to
its original view even if you have rotated the
image previously.
The slide show stops when you press  or
 .
Playing MP3 audio tracks and
JPEG image files as a slide
show with sound
You can play back a slide show with
sound by first placing both JPEG image
files and MP3 audio tracks in the same
album on a DATA CD/DVD.
2 Press   to stop playback.
3 Press DISPLAY .
The Control Menu appears on the TV
screen.
4 Press  or   repeatedly to
select
(MODE (MP3,
JPEG)), then press ENTER .
Disc
When a JPEG image file is displayed on
the TV screen, you can rotate the image
by 90 degrees.
Press  or   repeatedly while viewing
an image.
Press CLEAR  to return to the original
view.
The options for “MODE (MP3,
JPEG)” appear on the TV screen.
The default setting is underlined.
AUTO: Plays back both JPEG
image files and MP3 audio tracks
in the same album as a slide show
with sound.
AUDIO (MP3): Plays back MP3
audio tracks continuously.
IMAGE (JPEG): Plays back JPEG
image files as a slide show.
5 Press  or   repeatedly
to select “AUTO,” then press
ENTER .
6 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
1 Insert a disc in the disc slot .
The system starts playing the first
album.
Continued

45GB
7 Press  or   repeatedly to
select the album you want, then
press   (or DVD   on
the unit).
The slide show with sound starts from
the selected album.
To stop playback, press  .
To turn on or off the display of album
list
Press DVD/USB/TUNER MENU 
repeatedly.
To cancel slide show with sound
Select “AUDIO (MP3)” or “IMAGE
(JPEG)” in step 4.
Notes
In some cases, you cannot change the
“MODE (MP3, JPEG)” setting when “MODE
(MP3, JPEG)” has been set to
 “IMAGE (JPEG)” and the selected disc
only contains MP3 audio tracks.
 “AUDIO (MP3)” and the selected disc
only contains JPEG image files.
If there are no MP3 audio tracks in the disc,
“No audio data” appears on the TV screen
and the disc cannot be played back.
If there are no JPEG image files in the disc,
“No image data” appears on the TV screen
and the disc cannot be played back.
If you play back a large data size of MP3
audio tracks and JPEG image files at the same
time, the sound may skip.
46GB
Specifying the slide show speed
(JPEG image files only)
1 Press
DISPLAY  repeatedly until
the Control Menu for JPEG image
files appears on the TV screen.
2 Press  or   repeatedly to select
(INTERVAL), then press
ENTER .
The options for “INTERVAL” appear
on the TV screen.
3 Press  or   repeatedly to select
the transition interval you want.
The default setting is underlined.
NORMAL: Sets the duration to
about 6 to 9 seconds (Images that
are 4,000,000 pixels or more will
lengthen the duration).
FAST: Sets the duration shorter
than NORMAL.
SLOW 1: Sets the duration longer
than NORMAL.
SLOW 2: Sets the duration longer
than SLOW 1.
4 Press ENTER .
The selected setting takes effect.
Note
Some JPEG image files (especially progressive
JPEG image files or JPEG image files with
3,000,000 pixels or more) may take a longer
time to display than others, which may make
the transitions seem longer than that of the
option you selected.
Selecting a transition effect for image
files in the slide show
(JPEG image files only)
1 Press
DISPLAY  repeatedly until
the Control Menu for JPEG image
files appears on the TV screen.
(EFFECT), then press
ENTER .
The options for “EFFECT” appear on
the TV screen.
3 Press  or   repeatedly to select
the setting you want.
The default setting is underlined.
MODE 1: The image sweeps in
from top to bottom of the screen.
MODE 2: The image sweeps in
from left to right of the screen.
MODE 3: The image stretches out
from the center of the screen.
MODE 4: The images randomly
cycle through the effects.
MODE 5: The next image slides
over the current image.
OFF: Turns off this function.
About DivX Video Files
®
Disc
2 Press  or   repeatedly to select
Enjoying DivX® video
files
DivX is a video file compression
technology, developed by DivX, Inc. This
product is an official DivX Certified
product.
This system can play back files which
have the extension “.AVI” or “.DIVX” that
contain data in DivX format.
®
Notes
The system may not play back a DivX video
file when the file has been combined from
two or more DivX video files.
The system cannot play back a DivX video
file size of more than 720 (width) × 576
(height)/2GB.
Depending on the DivX video file, the picture
may be unclear or the sound may skip.
The system cannot play back some DivX
video files that are longer than 3 hours.
4 Press ENTER .
The selected setting takes effect.
Continued

47GB
Playing an album of DivX video
files or a DivX video file
1 Insert a DATA CD/DVD with DivX
Playing a DivX video file:
1 Press ENTER .
The list of DivX video files of the
selected album appears.
video files in the disc slot .
The system starts playing the first
album.
2 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
3 Press  or   repeatedly to
select an album.
Playing an album:
Press   (or DVD   on the
unit).
The system starts playing the first
DivX video file of the selected album.
To stop playback, press  .
48GB
2 Press  or   repeatedly to
select the DivX video file you
want, then press ENTER .
The system starts playing the
selected of DivX video files.
To stop playback, press  .
To display the next or previous page of
file list or album list
Press  or   repeatedly when the file
list or album list is displayed.
To play back the next album of DivX
video files
You can select the next album by pressing
  repeatedly until the last file of
the current album, then press  
once. The first file of the next album is
selected. However, you cannot select
the previous album by pressing  
repeatedly. To select the previous album,
select the album from the album list.
To return to the album list when the
file list is displayed
Press  RETURN .
To turn on or off the album list
Press DVD/USB/TUNER MENU 
repeatedly.
Depending on the DivX video file, the
picture may pause or be unclear. In this case,
it is recommended that you create the file
at a lower bit rate. If the sound is still noisy,
MP3 is the recommended audio format. Note
that, this system does not conform to WMA
(Windows Media Audio) format.
Due to the compression technology used for
DivX video files, it may take some time after
you press   for the picture to appear.
Depending on the DivX video file, the sound
may not match the pictures on the screen.
Tip
If the number of viewing times has been preset,
you can play back the DivX video files as many
times as the preset number. The following
occurrences are counted:
 when the system is turned off.
 when another DivX video file is played back.
 A/V SYNC
When the sound does not synchronize
with the pictures on the screen, you can
adjust the delay between the picture and
sound.
A/V SYNC does not work for MP3 audio
tracks and JPEG image files in DATA
CD/DVD.
Disc
Notes
Adjusting the delay
between the picture
and sound
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(A/V SYNC), then
press ENTER .
The options for “A/V SYNC” appear
on the TV screen.
3 Press  or   repeatedly to
select the setting you want.
The default setting is underlined.
OFF: Does not adjust.
ON: Adjusts the difference between
picture and sound.
4 Press ENTER .
Note
Depending on the input stream, this function
may not be effective.
49GB
Restricting playback of
the disc
 CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL
You can set 2 kinds of playback
restrictions for the disc you want.
Custom Parental Control
You can set playback restrictions so
that the system will not play back
inappropriate discs.
Parental Control
You can limit the playback of some DVD
VIDEOs according to a predetermined
level such as the age of the users. When
a limited scene is played back, that scene
may be skipped or replaced with different
scenes.
The same password is used for both
Custom Parental Control and Parental
Control.
Preventing playback of specific
discs
 CUSTOM PARENTAL CONTROL
You can set the same Custom Parental
Control password for up to 40 discs.
When you set the 41st-disc, the playback
restriction for the first disc is canceled.
1 Insert the disc you want to set
the playback restriction.
If the disc is playing, press   to
stop playback.
2 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
3 Press  or   repeatedly
to select
(PARENTAL
CONTROL), then press ENTER .
The options for “PARENTAL
CONTROL” appear on the TV screen.
4 Press  or   repeatedly
to select “ON ,” then press
ENTER .
50GB
If you have not entered a
password:
The display for registering a new
password appears.
If you make a mistake when entering
your password
Press   repeatedly to delete the
number you have entered, then re-enter
your password again.
Disc
To turn off the Custom Parental
Control function
1 Follow steps 1 through 3 of
“Preventing playback of specific
discs” (page 50).
Enter a 4-digit password using the
numeric buttons , then press
ENTER .
The display for confirming the
password appears on the TV screen.
When you have already registered
a password:
The display for entering the password
appears on the TV screen.
5 Enter or re-enter your 4-digit
password using the numeric
buttons , then press
ENTER .
2 Press  or  repeatedly to select “OFF
,” then press ENTER .
3 Enter your 4-digit password using
the numeric buttons , then press
ENTER .
To play back a disc for which Custom
Parental Control is set
1 Insert the disc for which Custom
Parental Control is set.
The “CUSTOM PARENTAL
CONTROL” display appears.
“Custom parental control is set.”
appears on the TV screen and the
screen returns to the Control Menu.
Continued

51GB
2 Enter your 4-digit password using
the numeric buttons , then press
ENTER .
The system is ready for playback.
Tip
If you forget your password, enter the 6digit number “199703” using the numeric
buttons  when the “CUSTOM PARENTAL
CONTROL” display asks you for your
password, then press ENTER . The display
will ask you to enter a new 4-digit password.
3 Press  or   repeatedly to
select “PLAYER ,” then press
ENTER .
If you have not entered a
password:
The display for registering a new
password appears.
Limiting playback for children
 PARENTAL CONTROL
(DVD VIDEO only)
You can limit the playback of some DVD
VIDEOs according to a predetermined
level such as the age of the users.
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly
to select
(PARENTAL
CONTROL), then press ENTER .
The options for “PARENTAL
CONTROL” appear on the TV screen.
52GB
Enter a 4-digit password using the
numeric buttons , then press
ENTER .
The display for confirming the
password appears on the TV screen.
When you have already registered
a password:
The display for entering the password
appears on the TV screen.
4 Enter or re-enter your 4-digit
password using the numeric
buttons , then press
ENTER .
The display for setting the playback
limitation level appears.
7 Press  or   repeatedly
to select “LEVEL,” then press
ENTER .
The options for “LEVEL” appear on
the TV screen.
select the level you want, then
press ENTER .
Disc
8 Press  or   repeatedly to
Parental Control setting is completed.
The lower the value, the stricter the
limitation.
To turn off the Parental Control
function, set “LEVEL” to “OFF.”
5 Press  or   repeatedly to
select “STANDARD,” then press
ENTER .
The options for “STANDARD” appear
on the TV screen.
6 Press  or   repeatedly to
select a geographic area as the
playback limitation level, then
press ENTER .
The area is selected.
When you select “OTHERS ,” enter
the area code for the geographic area
you want according to the “Parental
Control area code list” (page 102) by
using the numeric buttons .
If you make a mistake when entering
your password
Press   repeatedly to delete the
number you have entered, then re-enter
your password again.
To play back a disc for which Parental
Control is set
1 Insert the disc and press   (or
DVD   on the unit).
The display for entering your password
appears on the TV screen.
2 Enter your 4-digit password using
the numeric buttons , then press
ENTER .
The system starts playback.
Continued

53GB
Notes
The Control Menu display will show different
items depending on the disc type.
When you play back DVD VIDEOs which
do not have the Parental Control function,
playback cannot be limited on this system.
Depending on the DVD VIDEO, you may
be asked to change the parental control level
while playing the disc. In this case, enter your
password, then change the level. If Resume
Play is canceled, the level returns to the
original level.
Tip
If you forget your password, remove the disc
and repeat steps 1 to 3 of “Limiting playback
for children.” When you are asked to enter your
password, enter “199703” using the numeric
buttons , then press ENTER . The display
will ask you to enter a new 4-digit password.
After you enter a new 4-digit password, reinsert
the disc and press  . When the display
for entering your password appears, enter your
new password.
Changing the password
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly
to select
(PARENTAL
CONTROL), then press ENTER .
The options for “PARENTAL
CONTROL” appear on the TV screen.
54GB
3 Press  or   repeatedly to
select “PASSWORD ,” then
press ENTER .
The display for entering the password
appears on the TV screen.
4 Enter your 4-digit password
using the numeric buttons ,
then press ENTER .
5 Enter a new 4-digit password
using the numeric buttons ,
then press ENTER .
6 To confirm your password,
re-enter it using the numeric
buttons , then press
ENTER .
If you make a mistake when entering
your password
Press   repeatedly to delete the
number you have entered, then re-enter
your password again.
Using the DVD setup
menu
Note
Playback settings stored in the disc take
priority over the DVD setup menu settings.
Therefore, some of the DVD setup menu
settings may not be performed.
to select the setup item from
the displayed list: “LANGUAGE
SETUP,” “SCREEN SETUP” or
“CUSTOM SETUP.” Then press
ENTER .
The setup item is selected.
Example: SCREEN SETUP
Disc
By using the DVD setup menu, you can
make various adjustments to items such
as picture and sound.
4 Press  or   repeatedly
Selected item
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(SETUP), then
press ENTER .
The options for “SETUP” appear on
the TV screen.
3 Press  or   repeatedly to
select “CUSTOM,” then press
ENTER .
Setup items
5 Press  or   repeatedly to
select the item you want, then
press ENTER .
The options for the selected item
appear on the TV screen.
Example: TV TYPE
The Setup menu appears on the TV
screen.
Options
Continued

55GB
6 Press  or   repeatedly to
select the setting you want,
then press ENTER .
The setting is selected and setup is
completed.
Selected setting
DVD setup menu item list
The default settings are underlined.
Setting the language  LANGUAGE
SETUP
Set various languages for the on-screen
display or sound track.
56GB
OSD
(On-Screen Display) Switches the
language of the on-screen display.
MENU*
(DVD VIDEO only) Select the language
for the DVD menu.
AUDIO*
(DVD VIDEO only) Switches the
language of the sound track.
When you select “ORIGINAL,” the
language given priority in the disc is
selected.
SUBTITLE*
(DVD VIDEO only) Switches the
language of the subtitle.
When you select “AUDIO FOLLOW,”
the language for the subtitles changes
according to the language you selected
for the sound track.
* When you select a language in “MENU,”
“SUBTITLE,” or “AUDIO” that is not
recorded on the DVD VIDEO, one of the
recorded language is automatically selected.
However, depending on the disc, the
language may not be selected automatically.
If you select “OTHERS ” in “MENU,”
“SUBTITLE,” and “AUDIO,” enter a
language code from the “Language code list”
(page 101) using the numeric buttons .
Setting the TV screen  SCREEN SETUP
Choose the settings according to the TV
you connected.
COLOR SYSTEM (VIDEO CD)
(Except for European and Russian
models)
Select the output video signal when you
play back a VIDEO CD.
AUTO: Output the video signal
according to the color system of the disc,
either PAL or NTSC.
PAL: Change the video signal of an
NTSC disc and output it in PAL system.
NTSC: Change the video signal of a PAL
disc and output it in NTSC system.
Disc
TV TYPE1)
(DVD VIDEO only)
16:9: Select this when you connect a
wide-screen TV or a TV with a wide
mode function.
4:3 LETTER BOX: Select this when you
connect a 4:3 screen TV. This setting
displays a wide picture with bands on the
upper and lower portions of the screen.
4:3 PAN SCAN2): Select this when you
connect a 4:3 screen TV. This setting
displays the wide picture on the entire
screen and cuts off the portions that do
not fit.
SCREEN SAVER
The screen saver will help prevent your
display device from becoming damaged
(ghosting). Press   (or DVD  
on the unit) to turn off the screen saver.
ON: The screen saver image appears
when playback is stopped or paused for
15 minutes or when you play back an
AUDIO CD or MP3 audio tracks for
more than 15 minutes.
OFF: The screen saver does not appear.
BACKGROUND
Selects the background color or picture
to be displayed on the TV screen. The
background color or picture is displayed
when playback is stopped or while playing
an AUDIO CD and MP3 audio tracks.
JACKET PICTURE: The jacket picture
(still picture) appears in the background,
but only when the jacket picture is
already recorded on the disc (DVD
VIDEO, CD-EXTRA, etc.). If the disc
does not contain a jacket picture, the
“GRAPHICS” picture appears.
GRAPHICS: A preset picture stored in
the system appears in the background.
BLUE: The background color is blue.
BLACK: The background color is black.
4:3 OUTPUT3)
Change this setting to watch 4:3
aspect ratio progressive signals. If
you can change the aspect ratio on
your progressive format (525p/625p)
compatible TV, change the setting on
your TV.
Continued

57GB
FULL: Select this when you can change
the aspect ratio on your TV.
NORMAL: Select this when you cannot
change the aspect ratio on your TV.
Shows a 16:9 aspect ratio signal with
black bands on left and right sides of the
image.
16:9 aspect ratio TV
1)
The default setting varies depending on the
country or region.
16:9
4:3 LETTER BOX
4:3 PAN SCAN
Depending on the DVD VIDEO, “4:3
LETTER BOX” may be selected automatically
instead of “4:3 PAN SCAN” or vice versa.
3)
This setting is effective only when
 you set “TV TYPE” in “SCREEN SETUP”
to “16:9.”
 “P AUTO” or “P VIDEO” is selected
(page 21).
2)
58GB
Setting playback options  CUSTOM
SETUP
Set up playback related and other
settings.
PAUSE MODE
(DVD VIDEO and DVD-R/-RW in VR
mode only)
AUTO: The picture, including subjects
that move dynamically, is output with no
jitter. Normally select this position.
FRAME: The picture, including subjects
that do not move dynamically, is output
in high resolution.
TRACK SELECTION
(DVD VIDEO only) Gives priority to the
sound track which contains the highest
number of channels when you play back
a DVD VIDEO on which multiple audio
(PCM, DTS, MPEG audio, or Dolby
Digital) formats1) are recorded.
OFF: No priority given.
AUTO2): Priority given.
MULTI-DISC RESUME
(DVD VIDEO and VIDEO CD only)
ON: Stores the resume playback point in
the memory for up to 40 discs.
OFF: Does not store the resume playback
point in the memory. Playback starts at
the resume playback point only for the
current disc in the system.
Disc
AUDIO DRC3) (Dynamic Range
Compression)
(DVD VIDEO and DVD-R/-RW in VR
mode only)
OFF: No compression of dynamic range.
STANDARD: Reproduces the sound
track with the kind of dynamic range that
the recording engineer intended. Useful
for watching movies at low volume late
at night.
MAX: Narrows the dynamic range fully.
DivX
Display the registration code for this
system.
For more information, go to http://www.
divx.com on the Internet.
If each audio sound track has the same
number of channels, the system selects the
audio sound tracks in the order from PCM,
DTS, Dolby Digital, to MPEG.
2)
When you set “TRACK SELECTION” to
“AUTO,” the language may change. The
“TRACK SELECTION” setting has higher
priority than the “AUDIO” settings in
“LANGUAGE SETUP”. However, depending
on the disc, this function may not be
performed.
3)
AUDIO DRC can only be performed with
Dolby Digital sources.
1)
59GB
Tuner
Listening to the radio
You can listen to a radio station either by
selecting a preset station, or by manually
tuning in the station.
If “TUNED” does not appear and
the scanning does not stop, press
TUNING +/  repeatedly to tune
in the station you want.
When you tune in a station that
provides RDS services, the station
name appears on the display.
(European model only)
3 Adjust the volume.
Press VOLUME +/ .
Listening to FM or AM
1 Press FUNCTION +/ 
repeatedly to select “TUNER FM”
or “TUNER AM” (or press TUNER/
BAND  on the unit repeatedly
to select “FM” or “AM”).
2 Press and hold TUNING +/ 
until the frequency indication
changes and then release.
Scanning stops automatically when
a station is tuned in and “TUNED”
lights up in the display. When a FM
stereo program is tuned in, “ST”
lights up in the display.
60GB
To stop automatic scanning
Press  .
To change the AM tuning interval
The factory setting for AM tuning
interval is 9 kHz (or 10 kHz, for some
areas, this function is not available on the
European and Russian models).
Use buttons on the unit.
1 Press TUNER/BAND  on the unit
repeatedly to select “AM.”
2 Press /  to turn off the system.
3 Press DISPLAY  to display the clock.
4 While the clock is displayed, hold
down TUNER/BAND  and then
press /  to turn on the system.
“AM 9k Step” or “AM 10k Step”
appears in the display.
When you change the interval, all the
AM preset stations are erased.
Tips
To improve broadcast reception, adjust the
supplied antennas, or connect an external
antenna.
When an FM stereo program has static noise,
press REPEAT/FM MODE  repeatedly
until “MONO” lights up in the display. There
will be no stereo effect, but the reception will
improve.
4 Press PRESET +/  repeatedly
to select the preset number you
want.
5 Press ENTER .
“Complete!” appears in the display.
The station is stored.
6 Repeat steps 1 to 6 to store
1 Tune in the desired station
(see “Listening to FM or AM”
(page 60)).
2 Press DVD/USB/TUNER MENU
.
“Memory?” flashes in the display.
3 Press ENTER .
A preset number flashes in the
display.
The stations are stored from preset
number 1.
other stations.
You can preset up to 20 FM stations
and 10 AM stations.
The preset stations are retained for
half a day even if you unplug the
power cord or if a power failure
occurs.
Tuner
Listening to preset radio
station
7 To listen to a preset station,
press PRESET +/  repeatedly
to select the preset station you
want.
You can also press the numeric
buttons , then press ENTER  to
select a preset station.
To cancel presetting
Press DVD/USB/TUNER MENU .
Preset number
61GB
USB Device
2 Connect an optional USB device
(Digital music player or USB
storage media) to the (USB)
port  as shown below.
Listening to music of
an USB device
You can connect an optional USB device
(Digital music player or USB storage
media) to the
(USB) port  on the
unit and listen to music stored in the
USB device. See “Playable USB devices”
(page 103) for a list of USB devices that
can be connected to this system.
The audio formats that can be played
back by this system are as follows:
ATRAC/MP3*/WMA*/AAC*
* Files with copyright protection (Digital
Rights Management) cannot be played by
this system.
Files downloaded from an online music store
may not be played by this system.
1 Select the USB function.
Press FUNCTION +/  repeatedly
to select “USB”.
USB device (Digital
music player or USB
storage media)
When USB cable connection is necessary,
connect the USB cable supplied with the
USB device to be connected.
See the operation manual supplied with
the USB device to be connected for
details on the operation method.
When the USB device is connected, the
display changes as follows:
“Reading”  “ATRAC AD1)” or
“StorageDrive2)”
When connecting a digital music player.
When connecting USB storage media. The
volume label is displayed next if recorded.
1)
2)
Note
It may take about 10 seconds before “Reading”
appears depending on the type of USB device
connected.
62GB
3 Start playback.
Press   (or USB   on the
unit).
4 Adjust the volume.
Press VOLUME +/ .
Other operation
Select a track / .
Find a point in Hold down /
 during playback,
a track
and release the button
at the desired point.
Select Repeat REPEAT/FM MODE
 repeatedly until
Play
“REP” or “REP1”
appears.
Hold down   until
“No Device” appears,
then remove the USB
device.
View the
USB device
information*
DISPLAY 
repeatedly.
* For example, you can view the USB device
information such as the track number or
album name during normal play, or the total
playing time while the player is stopped.
To change the play mode
1 Press DVD/USB/TUNER MENU 
while the USB device is stopped.
“Play Mode?” appears in the display.
2 Press ENTER .
USB Device
To
Press
Stop playback  .
Pause playback  . Press   again
or   (or USB
  on the unit) to
resume playback.
Select an album
+/ .
Remove the
USB device
3 Press  or   repeatedly to select
the play mode.
You can select the following play
modes:
Continue (Normal Play):
Plays back the audio tracks on the
USB device in original order.
AlbmContinue:
Plays back the audio tracks in the
selected album on the USB device.
Shuffle:
Plays back the audio tracks on the
USB device in random order.
Continued

63GB
Albm Shuffle:
Plays back the audio tracks in the
selected album on the USB device
in random order.
Program:
Plays back the audio tracks on the
USB device in the order you want
them to be played.
Notes on the USB device
Do not connect the system and the USB
device through a USB hub.
With some connected USB devices, after an
operation is performed, there may be a delay
before it is performed by this system.
This system does not necessarily support all
the functions provided in a connected USB
device.
The playback order for the system may differ
from the playback order of the connected
USB device.
Always hold down   and make sure that
“No Device” appears before removing the
USB device. Removing the USB device while
“No Device” is not displayed may corrupt the
data on it or damage the USB device itself.
Do not save other types of files or
unnecessary folders on an USB device that
has audio files.
Folders that have no audio files are skipped.
Files are played back in the order that they
are transferred to the USB device.
64GB
The maximum numbers of albums and tracks
that can be contained on a single USB device
are as follows:
 Digital music player: 65,535 groups
(maximum 999 tracks per group)
 USB storage media: 999 files
The maximum number of tracks and album
may vary depending on the file and folder
structure.
The audio formats that you can listen to with
this system are as follows:
 MP3: file extension “.mp3”
 Windows Media Audio file: file extension
“.wma”
 AAC: file extension “.m4a”
Note that even when file names have the
above file extensions, if the actual file differs,
the system may produce noise or may
malfunction.
Compatibility with all encoding/writing
softwares, recording devices, and recording
media cannot be guaranteed. Incompatible
USB device may produce noise or interrupted
audio or may not play at all.
Notes on the display information
Creating your own
program with the USB
device
 Program Play
1 Select the USB function.
Press FUNCTION +/  repeatedly
to select “USB”.
2 Press DVD/USB/TUNER MENU
 while the USB device is
stopped.
“Play Mode?” appears in the display.
3 Press ENTER .
4 Press  or   repeatedly to
USB Device
Characters that cannot be displayed appear
as “_.”
The following are not displayed:
 total playing time for a CD-DA disc
depending on the play mode.
 total playing time and remaining playing
time for an MP3 disc and USB device.
The following are not displayed correctly:
 folder and file names that do not follow
either the ISO 9660 Level 1, Level 2 or
Joliet in the expansion format.
The following are displayed:
 ID3 tag information for MP3 files when
ID3 version 1 and version 2 tags are used
(up to 62 characters for an MP3 disc).
 ID3 tag information for “ATRAC” files
when ID3 version 2 tags are used.
select “Program,” then press
ENTER .
Continued

65GB
5 Press /  repeatedly
until the desired track number
appears.
When programming tracks, press
+/  repeatedly to select the
desired album, and then select the
desired track.
Example: When programming tracks
on a USB device
8 To play your program of tracks,
press   (or USB   on
the unit).
The program remains available until
you remove the USB device. To play
the same program again, press  
(or USB   on the unit).
To cancel Program Play
Select the play mode other than
“Program” in step 4.
To delete the last track of the program
Selected track number
6 Press ENTER  to add the track
to the program.
The total program time cannot be
displayed, so “ . ” appears.
7 Repeat steps 5 through 6 to
program additional tracks, up to
a total of 25 tracks.
66GB
Press CLEAR  while the USB device is
stopped.
Sound Adjustment
Singing along: Karaoke
Adjusting the sound
Generating a more dynamic
sound (Dynamic Sound
Generator X-tra)
You can reinforce the bass and create a
more powerful sound.
The DSGX setting is ideal for music
sources.
repeatedly.
Each time you press the button, the
display changes as follows:
DSGX ON  DSGX OFF
Tip
The default setting is “DSGX ON.”
Setting the sound effect
1 Press EQ  repeatedly to select
“BASS” or “TREBLE.”
2 Press PRESET +/  repeatedly
Preparing for karaoke
(DVD VIDEO, DVD-R/-RW in VR
mode, VIDEO CD, AUDIO CD, MP3
audio tracks and DivX video files only)
1 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
2 Turn MIC LEVEL  on the
unit to “MIN” to reduce the
microphone volume and turn
ECHO LEVEL * on the unit to
“MIN” to cancel the echo effect.
Sound Adjustment
Press DSGX  on the unit
You can sing along with any multiplex
AUDIO CD, multiplex VIDEO CD or
DVD VIDEO in Dolby Digital Karaoke
format.
3 Connect an optional
microphone to MIC jack  on
the unit.
to adjust the level.
Continued

67GB
4 Press KARAOKE MODE .
“KARAOKE MODE: ON” appears on
the TV screen.
5 Start playing the music and
adjust the volume.
DVD VIDEO, DVD-R/-RW in VR
mode or DivX video files:
The system outputs the audio format
that you have selected.
AUDIO CD, VIDEO CD or MP3
audio tracks:
The audio setting automatically
changes to “1/L” and the system
outputs the left channel audio on both
front and surround channels.
If you want to hear vocal:
Press AUDIO  repeatedly to select
another audio channel.
6 Start singing along with the
music.
68GB
Other operations
To
Adjust the
microphone
volume
Adjust the
microphone
echo
Cancel the echo
effect
Turn
MIC LEVEL  on the
unit.
ECHO LEVEL * on
the unit.
ECHO LEVEL * on
the unit to “MIN.”
* Except for European and Russian
models
To turn off the Karaoke Mode
Disconnect the microphone or press
KARAOKE MODE . “KARAOKE
MODE: OFF” appears on the TV screen.
Notes
You cannot activate karaoke mode in step 4
when the QUICK SETUP guide message is
displayed on the TV screen.
Karaoke Mode is automatically turned off
when you:
 turn off the system.
 change the function.
 connect the headphones.
Dolby Digital Karaoke format
(DVD VIDEO only)
The Dolby Digital format, which
reproduces surround sound using
5 channels, can also contain the
“Dolby Digital Karaoke” format
which is specialized for karaoke. In
the Dolby Digital Karaoke format
discs, guide melody and guide vocal
tracks are recorded in addition to the
accompaniment. You can select them
when Karaoke Mode is turned on.
Speaker output in normal Dolby
Digital format (5.1 channel)
Center
Front (L)
Example:
2/0: Recorded only with accompaniment.
3/0: Recorded with guide melody.
3/1: Recorded with guide melody and one guide vocal.
3/2: Recorded with guide melody and two guide vocals.
Front (R)
Sound Adjustment
Surround (L)
You can check the audio information by
pressing AUDIO  (page 30). When
playing a Dolby Digital Karaoke disc,
“” appears at the current audio format
(page 78).
Surround (R)
Speaker output in Dolby Digital
Karaoke format
Accompaniment
Accompaniment
Front (L)
Center
Front (R)
Guide melody
Surround (L)
Surround (R)
Guide vocal 1
Guide vocal 2
You can select any of these.
Continued

69GB
Enjoying karaoke using the
control menu
1 Press
DISPLAY  once or
twice when Karaoke Mode is
turned on while playing a disc.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select the Karaoke item from the
displayed list, then press ENTER
.
The Karaoke item is selected.
3 Press  or   repeatedly to
select the setting you want,
then press ENTER .
70GB
Setting Karaoke Mode
The default settings are underlined.
KARAOKE PON1)
ON: Enjoy karaoke with any disc, even
if it is not a karaoke or multiplex disc by
reducing the sound of the vocal.
OFF: Cancel the “KARAOKE PON”
effect.
KEY CONTROL2)
Adjust the pitch of the music to suit your
vocal range.
Select “” to cancel the “KEY
CONTROL” effect.
VOCAL SELECT3)
(DVD VIDEO, VIDEO CD, AUDIO CD
only)
When playing a DVD VIDEO:
OFF (Turn off the Guide vocal)

1+2 (Guide vocal 1+2)

1 (Guide vocal 1)

2 (Guide vocal 2)
When playing a VIDEO CD or AUDIO
CD:
OFF (Turn off the vocal)

L+R (The same sound is output
from both speakers)

STEREO (The standard stereo
sound)
SCORE MODE5)
When Karaoke Mode is turned on, you
can select this.
Your score is calculated by comparing
your voice with the music source.
NORMAL: Advance or professional level.
EASY: Beginner or intermediate level.
DEMO: Demonstration mode.
Consistently displays a high score for
every song.
1 Press SCORE  before singing a
song in Karaoke Mode.
The previous highest score appears on
the TV screen.
2 After singing for more than a minute,
press SCORE  again to view your
score.
Your score is calculated from a scale
of 0 to 99.
Continued

Sound Adjustment
When playing a Super VCD:
OFF (Turn off the vocal)

1:L+R

1:STEREO (The stereo sound of
the audio track 1)

2:L+R

2:STEREO (The stereo sound of
the audio track 2)
GUIDE MELODY4)
(DVD VIDEO only)
ON: Turn on the guide melody.
OFF: Turn off the guide melody.
71GB
The singer’s voice may not be reduced when:
 only a few instruments are playing.
 a duet is being played back.
 the source has strong echoes or chorus.
 the singer’s voice deviates from the center.
 the voice on the source is singing in high
soprano or tenor.
You can also change the “KARAOKE PON”
setting by pressing KARAOKE PON 
when the Karaoke Mode is turned on.
The “KARAOKE PON” setting is
automatically changed to “OFF” when you
set “VOCAL” to “ON.”
2)
You can also change the “KEY CONTROL”
setting by pressing KEY CONTROL   to
reduce the key and KEY CONTROL   to
increase the key when the Karaoke Mode is
turned on.
The “KEY CONTROL” setting is
automatically changed to default setting
when you change the track or title.
Depending on the disc, you may not be able
to do the above operation.
3)
The “VOCAL” setting is automatically
changed to “OFF” when you set “KARAOKE
PON” to “ON.”
For DVD VIDEOs without guide vocal, you
cannot turn on the vocal. When playing a
DVD VIDEO, the function only works for
Dolby Digital Karaoke format. For DVD
VIDEOs with 1 guide vocal recorded, you
cannot change the vocal.
Depending on the disc, you may not be able
to change the vocal.
1)
72GB
When playing a DVD VIDEO, the function
only works for Dolby Digital Karaoke format.
For DVD VIDEOs without guide melody,
you cannot hear the guide melody even if you
set the setting to “ON.”
5)
The highest score is reset when the system is
turned off.
If you press other buttons on the remote, the
score calculating function may be canceled.
In some cases, you may not be able to use the
scoring mode.
4)
Note
Each Karaoke setting in the table above is
automatically changed to “OFF” or to the
default setting when you:
 turn off the system.
 change the function.
 connect the headphones.
 turn off the Karaoke Mode.
 eject the disc.
Other Operations
Using the timer
Falling asleep to music
 Sleep Timer
You can set the system to turn off after a
certain time, so that you can fall asleep
to music.
Press SLEEP  repeatedly.
Other operations
To
Check the
remaining time
Change the
time to turn off
Cancel the
Sleep Timer
Do this
Press SLEEP  once.
Press SLEEP 
repeatedly to select the
time you want.
Press SLEEP 
repeatedly until “SLEEP
OFF” appears in the
display.
 Play Timer
You can wake up to CD, tuner or optional
USB device at a preset time. Make sure
you have set the clock (see “Setting the
clock” (page 23)).
1 Prepare the sound source.
Disc: Insert a disc.
Radio: Tune in the preset station
you want (see “Listening to the
radio” (page 60)).
USB device: Connect an optional
USB device (page 62).
2 Press VOLUME +/  to adjust
the volume.
3 Press TIMER MENU .
4 Press  or   repeatedly to
select “PLAY SET?,” then press
ENTER .
“ON” appears and the hour indication
flashes in the display.
5 Set the time to start playback.
Other Operations
Each time you press the button, the
minute display changes cyclically as
follows:
90min  80min  70min  … 
10min  OFF
Waking up to music
Press  or   repeatedly to set the
hour, then press ENTER .
The minute indication flashes in the
display. Use the procedure above to
set the minute. “OFF” appears and the
hour indication flashes in the display.
Continued

73GB
6 Set the time to stop playback
using the same procedure as
step 5.
7 Select the sound source.
Press  or   repeatedly until the
music source you want appears in the
display, then press ENTER . This
display will show the timer settings.
8 Press   to turn off the
system.
Other operations
To
Check the
setting
Do this
1 Press TIMER
MENU .
“TIMER SEL?”
flashes in the display.
2 Press ENTER .
3 Press  or  
repeatedly to select
“PLAY SELECT?,”
then press
ENTER .
Start from step 1.
Change the
setting
Cancel the Play 1 Press TIMER
Timer
MENU .
“TIMER SEL?”
flashes in the display.
2 Press ENTER .
3 Press  or  
repeatedly to select
“TIMER OFF?,” then
press ENTER .
74GB
Notes
The Play Timer will not be activated if the
system is turned on or if “STANDBY” flashes
in the display.
The system turns on 30 seconds before the
preset time.
Changing the display
Checking the clock
Press DISPLAY  when the system
is turned off. The clock is displayed
for 8 seconds.
Viewing information
about the disc
Viewing information about the
disc in the front panel display
Press DISPLAY .
Adjusting the brightness of the
display
Each time you press DISPLAY , the
display changes from     
…
 Disc information
 Clock display (for 8 seconds)
Press DIMMER  repeatedly while
the system is on.
Checking the elapsed playing time,
remaining time and titles
* DIMMER 2 is the darkest.
Press TIME/TEXT  during playback.
Each time you press TIME/TEXT , the
display changes from     … 
…
When playing a DVD VIDEO or DVDR/-RW in VR mode:
When the menu or the title without a
chapter is played back
 Elapsed playing time of the menu
or the current title
 Title of the disc1)
Continued

Other Operations
Each time you press the button, the
display changes cyclically as follows:
DIMMER OFF  DIMMER 1 
DIMMER 2*
75GB
When a chapter other than above
condition is played back
 Elapsed playing time of the current
title
 Remaining time of the current title
 Elapsed playing time of the current
chapter
 Remaining time of the current
chapter
 Title of the disc1)2)
When playing an AUDIO CD or VIDEO
CD without PBC function:
 Elapsed playing time of the current
track
 Remaining time of the current track
 Elapsed playing time of the current
disc3)
 Remaining time of the current disc3)
 Title of the disc1)4)
When playing a VIDEO CD/Super
VCD:
 Elapsed playing time of the current
scene/track
 Title of the disc1)4)
When playing MP3 audio tracks on a
DATA CD/DVD or DivX video files on a
DATA CD/DVD:
 Elapsed playing time of the current
track/file
 Title of the track and file5)
76GB
Checking the total playing time and
titles
Press TIME/TEXT  repeatedly when
playback is stopped.
Each time you press TIME/TEXT ,
the display changes from    
…
DVD VIDEO or DVD-R/-RW in VR
mode:
 Total number of titles on the disc
 Title of the disc1)
VIDEO CD without PBC playback or
AUDIO CD:
 Total number of the tracks on the disc
and the total playing time of the disc
 Title of the disc1)
VIDEO CD with PBC playback:
 Total number of scenes on the disc
 Title of the disc1)
“NO TEXT” appears in the display if the
DVD VIDEO is not a DVD-TEXT disc or the
VIDEO CD does not have text information.
2)
The current chapter number and the current
title number are displayed for 2 seconds
before the display returns to elapsed playing
time when you press TIME/TEXT  during
display of title of the disc.
3)
When Program Play or Shuffle Play is
turned on, the elapsed playing time and the
remaining time of the disc would be skipped.
1)
The current track number and the current
index number (for a disc without PBC) or the
current scene number (for a disc with PBC)
are displayed for 2 seconds before the display
returns to elapsed playing time when you
press TIME/TEXT  during display of the
title of disc.
5)
When playing DivX video files, the current
album number and the current file number
are displayed for 2 seconds before the display
returns to elapsed playing time when you
press TIME/TEXT  during display of title
of the file.
4)
Notes
Press TIME/TEXT .
Each time you press TIME/TEXT 
while playing the disc, the display
changes from     …  
…
The time display that you can view on the
TV screen depends on the disc you are
playing.
T: title or track
C: chapter
D: disc
Bit rate
Time information
Album Title
Other Operations
If you play back a disc containing JPEG
image files only, “JPEG” or “No Audio”
appears in the display.
You cannot use TIME/TEXT  to change
the display of disc information when:
 a JPEG image file is played back.
 playback is stopped for DATA CD/DVD
with MP3 audio tracks and/or JPEG
image files.
 playback is stopped for DATA CD/DVD
with DivX video files.
If the MP3 audio track title contains
characters which cannot be displayed, these
characters will be displayed as “*.”
The elapsed playing time of MP3 audio tracks
and DivX video files may not be displayed
correctly.
Viewing information about the
disc in the on-screen display
Disc/track/file title
When playing a DVD VIDEO or DVDR/-RW in VR mode:
 Elapsed playing time of the current
title
 Remaining time of the current title
 Elapsed playing time of the current
chapter
 Remaining time of the current chapter
 Title of the disc
Continued

77GB
When playing a VIDEO CD/Super
VCD:
 Elapsed playing time of the current
scene/track
 Title of the disc
When playing a DVD VIDEO:
For example, in Dolby Digital format,
multiple signals ranging from monaural
to 5.1 channel signals can be recorded on
a DVD VIDEO.
When playing an AUDIO CD or VIDEO
CD without PBC function:
 Elapsed playing time of the current
track
 Remaining time of the current track
 Elapsed playing time of the current
disc
 Remaining time of the current disc
 Title of the disc
Example:
For Dolby Digital 5.1 channel:
When playing a DATA CD/DVD:
Elapsed playing time of the current
track/file
Notes
Only alphabet letters, numbers and some
symbols can be displayed.
Depending on the disc, the system can only
display a limited number of characters.
For MP3 audio tracks with format other than
ISO 9660 Level 1 and Level 2, album title and
track title may not be displayed.
Displaying the audio information of
the disc
(DVD VIDEO and DivX video files only)
When you press AUDIO  repeatedly
during playback, the format of the
current audio signal is displayed on the
TV screen.
78GB
2 Surround components
2 Front components +
1 Center component
1 LFE (Low Frequency
Effect) component
When playing a DivX video file:
Example:
MP3 audio track
Bit rate
Checking the date information
of JPEG image files
You can check the date information
during playback when Exif* tag is
recorded in the JPEG image files.
Press DISPLAY  repeatedly
during playback.
The Control Menu appears.
Hooking up optional
components
To enhance your system, you can connect
optional components. Refer to the
operating instructions provided with
each component.
Front panel
Date information
Note
Other Operations
* “Exchangeable Image File Format” is a
digital camera image format defined by the
Japan Electronics & Information Technology
Industries Association (JEITA).
Rear panel
The date information format varies depending
on the area.
Continued

79GB
AUDIO IN jack
Connect the audio output jack of an
optional component (portable audio
player, etc.).
COMPONENT VIDEO OUT jacks
Connect the component video input
jacks of the TV or projector. If your
TV accept progressive format signals,
you must use this connection and
press PROGRESSIVE  on the unit
repeatedly to select “P AUTO” or “P
VIDEO.” You can enjoy higher quality
video images.
S VIDEO OUT/VIDEO OUT jacks
Connect the S Video/video input
jack of the TV. You can enjoy higher
quality video images when you select
the S VIDEO.
DIGITAL OUT jack
Connect the digital optical input jack
of an optional digital component
(such as amplifier). You can enjoy
5.1 channel sound, if the connected
amplifier equipped with Dolby Digital
or DTS decoder.
Note
Sound is output only when the system
function is set to “DVD.”
80GB
Enjoying the multi channel
sound with the optional
amplifier
1 Connect the digital optical cord.
See “Hooking up optional
components” (page 79).
2 Connect the speakers to an
optional amplifier equipped
with a decoder.
For the speakers placement, refer to
the operating instructions supplied
with the connected amplifier.
3 Start playing a multi channel
source, such as a DVD VIDEO.
4 Select the audio format you
want.
See “Changing the sound” (page 30).
Additional Information
Troubleshooting
Should you encounter a problem with
your system, do the following:
1 Make sure the power cord and
speaker cords are connected
correctly and firmly.
2 Find your problem in the
troubleshooting checklist below and
take the indicated corrective action.
If the problem persists after doing all
of the above, consult your nearest Sony
dealer.
If the STANDBY indicator flashes
After the STANDBY indicator 
stops flashing, reconnect the power
cord, and turn on the system. If the
issue persists, contact your nearest
Sony dealer.
The clock or timer setting is canceled.
The power cord is disconnected or a
power failure occurred. Redo “Setting
the clock” (page 23). If you have set
the timer, redo “Waking up to music”
(page 73).
“– –:– –” appears in the display.
A power failure has occurred. Set the
clock (page 23) and timer settings
(page 73) again.
There is no sound.
Press VOLUME +  repeatedly.
The headphones are connected to the
PHONES jack .
Check the speaker connections
(page 18).
The system is in pause mode, in Slowmotion Play or in Lock Search. Press
  (or DVD   on the unit) to
start the playback.
There is no microphone sound.
Press VOLUME +  repeatedly or
turn MIC LEVEL  on the unit
clockwise to adjust the microphone
volume.
Make sure the microphone is
connected to the MIC jack 
correctly.
Continued

Additional Information
Immediately unplug the power cord,
and check the following items.
If your system has a voltage
selector, is the voltage selector set
to the correct voltage?
Are you using only the supplied
speakers?
Is anything blocking the ventilation
holes on the rear of the system?
General
81GB
There is severe hum or noise.
A TV or VCR is placed too close to the
unit. Move the unit away from the TV
or VCR.
Move the unit away from the source of
noise.
Connect the unit to a different wall
outlet.
Install a noise filter (commercially
available) to the power cord.
The timer does not function.
Check the timer setting and set the
correct time (page 73).
Cancel the Sleep Timer function
(page 73).
The remote does not function.
Remove the obstacles between the
remote and the unit.
Move the remote closer to the unit.
Point the remote at the unit’s sensor.
Replace the batteries (R6/size AA).
Locate the unit away from the
fluorescent light.
82GB
There is acoustic feedback.
Reduce the volume.
Move the microphone away from the
speakers or change the direction of the
microphone.
The color irregularity on a TV screen
persists.
Turn off the TV set once, then turn it
on after 15 to 30 minutes. If the color
irregularity still persists, place the
speakers farther away from the TV set.
THEATRE SYNC function does not
work.
If distance between the TV and this
unit is too far, this function may not
work. Install the unit near the TV.
Speakers
Sound comes from one channel or
unbalanced left and right volume.
Place the speakers as symmetrically as
possible.
Check that the speakers are connected
securely and correctly.
The source being played back is
monaural.
Disc Player
The disc does not eject.
Consult your nearest Sony dealer.
The sound skips.
Wipe the disc clean (page 93).
Reinsert the disc.
Move the unit to a place without
vibration (e.g., on top of a stable
stand).
Move the speakers away from the
unit, or place them on separate stands.
When you listen to a track with bass
sounds at high volume, the speaker
vibration may cause the sound to skip.
Playback starts automatically.
The DVD VIDEO features an auto
playback function.
Playback stops automatically.
Some discs may contain an auto pause
signal. While playing such a disc, the
playback stops at auto pause signal.
You cannot perform some functions
such as Stop, Lock Search, Slowmotion Play, Repeat Play, Shuffle Play
or Program Play.
Depending on the disc, you may not
be able to do some of the operations
above. Refer to the operating
instructions supplied with the disc.
Continued

Additional Information
Playback does not start.
Check whether a disc is loaded.
Wipe the disc clean (page 93).
Reinsert the disc.
Insert the disc that this system can play
back (page 6).
Insert the disc in the disc slot  with
the label side facing up.
Remove the disc and wipe away the
moisture on the disc, then leave the
system turned on for a few hours until
the moisture evaporates.
Press   (or DVD   on the
unit) to start playback.
The region code on the DVD VIDEO
does not match the system.
Cancel the Custom Parental Control
function (page 51).
Playback does not start from the first
track.
The system is in Program Play or
Shuffle Play mode. Turn off Program
Play and Shuffle Play.
Resume Play has been selected. Press
  twice. Then, press   (or
DVD   on the unit) to start
playback (page 32).
The title of DVD VIDEO or PBC
menu automatically appears on the TV
screen.
83GB
The DATA CD (MP3 audio track/JPEG
image file/DivX video file) cannot be
played back.
The DATA CD is not recorded in a
format that conforms to ISO 9660
Level 1, Level 2, or Joliet (expansion
format).
The DATA DVD is not recorded
in a format that conforms to UDF
(Universal Disk Format).
The MP3 audio track does not have the
extension “.MP3”.
The data is not stored in the desired
format.
The MP3 audio tracks in format other
than MPEG 1 Audio Layer 3 cannot be
played back.
The system can playback to a depth of
8 folders only.
For MP3/JPEG files, check the “MODE
(MP3, JPEG)” setting (page 41).
The disc contains more than 200
albums.
The album contains more than 600
tracks/files.
For MP3/JPEG files, the album
contains more than 300 tracks/files
when the “MODE (MP3, JPEG)” is set
to “AUTO.”
84GB
For MP3/JPEG files, the DATA CD/
DVD contains a DivX video file.
The JPEG image file does not have the
extension “.JPG” or “.JPEG”.
The JPEG image file is larger than
3,072 (width) × 2,048 (height) in
normal mode, or more than 2,000,000
pixels in Progressive JPEG mode which
is mainly used on the Internet website.
JPEG image files with a high width to
length ratio cannot be played back.
The DivX video file does not have the
extension “.AVI” or “.DIVX”.
DivX video files with a high width to
length ratio cannot be played back.
The MP3 audio tracks take longer
time to play back than others.
After the system reads all the tracks on
the disc, playback may take more time
than usual if:
 the number of albums or tracks on
the disc is very large.
 the album and track organization
structure is very complex.
The disc title, album title, track title
and DVD-TEXT characters do not
appear properly.
Use a disc that conforms to the
ISO 9660 Level 1, Level 2, or Joliet
(expansion).
The character code that can be
displayed by this system are as follows:
 Upper cases (A to Z)
 Lower cases (a to z)
 Numbers (0 to 9)
 Symbols (< > * +,  / [ ] _)
Other characters may not be displayed
correctly.
USB device
The surround effect is difficult to hear
when you are playing a Dolby Digital
or MPEG audio sound track.
Check the speaker connections
(page 18).
Depending on the DVD VIDEO, the
output signal may not be the entire 5.1
channel. It may be monaural or stereo,
even if the sound track is recorded in
Dolby Digital or MPEG audio format.
“Over Current” appears.
A problem has been detected with the
level of electrical current from the
(USB) port . Turn off the system and
remove the USB device from the
(USB) port . Make sure there is no
problem with the USB device. If this
display pattern persists, contact your
nearest Sony dealer.
There is no sound.
The USB device is not connected
correctly. Turn off the system, then
reconnect the USB device and check if
the USB MEMORY indicator  lights
up.
The sound is distorted.
The bit rate used when encoding the
files was low. Send files encoded with
higher bit rates to the USB device.
Continued

Additional Information
The sound loses stereo effect when
you play back an AUDIO CD, VIDEO
CD, MP3 audio track, DivX video file
or DVD VIDEO.
Make sure the system is connected
properly.
Unplug the microphone or press
KARAOKE MODE  repeatedly until
“KARAOKE MODE: OFF” appears on
the TV screen.
Are you using a supported USB
device?
If you connect an unsupported USB
device, the following problems may
occur. See “Playable USB devices”
(page 103) for the supported device
types.
The USB device is not recognized.
File or folder names are not
displayed on this system.
Playback is not possible.
The sound skips.
There is noise.
85GB
There is noise or the sound skips.
Turn off the system, then reconnect the
USB device.
The music data itself contains noise.
Noise may have been introduced
when creating music data due to the
conditions of the computer. Create the
music data again.
When using the USB storage media,
copy the files to your computer, format
the USB storage media in FAT16 or
FAT32 format, and copy the files to the
USB storage media again.*
The USB device cannot be connected
into the
(USB) port .
The USB device is being connected
backwards. Connect the USB device in
the correct orientation.
The USB storage media which has
been used on another device does
not work.
It may be recorded in an unsupported
format. If so, first take the precaution
of backing up important files on the
USB storage media by copying them to
your computer hard disk. Next, format
the USB storage media with a FAT16
or FAT32 file system and transfer the
backed-up audio files onto the USB
storage media again.*
86GB
“Reading” is displayed for a long
time.
It may take a while to finish reading the
USB device if there are many folders
or files on it. Thus, we recommend
following these guidelines.
Total folders on USB device: 100 or
less
Total files per folder: 100 or less
Erroneous display
Send the music data to the USB device
again, as the data stored in the USB
device may have been corrupted.
Play does not start.
Turn off the system, then reconnect the
USB device.
Connect the USB device that this
system can play.
Press   (or USB   on the
unit) to start play.
Play does not start from the first
track.
Set the play mode to Normal Play
mode.
Files cannot be played back.
USB storage media formatted with file
systems other than FAT16 or FAT32 are
unsupported.*
If you use partitioned USB storage
media, only files on the first partition
can be played.
Files that are encrypted or protected by
passwords, etc. cannot be played back.
* This system supports FAT16 and FAT32, but
some USB storage media may not support all
of these FAT. For details, see the operation
manual of each USB storage media or
contact the manufacturer.
Picture noise appears.
Clean the disc.
If video signal from your system has to
go through your VCR to your TV, the
copy-protection applied to some DVD
VIDEO programs could affect the
picture quality. If you still experience
problems after checking your
connections, connect your unit directly
to your TV’s S Video input (page 20).
Continued

Additional Information
There is no picture.
Press FUNCTION +/  repeatedly
to select “DVD” (or press DVD  
on the unit).
Check that the system is connected
securely.
The video cord is damaged. Replace it
with a new one.
Make sure you connect the unit to the
video input jack of your TV (page 20).
Make sure you turn on the TV and
operate the TV correctly.
Press PROGRESSIVE  on the unit
repeatedly to select “INTERLACE”
if you connect your TV to the unit’s
COMPONENT VIDEO OUT jacks
and your TV cannot accept progressive
signal.
You have set to progressive format but
your TV cannot accept the signal in
progressive format. In this case, set to
interlace format (the default setting)
(page 21).
Even if your TV is compatible with
progressive format (525p/625p)
signals, the image may be affected
when you set to progressive format. In
this case, set to interlace format (the
default setting) (page 21).
Make sure you select the video input
on the TV so that you can view the
pictures from the system.
Make sure you set the color system
correctly, according to your TV’s color
system.
Make sure you connect the unit and
your TV using only the supplied video
cord.
87GB
Keep the speaker cords away from the
antennas.
When you play back a VIDEO CD
recorded in a different color system
from the one you set to the system, the
picture image may be distorted.
When you connect your TV to the
COMPONENT VIDEO OUT jacks
and play back video-based software
in progressive signal format, some
sections of the image may appear
unnatural due to the conversion
process.
Set the color system to match your TV
(page 57).
The aspect ratio of the TV screen
cannot be changed even though you
can set “TV TYPE” under “SCREEN
SETUP” in the Setup Menu when you
play back a wide picture.
The aspect ratio is fixed on your DVD
VIDEO.
If you connect the unit with the S
Video cord, connect directly to the TV.
Otherwise, you may not change the
aspect ratio.
Depending on the TV, you may not
change the aspect ratio.
88GB
Messages do not appear on the TV
screen in the language you want.
Select the language you want for the
on-screen display in “OSD” under
“LANGUAGE SETUP” in the Setup
Menu (page 56).
The language for the sound track
cannot be changed.
Multilingual tracks are not recorded on
the DVD VIDEO being played back.
The DVD VIDEO prohibits changing
the language for the sound track.
The subtitles language cannot be
changed.
Multilingual subtitles are not recorded
on the DVD VIDEO being played
back.
The DVD VIDEO prohibits changing
the subtitles.
The subtitles cannot be turned off.
The DVD VIDEO prohibits turning off
subtitles.
The angles cannot be changed.
Multi-angles are not recorded on the
DVD VIDEO being played back.
The DVD VIDEO prohibits changing
the angles.
Tuner
Optional components
The radio presetting is canceled.
The power cord is disconnected or a
power failure occurred for longer than
half a day. Redo “Listening to preset
radio station” (page 61).
There is no sound.
Refer to General item “There is no
sound.” (page 81) and check the
condition of the system.
Connect the component properly
(page 79) while checking:
 if the cords are connected properly.
 if the cord plugs are firmly inserted
all the way.
Turn on the connected component.
Refer to the operating instructions
supplied with the connected
component and start playing.
A stereo FM program cannot be
received in stereo.
Press REPEAT/FM MODE 
repeatedly until “MONO” disappears
from the display.
If the system still does not operate
properly after performing the
above measures or other troubles
not described above occur, reset the
system as follows:
Use buttons on the unit to reset the
system to its factory default settings.
1 Unplug the power cord.
2 Plug the power cord back in.
3 Press   to turn on the system.
4 Press  , DISPLAY  and  
at the same time.
“RESET” appears in the display.
Continued

Additional Information
There is severe hum or noise.
(“TUNED” or “ST” flashes in the
display)
Set the proper band and frequency
(page 60).
Connect the antenna properly
(page 18).
Find a place and an orientation that
provide good reception, then set up
the antenna again. If you cannot obtain
good reception, we recommend that
you connect a commercially available
external antenna.
The supplied FM lead antenna receives
signals along its entire length, so make
sure you extend it fully.
Locate the antennas as far away from
the speaker cords, power cord and the
USB cable as possible, to avoid picking
up noise.
Try turning off the surrounding
electrical equipment.
89GB
The system is reset to the factory settings
except for DVD settings. You should set
the settings you made, such as the preset
stations, clock and timer.
To return the DVD setup to the default
settings*, perform reset as follows:
1 Press
DISPLAY  when playback
is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
ENTER .
(SETUP), then press
3 Press  or   repeatedly to select
“RESET,” then press ENTER .
4 Press  or   repeatedly to select
“YES,” then press ENTER .
It takes a few seconds to complete. Do
not press   when resetting the
system.
* Except for Parental Control settings
90GB
Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self-diagnosis function
is activated to prevent the system
from malfunctioning, a 5-character
service number (e.g. C 13 50) with a
combination of a letter and 4 digits
appears on the TV screen and the front
panel display. In this case, check the
following table.
First 3
Cause and corrective
characters of action
the service
number
C 13
This disc is dirty.
Clean the disc with a
soft cloth (page 93).
C 31
The disc is not inserted
correctly.
Restart the system,
then re-insert the
disc correctly.
E XX
To prevent a
(XX is a
malfunction, the
number)
system has performed
the self-diagnosis
function.
Contact your nearest
Sony dealer or local
authorized Sony
service facility and
give the 5-character
service number.
Example: E 61 10
When displaying the version number
on the TV screen
When you turn on the system, the
version number [VER.X.XX] (X is a
number) may appear on the TV screen.
Although this is not a malfunction and
for Sony service use only, normal system
operation will not be possible. Turn off
the system, and then turn on the system
again to operate.
Messages
One of the following messages may
appear or flash in the front panel display
during operation.
DVD player, Tuner
Cannot Play
A disc that cannot be played back was
inserted.
A DVD VIDEO with unsupported
region code was inserted.
Continued

Additional Information
Data Error
The MP3 audio track, JPEG image file
and DivX video file you want to play
back is damaged.
The MP3 audio track does not conform
to MPEG 1 Audio Layer 3 format.
The JPEG image file does not conform
to DCF format.
The DivX video file does not conform
to a DivX Certified profiles.
The MP3 audio track has the extension
“.MP3” but it is not in MP3 format.
The JPEG image file has the extension
“.JPG” or “.JPEG” but it is not in JPEG
format.
The DivX video file has the extension
“.AVI” or “.DIVX” but it is not in DivX
format.
91GB
No Disc
There is no disc in the disc slot .
Not In Use
You have pressed a button whose
operation is not allowed or invalid at that
time.
OFF TIME NG!
The on time and off time of Play Timer
is the same.
PASSWORD
Custom Parental Control or Parental
Control is set.
Please Wait
The system is doing initialization process.
Reading
The system is reading information of the
disc. Some buttons are not available.
USB device
ATRAC AD
An ATRAC Audio Device is connected.
Device Error
The USB device could not be recognized.
No Device
No USB device is connected or the
connected USB device has been stopped.
92GB
No Step
All of the programmed tracks or files
have been erased.
No Track
No playable file is loaded in the system.
Not Supported
An unsupported USB device is
connected.
Please Wait
The system is readying for usage of an
USB device.
Reading
The system is recognizing the USB
device.
Removed
The USB device has been removed.
Step Full!
You tried to program more than 26 tracks
or files (steps).
StorageDrive
USB storage media is connected.
Precautions
Discs that this system CANNOT play
Discs of non-standard shape (for example,
heart, square, star)
Discs that have adhesive tape, paper, or
sticker attached to them
Rental or used discs with attached seals
where the glue extends beyond the seal
Discs that have labels printed using ink that
feels tacky when touched
Notes on discs
On operating voltage
Before operating the system, check that the
operating voltage of the unit is identical with
the voltage of your local power supply.
The unit is not disconnected from the
AC power source (mains) as long as it is
connected to the wall socket, even if the unit
itself has been turned off.
Completely disconnect the power cord
(mains lead) from the wall socket (mains)
if it is not going to be used for an extended
period of time. When unplugging the unit,
always grip the plug. Never pull the cord
itself.
Should any solid object or liquid get into
the system, unplug the system, and have
it checked by qualified personnel before
operating it again.
The AC power cord can be changed only by a
qualified service facility.
On placement
Do not place the system in an inclined
position or in locations that are extremely
hot, cold, dusty, dirty, or humid or lacking
adequate ventilation, or subject to vibration,
direct sunlight or a bright light.
Be careful when placing the unit or speakers
on surfaces that have been specially treated
(for example, with wax, oil, polish) as
staining or discoloration of the surface may
result.
If the system is brought directly from a cold
to a warm location or is placed in a very
damp room, moisture may condense on the
lens inside the DVD player, and cause the
system to malfunction. In this situation,
remove the disc, and leave the system turned
on for about an hour until the moisture
evaporates.
Continued

Additional Information
Before playing, wipe the disc with a cleaning
cloth from the center out to the edge.
Do not clean discs with solvents, such as
benzine thinner, or commercially available
cleaners or anti-static spray intended for
vinyl LPs.
Do not expose discs to direct sunlight or heat
sources such as hot air ducts, nor leave it in a
car parked in direct sunlight.
Do not use discs encircled with a protection
ring. This may cause a malfunction to the
system.
On safety
93GB
On heat buildup
Heat buildup on the unit during operation is
normal and is not cause for alarm.
Do not touch the cabinet if it has been used
continuously at a high volume because the
cabinet may have become hot.
Do not obstruct the ventilation holes.
On the speaker system
The front speaker is magnetically shielded and
can be installed near a TV. Color irregularity
may still be observed, however on some types
of TV screens. In this situation, turn off the
TV, wait 15 to 30 minutes, and turn it back
on. Place the right speaker on the right side of
the unit and the left speaker on the left side of
the unit. If there is no improvement, move the
speakers far away from the TV.
IMPORTANT NOTICE
Caution: If you leave a still video image
or on-screen display image displayed on
your TV for an extended period of time via
this system, you risk permanent damage
to your TV screen. Projection TVs are
especially susceptible to this.
Cleaning the cabinet
Clean this system with a soft cloth slightly
moistened with a mild detergent solution.
Do not use any type of abrasive pad, scouring
powder, or solvent, such as thinner, benzine,
or alcohol.
94GB
Specifications
Main unit
Amplifier section
DIN power output (rated)
40 W + 40 W (6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
50 W + 50 W (6 ohms at 1 kHz, 10%
THD)
Inputs:
AUDIO IN (stereo mini jack):
Voltage 620 mV, impedance
47 kilohms
MIC (mini jack):
Sensitivity 0.8 mV, impedance
10 kilohms
(USB) port:
Type A, maximum current 500 mA
Outputs:
DIGITAL OUT (square optical connector
jack):
Wavelength 660 nm
VIDEO OUT (phono jack):
Max. output level 1 Vp-p, unbalanced,
Sync. negative load impedance
75 ohms
COMPONENT VIDEO OUT:
Y: 1 Vp-p, 75 ohms
Pb/Cb: 0.7 Vp-p, 75 ohms
Pr/Cr: 0.7 Vp-p, 75 ohms
S VIDEO OUT (4-pin/mini-DIN jack):
Y: 1 Vp-p, unbalanced, Sync. negative
C: 0.286 Vp-p, load impedance
75 ohms
PHONES (stereo mini jack):
accepts headphones of 8 ohms or
more
USB section
Supported bit rate:
MP3 (MPEG 1 Audio Layer-3):
32  320 kbps, VBR
ATRAC: 48  352 kbps
(ATRAC3plus), 66/105/132 kbps
(ATRAC3)
WMA: 32  192 kbps, VBR
AAC: 48  320 kbps
Sampling frequencies:
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
ATRAC: 44.1 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
Disc player section
System:
Compact disc and digital audio and
video system
Laser:
Laser Diode Properties:
Emission duration: continuous
Laser Output*: Less than 1000 µW
Semiconductor laser:
(DVD: λ=650 nm, CD: λ=790 nm)
Frequency response:
DVD (PCM 48 kHz): 2 Hz  22 kHz
(±1dB)
CD: 2 Hz  20 kHz (±0.5 dB)
Video color system format:
European and Russian models: PAL
Other models: NTSC and PAL
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range:
87.5  108.0 MHz (50 kHz step)
Antenna:
FM lead antenna
Antenna terminals:
75 ohms unbalanced
Intermediate frequency:
10.7 MHz
AM tuner section
Tuning range:
European and Russian models:
531  1,602 kHz (with the interval set
at 9 kHz)
Other models:
530  1,710 kHz (with the interval set
at 10 kHz)
531  1,602 kHz (with the interval set
at 9 kHz)
Antenna:
AM loop antenna
Antenna terminals:
External antenna terminal
Intermediate frequency:
450 kHz
Speaker (SS-CDH3)
Speaker system:
2-way, bass-reflex type, magnetically
shielded
Speaker units:
Woofer: 120 mm, cone type
Tweeter: 40 mm, cone type
Rated impedance:
6 ohms
Dimensions (w/h/d):
Approx. 140 × 250 × 211 mm
Mass:
Approx. 2.2 kg
Continued

Additional Information
*This output is the value measurement
at a distance of 200mm from the
objective lens surface on the Optical
Pick-up Block with 7mm aperture.
Tuner section
95GB
General
Power requirements:
Taiwan model: 120 V AC, 50/60 Hz
Thai model: 220 V AC, 50/60 Hz
Other models: 220  240 V AC,
50/60 Hz
Power consumption:
45 W
Dimensions (w/h/d) (Approx.):
190 × 141 × 273 mm
Mass (Approx.):
2.8 kg
Supplied accessories:
Remote Commander (1)
R6 (Size AA) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Video cord (1)
Speaker pads (8)
Design and specifications are subject to
change without notice.
• Standby power
consumption: 0.5 W
• Halogenated flame
retardants are not used in
the certain printed wiring
boards.
96GB
Guide to the Control Menu display
Use the Control Menu to select a function and to view related information. Press
DISPLAY  repeatedly to turn on, turn off or change the Control Menu display as
follows:
Control Menu display 1  Control Menu display 2 (appears for certain discs only) 
Control Menu display off  Control Menu display 1  …
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type.
Example: Control Menu display 1 when playing a DVD VIDEO
Currently playing title number
Currently playing chapter number
Total number of titles
Total number of chapters
Selected item
Playback status ( Playback,
 Pause,  Stop, etc.)
Type of disc being played
back
Elapsed playing time
Current setting
Options
Function name of
selected Control
Menu item
Additional Information
Control Menu
items
Operation message
Continued

97GB
List of Control Menu items
Item
Item Name, Relevant Disc Type, Function
TITLE/SCENE/TRACK
Selects the title, scene, or track to be played back.
CHAPTER/INDEX
Selects the chapter or index to be played back.
TRACK
Selects the track to be played back.
ORIGINAL/PLAY LIST
Selects the playback sequence either to the originally recorded
sequence or to the playlist created on the disc.
TIME/TEXT
Checks the elapsed playing time and the remaining time.
Inputs the time code for picture and music searching.
Displays the text information on the DVD TEXT discs and MP3 audio
tracks.
PROGRAM
Plays back the track in the order you want.
SHUFFLE
Plays back the track in random order.
REPEAT
Plays back a disc repeatedly, the entire disc (all titles/all tracks/all
albums) repeatedly or one title/chapter/track/album/file repeatedly.
98GB
Item
Item Name, Relevant Disc Type, Function
A/V SYNC
Sets the delay time between the sound and display.
PARENTAL CONTROL
Sets to prohibit playback on this system.
SETUP
QUICK Setup
Use QUICK SETUP to choose the language of the on-screen display
and the aspect ratio of the TV.
CUSTOM Setup
In addition to the QUICK SETUP setting, you can adjust other
settings.
RESET
Returns the settings in “SETUP” to the default setting.
ALBUM
Selects the album to be played back.
FILE
Selects the JPEG image file or DivX video file to be played back.
INTERVAL
Specifies the duration for which the slides are displayed on the TV
screen.
EFFECT
Selects the transition effects to be used for changing slides during a
slide show.
Continued

Additional Information
DATE
Displays the date when the picture was taken by a digital camera.
99GB
Item
Item Name, Relevant Disc Type, Function
MODE (MP3, JPEG)
Selects the data type: MP3 audio track (AUDIO), JPEG image file
(IMAGE) or both (AUTO) to be played back when playing a DATA
CD/DVD.
KEY CONTROL*
Changes the key to suit your vocal range.
SCORE MODE*
Selects the level for scoring mode.
KARAOKE PON*
Enjoys karaoke with a stereo-recorded disc by reducing the sound of
the vocals.
VOCAL SELECT*
Selects the guide vocal recorded on the Dolby Digital Karaoke Format
disc (DVD VIDEO only).
Selects the vocal type recorded on the disc (VIDEO CD, AUDIO CD
only).
Turns off the vocal (VIDEO CD, AUDIO CD only).
GUIDE MELODY*
Turns on or off the guide melody for Dolby Digital Karaoke Format
disc.
* This function is only available during karaoke mode.
100GB
Language code list
The language spellings conform to the ISO 639:1988 (E/F) standard.
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
1703
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
Rhaeto-Romance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
Not specified
Continued

Additional Information
Code Language
101GB
Parental Control area code list
102GB
Code Area
Code Area
Code Area
Code Area
2044
2047
2046
2057
2070
2079
2090
2092
2115
2165
2174
2109
2248
2238
2254
2276
2304
2363
2362
2376
2390
2379
2427
2424
2436
2489
2501
2149
2499
2086
2528
2184
Argentina
Australia
Austria
Belgium
Brazil
Canada
Chile
China
Denmark
Finland
France
Germany
India
Indonesia
Italy
Japan
Korea
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Thailand
United Kingdom
Playable USB devices
USB devices
You can play back the following Sony
USB devices on this system. Other USB
devices cannot be played back on this
system.
Verified Sony digital music player (as
of January 2007)
®
Product name Model name
MICROVAULT USM512EX / 1GEX /
2GEX
USM128J / 256J / 512J /
1GJ / 2GJ / 4GJ / 8GJ
USM512JX / 1GJX /
2GJX / 4GJX
USM256H / 512H /
1GH / 2GH / 4GH
USD2G / 4G / 5G / 8G
Check the websites below for the latest
information about compatible devices.
For customers in the U.S.A.:
<http://www.sony.com/shelfsupport>
For customers in Canada:
English <http://www.sony.ca/
ElectronicsSupport/>
French <http://fr.sony.ca/
ElectronicsSupport/>
For customers in Europe:
<http://sonydigital-link.com/dna>
For customers in Latin America:
<http://www.sony-latin.com/pa/info>
For customers in Asia and Oceania:
<http://www.css.ap.sony.com/>
Notes
Do not use USB devices other than these
USB devices. Operation of models not listed
here is not guaranteed.
Operation may not always be ensured even
when using these USB devices.
 Some of these USB devices may not be
available for purchase in certain areas.
Additional Information
Product name Model name
Walkman
NW-E103 / E105 /
E107
NW-E205 / E207
NW-E303 / E305 /
E307
NW-E403 / E405 /
E407
NW-E503 / E505 /
E507
NW-E002 / E002F /
E003 / E003F / E005 /
E005F
NW-A605 / A607 /
A608
NW-A1000 / A1200 /
A3000
NW-HD5
NW-S603 / S605 /
S703F / S705F / S706F
NW-S202 / S202F /
S203F / S205F
Verified Sony USB storage media (as of
January 2007)
Notes on Walkman
You cannot play back Linear PCM audio on
this system.
You cannot play back the ATRAC Advanced
Lossless audio format on this system.
You cannot play back music recorded directly
to a Walkman without using a computer on
this system.
103GB
Glossary
Album
Section of a music or picture piece on
a DATA CD or DATA DVD containing
MP3 audio tracks, JPEG image files or
DivX image file.
Chapter
Subdivision of a title on a DVD VIDEO.
A title is composed of several chapters.
DivX®
Digital video technology created by
DivX, Inc. Videos encoded with DivX
technology are among the highest quality
with a relatively small file size.
Dolby Digital
This sound format for movie theaters is
more advanced than Dolby Surround
Pro Logic. In this format, the surround
speakers output stereo sound with
an expanded frequency range and a
subwoofer channel for deep bass is
independently provided. This format is
also called “5.1” because the subwoofer
channel is counted as 0.1 channel (since
it functions only when a deep bass effect
is needed). All six channels in this format
are recorded separately to realize superior
channel separation. Furthermore, since
all the signals are processed digitally, less
signal degradation occurs.
104GB
DTS
Digital audio compression technology
that the Digital Theater Systems, Inc.
developed. This technology conforms
to 5.1-channel surround. The surround
channel is stereo and there is discrete
subwoofer channel in this format. DTS
provides the same 5.1 discrete channels
of high quality digital audio. The good
channel separation is realized because the
all channel data is recorded discrete and
processed in digital.
DVD VIDEO
A disc that contains up to 8 hours of
moving pictures even though its diameter
is the same as an AUDIO CD.
The data capacity of a single-layer and
single-sided DVD VIDEO, at 4.7 GB
(Giga Byte), is 7 times that of an AUDIO
CD. Furthermore, the data capacity of a
dual-layer and single-sided DVD VIDEO
is 8.5 GB, a single-layer and double-sided
DVD VIDEO 9.4 GB, and a dual-layer
and double-sided DVD VIDEO 17 GB.
The picture data uses the MPEG 2
format, one of the worldwide standards
for digital compression technology. The
picture data is compressed to about 1/40
of its original size. The DVD VIDEO
also uses variable rate coding technology
that changes the data to be allocated
according to the status of the picture.
The audio data is recorded in Dolby
Digital as well as in PCM, allowing you to
enjoy more realistic audio presence.
Furthermore, various advanced functions
such as the multi-angle, multilingual, and
Parental Control functions are provided
with the DVD VIDEO.
DVD-RW
A DVD-RW is a recordable and
rewritable disc that is the same size as
a DVD VIDEO. The DVD-RW has two
different modes: VR mode and Video
mode. DVD-RWs created in Video
mode have the same format as a DVD
VIDEO, while discs created in VR (Video
Recording) mode allow the contents to
be programmed or edited.
DVD+RW
File
A JPEG image file or a DivX video file
recorded on a DATA CD or DATA DVD.
(“File” is an exclusive definition for this
system.) A single file consists of a single
image or movie.
DVD VIDEOs can be classified as Film
based or Video based software. Film
based DVD VIDEOs contain the same
images (24 frames per second) that are
shown at movie theaters. Video based
DVD VIDEOs, such as television dramas
or sitcoms, displays images at 30 frames
(or 60 fields) per second.
Interlace format (Interlaced scanning)
The Interlace format is the NTSC
standard method for displaying TV
images at 30 frames per second. Each
frame is scanned twice-alternately
between the even numbered scanning
lines and then odd numbered scanning
lines, at 60 times per second.
Multi-angle function
Various angles, or viewpoints of the video
camera, for a scene are recorded on some
DVD VIDEOs.
Multilingual function
Several languages for the sound or
subtitles in a picture are recorded on
some DVD VIDEOs.
Continued

Additional Information
A DVD+RW (plus RW) is a recordable
and rewritable disc. DVD+RWs use a
recording format that is comparable to
the DVD VIDEO format.
Film based software, Video based
software
105GB
Parental Control
A function of the DVD VIDEO to limit
playback of the disc by the age of the
users according to the limitation level in
each country. The limitation varies from
disc to disc; when it is activated, playback
is completely prohibited, violent scenes
are skipped or replaced with other scenes
and so on.
Playback Control (PBC)
Signals encoded on VIDEO CDs (Version
2.0) to control playback. By using menu
screens recorded on VIDEO CDs with
PBC functions, you can enjoy playing
simple interactive programs, programs
with search functions, and so on.
Progressive format (sequential
scanning)
In contrast to the Interlace format,
the progressive format can reproduce
50  60 frames per second by
reproducing all scanning lines (525
lines for the NTSC system, 625 lines
for PAL system). The overall picture
quality increases and still images, text
and horizontal lines appear sharper. This
format is compatible with the 525 or 625
progressive format.
106GB
Region Code
This system is used to protect copyrights.
A region code is allocated on each DVD
system or DVD VIDEO according to
the sales region. Each region code is
shown on the unit as well as on the disc
packaging. The system can play back
the discs that match its region code. The
system can also play back discs with the
“
” mark. Even when the region code
is not shown on the DVD VIDEO, the
region limit may still be activated.
Scene
On a VIDEO CD with PBC functions,
the menu screens, moving pictures and
still pictures are divided into sections
called “scenes.”
Title
The longest section of a picture or a
music piece on a DVD VIDEO; a movie,
etc., for a picture piece on video software,
or the entire album in audio software.
Track
Section of a picture or a music piece on
a VIDEO CD, CD, or MP3. An album is
composed of several tracks (MP3 only).
VIDEO CD
Additional Information
A compact disc that contains moving
pictures.
The picture data uses the MPEG 1
format, one of the worldwide standards
for digital compression technology. The
picture data is compressed to about 1/140
of its original size. Consequently, a 12 cm
VIDEO CD can contain up to 74 minutes
of moving pictures.
VIDEO CDs also contain compact audio
data.
Sounds outside the range of human
hearing are compressed while the
sounds we can hear are not compressed.
VIDEO CDs can hold 6 times the audio
information of conventional AUDIO
CDs.
There are 2 versions of VIDEO CDs.
Version 1.1: You can play back only
moving pictures and sounds.
Version 2.0: You can play back highresolution still pictures and enjoy PBC
functions.
This system conforms to both versions.
107GB
Index
Numerics
D
J
16:9 57
4:3 LETTER BOX 57
4:3 OUTPUT 57
4:3 PAN SCAN 57
DATA CD 6
DATA DVD 7
DIMMER 75
DISPLAY 23
DivX 47, 104
Dolby Digital 104
DTS 104
DVD 6
DVD+RW 6, 105
DVD-RW 6, 105
DVD’s menu 38
JPEG 41, 43, 45
A
A/V SYNC 49, 99
AAC 62, 64
ALBUM 99
Album 27, 104
ANGLE 29
ATRAC 62, 64
ATRAC AD 62
AUDIO 56
AUDIO DRC 59
B
BACKGROUND 57
Batteries 19
C
CHAPTER 39, 98
Chapter 28, 104
COLD RESET 89
COLOR SYSTEM (VIDEO
CD) 57
COMPONENT VIDEO OUT
21, 80
Continuous play 45
Controlling the TV 22
Control Menu Display 97
CUSTOM 55
CUSTOM PARENTAL
CONTROL 50
CUSTOM SETUP 58
108GB
E
EFFECT 47, 99
F
Fast forward 28
Fast reverse 28
FILE 99
File 105
Film based software 105
Freeze Frame 28
Front panel 79
Front panel display 17
H
Handling discs 27
I
INDEX 98
Instant Advance 28
Instant Replay 28
INTERLACE 21
Interlace format 105
INTERVAL 99
K
Karaoke 67
ECHO 67, 68
KARAOKE PON 70, 100
KEY CONTROL 70, 100
SCORE MODE 71, 100
Vocal 68
VOCAL SELECT 70, 100
L
Language Code List 101
LANGUAGE SETUP 24, 56
Listening to other
components 80
Listening to the radio 60
Locating a specific point by
watching the TV screen 39
M
MENU 56
Microphone 67, 68
MODE (MP3, JPEG) 100
MP3 6
Multi-angle function 29, 105
MULTI-DISC RESUME
33, 58
Multilingual function 105
Multi Session CD 9
O
ORIGINAL 38, 98
OSD 57
Other Component Hookup
79
P
T
PARENTAL CONTROL
52, 99
Parental Control 106
PAUSE MODE 58
PBC Playback 31
PICTURE NAVI 40, 44
Playback Control (PBC) 106
Playing a disc 27
PLAY LIST 38, 98
Play Timer 73
Program Play 33
PROGRESSIVE AUTO 21
Progressive format 106
PROGRESSIVE VIDEO 21
THEATRE SYNC 26
TIME/TEXT 98
Timer 73
TITLE 36, 98
Title 38, 106
TRACK 98
Track 6, 7
TRACK SELECTION 58
Troubleshooting 81
TV Hookup 20
TV TYPE 57
R
S
Scan 25, 56
SCENE 98
Scene 106
SCREEN SAVER 57
SCREEN SETUP 24
Searching 38
Selecting 38
SETUP 99
Setup Display 24
Shuffle Play 35
SLEEP 26, 73
Sleep Timer 73
Slide Show 43, 45
Slow-motion Play 28
SUBTITLE 56
S VIDEO 80
Usable discs 6
USB 62
USB MEMORY 85
USB Storage 62, 103
V
VIDEO CD 6, 107
W
WMA 62, 64
Additional Information
Radio 60
Radio Stations 61
Rear Panel 79
Region Code 106
Remote 12
Repeat Play 36
RESET 89, 99
Resume Play 32
U
109GB
110GB
Additional Information
111GB
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
