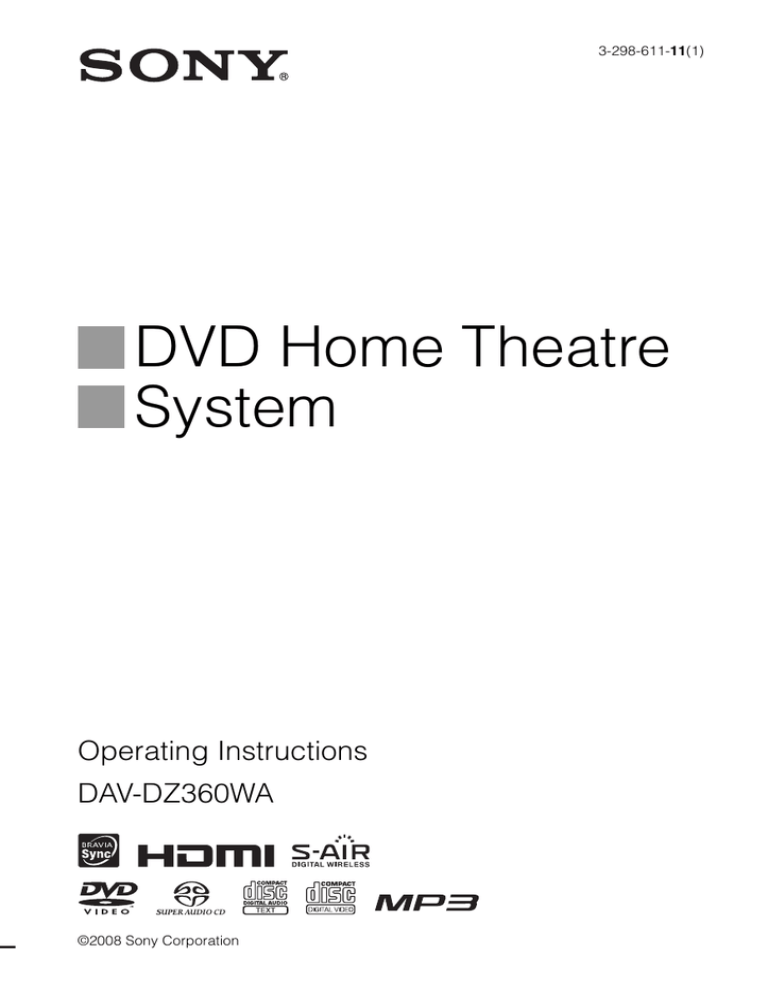

DVD Home Theatre
System
Operating Instructions
DAV-DZ360WA
©2008 Sony Corporation
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Batteries or batteries installed apparatus shall not be
exposed to excessive heat such as sunshine, fire or the
like.
In door use only.
This appliance is
classified as a CLASS 1
LASER product. This
marking is located on the
rear exterior.
NOTICE FOR THE CUSTOMERS IN THE
UNITED KINGDOM
A moulded plug complying with BS1363 is fitted to
this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be
replaced, a fuse of the same rating as the supplied one
and approved by ASTA or BSI to BS1362, (i.e.,
marked with mark
or
mark) must be used.
If the plug supplied with this equipment has a
detachable fuse cover, be sure to attach the fuse cover
after you change the fuse. Never use the plug without
the fuse cover.
If you should lose the fuse cover, please contact your
nearest Sony service station.
Disposal of Old
Electrical & Electronic
Equipment (Applicable
in the European Union
and other European
countries with separate
collection systems)
This symbol on the product or
on its packaging indicates that
this product shall not be treated as household waste.
Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is
2GB
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, please contact your local
Civic Office, your household waste disposal service or
the shop where you purchased the product.
Disposal of waste
batteries (applicable in
the European Union and
other European
countries with separate
collection systems)
This symbol on the battery or on the packaging
indicates that the battery provided with this product
shall not be treated as household waste. By ensuring
these batteries are disposed of correctly, you will help
prevent potentially negative consequences for the
environment and human health which could otherwise
be caused by inappropriate waste handling of the
battery. The recycling of the materials will help to
conserve natural resources. In case of products that for
safety, performance or data integrity reasons require a
permanent connection with an incorporated battery,
this battery should be replaced by qualified service
staff only. To ensure that the battery will be treated
properly, hand over the product at end-of-life to the
applicable collection point for the recycling of
electrical and electronic equipment. For all other
batteries, please view the section on how to remove the
battery from the product safely. Hand the battery over
to the applicable collection point for the recycling of
waste batteries. For more detailed information about
recycling of this product or battery, please contact your
local Civic Office, your household waste disposal
service or the shop where you purchased the product.
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The
Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For any service
or guarantee matters please refer to the addresses given
in separate service or guarantee documents.
Precautions
On power sources
• AC power cord (mains lead) must be changed only at
the qualified service shop.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet (mains), even if the unit itself has been turned
off.
• Install this system so that the AC power cord (mains
lead) can be unplugged from the wall socket
immediately in the event of trouble.
About This Operating
Instructions
• The instructions in this Operating Instructions
describe the controls on the remote. You can
also use the controls on the unit if they have the
same or similar names as those on the remote.
• The Control Menu items may vary depending
on the area.
• “DVD” may be used as a general term for a
DVD VIDEO, DVD+RW/DVD+R, and DVDRW/DVD-R.
• Measurements are expressed in feet (ft) for
North American models.
• The default setting is underlined.
About the S-AIR function
The system is compatible with the S-AIR
function, which allows transmission of sound
between S-AIR products wirelessly.
The following S-AIR products can be used with
the system:
• Surround amplifier (optional): You can enjoy
surround speaker sound wirelessly.
• S-AIR receiver (supplied): You can enjoy
system sound in another room.
The surround amplifier can be purchased as an
option (the S-AIR product lineup differs
depending on the area).
Notes or instructions for the surround amplifier
or S-AIR receiver in this operating instructions
refer only to when the surround amplifier or
S-AIR receiver is used.
For details on the S-AIR function, see “Using an
S-AIR Product” (page 71).
3GB
Table of Contents
About This Operating Instructions.......... 3
About the S-AIR function....................... 3
Playable Discs......................................... 5
Getting Started
Step 1: Positioning the System ...10
Step 2: Connecting the System ...13
Step 3: Performing the Quick
Setup ........................................21
Step 4: Enjoying Sound from all the
Speakers ..................................24
Sound Adjustment
Enjoying Surround Sound by Using
Decoding Mode .............................. 26
Selecting the Sound Mode .................... 28
Enjoying Multiplex Broadcast Sound ... 28
Disc
Playing a Disc ....................................... 29
Using Play Mode................................... 34
Searching/Selecting a Disc ................... 37
Playing MP3 Files/JPEG Image Files... 39
Enjoying DivX® Videos....................... 42
Adjusting the Delay Between the Picture
and Sound ....................................... 44
Restricting Playback of the Disc........... 45
Using the Setup Display........................ 47
Tuner
Presetting Radio Stations ...................... 54
Listening to the Radio........................... 55
Using the Radio Data System (RDS).... 57
Control for HDMI/External
Audio Device
Using the Control for HDMI Function for
“BRAVIA” Sync ............................ 58
Playing Back Audio Files/JPEG Image
Files of a USB Device .................... 61
Storing Songs in a USB Device ............ 67
Using the DIGITAL MEDIA PORT
Adapter ........................................... 70
Using an S-AIR Product ....................... 71
4GB
Other Operations
Getting Optimal Surround Sound for a
Room .............................................. 76
Calibrating the Appropriate Settings
Automatically................................. 77
Controlling the TV with the Supplied
Remote ........................................... 78
Using the Sound Effect......................... 79
Using the Sleep Timer .......................... 79
Changing the Brightness of the Front
Panel Display.................................. 80
Viewing Information About the Disc ... 80
Returning to the Default Settings ......... 83
Additional Information
Precautions ........................................... 84
Notes about the Discs ........................... 85
Troubleshooting.................................... 86
Self-diagnosis Function ........................ 95
Specifications ....................................... 96
Glossary ................................................ 97
Language Code List............................ 100
Index to Parts and Control .................. 101
Guide to the Control Menu Display ... 105
Index ................................................... 109
Playable Discs
Type
Disc logo
Characteristics
DVD VIDEO
• DVD VIDEO
• DVD-R/DVD-RW in DVD
VIDEO format or video mode
• DVD+R/DVD+RW in DVD
VIDEO format
VR (Video
Recording) mode
• DVD-R/DVD-RW in VR (Video
Recording) mode (except for
DVD-R DL)
Super Audio CD
• Super Audio CD
VIDEO CD
• VIDEO CD (Ver. 1.1 and 2.0 discs)
• Super VCD
• CD-R/CD-RW/CD-ROM in video
CD format or Super VCD format
CD
• Audio CD
• CD-R/CD-RW in audio CD format
DATA CD
–
• CD-R/CD-RW/CD-ROM in
DATA CD format, containing MP3
files1), JPEG image files2), and
DivX video files3)4), and
conforming to ISO 96605) Level 1/
Level 2, or Joliet (extended format)
DATA DVD
–
• DVD-ROM/DVD-R/DVD-RW/
DVD+R/DVD+RW in DATA
DVD format, containing MP3
files1), JPEG image files2), and
DivX video files3)4), and
conforming to UDF (Universal
Disk Format)
Icon
1)MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. MP3 files
must be in MPEG1 Audio Layer 3 format.
5GB
2)
JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image
standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association
(JEITA).)
3)
DivX® is a video file compression technology, developed by DivX, Inc.
4) DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
5)
A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for
Standardization).
“DVD-RW,” “DVD+RW,” “DVD+R,”“DVD VIDEO,” and the “CD” logos are trademarks.
Example of discs that the system cannot play
The system cannot play the following discs:
• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 5
• CD-ROM recorded in PHOTO CD format
• Data part of CD-Extra
• CD Graphics disc
• DVD Audio
• DATA DVD that does not contain MP3 files, JPEG image files, or DivX video files
• DVD-RAM
Also, the system cannot play the following discs:
• A DVD VIDEO with a different region code (page 7)
• A disc that has a non-standard shape (e.g., card, heart)
• A disc with paper or stickers on it
• A disc that has the adhesive of cellophane tape or a sticker still left on it
Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW
In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system
due to the recording quality or physical condition of the disc, or the characteristics of the recording
device and authoring software.
The disc will not play if it has not been correctly finalized. For more information, refer to the operating
instructions for the recording device.
Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have
been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA
DVDs created in Packet Write format cannot be played.
Music discs encoded with copyright protection technologies
This product is designed to play back discs that conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright protection technologies are marketed by some
record companies. Please be aware that among those discs, there are some that do not conform to the
CD standard and may not be playable by this product.
Note on DualDiscs
A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital
audio material on the other side. However, since the audio material side does not conform to the
Compact Disc (CD) standard, playback on this product is not guaranteed.
6GB
About Multi Session CD
• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any
subsequent MP3 files recorded in later sessions can also be played back.
• This system can play a Multi Session CD when a JPEG image file is contained in the first session.
Any subsequent JPEG image files recorded in later sessions can also be played back.
• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first
session, only the first session will be played back.
Region code
Your system has a region code printed on the rear of the unit and will only play a DVD labeled with
the same region code.
A DVD VIDEO labeled ALL will also play on this system.
If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will
appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even
though playing the DVD VIDEO is prohibited by area restrictions.
Note about playback operations of a DVD or VIDEO CD
Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers.
Since this system will play a DVD or VIDEO CD according to the disc contents the software producers
designed, some playback features may not be available. Be sure to read the operating instructions
supplied with the DVD or VIDEO CD.
Copyrights
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround
decoder and the DTS** Digital Surround System.
* Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license from DTS, Inc.
“DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.
This system incorporates High-Definition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
“BRAVIA” and
are trademarks of Sony Corporation.
“S-AIR” and its logo are trademarks of Sony Corporation.
7GB
Getting Started
Getting Started
Unpacking
• Front speakers (2) and
surround speakers (2)
• Center speaker (1)
• Speaker cords (6, red/white/
green/gray/blue/purple)
• Remote commander
(remote) (1)
• R6 (size AA) batteries (2)
• Subwoofer (1)
• Operating Instructions
• Speaker and TV connections
(card)
• S-AIR receiver (AIR-SA10)
(1)
• Wireless transceiver for the
S-AIR receiver (AIR-SA10)
(1)
• Calibration mic (1)
• AM loop antenna (aerial) (1)
• FM wire antenna (aerial) (1)
or
8GB
• Foot pads (1 set)
• Wireless transceiver for the
unit (1)
• Operating Instructions of the
S-AIR receiver (AIR-SA10)
Inserting batteries into the remote
Note
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage
from battery leakage and corrosion.
Attaching the foot pads to the subwoofer
Attach the foot pads (supplied) to the bottom of the subwoofer to stabilize the subwoofer and prevent
it from slipping.
,
Remove the foot pads from
the mount seat.
9GB
Getting Started
Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the
markings inside the compartment. To use the remote, point it at the remote sensor on the unit.
Getting Started
Step 1: Positioning the System
For the best possible surround sound, all the speakers other than the subwoofer should be placed at the
same distance from the listening position (A).
However, this system allows you to place the center speaker up to 1.6 meters (5 ft) closer (B) and the
surround speakers up to 5.0 meters (16 ft) closer (C) to the front speakers.
The front speakers can be placed from 1.0 to 7.0 meters (3 to 23 ft) (A) from the listening position.
Place the system as illustrated below.
A Front speaker (L (left))
B Front speaker (R (right))
C Center speaker
D Surround speaker (L (left))
E Surround speaker (R (right))
F Subwoofer
G Unit
B
A
C
G
A A
F
E
Top view
A
A
C
A
A
D
B
B
A
A
C
C
D
E
* Not supplied.
Note
• Do not set the speakers in an inclined position.
• Do not place the speakers in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Subject to vibrations
– Subject to direct sunlight
• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,
oiled, polished, etc.) floor, as staining or discoloration may result.
• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.
• Do not lean or hang on the speaker, as the speaker may fall down.
Tip
• When you change the positions of the speakers, Sony recommends that you change the settings. For details, see
“Getting Optimal Surround Sound for a Room” (page 76) and “Calibrating the Appropriate Settings Automatically”
(page 77).
10GB
To install the speakers on a wall
Color tube
Front speaker (L): White
Front speaker (R): Red
Center speaker: Green
Surround speaker (L): Blue
Surround speaker (R): Gray
1
Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.
See the illustrations below.
4 mm (5/32 inch)
5 mm
(7/32 inch)
30 mm (1 3/16 inches)
2
Hole on the back of
the speaker
10 mm
(13/32 inch)
Fasten the screws to the wall.
For the other speakers
For the center speaker
145 mm
(5 3/4 inches)
8 to 10 mm
(11/32 to 13/32 inch)
8 to 10 mm
(11/32 to 13/32 inch)
3
Hang the speakers on the screws.
5 mm
(7/32 inch)
Hole on the back of
the speaker
10 mm
(13/32 inch)
Rear of the speaker
11GB
Getting Started
Before installing the speakers on a wall, connect the speaker cord to the speaker.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to 3, and the speaker cord without the color tube to #.
Getting Started
Note
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach
the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where
reinforcement is applied.
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or
improper screw installation, natural calamity, etc.
12GB
Step 2: Connecting the System
Note
• Be sure to make connections securely to avoid hum and noise.
• When you connect another component with a volume control, turn up the volume of the other components to a level
where sound is not distorted.
3 DIGITAL MEDIA
PORT adapter
3 Portable audio source
2 TV
4 AM loop antenna (aerial)
5 Wireless
transceiver
4 FM wire antenna (aerial)
6 AC power cord (mains lead)
1 Center speaker
1 Front speaker (L)
5 Wireless
transceiver
1 Subwoofer
1 Front speaker (R)
6 AC power cord
(mains lead)
S-AIR receiver
1 Surround speaker (R)
1 Surround speaker (L)
:Signal flow
13GB
Getting Started
See the connection diagram below, and read the additional information from 1 to 6 on the following
pages.
Getting Started
1 Connecting the Speakers
The connector and color tube of the speaker cords are the same color as the label of the jacks to be
connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker
cord with the color tube to 3, and the speaker cord without the color tube to #. Do not catch the
speaker cord insulation in the speaker terminals.
Rear of speaker
Color tube
(+)
(–)
Connector
When connecting to the unit, insert the connector until it clicks.
Rear panel
ANTENNA
SPEAKER
FRONT R
FRONT L
SUR R
SUR L
COAXIAL 75
FM
SPEAKER
CENTER
EZW-RT10
SUBWOOFER
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
OUTPUT(TO TV)
DMPORT
R
R
KE
FE
EA
OO
SP
BW
SU
CE
AM
EURO AV
DIGITAL IN
NT
To the surround speaker (L)
(blue)
ER
To the surround speaker (R)
(gray)
R
KE
EA
RR
SP
SU
T
ON
FR
To the center speaker
(green)
To the subwoofer
(purple)
ON
FR
RL
SU
L
TR
To the front speaker (R)
(red)
To the front speaker (L) (white)
14GB
2 Connecting the TV
Digital optical cord
(not supplied)
Digital coaxial cord
(not supplied)
DIGITA
COAXIAL
L IN
OPTICAL
TV
or
To the digital coaxial output jack of
the TV
To the digital optical output jack of
the TV
FRONT L
SUR R
SUR L
COAXIAL 75
FM
CENTER
Rear panel
ANTENNA
SPEAKER
FRONT R
EZW-RT10
SPEAKER
DIGITAL IN
AM
EURO AV
SUBWOOFER
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
OUTPUT(TO TV)
DMPORT
HDMI* cable
(not supplied)
SCART (EURO AV) cord
(not supplied)
AV
EURO
HDMI
OUT
OU
To the HDMI IN jack of the TV
(TO
TP UT
TV )
To the SCART (EURO AV) jack of the TV
* HDMI (High-Definition Multimedia Interface)
If your TV has the HDMI jack, use this connection and select the type of output signal (page 23).
Note
• During the “DMPORT” function, video signal is not output from the HDMI OUT jack.
• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL
has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.
15GB
Getting Started
For video output to your TV, check the video input jacks of the TV, and select connection method A
or B. Picture quality improves in order from A (standard) to B (HDMI).
When the TV has the digital optical or coaxial output jack, you can improve sound quality by
connecting with the digital cord (A).
Getting Started
3 Connecting the other components
You can enjoy the connected component using the six speakers of the system.
• Portable audio source: A
• DIGITAL MEDIA PORT adapter: B
Stereo mini-plug cord
(not supplied)
To the portable audio
source
Front panel
(USB) port (See page 61.)
FRONT L
SUR R
SUR L
COAXIAL 75
FM
CENTER
Rear panel
ANTENNA
SPEAKER
FRONT R
SPEAKER
EZW-RT10
DIGITAL IN
AM
EURO AV
SUBWOOFER
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
OUTPUT(TO TV)
DMPORT
DC5V X
0.7A MA
DMPO
RT
DIGITAL MEDIA PORT adapter
(not supplied)
To connect the DIGITAL MEDIA PORT adapter
Connect a DIGITAL MEDIA PORT adapter (not supplied) to the DMPORT jack. For details, see
“Using the DIGITAL MEDIA PORT Adapter” (page 70).
Note
• Connect the DIGITAL MEDIA PORT adapter so that the V marks are aligned. When disconnecting, pull out while
pressing A.
A
16GB
If your TV has multiple audio/video inputs
VCR, digital satellite receiver
or PlayStation, etc.
TV
VCR, digital satellite receiver
or PlayStation, etc.
System
:Signal flow
Select the component on the TV. For details, refer to the operating instructions of the TV.
If the TV does not have multiple audio/video inputs, a switcher will be necessary to receive the sound
from more than two components.
17GB
Getting Started
You can enjoy the sound with the speakers of the system through the connected TV. Connect the
components as follows.
Getting Started
4 Connecting the antenna (aerial)
AM loop antenna (aerial)
(supplied)
A
B
Note
• Cord (A) or cord (B) can be connected to either terminal.
FRONT L
SUR R
SUR L
COAXIAL 75
FM
CENTER
Rear panel
ANTENNA
SPEAKER
FRONT R
SPEAKER
EZW-RT10
DIGITAL IN
AM
EURO AV
SUBWOOFER
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
OUTPUT(TO TV)
DMPORT
NNA
ANTE
COAX
FM wire antenna (aerial)
(supplied)
IAL 75
FM
or
Note
• Keep the AM loop antenna (aerial) and cord away from the system or other AV components, as noise may result.
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Tip
• Adjust the direction of the AM loop antenna (aerial) for best AM broadcast sound.
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial) as shown below.
Outdoor FM antenna (aerial)
Unit
ANTENNA
COAXIAL 75
FM
18GB
AM
5 Inserting the wireless transceiver
Rear panel of the unit
FRONT L
SUR R
SUR L
COAXIAL 75
FM
CENTER
EZW-RT10
DIGITAL IN
EURO AV
SUBWOOFER
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
EZW-RT
Note
ANTENNA
SPEAKER
FRONT R
SPEAKER
DMPORT
OUTPUT(TO TV)
AM
• Also, insert the wireless
transceiver into the S-AIR
receiver. For details, refer to
the operating instructions of
the S-AIR receiver.
10
Wireless
transceiver
Note
• When you insert the wireless transceiver, make sure that the AC power cord (mains lead) is not connected to a wall
outlet (mains).
• Do not touch the terminals of the wireless transceiver.
• Insert the wireless transceiver with the S-AIR logo facing up.
• Insert the wireless transceiver so that the V marks are aligned.
• Do not insert other than the wireless transceiver into the EZW-RT10 slot.
19GB
Getting Started
You can transmit sound from the unit to an S-AIR product, such as a surround amplifier or S-AIR
receiver.
An S-AIR product is a component that is compatible with the S-AIR function.
To use the S-AIR function, you need to insert the wireless transceivers into the unit, surround amplifier,
and S-AIR receiver.
For details of the S-AIR function, see “Using an S-AIR Product” (page 71).
Getting Started
6 Connecting the AC power cords (mains leads)
Before connecting the AC power cord (mains lead) of the unit to a wall outlet (mains), connect all the
speakers to the unit.
Rear panel
ANTENNA
SPEAKER
FRONT R
FRONT L
SUR R
SUR L
COAXIAL 75
FM
EZW-RT10
SPEAKER
CENTER
DIGITAL IN
AM
EURO AV
SUBWOOFER
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
DMPORT
OUTPUT(TO TV)
To the wall outlet (mains)
Also, connect the AC power cord (mains lead) of the S-AIR receiver to a wall outlet (mains).
About the demonstration
After connecting the AC power cord (mains lead), the demonstration appears in the front panel display.
Setting the demonstration mode to on/off
1
Press [/1 on the unit.
The system turns on.
2
3
4
Press SYSTEM MENU.
Press X/x repeatedly until “DEMO” appears in the front panel display, then press
c.
or
Press X/x to select a setting.
• “DEMO ON”: On.
• “DEMO OFF”: Off.
5
Press
.
The setting is made.
6
Press SYSTEM MENU.
The system menu turns off.
Tip
• When you purchase the system from new, or if the system is at its factory default settings (ex., after performing
“COLD RESET” (page 83)), you can turn off the demonstration simply by pressing [/1 on the remote.
20GB
Follow the Steps below to make the basic
adjustments for using the system.
Displayed items vary depending on the country
model.
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
5
Note
• When you connect the system and the TV with the
HDMI cable (not supplied), you need to set the type
of video output for matching your TV. For details, see
“Setting the type of video output to match your TV”
(page 23).
ENGLISH
ENGLISH
FRENCH
SPANISH
PORTUGUESE
Getting Started
Step 3: Performing the
Quick Setup
Press X/x to select a language.
The system displays the menu and subtitles
in the selected language.
6
Press
.
The Setup Display for selecting the aspect
ratio of the TV to be connected appears.
VIDEO SETUP
TV TYPE:
LINE:
PAUSE MODE:
"/1
7
C/X/x/c,
16:9
16:9
4:3 LETTER BOX
4:3 PAN SCAN
Press X/x to select the setting that
matches your TV type.
x If you have a wide-screen TV or a 4:3
standard TV with a wide-screen mode
DISPLAY
[16:9] (page 48)
x If you have a 4:3 standard TV
1
2
[4:3 LETTER BOX] or [4:3 PAN SCAN]
(page 48)
Turn on the TV.
Press [/1.
8
Note
Switch the input selector on your TV so
that the signal from the system
appears on the TV screen.
VIDEO SETUP
TV TYPE:
LINE:
PAUSE MODE:
[Press [ENTER] to run QUICK SETUP.]
appears at the bottom of the TV screen. If
this message does not appear, recall the
Quick Setup display (page 23) and perform
again.
4
Press
.
The Setup Display for selecting the output
method for video signals from the EURO
AV T OUTPUT (TO TV) jack on the rear
panel of the unit appears.
• Make sure that the function is set to “DVD”
(page 24).
3
Press
16:9
VIDEO
VIDEO
RGB
VIDEO
without inserting a disc.
The Setup Display for selecting the
language used in the on-screen display
appears.
9
Press X/x to select the output method
for video signals.
• [VIDEO]: outputs video signals.
21GB
• [RGB]: outputs RGB signals.
Getting Started
Note
• If your TV does not accept RGB signals, no
picture appears on the TV screen even if you
select [RGB]. Refer to the operating instructions
supplied with your TV.
10 Press
IC
N/
IO I
AL M
A.C
AUD
.
The Setup Display for selecting the speaker
formation appears.
11 Press C/c to select the speaker
formation image as the speakers are
actually positioned.
Calibration mic
For details, see “Getting Optimal Surround
Sound for a Room” (page 76).
SPEAKER FORMATION
STANDARD
12 Press .
13 Connect the calibration mic to the
A.CAL MIC jack on the front panel.
Set up the calibration mic at the ear level
using a tripod, etc. (not supplied). The front
of each speaker should face the calibration
mic, and there should be no obstruction
between the speakers and the calibration
mic.
14 Press C/c to select [YES].
Note
• Make sure that the headphones are not
connected to the unit or surround amplifier. You
cannot operate following Steps with the
headphones connected.
15 Press
.
[AUTO CALIBRATION] starts.
Be quiet during the measurement.
Note
• Loud test sound is output when [AUTO
CALIBRATION] starts. You cannot turn the
volume down. Give consideration to children
and neighbors.
• Before [AUTO CALIBRATION], install the
surround amplifier in the appropriate location. If
you install the surround amplifier in an improper
location, such as another room, proper
measurement will not be obtained.
• Avoid being in the measurement area and
making noise during the measurement (which
takes about 3 minutes), as it may interfere with
measurement.
22GB
16 Unplug the calibration mic and press C/
c to select [YES].
17 Press
.
Quick Setup is finished. All connections
and setup operations are complete.
To quit the Quick Setup
Press
DISPLAY in any Step.
Tip
• If you change the position of the speakers, reset the
speaker settings. See “Getting Optimal Surround
Sound for a Room” (page 76) and “Calibrating the
Appropriate Settings Automatically” (page 77).
• If you want to change any of the settings, see “Using
the Setup Display” (page 47).
Depending on the connection of the TV
(page 15), select the type of video output of the
system.
To select the type of video signal
output from the HDMI OUT jack
When you connect the unit and the TV with the
HDMI cable, select the type of video signals
output from the HDMI OUT jack.
For details, refer also to the operating
instructions supplied with the TV/projector, etc.
1
2
To recall the Quick Setup display
1
2
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
Press X/x to select
then press
.
[SETUP],
3
4
4
5
The Quick Setup display appears.
Press X/x to select [CUSTOM], then
press
.
Press X/x to select [HDMI SETUP], then
press
.
The options for [HDMI SETUP] appear.
DVD VIDEO
Press X/x to select [QUICK], then press
.
[SETUP],
The Setup Display appears.
6
CUSTOM
CUSTOM
QUICK
Press X/x to select
then press
.
The options for [SETUP] appear.
The options for [SETUP] appear.
94( 99)
1( 1)
T
0: 01: 08
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
The Control Menu display appears on the
TV screen.
3
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
7
Press X/x to select [HDMI
RESOLUTION], then press
.
Press X/x to select the desired setting,
then press
.
• [AUTO (1920 × 1080p)]: The system
outputs the optimal video signal for the
connected TV.
• [1920 × 1080i]: The system outputs 1920
× 1080i* video signals.
• [1280 × 720p]: The system outputs 1280 ×
720p* video signals.
• [720 × 480p]**: The system outputs 720 ×
480p* video signals.
* i: interlace, p: progressive
** Depending on the country model, [720 × 480/
576p] may appear.
23GB
Getting Started
Note
• The environment of the room in which the
system is installed may affect measurements.
• If measurement fails, follow the message then
retry [AUTO CALIBRATION].
Setting the type of video
output to match your TV
Getting Started
Step 4: Enjoying Sound
from all the Speakers
You can enjoy DVD, TV, or VCR sound from
all the speakers in this system.
Note
• When you use the TV (COAXIAL or OPTICAL
DIGITAL IN) jack (digital connection), the
digital connection takes priority.
2
3
4
FUNCTION
+/–
Press SYSTEM MENU.
Press X/x repeatedly until “DEC.
MODE” appears in the front panel
display, then press
or c.
Press X/x repeatedly until the
decoding mode you want appears in
the front panel display.
When you want to output the TV sound or
stereo sound of a 2 channel source from the
six speakers, select the “PRO LOGIC,”
“PLII MOVIE,” or “PLII MUSIC”
decoding mode.
For details, see page 26.
SYSTEM
MENU
X/x/c,
5
Press
.
The setting is made.
6
Press SYSTEM MENU.
The system menu turns off.
1
Press FUNCTION +/– repeatedly until
the desired function appears in the
front panel display.
Each time you press FUNCTION +/–, the
function changes as follows.
“DVD” t “TUNER FM” t “TUNER
AM” t “USB” t “TV” t “DMPORT”
t “AUDIO” t …
Function
Source
“DVD”
Disc that is played by the
system
“TUNER FM”/
“TUNER AM”
FM/AM radio (page 54)
“USB”
USB device (page 61)
“TV”
TV (or the component that
is connected to the TV
jacks on the rear panel)
“DMPORT”
DIGITAL MEDIA PORT
adapter (page 70)
“AUDIO”
Portable audio source (that
is connected to the AUDIO
IN jack on the front panel)
24GB
Note
• Depending on your TV, you may need to turn off your
TV’s speaker to enjoy surround sound of the system.
Tip
• When listening to audio files using a portable audio
source, you can enhance the sound.
Press FUNCTION +/– to select “AUDIO.” Connect
the portable audio source. Select “A.F.D. STD” for
“DEC. MODE.”
To cancel, select other than “A.F.D. STD.”
Changing the input level of the
sound from connected
components
Distortion may occur when you listen to a
component connected to the EURO AV T
OUTPUT (TO TV) jack on the rear panel, or to
the AUDIO IN jack on the front panel.
Distortion is not a malfunction and will depend
on the component connected.
To prevent distortion, reduce the input level on
the unit.
1
4
Getting Started
2
3
Press FUNCTION +/– repeatedly until
“TV” or “AUDIO” appears in the front
panel display.
Press SYSTEM MENU.
Press X/x repeatedly until
“ATTENUATE” appears in the front
panel display, then press
or c.
Press X/x to select a setting.
• “ATT ON”: You can attenuate the input
level. The output level is changed.
• “ATT OFF”: Normal input level.
5
Press
.
The setting is made.
6
Press SYSTEM MENU.
The system menu turns off.
25GB
Sound Adjustment
Enjoying Surround Sound by Using Decoding Mode
You can enjoy surround sound simply by selecting one of the system’s pre-programmed decoding
modes. They bring exciting and powerful sound of movie theaters into your home.
SYSTEM
MENU
X/x/c,
1
2
3
26GB
Press SYSTEM MENU.
Press X/x repeatedly until “DEC. MODE” appears in the front panel display, then press
or c.
Press X/x repeatedly until the decoding mode you want appears in the front panel
display.
Display
Decoding mode
Effect
“A.F.D. STD”
AUTO FORMAT
DIRECT
STANDARD
Presents sound as it was recorded/encoded.
Depending on the source, the speakers that output sound will vary.
“A.F.D. MULTI”
AUTO FORMAT
DIRECT MULTI
2 channel source: Sound that is recorded in 2 channel (front left and
right channel) is also assigned to the surround left and right channel.
This mode outputs sound from the front left and right speakers,
surround left and right speakers, and subwoofer. The center speaker
does not output any sound.
Multi channel source: Depending on the source, speakers that output
the sound will vary.
“PRO LOGIC”
Dolby Pro Logic
Performs Pro Logic decoding to the input signal and simulates
surround sound from 2 channel sources.
This mode outputs sound from all the speakers and subwoofer. Sound
may not be output from all speakers depending on the source.
Decoding mode
Effect
“PLII MOVIE”
Dolby Pro Logic II
MOVIE
Performs Pro Logic II movie mode decoding to the input signal and
produces five full-bandwidth output channels from 2 channel sources.
This setting is ideal for watching videos of overdubbed or old movies.
This mode outputs sound from all the speakers and subwoofer. Sound
may not be output from all speakers depending on the source.
“PLII MUSIC”
Dolby Pro Logic II
MUSIC
Performs Pro Logic II music mode decoding to the input signal and
produces five full-bandwidth output channels from 2 channel sources.
This setting is ideal for normal stereo sources such as a CD.
This mode outputs sound from all the speakers and subwoofer. Sound
may not be output from all speakers depending on the source.
“2CH STEREO”
2 CHANNEL
STEREO
Outputs the sound from the front left and right speakers and
subwoofer. Multi channel surround formats are downmixed to 2
channels.
“HP 2CH”
HEADPHONE
2 CHANNEL
STEREO
Outputs the sound from headphone left and right. Multi channel
surround formats are downmixed to 2 channels.
“HP VIRTUAL”
HEADPHONE
VIRTUAL
Outputs the sound as surround from headphone left and right. This
mode is effective only when a multi channel source is played.
4
Press
Sound Adjustment
Display
.
The setting is made.
5
Press SYSTEM MENU.
The system menu turns off.
To turn the surround effect off
Select “A.F.D. STD” or “2CH STEREO” for “DEC. MODE.”
Note
• When the input signal is multi channel source, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are canceled
and the multi channel source is output directly.
• When the bilingual broadcast sound is input, “PRO LOGIC,” “PLII MOVIE,” and “PLII MUSIC” are not effective.
• You cannot select the decoding mode when the unit is reading the files in the USB device or recording/copying
songs.
• Depending on the input stream, the decoding mode may not be effective.
• When you select “A.F.D. MULTI,” the surround or stereo effect may not be effective. In this case, select “A.F.D.
STD,” “PRO LOGIC,” “PLII MOVIE,” or “PLII MUSIC.”
• When changing the decoding mode while using the S-AIR receiver, sound from the S-AIR receiver may skip.
27GB
Selecting the Sound
Mode
Enjoying Multiplex
Broadcast Sound
You can select a suitable sound mode for movies
or music.
(DUAL MONO)
You can enjoy multiplex broadcast sound when
the system receives or plays the Dolby Digital
multiplex broadcast signal.
Note
SOUND
MODE
• To receive the Dolby Digital signal, you need to
connect a TV or other component to the unit with an
optical or coaxial digital cord (page 15) and set the
digital output mode of the TV or other component to
Dolby Digital.
AUDIO
Press SOUND MODE repeatedly during
playback until the desired mode appears in
the front panel display.
• “AUTO”: The system selects “MOVIE” or
“MUSIC” automatically to produce the sound
effect depending on the disc.
• “MOVIE”: The system provides the sound for
movies.
• “MUSIC”: The system provides the sound for
music.
Note
• You cannot operate these setup items when you
connect headphones to the unit or surround amplifier.
• When changing the sound mode while using the
S-AIR receiver, sound from the S-AIR receiver may
skip.
28GB
Press AUDIO repeatedly until the desired
signal appears in the front panel display.
• “MAIN”: Sound of the main language will be
output.
• “SUB”: Sound of the sub language will be
output.
• “MAIN+SUB”: Mixed sound of both the main
and sub languages will be output.
Place one disc on the tray, and then press A.
Disc
Playing a Disc
Disc
Depending on the DVD VIDEO or VIDEO CD,
some operations may be different or restricted.
Refer to the operating instructions supplied with
your disc.
Note
• When you play an 8 cm disc, place it on the
inner circle of the tray. Be careful that the disc is
not skewed on the inner circle of the tray.
• Do not forcibly press the disc tray closed with
your finger, as this may cause malfunction.
• Do not place more than one disc on the tray.
Adjust the volume
"/1
A
H
FUNCTION
6
Press H.
The system starts playback (continuous
play).
Disc tray
Connect
headphones
7
"/1
Adjust the volume by using VOLUME +/
– on the remote or the VOLUME control
on the unit.
The volume level appears on the TV screen
and in the front panel display.
FUNCTION
+/–
Note
MUTING
STEP
/
/
VOLUME +/–
,
/m/
M/
./>
H
To turn the system off
x
Press "/1 while the system is on. The system
enters standby mode.
X
1
2
3
Turn on your TV.
Switch the input selector on the TV to
this system.
Press "/1.
The system turns on.
Unless the system is set to “DVD,” press
FUNCTION +/– to select “DVD.”
4
5
• Depending on the system status, the volume level
may not appear on the TV screen.
• When you set the Control for HDMI function to on,
the TV that is connected to the system with an HDMI
cable (not supplied) can be sync-operated with the
system. For details, see “Using the Control for HDMI
Function for “BRAVIA” Sync” (page 58).
To save power in standby mode
Press "/1 while the system is on.
To enter power saving mode, make sure that the
system is in the following status.
– “DEMO” is set to “OFF” (page 20).
– [CONTROL FOR HDMI] is set to [OFF]
(page 58).
– “S-AIR STBY” is set to “OFF” (page 73).
Press A.
Load a disc.
29GB
To use the headphones
To
Connect the headphones to PHONES jack on the
unit. The sound of the system is muted.
You can also connect the headphones to
PHONES jack on the surround amplifier. (The
sound of the system is muted.)
Play one frame at a time STEP
to go to the next
(Freeze Frame)3)5)6)
frame while the system is in
pause mode. Press STEP
to go to the preceding
frame while the system is in
pause mode (DVD VIDEO/
DVD-R/DVD-RW only).
To return to normal
playback, press H.
Other operations
To
Press
Stop
x
Pause
X
Resume play after pause X or H
Press
Replay the previous
scene (10 seconds
before)7)
(instant replay) during
playback.
(instant advance)
Briefly fast forward the
during playback.
current scene (30
seconds after)8)
Go to the next chapter,
track, or scene1)
>
Go back to the
preceding chapter,
track, or scene1)
. twice in a second.
When you press . once,
you can go to the beginning
of the current chapter,
track, or scene.
1)
Except for JPEG image files.
2)
Scan speeds may differ with some discs.
Turn off the sound
temporarily
MUTING.
To cancel, press it again or
VOLUME + to adjust the
sound volume.
5)You
Stop play and remove
the desired disc
A on the unit.
Locate a point quickly
by playing a disc in fast
forward or fast reverse
(Scan)1)2)
M/
or
/m while
playing a disc. Each time
you press M/
or
/
m during scan, the
playback speed changes.
To return to normal speed,
press H. Actual speeds
may differ with some discs.
Watch frame by frame
(Slow-motion Play)3)
M/
or
/m4)
while the system is in pause
mode. Each time you press
M/
or
/m4)
during Slow-motion Play,
the playback speed
changes. Two speeds are
available. To return to
normal playback speed,
press H.
3)DVD VIDEO, DVD-R,
4)
DVD-RW, VIDEO CD only.
Except for VIDEO CDs.
cannot search for a still picture on a DVD-VR.
6)For
a DATA CD/DATA DVD, this function works
only for DivX video files.
7)
DVD VIDEO/DVD-RW/DVD-R only. The button
can be used except for DivX video files.
8)
DVD VIDEO/DVD-RW/DVD-R/DVD+RW/
DVD+R only. The button can be used except for
DivX video files.
Note
• You may not be able to use the instant replay or
instant advance function with some scenes.
Displaying multi-angles and
subtitles
To change the angles
If various angles (multi-angles) for a scene are
recorded on a DVD VIDEO, you can change the
viewing angle.
Press ANGLE during playback to select the
desired angle.
Note
• Depending on the DVD VIDEO, you may not be able
to change the angle even if multi-angles are recorded
on the DVD VIDEO.
30GB
To display the subtitles
Press SUBTITLE during playback to select
the desired subtitle language.
Note
• Depending on the DVD VIDEO, you may not be able
to change the subtitles even if multilingual subtitles
are recorded on the disc. You also may not be able to
turn them off.
• You can change the subtitles if the DivX video file
has an “.AVI” or “.DIVX” extension and contains
subtitle information within the same file.
Changing the sound
x DVD-VR
The types of sound tracks recorded on a disc are
displayed.
Example:
• [1: MAIN] (main sound)
• [1: SUB] (sub sound)
• [1: MAIN+SUB] (main and sub sound)
• [2: MAIN]
• [2: SUB]
• [2: MAIN+SUB]
Disc
If subtitles are recorded on a disc, you can turn
the subtitles on/off during playback. If
multilingual subtitles are recorded on the disc,
you can change the subtitle language during
playback, or turn the subtitles on/off whenever
you want.
displayed two or more times, the DVD VIDEO
is recorded in multiple audio formats.
Note
• [2: MAIN], [2: SUB], and [2: MAIN+SUB] do not
appear when one audio stream is recorded on the disc.
x VIDEO CD/CD/DATA CD (MP3 file)/DATA
DVD (MP3 file)
• [STEREO]: The standard stereo sound.
• [1/L]: The sound of the left channel
(monaural).
• [2/R]: The sound of the right channel
(monaural).
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
When the system is playing a DVD VIDEO or
DATA CD/DATA DVD (DivX video files)
recorded in multiple audio formats (PCM,
Dolby Digital, MPEG audio, or DTS), you can
change the audio format. If the DVD VIDEO is
recorded with multilingual tracks, you can also
change the language.
With a VIDEO CD, CD, DATA CD, or DATA
DVD, you can select the sound from the right or
left channel and listen to the sound of the
selected channel through both the right and left
speakers.
You cannot change the sound for a Super Audio
CD.
Press AUDIO repeatedly during playback to
select the desired audio signal.
x DVD VIDEO
Depending on the DVD VIDEO, the choice of
language varies.
When 4 digits are displayed, they indicate a
language code. See “Language Code List”
(page 100) to confirm which language the code
represents. When the same language is
The choice of DATA CD or DATA DVD audio
signal formats differ, depending on the DivX
video file contained on the disc. The format is
shown in the display.
x Super VCD
• [1:STEREO]: The stereo sound of the audio
track 1.
• [1:1/L]: The sound of the left channel of the
audio track 1 (monaural).
• [1:2/R]: The sound of the right channel of the
audio track 1 (monaural).
• [2:STEREO]: The stereo sound of the audio
track 2.
• [2:1/L]: The sound of the left channel of the
audio track 2 (monaural).
• [2:2/R]: The sound of the right channel of the
audio track 2 (monaural).
Note
• While the system is playing a Super VCD on which
the audio track 2 is not recorded, no sound will come
out when you select [2:STEREO], [2:1/L], or [2:2/R].
31GB
Checking the audio signal
format
If you press AUDIO repeatedly during
playback, the format of the current audio signal
(PCM, Dolby Digital, DTS, etc.) appears as
shown below.
x DVD
Example:
Dolby Digital 5.1 channel
LFE (Low
Frequency Effect)
Surround (L/R)
Selecting a playback area for a
Super Audio CD
You can play the Super Audio CD (page 98) by
selecting the playback area.
To select a playback area on a 2
channel + Multi-channel Super
Audio CD
Some Super Audio CDs consist of a 2 channel
playback area and a multi-channel playback
area. You can select the playback area you want
to listen to.
1
1: ENGLISH
DOLBY DIGITAL 3 / 2 .1
L
Front (L/R) +
Center
C
The Control Menu display appears on the
TV screen.
R
LFE
LS
RS
Press
DISPLAY while the system is
in stop mode.
2
Currently playing program format
Press X/x to select
2CH], then press
.
[MULTI/
The options for [MULTI/2CH] appear.
3
Example:
Dolby Digital 3 channel
• [MULTI]: You can play the multi-channel
playback area.
• [2CH]: You can play the 2 channel
playback area.
Surround
(Monaural)
Front (L/R)
1:SPANISH
Note
DOLBY DIGITAL 2 / 1
L
R
S
Currently playing program format
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
Example:
MP3 audio
Press X/x to select the desired setting
and press
.
• You cannot change the playback area during
playback.
• When the Super Audio CD does not have the multichannel playback area, you cannot select the
playback area.
To change a playback layer when
playing a hybrid Super Audio CD
Some Super Audio CDs consist of a Super
Audio CD layer and a CD layer. You can change
the playback layer you want to listen to.
Note
1:MP3
128k
Bit rate
32GB
• When the Super Audio CD does not have the CD
layer, you cannot select the playback layer.
1
Press
DISPLAY while the system is
in stop mode.
4
The Control Menu display appears on the
TV screen.
2
Press X/x to select
[SUPER
AUDIO CD/CD LAYER], then press
x When the current layer is the CD
layer
To go back to the menu
[SUPER AUDIO CD] appears.
Press O RETURN.
Press
to change the layer.
• [SUPER AUDIO CD]: You can play the
Super Audio CD layer.
When the system is playing a Super Audio
CD layer, “SA-CD” lights up in the front
panel display
• [CD]: You can play the CD layer.
When the system is playing a CD layer,
“CD” lights up in the front panel display.
Note
• Each play mode function works only within the
selected layer or playback area.
• When you select a CD layer, you cannot change a
playback area.
• Super Audio CD audio signals are not output from the
HDMI OUT jack.
Playing a VIDEO CD with PBC
functions (Ver.2.0)
(PBC Playback)
With PBC (Playback Control) functions, you
can enjoy simple interactive operations, search
functions, and other such operations.
PBC playback allows you to play a VIDEO CD
interactively by following the menu on the TV
screen.
Note
• Depending on the VIDEO CD, [Press ENTER] in
Step 3 may appear as [Press SELECT] in the
operating instructions supplied with the disc. In this
case, press H.
Disc
[CD] appears.
1
Refer to the operating instructions supplied
with the disc, as the operating procedure
may differ depending on the VIDEO CD.
.
x When the current layer is the Super
Audio CD layer
3
Follow the instructions in the menu for
interactive operations.
Tip
• To play without using the PBC function, press ./
> or the number buttons while the system is in stop
mode to select a track, then press H or
. The
system starts playback. You cannot play still pictures
such as a menu. To return to PBC playback, press x
twice, then press H.
Resuming playback from the
point where you stopped the
disc
(Resume Play)
When you stop the disc, the system remembers
the point where you pressed x and “RESUME”
appears in the front panel display. As long as
you do not remove the disc, Resume Play will
work even if the system is set to standby mode
by pressing "/1.
1
While playing a disc, press x to stop
playback.
“RESUME” appears in the front panel
display.
2
Start playing a VIDEO CD with PBC
functions.
Press H.
The system starts playback from the point
where you stopped the disc in Step 1.
The menu for your selection appears.
2
3
Note
Select the item number you want using
the number buttons.
Press
.
• Depending on where you stop the disc, the system
may not resume playback from exactly the same
point.
• The point where you stopped playing may be cleared
when:
33GB
– you eject the disc.
– the system enters standby mode (DATA CD/
DATA DVD only).
– you change or reset the settings on the Setup
Display.
– you change the parental control level.
– you change the function by pressing FUNCTION
+/–.
– you disconnect the AC power cord (mains lead).
• For a DVD-VR, VIDEO CD, Super Audio CD, CD,
DATA CD, or DATA DVD, the system remembers
the resume playback point for the current disc.
• Resume Play does not work during Program Play and
Shuffle Play.
• This function may not work properly with some
discs.
Tip
• To play from the beginning of the disc, press x twice,
then press H.
To enjoy a disc that is played
before by resume playback
Using Play Mode
Creating your own program
(Program Play)
You can play the contents of a disc in the order
you want by arranging the order of the tracks on
the disc to create your own program. You can
program up to 99 tracks.
1
Press
DISPLAY.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[PROGRAM],
The options for [PROGRAM] appear.
3
(Multi-disc Resume)
Press X/x to select [SET
press
.
t], then
Total time of the programmed tracks
This system recalls the point where you stopped
the disc the last time it was played and resumes
playback from that point the next time you insert
the same disc. When the resume playback
memory is full, the resume playback point for
the earliest disc is deleted.
To activate this function, set [MULTI-DISC
RESUME] in [SYSTEM SETUP] to [ON]. For
details, see “[MULTI-DISC RESUME] (DVD
VIDEO/VIDEO CD only)” (page 51).
PROGRAM
ALL CLEAR
1. TRACK
2. TRACK
3. TRACK
4. TRACK
5. TRACK
6. TRACK
7. TRACK
0: 00:00
T
––
––
––
––
––
––
––
––
01
02
03
04
05
06
Tracks recorded on a disc
4
Press c.
The cursor moves to the track row [T] (in
this case, [01]).
Note
• This system can store at least 10 resume playback
points.
• If [MULTI-DISC RESUME] in [SYSTEM SETUP]
is set to [OFF] (page 51), the resume point is cleared
when you change the function by pressing
FUNCTION +/–.
PROGRAM
ALL CLEAR
1. TRACK
2. TRACK
3. TRACK
4. TRACK
5. TRACK
6. TRACK
7. TRACK
Tip
• To play from the beginning of the disc, press x twice,
then press H.
5
0: 00:00
T
––
––
––
––
––
––
––
––
01
02
03
04
05
06
Select the track you want to program.
For example, select track [02].
Press X/x to select [02] under [T], then
press .
34GB
To cancel all of the tracks in the
programmed order
Selected track
PROGRAM
0: 03:51
T
02
––
––
––
––
––
––
––
01
02
03
04
05
06
Total time of the programmed tracks
6
To program other tracks, repeat Steps
4 to 5.
The programmed tracks are displayed in the
selected order.
7
1
2
3
Follow Steps 1 to 3 of “Creating your
own program.”
Press X and select [ALL CLEAR].
Press
.
Note
• When you press CLEAR to return to normal play,
Shuffle Play and Repeat Play are also canceled.
Disc
ALL CLEAR
1. TRACK
2. TRACK
3. TRACK
4. TRACK
5. TRACK
6. TRACK
7. TRACK
Playing in random order
(Shuffle Play)
Press H to start Program Play.
Program Play starts.
When the program ends, you can restart the
same program again by pressing H.
You can play the contents on a disc in random
order. Subsequent Shuffle Play may produce a
different playing order.
Note
To return to normal play
Press CLEAR while the display for the program
setting is not displayed on the TV screen, or
select [OFF] in Step 3. To play the same
program again, select [ON] in Step 3 and press
.
• Same song may be played repeatedly when you are
playing MP3 files.
1
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Press
Press X/x to select
then press
.
[SHUFFLE],
The options for [SHUFFLE] appear.
3
Press X/x to select the item to be
shuffled.
To change or cancel a program
x VIDEO CD/Super Audio CD/CD
1
Follow Steps 1 to 3 of “Creating your
own program.”
• [OFF]: Off.
• [TRACK]: You can shuffle tracks on the
disc.
Press X/x to select the program
number of the track you want to
change or cancel.
x During Program Play
2
• [OFF]: Off.
• [ON]: You can shuffle tracks selected in
Program Play.
If you want to delete the track from the
program, press CLEAR.
3
x DATA CD (except for DivX video file)/
DATA DVD (except for DivX video file)
Follow Step 5 for new programming.
To cancel a program, select [--] under [T],
then press
.
• [OFF]: Off.
• [ON (MUSIC)]: You can shuffle MP3
files in the folder on the current disc.
When no folder is selected, the first folder
will play in random order.
4
Press
.
35GB
x DATA CD/DATA DVD
Shuffle Play starts.
• [OFF]: Off.
• [DISC]: You can repeat all of the folders
on the disc.
• [FOLDER]: You can repeat the current
folder.
• [TRACK] (MP3 files only): You can
repeat the current file.
• [FILE] (DivX video files only): You can
repeat the current file.
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Note
• You cannot use Shuffle Play with a VIDEO CD or
Super VCD with PBC playback.
• When you press CLEAR to return to normal play,
Program Play and Repeat Play are also canceled.
4
Press
.
The item is selected.
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
Playing repeatedly
To turn off the Control Menu
display
(Repeat Play)
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Note
You can play the contents on a disc repeatedly.
You can use a combination of Shuffle Play or
Program Play modes.
1
Press
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[REPEAT],
The options for [REPEAT] appear.
3
Press X/x to select the item to be
repeated.
x DVD VIDEO/DVD-VR
• [OFF]: Off.
• [DISC]: You can repeat all of the titles on
the disc.
• [TITLE]: You can repeat the current title
on a disc.
• [CHAPTER]: You can repeat the current
chapter.
x VIDEO CD/Super Audio CD/CD
• [OFF]: Off.
• [DISC]: You can repeats all of the tracks
on the disc.
• [TRACK]: You can repeat the current
track.
36GB
• You cannot use Repeat Play with a VIDEO CD or
Super VCD with PBC playback.
• When the system is playing a DATA CD/DATA
DVD which contains MP3 files and JPEG image
files, and their playing time is not the same, the audio
sound will not match the image.
• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]
(page 41), you cannot select [TRACK].
• When you press CLEAR to return to normal play,
Program Play and Shuffle Play are also canceled.
Searching/Selecting a
Disc
Using the DVD’s menu
Selecting [ORIGINAL] or [PLAY
LIST] on a DVD-VR
This function is only available for DVD-VRs
with a playlist created.
A DVD is divided into a lot of sections, which
make up a picture or music feature. These
sections are called “titles.” When you play a
DVD which contains several titles, you can
select the title you want using DVD TOP
MENU.
When you play a DVD that allows you to select
items such as the language for the subtitles and
the language for the sound, select these items
using DVD MENU.
1
2
3
The Control Menu display appears on the
TV screen.
2
Press C/X/x/c or the number buttons to
select the item you want to play or
change.
Press
.
Press X/x to select
PLAY LIST], then press
[ORIGINAL/
.
The options for [ORIGINAL/PLAY LIST]
appear.
3
Press X/x to select a setting.
• [PLAY LIST]: You can play the titles
created from [ORIGINAL] for editing.
• [ORIGINAL]: You can play the titles
originally recorded.
Press DVD TOP MENU or DVD MENU.
The disc’s menu appears on the TV screen.
The contents of the menu vary depending
on the disc.
Press
DISPLAY while the system is
in stop mode.
Disc
1
4
Press
.
Searching for a title/chapter/
track/scene, etc.
To display the DVD’s menu on the
Control Menu display
1
Press
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
MENU], then press
[DISC
.
The options for [DISC MENU] appear.
3
4
Press X/x to select [MENU] or [TOP
MENU].
Press
.
You can search a DVD VIDEO/DVD-VR by
title or chapter, and you can search a VIDEO
CD/Super Audio CD/CD/DATA CD/DATA
DVD by track, index, or scene. For a DATA CD/
DATA DVD, you can search by folder or file.
As titles and tracks are assigned unique numbers
on the disc, you can select the desired title or
track by entering its number. Or, you can search
for a scene using the time code.
1
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Press
DISPLAY. (When playing a
DATA CD/DATA DVD with JPEG image
files, press
DISPLAY twice.)
The Control Menu display appears on the
TV screen.
2
Press X/x to select the search method.
Example:
[CHAPTER]
[** (**)] is selected (** refers to a number).
37GB
The number in parentheses indicates the
total number of titles, chapters, tracks,
indexes, scenes, folders, or files.
98( 99)
13( 99)
T
0: 03: 17
DVD VIDEO
3
Input the time code using the number
buttons.
For example, to find the scene at 2 hours, 10
minutes, and 20 seconds after the
beginning. Press 2, 1, 0, 2, 0 ([2:10:20]).
4
Press
.
Note
• You cannot search for a scene on a DVD+RW using
the time code.
Selected row
3
Press
.
[** (**)] changes to [– – (**)].
98( 99)
13( 99)
T
0: 03: 17
4
DVD VIDEO
Press X/x or the number buttons to
select the desired number of the title,
chapter, track, index, scene, etc.
If you make a mistake, press CLEAR to
cancel the number.
5
Press
.
The system starts playback from the
selected number.
Tip
• When the Control Menu display is turned off, you can
search for a chapter (DVD VIDEO/DVD-R/DVDRW), track (VIDEO CD/Super Audio CD/CD), or
file (DATA CD/DATA DVD (DivX video file)) by
pressing the number buttons and
.
To search for a scene using the
time code
1
In Step 2, select
[TIME].
[T **:**:**] (playing time of the current
title) is selected.
2
Press
.
[T **:**:**] changes to [T --:--:--].
38GB
Playing MP3 Files/JPEG
Image Files
2
Press X/x to select a folder.
x To play MP3 files in a folder
Press H to start playing the selected
folder.
x To select a MP3 file
TRACK LIST
03 In the Middle of Nowher...
* “Design rule for Camera File system”: Image
standards for digital cameras regulated by Japan
Electronics and Information Technology Industries
Association (JEITA).
01_Geronimo_s_Cadillac
02_Riding_On_A_White_Swan
03_Give_Me_Peace_On_Earth
04_Sweet_Little_Shella
05_Ten_Thousand_Lonely_Drums
06_Lonely_Tears_In_Chinatown
07_In_Shaire
Note
• The system will play any data with the extension
“.MP3,” “.JPG,” or “.JPEG” even if they are not in
MP3 or JPEG format. Playing these data may
generate a loud noise which could damage your
speaker system.
• The system does not conform to audio in MP3PRO
format.
• The system can recognize up to 200 folders, and will
not play any folders beyond the 200th. (Depending on
the folder configuration, the number of folders that
can be recognized by the system may decrease.)
• The system can recognize up to 150 MP3 files/JPEG
image files in a folder.
• The system may take longer time to playback, when
progressing to the following folder or jump to other
folder.
• The system may not play certain types of JPEG image
files (ex. a JPEG image file that is less than 8 (width)
× 8 (height)).
Selecting an MP3 file or folder
1
Load a DATA CD or DATA DVD.
The folders recorded on the DATA CD or
DATA DVD appear. When a folder is being
played, its title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
Disc
Press
.
The list of files contained in the folder
appears.
You can play the MP3 files or JPEG image files:
• which have the extension “.MP3” (MP3 file)
or “.JPG”/“.JPEG” (JPEG image file)
• which conform to the DCF* image file format
Press X/x to select a file and press
.
The system starts playing the selected file.
You can turn the file list off by pressing
DVD MENU. Pressing DVD MENU again
will display the folder list.
To stop playback
Press x.
To play the next or previous MP3
file
Press > to play the next MP3 file. Press .
twice to play the previous MP3 file.
When you press . once, you can go to the
beginning of the current MP3 file.
Note that you can select the next folder by
continuing to press > after the last file on the
current folder, but that you cannot return to the
previous folder by pressing .. To return to
the previous folder, select the folder from the
folder list.
To return to the previous display
Press O RETURN.
To turn off the display
Press DVD MENU.
Selecting a JPEG image file or
folder
1
Load a DATA CD or DATA DVD.
39GB
The folders recorded on the DATA CD or
DATA DVD appear. When a folder is being
played, its title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
2
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
Press X/x to select a folder.
x To play JPEG image files in a folder
Press H to start playing the selected
folder.
x To select a JPEG image file by
displaying the subscreens
Press PICTURE NAVI.
Images of JPEG image files in the folder
appear in 16 subscreens.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Press C/X/x/c to select the JPEG image
file you want to view, then press
.
To return to normal screen, press O
RETURN.
Note
• PICTURE NAVI does not work when you set
[MODE (MUSIC, IMAGE)] to [MUSIC].
Tip
• A scroll box is displayed at the right side of the
TV screen. To display the additional JPEG
image files, select the bottom JPEG image file
and press x. To return to the previous JPEG
image file, select the top JPEG image file and
press X.
To play the next or previous JPEG
image file
Press c/C when the Control Menu display is not
displayed. Note that you can select the next
40GB
folder by continuing to press c after the last
image on the current folder, but that you cannot
return to the previous folder by pressing C. To
return to the previous folder, select the folder
from the folder list.
To rotate a JPEG image file
When a JPEG image file is displayed on the TV
screen, you can rotate the JPEG image file by 90
degrees.
Press X/x while viewing a JPEG image file.
Press CLEAR to return to normal view.
Note
• You cannot rotate the JPEG image file when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD] (page 50).
To stop playback
Press x.
Displaying the list of MP3
files/JPEG image files/DivX
video files
1
Press
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
[BROWSING], then press
.
The options for [BROWSING] appear.
3
Press X/x to select the desired list,
then press
.
• [FOLDER LIST]: The list of folders
appears. Follow Step 2 of “Selecting an
MP3 file or folder” (page 39), “Selecting
a JPEG image file or folder” (page 39), or
“Selecting a folder” (page 43).
• [PICTURE LIST]: Images of JPEG image
files in the folder appear in 16 subscreens.
Follow Step 2 of “Selecting a JPEG image
file or folder” (page 39).
If there is no JPEG image file in the
selected folder, [No image data] appears.
In this case, select [FOLDER LIST] to
display the list of folders.
Playing MP3 files and JPEG
image files as a slide show
with sound
1
2
Load a DATA CD or DATA DVD.
1
2
5
6
7
Press X/x to select
then press
.
[INTERVAL],
The options for [INTERVAL] appear.
3
Press
DISPLAY while the system is
in stop mode.
Press X/x to select a setting.
• [NORMAL]: You can set to the standard
duration.
• [FAST]: You can set the duration shorter
than [NORMAL].
• [SLOW 1]: You can set the duration
longer than [NORMAL].
• [SLOW 2]: You can set the duration
longer than [SLOW 1].
Press X/x to select
[MODE
(MUSIC, IMAGE)], then press
.
The options for [MODE (MUSIC,
IMAGE)] appear.
4
DISPLAY twice.
The Control Menu display appears on the
TV screen.
The Control Menu display appears on the
TV screen.
3
Press
Press X/x to select a setting.
4
• [AUTO]: You can play both the JPEG
image files and MP3 files in the same
folder as a slide show.
• [MUSIC]: You can play only MP3 files
continuously.
• [IMAGE]: You can play only JPEG
image files as a slide show.
• Some JPEG image files may take longer to display
than the option you selected. Especially progressive
JPEG image files or JPEG image files of 3,000,000
pixels or more.
• Duration of interval depends on the [JPEG
RESOLUTION] setting in [HDMI SETUP]
(page 49).
Press
.
Press
.
Note
Press DVD MENU.
To select an effect for JPEG
image files in the slide show
The list of folders recorded on the DATA
CD or DATA DVD appears.
1
Press X/x to select the desired folder
and press H.
The system starts playing the selected
folder.
You can turn the folder list on/off by
pressing DVD MENU repeatedly.
Note
• PICTURE NAVI does not work when [MUSIC] is
selected.
• If you play large MP3 file and JPEG image file at the
same time, the sound may skip. Sony recommends
that you set the MP3 bit rate to 128 kbps or lower
when creating the file. If the sound still skips, reduce
the size of the JPEG image file.
Disc
You can play a slide show with sound by first
placing both MP3 files and JPEG image files in
the same folder on a DATA CD or DATA DVD.
To select the slide show duration
of JPEG image files
Press
DISPLAY twice.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[EFFECT],
The options for [EFFECT] appear.
3
Press X/x to select a setting.
• [MODE 1]: The JPEG image file sweeps
in from top to bottom.
• [MODE 2]: The JPEG image file stretches
out from left to right of the TV screen.
• [MODE 3]: The JPEG image file stretches
out from the center of the TV screen.
• [MODE 4]: The JPEG image files
randomly cycle through the effects.
• [MODE 5]: The next JPEG image file
slides over the previous image.
41GB
• [OFF]: Off.
4
Press
.
Enjoying DivX® Videos
Note
• The [EFFECT] setting is not effective when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD] (page 50).
About DivX video files
DivX® is a video file compression technology,
developed by DivX, Inc. This product is an
official DivX® Certified product.
You can play a DATA CD or DATA DVD that
contains DivX® video files.
A DATA CD or DATA DVD that the
system can play
Playback of a DATA CD (CD-ROM/CD-R/CDRW) or DATA DVD (DVD-ROM/DVD-R/
DVD-RW/DVD+R/DVD+RW) on this system
is subject to certain conditions:
– With a DATA CD/DATA DVD that contains
DivX video files in addition to MP3 audio
tracks or JPEG image files, the system plays
only the DivX video files.
However, this system only plays a DATA CD of
format ISO 9660 Level 1/Level 2 or Joliet, and a
DATA DVD of Universal Disk Format (UDF).
Refer to the operating instructions supplied with
the disc drives and the recording software (not
supplied) for details on the recording format.
About playback order of data on a
DATA CD or DATA DVD
Note that the playback order may not be
applicable, depending on the software used for
creating the DivX video file, or if there are more
than 200 folders and 150 DivX video files in
each folder.
Note
• The system may not be able to play some DATA
CDs/DATA DVDs created in the Packet Write
format.
DivX video files that the system
can play
The system can play data that is recorded in
DivX format, and which has the extension
“.AVI,” or “.DIVX.” The system will not play
42GB
files with the extension “.AVI” or “.DIVX” if
they do not contain a DivX video.
To go to the next or previous
page
Tip
Press
• For details about playable MP3 audio tracks or JPEG
image files on a DATA CD or DATA DVD, see
“Playable Discs” (page 5).
To turn off the display
Note
Selecting a folder
1
Press DVD MENU.
A list of folders on the disc appears. Only
folders that contain DivX video files are
listed.
.
Press DVD MENU repeatedly.
To stop playback
Disc
• The system may not play a DivX video file when the
file has been combined from two or more DivX video
files.
• The system cannot play a DivX video file of size
more than 720 (width) × 576 (height) or 2GB.
• Depending on the DivX video file, sound may skip or
not match the pictures on the TV screen.
• The system cannot play some DivX video files that
are longer than 3 hours.
• Depending on the DivX video file, the picture may
pause or be unclear. In which case, it is recommended
that you create the file at a lower bit rate. If the sound
is still noisy, MP3 is the recommended audio format.
Note, however, this system does not conform to
WMA (Windows Media Audio) format for playing
DivX files.
• Because of the compression technology used for
DivX video files, it may take some time after you
press H for the picture to appear.
/
Press x.
Selecting a DivX video file
1
After Step 2 of “Selecting a folder,”
press
.
The list of files in the folder appears.
FILE LIST
MY FAVOURITES
HAWAII 2004
VENUS
2
Press X/x to select a file and press
.
The selected file starts playing.
To go to the next or previous
page
Press
/
.
To return to the previous display
Press O RETURN.
FOLDER LIST
SUMMER 2003
NEW YEAR'S DAY
MY FAVOURITES
To stop playback
Press x.
To play the next or previous DivX
video file without turning on the
above file list
2
3
Press X/x to select the folder you want
to play.
Press H.
The system starts playing the selected
folder.
To select DivX video files, see “Selecting a
DivX video file” (page 43).
You can select the next or previous DivX video
file in the same folder by pressing >/..
You can also select the first file of the next
folder by pressing > during playback of the
last file of the current folder. Note that you
cannot return to the previous folder by pressing
.. To return to the previous folder, select it
from the folder list.
43GB
Tip
• If the number of viewing times is preset, you can play
the DivX video files as many times as the preset
number. The following occurrences are counted:
– when the system is turned off.
– when another file is played.
– when the disc tray is opened.
Adjusting the Delay
Between the Picture and
Sound
[A/V SYNC]
When the sound does not match the pictures on
the TV screen, you can adjust the delay between
the picture and sound.
1
Press
DISPLAY.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[A/V SYNC],
The options for [A/V SYNC] appear.
3
Press X/x to select a setting.
• [OFF]: Off.
• [ON]: You can adjust the difference
between picture and sound.
4
Press
.
Note
• Depending on the input stream, [A/V SYNC] may not
be effective.
44GB
Enter a 4-digit password using the number
buttons, then press .
The display for confirming the password
appears.
Restricting Playback of
the Disc
x When you have already registered a
password
[PARENTAL CONTROL]
Playback of some DVD VIDEOs can be limited
according to a predetermined level such as the
age of the users. Scenes may be blocked or
replaced with different scenes.
You can set the playback restriction by
registering a password. When you set the
[PARENTAL CONTROL] function to on, you
need to enter the password to play restricted
discs.
1
2
Press
DISPLAY while the system is
in stop mode.
Press X/x to select
then press
.
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [SYSTEM SETUP],
then press
.
The options for [SYSTEM SETUP] appear.
6
The display for setting the playback
limitation level appears.
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD:
8
Press X/x to select [PARENTAL
CONTROL t], then press
.
x If you have not entered a password
The display for registering a new password
appears.
Press X/x to select [STANDARD], then
press
.
9
Press X/x to select a geographic area
as the playback limitation level, then
press
.
The area is selected.
When you select [OTHERS t], select and
enter a standard code in the table of
“Parental Control Area Code List”
(page 100) using the number buttons.
10 Press X/x to select [LEVEL], then press
.
The selection items for [LEVEL] are
displayed.
11 Press X/x to select the desired level,
then press
PARENTAL CONTROL
Enter a new 4-digit password,
then press ENTER .
OFF
USA
The selection items for [STANDARD] are
displayed.
[SETUP],
The options for [SETUP] appear.
4
Enter or re-enter your 4-digit password
using the number buttons, then press
.
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
The Control Menu display appears on the
TV screen.
3
7
Disc
The display for entering the password
appears.
.
[PARENTAL CONTROL] setting is
complete.
The lower the value, the stricter the
limitation.
45GB
To turn off the [PARENTAL
CONTROL] function
To play a disc for which
[PARENTAL CONTROL] is set
2
Press X/x to select [SYSTEM SETUP],
then press
.
The options for [SYSTEM SETUP] appear.
Set [LEVEL] to [OFF] in Step 11.
1
5
6
The display for entering the password
appears.
Load the disc and press H.
The display for entering your password
appears.
7
Enter your 4-digit password using the
number buttons, then press
.
8
The system starts playback.
9
Note
• When you play discs which do not have the
[PARENTAL CONTROL] function, playback
cannot be limited on this system.
• Depending on the disc, you may be asked to change
the parental control level while playing the disc. In
this case, enter your password, then change the level.
If the Resume Play mode is canceled, the level returns
to the previous level.
Press X/x to select [PARENTAL
CONTROL t], then press
.
Enter your 4-digit password using the
number buttons, then press
.
Press X/x to select [CHANGE
PASSWORD t], then press
.
Enter your 4-digit password using the
number buttons, then press
.
10 Enter a new 4-digit password using the
number buttons, then press
.
11 To confirm your password, re-enter it
using the number buttons, then press
.
If you make a mistake entering
your password
Tip
• If you forget your password, remove the disc and
repeat Steps 1 to 7 of “Restricting Playback of the
Disc” (page 45). When you are asked to enter your
password, enter “199703” using the number buttons,
then press . The display will ask you to enter a new
4-digit password. After you enter a new 4-digit
password, replace the disc in the unit and press H.
When the display for entering your password appears,
enter your new password.
Changing the password
1
2
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
46GB
Press C before you press
correct number.
, then input the
The options for the selected item appear.
Example: [TV TYPE]
Using the Setup Display
VIDEO SETUP
TV TYPE:
LINE:
PAUSE MODE:
You can make various adjustments of items such
as picture and sound.
Displayed items vary depending on the country
model.
16:9
16:9
OFF
4:3 LETTERFULL
BOX
AUTO
4:3 PAN SCAN
Options
• Playback settings stored in the disc take priority over
the Setup Display settings and not all the functions
described may work.
1
2
Disc
Note
7
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
The setting is selected and setup is
complete.
Example: [4:3 LETTER BOX]
Press
DISPLAY while the system is
in stop mode.
VIDEO SETUP
TV TYPE:
LINE:
PAUSE MODE:
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
Press X/x to select a setting, then
press
.
[SETUP],
4:3 LETTER BOX
VIDEO
AUTO
Selected setting
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select the setup item, then
press
.
•
•
•
•
•
•
[LANGUAGE SETUP] (page 47)
[VIDEO SETUP] (page 48)
[HDMI SETUP] (page 49)
[AUDIO SETUP] (page 50)
[SYSTEM SETUP] (page 51)
[SPEAKER SETUP] (page 51)
Example: [VIDEO SETUP]
Selected item
VIDEO SETUP
TV TYPE:
LINE:
PAUSE MODE:
Note
• When you turn the system on after resetting and no
disc is in the unit, the guide message appears on the
TV screen. To perform the Quick Setup (page 21),
press
. To return to normal screen, press CLEAR.
To reset all of the [SETUP] settings
To reset all of the [SETUP] settings, see
“Returning the [SETUP] settings to the default”
(page 83).
Setting the display or sound
track language
[LANGUAGE SETUP]
16:9
VIDEO
AUTO
Set various languages for the on-screen display
or sound track.
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
Setup items
6
Press X/x to select an item, then press
.
47GB
x [OSD] (On-Screen Display)
x [TV TYPE]
You can switch the display language on the TV
screen.
You can select the aspect ratio of the connected
TV.
x [MENU] (DVD VIDEO only)
[16:9]: Select this when you connect a widescreen TV or a TV with a wide mode function.
You can switch the language for the disc’s
menu.
x [AUDIO] (DVD VIDEO only)
You can switch the language of the sound track.
When you select [ORIGINAL], the language
given priority in the disc is selected.
x [SUBTITLE] (DVD VIDEO only)
You can switch the language of the subtitle
recorded on the DVD VIDEO.
When you select [AUDIO FOLLOW], the
language for the subtitles changes according to
the language you selected for the sound track.
Note
• When you select a language in [MENU], [AUDIO],
or [SUBTITLE] that is not recorded on the DVD
VIDEO, one of the recorded languages will be
automatically selected (depending on the disc, the
language may not be selected automatically).
[4:3 LETTER BOX]: Select this when you
connect a 4:3 screen TV. Displays a wide picture
with bands on the upper and lower portions of
the TV screen.
[4:3 PAN SCAN]: Select this when you connect
a 4:3 screen TV. The system automatically
displays the wide picture on the entire screen
and cuts off the portions that do not fit.
Tip
• If you select [OTHERS t] in [MENU], [AUDIO],
and [SUBTITLE], select and enter a language code
from “Language Code List” (page 100) using the
number buttons.
Settings for the display
Note
• Depending on the DVD, [4:3 LETTER BOX] may be
selected automatically instead of [4:3 PAN SCAN] or
vice versa.
[VIDEO SETUP]
x [LINE]
Select settings according to the TV to be
connected.
You can select the output method for video
signals from the EURO AV T OUTPUT (TO
TV) jack on the rear panel of the unit.
VIDEO SETUP
TV TYPE:
LINE:
PAUSE MODE:
16:9
VIDEO
AUTO
[VIDEO]: The system outputs video signals.
[RGB]: The system outputs RGB signals.
Note
• If your TV does not accept RGB signals, no picture
appears on the TV screen even if you select [RGB].
Refer to the operating instructions supplied with your
TV.
• You cannot select [RGB] while the HDMI indicator
is lit. [RGB] automatically switches to [VIDEO]
when you turn on any connected HDMI equipment.
48GB
x [PAUSE MODE] (DVD VIDEO/DVD-R/
DVD-RW only)
You can select the picture in pause mode.
Settings for the HDMI
Note
• When you set to [ON] without the HDMI connection
of the TV, [Please verify the HDMI connection.]
appears and you cannot set to [ON].
x [VOLUME LIMIT]
[HDMI SETUP]
HDMI SETUP
HDMI RESOLUTION:
CONTROL FOR HDMI:
VOLUME LIMIT:
YCBCR/RGB(HDMI):
AUDIO(HDMI):
JPEG RESOLUTION:
[OFF]: Off.
[ON]: On. You can operate mutually between
components that are connected with an HDMI
cable.
Disc
[AUTO]: The picture, including subjects that
move dynamically, is output with no jitter.
Normally select this position.
[FRAME]: The picture, including subjects that
do not move dynamically, is output in high
resolution.
for HDMI Function for “BRAVIA” Sync”
(page 58).
AUTO(1920x1080p)
OFF
LEVEL2
YCBCR
OFF
SD
If you change the output method of the TV to the
system speaker on the TV menu or by pressing
THEATRE, the System Audio Control
(page 60) is activated and loud sound may be
output depending on the volume level of the
system. You can prevent this by limiting the
maximum level of the volume.
[LEVEL3]: Maximum volume level is set to 10.
[LEVEL2]: Maximum volume level is set to 15.
[LEVEL1]: Maximum volume level is set to 20.
[OFF]: Off.
x [HDMI RESOLUTION]
Note
You can select the type of video signal that is
output from the HDMI OUT jack. For details,
see “To select the type of video signal output
from the HDMI OUT jack” (page 23).
• This function is available only when [CONTROL
FOR HDMI] is set to [ON].
[AUTO (1920 × 1080p)]: The system outputs
the optimal video signal for the connected TV.
[1920 × 1080i]: The system outputs 1920 ×
1080i* video signals.
[1280 × 720p]: The system outputs 1280 ×
720p* video signals.
[720 × 480p]**: The system outputs 720 ×
480p* video signals.
* i: interlace, p: progressive
** Depending on the country model, [720 × 480/576p]
may appear.
x [YCBCR/RGB (HDMI)]
You can select the type of HDMI signal output
from HDMI OUT jack.
[YCBCR]: The system outputs YCBCR signals.
[RGB]: The system outputs RGB signals.
Note
• If the playback picture becomes distorted, set
[YCBCR] to [RGB].
• If the HDMI OUT jack is connected to a component
with a DVI jack, [RGB] signals will be automatically
output even when you select [YCBCR].
x [AUDIO (HDMI)]
x [CONTROL FOR HDMI]
You can select the audio output status from the
HDMI OUT jack.
You can set the [CONTROL FOR HDMI]
function to on/off. This function is available
when you connect the system and TV with an
HDMI cable. For details, see “Using the Control
[OFF]: The system does not output the sound
from the HDMI OUT jack.
49GB
[ON]: The system outputs audio signals by
converting Dolby Digital, DTS, or 96 kHz/24 bit
PCM signals to 48 kHz/16 bit PCM.
Settings for the audio
[AUDIO SETUP]
Note
• When you connect the unit and TV with an HDMI
cable and [ON] is selected, [AUDIO DRC], [A/V
SYNC], DYNAMIC BASS, “DEC. MODE,” and
sound mode are not applied to the sound that is output
from the TV.
• When you set the function to other than “DVD,” the
system does not output the sound from the HDMI
OUT jack even if you set [AUDIO (HDMI)] to [ON].
AUDIO SETUP
S-AIR SETUP:
SPEAKER FORMATION:
AUTO CALIBRATION:
AUDIO DRC:
TRACK SELECTION:
OFF
OFF
x [JPEG RESOLUTION]
You can select the resolution of JPEG image
files output from the HDMI OUT jack.
[SD
]: The system outputs standard
resolution with a black frame.
[HD
]: The system outputs HD resolution
with a black frame.
[HD]: The system outputs the HD resolution
without a black frame.
[(1920 × 1080i) HD
]: The system outputs
full size HD resolution with a black frame.
[(1920 × 1080i) HD]: The system outputs full
size HD resolution without a black frame.
Note
• [JPEG RESOLUTION] is effective only when you
set [TV TYPE] in [VIDEO SETUP] to [16:9], and
you set [HDMI RESOLUTION] in [HDMI SETUP]
to other than [720 × 480p] or [720 × 480/576p].
] or [(1920 ×
• You can select [(1920 × 1080i) HD
1080i) HD] only when you set [HDMI
RESOLUTION] in [HDMI SETUP] to [1920 ×
1080i].
] or [(1920 ×
• If you select [(1920 × 1080i) HD
1080i) HD], the next image appears after the black
screen.
• HDMI signal will stop momentarily when:
– The system is loading or unloading a DATA CD or
DATA DVD disc.
– You connect or remove a USB device.
x [S-AIR SETUP]
You can set up the S-AIR setting. For details,
see “Using an S-AIR Product” (page 71).
[ID]
You can set the ID of the system.
[PAIRING]
You can pair the system and S-AIR sub unit,
such as surround amplifier or S-AIR receiver.
x [SPEAKER FORMATION]
You can select the position of the speakers for
the better surround sound. For details, see
“Getting Optimal Surround Sound for a Room”
(page 76).
x [AUTO CALIBRATION]
You can calibrate the appropriate settings
automatically. For details, see “Calibrating the
Appropriate Settings Automatically” (page 77).
x [AUDIO DRC] (DVD VIDEO only)
You can compress the dynamic range of the
sound track. [AUDIO DRC] is useful for
watching movies at low volume late at night.
[OFF]: No compression of dynamic range.
[STANDARD]: The system reproduces the
sound track with the kind of dynamic range that
the recording engineer intended.
[MAX]: The system compresses dynamic range
fully.
Note
• [AUDIO DRC] works only for Dolby Digital.
50GB
x [TRACK SELECTION] (DVD VIDEO only)
You can give the sound track which contains the
highest number of channels priority when you
play a DVD VIDEO on which multiple audio
formats (PCM, DTS, Dolby Digital, or MPEG
audio) are recorded.
Note
• When you set the item to [AUTO], the language may
change. The [TRACK SELECTION] setting has
higher priority than the [AUDIO] settings in
[LANGUAGE SETUP] (page 47). (Depending on
the disc, this function may not work.)
• If PCM, DTS, Dolby Digital sound, and MPEG audio
have the same number of channels, the system selects
PCM, DTS, Dolby Digital sound, and MPEG audio in
this order.
Other Settings
[SYSTEM SETUP]
SYSTEM SETUP
ON
SCREEN SAVER:
JACKET PICTURE
BACKGROUND:
PARENTAL CONTROL:
Registration Code
DivX:
MULTI-DISC RESUME:
ON
RESET:
x [PARENTAL CONTROL]
Disc
[OFF]: Off.
[AUTO]: The system selects the sound track
automatically according to the priority.
picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a
jacket picture, the [GRAPHICS] picture
appears.
[GRAPHICS]: A preset picture stored in the
system appears.
[BLUE]: The background is blue.
[BLACK]: The background is black.
You can set the playback restrictions. For
details, see “Restricting Playback of the Disc”
(page 45).
x [DivX]
You can display the registration code for this
system.
For more information, go to
http://www.divx.com on the Internet.
x [MULTI-DISC RESUME] (DVD VIDEO/
VIDEO CD only)
You can set the [MULTI-DISC RESUME]
function to on/off.
[ON]: The system stores the resume points in
memory for up to 10 discs.
[OFF]: The system does not store the resume
points in memory. Playback restarts at the
resume point only for the current disc in the unit.
x [RESET]
x [SCREEN SAVER]
You can reduce the display device damages
(ghosting). Press any button (e.g., H button) to
cancel the screen saver.
[ON]: The screen saver image appears if you do
not operate the system for about 15 minutes.
[OFF]: Off.
You can return the [SET UP] settings other than
[PARENTAL CONTROL] to the default
settings. For details, see “Returning the
[SETUP] settings to the default” (page 83).
Settings for the speakers
[SPEAKER SETUP]
You can select the background color or picture
on the TV screen.
To obtain the best possible surround sound, set
connection of the speakers and their distance
from your listening position. Then use the test
tone to adjust the level and the balance of the
speakers to the same level.
[JACKET PICTURE]: The jacket picture (still
picture) appears, but only when the jacket
• You cannot operate [SPEAKER SETUP] when you
connect headphones to the unit or surround amplifier.
x [BACKGROUND]
Note
51GB
SPEAKER SETUP
CONNECTION:
DISTANCE(FRONT):
DISTANCE(SURROUND):
LEVEL(FRONT):
LEVEL(SURROUND):
TEST
TONE
FRONT:
CENTER:
SURROUND:
SUBWOOFER:
YES
YES
YES
YES
A
x [CONNECTION]
If you do not connect center or surround
speakers, set the parameters for [CENTER] and
[SURROUND]. Since the front speaker and
subwoofer setting is fixed, you cannot change
them.
[FRONT]
[YES]
[CENTER]
[YES]: Normally select this.
[NONE]: Select this if no center speaker is used.
[SURROUND]
[YES]: Normally select this.
[NONE]: Select this if no surround speaker is
used.
[SUBWOOFER]
[YES]
Note
• When you change the [CONNECTION] setting, the
[STANDARD] of [SPEAKER FORMATION]
setting remains the same, but the other settings of
[SPEAKER FORMATION] return to
[STANDARD].
[L/R] 3.0 m/10 ft3): Set the front speaker
distance.
[CENTER] 3.0 m/10 ft3)4): Set the center speaker
distance (up to 1.6 meters (5 ft) closer to the
front speakers).
1)
0.9 to 6.9 meters for North American models.
2)
0.0 to 6.9 meters for North American models.
3)When
you perform the Quick Setup (page 21), the
default settings are changed.
4)This item appears when you set [CENTER] to [YES]
in the [CONNECTION] setting.
x [DISTANCE (SURROUND)]
When you move the surround speakers, be sure
to set the parameters of the distance (B) from
the listening position to the speakers.
You can set the parameters from 0.0 to 7.0
meters1) (0 to 23 ft).
x [DISTANCE (FRONT)]
When you move the front speakers and center
speaker, be sure to set the parameters of the
distance (A) from the listening position to the
speakers.
You can set the parameters from 1.0 to 7.0
meters1) (3 to 23 ft) for the front speakers, from
0.0 to 7.0 meters2) (0 to 23 ft) for the center
speaker.
52GB
B
[L/R] 3.0 m/10 ft2)3): Set the surround speaker
distance (up to 5.0 meters (16 ft) closer to the
front speakers).
1)0.0
to 6.9 meters for North American models.
2)When
you perform the Quick Setup (page 21), the
default settings are changed.
3)
1
2
Note
Set the [TEST TONE] to [ON].
Press C/X/x/c repeatedly to select the
desired speaker and the level.
• If all front and surround speakers are not placed at an
equal distance from your listening position, set the
distance according to the closest speaker.
• Do not place the surround speakers farther away from
your listening position than the front speakers.
• Depending on the input stream, the [DISTANCE]
setting may not be effective.
3
4
5
x [LEVEL (FRONT)]
• The test tone signals are not output from the HDMI
OUT jack.
Press
Disc
This item appears when you set [SURROUND] to
[YES] in the [CONNECTION] setting.
[ON]: The test tone is emitted from each speaker
in sequence while adjusting level. When you
select one of the [SPEAKER SETUP] items, the
test tone is emitted from each speaker in
sequence.
Adjust the sound level as follows.
.
Repeat Steps 1 to 3.
Press C/X/x/c repeatedly to set [TEST
TONE] to [OFF] after adjusting the
speaker level.
Note
You can adjust the sound level of the front
speakers, center speaker, and subwoofer. You
can set the parameters from –6.0 dB to 0 dB for
[L/R], and from –6.0 dB to +6.0 dB for
[CENTER] and [SUBWOOFER]. Be sure to set
[TEST TONE] to [ON] for easy adjustment.
[L/R] 0.0 dB: Set the front speaker level.
[CENTER] 0.0 dB*: Set the center speaker
level.
[SUBWOOFER] +2.0 dB: Set the subwoofer
level.
Tip
• To adjust the volume of all the speakers at one time,
turn the VOLUME control on the unit, or press
VOLUME +/– on the remote.
• To return to the default setting when changing a
setting, select the item, then press CLEAR. Note that
only the [CONNECTION] setting does not return to
the default setting.
* This item appears when you set [CENTER] to
[YES] in the [CONNECTION] setting.
x [LEVEL (SURROUND)]
You can adjust the sound level of the surround
speakers. You can set the parameter from –6.0
dB to +6.0 dB. Be sure to set [TEST TONE] to
[ON] for easy adjustment.
[L/R] 0.0 dB*: Set the surround speaker level.
* This item appears when you set [SURROUND] to
[YES] in the [CONNECTION] setting.
x [TEST TONE]
The speakers will emit a test tone to adjust
[LEVEL (FRONT)] and [LEVEL
(SURROUND)].
[OFF]: The test tone is not emitted from the
speakers.
53GB
Tip
• You can select the preset number directly by
pressing the number buttons.
Tuner
Presetting Radio
Stations
You can preset 20 FM stations, and 10 AM
stations. Before tuning, make sure to turn down
the volume to minimum.
7
Press
.
“COMPLETE” appears in the front panel
display, and the station is stored.
8
9
Repeat Steps 2 to 7 to store other
stations.
Press SYSTEM MENU.
The system menu turns off.
Tip
• You can operate the tuner function by observing the
following display on the TV screen.
Current station
Current band and preset number
FM
FM 10 : 88.00 MHz
SONY RADIO
Station name
1
2
Press FUNCTION +/– repeatedly until
“TUNER FM” or “TUNER AM” appears
in the front panel display.
Press and hold TUNING +/– until the
auto scanning starts.
Scanning stops when the system tunes in a
station. “TUNED” and “ST” (for stereo
program) appear in the front panel display.
3
4
5
Press SYSTEM MENU.
Press X/x repeatedly until “MEMORY”
appears in the front panel display.
Press
or c.
A preset number appears in the front panel
display.
6
54GB
Press X/x to select the preset number
you want.
To change the preset number
Select the desired preset number by pressing
PRESET +/– (page 55), then perform the
procedure from Step 3.
If an FM program is noisy
Listening to the Radio
Preset radio stations in the system’s memory
first (see “Presetting Radio Stations” (page 54)).
1
Press FUNCTION +/– repeatedly until
“TUNER FM” or “TUNER AM” appears
in the front panel display.
If an FM program is noisy, you can select
monaural reception. There will be no stereo
effect, but reception will improve.
1
2
Press SYSTEM MENU.
Press X/x repeatedly until “FM MODE”
appears in the front panel display.
The last received station is tuned in.
Press PRESET +/– repeatedly to select
the preset station.
Each time you press the button, the system
tunes in one preset station.
3
4
3
Adjust the volume by pressing
VOLUME +/–.
Press X/x to select “MONO.”
• “STEREO”: Stereo reception.
• “MONO”: Monaural reception.
Tip
• You can select the preset station number directly
by pressing the number buttons.
or c.
Press
Tuner
2
5
Press
.
The setting is made.
6
To turn off the radio
Press SYSTEM MENU.
The system menu turns off.
Press "/1.
To listen to non-preset radio
stations
Use manual or automatic tuning in Step 2.
For manual tuning, press TUNING +/–
repeatedly.
For automatic tuning, press and hold TUNING
+/–. The automatic tuning stops automatically
when the system receives the radio station. To
stop the automatic tuning manually, press
TUNING +/– or x.
To listen to radio stations when
you know the frequencies
1
2
3
4
Press FUNCTION +/– repeatedly until
“TUNER FM” or “TUNER AM” appears
in the front panel display.
Naming preset stations
You can enter a name for preset stations. These
names (for example, “XYZ”) appear in the front
panel display when a station is selected.
Only one name can be entered for each preset
station.
Note
• You cannot enter a name for preset stations of the
Radio Data System (RDS) (page 57).
1
The last received station is tuned in.
2
Press D.TUNING.
Press the number buttons to select the
frequencies.
Press
.
Press FUNCTION +/– repeatedly until
“TUNER FM” or “TUNER AM” appears
in the front panel display.
3
4
Press PRESET +/– repeatedly to select
the preset station you want to create an
index name for.
Press SYSTEM MENU.
Press X/x repeatedly until “NAME IN”
appears in the front panel display.
Tip
• To improve reception, reorient the connected
antennas (aerials).
5
Press
or c.
55GB
6
Create a name by using C/X/x/c.
When the station name is not set
Press X/x to select a character, then press c
to move the cursor to the next position.
1 Frequency
Ex. “FM1 87.50”
2 The “FM MODE” setting
Ex. “STEREO”
You can input letters, numbers, and other
symbols for a radio station.
If you make a mistake
Press C/c repeatedly until the character to
be changed flashes, then press X/x to select
the desired character.
To erase the character, press C/c
repeatedly until the character to be erased
flashes, then press CLEAR.
7
.
Press SYSTEM MENU.
The system menu turns off.
Viewing the station name or
frequency in the front panel
display
When the system is set to “TUNER FM” or
“TUNER AM,” you can check the frequency
using the front panel display.
Press DISPLAY.
Each time you press DISPLAY, the display
changes:
1 t 2 t .... t 1 t ....
x “TUNER FM”
When the station name is set
1 Station name
Ex. “SONY RADIO”
2 Frequency
Ex. “FM1 87.50”
3 The “FM MODE” setting
Ex. “STEREO”
56GB
When the station name is set
1 Station name
Ex. “SONY RADIO”
2 Frequency
Ex. “AM1 576”
When the station name is not set
1 Frequency
Ex. “AM1 576”
Note
Press
“COMPLETE” appears in the front panel
display, and the station name is stored.
8
x “TUNER AM”
• The system returns to the original display when
several seconds has elapsed.
Using the Radio Data
System (RDS)
What is the Radio Data
System?
Tuner
The Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features, such as station name display.
RDS is available only for FM stations.*
Note
• RDS may not work properly if the station you are
tuned to is not transmitting the RDS signal properly,
or if the signal strength is weak.
* Not all FM stations provide RDS service, nor do
they provide the same type of services. If you are not
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name* appears in the front
panel display.
* If an RDS broadcast is not received, the station
name may not appear in the front panel display.
57GB
Note
Control for HDMI/External Audio
Device
Using the Control for
HDMI Function for
“BRAVIA” Sync
This function is available on TVs with the
“BRAVIA” Sync function only.
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cable (not supplied), operation is
simplified as below:
– Theatre Mode (page 59)
– One-Touch Play (page 59)
– System Power Off (page 59)
– System Audio Control (page 60)
– Volume Limit (page 60)
Control for HDMI is a mutual control function
standard used by CEC (Consumer Electronics
Control) for HDMI (High-Definition
Multimedia Interface).
The Control for HDMI function will not work in
the following cases:
– When you connect this system to a
component which is not compatible with the
Control for HDMI function.
– A component does not have an HDMI jack.
There are convenient buttons on the system’s
remote for operating the TV, such as
THEATRE, ONE-TOUCH PLAY, TV [/1. For
details, see “Controlling the TV with the
Supplied Remote” (page 78) and refer to the
operating instructions of the TV.
THEATRE
ONE-TOUCH
PLAY
BRAVIA Sync
58GB
TV
• Depending on the connected component, the Control
for HDMI function may not work. Refer to the
operating instructions supplied with the component.
• The Control for HDMI function may not work if you
connect a component other than Sony, even if the
component is compatible with the Control for HDMI
function.
Preparing for the Control for
HDMI function
(Control for HDMI - Easy Setting)
The system is compatible with the Control for
HDMI - Easy Setting function. If the TV is
compatible with the Control for HDMI - Easy
Setting function, you can set the system’s
[CONTROL FOR HDMI] function
automatically by setting the TV. For details,
refer to the operating instructions of the TV.
If the TV is not compatible with the Control for
HDMI - Easy Setting function, set the Control
for HDMI function of the system and TV
manually.
Note
• Displayed items vary depending on the country
model.
1
2
3
4
Make sure that the system and the TV
are connected with an HDMI cable.
Turn on the TV and press [/1 to turn on
the system.
Switch the input selector on your TV so
that the signal from the system through
the HDMI input appears on the TV
screen.
Set the Control for HDMI function of the
system and TV.
For details of the setting of the system, see
the following Steps. For details of the
setting of the TV, refer to the operating
instructions of the TV (depending on the
TV, the default setting of the Control for
HDMI function is set to off).
To set the [CONTROL FOR HDMI]
function to on/off
1
2
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [HDMI SETUP], then
press
.
The options for [HDMI SETUP] appear.
6
7
Press X/x to select [CONTROL FOR
HDMI], then press
.
Press X/x to select the setting, then
press
.
• [OFF]: Off.
• [ON]: On.
Note
• When [Please verify the HDMI connection.] appears,
make sure the HDMI connection is correct.
Using the Theatre Mode
(Theatre Mode)
If your TV is compatible with the Theatre Mode,
you can enjoy optimal image suited for movies
and the sound is output from the system’s
speaker automatically by pressing THEATRE.
Watching DVD by a single
button press
(One-Touch Play)
By only pressing ONE-TOUCH PLAY, the TV
turns on, the TV is set for DVD input mode, and
the system starts playing a disc automatically.
Note
• One-Touch Play does not work when you press H.
The system and TV work as follows (e.g.):
This system
TV
Turns on. (If not already
turned on.)
r
Switches to “DVD”
function.
r
Starts playing the disc and
outputs the sound.
Turns on. (If not already
turned on.)
r
Switches to HDMI input.
r
Minimizes sound level.
(System Audio Control)
Note
• Make sure the HDMI connection is correct, and set
the [CONTROL FOR HDMI] to [ON].
• Depending on the TV, the beginning of the content
may not be played back.
• Depending on the disc, playback may take a while to
start.
Control for HDMI/External Audio Device
The options for [SETUP] appear.
4
The One-Touch Play also works when:
– You press A while the disc tray is opened and
H appears in the front panel display.
– You close the disc tray by pressing the disc
tray.
– You press DVD TOP MENU/DVD MENU
and H appears in the front panel display.
– You select the “DVD” function by pressing
FUNCTION +/– and H appears in the front
panel display.
Turning the system off in sync
with the TV
(System Power Off)
When you turn the TV off by using the POWER
button on the TV’s remote or TV [/1 on the
system’s remote, the system turns off
automatically.
Note
• Before using the System Power Off function, set the
function for TV power. For details, refer to the
operating instructions of the TV.
• Depending on the status of the system (ex. while
other than “DVD” or “TV” function, or playing a
CD), the system may not turn off automatically.
59GB
Enjoying TV sound from the
speakers in this system
(System Audio Control)
You can enjoy TV sound in this system by easy
operation.
To use this function, connect the system and the
TV with an audio cord (not supplied) and an
HDMI cable (not supplied) (page 15).
Depending on the TV, when you set the system
to the “TV” function, the System Audio Control
function is activated. TV sound is output from
the system speakers, and the volume of the TV
speakers is minimized automatically.
You can use the System Audio Control function
as follows:
• While you are watching the TV and the
function of the system is switched to “TV,” TV
sound is output from the system speakers
automatically.
• You can control the system’s volume by the
remote of the TV.
• If you turn the system off or set the function of
the system to other than “TV,” TV sound is
output from the TV speakers.
You can also operate the System Audio Control
function from the TV menu. For details, refer to
the operating instructions of the TV.
Note
• If the TV is turned on before turning on the system,
TV sound will not be output for a moment.
• While the TV is in PAP (picture and picture) mode,
the System Audio Control function will not work.
When the TV exits PAP mode, the output method of
the TV returns to the one before PAP mode.
• If you select a TV program during DVD playback
with the system, the “TV” function is automatically
set to output TV sound.
• When you activate One-Touch Play during watching
TV, the System Audio Control function is activated
and the TV sound is muted.
• While recording songs on an audio CD into a USB
device, the System Audio Control function will not
work.
60GB
Tip
• You can connect the system and the TV audio
digitally. For details, see page 15.
Setting the Maximum Volume
Level of the System
(Volume Limit)
If you change the output method of the TV to the
system speaker on the TV menu or by pressing
THEATRE, loud sound may be output
depending on the volume level of the system.
You can prevent this by limiting the maximum
level of the volume. For details, see “[VOLUME
LIMIT]” (page 49).
Playing Back Audio
Files/JPEG Image Files
of a USB Device
Connecting the USB device
Front panel
* Files with copyright protection (Digital Rights
Management) cannot be played by the system.
Note
• The system cannot play WMA/AAC files on a DATA
CD/DATA DVD.
About playable USB devices
• Do not use USB devices other than those listed
in “Playable USB Devices” (supplement).
Operation of models not listed is not
guaranteed.
• Operation is not guaranteed, even when using
these USB devices.
• Some of these USB devices may not be
available for purchase in certain areas.
• When formatting a USB device, be sure to do
so using the device itself, or dedicated
formatting software for the device. Otherwise,
you may be unable to properly transfer from
the USB device to this system.
USB device
Note
• When you use the AUDIO IN/A.CAL MIC jack
while a USB device is connected, be careful as space
is restricted.
1
2
Press FUNCTION +/– repeatedly until
“USB” appears in the front panel
display.
Connect a USB device (digital music
player or USB storage media) to the
(USB) port.
When you connect the USB device,
“READING” appears in the front panel
display until the system reads all data of the
USB device.
Control for HDMI/External Audio Device
You can play audio files (MP3/WMA/AAC
files)/JPEG image files stored in a USB device
such as the digital music player or USB storage
media (not supplied) by connecting the USB
device to the unit.
For a list of USB devices that can be connected
to the unit, see “Playable USB Devices”
(supplement).
The audio format that can be played back by the
system is MP3/WMA/AAC files* only.
Note
• When you connect the USB device, make sure that
the direction of the jack is correct.
• Do not forcibly insert the USB device, as this may
cause the device to be damaged.
• Do not connect other device or objects besides the
USB device.
• It may take about 10 seconds before “READING”
appears in the front panel display depending on the
type of the USB device.
To remove the USB device
1
2
3
Press x to stop playback.
Press [/1 to turn off the system.
Remove the USB device.
61GB
Notes on the USB device
• The system can play back up to 200 folders,
including albums that do not contain audio
files and JPEG image files. When more than
200 folders are in the USB device, folders that
are recognized by the system differ depending
on the folder configuration.
• The system can play back the following files.
File
•
•
•
•
•
•
•
•
•
62GB
Extension of the file
MP3 file
“.mp3”
WMA file
“.wma”
AAC file
“.m4a”
JPEG image file
“.jpg” or “.jpeg”
The system will play back any data with the
extension above, even if it is not MP3/WMA/
AAC/JPEG format. Playing this data may
generate a loud noise which could damage
your speaker system.
The following USB devices/situations can
increase the time it takes to start playback:
– a USB device recorded with a complicated
tree structure.
– when the audio files or JPEG image files in
another folder have just been played back.
Some USB devices cannot be played back on
the system depending on the file format.
The system can play back to a depth of 8
folders only.
The system may not be able to play an audio
file depending on the kind of file.
When the USB device is inserted, the system
reads all the files on the USB device. If there
are many folders or files on the USB device, it
may take a long time to finish reading the USB
device.
Do not connect the system and the USB device
through a USB hub.
With some connected USB devices, after an
operation is performed, there may be a delay
before it is performed by this system.
This system does not necessarily support all
the functions provided in a connected USB
device.
Files recorded by a device such as a computer
may not be played back in the order in which
they were recorded.
• The playback order for the system may differ
from the playback order of the connected USB
device.
• Always turn off the system before removing
the USB device. Removing the USB device
while the system is on may corrupt the data on
the USB device.
• Do not save other types of files or unnecessary
folders on a USB device that has audio files or
JPEG image files.
• Folders that have no audio files or JPEG image
files are skipped.
• Compatibility with all MP3/WMA/AAC
encoding/writing softwares, recording
devices, and recording media cannot be
guaranteed. Incompatible USB device may
produce noise or interrupted audio or may not
play at all.
• Before using the USB device, make sure that
no virus-ridden files are on the USB device.
Selecting an audio file or
folder
1
2
Press FUNCTION +/– repeatedly until
“USB” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
[MODE
(MUSIC, IMAGE)], then press
.
The options for [MODE (MUSIC,
IMAGE)] appear.
4
5
6
Press X/x to select [MUSIC].
Press
.
Press DVD MENU.
The folders recorded on the USB device
appear. When a folder is being played, its
title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
current folder, but that you cannot return to the
previous folder by pressing .. To return to
the previous folder, select the folder from the
folder list.
To return to the previous display
Press O RETURN.
To turn off the display
7
Press X/x to select a folder.
Press DVD MENU.
x To play audio files in a folder
Other operations
Press H to start playing the selected
folder.
See “Other operations” (page 30).
Press
.
The list of files contained in the folder
appears.
Selecting a JPEG image file or
folder
1
TRACK LIST
03 In the Middle of Nowher...
01_Geronimo_s_Cadillac
02_Riding_On_A_White_Swan
03_Give_Me_Peace_On_Earth
04_Sweet_Little_Shella
05_Ten_Thousand_Lonely_Drums
06_Lonely_Tears_In_Chinatown
07_In_Shaire
Press X/x to select a file and press
.
The system starts playing the selected file.
You can turn the file list off by pressing
DVD MENU. Pressing DVD MENU again
will display the folder list.
Tip
• The system can recognize up to 150 audio files in a
single folder.
• When listening to compressed music in a USB
device, you can enhance the sound. Select “A.F.D.
STD” for “DEC. MODE” (page 26). To cancel, select
other than “A.F.D. STD.”
2
Press FUNCTION +/– repeatedly until
“USB” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
[MODE
(MUSIC, IMAGE)], then press
.
The options for [MODE (MUSIC,
IMAGE)] appear.
4
5
6
Control for HDMI/External Audio Device
x To select an audio file
Press X/x to select [IMAGE].
Press
.
Press DVD MENU.
The folders recorded on the USB device
appear. When a folder is being played, its
title is shaded.
FOLDER LIST
To stop playback
Press x.
To play the next or previous
audio file
01
02
03
04
05
06
07
08
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
Press > to play the next audio file. Press .
twice to play the previous audio file.
When you press . once, you can go to the
beginning of the current audio file.
Note that you can select the next folder by
continuing to press > after the last file on the
63GB
7
Press X/x to select a folder.
To rotate a JPEG image file
x To play JPEG image files in a folder
as a slide show
When a JPEG image file is displayed on the TV
screen, you can rotate the JPEG image file by 90
degrees.
Press X/x while viewing a JPEG image file.
Press CLEAR to return to normal view.
Press H to start playing the selected
folder.
The JPEG images are played as a slide
show. You can change the interval of the
slide show (page 64), and add effects to the
slide show (page 64).
x To select a JPEG image file by
displaying the subscreens
Press PICTURE NAVI.
Images of JPEG image files in the folder
appear in 16 subscreens.
Note
• You cannot rotate the JPEG image file when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD].
To stop playback
Press x.
Other operations
See “Other operations” (page 30).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Press C/X/x/c to select the JPEG image
file you want to view, then press
.
To return to normal screen, press O
RETURN.
To select the slide show duration
of JPEG image files
1
To play the next or previous JPEG
image file
Press c/C when the Control Menu display is not
displayed. Note that you can select the next
folder by continuing to press c after the last
image on the current folder, but that you cannot
return to the previous folder by pressing C. To
return to the previous folder, select the folder
from the folder list.
DISPLAY twice.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[INTERVAL],
The options for [INTERVAL] appear.
3
Press X/x to select a setting.
• [NORMAL]: You can set to the standard
duration.
• [FAST]: You can set the duration shorter
than [NORMAL].
• [SLOW 1]: You can set the duration
longer than [NORMAL].
• [SLOW 2]: You can set the duration
longer than [SLOW 1].
Tip
• A scroll box is displayed at the right side of the
TV screen. To display the additional JPEG
image files, select the bottom JPEG image file
and press x. To return to the previous JPEG
image file, select the top JPEG image file and
press X.
• The system can recognize up to 150 JPEG
image files in a single folder.
Press
4
Press
.
Note
• Some JPEG image files may take longer to display
than the option you selected. Especially progressive
JPEG image files or JPEG image files of 3,000,000
pixels or more.
To select an effect for JPEG
image files in the slide show
1
Press
DISPLAY twice.
The Control Menu display appears on the
TV screen.
64GB
2
Press X/x to select
then press
.
[EFFECT],
The options for [EFFECT] appear.
3
(Repeat Play)
Press X/x to select a setting.
Press
You can play the audio files/JPEG image files
on the USB device repeatedly.
1
2
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
[BROWSING], then press
.
The options for [BROWSING] appear.
3
Press X/x to select the desired list,
then press
.
• [FOLDER LIST]: The list of folders
appears. Follow Step 2 of “Selecting an
audio file or folder” or “Selecting a JPEG
image file or folder.”
• [PICTURE LIST]: Images of JPEG image
files in the folder appear in 16 subscreens.
Follow Step 2 of “Selecting a JPEG image
file or folder.”
If there is no JPEG image file in the
selected folder, [No image data] appears.
In this case, select [FOLDER LIST] to
display the list of folders.
[REPEAT],
Press X/x to select the item to be
repeated.
• [OFF]: Off.
• [MEMORY]: You can repeat all of the
folders on the USB device.
• [FOLDER]: You can repeat the current
folder.
• [TRACK] (audio files only): You can
repeat the current file.
Note
Press
Press X/x to select
then press
.
The options for [REPEAT] appear.
3
• The [EFFECT] setting is not effective when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD] (page 50).
1
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
.
Displaying the list of audio
files/JPEG image files
Press
4
Press
.
The item is selected.
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
Control for HDMI/External Audio Device
• [MODE 1]: The JPEG image file sweeps
in from top to bottom.
• [MODE 2]: The JPEG image file stretches
out from left to right of the TV screen.
• [MODE 3]: The JPEG image file stretches
out from the center of the TV screen.
• [MODE 4]: The JPEG image files
randomly cycle through the effects.
• [MODE 5]: The next JPEG image file
slides over the previous image.
• [OFF]: Off.
4
Playing repeatedly
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Note
• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]
(page 63), you cannot select [TRACK].
Searching for an audio file/
JPEG image file/folder
You can search a USB device by audio file,
JPEG image file, or folder. As audio files and
JPEG image files are assigned unique numbers
on the USB device, you can select the desired
audio file or JPEG image file by entering its
number.
65GB
1
Press
DISPLAY. (When playing a
JPEG image files, press
DISPLAY
twice.)
The Control Menu display appears on the
TV screen.
2
Press X/x to select the search method.
• [TRACK]: audio files.
• [FILE]: JPEG image files.
• [FOLDER]: Folders.
[** (**)] is selected (** refers to a number).
The number in parentheses indicates the
total number of audio files, JPEG image
files, or folders.
T
1(
1)
1( 144)
0: 23
USB MUSIC
Press
* If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
Note
• If a file name of the audio file cannot be displayed,
“*” will appear in the front panel display instead.
• The file name may not be displayed depending on the
text.
• Playing time of audio files may not be displayed
correctly.
.
[** (**)] changes to [– – (**)].
T
1 Playing time and current track number
2 Track (file) name*
Viewing the information of an
audio file on the TV screen
Selected row
3
Each time you press DISPLAY while playing
the USB device, the display changes:
1y2
1(
1)
1( 144)
1: 31
USB MUSIC
You can display the information of an audio file
such as time information, name of the folder/
audio file, and the audio bit rate (the amount of
data per second of the current audio) on the TV
screen.
Press DISPLAY during playback.
The information of an audio file appears on the
TV screen.
4
Bit rate
Press X/x or the number buttons to
select the desired number.
T
0: 13
192k MP3
If you make a mistake, press CLEAR to
cancel the number.
5
Press
.
The system starts playback from the
selected number.
2002_Remixes
Soul_Survivor_rap_version
Viewing the information of an
audio file in the front panel
display
Press DISPLAY repeatedly.
66GB
Folder name*
File name*
* If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
Note
• Characters/marks may not be displayed in some
languages.
• Depending on the type of file being played, the
system can only display a limited number of
characters. Also, depending on the file, not all text
characters will be displayed.
You can check the date information during
playback when the Exif* tag is recorded in the
JPEG image file.
Press
DISPLAY twice during playback.
The Control Menu display appears on the TV
screen.
2(
2)
6( 30)
16/9/2002
USB IMAGE
Date information
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
Tip
• Date information is [DD/MM/YYYY].
DD: Day
MM: Month
YYYY: Year
You can record songs on an audio CD in a USB
device by encoding to MP3 format. You can also
copy the MP3 files on a DATA CD/DATA DVD
into the USB device.
For connecting the USB device, see
“Connecting the USB device” (page 61).
The recorded music is limited to private use
only. Use of the music beyond this limit requires
permission of the copyright holders.
Notes on the USB recording/
copying
• Do not connect the unit and the USB device
through a USB hub.
• Make sure there is enough space in the USB
device for recording or copying.
• Do not remove the USB device during
recording/copying.
• When you are recording tracks from a CD, the
tracks are recorded as 128 kbps MP3 files.
• When you are copying MP3 files from a
DATA CD/DATA DVD, the MP3 files are
recorded with the same bit rate as the original
MP3 files.
• CD text information is not recorded in the
created MP3 files.
• If you stop a recording partway, an MP3 file
whose recording was stopped halfway is
deleted.
• Recording stops automatically if:
– The USB device runs out of space during
recording/copying.
– The number of MP3 files on the USB
device reaches the limit for the number that
the system can recognize.
• You can store up to 150 files in a folder.
• You can store up to 199 folders in a single
USB device.
• If a folder or file that you are trying to record
already exists on the USB device with the
same name, a sequential number is added after
the name without overwriting the original
folder or file.
Control for HDMI/External Audio Device
Checking the date information
of JPEG image file
Storing Songs in a USB
Device
67GB
x To cancel all the track
• Some USB devices cannot be played back on
the system depending on the file format.
6
Recording songs on an audio
CD into a USB device
1
2
4
Load an audio CD.
Press
DISPLAY while the system is
in stop mode.
Press X/x to select
[USB
RECORDING], then press
.
Copying MP3 files on a DATA
CD/DATA DVD into a USB device
1
2
Press X/x to select [TRACK], then
press
.
3
Note
4
• It takes several minutes to display the tracks
depending on the number of tracks.
Select a track that you want to record.
1
2
3
TRACK
TRACK
TRACK
TRACK
TRACK
TRACK
TRACK
TRACK
Free:
01
02
03
04
05
06
07
08
Press
DISPLAY while the system is
in stop mode.
Press X/x to select
[USB
RECORDING], then press
.
Press X/x to select [TRACK] or
[FOLDER], then press
.
• [TRACK]: The folders recorded on the
DATA CD/DATA DVD appear. You can
copy the desired MP3 file.
• [FOLDER]: The folders recorded on the
DATA CD/DATA DVD appear. You can
copy all MP3 files in the folder. Go to
Step 6.
“READING” appears in the front panel
display until the tracks/folders appear on
the TV screen.
Recordable space of
the USB device
USB RECORDING
Load a DATA CD/DATA DVD.
The Control Menu display appears on the
TV screen.
“READING” appears in the front panel
display until the tracks recorded on the
audio CD appear on the TV screen.
5
Press C/X/x/c to select [START], then
press
.
The system starts recording and the status
of recording appears.
To cancel recording, press x.
The Control Menu display appears on the
TV screen.
3
Press C/X/x/c to select [s ALL], then
press
.
START
ALL
ALL
Note
• It takes several minutes to display the tracks/
folders depending on the number of tracks/
folders.
Tracks to be recorded.
x To select the desired track
Press X/x to select the track, then press
.
The tracks are marked in the order that you
select.
5
x To select all tracks on the audio CD
6
Press C/X/x/c to select [x ALL], then
press
.
x To cancel the track
Press X/x to select the track, then press
The mark on the track is removed.
68GB
.
Press X/x to select the desired folder,
then press
.
The MP3 files in the selected folder appear.
Select a MP3 file/folder that you want to
copy.
x To erase all audio files in a folder
Recordable space of
the USB device
USB RECORDING
2002_Remixes
01_Back_Seat_O...
02_One_Nights_...
03_Are_You_Ma...
04_I_Can_Lose_...
05_Soul_Survivo...
06_Strangers_B...
07_Stay_maxi_ve...
Press CLEAR.
x To erase an audio file
Free:
Press
.
The list of files contained in the folder
appears.
Press X/x to select the desired audio file,
then press CLEAR.
START
ALL
ALL
3
MP3 files/folders to be copied.
To cancel, select [NO], then press
x To select the desired MP3 file/folder
x To select all MP3 files/folders
ALL], then
Press X/x to select the MP3 file/folder, then
press
. The mark on the MP3 file/folder
is removed.
x To cancel all MP3 files/folder
7
Note
• Do not remove the USB device while erasing.
• If the folder to be erased contains non-audio format
files or sub folders, these are erased from the list on
the TV screen, but are not erased from the USB
device.
To return to the previous display
x To cancel the MP3 file/folder
Press C/X/x/c to select [
press
.
.
ALL], then
Press C/X/x/c to select [START], then
press
.
Press O RETURN.
Control for HDMI/External Audio Device
Press X/x to select the MP3 file/folder, then
press
.
The MP3 files/folders are marked.
Press C/X/x/c to select [
press
.
Press C/c to select [YES], then press
.
The system starts copying and the copying
status appears.
To cancel copying, press x.
To return to the previous display
Press O RETURN.
Note
• The audio file on a DATA CD/DATA DVD that you
can copy is the MP3 file only.
Erasing audio files on a USB
device
You can erase audio files on the USB device.
1
2
Press FUNCTION +/– repeatedly until
“USB” appears in the front panel
display.
Press X/x to select a folder.
69GB
The sound and images from the connected
component are played on the system or
connected TV.
For operation details, refer to the operating
instructions of the DIGITAL MEDIA
PORT adapter.
Using the DIGITAL MEDIA
PORT Adapter
The DIGITAL MEDIA PORT (DMPORT)
adapter (not supplied) is for enjoying sound
from a portable audio source or computer. By
connecting a DIGITAL MEDIA PORT adapter,
you can enjoy sound from the connected
component on the system.
Available DIGITAL MEDIA PORT adapters
vary in each area.
For details on connecting the DIGITAL MEDIA
PORT adapter, see “To connect the DIGITAL
MEDIA PORT adapter” (page 16).
Tip
• When listening to MP3 files or other compressed
music using a portable audio source, you can enhance
the sound. Select “A.F.D. STD” for “DEC. MODE”
(page 26). To cancel, select other than “A.F.D. STD.”
• Depending on the type of DIGITAL MEDIA PORT
adapter, you may be able to operate a connected
component using either the buttons on the remote or
the unit. The following illustration shows an example
of buttons that can be used in this case.
Note
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Do not connect or disconnect the DIGITAL MEDIA
PORT adapter to/from the unit while the system is
turned on.
• Depending on the type of DIGITAL MEDIA PORT
adapter, the images are also output. In this case, the
system outputs the EURO AV OUTPUT signal only
regardless of the type of video signal.
• When you use the system and the Bluetooth Wireless
Audio Adapter (such as TDM-BT1, not supplied) at
the same time, transmission distance between the
Bluetooth transmitter and Bluetooth Wireless Audio
Adapter may be reduced. In this case, place the
Bluetooth transmitter as far as possible from the
system, or move the Bluetooth Wireless Audio
Adapter closer to the Bluetooth transmitter.
• When you use the system and the Wireless Network
Audio Adapter (such as TDM-NC1, not supplied) at
the same time, place the Wireless Network Audio
Adapter as far as possible from the system.
Playing the connected
component on the system
1
2
70GB
Press FUNCTION +/– repeatedly until
“DMPORT” appears in the front panel
display.
Start playback of the connected
component.
./>
H
x
X
Using an S-AIR Product
The unit is compatible with the S-AIR function
(page 98), which allows sound transmission
between S-AIR products.
About S-AIR products
S-AIR sub unit
(S-AIR receiver)
For the surround amplifier
For the S-AIR receiver
Simply by matching the ID of the unit and the
S-AIR sub unit, you can establish sound
transmission. You can use multiple S-AIR main
unit by setting a different ID for each
component.
To set the ID of the unit
1
Press "/1 on the unit.
The system turns on.
2
3
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
S-AIR main unit
4
Press X/x to select
then press
.
[SETUP],
Control for HDMI/External Audio Device
There are two types of S-AIR product.
• S-AIR main unit (this unit): This is for
transmitting sound. You can use up to three
S-AIR main unit. (The number of usable
S-AIR main unit depends on the use
environment.)
• S-AIR sub unit: This is for receiving sound.
– Surround amplifier: You can enjoy
surround speaker sound wirelessly.
– S-AIR receiver: You can enjoy system
sound in another room.
Establishing sound
transmission between the unit
and S-AIR sub unit
(ID setting)
The options for [SETUP] appear.
5
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
6
S-AIR sub unit
(surround amplifier)
Press X/x to select [AUDIO SETUP],
then press
.
The options for [AUDIO SETUP] appear.
7
8
9
Press X/x to select [S-AIR SETUP t],
then press
.
Press X/x to select [ID], then press
.
Press X/x to select the desired ID, then
press
.
You can select any ID (A, B, or C).
The confirmation display appears.
10 Press
.
Set the S-AIR sub unit to the same ID.
71GB
Sound transmission is established as
follows (example):
Other S-AIR main
unit
ID B
This unit
ID A
ID A
ID A
S-AIR sub unit S-AIR sub unit
the unit, for enjoying the system’s sound in
another room.
For details of the S-AIR receiver, refer to the
operating instructions of the S-AIR receiver.
1
• To set the ID of the unit, see “To set the ID
of the unit” (page 71).
• To set the ID of the S-AIR receiver, refer
to the operating instructions of the S-AIR
receiver.
ID B
Note
S-AIR sub unit
• When you are using another S-AIR sub unit,
such as a surround amplifier, do not change the
ID of the unit. Set the ID of the S-AIR receiver
to the same ID as the unit.
• When you pair the unit and another S-AIR sub
unit, such as a surround amplifier, by the pairing
operation, you need to perform the pairing
operation between the unit and the S-AIR
receiver. For details, see “Identifying the unit
with a specific S-AIR sub unit (Pairing
operation)” (page 73).
Tip
• To confirm the current ID, perform Steps 1 to 7
above. When you pair the unit with the S-AIR sub
unit (page 73), [(PAIRING)] appears beside ID on
the display for selecting ID.
To set the ID of the surround
amplifier
Refer to the operating instructions of the
surround amplifier.
2
Refer to the operating instructions of the S-AIR
receiver.
Note
Enjoying the system’s sound in
another room
For the S-AIR receiver
You can enjoy the system’s sound by using the
S-AIR receiver. The S-AIR receiver can be
installed anywhere, regardless of the location of
72GB
Press S-AIR MODE on the remote.
The S-AIR mode appears in the front panel
display. Each time you press S-AIR
MODE, the S-AIR mode changes.
• “PARTY”: The S-AIR receiver outputs
sound according to function set on the
unit.
• “SEPARATE”: You can set the desired
function for the S-AIR receiver while unit
functions do not change.
To set the ID of the S-AIR
receiver
• It is easy to set the same ID for the unit and S-AIR sub
unit to establish sound transmission. However,
neighbors may also receive your system’s sound if
IDs are the same, or you may receive the sound from
neighbors. To prevent this, you can identify the unit
with a specific S-AIR sub unit by performing the
pairing operation (page 73).
Set the ID of the S-AIR receiver to that
of the unit.
3
Select the desired function on the
S-AIR receiver.
x When “PARTY” is set
The function changes in the same sequence
as you press FUNCTION +/– (page 24).
x When “SEPARATE” is set
The function changes as follows.
“MAIN UNIT” t “TUNER FM” t
“TUNER AM” t “DMPORT” t
“AUDIO” t …
To enjoy the same function as the unit,
select “MAIN UNIT.”
When “TUNER FM” or “TUNER AM” is
selected on the unit, you can only select the
same band for the tuner on the S-AIR
receiver. In this case, when you select other
than “TUNER FM” or “TUNER AM” on
the unit, you can select any band for the
tuner on the S-AIR receiver.
4
Adjust the volume on the S-AIR
receiver.
• “OFF”: You cannot enjoy the S-AIR
receiver while the unit is in standby mode.
The default setting differs depending on the
model.
4
Press
.
The setting is made.
5
Press SYSTEM MENU.
The system menu turns off.
Note
• When you set “S-AIR STBY” to “ON,” the power
consumption during the standby mode increases.
• When you turn the system off while “S-AIR STBY”
is set to “ON,” “S-AIR” flashes (when sound
transmission between the unit and S-AIR receiver is
not established), or lights up (when sound
transmission between the unit and S-AIR receiver is
established) in the front panel display.
• If you turn the system off with the disc tray opened
while “S-AIR STBY” is set to “ON,” the disc tray
may not close automatically.
• When the wireless transceiver is not inserted in the
unit, you cannot set the “S-AIR STBY.”
• “S-AIR STBY” is set to “OFF” automatically when
the wireless transceiver is removed from the unit.
To control the system from the
S-AIR receiver
You can control the system from the S-AIR
receiver by using the following buttons.
Press
Operation
H, X, x,
./>
Share the same operations on the
remote and unit.
S-AIR CH
Change the function of the system.
For details, refer to the operating instructions of
the S-AIR receiver.
Enjoying the S-AIR receiver
while the unit is in standby
mode
For the S-AIR receiver
You can enjoy the S-AIR receiver while the unit
is in standby mode by setting “S-AIR STBY” to
“ON.”
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “S-AIR
STBY” appears in the front panel
display, then press
or c.
Press X/x to select the desired setting.
• “ON”: You can enjoy the S-AIR receiver
while the unit is in standby mode or turned
on.
Identifying the unit with a
specific S-AIR sub unit
(Pairing operation)
Control for HDMI/External Audio Device
Note
• When the sound is other than 2 channel stereo, multi
channel sound is downmixed to 2 channel.
• The sound of the S-AIR receiver may be cut off by
operation of the unit.
For the surround amplifier
For the S-AIR receiver
It is easy to set the same ID for the unit and an
S-AIR sub unit, such as a surround amplifier or
S-AIR receiver, to establish sound transmission.
However, neighbors may also receive your
system’s sound if IDs are the same, or you may
receive the sound from neighbors. To prevent
this, you can identify the unit with a specific
S-AIR sub unit by performing the pairing
operation.
x Before pairing
Sound transmission is established by the ID
(example).
73GB
Your room
• To set the ID of the S-AIR sub unit, refer
to the operating instructions of the S-AIR
sub unit.
Neighbor
This unit
3
ID A
4
ID A
ID A
S-AIR sub unit
S-AIR sub unit
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
5
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
x After pairing
Sound transmission is established between the
paired unit and S-AIR sub unit(s) only.
Your room
Neighbor
6
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
7
This unit
Press X/x to select [AUDIO SETUP],
then press
.
The options for [AUDIO SETUP] appear.
ID A
No transmission
8
9
Press X/x to select [S-AIR SETUP t],
then press
.
Press X/x to select [PAIRING], then
press
.
The confirmation display appears.
ID A
ID A
S-AIR sub unit
S-AIR sub unit
Pairing
.
The unit starts pairing.
To not perform pairing, select [NO].
11 Start pairing of the S-AIR sub unit.
To perform pairing
x For the surround amplifier
1
Refer to the operating instructions of the
surround amplifier.
When sound transmission is established,
the confirmation display appears.
Place the S-AIR sub unit that you want
to pair near the unit.
Note
• Remove headphones from the surround
amplifier (if connected).
2
Match the IDs of the unit and the S-AIR
sub unit.
• To set the ID of the unit, see “To set the ID
of the unit” (page 71).
• To set the ID of the S-AIR receiver, refer
to the operating instructions of the S-AIR
receiver.
74GB
10 Press C/c to select [YES], then press
x For the S-AIR receiver
Refer to the operating instructions of the
S-AIR receiver.
When sound transmission is established,
the confirmation display appears.
Note
• Perform the pairing within several minutes after
Step 10. If you do not, the pairing is canceled
automatically and the confirmation display
appears. To perform pairing, select [YES]. To
return to the previous display, select [NO].
12 Press C/c to select the next operation.
5
The system menu turns off.
x To finish pairing
Select [NO], then press
6
.
x To perform pairing of another S-AIR
sub unit
Select [YES], then press
.
• If you perform the pairing operation between the unit
and another S-AIR sub unit (page 73), sound
transmission established by ID is canceled.
• When you perform pairing, [(PAIRING)] appears
beside ID on the display for selecting ID.
Perform the ID setting of the unit according to
the procedure of “To set the ID of the unit.” If
you select a new ID (you can select the same ID
as before), pairing is canceled.
If sound transmission is
unstable
For the surround amplifier
For the S-AIR receiver
If you use multiple wireless systems which
sharing the 2.4 GHz band, such as wireless LAN
or Bluetooth, the transmission of S-AIR
products or other wireless systems may be
unstable. In this case, the transmission may be
improved by changing the following “RF
CHANGE” setting.
• When the wireless transceiver is not inserted in the
unit, you cannot set the “RF CHANGE.”
• In most cases, you will not need to change this
setting.
• If “RF CHANGE” is set to “OFF,” transmission
between the unit and S-AIR sub unit can be
performed using one of the following channels.
– S-AIR ID A: equivalent channel for Wi-Fi
channel 1
– S-AIR ID B: equivalent channel for Wi-Fi
channel 6
– S-AIR ID C: equivalent channel for Wi-Fi
channel 11
• The transmission may be improved by changing the
transmission channel (frequency) of the other
wireless system(s). For details, refer to the operating
instructions of the other wireless system(s).
Control for HDMI/External Audio Device
To cancel pairing
3
When you set “RF CHANGE” to “OFF,”
select the ID so that sound
transmission is most stabilized
(page 71).
Note
Note
1
2
Press SYSTEM MENU.
Press SYSTEM MENU.
Press X/x repeatedly until “RF
CHANGE” appears in the front panel
display, then press
or c.
Press X/x to select the desired setting.
• “AUTO”: Normally select this. The
system change “RF CHANGE” to “ON”
or “OFF” automatically.
• “ON”: The system transmits sound by
searching the better channel for
transmitting.
• “OFF”: The system transmits sound by
fixing the channel for transmitting.
4
Press
.
The setting is made.
75GB
• [NO CENTER]: Select this when you
install the front and surround speakers
only.
• [NO SURROUND]: Select this when you
install the center and front speakers only.
• [FRONT ONLY]: Select this when you
install the front speakers only.
• [ALL FRONT]: Select this when you
install all the speakers in front of the
listening position.
• [ALL FRONT - NO CENTER]: Select
this when you install the front and
surround speakers in front of the listening
position.
Other Operations
Getting Optimal
Surround Sound for a
Room
[SPEAKER FORMATION]
Depending on the shape of the room, you cannot
install some speakers. For the better surround
sound, Sony recommends that first you decide
the position of the speakers.
1
2
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
8
Press X/x to select
then press
.
9
[SETUP],
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [AUDIO SETUP],
then press
.
The options for [AUDIO SETUP] appear.
6
Press X/x to select [SPEAKER
FORMATION], then press
.
The options for [SPEAKER
FORMATION] appear.
SPEAKER FORMATION
STANDARD
7
Press C/c to select a setting.
• [STANDARD]: Select this when you
install all the speakers normally.
76GB
Press C/c to select [YES] or [NO], then
press
.
• [YES]: Continue with [AUTO
CALIBRATION]. Follow the procedure
from Step 7 of “Calibrating the
Appropriate Settings Automatically”
(page 77).
• [NO]: Exit [SPEAKER FORMATION].
The options for [SETUP] appear.
4
.
The setting is made and the confirmation
display appears.
The Control Menu display appears on the
TV screen.
3
Press
Note
• In order to enjoy the surround sound after you change
the position of the speakers, Sony recommends you
set [SPEAKER FORMATION], and then set [AUTO
CALIBRATION] (page 77).
• When you change the [CONNECTION] setting in
[SPEAKER SETUP] (page 51), the [SPEAKER
FORMATION] setting returns to [STANDARD].
obstruction between the speakers and the
calibration mic.
Calibrating the
Appropriate Settings
Automatically
IC
LM
.CA
[AUTO CALIBRATION]
/A
O IN
I
AUD
D. C. A. C. (Digital Cinema Auto Calibration)
can set the appropriate surround sound
automatically.
Note
• The system outputs a loud test sound when [AUTO
CALIBRATION] starts. You cannot turn the volume
down. Give consideration to children and neighbors.
• Make sure that the headphones are not connected to
the unit or surround amplifier. You cannot operate the
following Steps with the headphones connected.
2
Other Operations
1
Calibration mic
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [AUDIO SETUP],
then press
.
The options for [AUDIO SETUP] appear.
6
Press X/x to select [AUTO
CALIBRATION], then press
.
The options for [AUTO CALIBRATION]
appear.
7
Connect the calibration mic (supplied)
to the A.CAL MIC jack on the front
panel
Set up the calibration mic at the ear level
using a tripod, etc. (not supplied).
The front of each speaker should face the
calibration mic, and there should be no
8
9
Press C/c to select [YES].
Press
.
[AUTO CALIBRATION] starts.
Be quiet during the measurement.
Note
• Before [AUTO CALIBRATION], make sure
that the surround amplifier turns on and you
install the surround amplifier in the appropriate
location. If you install the surround amplifier in
an improper location, such as another room,
proper measurement will not be obtained.
• Avoid being in the measurement area and
making noise during the measurement (about 3
minute), to avoid measurement failure. During
the measurement, test signals are output from
the speakers.
• The environment of the room in which the
system is installed may affect measurements.
• If an error message appears, follow the message,
then select [YES].
An error message appears when:
77GB
– the headphones are connected to the unit or
surround amplifier.
– the calibration mic is not connected.
– front speakers are not correctly connected.
– surround speakers are not correctly
connected.
– front and surround speakers are not correctly
connected.
10 Press C/c to select [YES] or [NO], then
press
.
x The measurement is OK.
Disconnect the calibration mic, then select
[YES]. The result is implemented.
x The measurement is not OK.
Follow the message, then select [YES] to
retry.
Note
• While the Auto Calibration function works:
– do not turn off the power.
– do not press any button.
– do not change the volume.
– do not change the function.
– do not insert or eject a disc.
– do not connect the headphones to the unit or
surround amplifier.
– do not disconnect the calibration mic.
• The measurement for [SUBWOOFER] is always
[YES] since the system does not perform subwoofer
calibration.
Tip
• You can check the distance between the listening
position and each speaker. See page 51.
Controlling the TV with
the Supplied Remote
You can control the TV (Sony only) by using
following buttons. Use these buttons (other than
TV [/1, THEATRE, TV INPUT, and TV VOL
+/–) while pressing the TV button.
Note
• Depending on the TV, you may not be able to control
your TV or to use some of the buttons.
By pressing
You can
TV [/1
Turn the TV on/off.
THEATRE
Enjoy optimal image suited for
movies.
TV INPUT
Switch the TV’s input source
between the TV and other input
sources.
TV VOL +/–
Adjust the TV volume.
PROG +/–*
Select the TV channel.
Number
buttons*, -*
ENTER*
Select the TV channel.
TOOLS*
Displays the operation menu for
the current display.
RETURN*
Return to the previous channel or
layer on the menu of the TV.
MENU*
Display the menu of the TV.
MUTING*
Turn off the TV sound
temporarily.
C/X/x/c*,
*
Select the item on the menu.
* Use these buttons while pressing the TV button.
78GB
Using the Sound Effect
Using the Sleep Timer
You can reinforce bass frequencies.
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
You can preset the time in 1 or 10-minutes
increments.
Press DYNAMIC BASS.
Press SLEEP.
“D. BASS ON” appears in the front panel
display and bass frequencies are effectively
reinforced.
Each time you press SLEEP, the minutes display
(the remaining time) changes by 10-minutes.
When you set the sleep timer, “SLEEP” flashes
in the front panel display.
Reinforcing bass frequencies
To turn off the sound effect
Press DYNAMIC BASS again.
To check the remaining time
Press SLEEP once.
You can enjoy sound effects or dialogue, as you
would in a movie theater, even at low volume. It
is useful for watching movies at night.
Press NIGHT.
“NIGHT ON” appears in the front panel display
and the sound effect is activated.
Note
• This effect does not work for a Super Audio CD.
When you load a Super Audio CD during “NIGHT
ON,” the sound effect turns off automatically.
• When sound is output from the center speaker, this
effect is more pronounced, as speech (movie dialog,
etc.) is easy to hear. When sound is not output from
the center speaker, or you are using the headphones,
the system optimally adjusts the volume.
To change the remaining time
Press SLEEP repeatedly to select the desired
time.
To cancel the sleep timer
function
Press SLEEP repeatedly until “SLEEP OFF”
appears in the front panel display.
Other Operations
Enjoying the sound at low
volume
To set the sleep timer using the
system menu
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “SLEEP”
appears in the front panel display, then
press
or c.
Press X/x to select a setting.
The minutes display (the remaining time)
changes in 10-minutes.
To turn off the sound effect
Tip
Press NIGHT again.
• You can select the remaining time by pressing
the number buttons. In this case, you can preset
the time in 1-minute increments.
4
Press
.
The setting is made and “SLEEP” flashes in
the front panel display.
5
Press SYSTEM MENU.
The system menu turns off.
79GB
Changing the Brightness
of the Front Panel
Display
The brightness of the front panel display can be
set to either of 2 levels.
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “DIMMER”
appears in the front panel display, then
press
or c.
Press X/x to select the brightness of
the front panel display.
• “DIMMER OFF”: Bright.
• “DIMMER ON”: Dark.
4
5
Press
.
Viewing Information
About the Disc
Viewing the playing time and
remaining time in the front
panel display
Press DISPLAY repeatedly.
Each time you press DISPLAY while playing
the disc, the display changes:
1 t 2 t ... t 1 t ...
Some displayed items may disappear after a few
seconds.
The setting is made.
x DVD VIDEO/DVD-VR
Press SYSTEM MENU.
1 Playing time of the current title
2 Remaining time of the current title
3 Playing time of the current chapter
4 Remaining time of the current chapter
5 Disc name
6 Title and chapter
The system menu turns off.
x VIDEO CD (without PBC functions)/
Super Audio CD/CD
1 Playing time of the current track
2 Remaining time of the current track
3 Playing time of the disc
4 Remaining time of the disc
5 Track name
6 Track and index*
* VIDEO CD/Super Audio CD only.
x Super VCD
1 Playing time of the current track
2 Track text
3 Track and index number
x DATA CD (MP3 file)/DATA DVD (MP3 file)
1 Playing time and current track number
2 Track (file) name*
* If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
80GB
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
x VIDEO CD (without PBC functions)/
Super Audio CD/CD
1 Playing time of the current file
2 Current file name
3 Current album and file number
• T **:**
Playing time of the current track
• T-**:**
Remaining time of the current track
• D **:**
Playing time of the current disc
• D-**:**
Remaining time of the current disc
Note
• The system can only display the first level of the
DVD/CD text, such as the disc name or title.
• If a file name of the MP3 file cannot be displayed, “*”
will appear in the front panel display instead.
• The disc name or track name may not be displayed
depending on the text.
• Playing time of MP3 files and DivX video files may
not be displayed correctly.
x DATA CD (MP3 file)/DATA DVD (MP3
file)
• T **:**
Playing time of the current track
Tip
• **:**:**
Playing time of the current file
Viewing the playing time and
remaining time on the TV
screen
1
Press DISPLAY during playback.
The following display appears on the TV
screen.
T
1: 01: 40
Note
• Characters/marks may not be displayed in some
languages.
• Depending on the type of disc being played, the
system can only display a limited number of
characters. Also, depending on the disc, not all text
characters will be displayed.
Other Operations
x DATA CD (DivX video file)/DATA
DVD (DivX video file)
• When the system is playing a VIDEO CD with PBC
functions, the playing time is displayed.
Checking the play information
of the disc
Time information
2
Press DISPLAY repeatedly to change
the time information.
The display and the kinds of time that you
can check depend on the disc you are
playing.
x DVD VIDEO/DVD-VR
• T **:**:**
Playing time of the current title
• T-**:**:**
Remaining time of the current title
• C **:**:**
Playing time of the current chapter
• C-**:**:**
Remaining time of the current chapter
To check DVD/Super Audio CD/CD
text
Press DISPLAY repeatedly during playback to
display text recorded in the DVD/Super Audio
CD/CD.
The DVD/Super Audio CD/CD text appears
only when text is recorded in the disc. You
cannot change the text. If the disc does not
contain text, “NO TEXT” appears.
Dvorak/Tchaikovsky /NedPho/Kreizberg
Adagio - Allegro molto
x VIDEO CD (with PBC functions)
• **:**
Playing time of the current scene
81GB
To check DATA CD/DATA DVD
(MP3 file/DivX video file) text
By pressing DISPLAY while playing MP3 files
or DivX video files on a DATA CD/DATA
DVD, you can display the name of the folder/
MP3 file/DivX video file, and the audio bit rate
(the amount of data per second of the current
audio) on the TV screen.
Bit rate*
T
0: 13
192k MP3
5(
8)
10( 15)
18/9/2002
DATA CD JPEG
Date information
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
Tip
• Date information is [DD/MM/YYYY].
DD: Day
MM: Month
YYYY: Year
2002_Remixes
Soul_Survivor_rap_version
Folder name**
MP3 File**/DivX video file
name
* Appears when:
– playing an MP3 file on a DATA CD/DATA DVD.
– playing a DivX video file that contains MP3 audio
signals on a DATA CD/DATA DVD.
** If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
Checking the date information
of JPEG image file
You can check the date information during
playback when the Exif* tag is recorded in the
JPEG image file.
Press
DISPLAY twice during playback.
The Control Menu display appears on the TV
screen.
82GB
Returning to the Default
Settings
Returning the system
parameters, such as preset
stations, to the default
settings
"/1
A
x
5
Press X/x to select [SYSTEM SETUP],
then press
.
The options for [SYSTEM SETUP] appear.
6
7
Press X/x to [RESET] and press c.
Press C/c to select [YES].
You can also quit the process and return to
the Control Menu display by selecting [NO]
here.
8
Press
.
Do not press [/1 while resetting the system
as it takes a few seconds to complete.
Note
1
2
Press "/1 to turn on the system.
Press x, A, and "/1 on the unit at the
same time.
“COLD RESET” appears in the front panel
display and the system returns to default
settings.
Other Operations
• The [MODE (MUSIC, IMAGE)], [INTERVAL],
[EFFECT], and [MULTI/2CH] settings also return to
the default settings.
Returning the [SETUP] settings
to the default
You can return the [SETUP] settings (page 47)
other than [PARENTAL CONTROL] to the
default settings.
1
2
Press FUNCTION +/– repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
83GB
On adjusting volume
Additional Information
Precautions
On power sources
• Unplug the unit from the wall outlet (mains) if you do
not intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
On placement
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the unit in a confined space where
ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything
on the system. The system is equipped with a high
power amplifier. If the ventilation slots are blocked,
the unit can overheat and malfunction.
• Do not place the unit on surfaces (rugs, blankets, etc.)
or near materials (curtains, draperies) that may block
the ventilation slots.
• Do not install the unit near heat sources such as
radiators, or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the unit in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the unit and discs away from components with
strong magnets, such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the unit.
On operation
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lenses inside the control unit.
Should this occur, the system may not operate
properly. In this case, remove the disc and leave the
system turned on for about half an hour until the
moisture evaporates.
• When you move the system, take out any disc. If you
don’t, the disc may be damaged.
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
84GB
• Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning
your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens
cleaners
• Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may cause
the apparatus to malfunction.
On your TV’s color
• If the speakers should cause the TV screen to have
color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist,
place the speakers further away from the TV set.
IMPORTANT NOTICE
Caution: This system is capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
On moving the system
Before moving the system, make sure that there is no
disc inserted, and remove the AC power cord (mains
lead) from the wall outlet (mains).
About S-AIR function
• As the S-AIR function transmits sound by radio
waves, sound may skip when radio waves are
obstructed. This is a characteristic of radio waves and
is not malfunction.
• As the S-AIR function transmits sound by radio
waves, equipment that generates electromagnetic
energy, such as a microwave oven, may interfere with
sound transmission.
• As the S-AIR function uses the radio waves that share
the same frequency as other wireless systems, such as
wireless LAN or Bluetooth, interference or poor
transmission may result. In this case, take the
following steps:
– Do not install the system near other wireless
systems.
– Do not use the system and the other wireless
systems at the same time.
• The transmission distance differs depending on the
usage environment. Find a location where
transmission between the S-AIR main unit and sub
unit is most effective, and install the S-AIR main unit
and sub unit there.
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
On cleaning
• Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the center out.
Additional Information
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
This system can only play back a standard
circular disc. Using neither standard nor circular
discs (e.g., card, heart, or star shape) may cause
a malfunction.
Do not use a disc that has a commercially
available accessory attached, such as a label or
ring.
85GB
Troubleshooting
If you experience any of the following difficulties while using the system, use this troubleshooting
guide to help remedy the problem before requesting repairs. Should any problem persist, consult your
nearest Sony dealer.
Note that if service personnel changes some parts during repair, these parts may be retained.
In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together
(main unit and S-AIR sub unit).
Power
Symptom
Remedy
The power is not turned on.
• Check that the AC power cord (mains lead) is connected securely.
• Press "/1 after “STANDBY” disappears from the front panel display.
If “PROTECTOR” and “PUSH
POWER” appear alternately in
the front panel display.
Press "/1 to turn off the system, and check the following items after
“STANDBY” disappears.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the system?
• After checking the above items and fixing any problems, turn on the system. If
the cause of the problem cannot be found even after checking all the above
items, consult your nearest Sony dealer.
86GB
Symptom
Remedy
There is no picture.
• The SCART (EURO AV) cord is not connected securely.
• The SCART (EURO AV) cord is damaged.
• The unit is not connected to the correct EURO AV t INPUT jack (page 15).
• The video input on the TV is not set so that you can view pictures from the
system.
• Check the output method on your system (page 15).
• Re-connect the connecting cord securely.
• The unit is connected to an input device that is not HDCP (High-bandwidth
Digital Content Protection) compliant (“HDMI” on the front panel does not
light up) (page 15).
• If the HDMI OUT jack is used for video output, changing the type of video
signal output from the HDMI OUT jack. It may solve the problem (page 23).
Connect the TV and the unit using a video jack other than the HDMI OUT, and
switch the TV’s input to the connected video input so that you can see the onscreen displays. Change the type of video signal output from the HDMI OUT
jack, and switch the TV’s input back to HDMI. If the picture still does not
appear, repeat the Steps and try other options.
Picture noise appears.
• The disc is dirty or flawed.
• If the signal from the EURO AV T OUTPUT (TO TV) jack is distorted,
change the type of video signal output from the HDMI OUT jack by setting
[HDMI RESOLUTION] in [HDMI SETUP] to [720 × 480p]* (page 23).
* Depending on the country model, [720 × 480/576p] may appear.
Symptom
Remedy
Even though you set the aspect • The aspect ratio on the disc is fixed.
ratio in [TV TYPE] of [VIDEO
SETUP], the picture does not fill
the TV screen.
Color irregularity occurs on the
TV screen.
The subwoofer and the front speakers in this system are magnetically shielded to
prevent magnetic leakage. However, some leakage may occur, as a high-strength
magnet is employed. If this happens, check the following items:
• If the speakers are used with a CRT-based TV or projector, install the speakers
at least 0.3 meters (1.0 ft) from the TV set.
• If the color irregularity persists, turn off the TV set once, then turn it on after 15
to 30 minutes.
• If howling occurs, reposition the speakers farther away from the TV set.
• Make sure that no magnetic object (magnetic latch on a TV stand, health care
device, toy, etc.) is placed near the speakers.
Sound
Remedy
There is no sound.
• The speaker cord is not connected securely.
• Press MUTING on the remote if “MUTING ON” is displayed in the front panel
display.
• The system is in pause mode or in Slow-motion Play mode. Press H to return
to normal play mode.
• Fast forward or fast reverse is performed. Press H to return to normal play
mode.
• Check the speaker settings (page 51).
• Super Audio CD audio signals are not output from the HDMI OUT jack.
• The component connected to the HDMI OUT jack does not conform to the
audio signal format, in this case set [AUDIO (HDMI)] in [HDMI SETUP] to
[ON] (page 49).
No sound is output from the
HDMI OUT jack.
• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 49).
• The HDMI OUT jack is connected to a DVI (Digital Visual Interface) device
(DVI (Digital Visual Interface) jacks do not accept audio signals).
• The HDMI OUT jack does not output Super Audio CD sound.
• Try the following: 1 Turn the system off and on again. 2 Turn the connected
component off and on again. 3 Disconnect and then connect the HDMI cable
again.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
There is no sound from the
subwoofer.
• Check the speaker connections and settings (pages 14, 51).
• Select “A.F.D. STD” for “DEC. MODE” (page 26).
Severe hum or noise is heard.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at
least 3 meters (10 ft) away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with
alcohol.
• Clean the disc.
The sound loses stereo effect
when you play a VIDEO CD, a
CD, or an MP3 file.
• Set [AUDIO] to [STEREO] by pressing AUDIO (page 31).
• Make sure the unit is connected properly.
Additional Information
Symptom
87GB
Symptom
Remedy
The surround effect is difficult to • Make sure the “DEC. MODE” setting (page 26).
hear when you are playing a
• Check the speaker connections and settings (pages 14, 51).
sound track of Dolby Digital,
• Depending on the DVD, the output signal may not be the entire 5.1 channel. It
DTS, or MPEG audio.
may be monaural or stereo even if the sound track is recorded in Dolby Digital
or MPEG audio format.
The sound comes from the center • Depending on the disc, the sound may come from the center speaker only.
speaker only.
No sound is heard from the
center speaker.
• Check the speaker connections and settings (pages 14, 51).
• Make sure the “DEC. MODE” setting (page 26).
• Depending on the source, the effect of the center speaker may be less
noticeable.
• A 2 channel source is being played.
No sound or only a very lowlevel sound is heard from the
surround speakers.
• Check the speaker connections and settings (pages 14, 51).
• Make sure the “DEC. MODE” setting (page 26).
• Depending on the source, the effect of the surround speakers may be less
noticeable.
• A 2 channel source is being played.
There is no sound from the
DIGITAL IN COAXIAL/
OPTICAL jack.
• The sampling frequency of the input signal is more than 48 kHz.
Operation
88GB
Symptom
Remedy
Radio stations cannot be tuned
in.
• Check that the antenna (aerial) is connected securely. Adjust the antenna
(aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic
tuning). Use direct tuning.
• No stations have been preset or the preset stations have been cleared (when
tuning by scanning preset stations). Preset the stations (page 54).
• Press DISPLAY so that the frequency appears in the front panel display.
Noise is heard on AM radio.
• Check the location of the AM loop antenna (aerial) and cord (page 18).
The remote does not function.
• There are obstacles between the remote and the unit.
• The distance between the remote and the unit is too far.
• The remote is not pointed at the remote sensor on the unit.
• The batteries in the remote are weak.
The disc does not play.
• There is no disc inserted.
• The disc is upside down.
Insert the disc with the playback side facing down.
• The disc is skewed on the disc tray.
• The system cannot play CD-ROMs, etc. (page 5).
• The region code on the DVD does not match the system.
• Moisture has condensed inside the unit and may cause damage to the lenses.
Remove the disc and leave the unit turned on for about half an hour.
Remedy
The MP3 file cannot be played.
• The DATA CD is not recorded in the MP3 format that conforms to ISO 9660
Level 1/Level 2, or Joliet.
• The DATA DVD is not recorded in an MP3 format that conforms to UDF
(Universal Disk Format).
• The MP3 file does not have the extension “.MP3.”
• The data is not formatted in MP3 even though it has the extension “.MP3.”
• The data is not MPEG1 Audio Layer 3 data.
• The system cannot play audio tracks in MP3PRO format.
• The [MODE (MUSIC, IMAGE)] setting has been set to [IMAGE] (page 41).
• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc
or turn the system off, then on.
• The DATA CD/DATA DVD contains a DivX video file.
The JPEG image file cannot be
played.
• The DATA CD is not recorded in a JPEG format that conforms to ISO 9660
Level 1/Level 2, or Joliet.
• The DATA DVD is not recorded in a JPEG format that conforms to UDF
(Universal Disk Format).
• It has an extension other than “.JPEG” or “.JPG.”
• It is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than
2,000,000 pixels in Progressive JPEG image file which is mainly used on the
Internet WEB site.
• It does not fit the TV screen (those images are reduced).
• The [MODE (MUSIC, IMAGE)] setting has been set to [MUSIC] (page 41).
• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc
or turn the system off, then on.
• The DATA CD/DATA DVD contains a DivX video file.
The MP3 files and JPEG image
files starts playing
simultaneously.
• [AUTO] has been selected in [MODE (MUSIC, IMAGE)] (page 41).
The DivX video file cannot be
played.
• The file is not created in DivX format.
• The file has an extension other than “.AVI” or “.DIVX.”
• The DATA CD/DATA DVD is not created in a DivX format that conforms to
ISO 9660 Level 1/Level 2 or, Joliet/UDF.
• The DivX video file is larger than 720 (width) × 576 (height).
Additional Information
Symptom
The titles of folder/file/file name • The system can only display numbers and letters of the alphabets. Other
are not displayed correctly.
characters are displayed as [*].
A disc does not start playing
from the beginning.
• Program Play, Shuffle Play, or Repeat Play has been selected.
Press CLEAR to cancel these functions before playing a disc.
• Resume Play has been selected.
During stop, press x on the unit or the remote and then start playback
(page 33).
• The title, DVD or PBC menu automatically appears on the TV screen.
The system starts playing the
disc automatically.
• The DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal. While playing such a disc, the
system stops playback at the auto pause signal.
You cannot perform some
functions such as stop, search,
Slow-motion Play, or Repeat
Play.
• Depending on the disc, you may not be able to perform some of the operations
above. Refer to the operating instructions supplied with the disc.
89GB
Symptom
Remedy
Messages do not appear on the
TV screen in the language you
want.
• In the Setup Display, select the desired language for the on-screen display in
[OSD] under [LANGUAGE SETUP] (page 47).
The language for the sound track • Multilingual tracks are not recorded on the DVD being played.
cannot be changed.
• The DVD prohibits changing the language for the sound track.
The subtitle language cannot be • Multilingual subtitles are not recorded on the DVD being played.
changed.
• The DVD prohibits changing the subtitles.
The subtitle cannot be turned off. • The DVD prohibits turning off subtitles.
The angles cannot be changed.
• Multi-angles are not recorded on the DVD being played (page 30).
• The DVD prohibits changing the angles.
A disc cannot be ejected and
• Contact your Sony dealer or local authorized Sony service facility.
“LOCKED” appears in the front
panel display.
[Data error] appears on the TV
screen when playing a DATA
CD or DATA DVD.
• The MP3 file/JPEG image file/DivX video file you want to play is broken.
• The data is not MPEG1 Audio Layer 3 data.
• The JPEG image file format does not conform to DCF.
• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG
format.
• The file you want to play has the extension “.AVI” or “.DIVX” but is not in
DivX format, or is in DivX format but does not conform to a DivX Certified
profiles.
The system does not work
normally.
• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then
reconnect after several minutes.
The Control for HDMI function • When “HDMI” does not light up in the front panel display, check the HDMI
does not work.
connection (page 15).
• Set the [CONTROL FOR HDMI] setting in [HDMI SETUP] to [ON] (page 49).
• Make sure that the connected component is compatible with the [CONTROL
FOR HDMI] function.
• Check that the AC power cord (mains lead) of the connected component is
connected securely.
• Check the connected component’s setting for the Control for HDMI function.
Refer to the operating instructions supplied with the component.
• If you change the HDMI connection, connect and disconnect the AC power
cord (mains lead), or have a power failure, set the [CONTROL FOR HDMI]
setting in [HDMI SETUP] to [OFF], then set the [CONTROL FOR HDMI]
setting in [HDMI SETUP] to [ON] (page 49).
• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 58).
No sound is output from the
• Set the [AUDIO (HDMI)] setting in [CUSTOM SETUP] to [ON] (page 49).
system and TV while using the • Make sure that the connected TV is compatible with the System Audio Control
System Audio Control function. function.
• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 58).
90GB
USB device
Symptom
Remedy
“OVERLOAD” appears in the
front panel display.
• A problem has been detected with the level of electrical current from the
(USB) port. Turn off the system and remove the USB device from the
(USB) port. Make sure there is no problem with the USB device. If this display
pattern persists, contact your nearest Sony dealer.
Are you using a supported USB • If you connect an unsupported USB device, the following problems may occur.
device?
See “Playable USB Devices” (supplement) for the supported device types.
– The USB device is not recognized.
– File or folder names are not displayed on this system.
– Playback is not possible.
– The sound skips.
– There is noise.
– A distorted sound is output.
– Recording stops before it is finished.
• The USB device is not connected correctly. Turn off the system, then reconnect
the USB device.
The sound is distorted.
• The bit rate used when encoding the audio files was low. Send audio files
encoded with higher bit rates to the USB device.
There is noise or the sound skips. • Turn off the system, then reconnect the USB device.
• Noise may have entered during the recording or copying process. Delete the
file, and try recording or copying again.
• Copy the files to your computer, format the USB device in FAT12, FAT16, or
FAT32 format, and copy the files to the USB device again.*
* This system supports FAT12, FAT16, and FAT32, but some USB device may
not support all of these FAT. For details, refer to the operating instructions of
each USB device or contact the manufacturer.
The USB device cannot be
connected into the
(USB)
port.
• The USB device is being connected backwards. Connect the USB device in the
correct orientation.
Additional Information
There is no sound.
The USB device which has been • It may be recorded in an unsupported format. If so, first take the precaution of
used on another device does not backing up important files on the USB device by copying them to your
work.
computer hard disk. Next, format the USB device with a FAT12, FAT16, or
FAT32 file system and transfer the backed-up audio files onto the USB device
again.*
* This system supports FAT12, FAT16, and FAT32, but some USB device may
not support all of these FAT. For details, refer to the operating instructions of
each USB device or contact the manufacturer.
“READING” is displayed for a
long time.
• The reading process can take a long time in the following cases.
– There are many folders or files on the USB device.
– The file structure is extremely complex.
– The memory capacity is excessive.
– The internal memory is fragmented.
• Sony recommends following these guidelines.
– Total folders on the USB device: 200 or less
– Total files per folder: 150 or less
Erroneous display.
• Send the music data to the USB device again, as the data stored in the USB
device may have been corrupted.
• The character codes that can be displayed by this system are numbers and
alphabet only. Other characters are not displayed correctly.
91GB
Symptom
Remedy
“DATA ERROR” appears in the • The audio file/JPEG image file you want to play is broken.
front panel display during
• The data is not MPEG1 Audio Layer 3 data.
playback of a USB device.
• The JPEG image file format does not conform to DCF.
• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG
format.
Playback does not start.
• Turn off the system, then reconnect the USB device.
• Connect the USB device that this system can play. See “Playable USB Devices”
(supplement).
• Press H to start play.
Playback does not start from the • Cancel Repeat Play (page 65).
first track.
The USB device (audio file/
JPEG image file) cannot be
played back.
• USB device formatted with file systems other than FAT12, FAT16, or FAT32
are unsupported.*
• Files that are encrypted or protected by passwords, etc. cannot be played back.
• The MP3 file does not have the extension “.MP3.”
• The WMA file does not have the extension “.wma.”
• The AAC file does not have the extension “.m4a.”
• The data is not stored in the desired format.
• The MP3 files in format other than MPEG 1 Audio Layer 3 cannot be played
back.
• If you use partitioned USB device, only audio files on the first partition can be
played.
• The system can playback to a depth of 8 folders only.
• For audio files/JPEG image files, check the [MODE (MUSIC, IMAGE)] setting
(pages 62, 63).
• The number of folders has exceeded 200.
• The number of files has exceeded 150.
• For audio files/JPEG image files, the folder contains more than 150 files.
• The JPEG image file does not have the extension “.JPG” or “.JPEG.”
• The JPEG image file is larger than 3,072 (width) × 2,048 (height) in normal
mode, or more than 2,000,000 pixels in Progressive JPEG mode which is
mainly used on the Internet website.
• JPEG image files with a high width to length ratio cannot be played back.
• A WMA file that is the WMA DRM, WMA Lossless, or WMA PRO format
cannot be played back.
• An AAC file that is the AAC DRM or AAC Lossless format cannot be played
back.
* This system supports FAT12, FAT16, and FAT32, but some USB device may
not support all of these FAT. For details, refer to the operating instructions of
each USB device or contact the manufacturer.
Audio files or JPEG image files • After the system reads all files on the USB device, playback may take more
take longer to play back than
time than usual if:
others.
– the number of folders or files is very large.
– the folder or file organization structure is very complex.
– the memory capacity is very large.
– the file size is extremely large.
– the physical structure within the memory is fragmented.
• Sony recommends following these guidelines.
– Total folders on the USB device: 200 or less
– Total files per folder: 150 or less
92GB
Remedy
You cannot start recording/
copying to a USB device.
• The following problems may have occurred.
– The USB device is full.
– The number of MP3 files and folders on the USB device has reached the
upper limit.
– The USB device is write-protected.
Recording/copying is stopped
before it is finished.
• The communication speed of the USB device is extremely slow. Connect the
USB device that this system can play.
• If the recording, copying, and erase operations are repeated multiple times, the
file structure within the USB device becomes complex. Follow the procedure
in the operating instructions of the USB device to format the USB device. If the
problem persists, contact your nearest Sony dealer.
Recording to a USB device
results in an error.
• You are using an unsupported USB device. See “Playable USB Devices”
(supplement).
• The USB device was disconnected or the power was turned off during
recording/copying. Delete the partially-recorded file, and record/copy again. If
this does not fix the problem, the USB device may be broken. Follow the
procedure in the operating instructions of the USB device to format the USB
device. If the problem persists, contact your nearest Sony dealer.
Audio files or folders on the
USB device cannot be erased.
• Check if the USB device is write-protected.
• The USB device was disconnected or the power was turned off during erasing.
Delete the partially-erased file. If this does not fix the problem, the USB device
may be broken. Follow the procedure in the operating instructions of the USB
device to format the USB device. If the problem persists, contact your nearest
Sony dealer.
The S-AIR function
Symptom
Remedy
S-AIR connection is not
established (sound transmission
is not established), e.g., the
indicator of the S-AIR sub unit
does the following:
• Turns off.
• Flashes.
• Turns red.
• If you use another S-AIR main unit, place it more than 8 m (26 1/4 feet) away
from the unit.
• Confirm the ID of the unit and S-AIR sub unit (page 71).
• You performed pairing the unit and another S-AIR sub unit. Perform pairing of
the desired S-AIR sub unit (page 73).
• The unit is paired to another S-AIR sub unit. Cancel pairing.
• Install the S-AIR main unit and S-AIR sub unit away from other wireless
products.
• Stop using another wireless product.
• The S-AIR sub unit is turned off. Make sure the AC power cord (mains lead) is
connected and turn on the S-AIR sub unit.
Additional Information
Symptom
93GB
Symptom
Remedy
No sound is heard from the
S-AIR sub unit.
• If you use another S-AIR main unit, place it more than 8 m (26 1/4 feet) away
from the unit.
• Confirm the ID of the unit and S-AIR sub unit (page 71).
• Confirm the pairing setting (page 73).
• Install the S-AIR main unit and S-AIR sub unit closer together.
• Avoid use of equipment that generates electromagnetic energy, such as a
microwave oven.
• Install the S-AIR main unit and S-AIR sub unit away from other wireless
products.
• Stop using another wireless product.
• Change the “RF CHANGE” setting (page 75).
• Change the ID settings of the S-AIR main unit and S-AIR sub unit.
• Turn off the system and S-AIR sub unit, then turn on them.
There is noise or the sound skips. • If you use another S-AIR main unit, place it more than 8 m (26 1/4 feet) away
from the unit.
• Install the S-AIR main unit and S-AIR sub unit closer together.
• Avoid use of equipment that generates electromagnetic energy, such as a
microwave oven.
• Install the S-AIR main unit and S-AIR sub unit away from other wireless
products.
• Stop using another wireless product.
• Change the “RF CHANGE” setting (page 75).
• Change the ID settings of the S-AIR main unit and S-AIR sub unit.
94GB
Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self-diagnosis function is activated to
prevent the system from malfunctioning, a 5character service number (e.g., C 13 50) with a
combination of a letter and 4 digits appears on
the TV screen or front panel display. In this case,
check the following table.
When displaying the version
number on the TV screen
When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the TV screen. Although this is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
VER.X.XX
C:13:50
Cause and/or corrective action
C 13
The disc is dirty.
,Clean the disc with a soft cloth
(page 85).
C 31
The disc is not inserted correctly.
,Restart the system, then re-insert
the disc correctly.
E XX
(XX is a
number)
To prevent a malfunction, the
system has performed the selfdiagnosis function.
,Contact your nearest Sony
dealer or local authorized Sony
service facility and give the 5character service number.
Example: E 61 10
Additional Information
First 3
characters of
the service
number
95GB
Specifications
Amplifier Section
Stereo mode (rated)
108 W + 108 W (at 3 ohms,
1 kHz, 1% THD)
Surround mode (reference) RMS output power
FL/FR/C/SL/SR*: 142
watts (per channel at 3
ohms, 1 kHz, 10% THD)
Subwoofer*: 140 watts (at
3 ohms, 80 Hz, 10% THD)
* Depending on the decoding mode settings and the
source, there may be no sound output.
Inputs (Analog)
TV (AUDIO IN)
Sensitivity: 450/250 mV
AUDIO IN
Sensitivity: 250/125 mV
Inputs (Digital)
TV (COAXIAL IN/OPTICAL IN)
Impedance: 75 ohms/Outputs (Analog)
Phones
Accepts low- and highimpedance headphones.
Super Audio CD/DVD System
Laser
Signal format system
Semiconductor laser
(Super Audio CD/DVD: λ
= 650 nm)
(CD: λ = 790 nm)
Emission duration:
continuous
PAL/NTSC
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 kbps - 320 kbps
WMA:
48 kbps - 192 kbps
AAC:
48 kbps - 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA:
44.1 kHz
AAC:
44.1 kHz
(USB) port:
Maximum current:
500 mA
Tuner Section
FM tuner section
Tuning range
North American models:
Other models:
96GB
Video Section
Outputs
PLL quartz-locked digital
synthesizer
87.5 MHz - 108.0 MHz
(100 kHz step)
87.5 MHz - 108.0 MHz (50
kHz step)
VIDEO: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
HDMI OUT: Type A (19
pin)
Speakers
Front/Surround (SS-TS80)
Speaker system
USB Section
System
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
North American, Mexican, and Latin American
models:
530 kHz - 1,710 kHz (with
the interval set at 10 kHz)
531 kHz - 1,710 kHz (with
the interval set at 9 kHz)
European, CIS, and Middle Eastern models:
531 kHz - 1,602 kHz (with
the interval set at 9 kHz)
Australian and New Zealand models:
531 kHz - 1,710 kHz (with
the interval set at 9 kHz)
530 kHz - 1,710 kHz (with
the interval set at 10 kHz)
Other models:
531 kHz - 1,602 kHz (with
the interval set at 9 kHz)
530 kHz - 1,610 kHz (with
the interval set at 10 kHz)
Antenna (aerial)
AM loop antenna (aerial)
Intermediate frequency
450 kHz
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Full range Bass reflex,
Magnetically Shielded
65 mm cone type
3 ohms
103 mm × 164 mm × 82
mm (w/h/d)
0.6 kg
Center (SS-CT80)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Full range Bass reflex,
Magnetically Shielded
65 mm cone type
3 ohms
265 mm × 93 mm × 71 mm
(w/h/d)
0.7 kg
Subwoofer (SS-WS80)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Subwoofer Bass reflex
160 mm cone type
3 ohms
205 mm × 325 mm × 325
mm (w/h/d)
5.2 kg
General
Power requirements
220 V - 240 V AC,
50/60 Hz
Power consumption
On: 170 W
Standby: 0.3 W (at the
Power Saving mode)
Output voltage (DIGITAL MEDIA PORT)
DC 5 V
Output current (DIGITAL MEDIA PORT)
700 mA
Dimensions (approx.)
430 mm × 66 mm × 385
mm (w/h/d) incl.
projecting parts
430 mm × 66 mm × 415
mm (w/h/d) with the
wireless transceiver
inserted
Mass (approx.)
4.2 kg
Wireless transceiver (EZW-RT10)
Communication system
Mass (approx.)
Design and specifications are subject to change
without notice.
• Standby power consumption 0.3 W.
• Halogenated flame retardants are not
used in the printed wiring boards.
• Over 85% power efficiency of
amplifier block is achieved with the
full digital amplifier, S-Master.
Digital Cinema Auto Calibration
Digital Cinema Auto Calibration was developed
by Sony to automatically measure and adjusts
the speaker settings to your listening
environment in a short period of time.
Dolby Digital
This movie theater sound format is more
advanced than Dolby Surround Pro Logic. In
this format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
Dolby Pro Logic II
Dolby Pro Logic II creates five full-bandwidth
output channels from 2 channel sources. This is
done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
Additional Information
Output
Frequency band
Modulation method
Power requirements
Dimensions (approx.)
S-AIR Specification
version 1.0
12.0 mW
2.4000 GHz - 2.4835 GHz
DSSS
DC 3.3 V, 350 mA
50 mm × 13 mm × 60 mm
(w/h/d)
24 g
Glossary
x Movie mode
The Movie mode is for use with stereo television
shows and all programs encoded in Dolby
Surround. The result is enhanced sound field
directionality that approaches the quality of
discrete 5.1-channel sound.
x Music mode
The Music mode is for use with any stereo music
recordings, and provides a wide and deep sound
space.
Dolby Surround Pro Logic
As one method of decoding Dolby Surround,
Dolby Surround Pro Logic produces four
channels from 2 channel sound. Compared with
the former Dolby Surround system, Dolby
Surround Pro Logic reproduces left-to-right
panning more naturally and localizes sounds
more precisely. To take full advantage of Dolby
Surround Pro Logic, you should have one pair of
97GB
surround speakers and a center speaker. The
surround speakers output monaural sound.
Medical band), such as wireless LANs and
Bluetooth applications.
DTS
Super Audio CD
Digital audio compression technology
developed by DTS, Inc. This technology
conforms to 5.1-channel surround. This format
comprises of stereo rear channel and there is
discrete subwoofer channel in this format. DTS
provides the same 5.1 discrete channels of high
quality digital audio. The good channel
separation is realized due to the all channel data
being recorded discretely and processed in
digitally.
Super Audio CD is a new high-quality audio
disc standard where music is recorded in the
DSD (Direct Stream Digital) format
(conventional CD is recorded in the PCM
format). The DSD format, using a sampling
frequency 64 times higher than that of a
conventional CD, and with 1-bit quantization,
achieves both a wide frequency range and a wide
dynamic range across the audible frequency
range, and so provides music reproduction
extremely faithful to the original sound.
HDMI (High-Definition Multimedia
Interface)
HDMI is an interface that supports both video
and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Content Protection), a copy protection
technology that incorporates coding technology
for digital video signals.
Parental Control
A function of the DVD to limit playback of the
disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback is completely prohibited, violent
scenes are skipped or replaced with other scenes
and so on.
S-AIR
(Sony Audio Interactive Radio
frequency)
Recent times have seen the rapid spread of DVD
media, Digital Broadcasting, and other highquality media.
To ensure that the subtle nuances of these highquality media are transmitted with no
deterioration, Sony has developed a technology
called “S-AIR” for the radio transmission of
digital audio signals with no compression, and
has incorporated this technology into the EZWRT10/EZW-T100.
This technology transfers digital audio signals
with no compression using the 2.4 GHz band
range of ISM band (Industrial, Scientific, and
98GB
x Super Audio CD types
There are two types of discs, depending on the
Super Audio CD layer and CD layer
combination.
• Super Audio CD layer: A high-density
signal layer for Super Audio CD
• CD layer1): A layer that is readable by a
conventional CD player
Single layer disc
(a disc with a single Super Audio CD layer)
Super Audio CD
layer
Hybrid disc2)
(a disc with a Super Audio CD layer and a CD layer)
CD layer3)
Super Audio CD
layer3)
A Super Audio CD layer consists of the 2
channel area or the multi-channel area.
• 2 channel area: An area in which 2 channel
stereo tracks are recorded
• Multi-channel area: An area in which multichannel (up to 5.1 channels) tracks are
recorded
2 channel area4)
Multi channel area4)
Super Audio CD
layer
1)You
can play the CD layer on a conventional CD
player.
2)
Since both layers are on one side, it is not necessary
to turn the disc over.
3)To
4)To select an
area, see “To select a playback area on a
2 channel + Multi-channel Super Audio CD”
(page 32).
Additional Information
select a layer, see “To change a playback layer
when playing a hybrid Super Audio CD” (page 32).
99GB
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian;
Lettish
1345 Malagasy
1436
1463
1481
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan)Oromo
Oriya
Punjabi
Polish
Pashto;
Pushto
Portuguese
Quechua
RhaetoRomance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
SerboCroatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
1703 Not specified
Parental Control Area Code List
100GB
Code Area
Code Area
Code Area
Code Area
2044
2047
2046
2057
2070
2079
2090
2092
2115
2165
2174
2109
2248
2238
2254
2276
2304
2363
2362
2376
2390
2379
2427
2424
2436
2489
2501
2149
2499
2086
2528
2184
Argentina
Australia
Austria
Belgium
Brazil
Canada
Chile
China
Denmark
Finland
France
Germany
India
Indonesia
Italy
Japan
Korea
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Thailand
United
Kingdom
Index to Parts and Control
For more information, refer to the pages indicated in parentheses.
Front panel
F FUNCTION (24)
B A (open/close) (29)
G VOLUME control (29)
C Front panel display (103)
H PHONES jack (29)
D Play operation buttons (29)
I AUDIO IN/A.CAL MIC jack (16, 21, 77)
E
J
(remote sensor) (9)
(USB) port (61)
Additional Information
A "/1 (on/standby) (21, 83)
K Disc tray (29)
101GB
Rear panel
ANTENNA
SPEAKER
FRONT R
FRONT L
SUR R
SUR L
COAXIAL 75
FM
EZW-RT10
SPEAKER
CENTER
DIGITAL IN
COAXIAL
DC5V
0.7A MAX
OPTICAL
TV
HDMI OUT
A SPEAKER jacks (14)
DMPORT
OUTPUT(TO TV)
B EZW-RT10 slot (19)
F DMPORT (DIGITAL MEDIA PORT) jack
(16, 70)
C COAXIAL 75Ω FM jack (18)
G HDMI OUT jack (15)
D AM terminal (18)
H TV (DIGITAL IN COAXIAL/OPTICAL)
jacks (15)
E EURO AV T OUTPUT (TO TV) jack (15)
102GB
AM
EURO AV
SUBWOOFER
Front panel display
About the indications in the front panel display
A Playing status
B Flashes when the sleep timer is set.
(79)
H Current surround format (Except for
JPEG image file)
D Lights up when a station is received.
(Radio only) (54)
I Lights up when an NTSC disc is
loaded.
E Stereo/Monaural effect (Radio only)
(55)
J Lights up during USB recording/
copying. (67)
F Lights up when the S-AIR transceiver is
inserted in the unit and the system
transmits the sound. (71)
K Lights up when Super Audio CD/CD is
loaded. (32)
Additional Information
C Displays system’s status such as
chapter, title, or track number, time
information, radio frequency, playing
status, decoding mode, etc.
G Lights up when the HDMI OUT jack is
correctly connected to HDCP (Highbandwidth Digital Content Protection)
compliant device with HDMI or DVI
(Digital Visual Interface) input. (15)
103GB
Remote control
ALPHABETICAL ORDER
A–O
P–Z
ANGLE 3 (30)
AUDIO qh (31)
CLEAR es (34, 47, 55)
D.TUNING ws (55)
DISC SKIP1) ed
DISPLAY wa (56, 66, 80)
DVD MENU wg (37)
DVD TOP MENU qd (37)
DYNAMIC BASS 6 (79)
ENTER2) wf (20, 21, 32, 34, 54,
76)
FUNCTION +/– 2 (24, 29)
MENU wg (78)
MUTING 7 (29)
NIGHT wd (79)
ONE-TOUCH PLAY eg (59)
PICTURE NAVI qg (39, 63)
PRESET +/– wj (55)
PROG +/– wj (78)
S-AIR MODE 4 (71)
SLEEP qj (79)
SOUND MODE 5 (28)
SUBTITLE ws (31)
SYSTEM MENU wf (20, 24, 71,
79, 80)
THEATRE qk (58)
TOOLS wh (78)
TUNING +/– 0 (54)
TV wl (78)
TV INPUT w; (78)
TV VOL +/– ef (78)
VOLUME +/– 8 (29)
BUTTON DESCRIPTIONS
Number buttons qf (33, 54, 78)
[/1 (on/standby) 1 (20, 21, 29)
TV [/1 (on/standby) ql (78)
C/X/x/c/
qs (20, 21, 32, 34,
54, 76)
REPLAY/ADVANCE
9 (29)
./> wj (29)
m/M 0 (29)
STEP
/
9 (29)
SLOW
/
0 (29)
H (play) e; (29)
x (stop) wk (29)
X (pause) qa (29)
DISPLAY3) wh (21, 32, 34, 76)
O RETURN ea (33, 78)
-/-- es (78)
1)
This button is not available
for this model.
2)
The ENTER button has the
same function as the
button. When you operate
the TV, the ENTER button is
used for selecting a channel,
and the
button is used for
selecting menu items
(page 78).
3)This
button is available for
the “DVD,” “USB,” or
“DMPORT” function.
Depending on the DIGITAL
MEDIA PORT adapter, this
button may not work.
104GB
Guide to the Control Menu Display
You can use the Control Menu display to select a function and to view related information.
DISPLAY
DISPLAY repeatedly.
Each time you press
DISPLAY, the Control Menu display changes:
1 t 2 t ... t 1 t ...
1 Control Menu display 1
2 Control Menu display 2 (appears when available)
3 Control Menu display off
Additional Information
Press
Note
• The Control Menu Display appears during the “DVD” or “USB” function.
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type. For details,
see the pages in parentheses.
105GB
Example: Control Menu display 1 when playing a DVD VIDEO.
Currently playing title number
Currently playing chapter number
Total number of titles
Total number of chapters
Control Menu items
98( 99)
13( 99)
T
0: 04: 17
OFF
OFF
DISC
TITLE
CHAPTER
Selected item
Playback status
(N Playback,
X Pause,
x Stop, etc.)
DVD VIDEO
Type of disc being
played
Playing time
Current setting
Options
Function name of selected
Control Menu item
REPEAT
ENTER
Quit:
DISPLAY
Operation message
To turn off the display
Press
DISPLAY.
List of Control Menu items
Item
Item Name, Function, Relevant Disc Type
[TITLE] (page 37)/[SCENE] (page 37)/[TRACK] (page 37)
You can select the title, scene, or track to be played.
[CHAPTER] (page 37)/[INDEX] (page 37)
You can select the chapter or index to be played.
[INDEX] (page 37)
You can display the index and select the index to be played.
[TRACK] (page 37)
You can select the track to be played.
[ORIGINAL/PLAY LIST] (page 37)
You can select the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or
an edited [PLAY LIST].
[TIME] (page 38)
You can check the elapsed time and the remaining playback time.
You can play from a desired point by inputting the time code (DVD VIDEO/DVD-VR only).
[MULTI/2CH] (page 32)
You can select the playback area on a Super Audio CD when available.
[SUPER AUDIO CD/CD LAYER] (page 32)
You can select the playback layer on a Super Audio CD when available.
[PROGRAM] (page 34)
You can select the track to play in the order you want.
106GB
[SHUFFLE] (page 35)
You can play the track/file in random order.
[REPEAT] (page 36)
You can play the entire disc (all titles/all tracks/all folders/all files) repeatedly or one title/
chapter/track/folder/file repeatedly.
[A/V SYNC] (page 44)
You can adjust the delay between the picture and sound.
[DISC MENU] (page 37)
You can display the DVD’s menu.
[BROWSING] (page 40)
You can display the list of folders/JPEG image files.
[SETUP] (page 47)
[QUICK] (page 21)
You can make the basic adjustments. Use Quick Setup to select the desired language of the
on-screen display, the aspect ratio of the TV, and select yes or no to start the Auto Calibration.
[CUSTOM]
In addition to the Quick Setup setting, you can adjust various other settings.
You can select the folder to be played.
[FILE] (page 37)
You can select the JPEG image file or DivX video file to be played.
*
[DATE] (page 82)
You can display the date the picture was taken by a digital camera.
*
[INTERVAL] (page 41)
You can select the duration for which the slides are displayed on the TV screen.
*
Additional Information
[FOLDER] (page 37)
[EFFECT] (page 41)
You can select the effects to be used for changing slides during a slide show.
*
[MODE (MUSIC, IMAGE)] (page 41)
You can select the data type; MP3 file, JPEG image file, or both to be played when playing a
DATA CD/DATA DVD.
* These items are not displayed when playing a DATA CD/DATA DVD with DivX video file.
List of Control Menu Items for USB device
Item
Item Name, Function, Relevant Disc Type
[REPEAT] (page 65)
You can play the entire USB device (all folders/all files) repeatedly or one folder/file
repeatedly.
[BROWSING] (page 65)
You can display the list of folders/JPEG image files.
[DATE] (page 67)
You can display the date the picture was taken by a digital camera.
[INTERVAL] (page 64)
You can select the duration for which the slides are displayed on the TV screen.
107GB
[EFFECT] (page 64)
You can select the effects to be used for changing slides during a slide show.
[MODE (MUSIC, IMAGE)] (pages 62, 63)
You can select the data type; MP3/AAC/WMA file or JPEG image file, when playing a USB
device.
[USB RECORDING] (page 67)
You can record tracks on an audio CD or copy MP3 files on a CD/DATA CD/DATA DVD to
a USB device.
[SHUFFLE]
You can play the file in random order.
[TRACK]
You can select the track to be played.
[FOLDER]
You can select the folder to be played.
[FILE]
You can select the JPEG image file to be played.
[TIME]
You can check the elapsed time and the remaining playback time.
Tip
• The Control Menu icon indicator lights up in yellow
t
when you select any item except [OFF]
([PROGRAM], [SHUFFLE], [REPEAT], and [A/V SYNC] only). The [ORIGINAL/PLAY LIST] indicator lights
up in yellow when you select [PLAY LIST] (default setting). The [MULTI/2CH] indicator lights up in yellow when
you select the multi-channel playback area on a Super Audio CD.
108GB
Index
Numerics
H
R
5.1 Channel Surround 32
HDMI
YCBCR/RGB (HDMI) 49
HDMI (High-Definition
Multimedia Interface) 98
HDMI RESOLUTION 49
HDMI SETUP 49
RDS 57
Rear panel 102
Region Code 7
Remote 9
Repeat Play 36
RESET 51, 83
Resume Play 33
RF CHANGE 75
A
A/V SYNC 44
AAC file 61
ANGLE 30
ATTENUATE 25
AUDIO 48
AUDIO (HDMI) 49
AUDIO DRC 50
AUDIO SETUP 50
AUTO CALIBRATION 50, 77,
97
B
BACKGROUND 51
C
COLD RESET 83
CONTROL FOR HDMI 49
Control for HDMI 58
Control Menu Display 105
CUSTOM 47, 83
D
D. C. A. C. (Digital Cinema
Auto Calibration) 77, 97
DATA CD 42
DATA DVD 42
DEC. MODE 26
DEMO 20
DIGITAL MEDIA PORT 70
DIMMER 80
DISPLAY 56
DivX® 42, 51
Dolby Digital 31, 97
Dolby Pro Logic II 97
Dolby Surround Pro Logic 97
DTS 31, 98
DUAL MONO 28
DVD’s menu 37
DYNAMIC BASS 79
E
EFFECT 41, 65
F
FM MODE 55
Front panel 101
Front panel display 80, 103
I
Instant Advance 30
Instant Replay 30
INTERVAL 41, 64
J
JPEG image file 39, 61
JPEG RESOLUTION 50
L
Language Code List 100
LANGUAGE SETUP 47
LINE 48
M
MENU 48
MODE (MUSIC, IMAGE) 41,
62, 63
MP3 file 39, 61
Multi Session CD 7
MULTI-DISC RESUME 51
Multiplex broadcast sound 28
N
Naming preset stations 55
NIGHT 79
O
ORIGINAL 37
OSD 48
P
PARENTAL CONTROL 45,
51, 98
PAUSE MODE 49
PBC Playback 33
PICTURE NAVI 40, 64
PLAY LIST 37
Playable discs 5
Program Play 34
S
S-AIR 98
S-AIR receiver 71
S-AIR SETUP 50
S-AIR STBY 73
SCREEN SAVER 51
SETUP 47, 83
Shuffle Play 35
SLEEP 79
Slide Show 41
Sound Mode 28
SPEAKER FORMATION 50,
76
SPEAKER SETUP 51
CONNECTION 52
DISTANCE 52
LEVEL 53
SUBTITLE 31, 48
Super Audio CD 32, 98
Surround amplifier 71
SYSTEM MENU 20, 24, 25,
26, 55, 73, 75, 79, 80
SYSTEM SETUP 51
T
TEST TONE 53
TIME 38
TRACK SELECTION 51
TV TYPE 48
U
USB device 61
V
VIDEO SETUP 48
VOLUME LIMIT 49
W
WMA file 61
Q
Quick Setup 21
109GB
(1)
Sony Corporation Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
