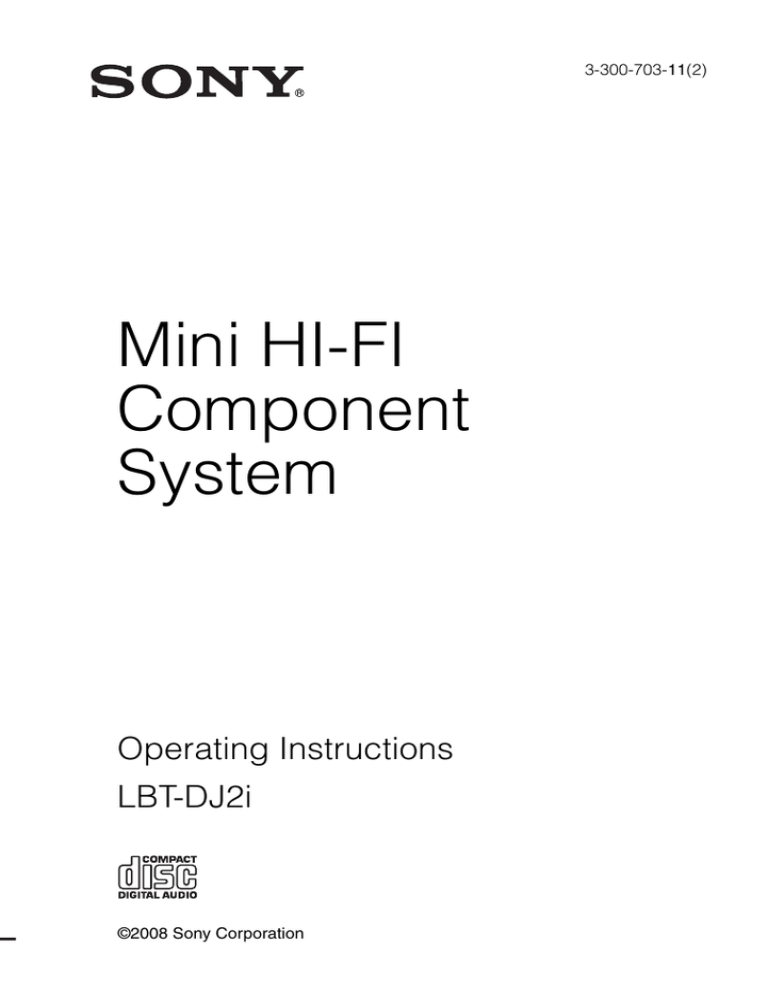

3-300-703-11(2)
Mini HI-FI
Component
System
Operating Instructions
LBT-DJ2i
©2008 Sony Corporation
WARNING
To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the apparatus with
newspapers, tablecloths, curtains, etc.
Do not place the naked flame sources such as
lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do
not expose this apparatus to dripping or
splashing, and do not place objects filled
with liquids, such as vases, on the apparatus.
Do not expose batteries or apparatus with
battery-installed to excessive heat such as
sunshine, fire or the like.
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
As the main plug is used to disconnect the
unit from the mains, connect the unit to an
easily accessible AC outlet. Should you
notice an abnormality in the unit, disconnect
the main plug from the AC outlet
immediately.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
This appliance is classified as a CLASS 1
LASER product. This marking is located on
the bottom of the unit.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
2GB
For customer in the United
States
Owner’s Record
The model and serial numbers are located on
the bottom of the unit. Record these numbers
in the space provided below. Refer to them
whenever you call upon your Sony dealer
regarding this product.
Model No.
Serial No.
This symbol is intended to
alert the user to the
presence of uninsulated
“dangerous voltage”
within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the
presence of important
operating and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
The following FCC statement applies only to
the version of this model manufactured for
sale in the U.S.A. Other versions may not
comply with FCC technical regulations.
WARNING
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in
a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
CAUTION
You are cautioned that any changes or
modification not expressly approved in this
manual could void your authority to operate
this equipment.
Important Safety
Instructions
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
13) Unplug this apparatus during lightning
storms or when unused for long periods
of time.
14) Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
Continued l
3GB
For customers in Europe
Disposal of Old
Electrical &
Electronic
Equipment
(Applicable in the
European Union
and other European
countries with
separate collection
systems)
This symbol on the product or on its
packaging indicates that this product shall
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of
this product. The recycling of materials will
help to conserve natural resources. For more
detailed information about recycling of this
product, please contact your local Civic
Office, your household waste disposal
service or the shop where you purchased the
product.
4GB
For customers in Europe
Disposal of waste
batteries (applicable
in the European
Union and other
European countries
with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery provided
with this product shall not be treated as
household waste.
By ensuring these batteries are disposed of
correctly, you will help prevent potentially
negative consequences for the environment
and human health which could otherwise be
caused by inappropriate waste handling of
the battery. The recycling of the materials
will help to conserve natural resources.
In case of products that for safety,
performance or data integrity reasons require
a permanent connection with an incorporated
battery, this battery should be replaced by
qualified service staff only.
To ensure that the battery will be treated
properly, hand over the product at end-of-life
to the applicable collection point for the
recycling of electrical and electronic
equipment.
For all other batteries, please view the
section on how to remove the battery from
the product safely. Hand the battery over to
the applicable collection point for the
recycling of waste batteries.
For more detailed information about
recycling of this product or battery, please
contact your local Civic Office, your
household waste disposal service or the shop
where you purchased the product.
Notice for the customer in
the countries applying EU
Directives
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo,
108-0075 Japan. The Authorized
Representative for EMC and product safety
is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For
any service or guarantee matters please refer
to the addresses given in separate service or
guarantee documents.
Note on DualDiscs
A DualDisc is a two sided disc product
which mates DVD recorded material on one
side with digital audio material on the other
side. However, since the audio material side
does not conform to the Compact Disc (CD)
standard, playback on this product is not
guaranteed.
Music discs encoded with
copyright protection
technologies
“WALKMAN” and “WALKMAN” logo are
registered trademarks of Sony Corporation.
MICROVAULT is a trademark of Sony
Corporation.
MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and
Thomson.
Windows Media is a registered trademark of
Microsoft Corporation in the United States
and/or other countries.
iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
About this manual
The LBT-DJ2i consists of:
– Unit
HCD-DJ2i
– Speaker System
• Front speakers
SS-DJ2i
• Subwoofer
SA-WG2i
This product is designed to play back discs
that conform to the Compact Disc (CD)
standard. Recently, various music discs
encoded with copyright protection
technologies are marketed by some record
companies. Please be aware that among
those discs, there are some that do not
conform to the CD standard and may not be
playable by this product.
Note on Multi Session disc
When you play back Multi Session discs
with different formats for each session, the
format of the first session is recognized as
the disc type. Tracks in the second and
subsequent sessions are played back if they
are the same formats as the first session.
5GB
Table of Contents
About this manual ....................... 5
Guide to parts and controls.......... 7
Information on the display......... 12
Getting Started
Hooking up the system .............. 13
Positioning the speakers ............ 16
Setting the clock ........................ 17
Other Operations
Creating your own program....... 34
— Program Play
Presetting radio stations............. 35
Using the Radio Data System
(RDS).................................... 36
Ajusting the sound effect........... 37
Singing along............................. 37
Using the timer .......................... 38
Additional Information
Basic Operations
Playing a CD/MP3 disc ............. 18
Listening to the radio................. 20
Transferring onto an USB
device.................................... 21
Listening to music of an USB
device.................................... 24
Playing the iPod......................... 27
Using optional components ....... 28
Adjusting the sound................... 29
Creating a party atmosphere...... 30
— Inspiring the DJ’s mood
Changing the display ................. 32
Viewing information in the
display .................................. 33
6GB
Troubleshooting......................... 40
Messages.................................... 46
Precautions................................. 48
Specifications............................. 49
Compatible devices with this
system ................................... 52
Index .......................................... 54
This manual mainly explains operations using the buttons on the unit, but the same
operations can also be performed using the buttons on the remote having the same or
similar names.
Unit
– Front view
1 2
3
4
8 7
Guide to parts and controls
Guide to parts and controls
6 5
– Top view
9
q; qa qsqd3
9
qf
qg
wj
wh
wg
wf
qh
<
<
wd
qj
ws
wa w; ql 4
qk
Continued l
7GB
E A (pages 16, 18, 42)
Press to open or close the disc tray.
Remote
wh
ek
ej
eh
eg
1
wk
q;
wl
e;
ef
ea
qh
ed
4
es
F Disc tray (pages 16, 18, 42, 46)
G IR Receptor (page 41)
H MIC (jack) (pages 37, 41, 49)
Connect an optional microphone.
I iPod 1 connector (pages 15, 27,
28)
iPod 2 connector (pages 15, 27,
28)
Place an optional iPod on the
connector to listen to audio contents
stored in the iPod.
J GROOVE (page 29)
Press to reinforce the bass.
K
A "/1 (on/standby) (pages 14, 16,
40, 46)
Press to turn the system on or off.
STANDBY indicator
Lights up in green when the system is
turned on.
Lights up in red when the system is
in standby mode.
B i (jack) (pages 31, 49)
Connect the headphones.
C Display (pages 12, 32, 33, 46)
D Unit: VOLUME +/– (pages 18, 25,
27, 28, 41)
Turn to adjust the speakers volume.
Remote: VOLUME +/–1)
(pages 18, 20, 25, 27, 28, 38, 41)
Press to adjust the speakers volume.
1) The VOLUME + button has a tactile dot.
Use the tactile dot as a reference when
operating the system.
8GB
indicator
Lights up when an optional USB
device is recognized, or during
transferring or erase operation.
(USB) port (pages 21, 22,
23, 24, 44, 49)
Connect an optional USB device.
L OPTIONS (pages 22, 29, 32)
Press to select the power
illumination pattern, subwoofer
level, MP3 BOOSTER+ function
and USB SELECT.
M ERASE (page 23)
Press to erase audio files or folders
on the connected optional USB
device.
N REC TO USB (page 22)
Press to transfer onto the connected
optional USB device.
P Operation buttons for CHANNEL
B functions:
Unit: HS (play/pause)
(pages 18, 21, 24, 27, 42)
Remote: N2)3) (play) (pages 18,
24, 27, 42)
Remote: X2) (pause) (pages 18,
27)
Press to start or pause playback.
x2) (stop) (pages 18, 25)
Press to stop playback or
transferring.
Unit: l/L (go backward/go
forward) (pages 18, 25, 34)
Remote: ./>2) (go
backward/go forward) (pages 18,
25, 34)
Press to select a track or file.
Unit: TUNE +/– (page 20)
Remote: +/– (tuning) (pages 20,
35)
Press to tune in a radio station.
+/–2)
(pages 18, 25, 34)
Press to select a folder.
Remote: m/M2) (rewind/fast
forward) (pages 18, 25)
Press to find a point in a track or file.
Unit: ENTER (pages 18, 25, 29,
32, 34)
Press to enter the settings.
Unit: MENU/RETURN (pages 18,
25)
Press to return to previous menu of
the iPod.
Press to return to the parent folder.
Press to exit search mode.
Guide to parts and controls
O Function buttons (on CHANNEL
B):
USB (pages 23, 24, 25, 32, 34)
CD (pages 16, 18, 21, 32, 34)
TUNER/BAND (pages 20, 32)
iPod 2 (pages 27, 32)
LINE IN 2 (pages 28, 32)
Press to select a function.
JOG DIAL (pages 18, 22, 25, 27,
29, 30, 32)
Turn to select a track, file or folder.
Turn to select a setting in OPTIONS
menu.
Turn to scroll up or down the iPod
menus.
2)
To operate the CHANNEL A functions
using the remote, press and hold
CHANNEL A, then press this button.
3) The N button has a tactile dot. Use the
tactile dot as a reference when operating
the system.
Q LOW (page 37)
MID (page 37)
HIGH (page 37)
Turn to adjust the level of frequency
band.
R PAD I (pages 30, 46)
PAD II (page 30)
Press to add percussion sound.
S Power illuminator
T CROSS FADER slider (pages 21,
31, 39, 41)
Slide to the left or right to blend the
sound from CHANNEL A and B.
Continued l
9GB
U MIC LEVEL (pages 37, 41)
Turn to adjust the microphone
volume.
l/L (go backward/go
forward) (page 27)
Press to select a track or file.
V i CHANNEL SELECT (page 31)
Press to listen to CHANNEL A or B
through a headphone.
ENTER (pages 29, 32)
Press to enter the settings.
A/B indicator
Indicate the selected CHANNEL
output to the headphone.
i LEVEL (page 31)
Turn to adjust the headphone volume
level.
W BEAT ON/OFF (page 30)
Press to turn on or off the rhythms of
the beat.
BEAT PATTERN (page 30)
Press to select the rhythms of the
beat.
BEAT LEVEL (page 30)
Press to adjust the beat level.
BPM CONTROL (page 30)
Press to input the tempo of the audio
source.
BEAT SPEED (page 30)
Press to change the beat speed.
X Operation buttons for CHANNEL
A functions:
HS (play/pause) (page 27)
Press to start or pause playback.
10GB
MENU/RETURN (page 28)
Press to return to previous menu of
the iPod.
Press to return to the parent folder.
Press to exit search mode.
JOG DIAL (pages 27, 29, 30, 32)
Turn to select a setting in OPTIONS
menu.
Turn to scroll up or down the iPod
menus.
Y Function buttons (on CHANNEL
A):
iPod 1 (pages 27, 32)
LINE IN 1 (pages 28, 32)
Press to select a function.
Z DISPLAY (pages 17, 28, 32, 33,
36)
Press to change the information in
the display.
wj SURROUND (page 29)
Press to select the surround effect.
wk CLEAR (page 35)
Press to delete a pre-programmed
track or file.
wl TIMER MENU (pages 17, 38, 39)
Press to set the clock and the timers.
e;
V/v/B/b2) (pages 17, 27, 38)
Press to select the menu items.
(pages 17, 27, 35, 38)
Press to enter the settings.
ea TOOL MENU2) (page 28)
Press to return to previous menu of
the iPod.
es FUNCTION +/– (pages 18, 20,
23, 27, 28)
Press to select a function on
CHANNEL B.
To select a function on CHANNEL
A, press and hold CHANNEL A,
then press this button.
ed CHANNEL A (pages 27, 28)
Press and hold to activate the orange
printing button to operate the
CHANNEL A function.
For example, press and hold
CHANNEL A, then press N to start
playback iPod 1.
eh PLAY MODE/TUNING MODE2)
(pages 19, 20, 26, 34, 36, 42, 46)
Press to select the play mode of CD,
USB or iPod function.
Press to select the tuning mode.
ej REPEAT/FM MODE2) (pages 18,
20, 25, 46)
Press to change the Repeat Play
setting.
Press to select the FM monaural or
stereo reception.
Guide to parts and controls
2)
eg TUNER MEMORY (page 35)
Press to preset a radio station.
ek SLEEP (page 38)
Press to set the Sleep Timer.
2)
To operate the CHANNEL A functions using
the remote, press and hold CHANNEL A,
then press this button.
ef O RETURN2) (page 28)
Press to return to previous menu of
the iPod.
Press to return to previous display of
the OPTIONS menu.
11GB
Information on the display
12345
ql qk
qj qh qg qf qd qs qa
A Indicator for the level of the audio
source play back on CHANNEL A.
B Lights up for a few seconds during
function change.
C Lights up when the MP3 file contains
ID3 tag information.
D Lights up when a file name is
displayed (page 33).
E “ ” lights up when an artist name is
displayed. “ ” lights up when a
folder name is displayed.
F Displays the current status and
information (page 33).
G Lights up during transferring onto an
optional USB device (page 21).
H Indicators for the TUNER function
(pages 20, 35).
I Indicator for the level of the audio
source play back on CHANNEL B.
J Indicator for BEAT BLEND level
(page 30).
K Lights up when MP3 BOOSTER+
function is activated (page 29).
12GB
6
789
q;
L Lights up when the timer is set
(page 38).
M Lights up when an optional USB
device is recognized (page 21).
N Indicator for equalizer (page 37).
O Indicates the type of disc or file that
the system recognized.
P Indicates the selected play mode
(pages 19, 26).
Q Lights up when surround effect is
activated (page 29).
R “GROOVE” lights up when
“GROOVE ON” is selected.
“Z-GROOVE” lights up when
“Z-GROOVE ON” is selected
(page 29).
S “N” lights up during playback.
“NX” lights up when playback is
paused.
Getting Started
Unit (Left panel)
B
Subwoofer (Rear panel)
F
B
C
D
G
Unit (Right panel)
A
1
2
Getting Started
Hooking up the system
E
3
4
1 To AM loop antenna
2 To FM lead antenna
3 From subwoofer
4 To front speakers
A Antennas
Note
Find a location and an orientation that
provide good reception, and then set up
the antennas.
The FM 75 Ω COAXIAL jack varies
according to models.
Keep the antennas away from the speaker cords,
the power cord and the USB cable to avoid
picking up noise.
Use an audio cord to connect to the audio
output jacks of an optional component
(such as a portable audio player).
FM 75
COAXIAL AM
Extend the
FM lead
antenna
horizontally
B LINE IN 1 L/R, LINE IN 2 L/R jacks
AM loop
antenna
Continued l
13GB
C D-LIGHT SYNC OUT jack
E FRONT SPEAKER terminals
Connect the D-LIGHT SYNC controller.
You need to connect the D-LIGHT SYNC
controller to a lighting device* (not
supplied). The lighting device will react
according to the control signals
transmitted by the D-LIGHT SYNC
controller upon receiving music source
from the system. For details on the use of
the D-LIGHT SYNC controller and
lighting device, refer to the operating
instructions supplied with the respective
device.
Connect the front speaker left/right to the
terminals on the subwoofer.
Insert only the stripped portion of the
speaker cords into the FRONT SPEAKER
terminals.
R
L
FRONT SPE
AKER
D-LIGHT SYNC
controller cord
Note
* Refer to the operating instructions supplied
with the D-LIGHT SYNC controller for the
recommended lighting device.
Note
The lighting effect may be different depending
on the connected lighting device or the type of
music being played back.
D SYSTEM CONTROL jack
Be sure to use only the supplied speakers.
F VOLTAGE SELECTOR
For models equipped with a voltage
selector on the subwoofer, set VOLTAGE
SELECTOR to the position of your local
power line voltage.
Depending on the model, the VOLTAGE
SELECTOR may differ.
Connect the system connector of
subwoofer to the SYSTEM CONTROL
jack on the unit.
Insert the plug of the SYSTEM
CONTROL cord into the jack, then secure
the screws of the plug.
Subwoofer (Rear panel)
Plug
14GB
120V
220V
230240V
G Power
Unit (Left panel)
Screws
VOLTAGE SELECTOR
SYSTEM CONTROL cord
Connect the power cord on the subwoofer
to a wall outlet after you have make all
connections. The demonstration appears
in the display. When you press "/1, the
system turns on and the demonstration
automatically ends.
If the supplied adaptor on the plug does
not fit your wall outlet, detach it from the
plug (only for models equipped with an
adaptor).
Using the iPod
Slide and remove the battery
compartment lid, and insert the two
supplied R6 (size AA) batteries, E side
first, matching the polarities shown
below.
e
E
e
E
Getting Started
Insert the iPod Dock Adapter into the
iPod 1 or 2 connector before use.
For details on the supplied iPod Dock
Adapters, refer to the operating
instructions supplied with the iPod Dock
Adapter.
Using the remote
Notes
To remove the iPod Dock Adapter, pull it
up with your fingernail or a flat object
using the slot inside the adapter.
Slot
• If you do not use the remote for a long period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
• With normal use, the batteries should last for
about six months. When the remote no longer
operates the system, replace both batteries
with new ones.
• Batteries installed devices shall not be
exposed to excessive heat such as sunshine,
fire or the like.
Attaching the speaker pads
Attach the supplied speaker pads at each
corner on the bottom of the front speakers
to stabilize the speakers and to prevent
them from slipping.
Continued l
15GB
When carrying the unit
Do the following procedure to protect
the disc mechanism.
Use the buttons on the unit for the
operation.
1 Press "/1 to turn on the system.
2 Press CD.
3 Press A to open the disc tray
and remove the disc.
4 Press A again to close the disc
tray. Wait until “No Disc”
appears in the display.
Positioning the
speakers
You can place your speakers as shown
below.
A Front speaker (left)
B Front speaker (right)
C Subwoofer
D Unit
Example 1:
Place the speakers at an equal distance
from your listening position.
5 Hold down CD and then press
A
"/1 until “STANDBY” appears
in the display. Then, “MECHA
LOCK” appears in the display.
B
D
6 Unplug the AC power cord.
C
Note
Before carrying the unit, be sure to
disconnect the USB device or iPod(s).
Example 2:
This placement suitable for Djing.
A
B
D
C
Notes
• Place the speakers at least 0.3 meter (1 foot)
away from the unit.
• Be sure to place the subwoofer horizontally.
16GB
Setting the clock
Use buttons on the remote for the
operation.
The hour indication flashes in the
display.
If “PLAY SET?” flashes in the
display, press V or v repeatedly to
select “CLOCK SET?”, then press
Getting Started
1 Press "/1 to turn on the system.
2 Press TIMER MENU.
.
3 Press V or v repeatedly to set
the hour.
4 Press
.
The minute indication flashes in the
display.
5 Press V or v repeatedly to set
the minute.
6 Press
.
The clock starts functioning.
Note
The clock settings are canceled when you
disconnect the power cord or if a power failure
occurs.
To display the clock when the
system is off
Press DISPLAY repeatedly until the clock
is displayed. The clock is displayed for a
few seconds (except when iPod is
connected).
When an iPod is connected, the display
will change to clock automatically. For
details, see page 32.
17GB
Basic Operations
To
Do this
Select a track or
file
Press l or L on
CHANNEL B (or .
or > on the remote)
repeatedly.
For AUDIO CD, you can
also turn JOG DIAL on
CHANNEL B, then
press ENTER on
CHANNEL B. (TRACK
SEARCH)
Playing a CD/MP3 disc
1 Press CD (or FUNCTION +/– on
the remote repeatedly to select
“CD”).
2 Press A.
3 Load a disc with the label side
facing up on the disc tray.
When you play
back an 8 cm
disc such as a
CD single, place
it on the inner
circle of the tray.
4 Press A to close the disc tray.
Do not forcibly push the disc tray to
close it as this may cause a
malfunction.
Select a folder on Press
+/– repeatedly,
an MP3 disc
then press ENTER on
CHANNEL B.
Select a file on an
MP3 disc while
viewing the
folder and file
names on the
display
(TRACK
SEARCH)
Use buttons on
CHANNEL B for the
operations.
1 Turn JOG DIAL to
select the folder you
want, then press
ENTER.
2 Turn JOG DIAL to
select the file you
want, then press
ENTER.
To return to the previous
operation, press
RETURN.
Find a point in a
track or file1)
Hold down l or L
(or m or M on the
remote) during playback,
then release it at the point
you want.
Playback all the
tracks or files on
the disc or in
the folder2)
repeatedly3)
(Repeat Play)
Press REPEAT on the
remote repeatedly during
playback until “REP”
lights up in the display.
Playback a single
track or file
repeatedly4)
(Repeat Play)
Press REPEAT on the
remote repeatedly during
playback until “REP 1”
lights up in the display.
5 Press HS on CHANNEL B (or
N on the remote) to start
playback.
6 Turn VOLUME +/– (or press
VOLUME +/– on the remote) to
adjust the volume.
Other operations
To
18GB
Do this
Stop playback
Press x.
Pause playback
Press HS on
CHANNEL B (or X on
the remote). Press HS
(or X on the remote)
again to resume
playback.
1)
The elapsed playing time may not be
displayed correctly depending on the MP3
files.
2)
When “
” or “
SHUF” is selected for
MP3 files.
3)
Playback repeatedly up to five times.
4)
A track or file is played back repeatedly until
you stop playback.
Press PLAY MODE on the remote
repeatedly when playback is stopped. You
can select the following play mode.
– Normal Play (all tracks or MP3 files on
the disc) (“ ”, “SHUF” and “PGM”
light off)
– Normal/Folder Play (all MP3 files in the
folder or all tracks on the disc) (“ ”*
lights up)
– Shuffle Play (“SHUF” or “
SHUF”*
light up)
– Program Play (“PGM” lights up)
(page 34)
* When playing an AUDIO CD,
(SHUF)
Play performs the same operation as Normal
(Shuffle) Play.
• The following discs/situations can increase
the time it takes to start playback:
– a disc recorded with a complicated tree
structure.
– a disc recorded in Multi Session.
– a disc to which data can be added
(non-finalized disc).
– when the files in another folder have just
been played back.
• When the disc is loaded, the system reads all
the files on that disc. If there are many folders
or non-MP3 files on the disc, it may take a
longer time for playback to begin or for the
next MP3 file to start playback.
• MP3 files are played back in the order that
they are recorded onto the disc.
• You are recommended not to save other types
of files or unnecessary folders on a disc that
has MP3 files.
• The system can only play back MP3 files with
the extension “.mp3”.
• Attempting to play back non-MP3 format files
that have the extension “.mp3” may result in
noise or malfunction.
• A folder that does not include an MP3 file is
skipped.
• The system can recognize the maximum of
– 255 folders (including the root folder).
– 511 MP3 files.
– 512 MP3 files and folders on a single disc.
– 8 folder levels.
• Depending on the encoding/writing software,
recording device, or the recording media used
to record an MP3 file, you may encounter
problems such as cannot play back, sound
interruptions and noise.
Basic Operations
To change the play mode
Notes on playing discs
19GB
Listening to the radio
Use buttons on the remote for the
operation.
1 Press FUNCTION +/– repeatedly
to select FM or AM band.
2 Press TUNING MODE repeatedly
until “AUTO” lights up in the
display.
3 Press +/–.
You can also use TUNE +/– on the
unit.
Scanning stops automatically when a
station is tuned in and “TUNED” lights
up in the display. When a FM stereo
program is tuned in, “STEREO” lights
up in the display.
Note
If “TUNED” does not light up and scanning
does not stop, see “To tune in a station with
a weak signal” below.
4 Press VOLUME +/– to adjust the
volume.
To stop automatic scanning
Press x.
To tune in a station with a weak
signal
Use buttons on the remote for the
operation.
1 Press TUNING MODE repeatedly
until “AUTO” and “PRESET”
disappear from the display.
2 Press +/– repeatedly to tune in the
station you want.
You can also use TUNE +/– on the
unit.
20GB
To change the AM tuning interval
(Except for European model)
The factory setting for AM tuning interval
is 9 kHz (or 10 kHz for some areas).
Use the buttons on the unit for the
operation.
1 Press TUNER/BAND repeatedly to
select AM band.
2 Press "/1 to turn off the system.
3 When demonstration appears, hold
down ENTER on CHANNEL B and
then press "/1.
The system turn on automatically.
“AM 9K STEP” or “AM 10K STEP”
appears in the display.
When you change the interval, all the AM
preset stations are erased.
Tip
To improve broadcast reception, adjust the
supplied antennas, or connect an external
antenna.
To reduce static noise on a weak FM
stereo station
Press FM MODE on the remote
repeatedly until “MONO” lights up in the
display.
There will be no stereo effect, but the
reception will improve.
Use buttons on the unit for the operation.
Transferring onto an
USB device
There are three ways to transfer onto an
USB device.
CD-USB Synchronized Transfer:
You can easily transfer an entire disc onto
an USB device.
REC1 Transferring:
You can easily transfer a single track or
file from a disc that is currently being
played back onto an USB device.
Manual Transferring:
You can transfer just the portion you want
from a sound source (except CD).
Notes
• If the BEAT BLEND is activated during
Manual Transferring, the beat sound will be
transferred onto the USB device.
• The level of transferred sound during Manual
Transferring is depends on the CROSS
FADER slider position.
device to the
the unit.
(USB) port on
USB device
2 Prepare the transferring source.
For CD-USB Synchronized
Transfer:
Basic Operations
You can transfer music from a sound
source to an optional USB device by
connecting it to the
(USB) port on
the unit.
The audio format transferred by this
system is MP3. The approximate size of
the transferring is about 1 MB per minute
of transferring time (except MP3 disc).
The files those are transferred onto the
USB device is for personal use only.
See “Compatible devices with this
system” (page 52) for a list of USB
devices that can be connected to this
system.
1 Connect a transferable USB
Press CD, then load the disc you want
to transfer on the disc tray.
You can transfer tracks or files on a
disc in the order you want using
Program Play. Perform steps 2 to 6 of
“Creating your own program” on
page 34. However, the play mode
automatically changes to Normal Play,
if you start transferring in Program
Play with no tracks or files are
programmed, Shuffle Play or Repeat
Play.
For REC1 Transferring:
Press CD, then load the disc you want
to transfer on the disc tray. Select the
track or file you want to transfer, then
press HS on CHANNEL B.
For Manual Transferring:
Press the function button (except CD)
to select the source you want to
transfer.
If you want to record the “mix” sound
from 2 audio source, select a function
button on both CHANNEL A and B.
The recorded sound is depends on the
CROSS FADER slider position. For
details, refer page 31.
Continued l
21GB
3 Start transferring.
For CD-USB Synchronized
Transfer:
Press REC TO USB.
“SYNC” and “REC” light up in the
display. Then, transferring starts when
“Don’t Remove USB” appears in the
display.
When the transferring is completed,
the disc and the USB device stop
automatically.
For REC1 Transferring:
Press REC TO USB.
“REC” lights up in the display. Then,
transferring starts when “Don’t
Remove USB” appears in the display.
When the transferring is completed,
the disc continues to play.
For Manual Transferring:
Press REC TO USB.
“REC” lights up in the display. Then,
transferring starts when “Don’t
Remove USB” appears in the display.
Start playback the source to be
transferred.
A new file is automatically created
after approximately 1 hour of
transferring.
You can also create a new file any time
during transferring by pressing REC
TO USB. “New Track” appears in the
display and transferring continues as a
new file.
However, if you press REC TO USB
after a few seconds from the new file
creation, the file cannot be created and
“Not in Use” appears in the display.
To stop transferring, press x.
Tip
If noise is heard while transferring from the
radio, move the respective antenna to reduce
the noise.
22GB
Notes
• Transferring stops automatically when you
change the function or tuner band on
CHANNEL B.
• When a new MP3 file is created, a few
seconds of music source would be lost.
To select the transferring
destination on the USB device
If the USB device has more than one
memory (for example, internal memory
and a memory card), you can select which
memory to read to and then start
transferring.
1 Connect the USB device to the
(USB) port on the unit.
2 Press OPTIONS.
3 Turn JOG DIAL to select “USB
SELECT”.
4 Press ENTER.
The name of a memory is displayed.
The displayed name vary depending on
the specifications of the USB device.
5 Turn JOG DIAL to select the drive
you want.
If only one memory can be selected,
proceed to step 6.
To cancel this operation, press
OPTIONS.
6 Press ENTER, then press
OPTIONS to exit the OPTIONS
menu.
7 Start transferring by following steps
2 and 3 of “Transferring onto an
USB device” (page 21).
To remove the USB device
Folder and file generation rules
1 Press USB (or FUNCTION +/– on
When transferring to an USB device for
the first time, a “MUSIC” folder is created
directly below the “ROOT”. Folders and
MP3 files are generated within this
“MUSIC” folder as follows according to
the transferring method.
the remote repeatedly to select
“USB”).
2 When playback is stopped, hold
down x on the unit until “No
Device” appears in the display.
3 Remove the USB device.
Transferring Folder
source
name
To erase audio files or folders from
the USB device
MP3 disc
Same as the transferring
source2)
CDDA0013) TRACK0014)
You can erase audio files or folders from
the USB device.
AUDIO CD
1 Connect a transferable USB device
REC1 Transferring
to the
(USB) port on the unit.
2 Press USB (or FUNCTION +/– on
Transferring Folder
source
name
L on CHANNEL B (or . or
> on the remote) repeatedly to
select the audio file.
To erase a folder, press
+/–
repeatedly to select the folder.
4 Press ERASE.
“Track Erase ?” or “Folder Erase ?”,
and “Push ENTER” appear
alternatively in the display.
To cancel the erase operation, press x.
5 Press ENTER on CHANNEL B
(or
on the remote).
The selected audio file or folder is
erased.
Notes
• The program list is cleared when you perform
the erase operation.
• You cannot erase audio files and folders in
Shuffle Play mode or Program Play mode.
File name
MP3 disc
the remote repeatedly to select
“USB”).
3 To erase an audio file, press l or
File name
5)
REC1
AUDIO CD
Basic Operations
CD-USB Synchronized Transfer1)
Same as the
transferring
source2)
TRACK0014)
Manual Transferring
Transferring Folder
source
name
TUNER FM
TUNER AM
LINE IN
iPod
File name
FLDR0013) TRACK0014)
1)
In Program Play mode, the folder name is
“PGM_xxx”, and the file name depends on
the transferring source (AUDIO CD or MP3
disc).
2) Up to 32 characters of the name are assigned.
3)
Folder numbers are assigned serially
thereafter.
4) File numbers are assigned serially thereafter.
5)
A new file is transferred in the “REC1” folder
each time REC1 Transferring is performed.
Continued l
23GB
Notes
• Do not remove the USB device during
transferring or erase operations. Doing so may
corrupt the data on the USB device or damage
the USB device itself.
• Do not connect the system and the USB
device through an USB hub.
• You cannot eject the disc during transferring
from disc to USB.
• When transferring from an MP3 disc, MP3
files are transferred with the same bit rate as
the original MP3 files.
When transferring from other sound source,
the tracks are transferred as 128 kbps MP3
files.
• While transferring from an MP3 disc, no
sound is output.
• If you cancel the transferring partway, an
MP3 file is created up to the point when the
transferring was stopped.
• Transferring stops automatically if:
– the USB device runs out of space during
transferring.
– the number of audio files on the USB device
reaches the limit for the number that the
system can recognize.
• A folder that contains non-audio format files
or sub folders cannot be erased.
• The maximum number of folders that can be
created on a single USB device by this system
is 997.
The maximum number of MP3 files that can
be created on a single USB device by this
system is 999.
The maximum number of audio files and
folders may vary depending on the audio file
and folder structure.
• If a folder or file that you are trying to transfer
already exists on the USB device with the
same name, a sequential number is added after
the name without overwriting the original
folder or file.
• If you perform transferring after the erase
operation, the new transferred files or folders
may have the name that same as the erased
files or folders. Therefore, the playback
sequence may different from the transferring
sequence.
Listening to music of
an USB device
You can listen to music stored in an
optional USB device by connecting it to
the
(USB) port on the unit.
The audio formats that can be played back
by this system are as follows:
MP3*/WMA*/AAC*
When playback from a USB device, you
can select the internal memory or memory
card as a playback source. For details, see
steps 1 to 6 of “To select the transferring
destination on the USB device” (page 22).
See “Compatible devices with this
system” (page 52) for a list of USB
devices that can be connected to this
system.
* Files with copyright protection (Digital
Rights Management) cannot be played back
by this system.
Files downloaded from an online music store
may not be played back by this system.
1 Press USB (or FUNCTION +/– on
the remote repeatedly to select
“USB”).
2 Connect an optional USB device
to the
unit.
(USB) port on the
When the USB device is connected,
the display changes as follows:
USB Reading t volume label*
* “Storage Drive” appears when there is no
volume label assigned to the USB device.
“WALKMAN” appears when a Sony
digital music player is connected.
Note
Depending on the type of USB device, it
may take a few seconds before “USB
Reading” appears in the display.
3 Press HS on CHANNEL B
(or N on the remote).
24GB
4 Turn VOLUME +/– (or press
VOLUME +/– on the remote) to
adjust the volume.
To remove the USB device
1 Press USB (or FUNCTION +/– on
Do this
Select a file while
viewing the folder
and file names on
the display
(TRACK
SEARCH)
Use buttons on
CHANNEL B for the
operations.
1 Turn JOG DIAL to
select the folder you
want, then press
ENTER.
2 Turn JOG DIAL to
select the file you
want, then press
ENTER.
To return to the previous
operation, press
RETURN.
Find a point in a
file
Hold down l or L
on CHANNEL B (or
m or M on the
remote) during
playback, then release it
at the point you want.
Playback all the
files in the USB
device or the
folder repeatedly
(Repeat Play)
Press REPEAT on the
remote repeatedly
during playback until
“REP” lights up in the
display.
Playback a file
repeatedly2)
(Repeat Play)
Press REPEAT on the
remote repeatedly
during playback until
“REP 1” lights up in the
display.
2 When playback is stopped, hold
down x on the unit until
“No Device” appears in the display.
3 Remove the USB device.
Other operations
To
Do this
Stop playback
Press x.
To cancel resume
playback, press x twice
and check that
“RESUME” disappears
from the display.
Pause playback
Press HS on
CHANNEL B (or X on
the remote).
To resume playback,
press HS on
CHANNEL B (or X on
the remote) again.1)
Select the next or Press
+/–
previous folder
repeatedly, then press
ENTER on CHANNEL
B.
Select the next or Press l or L on
previous file
CHANNEL B (or .
or > on the remote)
repeatedly, then press
ENTER on CHANNEL
B.
Basic Operations
the remote repeatedly to select
“USB”).
To
1)
When playing an VBR (variable bit rate)
audio file, the system may resume playback
from a different point.
2)
A file is playback repeatedly until you stop
playback.
Continued l
25GB
To change the play mode
Press PLAY MODE on the remote
repeatedly when playback is stopped. You
can select the following play mode.
– Normal Play (all files on the USB
device) (“ ”, “SHUF” and “PGM”
light off)
– Normal/Folder Play (all files in the
folder on the USB device) (“ ” lights
up)
– Shuffle Play (“SHUF” or “
SHUF”
lights up)
– Program Play (“PGM” lights up)
(page 34)
Notes on USB device
• The following situations can increase the time
it takes to start playback:
– the folder structure is complex.
– the memory capacity is excessive.
• When the USB device is connected, the
system reads all the files on the USB device.
If there are many folders or files on the USB
device, it may take a long time to finish
reading the USB device.
• Do not connect the system and the USB
device through an USB hub.
• Depending on the previous operation you
have performed with the USB device, the
operation time for the USB device may vary.
• If the system is turned off during Resume Play
mode, when the system is turned on again
playback starts from the beginning of the
audio file.
• This system does not necessarily support all
the functions provided in a connected USB
device.
• The playback order for the system may differ
from the playback order of the connected USB
device.
• Always hold down x on the unit and make
sure that “No Device” appears before
removing the USB device. Removing the
USB device while “No Device” is not
displayed may corrupt the data on it or
damage the USB device itself.
26GB
• You are recommended not to save other types
of files or unnecessary folders on an USB
device that has audio files.
• A folder that does not include an audio file is
skipped.
• Files and folders are played back in
alphabetical order in this system.
• The system can only play back
– MP3 files with the extension “.mp3”.
– WMA files with the extension “.wma”.
– AAC files with the extension “.m4a”.
Note that even when file names have the
above file extensions, if the actual file differs,
the system may produce noise or may
malfunction.
• The system can recognize the maximum of
– 999 folders.
– 999 audio files.
The maximum number of audio files and
folders may vary depending on the audio file
and folder structure.
• Compatibility with all encoding/writing
softwares, recording devices, and recording
media cannot be guaranteed. Incompatible
USB device may produce noise or interrupted
audio or may not play back at all.
• Do not carry the unit when the USB device is
connected. When you are not using the USB
device, disconnect it.
• After you have connected the USB device, be
sure to handle the USB device with care
otherwise it may cause a malfunction.
Playing the iPod
You can listen to audio contents stored in
the iPod on this system.
1 Press iPod 1 or iPod 2.
Using the remote:
2 Place the iPod(s).
Basic Operations
Press and hold CHANNEL A, then
press FUNCTION +/– repeatedly to
select “iPod 1”.
Press FUNCTION +/– repeatedly to
select “iPod 2”.
• When placing or removing the iPod, brace the
unit with one hand and take care not to press
the controls of the iPod by mistake.
• Before disconnecting the iPod, pause
playback.
• Depending on the connected iPod, you may
not able to use m or M while playing
video. In this case, you can fast rewind or fast
forward by holding down l or L (or
. or > on the remote).
• To change the volume level, use
VOLUME +/–. The volume level does not
change even if adjusted on the iPod.
• This iPod 1 and iPod 2 connector are designed
for iPod only. You cannot connect any other
portable audio players.
• To use an iPod, refer to the operating
instructions of your iPod.
• Sony cannot accept responsibility in the event
that data recorded to iPod is lost or damage
when using an iPod with this unit.
• Some iPod operations may not be performed
using buttons on the unit or remote.
Other operations
3 Press HS on respective
CHANNEL (or N* on the
remote) to start playback.
* To play back the iPod 1, press and hold
CHANNEL A, then press this button.
4 Turn VOLUME +/– (or press
VOLUME +/– on the remote) to
adjust the volume.
Notes
• To control the iPod connected to the iPod 1
connector, use the buttons on CHANNEL A
on the unit. If you want to control the iPod
using the remote, press and hold CHANNEL
A, then press the button you want.
• When you connect an iPod to the unit, the
iPod is automatically turned on if the system
is turned on.
• When placing or removing the iPod, handle
the iPod in the same angle as that of the iPod
connector on the unit and do not twist or sway
the iPod to prevent connector damage.
• Do not carry the unit with an iPod set on the
connector. Doing so may cause a malfunction.
You can control your iPod with the
following buttons on the remote or unit.
The remote buttons are assigned to
control functions on CHANNEL B, if you
want to control the iPod connected to the
iPod 1 connector, press and hold
CHANNEL A, then press the button you
want.
To
Do this
Pause playback
Press HS (or X on the
remote).
Scroll up/down
the iPod menus
Turn the JOG DIAL (or
press V/v repeatedly on
the remote).
Select a track or Press l or L (or
chapter of
. or > on the
audiobook/
remote) repeatedly.
podcast
Choose the
select item
Press ENTER (or b or
on the remote).
Continued l
27GB
To
Do this
Fast forward or Hold down l or L
fast rewind Play (or m or M on the
remote) during playback,
then release it at the point
you want.
Work much like Press MENU/RETURN
the Menu button (or B or TOOL MENU or
on the iPod
O RETURN on the
remote). You can return to
the previous menu or
select a menu much like
the Menu button on the
iPod or the touch
operation of the iPod
touch.
Set iPod to
Shuffle Songs
Press PLAY MODE on
the remote repeatedly.
Set iPod to
Repeat Songs
Press REPEAT on the
remote repeatedly.
Note
To control the iPod connected to the iPod 1
connector, use the buttons on CHANNEL A on
the unit. To control the iPod connected to the
iPod 2 connector, use the buttons on
CHANNEL B on the unit.
To use the system as a battery
charger
You can use the system as a battery
charger for the iPod when the system is on
or off.
The charging begins when the iPod is
placed on the iPod 1 or iPod 2 connector.
The charging status appears in the iPod
screen and when the system is off the
display of the unit change to clock. For
details, see the operating instructions of
your iPod.
To stop charging the iPod
Remove the iPod. If you stop charging the
iPod when the system is off, press
DISPLAY repeatedly until the display is
turned off (Power Saving mode).
28GB
Using optional
components
1 Connect a portable audio player
to the LINE IN 1 or LINE IN 2
jacks using audio cord (not
supplied).
2 Turn VOLUME +/–
counterclockwise (or press
VOLUME – on the remote) to turn
down the volume.
3 Press LINE IN 1 on CHANNEL A
or LINE IN 2 on CHANNEL B.
Using the remote:
Press and hold CHANNEL A, then
press FUNCTION +/– repeatedly to
select “LINE IN 1”.
Press FUNCTION +/– repeatedly to
select “LINE IN 2”.
If you want to hear the sound from
both connected component at once,
select both functions on the unit.
4 Start playing the connected
component(s).
5 Turn VOLUME +/– (or press
VOLUME +/– on the remote) to
adjust the volume.
Adjusting the sound
To add a sound effect
Do this
Reinforce the
bass and create
a more powerful
sound
Press GROOVE
repeatedly until
“GROOVE”* or
“Z-GROOVE”* lights up
in the display.
Set the surround Press SURROUND
effect
repeatedly until
“SURROUND” lights up
in the display.
* The volume switches to power mode and the
equalizer curve changes.
You can adjust the subwoofer level to
output the low frequency sound.
1 Press OPTIONS.
2 Turn JOG DIAL to select
“SUBWOOFER LEVEL”, then
press ENTER.
3 Turn JOG DIAL to select the
subwoofer level you want, then
press ENTER.
You can adjust the subwoofer level in
4 levels (0 dB, 4 dB, 7 dB, 10 dB).
To exit the OPTIONS menu, press
OPTIONS.
Basic Operations
To
Adjusting the subwoofer level
Enhancing the sound quality
You can enhance the sound quality by
using the MP3 BOOSTER+ function.
1 Press OPTIONS.
2 Turn JOG DIAL to select “MP3
BOOSTER+”, then press ENTER.
3 Turn JOG DIAL to select “AUTO”,
then press ENTER.
To exit the OPTIONS menu, press
OPTIONS.
Note
When an audio file is played back, the MP3
BOOSTER+ function is automatically activated
if you have set “MP3 BOOSTER+” to
“AUTO”. “BOOSTER” lights up in the display.
29GB
Creating a party
atmosphere
— Inspiring the DJ’s mood
Using the drum pads
— BEAT BLEND
With the drum pads, you can add
percussion during playback. This effect
can be used with any source.
To
Do this
Add the drum
sound
Press PAD I or PAD II to
produce the respective
sound.
Change the
drum sound
Hold down PAD I or PAD
II, then turn JOG DIAL to
select the sound you want.
The name of the drum
sound appears in the
display.
The sound you select will
be stored in PAD I or
PAD II.
Create a drum
roll
Adjust the
volume of the
drum
1 Hold down PAD I and
PAD II.
“CHAIN” appears in the
display.
2 Turn JOG DIAL
clockwise to output the
PAD II sound and
counterclockwise to
output the PAD I sound.
Press BEAT LEVEL
repeatedly.
Tip
The PAD I and PAD II indicator light up when
you press the respective button.
30GB
Using the beat functions
With the beat functions, you can enjoy a
variety of rhythms. They can be used with
any source.
1 Press BEAT ON/OFF repeatedly
to turn off the beat pattern.
2 Hold down BEAT PATTERN and
turn JOG DIAL to select the beat
pattern you want.
3 Press BPM CONTROL once to
start the tempo input.
4 By following the tempo of the
music, press BPM CONTROL 4
times to input the tempo.
Each time you press BPM CONTROL,
the flashing “B” will be replaced with
a box.
5 Press BPM CONTROL again to
start playback of the beat
pattern.
The BPM (Beat Per Minute) value
appears in the display.
To change the beat pattern
Hold down BEAT PATTERN and turn
JOG DIAL to select the beat pattern you
want.
The name of the beat pattern appears in
the display.
To change the beat speed
Hold down BEAT SPEED and turn JOG
DIAL to select the speed you want (BPM
40 – 200).
To return the beat speed to default
setting (BPM 120)
Press MENU/RETURN on CHANNEL A
and BEAT SPEED simultaneously.
Notes
Tips
• You can use the drum pads and the beat
function at the same time.
• You can transfer the sound of the drum pad or
beat pattern onto a USB device using Manual
Transferring only.
Using the Crossfader
You can isolate the sound from
CHANNEL A and B or blend them
together using the Crossfader. By sliding
the CROSS FADER slider from one
position to another will vary the output
signals of the CHANNEL A and B
respectively.
To
Do this
Listen to
CHANNEL A
only
Slide the CROSS FADER
slider all the way to the
left.
Listen to
CHANNEL B
only
Slide the CROSS FADER
slider all the way to the
right.
Mix the
sound from
CHANNEL A
and B
Slide the CROSS FADER
slider to the position
which the percentage of
audio sources you want to
mix.
You can monitor the audio source
playback on CHANNEL A or B through a
headphone without interruption of the
sound output from the speakers. Monitor
Cue allows you to seek for a point for
sound mixing before you perform
Crossfader.
1 Connect a headphone (not
supplied) to i jack.
Note
Be sure to turn the i LEVEL to MIN before
you connect the headphone.
2 Press i CHANNEL SELECT
repeatedly to select CHANNEL A or
B.
The indicator for selected channel
lights up.
Basic Operations
• The beat tempo input is canceled if you press
any buttons other than BPM CONTROL.
• If you input the tempo less than BPM 40,
“Hit Faster” appears in the display. Hit again
in faster tempo.
• If you input the tempo more than BPM 200,
“Hit Slower” appears in the display. Hit again
in slower tempo.
• If the tempo of the beat pattern does not match
the tempo of the music, change the speed
manually after you input the tempo.
Monitor Cue
3 Turn i LEVEL to adjust the volume
level of the headphone.
Notes
• The sound output from the headphone is same
as the input source.
• You cannot hear the sound from microphone
and BEAT BLEND through a headphone.
• The headphone output will not affected by
CROSS FADER slider position.
31GB
1)
Changing the display
1 Press OPTIONS.
2 Turn JOG DIAL to select
“ILLUM”, then press ENTER.
3 Turn JOG DIAL to select the
setting you want.
4 Press ENTER.
To exit the OPTIONS menu
Press OPTIONS again.
Changing the display mode
Press DISPLAY repeatedly while
the system is turned off.
You can select the following display
mode.
Demonstration1)
The display changes and the indicators
flash even when the system is turned off.
No display (Power Saving Mode)1)2)
The display is turned off to conserve
power. The timer and clock continue to
operate.
Clock
The clock is displayed. The clock display
automatically turns to Power Saving
Mode after a few seconds. However, the
display returns to clock display when you
connect an iPod.3)
32GB
When an iPod is connected, the display
change to clock. If you remove the iPod, the
display changes to Power Saving Mode after a
few seconds.
2) You cannot perform the following operations
during Power Saving Mode:
– Setting the clock (page 17).
– Changing the AM tuning interval (page 20).
– Turning on the system by pressing the
function buttons.
3) The clock is displayed continuously while the
iPod is being charged. To turn off the clock
display, press DISPLAY (see “To stop
charging the iPod” (page 28)).
Viewing information in
the display
Checking the elapsed playing time,
remaining time and titles
When playing an AUDIO CD:
1 Elapsed playing time of the current
track
2 Remaining time of the current track
3 Remaining time of the current disc1)
4 Clock display (for few seconds)
5 Effect on/off (for few seconds)
When playing audio files:
1 Elapsed playing time of the current
file
2 Track name2) from the file information
3 Artist name3) from the file information
4 Album name4) from the file
information
5 Clock display (for few seconds)
6 Effect on/off (for few seconds)
1)
Appears only when “
” or Normal Play
mode is selected.
2)
File name is displayed when there is no track
name information from the file.
3) “NO ARTIST” is displayed when there is no
artist name information from the file.
4)
Folder name is displayed when there is no
album name information from the file.
Press DISPLAY repeatedly when
playback is stopped.
The following information appears in the
display.
During “PGM” play mode:
1 The last programmed item information
2 Total number of programmed step1)2)
(for few seconds)
3 Memory free space of connected USB
device3)
4 Clock display (for few seconds)
5 Effect on/off (for few seconds)
During other play mode:
1 AUDIO CD:
Total number of tracks and total
playing time
Audio files:
Total number of files of the current
folder and folder name
Total number of folders and volume
label of the disc2)/USB device3)
2 Memory free space of the connected
USB device3)
Basic Operations
Press DISPLAY repeatedly during
playback.
The following information appears in the
display.
Checking the total playing time and
titles
1) “NO STEP” appears in the display if you have
not program the tracks or files.
during CD function only.
during USB function only.
2)
Appears
3) Appears
Notes
• Some text characters may not be displayed.
• If the audio file title contains characters which
cannot be displayed, these characters will be
displayed as “_”.
33GB
4 Select a track or file to program.
Other Operations
Creating your own
program
— Program Play
You can make a program of up to 25 steps
in the order you want them to be played
back.
You can synchro transfer the programmed
tracks or files onto an USB device
(page 21).
To program a track:
Press l or L on CHANNEL B
(or . or > on the remote)
repeatedly until the track number you
want appears in the display.
To program an audio file:
Press
+/– repeatedly until the
folder you want appears in the display,
then press l or L on
CHANNEL B (or . or > on the
remote) repeatedly until the file
number you want appears in the
display.
“– –.– –” flashes in the display.
1 Select the function you want.
Track or file
number
Press CD to select CD function.
Press USB to select USB function.
You can also press FUNCTION +/– on
the remote repeatedly to select “CD”
or “USB”.
Total playing time
(including selected
track)1)
2 When playback is stopped,
press PLAY MODE on the
remote repeatedly until “PGM”
lights up in the display.
3 (For CD function only)
To program all the tracks on a disc
at once:
Press l or L on CHANNEL B
(or . or > on the remote)
repeatedly until “ALL” appears in the
display. Then, proceed to step 5.
To program all the MP3 files on a
folder at once:
Press
+/– repeatedly until the
folder you want appears in the display,
then proceed to step 5.
34GB
File name2)
2)
1) When
program an audio file, “– –.– –”
appears.
2)
Appears when an optional USB device is
recognized.
5 Press ENTER on CHANNEL B
(or
on the remote).
The track(s) or file(s) is(are)
programmed.
The programmed step number appears
in the display.
6 Repeat steps 3 to 5 to program
additional folders, tracks or files.
7 Press HS on CHANNEL B (or
N on the remote).
Program Play starts.
Other operations
Do this
Cancel Program
Play
When playback is
stopped, press PLAY
MODE on the remote
repeatedly until “PGM”
disappear from the
display.
Delete the last step Press CLEAR on the
from the program remote when playback is
list
stopped.
You can preset your favourite radio
stations and tune them in instantly by
selecting the corresponding preset
number.
Use buttons on the remote to preset
stations.
1 Tune in the station you want
(see “Listening to the radio”
(page 20)).
2 Press TUNER MEMORY.
A preset number flashes in the display.
The stations are stored from preset
number 1.
Other Operations
To
Presetting radio
stations
Note
(For USB function only)
The program list is cleared when you perform
the erase operation.
Preset number
Tips
• The program you made remains in the
system’s memory even after it has been
played back. Press HS on CHANNEL B
(or N on the remote) to play back the same
program again.
• If “--.--” appears instead of the total playing
time during programming, this means:
– you have programmed a track in an AUDIO
CD with track number exceeds 20.
– the total playing time has exceeded 100
minutes.
– you have programmed an audio file.
3 Press +/– repeatedly to select
the preset number you want.
If another station is already assigned to
the selected preset number, the station
is replaced by the new stations.
4 Press
.
“Complete!” appears in the display.
The station is stored.
Continued l
35GB
5 Repeat steps 1 to 4 to store other
stations.
You can preset up to 20 FM and 10
AM stations.
6 To call up a preset radio station,
press TUNING MODE repeatedly
until “PRESET” lights up in the
display. Then, press +/–
repeatedly to select the preset
number you want.
To cancel presetting
Press TUNER MEMORY.
Using the Radio Data
System (RDS)
(European model only)
What is the Radio Data System?
Radio Data System (RDS) is a
broadcasting service that allows radio
stations to send additional information
along with the regular program signal.
This tuner offers convenient RDS features
like station name. RDS is available only
on FM stations.*
* Not all FM stations provide RDS service, nor
do they provide the same types of services. If
you are not familiar with the RDS system,
check with your local radio stations for details
on RDS services in your area.
Note
RDS may not work properly if the station you
are tuned in is not transmitting the RDS signal
properly or if the signal is weak.
Receiving RDS broadcasts
Simply select a station from FM
band.
When you tune in a station that provides
RDS services, the station name appears in
the display.
To check the RDS information
While receiving an RDS station,
press DISPLAY repeatedly.
RDS information appears on the display.
36GB
Ajusting the sound
effect
You can adjust the sound by raising or
lowering the level of specific frequency
band.
Singing along
You can sing along with any audio source
that play back on this system.
1 Turn MIC LEVEL to MIN to
reduce the microphone volume.
Turn LOW jog to adjust the level of
low frequency band.
2 Connect an optional microphone
Turn MID jog to adjust the level of
medium frequency band.
3 Start playing the music and
Turn HIGH jog to adjust the level of
high frequency band.
4 Turn MIC LEVEL to adjust the
adjust the volume.
microphone volume.
If acoustic feedback (howling) occurs,
reduce the volume, move the
microphone away from the speakers,
or change the direction of the
microphone.
After you have finished, turn MIC
LEVEL to MIN, then disconnect the
microphone from the MIC jack.
Other Operations
The setting is entered automatically.
to MIC jack.
37GB
Play Timer:
Using the timer
The system offers three timer functions.
Sleep Timer
You can wake up to music from disc,
iPod 2, tuner or optional USB device at
a preset time.
You can only set the Play Timer for audio
source on CHANNEL B only.
Recording Timer:
You can set the system to turn off after a
certain time, so that you can fall asleep to
music.
You can transfer onto a transferable USB
device from a preset station at a specified
time.
Press SLEEP on the remote
repeatedly.
1 Prepare the sound source.
The minute display (turn-off time)
changes.
If you select “AUTO”, the system
automatically turns off after the current
disc or USB device stops or after 100
minutes. When you played back the
source on CHANNEL A and B
simultaneously, the system will turns off
after the playback on CHANNEL B stops.
Do not select “AUTO” during CD-USB
Synchronized Transfer or the erase
operation.
Note
The system is not turned off on the preset time
during the USB erase operation.
The system will only automatically turns off
after the USB erase operation finish.
Tip
To check the remaining time, press SLEEP on
the remote once. However, you cannot check
the remaining time if you select “AUTO”.
Play Timer/Recording Timer
You cannot activate both the Play Timer
and the Recording Timer at the same time.
If you use either with the Sleep Timer, the
Sleep Timer has priority.
Make sure you have set the clock.
Use the buttons on the remote for the
operation.
38GB
For Play Timer:
Prepare the sound source and then
press VOLUME +/– to adjust the
volume.
To start from a specific track or file,
create your own program (page 34).
For Recording Timer:
Tune in the preset radio station you
want (page 35).
2 Press TIMER MENU.
3 Press V/v or ./>
repeatedly to select “PLAY
SET?” or “REC SET?”, then
press .
“ON” appears and the hour indication
flashes in the display.
4 Set the time to start playback or
transferring.
Press V/v or ./> repeatedly to
set the hour, then press .
The minute indication flashes in the
display. Use the procedure above to set
the minute. “OFF” appears and the
hour indication flashes in the display.
5 Set the time to stop playback or
transferring using the same
procedure as step 4.
6 Select the sound source or
prepare the USB device. Then,
slide CROSS FADER slider to B.
For Play Timer:
Press V/v or ./> repeatedly
until the music source you want
appears in the display, then press .
The display will show the timer
settings.
For Recording Timer:
7 Press "/1 to turn off the system.
The system turns on a few seconds
before the preset time.* If the system is
on at the preset time, the Play Timer
and the Recording Timer will not play
or transfer.
* For USB Recording Timer, the system
turns on approximately 1 minute before
the preset time.
Other operations
To
Do this
Check the setting 1 Press TIMER MENU to
select “TIMER
SELECT?”, then press
.
2 Press V/v or ./
> repeatedly to
select “PLAY
SELECT?” or “REC
SELECT?”, then press
.
Change the
setting
Do this
Cancel the Play 1 Press TIMER MENU to
Timer or
select “TIMER
Recording Timer SELECT?”, then press
.
2 Press V/v or ./
> repeatedly to
select “TIMER OFF?”,
then press .
Notes
• The Play Timer and Recording Timer will not
be activated if the system is turned on or if
“STANDBY” flashes in the display.
• The Play Timer setting remains as long as the
setting is not canceled manually.
• The Recording Timer is automatically
canceled after the Recording Timer has been
activated.
• The volume is reduced to minimum during
Recording Timer.
• The system is not turned off on the preset time
during the USB erase operation.
The system will only automatically turns off
after the USB erase operation finish.
• During Play Timer is activated, if the CROSS
FADER slider is positioned at A, there will be
no sound is output unless an audio source is
played back on CHANNEL A.
• During Recording Timer is activated, if the
CROSS FADER slider is positioned at A, no
sound will be recorded unless an audio source
is played back on CHANNEL A.
• The Play Timer may not be activated
depending on the status of the connected iPod.
Other Operations
The display will show the timer
settings. Connect a transferable USB
device.
To
Note on the iPod touch
The Play Timer may not be activated depending
on the status of the connected iPod touch.
Start from step 1.
39GB
Additional Information
Troubleshooting
Should you encounter a problem with
your system, do the following:
1 Make sure the power cord and
speaker cords are connected
correctly and firmly.
2 Find your problem in the
troubleshooting checklist below and
take the indicated corrective action.
If the problem persists after doing all of
the above, consult your nearest Sony
dealer.
Note that if service personnel changes
some parts during repair, these parts may
be retained.
In the event of a problem, have a Sony
dealer check the entire system together.
When the STANDBY indicator
flashes
Immediately unplug the power cord
on the subwoofer and check the
following items.
• If your subwoofer have a voltage
selector, is the voltage selector set to
the correct voltage?
Check the voltage for your region,
then make sure the voltage selector
is set correctly.
• Are the + and – speaker cords shortcircuited?
• Are you using the supplied
speakers?
• Is anything blocking the ventilation
holes on the rear of the unit?
After checking the above items and
fixing any problems, plug in the power
cord again and turn on the system. If
the STANDBY indicator still flashes,
or if the cause of the problem cannot
be found even after checking all the
above items, consult your nearest
Sony dealer.
General
The display starts flashing as soon as
you plug in the power cord even
though you have not turned on the
system.
• The demonstration mode started. Press
"/1 (page 14).
The clock or timer setting is canceled.
• The power cord is disconnected or a
power failure occurred. Redo “Setting
the clock” (page 17). If you have set the
timer, redo “Using the timer” (page 38).
“– –:– –” appears in the display.
• The clock is not set. Set the clock
(page 17).
• A power failure has occurred. Set the
clock (page 17) and timer settings
(page 38) again.
40GB
There is no sound.
• Turn VOLUME +/– clockwise (or press
VOLUME + repeatedly on the remote).
• Check the CROSS FADER slider
position (page 31).
• Check the speaker connections
(page 13).
• There is no audio output during
Recording Timer.
There is no microphone sound.
• Turn i LEVEL clockwise to adjust the
headphone volume.
• Check the headphone connection.
• Check that the audio source on the
selected channel is played back.
There is beat sound even though you
have not played back any source.
• Press BEAT ON/OFF to turn off beat
pattern.
There is acoustic feedback.
• Reduce the volume.
• Move the microphone away from the
speakers or change the direction of the
microphone.
There is severe hum or noise.
• A TV or VCR is placed too close to the
unit. Move the unit away from the TV or
VCR.
• Move the unit away from the source of
noise.
• Connect the unit to a different wall
outlet.
• Install a noise filter (commercially
available) to the power cord.
• Turn off surrounding electrical
equipment.
The timer does not function.
• Check the timer setting and set the
correct time (page 38).
• Cancel the Sleep Timer function
(page 38).
• You cannot select the Play Timer and
the Recording Timer at the same time.
• Check the CROSS FADER slider
position (page 31).
The remote does not function.
• Remove the obstacles between the
remote and the unit.
• Move the remote closer to the unit.
• Point the remote at the unit’s sensor.
• Replace the batteries (R6/size AA).
• Move the unit away from the
fluorescent light.
Speakers
Sound comes from one channel or
unbalanced left and right volume.
• Place the speakers as symmetrically as
possible.
• Check that the speaker are connected
securely and correctly.
• The source being played back is
monaural.
Additional Information
• Turn VOLUME +/– clockwise (or press
VOLUME + repeatedly on the remote)
or turn MIC LEVEL clockwise to adjust
the microphone volume.
• Make sure the microphone is connected
to the MIC jack correctly.
There is no sound output from the
headphone.
There is no sound from the
subwoofer.
• Adjust the subwoofer level to the
appropriate level.
• Check that the subwoofer is connected
securely and correctly.
• Check that the SYSTEM CONTROL
jack on the unit is connected.
• Check that the power cord on the
subwoofer is connected and the power is
turned on.
Sound lacks bass.
• Check that the speaker’s + and –
terminals are connected correctly.
Continued l
41GB
Disc player
The disc tray does not open and
“LOCKED” appears in the display.
• Consult your nearest Sony dealer or
local authorized Sony service facility.
The disc tray does not close.
• Load the disc correctly.
• Always close the disc tray by pressing
A. Do not forcibly push the disc tray to
close it as this may cause a malfunction.
The disc does not eject.
• You cannot eject the disc during
CD-USB Synchronized Transfer, or
REC1 Transferring. Press x to cancel
the transferring, then press A to eject
the disc.
• Consult your nearest Sony dealer.
Playback does not start.
• Open the disc tray and check whether a
disc is loaded.
• Wipe the disc clean (page 48).
• Reload the disc.
• Load the disc that this system can play
back (page 48).
• Load the disc on the disc tray with the
label side facing up.
• Remove the disc and wipe away the
moisture on the disc, then leave the
system turned on for a few hours until
the moisture evaporates.
• Press HS (or N on the remote) to
start playback.
The sound skips.
• Wipe the disc clean (page 48).
• Reload the disc.
• Move the unit to a place without
vibration (e.g., on top of a stable stand).
• Move the speakers away from the unit,
or place them on separate stands. When
you listen to a track with bass sounds at
high volume, the speaker vibration may
cause the sound to skip.
42GB
Playback does not start from the first
track.
• The system is in Program Play or
Shuffle Play mode. Press PLAY MODE
on the remote repeatedly until both
“PGM” and “SHUF” light off in the
display.
The MP3 file cannot be played back.
• The MP3 file is not recorded in a format
that conforms to ISO9660 Level 1/
Level 2, or Joliet (expansion format).
• The MP3 file does not have the
extension “.mp3”.
• The MP3 file in format other than
MPEG 1 Audio Layer 3 cannot be
played back.
• The system can play back to a depth of
8 folders only.
• The disc contains more than 256 folders.
• The disc contains more than 511 MP3
files.
• MP3 files in MP3 PRO format cannot be
played back.
The MP3 files take a longer time to
play back than others.
• After the system reads all the files on the
disc, playback may take more time than
usual if:
– the number of folders or files on the
disc is very large.
– the folder and file organization
structure is very complex.
The folder name, track name, file
name and ID3 tag characters do not
appear properly.
• Use a disc that conforms to ISO9660
Level 1/Level 2, or Joliet (expansion
format).
• The ID3 tag is not version 1 or version 2.
• The character code that can be displayed
by this system are as follows:
– Upper cases (A to Z)
– Lower cases (a to z)
– Numbers (0 to 9)
– Symbols (< > * +, ? / [ ] \ _)
Other characters may not be displayed
correctly.
• ID3 tag information for MP3 audio files
is displayed when the files have ID3
version 1 or ID3 version 2. If there are
ID3 version 1 and version 2 tags, ID3
version 2 tag information has priority.
USB device
You cannot start transferring to an
USB device.
Transferring is stopped before it is
finished.
• You are using an unsupported USB
device. See “Compatible devices with
this system” (page 52) for the supported
device types.
• The USB device is not formatted
correctly. Refer to the USB device
operating instructions for how to
format.
• Turn off the system and remove the
USB device. Then, turn on the system.
If the USB device has a power switch,
turn the USB device off and then on
again after removing it from the system.
Then perform transferring again.
• If the transferring and erase operations
are repeated multiple times, the file
structure within the USB device
becomes complex. Refer to operating
instructions of the USB device on how
to remedy this problem.
• You are using an unsupported USB
device. See “Compatible devices with
this system” (page 52) for the supported
device types.
• The USB device was disconnected or
the power was turned off during
transferring. Delete the partiallytransferred file, and transfer again. If
this does not fix the problem, the USB
device may be broken. Refer to
operating instructions of the USB
device on how to remedy this problem.
• Turn off the system and remove the
USB device. If the USB device has a
power switch, turn the USB device off
and then on again after removing it from
the system. Then perform transferring
again.
Audio files or folders on the USB
device cannot be erased.
• Check if the USB device is writeprotected.
• The USB device was disconnected or
the power was turned off during the
erase operation. Delete the partiallyerased track. If this does not fix the
problem, the USB device may be
broken. Refer to operating instructions
of the USB device on how to remedy
this problem.
Additional Information
• The following problems may have
occurred.
– The USB device is full.
– The number of audio file and folder
that system can recognize has reached
the upper limit.
– The USB device is write-protected.
Transferring to an USB device results
in an error.
Are you using a supported USB
device?
• If you connect an unsupported USB
device, the following problems may
occur. See “Compatible devices with
this system” (page 52) for the supported
device types.
– The USB device is not recognized.
– File or folder names are not displayed
on this system.
– Playback is not possible.
– The sound skips.
– There is noise.
– A distorted sound is output.
– Transferring stops before it is finished.
Continued l
43GB
“Over Current” appears in the
display.
• A problem has been detected with the
level of electrical current from the
(USB) port. Turn off the system and
remove the USB device from the
(USB) port. Make sure there is no
problem with the USB device. If this
display pattern persists, contact your
nearest Sony dealer.
“No Medium” appears in display.
• Check the memory device on the Sony
Ericsson mobile phone.
There is no sound.
• The USB device is not connected
correctly. Turn off the system, then
connect the USB device again and
check if “USB MEMORY” lights up in
the display.
There is noise, skipping, or distorted
sound.
• Turn off the system, then connect the
USB device again.
• The music data itself contains noise, or
the sound is distorted. Noise may have
entered during the transferring process.
Delete the file, and try transferring
again.
The USB device cannot be connected
into the
(USB) port.
• The USB device is being connected
backwards. Connect the USB device in
the correct orientation.
44GB
“USB Reading” is displayed for an
extended time, or it takes a long time
before playback starts.
• The reading process can take a long time
in the following cases.
– There are many folders or files on the
USB device.
– The file structure is extremely
complex.
– The memory capacity is excessive.
– The internal memory is fragmented.
Thus, we recommend following these
guidelines.
– Total folders on USB device: 100 or
less
– Total files per folder: 100 or less
Erroneous display.
• The data stored in the USB device may
have been corrupted, perform the
transferring again.
• The character code that can be displayed
by this system are as follows:
– Upper cases (A to Z)
– Lower cases (a to z)
– Numbers (0 to 9)
– Symbols (< > * +, ? / [ ] \ _)
Other characters may not be displayed
correctly.
The USB device is not recognized.
• Turn off the system, then reconnect the
USB device.
• Connect the supported USB device
(page 52).
The USB device does not work
properly. Refer to the USB device
operating instructions for how to deal
with this problem. If the problem
persists, contact your nearest Sony
dealer.
Playback does not start.
• Turn off the system, then connect the
USB device again.
• Connect the supported USB device
(page 52).
• Press HS (or N on the remote) to
start playback.
Playback does not start from the first
track.
• Set the play mode to Normal Play
(page 26).
The audio files cannot be played
back.
* This system supports FAT16 and FAT32, but
some USB device may not support all of these
FAT. For details, see the operating
instructions of each USB device or contact the
manufacturer.
There is no sound.
• Make sure the iPod is connected
securely.
• Make sure the iPod is playing music.
• Adjust the volume.
• Depending on the contents of the iPod,
it may take time to start playback.
• You are using an unsupported iPod. See
“Compatible devices with this system”
(page 52) for the supported device
types.
• Check the CROSS FADER slider
position (page 31).
The sound is distorted.
• Reduce the volume.
• Set the “EQ” setting of the iPod to “Off”
or “Flat”.
The iPod cannot be charged.
• Make sure the iPod is connected
securely.
Tuner
Additional Information
• MP3 files in MP3 PRO format cannot be
played back.
• Some AAC files may not be played back
correctly.
• WMA files in Windows Media Audio
Lossless and Professional format cannot
be played back.
• The data is not stored in MP3/WMA/
AAC format.
• USB device formatted with file systems
other than FAT16, or FAT32 (cluster
size 512 byte – 32 kbyte) are
unsupported.*
• If you use partitioned USB device, only
audio files on the first partition can be
played back.
• Playback is possible up to 8 folder
levels.
• The number of folders has exceeded
997.
• The number of audio files has exceeded
999.
• Files that are encrypted or protected by
passwords, etc. cannot be played back.
iPod
There is severe hum or noise.
(“TUNED” or “STEREO” flashes in the
display)
• Set the proper band and frequency
(page 20).
• Connect the antenna properly (page 13).
• Find a place and an orientation that
provide good reception, then set up the
antenna again. If you cannot obtain
good reception, we recommend that you
connect a commercially available
external antenna.
• The supplied FM lead antenna receives
signals along its entire length, so make
sure you extend it fully.
• Locate the antennas as far away from
the speaker cords as possible.
• Try turning off the surrounding
electrical equipment.
Continued l
45GB
A stereo FM program cannot be
received in stereo.
• Press FM MODE on the remote
repeatedly until “MONO” disappears
from the display.
Optional components
Messages
One of the following messages may
appear or flash in the display during
operation.
Disc/ Timer
There is no sound.
• Refer to General item “There is no
sound.” (page 41) and check the
condition of the system.
• Connect the component properly
(page 13) while checking:
– if the cords are connected properly.
– if the cord plugs are firmly inserted all
the way.
• Turn on the connected component.
• Refer to the operating instructions
supplied with the connected component
and start playing.
To reset the system to factory
settings
There is no disc on the disc tray or you
have loaded a disc that cannot be played
back on this system.
Not in Use
You have pressed a button those operation
is not allowed or invalid at that time.
OFF TIME NG!
The on time and off time of Play Timer or
Recording Timer is the same.
Push STOP!
You have pressed PLAY MODE on the
remote during playback.
If the system still does not operate
properly after performing the above
measures or other troubles not described
above occur, reset the system as follows:
Use the buttons on the unit for the
operation.
Reading
1
2
3
4
OVER
Unplug the power cord.
Plug the power cord back in.
Press "/1 to turn on the system.
Press x, PAD I and "/1 at the
same time.
“COLD RESET” appears in the
display.
The system is reset to the factory settings.
You need to readjust all the settings you
made, such as the preset stations, clock
and timer.
46GB
No Disc
The system is reading information of the
disc. Some buttons are not available.
NO STEP
You have cleared all the steps you
programmed.
You have reached the end of the disc
while pressing M on the remote during
playback or pause.
Step Full!
You tried to program more than 25 steps.
USB device
Not in Use
USB Reading
You tried to perform a specific operation
under conditions where that operation is
prohibited.
The system is reading information of the
USB device. Some buttons are not
available.
Data Error
You tried to play back a audio file that is
not playable (page 45).
Device Error
The USB device could not be recognized
or an unknown device is connected.
Fatal Error!
NO STEP
All of the programmed files have been
erased.
Not Supported
An over current was detected.
Protected!
You tried to transfer or erase a writeprotected USB device.
Push STOP!
You tried to perform an operation that can
be performed only when the playback is
stopped.
REC Error!
Transferring did not start, stopped
partway, or otherwise could not be
performed (page 43).
Removed
The USB device has been removed.
An unsupported USB device is connected
or the USB device is connected through
an USB hub.
Step Full!
No Track
Track Full!
No playable audio file is loaded in the
system.
You tried to program more than 25 tracks
or files (steps).
Additional Information
The USB device was removed during
transferring or erase operation, and may
have been damaged.
Over Current
You cannot transfer onto the USB device
because the number of file has reached its
maximum.
Folder Full!
You cannot transfer onto the USB device
because the number of folder has reached
its maximum.
Device Full!
The memory of the USB device is full.
47GB
Precautions
Discs that this system CAN play
• AUDIO CD
• CD-R/CD-RW (audio data/MP3 files)
Discs that this system CANNOT play
• CD-ROM
• CD-R/CD-RW other than those recorded in
music CD format or MP3 format conforming
to ISO9660 Level 1/Level 2, Joliet (expansion
format)
• CD-R/CD-RW recorded in multisession that
have not ended by “closing the session”
• CD-R/CD-RW of poor recording quality,
CD-R/CD-RW that have scratches or are
dirty, or CD-R/CD-RW recorded with an
incompatible recording device
• CD-R/CD-RW which is finalized incorrectly
• Disc containing files other than MPEG 1
Audio Layer-3 (MP3) files
• Discs of non-standard shape (for example,
heart, square, star)
• Discs that have adhesive tape, paper, or
sticker attached to them
• Rental or used discs with attached seals where
the glue extends beyond the seal
• Discs that have labels printed using ink that
feels tacky when touched
Notes on discs
• Before playing, wipe the disc with a cleaning
cloth from the center out to the edge.
• Do not clean discs with solvents, such as
benzine, thinner, or commercially available
cleaners or anti-static spray intended for vinyl
LPs.
• Do not expose discs to direct sunlight or heat
sources such as hot air ducts, nor leave it in a
car parked in direct sunlight.
On safety
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall socket, even if the unit
itself has been turned off.
• Completely disconnect the power cord (mains
lead) from the wall socket (mains) if it is not
going to be used for an extended period of
time. When unplugging the unit, always grip
the plug. Never pull the cord itself.
48GB
• Should any solid object or liquid get into the
system, unplug the system, and have it
checked by qualified personnel before
operating it again.
• The AC power cord can be changed only by a
qualified service facility.
On placement
• Do not place the system in an inclined
position or in locations that are extremely hot,
cold, dusty, dirty, or humid or lacking
adequate ventilation, or subject to vibration,
direct sunlight or a bright light.
• Be careful when placing the unit or speakers
on surfaces that have been specially treated
(for example, with wax, oil, polish) as staining
or discoloration of the surface may result.
• If the system is brought directly from a cold to
a warm location or is placed in a very damp
room, moisture may condense on the lens
inside the unit, and cause the system to
malfunction. In this situation, remove the
disc, and leave the system turned on for about
an hour until the moisture evaporates.
On heat buildup
• Heat buildup on the unit during operation is
normal and is not a cause for alarm.
• Do not touch the cabinet if it has been used
continuously at a high volume because the
cabinet may have become hot.
• Do not obstruct the ventilation holes.
On the speaker system
This speaker system is not magnetically
shielded, and the picture on nearby TV sets may
become magnetically distorted. In this situation,
turn off the TV, wait 15 to 30 minutes, and turn
it back on. If there is no improvement, move the
speakers far away from the TV.
Cleaning the cabinet
Clean this system with a soft cloth slightly
moistened with a mild detergent solution.
Do not use any type of abrasive pad, scouring
powder, or solvent, such as thinner, benzine,
or alcohol.
Specifications
AUDIO POWER SPECIFICATION
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
USA model only
With 6-ohm loads, both channels driven,
from 120 Hz – 10 kHz; rates 90 watts per
channel minimum RMS power, with no
more than 0.7% total harmonic distortion
from 250 miliwatts to rated output.
North American model only
The following are measured at
AC 120 V, 60 Hz
Front speaker
RMS output power (reference):
150 W + 150 W (per channel at 6 Ω,
1 kHz, 10% THD)
Subwoofer
RMS output power (reference):
150 W (at 6 Ω, 100 Hz, 10% THD)
Other models
The following are measured at
Mexican model:
AC 127 V, 60 Hz
Other models:
AC 120, 220, 230 – 240 V, 50/60 Hz
Front speaker
Power Output (rated):
90 W + 90 W (at 6 Ω, 1 kHz, 1% THD)
RMS output power (reference):
150 W + 150 W (per channel at 6 Ω,
1 kHz, 10% THD)
Inputs
LINE IN 1, 2 L/R:
Voltage 250 mV, impedance
47 kilohms
MIC:
Sensitivity 1 mV, impedance
10 kilohms
(USB) port:
Type A
Outputs
i : accepts headphones of 8 Ω or more
FRONT SPEAKER:
accepts impedance of 6 Ω
Disc player section
System
Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 µW
* This output is the value measurement
at a distance of 200 mm from the
objective lens surface on the Optical
Pick-up Block with 7 mm aperture.
Frequency response
20 Hz – 20 kHz
Signal-to-noise ratio
More than 90 dB
Dynamic range
More than 88 dB
Additional Information
Amplifier section
Subwoofer
RMS output power (reference):
150 W (at 6 Ω, 100 Hz, 10% THD)
Continued l
49GB
Tuner section
USB section
FM stereo, FM/AM superheterodyne tuner
Supported bit rate
MP3 (MPEG 1 Audio Layer 3):
32 – 320 kbps, VBR
WMA: 32 – 192 kbps, VBR
AAC: 48 – 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer 3):
32/44.1/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
Transfer speed
Full-Speed
Supported USB device
Mass Storage Class
Maximum current
500 mA
FM tuner section
Tuning range
North American model:
87.5 – 108.0 MHz (100 kHz step)
Other models:
87.5 – 108.0 MHz (50 kHz step)
Antenna
FM lead antenna
Antenna terminals
75 ohms unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Pan-American and Oceanian models:
530 – 1,710 kHz (with the interval set
at 10 kHz)
531 – 1,710 kHz (with the interval set
at 9 kHz)
European model:
531 – 1,602 kHz (with the interval set
at 9 kHz)
Other models:
531 – 1,602 kHz (with the interval set
at 9 kHz)
530 – 1,610 kHz (with the interval set
at 10 kHz)
Antenna
AM loop antenna
Antenna terminals
External antenna terminal
Intermediate frequency
450 kHz
50GB
iPod section
DC5V 500 mA MAX
Speakers
Front speaker (SS-DJ2i)
Speaker system
3-way, 3-driver, Bass reflex
Speaker unit
Woofer: 130 mm (5 1/2 inches), cone
type
Subwoofer: 130 mm (5 1/2 inches),
cone type
Tweeter: 40 mm (1 1/2 inches), horn
type
Rated impedance
6 ohms
Dimensions (w/h/d)
Approx. 205 × 381 × 248 mm
(8 1/8 × 15 × 9 7/8 inches)
Mass
Approx. 4.0 kg (8 lb 14 oz) net per
speaker
Subwoofer (SA-WG2i)
Subwoofer system
1-way, 2-driver, Bass reflex
Speaker unit
Subwoofer: 180 mm (7 inches),
cone type
Rated impedance
6 ohms
Dimensions (w/h/d)
Approx. 500 × 306 × 505 mm
(19 3/4 × 12 1/8 × 20 inches)
Mass
Approx. 16.5 kg (36 lb 7 oz)
Power requirements
North American model: 120 V AC,
60 Hz
European model: 230 V AC, 50/60 Hz
Mexican model: 127 V AC, 60 Hz
Oceanian model: 230 – 240 V AC,
50/60 Hz
Other models: 120 V, 220 V or
230 – 240 V AC, 50/60 Hz, adjustable
with voltage selector
Power consumption
Canadian model: 450 VA
Other models: 345 W
Dimensions (w/h/d) (Approx.)
HCD-DJ2i: 380 × 146.8 × 288 mm
(15 × 5 7/8 × 11 3/8 inches)
Design and specifications are subject to
change without notice.
• Standby power
consumption: 0.5 W
• Halogenated flame
retardants are not used in the
certain printed wiring
boards.
Additional Information
General
Mass (Approx.)
HCD-DJ2i: 3.2 kg (7 lb 1 oz)
Supplied accessories
Remote Commander (1)
R6 (size AA) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Front speaker pads (8)
iPod Dock Adapters (5 set)
51GB
Compatible devices
with this system
NWZ-A815/ A816/ A818
NWZ-S515/ S516/
S615F/ S616F/ S618F
Notes on using the Sony Ericsson
mobile phone
You can use the following Sony USB
devices on this system.
Verified Sony USB device
(as of March 2008)
Product name
Model name
Walkman®
NWD-B103/ B103F/
B105/ B105F
ICD-SX57/ SX67/ SX77
ICD-U50/ U60/ U70
ICD-SX68/ SX78/ SX88
MICROVAULT USM512JX/ 1GJX/
2GJX/ 4GJX
Verified Sony Ericsson mobile phone
(as of March 2008)
Product name
Model name
Walkman® Phone W880i/ W850i/ W710i/
W660i/ W580i
W910i
Check the websites below for the latest
information about compatible devices.
For customers in the U.S.A.:
<http://www.sony.com/shelfsupport>
For customers in Canada:
English <http://www.sony.ca/
ElectronicsSupport/>
French <http://fr.sony.ca/
ElectronicsSupport/>
For customers in Europe:
<http://sonydigital-link.com/dna>
For customers in Latin America:
<http://www.sony-latin.com/pa/info>
52GB
Notes
• Do not use USB devices other than these USB
devices. Operation of models not listed here is
not guaranteed.
• Operation may not always be ensured even
when using these USB devices.
• Some of these USB devices may not be
available for purchase in certain areas.
• See the operating instructions supplied with
the USB device for details on the operation
method.
• If you want to format the above USB devices,
be sure to use the models or formatter
software supplied with the USB device.
However, if the formatting process is
performed using other method, the
transferring may not be properly done.
USB devices
IC Recorder
For customers in Asia and Oceania:
<http://www.css.ap.sony.com/>
• Set the data transfer mode of your mobile
phone to File Transfer (Mass Storage).
For details, refer to the operating instructions
supplied with the mobile phone.
• Use the USB cable supplied with the mobile
phone when connecting to the system.
• Some AAC audio files supported by the
mobile phone are not supported by this
system.
• In the case that the song which is registered as
the playlist in the mobile phone is erased by
this system, the playlist registration is not
deleted.
Notes on Walkman®
• Some audio files supported by the Sony
digital music player are not supported by this
system.
• When the Sony digital music player is
connected to this system, wait until the
display of “Creating Library” or “Creating
Database” disappears.
• When transferring music data from the Sony
digital music player by using “Media
Manager for WALKMAN”, transfer in MP3
format.
• MP4 format file (AAC or VIDEO) cannot be
displayed by this system.
iPod models
You can use the following iPod models on this system. Update your iPod with the latest
software before using it.
iPod nano 3rd
generation
(video)
iPod classic
iPod 5th
generation
(video)
iPod nano 1st
generation
iPod 4th
generation
(color display)
iPod nano 2nd
generation
(aluminum)
Additional Information
iPod touch
iPod 4th
generation
iPod mini
Notes
• The iPod 1 and 2 connectors are designed for iPod only. You cannot connect any other portable audio
players.
• Sony cannot accept responsibility in the event that data recorded to iPod is lost or damaged when
using an iPod connected to this unit.
• This product has been designed specifically to work with iPod and has been certified to meet Apple
performance standards.
• This unit is not compatible with iPhone.
53GB
Index
B
O
Batteries 15
BEAT BLEND 30
Beat speed 30
OPTIONS menu 22, 29, 32
C
CD-USB Synchonized
Transfer 21
COLD RESET 46
Compatible iPod with this
system 53
Compatible USB devices with
this system 52
Crossfader 31
D
Play mode 19, 26
Playable disc 48
Power Saving Mode 32
Presetting radio station 35
Program Play 34
R
Radio station 20
RDS (Radio Data System) 36
REC1 Transferring 21
Remote 8
Repeat Play 18, 25
Demonstration 14, 32
Display 12
Display mode 32
S
F
T
FM MODE 20
Timer
Play Timer 38
Recording Timer 38
Sleep Timer 38
H
Handling discs 48
Hooking up the system 13
M
Manual Transferring 21
Monitor cue 31
MP3 BOOSTER+ 29
Multi Session 5
N
Non-playable disc 48
Normal Play 19, 26
54GB
P
Shuffle Play 19, 26
(2)
Sony Corporation Printed in China
Download PDF

advertising
