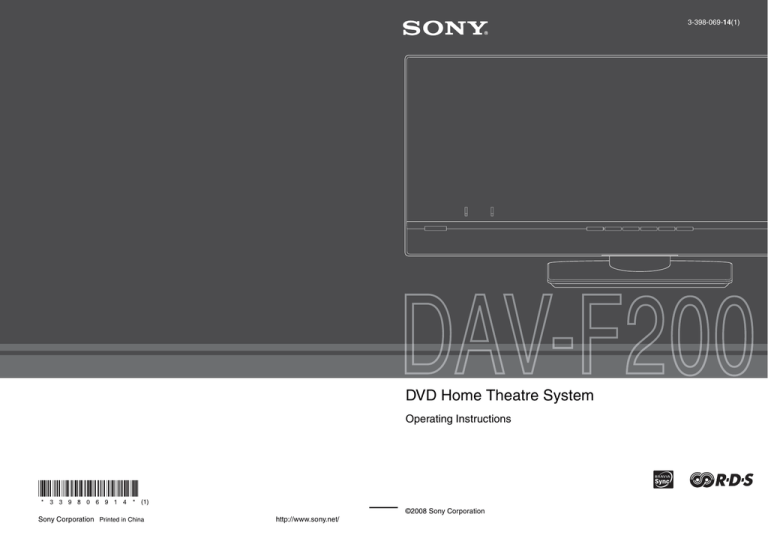

3-398-069-14(1)
DVD Home Theatre System
Operating Instructions
(1)
©2008 Sony Corporation
Sony Corporation Printed in China
http://www.sony.net/
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
To prevent fire, do not cover the ventilation of the
apparatus with news papers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Batteries or batteries installed apparatus shall not be
exposed to excessive heat such as sunshine, fire or the
like.
This appliance is
classified as a CLASS 1
LASER product. This
marking is located on the
rear exterior of control
unit.
Disposal of Old
Electrical & Electronic
Equipment (Applicable
in the European Union
and other European
countries with separate
collection systems)
This symbol on the product or
on its packaging indicates that
this product shall not be treated as household waste.
Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, please contact your local
Civic Office, your household waste disposal service or
the shop where you purchased the product.
2GB
Disposal of waste
batteries (applicable in
the European Union and
other European
countries with separate
collection systems)
This symbol on the battery or on the packaging
indicates that the battery provided with this product
shall not be treated as household waste. On certain
batteries this symbol might be used in combination
with a chemical symbol. The chemical symbols for
mercury (Hg) or lead (Pb) are added if the battery
contains more than 0.0005% mercury or 0.004% lead.
By ensuring these batteries are disposed of correctly,
you will help prevent potentially negative
consequences for the environment and human health
which could otherwise be caused by inappropriate
waste handling of the battery. The recycling of the
materials will help to conserve natural resources. In
case of products that for safety, performance or data
integrity reasons require a permanent connection with
an incorporated battery, this battery should be replaced
by qualified service staff only. To ensure that the
battery will be treated properly, hand over the product
at end-of-life to the applicable collection point for the
recycling of electrical and electronic equipment. For
all other batteries, please view the section on how to
remove the battery from the product safely. Hand the
battery over to the applicable collection point for the
recycling of waste batteries. For more detailed
information about recycling of this product or battery,
please contact your local Civic Office, your household
waste disposal service or the shop where you
purchased the product.
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The
Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For any service
or guarantee matters please refer to the addresses given
in separate service or guarantee documents.
Precautions
On power sources
• AC power cord (mains lead) must be changed only at
the qualified service shop.
• The system is not disconnected from the AC power
source (mains) as long as the subwoofer is connected
to the wall outlet (mains), even if the control unit
itself has been turned off.
• Install this system so that the AC power cord (mains
lead) can be unplugged from the wall socket
immediately in the event of trouble.
About This Operating
Instructions
• The instructions in this Operating Instructions
describe the controls on the remote. You can
also use the controls on the control unit if they
have the same or similar names as those on the
remote.
• The Control Menu items may vary depending
on the area.
• “DVD” may be used as a general term for a
DVD VIDEO, DVD+RW/DVD+R, and DVDRW/DVD-R.
• The default setting is underlined.
3GB
Table of Contents
About This Operating Instructions.......... 3
Playable Discs......................................... 5
Getting Started
Step 1: Positioning the System ...11
Step 2: Connecting the System ...15
Step 3: Performing the Quick
Setup ........................................26
Step 4: Changing the Sound
Source ......................................29
Disc
Playing a Disc ....................................... 30
Using Play Mode................................... 35
Searching/Selecting a Disc ................... 38
Playing MP3 Files/JPEG Image Files... 41
Enjoying DivX® Videos....................... 45
Restricting Playback of the Disc........... 47
Sound Adjustment
Enjoying Surround Sound by Using
Decoding Mode .............................. 50
Selecting the Sound Mode .................... 52
Enjoying Multiplex Broadcast Sound ... 53
Tuner
Presetting Radio Stations ...................... 54
Listening to the Radio........................... 55
Using the Radio Data System (RDS).... 57
Control for HDMI/External
Audio Device
Using the Control for HDMI Function for
“BRAVIA” Sync ............................ 58
Playing Back Audio Files/JPEG Image
Files of a USB Device .................... 61
Transferring Songs in a USB Device.... 70
Using the DIGITAL MEDIA PORT
Adapter ........................................... 73
Other Operation
Using the Setup Display........................ 74
Adjusting the Delay Between the Picture
and Sound ....................................... 80
Changing the Input Level of the
Sound .............................................. 80
Enjoying the Sound at Low Volume..... 81
4GB
Using the Sleep Timer .......................... 81
Changing the Brightness of the Front
Panel Display and Illumination...... 82
Viewing Information About the Disc ... 83
Controlling the TV with the Supplied
Remote ........................................... 86
Returning to the Default Settings ......... 88
Additional Information
Precautions ........................................... 90
Notes about the Discs ........................... 91
Troubleshooting.................................... 92
Self-diagnosis Function ...................... 100
Specifications ..................................... 101
Glossary .............................................. 102
Language Code List............................ 104
Index to Parts and Control .................. 105
Guide to the Control Menu Display ... 110
Index ................................................... 114
Playable Discs
Type
Disc logo
Characteristics
DVD VIDEO
• DVD VIDEO
• DVD-R/DVD-RW in DVD
VIDEO format or video mode
• DVD+R/DVD+RW in DVD
VIDEO format
VR (Video
Recording) mode
• DVD-R/DVD-RW in VR (Video
Recording) mode (except for
DVD-R DL)
VIDEO CD
• VIDEO CD (Ver. 1.1 and 2.0 discs)
• Super VCD
• CD-R/CD-RW/CD-ROM in video
CD format or Super VCD format
CD
• Audio CD
• CD-R/CD-RW in audio CD format
DATA CD
–
• CD-R/CD-RW/CD-ROM in
DATA CD format, containing MP3
files1), JPEG image files2), and
DivX video files3)4), and
conforming to ISO 96605) Level 1/
Level 2, or Joliet (extended format)
DATA DVD
–
• DVD-ROM/DVD-R/DVD-RW/
DVD+R/DVD+RW in DATA
DVD format, containing MP3
files1), JPEG image files2), and
DivX video files3)4), and
conforming to UDF (Universal
Disk Format)
Icon
1)
MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. MP3 files
must be in MPEG1 Audio Layer 3 format.
2)JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera File system”: Image
standards for digital cameras regulated by Japan Electronics and Information Technology Industries Association
(JEITA).)
5GB
DivX® is a video file compression technology, developed by DivX, Inc.
DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
5)
A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for
Standardization).
“DVD-RW,” “DVD+RW,” “DVD+R,”“DVD VIDEO,” and the “CD” logos are trademarks.
3)
4) DivX,
Example of discs that the system cannot play
The system cannot play the following discs:
• CD-ROM/CD-R/CD-RW other than those recorded in the formats listed on page 5
• CD-ROM recorded in PHOTO CD format
• Data part of CD-Extra
• CD Graphics disc
• DVD Audio
• DATA DVD that does not contain MP3 files, JPEG image files, or DivX video files
• DVD-RAM
• Super Audio CD
Also, the system cannot play the following discs:
• A DVD VIDEO with a different region code (page 7)
• A disc that has a non-standard shape (e.g., card, heart)
• A disc with paper or stickers on it
• A disc that has the adhesive of cellophane tape or a sticker still left on it
Note about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW
In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/DVD+RW cannot be played on this system
due to the recording quality or physical condition of the disc, or the characteristics of the recording
device and authoring software.
The disc will not play if it has not been correctly finalized. For more information, refer to the operating
instructions for the recording device.
Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have
been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA
DVDs created in Packet Write format cannot be played.
Music discs encoded with copyright protection technologies
This product is designed to play back discs that conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with copyright protection technologies are marketed by some
record companies. Please be aware that among those discs, there are some that do not conform to the
CD standard and may not be playable by this product.
6GB
Note on DualDiscs
A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital
audio material on the other side. However, since the audio material side does not conform to the
Compact Disc (CD) standard, playback on this product is not guaranteed.
About Multi Session CD
• This system can play a Multi Session CD when an MP3 file is contained in the first session. Any
subsequent MP3 files recorded in later sessions can also be played back.
• This system can play a Multi Session CD when a JPEG image file is contained in the first session.
Any subsequent JPEG image files recorded in later sessions can also be played back.
• If MP3 files and JPEG image files in music CD format or video CD format are recorded in the first
session, only the first session will be played back.
Region code
Your system has a region code printed on the rear of the control unit and will only play a DVD labeled
with the same region code.
A DVD VIDEO labeled ALL will also play on this system.
If you try to play any other DVD VIDEO, the message [Playback prohibited by area limitations.] will
appear on the TV screen. Depending on the DVD VIDEO, no region code indication may be given even
though playing the DVD VIDEO is prohibited by area restrictions.
Note about playback operations of a DVD or VIDEO CD
Some playback operations on a DVD or VIDEO CD may be intentionally set by software producers.
Since this system will play a DVD or VIDEO CD according to the disc contents the software producers
designed, some playback features may not be available. Be sure to read the operating instructions
supplied with the DVD or VIDEO CD.
Copyrights
This product incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
This system incorporates with Dolby* Digital and the DTS** Digital Surround System.
* Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 &
other U.S. and worldwide patents issued & pending.
DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS,
Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
7GB
This system incorporates High-Definition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
“BRAVIA” is a trademark of Sony Corporation.
8GB
Getting Started
Getting Started
Checking the supplied items
• Control unit (1)
• Stand cover (1)
• Remote commander
(remote) (1)
• Screws (4)
• R6 (size AA) batteries (2)
• Front speakers (2)
• Seals (for stand cover) (2)
• FM wire antenna (aerial) (1)
• Subwoofer (1)
• Operating Instructions (this
manual)
• Speaker and TV Connections
(supplement)
• Video cord (1)
• Cable tie (1)
Preparing the remote
To insert batteries into the remote
Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the
markings inside the compartment.
Note
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
9GB
Getting Started
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage
from battery leakage and corrosion.
About operation of the remote
You can operate this system and TV using the supplied remote.
x System operation
Press TV so that TV flashes four times.
The remote enters system operation mode. When operating the system, point the remote at the center
of the panel display.
A.F.D. STD
D.C.S.
FUNCTION
VOL
DVD HOME THEATRE SYSTEM DAV-F500
Remote sensor
x TV operation
Press TV so that TV lights up for 1 second.
The remote enters the TV mode. To operate the system, point the remote at the TV. For details, see
“Controlling the TV with the Supplied Remote” (page 86).
TV
Note
• Do not expose the remote sensor to direct sunlight or lighting apparatus. Doing so may cause a malfunction.
10GB
Step 1: Positioning the System
Place the system as illustrated below.
A Front speaker (L (left))
B Front speaker (R (right))
C Subwoofer
D Control unit
B
A
D
C
A
A
Note
• Leave a space for inserting/ejecting the disc (approximately 15 cm) to the right (disc slot) side of the control unit
when placing an object such as a speaker nearby.
Approximately 15 cm
A.F.D. STD
D.C.S.
FUNCTION
VOL
DVD HOME THEATRE SYSTEM DAV-F500
• Do not set the speakers in an inclined position.
• Do not place the speakers in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Subject to vibrations
– Subject to direct sunlight
• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,
oiled, polished, etc.) floor, as staining or discoloration may result.
• Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.
• Do not lean or hang on the speaker, as the speaker may fall down.
• Image distortion on the TV screen may occur depending on the location of the subwoofer. In this case, place the
subwoofer away from the TV.
• Do not block the ventilation slots of the subwoofer (page 108).
11GB
Getting Started
For the best possible surround sound, all the speakers other than the subwoofer should be placed at the
same distance from the listening position (A).
Getting Started
• Do not place your hand on the speaker driver when lifting the subwoofer. Doing so, the speaker driver may be
damaged. When lifting, hold the foot of the subwoofer.
Speaker driver
Tip
• It is recommended to place the subwoofer on a hard floor.
• You can also place the subwoofer either side, facing the listening position.
To use the speakers efficiently
Position the speakers so that the distance between each speaker and the listening position (A and B)
is the same (from 0.0 to 7.0 meters).
Front speaker (L)
Subwoofer
TV
Front speaker (R)
Note
• Place both front speakers the same distance apart as they are from the listening position (to form an isosceles
triangle).
• The front speakers should be placed at least 0.6 m apart.
• Place the front speakers forward of the TV. Make sure there are no reflecting obstacles in front of the speakers.
• Both front speakers should be pointed straight forward. Do not place the speakers at an angle.
Correct
12GB
Incorrect
• It is recommended to place the front speakers on the edge of a table or rack, etc., to prevent sound reflection.
Side view
Getting Started
Recommended
To install the speakers on a wall
Before installing the speakers on the wall, prepare screws (not supplied) that are suitable for the hole
on the rear of each speaker.
4 mm
30 mm
1
5 mm
Hole on the rear of
the speaker
10 mm
Remove the screw (pre-installed) at the rear of the speaker.
Screw (pre-installed)
2
3
4
Detach the speaker stand.
Disconnect the speaker cords from the speaker.
Take the speaker stand out.
13GB
5
Reconnect the speaker cords to the speakers.
Getting Started
The connector and color tube of the speaker cords are the same color as the label of the jacks to be
connected. Be sure to match the speaker cords to the appropriate terminals on the speakers: the
speaker cord with the color tube to 3, and the speaker cord without the color tube to #. Do not
catch the speaker cord insulation in the speaker terminals.
Rear of speaker
Color tube
(+)
(–)
Connector
Color tube
Front speaker (L): White
Front speaker (R): Red
6
Fasten the screws to the wall.
5 to 7 mm
7
Hang the speakers on the screws.
Rear of the speaker
Note
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach
the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where
reinforcement is applied.
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Sony is not responsible for accident or damage caused by improper installation, insufficient wall strength or
improper screw installation, natural calamity, etc.
14GB
Step 2: Connecting the System
Note
• Be sure to make connections securely to avoid hum and noise.
• When you connect another component with a volume control, turn up the volume of the other components to a level
where sound is not distorted.
Subwoofer
FRONT R
FRONT L
SPEAKER IMPEDANCE USE 3
SYSTEM CONTROL
ONLY FOR HCD-F200
2 Front speaker (L)
Bottom of the
subwoofer
2 Front speaker (R)
6 AC power cord
(mains lead)
1 Plug
5 FM wire antenna (aerial)
A.F.D. STD
D.C.S.
FUNCTION
VOL
DVD HOME THEATRE SYSTEM DAV-F500
4 VCR, digital satellite
receiver, or PlayStation, etc.
4 DIGITAL MEDIA PORT
adapter
3 TV
: Signal flow
15GB
Getting Started
See the connection diagram below, and read the additional information from 1 to 6 on the following
pages.
To remove the panel cover of the control unit
FM75
COAXIAL
ANTENNA
Getting Started
Before connecting the cables, remove the panel cover from the control unit.
Y
L
TV
PB/CB
AUDIO IN
COMPONENT
R
VIDEO OUT
SAT/CABLE
DIGITAL IN
COAXIAL
COAXIAL
DIGITAL OUT
VIDEO
VIDEO OUT
PR/CR
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
Push the B mark on the left side
of the panel cover, then slide to
the right.
DMPORT
DC5V
0.7A Max
1 Connecting the Control unit
Connect the system connector of the control unit to the SYSTEM CONTROL jack on the bottom of the
subwoofer.
Insert the plug of the SYSTEM CONTROL connector, then secure the screws of the plug.
Bottom of the subwoofer
FRONT R
FRONT L
SPEAKER IMPEDANCE USE 3
Rear of the control unit
SYSTEM CONTROL
ONLY FOR HCD-F200
Plug
Screws
SYSTEM CONTROL cable
2 Connecting the Speakers
Insert the speaker connector of the front left speaker into the FRONT L jack, and insert the speaker
connector of the front right speaker into the FRONT R jack on the bottom of the subwoofer.
16GB
Front speaker (L)
Front speaker (R)
Getting Started
White (Front speaker (L))
FRO
FRO
NT
R
AKE
SPE
FRONT R
NT
L
R
NCE
EDA
IMP
3
USE
FRONT L
SPEAKER IMPEDANCE USE 3
SYSTEM CONTROL
ONLY FOR HCD-F200
Red (Front speaker (R))
Bottom of the subwoofer
To set the speakers at an angle
You can select the angle for the front speaker: 0° and 10°. (The speakers are set to an angle of 10° at
shipping.)
1
Remove the screw (pre-installed) at the rear of the speaker.
Screw (pre-installed)
2
3
Detach the speaker stand.
Reattach the speaker stand by engaging the protrusions on the stand in the holes for
either angle 0° or 10°.
0° or 10°
Angle: 0° (vertical)
Angle: 10°
17GB
Thread the speaker cord though the slit of the stand base to prevent the cord being
twisted or pinched.
Getting Started
4
5
Tighten the screw to secure the speaker stand.
Note
• Be careful not to pinch the speaker cords while tightening screws.
18GB
3 Connecting the TV
To listen to TV sound from the speakers of the system, connect the TV and the system with the audio
cord (not supplied) (A).
For video output to your TV, check the video input jacks of the TV, and select connection method A,
B, or C. Picture quality improves in order from A (standard) to C (HDMI).
When the TV has the digital optical output jack, you can improve sound quality by connecting with the
digital cord (B).
Audio cord
(not supplied)
Component video cord
(not supplied)*
Green
Blue
Red
White
Red
R
L
IN
AUDIO
TV
OUT
EO
VID NENT
PO
COM B
PB/C
R
PR/C
Y
FM75
COAXIAL
ANTENNA
To the AUDIO OUT jacks of the TV
Y
L
PB/CB
COMPONENT
R
VIDEO OUT
TV
AUDIO IN
PR/CR
COAXIAL
SAT/CABLE
DIGITAL IN
COAXIAL
DIGITAL OUT
VIDEO
VIDEO OUT
Connector panel of the control unit
To the COMPONENT VIDEO IN jacks
of the TV
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
Digital optical cord
(not supplied)
Video cord
(supplied)
HDMI** cable
(not supplied)
L IN
DIGITA
L
OPTICA
TV
VIDEO
VIDEO
OUT
OUT
To the VIDEO IN jack of
the TV
To the HDMI IN jack of the TV
To the digital optical output jack of the TV
* If your TV accepts progressive format signals, use this connection and set the output signal of the system to
progressive format (page 27).
** HDMI (High-Definition Multimedia Interface)
If your TV has the HDMI jack, use this connection and select the type of output signal (page 27).
19GB
Getting Started
Be sure to disconnect the AC power cords of all components from their wall outlets (mains) before
making connections.
Getting Started
Note
• When connecting the jack, insert the plug into the jack as far as it will go.
• When connecting the digital optical cord, insert the connector until it clicks (B).
• During the “DMPORT” function, video signal is not output from the HDMI OUT and VIDEO OUT
(COMPONENT) jacks. Select connection method A to obtain pictures since the video signal is output from the
VIDEO OUT (VIDEO) jack.
• The system can accept both digital and analog signals. Digital signals have priority over analog signals. (COAXIAL
has priority over OPTICAL.) If the digital signal ceases, the analog signal will be processed after 2 seconds.
Tip
• You can connect another component, such as a VCR, digital satellite receiver, or PlayStation, to the TV (AUDIO
IN) jack (A) or TV (DIGITAL IN OPTICAL) jack (B) instead of the TV.
To change the color system (PAL or NTSC) (Southeast Asian models
only)
Depending on the TV to be connected, you may be required to select either PAL or NTSC for the color
system.
The initial setting of the system is NTSC.
1
2
Turn off the system by pressing \/1.
Turn on the system by pressing \/1 while pressing VOL – on the front panel.
Each time you perform this operation, the color system toggles between PAL and NTSC.
“NTSC” lights up in the front panel display when the color system is set to NTSC.
4 Connecting the other components
You can enjoy the connected component using the speakers of the system.
• Digital satellite receiver, etc.: A
• DIGITAL MEDIA PORT adapter: B
• AV receiver, etc.: C (only when DVD function is selected)
20GB
Digital optical cord (not supplied)
Getting Started
Digital coaxial cord (not supplied)
FM75
COAXIAL
ANTENNA
L IN
DIGITA
L
OPTICA
BLE
SAT/CA
Y
L
L IN
DIGITA AL
COAXI
PB/CB
COMPONENT
R
PR/CR
COAXIAL
SAT/CABLE
DIGITAL IN
COAXIAL
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
Connector panel of the control unit
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
To the digital coaxial output jack of
the digital satellite receiver
DIGITAL OUT
VIDEO
VIDEO OUT
or
VIDEO OUT
TV
AUDIO IN
BLE
SAT/CA
To the digital optical output jack of
the digital satellite receiver
DMPO
Digital coaxial cord
(not supplied)
RT
DC5VMax
0.7A
O
ITAL
DIG
DIGITAL MEDIA PORT adapter
UT
IAL
COAX
To the digital coaxial input
jack of the AV receiver
Note
• The DIGITAL OUT jack outputs audio signals only when DVD function is selected (by pressing FUNCTION
repeatedly until “DVD” appears in the front panel display).
• Connect the DIGITAL MEDIA PORT adapter so that the V marks are aligned. When disconnecting, pull out while
pressing both sides of the connector (B).
To connect the DIGITAL MEDIA PORT adapter
Connect a DIGITAL MEDIA PORT adapter (not supplied) to the DMPORT jack. For details, see
“Using the DIGITAL MEDIA PORT Adapter” (page 73).
21GB
Getting Started
To connect to a TV equipped with multiple audio/video inputs
You can enjoy the sound with the speakers of the system through the connected TV. Connect the
components as follows.
VCR, digital satellite receiver
or PlayStation, etc.
TV
VCR, digital satellite receiver
or PlayStation, etc.
System
A.F.D. STD
D.C.S.
FUNCTION
VOL
DVD HOME THEATRE SYSTEM DAV-F500
: Signal flow
Select the component on the TV. For details, refer to the operating instructions of the TV.
If the TV does not have multiple audio/video inputs, a switcher will be necessary to receive the sound
from more than two components.
5 Connecting the FM wire antenna (aerial)
ANTEN
NA
FM75
COAXIAL
FM75
COAXIAL
ANTENNA
FM wire antenna (aerial)
(supplied)
Y
L
PB/CB
COMPONENT
R
VIDEO OUT
TV
AUDIO IN
PR/CR
COAXIAL
SAT/CABLE
DIGITAL IN
COAXIAL
DIGITAL OUT
VIDEO
VIDEO OUT
Connector panel of the
control unit
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
Tip
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the control unit to an outdoor
FM antenna (aerial) as shown below.
Outdoor FM antenna (aerial)
Connector panel of the control unit
ANTENNA
FM75
COAXIAL
22GB
To attach the stand cover and panel cover
1
Bundle the cables on the rear of the control unit.
Thread the connected cable along through the stand (1), bundle the cables with the cable ties, in
the 2 positions, to the rear of the control unit (2), then lock the cable ties (3).
1
FM75
COAXIAL
ANTENNA
3
Y
3
L
TV
PB/CB
AUDIO IN
R
COMPONENT
VIDEO OUT
VIDEO
VIDEO OUT
PR/CR
SAT/CABLE
DIGITAL IN
COAXIAL
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
,
DMPORT
DC5V
0.7A Max
2
2
Store the excess portion of the cable ties into the space between the side walls of the
frame.
FM75
COAXIAL
ANTENNA
Y
L
R
VIDEO OUT
TV
PB/CB
AUDIO IN
COMPONENT
VIDEO
VIDEO OUT
PR/CR
SAT/CABLE
DIGITAL IN
COAXIAL
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
3
Attach the panel cover to the rear of the control unit.
FM75
COAXIAL
ANTENNA
Bundle with cable tie
(supplied).
Y
L
TV
PB/CB
AUDIO IN
R
COMPONENT
VIDEO OUT
VIDEO
FM75
COAXIAL
SAT/CABLE
DIGITAL IN
COAXIAL
ANTENNA
VIDEO OUT
PR/CR
Y
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
L
PB/CB
R
COMPONENT
VIDEO OUT
TV
AUDIO IN
TV
DIGITAL IN
OPTICAL
VIDEO
VIDEO OUT
PR/CR
DMPORT
DC5V
0.7A Max
ECM-AC2
SAT/CABLE
DIGITAL IN
COAXIAL
SAT
DIGITA
OPTI
Note
• Be sure to fully extend the FM wire antenna (aerial).
• After bundling the cables, keep the FM wire antenna (aerial) as horizontal as possible.
Tip
• If it is difficult to fit the cables into the slit, bundle the cables with the cable tie (supplied), then attach the panel
cover.
23GB
Getting Started
After connecting the cables, bundle excess cables and attach the panel cover and stand cover.
Be sure to disconnect the AC power cords of all components from their wall outlets (mains) when
attaching the stand cover.
4
Attach the stand cover to the rear of the control unit.
FM75
COAXIAL
ANTENNA
Getting Started
Store the connected cables and excess portions of the cable ties inside the stand cover (1), then
secure the stand cover with the 4 screws (2).
Y
L
PB/CB
COMPONENT
R
VIDEO OUT
TV
AUDIO IN
PR/CR
VIDEO
VIDEO OUT
1
SAT/CABLE
DIGITAL IN
COAXIAL
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
ECM-AC2
2
Note
• Make sure that the cables are not twisted or pinched when attaching the stand cover.
• If the stand cover does not close properly, re-organize the cables.
• Be careful not to pinch any cables while tightening screws.
5
Attach the 2 seals (for stand cover) to hide the tightening screws.
FM75
COAXIAL
ANTENNA
Y
L
TV
PB/CB
AUDIO IN
R
COMPONENT
VIDEO OUT
VIDEO
VIDEO OUT
PR/CR
SAT/CABLE
DIGITAL IN
COAXIAL
OUT
SAT/CABLE
DIGITAL IN
OPTICAL
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
ECM-AC2
6 Connecting the AC power cords (mains leads)
Before connecting the AC power cord (mains leads) of the subwoofer to a wall outlet (mains), connect
the front speakers to the subwoofer.
Bottom of the subwoofer
Subwoofer
FRONT R
FRONT L
SPEAKER IMPEDANCE USE 3
SYSTEM CONTROL
ONLY FOR HCD-F200
To the wall
outlet (mains)
AC power cord (mains lead)
24GB
About the demonstration
To set the demonstration mode to on/off
1
Press [/1.
The system turns on.
2
3
4
Press SYSTEM MENU on the remote.
Press X/x repeatedly until “DEMO” appears in the front panel display, then press
c.
or
Press X/x to select a setting.
• “DEMO ON”: On.
• “DEMO OFF”: Off.
5
Press
.
The setting is made.
6
Press SYSTEM MENU.
The system menu turns off.
Tip
• When you purchase the system from new, or if the system is at its factory default settings (page 88), you can turn
off the demonstration simply by pressing [/1 on the remote.
25GB
Getting Started
After connecting the AC power cord (mains lead), the demonstration appears in the front panel display.
Getting Started
Step 3: Performing the
Quick Setup
4
Press
without inserting a disc.
The Setup Display for selecting the
language.
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
Follow the Steps below to make the basic
adjustments for using the system.
Displayed items vary depending on the country
model.
Note
• When you connect the system and the TV with the
component video cord (not supplied) or HDMI cable
(not supplied), you need to set the type of video
output for matching your TV. For details, see “Setting
the type of video output to match your TV” (page 27).
5
ENGLISH
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL
NEDERLANDS
DANSK
SVENSKA
Press X/x to select a language.
The system displays the menu and subtitles
in the selected language.
6
Press
.
The Setup Display for selecting the aspect
ratio of the TV to be connected appears.
"/1
VIDEO SETUP
16:9
TV TYPE:
16:9
PROGRESSIVE (COMPONENT OUT):
4:3 LETTER BOX
4:3 OUTPUT:
4:3 PAN SCAN
PAUSE MODE:
C/X/x/c,
DISPLAY
7
Press X/x to select the setting.
x [16:9]
If you have a wide-screen TV or a 4:3
standard TV with a wide-screen mode
(page 75)
1
2
x [4:3 LETTER BOX] or [4:3 PAN
SCAN]
Turn on the TV.
Press [/1.
The system turns on.
If you have a 4:3 standard TV (page 75)
8
Note
Switch the input selector on the TV so
that the signal from the system
appears on the TV screen.
[Press [ENTER] to run QUICK SETUP.]
appears at the bottom of the TV screen. If
this message does not appear, recall the
Quick Setup display (page 27) and perform
again.
26GB
.
“QUICK SETUP is complete.” appears on
the TV screen, and the Quick Setup is
finished.
All connections and setup operations are
complete.
• Make sure that the function is set to “DVD”
(page 29).
3
Press
To quit the Quick Setup
Press
DISPLAY in any Step.
Tip
• If you want to change any of the settings, see “Using
the Setup Display” (page 74).
To recall the Quick Setup display
1
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
DVD VIDEO
3
CUSTOM
CUSTOM
QUICK
4
1
[SETUP],
The options for [SETUP] appear.
94( 99)
1( 1)
T
0: 01: 08
When you connect the control unit and the TV
with the HDMI cable, select the type of video
signals output from the HDMI OUT jack.
For details, refer also to the operating
instructions supplied with the TV/projector, etc.
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [QUICK], then press
.
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
The Quick Setup display appears.
Press X/x to select [HDMI SETUP], then
press
.
The options for [HDMI SETUP] appear.
Setting the type of video
output to match your TV
Depending on the connection of the TV
(page 19), select the type of video output of the
system.
FUNCTION
6
7
Press X/x to select [HDMI
RESOLUTION], then press
.
Press X/x to select the desired setting,
then press
.
• [AUTO (1920 × 1080p)]: The system
outputs the optimal video signal for the
connected TV.
• [1920 × 1080i]: The system outputs 1920
× 1080i* video signals.
• [1280 × 720p]: The system outputs 1280 ×
720p* video signals.
• [720 × 480/576p]: The system outputs
720 × 480p* or 720 × 576p* video
signals.
* i: interlace, p: progressive
C/X/x/c,
DISPLAY
Does your TV accept progressive
signals?
Progressive is the method for displaying TV
images which reduces flickering and sharpens
the image. To use this method, you need to
connect to a TV that accepts progressive signals.
27GB
Getting Started
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
To select the type of video signal
output from the HDMI OUT jack
Getting Started
1
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [VIDEO SETUP],
then press
.
The options for [VIDEO SETUP] appear.
6
7
Press X/x to select [PROGRESSIVE
(COMPONENT OUT)], then press
.
Press X/x to select the desired setting,
then press
.
• [OFF]: The system does not output
progressive signals. Select this setting
when:
– your TV does not accept progressive
signals, or,
– your TV is connected to jacks other
than the VIDEO OUT
(COMPONENT) jacks.
• [ON]: The system outputs progressive
signals. Select this setting when:
– your TV accepts progressive signals,
and,
– the TV is connected to the VIDEO
OUT (COMPONENT) jacks.
When you select [ON], the confirmation
display appears. Follow the Steps below.
8
Press C/c to select [START], then
press
.
The system outputs the progressive signal
for 5 seconds. Check that the screen is
displayed correctly.
9
Press C/c to select [YES], then press
.
28GB
The system outputs the progressive signal.
When you select [NO], the system does not
output the progressive signal.
You can enjoy DVD, TV, or VCR sound, etc. by
changing the sound source.
Note
• When you use both the TV (AUDIO IN) jacks
(analog connection) and TV (DIGITAL IN
OPTICAL) jack (digital connection) at the same time,
the digital connection takes priority.
• When you use both the SAT/CABLE (DIGITAL IN
COAXIAL) jack and SAT/CABLE (DIGITAL IN
OPTICAL) jack (digital connection) at the same time,
the DIGITAL IN COAXIAL connection takes
priority.
FUNCTION
Press FUNCTION repeatedly until the
desired function appears in the front panel
display.
Each time you press FUNCTION, the function
changes as follows.
“DVD” t “FM” t “USB” t “TV”
t “SAT/CABLE” t “DMPORT” t …
Function
Source
“DVD”
Disc that is played by the
system
“FM”
FM radio (page 54)
“USB”
USB device (page 61)
“TV”
TV
“SAT/CABLE”
Component that is
connected to the SAT/
CABLE jacks on the
control unit
“DMPORT”
DIGITAL MEDIA PORT
adapter (page 73)
29GB
Getting Started
Step 4: Changing the
Sound Source
3
Press "/1.
The system turns on.
Unless the system is set to “DVD,” press
FUNCTION to select “DVD.”
“No Disc” appears in the front panel display
and the system is ready for loading the disc.
Disc
Playing a Disc
4
Load a disc.
Push the disc into the disc slot until the disc
is pulled in automatically.
Depending on the DVD VIDEO or VIDEO CD,
some operations may be different or restricted.
Refer to the operating instructions supplied with
your disc.
Labeled side facing
to the front
Disc slot
The disc is drawn into the control unit
automatically.
"/1
H
FUNCTION
Z
VOL +/–
"/1
Z
5
Press H.
The system starts playback (continuous
play).
6
FUNCTION
Press VOLUME +/– to adjust the
volume.
The volume level appears on the TV screen
and in the front panel display.
Note
• When the system is turned off, do not push a disc into
the control unit.
• Depending on the system status, the volume level
may not appear on the TV screen.
/
X
MUTING
./>
To turn the system off
H
Press "/1 while the system is on. The system
enters standby mode.
/m/
M/
x
VOLUME
+/–
1
2
30GB
Turn on your TV.
Switch the input selector on the TV to
this system.
To save power in standby mode
Press "/1 while the system is on.
To enter power saving mode, make sure that the
system is in the following status.
– “DEMO” is set to “OFF” (page 25).
– [CONTROL FOR HDMI] is set to [OFF]
(page 58).
Other operations
To
To
Press
Stop
x
Briefly fast forward the
(instant advance)
current scene (30
during playback.
seconds after)8)
Pause
X
Go to the next chapter,
track, or scene1)
>
Go back to the
preceding chapter,
track, or scene1)
. twice in a second.
When you press . once,
you can go to the beginning
of the current chapter,
track, or scene.
Turn off the sound
temporarily
MUTING.
To cancel, press it again or
VOLUME + to adjust the
sound volume.
Stop play and remove
the desired disc
Z
Locate a point quickly
by playing a disc in fast
forward or fast reverse
(Scan)1)2)
M/
or
/m while
playing a disc. Each time
you press M/
or
/
m during scan, the
playback speed changes.
To return to normal speed,
press H. Actual speeds
may differ with some discs.
Watch frame by frame
(Slow-motion Play)3)
M/
or
/m4)
while the system is in pause
mode. Each time you press
M/
or
/m4)
during Slow-motion Play,
the playback speed
changes. Two speeds are
available. To return to
normal playback speed,
press H.
1)Except
for JPEG image files.
2)
Scan speeds may differ with some discs.
3)DVD
Disc
Resume play after pause X or H
Press
VIDEO, DVD-R, DVD-RW, VIDEO CD only.
4)Except
for VIDEO CDs.
5)
You cannot search for a still picture on a DVD-VR.
6)
For a DATA CD/DATA DVD, this function works
only for DivX video files.
7)
DVD VIDEO/DVD-RW/DVD-R only.
The button can be used except for DivX video files.
8)DVD
VIDEO/DVD-RW/DVD-R/DVD+RW/
DVD+R only.
The button can be used except for DivX video files.
Note
• You may not be able to use the instant replay or
instant advance function with some scenes.
to go to the next frame
Play one frame at a time
while the system is in pause
(Freeze Frame)3)5)6)
mode. Press
to go to
the preceding frame while
the system is in pause mode
(DVD VIDEO/DVD-VR/
DVD-R/DVD-RW/
DVD+R/DVD+RW only).
To return to normal
playback, press H.
Replay the previous
scene (10 seconds
before)7)
(instant replay) during
playback.
31GB
Displaying multi-angles and
subtitles
are recorded on the disc. You also may not be able to
turn them off.
• You can change the subtitles if the DivX video file
has an “.AVI” or “.DIVX” extension and contains
subtitle information within the same file.
Changing the sound
SUBTITLE
ANGLE
To change the angles
When the system is playing a DVD VIDEO or
DATA CD/DATA DVD (DivX video files)
recorded in multiple audio formats (PCM,
Dolby Digital, MPEG audio, or DTS), you can
change the audio format. If the DVD VIDEO is
recorded with multilingual tracks, you can also
change the language.
With a VIDEO CD, CD, DATA CD, or DATA
DVD, you can select the sound from the right or
left channel and listen to the sound of the
selected channel through both the right and left
speakers.
If various angles (multi-angles) for a scene are
recorded on a DVD VIDEO, you can change the
viewing angle.
Press ANGLE during playback to select the
desired angle.
Note
AUDIO
• Depending on the DVD VIDEO, you may not be able
to change the angle even if multi-angles are recorded
on the DVD VIDEO.
To display the subtitles
If subtitles are recorded on a disc, you can turn
the subtitles on/off during playback. If
multilingual subtitles are recorded on the disc,
you can change the subtitle language during
playback, or turn the subtitles on/off whenever
you want.
Press SUBTITLE during playback to select
the desired subtitle language.
Note
• Depending on the DVD VIDEO, you may not be able
to change the subtitles even if multilingual subtitles
32GB
Press AUDIO repeatedly during playback to
select the desired audio signal.
x DVD VIDEO
Depending on the DVD VIDEO, the choice of
language varies.
When 4 digits are displayed, they indicate a
language code. See “Language Code List”
(page 104) to confirm which language the code
represents. When the same language is
displayed two or more times, the DVD VIDEO
is recorded in multiple audio formats.
x DVD-VR
Note
• [2: MAIN], [2: SUB], and [2: MAIN+SUB] do not
appear when one audio stream is recorded on the disc.
If you press AUDIO repeatedly during
playback, the format of the current audio signal
(PCM, Dolby Digital, DTS, etc.) appears as
shown below.
x DVD
Example:
Dolby Digital 5.1 channel
x DATA CD (DivX video file) /DATA DVD
(DivX video file)
The choice of DATA CD or DATA DVD audio
signal formats differ, depending on the DivX
video file contained on the disc. The format is
shown in the display.
LFE (Low
Frequency Effect)
Surround (L/R)
x VIDEO CD/CD/DATA CD (MP3 file)/DATA
DVD (MP3 file)
• [STEREO]: The standard stereo sound.
• [1/L]: The sound of the left channel
(monaural).
• [2/R]: The sound of the right channel
(monaural).
Disc
The types of sound tracks recorded on a disc are
displayed.
Example:
• [1: MAIN] (main sound)
• [1: SUB] (sub sound)
• [1: MAIN+SUB] (main and sub sound)
• [2: MAIN]
• [2: SUB]
• [2: MAIN+SUB]
Checking the audio signal
format
1: ENGLISH
DOLBY DIGITAL 3 / 2 .1
Front (L/R) +
Center
Example:
Dolby Digital 3 channel
Surround
(Monaural)
Front (L/R)
1:SPANISH
DOLBY DIGITAL 2 / 1
x Super VCD
• [1:STEREO]: The stereo sound of the audio
track 1.
• [1:1/L]: The sound of the left channel of the
audio track 1 (monaural).
• [1:2/R]: The sound of the right channel of the
audio track 1 (monaural).
• [2:STEREO]: The stereo sound of the audio
track 2.
• [2:1/L]: The sound of the left channel of the
audio track 2 (monaural).
• [2:2/R]: The sound of the right channel of the
audio track 2 (monaural).
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
Example:
MP3 audio
1:MP3
128k
Bit rate
Note
• While the system is playing a Super VCD on which
the audio track 2 is not recorded, no sound will come
out when you select [2:STEREO], [2:1/L], or [2:2/R].
33GB
Playing a VIDEO CD with PBC
functions (Ver.2.0)
(PBC Playback)
With PBC (Playback Control) functions, you
can enjoy simple interactive operations, search
functions, and other such operations.
PBC playback allows you to play a VIDEO CD
interactively by following the menu on the TV
screen.
Tip
• To play without using the PBC function, press ./
> or the number buttons while the system is in stop
mode to select a track, then press H or
. The
system starts playback. You cannot play still pictures
such as a menu. To return to PBC playback, press x
twice, then press H.
Resuming playback from the
point where you stopped the
disc
(Resume Play)
Number
buttons
When you stop the disc, the system remembers
the point where you pressed x and “Resume”
appears in the front panel display. As long as
you do not remove the disc, Resume Play will
work even if the system is set to standby mode
by pressing "/1.
"/1
1
Start playing a VIDEO CD with PBC
functions.
The menu for your selection appears.
2
3
4
Select the item number you want using
the number buttons.
H
Press
.
x
Follow the instructions in the menu for
interactive operations.
Refer to the operating instructions supplied
with the disc, as the operating procedure
may differ depending on the VIDEO CD.
1
“Resume” appears in the front panel
display.
To go back to the menu
Press O RETURN.
Note
• Depending on the VIDEO CD, [Press ENTER] in
Step 3 may appear as [Press SELECT] in the
operating instructions supplied with the disc. In this
case, press H.
34GB
While playing a disc, press x to stop
playback.
2
Press H.
The system starts playback from the point
where you stopped the disc in Step 1.
Note
Using Play Mode
Creating your own program
Disc
• Depending on where you stop the disc, the system
may not resume playback from exactly the same
point.
• The point where you stopped playing may be cleared
when:
– you eject the disc.
– the system enters standby mode (DATA CD/
DATA DVD only).
– you change or reset the settings on the Setup
Display.
– you change the parental control level.
– you change the function by pressing FUNCTION.
– you disconnect the AC power cord (mains lead).
• For a DVD-VR, VIDEO CD, CD, DATA CD, or
DATA DVD, the system remembers the resume
playback point for the current disc.
• Resume Play does not work during Program Play and
Shuffle Play.
• This function may not work properly with some
discs.
(Program Play)
You can play the contents of a disc in the order
you want by arranging the order of the tracks on
the disc to create your own program. You can
program up to 99 tracks.
Tip
• To play from the beginning of the disc, press x twice,
then press H.
X/x/c,
To enjoy a disc that is played
before by resume playback
DISPLAY
H
(Multi-disc Resume)
This system recalls the point where you stopped
the disc the last time it was played and resumes
playback from that point the next time you insert
the same disc. When the resume playback
memory is full, the resume playback point for
the earliest disc is deleted.
To activate this function, set [MULTI-DISC
RESUME] in [SYSTEM SETUP] to [ON]. For
details, see “[MULTI-DISC RESUME] (DVD
VIDEO/VIDEO CD only)” (page 79).
1
Press
DISPLAY.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[PROGRAM],
The options for [PROGRAM] appear.
3
Press X/x to select [SET
press
.
t], then
Total time of the programmed tracks
Note
• This system can store at least 10 resume playback
points.
• If [MULTI-DISC RESUME] in [SYSTEM SETUP]
is set to [OFF] (page 79), the resume point is cleared
when you change the function by pressing
FUNCTION.
Tip
• To play from the beginning of the disc, press x twice,
then press H.
PROGRAM
ALL CLEAR
1. TRACK
2. TRACK
3. TRACK
4. TRACK
5. TRACK
6. TRACK
7. TRACK
0: 00:00
T
––
––
––
––
––
––
––
––
01
02
03
04
05
06
Tracks recorded on a disc
35GB
4
Press c.
To change or cancel a program
The cursor moves to the track row [T] (in
this case, [01]).
1
PROGRAM
ALL CLEAR
1. TRACK
2. TRACK
3. TRACK
4. TRACK
5. TRACK
6. TRACK
7. TRACK
5
0: 00:00
T
––
––
––
––
––
––
––
––
01
02
03
04
05
06
2
3
ALL CLEAR
1. TRACK
2. TRACK
3. TRACK
4. TRACK
5. TRACK
6. TRACK
7. TRACK
02
––
––
––
––
––
––
To cancel all of the tracks in the
programmed order
1
2
3
––
01
02
03
04
05
06
• When you press CLEAR to return to normal play,
Shuffle Play and Repeat Play are also canceled.
To program other tracks, repeat Steps
4 to 5.
The programmed tracks are displayed in the
selected order.
7
Press X and select [ALL CLEAR].
Press
.
Note
Playing in random order
(Shuffle Play)
Press H to start Program Play.
You can play the contents on a disc in random
order. Subsequent Shuffle Play may produce a
different playing order.
Program Play starts.
When the program ends, you can restart the
same program again by pressing H.
• Same song may be played repeatedly when you are
playing MP3 files.
To return to normal play
Press CLEAR while the display for the program
setting is not displayed on the TV screen, or
select [OFF] in Step 3. To play the same
program again, select [ON] in Step 3 and press
.
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
36GB
Follow Steps 1 to 3 of “Creating your
own program.”
0: 03:51
T
Total time of the programmed tracks
6
Follow Step 5 for new programming.
To cancel a program, select [--] under [T],
then press
.
Selected track
PROGRAM
Press X/x to select the program
number of the track you want to
change or cancel.
If you want to delete the track from the
program, press CLEAR.
Select the track you want to program.
For example, select track [02].
Press X/x to select [02] under [T], then
press .
Follow Steps 1 to 3 of “Creating your
own program.”
Note
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Note
X/x,
DISPLAY
Disc
• You cannot use Shuffle Play with a VIDEO CD or
Super VCD with PBC playback.
• When you press CLEAR to return to normal play,
Program Play and Repeat Play are also canceled.
Playing repeatedly
(Repeat Play)
1
Press
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
You can play the contents on a disc repeatedly.
You can use a combination of Shuffle Play or
Program Play modes.
[SHUFFLE],
The options for [SHUFFLE] appear.
3
REPEAT
Press X/x to select the item to be
shuffled.
x VIDEO CD/CD
• [OFF]: Off.
• [TRACK]: You can shuffle tracks on the
disc.
X/x,
x During Program Play
DISPLAY
• [OFF]: Off.
• [ON]: You can shuffle tracks selected in
Program Play.
x DATA CD (except for DivX video file)/
DATA DVD (except for DivX video file)
• [OFF]: Off.
• [ON (MUSIC)]: You can shuffle MP3
files in the folder on the current disc.
When no folder is selected, the first folder
will play in random order.
4
Press
1
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[REPEAT],
The options for [REPEAT] appear.
.
Shuffle Play starts.
Press
3
Press X/x to select the item to be
repeated.
x DVD VIDEO/DVD-VR
• [OFF]: Off.
• [DISC]: You can repeat all of the titles on
the disc.
37GB
• [TITLE]: You can repeat the current title
on a disc.
• [CHAPTER]: You can repeat the current
chapter.
Searching/Selecting a
Disc
x VIDEO CD/CD
• [OFF]: Off.
• [DISC]: You can repeats all of the tracks
on the disc.
• [TRACK]: You can repeat the current
track.
x DATA CD/DATA DVD
• [OFF]: Off.
• [DISC]: You can repeat all of the folders
on the disc.
• [FOLDER]: You can repeat the current
folder.
• [TRACK] (MP3 files only): You can
repeat the current file.
• [FILE] (DivX video files only): You can
repeat the current file.
Using the DVD’s menu
A DVD is divided into a lot of sections, which
make up a picture or music feature. These
sections are called “titles.” When you play a
DVD which contains several titles, you can
select the title you want using DVD TOP
MENU.
When you play a DVD that allows you to select
items such as the language for the subtitles and
the language for the sound, select these items
using DVD MENU.
x During Shuffle Play or Program Play
• [OFF]: Off
• [ON]: You can repeat Shuffle Play or
Program Play.
4
Press
.
The item is selected.
Number
buttons
DVD
TOP MENU
C/X/x/c,
DVD
MENU
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
1
Note
• You cannot use Repeat Play with a VIDEO CD or
Super VCD with PBC playback.
• When the system is playing a DATA CD/DATA
DVD which contains MP3 files and JPEG image
files, and their playing time is not the same, the audio
sound will not match the image.
• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]
(page 44), you cannot select [TRACK].
• When you press CLEAR to return to normal play,
Program Play and Shuffle Play are also canceled.
Tip
• You can quickly display the [REPEAT] status. Press
REPEAT on the remote.
38GB
Press DVD TOP MENU or DVD MENU.
The disc’s menu appears on the TV screen.
The contents of the menu vary depending
on the disc.
2
3
Press C/X/x/c or the number buttons to
select the item you want to play or
change.
Press
.
To display the DVD’s menu on the
Control Menu display
1
Press
3
4
Press X/x to select [MENU] or [TOP
MENU].
Press
Press X/x to select a setting.
• [PLAY LIST]: You can play the titles
created from [ORIGINAL] for editing.
• [ORIGINAL]: You can play the titles
originally recorded.
[DISC
.
The options for [DISC MENU] appear.
3
[ORIGINAL/
.
4
Press
Disc
Press X/x to select
MENU], then press
Press X/x to select
PLAY LIST], then press
The options for [ORIGINAL/PLAY LIST]
appear.
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
2
.
.
To turn off the Control Menu
display
Searching for a title/chapter/
track/scene, etc.
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Selecting [ORIGINAL] or [PLAY
LIST] on a DVD-VR
This function is only available for DVD-VRs
with a playlist created.
You can search a DVD VIDEO/DVD-VR by
title or chapter, and you can search a VIDEO
CD/CD/DATA CD/DATA DVD by track,
index, or scene. For a DATA CD/DATA DVD,
you can search by folder or file. As titles and
tracks are assigned unique numbers on the disc,
you can select the desired title or track by
entering its number. Or, you can search for a
scene using the time code.
Number
buttons
X/x,
X/x,
DISPLAY
DISPLAY
1
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
1
Press
DISPLAY. (When playing a
DATA CD/DATA DVD with JPEG image
files, press
DISPLAY twice.)
The Control Menu display appears on the
TV screen.
39GB
2
Press X/x to select the search method.
Example:
[CHAPTER]
[** (**)] is selected (** refers to a number).
The number in parentheses indicates the
total number of titles, chapters, tracks,
indexes, scenes, folders, or files.
98( 99)
13( 99)
T
0: 03: 17
DVD VIDEO
To search for a scene using the
time code
1
2
Press
.
[T **:**:**] changes to [T --:--:--].
Input the time code using the number
buttons.
For example, to find the scene at 2 hours, 10
minutes, and 20 seconds after the
beginning. Press 2, 1, 0, 2, 0 ([2:10:20]).
Selected row
Press
[TIME].
[T **:**:**] (playing time of the current
title) is selected.
3
3
In Step 2, select
.
[** (**)] changes to [– – (**)].
4
Press
.
Note
98( 99)
13( 99)
T
0: 03: 17
4
DVD VIDEO
Press X/x or the number buttons to
select the desired number of the title,
chapter, track, index, scene, etc.
If you make a mistake, press CLEAR to
cancel the number.
5
Press
.
The system starts playback from the
selected number.
Tip
• When the Control Menu display is turned off, you can
search for a chapter (DVD VIDEO/DVD-R/DVDRW), track (VIDEO CD/CD), or file (DATA CD/
DATA DVD (DivX video file)) by pressing the
number buttons and
.
40GB
• You cannot search for a scene on a DVD+RW using
the time code.
Playing MP3 Files/JPEG
Image Files
Selecting an MP3 file or folder
Disc
You can play the MP3 files or JPEG image files:
• which have the extension “.MP3” (MP3 file)
or “.JPG”/“.JPEG” (JPEG image file)
• which conform to the DCF* image file format
* “Design rule for Camera File system”: Image
standards for digital cameras regulated by Japan
Electronics and Information Technology Industries
Association (JEITA).
DVD
MENU
X/x,
Note
• The system will play any data with the extension
“.MP3,” “.JPG,” or “.JPEG” even if they are not in
MP3 or JPEG format. Playing these data may
generate a loud noise which could damage your
speaker system.
• The system does not conform to audio in MP3PRO
format.
• The system can recognize up to 200 folders, and will
not play any folders beyond the 200th. (Depending on
the folder configuration, the number of folders that
can be recognized by the system may decrease.)
• The system can recognize up to 150 MP3 files/JPEG
image files in a folder.
• The system may take longer time to playback, when
progressing to the following folder or jump to other
folder.
• The system may not play certain types of JPEG image
files (ex. a JPEG image file that is less than 8 (width)
× 8 (height)).
H
1
2
Load a DATA CD or DATA DVD.
Press DVD MENU.
The folders recorded on the DATA CD or
DATA DVD appear. When a folder is being
played, its title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
3
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
Press X/x to select a folder.
x To play MP3 files in a folder
Press H to start playing the selected
folder.
x To select an MP3 file
Press
.
The list of files contained in the folder
appears.
41GB
TRACK LIST
03 In the Middle of Nowher...
01_Geronimo_s_Cadillac
02_Riding_On_A_White_Swan
03_Give_Me_Peace_On_Earth
04_Sweet_Little_Shella
05_Ten_Thousand_Lonely_Drums
06_Lonely_Tears_In_Chinatown
07_In_Shaire
Press X/x to select a file and press
.
The system starts playing the selected file.
You can turn the file list off by pressing
DVD MENU. Pressing DVD MENU again
will display the folder list.
Selecting a JPEG image file or
folder
NAVI
DVD
MENU
C/X/x/c,
To stop playback
Press x.
O RETURN
H
To play the next or previous MP3
file
Press > to play the next MP3 file. Press .
twice to play the previous MP3 file. When you
press . once, you can go to the beginning of
the current MP3 file. Note that you can select the
next folder by continuing to press > after the
last file on the current folder, but that you cannot
return to the previous folder by pressing ..
To return to the previous folder, select the folder
from the folder list.
1
2
Load a DATA CD or DATA DVD.
Press DVD MENU.
The folders recorded on the DATA CD or
DATA DVD appear. When a folder is being
played, its title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
To return to the previous display
Press O RETURN.
To turn off the display
Press DVD MENU.
3
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
Press X/x to select a folder.
x To play JPEG image files in a folder
Press H to start playing the selected
folder.
x To select a JPEG image file by
displaying the subscreens
Press PICTURE NAVI.
Images of JPEG image files in the folder
appear in 16 subscreens.
42GB
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Displaying the list of MP3
files/JPEG image files
Disc
1
Press C/X/x/c to select the JPEG image
file you want to view, then press
.
To return to normal screen, press O
RETURN.
X/x,
Note
• PICTURE NAVI does not work when you set
[MODE (MUSIC, IMAGE)] to [MUSIC].
DISPLAY
Tip
• A scroll box is displayed at the right side of the
TV screen. To display the additional JPEG
image files, select the bottom JPEG image file
and press x. To return to the previous JPEG
image file, select the top JPEG image file and
press X.
To play the next or previous JPEG
image file
Press c/C when the Control Menu display is not
displayed. Note that you can select the next
folder by continuing to press c after the last
image on the current folder, but that you cannot
return to the previous folder by pressing C. To
return to the previous folder, select the folder
from the folder list.
To rotate a JPEG image file
When a JPEG image file is displayed on the TV
screen, you can rotate the JPEG image file by 90
degrees.
Press X/x while viewing a JPEG image file.
Press CLEAR to return to normal view.
Note
• You cannot rotate the JPEG image file when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD] (page 78).
1
Press
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
[BROWSING], then press
.
The options for [BROWSING] appear.
3
Press X/x to select the desired list,
then press
.
• [FOLDER LIST]: The list of folders
appears. Follow Step 3 of “Selecting an
MP3 file or folder” or “Selecting a JPEG
image file or folder.”
• [PICTURE LIST]: Images of JPEG image
files in the folder appear in 16 subscreens.
Follow Step 3 of “Selecting a JPEG image
file or folder.”
If there is no JPEG image file in the
selected folder, [No image data] appears.
In this case, select [FOLDER LIST] to
display the list of folders.
To stop playback
Press x.
43GB
Playing MP3 files and JPEG
image files as a slide show
with sound
You can play a slide show with sound by first
placing both MP3 files and JPEG image files in
the same folder on a DATA CD or DATA DVD.
DVD MENU
8
9
Note
• PICTURE NAVI does not work when [MUSIC] is
selected.
• If you play large MP3 file and JPEG image file at the
same time, the sound may skip. Sony recommends
that you set the MP3 bit rate to 128 kbps or lower
when creating the file. If the sound still skips, reduce
the size of the JPEG image file.
To select the slide show duration
of JPEG image files
Press
DISPLAY twice.
The Control Menu display appears on the
TV screen.
DISPLAY
H
Press H.
The system starts playing the selected
folder.
You can turn the folder list on/off by
pressing DVD MENU repeatedly.
1
X/x,
Press X/x to select the desired folder.
2
x
Press X/x to select
then press
.
[INTERVAL],
The options for [INTERVAL] appear.
1
2
3
Load a DATA CD or DATA DVD.
3
• [NORMAL]: You can set to the standard
duration.
• [FAST]: You can set the duration shorter
than [NORMAL].
• [SLOW 1]: You can set the duration
longer than [NORMAL].
• [SLOW 2]: You can set the duration
longer than [SLOW 1].
Press x.
Press
DISPLAY.
The Control Menu display appears on the
TV screen.
4
Press X/x to select
[MODE
(MUSIC, IMAGE)], then press
.
The options for [MODE (MUSIC,
IMAGE)] appear.
5
6
7
4
Press
.
Press X/x to select a setting.
Note
• [AUTO]: You can play both the JPEG
image files and MP3 files in the same
folder as a slide show.
• [MUSIC]: You can play only MP3 files
continuously.
• [IMAGE]: You can play only JPEG
image files as a slide show.
• Some JPEG image files may take longer to display
than the option you selected. Especially progressive
JPEG image files or JPEG image files of 3,000,000
pixels or more.
• Duration of interval depends on the [JPEG
RESOLUTION] setting in [HDMI SETUP]
(page 78).
Press
.
Press DVD MENU.
The list of folders recorded on the DATA
CD or DATA DVD appears.
44GB
Press X/x to select a setting.
To select an effect for JPEG
image files in the slide show
1
Press
Enjoying DivX® Videos
DISPLAY twice.
2
Press X/x to select
then press
.
[EFFECT],
The options for [EFFECT] appear.
3
Press X/x to select a setting.
• [MODE 1]: The JPEG image file sweeps
in from top to bottom.
• [MODE 2]: The JPEG image file stretches
out from left to right of the TV screen.
• [MODE 3]: The JPEG image file stretches
out from the center of the TV screen.
• [MODE 4]: The JPEG image files
randomly cycle through the effects.
• [MODE 5]: The next JPEG image file
slides over the previous image.
• [OFF]: Off.
4
Press
.
Note
• The [EFFECT] setting is not effective when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD] (page 78).
About DivX video files
Disc
The Control Menu display appears on the
TV screen.
DivX® is a video file compression technology,
developed by DivX, Inc. This product is an
official DivX® Certified product.
You can play a DATA CD or DATA DVD that
contains DivX® video files.
A DATA CD or DATA DVD that the
system can play
Playback of a DATA CD (CD-ROM/CD-R/CDRW) or DATA DVD (DVD-ROM/DVD-R/
DVD-RW/DVD+R/DVD+RW) on this system
is subject to certain conditions:
– With a DATA CD/DATA DVD that contains
DivX video files in addition to MP3 audio
tracks or JPEG image files, the system plays
only the DivX video files.
However, this system only plays a DATA CD of
format ISO 9660 Level 1/Level 2 or Joliet, and a
DATA DVD of Universal Disk Format (UDF).
Refer to the operating instructions supplied with
the disc drives and the recording software (not
supplied) for details on the recording format.
About playback order of data on a
DATA CD or DATA DVD
Note that the playback order may not be
applicable, depending on the software used for
creating the DivX video file, or if there are more
than 200 folders and 150 DivX video files in
each folder.
Note
• The system may not be able to play some DATA
CDs/DATA DVDs created in the Packet Write
format.
DivX video files that the system
can play
The system can play data that is recorded in
DivX format, and which has the extension
“.AVI,” or “.DIVX.” The system will not play
45GB
files with the extension “.AVI” or “.DIVX” if
they do not contain a DivX video.
FOLDER LIST
SUMMER 2003
NEW YEAR'S DAY
MY FAVOURITES
Tip
• For details about playable MP3 audio tracks or JPEG
image files on a DATA CD or DATA DVD, see
“Playable Discs” (page 5).
Note
• The system may not play a DivX video file when the
file has been combined from two or more DivX video
files.
• The system cannot play a DivX video file of size
more than 720 (width) × 576 (height) or 2GB.
• Depending on the DivX video file, sound may skip or
not match the pictures on the TV screen.
• The system cannot play some DivX video files that
are longer than 3 hours.
• Depending on the DivX video file, the picture may
pause or be unclear. In which case, it is recommended
that you create the file at a lower bit rate. If the sound
is still noisy, MP3 is the recommended audio format.
Note, however, this system does not conform to
WMA (Windows Media Audio) format for playing
DivX files.
• Because of the compression technology used for
DivX video files, it may take some time after you
press H for the picture to appear.
2
3
Press X/x to select the folder you want
to play.
Press H.
The system starts playing the selected
folder.
To select DivX video files, see “Selecting a
DivX video file” (page 46).
To go to the next or previous
page
Press
/
.
To turn off the display
Press DVD MENU repeatedly.
To stop playback
Press x.
Selecting a folder
Selecting a DivX video file
DVD MENU
X/x
DVD MENU
X/x,
H
1
Press DVD MENU.
A list of folders on the disc appears. Only
folders that contain DivX video files are
listed.
46GB
1
After Step 2 of “Selecting a folder,”
press
.
The list of files in the folder appears.
Restricting Playback of
the Disc
FILE LIST
MY FAVOURITES
HAWAII 2004
VENUS
2
Press X/x to select a file and press
.
The selected file starts playing.
To go to the next or previous
page
Press
/
.
To return to the previous display
Disc
[PARENTAL CONTROL]
Playback of some DVD VIDEOs can be limited
according to a predetermined level such as the
age of the users. Scenes may be blocked or
replaced with different scenes.
You can set the playback restriction by
registering a password. When you set the
[PARENTAL CONTROL] function to on, you
need to enter the password to play restricted
discs.
Press O RETURN.
To stop playback
FUNCTION
Press x.
Number
button
To play the next or previous DivX
video file without turning on the
above file list
You can select the next or previous DivX video
file in the same folder by pressing >/..
You can also select the first file of the next
folder by pressing > during playback of the
last file of the current folder. Note that you
cannot return to the previous folder by pressing
.. To return to the previous folder, select it
from the folder list.
Tip
• If the number of viewing times is preset, you can play
the DivX video files as many times as the preset
number. The following occurrences are counted:
– when the system is turned off.
– when another file is played.
– when the disc is ejected.
X/x,
DISPLAY
1
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
47GB
5
6
Press X/x to select [SYSTEM SETUP],
then press
.
“Parental Control Area Code List”
(page 104) using the number buttons.
The options for [SYSTEM SETUP] appear.
10 Press X/x to select [LEVEL], then press
.
Press X/x to select [PARENTAL
CONTROL t], then press
.
x If you have not entered a password
The display for registering a new password
appears.
The selection items for [LEVEL] are
displayed.
11 Press X/x to select the desired level,
then press
.
[PARENTAL CONTROL] setting is
complete.
The lower the value, the stricter the
limitation.
PARENTAL CONTROL
Enter a new 4-digit password,
then press ENTER .
To turn off the [PARENTAL
CONTROL] function
Set [LEVEL] to [OFF] in Step 11.
Enter a 4-digit password using the number
buttons, then press .
The display for confirming the password
appears.
To play a disc for which
[PARENTAL CONTROL] is set
1
The display for entering the password
appears.
7
Enter or re-enter your 4-digit password
using the number buttons, then press
.
The display for setting the playback
limitation level appears.
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD:
OFF
USA
Load the disc and press H.
The display for entering your password
appears.
x When you have already registered a
password
2
Enter your 4-digit password using the
number buttons, then press
.
The system starts playback.
Note
• When you play discs which do not have the
[PARENTAL CONTROL] function, playback
cannot be limited on this system.
• Depending on the disc, you may be asked to change
the parental control level while playing the disc. In
this case, enter your password, then change the level.
If the Resume Play mode is canceled, the level returns
to the previous level.
Tip
8
Press X/x to select [STANDARD], then
press
.
The selection items for [STANDARD] are
displayed.
9
Press X/x to select a geographic area
as the playback limitation level, then
press
.
The area is selected.
When you select [OTHERS t], select and
enter a standard code in the table of
48GB
• If you forget your password, remove the disc and
repeat Steps 1 to 7 of “Restricting Playback of the
Disc” (page 47). When you are asked to enter your
password, enter “199703” using the number buttons,
then press . The display will ask you to enter a new
4-digit password. After you enter a new 4-digit
password, replace the disc in the control unit and
press H. When the display for entering your
password appears, enter your new password.
10 Enter a new 4-digit password using the
Changing the password
number buttons, then press
.
11 To confirm your password, re-enter it
Number
button
If you make a mistake entering
your password
Press C before you press
correct number.
Disc
FUNCTION
using the number buttons, then press
.
, then input the
X/x,
DISPLAY
1
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [SYSTEM SETUP],
then press
.
The options for [SYSTEM SETUP] appear.
6
Press X/x to select [PARENTAL
CONTROL t], then press
.
The display for entering the password
appears.
7
8
9
Enter your 4-digit password using the
number buttons, then press
.
Press X/x to select [CHANGE
PASSWORD t], then press
.
Enter your 4-digit password using the
number buttons, then press
.
49GB
Sound Adjustment
Enjoying Surround Sound by Using Decoding Mode
You can enjoy surround sound simply by selecting one of the system’s pre-programmed decoding
modes. They bring exciting and powerful sound of movie theaters into your home.
X/x/c,
SYSTEM
MENU
1
2
3
50GB
Press SYSTEM MENU.
Press X/x repeatedly until “DEC. MODE” appears in the front panel display, then press
or c.
Press X/x repeatedly until the decoding mode you want appears in the front panel
display.
Display
Decoding mode
“AUTO”
2 CHANNEL
Selects the decoding mode automatically depending on the disc
STEREO, WIDE
or the function selected.
STAGE and
• “2CH STEREO”: Outputs 2 channel sound regardless of the
PORTABLE AUDIO audio signal type being input when an audio disc (e.g., CD,
automatically
DATA-CD (MP3), etc.) is played, or when the function is set
switchable
to “FM.” The AUTO indicator on the front panel lights up.
• “WIDE STAGE”: Produces a surround sound image with two
front speakers and a subwoofer when an image disc (e.g.,
DVD, VCD, etc.) is played, or when the function is set to “TV”
or “SAT/CABLE.” The AUTO and WIDE STAGE indicators
on the front panel light up.
• “PORTABLE AUDIO”: Produces a clear enhanced sound
image from your portable audio device when the function is set
to “USB” or “DMPORT.” The AUTO indicator on the front
panel lights up.
Effect
“2CH STEREO”
2 CHANNEL
STEREO
Outputs 2 channel sound regardless of the audio signal type
being input. “2CH STEREO” is applied to the “TV” and “SAT/
CABLE” functions by default.
4
Press
.
The selected decoding mode is applied.
5
Press SYSTEM MENU.
The system menu turns off.
To turn the surround effect off
Note
• The surround effect might be difficult to hear depending on the type of source signals (e.g., digital stereo signals,
digital multi signals, etc.) except for DVD multi-channel signals.
• You cannot select the decoding mode when the control unit is reading the files in the USB device or transferring
songs.
• Depending on the input stream, the decoding mode may not be effective.
• The surround effect is canceled when the sound mode is set to “SPORTS.”
Sound Adjustment
Select “2CH STEREO” for “DEC. MODE” and set the sound mode (page 52) to “MOVIE” or
“MUSIC.”
Tip
• The system memorizes the last decoding mode selected for each function mode.
Whenever you select a function such as “DVD” or “FM,” the decoding mode that was last applied to the function
is automatically applied again when it is returned to. For example, if you listen to “DVD” with “AUTO” as the
decoding mode, then change to another function, and then return to “DVD,” “AUTO” will be applied again.
51GB
Selecting the Sound
Mode
You can select a suitable sound mode for various
sources such as movies or music.
Adjusting the Bass and Treble
Level
You can adjust the bass and treble level easily.
TONE
X/x,
SOUND
MODE +/–
1
Press SOUND MODE +/– repeatedly during
playback until the desired mode appears in
the front panel display.
• “AUTO”: The system selects “MOVIE” or
“MUSIC” automatically to produce the sound
effect depending on the disc or sound stream.
• “MOVIE”: The system provides the sound for
movies.
• “MUSIC”: The system provides the sound for
music.
• “SPORTS”: The system adds reverberation for
the sports program.
• “NEWS”: The system provides the sound for
the voice program, such as news.
Note
• Depending on the disc or source, when you select
“AUTO,” the beginning of the sound may be cut off
as the system selects the optimum mode
automatically. To avoid cutting the sound, select
other than “AUTO.”
• Depending on the input stream, the sound mode may
not be effective.
Tip
• The system memorizes the last sound mode selected
for each function mode.
52GB
Press TONE repeatedly until “BASS”
or “TREBLE” appears in the front panel
display.
• “BASS”: adjusts the bass level (-6.0 +6.0, 0.5 increments).
• “TREBLE”: adjusts the treble level (-6.0 +6.0, 0.5 increments).
2
Press X/x to adjust.
The adjusted value appears in the front
panel display.
3
Press
.
Note
Depending on the sound mode, the sound effect may be
less noticeable.
Enjoying Multiplex
Broadcast Sound
(DUAL MONO)
Note
• To receive the Dolby Digital signal, you need to
connect a TV or other component to the control unit
with an optical or coaxial digital cord (page 19) and
set the digital output mode of the TV or other
component to Dolby Digital.
Sound Adjustment
You can enjoy multiplex broadcast sound when
the system receives or plays the Dolby Digital
multiplex broadcast signal.
AUDIO
Press AUDIO repeatedly until the desired
signal appears in the front panel display.
• “MAIN”: Sound of the main language will be
output.
• “SUB”: Sound of the sub language will be
output.
• “MAIN+SUB”: Mixed sound of both the main
and sub languages will be output.
53GB
4
Tuner
5
Press X/x repeatedly until “MEMORY”
appears in the front panel display.
or c.
Press
A preset number appears in the front panel
display.
Presetting Radio
Stations
TUNED
You can preset 20 FM stations. Before tuning,
make sure to turn down the volume to minimum.
6
STEREO
Press X/x to select the preset number
you want.
Tip
• You can operate the tuner function by observing the
following display on the TV screen.
TUNED
Current station
STEREO
Tip
• You can select the preset number directly by
pressing the number buttons.
Current band and preset number
7
FM
Press
.
“COMPLETE” appears in the front panel
display, and the station is stored.
FM 10 : 88.00 MHz
SONY RADIO
8
Station name
9
Repeat Steps 2 to 7 to store other
stations.
Press SYSTEM MENU.
The system menu turns off.
FUNCTION
To change the preset number
Select the desired preset number by pressing
PRESET +/– (page 55), then perform the
procedure from Step 3.
X/x/c,
SYSTEM
MENU
TUNING
+/–
1
2
Press FUNCTION repeatedly until “FM”
appears in the front panel display.
Press and hold TUNING +/– until the
auto scanning starts.
Scanning stops when the system tunes in a
station. “TUNED” and “STEREO” (for
stereo program) appear in the front panel
display.
3
54GB
Press SYSTEM MENU.
Listening to the Radio
Preset radio stations in the system’s memory
first (see “Presetting Radio Stations” (page 54)).
FUNCTION
To listen to radio stations when
you know the frequencies
1
2
3
4
Press FUNCTION repeatedly until “FM”
appears in the front panel display.
Press D.TUNING.
Press the number buttons to select the
frequencies.
Press
.
X/x/c,
VOLUME
+/–
1
SYSTEM
MENU
PRESET
+/–
TUNING
+/–
x
• To improve reception, reorient the connected
antennas (aerials).
Tuner
Tip
D.TUNING
If an FM program is noisy
If an FM program is noisy, you can select
monaural reception. There will be no stereo
effect, but reception will improve.
1
2
Press SYSTEM MENU.
Press X/x repeatedly until “FM MODE”
appears in the front panel display.
Press FUNCTION repeatedly until “FM”
appears in the front panel display.
TUNED
STEREO
The last received station is tuned in.
2
Press PRESET +/– repeatedly to select
the preset station.
3
4
Each time you press the button, the system
tunes in one preset station.
Tip
• You can select the preset station number directly
by pressing the number buttons.
3
Adjust the volume by pressing
VOLUME +/–.
or c.
Press
Press X/x to select “MONO.”
• “STEREO”: Stereo reception.
• “MONO”: Monaural reception.
5
Press
.
The setting is made.
6
Press SYSTEM MENU.
The system menu turns off.
To turn off the radio
Press "/1.
To listen to non-preset radio
stations
Use manual or automatic tuning in Step 2.
For manual tuning, press TUNING +/–
repeatedly.
For automatic tuning, press and hold TUNING
+/–. The automatic tuning stops automatically
when the system receives the radio station. To
stop the automatic tuning manually, press
TUNING +/– or x.
55GB
If you make a mistake
Naming preset stations
You can enter a name for preset stations. These
names (for example, “XYZ”) appear in the front
panel display when a station is selected.
Only one name can be entered for each preset
station.
Press C/c repeatedly until the character to
be changed flashes, then press X/x to select
the desired character.
To erase the character, press C/c
repeatedly until the character to be erased
flashes, then press CLEAR.
7
Press
.
“COMPLETE” appears in the front panel
display, and the station name is stored.
FUNCTION
8
Press SYSTEM MENU.
The system menu turns off.
C/X/x/c,
SYSTEM
MENU
PRESET
+/–
1
Viewing the station name or
frequency in the front panel
display
You can check the frequency using the front
panel display.
DISPLAY
Press FUNCTION repeatedly until “FM”
appears in the front panel display.
The last received station is tuned in.
2
3
4
Press PRESET +/– repeatedly to select
the preset station you want to create an
index name for.
Press SYSTEM MENU.
Press X/x repeatedly until “NAME IN”
appears in the front panel display.
TUNED
5
6
STEREO
or c.
Press
Press C/X/x/c to input the character.
Press X/x to select a character, then press c
to move the cursor to the next position.
TUNED
STEREO
You can input letters, numbers, and other
symbols for a radio station.
56GB
Press DISPLAY.
Each time you press DISPLAY, the front panel
display changes as shown.
1 Station name*
2 Frequency**
* This is displayed if you have entered a name for a
preset station.
** Returns to the original display when several seconds
have elapsed.
Using the Radio Data
System (RDS)
(European model only)
What is the Radio Data
System?
Tuner
The Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features, such as station name display.
RDS is available only for FM stations.*
Note
• RDS may not work properly if the station you are
tuned to is not transmitting the RDS signal properly,
or if the signal strength is weak.
* Not all FM stations provide RDS service, nor do
they provide the same type of services. If you are not
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name* appears in the front
panel display.
* If an RDS broadcast is not received, the station
name may not appear in the front panel display.
57GB
Note
Control for HDMI/External Audio
Device
Using the Control for
HDMI Function for
“BRAVIA” Sync
This function is available on TVs with the
“BRAVIA” Sync function only.
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cable (not supplied), operation is
simplified as below:
– Theater/Theatre Mode (page 59)
– One-Touch Play (page 59)
– System Power Off (page 60)
– System Audio Control (page 60)
– Volume Limit (page 60)
Control for HDMI is a mutual control function
standard used by CEC (Consumer Electronics
Control) for HDMI (High-Definition
Multimedia Interface).
The Control for HDMI function will not work in
the following cases:
– When you connect this system to a
component which is not compatible with the
Control for HDMI function.
– A component does not have an HDMI jack.
There are convenient buttons on the system’s
remote for operating the TV, such as
THEATER/THEATRE, ONE-TOUCH PLAY,
TV [/1. For details, see “Controlling the TV
with the Supplied Remote” (page 86) and refer
to the operating instructions of the TV.
ONE-TOUCH
THEATRE PLAY TV
BRAVIA Sync
58GB
• Depending on the connected component, the Control
for HDMI function may not work. Refer to the
operating instructions supplied with the component.
• The Control for HDMI function may not work if you
connect a component other than Sony, even if the
component is compatible with the Control for HDMI
function.
Preparing for the Control for
HDMI function
(Control for HDMI - Easy Setting)
The system is compatible with the Control for
HDMI - Easy Setting function. If the TV is
compatible with the Control for HDMI - Easy
Setting function, you can set the system’s
[CONTROL FOR HDMI] function
automatically by setting the TV. For details,
refer to the operating instructions of the TV.
If the TV is not compatible with the Control for
HDMI - Easy Setting function, set the Control
for HDMI function of the system and TV
manually.
Note
• Displayed items vary depending on the country
model.
1
2
3
4
Make sure that the system and the TV
are connected with an HDMI cable.
Turn on the TV and press [/1 to turn on
the system.
Switch the input selector on your TV so
that the signal from the system through
the HDMI input appears on the TV
screen.
Set the Control for HDMI function of the
system and TV.
For details of the setting of the system, see
the following Steps. For details of the
setting of the TV, refer to the operating
instructions of the TV (depending on the
TV, the default setting of the Control for
HDMI function is set to off).
To set the [CONTROL FOR HDMI]
function to on/off
FUNCTION
Using the Theater/Theatre
Mode
(Theater/Theatre Mode)
If your TV is compatible with the Theater/
Theatre Mode, you can enjoy optimal image
suited for movies and the sound is output from
the system’s speaker automatically by pressing
THEATER/THEATRE.
X/x,
1
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [HDMI SETUP], then
press
.
The options for [HDMI SETUP] appear.
6
7
Press X/x to select [CONTROL FOR
HDMI], then press
.
Press X/x to select the setting, then
press
.
• [OFF]: Off.
• [ON]: On.
Watching DVD by a single
button press
(One-Touch Play)
By only pressing ONE-TOUCH PLAY, the TV
turns on, the TV is set for DVD input mode, and
the system starts playing a disc automatically.
Note
• One-Touch Play does not work when you press H.
The system and TV work as follows (e.g.):
This system
TV
Turns on. (If not already
turned on.)
r
Switches to “DVD”
function.
r
Starts playing the disc and
outputs the sound.
Turns on. (If not already
turned on.)
r
Switches to HDMI input.
r
Minimizes sound level.
(System Audio Control)
Control for HDMI/External Audio Device
DISPLAY
Note
• Make sure the HDMI connection is correct, and set
the [CONTROL FOR HDMI] to [ON].
• Depending on the TV, the beginning of the content
may not be played back.
• Depending on the disc, playback may take a while to
start.
Note
• When [Please verify the HDMI connection.] appears,
make sure the HDMI connection is correct.
59GB
Turning the system off in sync
with the TV
(System Power Off)
When you turn the TV off by using the POWER
button on the TV’s remote or TV [/1 on the
system’s remote, the system turns off
automatically.
Note
• Before using the System Power Off function, set the
function for TV power. For details, refer to the
operating instructions of the TV.
• Depending on the status of the system (ex. while
other than “DVD” or “TV” function, or playing a
CD), the system may not turn off automatically.
Note
• If the TV is turned on before turning on the system,
TV sound will not be output for a moment.
• While the TV is in PAP (picture and picture) mode,
the System Audio Control function will not work.
When the TV exits PAP mode, the output method of
the TV returns to the one before PAP mode.
• If you select a TV program during DVD playback
with the system, the “TV” function is automatically
set to output TV sound.
• When you activate One-Touch Play during watching
TV, the System Audio Control function is activated
and the TV sound is muted.
• While transferring songs on an audio CD into a USB
device, the System Audio Control function will not
work.
Tip
• You can connect the system and the TV audio
digitally. For details, see page 20.
Enjoying TV sound from the
speakers in this system
(System Audio Control)
You can enjoy TV sound in this system by easy
operation.
To use this function, connect the system and the
TV with an audio cord (not supplied) and an
HDMI cable (not supplied) (page 19).
Depending on the TV, when you set the system
to the “TV” function, the System Audio Control
function is activated. TV sound is output from
the system speakers, and the volume of the TV
speakers is minimized automatically.
You can use the System Audio Control function
as follows:
• While you are watching the TV and the
function of the system is switched to “TV,” TV
sound is output from the system speakers
automatically.
• You can control the system’s volume by the
remote of the TV.
• If you turn the system off or set the function of
the system to other than “TV,” TV sound is
output from the TV speakers.
You can also operate the System Audio Control
function from the TV menu. For details, refer to
the operating instructions of the TV.
60GB
Setting the Maximum Volume
Level of the System
(Volume Limit)
If you change the output method of the TV to the
system speaker on the TV menu or by pressing
THEATER/THEATRE, loud sound may be
output depending on the volume level of the
system. You can prevent this by limiting the
maximum level of the volume. For details, see
“[VOLUME LIMIT]” (page 77).
Playing Back Audio
Files/JPEG Image Files
of a USB Device
FUNCTION
* Files with copyright protection (Digital Rights
Management) cannot be played by the system.
1
Note
• The system cannot play WMA/AAC files on a DATA
CD/DATA DVD.
2
About playable USB devices
• Do not use USB devices other than those listed
in “Playable USB Devices” (supplement).
However, some USB devices listed may not
work properly due to specification changes.
Operation of models not listed (supplement) is
not guaranteed.
• Some of these USB devices may not be
available for purchase in certain areas.
• When formatting a USB device, be sure to do
so using the device itself, or dedicated
formatting software for the device. Otherwise,
you may be unable to properly transfer from
the USB device to this system.
Connecting the USB device
Left side of the control unit
USB device
Press FUNCTION repeatedly until
“USB” appears in the front panel
display.
Connect a USB device to the
(USB) port.
When you connect the USB device,
“Reading” and the animated characters
appear in the front panel display until the
system reads all data of the USB device.
Note
• When you connect the USB device, make sure that
the direction of the jack is correct.
• Do not forcibly insert the USB device, as this may
cause the device to be damaged.
• Do not connect other device or objects besides the
USB device.
Control for HDMI/External Audio Device
You can play audio files (MP3/WMA/AAC
files)/JPEG image files transferred in a USB
device (not supplied) by connecting the USB
device to the control unit.
For a list of USB devices that can be connected
to the control unit, see “Playable USB Devices”
(supplement).
The audio format that can be played back by the
system is MP3/WMA/AAC files* only.
To remove the USB device
1
2
3
Press x to stop playback.
Press [/1 to turn off the system.
Confirm that the system is turned off,
then remove the USB device.
Notes on the USB device
• The system can play back up to 200 folders,
including albums that do not contain audio
files and JPEG image files. When more than
200 folders are in the USB device, folders that
are recognized by the system differ depending
on the folder configuration.
61GB
• The system can play back the following files.
File
•
•
•
•
•
•
•
•
•
•
•
•
62GB
Extension of the file
MP3 file
“.mp3”
WMA file
“.wma”
AAC file
“.m4a”
JPEG image file
“.jpg” or “.jpeg”
The system will play back any data with the
extension above, even if it is not MP3/WMA/
AAC/JPEG format. Playing this data may
generate a loud noise which could damage
your speaker system.
The following USB devices/situations can
increase the time it takes to start playback:
– a USB device transferred with a
complicated tree structure.
– when the audio files or JPEG image files in
another folder have just been played back.
– when there are many folders or files on the
USB device.
Some USB devices cannot be played back on
the system depending on the file format.
The system can play back to a depth of 8
folders only.
The system may not be able to play an audio
file depending on the kind of file.
Do not connect the system and the USB device
through a USB hub.
With some connected USB devices, after an
operation is performed, there may be a delay
before it is performed by this system.
This system does not necessarily support all
the functions provided in a connected USB
device.
Files transferred by a device such as a
computer may not be played back in the order
in which they were transferred.
The playback order for the system may differ
from the playback order of the connected USB
device.
Always turn off the system before removing
the USB device. Removing the USB device
while the system is on may corrupt the data on
the USB device.
Do not save other types of files or unnecessary
folders on a USB device that has audio files or
JPEG image files.
Folders that have no audio files or JPEG image
files are skipped.
• Compatibility with all MP3/WMA/AAC
encoding/writing softwares and USB devices
cannot be guaranteed. Incompatible USB
device may produce noise or interrupted audio
or may not play at all.
• Before using the USB device, make sure that
no virus-ridden files are on the USB device.
Selecting an audio file or
folder
FUNCTION
DVD
MENU
X/x,
DISPLAY
H
1
2
Press FUNCTION repeatedly until
“USB” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
[MODE
(MUSIC, IMAGE)], then press
.
The options for [MODE (MUSIC,
IMAGE)] appear.
4
5
6
Press X/x to select [MUSIC].
Press
.
Press DVD MENU.
The folders transferred on the USB device
appear. When a folder is being played, its
title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
7
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
Press X/x to select a folder.
x To play audio files in a folder
Press H to start playing the selected
folder.
Press
.
The list of files contained in the folder
appears.
Press > to play the next MP3 file. Press .
twice to play the previous MP3 file. When you
press . once, you can go to the beginning of
the current MP3 file. Note that you can select the
next folder by continuing to press > after the
last file on the current folder, but that you cannot
return to the previous folder by pressing ..
To return to the previous folder, select the folder
from the folder list.
To return to the previous display
Press O RETURN.
To turn off the display
Press DVD MENU.
Other operations
TRACK LIST
03 In the Middle of Nowher...
01_Geronimo_s_Cadillac
02_Riding_On_A_White_Swan
03_Give_Me_Peace_On_Earth
04_Sweet_Little_Shella
05_Ten_Thousand_Lonely_Drums
06_Lonely_Tears_In_Chinatown
07_In_Shaire
Press X/x to select a file and press
.
The system starts playing the selected file.
You can turn the file list off by pressing
DVD MENU. Pressing DVD MENU again
will display the folder list.
See “Other operations” (page 31).
Selecting a JPEG image file or
folder
FUNCTION
Control for HDMI/External Audio Device
x To select an audio file
To play the next or previous
audio file
NAVI
Tip
• The system can recognize up to 150 audio files in a
single folder.
• When listening to MP3 files or other compressed
music using a portable audio source, you can enhance
the sound. Select “AUTO” for “DEC. MODE”
(page 50) and set the sound mode (page 52) to
“MOVIE,” “MUSIC,” or “NEWS.” To cancel, select
“2CH STEREO.”
To stop playback
Press x.
C/X/x/c,
DVD
MENU
DISPLAY
H
1
2
Press FUNCTION repeatedly until
“USB” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
63GB
3
Press X/x to select
[MODE
(MUSIC, IMAGE)], then press
.
Tip
• A scroll box is displayed at the right side of the
TV screen. To display the additional JPEG
image files, select the bottom JPEG image file
and press x. To return to the previous JPEG
image file, select the top JPEG image file and
press X.
• The system can recognize up to 150 JPEG
image files in a single folder.
The options for [MODE (MUSIC,
IMAGE)] appear.
4
5
6
Press X/x to select [IMAGE].
Press
.
Press DVD MENU.
The folders transferred on the USB device
appear. When a folder is being played, its
title is shaded.
FOLDER LIST
01
02
03
04
05
06
07
08
Let's Talk About Love (1985)
1st Album (1986)
In the Middle of Nowhere (1986)
Ready for Romance (1986)
In the Garden of Venus (1987)
Romantic Warriors (1987)
Back for Good (1988)
Alone (1999)
To play the next or previous JPEG
image file
Press c/C when the Control Menu display is not
displayed. Note that you can select the next
folder by continuing to press c after the last
image on the current folder, but that you cannot
return to the previous folder by pressing C. To
return to the previous folder, select the folder
from the folder list.
To rotate a JPEG image file
7
Press X/x to select a folder.
x To play JPEG image files in a folder
as a slide show
Press H to start playing the selected
folder.
The JPEG images are played as a slide
show. You can change the interval of the
slide show (page 64), and add effects to the
slide show (page 65).
x To select a JPEG image file by
displaying the subscreens
Press PICTURE NAVI.
Images of JPEG image files in the folder
appear in 16 subscreens.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
When a JPEG image file is displayed on the TV
screen, you can rotate the JPEG image file by 90
degrees.
Press X/x while viewing a JPEG image file.
Press CLEAR to return to normal view.
Note
• You cannot rotate the JPEG image file when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD].
To stop playback
Press x.
Other operations
See “Other operations” (page 31).
To select the slide show duration
of JPEG image files
1
Press C/X/x/c to select the JPEG image
file you want to view, then press
.
To return to normal screen, press O
RETURN.
64GB
Press
DISPLAY twice.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[INTERVAL],
The options for [INTERVAL] appear.
3
Press X/x to select a setting.
• [NORMAL]: You can set to the standard
duration.
• [FAST]: You can set the duration shorter
than [NORMAL].
• [SLOW 1]: You can set the duration
longer than [NORMAL].
• [SLOW 2]: You can set the duration
longer than [SLOW 1].
4
Press
Displaying the list of audio
files/JPEG image files
.
Note
• Some JPEG image files may take longer to display
than the option you selected. Especially progressive
JPEG image files or JPEG image files of 3,000,000
pixels or more.
1
DISPLAY
Press
DISPLAY twice.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
[EFFECT],
1
The options for [EFFECT] appear.
3
4
Press
.
Note
• The [EFFECT] setting is not effective when you set
[JPEG RESOLUTION] in [HDMI SETUP] to [(1920
× 1080i) HD
] or [(1920 × 1080i) HD] (page 78).
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
Press X/x to select a setting.
• [MODE 1]: The JPEG image file sweeps
in from top to bottom.
• [MODE 2]: The JPEG image file stretches
out from left to right of the TV screen.
• [MODE 3]: The JPEG image file stretches
out from the center of the TV screen.
• [MODE 4]: The JPEG image files
randomly cycle through the effects.
• [MODE 5]: The next JPEG image file
slides over the previous image.
• [OFF]: Off.
Press
2
Press X/x to select
[BROWSING], then press
.
The options for [BROWSING] appear.
3
Press X/x to select the desired list,
then press
.
Control for HDMI/External Audio Device
X/x,
To select an effect for JPEG
image files in the slide show
• [FOLDER LIST]: The list of folders
appears. Follow Step 2 of “Selecting an
audio file or folder” or “Selecting a JPEG
image file or folder.”
• [PICTURE LIST]: Images of JPEG image
files in the folder appear in 16 subscreens.
Follow Step 2 of “Selecting a JPEG image
file or folder.”
If there is no JPEG image file in the
selected folder, [No image data] appears.
In this case, select [FOLDER LIST] to
display the list of folders.
Note
• When [MODE (MUSIC, IMAGE)] is set to
[MUSIC] (page 44), you cannot select
[PICTURE LIST].
65GB
Playing in random order
(Shuffle Play)
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
display
You can play the audio files on the USB device
in random order.
Note
• Same song may be played repeatedly when you are
playing audio files.
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Note
• When you press CLEAR to return to normal play and
Repeat Play are also canceled.
Playing repeatedly
(Repeat Play)
You can play the audio files/JPEG image files
on the USB device repeatedly.
You can use a combination of Shuffle Play
modes.
X/x,
DISPLAY
REPEAT
1
Press
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
Press X/x to select
then press
.
X/x,
[SHUFFLE],
DISPLAY
The options for [SHUFFLE] appear.
3
Press X/x to select the item to be
shuffled.
• [OFF]: Off.
• [ON (MUSIC)]: You can shuffle the
audio files in the folder on the USB
device. When no folder is selected, the
first folder will play in random order.
4
Press
1
DISPLAY during playback.
The Control Menu display appears on the
TV screen.
2
.
Shuffle Play starts.
Press
Press X/x to select
then press
.
[REPEAT],
The options for [REPEAT] appear.
3
Press X/x to select the item to be
repeated.
• [OFF]: Off.
• [MEMORY]: You can repeat all of the
folders on the USB device.
66GB
• [FOLDER]: You can repeat the current
folder.
• [TRACK] (audio files only): You can
repeat the current file.
4
Press
.
1
The Control Menu display appears on the
TV screen.
2
The item is selected.
Press
DISPLAY. (When playing a
JPEG image files, press
DISPLAY
twice.)
Press X/x to select the search method.
• [TRACK]: Audio files.
• [FILE]: JPEG image files.
• [FOLDER]: Folders.
To return to normal play
Press CLEAR, or select [OFF] in Step 3.
To turn off the Control Menu
display
Press
DISPLAY repeatedly until the Control
Menu display is turned off.
Note
• When [MODE (MUSIC, IMAGE)] is set to [IMAGE]
(page 63), you cannot select [TRACK].
T
1(
1)
1( 144)
0: 23
USB MUSIC
Tip
• You can quickly display the [REPEAT] status. Press
REPEAT on the remote.
Selected row
Searching for an audio file/
JPEG image file/folder
3
Press
.
[** (**)] changes to [– – (**)].
You can search a USB device by audio file,
JPEG image file, or folder. As audio files and
JPEG image files are assigned unique numbers
on the USB device, you can select the desired
audio file or JPEG image file by entering its
number.
1(
1)
1( 144)
T
1: 31
4
Number
buttons
USB MUSIC
Control for HDMI/External Audio Device
[** (**)] is selected (** refers to a number).
The number in parentheses indicates the
total number of audio files, JPEG image
files, or folders.
Press X/x or the number buttons to
select the desired number.
If you make a mistake, press CLEAR to
cancel the number.
5
Press
.
The system starts playback from the
selected number.
X/x,
DISPLAY
67GB
Viewing the information of an
audio file in the front panel
display
Viewing the information of an
audio file on the TV screen
DISPLAY
DISPLAY
Press DISPLAY repeatedly.
Each time you press DISPLAY while playing
the USB device, the display changes:
1y2
1 Playing time and current track number
2 Track (file) name*
* If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
You can display the information of an audio file
such as time information, name of the folder/
audio file, and the audio bit rate (the amount of
data per second of the current audio) on the TV
screen.
Press DISPLAY during playback.
The information of an audio file appears on the
TV screen.
Bit rate
T
0: 13
192k MP3
Note
• If a file name of the audio file cannot be displayed,
“*” will appear in the front panel display instead.
• The file name may not be displayed depending on the
text.
• Playing time of MP3 files may not be displayed
correctly.
68GB
2002_Remixes
Soul_Survivor_rap_version
Folder name*
File name*
* If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
Note
Tip
• Characters/marks may not be displayed in some
languages.
• Depending on the type of file being played, the
system can only display a limited number of
characters. Also, depending on the file, not all text
characters will be displayed.
• Date information is [DD/MM/YYYY].
DD: Day
MM: Month
YYYY: Year
• Date information varies depending on the area.
Checking the date information
of JPEG image file
DISPLAY
Press
Control for HDMI/External Audio Device
You can check the date information during
playback when the Exif* tag is recorded in the
JPEG image file.
DISPLAY twice during playback.
The Control Menu display appears on the TV
screen.
2(
2)
6( 30)
16/9/2002
USB IMAGE
Date information
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
69GB
Transferring Songs in a
USB Device
Transferring songs on an audio
CD into a USB device
You can transfer songs on an audio CD in a USB
device by encoding to MP3 format. You can also
transfer the MP3 files on a DATA CD/DATA
DVD into the USB device.
For connecting the USB device, see
“Connecting the USB device” (page 61).
The transferred music is limited to private use
only. Use of the music beyond this limit requires
permission of the copyright holders.
C/X/x/c,
DISPLAY
Notes on transferring into USB
• Do not connect the control unit and the USB
device through a USB hub.
• Make sure there is enough space in the USB
device for transferring.
• Do not remove the USB device during transfer.
• When you are transferring tracks from a CD,
the tracks are transferred as 128 kbps MP3
files.
• When you are transferring MP3 files from a
DATA CD/DATA DVD, the MP3 files are
transferred with the same bit rate as the
original MP3 files.
• CD text information is not transferred in the
created MP3 files.
• If you stop a transferring partway, an MP3 file
whose transfer was stopped halfway is deleted.
• Transferring stops automatically if:
– The USB device runs out of space during
transfer.
– The number of MP3 files on the USB
device reaches the limit for the number that
the system can recognize.
• You can transfer up to 150 files in a folder.
• You can transfer up to 199 folders in a single
USB device.
• If a folder or file that you are trying to transfer
already exists on the USB device with the
same name, a sequential number is added after
the name without overwriting the original
folder or file.
• Some USB devices cannot be played back on
the system depending on the file format.
70GB
x
1
2
Load an audio CD.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
4
Press X/x to select
[USB
RECORDING], then press
.
Press X/x to select [TRACK], then
press
.
“Reading” appears in the front panel
display until the tracks recorded on the
audio CD appear on the TV screen.
Note
• It takes several minutes to display the tracks
depending on the number of tracks.
5
Select a track that you want to transfer.
Available space of
the USB device
USB RECORDING
1
2
3
TRACK
TRACK
TRACK
TRACK
TRACK
TRACK
TRACK
TRACK
Free:
01
02
03
04
05
06
07
08
Transferring MP3 files on a
DATA CD/DATA DVD into a USB
device
START
ALL
ALL
Tracks to be transferred.
Press X/x to select the track, then press
.
The tracks are marked in the order that you
select.
C/X/x/c,
DISPLAY
x To select all tracks on the audio CD
x
Press C/X/x/c to select [x ALL], then
press
.
x To cancel the track
Press X/x to select the track, then press
The mark on the track is removed.
.
1
2
x To cancel all the track
Press C/X/x/c to select [s ALL], then
press
.
6
Press C/X/x/c to select [START], then
press
.
The system starts transferring and the
transfer status appears.
To cancel transferring, press x.
Load a DATA CD/DATA DVD.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
4
Press X/x to select
[USB
RECORDING], then press
.
Control for HDMI/External Audio Device
x To select the desired track
Press X/x to select [TRACK] or
[FOLDER], then press
.
• [TRACK]: The folders recorded on the
DATA CD/DATA DVD appear. You can
transfer the desired MP3 file.
• [FOLDER]: The folders recorded on the
DATA CD/DATA DVD appear. You can
transfer all MP3 files in the folder. Go to
Step 6.
“Reading” appears in the front panel
display until the tracks/folders appear on
the TV screen.
Tip
• The system automatically creates a new folder
to transfer tracks.
Note
• It takes several minutes to display the tracks/
folders depending on the number of tracks/
folders.
5
Press X/x to select the desired folder,
then press
.
The MP3 files in the selected folder appear.
71GB
6
Select an MP3 file/folder that you want
to transfer.
Available space of
the USB device
Erasing audio files on a USB
device
You can erase audio files on the USB device.
USB RECORDING
2002_Remixes
01_Back_Seat_O...
02_One_Nights_...
03_Are_You_Ma...
04_I_Can_Lose_...
05_Soul_Survivo...
06_Strangers_B...
07_Stay_maxi_ve...
Free:
START
FUNCTION
ALL
ALL
CLEAR
MP3 files/folders to be transferred.
C/X/x/c,
x To select the desired MP3 file/folder
Press X/x to select the MP3 file/folder, then
press
.
The MP3 files/folders are marked.
x To select all MP3 files/folders
Press C/X/x/c to select [
press
.
ALL], then
1
x To cancel the MP3 file/folder
Press X/x to select the MP3 file/folder, then
press
. The mark on the MP3 file/folder
is removed.
7
2
Press FUNCTION repeatedly until
“USB” appears in the front panel
display.
Press X/x to select a folder.
x To erase all audio files in a folder
x To cancel all MP3 files/folder
Press CLEAR.
Press C/X/x/c to select [
press
.
x To erase an audio file
ALL], then
Press
.
The list of files contained in the folder
appears.
Press X/x to select the desired audio file,
then press CLEAR.
Press C/X/x/c to select [START], then
press
.
The system starts transferring and the
transfer status appears.
To cancel the transfer, press x.
3
To return to the previous display
To cancel, select [NO], then press
Press O RETURN.
Note
• Only MP3 files can be transferred from a DATA CD/
DATA DVD.
Press C/c to select [YES], then press
.
.
Note
• Do not remove the USB device while erasing.
• If the folder to be erased contains non-audio format
files or sub folders, these are erased from the list on
the TV screen, but are not erased from the USB
device.
To return to the previous display
Press O RETURN.
72GB
Using the DIGITAL MEDIA
PORT Adapter
Note
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Do not connect or disconnect the DIGITAL MEDIA
PORT adapter to/from the control unit while the
system is turned on.
• Depending on the type of DIGITAL MEDIA PORT
adapter, the images are also output. In this case, the
system outputs the composite video signal only,
regardless of the type of video signal.
Start playback of the connected
component.
The sound and images from the connected
component are played on the system or
connected TV.
For operation details, refer to the operating
instructions of the DIGITAL MEDIA
PORT adapter.
Tip
• When listening to MP3 files or other compressed
music using a portable audio source, you can enhance
the sound. Select “AUTO” for “DEC. MODE”
(page 50) and set the sound mode (page 52) to
“MOVIE,” “MUSIC,” or “NEWS.” To cancel, select
“2CH STEREO.”
• Depending on the type of DIGITAL MEDIA PORT
adapter, you may be able to operate a connected
component using either the buttons on the remote or
the control unit. The following illustration shows an
example of buttons that can be used in this case.
Playing the connected
component on the system
Control for HDMI/External Audio Device
The DIGITAL MEDIA PORT (DMPORT)
adapter (not supplied) is for enjoying sound
from a portable audio source or computer. By
connecting a DIGITAL MEDIA PORT adapter,
you can enjoy sound from the connected
component on the system.
Available DIGITAL MEDIA PORT adapters
vary in each area.
For details on connecting the DIGITAL MEDIA
PORT adapter, see “To connect the DIGITAL
MEDIA PORT adapter” (page 21).
2
./>
FUNCTION
1
X
H
x
Press FUNCTION repeatedly until
“DMPORT” appears in the front panel
display.
73GB
•
•
•
•
Other Operation
Using the Setup Display
[HDMI SETUP] (page 77)
[AUDIO SETUP] (page 78)
[SYSTEM SETUP] (page 78)
[SPEAKER SETUP] (page 79)
Example: [VIDEO SETUP]
You can make various adjustments of items such
as picture and sound.
Displayed items vary depending on the country
model.
Selected item
VIDEO SETUP
TV TYPE:
PROGRESSIVE (COMPONENT OUT):
4:3 OUTPUT:
PAUSE MODE:
Note
• Playback settings stored in the disc take priority over
the Setup Display settings and not all the functions
described may work.
16:9
OFF
FULL
AUTO
Setup items
FUNCTION
6
Press X/x to select an item, then press
.
The options for the selected item appear.
Example: [TV TYPE]
VIDEO SETUP
16:9
TV TYPE:
16:9
PROGRESSIVE (COMPONENT OUT):
OFF
4:3 LETTERFULL
BOX
4:3 OUTPUT:
AUTO
4:3 PAN SCAN
PAUSE MODE:
X/x,
DISPLAY
Options
7
1
2
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
The setting is selected and setup is
complete.
VIDEO SETUP
4:3 LETTER BOX
TV TYPE:
PROGRESSIVE (COMPONENT OUT):
OFF
4:3 OUTPUT:
FULL
AUTO
PAUSE MODE:
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
Press X/x to select a setting, then
press
.
[SETUP],
Selected setting
The options for [SETUP] appear.
4
Note
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select the setup item, then
press
.
• [LANGUAGE SETUP] (page 75)
• [VIDEO SETUP] (page 75)
74GB
• When you turn the system on after resetting and no
disc is in the control unit, the guide message appears
on the TV screen. To perform the Quick Setup
(page 26), press . To return to normal screen, press
CLEAR.
To reset all of the [SETUP]
settings
To reset all of the [SETUP] settings, see
“Returning the [SETUP] settings to the default”
(page 89).
Setting the display or sound
track language
[LANGUAGE SETUP]
Tip
• If you select [OTHERS t] in [MENU], [AUDIO],
and [SUBTITLE], select and enter a language code
from “Language Code List” (page 104) using the
number buttons.
Settings for the display
[VIDEO SETUP]
Select settings according to the TV to be
connected.
Set various languages for the on-screen display
or sound track.
16:9
OFF
FULL
AUTO
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
x [TV TYPE]
You can select the aspect ratio of the connected
TV.
Other Operation
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
VIDEO SETUP
TV TYPE:
PROGRESSIVE (COMPONENT OUT):
4:3 OUTPUT:
PAUSE MODE:
x [OSD] (On-Screen Display)
You can switch the display language on the TV
screen.
[16:9]: Select this when you connect a widescreen TV or a TV with a wide mode function.
x [MENU] (DVD VIDEO only)
You can switch the language for the disc’s
menu.
x [AUDIO] (DVD VIDEO only)
You can switch the language of the sound track.
When you select [ORIGINAL], the language
given priority in the disc is selected.
[4:3 LETTER BOX]: Select this when you
connect a 4:3 screen TV. Displays a wide picture
with bands on the upper and lower portions of
the TV screen.
x [SUBTITLE] (DVD VIDEO only)
You can switch the language of the subtitle
recorded on the DVD VIDEO.
When you select [AUDIO FOLLOW], the
language for the subtitles changes according to
the language you selected for the sound track.
Note
[4:3 PAN SCAN]: Select this when you connect
a 4:3 screen TV. The system automatically
displays the wide picture on the entire screen
and cuts off the portions that do not fit.
• When you select a language in [MENU], [AUDIO],
or [SUBTITLE] that is not recorded on the DVD
VIDEO, one of the recorded languages will be
automatically selected (depending on the disc, the
language may not be selected automatically).
75GB
Note
• Depending on the DVD, [4:3 LETTER BOX] may be
selected automatically instead of [4:3 PAN SCAN] or
vice versa.
16:9 aspect ratio TV
x [PROGRESSIVE (COMPONENT OUT)]
You can set the progressive signal that is output
from the VIDEO OUT (COMPONENT) jacks to
on/off. For details, see “Does your TV accept
progressive signals?” (page 27).
[OFF]: The system outputs interlace signals.
[ON]: The system outputs progressive signals.
When you select [ON], follow the Steps below.
1
Select [ON], then press
.
The confirmation display appears.
2
Press C/c to select [START], then
press
.
The system outputs the progressive signal
for 5 seconds. Check that the screen is
displayed correctly.
3
Press C/c to select [YES], then press
.
The system outputs the progressive signal.
If you select [NO], the system will not
output the progressive signal.
Note
• [PROGRESSIVE (COMPONENT OUT)] is
effective only when you connect the control unit and
TV with a component video cord (page 19).
x [4:3 OUTPUT]
When you use a 16:9 aspect ratio TV, you can
adjust the aspect ratio to watch 4:3 aspect ratio
signals. If you can change the aspect ratio on
your TV, change the setting on your TV, not the
system.
[FULL]: Select this when you can change the
aspect ratio on your TV.
[NORMAL]: Select this when you cannot
change the aspect ratio on your TV. A 16:9
aspect ratio signal with black bands on left and
right sides of the image appears.
76GB
Note
• [4:3 OUTPUT] is effective only when you set [TV
TYPE] in [VIDEO SETUP] to [16:9].
x [COLOR SYSTEM (VIDEO CD)]
(Southeast Asian models only)
You can select the color system when you play a
VIDEO CD.
[AUTO]: The system outputs the video signal in
the system of the disc, either PAL or NTSC. If
your TV uses a DUAL system, select [AUTO].
[PAL]: The system changes the video signal of
an NTSC disc and outputs it in the PAL system.
[NTSC]: The system changes the video signal of
a PAL disc and outputs it in the NTSC system.
Note
• You cannot change the color system of the disc itself.
• You can change the color system of this system
according to the connected TV (page 20).
x [PAUSE MODE] (DVD VIDEO/DVD-R/
DVD-RW only)
You can select the picture in pause mode.
[AUTO]: The picture, including subjects that
move dynamically, is output with no jitter.
Normally select this position.
[FRAME]: The picture, including subjects that
do not move dynamically, is output in high
resolution.
Settings for the HDMI
x [VOLUME LIMIT]
[HDMI SETUP]
HDMI SETUP
HDMI RESOLUTION:
CONTROL FOR HDMI:
VOLUME LIMIT:
YCBCR/RGB(HDMI):
AUDIO(HDMI):
JPEG RESOLUTION:
AUTO(1920x1080p)
OFF
LEVEL2
YCBCR
OFF
SD
If you change the output method of the TV to the
system speaker on the TV menu or by pressing
THEATER/THEATRE, the System Audio
Control (page 60) is activated and loud sound
may be output depending on the volume level of
the system. You can prevent this by limiting the
maximum level of the volume.
[LEVEL3]: Maximum volume level is set to 15.
[LEVEL2]: Maximum volume level is set to 20.
[LEVEL1]: Maximum volume level is set to 30.
[OFF]: Off.
Note
You can select the type of video signal that is
output from the HDMI OUT jack. For details,
see “To select the type of video signal output
from the HDMI OUT jack” (page 27).
• This function is available only when [CONTROL
FOR HDMI] is set to [ON].
[AUTO (1920 × 1080p)]: The system outputs
the optimal video signal for the connected TV.
[1920 × 1080i]: The system outputs 1920 ×
1080i* video signals.
[1280 × 720p]: The system outputs 1280 ×
720p* video signals.
[720 × 480/576p]: The system outputs 720 ×
480p* or 720 × 576p* video signals.
x [YCBCR/RGB (HDMI)]
You can select the type of HDMI signal output
from HDMI OUT jack.
[YCBCR]: The system outputs YCBCR signals.
[RGB]: The system outputs RGB signals.
Note
* i: interlace, p: progressive
• If the playback picture becomes distorted, set
[YCBCR] to [RGB].
• If the HDMI OUT jack is connected to a component
with a DVI jack, [RGB] signals will be automatically
output even when you select [YCBCR].
x [CONTROL FOR HDMI]
x [AUDIO (HDMI)]
You can set the [CONTROL FOR HDMI]
function to on/off. This function is available
when you connect the system and TV with an
HDMI cable. For details, see “Using the Control
for HDMI Function for “BRAVIA” Sync”
(page 58).
You can select the audio output status from the
HDMI OUT jack.
[OFF]: Off.
[ON]: On. You can operate mutually between
components that are connected with an HDMI
cable.
Note
• When you set to [ON] without the HDMI connection
of the TV, [Please verify the HDMI connection.]
appears and you cannot set to [ON].
Other Operation
x [HDMI RESOLUTION]
[OFF]: The system does not output the sound
from the HDMI OUT jack.
[ON]: The system outputs audio signals by
converting Dolby Digital, DTS, or 96 kHz/24 bit
PCM signals to 48 kHz/16 bit PCM.
Note
• When you connect the control unit and TV with an
HDMI cable and [ON] is selected, [AUDIO DRC],
“A/V SYNC”, TONE, “DEC. MODE,” and sound
mode are not applied to the sound that is output from
the TV.
• When you set the function to other than “DVD,” the
system does not output the sound from the HDMI
OUT jack even if you set [AUDIO (HDMI)] to [ON].
77GB
x [JPEG RESOLUTION]
You can select the resolution of JPEG image
files output from the HDMI OUT jack.
]: The system outputs standard
[SD
resolution with a black frame.
[HD
]: The system outputs HD resolution
with a black frame.
[HD]: The system outputs the HD resolution
without a black frame.
]: The system outputs
[(1920 × 1080i) HD
full size HD resolution with a black frame.
[(1920 × 1080i) HD]: The system outputs full
size HD resolution without a black frame.
[OFF]: No compression of dynamic range.
[STANDARD]: The system reproduces the
sound track with the kind of dynamic range that
the recording engineer intended.
[MAX]: The system compresses dynamic range
fully.
Note
• [AUDIO DRC] works only for Dolby Digital.
x [TRACK SELECTION] (DVD VIDEO only)
You can give the sound track which contains the
highest number of channels priority when you
play a DVD VIDEO on which multiple audio
formats (PCM, DTS, Dolby Digital, or MPEG
audio) are recorded.
Note
• [JPEG RESOLUTION] is effective only when you
set [TV TYPE] in [VIDEO SETUP] to [16:9], and
you set [HDMI RESOLUTION] in [HDMI SETUP]
to other than [720 × 480/576p].
• You can select [(1920 × 1080i) HD
] or [(1920 ×
1080i) HD] only when you set [HDMI
RESOLUTION] in [HDMI SETUP] to [1920 ×
1080i].
• If you select [(1920 × 1080i) HD
] or [(1920 ×
1080i) HD], the next image appears after the black
screen.
• HDMI signal will stop momentarily when:
– The system is loading or unloading a DATA CD or
DATA DVD disc.
– You connect or remove a USB device.
[OFF]: Off.
[AUTO]: The system selects the sound track
automatically according to the priority.
Note
• When you set the item to [AUTO], the language may
change. The [TRACK SELECTION] setting has
higher priority than the [AUDIO] settings in
[LANGUAGE SETUP] (page 75). (Depending on
the disc, this function may not work.)
• If PCM, DTS, Dolby Digital sound, and MPEG audio
have the same number of channels, the system selects
PCM, DTS, Dolby Digital sound, and MPEG audio in
this order.
Other Settings
Settings for the audio
[SYSTEM SETUP]
[AUDIO SETUP]
AUDIO SETUP
AUDIO DRC:
TRACK SELECTION:
OFF
OFF
SYSTEM SETUP
ON
SCREEN SAVER:
JACKET PICTURE
BACKGROUND:
PARENTAL CONTROL:
Registration Code
DivX:
MULTI-DISC RESUME:
ON
RESET:
x [SCREEN SAVER]
x [AUDIO DRC] (DVD VIDEO only)
You can compress the dynamic range of the
sound track. [AUDIO DRC] is useful for
watching movies at low volume late at night.
78GB
You can reduce the display device damages
(ghosting). Press any button (e.g., H button) to
cancel the screen saver.
[ON]: The screen saver image appears if you do
not operate the system for about 15 minutes.
[OFF]: Off.
x [BACKGROUND]
You can select the background color or picture
on the TV screen.
x [PARENTAL CONTROL]
You can set the playback restrictions. For
details, see “Restricting Playback of the Disc”
(page 47).
x [DivX]
[SPEAKER SETUP]
To obtain the best possible sound, you can
change the level of the speakers.
SPEAKER SETUP
LEVEL(FRONT):
L:
R:
SUBWOOFER:
0.0dB
0.0dB
0.0dB
x [LEVEL (FRONT)]
You can adjust the sound level of the front
speakers and subwoofer. You can set the
parameters from –6.0 dB to +6.0 dB.
[L] 0.0 dB: Set the front speaker (L) level.
[R] 0.0 dB: Set the front speaker (R) level.
[SUBWOOFER] 0.0 dB: Set the subwoofer
level.
Other Operation
[JACKET PICTURE]: The jacket picture (still
picture) appears, but only when the jacket
picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a
jacket picture, the [GRAPHICS] picture
appears.
[GRAPHICS]: A preset picture stored in the
system appears.
[BLUE]: The background is blue.
[BLACK]: The background is black.
Settings for the speakers
You can display the registration code for this
system.
For more information, go to
http://www.divx.com on the Internet.
x [MULTI-DISC RESUME] (DVD VIDEO/
VIDEO CD only)
You can set the [MULTI-DISC RESUME]
function to on/off.
[ON]: The system stores the resume points in
memory for up to 10 discs.
[OFF]: The system does not store the resume
points in memory. Playback restarts at the
resume point only for the current disc in the
control unit.
x [RESET]
You can return the [SETUP] settings other than
[PARENTAL CONTROL] to the default
settings. For details, see “Returning the
[SETUP] settings to the default” (page 89).
79GB
Adjusting the Delay
Between the Picture and
Sound
(A/V SYNC)
When the sound does not match the pictures on
the TV screen, you can adjust the delay between
the picture and sound.
Changing the Input Level
of the Sound
Distortion may occur when you listen to a
component connected to the TV (AUDIO IN)
jack on the control unit. Distortion is not a
malfunction and will depend on the component
connected.
To prevent distortion, reduce the input level on
the control unit.
FUNCTION
X/x/c,
SYSTEM
MENU
X/x/c,
SYSTEM
MENU
1
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “A/V SYNC”
appears in the front panel display, then
press
or c.
Press X/x to select a setting.
• “LONG”: adjusts the difference between
picture and sound by 130 msec.
• “SHORT”: adjusts the difference between
picture and sound by 70 msec.
• “OFF”: does not adjust.
4
Press
Press SYSTEM MENU.
The system menu turns off.
Note
• Depending on the input stream, “A/V SYNC” may
not be effective.
80GB
4
Press SYSTEM MENU.
Press X/x repeatedly until
“ATTENUATE” appears in the front
panel display, then press
or c.
Press X/x to select a setting.
• “ATT ON”: You can attenuate the input
level. The output level is changed.
• “ATT OFF”: Normal input level.
5
.
The setting is made.
5
2
3
Press FUNCTION repeatedly until “TV”
appears in the front panel display.
Press
.
The setting is made.
6
Press SYSTEM MENU.
The system menu turns off.
Enjoying the Sound at
Low Volume
You can enjoy sound effects or dialogue, as you
would in a movie theater, even at low volume. It
is useful for watching movies at night.
Using the Sleep Timer
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
You can preset the time in 10 minutes
decrements.
SLEEP
NIGHT
Other Operation
Press SLEEP.
Press NIGHT.
“NIGHT ON” appears in the front panel display
and the sound effect is activated.
Each time you press this button, the minute
display (the remaining time) changes in the front
panel display as follows:
To turn off the sound effect
Press NIGHT again.
SLEEP OFF t SLEEP 90M t SLEEP 80M
R
r
SLEEP 10M ..... SLEEP 60M T SLEEP 70M
When you set the sleep timer, “SLEEP” lights
up in the front panel display.
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired
time.
To cancel the sleep timer
function
Press SLEEP repeatedly until “SLEEP OFF”
appears in the front panel display.
81GB
Changing the Brightness
of the Front Panel
Display and Illumination
The brightness of the front panel display and
illumination can be set to either of 2 levels.
Changing the Display
Mode
(INFORMATION MODE)
You can change the displayed information in the
front panel display.
DIMMER
X/x/c,
SYSTEM
MENU
Press DIMMER until the desired mode
appears in the front panel display.
• “DIMMER OFF”: Bright.
• “DIMMER ON”: Dark.
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “INFO
MODE” appears in the front panel
display, then press
or c.
Press X/x to select a setting.
• “STANDARD”: displays information
fully such as the kind of disc, track
number, repeat mode information, radio
frequency, etc., for the selected function.
For details of the displayed information,
see “Front panel display” (page 107).
• “SIMPLE”: displays the selected function
name only.
4
Press
.
The setting is made.
5
Press SYSTEM MENU.
The system menu turns off.
82GB
Illuminating the Front
Panel Buttons
Viewing Information
About the Disc
(ILLUMINATION MODE)
You can set the type of illumination for the front
panel.
Viewing the playing time and
remaining time in the front
panel display
DISPLAY
Other Operation
X/x/c,
SYSTEM
MENU
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “ILLUM
MODE” appears in the front panel
display, then press
or c.
Press X/x to select a setting.
• “ON”: turns on the illumination at all
times.
• “OFF”: turns on the illumination for 10
seconds when you press a button (except
the \/1 button) on the front panel.
4
Press
.
The setting is made.
5
Press SYSTEM MENU.
The system menu turns off.
Press DISPLAY repeatedly.
Each time you press DISPLAY while playing
the disc, the display changes:
1 t 2 t ... t 1 t ...
Some displayed items may disappear after a few
seconds.
x DVD VIDEO/DVD-VR
1 Playing time of the current title
2 Remaining time of the current title
3 Playing time of the current chapter
4 Remaining time of the current chapter
5 Disc name
6 Title and chapter
x VIDEO CD (without PBC functions)/CD
1 Playing time of the current track
2 Remaining time of the current track
3 Playing time of the disc
4 Remaining time of the disc
5 Track name
83GB
6 Track and index*
* VIDEO CD only.
x Super VCD
1 Playing time of the current track
2 Track text
3 Track and index number
Viewing the playing time and
remaining time on the TV
screen
x DATA CD (MP3 file)/DATA DVD (MP3 file)
DISPLAY
1 Playing time and current track number
2 Track (file) name*
* If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
1 Playing time of the current file
2 Current file name
3 Current album and file number
Note
• The system can only display the first level of the
DVD/CD text, such as the disc name or title.
• If a file name of the MP3 file cannot be displayed, “*”
will appear in the front panel display instead.
• The disc name or track name may not be displayed
depending on the text.
• Playing time of MP3 files and DivX video files may
not be displayed correctly.
Tip
• When the system is playing a VIDEO CD with PBC
functions, the playing time is displayed.
1
Press DISPLAY during playback.
The following display appears on the TV
screen.
T
1: 01: 40
Time information
2
Press DISPLAY repeatedly to change
the time information.
The display and the kinds of time that you
can check depend on the disc you are
playing.
x DVD VIDEO/DVD-VR
• T **:**:**
Playing time of the current title
• T-**:**:**
Remaining time of the current title
• C **:**:**
Playing time of the current chapter
• C-**:**:**
Remaining time of the current chapter
x VIDEO CD (with PBC functions)
• **:**
Playing time of the current scene
84GB
x VIDEO CD (without PBC functions)/
CD
• T **:**
Playing time of the current track
• T-**:**
Remaining time of the current track
• D **:**
Playing time of the current disc
• D-**:**
Remaining time of the current disc
x DATA CD (MP3 file)/DATA DVD (MP3
file)
• T **:**
Playing time of the current track
• **:**:**
Playing time of the current file
Note
• Characters/marks may not be displayed in some
languages.
• Depending on the type of disc being played, the
system can only display a limited number of
characters. Also, depending on the disc, not all text
characters will be displayed.
Press DISPLAY repeatedly during playback to
display text recorded in the DVD/CD.
The DVD/CD text appears only when text is
recorded in the disc. You cannot change the text.
If the disc does not contain text, “NO TEXT”
appears.
Dvorak/Tchaikovsky /NedPho/Kreizberg
Adagio - Allegro molto
To check DATA CD/DATA DVD
(MP3 file/DivX video file) text
By pressing DISPLAY while playing MP3 files
or DivX video files on a DATA CD/DATA
DVD, you can display the name of the folder/
MP3 file/DivX video file, and the audio bit rate
(the amount of data per second of the current
audio) on the TV screen.
Bit rate*
T
0: 13
Other Operation
x DATA CD (DivX video file)/DATA
DVD (DivX video file)
To check DVD/CD text
192k MP3
Checking the play information
of the disc
2002_Remixes
Soul_Survivor_rap_version
DISPLAY
Folder name**
MP3 File**/DivX video file
name
* Appears when:
– playing an MP3 file on a DATA CD/DATA DVD.
– playing a DivX video file that contains MP3 audio
signals on a DATA CD/DATA DVD.
** If an MP3 file has the ID3 tag, the system will
display a folder name/track (file) name from the ID3
tag information.
The system can support ID3 ver 1.0/1.1/2.2/2.3.
ID3 ver 2.2/2.3 tag information display has priority
when both ID3 ver 1.0/1.1 and ver 2.2/2.3 tags are
used for a single MP3 file.
85GB
Checking the date information
of JPEG image file
You can check the date information during
playback when the Exif* tag is recorded in the
JPEG image file.
Controlling the TV with
the Supplied Remote
By adjusting the remote signal, you can control
your TV with the supplied remote.
Note
• When you replace the batteries of the remote, the
code number may reset itself to the default (SONY)
setting. Reset the appropriate code number.
Preparing the remote for
controlling the TV
TV "/1
DISPLAY
Press
DISPLAY twice during playback.
The Control Menu display appears on the TV
screen.
5(
8)
10( 15)
18/9/2002
DATA CD JPEG
Date information
* “Exchangeable Image File Format” is a digital
camera image format defined by the Japan
Electronics and Information Technology Industries
Association (JEITA).
Tip
• Date information is [DD/MM/YYYY].
DD: Day
MM: Month
YYYY: Year
• Date information varies depending on the area.
86GB
Press and hold TV [/1 while entering your
TV’s manufacturer’s code (see the table)
using the number buttons. Then release TV
[/1.
If you successfully set the manufacturer’s code,
the TV button flashes twice slowly. If the setting
is unsuccessful, the TV button flashes five times
quickly.
Code numbers of controllable TVs
Manufacturer
Code number
If more than one code number is listed, try
entering them one at a time until you find the
code that works with your TV.
JERROLD/GI/
MOTOROLA
806, 807, 808, 809, 810, 811,
812, 813, 814
JERROLD
830, 831
TV
OAK
841, 842, 843
PANASONIC
816, 826, 832, 833, 834, 835
PIONEER
828, 829
815, 816, 817, 844
Manufacturer
Code number
SONY
501 (default)
AIWA
501
SCIENTIFIC
ATLANTA
AKAI
503
TOCOM/PHILIPS
830, 831
DAEWOO
503, 506, 515, 544
ZENITH
826, 827
508, 545
GE
503, 509, 510, 544
GOLDSTAR/LG
503, 515, 517, 544, 568
GRUNDIG
533
HITACHI
503, 514, 515, 517, 544, 557,
571
ITT
521, 522
JVC
516
LOEWE
515
MAGNAVOX
503, 515, 517, 518, 544, 566
MARANTZ
527
MITSUBISHI/MGA 503, 527, 544, 566, 568
Controlling the TV with the
remote
You can control the TV using the following
buttons. To use these buttons (other than
THEATER/THEATRE and TV [/1), set the
remote to the TV mode by pressing TV so that
TV lights up for 1 second.
To exit the TV mode, press TV so that the TV
flashes four times.
Some buttons may not be supported depending
on the area.
NEC
503, 517, 544, 566
NOKIA
521, 522
PANASONIC
509, 553, 572
Note
PHILIPS
515, 518, 557, 570, 571
PIONEER
509, 525, 551
RCA/PROSCAN
503, 510, 544
SABA
530, 537, 547, 549, 558
• During the TV mode, if you press any of the
following buttons, TV lights up. (Depending on the
manufacturer setting, some buttons may not work,
and TV does not light up.)
• When you press other than the following buttons
during the remote is in the TV mode, TV flashes four
times and the remote exits the TV mode
automatically.
• Depending on the TV, you may not be able to control
your TV or to use some of the buttons.
SAMPO
566
SAMSUNG
503, 515, 517, 544, 557, 566,
569, 574
SANYO
508, 545, 567
SHARP
517, 535, 565
TELEFUNKEN
530, 537, 547, 549, 558
By pressing
You can
530, 537, 547, 549
TV [/1
Turn the TV on/off.
TOSHIBA
535, 541, 551
ZENITH
543, 567
THEATER/
THEATRE
Enjoy optimal image suited for
movies.
TV VOL +/–
Adjust the TV volume.
PROG +/–
c/C
Select the TV channel.
After pressing /, you can select
the next (c) or previous (C) text
page.
THOMSON
CATV
Manufacturer
Code number
SONY
821
HAMLIN/REGAL
836, 837, 838, 839, 840
Other Operation
FISHER
87GB
By pressing
You can
Number buttons, Select the TV channel.
After pressing /, you can select
the text page by entering the three
digit page number.
ANALOG
Switch to analogue mode.
DIGITAL
Switch to digital mode.
/
/
Colored buttons
Display the information.
Access Text.
Select the options on the menu.
Display the Digital Electronic
Programme Guide (EPG).
t/
TOOLS/
OPTIONS
Returning to the Default
Settings
Returning the system
parameters, such as preset
stations, to the default
settings
Switch the TV’s input source
between the TV and other input
sources in TV mode.
After pressing /, you can hold
the current text page.
A.F.D. STD
Display the menu of the TV.
RETURN
Return to the previous channel or
layer on the menu of the TV.
MUTING
Turn off the TV sound
temporarily.
C/X/x/c,
Select the item on the menu.
Tip
FUNCTION
VOL
DVD HOME THEATRE SYSTEM DAV-F500
Display the operation menu for the
current display.
MENU/HOME
D.C.S.
"/1
1
2
Turn off the power.
Press and hold "/1 on the control unit
about 5 seconds.
“MEMORY CLR” and “PUSH POWER”
appear alternately in the front panel display
about 10 seconds.
3
• The function of these buttons are same as the remote
buttons of the SONY TV. For details, refer to the
operating instructions of the TV.
Press "/1.
“CLEARING” appears in the front panel
display and the default settings are returned.
After “CLEARED!” appears, the system is
turned off.
Note
• In Step 3, if you do not press [/1 or press any buttons
other than [/1 on the control unit, the system turns
on. The setting is not made.
• When you turn on the system after returning to the
default settings, wait about 20 seconds before turning
on the power by pressing [/1.
88GB
Returning the [SETUP] settings
to the default
8
Press
.
Do not press [/1 while resetting the system
as it takes a few seconds to complete.
Note
You can return the [SETUP] settings (page 74)
other than [PARENTAL CONTROL] to the
default settings.
• The [MODE (MUSIC, IMAGE)], [INTERVAL], and
[EFFECT] settings also return to the default settings.
FUNCTION
DISPLAY
1
2
Other Operation
C/X/x/c,
Press FUNCTION repeatedly until
“DVD” appears in the front panel
display.
Press
DISPLAY while the system is
in stop mode.
The Control Menu display appears on the
TV screen.
3
Press X/x to select
then press
.
[SETUP],
The options for [SETUP] appear.
4
Press X/x to select [CUSTOM], then
press
.
The Setup Display appears.
5
Press X/x to select [SYSTEM SETUP],
then press
.
The options for [SYSTEM SETUP] appear.
6
7
Press X/x to [RESET] and press c.
Press C/c to select [YES].
You can also quit the process and return to
the Control Menu display by selecting [NO]
here.
89GB
Additional Information
Precautions
On power sources
• Unplug the system from the wall outlet (mains) if you
do not intend to use it for an extended period of time.
To disconnect the cord, pull it out by the plug, never
by the cord.
On placement
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the system in a confined space where
ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything
on the subwoofer. The subwoofer is equipped with a
high power amplifier. If the ventilation slots are
blocked, the subwoofer can overheat and
malfunction.
• Do not place the subwoofer on surfaces (rugs,
blankets, etc.) or near materials (curtains, draperies)
that may block the ventilation slots.
• Do not install the system near heat sources such as
radiators, or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the subwoofer in an inclined position.
It is designed to be operated in a horizontal position
only.
• Keep the control unit and discs away from
components with strong magnets, such as microwave
ovens, or large loudspeakers.
• Do not place heavy objects on the control unit and the
subwoofer.
On operation
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lenses inside the control unit.
Should this occur, the system may not operate
properly. In this case, remove the disc and leave the
system turned on for about half an hour until the
moisture evaporates.
• When you move the system, take out any disc. If you
don’t, the disc may be damaged.
90GB
• If anything falls into the cabinet, unplug the
subwoofer and have it checked by qualified personnel
before operating it any further.
On adjusting volume
• Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning
your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens
cleaners
• Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may cause
the apparatus to malfunction.
On your TV’s color
• If the speakers should cause the TV screen to have
color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist,
place the speakers further away from the TV set.
IMPORTANT NOTICE
Caution: This system is capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
On moving the system
Before moving the system, make sure that there is no
disc inserted, and remove the AC power cord (mains
lead) from the wall outlet (mains).
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
On cleaning
• Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the center out.
Additional Information
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
This system can only play back a standard
circular disc. Using neither standard nor circular
discs (e.g., card, heart, or star shape) may cause
a malfunction.
Do not use a disc that has a commercially
available accessory attached, such as a label or
ring.
91GB
Troubleshooting
If you experience any of the following difficulties while using the system, use this troubleshooting
guide to help remedy the problem before requesting repairs. Should any problem persist, consult your
nearest Sony dealer.
Note that if service personnel changes some parts during repair, these parts may be retained.
Power
Symptom
Remedy
The power is not turned on.
• Check that the AC power cord (mains lead) is connected securely.
• Check that the system cable is connected securely.
If “PROTECTOR” and “PUSH
POWER” appear alternately in
the front panel display.
Press "/1 to turn off the system, and check the following items after
“STANDBY” disappears.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the system?
• After checking the above items and fixing any problems, turn on the system. If
the cause of the problem cannot be found even after checking all the above
items, consult your nearest Sony dealer.
The power cannot be turned off. • The demonstration mode (“DEMO”) is set to “ON.” Set “DEMO” to “OFF”
(page 25).
92GB
Symptom
Remedy
There is no picture.
• The video connecting cords are not connected securely.
• The video connecting cords are damaged.
• The control unit is not connected to the correct TV input jack (page 19).
• The video input on the TV is not set so that you can view pictures from the system.
• Check the output method on your system (page 19).
• You have set progressive format but your TV cannot accept the signal in
progressive format. In this case, return the setting to interlace format (the
default setting) (page 27).
• Even if your TV is compatible with progressive format (525p/625p) signals, the
image may be affected when you set progressive format. In this case, return the
setting to interlace format (the default setting) (page 27).
• Re-connect the connecting cord securely.
• The control unit is connected to an input device that is not HDCP (Highbandwidth Digital Content Protection) compliant (“HDMI” on the front panel
display does not light up) (page 19).
• If the HDMI OUT jack is used for video output, changing the type of video
signal output from the HDMI OUT jack. It may solve the problem (page 27).
Connect the TV and the control unit using a video jack other than the HDMI
OUT, and switch the TV’s input to the connected video input so that you can
see the on-screen displays. Change the type of video signal output from the
HDMI OUT jack, and switch the TV’s input back to HDMI. If the picture still
does not appear, repeat the Steps and try other options.
• You have set [PROGRESSIVE (COMPONENT OUT)] in [VIDEO SETUP] to
[ON] (page 76) even though your TV cannot accept the progressive signal. In
this case, set to [OFF].
Symptom
Remedy
Picture noise appears.
• The disc is dirty or flawed.
• If the picture output from your system goes through your VCR to get to your
TV, the copy-protection signal applied to some DVD programs could affect
picture quality. If you still experience problems even when you connect your
control unit directly to your TV, try connecting your control unit to your TV’s
video input (page 19).
Even though you set the aspect • The aspect ratio on the disc is fixed.
ratio in [TV TYPE] of [VIDEO
SETUP], the picture does not fill
the TV screen.
Color irregularity occurs on the
TV screen.
Sound
Symptom
Remedy
There is no sound.
• The speaker cord is not connected securely.
• Press MUTING on the remote if “MUTING” is displayed in the front panel
display.
• The system is in pause mode or in Slow-motion Play mode. Press H to return
to normal play mode.
• Fast forward or fast reverse is performed. Press H to return to normal play
mode.
• Check the speaker settings (page 79).
• The component connected to the HDMI OUT jack does not conform to the
audio signal format, in this case set [AUDIO (HDMI)] in [HDMI SETUP] to
[ON] (page 77).
No sound is output from the
HDMI OUT jack.
• Set [AUDIO (HDMI)] in [HDMI SETUP] to [ON] (page 77).
• The HDMI OUT jack is connected to a DVI (Digital Visual Interface) device
(DVI (Digital Visual Interface) jacks do not accept audio signals).
• Try the following: 1 Turn the system off and on again. 2 Turn the connected
component off and on again. 3 Disconnect and then connect the HDMI cable
again.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
Severe hum or noise is heard.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at
least 3 meters away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with
alcohol.
• Clean the disc.
Additional Information
The front speakers in this system are magnetically shielded to prevent magnetic
leakage. However, some leakage may occur, as a high-strength magnet is
employed. If this happens, check the following items:
• If the speakers are used with a CRT-based TV or projector, install the speakers
at least 0.3 meters from the TV set.
• If the color irregularity persists, turn off the TV set once, then turn it on after 15
to 30 minutes.
• If howling occurs, reposition the speakers farther away from the TV set.
• Make sure that no magnetic object (magnetic latch on a TV stand, health care
device, toy, etc.) is placed near the speakers.
93GB
Symptom
Remedy
The sound loses stereo effect
when you play a VIDEO CD, a
CD, or an MP3 file.
• Set [AUDIO] to [STEREO] by pressing AUDIO (page 32).
• Make sure the control unit is connected properly.
The surround effect is difficult to • Make sure the “DEC. MODE” setting (page 50).
hear when you are playing a
• Check the speaker connections and settings (pages 16, 79).
sound track of Dolby Digital,
• Depending on the DVD, the output signal may not be the entire 5.1 channel. It
DTS, or MPEG audio.
may be monaural or stereo even if the sound track is recorded in Dolby Digital
or MPEG audio format.
The beginning of the sound is cut • Set the sound mode to other than “AUTO” (page 52).
off.
Operation
94GB
Symptom
Remedy
Radio stations cannot be tuned
in.
• Check that the antenna (aerial) is connected securely. Adjust the antenna
(aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic
tuning). Use direct tuning.
• No stations have been preset or the preset stations have been cleared (when
tuning by scanning preset stations). Preset the stations (page 54).
• Press DISPLAY so that the frequency appears in the front panel display.
The remote does not function.
• There are obstacles between the remote and the control unit.
• The distance between the remote and the control unit is too far.
• The remote is not pointed at the remote sensor on the control unit.
• The batteries in the remote are weak.
The disc does not play.
• There is no disc inserted.
• The disc is upside down.
Insert the disc with the labeled side facing to the front.
• The disc is skewed.
• The system cannot play CD-ROMs, etc. (page 5).
• The region code on the DVD does not match the system.
• Moisture has condensed inside the control unit and may cause damage to the
lenses. Remove the disc and leave the control unit turned on for about half an
hour.
The MP3 file cannot be played.
• The DATA CD is not recorded in the MP3 format that conforms to ISO 9660
Level 1/Level 2, or Joliet.
• The DATA DVD is not recorded in an MP3 format that conforms to UDF
(Universal Disk Format).
• The MP3 file does not have the extension “.MP3.”
• The data is not formatted in MP3 even though it has the extension “.MP3.”
• The data is not MPEG1 Audio Layer 3 data.
• The system cannot play audio tracks in MP3PRO format.
• The [MODE (MUSIC, IMAGE)] setting has been set to [IMAGE] (page 44).
• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc
or turn the system off, then on.
• The DATA CD/DATA DVD contains a DivX video file.
Remedy
The JPEG image file cannot be
played.
• The DATA CD is not recorded in a JPEG format that conforms to ISO 9660
Level 1/Level 2, or Joliet.
• The DATA DVD is not recorded in a JPEG format that conforms to UDF
(Universal Disk Format).
• It has an extension other than “.JPEG” or “.JPG.”
• It is larger than 3,072 (width) × 2,048 (height) in normal mode, or more than
2,000,000 pixels in Progressive JPEG image file which is mainly used on the
Internet WEB site.
• It does not fit the TV screen (those images are reduced).
• The [MODE (MUSIC, IMAGE)] setting has been set to [MUSIC] (page 44).
• If you cannot change the [MODE (MUSIC, IMAGE)] setting, re-load the disc
or turn the system off, then on.
• The DATA CD/DATA DVD contains a DivX video file.
The MP3 files and JPEG image
files starts playing
simultaneously.
• [AUTO] has been selected in [MODE (MUSIC, IMAGE)] (page 44).
The DivX video file cannot be
played.
• The file is not created in DivX format.
• The file has an extension other than “.AVI” or “.DIVX.”
• The DATA CD/DATA DVD is not created in a DivX format that conforms to
ISO 9660 Level 1/Level 2 or, Joliet/UDF.
• The DivX video file is larger than 720 (width) × 576 (height).
The titles of folder/file/file name • The system can only display numbers and letters of the alphabets. Other
are not displayed correctly.
characters are displayed as [*].
A disc does not start playing
from the beginning.
• Program Play, Shuffle Play, or Repeat Play has been selected.
Press CLEAR to cancel these functions before playing a disc.
• Resume Play has been selected.
During stop, press x and then start playback (page 34).
• The title, DVD or PBC menu automatically appears on the TV screen.
The system starts playing the
disc automatically.
• The DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal. While playing such a disc, the
system stops playback at the auto pause signal.
You cannot perform some
functions such as stop, search,
Slow-motion Play, or Repeat
Play.
• Depending on the disc, you may not be able to perform some of the operations
above. Refer to the operating instructions supplied with the disc.
Messages do not appear on the
TV screen in the language you
want.
• In the Setup Display, select the desired language for the on-screen display in
[OSD] under [LANGUAGE SETUP] (page 75).
Additional Information
Symptom
The language for the sound track • Multilingual tracks are not recorded on the DVD being played.
cannot be changed.
• The DVD prohibits changing the language for the sound track.
The subtitle language cannot be • Multilingual subtitles are not recorded on the DVD being played.
changed.
• The DVD prohibits changing the subtitles.
The subtitle cannot be turned off. • The DVD prohibits turning off subtitles.
The angles cannot be changed.
• Multi-angles are not recorded on the DVD being played (page 32).
• The DVD prohibits changing the angles.
A disc cannot be ejected and
• Contact your Sony dealer or local authorized Sony service facility.
“LOCKED” appears in the front
panel display.
95GB
Symptom
Remedy
[Data error] appears on the TV
screen when playing a DATA
CD or DATA DVD.
• The MP3 file/JPEG image file/DivX video file you want to play is broken.
• The data is not MPEG1 Audio Layer 3 data.
• The JPEG image file format does not conform to DCF.
• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG
format.
• The file you want to play has the extension “.AVI” or “.DIVX” but is not in
DivX format, or is in DivX format but does not conform to a DivX Certified
profiles.
The system does not work
normally.
• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then
reconnect after several minutes.
The Control for HDMI function • When “HDMI” does not light up in the front panel display, check the HDMI
does not work.
connection (page 19).
• Set the [CONTROL FOR HDMI] setting in [HDMI SETUP] to [ON] (page 77).
• Make sure that the connected component is compatible with the [CONTROL
FOR HDMI] function.
• Check that the AC power cord (mains lead) of the connected component is
connected securely.
• Check the connected component’s setting for the Control for HDMI function.
Refer to the operating instructions supplied with the component.
• If you change the HDMI connection, connect and disconnect the AC power
cord (mains lead), or have a power failure, set the [CONTROL FOR HDMI]
setting in [HDMI SETUP] to [OFF], then set the [CONTROL FOR HDMI]
setting in [HDMI SETUP] to [ON] (page 77).
• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 58).
No sound is output from the
• Set the [AUDIO (HDMI)] setting in [HDMI SETUP] to [ON] (page 77).
system and TV while using the • Make sure that the connected TV is compatible with the System Audio Control
System Audio Control function. function.
• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 58).
USB device
Symptom
Remedy
“OVERLOAD” appears in the
front panel display.
• A problem has been detected with the level of electrical current from the
(USB) port. Turn off the system and remove the USB device from the
(USB) port. Make sure there is no problem with the USB device. If this display
pattern persists, contact your nearest Sony dealer.
Are you using a supported USB • If you connect an unsupported USB device, the following problems may occur.
device?
See “Playable USB Devices” (supplement) for the supported device types.
– The USB device is not recognized.
– File or folder names are not displayed on this system.
– Playback is not possible.
– The sound skips.
– There is noise.
– A distorted sound is output.
– Transferring stops before it is finished.
There is no sound.
96GB
• The USB device is not connected correctly. Turn off the system, then reconnect
the USB device.
Symptom
Remedy
The sound is distorted.
• The bit rate used when encoding the audio files was low. Send audio files
encoded with higher bit rates to the USB device.
There is noise or the sound skips. • Turn off the system, then reconnect the USB device.
• Noise may have entered during the transfer process. Delete the file, and try
transferring again.
• Transfer the files to your computer, format the USB device in FAT12, FAT16,
or FAT32 format, and transfer the files to the USB device again.*
* This system supports FAT12, FAT16, and FAT32, but some USB device may
not support all of these FAT. For details, refer to the operating instructions of
each USB device or contact the manufacturer.
The USB device cannot be
connected into the
(USB)
port.
• The USB device is being connected backwards. Connect the USB device in the
correct orientation.
“Reading” is displayed for a long • The reading process can take a long time in the following cases.
time.
– There are many folders or files on the USB device.
– The file structure is extremely complex.
– The memory capacity is excessive.
– The internal memory is fragmented.
• Sony recommends following these guidelines.
– Total folders on the USB device: 200 or less.
– Total files per folder: 150 or less.
Erroneous display.
Additional Information
The USB device which has been • It may be recorded in an unsupported format. If so, first take the precaution of
used on another device does not backing up important files on the USB device by transferring them to your
work.
computer hard disk. Next, format the USB device with a FAT12, FAT16, or
FAT32 file system and transfer the backed-up audio files onto the USB device
again.*
* This system supports FAT12, FAT16, and FAT32, but some USB device may
not support all of these FAT. For details, refer to the operating instructions of
each USB device or contact the manufacturer.
• Send the music data to the USB device again, as the data transferred in the USB
device may have been corrupted.
• The character codes that can be displayed by this system are numbers and
alphabet only. Other characters are not displayed correctly.
“Data Error” appears in the front • The audio file/JPEG image file you want to play is broken.
panel display during playback of • The data is not MPEG1 Audio Layer 3 data.
a USB device.
• The JPEG image file format does not conform to DCF.
• The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG
format.
Playback does not start.
• Turn off the system, then reconnect the USB device.
• Connect the USB device that this system can play. See “Playable USB Devices”
(supplement).
• Press H to start play.
Playback does not start from the • Cancel Repeat Play (page 66).
first track.
97GB
Symptom
Remedy
The USB device (audio file/
JPEG image file) cannot be
played back.
• USB device formatted with file systems other than FAT12, FAT16, or FAT32
are unsupported.*
• Files that are encrypted or protected by passwords, etc. cannot be played back.
• The MP3 file does not have the extension “.MP3.”
• The WMA file does not have the extension “.wma.”
• The AAC file does not have the extension “.m4a.”
• The data is not transferred in the desired format.
• The MP3 files in format other than MPEG 1 Audio Layer 3 cannot be played
back.
• If you use partitioned USB device, only audio files on the first partition can be
played.
• The system can playback to a depth of 8 folders only.
• For audio files/JPEG image files, check the [MODE (MUSIC, IMAGE)] setting
(pages 62, 63).
• The number of folders has exceeded 200.
• The number of files has exceeded 150.
• For audio files/JPEG image files, the folder contains more than 150 files.
• The JPEG image file does not have the extension “.JPG” or “.JPEG.”
• The JPEG image file is larger than 3,072 (width) × 2,048 (height) in normal
mode, or more than 2,000,000 pixels in Progressive JPEG mode which is
mainly used on the Internet website.
• JPEG image files with a high width to length ratio cannot be played back.
• A WMA file that is the WMA DRM, WMA Lossless, or WMA PRO format
cannot be played back.
• An AAC file that is the AAC DRM or AAC Lossless format cannot be played
back.
* This system supports FAT12, FAT16, and FAT32, but some USB device may
not support all of these FAT. For details, refer to the operating instructions of
each USB device or contact the manufacturer.
Audio files or JPEG image files • After the system reads all files on the USB device, playback may take more
take longer to play back than
time than usual if:
others.
– the number of folders or files is very large.
– the folder or file organization structure is very complex.
– the memory capacity is very large.
– the file size is extremely large.
– the physical structure within the memory is fragmented.
• Sony recommends following these guidelines.
– Total folders on the USB device: 200 or less.
– Total files per folder: 150 or less.
You cannot start transferring to a • The following problems may have occurred.
USB device.
– The USB device is full.
– The number of MP3 files and folders on the USB device has reached the
upper limit.
– The USB device is write-protected.
Transferring is stopped before it • The communication speed of the USB device is extremely slow. Connect the
is finished.
USB device that this system can play.
• If the transfer and erase operations are repeated multiple times, the file structure
within the USB device becomes complex. Follow the procedure in the
operating instructions of the USB device to format the USB device. If the
problem persists, contact your nearest Sony dealer.
98GB
Symptom
Remedy
Transferring to a USB device
results in an error.
• You are using an unsupported USB device. See “Playable USB Devices”
(supplement).
• The USB device was disconnected or the power was turned off during transfer.
Delete the partially transferred file, and transfer again. If this does not fix the
problem, the USB device may be broken. Follow the procedure in the operating
instructions of the USB device to format the USB device. If the problem
persists, contact your nearest Sony dealer.
Audio files or folders on the
USB device cannot be erased.
• Check if the USB device is write-protected.
• The USB device was disconnected or the power was turned off during erasing.
Delete the partially-erased file. If this does not fix the problem, the USB device
may be broken. Follow the procedure in the operating instructions of the USB
device to format the USB device. If the problem persists, contact your nearest
Sony dealer.
Additional Information
99GB
Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self-diagnosis function is activated to
prevent the system from malfunctioning, a 5character service number (e.g., C 13 50) with a
combination of a letter and 4 digits appears on
the TV screen or front panel display. In this case,
check the following table.
C:13:50
100GB
First 3
characters of
the service
number
Cause and/or corrective action
C 13
• The disc is dirty.
,Clean the disc with a soft cloth
(page 91).
• The disc is a format that the
system cannot play.
C 31
The disc is not inserted correctly.
,Restart the system, then re-insert
the disc correctly.
E XX
(XX is a
number)
To prevent a malfunction, the
system has performed the selfdiagnosis function.
,Contact your nearest Sony
dealer or local authorized Sony
service facility and give the 5character service number.
Example: E 61 10
When displaying the version
number on the TV screen
When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the TV screen. Although this is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
VER.X.XX
Video Section
Specifications
Outputs
Amplifier Section
108 W + 108 W (at 3 ohms,
1 kHz, 1% THD)
RMS output power (reference)
FL/FR*: 135 W (per
channel at 3 ohms, 1 kHz,
10% THD)
Subwoofer*: 135 W (at 3
ohms, 80 Hz, 10% THD)
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
Power output (rated)
* Depending on the decoding mode settings and the
source, there may be no sound output.
HDMI OUT: Type A
(19 pin)
Speakers
Front speaker (SS-TSF200)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
DVD System
Power requirements:
Thai models:
Other models:
Signal format system
Semiconductor laser
(DVD: λ = 650 nm)
(CD: λ = 790 nm)
Emission duration:
continuous
PAL/NTSC
USB Section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 kbps - 320 kbps
WMA:
48 kbps - 192 kbps
AAC:
48 kbps - 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA:
44.1 kHz
AAC:
44.1 kHz
(USB) port:
Maximum current:
500 mA
Tuner Section
System
FM tuner section
Tuning range
PLL quartz-locked digital
synthesizer
Mass (approx.)
2-Way 2-Driver speaker
system Bass reflex,
Magnetically Shielded
Woofer: 65 mm cone type
Tweeter: 40 mm cone type
3 ohms
95 mm × 185 mm × 80 mm
(w/h/d)
95 mm × 215 mm × 105
mm (w/h/d) with stand
0.85 kg
0.9 kg with stand
Subwoofer (SA-WSF200)
Power consumption
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
220 V AC, 50/60 Hz
220 V – 240 V AC,
50/60 Hz
On: 105 W
Standby: 0.3 W (at the
Power Saving mode)
Subwoofer Bass reflex
160 mm cone type
3 ohms
205 mm × 460 mm × 475
mm (w/h/d)
13 kg
Additional Information
Inputs (Analog)
TV (AUDIO IN)
Sensitivity: 450/250 mV
Inputs (Digital)
SAT/CABLE (COAXIAL)
Impedance: 75 ohms
Output (Digital)
DIGITAL OUT (COAXIAL)
Impedance: 75 ohms
Laser
VIDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
Control unit (HCD-F200)
Output voltage (DIGITAL MEDIA PORT)
DC 5 V
Output current (DIGITAL MEDIA PORT)
700 mA
Dimensions (approx.)
434 mm × 185 mm × 78
mm (w/h/d)
434 mm × 214 mm × 124
mm (w/h/d) with stand
Mass (approx.)
3.6 kg
3.7 kg with stand
87.5 MHz - 108.0 MHz
(50 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
101GB
Design and specifications are subject to change
without notice.
• Standby power consumption 0.3 W.
• Halogenated flame retardants are not
used in the certain printed wiring
boards.
• Over 85% power efficiency of
amplifier block is achieved with the
full digital amplifier, S-master.
Glossary
Dolby Digital
This movie theater sound format is more
advanced than Dolby Surround Pro Logic. In
this format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
DTS
Digital audio compression technology
developed by DTS, Inc. This technology
conforms to 5.1-channel surround. This format
comprises of stereo rear channel and there is
discrete subwoofer channel in this format. DTS
provides the same 5.1 discrete channels of high
quality digital audio. The good channel
separation is realized due to the all channel data
being recorded discretely and processed in
digitally.
HDMI (High-Definition Multimedia
Interface)
HDMI is an interface that supports both video
and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Content Protection), a copy protection
technology that incorporates coding technology
for digital video signals.
Interlace format
(Interlaced scanning)
The Interlace format is the NTSC standard
method for displaying TV images at 30 frames
per second. Each frame is scanned twice alternately between the even numbered scanning
lines and then odd numbered scanning lines, at
60 times per second.
102GB
Parental Control
A function of the DVD to limit playback of the
disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback is completely prohibited, violent
scenes are skipped or replaced with other scenes
and so on.
Progressive format
(sequential scanning)
In contrast to the Interlace format, the
progressive format can reproduce 50 - 60 frames
per second by reproducing all scanning lines
(525 lines for the NTSC system). The overall
picture quality increases and still images, text
and horizontal lines appear sharper. This format
is compatible with the 525 or 625 progressive
format.
Additional Information
103GB
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian;
Lettish
1345 Malagasy
1436
1463
1481
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan)Oromo
Oriya
Punjabi
Polish
Pashto;
Pushto
Portuguese
Quechua
RhaetoRomance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
SerboCroatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
1703 Not specified
Parental Control Area Code List
104GB
Code Area
Code Area
Code Area
Code Area
2044
2047
2046
2057
2070
2079
2090
2092
2115
2165
2174
2109
2248
2238
2254
2276
2304
2363
2362
2376
2390
2379
2427
2424
2436
2489
2501
2149
2499
2086
2528
2184
Argentina
Australia
Austria
Belgium
Brazil
Canada
Chile
China
Denmark
Finland
France
Germany
India
Indonesia
Italy
Japan
Korea
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Thailand
United
Kingdom
Index to Parts and Control
For more information, refer to the pages indicated in parentheses.
Control unit
Top view
Front view
WIDE STAGE
FUNCTION
VOL
A Ventilation slots
G Remote sensor (9)
B "/1 (on/standby) button (26, 88)
H VOL +/– buttons (30)
C AUTO (Decoding mode) indicator (50)
I Z (eject) button (30)
D WIDE STAGE indicator (50)
J Front panel display (107)
E Play operation buttons/Illumination
(30, 83)
K Disc slot (30)
Additional Information
AUTO
Right side view
L Stand cover (23)
F FUNCTION button (29)
105GB
Connector panel
FM75
COAXIAL
ANTENNA
Y
L
DIGITAL IN
COAXIAL
PB/CB
SAT/CABLE
COMPONENT
VIDEO
VIDEO OUT
VIDEO OUT
R
TV
AUDIO IN
PR/CR
COAXIAL
DIGITAL OUT
Left side view
DIGITAL IN
OPTICAL
OUT
SAT/CABLE
TV
DIGITAL IN
OPTICAL
DMPORT
DC5V
0.7A Max
A ANTENNA (FM75Ω COAXIAL) jack (22)
B VIDEO OUT (COMPONENT) jacks (19)
G SAT/CABLE (DIGITAL IN OPTICAL)
jack (20)
C TV (AUDIO IN R/L) jacks (19)
H TV (DIGITAL IN OPTICAL) jack (19)
D VIDEO OUT (VIDEO) jack (19)
I DIGITAL OUT (COAXIAL) (DVD
function only) jack (20)
E SAT/CABLE (DIGITAL IN COAXIAL)
jack (20)
F HDMI OUT jack (19)
J DMPORT jack (20, 73)
K
(USB) port (61)
L Panel cover (16, 23)
106GB
Front panel display
SLEEP MUTING
DTS
TUNED TITLE CHAP
STEREO
MONO NTSC
CD
NIGHT
REPEAT 1
PROGRESSIVE
DIGITAL
K Lights up when the night mode is on.
(81)
B Lights up when the sound of the
system is muted. (31, 87)
L Lights up when the HDMI OUT jack is
correctly connected to HDCP
(Highbandwidth Digital Content
Protection) compliant device with
HDMI or DVI (Digital Visual Interface)
input. (19)
C Displays the USB status
D Lights up when a station is received.
(Radio only) (54)
E Lights up when the time information of
a title or chapter appears in the front
panel display.(DVD only)
F Stereo/Monaural effect (Radio only)
(54)
G Lights up when an NTSC disc is
loaded.
H Lights up when a CD or a DATA CD is
loaded. (5)
I Lights up when a disc is loaded.
J Current surround format (except for
JPEG image file)
M Current repeat mode (37, 66)
N Lights up when the system outputs
progressive signals (DVD/USB
function only). (27)
O Displays system’s status such as
chapter, title, or track number, time
information, radio frequency, playing
status, decoding mode, etc.
Additional Information
A Flashes when the sleep timer is set.
(81)
P Current surround format (except for
JPEG image file)
Q Playing status
107GB
Subwoofer
Rear view
Bottom view
FRONT R
FRONT L
SPEAKER IMPEDANCE USE 3
SYSTEM CONTROL
ONLY FOR HCD-F200
A Ventilation slots
B SPEAKER (FRONT R/FRONT L) jacks
(16)
108GB
C SYSTEM CONTROL jack (16)
Remote control
ALPHABETICAL ORDER
M–Z
ANALOG ws (87)
ANGLE 6 (32)
AUDIO ea (32, 53)
CLEAR es (36, 56, 74)
D.TUNING wd (55)
DIGITAL 3 (87)
DIMMER ws (82)
DISPLAY wa (56, 83)
DVD MENU 7 (38)
DVD TOP MENU e; (38)
ENTER* 5 (25, 26, 35, 54)
FUNCTION 2 (29, 30)
MENU/HOME wl (87)
MUTING wh (30)
NIGHT ed (81)
ONE-TOUCH PLAY eg (59)
PICTURE NAVI qh (42)
PRESET +/– 9 (55)
PROG +/– qa (87)
REPEAT 3 (37, 66)
SLEEP ef (81)
SOUND MODE +/– qa (52)
SUBTITLE wd (32)
SYSTEM MENU 8 (25, 80, 82)
THEATER/THEATRE ql (58)
TONE qj (52)
TOOLS/OPTIONS 8 (87)
TUNING +/– wk (54)
TV qd (86)
TV VOL +/– qs (87)
VOLUME +/– qs (30)
Number buttons 4 (34, 54, 86)
[/1 (on/standby) 1 (25, 26, 30)
TV [/1 (on/standby) w; (86)
C/X/x/c/
qg (25, 26, 35, 54)
REPLAY/ADVANCE
wf (30)
./> 9 (30)
m/M wk (30)
/
wk (30)
H (play) q; (30)
x (stop) wg (30)
X (pause) wj (30)
DISPLAY** wl (26, 35)
O RETURN qf (34)
Z (eject) qk (30)
-/-- 5 (87)
/
wa (87)
/ es (87)
e; (87)
t/
7 (87)
c/C qa (87)
Additional Information
A–L
BUTTON DESCRIPTIONS
* The ENTER button has the
same function as the
button. When you operate
the TV, the ENTER button
is used for selecting a
channel, and the
button
is used for selecting menu
items (page 87).
** This button is available for
the “DVD” or “DMPORT”
function. Depending on the
DIGITAL MEDIA PORT
adapter, this button may not
work.
109GB
Guide to the Control Menu Display
You can use the Control Menu display to select a function and to view related information.
DISPLAY
Press
DISPLAY repeatedly.
Each time you press
DISPLAY, the Control Menu display changes:
1 t 2 t ... t 1 t ...
1 Control Menu display 1
2 Control Menu display 2 (appears when available)
3 Control Menu display off
Note
• The Control Menu display appears during the “DVD” or “USB” function.
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type. For details,
see the pages in parentheses.
110GB
Example: Control Menu display 1 when playing a DVD VIDEO.
Currently playing title number
Currently playing chapter number
Total number of titles
Total number of chapters
Control Menu items
98( 99)
13( 99)
T
0: 04: 17
OFF
OFF
DISC
TITLE
CHAPTER
Selected item
DVD VIDEO
Playback status
(N Playback,
X Pause,
x Stop, etc.)
Type of disc being
played
Playing time
Current setting
Options
REPEAT
ENTER
Quit:
DISPLAY
Operation message
To turn off the display
Press
DISPLAY.
List of Control Menu items
Item
Item Name, Function, Relevant Disc Type
Additional Information
Function name of selected
Control Menu item
[TITLE] (page 39)/[SCENE] (page 39)/[TRACK] (page 39)
You can select the title, scene, or track to be played.
[CHAPTER] (page 39)/[INDEX] (page 39)
You can select the chapter or index to be played.
[TRACK] (page 39)
You can select the track to be played.
[ORIGINAL/PLAY LIST] (page 39)
You can select the type of titles (DVD-RW/DVD-R) to be played, the [ORIGINAL] one, or
an edited [PLAY LIST].
[TIME] (page 40)
You can check the elapsed time and the remaining playback time.
You can play from a desired point by inputting the time code (DVD VIDEO/DVD-VR only).
[PROGRAM] (page 35)
You can select the track to play in the order you want.
[SHUFFLE] (page 36)
You can play the track/file in random order.
[REPEAT] (page 37)
You can play the entire disc (all titles/all tracks/all folders/all files) repeatedly or one title/
chapter/track/folder/file repeatedly.
111GB
[DISC MENU] (page 38)
You can display the DVD’s menu.
[BROWSING] (page 43)
You can display the list of folders/JPEG image files.
[SETUP] (page 74)
[QUICK] (page 26)
You can make the basic adjustments. Use Quick Setup to select the desired language of the
on-screen display, the aspect ratio of the TV.
[CUSTOM]
In addition to the Quick Setup setting, you can adjust various other settings.
[FOLDER] (page 39)
You can select the folder to be played.
[FILE] (page 39)
You can select the JPEG image file or DivX video file to be played.
*
[DATE] (page 86)
You can display the date the picture was taken by a digital camera.
*
[INTERVAL] (page 44)
You can select the duration for which the slides are displayed on the TV screen.
*
[EFFECT] (page 45)
You can select the effects to be used for changing slides during a slide show.
*
[MODE (MUSIC, IMAGE)] (page 44)
You can select the data type; MP3 file, JPEG image file, or both to be played when playing a
DATA CD/DATA DVD.
* These items are not displayed when playing a DATA CD/DATA DVD with DivX video file.
112GB
List of Control Menu Items for USB device
Item
Item Name, Function
[REPEAT] (page 66)
You can play the entire USB device (all folders/all files) repeatedly or one folder/file
repeatedly.
[BROWSING] (page 65)
You can display the list of folders/JPEG image files.
[DATE] (page 69)
You can display the date the picture was taken by a digital camera.
[INTERVAL] (page 64)
You can select the duration for which the slides are displayed on the TV screen.
[EFFECT] (page 65)
You can select the effects to be used for changing slides during a slide show.
[MODE (MUSIC, IMAGE)] (pages 62, 63)
You can select the data type; MP3/AAC/WMA file or JPEG image file, when playing a USB
device.
[USB RECORDING] (pages 70, 71)
[SHUFFLE]
You can play the file in random order.
[TRACK]
You can select the track to be played.
[FOLDER]
You can select the folder to be played.
[FILE]
You can select the JPEG image file to be played.
Additional Information
You can transfer tracks on an audio CD or MP3 files on a CD/DATA CD/DATA DVD to a
USB device.
[TIME]
You can check the elapsed time.
Tip
• The Control Menu icon indicator lights up in yellow
when you select any item except [OFF]
t
([PROGRAM], [SHUFFLE], and [REPEAT] only). The [ORIGINAL/PLAY LIST] indicator lights up in yellow
when you select [PLAY LIST] (default setting).
113GB
Index
Numerics
4:3 OUTPUT 76
5.1 Channel Surround 33
A
A/V SYNC 80
AAC file 61
ANGLE 32
ATTENUATE 80
AUDIO 75
AUDIO (HDMI) 77
AUDIO DRC 78
AUDIO SETUP 78
B
BACKGROUND 79
BASS 52
C
COLOR SYSTEM (VIDEO
CD) 76
CONTROL FOR HDMI 77
Control for HDMI 58
Control Menu Display 110
Control unit 105
CUSTOM 74, 89
D
DATA CD 45
DATA DVD 45
DEC. MODE 50
DEMO 25
DIGITAL MEDIA PORT 73
DIMMER 82
DISPLAY 56
DivX® 45, 79
Dolby Digital 32, 102
DTS 32, 102
DUAL MONO 53
DVD’s menu 38
E
EFFECT 45, 65
F
FM MODE 55
Front panel display 83, 107
H
HDMI
YCBCR/RGB (HDMI) 77
114GB
HDMI (High-Definition
Multimedia Interface) 102
HDMI RESOLUTION 77
HDMI SETUP 77
Q
I
RDS 57
Region Code 7
Remote 9
Repeat Play 37
RESET 79, 89
Resume Play 34
ILLUMINATION MODE 83
INFORMATION MODE 82
Instant Advance 31
Instant Replay 31
Interlace format 102
INTERVAL 44, 64
J
JPEG image file 41, 61
JPEG RESOLUTION 78
L
Language Code List 104
LANGUAGE SETUP 75
M
MENU 75
MODE (MUSIC, IMAGE) 44,
62, 64
MP3 file 41, 61
Multi Session CD 7
MULTI-DISC RESUME 79
Multiplex broadcast sound 53
N
Naming preset stations 56
NIGHT 81
Quick Setup 26
R
S
SCREEN SAVER 78
SETUP 74, 89
Shuffle Play 36, 66
SLEEP 81
Slide Show 44
Sound Mode 52
SPEAKER SETUP 79
LEVEL 79
SUBTITLE 32, 75
Subwoofer 108
SYSTEM MENU 25, 50, 55,
80, 82
SYSTEM SETUP 78
T
TIME 40
TRACK SELECTION 78
TREBLE 52
TV TYPE 75
U
O
USB device 61
ORIGINAL 39
OSD 75
V
P
PARENTAL CONTROL 47,
79, 103
PAUSE MODE 76
PBC Playback 34
PICTURE NAVI 42, 64
PLAY LIST 39
Playable discs 5
Program Play 35
PROGRESSIVE
(COMPONENT OUT) 76
Progressive format 27, 103
VIDEO SETUP 75
VOLUME LIMIT 77
W
WIDE STAGE 50
WMA file 61
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
